Developing Music Harmony Awareness in Young Students

through an Augmented Reality Approach

Federico Avanzini

1 a

, Adriano Barat

1 b

, Mauro Cottini

, Luca Andrea Ludovico

1 c

and Marcella Mandanici

2 d

Laboratorio di Informatica Musicale, Dipartimento di Informatica “Giovanni Degli Antoni”,

Universit

a degli Studi di Milano, Via G. Celoria 18, Milano, Italy

Dipartimento di Didattica della Musica, Conservatorio di Musica “Luca Marenzio”,

Piazza A. Benedetti Michelangeli 1, Brescia, Italy

Keywords:

Tonal Harmony, Augmented Reality, Physical Interaction, Mobile Devices.

Abstract:

This paper presents AREmbody, an augmented-reality mobile application for the development of tonal har-

mony awareness. Continuing from previous prototypes based on full body and desktop interaction, AREmbody

beneﬁts from a very simple portable setup which allows physical interaction and supports the activity of one

or more users. The application combines in a single mobile device a video processor, a media player and a

movement tracker, opening the way to the design of harmonic games with challenges and recordable scores.

Thus the application not only fosters music education activities in the classroom, but also extends them outside

the school times and places, promoting educational practices in informal and private contexts.

1 INTRODUCTION

Augmented reality (AR) and virtual reality (VR) are

attracting growing interest in the world of application

designers, technological entrepreneurship and culture

innovators (Becker et al., 2017).

The possibility offered by AR to create respon-

sive environments where information may be super-

imposed to real objects is extremely appealing in

many ﬁelds such as engineering analysis (Li et al.,

2017), maintenance (Azuma, 1997), medical diag-

nosis (Douglas et al., 2017) and many others. On

the other hand, VR offers further opportunities be-

cause it allows the creation of artiﬁcial responsive en-

vironments in which users are completely immersed

and where they can manipulate virtual objects and

obtain feedback in real time (Brooks, 1999). This

has given life to dozens of applications in the ﬁelds

of vehicle simulation (Kljuno and Williams, 2008),

training (Gonz

alez et al., 2017) and healthcare (Mo-

line, 1997). Even if affected by several limitations

and poor dissemination due to technical difﬁculties

https://orcid.org/0000-0002-1257-5878

https://orcid.org/0000-0001-8435-8373

https://orcid.org/0000-0002-8251-2231

https://orcid.org/0000-0003-1863-4178

or high costs, AR and VR applications are gaining

ground in the ﬁelds of architecture, engineering and

construction (Chi et al., 2013) as well as trough game-

based approaches (Dinis et al., 2017).

Fred Brooks, one of the fathers of computer sci-

ence, considered virtual reality as a medium primarily

devoted to augment human intelligence and therefore

particularly suitable for learning (Brooks Jr, 1996).

This is the reason why virtual and augmented real-

ity attracts the attention of educators and pedagogues,

who try to develop efﬁcient instructional approaches

in order to take full advantage of the great potential

offered by these technologies. Indeed, when shift-

ing from practical and entertainment uses to educa-

tion, a considerable amount of human factors issues

emerge such as teachers’ practices and training, dif-

ferent learning styles of the students, and the tech-

nological and didactic effectiveness of the applica-

tions (Keenaghan and Horv

ath, 2014).

Probably, the alignment of instructional design,

systems’ affordances, and didactic goals is the best

way to exploit the learning potentials of AR and VR

environments. Particularly, some interesting features

emerge from AR and VR review analysis. One is

the possibility offered by AR and VR of visualizing

and interacting with abstract objects, such as the dis-

position of the planets (Lindgren et al., 2016) or the

Avanzini, F., Baratè, A., Cottini, M., Ludovico, L. and Mandanici, M.

Developing Music Harmony Awareness in Young Students through an Augmented Reality Approach.

DOI: 10.5220/0010144700560063

In Proceedings of the 4th International Conference on Computer-Human Interaction Research and Applications (CHIRA 2020), pages 56-63

ISBN: 978-989-758-480-0

combinations of chemical elements (Cai et al., 2014),

which are not visible in real life. The opportunity

of disclosing hidden concepts and processes makes

them available for students’ understanding and deeper

knowledge (Wu et al., 2013). A second characteristic

is spatial learning and function recognition, which im-

plicitly derive from the process of visualization and

are deeply involved when dealing with geometrical

shapes (Kirner et al., 2012) or mechanical machin-

ery (Poh et al., 2005). A third element is physical

or full-body interaction, which is considered a strong

means to create involvement and to foster learning

processes (Price and Rogers, 2004).

The rest of the paper is organized as follows: in

Section 2 we will present related work dealing with

two aspects, namely the use of AR in music education

and computer-based approaches to learn tonal har-

mony, which is the focus of our proposal; in Section 3

we will report the results achieved by previous exper-

imentation that we conducted in the ﬁeld; in Section

4 we will provide details about the AR-based app for

iOS that we designed and developed with the aim to

foster music harmony awareness in young students;

ﬁnally, in Section 5 we will draw conclusions.

2 RELATED WORK

While the use of VR in music education has been

investigated in various projects, we will focus on

AR, that nowadays is a relevant ﬁeld of interest and

is more related to our work. The aim of many

AR applications is supporting people in learning

how to play musical instruments. Performing in-

structions for piano players – such as the keys to

be pressed, ﬁngering suggestions or the display of

chords to be added to melodies – are projected on

the keyboard through the use of a computer moni-

tor (Barakonyi and Schmalstieg, 2005; Goodwin and

Green, 2013), head-mounted displays (Chow et al.,

2013; Fernandez et al., 2016; Hackl and Anthes,

2017), or ceiling-mounted projector (Rogers et al.,

2014). There are also noticeable examples of appli-

cations for the study of other instruments, such as the

acoustic guitar (L

ochtefeld et al., 2011) or the Chi-

nese guqin

(Zhang et al., 2015).

Likewise, music perception and music notation

skills may beneﬁt of AR applications. In (Lemos

et al., 2017), a melody composed of painted notes is

ﬁlled by the children on paper and then recognized

in real time by a mobile’s camera; once the image

is acquired and processed, the notes may be played

The Chinese guqin belongs to the family of plucked

string instruments called citharas or table psalteries.

and checked by the system. A similar application,

called Augmented Songbook, is based on pre-printed

music sheets (Rusi

nol et al., 2018). These gameful

approaches are very engaging for children and, con-

sequently, represent useful tools for music education.

The simplicity and ubiquity of mobile devices make

them suitable for use in the classroom as well as in

other private contexts, thus fostering the diffusion of

educational practices.

On the side of computer applications for the study

of tonal harmony, a very traditional approach – that

does not involve VR or AR approaches – may be

found in the MacGAMUT Music Software, where ex-

ercises of tonal harmony dictation are organized in

unities of growing difﬁculty

. The technical infor-

mation is provided by the popular book of Koska

and Payne about tonal harmony (Kostka and Payne,

2013) for which MacGAMUT acts as a computer-

based complementary worksheet.

A less academic and more playful approach can be

found in the Theta Music Trainer platform, where the

user can also ﬁnd music games for tonic chord recog-

nition

and for the identiﬁcation of common chord

patterns

. The commercial software Mapping Tonal

Harmony

offers an interactive tool for visualizing a

map of the tonal functions created from music anal-

ysis, while the Chordify platform

performs a song

harmonization outlining chord names, chord changes,

and instrumental positions and ﬁngering for their per-

formance. However, it must be highlighted that these

useful tools are based on a high degree of the user’s

abilities, such as reading music notation, playing a

harmonic instrument, or understanding chord notation

and music structure.

3 BACKGROUND RESEARCH

The current proposal is rooted in previous research

concerning the exploration of tonal music harmony

and the development of harmonic awareness for chil-

dren, students or non professional musicians.

The difﬁculty of explaining the complex theory

behind tonal harmony and the need to avoid music

notation led us to the use of spatial representations

of the music structure. These offer the possibility of

https://www.macgamut.com/

https://trainer.thetamusic.com/en/content/

html5-tonic-ﬁnder

https://trainer.thetamusic.com/en/content/

html5-speaker-chords

https://mdecks.com/

https://chordify.net/

Developing Music Harmony Awareness in Young Students through an Augmented Reality Approach

exploring the sound of the various chords and cou-

pling them with precise locations in space. Thus,

the timed harmonic changes occurring during a music

piece produce precise movement patterns which can

be easily learned and reproduced by the users. Once

learned through embodied activities, movements can

be employed in a computer environment for perfor-

mance (Mandanici et al., 2019).

Technology has played a fundamental role in sup-

porting these goals, by providing automatic tools for

the detection of movements in the space (e.g., user’s

actions captured by a webcam), the performance of

suitable music objects (e.g., chords triggered by spe-

ciﬁc events), and the collection of results (e.g., tem-

porized sequences of chords saved in a database).

Concerning background research, it is worth men-

tioning two fundamental stages, which implied the

design and release of computer-based solutions al-

ready tested in educational environments: Harmonic

Walk and Harmonic Touch. These applications will

be now described in detail.

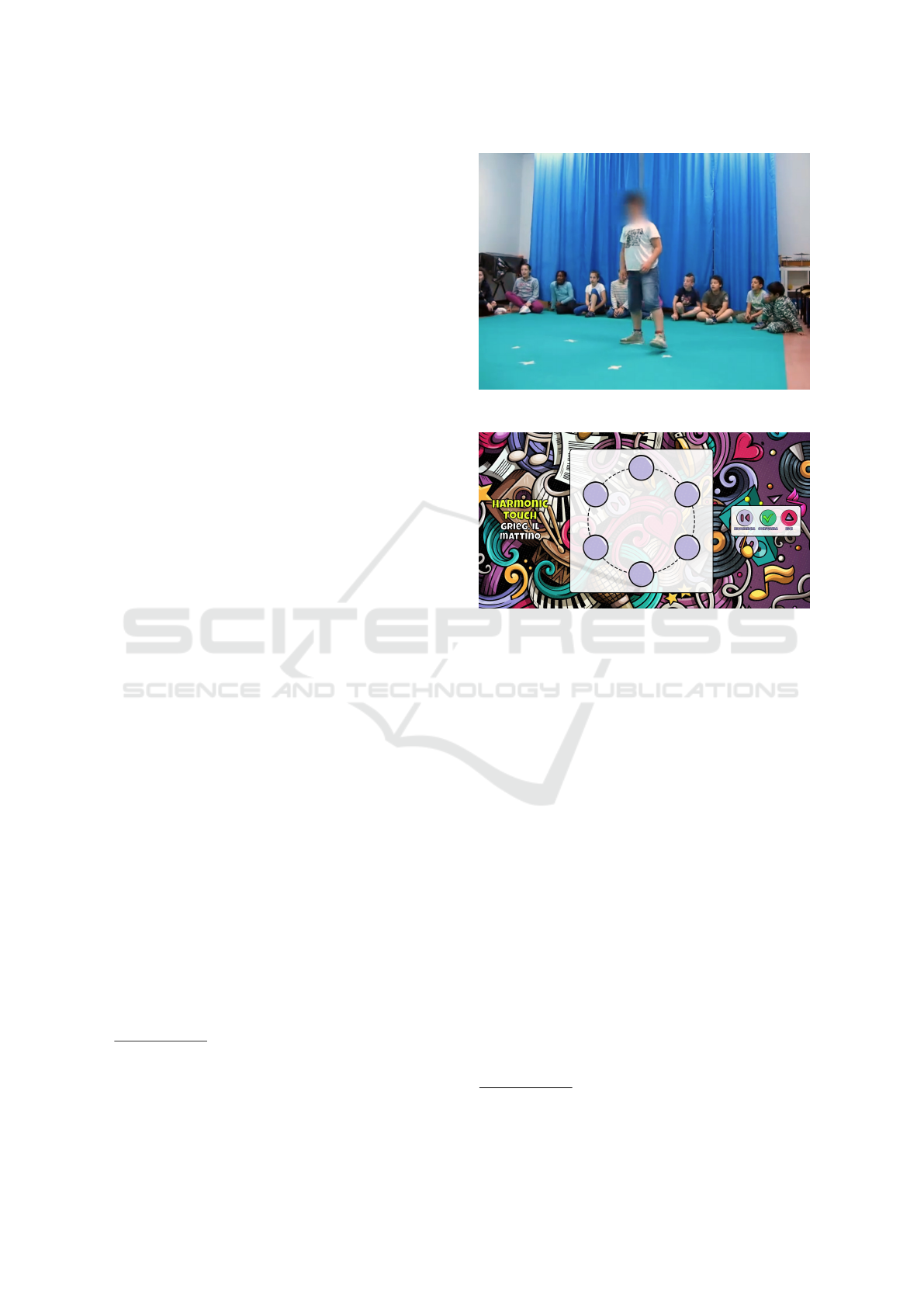

3.1 Harmonic Walk

A ﬁrst attempt to apply embodiment to music har-

mony awareness led to the design of a HW/SW sys-

tem called Harmonic Walk, whose goal was to asso-

ciate chord sequences to the movements of a user in a

large-scale bi-dimensional environment thanks to spa-

tial exploration and learning (Mandanici et al., 2016).

The user’s interface consisted of a rectangular car-

pet positioned on the ﬂoor and reproducing a simpli-

ﬁed version of a major tonality harmonic space. The

visual reference for the location of the various chords

was provided via speciﬁc cue points. The interaction

happened when the user stepped on one of the inter-

active landmarks linked to the chord sounds.

The architecture of the system was roughly com-

posed of two software modules, aimed at video anal-

ysis and sound synthesis respectively. A video cam-

era mounted on the ceiling and oriented perpendicu-

lar to the ﬂoor captured the user’s movements inside

a rectangular area, whose dimensions depended from

both from the camera-to-ﬂoor distance and the lens’

ﬁeld of view. As the system was designed for class-

room activities, the goal was to monitor a limited area,

about 3m×4m. The video module analyzed the im-

ages provided by the camera in order to detect the

user’s position. Coordinates were sent via OSC

Open Sound Control (OSC) is a protocol for network-

ing sound and multimedia devices for purposes such as mu-

sical performance or show control. It was originally in-

tended for sharing music performance data, such as ges-

tures, parameters and note sequences, between digital mu-

Figure 1: Session of Harmonic Walk.

Figure 2: The interface of Harmonic Touch, exercise #1.

the sound synthesis module, implemented in the Max

environment

Depending on the user’s position, the sound mod-

ule produced the sound of given chords. In this way, a

free exploration of space let the player acquire aware-

ness of music chords and learn the paths connected to

the most common harmonic progressions.

3.2 Harmonic Touch

Harmonic Touch is a Web platform for the investiga-

tion and practice of tonal harmony. It has been con-

ceived as a step-by-step path that leads users towards

the discovery of important features of tonal harmony

by leveraging on chord perception, gestural interac-

tion and gamiﬁcation techniques. Three groups of ex-

periences are proposed to the user, focusing on: 1)

the recognition of the implicit harmony, 2) the timed

recognition of harmonic changes, and 3) melody har-

monization. Each scenario has been discussed in de-

tail in (Avanzini et al., 2019a).

Harmonic Touch recalls and extends the con-

cepts of tonal-harmony space exploration introduced

sical instruments.

https://cycling74.com/

CHIRA 2020 - 4th International Conference on Computer-Human Interaction Research and Applications

by Harmonic Walk by reviving them in a Web en-

vironment. Now, physical movements over a bi-

dimensional surface can be performed on a PC screen,

with no need to employ the HW/SW setup described

in Section 3.1. The environment embeds both the

on-screen movement tracker and the sound synthesis

modules; moreover, the harmonic awareness achieved

by students can be automatically assessed through

a computer-based analysis of the data collected by

the Web platform, as discussed in (Avanzini et al.,

2019b).

In this context, we are mainly interested in the ex-

ercises dealing with the timed recognition of chord

changes, which should constitute the ﬁnal goal of

the step-by-step process. Moreover, the AR appli-

cation proposed in the following focuses on this sce-

nario. Melody harmonization requires to select the

right chords at the exact timing in order to accompany

a music tune. The original piece, with the expected

chord sequence, can be listened before the user starts

playing. The activity consists in the recognition of the

best-ﬁtting chord among the proposed ones, whose

selection should occur at a time as close as possible to

the actual harmonic change. For this exercise, chords

are represented along a circle, like in Harmonic Walk.

At present, the Web interface is undergoing a re-

implementation mainly aiming to: 1) add a back-

ofﬁce section to manage music pieces, 2) obtain a bet-

ter tracking of user’s results, and 3) review the graph-

ical user interface, so as to introduce responsive de-

sign and improve young users’ engagement. The ﬁrst

and the second group of exercises are already avail-

able at http://harmonictouch.lim.di.unimi.it/, ready to

be tested in primary schools after COVID-19 closure.

The new interface is shown in Figure 2.

4 AREmbody: AN AR-ENHANCED

APPROACH

The aim of the whole research project is to foster the

development of music harmony awareness through

embodiment. Recently, the idea of implementing a

third application has emerged, on one side to sim-

plify the setup required by Harmonic Walk, thus mak-

ing the solution available for personal use, and, on

the other, to improve the user’s experience of Har-

monic Touch by reintroducing movements in a physi-

cal space. To this goal, we have designed and imple-

mented an AR-based application, currently available

for iOS devices, called AREmbody. In this section, we

will discuss technical aspects (Section 4.1), the game

play (Section 4.2), and the advantages with respect to

already developed solutions (Section 4.3).

4.1 Technical Remarks

AREmbody is a free app for iOS devices, mainly in-

tended for iPhone and iPad. Due to the limitations im-

posed by Apple on the use of AR, it can be installed

on models starting from iPhone 6s and running iOS

13 or a more recent version of the operating system.

Currently, AREmbody is not available on the Apple

App Store, but we are planning to release it in a pub-

lic repository.

The app has been implemented in Swift, a pro-

gramming language for macOS, iOS, watchOS, tvOS

and other Apple platforms,

. The user interface has

been realized in SwiftUI

The most technologically advanced part of the ap-

plication adopts AR to let the user interact with the

scene. In order to achieve this result, two frameworks

by Apple, namely ARKit and SceneKit, have been

used.

ARKit

aims to create a correspondence between

virtual spaces and real spaces, thanks to the technique

of visual-inertial odometry. This process combines

the information coming from the sensors of the de-

vice (such as the accelerometer and gyroscope) with

the analysis of the scene shot by the camera. In

detail, the framework is able to recognize the most

important characteristics of the scene, keep track of

the differences in the positions of these cue points

across frames provided by the camera, and compare

this information with that coming from motion sen-

sors. This combination allows the device to accu-

rately model its position in space and its orientation.

ARKit therefore connects the real word with the vir-

tual one, i.e. the virtual space set by the developer to

contain AR objects.

SceneKit

is a 3D graphics framework that lets

the programmer create 3D scenes within an applica-

tion. It combines a high-performance rendering en-

gine with descriptive APIs that allow the import, ma-

nipulation and rendering of 3D assets. In order to

structure the content of the scene, SceneKit imple-

ments a so-called scene graph, consisting of:

• the root node of the graph, which deﬁnes a coor-

dinate space for the whole scene;

• other nodes that populate the scene, with visible

content such as 3D assets.

The spatial and logical structure of a SceneKit

scene is determined by the hierarchy of nodes that it

contains.

https://developer.apple.com/swift/

https://developer.apple.com/xcode/swiftui/

https://developer.apple.com/documentation/arkit/

https://developer.apple.com/documentation/scenekit/

Developing Music Harmony Awareness in Young Students through an Augmented Reality Approach

SDp

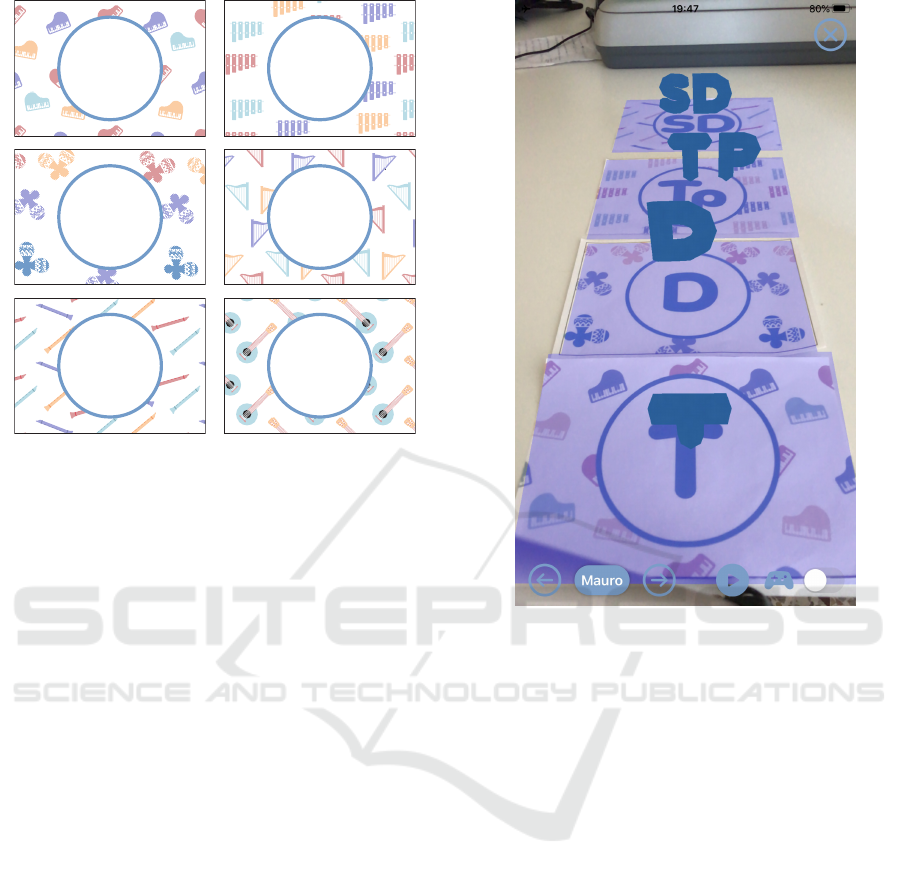

Figure 3: The six markers.

AREmbody integrates ARKit and SceneKit tech-

nologies in order to analyze the scene, recognize the

presence of custom graphical signs called markers,

and add the corresponding AR objects.

Since the goal is to foster harmony awareness,

both markers and AR objects are related to tonal func-

tions, and, more speciﬁcally, chord symbols. Follow-

ing Riemann’s harmonic theory (Riemann, 1896), the

tonal space can be divided into:

• Primary chords, called tonic (T), subdominant

(SD), and dominant (D), built on the I, IV, and

V grade of the major scale respectively;

• Parallel chords, called parallel tonic (Tp), parallel

subdominant (SDp), and parallel dominant (Dp),

built on the VI, II, and III grade of the major scale

respectively.

For further details about the music theoretical back-

ground, please refer to (Mandanici et al., 2019).

In order to improve their recognition by ARKit, the

images representing chords should be as different as

possible, like photos portraying completely inhomo-

geneous subjects; but, in this case, the goal was also

to keep a graphical coherence among markers. As

the result of a compromise, images are characterized

by distinguishing chord letters and randomly disposed

background symbols, as shown in Figure 3.

4.2 User’s Interface and Game Play

AREmbody is an app that presents a number of views,

including game instructions, contact, and a setup win-

Figure 4: Recognition of markers and superimposition of

chord symbols in AR.

dow. The most relevant view, representing the user’s

interface during the game play, is shown in Figure 4.

One of the noticeable aspects of AREmbody is the

possibility to manage on a single device a number of

different users, also organized by school and class. In

this way, a game session addressing a group of par-

ticipants reduces the dead time for setting up the app

and switch players. Moreover, a single app instance

can trace, analyze and compare different users’ re-

sults across a game session, an activity spanning over

different sessions, and even an experimentation con-

ducted in different classes and schools. In the lower

part of Figure 4, it is possible to notice the name of the

current player (in this case, “Mauro”) and the controls

to switch to the previous/next player.

The other key aspect is the choice of the piece to

harmonize, which happens before the game session

starts. During the game play, the controls in the lower

part of the interface allow to start and stop the play-

back. Moreover, a switch lets the player enter a sand-

box, so as to listen to the reference piece: in this sce-

nario, the original song is played with its correct har-

monization, and user’s actions are not tracked.

During the playback, the song is reduced to its

CHIRA 2020 - 4th International Conference on Computer-Human Interaction Research and Applications

leading voice, whereas accompanying chords are de-

manded to user’s actions. Speciﬁcally, the gesture

that triggers the production of a given chord is the oc-

clusion of the corresponding marker. As far as the

marker is covered in the scene framed by the camera,

the chord is considered active, and it is turned off as

soon as the marker becomes visible again.

Different means can be used to enable/disable

chord recognition, also depending on markers’ size

and layout: the whole body, a body part (e.g., hands

or feet), a covering object (such as a paper sheet, a

book, or a paddle), an interaction with markers (such

as ﬂipping the sheet). The system promptly reacts to

these events and records the timing with reference to

the song’s position.

The AR component superimposes chord symbols

over the corresponding markers, mainly with two

goals: 1) making them more easily retrievable dur-

ing the game play, and 2) conﬁrming that the track-

ing system of the device is correctly managing their

recognition. Concerning the latter aspect, AR sym-

bols appear when markers are present in the scene,

and disappear when they are no more recognized, due

to framing (the marker is actually away) or to tempo-

rary occlusion (the player is hiding it). Further pos-

sible uses, not implemented in the current version of

AREmbody, will be proposed in the next section.

At the end of each session, results are stored in the

device. The app presents a function to export them in

JSON,

so as to feed a database or an external analy-

sis module. The non-trivial research problem of how

to assess this kind of raw data has been investigated

in (Avanzini et al., 2020).

4.3 Main Advantages

AREmbody is basically a portable and personal ver-

sion of Harmonic Walk, focusing on the third group

of exercises of Harmonic Touch and equipped with

advanced features.

The ﬁrst goal was to simplify the setup require-

ments of Harmonic Walk, but preserving the body

interaction within a physical space. Nowadays, a

solution is offered by mobile devices, which typi-

cally embed video cameras and currently have com-

putational power sufﬁcient to process images, track

markers and produce sound. With respect to the

HW/SW equipment required by Harmonic Walk, a

mobile phone can be seen as an all-in-one device, act-

ing as a video processor, a media player, a movement

tracker, a multiple-user performance recorder, and a

JSON, standing for JavaScript Object Notation, is a

lightweight data-interchange format based on structured

plain text.

local database with export functions. The app can

run on a tripod-held as well as a hand-held device,

as shown in Figures 5 and 6.

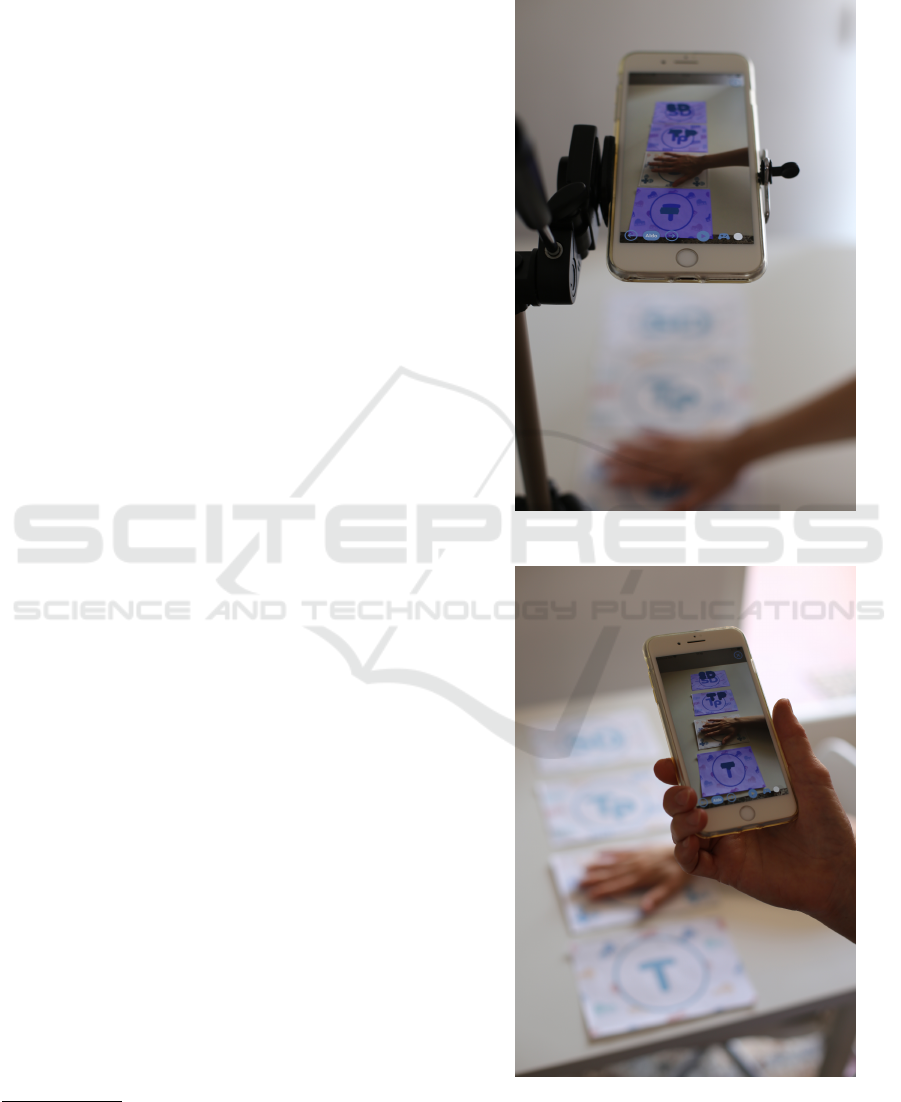

Figure 5: The app running on a tripod-held device.

Figure 6: The app running on a hand-held device.

Developing Music Harmony Awareness in Young Students through an Augmented Reality Approach

AREmbody supports not only a personal, but also

a personalized user’s experience. Many aspects of

the educational activity previously constrained by

the setup can now be customized, ranging from the

appearance of printable markers (graphical content,

size, material, etc.) to their layout in the physical

space (number of markers, position, expected body

interaction, etc.). These features introduce ﬂexibil-

ity in the educational experience, which can take into

account visual, physical and cognitive impairments.

Concerning the ﬁrst aspect, it is possible to emphasize

graphical differences between chord signs by stress-

ing color contrast, increasing markers’ sizes, using

bigger or more readable fonts, etc. Moreover, vi-

sual markers can be associated with tangible cues for

BVI

people. With respect to physical impairments,

users are not required to walk on a carpet (which is

still a possibility), but, for instance, they can also oc-

clude markers on a table by hand or move the camera

away: these gestures would equally preserve the rela-

tionship between space and harmony. Finally, when

considering cognitive impairments, the exercise can

be suitably simpliﬁed, for example by reducing the

number of choices or adopting other spatial layouts

(e.g., a linear instead of a circular one). Even if the

AREmbody game play can be user-tailored, the men-

tioned choices should be supervised by an expert, so

that the pedagogical efﬁcacy is preserved.

With respect to its potential, the AR component

of the game play is probably underused. In the cur-

rent version of ARembody, the main purpose of AR

is to enrich the user’s experience, basically to high-

light the recognition of markers, to reinforce their po-

sition, and to make the game play more appealing. In

a future version, AR could better support a number of

user-deﬁned features. First, colors, font types, text di-

mensions, etc. could fall under the user’s control, so

as to improve the user’s experience, also with the side

effect of helping impaired players. Besides, graphi-

cal aspects could adapt to speciﬁc environmental sce-

narios, such as poor lighting conditions or crowded

scenes. Finally, the AR content itself could become

more informative, providing alternative text or guid-

ance in form of animations. For example, a visual hint

could indicate the proximity of a chord change and/or

suggest the right choice.

5 CONCLUSIONS

In this paper we have presented AREmbody, an iOS

app aiming to foster tonal harmony awareness in

BVI stands for Blind or Visually Impaired.

young students through embodiment. The capability

to analyze the scene captured by the camera and to

add AR objects to its visualization in the display pro-

vides a gamiﬁed approach to interact with the real en-

vironment, which is expected to produce better learn-

ing results. The app also provides a number of fea-

tures to improve performance assessment, ranging

from the support to articulated game play sessions

(multi-player, multi-class, etc.) to the possibility to

collect, export, and ﬁnally analyze results.

Concerning future work, we are mainly exploring

three directions. First, we want to address a wider

audience of users: since the iOS app requires rela-

tively recent and expensive devices, we are studying

the feasibility of an Android version, that should run

also on low-budget smartphones. A second goal is

to extend the functionalities in order to cover all the

exercise types available in Harmonic Touch, that re-

sponded to a well-deﬁned pedagogical path: recog-

nition of the implicit harmony, timed recognition of

harmonic changes, and melody harmonization; con-

versely, the current release of AREmbody focuses on

the ﬁnal step only. Finally, in September 2020 we

expect that school activities can restart after the lock-

down due to COVID-19 emergency. This would allow

to test the educational achievements of AREmbody in

a real-world scenario.

REFERENCES

Avanzini, F., Barat

e, A., Ludovico, L. A., and Mandanici,

M. (2020). A web platform to foster and assess tonal

harmony awareness. In Lane, H., Zvacek, S., and

Uhomoibhi, J., editors, Computer Supported Educa-

tion – 11th International Conference, CSEDU 2019,

Heraklion, Crete, Greece, May 2-4, 2019, Revised

Selected Papers, volume 1220 of Communications in

Computer and Information Science. Springer Interna-

tional Publishing.

Avanzini, F., Barat

e, A., Ludovico, L. A., and Mandanici,

M. (2019a). A computer-based approach to teach

tonal harmony to young students. In Lane, H., Uho-

moibhi, J., and Zvacek, S., editors, Proceedings of

the 11th International Conference on Computer Sup-

ported Education (CSEDU 2019), volume 1, pages

271–279. SCITEPRESS - Science and Technology

Publications, Lda.

Avanzini, F., Barat

e, A., Ludovico, L. A., and Mandanici,

M. (2019b). Metrics for the automatic assessment

of music harmony awareness in children. In Barban-

cho, A. M., Barbancho, I., Peinado, A., and Tard

on,

L. J., editors, Proceedings of the 16th Sound & Music

Computing Conference (SMC 2019), pages 372–379.

SMC.

Azuma, R. T. (1997). A survey of augmented real-

ity. Presence: Teleoperators & Virtual Environments,

6(4):355–385.

CHIRA 2020 - 4th International Conference on Computer-Human Interaction Research and Applications

Barakonyi, I. and Schmalstieg, D. (2005). Augmented re-

ality agents in the development pipeline of computer

entertainment. In International Conference on Enter-

tainment Computing, pages 345–356. Springer.

Becker, S. A., Cummins, M., Davis, A., Freeman, A., Hall,

C. G., and Ananthanarayanan, V. (2017). NMC hori-

zon report: 2017 higher education edition. Technical

report, The New Media Consortium.

Brooks, F. P. (1999). What’s real about virtual reality? IEEE

Computer graphics and applications, 19(6):16–27.

Brooks Jr, F. P. (1996). The computer scientist as toolsmith

II. Communications of the ACM, 39(3):61–68.

Cai, S., Wang, X., and Chiang, F.-K. (2014). A case study

of augmented reality simulation system application in

a chemistry course. Computers in Human Behavior,

37:31–40.

Chi, H.-L., Kang, S.-C., and Wang, X. (2013). Research

trends and opportunities of augmented reality appli-

cations in architecture, engineering, and construction.

Automation in construction, 33:116–122.

Chow, J., Feng, H., Amor, R., and W

unsche, B. C. (2013).

Music education using augmented reality with a head

mounted display. In Proceedings of the Fourteenth

Australasian User Interface Conference-Volume 139,

pages 73–79.

Dinis, F. M., Guimar

aes, A. S., Carvalho, B. R., and Mar-

tins, J. P. P. (2017). Virtual and augmented reality

game-based applications to civil engineering educa-

tion. In Global Engineering Education Conference

(EDUCON), 2017 IEEE, pages 1683–1688. IEEE.

Douglas, D. B., Wilke, C. A., Gibson, J. D., Boone, J. M.,

and Wintermark, M. (2017). Augmented reality: Ad-

vances in diagnostic imaging. Multimodal Technolo-

gies and Interaction, 1(4):29.

Fernandez, C. A. T., Paliyawan, P., Yin, C. C., and Tha-

wonmas, R. (2016). Piano learning application with

feedback provided by an ar virtual character. In 2016

IEEE 5th Global Conference on Consumer Electron-

ics, pages 1–2. IEEE.

Gonz

alez, A. V., Kapalo, K., Koh, S. L., and LaViola, J. J.

(2017). Exploring the virtuality continuum for com-

plex rule-set education in the context of soccer rule

comprehension. Multimodal Technologies and Inter-

action, 1(4):30.

Goodwin, A. and Green, R. (2013). Key detection for a

virtual piano teacher. In 2013 28th International Con-

ference on Image and Vision Computing New Zealand

(IVCNZ 2013), pages 282–287. IEEE.

Hackl, D. and Anthes, C. (2017). HoloKeys – an augmented

reality application for learning the piano. In Forum

Media Technology, pages 140–144.

Keenaghan, G. and Horv

ath, I. (2014). State of the art of

using virtual reality technologies in built environment

education. Engineering: Education and Innovation.

Kirner, T. G., Reis, F. M. V., and Kirner, C. (2012). Devel-

opment of an interactive book with augmented reality

for teaching and learning geometric shapes. In Infor-

mation Systems and Technologies (CISTI), 2012 7th

Iberian Conference on, pages 1–6. IEEE.

Kljuno, E. and Williams, R. L. (2008). Vehicle simulation

system: controls and virtual-reality-based dynamics

simulation. Journal of Intelligent and Robotic Sys-

tems, 52(1):79–99.

Kostka, S. and Payne, D. (2013). Tonal harmony. McGraw-

Hill Higher Education.

Lemos, B., Correa, A., Nascimento, M., and Lopes, R.

(2017). Augmented reality musical app to support

children’s musical education. Journal of Computer

Science and Information Technology, 5(4):121–127.

Li, W., Nee, A., and Ong, S. (2017). A state-of-the-art re-

view of augmented reality in engineering analysis and

simulation. Multimodal Technologies and Interaction,

1(3):17.

Lindgren, R., Tscholl, M., Wang, S., and Johnson, E.

(2016). Enhancing learning and engagement through

embodied interaction within a mixed reality simula-

tion. Computers & Education, 95:174–187.

ochtefeld, M., Gehring, S., Jung, R., and Kr

uger, A.

(2011). guitAR: supporting guitar learning through

mobile projection. In CHI’11 Extended Abstracts on

Human Factors in Computing Systems, pages 1447–

1452.

Mandanici, M., Ludovico, L. A., Avanzini, F., and Barat

A. (2019). Learning tonal harmony through bodily in-

teractions and gamiﬁcation. In Arculus, C., Nijs, L.,

and Van Regenmortel, H., editors, MERYC19. Coun-

terpoints of the senses. Bodily experiences in music

learning, pages 237–246. Ghent University.

Mandanici, M., Rod

a, A., and Canazza, S. (2016). The Har-

monic Walk: An interactive physical environment to

learn tonal melody accompaniment. Advances in Mul-

timedia, 2016.

Moline, J. (1997). Virtual reality for health care: a survey.

Studies in health technology and informatics, pages

3–34.

Poh, Y., Nee, A. Y., Youcef-Toumi, K., and Ong, S. (2005).

Facilitating mechanical design with augmented real-

ity. Innovation in Manufacturing Systems and Tech-

nology (IMST).

Price, S. and Rogers, Y. (2004). Let’s get physical: The

learning beneﬁts of interacting in digitally augmented

physical spaces. Computers & Education, 43(1-

2):137–151.

Riemann, H. (1896). Harmony simpliﬁed, or the theory of

the tonal functions of chords. Augener Ltd.

Rogers, K., R

ohlig, A., Weing, M., Gugenheimer, J.,

onings, B., Klepsch, M., Schaub, F., Rukzio, E.,

Seufert, T., and Weber, M. (2014). Piano: Faster piano

learning with interactive projection. In Proceedings of

the Ninth ACM International Conference on Interac-

tive Tabletops and Surfaces, pages 149–158.

Rusi

nol, M., Chazalon, J., and Diaz-Chito, K. (2018). Aug-

mented songbook: an augmented reality educational

application for raising music awareness. Multimedia

Tools and Applications, 77(11):13773–13798.

Wu, H.-K., Lee, S. W.-Y., Chang, H.-Y., and Liang, J.-C.

(2013). Current status, opportunities and challenges

of augmented reality in education. Computers & edu-

cation, 62:41–49.

Zhang, Y., Liu, S., Tao, L., Yu, C., Shi, Y., and Xu, Y.

(2015). Chinar: facilitating Chinese Guqin learning

through interactive projected augmentation. In Pro-

ceedings of the Third International Symposium of Chi-

nese CHI, pages 23–31.

Developing Music Harmony Awareness in Young Students through an Augmented Reality Approach
