Traded Control Architecture for Automated Vehicles Enabled by the

Scene Complexity Estimation

Juan Felipe Medina-Lee

, Jorge Villagra

and Antonio Artu

nedo

Autopia Program, Centre for Automation and Robotics (CSIC), Ctra. M300 Campo Real, km 0.200, Arganda del Rey, Spain

Keywords:

Autonomous Driving System, Traded Control, Situational Awareness.

Abstract:

A number of urban driving situations are still today too challenging to be handled by an autonomous driving

system (ADS), and an intervention from humans inside the vehicle may be necessary. In this work, a novel

traded control architecture is proposed to enhance the operational domain of the ADS under the premise that

vehicles and humans may need to adapt their cooperation level depending on the context. To that end, a

complexity level will be deﬁned and computed in real time for each driving scene, and the role of the ADS

and the human operator will be deﬁned accordingly. With this information in hand, the system will alert the

human operator when the involvement level will be lower than required or when a complex scene is detected.

1 INTRODUCTION

Different autonomous driving systems (ADS) have

been introduced over the last years. Although these

systems have shown beneﬁts like safety or comfort,

they still need intervention from the human operator

to handle all possible situations. The trading of con-

trol is suitable for situations when the actor that has

the authority over the vehicle (ADS or human opera-

tor) is not able to handle the situation anymore (Chao

huang, fazel Naghdy, 2019). This responsibility shift

may lead to wrong and even unsafe behaviors if the

situation awareness of the human operator is not high

enough during the handover situation (Drexler et al.,

2020).

Contrarily to shared control, traded control refers

to a scheme where a speciﬁc task is entirely per-

formed by a unique agent, either human alone or au-

tomation alone (Inagaki, 2003). For trading of control

to be implemented, it is necessary to decide when the

control must be handed over and to which agent; who

makes the decision on the authority arbitration is also

important (Muslim and Itoh, 2019). This still remains

one of the greatest challenges for assistive technolo-

gies in automobiles (Inagaki and Sheridan, 2018).

Mutual understanding is the essence of trading

control systems. As a result, the ADS shall be able to

https://orcid.org/0000-0003-4489-4280

https://orcid.org/0000-0002-3963-7952

https://orcid.org/0000-0003-2161-9876

perceive the driver status in order to perform different

driving tasks and make safer decisions, and the human

operator must easily understand the goals and capa-

bilities of the ADS (Muslim and Itoh, 2019). This

is addressed in (Lindemann et al., 2018) by imple-

menting an augmented-reality windshield display to

increase the situation awareness of the human opera-

tor by showing him/her the ADS status. In (Sonoda

and Wada, 2017) the authors use vibro-tactile devices

that enable the human operator to predict or perceive

actions selected by the ADS, increasing also the sit-

uation awareness and the trust in the automated deci-

sions.

Human-machine interaction has been addressed

with a wider scope in some recent EU-funded re-

search projects. (AutoMate-project, 2019) focuses

on driver-automation interaction and communication

with other vehicles for high levels of driving automa-

tion. In this context, different degrees of coopera-

tion are introduced to achieve a successful human-

machine interaction. In contrast, (Vi-DAS-project,

2019) focuses on the development of intuitive HMI to

warn and assist the driver in anticipating potentially

critical events by applying the latest advances in sen-

sors, data fusion and machine learning. Moreover,

(ADAS&ME-project, 2019) addresses the transition

between different levels of driving automation, con-

sidering the driver state with regard to its attention, vi-

sual/cognitive distraction, stress, workload, emotions,

sleepiness and fainting.

This work, framed in EU-funded PRYSTINE

Medina-Lee, J., Villagra, J. and Artuñedo, A.

Traded Control Architecture for Automated Vehicles Enabled by the Scene Complexity Estimation.

DOI: 10.5220/0010183702550261

In Proceedings of the 4th International Conference on Computer-Human Interaction Research and Applications (CHIRA 2020), pages 255-261

ISBN: 978-989-758-480-0

255

project (Druml et al., 2019), explores an alternative

view where vehicles and humans may need to adapt

their cooperation level depending on the context. To

that end, it deﬁnes and assigns a Complexity Level

(CL) to each driving scene in real time and deﬁnes

the role of the ADS and the human operator accord-

ingly. The CL of the scene depends on the num-

ber and quality of the trajectory candidates generated

by the ADS, which is signiﬁcantly different when

driving into a highly occupied roundabout than nav-

igating on a highway at off-peak hours. When the

CL decreases, the proposed ADS changes the level

of driving automation accordingly, and can handle

more driving tasks without human intervention. Nev-

ertheless, the human operator must be prepared for

an eventual system-to-human transition of control to

avoid undesirable consequences (Biondi et al., 2019);

for that reason, in this work, a driving monitoring sys-

tem (DMS) is constantly estimating the involvement

level of the human operator. With this information in

hand the ADS may generate a warning when the in-

volvement of the human is lower than recommended,

so the situation awareness is kept in safe levels.

The remainder of the paper is as follows: section

2 presents a review of the ADS implemented by Au-

topia Program. Section 3 describes the traded control

architecture proposed in this work. Finally, section 4

analyses the results in a simulated urban scenario.

2 AUTOMATED DRIVING

ARCHITECTURE

The traded control system is embedded in the Au-

topia program’s autonomous driving architecture (Ar-

tunedo, 2019). This chapter reviews the main com-

ponents of that architecture in order to provide the

reader the necessary background for the remainder of

the paper. The functional diagram of Figure 1 depicts

the main components of the autonomous driving ar-

chitecture.

The ADS interacts with both the ego-vehicle and

the human operator. The interaction with the ego-

vehicle consists of reading the sensors and handling

the actuators in order to conduct the driving process

in a safely and comfortable way. The system interacts

with the human operator using an on-board HMI and

a Driving Monitoring System (DMS) that estimates

its drowsiness level.

The perception and motion prediction module

merges information from different ego-vehicle sen-

sors like LiDARs, GPS and propioceptive sensors

into a dynamic occupancy grid that stores occupied

space and objects’ dynamic information. This mod-

Trajectory

generator

Chauffeur

On-board computing system

Manoeuvre

planner

Supervisor

HMI

DMS

Perception and

Motion prediction

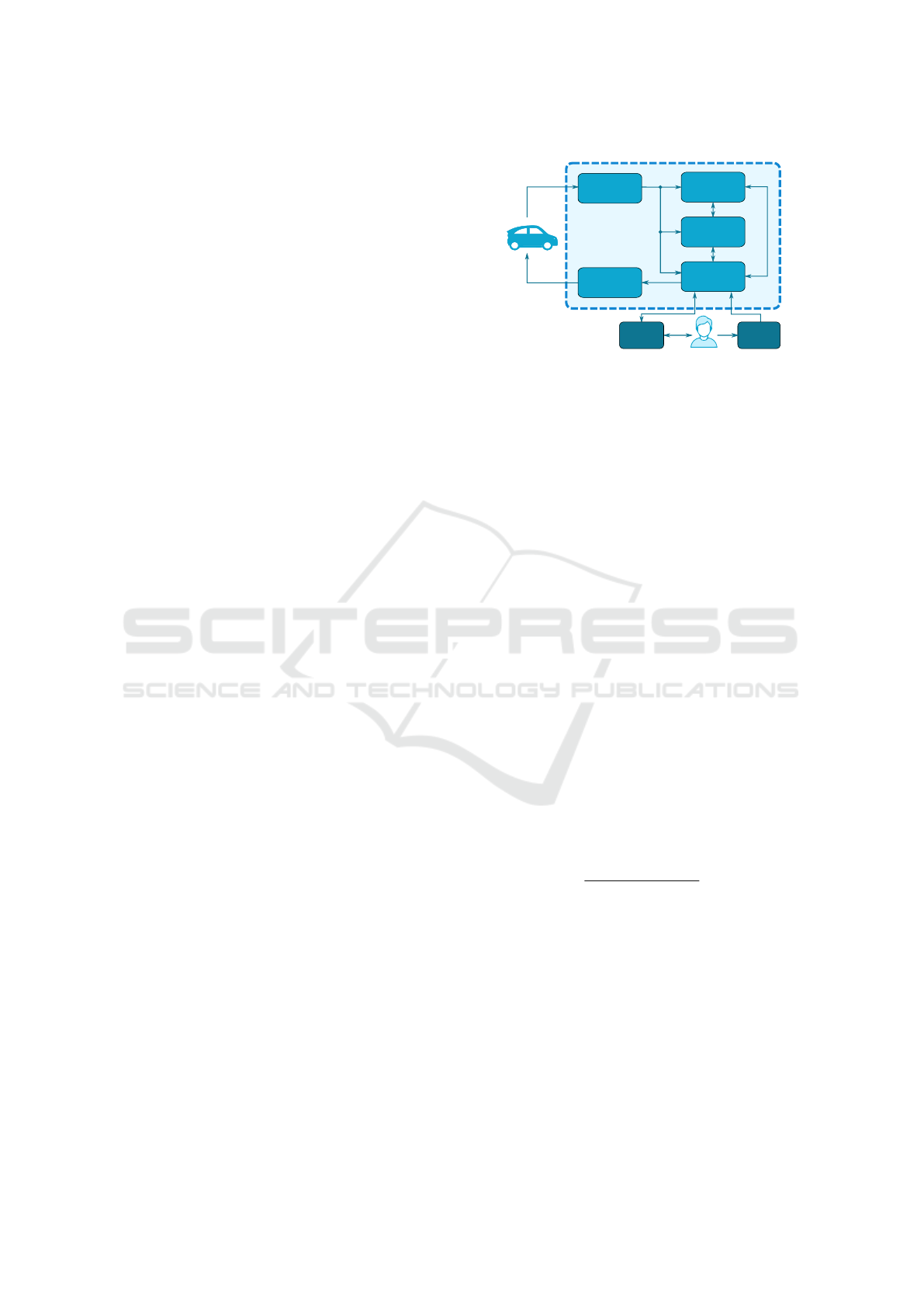

Figure 1: Autonomous driving architecture for Autopia Pro-

gram.

ule also applies signal processing techniques to ob-

tain a reliable localization estimation. Finally, it pre-

dicts the trafﬁc agents motion by considering their

inter-dependent behaviours in a probabilistic frame-

work (Villagra et al., 2020).

The trajectory generator module creates a set of

safe and comfort-optimized trajectories for the cur-

rent trafﬁc scene. The path candidates are generated

using B

ezier curves and the speed proﬁles are com-

puted taking into account the reachable states of dy-

namic obstacles, the trafﬁc regulations and comfort

parameters. A complete description of the trajec-

tory generation module is presented in (Medina-lee

et al., 2020). The quality of each candidate is quanti-

ﬁed using four decision variables: longitudinal com-

fort, lateral comfort, safety and utility. Each deci-

sion variable is obtained by combining a set of Trajec-

tory Performance Indicators (TPI) like accelerations,

jerks, closeness to obstacles, smoothness, among oth-

ers. The TPI are normalized scalar values from 0 to 1,

summarized in Table 1.

Each decision variable DV

(i,k)

, k ∈ [1, 4] for a can-

didate i is computed by combining a number T

TPI, listed in Table (1), using a weighted geometric

mean as follows

(i,k)

∏

j=1



T PI

(i, j)

, ω



, k = 1...4 (1)

where ω

are normalized values between 0 and 1.

The Manoeuvre planner module selects the

best set of navigable corridors for the ego-vehicle

(Medina-lee et al., 2020). It uses trafﬁc information,

obstacles on the scene and global route data to decide

which of the available corridors are the most pertinent

for the trajectory generator module. This hierarchical

architecture allows the ADS to execute strategic ma-

noeuvres like overtaking or adjusting the global route

when a lane is blocked.

SUaaVE 2020 - Special Session on Reliable Estimation of Passenger Emotional State in Autonomous Vehicles

256

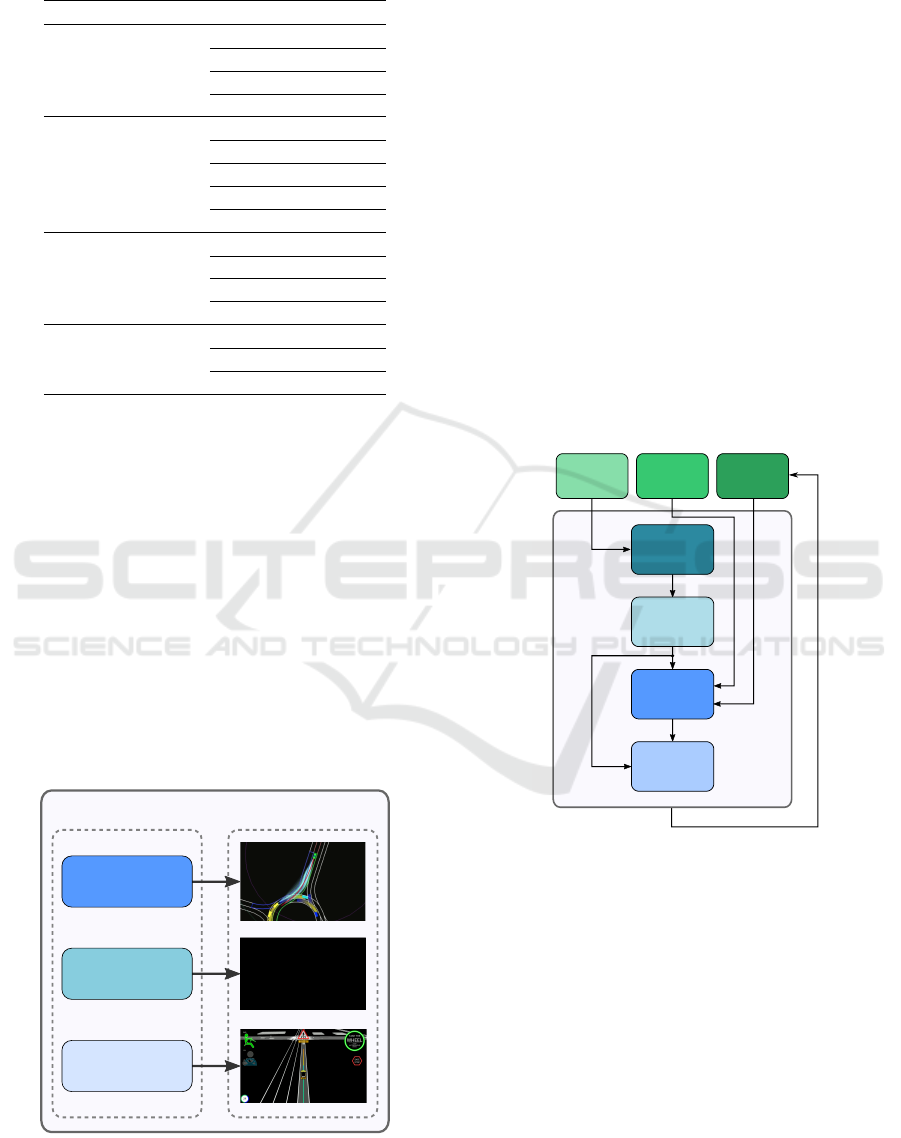

Table 1: Trajectory Performance indicators and Decision

Variables of trajectory candidates.

Decision Variable TPI

Longit. Comfort

Long. Accel. Avg.

Long. Accel. Max.

Long. Jerk. Avg.

Long. Jerk. Max.

Lateral Comfort

Lat. Accel. Avg.

Lat. Accel. Max.

Lat. Jerk. Avg.

Lat. Jerk. Max.

Smoothness

Safety

Free Ride

Safe chase

Closeness

Lane Invasion

Utility

Avg. speed

Path Length

Obstacle Free

The supervisor module is in charge of three main

tasks, as depicted in Figure 2. The selection of the

best trajectory candidate is performed by selecting the

candidate that maximizes a merit function that com-

bines the four decision variables. The traded control

task decides the CL of the current scene and estab-

lishes the Level of Driving Automation (LoDA) for

the ADS and the Required Involvement Level (RIL)

for the human operator in the driving process. The

HMI is used to display the current trajectory, impor-

tant warnings, the required and current involvement

levels and the ego-vehicle status. The human opera-

tor can use it to change the driving mode (manual or

automated), to select the destination point and to per-

form a safe-stop manoeuvre. The traded control task

is described in detail in the next chapter.

Human Involvement low

Human Involvement high

Human Involvement medium

Selection of best

trajectory

Traded

Control

Interaction with

human driver

Task

Output

Figure 2: Supervisor functional diagram.

The chauffeur module is the low-level control for

the vehicle. It receives the best trajectory from the su-

pervisor and generates the necessary steering wheel,

throttle and brake commands for the ego-vehicle to

follow that trajectory. This control system has been

already tested in a real car with good performances in

(Artunedo et al., 2017).

3 TRADED CONTROL

ARCHITECTURE

The traded control module determines the CL of the

current driving scene, the LoDA and, ultimately, the

proper RIL for the human operator. If the trafﬁc

scene is too complex, this module recommends the

human operator to take over the wheel and pedals

or it performs a safe-stop manoeuvre if the human is

completely disengaged. The block diagram of Figure

3 depicts the different stages in this process, whose

main components are detailed below.

Ego-vehicle

automation

level

Human

Involvement

Level

Suitable

candidates

Scene

complexity

TPI set

HMI

DMS

Figure 3: Traded control architecture.

3.1 Scene Complexity Level

The CL of the scene is estimated based on the qual-

ity of the candidate trajectory set. To that end, the

concept of candidate suitability S

is proposed in this

work. A candidate is considered suitable if its deci-

sion variables are greater than predetermined thresh-

olds, as shown below:







1 i f DV

(i,k)

> thd

0 otherwhise

(2)

The percentage of suitable candidates is computed

as the ratio between the number of suitable candi-

Traded Control Architecture for Automated Vehicles Enabled by the Scene Complexity Estimation

257

dates and the number of valid candidates. A candi-

date is considered valid if it meets three requirements:

the maximum curvature is feasible for the vehicle, it

is collision-free and it fully remains inside the navi-

gable space. This percentage of suitable candidates

is used as an input of a ﬁnite state machine (FSM)

to determine the CL of the scene (see Figure 4). In

this work, four complexity levels are proposed: Com-

plex, Medium, Simple and Basic. Once a CL state is

reached, it is not possible to change to another state

for a period of time, which is a conﬁgurable parame-

ter of the ADS.

Simple

Medium

Complex

(

)

(

)

(

)

(

)

Basic

(

)

(

)

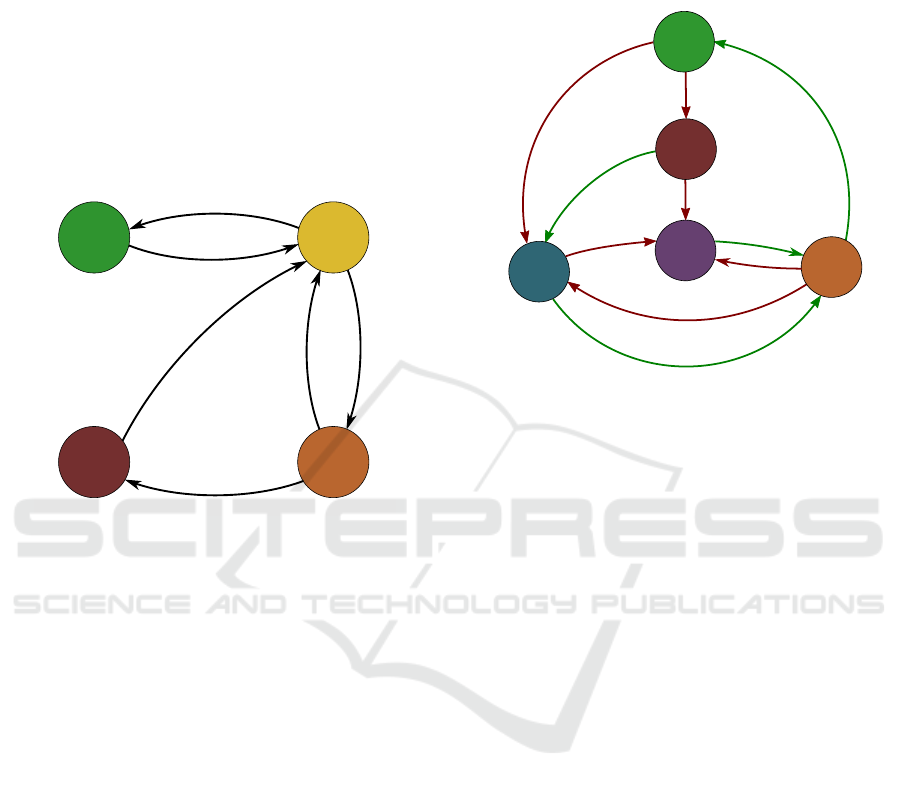

Figure 4: FSM for scene complexity level.

Note that if Complex state is reached, this state is

maintained until the scene is considered Simple, so

the behaviour of the FSM is more stable on complex

scenarios.

3.2 Levels of Driving Automation

In this work, the Society for Automotive Engineers

(SAE) J3016 standard (SAE International, 2016) is

used as a starting point to deﬁne the levels of driving

automation (LoDA). The LoDA 1 of the standard was

not implemented because a driver assistance system

is out of the scope of this project. Table 2 presents

a description of the LoDA implemented in this archi-

tecture.

The proper LoDA for the ego-vehicle is automat-

ically determined by the system using the FSM de-

picted in Figure 5. The transitions between states de-

pend on the CL, on the reactivity of the human opera-

tor to the HMI requests and on the involvement level

measured by the DMS system. A state named safe-

stop is proposed to handle critical situations when

the human operator is not involved at all, this state

can only be reached from LoDA 4. Once the safe-

stop state is reached, the speed proﬁles for the tra-

jectories apply a constant deceleration until the ego-

vehicle gets to 0 km/h. This state is maintained until

the human operator uses the HMI to resume the au-

tonomous driving or take over the wheel.

LoDA 4

LoDA 2

LoDA 3

SAFE

STOP

LoDA 0

SCN = Complex

Involvement NONE

HMI Confirmation

Figure 5: FSM for automation level.

3.3 Required Involvement Level

Once the CL and the LoDA are established, both vari-

ables are combined to propose an involvement level to

the human operator, which can take 3 different values

(none, medium, high). To that end, the correspon-

dence matrix presented in Table 3is used.

Note that the higher the LoDA, the lower is the

requested involvement from the human operator. In

LoDA 4, no involvement is required from the human

operator at all.

Finally, if the involvement level estimated by the

DMS is lower than the one requested, an alarm will

be prompted in the HMI.

4 EXPERIMENTAL RESULTS

The performance of the ADS was evaluated in an ur-

ban scenario with roundabouts and crossings in a re-

alistic simulation environment using SCANeR Studio

1.9 software (AVSimulation, 2019).

4.1 Experiment Description

In the setup of the experiment, the ego-vehicle will

ﬁrst encounter a four-way intersection with two in-

coming and two outgoing vehicles (Figure 6(a)); it

will then ﬁnd a roundabout with two vehicles inside

(Figure 6(b)) and, at the end, it will face a trafﬁc-free

SUaaVE 2020 - Special Session on Reliable Estimation of Passenger Emotional State in Autonomous Vehicles

258

Table 2: LoDA implemented for the traded control task.

Automation level Description

LoDA 0

Manual mode. The human operator is in charge of everything. The ADS only displays

warnings on the HMI.

LoDA 2

Automated mode with conservative driving parameters. Safer candidates are chosen

rather than risky ones. The ADS suggests the human operator to take over the wheel

if the scene becomes complex. The RIL is high.

LoDA 3

Automated mode with normal-driving parameters. The ADS may suggest the human

operator to take over the wheel if the scene becomes complex, but also can change to

the highest LoDA if the scene has a basic complexity level. The RIL is medium.

LoDA 4

Automated mode with normal-driving parameters. The ADS may suggest the human

operator to take over the wheel if the scene becomes complex, but if the driver is

unable to take over the wheel, a safe-stop manoeuvre is performed. There is no RIL

from the human operator to handle any situation.

Table 3: RIL according to the CL and LoDA.

LoDA 2 LoDA 3 LoDA 4

Basic Medium Medium None

Simple High Medium None

Medium High Medium None

Complex High High None

roundabout (Figure 6(c)). All scenarios will be han-

dled using automated modes (LoDA 2-4). In the pro-

posed experiment, the ego-vehicle will face complex

scenarios in a shorter period of time than it would in

real-life driving.

The upper section of Figure 6 depicts a bird’s eye

view of the relevant scenes which includes the mo-

tion prediction of the trafﬁc agents. The lower section

of the ﬁgure show the simulation environment for the

same scenes.

4.2 Automated Driving Results

Figure 7 shows the path followed by the ego-vehicle

after the experiment. The colors on the path indicate

the RIL along the journey. Red color is assigned to

high RIL, yellow is associated to medium RIL and

green refers to no RIL at all. The ﬁgure also high-

lights the location of the stop-lines crossed by the ego-

vehicle.

Figure 7 shows a high RIL when the ego-

vehicle was approaching or crossing critical scenar-

ios. Medium RIL during the road between the inter-

section and the ﬁrst roundabout. Finally, in the last

section of the journey, the RIL was lower because

there was no trafﬁc. At the end of the experiment,

when the ego-vehicle reached a highway scene, the

RIL was none.

In the case of the four-way intersection, a com-

plete involvement from the human operator was re-

quired 13,6s (t

int

in Figure 8(a)) before reaching the

stop-line; in the case of the ﬁrst roundabout, this lead

time was 12,29s (t

rdt

in Figure 8(a)). According to

(Naujoks and Neukum, 2013), the traded control had

an acceptable performance, since the estimated time

for average humans to take-over is between 6s and

10s.

Figure 8 plots the data of the traded control mod-

ule during the experiment. This data includes: (a)

Level of Driving Automation, (b) scene Complex-

ity Level, (c) Requested Involvement Level and (d)

measured involvement level of the human operator.

The dotted vertical lines represent the stop-lines high-

lighted in Figure 6. Table 4 show the numeric equiva-

lencies of Figure 8 for each traded control variable.

Table 4: Numeric equivalencies for the values of the traded

control variables.

Descriptive

value

Numeric

value

Basic 0

Simple 1

Medium 2

Complex 3

RIL

None 0

Medium 1

High 2

The ADS determines a LoDA 2 for crossing the

intersection and the ﬁrst roundabout. The second

roundabout is handled with a LoDA 3 due to the ab-

sence of trafﬁc. LoDA 4 is established in the ﬁnal

highway. The CL is increased in the difﬁcult scenar-

ios and decreased when no trafﬁc or straight segments

are faced, as expected. The RIL is high when ap-

proaching critical scenarios, so that the response time

from the human operator can be reduced, if needed.

The DMS data was artiﬁcially generated during the

experiment in order to evaluate the system perfor-

mance. The red shadows in 8(d) represent the mo-

ments where the HMI displayed an alarm because the

Traded Control Architecture for Automated Vehicles Enabled by the Scene Complexity Estimation

259

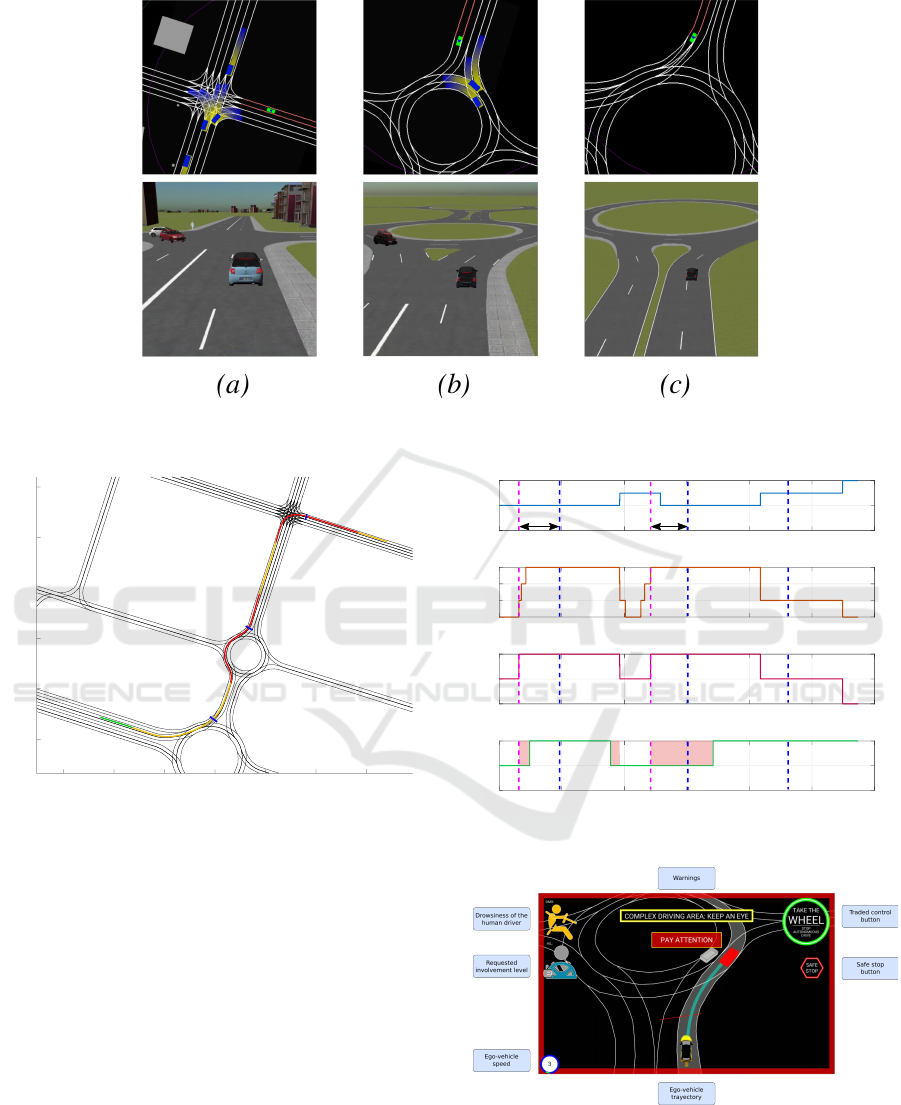

Figure 6: Experiment setup in simulation environment. Four-way intersection (a). Roundabout with trafﬁc (b). And trafﬁc-

free roundabout (c).

4.595 4.5955 4.596 4.5965 4.597 4.5975 4.598

#10

4.46215

4.4622

4.46225

4.4623

4.46235

4.4624

#10

Stop-line intersection

Stop-line roundabout 1

Stop-line roundabout 2

Figure 7: Complete trajectory followed by the autonomous

vehicle.

involvement of the human operator was lower than the

RIL. Figure 9 displays the HMI output in the entrance

of the ﬁrst roundabout of the simulation.

5 CONCLUSIONS

A novel traded control approach is presented, where

the level of automation and the required involvement

level of the driver is automatically determined from

an estimation of the driving scene complexity level

and the driver drowsiness estimation.

The proposed architecture interacts with the hu-

man operator using a HMI that displays warnings,

RIL, and planning decisions. The human operator can

also use the HMI to change the driving mode or to

0 20 40 60 80 100 120

Level of Driving Automation

0 20 40 60 80 100 120

Scene complexity

0 20 40 60 80 100 120

Requested Involvement Level

0 20 40 60 80 100 120

Involvement DMS

(a)

(b)

(c)

(d)

int

rdt

Figure 8: Traded control data for the proposed experiment.

Figure 9: HMI warning due to low attention from the human

operator.

perform a safe-stop manoeuvre.

The implemented ADS was validated in an sim-

ulated urban scenario, where it was able to require

SUaaVE 2020 - Special Session on Reliable Estimation of Passenger Emotional State in Autonomous Vehicles

260

higher involvement levels from the human when the

scenes were more critical (approaching to an intersec-

tion or roundabout with trafﬁc) with an average lead

time of 13 sec.

Future work will focus on the evaluation of the ap-

proach on a real vehicle in open roads. To that end,

the suitable candidates generation will be reﬁned and

adapted to the context, so that a higher number of op-

erational domains can be handled and the user expe-

rience can be enhanced.

ACKNOWLEDGEMENTS

This work has been partially funded by the Spanish

Ministry of Science, Innovation and Universities with

National Project COGDRIVE (DPI2017- 86915-C3-

1-R), the Community of Madrid through SEGVAUTO

4.0-CM (S2018-EMT-4362) Programme, and by the

European Commission and ECSEL Joint Undertaking

through the Projects PRYSTINE (No. 783190) and

SECREDAS (No. 783119).

REFERENCES

ADAS&ME-project (2016-2019). Grant agreement id:

688900, h2020-eu.3.4. http://www.adasandme.com/.

Artunedo, A. (2019). Decision-Making Strategies for Auto-

mated Driving in Urban Environments. Doctoral the-

sis, Universidad polit

ecnica de Madrid.

Artunedo, A., Godoy, J., and Villagra, J. (2017). Smooth

path planning for urban autonomous driving using

OpenStreetMaps. IEEE Intelligent Vehicles Sympo-

sium, Proceedings, (Iv):837–842.

AutoMate-project (2016-2019). Grant agreement id:

690705, h2020-eu.3.4. http://www.automate-

project.eu/.

AVSimulation (2019). Scaner studio.

https://www.avsimulation.fr/solutions/#studio.

Biondi, F., Alvarez, I., and Jeong, K. A. (2019). Hu-

man–Vehicle Cooperation in Automated Driving: A

Multidisciplinary Review and Appraisal. Inter-

national Journal of Human-Computer Interaction,

35(11):932–946.

Chao huang, fazel Naghdy, H. D. (2019). review on human-

machine shared control system of automated vehicles.

6(1):5–10.

Drexler, D. A., Takacs, A., Nagy, T. D., Galambos, P.,

Rudas, I. J., and Haidegger, T. (2020). Situation

Awareness and System Trust Affecting Handover Pro-

cesses in Self-Driving Cars up to Level 3 Autonomy.

pages 179–184.

Druml, N., Veledar, O., Macher, G., Stettinger, G., Selim,

S., Reckenzaun, J., Diaz, S. E., Marcano, M., Villagra,

J., Beekelaar, R., Jany-Luig, J., Corredoira, M. M.,

Burgio, P., Ballato, C., Debaillie, B., van Meurs, L.,

Terechko, A., Tango, F., Ryabokon, A., Anghel, A.,

Icoglu, O., Kumar, S. S., and Dimitrakopoulos, G.

(2019). Prystine - technical progress after year 1. In

2019 22nd Euromicro Conference on Digital System

Design (DSD), pages 389–398.

Inagaki, T. (2003). Adaptive Automation: Sharing and

Trading of Control. Chapter 8 of the Handbook of

Cognitive Task Design, 2001.10(0):147–169.

Inagaki, T. and Sheridan, T. B. (2018). A critique of the

SAE conditional driving automation deﬁnition, and

analyses of options for improvement. Cognition, Tech-

nology and Work.

Lindemann, P., Lee, T. Y., and Rigoll, G. (2018). Support-

ing Driver Situation Awareness for Autonomous Ur-

ban Driving with an Augmented-Reality Windshield

Display. Adjunct Proceedings - 2018 IEEE Interna-

tional Symposium on Mixed and Augmented Reality,

ISMAR-Adjunct 2018, pages 358–363.

Medina-lee, J. F., Artu

nedo, A., Godoy, J., and Villagra, J.

(2020). Reachability Estimation in Dynamic Driving

Scenes for autonomous vehicles. 2020 IEEE Intelli-

gent Vehicles Symposium (IV).

Muslim, H. and Itoh, M. (2019). A theoretical framework

for designing human-centered automotive automation

systems. Cognition, Technology and Work, 21(4):685–

697.

Naujoks, F. and Neukum, A. (2013). Timing of in-vehicle

advisory warnings based on cooperative perception.

SAE International (2016). Taxonomy and Deﬁnitions for

Terms Related to Driving Automation Systems for

On-Road Motor Vehicles (Surface Vehicle Recom-

mended Practice: Superseding J3016 sep 2016). Tech-

nical report.

Sonoda, K. and Wada, T. (2017). Displaying System Situ-

ation Awareness Increases Driver Trust in Automated

Driving. IEEE Transactions on Intelligent Vehicles,

2(3):185–193.

Vi-DAS-project (2016-2019). Grant agreement id: 690772,

h2020-eu.3.4. http://vi-das.eu/.

Villagra, J., Artunedo, A., Trentin, V., and Godoy, J. (2020).

Interaction-aware risk assessment: focus on the lat-

eral intention. In 2020 IEEE 3rd Connected and Au-

tomated Vehicles Symposium (CAVS). IEEE.

Traded Control Architecture for Automated Vehicles Enabled by the Scene Complexity Estimation

261
