On the Potential of Distance Bounding based on UWB Received Signal

Strength

Leo Botler

1 a

, Leandro Batista Ribeiro

1 b

, Konrad Diwold

1,2

and Kay R

omer

1 c

Institute for Technical Informatics, Graz University of Technology, Austria

Pro

Future, Austria

Keywords:

Distance Bounding, Distance Enlargement, UWB, Signal Strength, RSSI.

Abstract:

Distance bounding has gained attention in the last decades due to the increasing need for security in applica-

tions, such as contactless payment and keyless access control. In such applications, it is important to verify

if the two entities participating in a transaction are geographically close to each other. In other applications,

it is critical to guarantee that the two entities are not too close, e.g., human and machines interacting in the

same environment. A distance fraud is a known class of attacks in this context, and it has been shown that

particular attacks within this class can be successfully applied to any distance estimation approach relying

on round-trip time-of-ﬂight measurements. In this paper we discuss the feasibility of detecting such attacks

with signal strength estimations, an approach which was deemed unsuitable for distance bounding by previous

related studies. We show that our method can detect attacks in case a dishonest prover does not respect the

given bounds by using path-loss models available in the literature.

1 INTRODUCTION

Distance bounding protocols (Avoine et al., 2018) are

currently applied in real-world system in order to en-

hance security in several applications including seam-

less access control and contactless payments. In both

of those, the goal is to verify whether the two entities

involved in a transaction are sufﬁciently close to or far

from each other. We refer to these entities as prover

(P) and veriﬁer (V), in agreement with the literature.

Distance bounding protocols traditionally use the

fact that nothing can travel faster than the speed of

light to ensure that P and V are within a certain

distance. By timing the delay between transmitting

and receiving a signal back, V can estimate an upper

bound on its distance from P.

In the literature, distance-related attacks are com-

monly classiﬁed into 4 groups (Avoine et al., 2018):

impersonation, distance fraud, maﬁa fraud and terror-

ist fraud. In all of these groups, (at least) one external

adversary takes part in the protocol, except in the dis-

tance fraud, in which the prover is the dishonest entity

itself.

https://orcid.org/0000-0002-4683-2422

https://orcid.org/0000-0002-1294-1524

https://orcid.org/0000-0002-4248-4424

Establishing a lower bound has also been consid-

ered in the literature. A challenging attack in this

context is known as the Distance Enlargement Fraud

(DEF), in which a dishonest prover, i.e., a prover not

following the established protocol, claims to be at a

distance from the veriﬁer further than it actually is.

It is feasible for the veriﬁer to detect if the prover

is trying to perform the opposite attack, entitled Dis-

tance Reduction Fraud (DRF), as the prover cannot

(correctly, with a high probability) respond to a mes-

sage before having received it. However, to succeed

in the DEF, all the prover has to do is to introduce

a delay between its receiving and transmitting times-

tamps. This topic is discussed in detail in Section 2.

A different physical principle enabling distance

bounding relies on received signal strength (RSS)

measurements. This class of approaches is widely

used in localization systems and has barely been dis-

cussed in the related literature on distance bounding.

We hypothesize that this was motivated by the high

accuracy achieved with modern time-of-ﬂight (ToF)-

capable transceivers and by the solid theoretical basis

provided by the pioneer works about distance bound-

ing; the vast majority of papers in the ﬁeld relies on

ToF measurements. Still, many of those RSS systems

may also require physical-level security, and currently

there are still no means to provide it. In this paper

Botler, L., Ribeiro, L., Diwold, K. and RÃ˝umer, K.

On the Potential of Distance Bounding based on UWB Received Signal Strength.

DOI: 10.5220/0010282200070014

In Proceedings of the 10th International Conference on Pervasive and Parallel Computing, Communication and Sensors (PECCS 2020), pages 7-14

ISBN: 978-989-758-477-0

we address this gap and aim to show that there may

be other physical-level possibilities enabling distance

bounding with a security level comparable with the

one achieved with ToF measurements. In particular,

we aim to ﬁnd bounds for distance frauds using RSS

measurements only.

Another obstacle in exploring security within RSS

is the low accuracy estimations achieved with this ap-

proach, usually in the order of meters (Zafari et al.,

2017). Large errors are predominant indoors, where

multipath interference makes the measurements un-

stable. This issue is less severe within the Ultra-

wideband (UWB) technology, in which the high time

resolution enables the receiver to separate the ﬁrst in-

coming path from the reﬂected signals, reducing the

inﬂuence of the environment on path loss. We account

for such instabilities in the validation of our method

using models available in the literature.

The contributions of this paper are:

• We propose a RSS-based distance-bounding pro-

tocol enabling protection against distance frauds

and compare its strengths and weaknesses with

state-of-the-art approaches;

• We determine the bounds achieved by this pro-

tocol against distance reduction and enlargement

frauds, which are independent on time measure-

ments. To the best of our knowledge, no bounds

have been proposed before for RSS measure-

ments;

• We show that signal strength measurements,

thought to be of no use to distance bounding pro-

tocols so far, can enhance and be a useful building

block to distance bounding protocols;

• We evaluate the security level provided by the pro-

posed approach using real-world measurements

available in the literature.

2 RELATED WORK

This section focuses on the distance fraud. For a de-

tailed overview about distance bounding, we refer the

reader to (Zafari et al., 2017).

In (Singh et al., 2019) the authors consider en-

largement attacks, but within a different class, namely

maﬁa fraud. In this attack

, one or several entities po-

sitioned in between V and P, try to convince V that

P is in a different location than it actually is. In this

speciﬁc case, the attacker’s goal is to convince V that

P is further away than it really is. In this attack, P

is honest and acts according to the protocol it must

We refer to a fraud as a particular case of an attack.

follow, while the attacker, an external malicious en-

tity, manipulates the signals exchanged. The distance

frauds (DF), considered in this paper, differ from the

maﬁa fraud as there is no malicious attacker involved;

P is the malicious entity itself. This constitutes a ma-

jor challenge in two-way ranging (TWR)-based ToF

measurements, since P successfully performs an en-

largement fraud by simply delaying its acknowledge-

ment upon a request from V.

In (Capkun and Hubaux, 2005), the authors dis-

card the possibility of using the received signal

strength for distance bounding without a detailed dis-

cussion. The authors claim that P can succeed in

a distance fraud by claiming a different power level

than it actually received. In this paper, we show that

this statement is true for single-veriﬁer single-antenna

systems, but that in general there are bounds to the

magnitude of the attack.

In the same paper, the authors propose a

technology-agnostic solution to enlargement frauds.

The solution works as long as P is within a trian-

gle formed by N = 3 veriﬁers, which is the minimum

number of trusted entities required for the system to

work. For a successful DEF to one of the veriﬁers,

P must simultaneously perform a DRF to at least one

other veriﬁer. As the system is secured against DRF

using traditional distance bounding protocols, this is

impossible. However, the attack cannot be detected

if P is outside the triangle. Another weakness of this

approach consists in the number of veriﬁers required.

In this paper we analyze other possibilities with N = 1

and N = 2.

In the rest of this section, we discuss the vulnera-

bility of ToF-based measurements.

2.1 Distance Bounding based on ToF

We start by considering a single veriﬁer and a sin-

gle prover in our system. The goal for P is to ﬁnd a

good strategy to succeed in a DEF, while the goal for

V is to detect such an attack. The approach is DEF-

resilient if V is able to detect the fraud or to bound

P’s pretended position from its real position. If the

system relies on TWR ToF estimations, P always suc-

ceeds (Zheng et al., 2014), i.e., there is a strategy for

P to follow for which the attack cannot be detected.

All P has to do is to increase its processing delay by

a constant amount.

The linear relation between the processing delay

and the apparent distance allows P to always succeed

in the fraud and accurately determine the absolute

value of the enlargement desired. The distance (d)

between V and P can be calculated by V in a TWR

protocol as in Equation 1

PECCS 2020 - 10th International Conference on Pervasive and Parallel Computing, Communication and Sensors

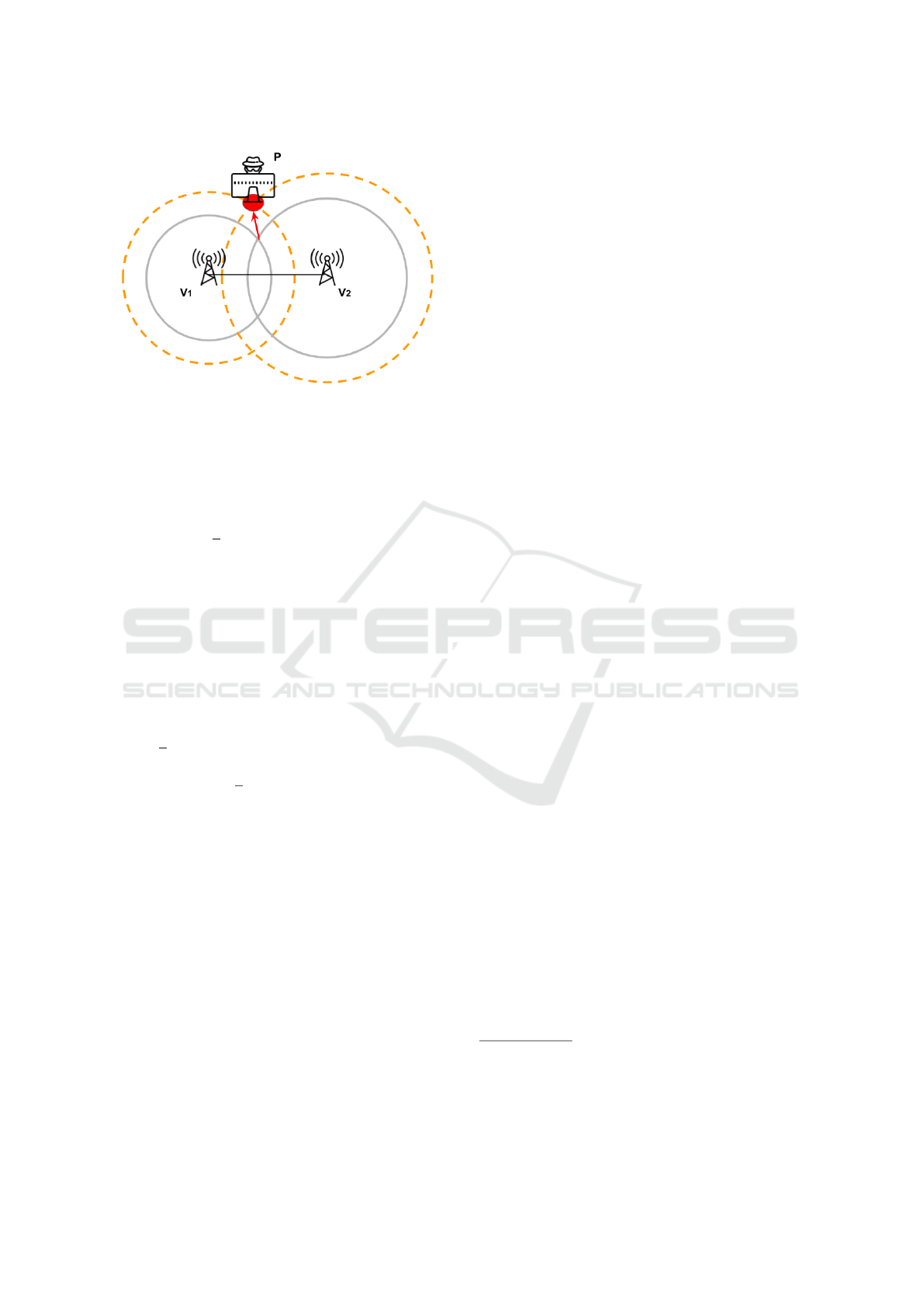

Figure 1: Two veriﬁer’s system. Each circle is centered on

the position of a different veriﬁer and has as radius the dis-

tance estimated to P. P can increase its distance to both the

veriﬁers using always the same processing delay and still

appear to be further than it really is to both of the veriﬁers

(red arrow). The position is plausible as the circles always

intercept in two points.

d =

·(t

V,rx

−t

V,tx

−∆

Proc

) ·c (1)

where t

V,rx

and t

V,tx

are the veriﬁer’s RX and TX

timestamps, respectively, ∆

Proc

is P’s predetermined

processing time and c is the speed of light. ∆

Proc

can

alternatively be communicated to V via instant times-

tampings from P. To see how the increase in P’s ac-

tual processing time (∆

Proc

) increases d, we re-write

Equation 1 substituting t

V,rx

by t

V,tx

+ 2 ·t

+ ∆

Proc

which leads to

d =

·(t

V,tx

+ 2 ·t

+ ∆

Proc

−t

V,tx

−∆

Proc

) ·c

·(2 ·t

+ ∆

Proc

−∆

Proc

) ·c (2)

where t

is the time-of-ﬂight. From Equation 2, the

linear relation between ∆

Proc

and d becomes clear. A

constant increase in distance can be achieved by P in-

dependent of its actual distance from V.

Considering N = 2 veriﬁers in the system, as long

as the 2 veriﬁers and P are not collinear, there will al-

ways be 2 intersections for the circles which have the

veriﬁers as centers and the apparent distance between

a given veriﬁer and P as radius. If the circles have at

least one intersection, no fraud can be detected, and

therefore, the position of P - and also the apparent

distances - cannot be detected as fraudulent. Such a

fraud is sketched in Figure 1. Although the position

is ambiguous, as there are always two intersections,

we are interested only in verifying the distance from

the veriﬁers. A third veriﬁer is commonly inserted to

remove this ambiguity in localization systems.

If N = 3 and P is within the triangle formed by

the veriﬁers, the DEF is no longer valid, because the

intersection of the three distance estimations will not

exist, creating evidence for the attack. Additionally,

it is assumed that performing a distance reduction at-

tack is not possible, i.e., the veriﬁers already imple-

ment a traditional distance bounding protocol, such

as the one proposed in (Brands and Chaum, 1993),

which protects from it. Therefore, P cannot reduce

its apparent distance from any of the veriﬁers. This

is the principle for the technique known as veriﬁable

multilateration (Capkun and Hubaux, 2005).

3 SYSTEM AND ATTACK MODEL

The system considered in this paper consists of a

set of N veriﬁers (V ) (devices with known locations

- known also to the prover if not stated otherwise)

which aim to estimate their distance from a dishon-

est prover (P) by using RF measurements. P’s goal

is to convince the veriﬁers that it is at a distance dif-

ferent than it really is from one veriﬁer. There are

no adversaries in the environment, besides P itself.

The signals’ exchange in the protocol occurs in a short

window of time, and thus the quasi-stationary regime

is assumed; all the nodes are static. P is not capa-

ble of estimating the Direction-of-Arrival (DoA) of

the incoming signals

. The case for which P is DoA-

capable will also be discussed in Section 4. P may not

respect federal limits or laws and may have a better

hardware than the veriﬁers, that, for instance, enables

it to successfully demodulate signals sent at a lower

Signal to Noise Ratio (SNR). The veriﬁers, if more

than one, are free to communicate among each other

over a secure channel. They can transmit signals us-

ing a ﬁnite, bounded and discrete set of transmission

powers. For P, we can assume that this set is inﬁnite,

unbounded (but non-negative) and continuous. Addi-

tionally, P knows the set available to V.

4 DISTANCE BOUNDING BASED

ON SIGNAL STRENGTH

In this section we discuss some possibilities of using

signal strength measurements as a building block for

distance bounding protocols.

This constitutes an important limitation of the proposed

approach, as DoA capable transceivers exist, in particu-

lar for UWB. However, their practical relevance is limited

due to high hardware overhead (i.e., multiple antennas +

transceivers).

On the Potential of Distance Bounding based on UWB Received Signal Strength

4.1 Distance Bounding based on Signal

Strength

Assuming the log-distance path loss model for power

decay over distance, the power P

measured by a re-

ceiver equals

= P

·C ·

(3)

where γ is the path loss exponent, and C is a con-

stant. In realistic indoor environments, the path-loss

exponent is typically 6= 2 and is highly dependent on

the environment due to multipath propagation. With

UWB, however, due to the short pulses, multi-path in-

terference is limited and we can expect a stable path

loss ≈ 2 as shown in (Rubio et al., 2013).

In order to test if P is honest, we initially con-

sider the following strategy: V transmits a sequence

of signals to P at different power levels, which are

chosen from a ﬁnite dictionary. P measures the sig-

nals’ strength and sends them back to V . V calculates

a distance d between V and P for each transmitted sig-

nal using Equation 3. V accepts the distance as true

if all distances are consistent. Obviously, an attacker

would manage to control its apparent distance to V

by multiplying P

by a constant. Therefore, the basic

strategy considered does not work.

Nonetheless, if P does not know its distance to V ,

there are still bounds on how much P can increase

or decrease the measured distance by cheating on the

RSS. In this case, P must be careful when choosing

the size of the distance decrease/enlargement factor

(k). If P sends V a received power value P

too high,

it may eventually exceed the transmitted power P

and V detects the fraud. To be on a safe side, P

should always assume that P

is the smallest power

level from the dictionary greater than P

. Therefore,

k ≤

, where P

is the smallest transmission

power from the dictionary greater than P

Independent of the previous examined assump-

tion, if P performs a DEF, it is bounded by the min-

imum P

that a honest prover would be capable to

receive. Therefore, k ≥

min

. Another approach can

be applied against the DEF. V sends a sounding mes-

sage to P to get a ﬁrst estimation of its distance. Based

on this estimation, V adjusts P

so that P

= P

min

i.e., the power level at P is the minimum that a hon-

est prover can successfully demodulate. V transmits

a nonce using P

, which P must acknowledge. The

nonce keeps P from sending acknowledgments before

receiving the message. This approach does not work

in case P has a better hardware than a honest prover,

such as a more sensible low noise ampliﬁer or a di-

rectional antenna. In this case P would still succeed

in the DEF.

Besides this intrinsic security ﬂaw, this approach

should only work if the power level measurements are

reasonably stable within a given distance range, i.e.,

there is a deterministic mathematical model to which

the RSS measurements ﬁt well. If the model does not

represent the actual behavior of the system (poor ﬁt),

it is expected that V ’s estimations will, with a high

probability, differ from P’s distance. As a results, the

distance bounding system should present high false

positives and negatives ratios. We examine this issue

in Section 5.

4.2 Bounding Distance Reduction with

Two Veriﬁers

Regarding the Distance Reduction Fraud, the pro-

posed protocol can be adapted to be effective as

follows: (at least) two veriﬁers, each located at a

different position, transmit a signal to P, one at a

time, from the P

dictionary. The sequence dictating

which veriﬁer transmits at a certain time-slot can be

agreed among the veriﬁers beforehand using a secure

channel. For simplicity, we assume that the system

comprises only two veriﬁers, and that P intends to

perform a distance reduction attack against only one

of them. We refer to this veriﬁer as V while we refer

to the other as V

aux

. V

aux

is positioned closer to P than

V . In a realistic scenario, V may be attached to an

object to be protected and V

aux

should be placed on

P’s path. In order to perform the DRF, P must claim

a higher P

than it actually measured, which we call

, in such a way that P

= P

∗k. k must be consis-

tent, i.e., in case P changes it, it risks claiming to be

at two different distances from a given veriﬁer, either

V or V

aux

, as P has no means to know which veriﬁers

sent a given signal (please, refer to Section 3). In

case P chooses a value of k too high, it may, upon

the reception of an incoming signal from V

aux

, claim

a P

higher than P

, which will be detected as an

attack. This process is illustrated in Figure 2. In order

to maximize the magnitude of the attack, P must

choose a k which virtually brings it close to V

aux

. It

can do this as it knows the position of all the veriﬁers

by assumption. k should be chosen in such a way that

when V

aux

transmits with its maximum power level

max

, P

is still less than P

max

, i.e., k ≤

max

. P

max

is usually limited by standards and federal agencies.

To our knowledge, this is the ﬁrst bound on a distance

reduction attack not relying on the physical property

of the maximum propagation speed which limits the

speed of an electromagnetic wave: the speed of light.

This bound (B

) is depicted in orange in Figure 2 and

represents the minimum distance that P can pretend

PECCS 2020 - 10th International Conference on Pervasive and Parallel Computing, Communication and Sensors

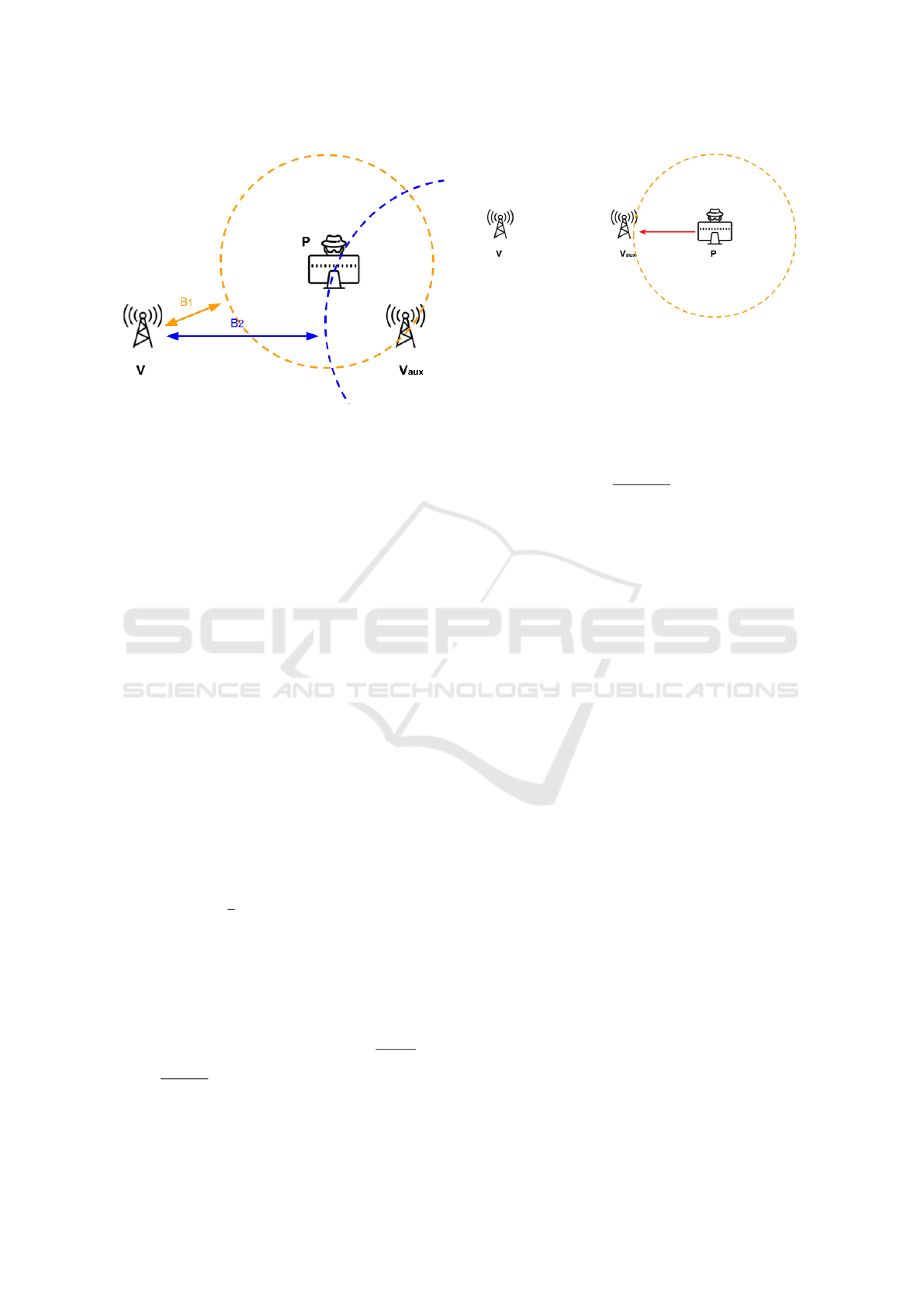

Figure 2: Sketch of P’s bound to the reduction fraud. Once

P chooses a value for k, it must take care not to exceed

the possible power transmitted by V

aux

. If it exceeds this

power, upon the ﬁrst transmission from V

aux

, the attack is

identiﬁed.

to be away from V , by communicating a higher

value.

As P uses a ﬁxed value of k, it is not able to freely

choose its position in a 2D plane as it wishes, unless

it is DoA-capable. In this case it would be able to

select different delays/power increments for each

veriﬁer and thus, freely control its position. Still,

assuming that P is not DoA-capable, it can always

choose its enlarged distance from both veriﬁers

with the constraint that its apparent 2D position is

constrained to a 1-D curve, created by intersecting

the two circles centered at the veriﬁers positions with

radiuses equal to the respective apparent distance

to P. Please, notice that every different k chosen

by P will lead to a different point in the 2-D plane,

but the distances from these points to each of the

veriﬁers have a constant ratio (in the mathematical

sense), given by r

= d

, where d

and d

are the

distances from the prover to the closest and furthest

veriﬁer, respectively. For simpliﬁcation, we deal

here with gains in distance denoted by r, instead of

gains in power (k). In fact, when P multiplies its

by a factor k, it changes its apparent distance

by a factor r =

√

k, which depends on the path loss

exponent (Equation 3), but does not affect r

. If

r falls below a limit r

min

, then the circles do not

intersect. This constitutes a lower bound for r.

Additionally, since |d

−d

| grows with an increasing

r, after some point, given by r

max

, the circles will

not intersect anymore. This constitutes an upper

bound on r. It can be veriﬁed that r

min

1,2

)

and

max

1,2

·(r

−1)

, for r

> 1, where d

1,2

is the distance

between the veriﬁers. If r

= 1, then P is equidistant

Figure 3: Veriﬁers and prover aligned. The DoA-capable

prover cannot identify the veriﬁers. Reduction attacks are

bounded by the distance to V

aux

from both veriﬁers and lies on the line orthogonal to

the segment connecting the two veriﬁers, dividing

it in the middle. It can be also veriﬁed that the 1-D

curve on which P can virtually move is a circle

with radius R = d

min

max

)

centered at the point

(R − d

· r

min

,0), considering that v

(the closest

veriﬁer) lies on the origin of the Cartesian system,

and that the line connecting the two veriﬁers deﬁnes

the x-axis of the system. The center of the circle

which deﬁnes the possible locations of P lies also on

the x-axis. The lower bound obtained here is assessed

in Section 5, while the upper bound is left as future

work.

4.3 Protecting against a DoA-capable

Prover

If P is DoA-capable, adding the second veriﬁer to

the system, in principle, seems useless. The ran-

domized transmission sequence can be correctly in-

ferred by P upon verifying the angle under which the

signals arrived. Thus, P can freely insert different

power gains/attenuations to each incoming signal and

choose its position freely on the 2-D plane. This is

true, as long as the angles of the incoming signals

are not the same. If the angles are the same, i.e, V ,

aux

and P are aligned and positioned in this order, P

cannot tell which veriﬁer transmitted the signal, and

randomization may still be effective. This scenario is

illustrated in Figure 3.

5 VALIDATION

In this section we combine the approaches proposed

in Section 4 using two veriﬁers with the physical path

loss measurements obtained with UWB from (Rubio

et al., 2013). In a simulated environment, we aim to

assess the impact of RSS imperfections on the correct

On the Potential of Distance Bounding based on UWB Received Signal Strength

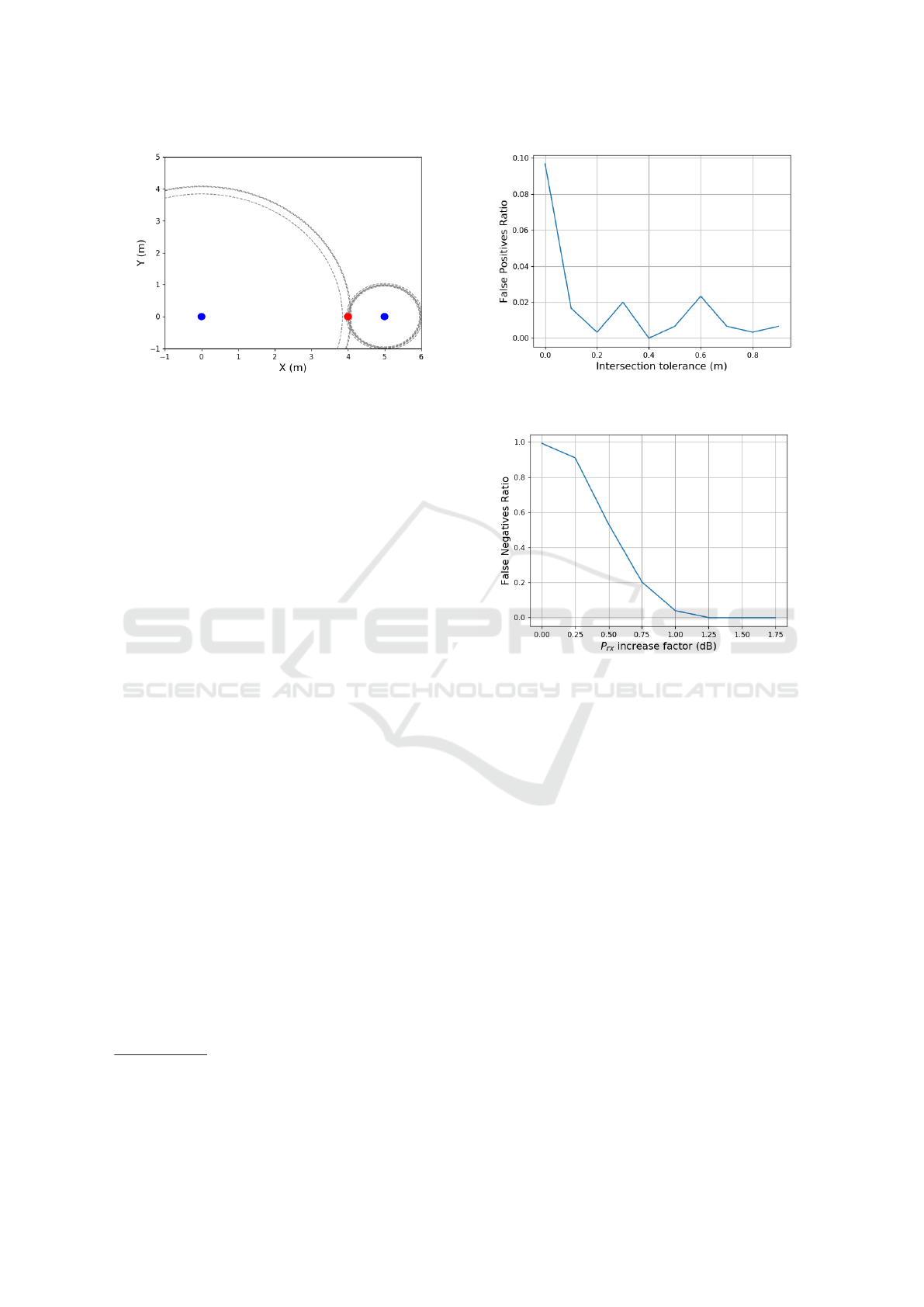

Figure 4: Simulated Environment. Filled circles in blue

and red represent the veriﬁers and the prover, respectively.

Dashed circles in gray represent the distances estimated by

each of the veriﬁers.

detection of the frauds, both enlargement and reduc-

tion, for different magnitudes of attacks. Prover and

veriﬁers are positioned at ﬁxed locations, and each

veriﬁer transmits a signal to the prover according to

a list randomly generated at the beginning of each

simulation round. Next, the prover measures/picks

one random value out of a Gaussian distribution in-

stantiated from (Rubio et al., 2013) according to its

real distance from the prover. The prover changes the

measurement by adding a constant power ∆

(in dB)

to P

and communicates the values to V . If ∆

= 0

then the prover is honest. P is not DoA-capable and

V calculates the distance to P using Equation 3. An

attack is detected in case:

1. the standard deviation of estimations of a sin-

gle veriﬁer for different transmit powers is above

0.3 m

;

2. there is no intersection of the circles around the

two different veriﬁers (please, refer to Figure 4);

3. P

is less than −100 dBm.

Figure 4 illustrates the simulated environment.

5.1 False Positives Rate without Attack

In a ﬁrst experiment, we aim to ﬁnd a suitable toler-

ance so that the false positive rate, i.e., the number of

times that V detects an attack while no attack has been

performed, is sufﬁciently low. The number of trans-

missions is set to 8 in total for both veriﬁers and for

each tolerance value, varied from 0 cm to 1 m in steps

of 10 cm, we repeated the experiment 300 times. Fig-

ure 5 shows the results. It can be seen that when the

We switched from k to ∆

as we are dealing now with

power units in dB.

This value was obtained via simulations. Above this

threshold, the false positives rate is limited to 3 %.

Figure 5: False positives rate for ∆

= 0. With a 10 cm

tolerance the rate falls below 3 %.

Figure 6: False negatives rate for ∆

≥ 0. Attacks are al-

ways detected above a power increase of 1.25 dB.

tolerance is higher than 10 cm the false positives rate

falls below 3 %. We consider this rate acceptable, and

assume this tolerance for the next experiment.

We tried ﬁne tuning this rate by increasing the

number of transmissions for each veriﬁer. However, it

gets more likely to violate the ﬁrst condition by doing

so, i.e., the standard deviation for the measurement of

each individual veriﬁer increases. One possible so-

lution is to increase the standard deviation limit (set

to 0.3 m). This approach results in increasing the false

negatives rate, examined next. Therefore, we stick to

the default value for number of transmitted messages.

5.2 False Negatives Rate under DRF

In a second experiment, we count the occurrences of

false negatives, i.e., the number of times that V did not

detect an attack, but it was performed, as we vary the

magnitude (measured in dB) of the attack. In this ex-

periment, P performs the DRF to the leftmost veriﬁer

(Figure 4). We show the results in Figure 6.

We can see that above an increase of 1.25 dB the

attacks are always detected. With this power increase,

PECCS 2020 - 10th International Conference on Pervasive and Parallel Computing, Communication and Sensors

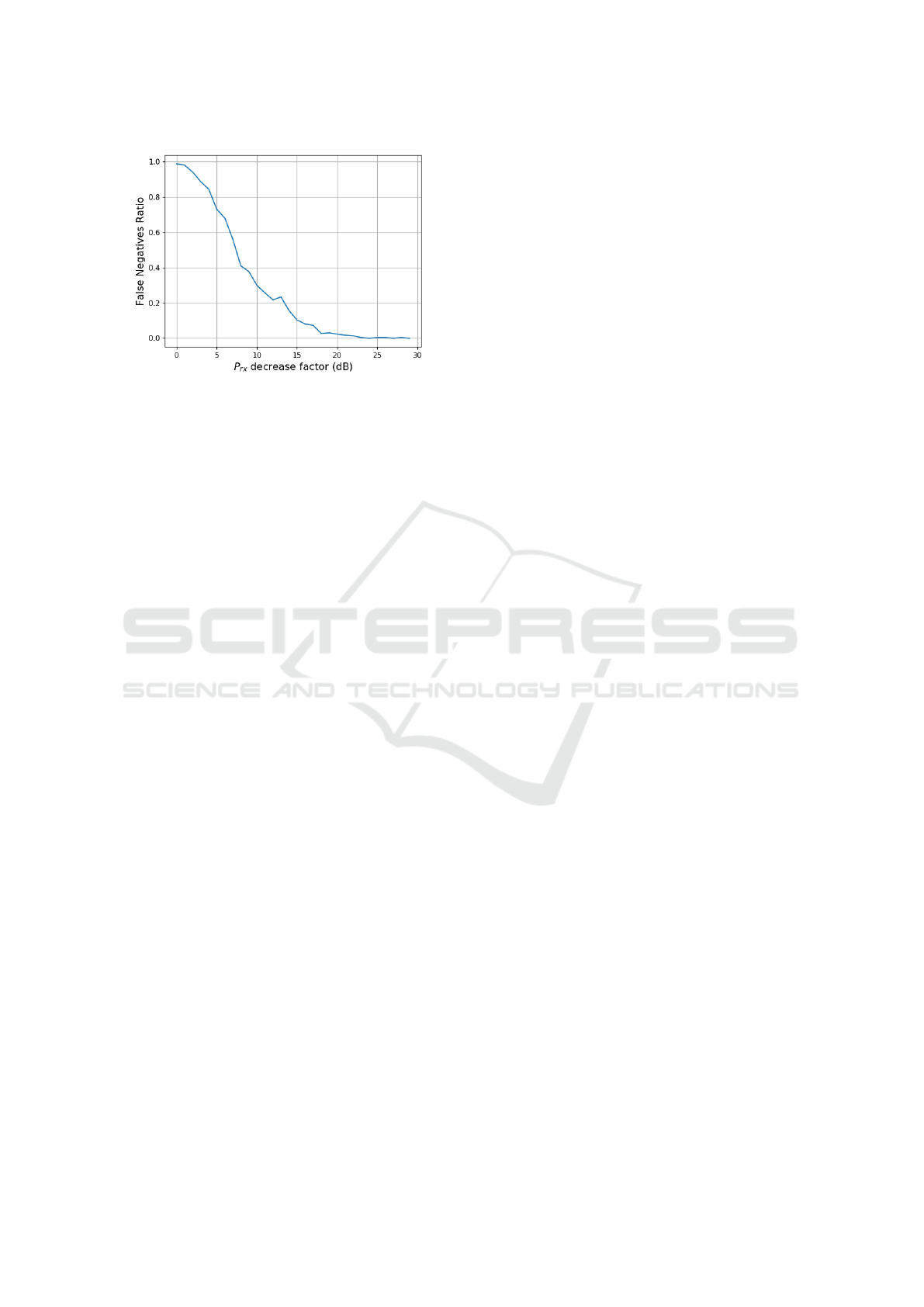

Figure 7: False negatives rate for ∆

≤ 0. Attacks are de-

tected with a high probability above a power decrease of

23 dB.

P manages to come nearer, on average, 1.4 m to V .

Please, notice that we are not treating the attack as

a binary variable, but as a continuous one. As a re-

sult, with a small increase in power, the false negative

rate is very high. In particular, when it is 0 dB no

attack took place, and obviously, it should not be de-

tected. As a reference, in an ideal scenario without

ranging error, the maximum approximation achieved

would be 0 m for this setup.

5.3 False Negatives Rate under DEF

Next, we examine the (straightforward) approach to

bound enlargement attacks, which consists in check-

ing if the received power is below the sensitivity

threshold of a honest prover. In order to do this, we

exchange the original position of the veriﬁers, letting

V be the rightmost blue node in Figure 4. P’s goal is

to claim a further position from V by communicating

a lower received power, but it is theoretically bounded

by its distance to V

aux

, which is larger. The results are

shown in Figure 7.

In the absence of measurement error, an enlarge-

ment of ≈38 dB would be necessary to fall below the

sensitivity threshold of the transceiver. It was then

veriﬁed that the cause of the detected false negatives

was actually the variance of distances estimated by

the same veriﬁer, often greater than 0.3 m. It hap-

pens because the absolute variance of the estimated

distances scales with the distance from the veriﬁer,

which is enlarged by the prover. Therefore, another

mechanism to bound enlargement attacks is proposed,

namely, tuning the respective threshold to the maxi-

mum allowed distance value.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we discuss the potential to use signal

strength measurements as a building block for dis-

tance bounding protocols. It has been shown that, dif-

ferently from what has been assumed by the existing

literature, secure distance bounding protocols can be

implemented using the principle of power decay over

distance with UWB, which is less sensitive to multi-

path. By using realistic error models, we showed that

the proposed approaches manage to bound distance

frauds. Nonetheless, comparing the presented bounds

with the ones achieved using ToF measurements, it is

clear that ToF is usually superior. Additionally, un-

der the assumption that P affords a better process-

ing power (faster turn-around time) than V expects,

one can easily adapt the bound obtained in this paper

using two veriﬁers to the ToF setup, eliminating the

possible advantage of combining the two approaches

(ToF and RSS). A possible application for the UWB

RSS-based approach is to provide UWB pulse-based

transceivers not supporting accurate ranging, which

is an optional feature by the standard (802.15.4-2011,

2015), with a method for coarse distance estimation.

With this approach, vendors providing low-cost low-

power chips targeting wireless communication could

still provide some level of security against distance

frauds without increasing costs and complexity. To

the best of our knowledge, all vendors currently pro-

viding pulse-based UWB chips implement accurate

timestamping.

Future work includes:

• estimating distance using COTS pulse-based

UWB transceivers;

• investigate the effectiveness of RSS-based dis-

tance bounding to the other classes of distance-

related attacks;

• testing the proposed approaches on real setups

in order to verify if the proposed bounds are

achieved with COTS transceivers;

• optimizing the parameters of the system.

ACKNOWLEDGEMENTS

This research has been funded by the Austrian

Research Promotion Agency (FFG) and the Aus-

trian Federal Ministry for Transport, Innovation an

Technology (BMVIT), within the ”ICT of the Fu-

ture” project IoT4CPS (Trustworthy IoT for Cyber-

Physical Systems) (FFG, #863129) and COMET Cen-

ter Pro

Future (FFG, #854184) and has been partially

On the Potential of Distance Bounding based on UWB Received Signal Strength

supported by the TU Graz LEAD project Dependable

Internet of Things.

REFERENCES

802.15.4-2011 (2015). Ieee standard for low-rate wireless

networks. Standard, The Institute of Electrical and

Electronics Engineers, Inc., New York, USA.

Avoine, G., Bing

ol, M. A., Boureanu, I.,

capkun, S.,

Hancke, G., Kardas¸, S., Kim, C. H., Lauradoux,

C., Martin, B., Munilla, J., Peinado, A., Rasmussen,

K. B., Singel

ee, D., Tchamkerten, A., Trujillo-Rasua,

R., and Vaudenay, S. (2018). Security of distance-

bounding: A survey. 51(5).

Brands, S. and Chaum, D. (1993). Distance-bounding pro-

tocols. In Workshop on the Theory and Applica-

tion of of Cryptographic Techniques, pages 344–359.

Springer.

Capkun, S. and Hubaux, J. . (2005). Secure positioning of

wireless devices with application to sensor networks.

In Proceedings IEEE 24th Annual Joint Conference of

the IEEE Computer and Communications Societies.,

volume 3, pages 1917–1928 vol. 3.

Rubio, L., Reig, J., Fern

andez, H., and Rodrigo-Pe

narrocha,

V. M. (2013). Experimental uwb propagation chan-

nel path loss and time-dispersion characterization in a

laboratory environment. International Journal of An-

tennas and Propagation, 2013:350167.

Singh, M., Leu, P., Abdou, A., and Capkun, S. (2019).

Uwb-ed: Distance enlargement attack detection in

ultra-wideband. In 28th USENIX Security Symposium

(USENIX Security 19), pages 73–88, Santa Clara, CA.

USENIX Association.

Zafari, F., Gkelias, A., and Leung, K. K. (2017). A survey of

indoor localization systems and technologies. CoRR,

abs/1709.01015.

Zheng, X., Safavi-Naini, R., and Ahmadi, H. (2014). Dis-

tance lower bounding. In International Conference on

Information and Communications Security, pages 89–

104. Springer.

PECCS 2020 - 10th International Conference on Pervasive and Parallel Computing, Communication and Sensors
