Leveraging Clustering and Natural Language Processing to

Overcome Variety Issues in Log Management

Tobias Eljasik-Swoboda

and Wilhelm Demuth

ONTEC AG, Ernst-Melchior-Gasse 24/DG, 1100 Vienna, Austria

Schoeller Network Control GmbH, Ernst-Melchior-Gasse 24/DG, 1100 Vienna, Austria

Keywords: Industrial Applications of AI, Intelligence and Cybersecurity, Machine Learning, Natural Language

Processing, Trainer/Athlete Pattern, Log Analysis, Log Management, Event Normalization, Security

Information and Event Management, Big Data.

Abstract: When introducing log management or Security Information and Event Management (SIEM) practices,

organizations are frequently challenged by Gartner’s 3 Vs of Big Data: There is a large volume of data which

is generated at a rapid velocity. These first two Vs can be effectively handled by current scale-out architectures.

The third V is that of variety which affects log management efforts by the lack of a common mandatory format

for log files. Essentially every component can log its events differently. The way it is logged can change with

every software update. This paper describes the Log Analysis Machine Learner (LAMaLearner) system. It

uses a blend of different Artificial Intelligence techniques to overcome variety issues and identify relevant

events within log files. LAMaLearner is able to cluster events and generate human readable representations

for all events within a cluster. A human being can annotate these clusters with specific labels. After these

labels exist, LAMaLearner leverages machine learning based natural language processing techniques to label

events even in changing log formats. Additionally, LAMaLearner is capable of identifying previously known

named entities occurring anywhere within the logged event as well identifying frequently co-occurring

variables in otherwise fixed log events. In order to stay up-to-date LAMaLearner includes a continuous

feedback interface that facilitates active learning. In experiments with multiple differently formatted log files,

LAMaLearner was capable of reducing the labeling effort by up to three orders of magnitude. Models trained

on this labeled data achieved > 93% F1 in detecting relevant event classes. This way, LAMaLearner helps log

management and SIEM operations in three ways: Firstly, it creates a quick overview about the content of

previously unknown log files. Secondly, it can be used to massively reduce the required manual effort in log

management and SIEM operations. Thirdly, it identifies commonly co-occurring values within logs which

can be used to identify otherwise unknown aspects of large log files.

1 INTRODUCTION

Computers and network components like switches,

routers or firewalls create log files that list events

occuring on them. Originally, these log files were

only used for troubleshooting problems after errors

have occurred. Since then, technology has been

developed that can react immediately to the

occurrence of specific events within logs. More

interesting use cases arise when one combines log

files from multiple machines to get a bigger picture of

events occuring within the IT environment of an

organization. The process of generating, transmitting,

https://orcid.org/0000-0003-2464-8461

storing, analyzing and disposing of log data is

referred to as log management (Kent and Souppaya,

2006). Centrally collecting log files from different

components provides a number of tangible

advantages. Firstly, log files can be accessed even if

the machine that originally generated them is no

longer available. Secondly, central analysis and

correlation is only possible if the relevant log files are

centrally stored. The widespread deployment of

modern computing and networking machinery

generates challenges for organizations attempting to

leverage central log management. These challenges

are similar to those expressed by Gartner (2011) as

the three Vs of Big Data:

Eljasik-Swoboda, T. and Demuth, W.

Leveraging Clustering and Natural Language Processing to Overcome Variety Issues in Log Management.

DOI: 10.5220/0008856602810288

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 281-288

ISBN: 978-989-758-395-7; ISSN: 2184-433X

281

Firstly there is the problem of volume: The

generated amount of log files can easily reach

Terabytes. Secondly there is the problem of velocity

as depending on what is happening in the computing

environment, log files can be generated at a rapid

pace. Scale-out architectures, that distribute the

workload across multiple machines are capable of

handling these volume and velocity problems

effectively (Singh and Reddy, 2014). The third

problem of big data is variety. In the case of log

management, it stems from the lack of a mandatory

norm for log formats. Essentially, every log file is

different. Manually interpreting enormous amounts

of such log data can easily overwhelm a human being

that attempts this task (Varanadi, 2003).

The process of transforming heterogenous log

formats to a common output that is centrally stored is

also referred to as event normalization (Teixeira,

2017). This is mainly achieved by using parsers that

apply regular expressions to extract specific values

from logs in previously known formats. These are

subsequently stored in a normalized fashion within

searchable databases. The data quality within these

databases is strongly dependant on the parsing

quality. Even though parsing rules for common log

files are freely shared on the Internet, these usually

only match highly specific fields such as time stamps

and source ip adresses. The essential unstructured,

natural language message gets frequently stored as a

string.

Security Information and Event Management

(SIEM) attempts to leverage centrally managed logs

to increase the IT security of an organization

(Williams and Nicolett, 2005). In practice, specific

event types are oftentimes visualized by occurrence

per time frame. For instance the amount of failed log

in attempts per hour. One can also define alert rules

that trigger automated stepts. An example for such an

alert rule are to inform a human being if there are

more than 10 firewall rejections per minute or that

malware was detected on a computer within the

network (Swift, 2010). Currently, the only way to

identify specific events is to know the log format in

advance and having a pattern that can match to the

specific event during normalization. As pointed out,

there is no norm for log events. Additionally, the

format of the log file can change with updates of the

utilized software. Therefore, the implementation and

updating of Log Management and SIEM systems are

labor intensive.

In this work, we introduce the Log Analysis

Machine Learner (LAMaLearner). It uses a blend of

different artificial intelligence techniques in order to

minimize the effort of implementing SIEM and log

management practices within organizations. This is

especially relevant for Small or Medium Enterprises

(SMEs) that oftentimes do not possess the necessary

human resources to employ large teams focusing on

log management and SIEM. To do so, this paper

outlines the relevant state of the art and technology of

this field in section 2. Section 3 describes our

underlying model which is followed up by section 4

that provides some details about the implementation

of this technology. Section 5 evaluates the

effectiveness of LAMaLearner for a number of

different log file formats and provides information

about the time and effort that was saved by using

LAMaLearner for Log Management projects. Last

but not least, section 6 finishes with our conclusions

about the usage of AI to overcome variety challenges

in log management and SIEM.

2 STATE OF THE ART

There are many tools for log management. Some

frequently mentioned commercial options are Splunk,

IBM QRadar, Loggly, Logentries, and sumo logic

(Splunk, 2019) (IBM, 2019) (Loggly, 2019)

(Logentries, 2019) (Sumo Logic, 2019). Most of the

aforementioned systems are cloud based and require

a connection to the provider in order to perform the

necessary log management. A popular open source

solution is the Elastic Stack (formerly known as ELK

Stack), which is maintained by the company

ElasticSearch which also offers support for the

solution (Elastic, 2019). This company’s full-text

search engine goes by the same name and is an

integral part of the Elastic Stack. Another popular

open source solution is Graylog which is maintained

and supported by the company of the same name

(Graylog, 2019). To the best of our knowledge, all

these log management solutions either require manual

pattern defintions to match relevant known events or

provide taxonomies of relevant events for specific

systems. None use artificial intelligence technology

for this purpose. In the context of log management,

AI technologies are frequently used for anomaly

detection of aggregated event occurences per time

frame instead of the identification and representation

of relevant events (Splunk, 2019) (IBM, 2019)

(Elastic, 2019).

A detailed examination of these log management

technologies as well as all contemporary AI

techniques goes well beyond the scope of this paper.

Therefore the remainder of this section focuses on

relevant approaches useful for overcoming the

aforementioned log management variety problem.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

282

Vaarandi (2003) proposes a data clustering

algorithm for mining patterns from event logs.

Different from other text clustering approaches, this

algorithm has the key insight, that log messages are

actually created by fixed patterns in which variables

are substituted by their specific values. Vaarandi’s

algorithm uses this insight by the creation of 1-

regions, which are specific terms at specific positions

within multiple events. Events that share multiple 1-

regions are candidates for clusters. The 1-regions

essentially provide the fixed parts of the message

while the intermediate words form the variables that

are used in the messages. Vaarandi’s algorithm works

in O(|events|) time as it only needs to iterate a fixed

amount of times over the events to identify 1-regions

and group common events into clusters. It also

outputs a representative pattern that can be used as

regular expression to match to all events making up

the cluster.

Besides the clustering of events and generation of

representations for these clusters, interactive labeling

and machine learning based text categorization are

important corner stones of LAMaLearner. The Cloud

Classifier Committee (C3) is a collection of

microservices that ease the implementation of text

categorization solutions (Swoboda et al., 2016). In

their work, Eljasik-Swoboda et al. (2019) extended

the core C3 idea and described two relevant concepts:

Firstly, the trainer/athlete pattern which allows scale-

out for machine learning based text categorization

tasks. Here, a trainer node computes a model that is

shared with athlete nodes. The actual inference work

is performed by the athlete nodes.

Secondly, the TFIDF-SVM was proposed. This

service implements the trainer/athlete pattern and uses

the LibSVM library to implement Support Vector

Machines (SVMs) for supervised machine learning

(Chang and Lin, 2011). Besides the SVMs, TFIDF-

SVM works with a feature extraction and selection

method that is inspired by the TFIDF formula common

for information retrieval (1). It essentially measures the

importance of how representative certain terms (t

) are

for certain documents (d).

tfidf(t

)=#(t

)*log(|TS|/#TS(t

)) (1)

The TFIDF-SVM trainer service selects the most

relevant features based on their TFIDF values and

combines them with a SVM model that is evaluated

using n-fold cross-validation. TFIDF-SVM was

evaluated in the challenging argument stance

recognition task and achieved up to .96 F1 for

previously unknown arguments about the same topic

it was trained on. Encouragingly, it was also able to

achieve up to .6 F1 when determining the stance of

arguments for previously unseen topics. This

suggests that TFIDF-SVM models can be transferred

to new problems with completely unseen data without

modification. The aforementioned is highly

interesting for the log analysis use case as not

knowing the precise format of new log files is the

overall challenge this research aims to overcome.

Chawla et al. (2002) introduced the Synthetic

Minority Over-sampling Technique (SMOTE). The

idea is to overcome issues arising from imbalanced

datasets by synthetically oversampling minority

classes so that the acutal machine learning model is

trained on a more balanced dataset. This is crucial for

the log analysis problem because relevant error

messages are oftentimes few and far between

repeatedly occuring success messages.

Named-entity recognition is the act of identifying

specific named entities, such as locations from text

(Jurafsky, 2009). These could be names or locations

in which multiple strings can point to the same entity

or type of entity. For instance, Malta and Austria are

both countries. The next section illustrates how these

design patterns and techniques are used to create

LAMaLearner.

3 MODEL

LAMaLearner starts its operation without any

information about the log format and content. To start

working with log messages, LAMaLearner

implements a key-value store for evens: A numerical

key is used to identify an object that contains a

message string and a time string. As there can be

many different time formats, LAMaLearner ignores

the time value only offering this field for users to

read. It can also be left empty.

As soon as LAMaLearner is provided with events,

it can create clusters of events with corresponding

representations by using a modified version of

Vaarandi’s algorithm described in section 2. Our

modification is in the identification of nested clusters,

so that LAMaLearner can also compute sub-clusters

of found outer clusters. This operation however

requires the comparison of all clusters with each other,

so that this operation requires O(|events|+|clusters|²)

steps. Vaarandi’s algorithm has a threshold hyper-

parameter that determines in how many events the

same term has to occur at the same place to be

considered a 1-region (see section 2). Increasing this

parameter decreases the amount of clusters that are

found. The result set also displays all stored events that

do not fit into any of the generated clusters.

Leveraging Clustering and Natural Language Processing to Overcome Variety Issues in Log Management

283

The individual cluster representations are a

sequence of fixed 1-region terms F={f

,…,f

}

intermixed with variable terms V={v

,…,v

}. For all

events within one cluster, F is identical, while the

values for V contain different terms. We use this

property for the created clusters for two additional

analysis steps: Firstly, the detection of named entities.

In the current version, we use lists of terms or regular

expressions to represent named entities such as

usernames, DNS names, IP addresses, and email

addresses. Identifying named entities for F is

performed by matching f

,…,f

to the stored entities.

As v

,…,v

are lists of different values per event that

was assigned to the cluster, these are actually each a

list of different terms. Therefore, LAMaLearner

attempts to identify, if all terms within ∈ are

matching to the same regular expression. This can be

used in the cluster representation by creating

representations such as Router {hostname} interface

{ip} down in which {hostname} and {ip} are named

entities represented by common regular expressions.

The identification of F and V per cluster also

yields another opportunity for analysis. Namely the

identification of commonly co-occurring variables in

V. A matrix of how often variable values co-occur in

the same event can be computed. Without additional

knowledge about the analyzed log files, one can infer

related values within clusters. For instance co-

occurring hostnames and IP addresses or Microsoft

Active Directory Security Identifier and human

readable user names. These commonly co-occurring

values are provided to the user after clustering events.

This way, users can quickly gain an overlook about

the available messages within the analyzed log files.

Depending on their required application, users can start

to annotate messages accordingly. Examples for

appropriate labels largely depend on the analyzed log

files. Practical examples from an Apache Tomcat

application log file are success, exception, database

connection terminated, SQL syntax error and client

caused db error. Example labels for security log files

can be successful logins, failed logins, and malware

detected.

In comparison to annotating thousands of

individual events, this clustering step compresses the

task to annotating tens of clusters, massively speeding

up the process. Annotated clusters are stored in a

portable way. This means, that every cluster object

contains a list of annotated labels. LAMaLearner

implements the trainer/athlete pattern to compute its

models. The trainer node extends the TFIDF-SVM

approach with the synthetic minority oversampling

technique as follows:

Labelled clusters form the documents for which a

TFIDF-matrix is computed. As cluster labels are

known, the amount of clusters per label is also known.

To present the subsequent process with a more

balanced problem, LAMaLearner generates synthetic

samples for all minority classes by randomly

concatenating terms occurring in existing cluster

representations of the minority labels. For the sake of

repeatability, LAMaLearner performs this process

using a fixed random seed. After this creation of

synthetic samples, there is an equal amount of

training samples for each class. Additionally,

LAMaLearner computes the average amount of labels

that are assigned to each existing sample cluster.

LAMaLearner subsequently uses the same feature

extraction scheme as described by Eljasik-Swoboda

et al. (2019). To do so, it only takes real samples into

account. This means, that it ignores the synthetically

generated samples for its feature extraction and

selection scheme.

After determining relevant terms for feature

extraction and selection, LAMaLearner triggers an n-

fold cross-validation process. It is important to note,

that only real labelled clusters are used as evaluation

samples. The generated synthetic samples are only

used for training. As with TFIDF-SVM, LibSVM is

used to compute hyperplanes capable of identifying

appropriate labels. While TFIDF-SVM works with an

assignment threshold to determine if documents

should be assigned to a certain label, LAMaLearner

extends this decision with the average amount of

assignments learned from its un-augmented training

set. It is noteworthy, that for this supervised learning

process, the exact positioning of terms within events

is intentionally ignored. This information is only used

for the unsupervised clustering phase. The purpose

for ignoring the exact positioning of relevant terms is

to create robustness against changing formats. While

the ordering of specific terms can change with every

software update, semantic shift happens much slower.

For example logged terms like

failure, exception,

fatal, or malware don’t change in meaning depending

on where they are in the log message.

After n models have been computed, the best is

selected. The selection metric (precision, recall, F1,

microaverage, macroaverage) can be selected before

training. This best model is then stored by the trainer

node, so that any athlete node can obtain the model

by querying it. The model object also contains

relevant metadata about the model. Besides

information about the creator, log type and use case it

has been trained for, detailed evaluation results are

stored.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

284

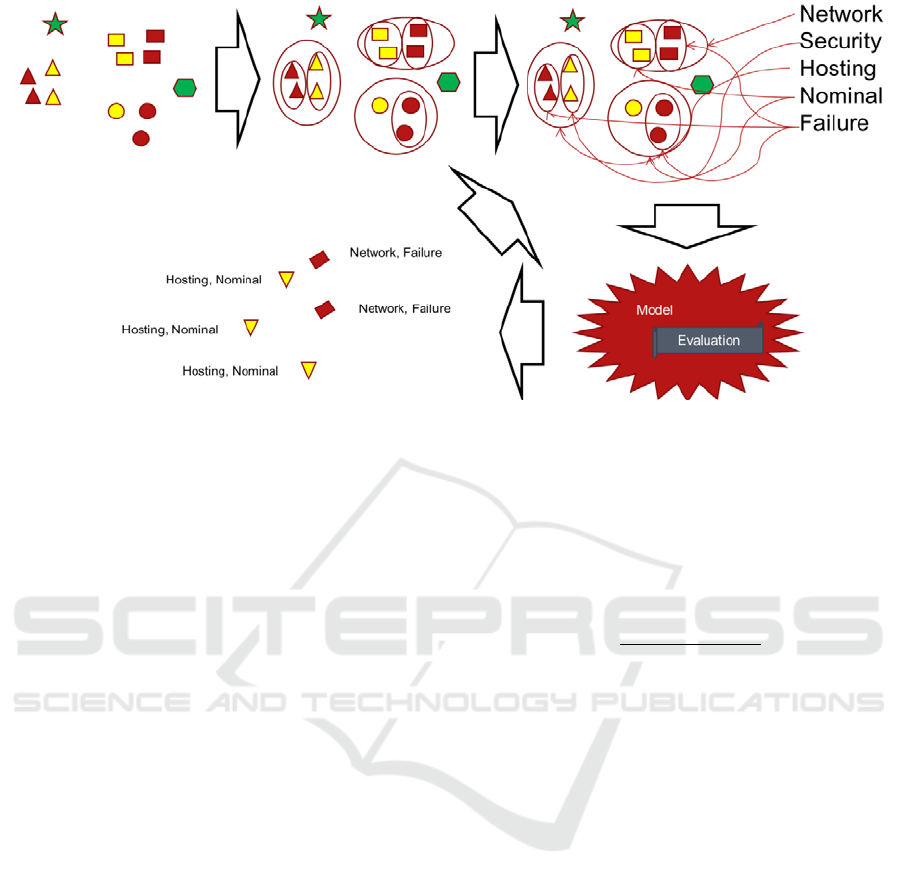

Figure 1: LAMaLearner overall learning process: Firstly, unknown event messages are collected in nested clusters. These can

be labeled in < 1% of the time necessary to label all individual messages. Based on these labelled clusters, a model capable

of labelling clusters and individual messages is computed. It contains its effectiveness evaluation. This model can successfully

be used to label previously unknown log messages in the same and different formats. If mistakes occur, these can be corrected

and the model can be improved.

This way, whenever an athlete node is using this

model, users can display how effective the used

model was during evaluation.

A LAMaLearner athlete node needs an active

model so that it can automatically annotate any event

or cluster with a label. A big advantage of SVMs is

their speed and low resource consumption. Combined

with the feature selection scheme, large amounts of

events can rapidly be automatically labelled. This

task can easily be scaled out across multiple

machines. LAMaLearner also allows for the

definition of fixed rules. These rules are made up of

indicator terms which occurrence strongly suggest a

specific label. Rule based results can be combined

with the active model either using a logic AND or a

logic OR operator. In addition to label individual

events, the before mentioned approach to identify

named entities is used on every event message. These

allow for filtering of labels in combination with

entities and values, for instance to display only failure

events for specific usernames.

Besides manually annotating clusters,

LAMaLearner can also work with manually

annotated events to increase the size of its training

and evaluation set. This allows for an interactive

training loop in which false results can be corrected

and a new training process can be triggered to further

increase a model’s effectiveness. Labels are assigned

with a risk score which is a value indicating the

urgency of events having this label. As multiple labels

can be assigned to each event or cluster,

LAMaLearner computers an overall risk score per

cluster or label using formula 2.













∏





,



∗



|





|



(2)

The formula to compute the overall risk of event

or cluster i r(e

) is the product of the individual

probabilities for this event or cluster to have label j

p(e

) computed by the model and fixed rules

multiplied with the assigned risk of label j r

. The

utilized SVMs output a probability for an assigned

label. Indicator terms are also configured with a

probability to indicate certain labels. LAMaLearner

automatically removes unlikely labels from the label

set of event or cluster i l

. Therefore it seldom

multiplies all label risks per event only concentrating

on relevant values. LAMaLearner can be configured

with an overall risk threshold. Whenever an instance

identifies an event or cluster of a higher risk score

than this threshold, it can call a freely configurable

external program via CLI. This can be used to raise

alarms or initiate automated further actions

depending on the detected labels. We chose this

multiplication based method of computing overall

risk values per cluster or event as it allows for

negation. For instance one can model different

aspects of a log managed environment with different

base risk values. E.g. error messages in firewalls can

be regarded as more important than those of storage

Leveraging Clustering and Natural Language Processing to Overcome Variety Issues in Log Management

285

components. One can also model success messages

with a negative risk value. This means, that success

messages of different components get negative risk

scores while error messages obtain risk scores in

relation to the base risk score of impacted component

class.

4 IMPLEMENTATION

The core idea behind Hadoop’s popular MapReduce

programming model is to move the program to where

the data resides instead of the other way around (Dean

and Ghemawat, 2008). We took this idea to mind

when designing LAMaLearner in a way that it can

easily be transferred to where ever necessary and

scaled out where possible. This way, potentially

sensible information contained within log files do not

have to leave a secured network environment. To

meet this objective, we based LAMaLearner on Java

and packaged it as fat jar file. It communicates via a

REST/JSON interface. This way, it can operate on

any platform that supports java and has a network

interface, allowing for integration into many existing

log management technologies. In order to ease direct

interaction with LAMaLearner, it also renders a Web

GUI which is based on JavaScript and communicates

with the underlying REST/JSON interface. To do so,

LAMaLearner is based on the Dropwizard framework

(Dropwizard, 2019). All relevant data is stored in

memory.

The creation of clusters or assignment of labels to

uploaded events can be triggered by sending POST

requests to the appropriate resources. Hyper-

parameters for these processes are transferred as

JSON objects to the LAMaLearner instance.

LAMaLearner keeps track of whether a clustering or

event labelling process is in progress. If that is the

case, a new process cannot be triggered. While events

are clustered, annotated with labels, or a new model

is computed, LAMaLearner returns a progress list

that indicates how many of the necessary steps have

been performed. In order to keep the web server

responsive and maintain the ability to query the

LAMaLearner instance for existing results, all

clustering, labelling and model creation processes are

executed in independent threads.

This setup is very flexible and has no external

dependencies except for Java. Intentionally,

LAMaLearner does not implement a database to

persistently store events, clusters, labelled events or

created models. All data is kept in memory and can

be exported as JSON object which in turn can be

imported into another instance. As log files

themselves are usually not stored as JSON objects,

this creates the need to interact with an existing log

management solution that is capable of packaging log

entries into JSON objects and trigger LAMaLearner.

It also has to be able to store results and process them

further, for instance by triggering alerts if there are

more than 10 firewall rejections within a specific time

interval. For this purpose we use an in-house

technology called Modular Abstract Data processing

Tool (MAD2).

This piece of software can collect log files from

lots of different source systems. Using a relational

data format, Huffman encoding and a multitude of

compression algorithms, MAD2 can reduce the

storage requirements for log files. A single instance

can also process up to 10.000 events per second,

making this software the interface between the actual

log files and the LAMaLearner AI.

5 EVALUATION

LAMaLearner is a useful tool for exploring new

unknown log formats and processing them into a

labelled form for further downstream analysis. To

evaluate its capabilities, it was tested with different

real life log files. The person inspecting these log files

had no prior knowledge about the environments they

have been created in.

The first tested log file was a Microsoft-

Windows-Security-Auditing log file. The analyzed

part of the log file contained 10,000 events. Using a

threshold of 2, LAMaLearner condensed the

messages to 79 nested clusters. Manual inspection

showed that the events contained mainly three types

of events: Successful logins, successful logoffs, and

with the labels success and failure. LAMaLearner

was able to create a model with F1=1. In combination

with named-entity based filtering, users can quickly

identify which users or hosts are involved in failures.

Additionally, the variable co-occurrence feature of

the clustering process allowed matching Microsoft

Security Identifier to the human readable user name

only from automatically analyzing the log files.

Interestingly, the same model was then used on a

Check Point Firewall log which had a vastly different

format. In a manual evaluation of 50 events,

LAMaLearner was capable to tell successful

connections (label success) from rejected connections

(label failure).

In another test, LAMaLearner was presented with

a mixed collection of events coming from three

different source systems: Microsoft-Windows-

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

286

Security-Auditing logs, Check Point firewall logs,

and an Apache webserver access log. This mix

contained 18,110 events. LAMaLearner created 47

nested clusters with an assignment threshold of 5 (56

with an assignment threshold of 2). A model capable

of telling different source systems apart obtained an

overall .93 F1 value. In both these cases, the

clustering approach reduced the time necessary to

label a large quantity of events by more than two

orders of magnitude. This means that the time

required to annotate log events for machine learning

purposes was reduced to less than 1% of the original

amount of required time. The learned models were

highly effective in detecting the correct label for any

event. On a Windows 10 machine with an Intel I7-

7870 (4 cores, 2.9 GHz) and 16 GB RAM,

LAMaLearner is capable of labeling >10,000 events

per second. Besides this core use case of correctly

classifying events without requiring predefined

regular expressions, LAMaLearner also provides

interesting insights into unknown log files.

Specifically by clustering the afore mentioned Check

Point firewall log revealed which type of network

traffic was routed over this firewall.

An interesting observation was made when

analyzing the log files of an Apache Tomcat

application server log. 963 events logged in one day

were grouped into 56 clusters. Upon first view, four

reasonable labels were determined: Success, static

exception, database connection terminated, and

exception. The 56 clusters from that day were

manually annotated with these labels and a model

with F1=1 was computed. As evaluation, the model

was tasked with labelling the events of the next day

of this specific server. The second day’s log file

contained 1,713 messages that were quickly labeled

with the available labels. Inspection revealed that

known types of events were correctly labelled. There

however were new types of events that were either

interpreted as success or exception. The first one was

an SQL Syntax Error that has been logged in the

application server log file. The second one was a

client caused database error, where a user attempted

to delete an entry that didn’t exist. By labeling these

events, an updated model that can determine these

different labels with F1=1 was easily created. Besides

having the ability to track security related entries in a

SIEM platform, this revealed potential errors in

existing software that one might not have noticed in

production.

Another interesting result was obtained by

leaving the world of classical information technology

components and analyzing the log files of an

industrial control computer. 1601 Events were

clustered into 54 clusters. Manual inspection has

shown that there are three general classes of events

within the log file: General status information,

malfunction, and exceeding thresholds. Using

LAMaLearner, these can subsequently be visualized

in a dashboard and enable the operator of the

environment with a quick overview about what has

happened in previous time intervals. This provides

operators with a quick update about the environment

on shift changes. Named-entity based filtering and

correlation between variable values in clusters also

allowed to quickly filtering which component failed

or exceeded its threshold. In case of exceeding

thresholds, the values can then quickly be checked

and actual malfunctions can get investigated. As this

can be performed on multiple control systems at once,

a much better overview is gained.

As last experiment, we generated an artificial log

file in two different formats. It contained 1000 events

which LAMaLearner clustered to 8 high-level

clusters (two of which contained a large collection of

sub-clusters). This artificial log contained events

about simulated traffic over two different network

routers. The two high level clusters each represented

a different router. Their sub-clusters were

connections from different peers to these routers.

Overall 98 peers were simulated, each of which had

their own cluster. The clusters found in the first log

file were annotated with the labels nominal and

failure. The latter was used for interface outages.

Again, a high effectiveness model (F1=1) was

generated by LAMaLearner. This model was then

applied to label the events of the second log. The

second log file contained the same information per

event but had a completely different ordering of the

individual variables and different accompanying

words and characters between those. In this second

log file, the model was also able to identify nominal

and failure events with F1=1. Even though this last

experiment was not conducted with a real-life log file,

it illustrates LAMaLearner’s robustness against

changing log formats as soon as models to label said

formats have been learned.

6 CONCLUSIONS AND FUTURE

WORK

In this work, we have introduced a flexible method to

overcome variety issues in log management by

engineering multiple state of the art AI methods into

a single powerful solution. Our contributions can

reduce the amount of manual effort in log

Leveraging Clustering and Natural Language Processing to Overcome Variety Issues in Log Management

287

management projects dramatically. It can also shine a

light on previously undiscovered log file entries as it

allows their exploration in a reasonable time frame.

Additionally frequently logged variables such as

hostnames or users can be identified for further

investigation. These capabilities are highly

interesting for small or medium enterprises that intent

or have to use log management but do not have the

necessary personnel to successfully implement such a

practice. It also is not limited to information

technology security logs but can also be used within

industrial applications to reveal hidden patterns

within such environments. Because of its practical

implementation, LAMaLearner can be introduced

into any relevant system architecture and can handle

large amounts of data by having been designed to

scale out form the beginning. The fact that no

connection to an external provider is necessary and

explanations for labeling decisions can be generated

the same way as explained by Eljasik-Swoboda et al.

(2019) make this software safe to use under strict

privacy legislature like the European Union’s GDPR

(EU, 2016).

In future works we will use LAMaLearner

generated event labeling results as input for time

series anomaly detection and regression computation.

The current version is limited to identify named

entities from single words. As of now, word n-grams

cannot be analyzed. Therefore additional ways to

create a named entity recognition (NER) component

minimizing manual effort in its definition will also be

researched.

REFERENCES

Chang, C., Lin, C., LIBSVM: A library for support vector

machines, ACM Transactions on Intelligent Systems and

Technology, volume 2, issue 3, pp 27:1 –27:27, 2011

Chawla, N. V., Bowyer, K. W., Hall, L. O., Keelmeyer, W.

P. 2002. SMOTE: Synthetic Minority Over-sampling

Technique, Journal of Artificial Intelligence Research,

Issue 16, pp. 321-357

Dean, J., Ghemawat S., 2008. MapReduce: simplified data

processing on large clusters. In Communications of the

ACM issue 51, pp. 107-113.

Dropwizard 2019, Production-ready, out of the box.

https://dropwizard.io Accessed September 12, 2019

Elastic, 2019. Open Source Search & Analytics

Elasticsearch | Elastic https://elastic.co Accessed

September 12, 2019

Eljasik-Swoboda, T., Engel, F., Hemmje, M., 2019. Using

Topic Specific Features for Argument Stance

Recognition. In: Proceedings of the 8

international

conference on data science, technology and applications

(DATA 2019), DOI: 10.5220/0007769700130022

Regulation (EU) 2016/679 of the European Parliament and

of the Council of 27 April 2016 on the protection of

natural persons with regard to the processing of

personal data and on the free movement of such data,

and repealing Directive 95/46/EC (General Data

Protection Regulation) (Text with EEA relevance); OJ

L 119, 4.5.2016, p. 1–88;

Gartner, 2011. Gartner Says Solving ‘Big Data’ Challenge

Involves More Than Just Managing Volumes of Data,

http://www.gartner.com/newsroom/id/1731916

Published June 27, 2011 Accessed May 2, 2016

Graylog, 2019. Industry Leading Log Management | Graylog

https://graylog.org Accessed September 12, 2019

IBM, 2019. IBM QRadar SIEM – Overview,

https://www.ibm.com/us-en/marketplace/ibm-qradar-

siem Accessed September 12, 2019

Jurafsky, D., Martin, J. J., 2009. Speech and language

processing. An introduction to natural language

processing, computational linguistics and speech

recognition. 2

edition, Upper Saddle River, N.J.,

London: Pearson Prentice Hall (Prentice Hall series in

aritificial intelligence), pp 761 ff.

Kent, K., Souppaya, M., 2006. Guide to Computer Security

Log Management, Recommendations of the National

Institute of Standards and Technology (NIST), DOI:

10.6028/NIST.SP.800-92

Logentries, 2019. Logentries: Log Management & Analysis

Software Made Easy. https://logentries.com Accessed

September 12, 2019

Loggly, 2019. Log Analysis | Log Management by Loggly

https://loggly.com Accessed September 12, 2019

Singh, D., Reddy, C. K., 2014. A survey on platforms for

big data analytics, Journal of Big Data. DOI:

10.1186/s40537-014-0008-6

Splunk, 2019. SIEM, AIOps, Application Management,

Log Management, Machine Learning, and Compliance.

https://splunk.com Accessed September 12, 2019

Sumo Logic, 2019. Log Management & Security Analysis,

Continuous Intelligence, Sumo Logic.

https://sumologic.com Accessed September 12, 2019

Swift, D., 2010. Successful SIEM and Log Management

Strategies for Audit and Compliance, White Paper

SANS Institute, https://www.sans.org/reading-

room/whitepapers/auditing/paper/33528 Accessed

September 5, 2019

Swoboda, T., Kaufmann, M., Hemmje, M. L., Toward

Cloud-based Classification and Annotation Support,

Proceedings of the 6th International Conference on

Cloud Computing and Services Science (CLOSER

2016) – Volume 2, pp. 131-237, 2016

Teixeira, A., 2017. Get over SIEM event normalization.

https://medium.com/@ateixei/get-over-siem-event-

normalization-595fc36559b4 Accessed Sept. 16, 2019

Varanadi, R., 2003. A Data Clustering Algorithm for

Mining Patterns from Event Logs. In: Proceedings of

the 2003 IEEE Workshop on IP Operations and

Management, ISBN: 0-7803-8199-8

Williams, A. T., Nicolett, M., 2005. Improve IT Security

with Vulnerability Management, Gartner Research ID

G00127481

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

288
