Privacy-preserving Surveillance Methods using Homomorphic

Encryption

William Bowditch, Will Abramson, William J. Buchanan, Nikolaos Pitropakis and Adam J. Hall

Blockpass ID Lab, Edinburgh Napier University, Edinburgh, U.K.

Keywords:

Cryptography, SEAL, Machine Learning, Homomorphic Encryption, FV (Fan and Vercauteren).

Abstract:

Data analysis and machine learning methods often involve the processing of cleartext data, and where this

could breach the rights to privacy. Increasingly, we must use encryption to protect all states of the data: in-

transit, at-rest, and in-memory. While tunnelling and symmetric key encryption are often used to protect data

in-transit and at-rest, our major challenge is to protect data within memory, while still retaining its value. Ho-

momorphic encryption, thus, could have a major role in protecting the rights to privacy, while providing ways

to learn from captured data. Our work presents a novel use case and evaluation of the usage of homomorphic

encryption and machine learning for privacy respecting state surveillance.

1 INTRODUCTION

User privacy has always been a second priority be-

hind revenue for technology companies, and for valid

reasons; the revenue of these tech giants relies on

selling behavioural futures predicted from analyzing

vast quantities of data (Zuboff, 2015). Companies

like Facebook and Google digest raw data that need

to be normalized, sorted, and trained on in order to

produce effective machine learning models. While

this data can be protected with SSL tunnels on tran-

sit, it must be decrypted and stored in plain-text on

corporate servers in order to provide any value. A

parallel exists in civilian privacy and national secu-

rity; government agencies like the NSA rely on Inter-

net surveillance programs that search plain-text data

in order to detect threats of national security. On the

surface, free internet services and effective terrorism

countermeasures seem like a reasonable trade in ex-

change for one’s personal data. However, as is often

the case in information security, humans are the weak-

est link in the chain.

Unfettered access to personal data has facilitated

cases where this access has been abused by both gov-

ernment agencies and industry (Selyukh, 2019)(Pym-

nts, 2019). With these examples the predicament is

clear; we wish to provide data for these models such

that they continue to subsidize free internet services

and protect homeland security, but we do not trust the

human users that inevitably gain access to this data.

Fortunately, the cryptographic community has been

working on a solution for forty years but it was not

until recently that implementations became practical.

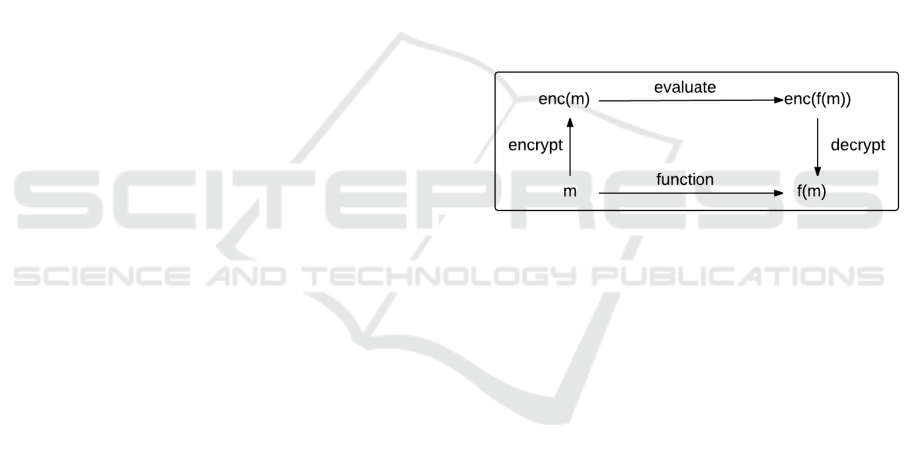

Figure 1: Homomorphic Encryption.

Homomorphic encryption is a cryptographic

scheme that allows one to perform arbitrary functions

on a ciphertext without the need to decrypt the ci-

phertext in advance. Furthermore, the decrypted ci-

phertext is equivalent to the output of the same arbi-

trary functions performed on the plain-text. Figure

1 illustrates this relationship. For example, fully ho-

momorphic encryption would allow users to send en-

crypted data to government agencies and technology

companies such that models can train and act on this

data without knowing or needing to store the plain-

text itself. A cryptographic scheme is partially ho-

momorphic (PHE) if it allows unlimited operations to

be performed but with one particular function, while a

scheme is somewhat homomorphic if it allows limited

operations of any arbitrary function.

Up until now, homomorphic encryption research

has been mainly focused on the development of new

methods and performance analysis. In order for it to

be adopted into the mainstream, we need strong use

cases. This paper thus presents a novel use case of

homomorphic encryption that utilises machine learn-

ing and applied into surveillance. It uses (scikit-

learn) and Python implementations of Pailler and FV

schemes, in order to create a homomorphic machine

240

Bowditch, W., Abramson, W., Buchanan, W., Pitropakis, N. and Hall, A.

Privacy-preserving Surveillance Methods using Homomorphic Encryption.

DOI: 10.5220/0008864902400248

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 240-248

ISBN: 978-989-758-399-5; ISSN: 2184-4356

learning classiﬁcation technique that allows model

owners to classify data without jeopardizing user pri-

vacy. The paper aims to provide a review of mod-

ern HE schemes for non-cryptography specialists, and

gives simple examples of the usage of homomorphic

encryption. Code samples are used in order to illus-

trate the application of the methods, and support read-

ability.

While the state-of-the-art homomorphic methods

proposed today are impractical for computationally

complex tasks like machine learning without substan-

tial delay (Laine et al., 2018), the schemes reviewed

below are capable of handling machine learning eval-

uation. We construct a hypothetical scenario, solved

with homomorphic encryption, such that a govern-

ment agency wishes to use machine learning in or-

der to identify pro-ISIS messages without (a) collect-

ing the messages of citizens and (b) allowing users

to reverse engineer the model. Our implementation

differs from previous approaches (Trask, 2019) be-

cause it utilizes the machine learning library scikit-

learn (Pedregosa et al., 2011), the Github repository

python-paillier (python-paillier, 2012), and a Python

port (pySEAL, 2017) of Microsoft SEAL 2.3 (Laine,

2017) in order to benchmark and evaluate the pa-

rameters of the cryptosystems proposed by Paillier

(python-paillier, 2012) and Fan Vercauteren (Fan and

Vercauteren, 2012).

2 BACKGROUND AND RELATED

WORK

The literature review will investigate fully homomor-

phic encryption schemes, starting with Craig Gen-

try’s 2009 seminal paper, which was the ﬁrst paper

to describe a credible fully homomorphic encryption

scheme (Gentry et al., 2009), followed by Brakerski

and Vaikuntanathan’s work (Brakerski and Vaikun-

tanathan, 2014) as well as Junfeng Fan and Frederik’s

Vercauteren’s (VF) suggestion (Fan and Vercauteren,

2012), both approaches that build off of Gentry’s

work and are implemented by Microsoft in the C++

library SEAL (Laine, 2017). Melchor (Melchor et al.,

2018) evaluated HElib, SEAL and FV-NFLlib, and

found that SEAL V2.3 performed best for multiplica-

tive homomorphic encryption.

2.1 Gentry

Craig Gentry broke new ground in the ﬁeld of

homomorphic encryption with his seminar paper,

”Fully Homomorphic Encryption Using Ideal Lat-

tices” (Gentry et al., 2009). Gentry’s method re-

lies on a somewhat homomorphic lattice-based crypto

scheme; the scheme is limited in the number of oper-

ations that can be performed on a ciphertext before

noise, a by-product of the probabilistic nature of the

scheme, grows so large such that the plain-text map-

ping is inaccurate. The monumental insight gained

from Gentry’s work was the concept of bootstrapping,

a technique that refreshes the noise of a ciphertext by

decrypting the ciphertext with a new key without re-

vealing the plain-text. While strictly following Gen-

try’s algorithm was unrealistic due to Big-O complex-

ity, his method was the foundation for practical im-

plementations such as HELib and SEAL, the latter of

which is utilized in Section 3.

2.1.1 Lattice based Cryptography

In linear algebra, a basis of a vector space is a set of

n independent vectors such that any coordinate point

on said space is a linear combination of these basis

vectors. The lattice of a vector space is the set of ba-

sic linear combinations with integer coefﬁcients; for

example, all (x,y) points where x, y ∈ Z on a Eu-

clidean vector space make up the lattice. Ideal lat-

tices are, ”lattices corresponding to ideals in rings of

the form Z[x]/( f ) for some irreducible polynomial of

degree n” (Wikipedia contributors, 2004). Ideal lat-

tices are essential to the semantic security of Gentry’s

FHE method due to the intractable nature of the clos-

est vector problem - given a vector v outside of any

lattice points, which lattice point is closest to v? The

closest vector problem forces one to perform lattice

basis reduction in order to be solved, but at the cost of

exponential time.

When the vector without error is known by a party,

this closest vector problem allows this party to ”hide”

an encoded message m

with an error if the message

space is (mod p) for some integer p, the cipher space

is (mod q) for some integer q >> p, and the error is

divisible by p, allowing simple future removal of the

error. Consequently, the error is calculated by ran-

domly generating e from a uniform distribution and

multiplying e by p, thus ensuring this divisibility and

clean error removal. Furthermore, it is essential that

the chosen p is much less than q since all operations

in the scheme are performed (mod q) (Raynal, ).

Due to the algebraic properties of vector addition

and multiplication, it is possible to calculate the sum

and product of two cipher-texts with the respective

sum and products of the error. When the error is re-

moved after the operation F(c

), via decryption,

the output is equivalent is F(m

). However, this

growth in the error is why lattice-based cryptogra-

phy is somewhat homomorphic; if the error grows too

large then the closest lattice vector during decryption

Privacy-preserving Surveillance Methods using Homomorphic Encryption

241

is no longer accurate. For example, on a Euclidean

space if the correct lattice vector is (1,1) but the error

is x = .3 and y = 0.6, then the decryption will incor-

rectly decrypt to (1,2).

2.1.2 Bootstrapping

The solution Craig Gentry proposes to counter noise

growth in lattice-based cryptography is a ”bootstrap-

ping” technique, thus transforming the scheme from

partially homomorphic to full homomorphic cryptog-

raphy. The technique is based on the intuitive notion

that the only way to remove noise is to decrypt the

cipher-text; therefore if the decryption operations are

performed with the private key k

encrypted with a

new private key k

as well as the ciphertext c

en-

crypted with the new key k

, then the error is reduced

to the noise added by the homomorphic decryption

operation. Due to the circuit complexity of the de-

cryption operation, Gentry invents a squashing tech-

nique to the decryption function that in a sense pro-

vides a ”hint” to the decryption process for the evalu-

ator, but relies on the intractability of the subset sum

problem; given a set of integers ﬁnd a non empty sub-

set with a sum of 0 (Gentry et al., 2009). The ma-

jority of homomorphic research in the past decade

has been built upon Gentry’s proposal, mainly focus-

ing on (1) reducing the homomorphic operation cost

of decryption and (2) reducing the resources neces-

sary to encrypt an already encrypted cipher-text. The

bootstrapping method, though, has been criticised for

its requirement to refresh noisy ciphertexts. Ducas

et al (Ducas and Micciancio, 2015) present a new

method (FHEW) and which homomorphically com-

putes simple bit operations. This reduces the over-

head to around half a second and is based on the

worst-case hardness of lattice problems.

2.2 Brakerski and Vaikuntanathan

In 2011, Zvika Brakersi and Vinod Vaikuntanathan

published a fully homomorphic encryption scheme

that improved on Gentry’s scheme in both efﬁ-

ciency and simplicity (Brakerski and Vaikuntanathan,

2014). This paper introduces two key concepts: a re-

linearization technique that removes the need for in-

tractability assumptions regarding ideal lattices, and a

dimension-modulus technique that removes the need

for squashing and the above mentioned intractability

assumption of the subset sum problem.

2.2.1 Re-linearization

Braverski and Vaikuntanathan migrated the assump-

tion from ideal lattice cryptography to general lattices

by utilizing learning with errors, which states that

given a basis, a linear combination of the basis vector

with small error, and a lattice point, ﬁnding the lat-

ter vector from the former is computationally difﬁcult.

Since ideal lattices are a relatively new ﬁeld of study

in the mathematics community as opposed to gen-

eral lattices, Brakersi and Vaikuntanathan claim that

the community has, ”a much better understanding of

the complexity of lattice problems (thanks to [LLL82,

Ajt98, Mic00] and many others), compared to the cor-

responding problems on ideal lattices”(Brakerski and

Vaikuntanathan, 2014), thus providing more conﬁ-

dence to this scheme’s semantic security. By using

learning with errors, a homomorphic multiplication

optimization called re-linearization can be performed,

which utilizes a new key to decrease the degree of

cipher-text. This optimization prevents noise from

growing exponentially during multiplication, replac-

ing the growth factor with a constant dependent on

the initial security parameter λ.

2.2.2 Dimension-modulus Reduction

As mentioned above, Gentry’s 2009 paper utilizes a

”squashing” technique in order to ensure that homo-

morphic operations were possible on the decryption

circuits by relying on the hardness of the subset sum

problem. Braverski and Vaikuntanathan demonstrate

that a learning with error homomorphic scheme with

a dimension-modulus reduction only requires a rela-

tively small decryption, thus making any squashing

of the decryption circuit unnecessary. Dimension-

modulus reduction is the process of converting a ci-

phertext with dimension n and cipher modulo q and

mapping this ciphertext with new parameters of di-

mension k where k << n and modulo log(p) where

p is the plain-text modulus. The semantic security of

this dimension-modulus reduction relies on the hard-

ness of learning with errors for dimension k modulo

log(p). Consequently, this reduction allows Braverski

and Vaikuntanathan’s scheme to be boot-strappable,

thus fully homomorphic, without assumptions beyond

the intractability of the learning with errors problem.

2.3 Fan Vercauteren Scheme

Jufeng Fan and Frederik Vercauteren’s ”Somewhat

Practical Fully Homomorphic Encryption” directly

builds off of Braverski’s learning with errors homo-

morphic scheme by introducing a ring variant of the

learning with error problem (Fan and Vercauteren,

2012). The 2012 paper optimizes Braverski’s re-

linearization with the aid of smaller re-linearization

keys, as well as a modulus switching trick in order to

simplify bootstrapping.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

242

2.3.1 Ring Learning with Errors

In mathematics, a ring R is a set with two binary op-

erations that allows generalization from normal arith-

metic to other frames like polynomials and functions.

Thus, a polynomial ring can be R = Z/ f (x) where

f (x) ∈ Z[x] is a monic irreducible polynomial of de-

gree d. Fan and Vercauteren utilize polynomial rings

in creating the hardness of their scheme: Deﬁnition 1

(Decision-RLWE):

For security parameter λ, let f (x) be a cyclo-

tomic polynomial ω

(x) with deg( f ) = σ(m)

depending on λ and set R = Z[x]/( f (x)). Let

q = q(λ) ≥ 2 be an integer. For a random el-

ement s ∈ R

and a distribution χ = χ(λ) over

R, denote with A(a) the distribution obtained

by choosing a uniformly random element a ←

χ and outputting (a,[a ·s+e]

). The Decision-

RLWE problem is to distinguish between the

distribution A

s,χ

and the uniform distribution

U(R

. (Fan and Vercauteren, 2012)

3 TERRORIST SURVEILLANCE

USE CASE

As mentioned the Introduction, internet technology

companies and government agencies each have an im-

perative that require data analytics. However, the re-

quirement for data analytics does not imply a need

for data collection; these organizations do not rel-

ish data silo maintenance, data breach countermea-

sures, and the damage control against inevitable in-

ternal employee misuse. Homomorphic cryptography

can diminish these vulnerabilities by separating the

data evaluators from the data owners. For example,

imagine a government agency who wishes to detect

messages related to terrorist activity exchanged on a

public network; we will refer to this agency as Big

Brother. But unlike Orwell’s dystopic counterpart,

our Big Brother has regulations in place that prevent

the collection of plain-text messages. Our Big Brother

requires probable cause before being granted a war-

rant for a citizen’s data, thus ensuring the honest citi-

zen’s data privacy. Big Brother’s necessity for surveil-

lance can be met by using a homomorphic scheme

akin to a metal detector in an airport. Rather than

forcing a body search of every passenger, airport se-

curity use metal detectors to single out the potentially

dangerous passengers. Furthermore, since dangerous

passengers cannot experiment with an airport metal

detector from home, the ability to reverse engineer or

trick the airport detector is severely limited.

In our implementation of homomorphic cryptog-

raphy, our metal detector is a homomorphically en-

crypted logistic regression model trained to detect

pro-ISIS tweets. In our hypothetical scenario, Big

Brother trained his model using pro-ISIS messages

collected from previous investigations and synthetic

ISIS-related data; in reality, the pro-ISIS (pro isis =

1) and ISIS-related data (pro isis = 0) was collected

from a Kaggle dataset (Tribe, 2016). After train-

ing, Big Brother encrypts the weights and y-intercept

of his model using either the Paillier scheme or Fan

Vercauterene scheme, and sends the encrypted model

with any necessary evaluation parameters to the mes-

saging devices of his citizens. A generalisation of this

is deﬁned in Figure 2.

When an arbitrary citizen, who we will refer to

as Winston Smith, sends a message from his device

to his friend Julia, the message is evaluated by the

encrypted model resulting in an encrypted prediction

that is sent to Big Brother. Winston can not discern

the result nor purpose of the encrypted prediction, and

it is not possible for Winston to disable this feature.

While it is feasible that Big Brother supplemented the

encrypted model with an encrypted identity function

in order to obtain the plain-text message, an assump-

tion of our use case is that Big Brother has no de-

sire to collect user data due to aforementioned reg-

ulations and a general lack of trust in his own em-

ployees. Upon receiving the encrypted prediction,

Big Brother decrypts the prediction m with his pri-

vate key and inputs this value into the logistic function

p =

1=e

−m

and ignores any probability p below an

arbitrary threshold γ. However, a probability greater

than γ is equivalent to a beep in airport security and

can be used as probable cause for a warrant in order

to lawfully obtain Winston’s plain-text messages (as

well as more ground truth to improve the accuracy of

Big Brother’s model). Consequently, two major goals

have been achieved: lawful citizens of the state are en-

sured data privacy, and the state can protect national

security without collecting personal data nor reveal-

ing the source code of their surveillance to potential

criminals.

4 Methods

4.1 Logistic Regression

Logistic regression is a statistical technique used to

estimate the parameters of a binary model, binary in

that there are two possible outputs for the dependent

variable discerned from independent variables. The

estimated parameters, or weights, along with the y-

Privacy-preserving Surveillance Methods using Homomorphic Encryption

243

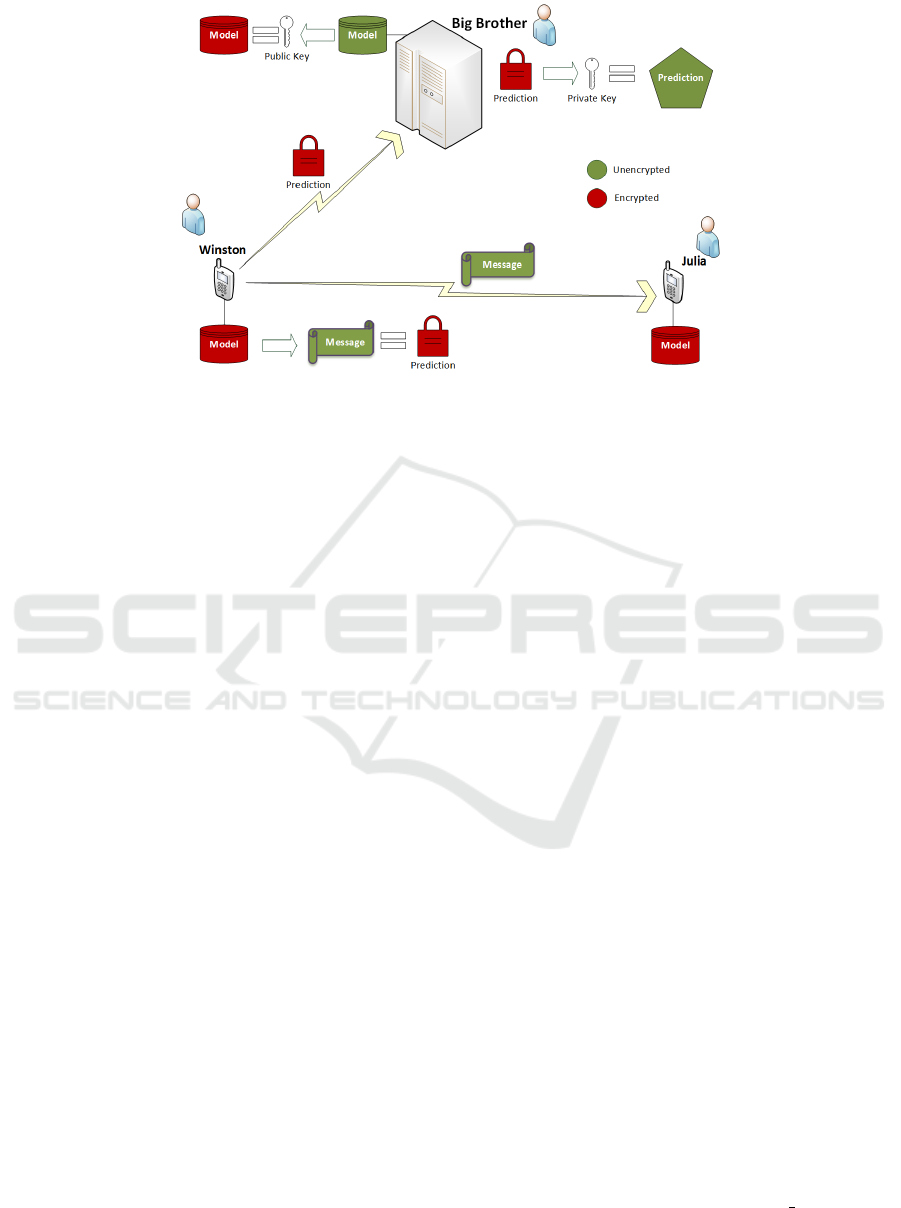

Figure 2: Homomorphic Surveillance.

intercept and logistic function allow us to calculate

the probability for either one of the dependent target

variables. A logistic model is trained using a max-

imum likelihood estimate and labeled data, with the

goal being to ﬁnd the model parameters that most

minimize the training error. Logistic regression is a

fundamental machine learning method, and as such

is implemented in the open-source Python machine

learning library scikit-learn (Pedregosa et al., 2011).

Before submitting text data for training in natural lan-

guage processing, one must decide how they wish to

quantify the representation of text. For the sake of

simplicity, we will use a bag-of-words approach that

tokenizes each message into a vector where each in-

dex represents a distinct word from the ”vocabulary”

of the training set. Since there are 44,000 unique

words in our 37,000 message dataset, the training ma-

trix has 44,000 columns and 37,000 rows. We can re-

duce this sparse column vector to any size we choose

for the sake of optimization at the cost of increasing

hash collisions and accuracy; the number of features

used in our implementation is benchmarked in Sec-

tion 5.

4.2 Python Paillier

The Paillier implementation used in this paper is from

a publicly available Github repository owned by N1

Analytics (python-paillier, 2012). The initialization

of the scheme is trivial; the API key-pair generation

function is given a requested key size in bits and re-

turns a randomly generated public and private key

pair. The precision argument is used during the en-

cryption process for rounding ﬂoating point integers,

as the Paillier scheme only works on integer values.

When Big Brother uses his public key to encrypt the

model parameters, an EncryptedNumber object is in-

stantiated containing the ciphertext along with Big

Brother’s public key; no further information needs to

be provided to Winston in order to evaluate the cipher-

text.

4.3 PySEAL

The PySEAL library is a Python port of the C++ li-

brary SEAL, developed by a homomorphic research

team at Microsoft (pySEAL, 2017) (Laine, 2017).

SEAL is an implementation of the Fan Vercauteren

homomorphic scheme, including further optimiza-

tions introduced by the 2016 paper ”A Full RNS Vari-

ant of FV like Somewhat Homomorphic Encryption

Schemes” (Bajard et al., 2016). Due to the fully ho-

momorphic nature of the Fan Vercauteren scheme, the

initialization parameters are more complex relative to

the Paillier scheme.

The polynomial modulus is parameter required to

be a power-of-two cyclotomic polynomial of the form

power−o f −two

+ 1. The size of the polynomial mod-

ulus is proportional to the security level of the ho-

momorphic scheme and inversely proportional to the

computation time because a larger polynomial modu-

lus increases the size of cipher-texts.

The second parameter chosen is the coefﬁcient

modulus, which is directly proportional to the al-

lowance of noise accumulated on a ciphertext before

the plain-text message is unrecoverable. However,

increasing the coefﬁcient modulus will also decrease

the security level of the scheme. The SEAL doc-

umentation advises the use of the helper function

illustrated on lines 11 to 16, where bit strength = n

denotes that it would take 2

operations to break

the cipher. Furthermore, the plain-text modulus

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

244

is conﬁgured in order to determine the size of the

plain-text data, and is inversely proportional to the

noise budget. The importance of these parameters

on the remaining noise budget and computation

time will be investigated in Section 5. Ultimately,

the noise budget of an encrypted ciphertext can be

estimated with:

noise budget ≈ log

(

coefﬁcient modulus

plain modulus

) (1)

The fractional encoder allows the encoding of a

ﬁxed-precision rational number into a plain-text

polynomial. Given a base b, the fractional encoder

maps a rational number to a polynomial where x = b,

and will limit the number of fractional and integral

coefﬁcients by fractional coeff and fractional base,

respectively. The fractional encoder will also move

any fractional component x of the number to the

degree of the polynomial modulus minus the degree

of the fractional component multiplied by −1; 0.75

where b = 2 and the polynomial modulus degree is

12 would be encoded as −1x

− 1x

. To further

illustrate this encoding method, a fraction encoded

with polynomial degree n = 2048, base b = 2,

fractional coeff = 1, and fractional base = 64 will be

encoded as:

24.2351 = 1x

+ 1x

− 1x

−2047

(2)

4.4 Big Brother and Winston Smith

4.4.1 Big Brother

Our Big Brother is initialized with a classiﬁer object,

a vectorizer object, a cryptographic scheme, a test set,

and a training set. The classiﬁer is the machine learn-

ing model used for surveillance, while the vector-

izer is used to extract independent variables from raw

text. The cryptographic scheme is a ’Homomorphic-

Cryptography’ object with the decrypt and encrypt

implementations abstracted from Big Brother, allow-

ing simple substitution of any homomorphic crypto-

graphic method.

4.4.2 Winston Smith

Winston Smith is initialized with test data, a homo-

morphic evaluator, a vectorizer, and the encrypted

model. The test data is used to simulate original mes-

sages written by Winston Smith. The evaluator con-

tains any parameters necessary to evaluate his mes-

sages. The vectorizer is used to transform his raw

message to a token vector; while this reveals the num-

ber of features used in the encrypted model, it does

not reveal the importance or weight of any feature.

The encrypted model is supplied by Big Brother, and

is a tuple of the encrypted weights and encrypted y-

intercept.

5 EVALUATION

A truly practical homomorphic cryptographic scheme

needs to be able to calculate arbitrary calculations

without developers needing to ﬁne tune their evalua-

tion code or wait substantial time for calculations that

are relatively fast on plain-text data. Fortunately, the

computational requirements for a logistic regression

prediction are small; multiplication against plain-text

data is not only possible in the Fan Vercauteren

and Paillier scheme, but also has no affect on the

noise budget of cipher-texts in the former. A logistic

regression prediction, where n represents the number

of features used in the model, x

represents the data

token at index i, w

represents the weight coefﬁcent at

index i, and y

represents the intercept is calculated

as such:

Y = w

· x

+ w

· x

+ ... + w

n−1

· x

n−1

+ y

(3)

This formula illustrates that addition will be the pri-

mary culprit for any noise accumulated during Win-

ston’s evaluation. Furthermore, the expansion and ex-

ponentiation of the plain-text model to the ciphertext

model will be time intensive for both the Paillier and

FV scheme.

5.1 PySEAL Benchmark

The PySEAL benchmark was performed by timing

different components of our exchange while chang-

ing one exchanging parameter. The different com-

ponents are: the scheme initialization, the model en-

cryption, the homomorphic evaluation, and the pre-

diction decryption. The benchmark was performed

on the same message throughout the experiment, and

using a 2.2GHz, 6-core 8th-generation Intel Core i7

processor with 32GB RAM. Unless otherwise stated,

the default parameters for this experiment are deﬁned

in Table 1.

Table 1: PySEAL Benchmark.

Parameter Default Value

nfeatures 1000

polymodulus 1024

plainmodulus 16

integralcoeffs 32

fractionalcoeffs 64

Privacy-preserving Surveillance Methods using Homomorphic Encryption

245

5.2 Polynomial Modulus

For the FV scheme of PySEAL, the importance of the

polynomial modulus degree on the computation time

and remaining noise budget of the ﬁnal ciphertext

E(Y ) was evaluated for 2

where 10 ≤ n ≤ 14. The

polynomial modulus increases the size of the cipher-

text dramatically; although not recorded precisely in

this paper, the benchmark scripts memory usage grew

linearly with the modulus degree such that a degree

of 2

required 400MB of RAM while a degree of 2

required 20G of RAM. It can be seen from the below

table how the degree of the polynomial modulus has

a positive relationship with the available noise bud-

get; this increased noise budget allows us to evaluate

the ciphertext further without needing to re-linearize

or otherwise refresh the noise, an expensive operation

(Table 2).

Table 2: Polynomial Modulus.

Polynomial Modulus Noise Budget

1024 10

2048 36

4096 90

8192 198

Figure 3 demonstrates the cost that increasing the

polynomial modulus and thus the ciphertext size has

on the computation time.

5.3 Bit Strength

As mentioned in Section 3, the bit strength denotes

the level of security for our scheme. While Figure 4

illustrates that while increasing the bit strength from

128 to 192 has little effect on the computation time

for our model with 1000 features, the bit strength ta-

ble demonstrates that it does have a negative effect on

the remaining noise budget of the evaluated cipher-

text (128-bit strength gives a noise budget of 10, and

192-bit strength gives a noise budget of 1).

Table 3: Bit Strength.

Bit Strength Noise Budget

128 10

192 1

5.4 Plain Modulus

The effect of the plain modulus degree on the noise

budget is evident by the negative relationship demon-

strated in Table 4. Furthermore, Figure 5 illustrates

that the plain modulus is uncorrelated with the time

complexity of the FV cryptographic scheme.

Figure 3: Polynomial Modulus.

Figure 4: Bit Strength.

Figure 5: Plain Modulus.

5.5 Number of Features

The number of features used by the logistic regression

model has a direct correlation with the accuracy of the

model. Figure 6 shows that the number of features is

also correlated with the model encryption and evalua-

tion time because more weights need to be encrypted

and evaluated (Table 5).

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

246

Table 4: Plain Modulus.

Plain Modulus Noise Budget Plain Modulus Noise Budget

64 8 128 7

256 6 512 5

1024 4 2048 3

4096 2 8192 1

16384 0

Table 5: Number of Features.

Features Accuracy Features Accuracy

1000 0.9304 2000 0.9396

3000 0.9445 4000 0.9459

5000 0.9502 6000 0.9534

7000

0.9548 8000 0.9517

9000 0.9548 10000 0.9545

Figure 6: Features.

Figure 7: Features.

Due to the partially homomorphic nature of the Pail-

lier cryptosystem, there is no noise budget to man-

age as such there does not exist a noticeable dif-

ference in time required to perform logistic regres-

sion evaluation. Figure 7 demonstrates the private

key lengths lack of correlation with the encryption

and evaluation time of Paillier cryptography. The

benchmark of Paillier was performed using a count

vectorizer with 44,000 features, as opposed to 1000

features for SEAL; this difference demonstrates the

light-weight efﬁciency of the Paillier cryptosystem

for this addition-intensive speciﬁc evaluation.

6 CONCLUSIONS

This paper has outlined and evaluated a method which

preserves privacy within a surveillance infrastructure.

We increasingly live in a world where the rights of

citizens to privacy are core to fundamental rights. Ho-

momorphic encryption can thus provide a foundation

element in building surveillance systems that respect

these rights.

REFERENCES

Bajard, J.-C., Eynard, J., Hasan, M. A., and Zucca, V.

(2016). A full rns variant of fv like somewhat homo-

morphic encryption schemes. In International Confer-

ence on Selected Areas in Cryptography, pages 423–

442. Springer.

Brakerski, Z. and Vaikuntanathan, V. (2014). Efﬁcient fully

homomorphic encryption from (standard) lwe. SIAM

Journal on Computing, 43(2):831–871.

Ducas, L. and Micciancio, D. (2015). Fhew: bootstrapping

homomorphic encryption in less than a second. In An-

nual International Conference on the Theory and Ap-

plications of Cryptographic Techniques, pages 617–

640. Springer.

Fan, J. and Vercauteren, F. (2012). Somewhat practical fully

homomorphic encryption. IACR Cryptology ePrint

Archive, 2012:144.

Gentry, C. et al. (2009). Fully homomorphic encryption

using ideal lattices. In Stoc, volume 9, pages 169–178.

Laine, K. (2017). Simple encrypted arithmetic library 2.3.

1. Microsoft Research https://www. microsoft. com/en-

us/research/uploads/prod/2017/11/sealmanual-2-3-1.

pdf.

Laine, K., Gilad-Bachrach, R., Chen, H., Lauter, K., Han,

K., Huang, Z., and Jalali, A. (2018). Logistic regres-

sion over encrypted data from fully homomorphic en-

cryption.

Privacy-preserving Surveillance Methods using Homomorphic Encryption

247

Melchor, C. A., Kilijian, M.-O., Lefebvre, C., and Ricosset,

T. (2018). A comparison of the homomorphic encryp-

tion libraries helib, seal and fv-nﬂlib. In International

Conference on Security for Information Technology

and Communications, pages 425–442. Springer.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Pymnts (2018 (accessed April 20, 2019)). Lyft accused

of giving access to rider data, including zuck’s phone

number.

pySEAL (2017). Pyseal. Lab41.

python-paillier (2012). python-paillier. n1analytics.

Raynal, F. A brief survey of fully homomorphic encryption,

computing on encrypted data.

Selyukh, A. (2013 (accessed April 20, 2019)). Nsa staff

used spy tools on spouses, ex-lovers: Watchdog.

Trask, A. (2017 (accessed April 20, 2019)). Safe crime de-

tection.

Tribe, F. (2016). How isis uses twitter. We scraped over

17,000 tweets from 100+ pro-ISIS fanboys from all

over the world since the November 2015 Paris At-

tacks.

Wikipedia contributors (2004). Ideal lattice cryptography

— Wikipedia, the free encyclopedia.

Zuboff, S. (2015). Big other: surveillance capitalism and

the prospects of an information civilization. Journal

of Information Technology, 30(1):75–89.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

248
