Detecting Tunnels for Border Security based on Fiber Optical

Distributed Acoustic Sensor Data using DBSCAN

Suleyman Alpay Aslangul

ASELSAN Homeland Security Programs Department, UGES Division ASELSAN Mehmet Akif Ersoy,

Mah. 296. Cad. No: 16 06370 Yenimahalle Ankara, Turkey

Keywords: Smart Border Security, Homeland Security, Intrusion Detection, DAS Fiber Optic Sensors, Data Mining,

DBSCAN, Standard Deviation, Software, Situational Awareness, Machine Learning.

Abstract: The Border Situational Awareness may consist of many different features. Mainly, these features focus on

detecting intrusion activities. New generation security systems are collecting important amount of data

obtained from sensors. In general, the alarm confirmation mechanism is visual identification using cameras

and Video Management Systems. On the other hand, this approach may not be enough to identify an invisible

tunnel digging activity underground for trespassing the border. This paper is suggesting a new method to

detect tunnels by using statically filtered alarm data and DBSCAN algorithm. In this particular case MIDAS®

Fiber Optic based Distributed Acoustic Sensor (DAS) system is used, which is designed by ASELSAN Inc.

The proposed approach is evaluated and positive results are seen on diverse areas of the Turkish borders.

1 INTRODUCTION

Border Situational Awareness may consist of many

different features. Mainly, these features focus on

detecting intrusion activities. New generation

security systems are collecting important amount of

data obtained from sensors. In general, the alarm

confirmation mechanism is visual identification using

cameras and Video Management Systems. On the

other hand, this approach may not be enough to

identify an invisible tunnel digging activity

underground for trespassing the border. This paper is

suggesting a new method to detect tunnels by using

statically filtered alarm data and DBSCAN algorithm.

In this particular case MIDAS® Fiber Optic based

Distributed Acoustic Sensor (DAS) system is used,

which is designed by ASELSAN Inc. The proposed

approach is evaluated and seen positive results on

diverse areas of the Turkish borders (Figs. 1 and 2).

DAS Technology is commonly based on coherent

Rayleigh scattering. The principle of DAS is based on

Rayleigh-scattering. Basically this phenomenon can

be explained by physical vibrations that cause

scattering from multiple points within the same fiber.

These captured scattered light signals lead the system

to detect and identify intrusions. DAS provides long

https://www.aselsan.com.tr

distance spatial-resolution (around 50 km range), and

high dynamic-range sensing. In addition to this, DAS

uses standard single mode fiber optic cable to provide

the long-distance acoustic and seismic detection.

With suitable analysis software, continuous

monitoring of pipelines for unwanted interference, as

well as leaks or flow irregularities and environmental

monitoring is possible (Abbar, 2019). Roads, borders,

railways, traffic, perimeters etc. can be monitored for

unusual activity with the position of the activity being

determined to within approximately 10 meters. Due

to the ability of the optic fiber to operate in harsh

environments, the technology can also be used in oil

well monitoring applications. This ability allowes

real-time information on the state of the well to be

determined. In this document the channel referred to

each measured scattering point. Which represents the

distance from the beginning of the fiber connection.

Each channel has known with its geographic location

(latitude and longitude).

Clandestine Tunnel is one of the ancient

techniques for intrusion. There are already certain

methodologies exist to discover tunnel’s underground

such as using magnetic sensors and ground

penetration radars (Llopis, Dunbar, Wakeley,

Corcoran,

2005, Nibi, Menon, Amrita, 2016 and

Aslangul, S.

Detecting Tunnels for Border Security based on Fiber Optical Distributed Acoustic Sensor Data using DBSCAN.

DOI: 10.5220/0008869600780084

In Proceedings of the 9th International Conference on Sensor Networks (SENSORNETS 2020), pages 78-84

ISBN: 978-989-758-403-9; ISSN: 2184-4380

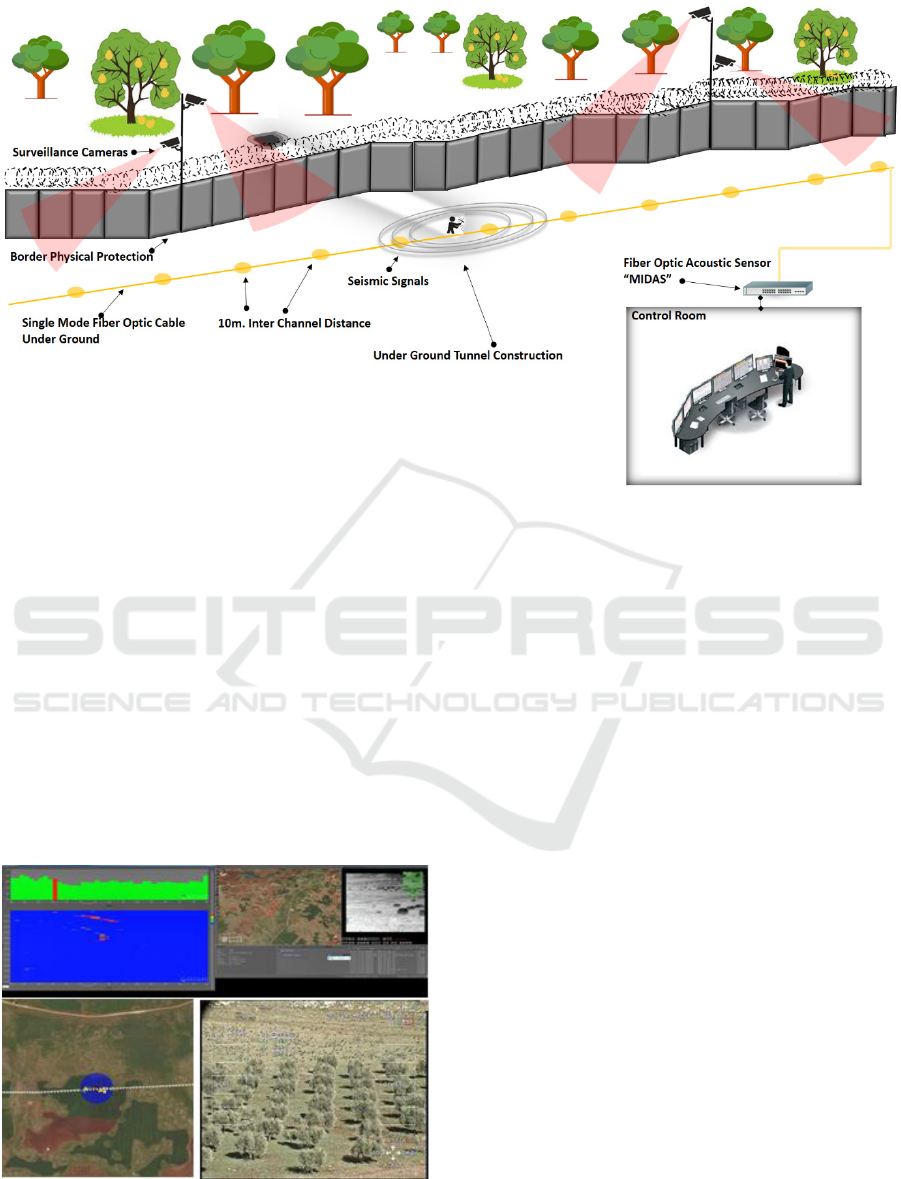

Figure 1: Smart Border Security System.

Kumari, Kumar, Gupta, Priyadarshini, 2018) as well

as discovering digging activities coming from

underground by using two different DAS sensor

systems which are located apart from each other

(Duckworth, Owen, Worsley, Stephenson, 2013).

These techniques require additional equipment,

installation and trained personal that will increase the

cost dramatically, regarding the hundreds of miles of

border length. This paper presents a cost-effective

approach by using already recorded unclassified

alarm data in Data Base rather than using signal

processing techniques or additional devices and

sensors.

Figure 2: Border Security System Screens, Waterfall Screen

shows the DAS activation, GIS screen shows the alarm

location on the map, and video stream.

The method consists of three phases (Fig.3). The

first phase analysis the activations on Time Domain.

This process searches increasing trends of activities

according to channel based historic data. The second

phase analysis Spatial Domain. This process finds

active channels in comparison with neighboring

channels. The third phase takes the data combined

from Step 1 and Step 2 as input. It searches the

clustered channels by using DBSCAN algorithm. The

purpose of this step is to combine multiple suspected

consistent channels which are located closely to

eliminate false alarms.

2 METHOD

Expecting tunneling activities most likely will affect

more than one channel. It is a combination of

construction, observation and logistics events.

According to gathered intelligence and experience,

tunnels are made around 10 to 50 meters long and it

takes around 7 days to finish. And all tunneling

activities are made during the nighttime. In order to

detect tunneling activities, unclassified DAS sensor

alarms are used. In other words, every detection

above a certain threshold point is reported as alarm by

DAS equipment. The data have been collected from

Data Base of Active Border Patrol Command Control

Station. The data used here is from real environment,

real case. Collected data consists of 865 channels. As

Detecting Tunnels for Border Security based on Fiber Optical Distributed Acoustic Sensor Data using DBSCAN

a result, 103,949 alarm records are captured. Every

record has Date, Time, and Channel information. By

using time and date information, all alarm counts

have been calculated for each channel, on nighttime

duration. During development phase, the algorithm

has been implemented in VBA in Excel and

DBSCAN is implemented in Python (ver.3.7.3).

Spyder IDE is used over Anaconda and Pandas

installations. However, In Border Security System the

algorithm has been implemented in Java on Windows

10 OS. In real case is designed to operate on the server

which launches the algorithm on nightly bases with

latest data. It searches the Data Base and finds the

most active channels and executes the methods and

generates warnings.

The method consists of three phases (Fig. 3). The

first phase analyzes the activations on the Time

Domain. This process searches increasing trends of

activities according to channel based historic data.

The second phase analyzes Spatial Domain. This

process finds active channels in comparison with

neighboring channels. The third phase takes the data

combined from Step 1 and Step 2 as input. It searches

the dense clustered channels by using DBSCAN

algorithm. The purpose of this step is to combine

multiple suspected consistent channels which are

located closely to eliminate false alarms.

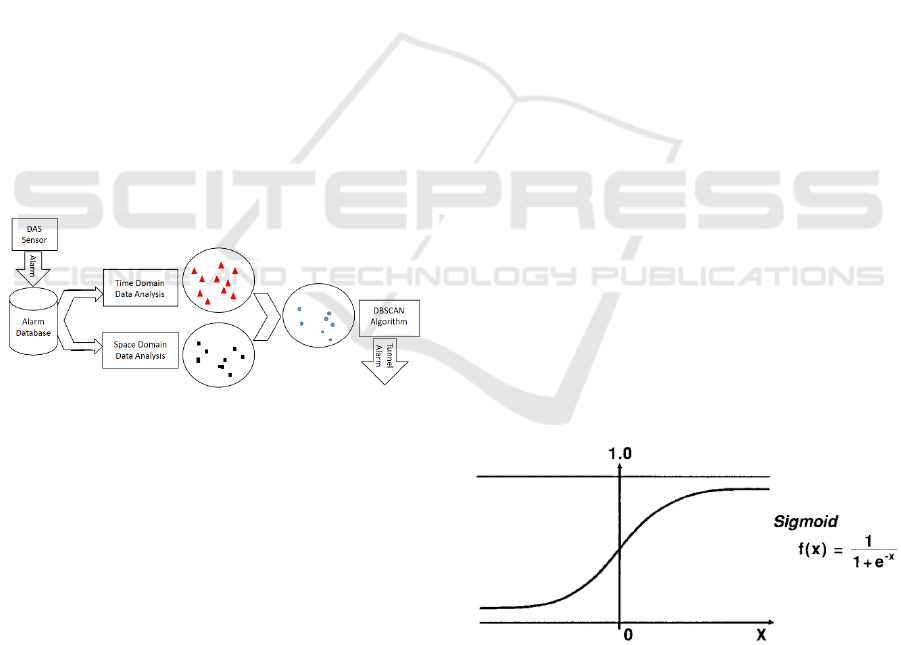

Figure 3: Phases of Method.

2.1 Time Domain Data Analysis

The purpose of this step is to detect highly active

channels according to its historic data. The Long-

Term Daily Average alarm counts are calculated as

reference point (1).

Averageᵣ=∑ᵢⁿAᵢ/n

r : Channel Number

n : Number of Days

i : Day Index

Aᵢ : Nightly Alarm Count for channel r

(1)

According to given information a typical tunnel

boring activity takes around seven days to finish.

Since the goal is to find tunnels before getting

finished shorter-term moving average should be less

than 7. Subsequently, the moving average of five days

is used as latest activity indicator. Alternatively,

tested shorter duration moving averages generated

faster results. However, shorter moving averages

increased false alarm rate. In contrast longer moving

averages generated delayed results of already finished

tunnels. According to experiments the moving

average of the five days is the best fit (2).

SMA5ᵣ: Last 5 Day Moving Average

SMA5ᵣ=∑ᵢ⁵Aᵢ/n

(2)

Both long term and short-term averages are used

to differentiate abnormal activity from usual activity

(3).

ARᵣ: Activation Rate of Channel r.

ARᵣ = (SMA5ᵣ- Averageᵣ) / Averageᵣ

(3)

ARᵣ is converted by sigmoid function (Nantomah,

2019) to limit the value in between -1 to 1 (Fig. 4).

The reason of this conversion is because some

channels can have big ARᵣ numbers because they

have very low activation history (Long Term

Activation Average) and small activations highly

increase their percentage. As a result, the sigmoid

function is used to limit the results of Activation Rate

for every channel (r) (4).

RALᵣ: Recent Activation Level.

X = ARᵣ

RALᵣ = 1/(1+1/eˣ)

(4)

The most active first 10% of channels is marked

as suspected channel. The Operator has privilege to

change channel status manually “Suspected” to

“Normal” or “Normal” to “Suspected” according to

their knowledge (Such as constructions, intelligence

etc.).

Figure 4: Sigmoid Function.

2.2 Spatial Domain Analysis

According to gathered field experience the alarm

count information may vary channel to channel due

to differentiations of environmental conditions.

SENSORNETS 2020 - 9th International Conference on Sensor Networks

Wind, river, earth types, rocks may affect each

channel to generate different numbers of alarms. For

example, wet earth absorbs some of the seismic

vibrations. On the other hand, a floating river may

cause more alarms around that region. The vibrating

camera holders and poles from wind is also another

factor. Installation differences of the cable also

creates differences on the field.

A discovery process is applied on each channel

location along with their local area statistics. The

reference frame should be large enough to encapsulate

sensing a possible boring tunnel. As a result, five

channels’ windows are used (maximum tunnel length

50m corresponds with 5 channels). Regional Average

is calculated as the number of alarms of every reference

window. RAᵣ: Regional Average.

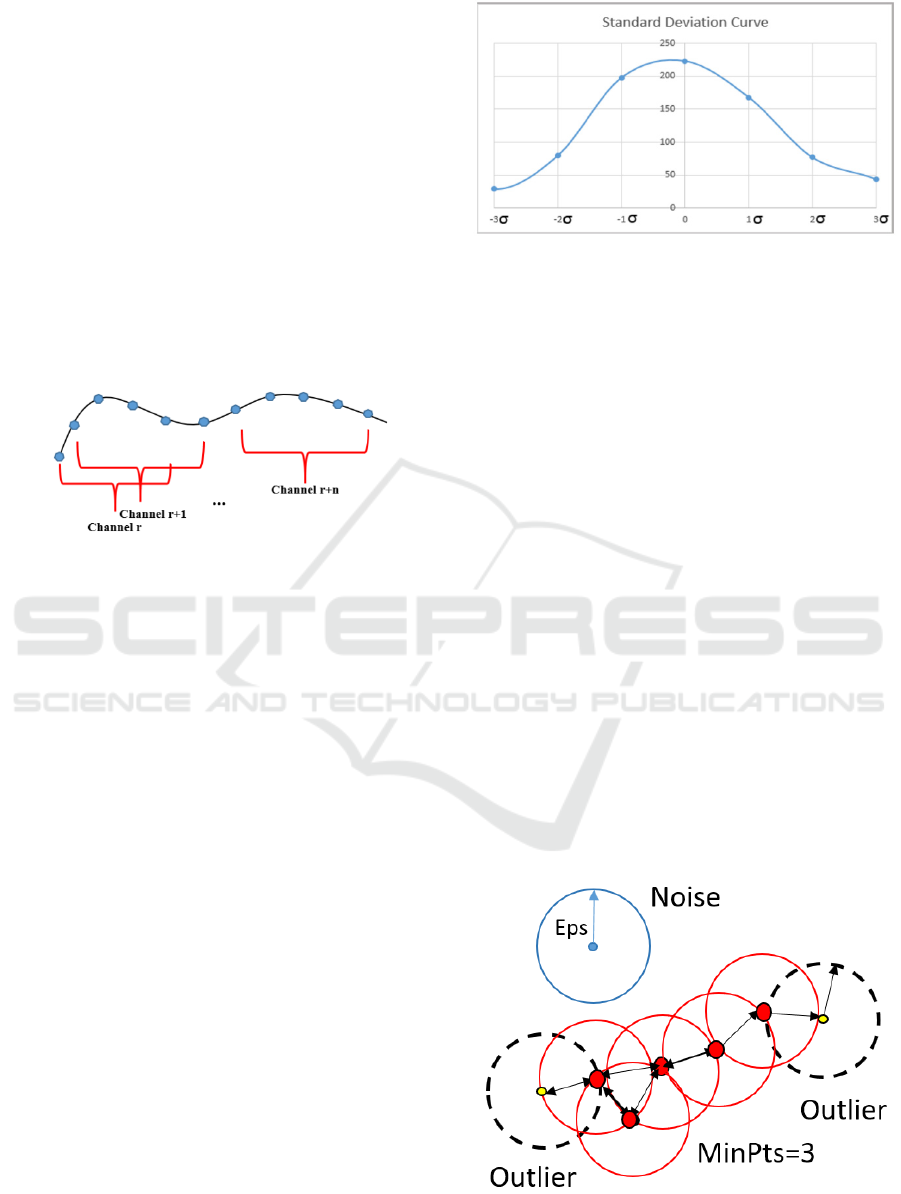

Figure 5: Sliding Window of Channels.

RAᵣ is the Average Activation of 5 Channels

Window centered by channel r (5).

RAᵣ = ∑ᵢ⁵ Averageᵢ/5

(5)

Standard Deviation technique is used to compare

specific channel’s Recent Activation Rate against

reference window average (Fig. 5). Standard Deviation

method is a common approach in data classifying

(Kumar, Kuttiannan, 2006). Sigma measures how far

an observed data deviates from the average.

σᵣ: Standard Deviation for channel r

σᵣ=√ (∑ᵢ⁵ (RAᵣ-SMA5ᵣ)/4)

(6)

Most active 10% of the values lie within two

standard deviations of the mean, respectively. As a

result, to determine intrusion, values above 2 sigma

(> 2σ) are collected (Fig. 6). Even so all channels that

have a standard deviation less than 2σ are filtered out.

Others are used for further analysis.

2.3 DBSCAN Algorithm and

Clustering Channels

Previously, Time Domain Analysis finds the most

active channels according to their historic data. And

Spatial Domain Analysis finds the most active

channels according to their local area. The result of

these

two analysis has been merged in a table

Figure 6: Standard deviation distribution of Data Analysis.

consisting of the most active channels, in terms of

both time and location analysis.

In the literature, there are several extensive

reviews discussing intrusion detection approaches.

Kumar (Banerjee and Kumar, 2009) provided a recent

review of the intrusion detection problems,

techniques, and application areas. DBSCAN is a

clustering method that is used in machine learning to

separate clusters of high density from clusters of low

density. DBSCAN is a density-based clustering

algorithm, very effective way of seeking areas in the

data that have a high density of observations. The

main purpose of DBSCAN algorithm is to locate

regions of high density alarms that are separated from

one another by regions of low density alarms.

DBSCAN iteratively expands the cluster, by going

through each individual channels within the cluster,

and counting the number of other data points nearby

(Fig. 7). Following the definition of dense region, a

point can be classified as a Core Point if |N (p)|≥

MinPts (7). The Epsilon neighborhood of a point P in

the database D is defined as the following (referring

to the definition from Ester et.al. Ester, 1996).

N (p) = {q ∈ D | dist(p, q) ≤ ϵ}….

(7)

Figure 7: DBSCAN Core and Outlier points.

Detecting Tunnels for Border Security based on Fiber Optical Distributed Acoustic Sensor Data using DBSCAN

The Core Points, as the name suggests, lie usually

within the interior of a cluster. An outlier Point has

fewer than MinPts within its ϵ-neighborhood (N).

However, it lies in the neighborhood of another core

point. Noise is any data point that is neither core nor

outlier point.

In this paper DBSCAN algorithm is used to find

the high-density clusters based on statistical data and

location. Clusters with high density will be

considered as intrusion locations. As a result,

DBSCAN has been implemented in Python. The

Software takes the input produced by Excel in csv file

format basically a table consisting of three columns.

These are channel numbers, RAL (Recent Activation

Level), LAL (Local Area Activation Level). The

purpose of this phase is to find consistency in between

suspected channels by clustering DBSCAN

algorithm. Instead of using channel numbers,

geographic location data (latitude, longitude) can be

used in the future. The DBSCAN algorithm will

cluster dense channels with given parameters.

The LAL, RAL parameters of selected Channels`

are read from the csv file (marked as "SIG","STD" ,

"CHN" in the table and Python Code) as input. The

parameter settings of ϵ and MinPts are set to 0.3 and

3 respectively (noise is labelled as -1) (Fig. 8). The

algorithm find 1 cluster as the result which will be

further evaluated in section 3.

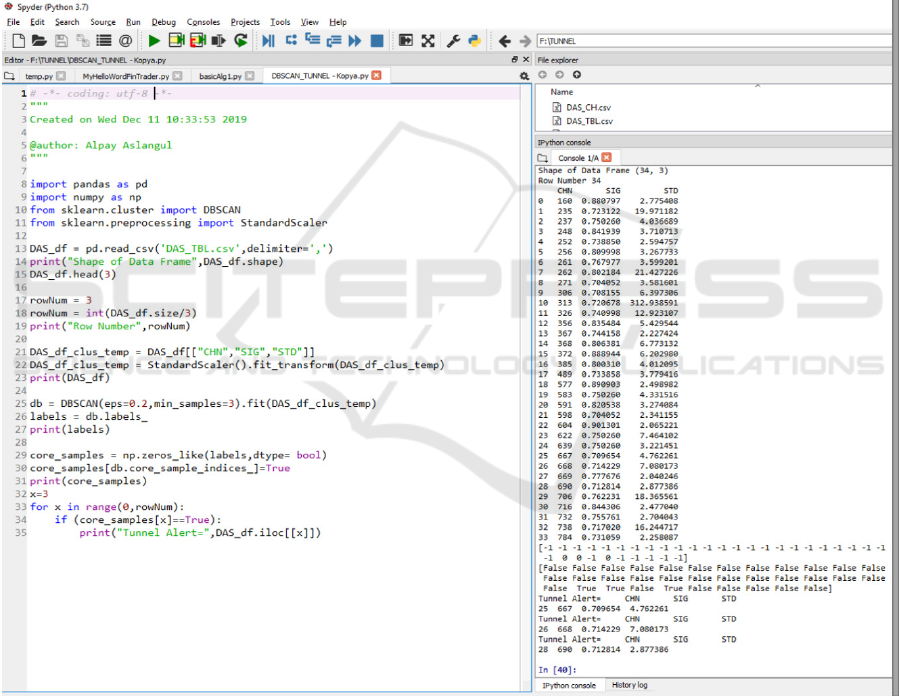

Figure 8: Python Code and results of DBSCAN.

3 RESULT

The algorithm has been implemented with real

environmental data acquired from South Turkish

Border. The collected data have 103,949 Alarm

Records (every record consists of Time, Date and

Channel Number) coming from 865 channels.

Methods are applied to data base alarm records. At

the first step “Time Domain Analysis” has detected

93 recently active channels. At the second step

“Spatial Domain Analysis” has detected 49 active

SENSORNETS 2020 - 9th International Conference on Sensor Networks

channels. At the third step these two data sets

combined in a table of suspicious 34 channel

candidates marked by both methods. The result of

DBSCAN algorithm is a cluster consisting of the

following channel numbers: 690, 668, and 667. The

Channel numbered 668, pinpoints the exact location

of a discovered tunnel at the border.

Figure 9: Tunnel found at Turkish Syria Border.

4 CONCLUSIONS

In this paper a data mining approach is presented to

detect tunnels under ground as a part of Smart Border

Security System (Svitek, Horak, Cheu and Ferregut,

2019). This method has three distinct phases. Time

Domain Data Analysis classifies acquired data

according to the most recent nightly activities. Spatial

Domain Data Analysis phase finds the active

channels according to their local statistics. And

finally, DBSCAN Algorithm is used to detect clusters

in the similar channels. The detection result with real

case and real data shows that data mining can help to

discover intrusion tunnels.

The major limitation in this work is both the lack

and difficulty to obtain real case data. Additionally,

using moving averages generates late results.

However, the border security system eventually will

accumulate tagged data for future usage, containing

the time domain and spatial domain analysis table.

This tagged data can be linked to a KNN based

machine learning algorithm as a future work (Amer

and Goldstein, 2012). There are new methods and

studies for intrusion detection. They could be

alternative to KNN (Ranjan and Sahoo, 2014 and

Yong, Guo-hong, Jia-xia 2010). Eventually, more

tagged data will allow the software to learn to detect

an intrusion by using a KNN algorithm according to

physical effort level needs to be done to make a tunnel

versus local geographical dynamics. This approach

also can be applied to other specific types of

intrusions such as identifying periodic smuggling

events, massive immigration events. On the other

hand, system can identify harmless events at border

such as agriculture activities. Those types of events

can be masked to reduce unnecessary false alarms.

Sensor fusion techniques will help to analyze other

type of sensor alarms such as motion detection alarms

generated by cameras, geophone seismic sensors, PIR

sensors, and radars. As a result, Smart Border

Security System Software nightly analyzes the latest

data and increase situational awareness by generating

high level alarms.

ACKNOWLEDGEMENTS

The author would like to thank the Turkish Army

Border Troops for the cooperation and support.

REFERENCES

Abbar, B., 2019. Optic Sensors for Environmental

Monitoring. SCITEPRESS.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

Llopis J. L., Dunbar J. B., Wakeley D., Corcoran K., 2005.

Tunnel Detection Along the Southwest U.S. Border.

U.S. Army Engineer Research & Development Center.

Nibi, Menon, Amrita, Vidyapeetham, 2016. Underground

Tunnel Detection Across Border Areas. Center for

Wireless Networks and applications, India.

Duckworth, Owen, Worsley, Stephenson, 2013. OptaSense

distributed acoustic and seismic sensing performance

for multi-threat, multi-environment border monitoring.

OptaSense.

Arguedas, Mazzarella, Vespe, 2015. Spatio-temporal Data

Mining for Maritime Situational Awareness. European

Commission - Joint Research Centre (JRC).

Dorj, Altangerel, 2013. Anomaly Detection Approach using

Hidden Markov Model. MUST, CSMS/Computer

Science, Ulaanbaatar, Mongolia.

Chen, Li, 2011. Anomaly Detection Based on Enhanced

DBScan Algorithm.

Wang, Ren, Luo, Tian, 2019. NS-DBSCAN: A Density-

Based Clustering Algorithm in Network Space.

Nantomah, 2019. On Some Properties of Sigmoid Function.

Kumar, Kuttiannan, 2006. A Combined Standard Deviation

Based Data Clustering Algorithm. Government Arts

College.

Banerjee and Kumar, 2009, Anomaly Detection: A Survey.

Chandola V., Banerjee A., and Kumar V., 2009. Anomaly

Detection: A Survey, Journal of ACM Computing

Surveys.vol.41. no.3, article no.IS.

Detecting Tunnels for Border Security based on Fiber Optical Distributed Acoustic Sensor Data using DBSCAN

Ester M., Kriegel H., Sander J. and Xu X., 1996. A density

based algorithm for discovering clusters in large

spatial databases with noise,

Svitek M., Horak T., Cheu R. and Ferregut C., 2019. Smart

Border as a Part of Smart and Resilient El Paso.

Amer M. and Goldstein M., 2012. Nearest-Neighbor and

Clustering based Anomaly Detection Algorithms for

RapidMiner.

Ranjan R. and Sahoo G., 2014, A New Clustering Approach

for Anomaly Intrusion Detection.

Yong L., Guo-hong G., Jia-xia 2010 Li Xue-yong, Gao

Guo-hong, Sun Jia-xia A New Intrusion Detection

Method Based on Improved DBSCAN.

SENSORNETS 2020 - 9th International Conference on Sensor Networks
