Automated Synthesis of ATL Transformations from Metamodel

Correspondences

Kevin Lano

and Shichao Fang

King’s College London, London, U.K.

Keywords:

Model Transformations, ATL.

Abstract:

In this paper we describe techniques for semi-automatically synthesising transformations from metamodel

correspondences, in order to accelerate transformation development. We provide a strategy for synthesising

complete ATL transformations from correspondences, and evaluate the approach using examples from the

ATL zoo.

1 INTRODUCTION

Model transformations (MT) are central elements

of model-driven engineering (MDE). However, MT

speciﬁcations are often difﬁcult to manually con-

struct, and MT deﬁnition requires a high level of ex-

pertise in particular MT languages. The development

of transformations can be a time-consuming process,

which limits the agility of MDE. Therefore it is in-

teresting to examine to what extent the transforma-

tion development process can be automated. Previous

work has shown that it is possible to automatically

recognise correspondences between source and target

metamodels of a proposed transformation, and to use

these as the basis of a transformation deﬁnition (Fang

and Lano, 2019; Kessentini et al., 2014; Schwichten-

berg et al., 2014).

In this paper we look in detail at how transfor-

mations can be constructed from the identiﬁed cor-

respondences, and deﬁne a process for synthesising

ATL transformations. We evaluate the beneﬁts of the

process in terms of the reduction of effort expended in

MT construction, and in terms of the improved qual-

ity of the resulting transformations.

https://orcid.org/0000-0002-9706-1410

https://orcid.org/0000-0002-3556-4346

2 DERIVING

TRANSFORMATION

SPECIFICATIONS FROM

METAMODELS

Transformations operate on source and target meta-

models, usually one source metamodel MM

, and one

target metamodel MM

. When a transformation de-

veloper is starting to construct a MT speciﬁcation,

their ﬁrst task is usually to identify which classes and

features of MM

should be mapped to which classes

and features of MM

. In other words, what the cor-

respondence relation m (mapping) of MM

and MM

classes should be, and what the correspondence rela-

tion fm (feature mapping) of MM

and MM

features

should be.

As an example, Figure 1 shows the

metamodels of the ATL Class2Relational

transformation case from the ATL zoo

(www.eclipse.org/atl/atlTransformations). The

source metamodel MM

is Class, on the LHS, the

target metamodel MM

is Relational, on the RHS.

We have implemented different techniques for

recognising m and fm, based on structural, linguistic

and semantic similarities of MM

and MM

ele-

ments (Fang and Lano, 2019). These have been

deﬁned as a plugin to the Eclipse Agile UML tools

(projects.eclipse.org/projects/modeling.agileuml).

Metamodels are imported as KM3 or Ecore ﬁles.

For example, the correspondence of Class to Table

and of Attribute to Column in the above case are

recognised by the structural similarity of these ele-

ments, whilst DataType in MM

and Type in MM

Lano, K. and Fang, S.

Automated Synthesis of ATL Transformations from Metamodel Correspondences.

DOI: 10.5220/0008873702630270

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 263-270

ISBN: 978-989-758-400-8; ISSN: 2184-4348

 2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

263

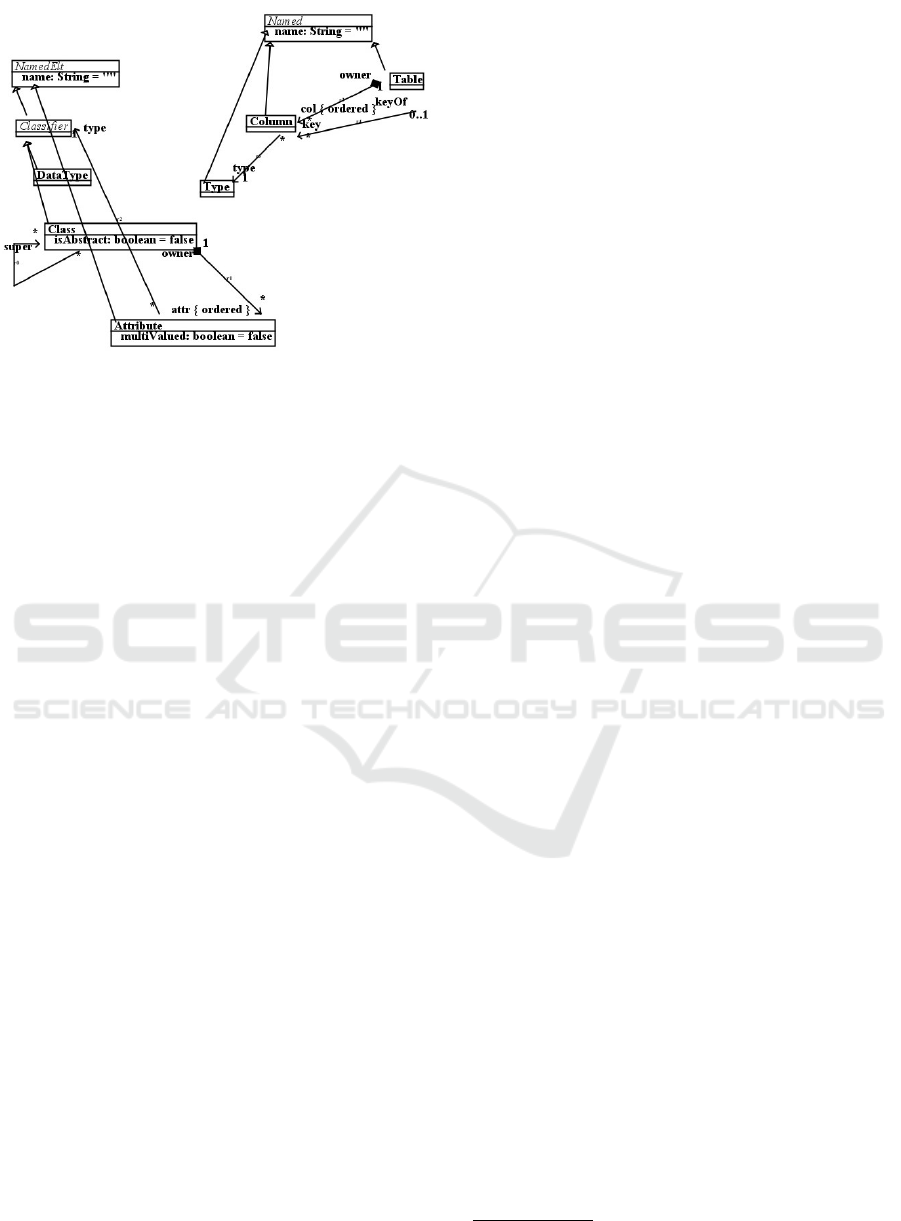

Figure 1: Class and Relational metamodels.

are linguistically similar. We primarily use struc-

tural similarity to identify class and feature correspon-

dences, with linguistic and semantic similarity as sec-

ondary criteria.

To formalise class and feature correspondences,

we use an abstract transformation notation called T L .

The notation expresses class correspondences of E to

F by the notation E 7−→ F, and feature correspon-

dences of f to g by the notation f 7−→ g.

A T L speciﬁcation consists of a set of rules of the

form

{PreCond} E 7−→ F

7−→ q

where the p

are features (owned, inherited or com-

posed) of E, or OCL expressions in such features, and

the q

are distinct features of F. The optional PreCond

is a boolean-valued OCL expression in the p

The meaning of a class mapping {C} E 7−→ F as a

model transformation rule is that for every instance e

of E that satisﬁes C, there is a corresponding instance

of F. By default, distinct instances of E map to

distinct instances of F. A feature mapping p 7−→ q of

{C} E 7−→ F means that for corresponding instances

e : E, e

: F, the value of e

.q is the interpretation (e.p)

of e.p via the class mappings.

For Class2Relational, the initial automatically-

derived correspondences are:

NamedElt 7−→ Named

name 7−→ name

Class 7−→ Table

name 7−→ name

attr 7−→ col

Attribute 7−→ Column

name 7−→ name

owner 7−→ owner

type 7−→ type

Classiﬁer 7−→ Type

name 7−→ name

DataType 7−→ Type

name 7−→ name

Having obtained such possible correspondences,

the next step of a MT speciﬁer is typically to exam-

ine them for incompleteness or inconsistency. In the

above example, we notice that the reference feature

super of Class is not used by the discovered mappings

(incompleteness), and in addition, there is a potential

inconsistency in that Class is mapped to Table, but

Table is not a specialisation of (or equal to) the image

Type of Classiﬁer, even though Class is a specialisa-

tion of Classiﬁer.

Our tools partially automate this step by recog-

nising cases of incompleteness and inconsistency,

proposing solutions (additional or alternative map-

pings) to resolve them, and asking the user to con-

ﬁrm these solutions. Table 1 summarises the different

checks which we use.

For the case of feature mapping incompleteness in

Class2Relational, because the unused source feature

super is a self-association on Class, the system pro-

poses to replace attr 7−→ col by the mapping

Set{self }→closure(

super)→unionAll(attr) 7−→ col

of all deﬁned attributes of a class to the columns of a

table, ie., all attributes of the class itself and of all its

ancestors are mapped to columns of the table corre-

sponding to the class.

Because of the inheritance conﬂict in the targets

of the class mappings, the additional class mapping

Class 7−→ Type

name 7−→ name

is also proposed: this is a ‘vertical entity splitting’

of Class (Lano et al., 2018b): each Class instance

in a source model is represented by both a Type in-

stance and a Table instance in the resulting Relational

model

The target classes must have no common MM

super-

class which is a type/element type of some g ∈ ran(fm)

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

264

Table 1: Consistency and completeness checks.

Issue Correction

Class mapping Retarget Sub

Sub 7−→ T mapping, or add

for Sub subclass of E, target splitting map

has T not subclass/or Sub 7−→ F

equal to F, where

E 7−→ F

Two directions of Modify one

bidirectional association r feature mapping

not mapped to mutually to ensure

reverse target features consistency

Source, target features Propose modiﬁed

have different mappings

multiplicities

Unused target subclasses Introduce

F1 of F, where condition F1C

E 7−→ F and mapping

{F1C}E 7−→ F1

Unused source Suggest class or

or target feature mapping

feature f that uses f

Feature mapping Propose concrete

f 7−→ r.g subclass RSub of

with r : R of abstract R for instantiation

type/element type of r.

A more complex example is the Simple-

Class2SimpleRDB case from the ATL zoo (Figure 2).

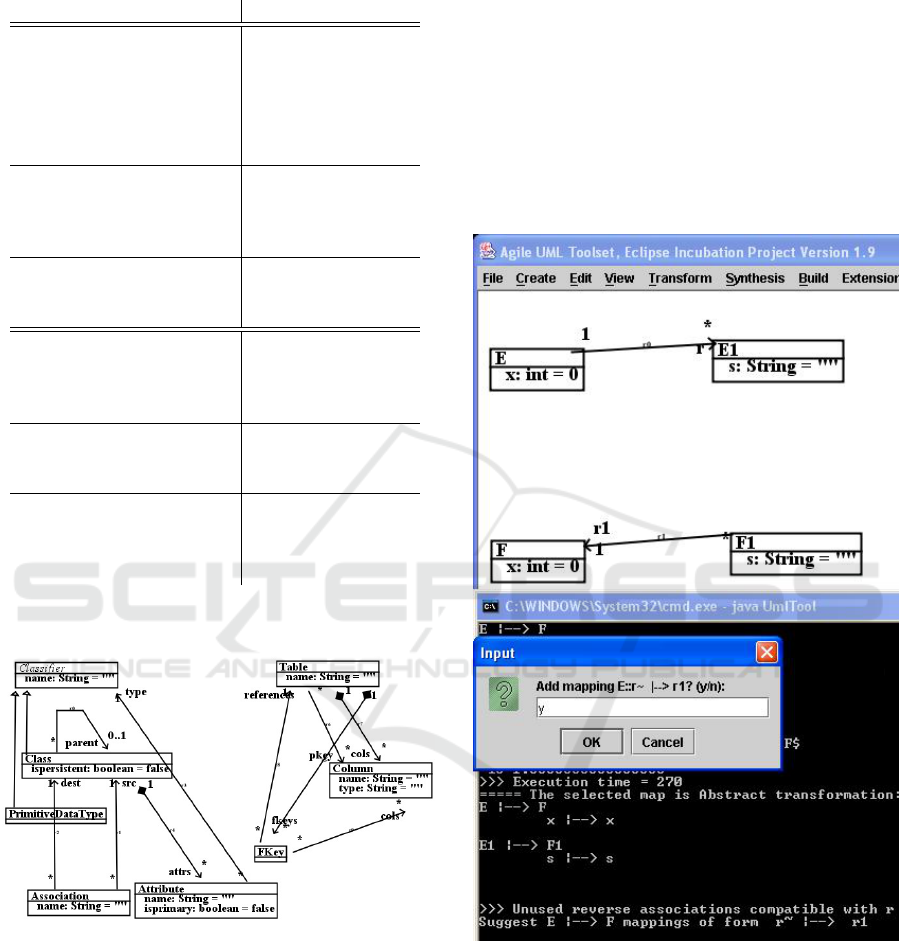

Figure 2: SimpleClass2SimpleRDB metamodels.

In this case there is incompleteness in the ini-

tial feature mapping, because it omits the target fea-

ture Table :: pkey and the source feature Attribute ::

isPrimary. Because Class :: attrs is already mapped

to a target feature, the system proposes the additional

mapping

attrs→select(isPrimary) 7−→ pkey

of Class 7−→ Table. Further unused source boolean

features can be used for class mapping conditions, eg.,

{isPersistent} Class 7−→ Table.

Another case of feature mapping incompleteness

is when an association is navigated in opposite direc-

tions in the two metamodels, ie., there are matchings

E 7−→ F, E1 7−→ F1 of classes, but an association

E →

E1 in MM

should correspond to the reverse

direction rr

∼

of an association F1 →

F in MM

To detect such cases, we look for unmatched source

reference features E :: r where there is an unmatched

target reference feature F1 :: rr whose (unnamed) re-

verse direction is type-compatible with r. Figure 3

shows a typical situation.

Figure 3: Reversing association direction.

The expression matching

E→select(ex | self = ex.r) 7−→ rr

is then proposed as an additional E1 7−→ F1 map-

ping, in the case that r is of 1-multiplicity. For ∗-

multiplicity r the matching is

E.allInstances()→select(

ex | ex.r→includes(self )) 7−→ rr

For SimpleClass2SimpleRDB, such a case arises

in the mapping of Association to FKey. Association ::

Automated Synthesis of ATL Transformations from Metamodel Correspondences

265

dest should be mapped to FKey :: references, and

Association :: src should be mapped to the opposite

direction of Table :: fkeys. The system recognises this

and adds the additional mapping to Class 7−→ Table.

Feature mapping inconsistencies may arise be-

cause the two directions of bidirectional associations

must be mapped in mutually consistent ways. If there

is a mapping

E 7−→ F

r1 7−→ rr1

where r1 : E → E1 has reverse reference r2 : E1 → E,

and rr1 : F → F1 has reverse rr2 : F1 → F, then any

mappings E1 7−→ F1 or of subclasses E2 of E1 to

F1 or to subclasses of F1 should include the feature

mapping r2 7−→ rr2. If instead a different mapping

for r2 is present, the user is asked to resolve this

conﬂict. This situation arises in the SQL to KM3

case, where the automatically derived correspondence

Table 7−→ Class has columns 7−→ structuralFeatures,

but Column 7−→ StructuralFeature has table 7−→ type

instead of the correct mapping table 7−→ owner.

The SQL to KM3 case also illustrates a form of

class mapping incompleteness, in which some con-

crete classes Fi (here, Reference and Attribute) are

not the targets of any class mapping, but they have

a superclass F in MM

which is a target of a map-

ping E 7−→ F (here, Column 7−→ StructuralFeature).

The system prompts the user to deﬁne more speciﬁc

mappings

{Cond1} E 7−→ F1

{Cond2} E 7−→ F2

for disjoint conditions Cond1, Cond2. This is the

‘horizontal entity splitting’ pattern of (Lano et al.,

2018b). Unused boolean attributes of E are pro-

posed as candidates for such discriminator conditions

Cond1, Cond2, however the user can deﬁne their own

conditions – in this example the conditions are the

somewhat obscure comment.size() = 0 and its nega-

tion.

A related feature mapping incompleteness issue

arises with composed target features r.f where r is

of an abstract class element type R. In order to pro-

duce an executable implementation, some concrete

subclass of R must be chosen as the type of r.

Finally, some proposed class mappings may be

recognised as spurious and unnecessary, if there is no

feature mapping p 7−→ q which uses the class map-

ping.

In general, the process of reﬁning correspon-

dences based on identiﬁed incompleteness and incon-

sistencies can simulate the decisions which a human

MT expert might make. Indeed the automated detec-

tion of all such issues can ensure that many potential

semantic gaps and conﬂicts in a transformation speci-

ﬁcation are identiﬁed and resolved prior to implemen-

tation. A purely manual speciﬁcation process could

result in some issues being missed.

3 MAPPING FROM T L TO ATL

Once a complete and consistent T L speciﬁcation is

obtained, the next step is to generate an implemen-

tation of this in a particular MT language, such as

QVTr, QVTo, UML-RSDS, ETL or ATL.

We describe how QVTr implementations of T L

transformations can be derived in (Fang and Lano,

2019). Because ATL (Eclipse, 2019) is a more im-

perative language than QVTr, and also more restricted

in its declarative part than QVTr, the mapping of T L

speciﬁcations to ATL is more complex. In this section

we describe the steps of this mapping.

For each T L rule {Cond} E 7−→ F, with F a

concrete class, there is an ATL matched rule of the

schematic form

rule E2F

{ from ex : MM1!E ( ex.Cond )

to fx : MM2!F

( ... )

}

In the case that there are two or more T L rules for E

with the same conditions Cond, these must be com-

bined into a single ATL rule with multiple output pat-

tern elements.

For example, rules E 7−→ F1 and E 7−→ F2 with

concrete F1, F2 would be implemented by:

rule E2F1F2

{ from ex : MM1!E

to f1x : MM2!F1

( ... ),

f2x : MM2!F2

( ... )

}

This means also that source expressions e of el-

ement type E must be disambiguated when used

on the RHS of bindings: t ← e refers to e con-

verted to F1 elements via E2F1F2, whilst t ←

thisModule.resolveTemp(e, ‘f 2x’) refers to e con-

verted to F2 elements via the rule.

A feature mapping f 7−→ g is represented by an

ATL binding g ← ex.f in cases where f and g are

not composed. Source compositions r.f for f of

1 multiplicity, r of ∗ multiplicity, are evaluated as

ex.r→collect( x | x.f ).

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

266

In the case of a feature mapping f 7−→ r.g, where r

is of 1-multiplicity, of concrete class element type R,

a new output pattern element rx : MM2!R is deﬁned:

rule E2F

{ from ex : MM1!E ( ex.Cond )

to fx : MM2!F

( r <- rx ),

rx : MM2!R

( ... )

}

The bindings for rx implement the feature mappings

for f 7−→ g, and for other mappings k 7−→ l, for each

k 7−→ r.l which is a feature mapping of the E 7−→ F

mapping.

In the case that there is a direct mapping f 7−→ r

and also composed mappings g 7−→ r.h, a do clause is

needed for the composed mappings:

rule E2F

{ from ex : MM1!E ( ex.Cond )

to fx : MM2!F

( r <- ex.f )

{ fx.r.h <- ex.g; }

}

where r is of 1 multiplicity.

For 0..1 and for *-multiplicity r, a do clause im-

plementation of g 7−→ r.h instead has the form

for (rx in fx.r)

{ rx.h <- ex.g; }

If there are cases of mappings f 7−→ r.g where f

and r are of *-multiplicity, then instead sets of R el-

ements are created using unique lazy or called rules.

In this case, if f has a class element type E1, the map-

ping f 7−→ r.g in cases where r and f have * multiplic-

ity can be implemented by introducing a new unique

lazy rule:

rule E2F

{ from ex : MM1!E ( ex.Cond )

to fx : MM2!F

( r <- ex.f->collect( e1x |

thisModule.MapE12Rg(e1x) ) )

}

unique lazy rule MapE12Rg

{ from e1x : MM1!E1

to rx : MM2!R

( g <- e1x )

}

The effect of this approach is to produce a set of R

objects, one for each element e1x of ex.f . Again,

R must be a concrete class for this to be valid.

An example of this situation is the supertypes 7−→

generalization.parent mapping in the MOF2UML

case.

If f is of 0..1 multiplicity and r of * or 0..1 multi-

plicity, then the assignment to r is

r <- Set{ex.f}->collect( e1x |

thisModule.MapE12Rg(e1x) )

Further updates to the r with additional mappings

k 7−→ r.l with l of higher or equal upper multiplicity

to k must be handled in the do clause of the E2F rule,

via a statement

for (rx in fx.r)

{ rx.l <- ex.k; }

Further updates to the r with additional mappings

k 7−→ r.l with l of smaller upper multiplicity than k

require the creation of additional R objects:

( r <- ex.k->collect( e2x |

thisModule.MapE22Rl(e2x)) )

If instead f has a value element type T, the map-

ping f 7−→ r.g can be implemented by introducing a

new called rule:

rule E2F

{ from ex : MM1!E ( ex.Cond )

to fx : MM2!F

( r <- ex.f->collect( tx |

thisModule.MapT2Rg(tx) ) )

}

rule MapT2Rg(tx : T) : MM2!R

{ to rx : MM2!R

( g <- tx )

}

Table 2 summarises the translation from T L to

ATL for composed target feature mappings f 7−→ r.g,

where there is no direct mapping h 7−→ r.

The synthesised ATL satisﬁes the quality recom-

mendations of (Eclipse, 2019):

• Use standard and unique lazy rules in preference

to lazy rules – lazy rules are not needed by our

translation.

• Avoid imperative constructs and the use of

resolveTemp – imperative code and called rules

are only needed in cases of composite target fea-

tures. resolveTemp is only needed in cases of ver-

tical entity splitting.

• Use collect in preference to iterate – iterate is

only needed to deﬁne the closure operator, oth-

erwise collect is used.

More precisely, the situation with regard to the

quality ﬂaws of (Lano et al., 2018a) is that cycles

of calling dependencies (CBR

> 0) are not possi-

ble, while errors of excessive fan-in, fan-out and

Automated Synthesis of ATL Transformations from Metamodel Correspondences

267

Table 2: Generated ATL for composite target feature mappings f 7−→ r.g of E 7−→ F.

r multiplicity f multiplicity g multiplicity ATL implementation

1 any any r ← rx for new OutPatternElement rx : MM2!R (...)

rx binding is

g ← ex.f for g upper multiplicity ≥ f upper multiplicity,

g ← ex.f →any() otherwise.

All bindings due to E 7−→ F mappings k 7−→ r.l

are deﬁned in the rx pattern.

* 1 any r ← rx for new OutPatternElement rx : MM2!R (...)

rx binding is g ← ex.f

* or 0..1 0..1 any r ← Set{ex.f }→collect(e1x | thisModule.MapE12Rg(e1x))

Additional k 7−→ r.l with

upper multiplicity k ≤ upper multiplicity l:

for (rx in fx.r) { rx.l ← ex.k; }

Additional k 7−→ r.l with

upper multiplicity k > upper multiplicity l:

r ← ex.k→collect(e2x | thisModule.MapE22Rl(e2x))

* * any r ← ex.f →collect(e1x | thisModule.MapE12Rg(e1x))

Additional k 7−→ r.l are treated as for f 0..1 multiplicity

calling dependencies can arise only because of calls

to data conversion operators or to auxiliary unique

lazy/called rules in the case of composite target fea-

tures. Duplicate code may arise if two subclasses E1,

E2 of a source class E have common feature map-

pings – this duplication could be removed by using

ATL rule inheritance. Excessive rule and transforma-

tion size may occur due to the size of the metamodels.

4 EVALUATION

We evaluated the approach using several cases from

the ATL transformation zoo. For these cases we gen-

erated a solution using only the provided metamod-

els in KM3 or Ecore format. The procedure detailed

in Section 2 was followed with interactive enhance-

ment of the initially derived metamodel correspon-

dences. In Table 3 we compare our derived ATL

transformation with the manually-constructed solu-

tions of the zoo cases, in terms of their size and the

number of technical debt ﬂaws in the transforma-

tion according to the quality ﬂaw categories of (Lano

et al., 2018a). We also quantify the recall, precision

and f-measure of our matching result with respect to

the class and feature mappings deﬁned by the orig-

inal manually-created transformations. In terms of

quality, the synthesised transformations have lower

numbers of ﬂaws, and lower ﬂaw density (the aver-

age ﬂaw density of the generated transformation ver-

sions is 0.008 ﬂaws/LOC, compared to 0.0172 for the

original versions). All the examples are available at

https://nms.kcl.ac.uk/kevin.lano/mtsynthesis.

Table 4 shows some estimates of the relative

amount of work involved in the manual and auto-

mated construction of the ATL zoo case versions. We

estimate effort in terms of how many manual changes

are necessary to the automatically-synthesised class

and feature mappings (additional to changes identi-

ﬁed by the interactive improvement process), and the

semantic complexity of the original versions, as the

total number of class and feature mappings. The ex-

ecution time for the automated synthesis of the initial

T L speciﬁcations is also shown (times are the same

for a transformation and its inverse because our tool

generates these together).

These results show that a relatively small amount

(less than 10% of the feature/class mappings) of trans-

formation content needs to be manually modiﬁed or

created, for the versions produced by our transforma-

tion synthesis process.

5 RELATED WORK

For metamodel matching, there are established bench-

mark cases, and results of different approaches on

these benchmarks are given in (Addazi et al., 2016;

Fang and Lano, 2019; Kessentini et al., 2014; Voigt

and Heinze, 2010). We show in Table 5 that our meta-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

268

Table 3: Evaluation on ATL zoo cases.

Case Original Original Recall Precision F-measure New New

size (LOC) ﬂaws size (LOC) ﬂaws

Ports 31 0 1.0 1.0 1.0 28 0

PetriNet2PathExp 70 1 0.78 1.0 0.875 27 0

Class2Relational 97 2 1.0 0.88 0.94 35 0

PathExp2PetriNet 104 0 0.94 1.0 0.97 40 0

SimpleClass2 302 10 1.0 0.87 0.93 38 0

SimpleRDB

Ant2Maven 324 4 0.84 0.99 0.91 317 2

Maven2Ant 360 3 0.92 0.91 0.91 332 2

MOF2UML 585 8 0.69 0.78 0.73 255 3

MySQL2KM3 613 13 0.79 0.81 0.8 48 1

UML2MOF 935 18 0.53 0.8 0.64 220 3

Averages 342.1 5.9 0.85 0.9 0.87 134 1.1

Table 4: Effort of manual/automated versions of cases.

Case Execution Changed Original

time (ms) maps maps

Ports 70 0 7

PetriNet2 133 0 11

PathExp

Class2 60 0 28

Relational

PathExp2 133 0 19

PetriNet

SimpleClass2 285 2 16

SimpleRDB

Ant2Maven 326,769 1 136

Maven2Ant 326,769 7 112

MOF2UML 66,953 32 184

MySQL2KM3 859 5 128

UML2MOF 66,953 31 165

model matching approach produces similar overall re-

sults to the SBSE approach of (Kessentini et al., 2014)

on the benchmarks, and therefore is superior to the re-

sults of other approaches with regard to these bench-

marks, such as (Addazi et al., 2016; Voigt and Heinze,

2010). In terms of efﬁciency, the execution times on

the benchmarks are generally lower than the results of

(Kessentini et al., 2014), although we use determinis-

tic algorithms instead of the evolutionary algorithm

approach of (Kessentini et al., 2014).

Several existing works on recognising metamodel

correspondences are based on the concept of similar-

ity ﬂooding (Melnik et al., 2002; Addazi et al., 2016;

Fabro and Valduriez, 2009; Garces et al., 2009): that

if two metamodel elements c1, c2 (eg., classes) are

connected to elements e1, e2 with a known similar-

ity v, then c1 and c2’s estimated similarity can be

modiﬁed based on v and the strength of the connec-

tions. However this approach only takes into account

pairwise similarities, whilst in practice many-to-many

similarities may exist between metamodels (eg., a

group of classes in MM

can be related to a group in

). Thus our matching approach considers global

and n-to-m matches of metamodel elements as a ba-

sis for metamodel correspondences. A similar global

structural matching approach using graph similarity is

described in (Voigt and Heinze, 2010), however they

rely on an initial manually-constructed ‘seed’ match-

ing of classes, and on planarization of metamodel

graphs, which our approach does not need. In this

paper and in (Fang and Lano, 2019) we consider 15

of the 20 ‘gold standard’ cases of (Voigt and Heinze,

2010), and we achieve an average F-score of 0.79 on

these, compared to 0.58 in (Voigt and Heinze, 2010).

Other approaches to synthesising transformations

from correspondences are (Fabro and Valduriez,

2009) and (Garces et al., 2009). (Fabro and Valduriez,

2009) deﬁnes case-speciﬁc patterns to create transfor-

mations for particular source and target metamodels,

however we deﬁne general-purpose patterns and con-

sistency and completeness checks to identify and re-

ﬁne correspondences for arbitrary metamodel pairs.

For example, the mutual consistency of feature map-

pings of the two directions of a bidirectional associ-

ation is a logical property which must hold for any

semantically-valid transformation, and hence a pro-

posed mapping m, fm must satisfy this property or be

modiﬁed to satisfy it. (Fabro and Valduriez, 2009)

does not consider the quality of generated transforma-

tions, and its ATL generation approach does not ap-

pear to address the issue of composed target features,

which considerably complicates ATL production.

The AMW tool of (Garces et al., 2009) provides

a means to deﬁne customised matching criteria and

techniques. This requires more substantial interven-

tion from the developer than our approach, which is

Automated Synthesis of ATL Transformations from Metamodel Correspondences

269

Table 5: Evaluation on cases of (Kessentini et al., 2014).

Case Precision Recall F Precision Recall F Execution

(SBSE) (SBSE) (SBSE) time (s)

WebML2EER 0.65 1.0 0.79 0.69 0.72 0.70 0.116

EER2Ecore 0.6 1.0 0.75 0.48 0.59 0.52 0.188

WebML2Ecore 0.7 0.74 0.72 0.82 0.69 0.74 0.125

EER2UML1.4 0.8 0.86 0.83 0.71 0.72 0.71 0.172

EER2UML2.0 0.61 0.67 0.64 0.67 0.72 0.68 0.422

WebML2UML1.4 0.53 0.62 0.57 1.0 0.84 0.91 0.203

WebML2UML2.0 0.79 0.75 0.77 0.91 0.73 0.81 0.219

Ecore-UML1.4 0.76 0.64 0.69 1.0 0.66 0.79 104.5

Ecore-UML2.0 0.76 0.78 0.77 0.64 0.89 0.75 510

UML1.4-UML2.0 0.9 0.6 0.72 1.0 0.67 0.8 393

Average 0.71 0.77 0.73 0.79 0.72 0.74

primarily automated and requires relatively low man-

ual intervention. It is unclear if AMW is able to gen-

erate complex ATL for cases of composed target fea-

tures.

Transformation construction by example is an-

other approach for semi-automated transformation

derivation (Balogh and Varro, 2008). Transforma-

tion rules are inferred from examples of the intended

transformation inputs and outputs (models). Example

source and target models could also be used to en-

hance our approach, to identify detailed feature map-

pings which cannot be inferred from feature typing

(eg., 2 ∗ x 7−→ y for integer-typed features x and y).

6 CONCLUSIONS

We have described a process for synthesising ATL

transformations from metamodel correspondences,

based on analysis of the consistency and complete-

ness of these correspondences. The approach is novel

in attempting to formally emulate the processes which

a software engineer would informally undertake when

creating a transformation.

We have shown that this approach can produce

correct and effective transformations, with a higher

quality than manually-produced transformation code,

and that development times for transformations can

be reduced in principle by the approach.

REFERENCES

Addazi, L., Cicchetti, A., Rocco, J. D., Ruscio, D. D.,

Iovino, L., and Pierantonio, A. (2016). Semantic-

based model matching with EMFCompare. In ME

2016, CEUR-WS vol. 1706, pages 40–49.

Balogh, Z. and Varro, D. (2008). Model transformation by

example using inductive logic programming. SoSyM.

Eclipse (2019). Atl user guide. eclipse.org.

Fabro, M. D. D. and Valduriez, P. (2009). Towards the

efﬁcient development of model transformations us-

ing model weaving and matching transformations.

SoSyM.

Fang, S. and Lano, K. (2019). Extracting correspondences

from metamodels using metamodel matching. In PhD

symposium, STAF 2019.

Garces, K., Jouault, F., Cointe, P., and Bezivin, J. (2009).

Managing model adaptation by precise detection of

metamodel changes. In ECMDA-FA, LNCS vol. 5562,

pages 34–49.

Kessentini, M., Ouni, A., Langer, P., Wimmer, M., and

Bechikh, S. (2014). Search-based metamodel match-

ing with structural and syntactic measures. JSS,

(97):1–14.

Lano, K., Kolahdouz-Rahimi, S., Sharbaf, M., and Alfraihi,

H. (2018a). Technical debt in model transformation

speciﬁcations. In ICMT 2018.

Lano, K., Kolahdouz-Rahimi, S., Yassipour-Tehrani, S.,

and Sharbaf, M. (2018b). A survey of model trans-

formation design patterns in practice. JSS.

Melnik, S., Garcia-Molina, H., and Rahm, E. (2002). Sim-

ilarity ﬂooding: a versatile graph-matching algorithm

and its application to schema matching. In ICDE

2002.

Schwichtenberg, S., Gerth, C., Huma, Z., and Engels, G.

(2014). Normalising heterogeneous service descrip-

tion models with generated qvt transformations. In

ECMFA 2014, LNCS vol. 8569, pp. 180–195.

Voigt, K. and Heinze, T. (2010). Metamodel matching

based on planar graph edit distance. In ICMT 2010,

LNCS vol. 6142, pages 245–259.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

270
