A Model based Toolchain for the Cosimulation of Cyber-physical

Systems with FMI

David Oudart

1,2

, J

ome Cantenot

, Fr

eric Boulanger

and Sophie Chabridon

EDF R&D, Palaiseau, France

SAMOVAR, CNRS, T

ecom SudParis, Institut Polytechnique de Paris, France

LRI, CNRS, CentraleSup

elec, Universit

e Paris-Saclay, France

Keywords:

Cosimulation, FMI, IT, MDE, Smart Grid, Cyber-physical System.

Abstract:

Smart Grids are cyber-physical systems that interface power grids with information and communication tech-

nologies in order to monitor them, automate decision making and balance production and consumption. Cosi-

mulation with the Functional Mock-up Interface standard allows the exploration of the behavior of such com-

plex systems by coordinating simulation units that correspond to the grid part, the communication network

and the information system. However, FMI has limitations when it comes to cyber-physical system simula-

tion, particularly because discrete-event signals exchanged by cyber components are not well supported. In

addition, industrial projects involve several teams with different skills and methods that work in parallel to

produce all the models required by the simulation, which increases the risk of inconsistency between models.

This article presents a way to exchange discrete-event signals between FMI artifacts, which complies with the

current 2.0 version of the standard. We developed a DSL and a model-based toolchain to generate the artifacts

that are necessary to run the cosimulation of the whole system, and to detect potential inconsistencies between

models. The approach is illustrated by the use case of an islanded grid implementing diesel and renewable

sources, battery storage and intelligent control of the production.

1 INTRODUCTION

Strong and fast evolutions of the electric landscape

deeply impact the existing power grids. Electric vehi-

cles, decentralized and renewable production as well

as political considerations require the grid operators

to continuously adapt their operating strategy and the

grid equipments. Smart Grid is the name given to the

oncoming generation of power grids, augmented with

information and communication technologies. Such

systems aim to allow prevention, better reactivity and

improved response to electrical events such as fail-

ures, but also ensure proper interoperability between

all the components of the grid. Because they may im-

pact a large amount of people, smart grids are critical

systems so they require thorough veriﬁcation and val-

idation before their implementation. To this end, sim-

ulation is very valuable to evaluate various behavioral

assumptions (Palensky et al., 2017).

As they involve many interdependent technical

domains, namely electronics, software information

processing and telecommunications, smart grids are

a typical example of Cyber-Physical System (CPS),

with the same challenges to face when it comes to

modeling and simulation. Designing a CPS usu-

ally involves several teams working simultaneously

on modeling multiple aspects of the system. Inter-

connecting these models implies to deal with hetero-

geneous models of computation, data consistency is-

sues, discrete and continuous variabilities, and va-

rious time-steps (Muller et al., 2018). The lack of

mature smart grid simulation tools lead Rohjans et

al (Rohjans et al., 2014) to establish a list of require-

ments for an appropriate tool addressing these chal-

lenges.

In addition, industrial companies are reluctant to

changes in their work methods and tools, and prefer to

rely on the existing skills and strengths of their teams.

Simulating CPS amounts to ﬁnd ways and tools to

model and simulate interactions between discrete and

continuous models, taking the most from the existing

skills of the industrial teams who are developing these

systems.

Cosimulation approaches allow each one of the

teams involved in the modeling phase to use their

own language and tool of predilection, as well as the

most suited paradigm for their domain. There are se-

veral standards for cosimulation, and the Functional

Oudart, D., Cantenot, J., Boulanger, F. and Chabridon, S.

A Model based Toolchain for the Cosimulation of Cyber-physical Systems with FMI.

DOI: 10.5220/0008875400150025

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 15-25

ISBN: 978-989-758-400-8; ISSN: 2184-4348

Mockup Interface (FMI)

, is particularly suited to in-

dustrial projects.

Our main objective is to provide a toolchain to

help modeling teams to create interoperable mo-

dels. For that purpose, we developed a Domain Spe-

ciﬁc Language (DSL) and we rely on MDE prac-

tices to automatically generate wrappers, interfaces

and deployment scripts compliant with the FMI stan-

dard, and handling the continuous-discrete intercon-

nections. This minimizes the effort required from the

model developers to adapt the models, and reduces

the risk of errors and the deployment cost of each it-

eration.

In the next section, we explain why we chose FMI

for the cosimulation of smart grids and the limitations

of this choice. In Section 3, we propose a way to deal

with the limitations of FMI for discrete signals. Sec-

tion 4 presents our toolchain to build the simulation

of a CPS, dealing with the industrial and FMI cons-

traints. Section 5 illustrates the approach on a use

case. Section 6 presents scenarios to validate our ap-

proach.

2 STATE OF THE ART

In the electrical energy community, the challenge of

simulating smart grids is not new (Li et al., 2011,Nu-

taro, 2011, Yang et al., 2013). However, it usually

consists in the interaction of two domains via two dy-

namic models. The problem of the synchronization

of models and of their consistency is not speciﬁcally

addressed by these approaches, but is not really chal-

lenging when limited to two domains.

For the industrial simulation of complex systems

and CPS, it is better to rely on standard technologies,

as they address various needs like scalability, modu-

larity or reusability. The Functional Mockup Interface

(FMI) (Blochwitz et al., 2011) and The High Level

Architecture (HLA) (Dahmann and Morse, 1998) are

two interoperability approaches allowing the inter-

connection of several different simulators in an inte-

grated execution.

If both approaches have been declared as standard,

FMI beneﬁts from a stronger popularity with more

than 80 compatible tools

. Its ability to protect in-

dustrial property inside FMUs makes it very attrac-

tive for industrial projects and makes collaborative

design easier (Gomes et al., 2018b). FMI deﬁnes a

simulation unit format called Functional Mockup Unit

(FMU), which embeds a model and an execution en-

https://fmi-standard.org

https://fmi-standard/tools/

gine along a standard interface to control the execu-

tion of the simulation. FMI cosimulations are driven

by a master algorithm, which synchronizes the exe-

cution of the FMUs and the exchange of data at some

communication points.

Because a time-step between two communication

points can not be null, FMI is not particularly adapted

to reactive systems and discrete-event modeling. Cur-

rent works already propose FMI extensions, such as

zero-size steps (Guermazi et al., 2015,Cremona et al.,

2019), or absent values (Cremona et al., 2019) to han-

dle discrete-event signals. Optimized master algo-

rithms (Tavella et al., 2016, Van Acker et al., 2015)

can increase the precision of the simulation while still

being compliant with the standard, by trying to lo-

cate the occurrence of an event using the optional roll-

back FMI feature (reverting the state of an FMU to a

previous communication point), or by optimizing the

choice of the time step, which requires FMUs to be

exported as white boxes.

Moreover, connections between FMUs are deﬁned

statically before execution, meaning that every pos-

sible interaction between models has to be deﬁned

during the modeling phase and the cosimulation set

up. This can lead to many revisions and iterations

on the models while trying to interoperate them with

the other models, and potentially generate a lot of in-

put/output ports to cover all possible scenarios. Adap-

tation approaches (Gomes et al., 2018a) allow the

reuse of existing models or FMUs by wrapping them

in a simulation unit adapted to a particular cosimula-

tion.

This last issue is derived from the fact that com-

plex system design involves several viewpoints from

different technical domains, therefore several hetero-

geneous models developed by different teams. Mo-

del driven approaches are used in industry to inter-

connect these models and represent the consistency

links between them (Zhao et al., 2017, Suri et al.,

2017, Andr

en et al., 2017). These approaches mainly

aim to facilitate the ﬁnal system realisation, but only

few of them include the simulation in the design pro-

cess (Paris et al., 2017).

FMI offers a technological means to simulate a

CPS such as a smart grid, but requires a support-

ive method and/or tool to address the various issues

raised. The toolchain we developed supports model

transformations and focuses on the deployment of a

correct cosimulation platform. It complies with the

FMI standard and relies on existing tools which im-

plement it, but also supports exchange of discrete-

event signals, as smart grids involve cyber compo-

nents. It provides a domain speciﬁc language to al-

low the modeling teams to identify and characterize

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

all signals exchanged between FMUs in a cosimula-

tion. Finally, it automates the generation of simula-

tion artifacts implementing these interfaces, such as

conﬁguration ﬁles, execution scripts and model adap-

tators.

3 HOW TO EXCHANGE

DISCRETE SIGNALS

BETWEEN MODELS VIA FMI

FMI is designed for the interconnection of simulators

producing continuous signals. Therefore, for simula-

tions involving information processing and commu-

nication networks, which rely on discrete events, we

need to encode such sporadic events using continuous

signals.

3.1 Problem and Deﬁnitions

We suppose the set V of all the values a signal can

take is one of the following sets: R, Z, S the set of

all string values, or B the set of all boolean values

{true, false}.

A discrete-event signal can then be represented

as a function of time x

: E → V where E ⊂ R

the discrete set of the event-ﬁring points.

The problem is that signals in an FMI cosimu-

lation are only considered at some communication

points chosen by the master. The set C of the com-

munication points being independent of the set E, if

we want to exchange a discrete event as an FMI si-

gnal, we have a risk of undeﬁned or missed events:

• E ∩ C ⊂ C: at some communication point, the

value of the signal is not deﬁned. (pb. 1)

• E ∩ C ⊂ E : some events are missed by the master

of the cosimulation and the other FMUs (pb. 2)

The three possible cases are illustrated in Figure 1.

E C

missed

undeﬁned

Figure 1: Differents cases for discrete event signals.

3.2 Proposed Solution

In order to be sure that the exchanged signal is deﬁned

on every communication points and avoid pb. 1, we

need an FMU to produce a time-continuous signal

deﬁned on R

(at least bounded by the start and stop

times of the cosimulation).

We propose an encoding component to transform

a discrete signal into two time-continuous signals

which can be exchanged over FMI. The ﬁrst time-

continuous signal keeps the value of the last event

emitted until a new event is emitted. But we need

a second coupled signal to express that an event ac-

tually has been emitted, in order to detect sequences

of events having the same value. Indeed, each time

the value of our ﬁrst signal changes we know that an

event has occurred, but while it is constant we cannot

detect if there has been an event with the same value

or no event.

Following these principles, we also provide a de-

coding component to perform the reverse operation

and obtain the discrete-event signal from the FMI dis-

cretization of the time-continuous signals.

3.2.1 Encoding Component

Input: x

a discrete-event signal. Output: x and x

two time-continuous signals.

We consider E = {te

,te

, . . . } as ordered.

∀t ∈ R

∗

, t ≥ te

(

x(t) = x

(te

)

(t) = n

where n

= max{i | te

≤ t} is the index of the last

event that occurred before or at time t.

When t < te

, no event has been emitted yet, and

(t) = 0. x(t) can have any value, which will be

ignored by the decoding component. We suggest to

choose an initial value corresponding to the last event

which could have occurred before the start of the sim-

ulation. When it is not possible or does not make

sense, a default value in the V set (0, an empty string

or false) is a valid choice too.

3.2.2 Decoding Component

Input: y and y

two time-continuous signals sampled

over C . Output: y

a discrete-event signal.

C = {tc

,tc

, . . . } is the set of the communi-

cation points. We assume the previous deﬁnition of

the set E , and the fact that y and y

are the x and x

si-

gnals discretized by the FMI cosimulation master on

C .

We deﬁne the discrete set F ⊂ R

as the set of

the time points of the y

’s “rising edges”. These

time points are all synchronized with a communica-

tion point so we have:

F =



∈ C



i > 1 , y

(tc

) > y

(tc

i−1

)

i = 0 , y

(tc

) 6= 0



A Model based Toolchain for the Cosimulation of Cyber-physical Systems with FMI

Then the output of our component is:

: F → V

∀i , tc

∈ F ⊂ C y

(tc

) = y(tc

) = x

(te

)

where n

and te

∈ E are deﬁned as before as the

index of the last event occurring before or at time tc

and the time of this event.

3.3 Discussion

We are aware that several challenges still need to be

addressed in order to allow discrete-event signal ex-

changes over FMI. The dates of the events are almost

always approximated from the global cosimulation

perspective. It prevents a rigorous handling of concur-

rent events for instance. For this issue, we are limited

by the deﬁnition of time in the FMI standard (Broman

et al., 2015). Our goal is to allow a better support of

the discrete-event signals with a minimal adaptation

effort.

Using our two components to encode and decode

a discrete-event signal between two FMUs, and using

the same notation as previously, an event received at

has been emitted at te

. We know that te

the latest time point of E such as tc

i−1

< te

≤ tc

So our solution addresses pb. 2 by ensuring that

if an event is not synchronized with a communica-

tion point, it can still be detected, but delayed by

− te

. This is an inherent limitation of the cur-

rent version 2.0 of FMI.

i−1

missed occurrence

Figure 2: Missing events that are too close.

However, pb. 2 is not completely addressed, as

events emitted between tc

i−1

and te

are still missed

as shown in Figure 2. We can only express at most

one event at each communication point. It is an arbi-

trary choice by only considering the last emitted one

in the time-step interval. Nonetheless, the difference

between y

(tc

) and y

(tc

i−1

) still reveals the number

of events emitted since the last communication point.

A smart-enough cosimulation master might decide to

cancel the last step and replay it with a smaller step

in order to catch the missed events. This requires the

optional rollback functionality of the FMI standard.

Finally, the use of these components in the FMU

models requires potentially heavy changes to the orig-

inal models, as well as the addition of FMI connec-

tions dedicated to the synchronization of FMUs. This

kind of knowledge is speciﬁc to the cosimulation pro-

cess and does not need to be the concern of the mod-

eling teams.

The toolchain presented in Section 4 provides

methods and tools to generate these components for

the modeling teams, and to automate the deployment

and the possible iterations of the smart grid cosimula-

tion model.

4 TOOLCHAIN PRESENTATION

4.1 An Approach based on Model

Reﬁnement

One of the main advantages of using a cosimulation

environment is to allow the different experts to de-

velop their own model in autonomy, with a minimal

interference and in parallel with the others (Gomes

et al., 2018b). The choice of the FMI standard en-

sures the technological compatibility of each simu-

lation unit, or FMU, with the cosimulation environ-

ment, without having to develop a speciﬁc connector.

However it does not ensure structural compatibility.

All FMUs produced by the different teams must pro-

vide interoperable data structures, namely each input

should match an output, in type and meaning.

An example of a cosimulation approach for smart

grids (Oudart et al., 2019) identiﬁed several steps and

actors involved in such a process. The ﬁrst step is to

deﬁne all the connections between the simulation mo-

dels in order to deﬁne the interface of the models for

each modeling team. But the compliance veriﬁcation

of the models and the creation of the cosimulation ar-

tifacts (FMUs, conﬁguration ﬁles) are done by hand,

which make each iteration time-consuming and error-

prone.

The use of a global, architectural model to repre-

sent the structural interfaces of the various simulation

units and the coupling constraints between them, al-

lows the use of syntactic tools to automatically check

some validation rules. It also creates a unique author-

itative artifact to coordinate the work of the various

collaborators, and from which more detailed models

can be derived.

Following this approach, we developed a

toolchain to automate the actions needed to run a

cosimulation starting from a global model. It is

based on model transformations from a platform-

independent model toward simulation artifacts. This

toolchain relies on a domain speciﬁc language (DSL),

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

named Cosimulation Modeling Language (CosiML),

to specify the structural interfaces of the simulation

units and the conﬁguration of the cosimulation.

Our choice to develop our own language for this

purpose, instead of choosing an existing one, such as

UML, comes from various reasons :

• in an industrial context, general-purpose lan-

guages like UML are not well mastered outside

the computer science ﬁeld,

• such languages contain many concepts, but we

only needed a few of them,

• in our approach, adapting UML to model speciﬁc

concepts would lead to reﬁning generic concepts

through proﬁles.

It appeared more efﬁcient to deﬁne only what we

needed than to restrict and specialize UML to ﬁt our

needs.

4.2 CosiML, a DSL for Cosimulation

We implemented CosiML inside the Eclipse Model-

ing Framework (EMF) using the Ecore metamodeling

language. Figure 3 shows a simpliﬁed metamodel of

CosiML, with the classical elements of every cosimu-

lation.

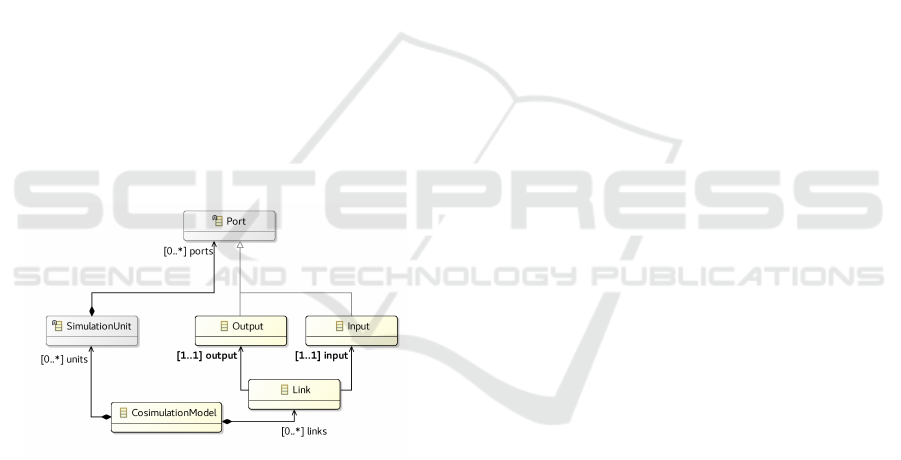

Figure 3: CosiML simpliﬁed metamodel.

CosimulationModel is the root element of the

model, it stores the parameters of the cosimulation

(start time, stop time, time step, etc.) and contains

all the simulation units and their interconnections.

SimulationUnit represents a simulation unit in-

volved in the cosimulation. It contains the Port ele-

ments representing the structural interface of the unit.

Input & Output (Port) represents a port of the

simulation unit. It has a type, an optional default value

and a variability, which is the name used by FMI to

characterize the discrete or continuous nature of si-

gnals.

Link represents a connection between an output

and an input port. A model can be checked to verify

that any two connected ports have the same variabil-

ity, and that they are not contained in the same simu-

lation unit.

There are several kinds of SimulationUnits, as

shown in Figure 4:

ProvidedSimulationUnit is a simulation unit

which is completely provided by the user. Such a

simulation unit is directly usable in the cosimulation

without further action. In our case of FMI cosimu-

lation, a ProvidedSimulationUnit is provided as an

FMU resource and we only have to know the path to

the artifact.

GeneratedSimulationUnit is a simulation unit

which will be generated by the toolchain from a do-

main model. The attribute modelPath stores the path

to the domain model. The format of the model and

the generator to use for the generation of the simu-

lation unit are speciﬁc to the tool attribute’s value.

The tool is what is used to build the model, for in-

stance a Java or C++ compiler, or a more complex

modeling tool such as OMNeT for communication

networks. The generator is part of our toolchain, and

will generate the corresponding FMU, which includes

the generation of adapters for discrete event signals.

The generator relies on naming conventions to ac-

cess the elements of the model and adapt them to

the structure of the FMU. For instance, a Java with

a continuous input signal named X should implement

a setX(double value) method. In order to refer to

the model in the generated FMU, the generator uses

two generic attributes: importText deﬁnes how to

import the model inside the adapter, and usageText

tells how to use the model. Finally, the attribute

dependencies stores the list of all the resource paths

required by the model (libraries, data ﬁles, binaries)

that should be packaged inside the generated simula-

tion unit. Our goal is to stay generic enough to avoid

metamodel modiﬁcations when we want to support a

new tool and add a new generator to the toolchain.

For instance, a Java model-based generator would re-

quire:

importText = import package.Classname;

and

usageText = Classname,

whereas a C++ model-based generator would require:

importText = #include "filename.h"

and

usageText = ObjectName.

Scenario a simulation unit generated by the

toolchain from a data ﬁle. It only has output ports

and will be used as an independent source of timed

data. The attribute dataPath stores the path to the

data ﬁle. We are considering that future versions of

CosiML and the toolchain may support several for-

A Model based Toolchain for the Cosimulation of Cyber-physical Systems with FMI

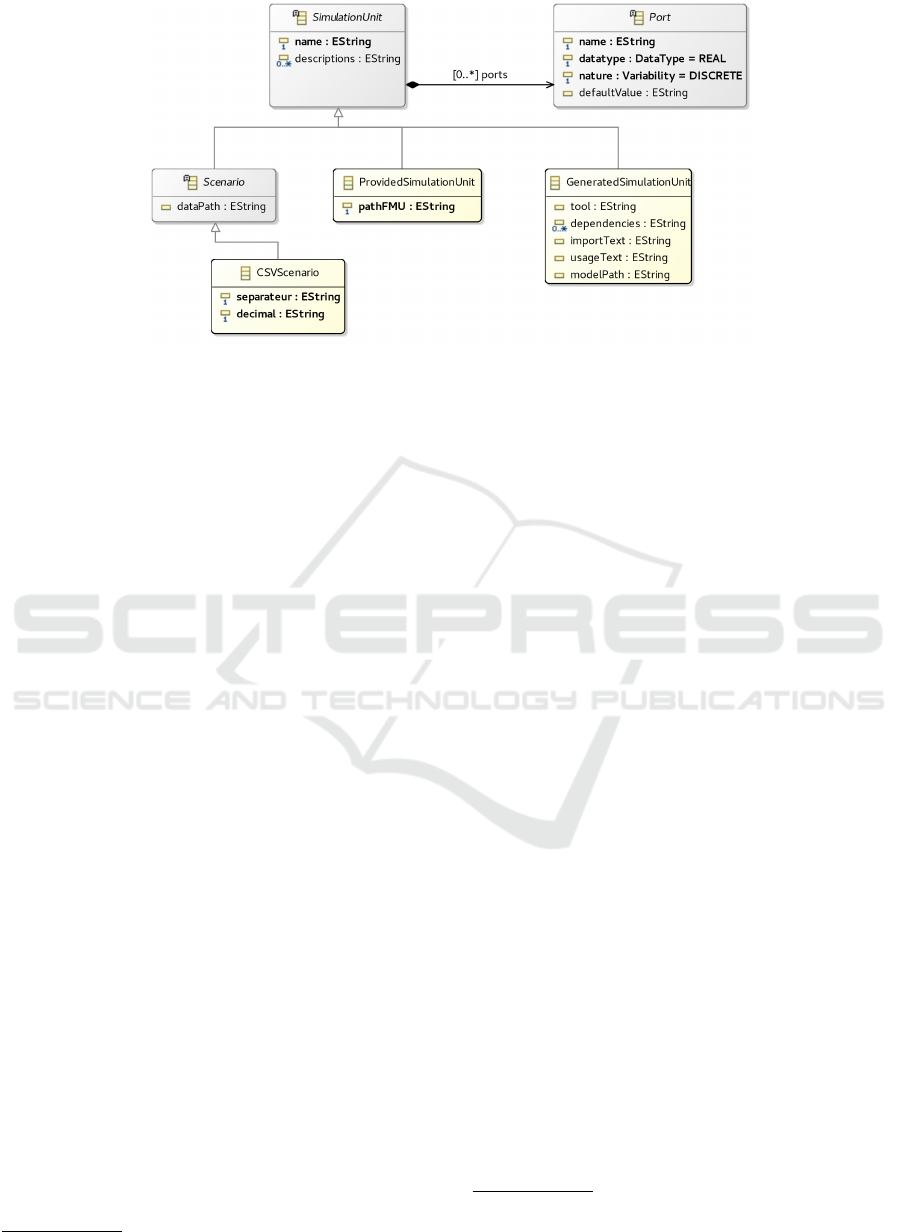

Figure 4: SimulationUnit detailed specializations.

mat, but for now we only support CSV ﬁles to be used

as Scenario units.

CSVScenario a particular Scenario element

which refers to a CSV data ﬁle. Attributes separator

and decimal deﬁnes the characters used respectively

as separator and decimal marker for the CSV content.

4.3 Generation Tools for FMI

Cosimulation

We chose the DACCOSIM NG

software to execute

our FMI cosimulation. It implements a master al-

gorithm that is fully compliant with the standard,

with advanced discontinuity detection features, and

intelligent time step strategies (Tavella et al., 2016).

More importantly, it provides a scripting language

allowing the automation of the build and execution

of cosimulations. Finally it is designed for dis-

tributed executions, which is very useful for indus-

trial use cases potentially involving a large number of

FMUs (

Evora G

omez et al., 2019).

With our CosiML metamodel deﬁned in EMF

Ecore, we can use the Sample Reﬂective Ecore Model

Editor to instantiate a CosiML model and serialize it

in the XMI format. Then, we can use model transfor-

mations to implement our toolchain. We developed

an Acceleo plugin to generate all the ﬁles needed to

build the FMI cosimulation from the CosiML model.

The Figure 5 shows the generation process of these

ﬁles from a CosiML model. The generators are con-

ﬁgured with property ﬁles, used to specify platform

dependent information, such as library and tool paths.

The toolchain is currently composed of the follow-

ing generators :

https://bitbucket.org/simulage/daccosim

1. Java-tool Generator: generates all the ﬁles

needed to build an FMU from a Java model. It is

applied to the GeneratedSimulationUnit instances

with the right tool property. It generates a Java

ﬁle deﬁning a class adapting the user model to the

JavaFMI library

, along with a MANIFEST.MF

ﬁle deﬁning the proper classpath. It also genera-

tes a script to build the corresponding FMU.

2. CSV Scenario Generator: generates the ﬁles

needed to build an FMU from a CSV ﬁle. It is ap-

plied to the CSVScenario instances. It generates a

Java ﬁle deﬁning a class loading the CSV ﬁle, and

implementing the JavaFMI library, along with the

MANIFEST.MF ﬁle and the building script, just

as with the Java-tool generator.

3. Cosimulation Scripts Generator: generates the

DACCOSIM cosimulation model in its speciﬁc

scripting language DNG. It also generates an ex-

ecution script, which automates the build of all

the FMU not yet generated, and the launch of the

DACCOSIM simulation.

CosiML allows the distinction between discrete

and continuous data exchanges, so that the provided

generators can automatically implement the encod-

ing and decoding components in the generated wrap-

pers, and adapt the FMU inputs and outputs accord-

ingly (each CosiML Port with a discrete variability

causes the creation of two FMI ports). Our toolchain

is meant to be extended with other generators to sup-

port more domain speciﬁc tools and to be used for

cyber-physical systems other than smart grids. The

next section presents an industrial use case of smart

bitbucket.org/siani/javafmi/, a set of component to

work with FMI. It especially provides a builder component

generating an FMU from Java code.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

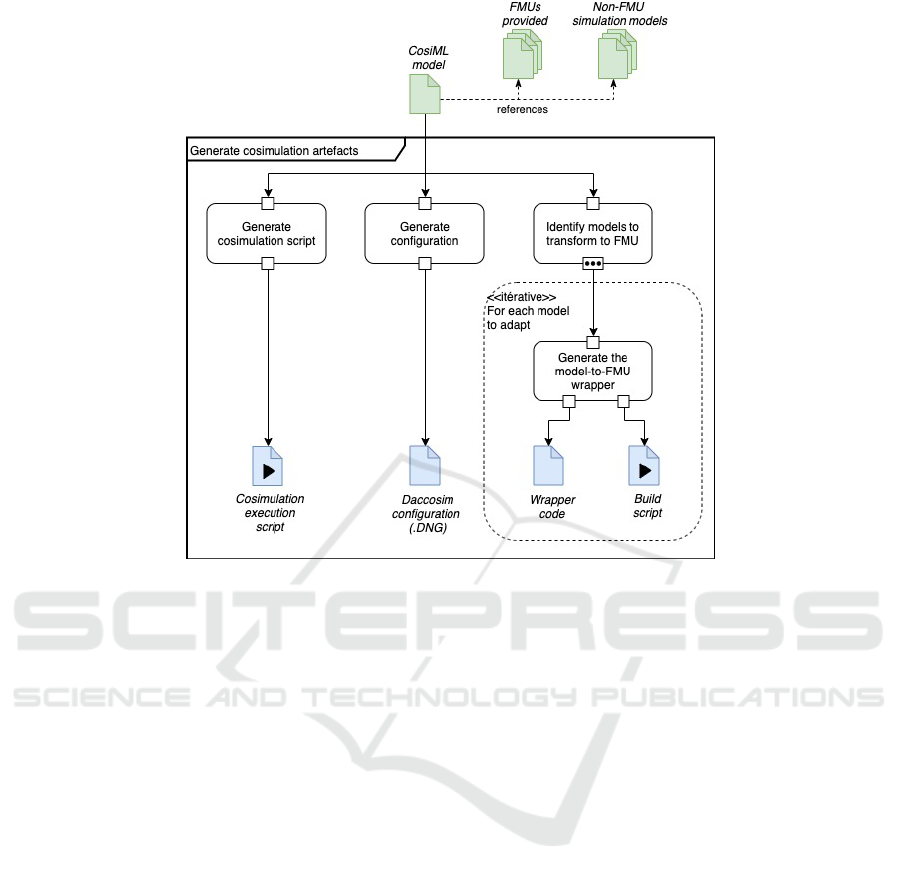

Figure 5: Generation process of the cosimulation artifacts, from a CosiML model.

grid cosimulation, and shows the integration of the

current toolchain with the usual modeling tools of the

different teams.

4.4 Download

Our toolchain is shared on a github repository at:

https://github.com/davidoudart-pro/SGridSF.

The sources of the CosiML language and gene-

ration plugins are available, as well as the necessary

ﬁles to replay the cosimulation of the use case pre-

sented in this article.

5 USE-CASE COSIMULATION

5.1 The Use-case of an Islanded Smart

Grid

We chose a real use case from the French power

utility to illustrate our contribution, and validate our

toolchain. The system is an island with a power grid

that is independent from the mainland grid, with its

own production equipments. A diesel power plant is

the main energy producer, and is complemented by

a photovoltaic farm. The main issue in the conﬁg-

uration is that the renewable energy supply is inter-

mittent. Indeed, as the photovoltaic source relies on

sunlight and needs a clear sky for its production, it

makes it as variable and unpredictable as the weather.

In order to balance the production with the consump-

tion, it has to be sometimes prevented from producing

as much as it could, which causes economic loss and

carbon footprint degradation. Therefore, a chosen so-

lution is to add a battery storage to damp the variabil-

ity of the production, with the purpose of minimizing

the limitations of the photovoltaic farm. It could even

allow the operator to shut down the diesel plant for

some period and rely only on the battery and photo-

voltaic production.

To maximize the efﬁciency of the system, we

need an Energy Management System (EMS) cou-

pled with a Supervisory Control And Data Acquisi-

tion (SCADA) in order to implement an intelligent

control of the production. The EMS monitors the

state of the power grid (value of the voltage at va-

rious control points, state of switches), and drives

some of its equipments (giving voltage setpoints, lim-

iting the injection of power by a source) through the

SCADA. The EMS can collect other information such

as weather and consumption forecasts from external

information systems, as well as user preferences, in

order to optimize the operation of the grid.

Before telling how the EMS controls the equip-

ments on the grid, we have to explain how the power

A Model based Toolchain for the Cosimulation of Cyber-physical Systems with FMI

ﬂow is established on a power grid. Knowing the

power needed by the consumers, we can set power

production setpoints to the various sources of the grid

in order to balance the consumption. However, losses

on transmission lines can never be known, so we need

at least one equipment not power constrained, capa-

ble of producing the loss or absorb the unpredictable

excess. This equipment is generally the one having

the highest size generator. In our case it is the diesel

plant when it is connected to the grid, the battery and

its converter when it is not.

The EMS sends control signals to the various

equipment of the grid:

• photovoltaic farm: the EMS decides if the produc-

tion needs to be limited and how much;

• battery: there are two cases for this equipment.

When the diesel plant is coupled to the grid and

balances the power on the grid, the EMS con-

trols the power absorbed or injected by the battery.

When the diesel plant is shut down, the EMS does

not control the battery and lets its power converter

balance the power on the grid.

• diesel plant: the EMS decides if it is coupled to

the grid (and produces power) or not. When it is

coupled to the grid, it cannot produce less than a

minimum power, so it can happen that the photo-

voltaic farm has its production limited. To avoid

it, the diesel is turned off when the battery and

the photovoltaic production are able to cover the

consumption needs.

Because of all the different modes in which the

grid can be, depending on the weather, on the man-

agement of the charge of the battery and on the vari-

ability of the consumption, simulation is very useful

to test and validate a design of the solution, before any

deployment on the ﬁeld and expensive investments.

5.2 Cosimulation Scenario

The simulation of the islanded smart grid is a good

example of a cyber-physical system involving seve-

ral knowledge ﬁelds, and several teams with different

modeling tools. We used Modelica

with the Dymola

software to model the grid power ﬂow because they

are well-known tools among electrical engineers, and

they fully support the FMI standard and the export to

FMU (Elsheikh et al., 2013). The simulation unit con-

tinuously evaluates the electrical power state of the

grid according to production and consumption cons-

traints. Figure 6 shows the simpliﬁed model of the

power ﬂow and its inputs.

https://www.modelica.org/, component-oriented mod-

eling language based on equations set declaration.

Figure 6: Simpliﬁed Modelica model of the islanded grid.

Some of these constraints are computed and de-

cided by the algorithm of the EMS. The EMS pro-

duces discrete event signals, reacting to the evolution

of the state of the grid. There is no conventional tool

supporting the modeling of reactive systems and also

handling FMI. Complex algorithms are usually mod-

eled with textual procedural languages such as C or

Java. There are tools supporting the export of such

models toward FMU, but they require additional ef-

forts and speciﬁc code refactoring and writing. Our

toolchain supports the automatic transformation of a

Java model into an FMU, with the generation of a

wrapper code implementing the JavaFMI Framework

library, and the use of the JavaFMI builder tool. We

developed a ﬁrst, simple Java algorithm of the EMS

which takes the current state of the grid as input and

does not use forecasts. It computes controls every 15

minutes, but continuously monitors the current state

of the grid equipments in case emergency controls are

required. The Figure 7 shows an activity diagram, il-

lustrating this process. This simple model can give

reference simulation results, as a base of comparison

with more complex and complete algorithms provided

by various vendors.

These components need to be tested on multiple

scenarios. We have access to some data sets describ-

ing the consumption of the island and the weather

conditions over time at various times of the year. The

toolchain also supports the automatic transformation

of a timed-CSV ﬁle into an FMU, so we can use these

data sets in our cosimulation (via the CosiML CSVS-

cenario element).

Eventually, our CosiML cosimulation model in-

volves three simulation units:

• GridFmu which computes the electrical state of

the system

• EmsFmu which computes the controls to send to

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

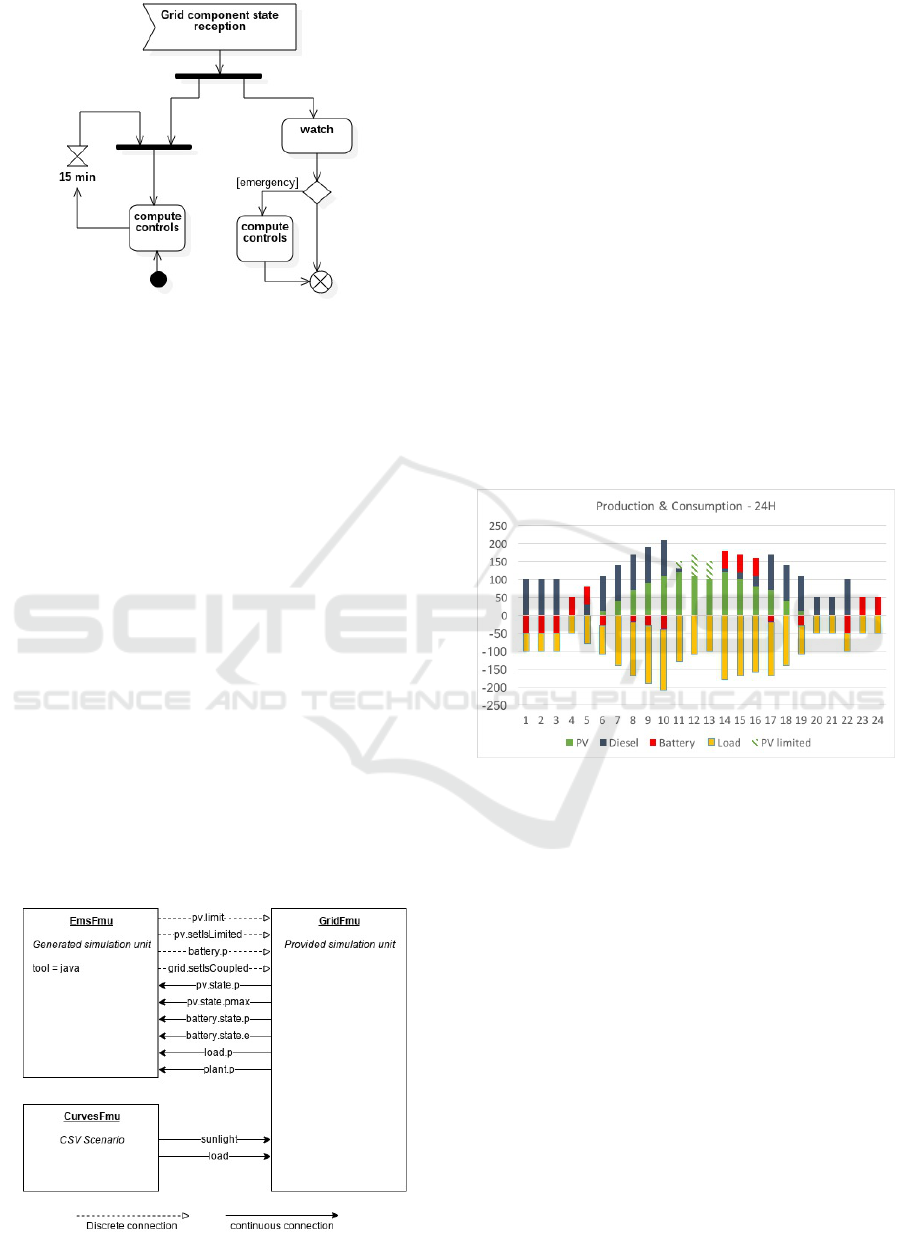

Figure 7: EMS monitoring process, with periodic and emer-

gency controls.

the grid components

• CurvesFmu which plays the consumption and

sunlight intensity evolution from the given data

sets.

The CosiML model of this cosimulation

instantiates GridFmu as a ProvidedSimulation-

Unit, because it is provided as an export from

Dymola. EmsFmu is instantiated as a Generated-

SimulationUnit because the model is provided as

java source code, and our toolchain will generate

the FMU. Finally CurvesFmu is instantiated as a

CSVScenario, because we are provided with a CSV

ﬁle that will be used to generate an FMU that plays

the data contained in the ﬁle.

As we said previously, the CosiML model has

been edited with the EMF’s Sample Reﬂective Ecore

Model Editor, and stored in the XMI format. Figure 8

illustrates the XMI CosiML model’s content by ex-

pliciting the connections between the three FMUs and

their variability (solid lines for continuous signals,

dotted lines for discrete events).

Figure 8: Connections between the FMUs of the use case.

5.3 Simulation and Decisions

The use case presents two main concerns: 1) how to

optimize the battery characteristics in order to imple-

ment an efﬁcient management of the production and

keep investment as low as possible? And 2) how to

test the efﬁciency of the chosen EMS algorithm?

From the CosiML model, the toolchain generates

the necessary wrapper ﬁles to build the EmsFmu and

CurvesFmu FMUs, as well as the DACCOSIM mo-

del of the cosimulation. In addition, a script is gen-

erated to create automatically the missing FMUs, and

to launch the DACCOSIM cosimulation.

In our case, the cosimulation evaluates the behav-

ior of the grid on a full day (24 hours). Figure 9

shows the average and cumulated per-hour production

(over the x-axis) and consumption (below the x-axis)

of each equipment on the day, for particular load and

photovoltaic maximal production curves (and initial

conditions).

Figure 9: Consumption and production of electricity over a

full day.

The energy balance has been ensured all day (no

black-outs) meaning our design solution is effective

on this particular scenario. However, between 11am

and 2pm, the photovoltaic production has been lim-

ited (see hatched bars). Looking at the results (not

shown in the ﬁgure), we see that the charge of the bat-

tery was already maximal and could not absorb the

extra production. There is consequently a potential

for optimization of our solution. Increasing the ca-

pacity of the battery, or improving the algorithm of

the EMS are two possible iterations. Once the models

are updated, the execution of the toolchain automati-

cally updates the simulation artifacts and executes the

cosimulation again.

A Model based Toolchain for the Cosimulation of Cyber-physical Systems with FMI

6 OBSERVATIONS

The key motivation behind our work is to reduce the

cost of iterations in the design of systems by automat-

ing the cosimulation of the models using a model-

driven approach. To be useful in an industrial context,

we need to fulﬁll the following requirements: each it-

erative step of the process must provide a quick feed-

back; the upfront modeling cost must be recovered in

the following phases of analysis, maintenance, etc.;

business experts must concentrate on their core skills.

We presented in this paper a toolchain based on

a cosimulation DSL to reference simulation models

and characterize some coupling constraints between

them. The various generators allow the generation

of simulation units and deployment scripts from this

cosimulation model. Hence, this automated process

provides the possibility to make changes to the cosi-

mulation scenario with minimal efforts. We illustrate

this through the following industrial scenarios.

In a ﬁrst scenario, a functional architect has to

compare components from various vendors, for ex-

ample to ﬁnd the best EMS solution (EMSGrid in our

previous use case). To guarantee the correct integra-

tion of the simulation model provided by the vendor,

the tender documents include requirements deduced

from the CosiML model. The selection of the right

component is simpliﬁed because:

• Using the tool chain, the architect can quickly

build a test environment, by providing input data

inside a CSV ﬁle, automatically generating a new

FMU and a cosimulation model, then testing mul-

tiple conﬁgurations easily.

• To select the components to be used in the co-

simulation, only the pathFMU attribute of the

ProvidedSimulationUnit must be modiﬁed and the

new cosimulation set up can be generated.

In a second scenario, we want to involve elec-

trotechnical engineers to build a load ﬂow model of

the power grid (GridFMI in our previous use case).

This is possible without an intensive training because

they can use their own speciﬁc tools to build the simu-

lation model (Dymola, PowerFactory, etc.), and there

are only few basic concepts (input, output, discrete

or continuous variability) to be explained in order to

build the CosiML model. Once they develop a mo-

del conforming to the CosiML metamodel, they can

then use an iterative approach to improve the model

without involving other collaborators, thanks to our

toolchain, which automatically integrates their work

to the cosimulation platform.

Finally, in a third scenario, we consider the case

of a modiﬁcation of one simulation model inducing

a modiﬁcation of the CosiML model, and especially

among the coupling constraints between models (e.g.

adding or renaming several ports).Firstly, the valida-

tion rules of our toolchain guarantee the consistency

of the CosiML model. Secondly, the automated ex-

ecution process of the cosimulation will raise errors

until each impacted simulation model makes the ne-

cessary adjustments. Thirdly and ﬁnally, the imple-

mentation of the adjustments might be partially done

by the generators of the toolchain.

7 CONCLUSION AND

PERSPECTIVES

By automating some veriﬁcations and the generation

of cosimulation artifacts, model driven approaches al-

low shorter, less costly and less error prone iterations

on a solution design. Our toolchain relies on an ab-

stract CosiML model of the system to check the con-

sistency of the different simulation units, to generate

adapters for discrete event signals that cannot be used

as is in an FMI simulation, and to generate FMUs

from models developed with different tools. It uses

the FMI standard and beneﬁts from its many advan-

tages regarding CPS simulation in industry. It can also

integrate FMUs exported by some modeling tools in

the cosimulation, allowing models from different sys-

tem domains to be developed with the relevant tools,

by experimented teams, while protecting industrial

property inside FMUs.

The CosiML language and its generators have

been used on a real industrial case, which involves

both continuous and discrete signal exchanges. We

recently managed to integrate an FMU built from an

OMNeT model of a communication network in a co-

simulation, which will allow us to run ﬁner simula-

tions of a smart grid that take into account the perfor-

mance and limitations of the communication network.

CosiML and our tool chain have been designed to sup-

port new modeling tools and new generators, and the

integration of models from OMNeT in the tool chain

will be an opportunity to check this. The modular

nature of the different transformations also helps to

adapt the generated artifacts to different versions of

FMI. For instance, the support for a more precise de-

tection of discontinuities in FMI v2.1 may lead to a

new adapter for discrete event signals, while keeping

the current one for cosimulations using older versions

of FMI.

Finally, we want to bring a better integration with

the design process of a system using simulation. In-

deed, we are aware that developing a CosiML model

implies a previous analysis phase, to identify which

kind of simulation models need to be developed, and

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

for which purpose. We propose to use another lan-

guage to represent the system functions to simulate,

independently of their implementation models, and to

build a model transformation toward CosiML.

REFERENCES

Andr

en, F., Strasser, T., and Kastner, W. (2017). Engineer-

ing Smart Grids: Applying Model-Driven Develop-

ment from Use Case Design to Deployment. Energies,

10(3):374.

Blochwitz, T., Otter, M., Arnold, M., Bausch, C., Elmqvist,

H., et al. (2011). The functional mockup interface for

tool independent exchange of simulation models. In

Proceedings of the 8th International Modelica Con-

ference, pages 105–114.

Broman, D., Greenberg, L., Lee, E. A., Masin, M., Tripakis,

S., and Wetter, M. (2015). Requirements for Hybrid

Cosimulation Standards. In Proceedings of the 18th

International Conference on Hybrid Systems: Compu-

tation and Control, HSCC ’15, pages 179–188. ACM.

Cremona, F., Lohstroh, M., Broman, D., Lee, E. A., Masin,

M., and Tripakis, S. (2019). Hybrid co-simulation:

it’s about time. Software and System Modeling,

18(3):1655–1679.

Dahmann, J. S. and Morse, K. L. (1998). High Level Ar-

chitecture for simulation: An update. In Proceed-

ings. 2nd International Workshop on Distributed In-

teractive Simulation and Real-Time Applications (Cat.

No.98EX191), pages 32–40.

Elsheikh, A., Awais, M. U., Widl, E., and Palensky, P.

(2013). Modelica-enabled rapid prototyping of cyber-

physical energy systems via the functional mockup in-

terface. pages 1–6. IEEE.

Evora G

omez, J., Hern

andez Cabrera, J. J., Tavella,

J.-P., Vialle, S., Kremers, E., and Frayssinet, L.

(2019). Daccosim NG: Co-simulation made simpler

and faster. In The 13th International Modelica Con-

ference, pages 785–794.

Gomes, C., Meyers, B., Denil, J., Thule, C., Lausdahl, K.,

Vangheluwe, H., and De Meulenaere, P. (2018a). Se-

mantic adaptation for FMI co-simulation with hierar-

chical simulators. SIMULATION.

Gomes, C., Thule, C., Larsen, P. G., and Vangheluwe, H.

(2018b). Co-Simulation: A Survey. ACM Computing

Surveys, 51(3):49:1–49:33.

Guermazi, S., Tatibouet, J., Cuccuru, A., Dhouib, S.,

erard, S., and Seidewitz, E. (2015). Executable mod-

eling with fUML and alf in papyrus: Tooling and ex-

periments. In EXE@MoDELS.

Li, W., Monti, A., Luo, M., and Dougal, R. A. (2011). VP-

NET: A co-simulation framework for analyzing com-

munication channel effects on power systems. In 2011

IEEE Electric Ship Technologies Symposium, pages

143–149.

Muller, S. C., Georg, H., Nutaro, J. J., Widl, E., Deng, Y.,

Palensky, P., Awais, M. U., and al. (2018). Interfacing

Power System and ICT Simulators: Challenges, State-

of-the-Art, and Case Studies. IEEE Trans. Smart Grid,

9(1):14–24.

Nutaro, J. (2011). Designing power system simulators

for the smart grid: Combining controls, communi-

cations, and electro-mechanical dynamics. In 2011

IEEE Power and Energy Society General Meeting,

pages 1–5.

Oudart, D., Cantenot, J., Boulanger, F., and Chabridon, S.

(2019). An Approach to Design Smart Grids and Their

IT System by Cosimulation:. In MODELSWARD 19,

pages 370–377. SCITEPRESS - Science and Technol-

ogy Publications.

Palensky, P., Van Der Meer, A. A., Lopez, C. D., Joseph, A.,

and Pan, K. (2017). Cosimulation of Intelligent Power

Systems: Fundamentals, Software Architecture, Nu-

merics, and Coupling. IEEE Industrial Electronics

Magazine, 11(1):34–50.

Paris, T., Ciarletta, L., and Chevrier, V. (2017). Design-

ing co-simulation with multi-agent tools: a case study

with NetLogo. In Francesco Belardinelli, E. A., ed-

itor, 15th European Conference on Multi-Agent Sys-

tems (EUMAS 2017), volume 10767 of Multi-Agent

Systems and Agreement Technologies, pages 253–267,

Evry, France. Springer.

Rohjans, S., Lehnhoff, S., Sch

utte, S., Andr

en, F., and

Strasser, T. (2014). Requirements for Smart Grid sim-

ulation tools. In 2014 IEEE 23rd International Sym-

posium on Industrial Electronics (ISIE), pages 1730–

1736.

Suri, K., Cuccuru, A., Cadavid, J., Gerard, S., Gaaloul, W.,

and Tata, S. (2017). Model-based Development of

Modular Complex Systems for Accomplishing Sys-

tem Integration for Industry 4.0. In Proceedings of the

5th International Conference on Model-Driven Engi-

neering and Software Development - Volume 1: MOD-

ELSWARD,, pages 487–495. ScitePress.

Tavella, J.-P., Caujolle, M., Vialle, S., and al. (2016). To-

ward an Accurate and Fast Hybrid Multi-Simulation

with the FMI-CS Standard. In Emerging Technologies

and Factory Automation (ETFA-2016), Berlin, Ger-

many.

Van Acker, B., Denil, J., Vangheluwe, H., and De Meule-

naere, P. (2015). Generation of an optimised master

algorithm for fmi co-simulation. In DEVS Integrative

M&S Symposium, DEVS ’15. Society for Computer

Simulation International.

Yang, C.-H., Zhabelova, G., Yang, C.-W., and Vyatkin, V.

(2013). Cosimulation Environment for Event-Driven

Distributed Controls of Smart Grid. IEEE Trans. In-

dustrial Informatics, 9(3):1423–1435.

Zhao, H., Apvrille, L., and Mallet, F. (2017). Multi-View

Design for Cyber-Physical Systems. In PhD Sympo-

sium at 13th International Conference on ICT in Ed-

ucation, Research, and Industrial Applications, pages

22–28, Kiev, Ukraine.

A Model based Toolchain for the Cosimulation of Cyber-physical Systems with FMI
