Classifying Unstructured Models into Metamodels using Multi Layer

Perceptrons

Walmir Oliveira Couto

1,2

, Emerson Cordeiro Morais

and Marcos Didonet Del Fabro

C3SL Labs, Federal University of Paran

a, Curitiba PR, Brazil

LADES Icibe, Federal Rural University of Amazon, Bel

em PA, Brazil

Keywords:

Classifying Unstructured Models, Model Recognition, Artiﬁcial Neural Network, MLP.

Abstract:

Models and metamodels created using model-based approaches have restrict conformance relations. However,

there has been an increase of semi-structured or schema-free data formats, such as document-oriented repre-

sentations, which are often persisted as JSON documents. Despite not having an explicit schema/metamodel,

these documents could be categorized to discover their domain and to partially conform to a metamodel. Re-

cent approaches are emerging to extract information or to couple modeling with cogniﬁcation. However, there

is a lack of approaches exploring semi-structured formats classiﬁcation. In this paper, we present a methodo-

logy to analyze and classify JSON documents according to existing metamodels. First, we describe how to

extract metamodels elements into a Multi-Layer Perceptron (MLP) network to be trained. Then, we translate

the JSON documents into the input format of the encoded MLP. We present the step-by-step tasks to classify

JSON documents according to existing metamodels extracted from a repository. We have conducted a series

of experiments, showing that the approach is effective to classify the documents.

1 INTRODUCTION

Models and metamodels created using model-based

approaches have restrict conformance relations,

meaning that each element of a given model must

conform to a metamodel element. For instance, an

element ”Student” in a model could conform to the

element ”Class” in a Java metamodel. Similar rela-

tionships, with different terminology, are present in

other data models, such as a database tuple and its ta-

ble/column deﬁnitions, or an XML document and its

corresponding schema.

These relationships are restrictive and cannot be

applied to any kind of data model, in particular when

relying on semi-structured or schema-free representa-

tions, where there is no explicit conformance relation.

Such kind of data is very good for fast application

development, coming with the cost of being loosely

typed.

The most common semi-structured format are

document stores, which are often persisted using

JSON documents. JSON documents are used for in-

teroperability, storage of application data where ﬂexi-

bility is important and also are becoming a de-facto

standard in RESTful APIs implementations. Despite

not having an explicit metamodel/schema, there are

initiatives, such as JSON schema, as solution to pro-

vide typed JSON documents.

When JSON schemas are not deﬁned, i.e., for un-

typed documents, it is useful to classify JSON docu-

ments to discover whether they could be categorized

into a given domain and to partially-conform to a

metamodel or JSON schema. Recent approaches are

emerging to extract information or to couple meta-

modeling with cogniﬁcation, i.e., to extract knowled-

ge from models and metamodels and to apply ma-

chine learning techniques to discover useful informa-

tion (Cabot et al., 2017; Perini et al., 2013). The paper

from Burgue

no (Burgue

no, 2019) shows an approach

which uses Long Short-Term Memory Neural Net-

works (LSTM) to automatically infer model transfor-

mations from sets of input-output model pairs. Ano-

ther one from (Nguyen et al., 2019) employed Ma-

chine Learning techniques for metamodel automated

classiﬁcation implementing a feed-forward neural

network. However, there is a lack of approaches about

unstructured models’ classiﬁcation. There are studies

comprising classiﬁcation of complex structures, such

as solutions on graph classiﬁcation (Zhang and Chen,

2018), but they are not focused on unstructured mo-

dels, meaning there is an open ﬁeld to be studied.

In this paper, we present a methodology to analyze

Couto, W., Morais, E. and Fabro, M.

Classifying Unstructured Models into Metamodels using Multi Layer Perceptrons.

DOI: 10.5220/0008894202710278

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 271-278

ISBN: 978-989-758-400-8; ISSN: 2184-4348

271

and classify JSON documents according to existing

metamodels. We extract existing metamodels using

a One-hot encoding solution into a Multi-Layer Per-

ceptron (MLP) network, translating the metamodel e-

lements into the input neurons. The neural network

is trained and then used to classify input JSON docu-

ments, which are as well translated into the input data

to be classiﬁed. We present the step-by-step tasks to

achieve that. We have conducted a series of experi-

ments, using neural networks with different interme-

diate layers, showing that the approach is effective to

classify the documents.

This paper is organized as follows. Section 2

presents our approach to classify document stores into

metamodels. Section 3 describes the experimental

validation and discussions. Section 4 is the related

work, and section 5 presents the conclusions.

2 CLASSIFYING DOCUMENT

STORES INTO METAMODELS

In this section we show how to classify document

stores into metamodels. We start by a brief intro-

duction to MLP, then we present the deﬁnitions and

environmental assumptions. Finally we describe the

formalization of the solution.

2.1 Bried Introduction to MLP

In this section we present a brief background on MLP

(Multi-Layer Perceptron). The perceptron is a algo-

rithm that performs binary classiﬁcation, i.e., it pre-

dicts whether a given input belongs to a certain cate-

gory of interest or not (Kumari et al., 2018). A per-

ceptron is a linear classiﬁer; that is, it is an algorithm

that classiﬁes input using a linear prediction function,

which needs to be deﬁned. The input is a feature,

named vector x, where each element is multiplied by a

set of weights w and added to a bias b: y = w∗x+b. A

multilayer perceptron (MLP) is a deep, artiﬁcial neu-

ral network. It is composed of more than one percep-

tron. They are composed of an input layer to receive

the signal, an output layer that makes a decision or

prediction about the input, and in between those two,

an arbitrary number of hidden layers that are the true

computational engine of the MLP.

Formally, a MLP is a function f : R

→ R

, where

D is the size of input vector x and L is the size of

the output vector given by f (x), such that, in ma-

trix notation: f (x) = G(b

(2)

(s(b

(1)

x))),

with bias vectors b

(1)

, b

(2)

; weight matrices W

(1)

(2)

and activation functions G and s. The vector

h[x] ← Φ(x) = s(b

(1)

x) constitutes the hidden

layer. W

(1)

∈ R

D×D

is the weight matrix connecting

the input vector to the hidden layer. Each column

(1)

·i

represents the weights from the input units to

the i − th hidden unit. We use this deﬁnition in the

remaining of our work.

Multilayer perceptrons are often applied to super-

vised learning problems: they train on a set of input-

output pairs and learn to model the correlation (or de-

pendencies) between those inputs and outputs. Train-

ing involves adjusting the parameters, or the weights

and biases of the model, in order to minimize errors.

Backpropagation is used to make those weight and

bias adjustments relative to the error, and the error

itself can be measured in a variety of ways, including

by Root Mean Squared Error (RMSE).

2.2 Extracting Metamodels into MLP

features

First, we consider M the input metamodel, which de-

ﬁnes the structured information used as input to train

the network. A metamodel is composed of classes,

attributes, and references, which are translated into a

collection of name/value pairs in a JSON format. E

denotes the set of classes, attributes, and references in

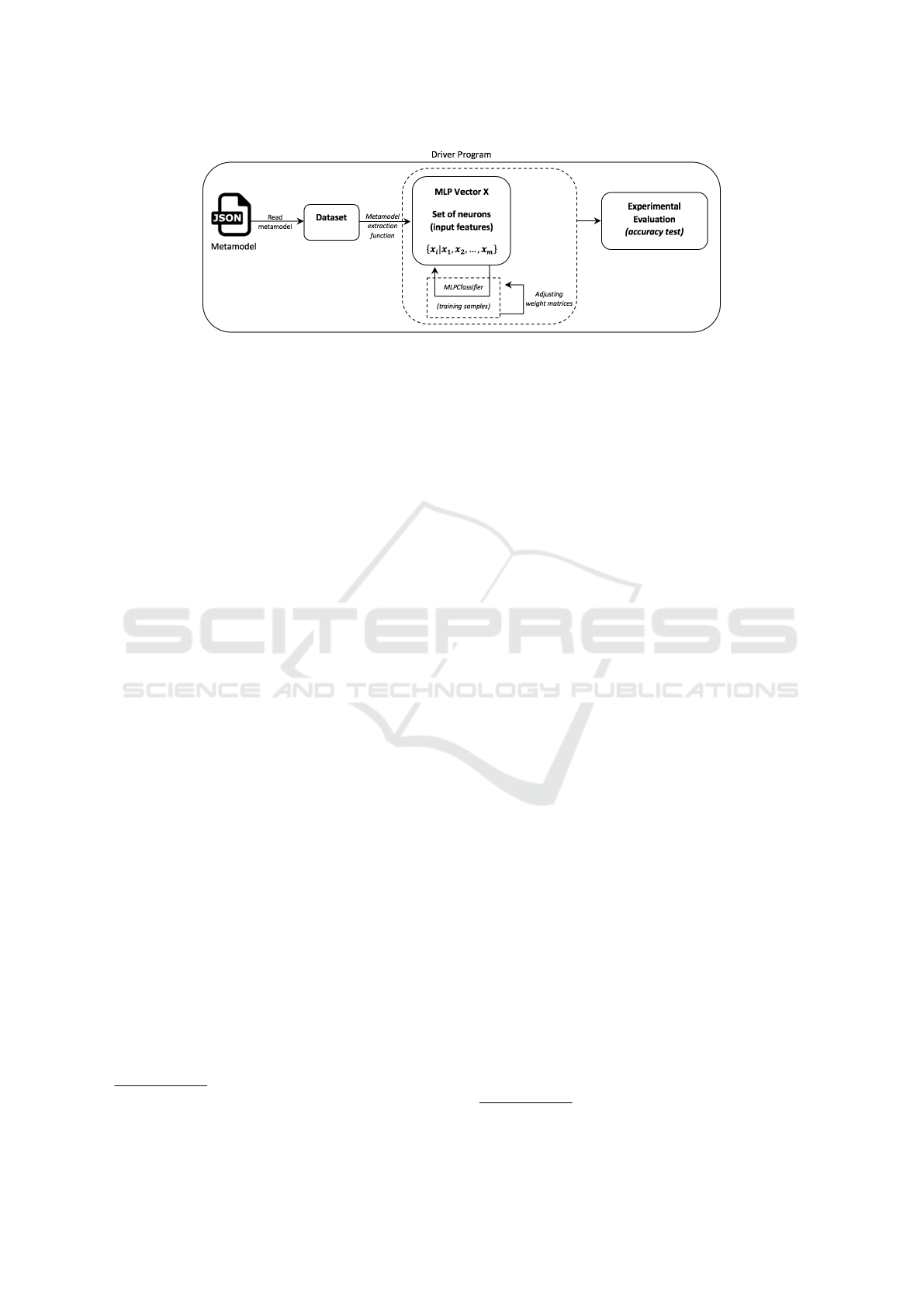

M , where E ⊂ M . In order to illustrate our approach,

the execution schema is depicted in Figure 1.

The Driver Program implements the control ﬂow

and it launches the operations, managing the step by

step execution schema

. It starts reading the input

metamodel M , and it assigns it to a top level sin-

gle dataset D

as D

← M . A dataset is a collec-

tion of data which can be split into others datasets

(Armbrust et al., 2015b). D

is processed using an

extraction function f

(x) which selects classes (c),

attributes (a) and references (r), where {c,a,r} ⊂

E , assigning each one of them to speciﬁc datasets

s(0)

...d

s(n)

, where n is the total number of elements.

Once this conversion is done, there is no distinction

between the types of the elements to encode the MLP

features. Then, each one of these datasets d

s(0)

...d

s(n)

is converted into a binary number and bundled to

create the MLP Vector X: set of input layer neurons

,..., x

The set of elements in the input data sets are ex-

tracted and encoded into a MLP Vector X applying

a One-hot Encoding (OHE) technique, which is a

widely used technique for transforming categorical

features to numerical features. Then, the network is

trained using a MLP Classiﬁer, using a set of training

It was developed on Apache Spark, an analytics engine

for data processing (Armbrust et al., 2015a).

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

272

samples. Once the training step is ﬁnished, it is pos-

sible to perform the unstructred models classiﬁcation.

To perform the metamodel extraction we deﬁne

Algorithm 1. It starts by reading the input metamodel

M , applies an extraction function f

(x) and assigns

to dataset D

. ItemsAmount receives distinct classes,

attributes and references amount which we use to cal-

culate the binary digits amount used to depict these

classes, attributes and references in a binary vector

which it is used as input features on MLP. For buil-

ding this binary vector, we use OHE technique be-

cause categorical data must be converted to numbers

when we are working with a sequence classiﬁcation

type problem and plan on using neural networks.

At line 4, we create MLPVectorX to store all

distinct classes, attributes, and references of M

as a binary vector. From line 5 to 8, for each

distinct(c, a,r ⊂ E ) ∈ D

we apply an extraction

function f

(x) splitting D

in classes (c), attributes (a)

or references (r), and it assigns each one to datasets

s(0)

...d

s(n)

. It is important to note that for the MLP

neural network there is no difference between classes,

attributes, and references, each one is a binary num-

ber in MLPVectorX. At line 10, binaryDigitsAmount

takes n integer value as the exponential function re-

sult which takes ItemsAmount as a parameter. Then,

from line 11 to 15, each d

s(0)

...d

s(n)

is converted

into a binary number with binaryDigitsAmount di-

gits applying a BinaryGenerator function which takes

binaryDigitsAmount as a parameter, and it assigns

it to MLPVectorX, which it used as the MLP input

features (set of input layer neurons). The reference

between d

s(n)

.element.name and its corresponding bi-

nary number at MLPVectorX.[n] is assigned to a spe-

cial dataset sD at line 13, and we write sD in JSON

ﬁle Re f erenceElementBinary which it will be used

to help represent models in JSON documents as the

MLP input. This enables to maintain a mapping bet-

ween the metamodel elements and their correspon-

ding elements in the network.

Consider a simpliﬁed Java metamodel

repre-

sented by a UML class diagram. The algorithm

converts each class, attribute, and references in a

name/value pair in a JSON ﬁle, thereby creating the

input metamodel M .

The metamodel used is the one from the following

public link: https://www.eclipse.org/atl/atlTransformations/

UML2Java/, ExampleUML2Java[v00.01].pdf

Algorithm 1: Extracting Metamodels into a MLP.

Input: Input Metamodel M .

Output: MLP Vector X, ReferenceElementBinary.

1: D

← f

(M )

2: ItemsAmount ← count(distinct(c,a, r ⊂ E ) ∈ D

)

3: binaryDigitsAmount ← 0

4: MLPVectorX ← empty

5: for (n = 0 to ItemsAmount − 1) do

6: d

s(n)

← f

.[n].element.name)

7: n ← n + 1

8: end for

9: n ← 0

10: binaryDigitsAmount ← toInt(exp(2

ItemsAmount))

11: for all d

s(0)

...d

s(n)

12: MLPVectorX.[n] ←

BinaryGenerator(d

s(n)

,binaryDigitsAmount)

13: sD ← f (d

s(n)

.element.name, MLPVectorX.[n])

14: n ← n + 1

15: end for

16: SaveFile(sD,Re f erenceElementBinary)

17: return MLPVectorX, Re f erenceElementBinary

In this case, the JavaElement class is assigned to d

s(0)

dataset, name attribute is assigned to d

s(1)

dataset, and

so on, and then each dataset from d

s(0)

...d

s(n)

is con-

verted into a binary number through a BinaryGener-

ator function, and assigned it to MLPVectorX . For

instance, after executing the algorithm, MLPVectorX

will have 20 positions, and its structure can be seen in

Table 1.

Table 1: Classes, attributes and references in MLPVectorX.

MLPVectorX structure for Java metamodel

Element Type Position Value

JavaElement class 0 0000000

name attribute 1 0000001

Type class 2 0000010

Modiﬁer class 3 0000011

isPublic attribute 4 0000100

isStatic attribute 5 0000101

isFinal attribute 6 0000110

PrimitiveType class 7 0000111

Method class 8 0001000

isAbstract attribute 9 0001001

Field class 10 0001010

type reference 11 0001011

parameters reference 12 0001100

ﬁeld reference 13 0001101

owner reference 14 0001110

methods reference 15 0001111

JavaClass class 16 0010000

classes reference 17 0010001

package reference 18 0010010

Package class 19 0010011

Classifying Unstructured Models into Metamodels using Multi Layer Perceptrons

273

Figure 1: Execution ﬂow for classiﬁcation of unstructured models.

2.3 Training the MLP Neural Network

Once the input features are extracted, it is necessary

to train the MLP neural network. To to this, it is

necessary to choose a set of metamodels to extract

its features using the explained algorithm. While any

set of metamodels could be chosen, we illustrate the

training step using a set of 4 metamodels: MySQL,

KM3, UML and Java. Metamodels are 3rd party

metamodels available in the ATL transformations web

site

. These metamodels will be also used in our de-

tailed experiments. For this subset of metamodels,

the MLPVectorX has seventy two positions, i.e., we

extracted seventy two distinct classes, attributes, and

references. Thus, for each position in MLPVectorX,

it is assigned a binary number with seven digits where

ItemsAmount = 72 and 2

= ItemsAmount then n =

7. All 72 binary conversions and extractions can be

found on the github

. It is also necessary to choose

the number of hidden layers, together with the number

of input neuron for each layer. As there are no exact

rules for determining the hidden layers number and

the neuron number in each hidden layer, we choose

three hidden layers, each one with three neurons, and

one output layer neurons, which it will be assigned

a binary number with two digits, i.e., for four output

metamodels we have 2

= 4 then n = 2. We choose

for an artiﬁcial network multi-layered with backpro-

pagation training, and conventional random initializa-

tion, where each neuron in one layer, e.g. x

, connects

with a certain w

[a][b][c]

weight to every neuron in the

following layer, e.g. j

, j

, where

[a]

is the origin

layer number,

[b]

is the neuron number in the origin

layer, and

[c]

is the neuron number in the following

layer.

In addition, each neuron in the hidden layers is

added to a bias b

[d][e]

weight, where

[d]

is the hidden

layer number, and

[e]

is the neuron number in the hid-

den layer. We generate random initial weights, e.g.

https://www.eclipse.org/atl/atlTransformations/

https://github.com/walmircouto/MLPTraining

from the range [–1, 1], for each w

[a][b][c]

weight, it

was generated 237 w

[a][b][c]

weights and 10 bias b

[d][e]

weights in total. It is important to note that, one set of

updates of all the weights for all the training patterns

is called one epoch of training. In this ﬁrst MLP train-

ing, we set up 4000 epoch of training. We implement

a second MLP training with the same amount of in-

put neurons, hidden layers, and epoch of training, but

with ﬁve neurons in each hidden layer, for this second

MLP training it was generated 415 w

[a][b][c]

weights

and 16 bias b

[d][e]

weights in total. All w

[a][b][c]

and

[d][e]

weights can be found on the github

In our MLP training, we choose s the logistic

sigmoid function for the activation functions, with

sigmoid(a) = 1/(1 + e

−a

). The output vector is

then obtained as: o(x) = G(b

(2)

+ W

(2)

h(x)). To

train a MLP, we need to learn all parameters of the

model. The set of parameters to learn is the set θ =

(2)

(1)

}. A neural network is stopped

training when the error, i.e., the difference between

the desired output and the expected output is be-

low some threshold value or the number of itera-

tions or epochs is above some threshold value; in our

approach, MLP training is stopped when the Mean

Squared Error (MSE) is less than 0.01 (1%).

2.4 Representing Models in JSON

Documents as the MLP Input

Before starting the classiﬁcation step, it is necessary

to translate the input unstructured documents (in

JSON) into a compatible format with the MLP in-

put. We use a similar process to the one used to ex-

tract metamodels, as described in Algorithm 2 shown

above. It starts by reading the input model m, which

is formed by classes (c), attributes (a) and references

(r), it applies an extraction function f

(x) and assign

it to dataset D

m. At line 2, we open a JSON ﬁle

Re f erenceElementBinary, created during the meta-

https://github.com/walmircouto/MLPTraining

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

274

Algorithm 2: Representing Models in JSON Documents as

the MLP Input.

Input: m model, Re f erenceElementBinary JSON ﬁle.

Output: MLP text ﬁle.

1: D

m ← f

(m)

2: ItemsAmount ← count(distinct(c,a, r ⊂ D

m))

3: sd ← OpenFile(Re f erenceElementBinary)

4: n ← 0

5: MLPTextFile ← empty

6: for (n = 0 to ItemsAmount − 1) do

7: d

s(n)

← sd.select(name,binary) where name =

m.[n].element.name)

8: if d

(n) 6= null then

9: MLPTextFile ← MLPTextFile + d

(n).binary

10: end if

11: n ← n + 1

12: end for

13: return MLPTextFile

model extraction process, and assign it to dataset sd

which it will be used to found the reference between

element.name and its corresponding binary number,

assisting in the assembly of the MLPTextFile text ﬁle.

From line 5 to 11, for each distinct(c,a, r ⊂ D

we try to found the element.name from D

m in dataset

sd, applying a select function at line 6, to obtain the

corresponding binary number, and the result of this

is assigned to d

(n). If d

(n) 6= null then we start

the assembly of the MLPTextFile text ﬁle including

the binary number from d

(n). The MLPTextFile text

ﬁle will be use as the MLP input to classify the input

model m.

3 EXPERIMENTAL EVALUATION

We conduct a number of experiments to validate our

approach. The main goal is to evaluate the preci-

sion of the constructed and trained network to clas-

sify unstructured JSON documents into metamodels,

i.e., which is the percentage of documents correctly

classiﬁed. All experiments were performed in a ma-

chine with 8 GB DDR3 RAM, processor 2,53 GHz In-

tel Core i5, MacOS High Sierra 10.13.6, Spark 2.3.3,

Scala 2.12.8, and Java 1.8.0 191. The experiments

had the following setting.

Network Conﬁguration: as stated in the previous

section, we deﬁne 2 MLP networks: both with 3 hid-

den layers, the ﬁrst one with 3 neurons on each layer

and the second one with 5 neurons on each layer, thus

we executed two training, with 4000 epochs each. We

know that one of the problems that occur during neu-

ral network training is called overﬁtting. The error

on the training set is driven to a very small value, but

when new data is presented to the network the error is

large. The network has memorized the training exam-

ples, but it has not learned to generalize to new si-

tuations. This is expected, since in this experimental

evaluation we do not address the overﬁtting problem

for all kinds of metamodels, since we target domain

speciﬁc scenario. We intend to carry out new train-

ing sessions with boarder testing data sets varying the

number of hidden layers toward ﬁnding lower overﬁt-

ting rate.

Our 2 MLP networks have the same amount of

input neurons, 72. The neurons are extracted from 4

metamodels: MySQL, KM3, UML, and Java. The ex-

traction process is automatically executed by a script

written in Scala language. The input metamodels

used are 3rd party metamodels, available in the ATL

transformations web site

. The metamodels are ﬁrst

translated into JSON, then translated into the network

compatible format, as shown in sections 2.2 and 2.4.

The training set is composed by automatically gen-

erated JSON documents, in this case with elements

names extracted from a unique given metamodel, but

with a random distribution of the generated elements,

i.e., the documents may have different number of

classes, attributes or references. We generated 20 dif-

ferent documents for each one of the 4 input meta-

models.

Input Documents: we develop a script in Scala to

generate the input documents to be classiﬁed. The

generated documents are different from the training

set. They are generated according to two criteria:

ﬁrst, the number of elements: we produce documents

with 50 and with 100 elements.

Second, we vary the degree of conformance of

the produced documents to evaluate the MLP pre-

cision. This means we ﬁrst automatically gener-

ate documents with 50 and 100 instances where all

the elements’ names are equals to the ones existing

in MySQL, KM3, UML or Java metamodels. This

means it is not a strict conformance relation, but just

to generate JSON elements with a given name. In this

ﬁrst case, we want to check the classiﬁcation of do-

cuments which are 100 percent in conformance with

existing metamodels. Then, we generate elements ex-

tracted from classes, attributes and references mixed

between different metamodels, using the following

ratios: 80%-20%, 60%-40%, and 50%-50%. This

means we generate documents with 80% of confor-

mance with a given metamodel and 20% to a second

one. Then, 60% conforming to a given metamodel

and 40% to a second one. Finally, we used a 50-50

ratio. The goal of these distributions is to verify the

classiﬁcation precision when varying the number of

elements conforming to a given metamodel. The re-

sult of MLP classiﬁcation is shown in Tables 2 and 3.

https://www.eclipse.org/atl/atlTransformations/

Classifying Unstructured Models into Metamodels using Multi Layer Perceptrons

275

Table 2: MLP classiﬁer with 3 hidden layers.

Evaluating MLP with 3 Hidden Layers

Models with 50 elements

% MySQL KM3 UML Java

100% 100% 100% 100% 100%

Models mixed

% MySQL + KM3 UML + Java

80%-20% 96,3% 94,3%

60%-40% 84,5% 83,2%

50%-50% 47,2% 45,6%

Models with 100 elements

% MySQL + KM3 UML + Java

80%-20% 96,1% 93,9%

60%-40% 82,7% 86,4%

50%-50% 46,7% 45,2%

Table 3: MLP classiﬁer with 5 hidden layers.

Evaluating MLP with 5 Hidden Layers

Models with 50 elements

% MySQL KM3 UML Java

100% 100% 100% 100% 100%

Models mixed

% MySQL + KM3 UML + Java

80%-20% 97,2% 96,6%

60%-40% 87,3% 85,6%

50%-50% 48,6% 47,3%

Models with 100 elements

% MySQL + KM3 UML + Java

80%-20% 97,6% 95,1%

60%-40% 83,8% 87,6%

50%-50% 47,7% 46,8%

3.1 Discussions

In this section we discuss the results our our solution,

with respect to the precision of the classiﬁer, the fea-

ture encoding technique and the variety of the input

models.

Precision of the Classiﬁer. Our objective is to test

the applicability and accuracy of the MLP classiﬁer

to perform metamodel classiﬁcation. From the results

shown in tables 2 and 3, it is possible to see that when

documents are produced with elements 100% accor-

ding to their respective metamodel, the MLP classiﬁer

correctly classiﬁes all the documents. This happens

because the MLP is trained with all the elements from

the metamodels, and in this case, when a document is

perfectly in accordance with a metamodel, the MLP

classiﬁer is accurate. Thus, for both three hidden lay-

ers and ﬁve hidden layers, the precision is 100%.

When the elements are mixed, for instance, we

mixed 80% of elements from MySQL with 20% of

elements from KM3, the MLP precision decreases,

but the precision rates remain high, i.e., classifying

the documents according to the predominant number

of elements conforming to a given metamodel. The

MLP with three hidden layers showed 96,3% of pre-

cision, and the MLP with ﬁve hidden layers showed

97,2%, improving 0,9%. This means adding two lay-

ers had a small impact on the ﬁnal result when the

documents are very alike.

When we increase the number of elements, from

documents with 50 elements to models with 100 e-

lements, the precision is slightly lower, from 96,3%

to 96,1% into the MLP with three hidden layers; ho-

wever the MLP with ﬁve hidden layers improved the

result, from 97,2% to 97,6%, showing a better ﬁt for

this case.

Now, when we mix 80% of elements from UML

with 20% of elements from Java in a document

with 50 elements, the MLP with three hidden layers

showed 94,3% of accuracy rate, and the MLP with

ﬁve hidden layers showed 96,6%, improving by 2,3%.

The slightly lower result compared to MySQL and

KM3 may be explained because UML and Java have

some similar elements that could overlap. But the im-

provement from 3 to 5 layers is better, meaning that it

is a valid setting if models have a more variable stru-

cture.

When we mix 60% of elements from MySQL with

40% of elements from KM3, the MLP precision de-

creases, showing 84,5% into the MLP with three hid-

den layers, but improving 2,8% to 87,3% into the

MLP with ﬁve hidden layers, which is a relevant im-

provement. This means that even with only 60% of

elements from a MySQL, the MLP classiﬁer performs

well, demonstrating that it can be used in document or

model recognition solutions.

Finally, when we mix 50% of elements from

MySQL with 50% of elements from KM3, the MLP

classiﬁer precision is close to 50%. This result is ex-

pected because it could simulate a random test, as we

have 50% of elements from a x document and 50% of

elements from a y document, thus the MLP classiﬁer

could classify as being the document x, sometimes as

being the document y. We intend to expand these ex-

periments varying the number of hidden layers and

the neuron number in each hidden layer aiming to im-

prove the MLP classiﬁer accuracy.

Feature Encoding. The decision of implementing a

direct feature extraction technique enables to develop

a simple extractor, without encoding relationships be-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

276

tween the metamodel elements. Usually, numeric for-

mat data gives better performance for classiﬁcation,

regression and clustering algorithms. In addition, we

choose to not make a distinction if the metamodel el-

ement is a class, reference or attribute, i.e., they are

just metamodel elements with a name. When having

metamodels as input, the number of input features re-

mains manageable and the solution can be adapted or

reused in other scenarios. It is important to note that

the one-hot approach has some challenges as well: the

sparseness of the transformed data and that the dis-

tinct values of an attribute are not always known in

advance. However, in our OHE solution we mitigate

theses problems by implementing a direct feature ex-

traction as shown in Algorithm 1.

Other approaches for classifying the document

could be used, for instance, adapting schema match-

ing or clustering-based approaches for a metamodel

classiﬁcation. However, our simple encoding scheme

showed good results. If the number of features be-

comes too high, other extraction schemes need to

be studied and compared, such as strictly structured-

based methods. This aspect could be critical if using,

in addition to the metamodels, documents or model

elements to encode the input features.

Models Variety. We have evaluated the classiﬁer

with models from similar domains and mixing the

model elements between them, but other random

model elements could be used for testing as well.

We chose to automatically generate input metamodels

with explicit variation on conformance rates of the in-

put characteristics, to be able to analyze the solution

under distinct limits. With this validation done, a fu-

ture work will be to apply it it in real world scena-

rios, for instance, to classify metamodels in existing

Git repositories. However, we cannot afﬁrm if such

repositories would be enough to validate explicit con-

formance rates. In addition, in such cases, we could

do additional pre-processing of the elements, or to use

it in conjunction with string similarity algorithms.

To summarize, these experimental results show

that we can use neural networks to help us for docu-

ment classiﬁcation, with a simple encoding scheme.

We intend to extend this approach about model classi-

fying to other neural networks algorithms, such as the

Long Short-Term Memory Neural Networks (LSTM),

and make precision comparisons.

4 RELATED WORK

There has been extensive works on how to classify

different kinds of data, such as text, images or struc-

tured models. More recently, the vision paper from

paper (Cabot et al., 2017) suggests the application of

Cogniﬁcation into Model-Driven Software Enginee-

ring (MDSE), which is the application of knowledge

to boost the performance and impact of a process. In

this context, the paper from Xie (Xie, 2018) discusses

recent research and future directions in the ﬁeld of in-

telligent software engineering, exploiting the synergy

between AI and software engineering, and showing

that the ﬁeld of intelligent software engineering is a

research ﬁeld spanning at least the research commu-

nities of software engineering and AI. Several initia-

tives aim to cognify speciﬁc tasks within the MDSE

ecosystem, for instance, using machine learning (ML)

for requirements prioritization (Perini et al., 2013). A

very recent work from (Burgue

no, 2019) deals with

model transformation problems and relies on a ML-

based framework using a particular type of Artiﬁcial

Neural Networks (ANNs), Long Short-Term Memo-

ry (LSTM) ANNs to derive transformations from sets

of input/output models given as input data for the

training phase. Another one from (Nguyen et al.,

2019) employed Machine Learning techniques for

metamodel automated classiﬁcation implementing a

feed-forward neural network where an experimental

evaluation over a datasetof 555 metamodels demons-

trates that the technique permits to learn from ma-

nually classiﬁed data and effectively categorize inco-

ming unlabeled data with a considerably high predic-

tion rate. Beside that, there are some works from

programming research community which mixing ML

and code transformation, for instance, the papers from

(Chen et al., 2017) use ANNs to translate code from

one programming language to another. Our work is

inspired by these ideas to take stock from existing AI

solutions and adapt them for unstructured documents

classiﬁcation, such as supervised learning procedure

which has two main phases: training and predicting.

The subject of model classifying using cogniﬁcation-

based tooling has also been relatively unexplored and

this is where we make a contribution.

Our approach could be used to support, for instan-

ce, metamodel repositories classifying unstructured

models into metamodels. The work from (Basciani

et al., 2016) proposes the application of clustering

techniques to automatically organize stored meta-

models and to provide users with overviews of the

application domains covered by the available meta-

models. The work from (Chang et al., 2015) explores

training of structured prediction model which in-

volves performing several loss-augmented inference

steps. It proposes an approximate learning algo-

rithm which accelerates the training processes, using

a structured SVM neural network. This scenario in-

spired us to train our MLP model classiﬁer, howe-

Classifying Unstructured Models into Metamodels using Multi Layer Perceptrons

277

ver, in our approach, we use a MLP neural network,

which was trained based on a metamodels elements

set, where all elements are well known and the en-

coding schem is simple. The work in (Zhang and

Chen, 2018) deal with the link prediction problem

in network-structured data, it presents link prediction

based on graph neural network, where it proposes a

new method to learn heuristics from local subgraphs

using a graph neural network (GNN). A document or

a model could be encoded as a graph, but there is no

speciﬁc treatment for the metamodel elements. An in-

tegration of these approaches with our solution could

improve the capabilities of the classiﬁer.

5 CONCLUSIONS

We presented an approach for classifying JSON docu-

ments into existing metamodels. The solution enables

discovering the domain of the JSON documents and

to serve as an initial typing scheme. We present the

automated steps of the approach, consisting on meta-

model extraction into an MLP using a one-hot encod-

ing (OHE) of the elements, network training, transla-

tion and classiﬁcation of the input JSON documents.

The extraction algorithm relies on the presence (or

not) of the elements in a given input document, since

it translated the elements into a binary classiﬁcation

problem. The results have showed that the approach

is effective from classifying JSON documents, with

precision varying from 46 to 97 percent, depending

on the kinds of the elements. We achieved our main

goal to show that a domain-speciﬁc and simple ex-

traction algorithm can be useful for classifying docu-

ments, instead of trying to adapt more complex struc-

tured based classiﬁcation approaches. The results are

publicly available for download, as well as the algo-

rithms implemented.

There are several open issues subject for future

work, such as testing the extraction algorithm output

with other classiﬁcation algorithms. We also plan to

extend the algorithm to cover more complex relation-

ships between model elements and to test if the results

can be improved.

REFERENCES

Armbrust, M., Das, T., Davidson, A., Ghodsi, A., Or, A.,

Rosen, J., Stoica, I., Wendell, P., Xin, R., and Za-

haria, M. (2015a). Scaling spark in the real world:

Performance and usability. Proc. VLDB Endow.,

8(12):1840–1843.

Armbrust, M., Xin, R. S., Lian, C., Huai, Y., Liu, D.,

Bradley, J. K., Meng, X., Kaftan, T., Franklin, M. J.,

Ghodsi, A., and Zaharia, M. (2015b). Spark sql:

Relational data processing in spark. In Proceedings

of the 2015 ACM SIGMOD International Conference

on Management of Data, SIGMOD ’15, pages 1383–

1394, New York, NY, USA. ACM.

Basciani, F., Di Rocco, J., Di Ruscio, D., Iovino, L., and

Pierantonio, A. (2016). Automated clustering of meta-

model repositories. In Nurcan, S., Soffer, P., Bajec,

M., and Eder, J., editors, Advanced Information Sys-

tems Engineering, pages 342–358, Cham. Springer In-

ternational Publishing.

Burgue

no, L. (2019). An lstm-based neural network archi-

tecture for model transformations. In IEEE/ACM 22nd

International Conference on Model Driven Engineer-

ing Languages and Systems (MODELS).

Cabot, J., Claris

o, R., Brambilla, M., and G

erard, S. (2017).

Cognifying model-driven software engineering. In

Seidl, M. and Zschaler, S., editors, STAF Workshops,

volume 10748 of Lecture Notes in Computer Science,

pages 154–160. Springer.

Chang, K.-W., Upadhyay, S., Kundu, G., and Roth, D.

(2015). Structural learning with amortized inference.

In Proceedings of the Twenty-Ninth AAAI Confer-

ence on Artiﬁcial Intelligence, AAAI’15, pages 2525–

2531. AAAI Press.

Chen, X., Liu, C., and Song, D. (2017). Learning neural

programs to parse programs.

Kumari, G. V., Rao, G. S., and Rao, B. P. (2018). Lm, rp

and gd based ann architecture models for biomedical

image compression. i-manager’s Journal on Image

Processing, 5(3).

Nguyen, P., Di Rocco, J., Di Ruscio, D., Pierantonio,

A., and Iovino, L. (2019). Automated classiﬁcation

of metamodel repositories: A machine learning ap-

proach. In IEEE/ACM 22nd International Conference

on Model Driven Engineering Languages and Systems

(MODELS).

Perini, A., Susi, A., and Avesani, P. (2013). A machine

learning approach to software requirements prioritiza-

tion. IEEE Trans. Softw. Eng., 39(4):445–461.

Xie, T. (2018). Intelligent software engineering: Synergy

between ai and software engineering. In Feng, X.,

uller-Olm, M., and Yang, Z., editors, Dependable

Software Engineering. Theories, Tools, and Applica-

tions, pages 3–7, Cham. Springer International Pub-

lishing.

Zhang, M. and Chen, Y. (2018). Link prediction based on

graph neural networks. In Bengio, S., Wallach, H.,

Larochelle, H., Grauman, K., Cesa-Bianchi, N., and

Garnett, R., editors, Advances in Neural Information

Processing Systems 31, pages 5165–5175. Curran As-

sociates, Inc.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

278
