Model-to-Model Transformations for Efﬁcient Time-domain Veriﬁcation

of Concurrent Models by NuSMV Modules

Miguel Carrillo

1 a

, Vladimir Estivill-Castro

2 b

and David A. Rosenblueth

1 c

Instituto de Investigaciones en Matem

aticas Aplicadas y en Sistemas, Universidad Nacional Aut

onoma de Mexico,

Apdo. 20-126, 01000 Mexico D.F., Mexico

School of Information and Communication Technology, Grifﬁth University, Brisbane 4111, Queensland, Australia

miguel.mcb@gmail.com, v.estivill-castro@grifﬁth.edu.au, drosenbl@unam.mx

Keywords:

Model Checking, Kripke Structure, Value-domain Veriﬁcation, Time-domain Veriﬁcation.

Abstract:

We introduce and describe an algorithmic transformation from the formalism of arrangements of logic-labelled

ﬁnite-state machines (LLFSMs) into NuSMV modules (and its implementation as a model-to-model ATL

transformation from an Ecore meta-model to the NuSMV language). Our transformation beneﬁts from using

modules and integers of NuSMV to improve the efﬁciency in the construction and veriﬁcation of the model.

Moreover, we can handle predicates about time. Thus, we enable veriﬁcation of LLFSMs in the time domain.

Our transformation is a considerable improvement in efﬁciency. Compared with earlier transformation algo-

rithms developed by us, the one presented here produces concise NuSMV ﬁles (in an example, 130,295 lines

were reduced to 418). We thus show that it is possible to automatically translate arrangements of LLFSMs to

concise models that can be efﬁciently and formally veriﬁed.

1 INTRODUCTION

We are concerned with model-driven software devel-

opment where the speciﬁcation of a system is exe-

cutable. In practice, it does not sufﬁce to have an exe-

cutable speciﬁcation, as such a speciﬁcation may also

contain errors. Although verifying non-executable

models brings insights into the correctness of the im-

plementation, errors can be introduced in the simpli-

ﬁcation of the executable program to a model, or the

implementation of a non-executable model into code.

Our objective is to show, within model-driven soft-

ware development, that it is possible to automatically

translate arrangements of LLFSMs to models that can

be efﬁciently veriﬁed with model checking.

We use logic-labelled ﬁnite-state machines (LLF-

SMs) to model and specify the behaviour of systems.

Earlier algorithms processing LLFSMs for model-

checking required the explicit construction (McColl

and Estivill-Castro, 2017; Estivill-Castro and Rosen-

blueth, 2011; Estivill-Castro and Hexel, 2013) of the

corresponding Kripke structure (Seshia et al., 2018,

Section 3.5, Deﬁnition 2). Our ﬁrst contribution

in this paper is the application of model-to-model

https://orcid.org/0000-0003-2105-3075

https://orcid.org/0000-0001-7775-0780

https://orcid.org/0000-0001-8933-8267

transformations from an Ecore

meta-model to SMV

modules (Cimatti et al., 2000). Because we use the

SMV modules of NuSMV

, we obtain a tremendous

improvement in the efﬁciency of the description of the

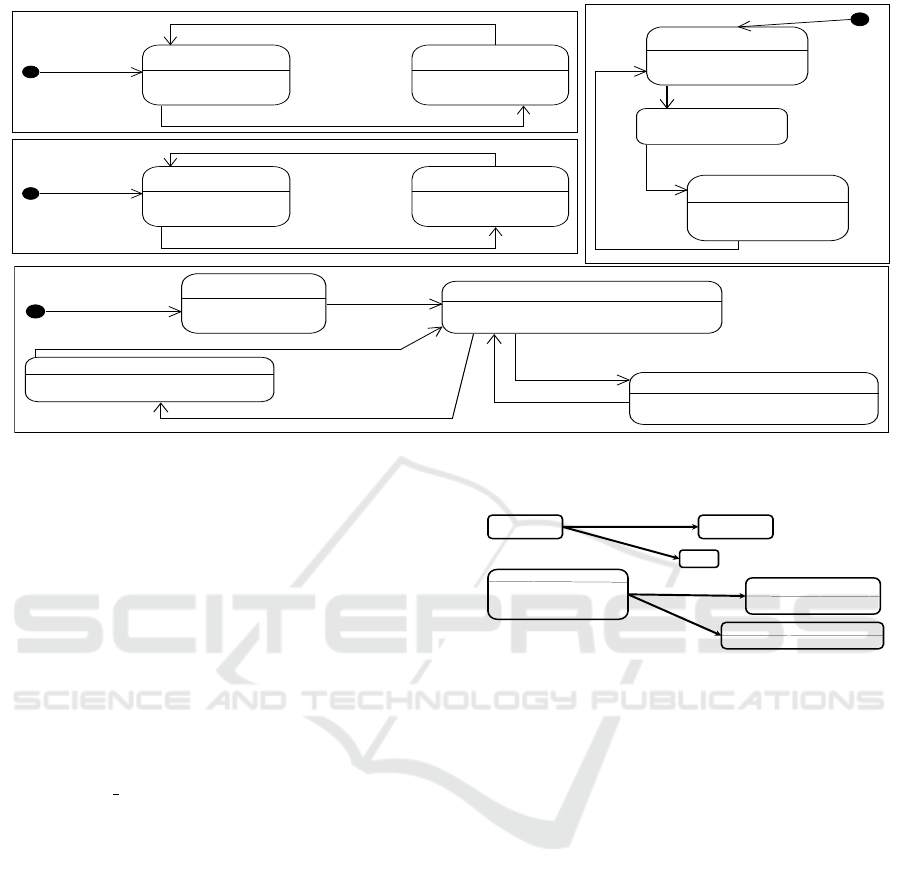

veriﬁable model. For instance, for the four LLFSMs

of a microwave oven example, our NuSMV model

is only 418 lines long. The two separate implemen-

tations of our early algorithms, by contrast, deliver

NuSMV ﬁles for the same problem that have 130,295

lines one, and 110,567 lines the other. Work with the

earlier algorithms reports similar ﬁgures (McColl and

Estivill-Castro, 2017). These earlier algorithms suffer

also from not being able to use the native integers in

NuSMV (Cimatti et al., 2000). Such attempts, how-

ever, proved the ﬁrst correctness results regarding no

overﬂow of the timer control for such an example. In

Section 3.4, we will show that the size of the output

of our algorithm is linear in the number of states of

Ecore is the ﬁrst piece of the Eclipse Modeling Frame-

work for describing software models and meta-models.

In NuSMV’s language for describing Kripke structures,

modules are the fundamental tool for composability; default

composition of modules in NuSMV is synchronous (asyn-

chronous composition through processes is deprecated),

where a single step of the resulting Kripke structure cor-

responds to a simultaneous step of all component modules.

We will use “NuSMV” for the model-checker and “SMV”

for its input language.

Carrillo, M., Estivill-Castro, V. and Rosenblueth, D.

Model-to-Model Transformations for Efﬁcient Time-domain Veriﬁcation of Concurrent Models by NuSMV Modules.

DOI: 10.5220/0008910202870298

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 287-298

ISBN: 978-989-758-400-8; ISSN: 2184-4348

287

the arrangement of LLFSMs.

Models with LLFSM are veriﬁable for value-

domain properties. Few properties can be veriﬁed in

the time domain, but only as bounded model check-

ing, that is, considering only a ﬁnite preﬁx of a

path that may be a solution to an existential model-

checking problem (Biere et al., 1999). Our second

contribution is to explicitly transform the behaviour

of an arrangement of LLFSMs using time predicates

into Kripke structures that includes explicitly timers

as modules. Thus, time-domain properties that ex-

plicitly mention time units are veriﬁable with a stan-

dard model checker, such as NuSMV (Cimatti et al.,

2000).

2 EVENTS VS BOOLEAN

EXPRESSIONS

Perhaps the most prominent modelling language

for model-driven software development is the Uni-

ﬁed Modeling Language (UML). In UML, impor-

tant abstractions for behaviour are UML statecharts.

UML statecharts label transitions between states with

events. This is a common feature to state-based sys-

tems derived from Harel’s seminal introduction of

STATEMATE (Harel et al., 1990). Modelling tools,

such as OMT, were inﬂuenced by STATEMATE and

adopted the event-driven approach (Rumbaugh et al.,

1991). Executable state diagrams and tools from

ROOM (Selic et al., 1994) also became event-driven.

Event-driven semantics was disseminated with exe-

cutable state machines by QM (Samek, 2008). In-

ternational standards such as the Speciﬁcation and

Description Language (SDL) for telecommunications

systems use event-driven communicating extended

ﬁnite-state machines for modelling behaviour (ITU-

T Study Group 17, 2002). Even tools for multi-

agent systems simulation, such as repast (Ozik et al.,

2015), adopt the event-driven view.

Modelling with event-driven statecharts has sev-

eral advantages, but many authors have already dis-

cussed important drawbacks (Mellor, 2000; von der

Beeck, 1994). A ﬁrst drawback with event-driven

statecharts is the ambiguous loose-ends of the Run

Until Completion semantics. Although apparently

simple in that all new events are queued while han-

dling the current event, this already raises two alter-

natives for events caused by the current event. Such

derived events could either go at the end of the queue

(if they are considered new events) or could be at the

front of the queue (if they are considered causes of

the new event). In either case, if there is more than

one listener for the same derived event, then we break

the assumption that no two events happen at the same

time. Further drawbacks are the evaluation of expres-

sions or reading of variables. For example, should

the guard associated with an event that labels a transi-

tion be evaluated when the event happens or when the

event is de-queued? The ﬁrst option implies running

code that interrupts the current event and violates the

Run Until Completion semantics, but evaluating the

guard much later than when an event occurred may

be completely inadequate for the intended behaviour.

Because of the mental load that this semantics im-

plies, UML scenarios using it are hard for humans to

resolve (Estivill-Castro and Hexel, 2019). Moreover,

UML’s variation points on event handling may result

in several alternative semantics for UML executable

models. (Besnard et al. (2018) report that the veriﬁ-

cation of a (value-domain) property results in an error

when using FifoEventPool, but is successful when us-

ing OrderedList-DeferredEventPool.)

UML is effective in the design of systems where

the environment is unlikely to produce a shower of

events. Graphical User Interfaces (GUIs) are a good

example of the success of event-driven systems. The

reason is that a GUI user is unlikely to click in two

widgets without time gaps in between. However, this

is not the case for Cyber-physical systems, where

showers of events are common. Queues are a ma-

jor problem for event-driven system and fundamental

theorems have long-time existed regarding the impos-

sibility of conﬁrming claims in the time domain or

for real-time systems (Lamport, 1984). Veriﬁcation

of event-driven systems leads directly to the state-

explosion that typically blocks model checking be-

cause all possible permutations of the arrival of events

and their progress in queues need to be considered.

An alternative are Logic-Labelled Finite-State

Machines (for short LLFSMs, but also known as pro-

cedural state machines (Drusinsky, 2006, Page 51)).

LLFSMs enable concurrency under a prescribed

schedule: “because [the automaton] can access the in-

put symbols at any time, it can visit states as fast as we

wish” (Drusinsky, 2006, Page 15). These behavioural

models label transitions with Boolean expressions (or

predicates also called enabling functions (Cheng and

Krishnakumar, 1993)) and have a long trajectory in

veriﬁcation (Devadas et al., 1991). LLFSMs can be

used beyond the realms of reactive systems as the

transitions can be queries to an expert/deliberative

system that determines whether the transition should

trigger or not (Estivill-Castro et al., 2016). They

have been used to formally verify more efﬁciently and

more effectively more properties than other methods

in the following examples: a microwave oven, a mine

pump, a power car-window, and an ambulatory pump.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

288

2.1 Related Work

The deployment of critical fault-tolerant real-time

systems has had a sustained interest in linking mod-

els to veriﬁcation (Poledna, 1996). In particular, for

model-driven software development, where models

are considered the primary artefacts of the software,

model checking becomes of the utmost importance.

For example, for the development of safety-critical

avionics software, there has been constant interest

in (Meenakshi et al., 2006) 1) tools that automatically

translate certain Simulink models into input language

of a suitable model checker, and 2) ensuring that the

size of the translated model is not excessive for ver-

iﬁcation. However, we emphasize that our goal is to

reduce what others have identiﬁed as the semantic gap

between models and code (Besnard et al., 2018). The

issue is that most model-checking activity veriﬁes a

model that abstracts away some aspects of the running

software (Besnard et al., 2018). Such aspects are usu-

ally also relevant when design models are converted

into executable code. Moreover, diagnosis processes

are complicated since separate (sometimes even man-

ual) transformations into a formal language are per-

formed to enable formal veriﬁcation (Besnard et al.,

2018). A long list of tools has been reviewed and each

displays such semantic gap or diagnosis difﬁculty to

some extent (Besnard et al., 2018, Section 7).

We illustrate the aspects of this gap by review-

ing STP (Clarke and Heinle, 2000), an approach for

converting STATEMATE statecharts into SMV. This

revision will also highlight our preference for LLF-

SMs. First, despite attempting to handle the funda-

mental composition notation of STATEMATE (that is,

hierarchical nesting), STP cannot handle inter-level

transtions (Clarke and Heinle, 2000; Bhaduri and

Ramesh, 2004). Remarkably, events are converted to

event-variables that have the value true for exactly

one SMV time step (that is, the translation is from

LLFSMs instead of STATEMATE) and compound

events (the events derived from an event) are treated

as plain Boolean variables. While model checking

will provide some insights about visiting states and

transitions, there is not action language. In contrast

with our modelling, moreover, there is no notion of

time. After one event, nothing can happen (no new

event, and no input can change), until the model is sta-

ble (Clarke and Heinle, 2000; Bhaduri and Ramesh,

2004). Thus, the veriﬁcations correspond to a mathe-

matical model that is not implementable. The seman-

tics assumes that event handling completes ahead of

any other event and event ordering is guaranteed by

the environment. Also the modelling assumes the en-

vironment behaves friendly and all non-determinism

is resolved by closing the system to a suitable choice

by the environment (user).

A review (Bhaduri and Ramesh, 2004) of several

other similar translations (to SMV or SPIN) shows

that a crucial issue in formal veriﬁcation of statecharts

is their semantics (in some cases, for instance RSML,

the translation does not preserve the semantics). Most

of those translations reviewed suffer from the same

issues as STP: they eliminate events, treating them as

Boolean variables (and returning to LLFSMs), elimi-

nating all need to model the queueing of events, and

leaving aside timing issues. Most of them support

closed systems only (Bhaduri and Ramesh, 2004). If

the method/tool attempts to queue events, it is a trans-

lation to SPIN that suffers from other limitations (only

useful for deadlock detection, or only one statechart).

3 FROM ARRANGEMENTS OF

LLFSMS TO EFFICIENT

MODULES

We now provide an algorithm transforming an ar-

rangement of LLFSM into a set of SMV modules. We

ﬁrst describe the tools supporting our argument that

such an algorithm produces a description of the veriﬁ-

able model that is signiﬁcantly more efﬁcient than that

of earlier work. Next, we will discuss the obstacles

in mapping each LLFSM to a module in SMV. We

will reduce our problem to that of translating LLF-

SMs that only have blocks of code in their OnEn-

try sections (equivalently, they have no sections) and

where blocks of code in a state have no dependencies.

We follow this by the description of our algorithm to

transform LLFSMs where no transition has an AFTER

predicate.

3.1 The Tools and Implementations

In model checking, systems are categorised as open

or closed (Seshia et al., 2018, Page 88). Closed sys-

tems have no inputs, and are frequently those that are

formally veriﬁed. When dealing with an open sys-

tem, a corresponding closed system is used by com-

posing the open system with a model of its environ-

ment. In particular, if the open system were to re-

ceive an input supplied by a user, we adopt the con-

vention (and thus modelling the user) that the value

of the input variable is any non-deterministic value in

its domain. Thus, the corresponding Kripke structure

has, on a state reading an input, as many successor

states as possible values the input could receive. The

Kripke structure is then non-deterministic and mod-

Model-to-Model Transformations for Efﬁcient Time-domain Veriﬁcation of Concurrent Models by NuSMV Modules

289

els the fact that the environment can pick the value

arbitrarily without the control of the software.

An important property of LLFSMs is that they

are executable. Moreover, they are not only inter-

pretable, but can be compiled. The clfsm scheduler,

available for downloading,

enables extended LLF-

SMs where the action language is C++. We, how-

ever, will use a subset of IMP (Winskel, 1993) as the

action language, a simple imperative language, be-

cause the main purpose of this paper is to demonstrate

the transformations of the imperative statements (and

not of elaborate data structures or objects). We will

use IMP’s arithmetic expressions and Boolean ex-

pressions. However, from IMP’s commands we take

the empty command, the assignment and sequenc-

ing. What we exclude from IMP are two control

commands: the selection (if-then-else) and the iter-

ation (while-do). The reason is that both these con-

structs can be emulated by LLFSMs. Thus, by the

structured program theorem (also called the Boehm-

Jacopini theorem), LLFSMs are Turing complete.

We support this paper with the release of a LISP

interpreter of arrangements of LLFSMs. This demon-

strates that all models are executable. This interpreter

enables to run arrangements of LLFSMs where inter-

action reveals the open nature of the system. More-

over, this LISP interpreter has an option -k so it

can produce the corresponding closed Kripke struc-

ture using the methods mentioned in the introduction,

where all states and transitions of the state system are

listed. Thus, this option produces the closed system

for veriﬁcation. In particular, its output is readable by

NuSMV (Cimatti et al., 2000) and then one appends

the corresponding value-domain CTL or LTL formu-

las to verify the closed but non-deterministic model.

This conﬁrms that LLFSMs are both executable and

veriﬁable in the value domain. We additionally pro-

vide the following ﬁles.

1. The corresponding Ecore ﬁles that deﬁne the

meta-models discussed in this paper.

2. xmi ﬁles of examples of arrangements of LLF-

SMs (including the Microwave (Shlaer and Mel-

lor, 1992; Myers and Dromey, 2009) and the

Level-Crossing (Besnard et al., 2018)).

3. ATLAS Transformation Language (ATL) pro-

grams that implement the transformations de-

scribed in this paper.

All are downloadable from earlier site.

http://mipal.net.au/downloads.php.

3.2 LLFSMs with no Sections

The generic conversion of an LLFSMs model to SMV

modules requires that we determine precisely the

syntax and the semantics of LLFSMs. Therefore,

besides the implementations mentioned earlier, we

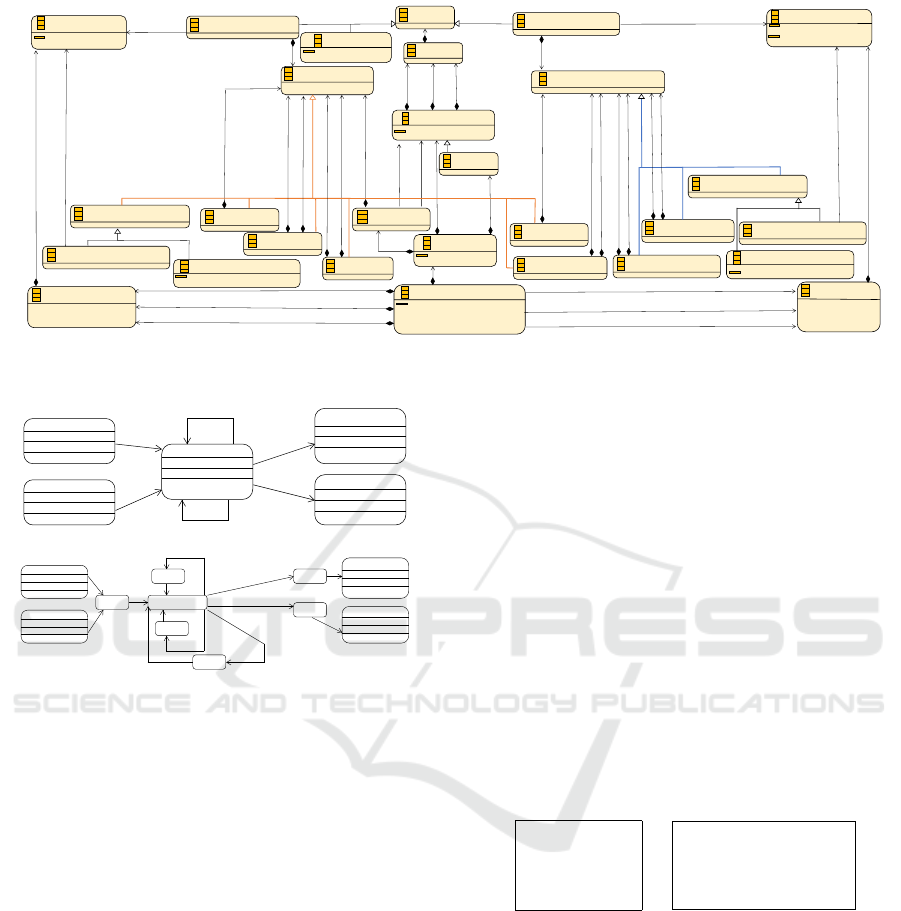

present here detailed deﬁnitions of LLFSMs. Figure 1

presents the Ecore meta-model for LLFSMs. We will

start the description of our transformation by men-

tioning two aspects where LLFSMs are analogous to

UML’s statecharts, and thus, adoption of LLFSMs is

accessible to UML users. First, we have already men-

tioned that in LLFSMs, each transition is labelled by

a Boolean expression, and not an event. Thus, users

familiar with UML will ﬁnd that LLFSMs transitions

are labelled only by guards. Because transitions are

not labelled by events, the transitions out of a state S

are structured as a sequence (they are not just a set;

they have an order). The order of the transitions out

of S is the order of evaluation of the corresponding ex-

pressions. In particular, the second transition can only

ﬁre if the guard of the ﬁrst transition is false and its

own transition label evaluates to true. In general, the

guard of the i-th transition is ¬g

∧ ··· ∧ ¬g

i−1

∧ g

where g

is the guard of the j-th transition. It is im-

portant to observe that the behaviour designer does

not need to explicitly list this potentially long Boolean

expression. However, when translating such a guard

to a SMV module, the guard must be explicitly de-

ﬁned.

Second, a state in LLFSMs has three sections

analogous to the states of UML’s statecharts, but LLF-

SMs’ semantics is more precise. The OnEntry sec-

tion corresponds to code that is executed only the ﬁrst

time the thread of execution arrives at the state (from

another state). The OnExit section is executed when

a transition ﬁres (its Boolean expression evaluates to

true), prior to any code in the target state. The Internal

section is evaluated only when the sequence of transi-

tions out of the state has been exhausted with none of

them evaluating to true. These sections can be consid-

ered syntactic sugar for state transition systems that

have no sections in their states. Nevertheless, Figure 2

illustrates the non-trivial translation we perform from

LLFSMs with states that do have sections, to LLF-

SMs with states that do not have sections. This also

needs to be made explicit, since the NuSMV model

checker needs to be explicitly alerted of the interme-

diate states of execution implied by the sections of

states. Figure 2 illustrates a state with sections, two

self transitions and two other transitions. The sections

imply that after the execution of the OnEntry, there

is a new state of execution for the other sections, so

that there is an asymmetry with the OnExit (Estivill-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

290

variableID : Estring

maximumValue : EInt

[1..*]statements

[1..1]leftExpression

Section

OutputLine

stateName : EString

Tran sition

[1..1]targetState

AssignmentBooleanLHS

Statement

SimpleBooleanExpression

State

stateName : EString

BooleanConstant

aBooleanValue : EBoolean

[1..1]rightExpression

[1..1]leftExpression

BooleanExpression

StateMachine

name : EString

[1..*]stateMachine

Arrangement

arrangementName : EString

InitialState

[1..1]initialState

BooleanVariable

variableID : EString

[0..*]states

[0..*]transitions

[1..1]sourceState

[1..1]booleanExpression

[0..1]onEntry

[0..1]onExit

[0..1]internal

AssignmentIntegerLHS

[1..1]aBooleanExpression

ArithmeticExpression

[1..1]anArithmeticExpression

OrExpression

AndExpression

NotExpression

[1..1]leftExpression

[1..1]rightExpression

[1..1]notExpression

BooleanVariableReference

[1..1]theVariable

ListOfBooleanVariables

[0..*]variables

[1..1]variable

[0..1]booleanWhiteboardVariables

[0..1]booleanSensorVariables

[0..1]booleanEffectorVariables

IntegerVariable

[1..1]variable

ListOfVariables

TimeExpression

SimpleIntegerExpression

IntegerConstant

aBooleanValue : EBoolean

IntegerVariableReference

LessThanExpression

SubstractionExpression

AdditionExpression

[0..1]effectorVariables

[0..1]sensorVariables

[0..1]whiteboardVariables

[1..1]timeBound

[1..1]rightExpression

[1..1]leftExpression

[1..1]rightExpression

[1..1]theVariable

[0..*]variables

Figure 1: The meta-model that deﬁnes the behaviour models as an arrangement of LLFSMs for IMP.

other state 2

OnEntry O2A

OnExit O2B

Internal O2C

other state 1

OnEntry O1A

OnExit O1B

Internal O1CC

target state 2

OnEntry A

OnExit B

Internal C

target state 1

OnEntry T1A

OnExit T1B

Internal T1C

source state

OnEntry SA

OnExit SB

Internal SC

4:self

2:self

3:TST2

1: TST1

TO2S

TO1S

other state 2

OnEntry O2A

OnExit O2B

Internal O2C

other state 1

OnEntry O1A

OnExit O1B

Internal O1CC

target state 2

OnEntry A

OnExit B

Internal C

target state 1

OnEntry T1A

OnExit T1B

Internal T1C

true

5: not TST1 and not slef1 and not TST2 and not self2

true

4:self2 and not TST2 and not slef1 and not TST1

3:TST2 and not self1 and not TST1

2:self1 and not TST1

true

1:TST1

TO2S

TO1S

Figure 2: Illustration of the transformation that builds states

without sections from states with sections.

Castro and Hexel, 2019). And while OnExit code is

executed only on arrival from another state, self tran-

sitions do execute the OnExit, skip the Internal, and

ensure the state is not terminal (in LLFSMs, states

without exiting transitions are terminal). In what fol-

lows, we can assume that our models of behaviour are

LLFSMs with only actions in the OnEntry sections.

Along the same lines, is the translation of exe-

cutable blocks in LLFSMs. LLFSMs are Commu-

nicating Extended State Machines (Kang and Lee,

1993). They are extended because LLFSMs use vari-

ables in (assignment) statements in the sections of

states (and in the Boolean expression labelling the

transitions). Theoretically, the use of variables (from

an action language) is a technicality to avoid a large

number of states; but since our target SMV can ma-

nipulate integer and Boolean variables, we will use

variables of these two types.

LLFSMs are communicating because the vari-

ables can be shared between state machines of an

arrangement. The shared variables are called white-

board variables or external variables. Variables local

to a ﬁnite state machine are not shared.

Blocks of code in IMP (Winskel, 1993) are se-

quences of assignments of the form

hvariablei::=hexpressioni.

The assignments are typed. Thus, if the left-hand

side (LHS) is a Boolean variable, the right-hand side

(RHS) is a Boolean expression, and alternatively, if

the LHS is an integer variable, then the RHS is an

integer expression.

These blocks of code represent the next hurdle for

translating to SMV modules. If the sequence of as-

signments do not represent a dependency that causes

an intermediate state of computation, then the trans-

lation is direct. For instance, if the LHS of each as-

signment never appears in a later assignment, then the

sequence of assignments in a block translates directly

one to one to SMV code:

::= e

→

next( v

) = e

next( v

) = e

next( v

) = e

where e

is the translation of e

from expression in

IMP (and their operators) to expression in SMV.

If, however, the sequence of assignments displays

a dependency, in particular a variable on the LHS

appears in a later assignment on the RHS or the LHS,

we must perform a transformation that eliminates the

implicit sub-state of IMP. Algorithm 1 is the pseudo-

code of our ATL implementation, which uses a

dictionary of pairs (variable,latest-SMV-expression).

The dictionary keeps a history of assignments. For

instance, if we the ﬁrst assignment is x := y + 1,

the dictionary has the pair h(x, (y + 1))i. If the next

assignment is z := x + 3, the dictionary is updated.

First, free variables in expressions are replaced by ex-

pressions in the current dictionary, and second the dic-

Model-to-Model Transformations for Efﬁcient Time-domain Veriﬁcation of Concurrent Models by NuSMV Modules

291

Algorithm 1: IMP-sequence to SMV.

1: procedure SMV(s:IMP-sequence,d:Dictionary):String

2: if s.isEmpty() then

3: return ‘’  The empty string

4: else if 1==s.size() or not s.tail().inLHS(s.LHS().variable) then

5:  RHS is converted to SMV and free variables appearing in d replaced by

corresponding strings in d

6: return ‘next(’+s.LHS().variable+‘)=’+s.RHS.to-SMV-subs-free(d) + SMV(

s.tail(),d.update( s.LHS().variable, s.RHS.to-SMV(d ) ))

7: else

8: return SMV( s.tail(),d.update( s.LHS().variable, s.RHS.to-SMV(d ) ))

9: end if

10: end procedure

tionary updates its entries. Thus, the new dictionary

is h(x, (y + 1)), (z, ((y +1) + 3))i.

When the sequence s of IMP assignments is not

empty and of length 1, the translation to SMV is

a next clause of the corresponding variable on the

LHS, and the SVM result of binding the free variables

on the RHS using the dictionary (and replacing oper-

ators of IMP to SMV).

When the sequence s of IMP assignments is longer

than 1, we analyse the ﬁrst assignment. If the corre-

sponding variable on the LHS appears later again on

the LHS, there is no output because we cannot have

two SMV-statements of the form “next(v)=” for the

same variable v. Only the last one will produce out-

put. We always process the tail of s recursively with

an updated dictionary. The dictionary accumulates

the expressions, and records all over-writes. In our

running example, if the third assignment is z := y +

x, the second entry in the dictionary is updated. Now

the dictionary is h(x, (y + 1)), (z, (y +(y + 1)))i.

An arrangement of LLFSMs is executed in a sin-

gle tread. The individual ﬁnite-state machines are ex-

ecuted concurrently, and in a predeﬁned schedule. As

we already mentioned, this reduces the uncontrolled

concurrency of event-driven systems, and a signiﬁ-

cant part of the state explosion for model checking.

In what follows, we assume that LLFSMs hold ex-

ecutable code only in their OnEntry section and that

code does not introduce sub-Kripke states (the assign-

ments of that code can be treated atomically).

The transformations steps described so far may

seem straightforward; however, they are far from im-

mediate when implementing them with ATL.The ﬁrst

difﬁculty is the order in which to apply the transfor-

mations so that they are applied to every state (in the

case of ﬂattening each state to having code on the

OnEntry section) and to every block (sequence of as-

signments) in such a way that there are no interme-

diate computational states. The second complexity is

that these transformations demand contextual infor-

mation. They cannot be applied to the state (or the

block of code) without knowledge of all the transi-

tions arriving and departing the corresponding state,

the expressions labelling those transitions, and the

scope of the variables involved.

This brings us to the point in our transformation of

how variables in the LLFSM correspond to variables

in the SMV modules we produce. While each LLFSM

will be translated into an SMV module, we assign

what we refer to as an owner module to each variable

(those that provide the capability to use integers and

Booleans and provided the adjective extended men-

tioned earlier). In the resulting set of modules, we

declare each variable with an SMV declaration in the

module that owns it.

Whether the variable is external or local, we as-

sign an SMV module as its owner. The assignments

do not require human intervention.

1. If a variable v is local to an LLFSM M, it has the

module for M as v’s owner.

2. If a variable v is external, and does not appear on

the LHS of any assignment, v is considered as be-

longing to the environment (an input or a sensor)

and the SMV model is closed, as discussed before

(but the variable v can non-deterministically adopt

any value in its domain at each Kripke state). Such

a variable v has as its owner an SMV module

named main (which would be also used for the

predeﬁned schedule of the arrangement).

3. If a variable is external and appears on the LHS

of assignments but of only one LLFSMs, then we

assign the SMV module for M as the owner.

4. If a variable v appears on the LHS of assignments

in states of two or more LLFSMs, the SMV mod-

ule for v is the main module and those modules

having it (either on their LHS or RHS) receive it

as a parameter by reference.

This last point of the transformation may seem con-

tentions as, at ﬁrst glance, an apparent race condition

could present itself if two or more LLFSMs in the ar-

rangement that write into a variable (they have it in

the LHS of some of their assignments) were to exe-

cute in parallel. Recall that SMV composes modules

under synchronous composability. However, we will

ensure that the semantics of LLFSMs (that a prede-

ﬁned schedule, typically one turn for each LLFSM

in the arrangement) is enforced by the module main.

Thus, we preserve that only one LLFSMs executes a

ringlet (Estivill-Castro and Rosenblueth, 2011) in its

current state and only one LLFSM holds the current

turn. We stress that there is only one thread per ar-

rangement.

We deal now with the communicating feature of

LLFSMs. LLFSMs may read the values of exter-

nal variables on the RHS of their assignments. We

achieve this by identifying, for each LLFSM M, all

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

292

the variables on the RHS of all its assignments (in all

its states) of which it is not the owner. This set of vari-

ables, plus those from Case 4 above becomes a list of

formal parameters to the SMV module for M.

With these preliminaries, we can now complete

the description of our algorithm for producing a set

of SMV modules that corresponds to the behaviour

deﬁned by an arrangement of LLFSMs. The merits of

the transformation are that it is (a) linear in the size of

the description of the arrangement and (b) completely

independent of the states of computation of the ar-

rangement (as opposed to our previous approaches).

3.3 Translating LLFSMs with no AFTER

We present our algorithm as a series of transforma-

tion steps which are analogous to ATL’s declarative

rules. However, for the purposes of illustrating this

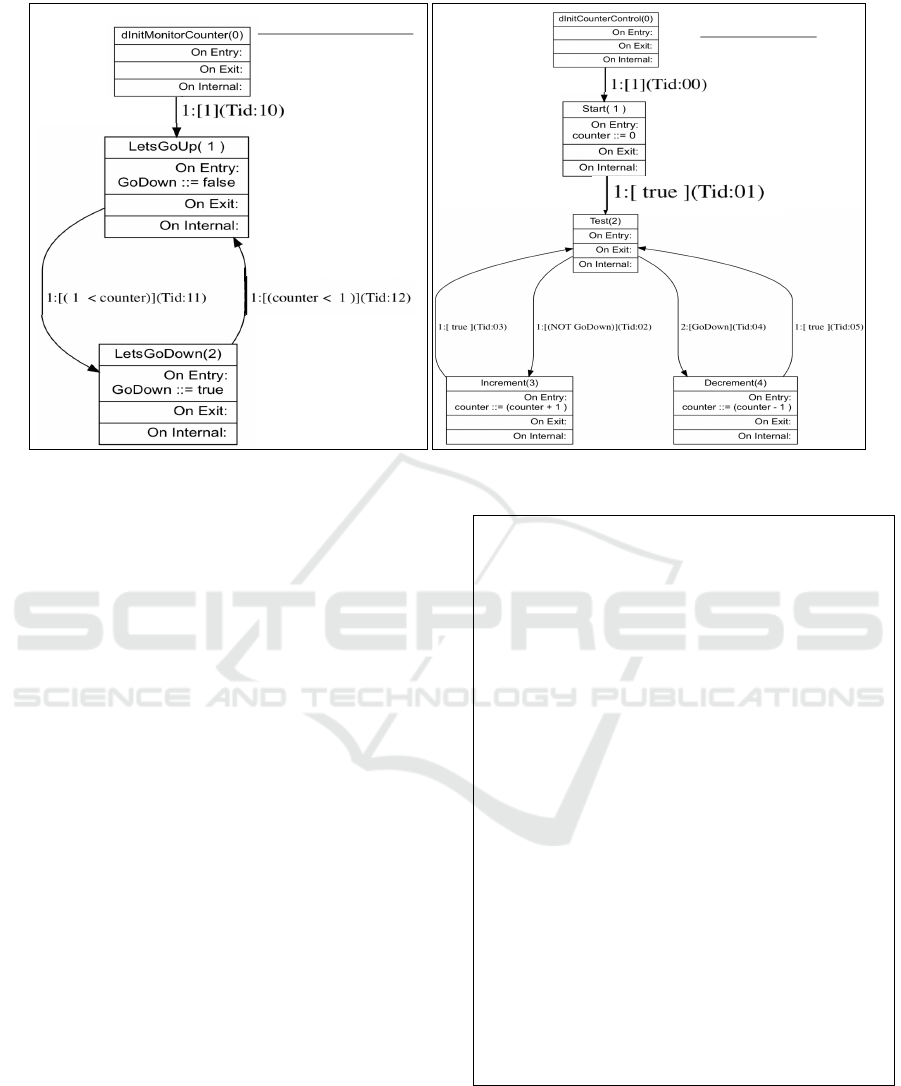

presentation, we introduce a simple arrangement of

two LLFSMs (refer to Figure 3, which is drawn by our

ATL program transforming LLFSMs arrangements

into dot (Gansner et al., 2015) input).

An arrangement of LLFSMs with actions only in

the OnEntry section (such as the example in Figure 3)

can be thought of as an array of Christmas lights,

where only one arrow ﬁres at each point in time, be-

cause there is a schedule (a pattern) that programs the

display. Figure 3 shows each LLFSM in a rectangle.

The LLFSMs scheduler assigns a turn to the arrange-

ment in round-robin fashion.

Transformation Step: Our SMV model will con-

sist of a module for each of LLFSM (total n) and a

main module with a variable turn. The domain of

turn is from 0 to n − 1.

Illustration: The code below is what our ATL

transformation produces for Figure 3, except that we

have here added the initialisation turn=0 (Line 6) to

the ﬁrst LLFSM in the arrangement (but we typically

verify properties for any possible order of the LLF-

SMs in the arrangement).

1: MODULE main

2: VAR turn : 0..1;

3: VAR

4: CounterControl : CounterControl(turn ,

MonitorCounter.GoDown);

5: MonitorCounter : MonitorCounter(turn,

CounterControl.counter );

6: INIT turn=0

7: TRANS

8: ((turn = 0) & (next(turn) = 1 )) -- next

9: |

10: ((turn = 1) & (next(turn) = 0 )) -- next

Transformation Step: A module instantiation for

each LLFSM in the arrangement is listed in module

main with actual parameters identiﬁed with the preﬁx

of the owner (or no preﬁx, if main is the owner).

Illustration: The earlier code includes the decla-

ration of the two modules (Line 4 and Line 5) cor-

responding to the two LLFSMs in Figure 3. It also

shows the actual parameters. Both modules will read

the value of turn.

Transformation Step: The module main sched-

ules the variable turn so that the synchronous compo-

sition of modules by SMV results in only one module

advancing a step. The round-robin schedule is a series

of conditions

(turn = i) & (next(turn) = i mod n)

for i = 0, . . . , n − 2 and for i = n − 1

(turn = i) & ( next(turn) = 0 ) .

In general, for LLFSM M

, all the transitions in the

SMV module will have the test (turn = i). There-

fore, no transition ﬁres in the SMV model, except for

a module whose turn is next, and main performs the

round-robin assignment of the turn.

Transformation Step: Not only LLFSMs are

numbered to be identiﬁed. The states within a

LLFSM are also numbered. Transitions are numbered

sequentially within a pair (i, j) consisting of their ma-

chine number i and their transition number j (and re-

specting their order when they share a source state).

Illustration: For example, state LetsGoUp is

State 1 in Machine 1 (MonitorCounter), while state

Decrement is State 4 in Machine 0 (refer to Figure 3).

So in Machine 0 (CounterControl), the transition

from Start to Test, the transition is Tid=01.

Transformation Step: Each machine M

will

have a program counter (pc) indicating its current

state, with values from 0 to the number of states in

. For a transition Tid=i j with label be

to ﬁre, it

must be that it is the i-th machine’s turn, the program

counter is in the source state s of Tid=i j, the labelling

expression be

evaluates to true, and all other transi-

tions with the same source state as source do not ﬁre

(remember that there is an order for transitions out of

the same state). For each transition Tid=i j with label

, we deﬁne conditions (in SMV)

condT

i j

:=(turn = i) & (pci= s) &be

When a transition Tid=i j ﬁres, it has the consequence

of advancing the Kripke structure to the next Kripke

state with a new valuation. The ﬁrst consequence

is the update of the program counter (the machine

changes state). The other consequence is the effects

of the block of assignment statements in the OnEntry

of Tid=i j’s target state. We emphasise one relevant

point: because of the semantics of SMV, for those

Model-to-Model Transformations for Efﬁcient Time-domain Veriﬁcation of Concurrent Models by NuSMV Modules

293

MonitorCounter

CounterControl

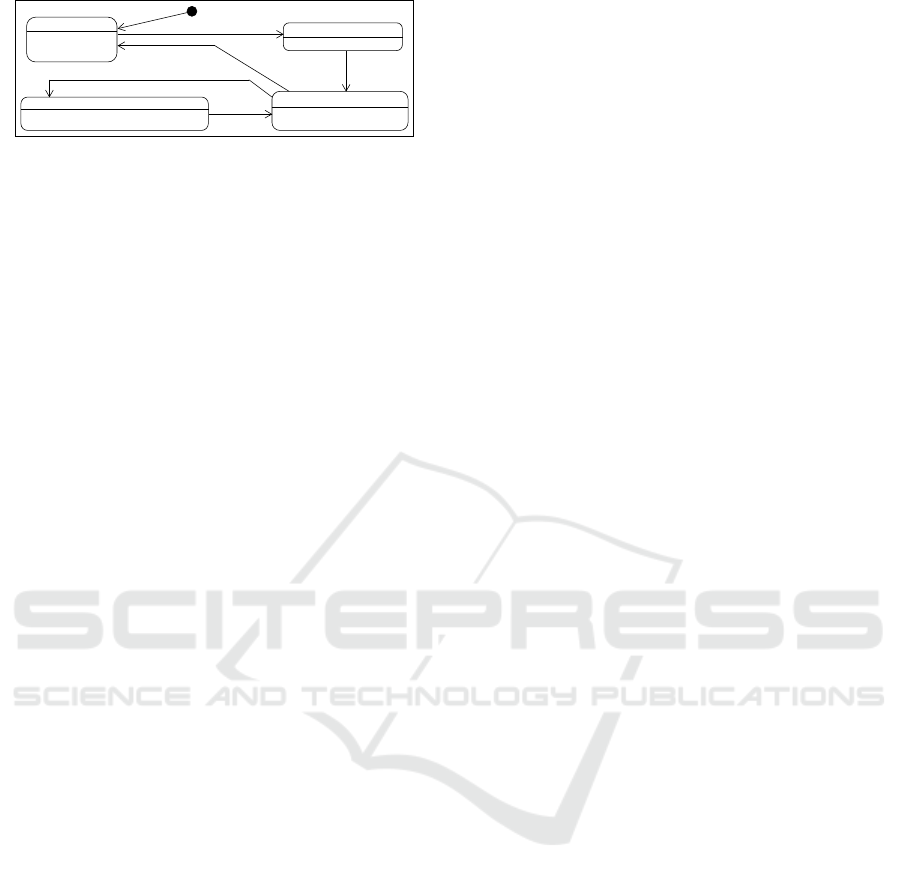

Figure 3: A small illustrative arrangement of two LLFSMs.

variables owned by the module and that are not as-

signed a value in the code block, we must explicitly

indicate that their valuation is not changing.

Illustration: Figure 4 shows the code generated

by our ATL implementation of the model-2-model

transformation. Line 3 shows that this module owns

variable GoDown. It is a whiteboard variable that ap-

pears in the LHS of statement in it. Line 5 starts the

deﬁnition of the conditions for what is the only possi-

ble transition that would ﬁre when it is this module’s

turn. Note that the restrictions in TRANS ensure that a

transition ﬁres only if no earlier transition ﬁres. It also

shows the effect of the OnEntry of the target state, if

the transition ﬁres. We also highlight the statement in

Line 25 where our algorithm explicitly indicates that

the Boolean variable GoDown is not changing value if

it is not this machine’s turn.

3.4 Complexity of the Algorithm

The construction presented earlier shows that for ar-

rangements of LLFSMs having only blocks of code in

the OnEntry sections and with no dependencies, the

resulting SMV models have exactly the same seman-

tics as the Ecore arrangements of LLFSMs.

The complexity of the output of the ATL trans-

formation is linear in the total number of states. Ob-

serve that there are as many lines in the DEFINE and

TRANS sections as there are transitions in the arrange-

ment. For each LLFSM the DEFINE and TRANS have

as many lines as transitions in the particular LLFSM.

The size of the output (in number of characters) is

1: MODULE MonitorCounter(turn, counter)

2: VAR pcMonitorCounter : 0..2;

3: VAR GoDown : boolean;

4: INIT (pcMonitorCounter = 0)

5: DEFINE

6: condT10 := ((((turn=1)&(pcMonitorCounter=0))&TRUE);

7: condT11 := ((((turn=1)&(pcMonitorCounter=1))&(1 <

counter));

8: condT12 := ((((turn=1) & (pcMonitorCounter=2)) &

(counter < 1));

9: condDefault1:= (!(condT10)& !(condT11)& !(condT12));

10: TRANS

11: (TRUE & -- Ncond

12: condT10 & -- Pcond

13: (next(pcMonitorCounter)=1)&(next(GoDown)=FALSE))

14: |

15: ( !(condT10) & -- Ncond

16: condT11 & -- Pcond

17: ((next(pcMonitorCounter)=2)&(next(GoDown)=TRUE))

18: |

19: ( !(condT10) & !(condT11) & -- Ncond

20: condT12 & -- Pcond

21: ((next(pcMonitorCounter)=1)&(next(GoDown)=FALSE))

22: |

23: (condDefault1 & -- Ncond

24: TRUE & -- Pcond

25: ((next(pcMonitorCounter)=pcMonitorCounter) &

(next(GoDown)=GoDown))

Figure 4: Machine 1 by our ATL m-2-m transformation.

quadratic in the number of transitions of the LLFSM

since for the i-th transition we must spell out that no

previous transition ﬁres. Nevertheless, the reduction

in the size of the SMV ﬁles is several orders of mag-

nitude the length of the arrangement. For the small

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

294

SMV model of Figure 3, our ATL implementation

produces a SMV input ﬁle with 110 lines. By con-

trast, our earlier methods produce an SMV ﬁle with

820 lines.

4 TRANSFORMATION INTO

TIMERS

We now extend the transformation, so that time-value

properties can be veriﬁed with NuSMV. We will con-

trast value-domain properties with time-domain prop-

erties before we describe our modelling of timers.

4.1 What are Augmented LLFSMs?

The subsumption architecture for robotic and em-

bedded systems used LISP-coded LLFSMs (Brooks,

1990; Mataric, 1992). Such LLFSMs were aug-

mented because they use predicates about time. We

also discuss the implications of modelling time and

constructing Kripke structures for formal veriﬁcation

with implicitly or explicitly time modelling.

The LLFSMs presented in the meta-model of Fig-

ure 1 are augmented and can be used for robotic and

embedded systems (Estivill-Castro and Hexel, 2018).

Such LLFSMs offer Boolean expressions of the form

AFTER(harithmetic-expressioni).

which can be part of the label of any transition. The

semantics of the AFTER Boolean expression for a tran-

sition T with source state s

and target state s

is that

a snapshot t

is taken of the system time when execu-

tion arrives at state s

(just before the execution of s

’s

OnEntry). At this time, the arithmetic expression that

is the argument of the AFTER is evaluated and the re-

sulting value ∆ is also saved. Execution of the ringlet

for s

proceeds as normal: the OnEntry is executed

and the transitions out of s

are evaluated in the order

of the sequence holding them. But when transition T

is evaluated, the AFTER is replaced by a comparison

of the current system time t

and the value t

+∆. The

AFTER evaluates to true if and only if t

> t

+ ∆.

4.2 Time-domain versus Value-domain

The original methods for verifying LLFSMs built

a Kripke structure (a SMV model) (Estivill-Castro

et al., 2012) where the AFTER is analogous to an en-

vironment variable. Then, the open model is con-

verted to a closed model as we mentioned earlier:

the Kripke structure offers non-deterministic tran-

sitions with both valuation (true and false) of the

AFTER. Thus, the veriﬁable properties are value do-

main properties. To illustrate this point we reproduce

the LLFSMs control of the ubiquitous Microwave

Oven (Shlaer and Mellor, 1992; Myers and Dromey,

2009). The Microwave Oven is analogous to the

Therac X-ray machine and has been widely discussed

in the literature of software engineering and formal

veriﬁcation (Mellor, 2007). Figure 5 reproduces its

arrangement of LLFSM. There is a transition for the

bell-controller component with source RINGING to

BELL OFF that holds the sound effector active for two

units of time after the cooking has ﬁnished. There

is another transition in the time-controller with an

AFTER to decrement the time by 1 unit as long as the

door is closed and the button is released.

Value domain properties conﬁrm desirable prop-

erties regarding the behaviour of the Microwave. We

ﬁnd particularly illustrative that “After the sound ef-

fector is activated, eventually, the sound effector is de-

activated” (that is, the bell at the conclusion of cook-

ing does not ring forever). There is a symmetric prop-

erty that says that if the sound effector is silent and

cooking concludes, and the user does not add time

for some Kripke states, eventually the sound effector

rings. However, because of the construction of the

Kripke structure mentioned earlier, there is no way

to formulate a property that includes the value ∆ of

the argument of an AFTER predicate. The counts

of Kripke states are in the sense of bounded NuSMV

properties (that is, formulas require a precise number

of repetitions of the temporal logic operator X).

4.3 Transformation of Time

Expressions

We now propose to produce ATL transformations to

SMV modules where each appearing AFTER results in

a parameterised invocation to one timer module. The

timer module explicitly implements the test t

> t

+∆

as t

−t

> ∆. This means that

• the SMV model only uses integers as large as the

highest value for the arithmetic expression that is

an argument to an AFTER predicate;

• the integer variables about timers are SMV vari-

ables that can appear in CTL or LTL formulas.

Transformation Step: An instance of a timer (a

SMV module) interacts with the LLFSM M that labels

a transition T with source state s

and target state s

including an AFTER as follows. There are four shared

variables between the instance of the timer and the

SMV module for M. The ﬁrst three are owned by M,

and thus parameters to the timer.

1. active: M sets active to true on arrival to s

Model-to-Model Transformations for Efﬁcient Time-domain Veriﬁcation of Concurrent Models by NuSMV Modules

295

LightControl

NoShineLightsState(1)

OnEntry:

LightsEffector::=false

ShineLightsState(2)

OnEntry:

LightsEffector::=true

1:[((NOT DoorOpenSensor) AND (NOT IsThereTimeLeft))](Tid:12)

1:[DoorOpenSensor OR IsThereTimeLeft](Tid:11)

1:[true](Tid:10)

TimerControl

DecreaseTimerState(4)

OnEntry:

CurrentTime::=CurrentTime-1

IncreaseTimerState(3)

OnEntry:

CurrentTime::=CurrentTime+60

InitialState(1)

OnEntry:

CurrentTime::=0

DecideIncrementDecrementState(2)

OnEntry:

IsThereTimeLeft::=(0<CurrentTime)

1:[(NOT ButtonPushedSensor](Tid:33)

1:[(((NOT DoorOpenSensor)AND

ButtonPushedSensor)AND((CurrentTime+60)<600))](Tid:32)

1:[true](Tid:35)

2:[(((NOT DoorOpenSensor) AND

IsThereTimeLeft)AND(AFTER 1)))](Tid:34)

1:[true](Tid:31)

1:[true](Tid:30)

BellControl

ArmedBellState(2)

OffBellState(1)

OnEntry:

SoundEffector::=false

RingingBellState(3)

OnEntry:

SoundEffector::=true

1:[(AFTER 2)](Tid:23)

1:[(NOT IsThereTimeLeft)](Tid:22)

1:[IsThereTimeLeft](Tid:21)

1:[true](Tid:20)

MotorControl

NotCookingState(1)

OnEntry:

MotorEffector::=false

CookingState(2)

OnEntry:

MotorEffector::=true

1:[(DoorOpenSensor OR (NOT IsThereTimeLeft))](Tid:02)

1:[((NOT DoorOpenSensor)AND IsThereTimeLeft)](Tid:01)

1:[true](Tid:00)

Figure 5: Complete executable and veriﬁable behavioural model (as LLFSMs) for the requirements (Shlaer and Mellor, 1992;

Myers and Dromey, 2009) of the Microwave.

2. bound: M assigns the value of the arithmetic ex-

pression to bound also on arrival to the state s

3. step: Also on entry to s

, M assigns this value

as required to decrement the local counter of the

timer per turn to the timer.

M makes active false in every target state of s

(not

only s

Illustration: For example, in the time-control of

the microwave, the user may push the button and

add even more time to a microwave already count-

ing down. In that case, the LLFSM moves to add time

when button pushed is true and abandons the wait-

ing for a second to pass to decrement the current time.

Transformation Step: The variable owned by the

instance of the timer is finished. This is set to false

at the start, but becomes true when the timer ﬁnds its

local time counter (which started at zero when ac-

tivated) reaches bound. The variable finished re-

places the predicate AFTER in the transition T .

Illustration: This model-2-model ATL transfor-

mation is illustrated in Figure 6. It is non-trivial as it

must be performed for each transition that holds one

or more AFTER predicates in the Boolean expression

that it labels them. Therefore, the set of variables for

each of these predicates are tagged by the machine

number, the Tid of the transition.

Transformation Step: An instance of the timer

module is created in the main module of the SMV

model. Only one generic timer module, a LLFSM

itself, is deﬁned. But, as many instances as AFTER

predicates in the arrangement are constructed. They

become part of the SMV model and properties regard-

timer_finished

AFTER(bound)

timer_active ::= true

timer_bound ::= bound

timer_active ::= false

timer_step ::= step

Figure 6: The transformation that replaces LLFSMs aug-

mented with AFTER-predicates to LLFSMs.

ing the behaviour of the arrangement and the bounds

in its AFTER predicates can be veriﬁed.

Illustration: Figure 7 shows the generic timer as

an LLFSM which we can produce in our LISP execu-

tion of LLFSMs for validation.

Transformation Step: The SMV module for the

only generic timer can be obtained by applying the

ATL transformation described in the previous section.

However, the ATL-transformation not only performs

the replacement of all the AFTER-predicates, but also

delivers one SMV generic timer module and the con-

struction of its instances in main.

Illustration: Figure 8 shows the snippet NuSMV

code in the main module resulting from the ATL pro-

gram applied to the executable model from Figure 5.

4.4 Complexity and Efﬁciency

Our ATL transformation delivers also a succinct SMV

when the executable LLFSM arrangement has AFTER-

predicates. The number of modules is the number of

LLFSMs in the arrangement plus one. The total num-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

296

DecrementState(4)

OnEntry:

LocalCurrentTime::=LocalCurrentTime - step

GenericTimer

SetTimeBoudState(2)

LocalCurrentTime::=bound

InitialiseState(1)

OnEntry:

LocalCurrentTime::=0

finished::=false

TickTimeState(3)

OnEntry:

finished::=(LocalCurrentTime<1)

1:[(NOT finished)](Tid:t4)

1:[true](Tid:t5)

1:[finished AND (NOT active)](Tid:t3)

1:[true](Tid:t2)

1:[active](Tid:t1)

1:[true](Tid:t0)

Figure 7: The generic timer is also a LLFSM.

ber of instances of modules is the number of LLFSMs

in the arrangement plus the number of occurrences of

AFTER-predicates in the arrangement.

Using a desktop computer with an Intel quad-core

processor, 32 GB of RAM, and MacOS, it is possi-

ble to verify four properties that express requirements

of the microwave, in 551 s, 553 s, 853 s, and 853 s,

respectively, over NuSMV models generated by our

earlier algorithms (see the introduction). In contrast,

over the NuSMV model generated by the algorithm

of section 3, the same properties can be veriﬁed in

29 s, 32 s, 43 s, and 43 s, respectively, using a Ma-

cOS laptop with an Intel i7 processor and 16 GB of

RAM. We must highlight that, with some CTL prop-

erties, our earlier algorithms did not even ﬁnish after

running for one hour on the laptop.

4.5 Discussion

Time-domain properties are now expressible for SMV

directly. For example, SMV properties such as

CTLSPEC

AG( (0<=BellControlRingingBellState.LocalCurrentTime

& BellControlRingingBellState.LocalCurrentTime<=4)

& (0<= TimerControlDecideIncrementDecrementState.LocalCurrentTime

& TimerControlDecideIncrementDecrementState.LocalCurrentTime<=5)

)

that checks that the variable LocalCurrentTime, of

each timer instance, stays within respective bounds

is true (and the time required is minimal, because its

veriﬁcation is tested by the compilation of the model

matching the bounds of the variable deﬁnitions).

Similarly, we can now revisit the discussion of

Section 4.2. As opposed to Kripke structures gener-

ated by closing the system when time predicates ap-

pear in the transition, now we can check speciﬁc real-

time properties.

EX (EF BellControlRingingBellState.LocalCurrentTime = 0)

EX (EF BellControlRingingBellState.LocalCurrentTime = 1)

EX (EF BellControlRingingBellState.LocalCurrentTime = 2)

are true, but

EX (EF BellControlRingingBellState.LocalCurrentTime = 3)

and larger values are false, showing the bell would

never ring for more than two time units.

The transformations discussed in Section 3 are

not necessarily completely equivalent regarding time

units in the micro-scale at which LLFSMs run. These

transformations (breaking the sections of a state into

separate states, for example) impact the predeﬁned

schedule. The machine in question would need sev-

eral turns to complete for what was earlier a single

turn. Nevertheless, our methods provide the advan-

tage that such expansion of a few turns to one LLFSM

in the arrangement are conditions that should also

veriﬁed. Any arrangement of LLFSMs (executable

model of behaviour) that relies on speciﬁc timing

from subsections of states of participant LLFSMs for

fairness, liveliness or deadlock-free properties, is a

fragile behaviour design. Similarly, if the correctness

of the arrangement depends on the order of LLFSMs

in the arrangement, we will have a fragile design. Ver-

ifying these weaknesses in designs is now possible.

The efﬁcient Kripke structures we are capable of pro-

ducing with the algorithms here enable veriﬁcation

which previously was infeasible.

5 CONCLUSIONS

We have presented an algorithm (that is imple-

mented as an ATL model-2-model transformation)

that achieves succinct SMV models from generic ex-

ecutable forms of arrangements of LLFSMs. More-

over, this transformation enables involving time pred-

icates and later verifying properties about them, thus

extending the types of properties from the value do-

main to the time domain.

REFERENCES

Besnard, V., Brun, M., Jouault, F., Teodorov, C., and

Dhaussy, P. (2018). Uniﬁed LTL veriﬁcation and em-

bedded execution of UML models. 21th ACM/IEEE

Int. Conf. Model Driven Engineering Languages and

Systems, MODELS ’18, p. 112–122, NY, USA. ACM.

Bhaduri, P. and Ramesh, S. (2004). Model checking of stat-

echart models: Survey and research directions.

Biere, A., Cimatti, A., Clarke, E., and Zhu, Y. (1999). Sym-

bolic model checking without BDDs. Tools and Algo-

rithms for the Construction and Analysis of Systems,

p. 193–207. Springer Berlin Heidelberg.

Brooks, R. (1990). The behavior language; user’s guide.

Tech. Rpt. AIM-1227, MIT, Dept. Electronics and CS.

Cheng, K.-T. and Krishnakumar, A. S. (1993). Automatic

functional test generation using the extended ﬁnite

state machine model. 30th Int. Design Automation

Conference, DAC ’93, p. 86–91, NY, USA. ACM.

Cimatti, A., Clarke, E., Giunchiglia, F., and Roveri, M.

(2000). NuSMV: a new symbolic model checker. Int.

J. Software Tools for Technology Transfer, 2(4):410–

425.

Clarke, E. and Heinle, W. (2000). Modular translation of

statecharts to SMV. Tech. Rpt., School of Computer

Science, Carnegie Mellon U., Pittsburg, PA.

Model-to-Model Transformations for Efﬁcient Time-domain Veriﬁcation of Concurrent Models by NuSMV Modules

297

VAR

OvenMotorControl: OvenMotorControl(turn,DoorOpenSensor, OvenTimerControl.IsThereTimeLeft);

OvenLightControl: OvenLightControl(turn,DoorOpenSensor, OvenTimerControl.IsThereTimeLeft);

OvenBellControl: OvenBellControl(turn,OvenTimerControl.IsThereTimeLeft, TimerOvenBellControlRingingBellState.finished);

OvenTimerControl: OvenTimerControl(turn DoorOpenSensor, ButtonPushedSensor, TimerOvenTimerControlDecideIncrementDecrementState.finished);

TimerOvenBellControlRingingBellState: Timer(turn, 4,2, 1,OvenBellControl.OvenBellControl RingingBellState active);

TimerOvenTimerControlDecideIncrementDecrementState: Timer(turn, 5,1, 1,OvenTimerControl.OvenTimerControl DecideIncrementDecrementState active);

Figure 8: The instantiation of modules in main for the SMV model of the executable model of Figure 5.

Devadas, S., Keutzer, K., and Krishnakumar, A. S. (1991).

Design veriﬁcation and reachability analysis using al-

gebraic manipulation. IEEE Int. Conf. Computer De-

sign on VLSI in Computer &Amp; Processors, ICCD

’91, p. 250–258, IEEE Computer Soc.

Drusinsky, D. (2006). Modeling and Veriﬁcation Us-

ing UML Statecharts: A Working Guide to Reactive

System Design, Runtime Monitoring and Execution-

based Model Checking. Newnes, Newton, MA, USA.

Estivill-Castro, V. and Hexel, R. (2013). Module isola-

tion for efﬁcient model checking and its application to

FMEA in model-driven engineering. ENASE 8th Int.

Conf. on Evaluation of Novel Approaches to Software

Engineering, p. 218–225. SciTePress.

Estivill-Castro, V. and Hexel, R. (2018). Veriﬁable parame-

terised behaviour models - for robotic and embedded

systems. 6th Int. Conf. on Model-Driven Engineering

and Software Development, MODELSWARD, p. 364–

371. SciTePress.

Estivill-Castro, V. and Hexel, R. (2019). Resolving the

asymmetry of on-exit versus on-entry in executable

models of behaviour. 7th Int. Conf. Model-Driven

Engineering and Software Development, MODEL-

SWARD, p. 49–61. SciTePress.

Estivill-Castro, V., Hexel, R., and Ramirez Regalado, A.

(2016). Architecture for logic programing with ar-

rangements of ﬁnite-state machines. 1st CPSWeek

Workshop on Declarative Cyber-Physical Systems,

DCPS, p. 1–8. IEEE Computer Soc..

Estivill-Castro, V., Hexel, R., and Rosenblueth, D. A.

(2012). Efﬁcient modelling of embedded software

systems and their formal veriﬁcation. 19th Asia-

Paciﬁc Software Engineering Conference, APSEC

2012, p. 428–433. IEEE.

Estivill-Castro, V. and Rosenblueth, D. A. (2011). Model

checking of transition-labeled ﬁnite-state machines.

Software Engineering, Business Continuity, and Ed-

ucation - Int. Conf. ASEA, p. 61–73. Springer.

Gansner, E. R., Koutsoﬁos, E., and North, S. (2015). Draw-

ing graphs with dot.

Harel, D., Pnueli, A., Lachover, H., Naamad, A., Politi, M.,

Sherman, R., Shtull-Trauring, A., and Trakhtenbrot,

M. (1990). Statemate: A working environment for

the development of complex reactive systems. IEEE

Trans. Softw. Eng., 16(4):403–414.

ITU-T Study Group 17 (2002). Formal description tech-

niques (FDT) – Speciﬁcation and Description Lan-

guage (SDL).

Kang, I. and Lee, I. (1993). A state minimization algorithm

for communicating state machines with arbitrary data

space. Tech. Rpt MS-CIS-93-07, Dpt. of Computer &

Information Science, U. of Pennsylvania.

Lamport, L. (1984). Using time instead of timeout for fault-

tolerant distributed systems. ACM T. on Programming

Languages and Systems, 6:254–280.

Mataric, M. (1992). Integration of representation into goal-

driven behavior-based robots. IEEE T. Robotics and

Automation, 8(3):304 –312.

McColl, C. and Estivill-Castro, V. Hexel, R. (2017). An

OO and functional framework for versatile semantics

of logic-labelled ﬁnite state machines. ICSEA : 12th

Int. Conf. on Software Engineering Advances, p. 238–

243. IARIA, Curran.

McMillan, K. L. (1992). Symbolic Model Checking — An

approach to the state explosion problem. PhD thesis,

Carnegie Mellon U., Pittsburgh, CMU-CS-92-131.

Meenakshi, B., Bhatnagar, A., and Roy, S. (2006). Tool for

translating Simulink models into input language of a

model checker. Formal Methods and Software Engi-

neering, p. 606–620, . Springer Berlin Heidelberg.

Mellor, S. J. (2000). UML point/counterpoint: Modeling

complex behavior simply. Embedded Systems Pro-

gramming.

Mellor, S. J. (2007). Embedded systems in UML. OMG

White paper. www.omg.org/news/whitepapers/ label:

We can generate Systems Today.

Myers, T. and Dromey, R. G. (2009). From requirements to

embedded software - formalising the key steps. 20th

Australian Software Engineering Conf. (ASWEC), p.

23–33, Gold Cost, Australia. IEEE Computer Soc.

Ozik, J., Collier, N., Combs, T., Macal, C. M., and North,

M. (2015). Repast simphony statecharts. J. Artiﬁcial

Societies and Social Simulation, 18(3):11.

Poledna, S. (1996). Fault-Tolerant Real-Time Systems: The

Problem of Replica Determinism. Kluwer, MA, USA.

Rumbaugh, J., Blaha, M., Premerlani, W., Eddy, F., and

Lorensen, W. (1991). Object-oriented Modeling and

Design. Prentice-Hall, NJ, USA.

Samek, M. (2008). Practical UML Statecharts in C/C++,

Second Edition: Event-Driven Programming for Em-

bedded Systems. Newnes, MA, USA.

Selic, B., Gullekson, G., and Ward, P. T. (1994). Real-time

Object-oriented Modeling. Wiley, NY, USA.

Seshia, S. A., Sharygina, N., and Tripakis, S. (2018). Mod-

eling for veriﬁcation. , Handbook of Model Checking,

p. 1–26, Cham. Springer.

Shlaer, S. and Mellor, S. J. (1992). Object lifecycles: mod-

eling the world in states. Yourdon P., N.J.

von der Beeck, M. (1994). A comparison of statecharts vari-

ants. 3rd Int. Symposium Organized Jointly with the

Working Group Provably Correct Systems on Formal

Techniques in Real-Time and Fault-Tolerant Systems,

ProCoS, p. 128–148, Berlin. Springer.

Winskel, G. (1993). The Formal Semantics of Programming

Languages: An Introduction. MIT, Cambridge, MA.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

298
