Domain-speciﬁc Language and Tools for Strategic Domain-driven

Design, Context Mapping and Bounded Context Modeling

Stefan Kapferer and Olaf Zimmermann

University of Applied Sciences of Eastern Switzerland (HSR FHO), Oberseestrasse 10, 8640 Rapperswil, Switzerland

Keywords:

DSL, Enterprise Application Integration, Model-driven Software Engineering, Service Design, Patterns.

Abstract:

Service-oriented architectures and microservices have gained much attention in recent years; companies adopt

these concepts and supporting technologies in order to increase agility, scalability, and maintainability of their

systems. Decomposing an application into multiple independently deployable, appropriately sized services

and then integrating such services is challenging. With strategic patterns such as Bounded Context and Context

Map, Domain-driven Design (DDD) can support business analysts, (enterprise) architects, and microservice

adopters. However, existing architecture description languages do not support the strategic DDD patterns

sufﬁciently; modeling tools for DDD primarily focus on its tactical patterns. As a consequence, different

opinions on how to apply strategic DDD exist, and it is not clear how to combine its patterns. Aiming for

a clear and concise interpretation of the patterns and their combinations, this paper distills a meta-model of

selected strategic DDD patterns from the literature. It then introduces Context Mapper, an open source project

that a) deﬁnes a Domain-speciﬁc Language (DSL) expressing the strategic DDD patterns and b) provides

editing, validation, and transformation tools for this DSL. As a machine-readable description of DDD, the DSL

provides a modeling foundation for (micro-)service design and integration. The models can be refactored and

transformed within an envisioned tool chain supporting the continuous speciﬁcation and evolution of Context

Maps. Our validation activities (prototyping, action research, and case studies) suggest that the DDD pattern

clariﬁcation in our meta-model and the Context Mapper tool indeed can beneﬁt the target audience.

1 INTRODUCTION

Domain-driven Design (DDD) was introduced in a

practitioner book in 2003 (Evans, 2003). Since then,

the DDD patterns, especially tactical ones such as En-

tity, Value Object, Aggregate, and Repository, have

been used in software engineering to model complex

business domains. Strategic DDD has gained even

more attention during the last few years in the con-

text of microservices and enterprise application inte-

gration (Pautasso et al., 2017). The decomposition

of an application into appropriately sized services is

challenging. Achieving high cohesion within the ser-

vices and loose coupling between them is crucial to

keep the application scalable and maintainable.

How to decompose software systems into smaller,

more maintainable units indeed has been an open re-

search question for many years. For instance, Parnas

already wrote about module decomposition in 1972

(Parnas, 1972).

Despite the large body of existing work, it is not

understood well yet how service interfaces can be

identiﬁed and which patterns and practices are suit-

able to analyze and design service-oriented systems

(Pautasso et al., 2017):

Which criteria are relevant to ﬁnd adequate service

boundaries? Which patterns and practices can be

applied to identify candidate services?

DDD can play a key role in answering these ques-

tions: with patterns such as Bounded Context (an

abstraction of systems and teams developing them,

deﬁning a model boundary), it provides an approach

for structuring a domain. Context mapping patterns

such as Customer-Supplier, Shared Kernel or Open

Host Service (Evans, 2003) can deﬁne the relation-

ships between the units of decomposition. However,

the strategic patterns come with some ambiguity and

different interpretations of how they shall be applied.

The microservices community suggests to lever-

age DDD patterns to answer the above design ques-

tions. Advocates of this ﬁeld suggest to model

software-intensive systems in terms of Bounded Con-

texts, and then implement one microservice for each

Bounded Context.

Kapferer, S. and Zimmermann, O.

Domain-speciﬁc Language and Tools for Strategic Domain-driven Design, Context Mapping and Bounded Context Modeling.

DOI: 10.5220/0008910502990306

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 299-306

ISBN: 978-989-758-400-8; ISSN: 2184-4348

299

However, the identiﬁcation of suited Bounded

Contexts is still challenging. This is where Con-

text Map models and diagrams, context mapping as a

practice and the strategic DDD patterns to deﬁne the

relationships between Bounded Contexts come into

play. From our experience, a clear understanding of

how these patterns shall work together is often miss-

ing, and different stakeholders have different opinions

on how these patterns should be applied and com-

bined. From these observations we derived our ﬁrst

hypothesis:

Software engineers and service designers beneﬁt

from clariﬁcation and advice on how to combine the

strategic DDD patterns in Context Maps.

We further believe that Context Maps are artifacts

which evolve iteratively. Software engineers can use

them to analyze and understand a domain. They can

also serve as an instrument to describe and communi-

cate the architecture of a system. However, it is also

beneﬁcial if models can be transformed seamlessly

in order to improve the architecture in an agile way

or to generate other representations upon demand. A

machine-readable deﬁnition of a model offers the pos-

sibility to automate certain steps, for instance to gen-

erate abstract or concrete service contracts. This leads

us to our second hypothesis:

Adopters of DDD beneﬁt from a tool which supports

the creation of DDD pattern-based models in a

rigorous and expressive way. They want to refactor,

transform and evolve such models iteratively.

In this paper, we present a Domain-speciﬁc Lan-

guage (DSL) for the strategic DDD patterns and as

another contribution, we distill a meta-model provid-

ing a concise interpretation of these patterns and their

applicability. The DSL is implemented in Context

Mapper. Domain-driven designs modelled in our tool

can be used to identify services with reasonable cohe-

sion and coupling. Our DSL also supports the reﬁne-

ment of Bounded Contexts with tactic DDD patterns

as supported in the Sculptor DSL

. Generator tools

producing graphical Context Maps, PlantUML

dia-

grams, and (micro-) service contracts illustrate how

the language can be used to transform the Context

Maps into other representations. This paper focuses

on the DSL and addresses the second hypothesis only

partially. All other parts of our framework are docu-

mented online

and will be elaborated upon in future

work.

http://sculptorgenerator.org/

http://plantuml.com/

https://contextmapper.org/

The remainder of the paper is structured as fol-

lows. In Section 2 we present our ﬁrst research con-

tribution, a strategic DDD meta-model with seman-

tic rules that describe our interpretation of the pat-

terns. Section 3 introduces the DSL syntax. Section 4

discusses usage scenarios and the applicability of the

presented approach. Section 5 concludes and outlines

future work.

2 DOMAIN-DRIVEN DESIGN

(DDD) ESSENTIALS/ANALYSIS

Since Evans has published his original DDD book

(Evans, 2003), other – mostly gray – literature on this

topic has been published. Our analysis and interpre-

tation of the patterns is based on the books of Evans

(Evans, 2003) and Vernon (Vernon, 2013). Our per-

sonal professional experience (Kapferer, 2017) has in-

ﬂuenced the meta-model as well. Additional patterns

of Evans’ DDD reference (Evans, 2015), which has

been published a fews years after his ﬁrst book, were

also considered. We further studied publications of

context mapping experts such as Brandolini (Bran-

dolini, 2009) and Pl

od (Pl

od, 2018; Pl

od, 2019).

2.1 Example

Strategic Domain-driven Design (DDD) can be used

to decompose the problem domain of a software

system into multiple sub-domains and the so-called

Bounded Contexts. It also allows architects to deﬁne

the relationships between Bounded Contexts, e.g.,

how they work together. To explain pattern concepts

(and also, in Section 3, the DSL syntax) we use a

ﬁctitious insurance software scenario. Figure 1 illus-

trates the Context Map of the scenario inspired by the

visualizations of Vernon (Vernon, 2013), Brandolini

(Brandolini, 2009) and Pl

od (Pl

od, 2018).

A Bounded Context deﬁnes an explicit boundary

within which a particular domain model, implement-

ing parts of sub-domains, applies. This boundary af-

fects team organization as well as physical manifesta-

tions such as code bases and database schemata. The

internal design of a Bounded Context is speciﬁed with

the tactic DDD patterns, including the Aggregate pat-

tern. An Aggregate is a cluster of domain objects

(such as Entities that have identiﬁers and lifecycles,

Value Objects that are stateless and immutable, and

Services) which is kept consistent with respect to spe-

ciﬁc invariants and typically also represents a unit

of work regarding system (database) transactions. A

Context Map provides a global view over all Bounded

Contexts related to the one a team is working on.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

300

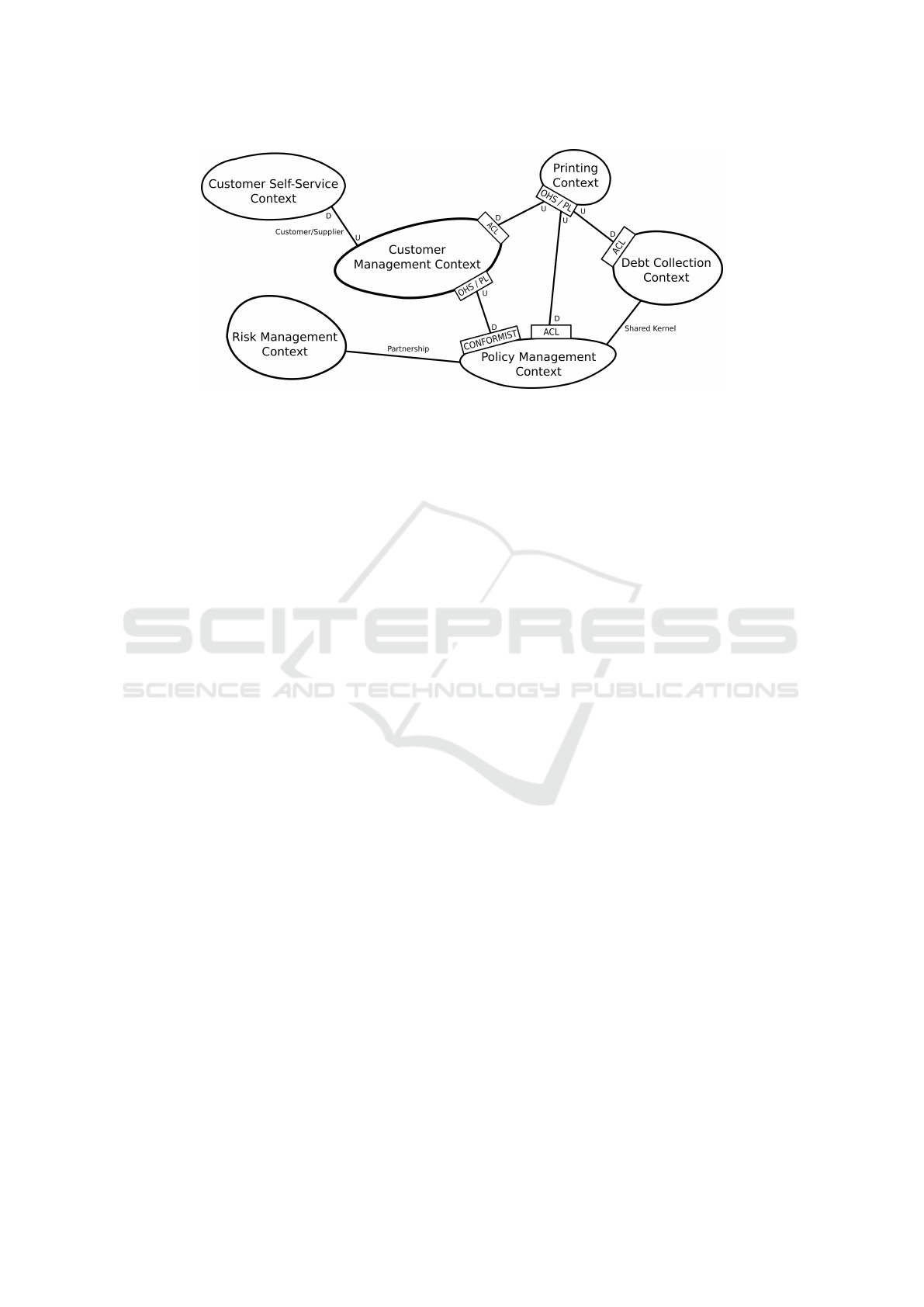

Figure 1: Insurance Scenario Example Context Map (Kapferer, 2018).

DDD offers several relationship patterns allow-

ing modelers to describe how two Bounded Contexts

and the corresponding development teams work to-

gether. The Partnership relationship describes an inti-

mate mutual relationship between two Bounded Con-

texts, since the resulting product of the two can only

fail or succeed as a whole. A Shared Kernel rela-

tionship indicates that two contexts are very closely

related and the two domain models overlap at many

places. This pattern is often implemented as a shared

library that is maintained by both teams.

Upstream-downstream relationships are marked

with a U for upstream and a D for downstream in

our illustration in Figure 1. The terms upstream and

downstream are used in DDD to describe relation-

ships in which only one Bounded Context inﬂuences

the other; the upstream inﬂuences the downstream.

Thus, the downstream Bounded Context depends on

the domain model of the upstream Bounded Context,

but not vice versa. A Customer-Supplier relationship

is given if the downstream Bounded Context in an

upstream-downstream relationship has power regard-

ing the implementation decisions of the upstream.

The supplier respects the requirements of the down-

stream and plans the development accordingly.

The patterns Published Language (PL), Open

Host Service (OHS), Anticorruption Layer (ACL)

and Conformist (CF) are used to describe the inter-

action between Bounded Contexts in an upstream-

downstream relationship. In Figure 1 they are added

to the rectangles either on the upstream or on the

downstream side. A Bounded Context can offer an

OHS, which provides access to a subsystem as a set of

open services, if multiple other Bounded Contexts re-

quire access to the same functionality. The PL pattern

advises to use a well-documented shared language for

communication and translation. Serving as a wrap-

per, an ACL protects the domain model of a Bounded

Context from changes of another one it depends on.

In contrast to an ACL, a context applying CF decides

to simply conform to the domain model of the other

context and must therefore always adjust its model to

follow changes of the other context. Due to space lim-

itations we do not explain all pattern details and refer

to the corresponding literature (Evans, 2003; Evans,

2015; Pl

od, 2018; Vernon, 2013).

2.2 Our Meta-model for Strategic DDD

The meta-model presented in this section is based on

the previously mentioned strategic DDD patterns and

our own analysis and understanding regarding how

they can be combined. The model is illustrated in Fig-

ure 2. It is implemented in our DSL and the Context

Mapper tool introduced in Section 3.

The most central element in our meta-model is

the Context Map. A Context Map shows Bounded

Contexts and their relationships. A Bounded Con-

text itself consists of a well-deﬁned and delimited do-

main model which is decomposed into multiple Ag-

gregates. It implements parts of one or many subdo-

mains, which can be Core Domains, Supporting Do-

mains or Generic Subdomains. Both a subdomain and

a Bounded Context beneﬁt from a statement regarding

the vision and purpose of their own part of the do-

main. Hence, we apply the Domain Vision Statement

pattern. We further include the Knowledge Level pat-

tern on the level of a Bounded Context. The Responsi-

bility Layers pattern is implemented by assigning sin-

gle responsibilities to Bounded Contexts.

We distinguish between symmetric and asymmet-

ric relationships between Bounded Contexts: We call

asymmetric relationships upstream-downstream rela-

tionships in our meta-model. This is in line with the

terminology in the DDD literature. In an upstream-

downstream relationship only one context depends on

Domain-speciﬁc Language and Tools for Strategic Domain-driven Design, Context Mapping and Bounded Context Modeling

301

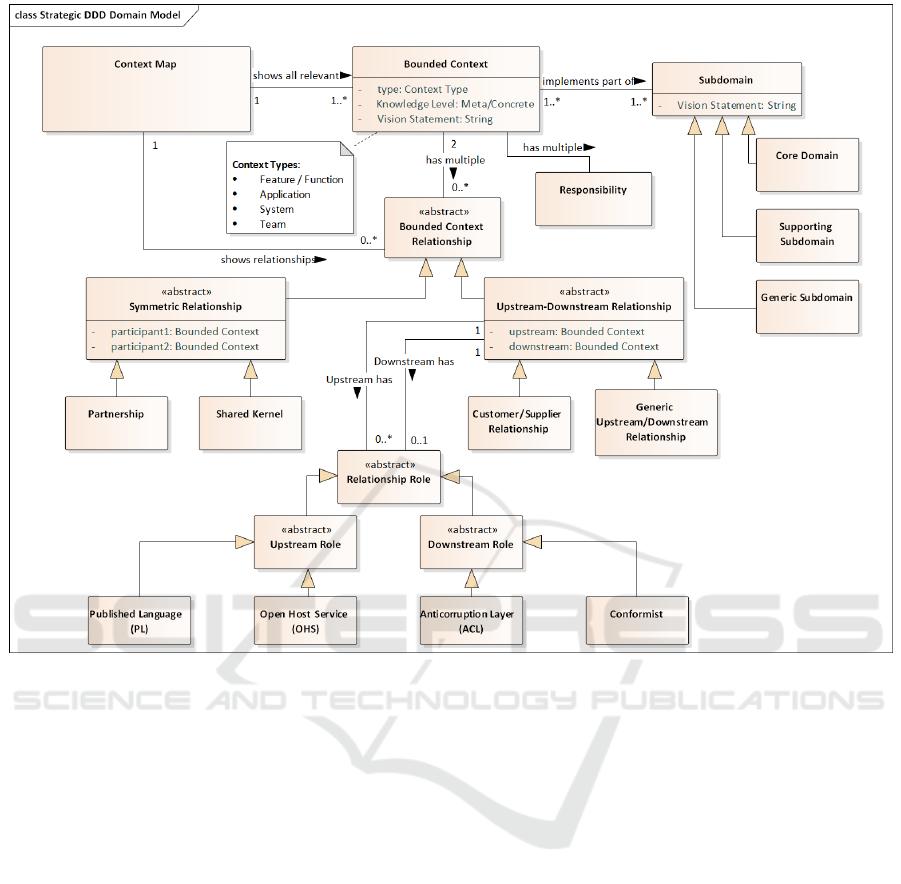

Figure 2: Context Mapper: Strategic DDD Meta-Model (UML class diagram)

the other. Likewise, only one Bounded Context inﬂu-

ences the other; the upstream-downstream metaphor

indicates an inﬂuence ﬂow between teams and sys-

tems as discussed by (Pl

od, 2018). The Partnership

and Shared Kernel patterns, on the other hand, de-

scribe symmetric relationships. The Bounded Con-

texts involved in such relationships are mutually de-

pendent on another.

The remaining patterns Published Language (PL),

Open Host Service (OHS), Anticorruption Layer

(ACL) and Conformist (CF) are roles taken by the

upstream or downstream context within an upstream-

downstream relationship. OHS and PL are patterns

implemented by the upstream, which exposes parts of

the model to be used by the downstream. The CF and

ACL patterns are implemented by the downstream,

which decides to either conform to the model exposed

by the upstream or protect itself from changes (ACL).

According to our analysis, the Customer-Supplier

pattern is a special case of an upstream-downstream

relationship. We indicated this in Figure 2 by distin-

guishing between customer-supplier relationships and

generic upstream-downstream relationships.

2.3 Semantic Rules

There is no consensus in the DDD community on how

the patterns are related and how they can be com-

bined. We evolved a set of semantic rules in addi-

tion to our meta-model. These rules deﬁne the valid

relationships between the patterns as well as combi-

nations not permitted in our language. Note that these

rules mainly reﬂect the authors interpretation based

on empirical evidence (e.g., (Kapferer, 2017)). How-

ever, all rules have been conceptualized considering

the literature of DDD and Context Mapping experts

(Vernon, 2013; Pl

od, 2019; Brandolini, 2009). Sev-

eral rules are already implicitly given by the meta-

model in Figure 2, others extend the model.

2.3.1 Rule #1: Permitted Upstream Roles

The patterns OHS and PL can only be implemented

by the upstream context in an upstream-downstream

relationship. The upstream context always provides

and exposes a certain functionality. The downstream

context uses and consumes this services and does not

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

302

expose parts of his/her own domain model. If this

was the case and the upstream used this functionality,

the deﬁnition that the upstream is independent of the

downstream would be contradicted.

2.3.2 Rule #2: Permitted Downstream Roles

The patterns ACL and CF can only be applied by the

downstream context in an upstream-downstream rela-

tionship. These patterns solve a downstream problem,

namely how to deal with a dependency to another con-

text. It is always the downstream context that has to

integrate the upstream model.

2.3.3 Rule #3: Protect or Conform

The patterns ACL and CF cannot be applied jointly,

but provide alternatives. The downstream either con-

forms (CF) or protects itself with an ACL.

2.3.4 Rule #4: Integrity of Symmetric

Relationships

The patterns OHS, PL, ACL and CF are not applicable

in symmetric relationships (Partnership and Shared

Kernel), since doing so would lead to contradictions

with the pattern deﬁnitions. In a Shared Kernel rela-

tionship, the two contexts communicate over shared

code such as a library. Both contexts manage the

shared code together, which clearly contradicts with

the mentioned four pattern deﬁnitions. An OHS indi-

cates a directed provider/consumer behavior which is

not the case here. There is no need for a common

inter-context language (PL), since the two contexts

simply share the same model. An ACL is not required

either since the two participants share the model any-

way. And neither context has to conform to the model

of the other since it is one shared model. In a Partner-

ship relationship both contexts depend on each other,

which means they can only succeed or fail together.

2.3.5 Rule #5: Customer vs. Conformist

The CF pattern is not applicable within a customer-

supplier relationship. In a customer-supplier relation-

ship the customer has inﬂuence on the supplier and

can at least negotiate regarding priorities of the re-

quirements and the implementation. A conformist in

contrast has no inﬂuence and simply decides to con-

form to what the upstream provides.

2.3.6 Rule #6: Generic vs. Custom Service

The OHS pattern is not applicable within a customer-

supplier relationship. Whereas the customer-supplier

pattern implies that the involved teams work closely

together, meaning that the upstream respects the

downstreams requirements in his planning sessions,

the OHS pattern indicates that the upstream team

decides to implement one API in a one for all ap-

proach. This is contradictory since it is unlikely that

such an upstream implementing an OHS is able to

have a close customer-supplier relationship with all its

downstreams. From personal practical experience a

customer-supplier relationship leads to individual re-

quirements of single customers. As soon as the sup-

plier implements a customer-speciﬁc API feature it is

by pattern deﬁnition no longer an OHS.

2.3.7 Rule #7: Protect or Cooperate

The ACL pattern should not be used within a

customer-supplier relationship. Changes of the sup-

plier should be in-sync with the needs of the customer.

Protection should be unnecessary. Note that this is

only a soft rule since the combination is possible but

not common. Our tool issues a warning rather than an

error message if it detects a violation of the rule.

3 CONTEXT MAPPER DSL

To allow software architects to model systems accord-

ing to our DDD meta-model, we implemented the

Context Mapper

tool.

All of the following DSL examples are based

on the insurance scenario introduced in Section 2.

The complete example can be found in our examples

repository

3.1 Bounded Context, Subdomain and

Context Map Syntax

We start with the Context Mapper DSL (CML) syn-

tax for Bounded Contexts. Listing 1 shows the dec-

laration of the CustomerManagementContext as an

example. The attributes at the top of the declara-

tion are implementations of the Domain Vision State-

ment and the Responsiblity Layers patterns. The user

can further specify the implementation technology of

a Bounded Context. A Bounded Context consists

of one or more Aggregates. Inside the Aggregates

the language supports the usage of all tactical DDD

patterns to fully specify the domain model of the

https://contextmapper.org/

https://github.com/ContextMapper/context-mapper-

examples

Domain-speciﬁc Language and Tools for Strategic Domain-driven Design, Context Mapping and Bounded Context Modeling

303

Bounded Context. The implementation of CML in-

side the Aggregates is based on the Sculptor

project.

Listing 1: Bounded Context Syntax in CML.

BoundedContext Cu s t o m e r M a n a g e m e n t C o n t e x t implements

Cu s t o m e r M a n a g e m e n t D o m a i n {

domainVisionStatement = " The c us to me r co nt ex t ... "

responsibilities = " C o l le ct s and ex po se s cu st o m e r d at a " ,

" M an ag es th e c u s t om er s ad d re ss es "

implementationTechnology = " Java , J EE Ap p l i ca t i o n "

Aggregate C u st om e r s {

Entity C u st om er {

aggregateRoot

String f i rs tn a m e

String l a st na me

}

The user speciﬁes the subdomains implemented

by the Bounded Context behind the keyword imple-

ments. The subdomains are declared as illustrated in

Listing 2 and must always be part of a domain. A

subdomain is of the type Core Domain, Supporting

Subdomain or Generic Subdomain according to our

meta-model and (Evans, 2003). Note that a Bounded

Context not necessarily implements a complete sub-

domain.

Listing 2: Subdomain Syntax in CML.

Domain I n su ra n c e {

Subdomain Cu st o me r M a n a g e m e n t D o m a i n {

type = C OR E _D OM A IN

domainVisionStatement = " Cu sto me r - r e l a te d en ti ti es . .."

}

The central and most important structure of CML

is the Context Map which speciﬁes the relationships

between Bounded Contexts. Listing 3 shows a small

example of a Context Map written in CML. The con-

tains keyword indicates the Bounded Contexts that

are added to the Context Map. They can then be used

to declare relationships.

Listing 3: Context Map Syntax in CML.

ContextMap {

contains C u s t om er Co nt e x t , Po li c yC o n t ex t

Cu s to m e r C o n te x t [U,OHS,PL] - > [ D,CF] Po li c yC on t ex t {

implementationTechnology = " RE S T f u l HT TP "

}

Listing 3 also features an exemplary upstream-

downstream relationship. The endpoints of this rela-

tionship apply three more patterns, Open Host Service

(OHS), Published Language (PL) and Conformist

(CF).

http://sculptorgenerator.org/

3.2 Relationship Syntax

For symmetric relationships the syntax uses an arrow

directing to both Bounded Contexts (< − >), whereas

asymmetric relationships use an arrow (− > or < −)

pointing from the upstream towards the downstream.

In all cases, the relationship roles are declared within

brackets as illustrated in Listing 3. Note that the dec-

laration of the implementation technology is optional

and we omit it in the following examples.

3.2.1 Partnership

Listing 4 shows an example for the Partnership (P)

pattern, which is a symmetric relationship.

Listing 4: Partnership Pattern Syntax in CML.

Ri s kM a na g em e nt C on t ex t [P] < - >[P] P o l i c y M a n a g em e nt C on t e x t

3.2.2 Shared Kernel

The second symmetric relationship is the Shared Ker-

nel (SK). The syntax is identical to the Partnership.

Listing 5 illustrates an example.

Listing 5: Shared Kernel Pattern Syntax in CML.

Po l ic y Ma n a g e me n tC o nt e xt [SK] < - >[SK] De b t C ol l ec t i o n

3.2.3 Generic Upstream-downstream

Relationship

As already mentioned, the upstream-downstream (or

asymmetric) relationships use an arrow from the up-

stream towards the downstream, expressing the inﬂu-

ence ﬂow. This syntax states which Bounded Context

is upstream and which one is downstream in an ex-

pressive way. The arrowhead can be placed either on

the left or on the right. Thus, the declaration examples

in Listings 6 and 7 are semantically equal.

Listing 6: Upstream-downstream Relationship in CML (1).

Pr i nt i n g C o n te x t [U] - >[D] P o li c yM a na g em e nt C on t ex t

Listing 7: Upstream-downstream Relationship in CML (2).

Po l ic y Ma n a g e me n tC o nt e xt [D] < -[U] P r i nt i ng C o n te x t

3.2.4 Upstream-downstream Roles

The upstream and downstream roles Open Host Ser-

vice (OHS), Published Language (PL), Anticorrup-

tion Layer (ACL) or Conformist (CF) are listed within

the brackets after the upstream (U) and downstream

(D) speciﬁcation. Listing 8 illustrates an example

with the OHS and PL patterns on the upstream side

and the ACL pattern on the downstream side.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

304

Listing 8: Upstream-downstream Relationship with Roles.

Pr i nt i n g C o n te x t [U,OHS,PL] - > [ D,ACL] Po l i c yM g mt C on t e x t

3.2.5 Customer-supplier Relationship

The customer-supplier relationship is a special case

of an upstream-downstream relationship in which the

upstream is called supplier and the downstream is

called customer. The syntax is therefore almost iden-

tical to the generic upstream-downstream relation-

ship; to state that the upstream-downstream relation-

ship is a customer-supplier relationship the user has

to add the abbreviations S for supplier and C for cus-

tomer. These abbreviations must appear behind the

U/D, but before the relationship roles, as shown in

Listing 9.

Listing 9: Customer-supplier Relationship in CML (1).

Se l fS e rv i ce C o n t e x t [D,C,ACL] < -[U , S,PL] Cu s t o me r Mg m tC o nt e xt

However, since the upstream in a customer-

supplier relationship is always the supplier and the

downstream is always the customer, it is also possible

to omit the U and D abbreviations in this case. Thus,

the declaration in Listing 10 is semantically equal to

the one in Listing 9.

Listing 10: Customer-Supplier Relationship in CML (2).

Se l fS e rv i ce C o n t e x t [C,ACL] < -[S,PL ] C us t o m e r M gm t Co n te x t

We have shown the core concepts of CML Con-

text Maps above. Due to space limitations we cannot

present all abilities of our language. CML currently

also supports an alternative syntax to declare relation-

ships for A/B testing purposes. All language features

are documented online

and the complete insurance

example can be found in our examples repository

4 USAGE SCENARIOS AND

APPLICABILITY DISCUSSION

Our DSL and tools have three primary usage scenar-

ios and user roles: 1) business analysts can use the

modeling language to analyze and understand a do-

main, and establish a common vocabulary for it. 2)

architects can describe, communicate, and evolve sys-

tem designs and connections with other systems (e.g.,

enterprise application integration). 3) adopters of mi-

croservices architectures can model system decompo-

sitions and individual services.

https://contextmapper.org/docs

https://github.com/ContextMapper/context-mapper-

examples

Our vision is to use the language as a tool to

evolve and improve the architecture with refactorings

and model transformations iteratively (note that these

two topics are not in the scope of this paper). The

language can be further used as input for generators

which produce other representations of the models or

input for other tools. With our PlantUML

genera-

tor, for instance, we demonstrate how the models can

be transformed into graphical representations. It sup-

ports the generation of UML component diagrams out

of Context Maps and class diagrams for individual

Bounded Contexts (and their Aggregated and Enti-

ties). Figure 3 illustrates the Context Map introduced

by Figure 1 as a component diagram generated within

the Context Mapper tool. Another generator recently

added to the tool produces graphical Context Maps

identical to the illustration in Figure 1.

The service contract generator of Context Mapper

assists architects designing service-oriented architec-

tures. It supports the Microservices Domain Speciﬁc

Language (MDSL)

format, an emerging DSL real-

izing the API Description pattern, which is part of

the Microservice API Patterns (MAP) language (Zim-

mermann et al., 2019).

We have validated different versions of the DSL

syntax with 20 exercise participants in a software ar-

chitecture course at our institution. We evaluated

readability and writability, for example by asking for

the time needed to understand existing and write new

models. Participants worked with the online docu-

mentation of Context Mapper, including the provided

examples; they also were asked to model a real-world

Context Map from the oil industry (Wesenberg et al.,

2006). The feedback was generally positive; partici-

pants were able to complete the exercise tasks in the

allocated time slots. Tool features such as hover help

and constructive, detailed validation messages were

appreciated, as they (re-)educate users about the pat-

tern meanings and valid pattern combinations.

In addition we conceptualized a more verbose al-

ternative syntax for A/B testing. In comparison to the

presented version in this paper, which is very dense

and optimized for writability, the alternative version

improves the readability. Due to space limitations we

were not able to introduce both variants in this paper;

both versions are documented online.

5 SUMMARY AND OUTLOOK

In this paper we presented Context Mapper, a DSL

and tools to describe application landscapes and ser-

http://plantuml.com/

https://socadk.github.io/MDSL/

Domain-speciﬁc Language and Tools for Strategic Domain-driven Design, Context Mapping and Bounded Context Modeling

305

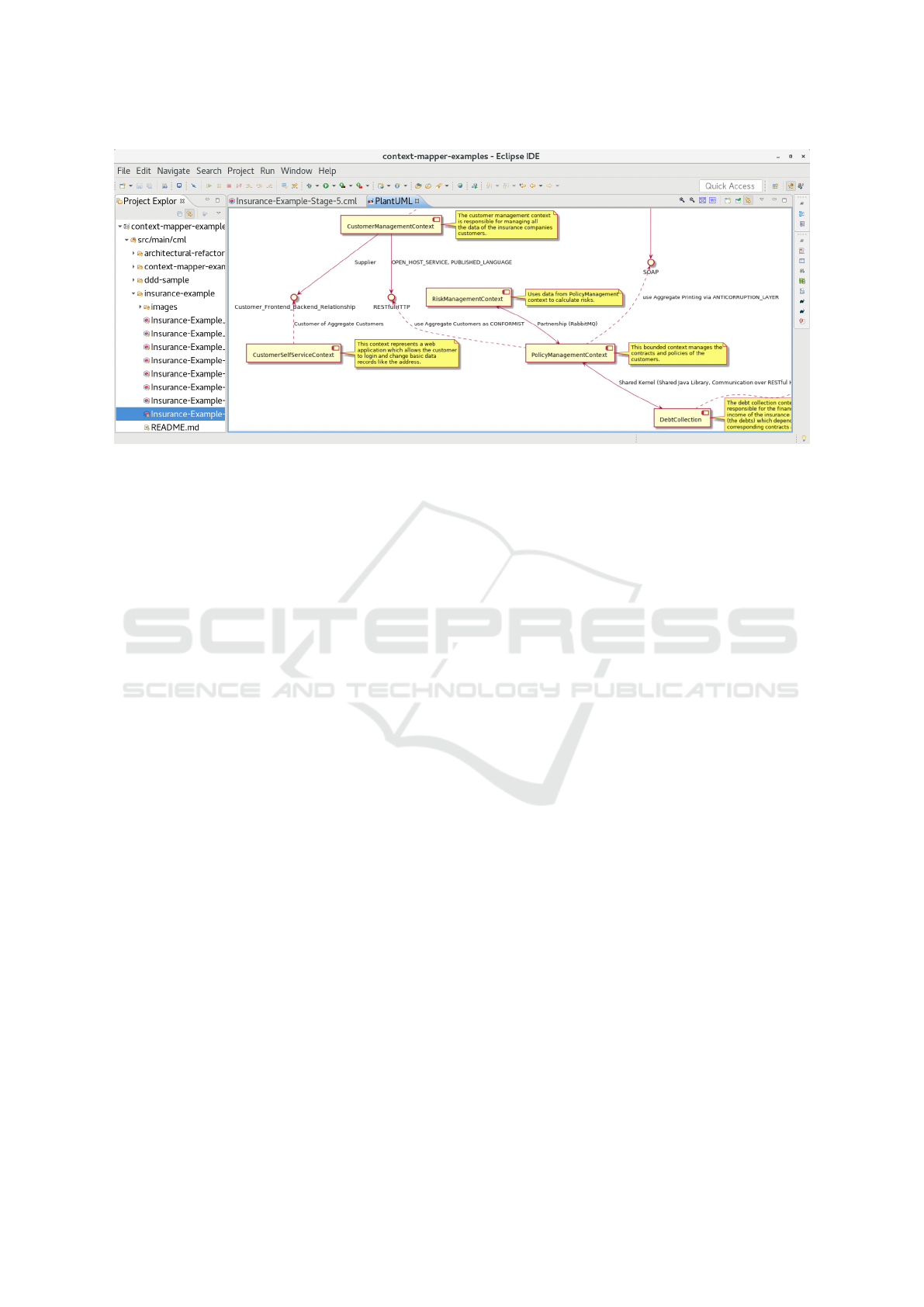

Figure 3: Context Mapper Eclipse Plugin: PlantUML Generator Example Output.

vice designs in terms of strategic DDD patterns. As

our research contributions, we proposed a) a meta-

model and semantic rules aiming for a concise speciﬁ-

cation of how DDD patterns can be combined, and b)

a DSL and supporting tools to model Bounded Con-

texts and their relationships as well as tactic DDD pat-

terns such as Aggregates. Being deﬁned in a DSL,

our Context Maps can be processed and transformed

into other representations. Thus, the Context Map-

per DSL (CML) provides a modeling foundation for

service design approaches and tools aiming for visu-

alizing Context Maps and transforming them.

In our future work we plan to further improve the

tool so that software architects can evolve system ar-

chitectures with more transformations and refactor-

ings. Besides the already supported generation of

MDSL service contracts, we may automatically gen-

erate microservice application stubs out of the Con-

text Maps. An already prototyped reverse engineering

tool to generate CML from existing source code can

ease the application of the tool in brownﬁeld projects

that plan to refactor monoliths to microservices and/or

migrate them to the cloud. Decoupling the language

from Eclipse and providing other development envi-

ronments on the basis of the approach proposed by

under (B

under, 2019) may further increase the tar-

get user group.

REFERENCES

Brandolini, A. (2009). Strategic domain

driven design with context mapping.

https://www.infoq.com/articles/ddd-contextmapping.

under, H. (2019). Decoupling language and editor -

the impact of the language server protocol on textual

domain-speciﬁc languages. In Proceedings of the 7th

International Conference on Model-Driven Engineer-

ing and Software Development - Volume 1: MODEL-

SWARD,, pages 131–142. INSTICC, SciTePress.

Evans, E. (2003). Domain-Driven Design: Tackling Com-

plexity in the Heart of Software. Addison-Wesley.

Evans, E. (2015). Domain-driven design refer-

ence: Deﬁnitions and pattern summaries.

https://domainlanguage.com/ddd/reference.

Kapferer, S. (2017). Architectural refactoring of data ac-

cess security. Semester thesis, University of Ap-

plied Sciences of Eastern Switzerland (HSR FHO).

https://eprints.hsr.ch/564.

Kapferer, S. (2018). A domain-speciﬁc language for ser-

vice decomposition. Term project, University of Ap-

plied Sciences of Eastern Switzerland (HSR FHO).

https://eprints.hsr.ch/722.

Parnas, D. L. (1972). On the criteria to be used in de-

composing systems into modules. Commun. ACM,

15(12):1053–1058.

Pautasso, C., Zimmermann, O., Amundsen, M., Lewis, J.,

and Josuttis, N. (2017). Microservices in practice, part

1: Reality check and service design. IEEE Software,

34(1):91–98.

od, M. (2018). DDD Context Maps - an enhanced

view. https://speakerdeck.com/mploed/context-maps-

an-enhanced-view.

od, M. (2019). Hands-on Domain-driven Design - by ex-

ample. Leanpub.

Vernon, V. (2013). Implementing Domain-Driven Design.

Addison-Wesley Professional, 1st edition.

Wesenberg, H., Landre, E., and Rønneberg, H. (2006). Us-

ing domain-driven design to evaluate commercial off-

the-shelf software. In Comp. to 21th Annual ACM

SIGPLAN OOPSLA, pages 824–829.

Zimmermann, O., Stocker, M., Zdun, U., Luebke, D.,

and Pautasso, C. (2019). Microservice API Patterns.

https://microservice-api-patterns.org.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

306
