Building an Open Source Access Control System for Fablabs based on

odoo and openHAB

Fabian Meyer

and Michael Schäfer

Institute of Computer Science, Hochschule Ruhr West, University of Applied Sciences, Lützowstraße 5 Bottrop, Germany

Keywords:

Makerspaces, Fablab, Access Control.

Abstract:

Controlling machine access in Fablabs and makerspaces is a crucial task. Different types of machines require

different types of brieﬁngs. This is especially important to avoid damage and injury. Controlling access

automatically is thereby desirable, as it is otherwise labor-intensive. Currently available software to organize

Fablabs and makerspaces have either a rather high price tag or lacking the functionality for automated access

control. Self-developed hardware is also quite common but often, due to regulatory constraints, not allowed to

operate on mains. Also, there is a wide range of home automation devices that are certiﬁed for switching mains

voltage. We have developed a prototypical system that makes these devices available for use in the access

control of Fablabs and Makerspaces. We have identiﬁed openHAB as a useful solution for the abstraction of

devices from various manufacturers.

1 INTRODUCTION

Fablabs and Makerspaces are usually small work-

shops that offer their visitors tools for building and re-

pairing all kinds of things. Such Spaces have had sta-

ble growth in recent years. As of October 2019, there

are 1788 worldwide Fablabs registered at fablabs.io

We are already talking about the next digital revolu-

tion: after personal computing there comes personal

fabrication (Mikhak et al., 2002). Fablabs are at the

forefront of this movement because they enable any-

one to engage in this ﬁeld. However Fablab operators

have to ensure that visitors are well instructed before

they start using machines. This especially is impor-

tant for those machines which could be damaged if

handled incorrectly or those which could harm peo-

ple. The easiest way to reduce these risks is to restrict

machine access to people who have been instructed.

Doing this manually is very labor-intensive and im-

practicable. For this reason, an automatic access con-

trol system would be the preferred way to limit access.

Besides limiting access, as a Fablab operator one also

has to keep records about machine usage, material,

and power consumption. One simple but effective

way to achieve the access control part is to control the

power supply of a certain machine, by simply switch-

ing mains voltage.

https://orcid.org/0000-0001-5882-510X

https://api.fablabs.io/0/labs.json

There are some open-source projects available in

this context which are mainly based on self-build

hardware for user authentication and for switching

mains voltage. In addition to insurance and regu-

latory problems, self-built hardware often cannot be

controlled via a uniform and abstract interface. This

makes the integration of a wide variety of different

devices time-consuming because different protocols

or communication standards are used.

Other open-source projects offer tools that sim-

plify the lab organization (e.g. room and machine

reservation) but lack the access control functionality.

Besides proprietary and relatively costly solutions are

also available.

In recent years, home automation has also made

its way into the consumer market. This trend led to

the high availability of relatively inexpensive home

automation devices. In our work, we therefore fo-

cused on developing a cost-effective and ﬂexible ac-

cess control system which aims at the integration of

home automation devices.

2 STATE OF ART

During research on available (open source) tools re-

garding the topic we encountered three different cat-

egories of tools. The categories identiﬁed are: Solely

access control, Solely lab organization, and Access

Meyer, F. and Schäfer, M.

Building an Open Source Access Control System for Fablabs based on odoo and openHAB.

DOI: 10.5220/0008911900850092

In Proceedings of the 9th International Conference on Sensor Networks (SENSORNETS 2020), pages 85-92

ISBN: 978-989-758-403-9; ISSN: 2184-4380

control and lab organization. This section describes

some projects.

2.1 Solely Access Control

• acos. (Zürich, 2019) (Breucha and Först, 2017) Is

a system currently under development by the ETH

Zürich. Besides booking and switching machines,

it is also able to operate electric door locks. It logs

the usage of machines and locks. For fabrication

tasks it also enables users to select and account for

the used material. It incorporates a so-called base

station and receiver unit. The base station con-

sists of a Raspberry Pi, a touch display, an RFID

Reader and an enclosure. It serves as an access

device, where users can authenticate themselves

via an RFID Card to book a machine. The re-

ceiver unit serves to switch mains and is installed

between the wall plug and the machine. It con-

sists of a microcontroller of type ESP 8266 and

a Relay. For door un-/locking it incorporates a

solenoid door lock instead of a relay. The projects

claim to use off the shelf components to build this

system, which is true but it’s dependent on self-

build hardware which switches mains. This could

be a problem, as this part of the system seems to

fall under EU Low Voltage Directive 2014/35/EU

(Recast, 2014). This directive requires veriﬁca-

tion through a conformity assessment procedure.

This could lead to legal and actuarial problems

when operating these devices. This project is not

public, yet.

• CarontePass (v2). (Figueras, 2016) is an Open

Source project which is similar to the acos sys-

tem described above. The focus is on operating

electric door locks, not on switching machines.

It also incorporates an ESP 8266 microcontroller

with relays to operate a door lock. Users also au-

thenticate themselves using an RFID tag/card. It

provides an admin interface to create users and

permissions and to view access logs. The project

seems to be inactive for a while, ass the GitHub

page indicates

2.2 Solely Lab Organization

• Fab Manager. An Open Source platform that

provides several tools for organizing Fablabs.

Among other things, this includes user manage-

ment, equipment management, room booking, an-

alytics, payment. It seems, besides other systems,

https://github.com/torehc/carontepass-v2

well maintained, as the GitHub statistics are indi-

cating (GitHub, 2019). (Manager, 2019). Besides

the abilities to support organizing, it lacks an ac-

cess control integration for machines.

2.3 Access Control and Lab

Organization

• Fabman. A proprietary platform which de-

livers following functionality: user manage-

ment, subscriptions/plans, machine access con-

trol, dead man’s switch, booking/reservation of

machines/rooms, billing & payment, activity log,

API & Webhooks (Fabman, 2019d). Fabman

meets all criteria as described in 1 and more. It’s

present in form of a SaaS

, so one does not have to

provide own infrastructure for hosting the service.

A permanent internet connection seems to be in-

evitable. For access control, one can add a ma-

chine (e.g. a 3D printer) in the web interface and

connect it to a so-called bridge (Fabman, 2019b).

A bridge is plugged between the mains and the

machine and is thereby able to switch the power

supply of a connected device (Fabman, 2019a). A

user now can authenticate him/herself by using an

NFC/RFID Tag or by scanning a QR-Code with a

mobile device and then perform a login in a web

form (Fabman, 2019g; Fabman, 2019f). Despite

the well deﬁned and implemented Fablab speciﬁc

functionality, the service alone has a minimum

cost of C39 per month for up to 100 Members

and an additional premium of C12 per month per

device if one incorporates Fabman’s access con-

trol device (Fabman Bridge) or their API. To use

Fabman’s access control functionality, one could

use their Bridges which are at C199 per piece. As

a rough estimate, for a Fablab with 20 machines

and up to 100 members, this would result in a

one-time payment of C3582 (20 x C199 - 10%

discount) and continuous payment of C279 per

month. Resulting in annual costs of C6930 for

the ﬁrst year and C3348 per year for the follow-

ing years

3 ARCHITECTURE

Our goal was to implement a solution, build on Open

Source Software and of the shelf, certiﬁed hardware

Software as a Service

All calculations based on price information published

on the following websites: (Fabman, 2019e) and (Fabman,

2019c)

SENSORNETS 2020 - 9th International Conference on Sensor Networks

for mains switching. Besides that, the costs for

needed hardware should remain at a reasonable limit,

compared to the other Open Source and proprietary

systems. Another requirement was to be able to re-

motely sense power consumption. The solutions pre-

sented in section 2 are mainly using Wireless LAN

for communication. As a Wireless LAN connection,

especially in the 2,4 GHz band, tend to get quite un-

stable in crowed places (many emitting nodes in the

same area), we also looked for a more stable and spe-

cialized wireless communication protocol.

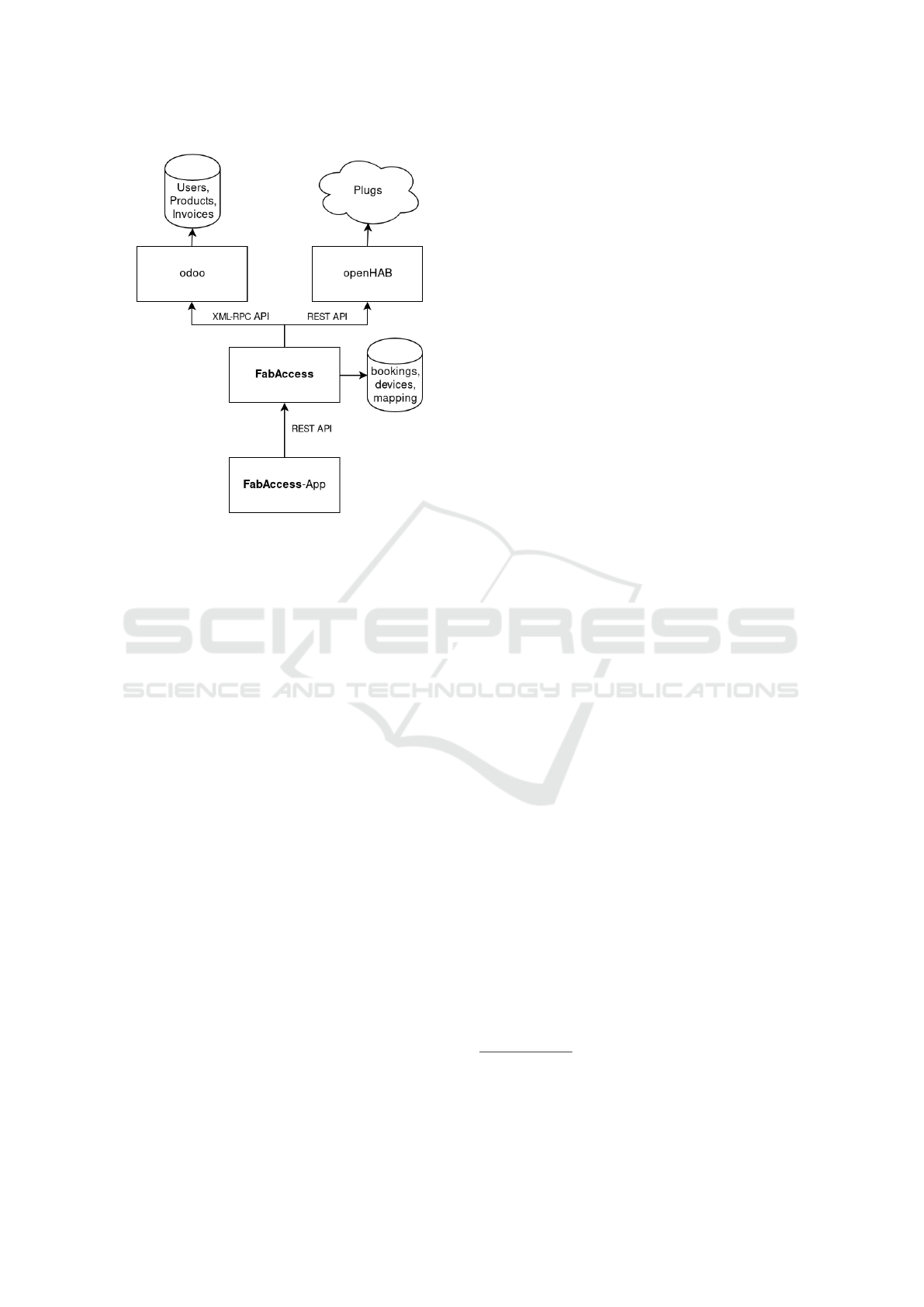

The following section will ﬁrst describe the main

parts of our proposed system and then presents the

architecture in detail

3.1 openHAB

As described in the introduction, the integration of

hardware from different manufacturers is relatively

complex, since ways of communicating with this

hardware must be implemented using different stan-

dards and protocols.

openHAB acronym for open Home Automation

Bus is an Open Source home automation platform.

openHAB enables a user to automate the control for

a multitude of devices. It is technology agnostic re-

garding the controlled devices, as different protocols

and third party systems can be accessed through so-

called bindings. Through these bindings, a connected

device can offer its functionality. For a switchable

power plug, this could, for example, be a switching

and power sensing capability. These capabilities are

then organized through so-called things and items.

A thing could be an outlet with multiple switchable

plug sockets, an item would then be a speciﬁc plug

socket. One feature, which is key for our solution,

is the REST-API provided by openHAB. Through it,

one can control the aforementioned things by other

software. (openHAB Community, 2019)

For our project, we used version 2.3.0. We also

used the Z-Wave-Binding to enable openHAB to con-

trol Z-Wave hardware and the REST Documentation

Add-on to explorer available endpoints.

3.2 Z-Wave

Z-Wave is a wireless RF-based communications pro-

tocol. It operates in the sub-1GHz band and is there-

fore not prone to interference with other wireless

protocols in the 2.4 GHz range (Bluetooth, ZigBee,

Wireless LAN). Besides the ability to better pene-

trate walls, compared to 2.4 GHz, Z-Wave supports

mesh networks without a master node. For automa-

tion tasks, this makes it superior to Wireless LAN.

(Z-Wave-Alliance, 2019)

For our project we used the following parts:

• Wallplug: Fibaro FGWPF-102 ZW5 v3.2. This

wall plug is rated for 230V AC, 50/60 Hz and

2500 Watt for connected machinery. Besides the

switching ability, it also provides a remote reading

of the current power consumption. This is espe-

cially important to sense and log power consump-

tion during usage. The price for one plug is at

about C47(Alternate, 2019)

• Z-Wave Transceiver: Aeon Labs Z-Stick Gen 5

Model ZW090-C (868,42MHz). The price is at

about C55(Rakuten, 2019a)

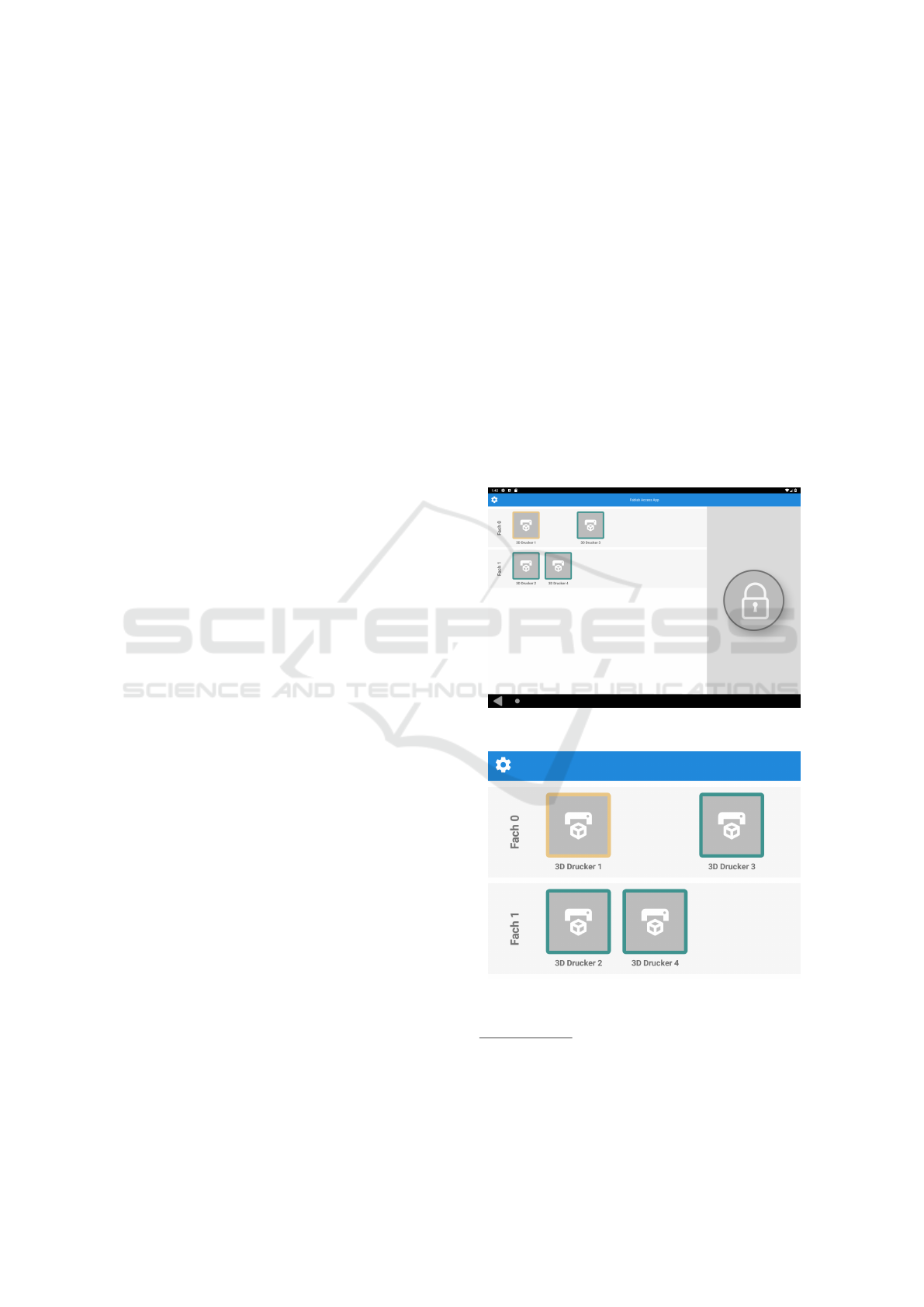

3.3 Access Device

As described in section 3.6, our system in this pro-

totypical implementation used an Android Tablet as

an access device. We investigated for an inexpensive

Tablet with NFC capabilities. We found the Lenovo

TB3-X70F with a price of about C195 (Rakuten,

2019b) to be a good ﬁt.

3.4 odoo

odoo formerly known as openERP, is an Open Source

System for Enterprise Resource Planing. It provides

several modules for different tasks: Accounting, In-

voicing, Inventory, and CRM

, to name just a few. To

integrate with other software, odoo provides an XML-

RPC-API. (SA, 2019)

For our project, we used the community edition in

version 12.0. The following modules were installed:

• Contacts: Base module to manage customers

• Sales: Base module to manage offers

• Billing: Base module to manage invoices and

payments

• Warehouse: Base module to manage inventory

3.5 FabAccess-API

To integrate with odoo and openHAB, we developed

an application that serves as a business logic layer

and API for devices that users authenticate against to

book and switch on machines. Like shown in Fig-

ure 1, our application integrates with odoo and open-

HAB through their respective APIs. odoo thereby

serves as user database and bookkeeper, openHAB as

an abstraction layer between speciﬁc actuator hard-

ware and our application. It provides a REST-API

with following endpoints:

Customer Relationship Management

Building an Open Source Access Control System for Fablabs based on odoo and openHAB

Figure 1: Schematic architecture of our proposed system.

• Devices: Provides available devices (switchable

machines) and meta data

• Booking: Provides current bookings and possibil-

ity to book a machine or end a booking

• Place: Provides information, which machines are

located at which physical location

• Auth: Provides endpoint for the access devices to

authenticate against

Our application uses its own database to store rel-

evant information.

3.6 FabAccess-App

The solutions presented in section 2 made use of

RFID tokens or cards for user authentication. We also

choose RFID cards for user authentications as passive

cards are relatively inexpensive and widely accepted.

Despite the presented solutions, we did not make use

of custom hardware for the access devices but rather

used an Android tablet with NFC capabilities. This

for us seemed like the choice with the most ﬂexibil-

ity, regarding future features. Our concept provides

for one access device to be used for several switch-

able machines. We solve this through a concept of

so-called places. A place can, for example, be a shelf

or table where several machines are located.

3.7 RFID Keycards

For the user to authenticate we used ISO14443A RFID

MIFARE Classic® 1K cards, which have a unique 4

byte UID that can not be changed.

4 IMPLEMENTATION

4.1 odoo

odoo is used in version and with plugins described in

section 3.4. Despite that odoo’s contact model (our

user model) is extended with a ﬁeld of type string

for the UID of the RFID card and a ﬁeld of type

boolean, which represents if a security brieﬁng took

place. Furthermore, the GUI Form of the contact view

was also extended with these two ﬁelds. odoo pro-

vides a graphical user interface for these steps.

4.2 FabAccess-API

Our applications was implemented in Node.js

with TypeScript

and the Express

framework. As

database MongoDB was used. The following subsec-

tion describes essential parts of our FabAccess-API

and the interaction with odoo and openHAB. As

described, the FabAccess-API provides a REST-API.

An access device can interact with this API via basic

CRUD

requests on different routes.

• Authentication: Our application requires authen-

tication in two ways. First of all, an access de-

vice has to authenticate itself against the provided

REST-API. Our application, therefore, keeps ev-

ery access device in its database with a speciﬁc

API key. An access device has to use its API key

to authenticate itself against the API. When suc-

cessfully authenticated, a JWT token is offered.

The access device then uses this token to authen-

ticate further requests. For a user to book and

switch a machine, a second authentication step is

imposed. The user has to use his or her RFID card

for authentication. If a user with the correspond-

ing UID was found in odoo and a security brief-

ing took place, a second intermediate token is pro-

vided. This token is valid for only 20 seconds and

has to be used with the request, that books and

switches the machines.

https://nodejs.org

http://www.typescriptlang.org

https://expressjs.com/de

Create Read Update Delete

SENSORNETS 2020 - 9th International Conference on Sensor Networks

• Actuators: In our FabAccess-API the openHAB

items described in section 3 have an abstract rep-

resentation that is saved to the local database.

They are represented as actuators in our appli-

cation. We choose this approach to enable a

loose coupling between switchable machines and

the corresponding switchable wall sockets. This,

in our opinion, makes sense, as machines might

move ore change quite frequently. Alike the ser-

vice class which interfaces openHAB is imple-

mented against an Interface so that it is not depen-

dent on a speciﬁc implementation. This enables

our software to be relatively easily extended with

the ability to interface automation software other

than openHAB.

• Devices: Devices are representations of switch-

able/bookable machines. The mapping to the cor-

responding actuator in openHAB is present in the

database. For bookkeeping, the product reference

to the corresponding product in odoo is connected

to a device. In our implementation, this product

is a machine hour for a speciﬁc machine type.

Through the device endpoint of the FabAccess-

API, an access device can request metadata like

the name of the device.

• Bookings: For an access device to initiate a book-

ing and switch on the mains for a connected ma-

chine, the FabAccess-API provides an endpoint to

initiate a booking. The booking process consists

of two steps. The ﬁrst step involves creating a

representation of a booking in the local database.

The saved representation of a booking consists of

the booked device, the user who booked the de-

vice and the start time of the booking. After that,

the second step involves switching the plug (ac-

tuator) through openHAB. To end a booking and

to switch off a device, an access device calls the

same endpoint with a DELETE request. This ini-

tiates two processes, ﬁrst the generation of an in-

voice for the corresponding user in odoo. Second,

switching off the corresponding plug (actuator).

Besides that, for the access device to display the

current state of a machine (booked or free), the

FabAccess-API provides the possibility to retrieve

the current booking state of each device.

• Places: As described in section 3.6, our concept

provides for one access device to be in charge of

switching multiple machines (devices) located at

the same physical location. The FabAccess-API,

therefore, maps several devices to one so-called

place. These places are also persisted to the lo-

cal database. The places data model provides for

machines to be placed in a two-dimensional grid.

An access device can retrieve all devices located

at one place via the places endpoint.

4.3 FabAccess-App

The FablabAccess-App was implemented in React

Native

with JavaScript. For the user interface, we

used the React Native Elements component library

We chose React Native for app development as it

provides the possibility to generate Android and iOS

apps from the same program code. Besides that, it can

generate user interfaces with platform-speciﬁc look

and feel.

To interface the NFC hardware of the device, we

used the react-native-nfc-manager module

. This

abstracts the native Android and iOS APIs and makes

NFC functionality available in JavaScript.

The app retrieves and sends its data through the

FabAccess-API, described in section 4.2

Figure 2: Screenshot of our FablabAccess-App.

Figure 3: Detailed Screenshot of header section and book-

ing panel.

https://facebook.github.io/react-native/

https://react-native-training.github.io/

react-native-elements/

https://github.com/whitedogg13/

react-native-nfc-manager

Building an Open Source Access Control System for Fablabs based on odoo and openHAB

Figure 2 shows a Screenshot of our app running

on an Android Tablet. Figure 3 shows a more detailed

section of the header and the booking panel. The user

interface consists of three areas:

• Header and Settings: This area displays a button

on the left side, which leads to the settings menu

of the app. This menu enables an admin to conﬁg-

ure the hostname or IP address of the FabAccess-

API, the API key and the name of the device.

• Booking Panel: This area shows all machines

available at the corresponding place. Machines

are visualized through abstract icons. The view is

shown in ﬁgure 3 shows a section of the booking

panel, which in this setup represents a shelf with

3D-Printers in it. The border color of a machine

icon reﬂects the current state of a machine. Green

indicates that the machine is available, yellow in-

dicates that the machine is currently booked, red

indicates that the machine is currently unavail-

able. A machine is booked by tapping on a ma-

chine symbol.

• Access Area: This area indicates the current au-

thentication state. The authentication state is in-

dicated by a lock icon. A closed lock indicates

that the user is not authenticated, an open lock

indicates that the user is authenticated. A user

authenticates oneself by putting his or her RFID

card near the integrated NFC reader of the Tablet.

Once authenticated the user can book a machine

for a period 20 seconds, after that the user has to

re-authenticate.

A user is only allowed to end bookings that were

initiated by him or herself.

5 EVALUATION

Our goal was to prototypically implement an access

control system that is more ﬂexible and cost-effective

than the solutions in section 2. Another goal was to

only incorporate certiﬁed of the shelf hardware, to en-

sure a safe operation concerning regulatory and actu-

arial speciﬁcations. We met this goal, as we did not

use any self-build piece of hardware.

As our proposed system is through openHAB

hardware-agnostic regarding the protocols used by the

actuators (switchable plugs), it can be relatively eas-

ily extended. This could, for example, be hardware

based on the KNX or ZigBee platform.

We did not meet our self-set requirement to re-

motely sense and log the power consumption, as this

would have taken some more effort on the side of the

data handling.

5.1 Cost Effectiveness

Regarding the cost-effectiveness, we achieved a much

lower cost footprint than Fabman. In comparison to

the calculation presented in 2, the one time costs of

our system are about 1970 C

for a Fablab with 20

machines, if one estimates 5 access devices for these

amount of machines. This is much less compared to

Fabman. This does not include the hardware to run

odoo, openHAB, and our FabAccess-API. But as the

components do not need any speciﬁc hardware, we

assume it will be running on a server that is already

present. However, this comparison is not quite fair

yet, as Fabman is a functioning well-established prod-

uct and not a prototype. Compared to self-build hard-

ware our system is still much more expensive.

5.2 Security

The Z-Wave protocol is proprietary and parts of it are

not yet made public. Routing and topology manage-

ment seems vulnerable, which makes different attack

scenarios for Z-Wave networks conceivable, but does

not allow the takeover of devices (Badenhop et al.,

2017).

However, our socket approach poses a relatively

small obstacle to manipulation. If the mains plug

of a machine is easily accessible, a user can simply

remove the switchable socket and connect the ma-

chine directly to the socket. However, there are also

zWave switches that ensure the connection between

the mains voltage and the machine by ﬁrmly connect-

ing the mains cable to the switch. Regardless of this,

cable-based protocols and standards such as KNX can

also be used for switching sockets. However, such an

installation would be much more complex. Switches

that use other standards and protocols can be inte-

grated relatively easily via openHAB.

Furthermore, a second factor for user authentica-

tion is missing in our prototypical implementation.

Currently, a valid RFID token is sufﬁcient for user

authentication. To prevent the card from being passed

on to other people and the forgery of RFID tokens,

measures such as the query of a PIN would be con-

ceivable.

A restart protection was also not considered in

our implementation. Depending on the machine un-

der consideration, this entails different levels of safety

and injury risks. Although it would be possible to re-

quest and conﬁrm a check of the machine’s operating

switch in the user interface, physical protection would

be more sensible here.

20 x 47C (Wallplugs) + 1 x 55 (Z-Wave Transceiver) +

5 x 195 (Android Tablet) 3

SENSORNETS 2020 - 9th International Conference on Sensor Networks

5.3 Special Electrical Requirements

Machines that are operated with three-phase current

were not considered in our implementation. The

switching of such machines cannot be done by the

switchable sockets we use.

6 CONCLUSION AND OUTLOOK

With our prototypical implementation we showed that

by incorporating Open Source tools, it is possible

to implement a highly ﬂexible system. Compared

to a well-established system like Fabman, we could

achieve a high cost advantage. On the contrary, our

system is still more expensive then any of the pre-

sented self build solutions in section 2. This, how-

ever, could be tackled by a different authentication

method. A way to achieve this would be the incorpo-

ration of a user smartphone and a separate app. A user

then could authenticate oneself with this app and cre-

dentials. Selecting and booking a machine could be

achieved by scanning a QR-Code attached to a ma-

chine. The FabAccess-API could be relatively eas-

ily extended to implement this functionality. Besides

that, other kinds of access devices could be used, as

the API is agnostic regarding the interfacing hard-

ware.

For machines that require ongoing supervision,

one could implement a deadman’s switch to the mo-

bile app.

During the project, we tested Z-Wave plugs in rel-

atively low amounts and frequency of use. A broader

and longer-lasting test is being performed. Despite

that, we did not test the use of other automation plat-

forms than Z-Wave. As most of the switchable plugs

can measure the amount of power that is currently

used, we would like to keep book about that too. For

ease of use, we are currently implementing an admin-

istration interface. Our system currently only sup-

ports odoo ass ERP system. One goal would be to

build an abstraction that enables other ERP systems

to be used with our system.

Besides the points discussed in section 5, one next

step could be to implement the remote sensing and

logging of the power consumption during an active

booking of a machine. On the data retrieval side, this

could be abstract by openHAB. Besides bookkeeping,

continuous sensing of the power consumption could

enable automatic detection of a ﬁnished process, for

example, a ﬁnished print job of a 3D printer, as the

power consumption presumably would be lower dur-

ing idle.

The source code of the FabAccess server compo-

nent and mobile application is available on GitHub

. With the emergence of this paper, a group dis-

tributed over Germany has come together intending

to develop an operational access system. The system

developed by us will merge into this newly emerg-

ing system. All future developments will also be pub-

lished on GitHub

REFERENCES

Alternate (2019). ibaro wall plug gen5 sm, schalter. visited

on 2019-10-30.

Badenhop, C. W., Graham, S. R., Ramsey, B. W., Mullins,

B. E., and Mailloux, L. O. (2017). The z-wave routing

protocol and its security implications. Computers &

Security, 68:112 – 129.

Breucha, M. and Först, M. (2017). Student id scanner – how

to log andsecure machines using off the shelf parts.

Fabman (2019a). Bridge hardware settings - fabman help

guides. visited on 2019-05-01.

Fabman (2019b). Connect your equipment to fabman - fab-

man help guides. visited on 2019-05-01.

Fabman (2019c). Fabman bridge fb-v2 – fabman gmbh.

visited on 2019-05-01.

Fabman (2019d). Fabman: Fabulous shared space manage-

ment. visited on 2019-05-01.

Fabman (2019e). Fabman: Fabulous shared space manage-

ment. visited on 2019-05-01.

Fabman (2019f). Supported keycards - fabman help guides.

visited on 2019-05-01.

Fabman (2019g). Switch on equipment with your phone -

fabman help guides. visited on 2019-05-01.

Figueras, H. (2016). Carontepass: Open access control |

hackaday.io. visited on 2019-09-24.

GitHub (2019). Contributors to sleede/fab-manager ·

github. visited on 2019-09-23.

Manager, F. (2019). Home - fab manager. visited on 2019-

09-23.

Mikhak, B., Lyon, C., Gorton, T., Gershenfeld, N., McEn-

nis, C., and Taylor, J. (2002). Fab lab: an alternate

model of ict for development. In 2nd international

conference on open collaborative design for sustain-

able innovation, pages 1–7.

openHAB Community (2019). Introduction | openhab. vis-

ited on 2019-09-24.

Rakuten (2019a). Aeotec z-stick - usb adapter mit batterie |

rakuten. visited on 2019-10-30.

Rakuten (2019b). Lenovo tab 3 10 business tb3-x70f |

rakuten. visited on 2019-10-30.

Recast, E. (2014). on the harmonisation of the laws of the

member states relating to the making available on the

https://github.com/faaaaabi/fablab-api-gateway

https://github.com/faaaaabi/fablab-access-app

https://github.com/FabAccess

Building an Open Source Access Control System for Fablabs based on odoo and openHAB

market of electrical equipment designed for use within

certain voltage limits (recast). Ofﬁcial Journal of the

European Union, 57(96):374.

SA, O. (2019). Open source erp and crm | odoo. visited on

2019-09-29.

Z-Wave-Alliance (2019). About z-wave technology - z-

wave alliance. visited on 2019-09-29.

Zürich, E. (2019). Student project house. visited on 2019-

09-23.

SENSORNETS 2020 - 9th International Conference on Sensor Networks
