DMTF: A Distributed Algorithm for Multi-team Formation

Amar Nath

, Arun Ar and Rajdeep Niyogi

IIT Roorkee, India 247667, India

Keywords:

Multi-team Formation, Distributed Algorithm, Dynamic Environment, Multi-agent Coordination and Cooper-

ation.

Abstract:

Multi-team formation has received considerable attention in the last decade. Most existing approaches for

team formation assume complete knowledge of the environment, and the problem is reduced to a combina-

torial optimization problem. In a dynamic environmnt, the agents may be spatially distributed, have limited

information, lack global knowledge, and update their knowledge by communicating with each other. In such

a setting, it would be more appropriate for the agents to form teams by themselves in a distributed manner.

In this paper, we suggest a distributed algorithm for multi-team formation (DMTF). The implementation of

a distributed algorithm is quite challenging, and traditionally such algorithms are presented in a theoretical

way. We implemented the proposed algorithm using a multi-robot simulator. The experimental results show

the efﬁcacy of the approach.

1 INTRODUCTION

Task execution in a dynamic environment may re-

quire cooperation among agents. In accomplishing

missions like waste retrieval and disposal, demining,

or objects manipulation in environments where di-

rect human intervention is impossible or impractical,

multi-agent systems are highly recommended. In a

dynamic environment, a task may require multiple

agents for its execution, the time and location of the

task’s arrival, the number of robots required to exe-

cute a task may not be known in advance. More-

over, a task execution may require all the members

of a team to be present at the location of the task. In

this paper, we consider the execution of such tasks in

a dynamic environment formally deﬁned in Section 3.

Hence, the multi-team formation becomes essential in

such situations to accomplish a mission. Henceforth,

agents refer to physical agents, i.e., robots, and the

terms agents and robots are used interchangeably.

To accomplish a mission, multiple teams are to be

formed. This necessitates the design of a distributed

algorithm (Lynch, 1996) that can handle multi-team

formation at runtime. The robots need to communi-

cate with each other to acquire relevant information

to form a suitable team. Moreover, in such a dynamic

environment, explicit coordination is preferred over

https://orcid.org/0000-0002-9290-4378

https://orcid.org/0000/0003-1664-4882

implicit coordination as it provides a better and re-

liable way of multi-robot coordination over implicit

communication (Yan et al., 2013). Implicit coordi-

nation (e.g., stigmergy behavior) is a way of coordi-

nation on a large scale of homogeneous robots, i.e.,

swarm robotics (S¸ahin, 2004).

Team formation has received a lot of attention in

the MAS community. Existing approaches such as

(Okimoto et al., 2016; Faliszewski et al., 2016; Lap-

pas et al., 2009; Guti

errez, 2016) reduce the team for-

mation problem to combinatorial optimization prob-

lem, where the objective is to select k agents from

a set of N agents, where each agent has some skills,

such that a given cost criterion is optimized. These

approaches (Okimoto et al., 2016; Faliszewski et al.,

2016; Lappas et al., 2009) assume complete knowl-

edge of the environment (e.g., the total number of

agents in the environment, skill of an agent); current

state and location of an agent are irrelevant in these

approaches. Typically, in multi-agent settings, agents

have limited information about an environment and

they should coordinate among themselves (say, by ex-

changing messages) to accomplish a given task.

A novel distributed algorithm for multi-team for-

mation (DMTF) is suggested in this paper (Section 4).

The states of the robots are considered in designing

the algorithm because, at a time, a robot can par-

ticipate in one task (especially the multi-robot tasks,

where all the robots of a team are required at task’s

location), and physically can be present at one loca-

152

Nath, A., Ar, A. and Niyogi, R.

DMTF: A Distributed Algorithm for Multi-team Formation.

DOI: 10.5220/0008914701520160

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 1, pages 152-160

ISBN: 978-989-758-395-7; ISSN: 2184-433X

tion. A robot cannot perform multiple activities in one

state at the same time. For example, a robot trying to

form a team with a robot cannot express its willing-

ness to be part of another team at the same time. Thus,

states of the robots are considered, which is a distin-

guishing property of our algorithm. Traditionally dis-

tributed algorithms are mostly presented in a theoreti-

cal and logical way (Lynch, 1996), and the implemen-

tation of a distributed algorithm is quite challenging.

We simulated the DMTF using ARGoS (www.argos-

sim.info); a realistic multi-robot simulator (Pinciroli

et al., 2012).

2 RELATED WORK

In (Okimoto et al., 2016), a centralized mission-

oriented robust multi-team formation problem is sug-

gested. A formal framework is deﬁned, and two algo-

rithms are provided to form robust multi-team. How-

ever, we are interested in forming multi-team in a dy-

namic environment in a distributed manner as agents

lack global knowledge, and hence inter-robot commu-

nication is needed to form an optimal multi-teams for

the tasks.

A distributed approach for coalition or team for-

mation is given in (Shehory and Kraus, 1998; Ab-

dallah and Lesser, 2004; Coviello and Franceschetti,

2012; Tosic and Agha, 2005). The work (Shehory

and Kraus, 1998) suggest greedy distributed set parti-

tioning and set covering algorithms for coalition for-

mation that does not require considering the state and

location of an agent. In our work the team formation

algorithm is designed based on state of an agent. Type

of messages are not given in (Shehory and Kraus,

1998), whereas different types of messages with spe-

ciﬁc meaning is considered in our work.

The work (Abdallah and Lesser, 2004) proposed

an algorithm for coalition formation using an underly-

ing hierarchical organizational structure. A manager

tries to form a coalition for a given task by looking at

the capabilities of its child nodes. If it is not success-

ful, it calls a manager above her in the hierarchy, who

then creates sub-tasks and tries to solve the sub-tasks.

This process continues until no more managers can be

given a sub-task.

In (Tosic and Agha, 2005), an algorithm suggested

for group formation is based on the distributed com-

putation of maximal cliques in the underlying net-

work, where two agents are connected by an edge

if they can communicate among themselves. A

team formation strategy suggested in (Coviello and

Franceschetti, 2012) is based on two kinds of agents:

leader and follower. Agents only have local knowl-

edge of the underlying network. A leader can commu-

nicate with only the neighbors in its visibility range by

sending a request message after looking at some sta-

bility constraints. A follower upon receipt of a request

message replies either accept or reject depending on

whether it wants to be part of the team or not.

Our strategy of team/coalition formation differs

from the above approaches (Abdallah and Lesser,

2004; Coviello and Franceschetti, 2012; Tosic and

Agha, 2005) in the following manner. Our approach

does not use any hierarchical structure among agents

as in (Abdallah and Lesser, 2004). In (Abdallah and

Lesser, 2004), the coalition formation process is del-

egated to other managers, whereas in our approach

either the initiator succeeds or fails in the team for-

mation process; delegation is not allowed. In our ap-

proach, an initiator can communicate with anyone of

agents and is not as restrictive as in (Coviello and

Franceschetti, 2012). In our approach, there are dif-

ferent types of messages whereas in (Coviello and

Franceschetti, 2012) there are only request and ac-

cept/reject messages.

Multi-robot coalition formation has been studied

by (Vig and Adams, 2006), where each robot has

some capabilities and a coalition has to perform some

task for which some capabilities are required. The

authors consider the problem of coalition formation

such that there is no coalition imbalance, which hap-

pens when a large part of resources is ascribed to any

robot in a coalition. A balance coefﬁcient is thus de-

ﬁned and it is used to form a suitable coalition for a

given task. In our algorithm, all the agents in a coali-

tion have required capabilities (skills) for task execu-

tion. Thus the notion of imbalance does not arise in

our case. Moreover, our algorithm is fully distributed

which is not the case in (Vig and Adams, 2006).

Auction-based approaches for team formation

(task allocation) are suggested in (Gerkey and

Mataric, 2002; Kong, 2015; Xie et al., 2018). A

bidder agent has some resources (e.g., data center,

CPU) (Kong, 2015), who may bid for multiple auc-

tioneers concurrently. This does not have any inﬂu-

ence on software agents. However, when we move

to physical agents (eg, robots), a robot cannot be a

member of multiple teams at any point of time simply

because the tasks may be at different locations, and a

robot cannot be at two different locations at the same

time, even though a robot may have the capability to

perform multiple tasks at a time.

In our work a non-initiator robot (the bidder) will

not express its willingness to multiple initiators (auc-

tioneers) concurrently; when more than one request

message arrives, the robot stores the requests in its

local queue. Having one or more resources speciﬁed

DMTF: A Distributed Algorithm for Multi-team Formation

153

in the auction is a sufﬁcient condition for an agent to

make a bid (Kong, 2015). Having the required skills

for a task is a necessary but not a sufﬁcient condition

for a robot to express its willingness to be part of a

team, in our work. A robot’s behavior, in our work,

is determined by its current state, whereas in (Gerkey

and Mataric, 2002; Kong, 2015) states need not be

taken into consideration.

A work (Dukeman and Adams, 2017) also consid-

ers a similar kind of problem, i.e., multi-robots tasks

problem. However, the authors have used a central-

ized approach to solve the problem. In (Xie et al.,

2018), a decentralized approach for object transport

via implicit communication is presented. Our ap-

proach uses a distributed approach to form and assign

a team to a task at run-time via explicit communica-

tion which is different from the approaches given in

(Dukeman and Adams, 2017) and (Xie et al., 2018).

In (Hayano et al., 2016), a task consists of a ﬁnite

number of subtasks, and each subtask is assigned to

a suitable agent who has the required capability for

the subtask. A team for the task can be formed if

each subtask can be assigned to some suitable agent.

In (Hayano et al., 2016) a task is divisible which is

not the case in our work. Moreover, in our work two

or more agents execute a task.

In (Gunn and Anderson, 2015), the authors de-

scribe a framework for dynamic heterogeneous team

formation for robotic urban search and rescue. The

task discovery is made by a member of a team, and

it is sent to the team coordinator for assignment. The

team coordinator performs the task assignment, en-

suring the task will be carried out by a robot with the

necessary capabilities. However, in a distributed sys-

tem, no robot knows the states, locations, and skills of

other robots (i.e., the absence of global knowledge).

Thus, the robots should communicate among them-

selves in order to acquire relevant information for task

execution without the intervention of any central au-

thority. This necessitates the design of a distributed

algorithm for task execution in such a dynamic envi-

ronment. In our approach unlike (Gunn and Ander-

son, 2015), every robot has a similar level of priority,

and each of them can perform the task management

activities, i.e., searching, team/coalition formation by

acquiring the information from the robots available in

the environment at that moment in time.

Distributed coalition value calculation (DCVC) is

given in (Rahwan, 2007). Cost calculation of a team is

done by an initiator in our work. The work (Rahwan,

2007), however, does not consider the problem of dis-

tributed multi team formation, which is attempted in

our work. In this paper, the task arrival time (at what

time it is detected) and location are not known a pri-

ori; hence, task searching and coalition/team forma-

tion activities are performed by a robot at runtime.

The (Skobelev et al., 2018) covers the problem of ag-

gregate and ﬁnal assembly of complex technical ob-

jects at the ramp-up stage. Coalition formation tech-

niques have been implemented on some multi-agent

programming contest domains in (Rodrigues et al.,

2018). The work (Abbasi et al., 2017) suggest a feed-

back control system for motion control of the robots.

3 FORMAL FRAMEWORK

Deﬁnition 3.1. (Dynamic Environment). A global

view (snapshot) of an environment E, with a set of

locations L, taken at time t, is given by a 3-tuple

“ xR

, T

, f y, where R

“ tr

, . . . , r

u is the set

of robots present in the environment at time t, and

“ tτ

, . . . , τ

u is the set of tasks (e.g., multi-robot

tasks) in the environment at time t, f : R

ˆ N ÞÑ L,

is a function that gives the location of a robot at a dis-

crete instant of time represented by the set of natural

numbers N.

In this work agents referred to physical agents,

i.e., robots. Each robot i P R , where 1 ď i ď n, has

a p-dimensional skill vector, χ

“ rα

, . . . , α

s and at

any instant of time it may be in any state from the set

of states S= tIDLE, READY, PROMISE, BUSYu. In

a dynamic environment, the state of a physical agent

(robot) is crucial as a robot can participate in one task,

and can be present at one location at a time. The sig-

niﬁcance of the states are: IDLE state means that a

robot is not executing any task and it is free to take

any responsibility; BUSY state means that a robot is

engaged in executing a task (individually or jointly);

READY state indicate that a robot has detected a task

and it has started the team formation process for it;

and PROMISE state means that an robot has expressed

its willingness to be part of a team as robots are as-

sumed to be independent, autonomous and strictly

collaborative, not selﬁsh and whenever possible they

express their willingness to be part of a team.

Deﬁnition 3.2. (Agent). An agent is deﬁned as a 4-

tuple xS , χ, id, by, where S is a set of states, χ is a non-

null p´dimensional skill vector, id is the identiﬁer,

and b is Boolean variable to denote whether or not the

agent is within the environment.

The value of a particular skill α

(where i “ 1 . . . p)

P χ

, may be 1 or 0 depending on whether a robot i

possess a particular skill or not. A robot can enter

the environment E at any point in time, but can leave

only if it is in IDLE state. In an environment, we can

assume that for the execution of any task, one or more

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

154

skill/s may be required. One way of expressing a set

of skills is by using a p-dimensional vector, where p

is the number of skills, a robot may possess. The i

component of the vector represents a particular skill,

say griping.

Deﬁnition 3.3. (Task). A task τ is speciﬁed by a 4-

tuple τ “ xν, l, t, Ψy where, ν is the name of a task

(e.g., transferring or transporting a box B from loca-

tion l to location l

, lift desk D) etc., where l P L is

the location where the task is arrived/detected, t is the

time at which the task arrived, and Ψ is a non-null p-

dimensional skill vector required to execute the task.

When a robot detects a task τ, it acquires the

information about τ, i.e., p-dimensional skill vector

“ rβ

, . . . , β

s, needed to execute the task. We

use two binary operators @ and C that evaluate to

true/false. Let v

and v

be the skill vectors of a robot

and task respectively. The intuitive meaning of the

operators are: v

C v

holds, when a robot possess at

least one skill for a given task; which signiﬁes that a

robot can be a member of a team to execute the task;

@ v

holds, when a robot possesses all the skills

and possibly more for a given task. (Deﬁnition 3.4).

Deﬁnition 3.4. (Skill Vector). Let v

, v

be two

p-dimensional skill vectors, v

“ rα

, . . . , α

s, v

“

rβ

, . . . , β

s, where α

, β

is either 0 or 1. Let v

ris “ β

denote the i th component of v

. We deﬁne the fol-

lowing operations on the skill vectors as: (i) (v

“

) holds iff (@i, i P t1, . . . , pu, v

ris “ v

ris)

holds; (ii) (v

) holds iff (Di, i P t1, . . . , pu,

s.t. v

ris ^ v

ris holds; (iii) (v

) iff (@i, i P

t1, . . . , pu, s.t. pv

ris Ñ v

risq) holds; (iv) v

op v

“

r1s op v

r1s, . . . , v

ris op v

ris,

. . . , v

rps op v

rpss; where op P t_, ^u de-

notes Boolean operations on the vectors; and (v)

op pv

, . . . , v

q “ p...ppv

op v

q op v

q. . . op v

Deﬁnition 3.5. (Skill Vector of a Team). Let Γ “

, . . . , x

u be a team of k robots, where x

, . . . , x

are

the variables and they are place-holders for r

, . . . , r

We deﬁne a p-dimensional skill vector of the team Γ,

as, ϒ

“ _pχ

, . . . , χ

Deﬁnition 3.6. (Cost of a Task Execution). Let

Γ “ tx

, . . . , x

u be a team that can execute a task

τ “ xν, l, t, Ψy where each member of the team was

located at locpx

, t

q, t

ą t. The cost of a team Γ for

executing τ is C

xΓ,τy

“

PΓ

,τy

where

,τy

“ ppx

, τq ˆ

` dplocpx

, t

q, lq ˆ θ

where,

, θ

P p0, 1s denote remaining battery backup and

battery consumption rate respectively of x

, ppx

, τq is

the basic price of x

for τ, dpl

, l

q is the Euclidean dis-

tance between l

to l

. A robot with higher θ ensures

that it will not fail due to its more remaining battery

backup. A robot with lower θ

ensures that it will last

for a longer period of time.

Deﬁnition 3.7. (Dominant Team). Let Γ

, . . . , Γ

be the possible teams for executing a task τ.

We call Γ

a dominant team if C

xΓ

,τy

xΓ

,τy

@ j P t1, . . . , n

uztiu.

Deﬁnition 3.8. (Conditions for Multi-team Forma-

tion). Tasks τ

“ xν

, l

, t, Ψ

y and τ

“ xν

, l

, t, Ψ

can be executed simultaneously if the following con-

ditions hold:

• There exists a set R

of available robots at some

time t

ą t, such that ϒ

@ Ψ

holds, and at some

time t

ą t

, loc

“ l

for all r P R

• There exists a set R

of available robots at some

time t

ą t, such that ϒ

@ Ψ

holds, and at some

time t

ą t

, loc

“ l

for all r P R

• R

X R

“ H.

Problem Statement: We assume that there is a ﬁnite

number of agents, situated at different locations of an

environment E. No agent knows the total number of

agents in the environment. No agent knows the skills,

current state and current location of another agent.

The only way for an agent to update its knowledge

is via sending messages to another agent(s). Design a

distributed algorithm for dominant multi-team forma-

tion simultaneously.

4 DISTRIBUTED ALGORITHM

FOR MULTIPLE-TEAM

FORMATION (DMTF)

We consider a wireless network that is lossless, mes-

sage delay is ﬁnite, data is not corrupted during trans-

mission. Messages are delivered in a FIFO (ﬁrst-in-

ﬁrst-out) manner. No message is delivered to an agent

who is outside the environment. No assumption is

made on the network topology. Agents are coopera-

tive and whenever possible they expresses their will-

ingness to be part of a team.

The DMTF algorithm consists of send and receive

functions given in Algorithm 1 and 2 respectively. In

order to form a team for the execution of task τ, i com-

municates with other robots. We refer to i as an initia-

tor, and the other robots as non-initiators. The overall

team formation process is given in Algorithm 1 and

Algorithm 2. To form a team, an initiator i broadcasts

a Request message xid

, ν

, l

, pΨ

´ χ

qy within com-

munication range and waits for some time, say ∆; id

is the identiﬁer of initiator i, l

is name of the task τ,

is skill of task τ, and χ

is skill of initiator i. Here,

DMTF: A Distributed Algorithm for Multi-team Formation

155

pΨ

´ χ

q means the remaining skills required for ex-

ecuting the task.

A non-initiator j, who has at least one skill

required to execute the task (i.e., χ

CΨ

will send either a Willing (whose format is

xid

, χ

, p

, θ

, loc

y), if it is in IDLE state or

an Engaged message if its state is other than IDLE.

The initiator increases its counter c when it receives

a Willing message from non-initiator. The initiator

constructs a matrix A S[a

i j

] of dimension pc `1qˆ p,

to keep the record of skills received via Willing mes-

sage. The matrix is initialized with all zero, i.e.,

i j

“ 0; @i P n, @ j P p). If a particular skill is available

in non-initiator’s skill vector χ

, the value on that

cell in the matrix A S[] is updated with value 1. The

column-wise union of each column of the matrix

A S[] is done after computing all Willing messages

(after ∆ time has elapsed). Eventually, initiator

checks whether the task τ can be executed by this

available skill vector. If yes, a dominant team is se-

lected as per Deﬁnition 3.6, which is a combinatorial

optimization problem where k elements are chosen

from a set of size c; this problem is known to be

NP-hard (Okimoto et al., 2015). In the computation

of cost (Deﬁnition 3.6), the distance between two

locations is assumed to be the Euclidean distance.

Otherwise, the task is postponed temporarily. Thus

team formation for a task is not guaranteed any time.

The initiator sends a Conﬁrm message to those

robots (k ´ 1) who are ﬁnally selected for the team

and it sends Not-required message to those robots

(c ´ pk ´ 1q) who had sent Willing message but ﬁnally

are not selected for team. Also, i changes its state

from READY to IDLE or PROMISE depending on its

queue status. The matrix construction and updation

are illustrated by an example later in this section. The

proposed distributed algorithm is non-blocking since

a timer is used. If there was no timer, an initiator

would have waited indeﬁnitely and thereby forcing

some non-initiators to wait indeﬁnitely as well; thus

the system would be blocked.

The receive function of a robot is given in Algo-

rithm 2. The computations are done based on the

current state that may be IDLE (line no. 19-26),

PROMISE (line no. 27-42), BUSY (line no. 14-17

and 44-46), and READY (line no. 2-13). Within a

state, the type of message is checked and appropriate

actions are taken. For example, when state is IDLE, if

a Request message is received, it becomes PROMISE,

the identiﬁer of the sender is en-queued, and ﬂag is set

to true; all these actions are done atomically (denoted

by x. . .y). Now the robot sends a Willing message to

the sender (initiator) and ﬂag is set to false (line no.

24-25 Algorithm 1).

A robot j maintains a local queue Q which keeps

the identiﬁers of the senders, based on the incoming

Request messages. The Q is used to avoid starvation

since more than one initiator may send Request mes-

sages at the same instant in time. When a robot goes

to BUSY state, it means, it is in task execution state,

which takes considerable time. So, maintaining the Q

for this period is of no use, and thus Q is made empty.

The Boolean variables f lag and f lag

are used to con-

trol the sending of Willing and Engaged messages re-

spectively.

Algorithm 1: DMTF-Send function.

Send function of initiator i :

1 state := READY; broadcast Request

;

2 create a matrix A S[a

i j

]

nˆ p

; ˛ to keep the record of skills

3 start timer and wait for ∆ unit of time;

4 if (team formed for task τ) then

5 for each possible team, calculate cost as per Deﬁnition 3.6

and select the team that has minimum cost, say Γ of size k;

6 send Conﬁrm

to pk ´ 1q members of Γ;

7 send Not-Required

to (c ´pk ´ 1q) non-initiators;

8 xstate :“ BUSY; make Q

emptyy;

9 initiate execution of τ when pk ´ 1q members of Γ arrive at

10 else

11 send Not-Required

to c non-initiators;

12 if Q

“ H then

13 state :“ IDLE;

14 else

15 state :“ PROMISE;

16 send Willing

to the front element of Q

;

17 end

18 end

19 if Willing message is received in a state ‰ READY from j then

20 send Not-Required

to j;

21 end

Send function of Non-initiator j for a task τ “ xν, l, t, Ψy:

22 case Q

‰ H and ﬂag = true do

23 send Willing

to the front element of Q

; f lag :“ f alse;

24 end

25 case Q

‰ H and ﬂag

= true do

26 send Engaged

to the rear element of Q

; f lag

:“ f alse;

27 end

In PROMISE state, non-initiator robot receives

either Conﬁrm or Not-required messages. If non-

initiator receive a Conﬁrm message, its approach

towards initiator/task’s location (Algorithm 2, line

no. 31-33). If non-initiator receives Not-required

message, then it change its state from PROMISE to

IDLE (Algorithm 2, line no. 34-41). The non-initiator

who receives the CONFIRM message and moves

towards initiator location, sends a beacon signal to

acknowledge that it has reached. When all selected

robots reach task τ location, they synchronize and

align themselves to be ready for task execution. Even-

tually, initiator commands for task execution and they

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

156

Algorithm 2: DMTF-Receive function.

Receive function of Initiator j :

1 c :“ 0; // to count the number of Willing messages

2 case state = READY do

3 case msg = Request do

4 xenqueuepQ

, iq; f lag

:“ truey

5 end

6 case msg = Willing do

7 c :“ c ` 1;

8 update available matrix A S[a

i j

]

nˆ p

;

9 end

10 case msg = Engaged do

11 skip;

12 end

13 end

14 case state = BUSY do

15 case msg = Request do

16 skip;

17 end

18 end

Receive function of Non-initiator j :

19 case state = IDLE do

20 case msg = Request and χ

CΨ

21 xstate :“ PROMISE; enqueuepQ

, iq if i is not

present in Q

; ﬂag :“ truey

22 end

23 case msg = Request and pχ

CΨ

q do

24 skip;

25 end

26 end

27 case state = PROMISE and χ

CΨ

28 case msg = Request do

29 xenqueuepQ

, iq if i is not present in

; ﬂag

:“ truey

30 end

31 case msg = Conﬁrm do

32 xstate :“ BUSY; make Q

empty; move to loc

33 end

34 case msg = Not-Required do

35 dequeuepQ

36 if Q

“ H then

37 state := IDLE;

38 else

39 ﬂag := true;

40 end

41 end

42 end

43 case state = BUSY do

44 case msg = Request do

45 skip;

46 end

47 end

jointly execute the task.

All the robots of the team including initiator, start

the task execution (transportation) and their state be-

comes BUSY now. After ﬁnishing the task team is dis-

solved and robots (initiator and non-initiator) changes

their state to IDLE. In this way, all the robots of the

environment behave according to Algorithms 1 and 2

and accomplish the mission. Wherever no task is left

of a mission, the algorithm terminates.

5 EXPERIMENTAL RESULTS

In the environment, prototypes in AGRoS, 5

robots and 4 different tasks (transportation of ob-

ject/obstacle) are present. The 6-dimensional skill

vector required for executing the tasks is as fol-

lows: task Ψ

“ r1, 0, 1, 1, 0, 1s, task Ψ

“

r0, 0, 0, 0, 1, 1s, task Ψ

“ r1, 0, 0, 0, 0, 1s, and task

“ r1, 0, 0, 0, 0, 0s. The task τ

, τ

and τ

are

represented with large disc, large box, small disk and

small box respectively. The battery back required for

executing each task is considered to be ě 50%. Ini-

tially, battery backup θ of each robot is assumed to be

100%. The details of a robot is given in Table 1.

Table 1: The value of skill vector χ, basic price p, and bat-

tery consumption coefﬁcient θ

of each robot

Robot Skills set (χ

) (p) θ

r1, 0, 0, 0, 0, 0s 40 .5

r0, 0, 0, 0, 0, 1s 50 .6

r1, 1, 0, 0, 0, 0s 70 .7

r0, 0, 0, 0, 1, 1s 70 .8

r0, 0, 1, 1, 0, 0s 60 .6

5.1 Multi-team Formation Scenario

In the dynamic environment, the arrival time and lo-

cation of the task are not known a priori. In such a

situation, multiple tasks of a mission may be detected

at the same time by different robots (initiators). To

execute the tasks, multiple teams are required to be

formed simultaneously. The algorithm should be ca-

pable enough to handle this situation. The proposed

algorithm handles this situation easily as shown in

Figure 1. If a sufﬁcient number of robots are available

in the environment (conditions for multi-team forma-

tion satisﬁes as given in Deﬁnition 3.8) at the time

of the team formation process, then multiple teams

can be formed successfully. The multi-team can exe-

cute multi-tasks in parallel. The illustration of multi-

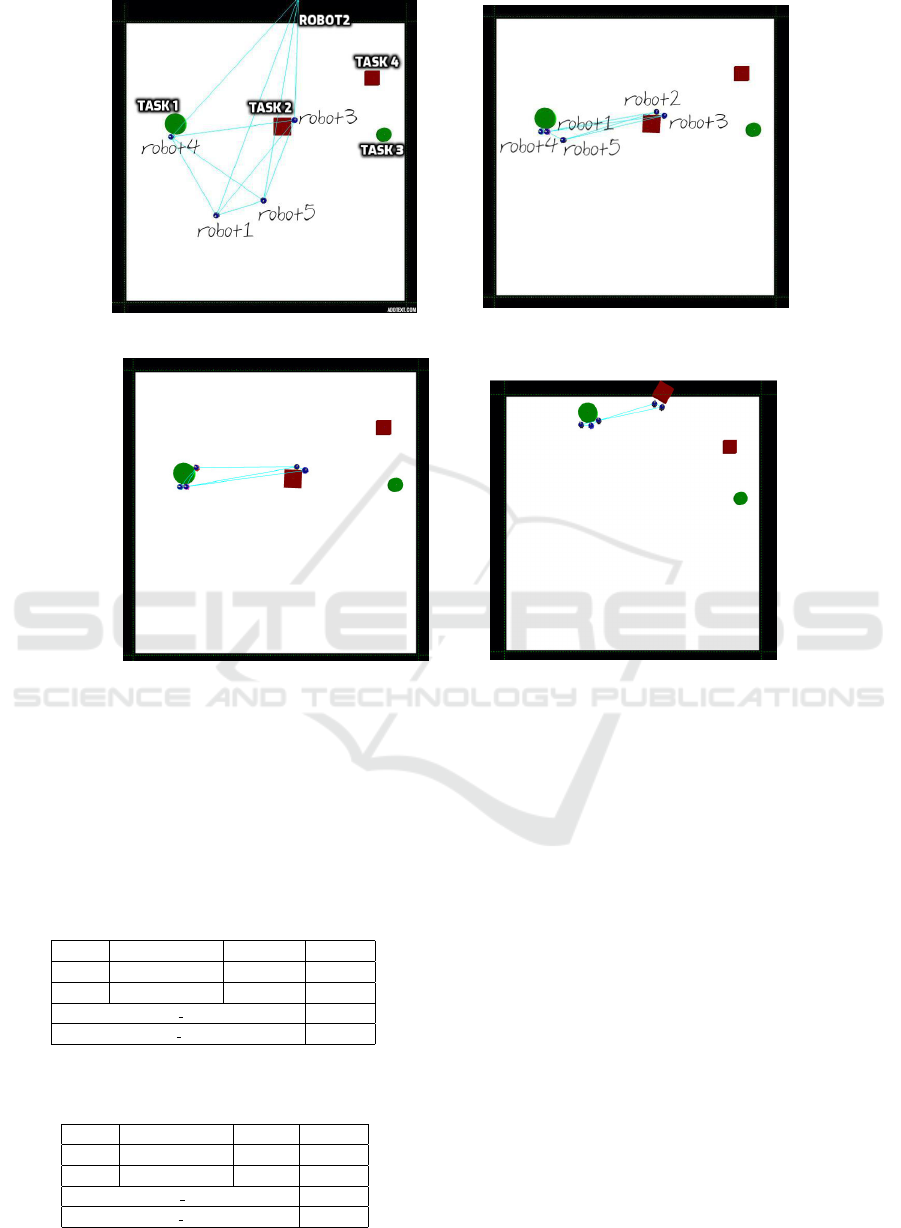

team formation process is given in Figure 1 and cor-

responding formed team are presented in Tables 2 and

At some moment in time, two robots r

and r

de-

tect two tasks τ

and τ

respectively. The task τ

represented by large disc green in color, while the τ

is shown with a large box and red color. Both robots

and r

start the team formation process simultane-

ously. Two teams are formed successfully. The mem-

bers of team 1 and 2 are given in Table 2. The results

DMTF: A Distributed Algorithm for Multi-team Formation

157

(a) r

and r

detect the τ

and τ

respec-

tively

(b) r

and r

have formed their correspond-

ing teams and selected robots coming them

sponding task’s location

(d) τ

and τ

are being executed

Figure 1: Multi-team formation and dual task execution in parallel

for another run of the algorithm are given in Table 3.

In this way, we can conclude that the proposed dis-

tributed algorithm can handle the multi-team forma-

tion.

Table 2: Team formation for the execution of tasks (τ

, τ

simultaneously

Tasks Task’s initiator team Cost

, r

} 1353.45

, r

} 785.78

Total Cost 1149.23

Total Time 123.27

Table 3: Team formation for the execution of tasks (τ

, τ

simultaneously

Tasks Task’s initiator team Cost

, r

} 1145.85

} 646.97

Total Cost 1792.82

Total Time 102.42

5.2 Discussion

We present some challenges encountered during the

implementation. The implementation of the proposed

distributed algorithm (given in Section 4) consists of

challenges like how to explore, navigate, avoid col-

lision, control the speed of a robot when it comes

near other objects (robot or obstacle), rotation and

alignment to reach the exact location, grab the ob-

ject, synchronization while execution. We managed

these issues during the implementation of DMTF in

ARGoS. We have also addressed another subtle situ-

ation, where two robots are present at the location of a

task and both are eligible for executing the task. Now,

they may start the team formation process simultane-

ously for the same task, which should not happen.

This situation is handled as follows. A robot can

sense its neighbor by an omni-directional camera sen-

sor. The robots will exchange their identities and skill

vectors by Beacon signals. The robot who has more

skills will become the initiator. If their skill vectors

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

158

are same, the robot with lower identiﬁer will become

the initiator.

6 CONCLUSION

We considered a type of multiple team formation

problem in a dynamic multi-agent setting, where

agents have limited information about an environment

(e.g., total number of agents present in the environ-

ment, skill, state and location of other robots) and they

should coordinate among themselves by exchanging

messages to accomplish a given mission composed of

multi-robot tasks. We presented a distributed algo-

rithm DMTF that can form multiple teams simultane-

ously, which to the best of our knowledge, is the ﬁrst

attempt.

Implementing a distributed algorithm is nontriv-

ial. A prototype model of the proposed algorithm is

developed in ARGoS; a multi-robot simulation envi-

ronment, and it was tested through intensive simula-

tions. The simulation results are quite encouraging,

exhibit the expected behavior of the algorithm, and

illustrate how multiple teams are formed. Our algo-

rithm could be useful in real-world applications where

control is distributed, and no central entity is respon-

sible for controlling the activities of other robots, and

the roles of robots are not decided in advance. As part

of our future work, we wish to implement the proto-

type model on real robots and test the efﬁciency of the

system.

ACKNOWLEDGMENT

The authors thank the anonymous reviewers for their

valuable comments that were helpful for improving

the paper. The third author was in part supported by a

research grant from Google.

REFERENCES

Abbasi, E., Ghayour, M., and Danesh, M. (2017). Virtual

leader-follower formation control of multi quadrotors

by using feedback linearization controller. In ICRoM,

pages 614–619. IEEE.

Abdallah, S. and Lesser, V. (2004). Organization-based co-

operative coalition formation. In Int. Conf. on IAT,

pages 162–168.

Coviello, L. and Franceschetti, M. (2012). Distributed team

formation in multi-agent systems: stability and ap-

proximation. In 51st Annual Conf. on Decision and

Control, pages 2755–2760.

Dukeman, A. and Adams, J. A. (2017). Hybrid mis-

sion planning with coalition formation. AAMAS,

31(6):1424–1466.

Faliszewski, P., Slinko, A., and Talmon, N. (2016). Voting-

based group formation. In IJCAI.

Gerkey, B. P. and Mataric, M. J. (2002). Sold!: Auction

methods for multirobot coordination. IEEE Trans. on

robotics and automation, 18(5):758–768.

Gunn, T. and Anderson, J. (2015). Dynamic heterogeneous

team formation for robotic urban search and rescue.

Journal of Computer and System Sciences, 81(3):553–

567.

Guti

errez, e. a. (2016). The multiple team formation prob-

lem using sociometry. Computers & Operations Re-

search, 75:150–162.

Hayano, M., Miyashita, Y., and Sugawara, T. (2016).

Switching behavioral strategies for effective team

formation by autonomous agent organization. In

ICAART, pages 56–65.

Kong, e. a. (2015). An auction-based approach for group

task allocation in an open network environment. The

Computer Journal, 59(3):403–422.

Lappas, T., Liu, K., and Terzi, E. (2009). Finding a team of

experts in social networks. In ACM SIGKDD, pages

467–476. ACM.

Lynch, N. A. (1996). Distributed algorithms. Morgan Kauf-

mann.

Okimoto, T., Ribeiro, T., Bouchabou, D., and Inoue, K.

(2016). Mission oriented robust multi-team formation

and its application to robot rescue simulation. In IJ-

CAI, pages 454–460.

Okimoto, T., Schwind, N., Clement, M., Ribeiro, T., In-

oue, K., and Marquis, P. (2015). How to form a task-

oriented robust team. In AAMAS, pages 395–403.

Pinciroli, C., Trianni, V., O’Grady, R., Pini, G., Brutschy,

A., Brambilla, M., Mathews, N., Ferrante, E., Di Caro,

G., Ducatelle, F., et al. (2012). Argos: a modular, par-

allel, multi-engine simulator for multi-robot systems.

Swarm intelligence, 6(4):271–295.

Rahwan, T. (2007). Algorithms for coalition formation

in multi-agent systems. PhD thesis, University of

Southampton.

Rodrigues, T. K. et al. (2018). Constrained coalition forma-

tion among heterogeneous agents for the multi-agent

programming contest.

S¸ahin, E. (2004). Swarm robotics: From sources of inspira-

tion to domains of application. In International work-

shop on swarm robotics, pages 10–20. Springer.

Shehory, O. and Kraus, S. (1998). Methods for task allo-

cation via agent coalition formation. Artiﬁcial intelli-

gence, 101(1-2):165–200.

Skobelev, P., Eliseev, V., Mayorov, I., Travin, V., Zhilyaev,

A., and Simonova, E. (2018). Designing distributed

multi-agent system for aggregate and ﬁnal assembly

of complex technical objects on ramp-up stage. In

ICAART (1), pages 250–257.

Tosic, P. and Agha, G. (2005). Maximal clique based

distributed coalition formation for task allocation in

large-scale multi-agent systems. In Int. Workshop on

Massively Multiagent Systems, pages 104–120.

DMTF: A Distributed Algorithm for Multi-team Formation

159

Vig, L. and Adams, J. A. (2006). Multi-robot coalition for-

mation. IEEE Trans. on Robotics, 22(4):637–649.

Xie, B., Chen, S., Chen, J., and Shen, L. (2018). A mutual-

selecting market-based mechanism for dynamic coali-

tion formation. International Journal of Advanced

Robotic Systems, 15(1):1729881418755840.

Yan, Z., Jouandeau, N., and Cherif, A. A. (2013). A

survey and analysis of multi-robot coordination. In-

ternational Journal of Advanced Robotic Systems,

10(12):399.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

160
