Visualizing Syscalls using Self-organizing Maps for System Intrusion

Detection

Max Landauer

, Florian Skopik

, Markus Wurzenberger

, Wolfgang Hotwagner

and Andreas Rauber

Austrian Institute of Technology, Center for Digital Safety & Security, Vienna, Austria

Vienna University of Technology, Institute of Information Systems Engineering, Vienna, Austria

Keywords:

Anomaly Detection, Self-organizing Maps, Syscall Logs, Visualization.

Abstract:

Monitoring syscall logs provides a detailed view on almost all processes running on a system. Existing ap-

proaches therefore analyze sequences of executed syscall types for system behavior modeling and anomaly

detection in cyber security. However, failures and attacks that do not manifest themselves as type sequences

violations remain undetected. In this paper we therefore propose to incorporate syscall parameter values with

the objective of enriching analysis and detection with execution context information. Our approach thereby

ﬁrst selects and encodes syscall log parameters and then visualizes the resulting high-dimensional data using

self-organizing maps to enable complex analysis. We thereby display syscall occurrence frequencies and tran-

sitions of consecutively executed syscalls. We employ a sliding window approach to detect changes of the

system behavior as anomalies in the SOM mappings. In addition, we use SOMs to cluster aggregated syscall

data for classiﬁcation of normal and anomalous system behavior states. Finally, we validate our approach on

a real syscall data set collected from an Apache web server. Our experiments show that all injected attacks are

represented as changes in the SOMs, thus enabling visual or semi-automatic anomaly detection.

1 INTRODUCTION

Modern computer systems are almost always at risk

of being compromised by adversaries. In particular,

systems that are connected to a network are subject to

malware infections or intrusions executed with the use

of sophisticated tools. As a countermeasure, cyber

security employs monitoring techniques that continu-

ously check applications and processes for signatures

that indicate malicious activities.

However, signature based detection approaches

that rely on predeﬁned patterns are unable to detect

attacks that have never been observed before. As a

solution, anomaly detection enables the disclosure of

previously unknown attacks and failures by recogniz-

ing repeating patterns as normal system behavior and

reporting any deviations from the learned models as

potential threats (Chandola et al., 2009).

Adequate and correctly conﬁgured data sources

are essential for monitoring system behavior in suf-

ﬁcient detail so that manifestations of normal actions

as well as attacks are visible. Other than most ap-

proaches that analyze network trafﬁc for anomaly de-

tection, the focus of our work lies on system log

data, because these logs are semantically more ex-

pressive and contain verbose information about al-

most all events that take place on a system, not only

what is communicated with other machines (Creech

and Hu, 2014; Liu et al., 2011).

Log messages are frequently collected, processed

and analyzed in Security Information and Event Man-

agement (SIEM) systems (Kavanagh et al., 2018).

These systems usually provide interactive dashboards

that visualize monitored log events in real-time. Un-

fortunately, these visualizations are usually limited

to simple charts that display the frequencies of log

events relative to each other, or graphs containing

time-series of event occurrences. We argue that

such simple visualizations do not adequately exploit

the potential of representing information contained

within log events such as syscalls.

Syscalls (system calls) are a type of log data avail-

able in almost all operating systems. Because of their

verbosity and ﬁne-grained view on the executed com-

mands, syscalls are frequently used for forensic sys-

tem analysis after attacks. Shifting to a more proac-

tive analysis, continuously monitoring syscalls using

enables automatic anomaly detection and shortens the

Landauer, M., Skopik, F., Wurzenberger, M., Hotwagner, W. and Rauber, A.

Visualizing Syscalls using Self-organizing Maps for System Intrusion Detection.

DOI: 10.5220/0008918703490360

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 349-360

ISBN: 978-989-758-399-5; ISSN: 2184-4356

349

reaction time after incidents, while at the same time

reducing the required domain knowledge and time

spent with manual analysis.

Existing works that pursue anomaly detection on

syscalls often focus on the sequences of syscall types

alone, i.e., they only consider a single value from the

syscall log lines. However, sophisticated attacks are

designed to resemble legitimate syscall execution se-

quences and thus evade such detection mechanisms

(Shu et al., 2015). There is thus a need for anomaly

detection techniques that are able to incorporate the

execution context in the analysis process. We propose

to use argument and return values as well as user and

process information to enrich behavior models de-

rived from syscall sequences. It is non-trivial to pre-

pare this high-dimensional data in a way that supports

visual review for manual and semi-automatic analysis

of syscall sequences and occurrence frequencies. We

solve this issue by employing self-organizing maps

(SOM) to group and position the syscall log data in a

two-dimensional space for visualization.

We summarize our contributions as follows:

• An approach for visualizing system behavior

through syscall logs using self-organizing maps,

• enabled by a method for selecting and encoding

relevant features,

• with the purpose of manual or semi-automatic

anomaly detection.

The paper is structured as follows. Section 2 re-

views existing approaches for syscall anomaly detec-

tion and visualization. Section 3 provides general in-

formation on syscalls and discusses log data prepro-

cessing. Basics on SOM visualizations and advanced

visualizations of system behavior are outlined in Sect.

4 and Sect. 5 respectively. Our experiments and the

resulting plots are presented in Sect. 6 and discussed

in Sect. 7. Finally, Sect. 8 concludes the paper.

2 RELATED WORK

Monitoring syscalls for cyber security has been an

ongoing research for many years. One of the earli-

est popular approaches was proposed by Forrest et al.

(Forrest et al., 1996), who used a sliding window to

learn a model of normal system behavior from syscall

traces that comprises all observed sequences. After

the learning phase, any appearing sequence not repre-

sented by that model is considered an anomaly.

One critical issue with this and similar succeed-

ing approaches is that they only consider the type of

syscall, but omit all other parameters. This results

in simpler models, but also impairs the capability of

detecting attacks, in particular when attackers design

their attacks to resemble benign syscall sequences. In

order to alleviate this issue and improve the ability

to detect such stealthy or mimicry attacks (Shu et al.,

2015), modern approaches attempt to include the con-

text of syscall execution in their analyses.

To address this issue, Abed et al. (Abed et al.,

2015) include execution context about closely occur-

ring syscalls by computing their frequencies in slid-

ing time windows. Similarly, Yoon et al. (Yoon et al.,

2017) use frequency distributions to cluster syscalls

into proﬁles. In addition to clustering, Shu et al. (Shu

et al., 2015) use syscall occurrence frequencies within

clusters as well as their co-occurrences relevant for

the detection of anomalies.

In many works, neural networks are employed,

because of their prominent ability to detect reoccur-

ring patterns in sequences. For example, Kim et al.

(Kim et al., 2016) make use of ensembles of a par-

ticular type of recurrent neural network named Long

Short-Term Memory (LSTM) network, which is able

to compute the probability distributions of syscalls

that follow a given sequence. Creech and Hu (Creech

and Hu, 2014) ﬁrst identify common sequences of

syscalls as words and then use these words as an in-

put to a fast-learning neural network type called Ex-

treme Learning Machine in order to detect phrases,

i.e., common sequences of these words.

Our approach employs self-organizing maps,

which also belong to the family of neural networks,

but their application differs greatly compared to ex-

isting work. Rather than explicitly learning the se-

quences of appearing syscalls, we use SOMs to group

and place them in an euclidean space, so that the tran-

sitions between them become visually apparent. In

addition, our approach incorporates syscall parame-

ters to enable context-aware analysis. Also Liu et al.

(Liu et al., 2011) take syscall arguments into consider-

ation, but use them to form semantic units, i.e., groups

that describe speciﬁc aspects of program behavior.

Providing visualizations that make syscall se-

quences intuitively understandable is non-trivial.

Saxe et al. (Saxe et al., 2012) group and visualize

syscall sequences of malware. Their approach relies

on a similarity matrix of syscall sequences that is used

to arrange malware on a grid so that clusters of related

malware emerge. In addition, they provide a method

for visual comparison of malware by rendering their

subsequences as sequential colored blocks.

Other approaches that support syscall visualiza-

tions are usually limited to control-ﬂow graphs gen-

erated by linking the learned benign sequences (Es-

kin et al., 2001). However, these graphs do not take

context information into account, and would require

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

350

type=SYSCALL msg=audit(1551210435.995:23194): arch=c000003e syscall=1 success=yes exit=19 a0=d

a1=42 a2=180 a3=0 items=0 ppid=2249 pid=2253 auid=0 uid=33 gid=33 euid=33 suid=33 fsuid=33 egid=33

sgid=33 fsgid=33 tty=(none) ses=2 comm=”apache2” exe=”/usr/sbin/apache2” key=(null)

Figure 1: Sample syscall log line of an Apache process.

Table 1: One-hot encoded sample syscall log line.

syscall 1 syscall 2 syscall 257 success yes success no exit -2 exit 0 exit 19 exit * ...

1 0 0 1 0 0 0 1 0 ...

copies of nodes when syscalls appear with different

parameters, leading to a high complexity. SOMs

alleviate this problem by automatically placing the

syscall instances according to the similarity of their

parameters, thereby effectively clustering the data.

Girardin and Brodbeck (Girardin and Brodbeck,

1998) experiment with approaches to visualize net-

work data, including SOMs. However, their approach

focuses only on labeling the SOM for static analysis

or real-time monitoring. While we also discuss la-

beling for overview, our approach visualizes node hit

frequencies and node transitions in the SOM and ad-

ditionally makes use of sliding time windows to detect

changes of consecutively generated SOMs.

3 SYSCALLS

Syscall log data contains a mixture of categorical

(e.g., syscall types) and textual (e.g., path names)

values and is thus not directly applicable for train-

ing a model using machine learning without appropri-

ate preprocessing. This section therefore investigates

characteristics of syscalls, including the collection of

syscall log data and properties of the data that enable

the generation of a system behavior model.

3.1 Characteristics

Syscalls are used by almost all applications for com-

municating with and requesting services from the

kernel of the operating system that the applications

run on. Employing syscalls as an intermediary is

thereby a necessary step to provide controlled access

to security-critical system components. There usu-

ally exist hundreds of different available system calls

in most modern operating systems, some of the most

common being open, read, or exec (Mandal, 2018).

In busy systems, service requests to the kernel are

frequent, which generates long sequences of syscalls.

Theoretically, the possible amount of combinations of

consecutive syscall types is immense; however, inves-

tigating syscalls shows that occurring syscall subse-

quences are highly regular and contain chains of re-

peating patterns. The reason for this is that applica-

tions execute the same machine code over and over,

thereby generating similar syscall sequences multiple

times. Moreover, the steps necessary for carrying out

particular tasks are usually not subject to change over

time, but are relatively constant (Forrest et al., 1996).

Therefore, mining frequently occurring sequences al-

lows to generate normal system behavior models.

Parameters of syscalls on the other hand are more

variable than syscall types and usually depend on the

elapsed time, user input, other processes, or the sys-

tem environment. While this makes them consider-

ably more difﬁcult to analyze than just the sequences

of syscall types alone, they express the purpose of

the syscall in a more ﬁne-grained detail and are thus

able to reveal information on the context in which

the syscall is executed (Liu et al., 2011). When this

context is expanded to not just one, but sequences of

syscalls, conclusions on the current state of the system

with respect to all its active processes can be drawn.

Incorporating context is a key aspect for utiliz-

ing syscalls for security, since any attacks or exploits

are highly likely to manipulate or spawn processes

and thus manifest themselves within the syscall logs.

Thereby, a single syscall instance alone may not nec-

essarily be reasonably recognizable as part of a mali-

cious process; but rather one or multiple syscalls that

are executed within a speciﬁc context may be indica-

tors that the system has been compromised.

Figure 1 shows a sample syscall log line from

an Apache server. Since the syntax of the lines are

known and only consist of key-value pairs, a parser

is able to extract all relevant parameters from such a

syscall log line, including the time stamp, CPU ar-

chitecture (arch), syscall type, return values (success,

exit), arguments (a0 to a3), user information (uid,

gid), process information (pid, comm, exe), and sev-

eral more. In addition, a number of PATH records

may follow each syscall (indicated by items). It is

usually not feasible and reasonable to include all pa-

rameters when generating self-organizing maps. The

following section explains the difﬁculties and outlines

a method for selecting suitable parameters.

Visualizing Syscalls using Self-organizing Maps for System Intrusion Detection

351

3.2 Feature Selection

One important observation from the sample syscall

log line shown in Fig. 1 is that all parameters (ex-

cept the timestamp) should be treated as categorical

variables, since it is not possible to establish proper

ordinal relationships between the values, even though

some of them are numeric. For example, syscall type

1 (write) is in no way closer related to syscall type 2

(open) than to syscall type 257 (openat).

One possibility to enforce correct handling of cat-

egorical features is to apply one-hot encoding (Har-

ris and Harris, 2007) to the extracted parameters. For

this, it is ﬁrst necessary to identify all unique values of

a parameter to be encoded. In the second step, the pa-

rameter is replaced with a range of parameters, where

each of them speciﬁes whether the respective value is

present in the syscall log line (1) or not (0). Table

1 shows some encoded parameters of the sample log

line from Fig. 1. Thereby, the original name of the

parameter is speciﬁed before the underline character,

followed by the value. In this sample, three syscall

types (1, 2, 257) are present in the data, and accord-

ingly three parameter-value pairs exist, of which the

ﬁrst one is set to 1 and all others to 0 corresponding

to the syscall type 1 in the sample log line. This is

carried out analogously for all other parameters. Note

that for each set of parameter-value pairs, only a sin-

gle 1 is allowed, since each parameter exists only once

in each log line.

Unfortunately, parameters that contain only or

high amounts of unique values result in a massive

enlargement of the resulting feature vector, but only

contribute little or nothing to the ability of grouping

the syscall observations, because the values are al-

most always 0 for each observation. Simply omitting

such parameters is not recommended, because there

may be one or few values that occur more often than

others, which can be relevant feature for clustering.

For example, half of all syscall log lines could have

argument a3=0, while all others have unique values

for this parameter. We suggest to group all values

with insufﬁciently high occurrence frequency in a sin-

gle wildcard-bucket, e.g., all values of a feature that

occur in less than 5% of all rows. This ensures that

frequently occurring values relevant for clustering re-

main in the data, while at the same time vector di-

mension is kept within reasonable bounds. Table 1

shows this idea applied to the parameter exit, where

all exit values other than -2, 0, 19 are allocated to

exit *. Syscalls in this vector format are suitable for

training a SOM. The SOM training process is outlined

in the following section.

4 SELF-ORGANIZING MAPS

This section covers the basics of self-organizing maps

(Kohonen, 1982). We also mention differences to typ-

ical SOM applications and the role of SOMs in our

approach.

4.1 Overview

A self-organizing map (SOM) is a type of neural

network that supports unsupervised learning. The

main goal is to visually represent high-dimensional

input data within a low-dimensional (typically two-

dimensional) space while maintaining topological

properties as closely as possible. This is achieved by

assimilating inherent structures of the input data by a

set of nodes that are usually arranged within a rectan-

gular or hexagonal grid of predeﬁned size. Displaying

the trained grid in a two-dimensional space is a useful

tool for visualization.

The training procedure is as follows: a weight

vector of the same dimension as the input data with

initially random values is assigned to each node of

the grid. The input vector of each syscall instance is

then iteratively presented to the network, which learns

structures of the input data by adjusting the weight

vectors accordingly. Other than most existing neural

networks, SOMs pursue competitive learning, mean-

ing that for each syscall observation, the best match-

ing unit (BMU) is selected by computing the mini-

mal distance between the input vector and all of the

weight vectors. Typical selections for the distance

function are the Euclidean distance for continuous

data and the Manhattan distance for binary or cate-

gorical data. The weight vector of the best matching

unit is then modiﬁed to resemble the currently pro-

cessed input vector more closely using a predeﬁned

learning rate. In addition, all neighboring nodes of

the best matching unit are modiﬁed analogously, but

to a lesser degree. This is carried out iteratively for

all syscall observations in the input data and typically

repeated several hundred times, until the weights of

the grid reach stability (Kohonen, 1982).

As explained in Sect. 3.2, the approach proposed

in this paper makes use of one-hot encoded input

data in order to handle categorical values correctly.

This binary data inﬂuences the typical outcome of the

SOM: it is less common that input vectors ﬁt “in-

between” frequently hit nodes, i.e., relative to the size

of the grid, only a small amount of nodes are se-

lected as best matching units. This leads to the forma-

tion of relatively clear boundaries between the nodes,

which is not usual when SOMs are trained with con-

tinuous ratio scales that typically result in smooth and

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

352

gradually changing structures. Accordingly, the SOM

functions more like a clustering algorithm that groups

similar syscall log lines in the same nodes, but has the

advantage to automatically determine the importance

of each feature for each node and additionally main-

tains an overall topology useful for visualization.

4.2 Node Labels

Node labels improve the expressiveness and simplify

interpretation of SOMs, because they represent the

most important syscall properties and display which

features are shared or differ between neighboring

nodes. We therefore print the names of the most rele-

vant features onto each node.

We mentioned that the binary input data affects

the overall distribution of the nodes, but it also has

an effect on their labels. Other than for contin-

uous data where the feature weights of each node

are not bounded, the weights in our setup lie within

the range [0, 1]. Given that the input vectors are

high-dimensional, it is not unusual that several fea-

ture weights computed at some nodes reach the max-

imum value of 1, meaning that the corresponding

features are all equally important for describing the

node, making automatic selection difﬁcult. In addi-

tion, since these weights are computed solely using

the vector instances that are mapped to the respec-

tive nodes or their neighborhood as outlined in Sect.

4.1, they may not necessarily be appropriate to de-

scribe the node with respect to rest of the grid or the

other data instances. For example, a feature that is

1 in every instance of the whole data set yields the

same weight of 1 at every node as another feature that

is 1 only in the instances mapped to a speciﬁc node,

and 0 in all other instances. However, the latter fea-

ture describes what makes that speciﬁc node different

from the rest of the grid and is thus an arguably more

informative label for the node.

We propose to alleviate this issue as follows. For

each node n ∈ N, compute the relative amount of ones

separately for every feature n

, n

, ..., n

considering

all instances mapped to that node, i.e., r

, r

, ..., r

with r

∑

, where

is the number of in-

stances mapped to n. Then compute the relative

amount of ones for every feature considering all in-

stances that are not mapped to that node, i.e., use the

rest of the instances from the whole data set m = N \n

to compute s

, s

, ..., s

by s

∑

. Finally,

compute the vector w = r−s that is higher for features

that are present many times in the node instances, but

rare in the data set. We see this value as a weight that

indicates the most interesting features that distinguish

the nodes and thus use it to select the labels.

Note that it is also possible to approach this issue

conversely by considering the absence of a feature as

an appropriate descriptor for a node. This is carried

out in the same manner, but computing the relative

amounts of zeros present in the data instances mapped

on the node and the data set respectively. However, it

is less intuitive to comprehend this kind of labeling

and it was therefore omitted.

We also want to point out that due to the fact that

the one-hot encoded data of one speciﬁc syscall log

parameter always must only have a single 1 in all

the features belonging to that parameter, it is unlikely

that more than one feature corresponding to the same

syscall log parameter are within the set of highest-

weighted features. Considering the sample shown in

Table 1, this means that it is unlikely that both fea-

tures syscall 1 and syscall 2 are within the top ranked

features, but rather a mixture of different parameters.

5 SYSTEM BEHAVIOR ANALYSIS

The previous section explained relevant properties of

SOMs with respect to binary input data that is derived

from syscall log lines. In this section we build upon

these insights and propose concepts for deriving sys-

tem behavior from the SOM.

5.1 Frequency Analysis

After training the SOM is completed, it is possible to

map every syscall feature vector from the input data

set to the node that yields the lowest distance to that

input vector, analogously to the learning process de-

scribed in Sect. 4.1. Visualizing these hit frequen-

cies of all nodes results in a so-called hit histogram

that displays the distribution of syscall execution fre-

quency across the nodes. The hit distribution is rele-

vant for system behavior analysis, because in steady

systems the relative amounts of occurrences of all

syscall types are normally expected to be quite sta-

ble within identically sized time windows, or follow

periodic behavior.

We use logarithmic scaling for visualizing hit dis-

tributions. The reason for this is that in almost all real

systems, syscall frequency distributions are highly

unbalanced, making it difﬁcult to recognize devia-

tions on low-frequency nodes. An example of a hit

histogram is given in the following section.

5.2 Sequence Mining

Hit histograms represent a static unordered view on

the syscalls appearing within a time window and thus

Visualizing Syscalls using Self-organizing Maps for System Intrusion Detection

353

syscall_93

success_yes

exit_361

syscall_5

success_yes

exit_361

syscall_3

success_yes

exit_361

syscall_91

success_yes

exit_361

syscall_85

success_yes

exit_361

syscall_82

success_yes

exit_361

success_no

exit_−2

syscall_146

success_yes

exit_361

syscall_4

success_yes

exit_361

Freq (log)

0.0

0.5

1.0

1.5

2.0

Figure 2: SOM of three sample processes (orange and yel-

low loops of arrows), including one anomaly (red arrows).

lack the ability to represent the sequences of syscalls.

Our approach therefore connects nodes that are con-

secutively hit with arrows that point from each node

to the subsequently hit node. When the same node is

hit twice in a row, we insert a circular arrow pointing

from the node to itself. We superimpose all arrows on

the hit histogram and color the arrows according to

the number of times this connection is present in the

data, where yellow indicates a high number of transi-

tions, orange indicates a moderate number of transi-

tions, and red indicates a low number of transitions.

Again, logarithmic scaling is applied.

Figure 2 shows a demonstration of the mentioned

concepts on sample data. The data used for this vi-

sualization captures the three processes P1, P2, and

P3 that continuously execute the following types of

syscalls: P1 executes 93-91-82-93-91-82-..., P2 exe-

cutes 3-4-146-3-4-146-..., and P3 executes 3-5-5-85-

3-5-5-85-... over a long period of time, where each

number corresponds to a particular syscall operation,

such as opening a ﬁle or executing a task. Several

conclusions can be drawn from the plot: First, all

processes are correctly depicted. The smaller orange

loop of arrows in the bottom right corner corresponds

to P1, the yellow loop of arrows corresponds to P2,

and the larger orange loop of arrows in the bottom

corresponds to P3. It is easy to distinguish the pro-

cesses by observing the node labels where the syscall

type is placed as the most relevant characteristic of

most nodes, because it is the most diverse feature in

the data. Second, P2 contains an anomaly that mani-

fests itself as a syscall of type 146 that returns an un-

successful exit code -2 instead of the successful exit

code 361. Such an anomaly could not be detected by

a system behavior modeling approach that only takes

syscall type numbers into account. Accordingly, the

labels show that the parameters are higher weighted

than the syscall type. Third, the hit histogram shows

that the node of brightest color corresponds to syscall

type 3, meaning that it is most frequently hit. This

is reasonable, because both P2 and P3 make use of

syscall type 3. Fourth, the arrow colors show that the

yellow loop of transitions corresponding to P2 is the

most active of all processes, and that the anomalous

syscall was only executed very infrequently as indi-

cated by the red arrows.

Note that processes usually overlap each other and

are often executed in parallel. This causes that the se-

quences of syscalls are interleaved and thus lead to

inconsistent transitions between the nodes. It is there-

fore necessary to only draw connections from any hit

node to the subsequently hit node if the corresponding

syscall logs originate from the same process. Luckily,

syscall log lines typically have some kind of process

identiﬁer (e.g., the ﬁeld pid logged by the Linux au-

dit daemon) that allows to differentiate the individual

processes easily.

5.3 System Monitoring

Utilizing these process identiﬁers allows to create

process models within the SOMs by selecting only

the syscall log lines that possess the respective iden-

tiﬁer. However, this would result in numerous SOM

visualizations that have to be tracked simultaneously.

We therefore propose to superimpose the transitions

identiﬁed from all processes onto a single SOM, de-

spite the increased complexity of the resulting plot.

The purpose of the transitions is to incorporate

temporal dependencies into the plot. However, a

SOM is still a rather static construct; it captures the

system behavior within a speciﬁc time window. In or-

der to obtain a more dynamic view on the system be-

havior, our approach is to run a sliding window over

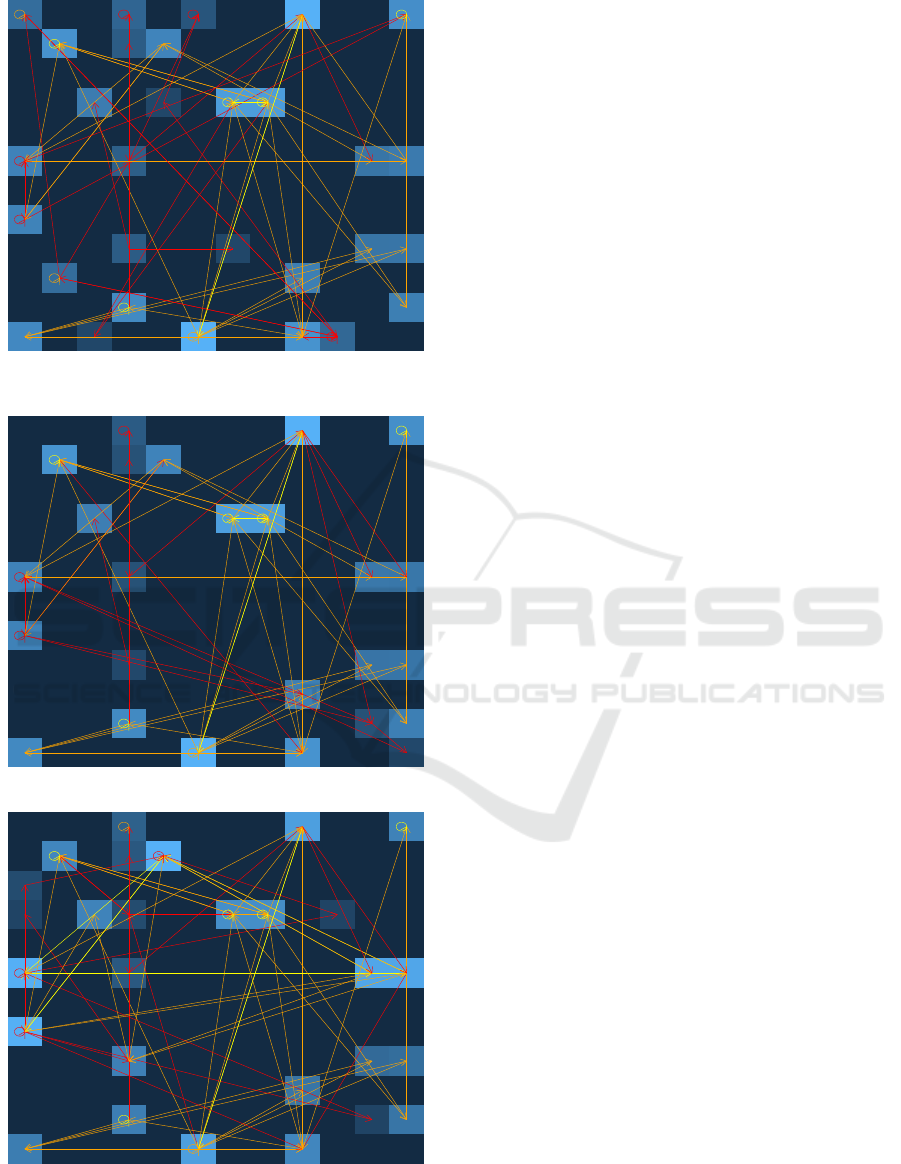

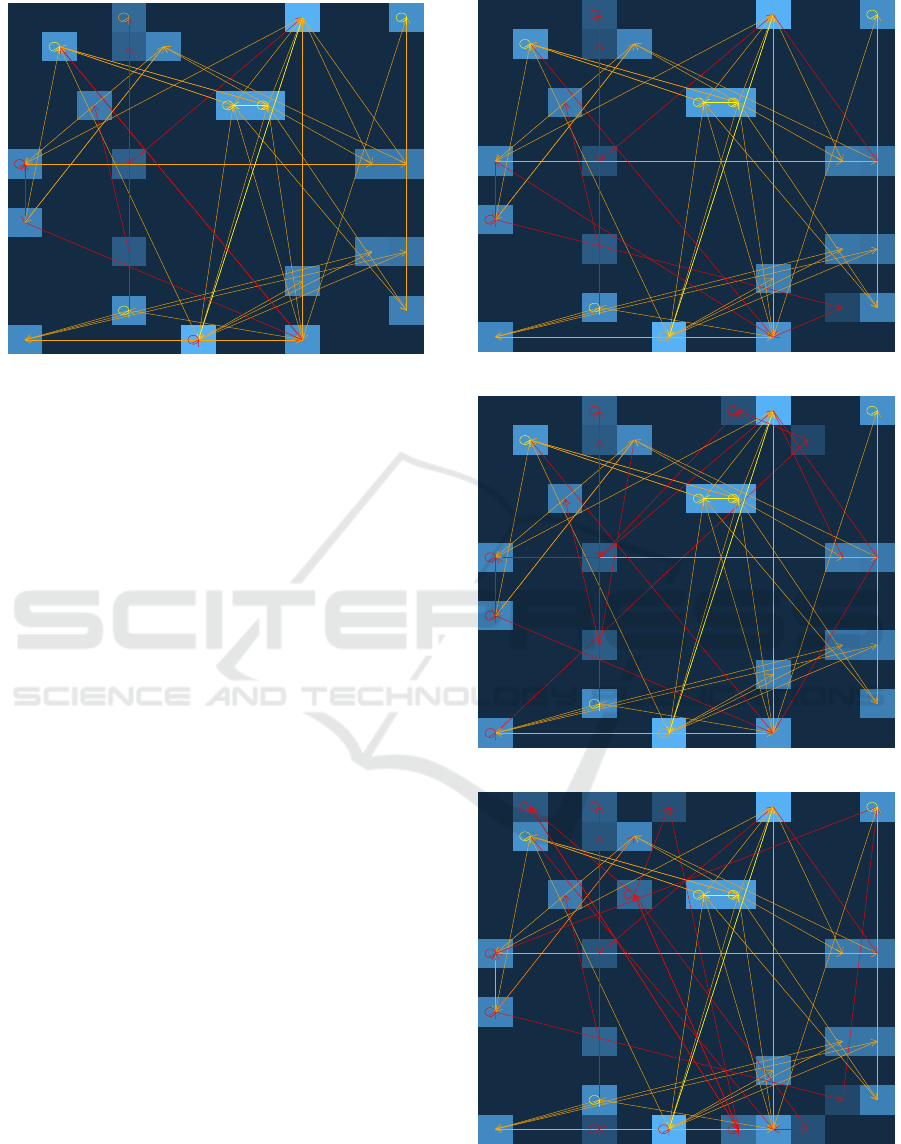

the data to generate sequences of SOMs. By going

through the SOMs of the time slices, changes of the

system behavior, such as previously empty nodes pop-

ping up, transitions suddenly appearing, or frequen-

cies rapidly changing, become more obvious for the

analyst.

We support this visual analysis by automatically

computing anomaly scores that describe the dif-

ference between two consecutive SOMs. We uti-

lize two anomaly scores: (i) node-based anomaly

score that is deﬁned as the sum of squared differ-

ences of all node hit frequencies, and (ii) transition-

based anomaly score that is deﬁned as the sum of

squared differences of all node transition frequencies.

These anomaly scores form time-series, where low

values indicate constant system behavior and rapidly

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

354

increasing anomaly scores indicate a change of sys-

tem behavior that may originate from malicious ac-

tivity.

5.4 Syscall Aggregation

The methods outlined in the previous sections focus

on mapping individual syscalls to SOMs, visualizing

their interactions, and detecting changes of reoccur-

ring behavior on a detailed level. However, it is not

easy to differentiate individual states of the system be-

havior, for example, periodically reoccurring states or

the return to a known anomalous state.

For such a broader view on the data, we visualize

aggregated syscalls, i.e., occurrences counted within

sliding time windows. Other than the frequency-

based approaches mentioned in Sect. 2 that count

only syscall types, we propose to take all syscall pa-

rameters into consideration. In particular, we com-

pute the sum of occurrences of each feature in the

one-hot encoded data. The resulting data matrix con-

taining continuous values is then used as the input of

a SOM. We then slide another ﬁxed-size window over

the data instances that represent aggregated time win-

dows and create sequences of hit histograms. Since

syscalls are not ordered in this setup, we omit dis-

playing the transitions in this view. We present the

resulting visualizations at the end of Sect. 6.4.

6 EXPERIMENTS

This section presents the experimental validation of

our approach. We describe the input data and the gen-

erated SOMs.

6.1 Data

We validated our approach on real syscall log data

that was generated by employing a modiﬁed version

of the semi-supervised approach proposed by Skopik

et al. (Skopik et al., 2014). Our system comprises

a MySQL database and an Apache web server that

hosts the MANTIS Bug Tracker System

and had

virtual users perform normal tasks on the web inter-

face, including reporting, editing, and viewing bugs,

changing their preferences, etc. The syscall logs were

collected using the audit daemon (auditd

) from the

Linux Auditing System and a set of auditing rules that

log the most relevant syscall types from all processes

started by the Apache user. The sample syscall log

https://www.mantisbt.org/

https://linux.die.net/man/8/auditd

line shown in Fig. 1 was generated on our system.

In total, we obtained 70 unique types of input vectors

after one-hot encoding.

The log lines were preprocessed using a Python

script that extracts all values into a CSV format. We

carried out our analyses in R, where we used the pack-

ages kohonen

for generating SOMs and ggplot2

for

plotting.

6.2 Attacks

Beside visualizing normal system behavior in a SOM,

we also pursued to validate the ability of our approach

to visualize anomalies, i.e., deviations from the nor-

mal behavior, within a realistic scenario. For this, we

set up exploits for ﬁve vulnerabilities on the Apache

web server and prepared one vulnerability scan trig-

gered by the same user that accesses the MANTIS

Bug Tracker System for generating the normal data.

The attacks comprise (i) a local ﬁle inclusion, where

the content of a ﬁle locally stored on the Apache web

server is accessed, (ii) a remote ﬁle inclusion, where

content served by the web server is executed, (iii) a

command injection, where user information is dis-

played by executing a command locally on the ma-

chine, (iv) a remote command injection, where net-

cat is used to execute a reverse shell, (v) an unre-

stricted ﬁle upload vulnerability, where a ﬁle can be

placed into an arbitrary directory, and (vi) a vulnera-

bility scan, where the Nikto Web Scanner

is used to

generate suspicious user behavior.

We ran the simulation for a total of 320 minutes

and directed the user to execute the attacks in the same

order as described above in intervals of 50 minutes,

starting at minute 30. The manifestations of these at-

tacks in the syscall audit logs were afterwards manu-

ally located to verify their presence. Each attack gen-

erates a sequence of syscalls, of which most parts are

identical to syscall sequences that correspond to nor-

mal behavior. Only some of the syscall log lines differ

from normal behavior by their syscall types, parame-

ters or place in the sequence.

6.3 System Behavior Model

Before going into detail on the detection of the

attacks, we ﬁrst investigate the visualization of

normal system behavior. In order to display the nor-

mal behavior, the SOM is trained on the full data set,

https://cran.r-project.org/web/packages/kohonen/

index.html

https://cran.r-project.org/web/packages/ggplot2/index.

html

https://cirt.net/Nikto2

Visualizing Syscalls using Self-organizing Maps for System Intrusion Detection

355

a2_1000

sy_0

a0_d

a2_4000

sy_0

a0_d

mo_01006

sy_2

ou_0

a2_1000

a0_any

sy_0

mo_01006

ou_33

sy_2

na_PAREN

it_2

mo_04173

a0_c

sy_0

a2_any

mo_01407

ou_105

og_112

mo_01407

ou_105

og_112

a2_1f40

a0_c

sy_0

a2_1f40

su_no

a0_c

sy_42

su_no

a0_any

sy_20

a0_c

a2_any

sy_20

a0_c

a2_any

su_no

a0_any

sy_0

mo_01207

sy_89

a2_1000

mo_01207

sy_89

a2_1000

na_UNKNO

su_no

sy_89

sy_49

a0_any

a2_any

a0_any

sy_1

a2_any

sy_42

a0_any

a2_any

sy_1

a2_any

a0_d

sy_0

a2_any

a0_d

Figure 3: Visualization of syslog data representing normal

behavior.

which also includes the log data corresponding to the

attacks. Then, a sliding time window of 10 minutes

passes with a step width of 1 minute over all syslog

instances that occur before the ﬁrst attack and maps

these points into the SOM. Figure 3 shows one of

these mappings. In the ﬁgure, some nodes are brighter

than others, meaning that they are hit more frequently.

Similarly, yellow arrows indicate a high number of

transitions between the two connected nodes, while

orange arrows indicate a moderate and red arrows a

low amount of transitions.

Despite the ﬁgure appearing complex at ﬁrst

glance due to the many arrows overlapping, the to-

tal amount of arrows is comparatively low consider-

ing that transitions could exist between any of the 23

nodes active in this time window. In fact, the average

amount of outgoing transitions from each active node

is only 2.55. Comparing multiple visualizations of

non-overlapping time windows also shows that their

distributions of nodes and transitions is remarkably

consistent over time. This indicates that SOMs are

able to capture the normal system behavior correctly

and enables the detection of anomalies as changes of

the otherwise largely constant plot.

6.4 Anomaly Detection

As mentioned in the previous section, the log data

generated by the attacks was included in the training

input data. However, there does not exist a speciﬁc

feature that differentiates between normal and anoma-

lous input vectors as it is done in most supervised

learning methods that train their models on labeled

data. We therefore consider our proposed approach

to be an unsupervised method to identify anomalous

system behavior within a ﬁxed set of input data that

a2_1000

sy_0

a0_d

a2_4000

sy_0

a0_d

mo_01006

sy_2

ou_0

a2_1000

a0_any

sy_0

og_33

ou_33

mo_01006

ou_33

sy_2

na_PAREN

it_2

mo_04173

a0_c

sy_0

a2_any

mo_01407

ou_105

og_112

mo_01407

ou_105

og_112

a2_1f40

a0_c

sy_0

a2_1f40

su_no

a0_c

sy_42

su_no

a0_any

sy_20

a0_c

a2_any

sy_20

a0_c

a2_any

su_no

a0_any

sy_0

mo_01207

sy_89

a2_1000

mo_01207

sy_89

a2_1000

na_UNKNO

su_no

sy_89

sy_49

a0_any

a2_any

a0_any

sy_1

a2_any

sy_42

a0_any

a2_any

sy_1

a2_any

a0_d

sy_0

a2_any

a0_d

Figure 4: Visualization of the local ﬁle inclusion attack.

a2_1000

sy_0

a0_d

a2_4000

sy_0

a0_d

mo_01006

sy_2

ou_0

a2_1000

a0_any

sy_0

mo_01006

ou_33

sy_2

na_PAREN

it_2

mo_04173

a0_c

sy_0

a2_any

mo_01407

ou_105

og_112

mo_01407

ou_105

og_112

a2_1f40

a0_c

sy_0

a2_1f40

su_no

a0_c

sy_42

su_no

a0_any

sy_20

a0_c

a2_any

sy_20

a0_c

a2_any

su_no

a0_any

sy_0

mo_01207

sy_89

a2_1000

mo_01207

sy_89

a2_1000

na_UNKNO

su_no

sy_89

sy_49

a0_any

a2_any

a0_any

sy_1

a2_any

sy_49

a2_any

a0_d

sy_42

a0_any

a2_any

sy_42

a2_any

a0_d

sy_1

a2_any

a0_d

sy_0

a2_any

a0_d

Figure 5: Visualization of the remote ﬁle inclusion attack.

a2_1000

sy_0

a0_d

pp_2004

co_id

ex_/usr/

a2_4000

sy_0

a0_d

pp_2004

co_id

ex_/usr/

mo_01006

sy_2

ou_0

og_0

na_NORMA

a2_1000

a0_any

sy_0

og_33

ou_33

mo_01006

ou_33

sy_2

na_PAREN

it_2

mo_04173

a0_c

sy_0

a2_any

mo_01407

ou_105

og_112

mo_01407

ou_105

og_112

a2_1f40

a0_c

sy_0

a2_1f40

su_no

a0_c

sy_42

su_no

a0_any

sy_20

a0_c

a2_any

sy_20

a0_c

a2_any

su_no

a0_any

sy_0

pp_2004

co_id

ex_/usr/

mo_01207

sy_89

a2_1000

mo_01207

sy_89

a2_1000

na_UNKNO

su_no

sy_89

sy_49

a0_any

a2_any

a0_any

sy_1

a2_any

pp_2004

co_id

ex_/usr/

sy_42

a0_any

a2_any

a0_any

sy_1

a2_any

sy_1

a2_any

a0_d

sy_0

a2_any

a0_d

Figure 6: Visualization of the command injection attack.

enables clustering and differentiation between normal

behavior patterns and attack classes.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

356

a2_1000

sy_0

a0_d

sy_89

a2_1000

it_1

a2_4000

sy_0

a0_d

mo_01006

sy_2

ou_0

og_0

na_NORMA

a2_1000

a0_any

sy_0

mo_01006

ou_33

sy_2

pp_2127

co_nc.tr

ex_/bin/

na_PAREN

it_2

mo_04173

a0_c

sy_0

a2_any

su_no

mo_01207

ou_0

mo_01407

ou_105

og_112

mo_01407

ou_105

og_112

a2_1f40

a0_c

sy_0

a2_1f40

su_no

a0_c

sy_42

su_no

a0_any

sy_20

a0_c

a2_any

sy_20

a0_c

a2_any

su_no

a0_any

sy_0

pp_2004

co_id

ex_/usr/

mo_01207

sy_89

a2_1000

mo_01207

sy_89

a2_1000

na_UNKNO

su_no

sy_89

sy_49

a0_any

a2_any

a0_any

sy_1

a2_any

pp_2127

co_nc.tr

ex_/bin/

sy_42

a0_any

a2_any

a0_any

sy_1

a2_any

sy_1

a2_any

a0_d

sy_0

a2_any

a0_d

Figure 7: Visualization of the remote command injection

attack.

a2_1000

sy_0

a0_d

a2_4000

sy_0

a0_d

mo_01006

sy_2

ou_0

sy_90

mo_01006

og_33

a2_1000

a0_any

sy_0

og_33

ou_33

mo_01006

ou_33

sy_2

na_PAREN

it_2

mo_04173

a0_c

sy_0

a2_any

mo_01407

ou_105

og_112

mo_01407

ou_105

og_112

a2_1f40

a0_c

sy_0

a2_1f40

su_no

a0_c

sy_42

su_no

a0_any

sy_20

a0_c

a2_any

sy_20

a0_c

a2_any

su_no

a0_any

sy_0

mo_01207

sy_89

a2_1000

mo_01207

sy_89

a2_1000

na_UNKNO

su_no

sy_89

sy_49

a0_any

a2_any

a0_any

sy_1

a2_any

sy_42

a0_any

a2_any

sy_1

a2_any

a0_d

sy_0

a2_any

a0_d

Figure 8: Visualization of the ﬁle upload injection scan.

a2_1000

sy_0

a0_d

a2_4000

sy_0

a0_d

mo_01006

sy_2

ou_0

a2_1000

a0_any

sy_0

og_33

ou_33

mo_01006

ou_33

sy_2

na_PAREN

it_2

mo_04173

a0_c

sy_0

a2_any

mo_01407

ou_105

og_112

mo_01407

ou_105

og_112

a2_1f40

a0_c

sy_0

a2_1f40

su_no

a0_c

sy_42

su_no

a0_any

sy_20

a0_c

a2_any

sy_20

a0_c

a2_any

na_UNKNO

su_no

na_any

su_no

a0_any

sy_0

su_no

sy_89

it_1

mo_01207

sy_89

a2_1000

mo_01207

sy_89

a2_1000

na_UNKNO

sy_20

a0_c

na_UNKNO

sy_2

su_no

na_UNKNO

su_no

sy_89

sy_49

a0_any

a2_any

a0_any

sy_1

a2_any

sy_42

a0_any

a2_any

sy_1

a2_any

a0_d

sy_0

a2_any

a0_d

Figure 9: Visualization of the vulnerability scan.

We now go through the SOM visualizations that

involve attacks. For this, the sliding window approach

used to capture the normal system behavior was car-

ried on to generate SOM mappings for time windows

of 10 minutes length distributed over the whole data

set. We compared the consecutive SOM visualiza-

tions to empirically assess that this time window size

is large enough to record almost all normal behavior

and small enough so that attacks do not overlap, i.e.,

there is always at most one attack taking place in ev-

ery time window. Also note that the maximum delay

between the launch of the attacks and their detection

is equal to the step width of the sliding time window,

i.e., in our setting, it takes at most 1 minute after com-

pletion of the attack to see its effects in the SOM. In

the following, we select a representative time window

for each attack and discuss whether and how the ma-

licious behavior manifests itself as artifacts in the re-

spective visualizations.

Figure 4 shows the visualization of the system be-

havior inﬂuenced by the local ﬁle inclusion attack.

This attack only generates a single suspicious syscall

log line and is thus the most difﬁcult attack to detect

for our SOM approach. Comparing the SOM map-

pings to the SOM that visualizes normal behavior,

this log line manifests itself as one additional node hit

that is visible close to the bottom right corner of the

SOM. The labels suggest that ogid=33, ouid=33, and

mode=0100644 are the most relevant features. We

assessed that these feature values individually occur

several thousand times in the data, but only their com-

bined occurrence is distinctive for this and three other

attacks. This shows that the attack is not detectable

by monitoring all parameter values individually, but

only the combinations of values.

As visible close to the top right corner of the SOM

in Fig. 5, the remote ﬁle inclusion attack includes

the execution of syscall types 42 and 49. Again, both

these syscalls and the parameter a0=d are common

in the data, but only their combined occurrences are

unique for this attack. The command injection at-

tack displayed in Fig. 6 is easier to detect, since it

generates several unusually parameterized log lines,

which are visible in the top and bottom of the SOM.

In particular, the log lines stand out due to their parent

process id (ppid) of 2004 and the command (comm)

value “id”. A similar interpretation is possible for the

remote command injection attack displayed in Fig. 7,

with the difference that netcat (nc.traditional) is used

as a command. Figure 8 shows the ﬁle upload injec-

tion attack, which causes the execution of the same

command as the local ﬁle inclusion attack and addi-

tionally generates a syscall of type 90 that appears

as a node hit in the bottom right of the SOM. This

Visualizing Syscalls using Self-organizing Maps for System Intrusion Detection

357

0 50 100 150 200 250 300

0.0 0.2 0.4 0.6 0.8 1.0

Node and Transition Changes between Time Windows

Time window

Anomaly Score

Figure 10: Anomaly scores computed from node (solid black line) and transition (dashed blue line) changes show rapid

increases when the sliding time window enters and leaves intervals containing attacks (dotted red, vertical lines).

is the only syscall of this type in the data and thus

also detectable without context information. Finally,

Fig. 9 shows the SOM corresponding to the vulnera-

bility scan. This attack induces the execution of sev-

eral thousand syscalls and is thus the easiest of our

attacks to detect. Beside some previously inactive

nodes receiving hits, the attack mainly manifests it-

self as changes of hit and transition frequencies in the

SOM, visible by nodes turning brighter and arrows

changing color.

As outlined in Sect. 5.3, the differences between

the consecutively generated SOMs result in time-

series that indicate changes of system behavior. Fig-

ure 10 shows the progression of these anomaly scores

measured on the nodes and transitions over time. Note

that due to our sliding window approach, each at-

tack causes a peak when the attack enters the window

and another one when the attack leaves the window.

The anomaly score does not indicate system behav-

ior changes from time windows in-between, because

they are all equally affected by the same attack. The

dashed red lines mark the points in time where the

change of system behavior is expected.

In alignment with the observed changes of the

SOMs, the third, fourth and sixth attack are strongly

visible as peaks of the anomaly score, the second

and ﬁfth attack cause moderate increases and the ﬁrst

attack slight increases of the anomaly score. The

progression of the anomaly score also shows several

smaller peaks that are dismissed as false positives.

Closer inspection shows that most of them are indeed

generated by inconsistent behavior of the web server,

but do not relate to our injected attacks.

Finally, Fig. 11 shows the results of our exper-

iments with aggregated syscall data as described in

Sect. 5.4. We display twelve plots where attack and

normal behavior phases are alternating, i.e., the plots

in the ﬁrst, third, and ﬁfth column correspond to the

six attacks, while the plots in the second, fourth, and

sixth column correspond to phases of normal behavior

in between. Note that each plot covers a time span of

35 minutes and consists of data points that represent

25 minute time windows, e.g., the ﬁrst plot covers the

time span of minute 7 to 42 and contains twelve data

points corresponding to the sliding time windows 7-

32 minutes, 8-33 minutes, ..., 18-43 minutes.

We interpret the plots as follows. Time windows

of normal system behavior relate to nodes in the cen-

ter or closer to the bottom left of the plot. Time win-

dows that contain attacks end up concentrated on the

sides or in the corners of the SOM. The reason for

this is that these anomalous phases are highly differ-

ent and thus end up far away from the normal behav-

ior. The reason that the normal behavior does not per-

fectly overlap is attributable to the false positives al-

ready mentioned.

Note that we ascertained that the labels largely

correspond to the labeling of the SOMs discussed be-

fore, i.e., nodes of SOM mappings of data containing

attacks are labeled according to the respective features

relevant for detection. For a more convenient view of

the plots, we decided to cluster the nodes according

to their distances using a hierarchical clustering al-

gorithm. The clusters are displayed in Fig. 12 for a

predeﬁned amount of 6 clusters (left) and 13 clusters

(right). Note that the cluster plot functions as a mask

that classiﬁes system behavior when being superim-

posed on the SOMs from Fig. 11. In particular, the

left plot shows that clusters are found at the top left,

top right, and bottom right corner as well as the right

edge of the SOM, while the large gray area (marked

with 1) mostly corresponds to normal behavior. The

colored areas correspond to the third, fourth, ﬁfth, and

sixth attack, and thus conﬁrm our interpretations of

the SOMs. Note that the clusters 5 and 6 in the top

right corner correspond to only one attack. The plot

on the right shows that a more ﬁne-grained cluster-

ing is required to also identify the ﬁrst and second

attack, which are more difﬁcult to detect. However,

this also misclassiﬁes the normal behavior between

the ﬁrst and second attack.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

358

Time window 7 − 42

Time window 36 − 71

Time window 61 − 96

Time window 89 − 124

Time window 113 − 148

Time window 139 − 174

Time window 169 − 204

Time window 193 − 228

Time window 214 − 249

Time window 237 − 272

Time window 267 − 302

Time window 283 − 318

Figure 11: SOMs of aggregated syscall data from multiple time spans. The plots in the ﬁrst, third, and ﬁfth columns cor-

respond to attack time windows, while the plots in the second, fourth, and sixth columns correspond to normal behavior in

between.

1 1 1 1 1 1 2 2 2

1 1 1 1 1 1 1 3 3

4 4 4 1 1 1 5 5 5

4 4 4 1 1 1 5 6 6

1 1 1 1 1 1 10 2 2

12 12 1 1 1 1 10 13 13

12 12 12 1 1 1 1 3 3

12 12 7 7 7 1 8 3 3

12 12 7 7 7 1 12 3 3

9 9 9 7 7 7 5 11 11

4 4 9 7 7 7 5 6 6

Figure 12: Clusters serving as a mask for SOMs. Left: 6

clusters differentiate normal behavior (marked with 1) and

four attack phases. Right: 13 clusters identify all attack

phases.

7 DISCUSSION

The results presented in the previous section show

that all injected attacks are detected by our approach.

In particular, the labels of the nodes that correspond

to the anomalies indicate that the parameters of the

syscall log lines are essential in differentiating be-

tween normal and anomalous behavior. This is a sig-

niﬁcant advantage to existing methods that only focus

on syscall types alone.

Employing SOMs for system behavior modeling

emerged as a useful tool to generate visual assis-

tance that improves the overview of the data and en-

ables the exploratory detection of anomalous behav-

ior. Thereby, no particular domain knowledge about

the syscall log lines and the monitored system itself

is required, as long as a reasonable time window size

that captures all normal behavior is selected. We de-

liberately did not select a particular set of parame-

ters for our analyses, but rather used all available val-

ues that occur sufﬁciently many times in the data,

as outlined in Sect. 3.2. We realize that difﬁculties

regarding the selection of appropriate time window

sizes and thresholds for binning feature values may

emerge in practical applications, but argue that they

can be determined with reasonable effort during the

exploratory analysis. Nevertheless, we are aware that

an automated parameter selection is able to improve

the method and support the analyst. We leave this task

for future work.

Despite the fact that our feature selection com-

bined with the one-hot encoding resulted in high-

dimensional input vectors, we observed that the com-

plexity of the data was rather low, consisting only of

70 unique types of input vectors. The reason for this

is that our Apache server handles almost all opera-

tions made on the website similarly, despite random

navigation and selections on the website. A system

that produces more complex input data would require

larger SOM sizes in order to decrease the chance of

normal and attack input vectors being mapped to the

same nodes. Choosing optimal SOM sizes and cutoff

values for feature selection is non-trivial and must be

determined iteratively by exploration. Note that we

due to our exploratory approach, we did not carry out

any evaluation regarding the computation time and fo-

cused on the detection and interpretation of patterns.

One limitation of our approach is that attack vec-

tors must be present in the training data, otherwise the

SOM does not learn the feature weights of the attacks,

and mapping them to speciﬁc nodes is not possible.

This prevents online detection of unknown anomalies

on a pre-trained SOM. One solution is to continuously

retrain a SOM on the most recent data for detection of

unknown anomalies and use pre-trained SOMs only

for classiﬁcation of known attacks.

Furthermore, it is non-trivial to derive concise

rules that describe system behavior from SOMs. This

is due to the fact that the visualized processes fre-

quently overlap partially and share nodes, making it

difﬁcult to extract dependencies.

Finally, the node placement of SOMs is topolog-

ically correct in the sense that similar syscalls are

likely to be located close to each other. This makes

Visualizing Syscalls using Self-organizing Maps for System Intrusion Detection

359

it possible to easily recognize variations of existing

sequences and determine which features are respon-

sible for the divergences. However, the placement

is almost certainly not ideal to visualize syscall se-

quences in chains, i.e., to reduce the arrow lengths

between nodes. While it is possible to display the ac-

tive nodes of a SOM and their transitions as a graph

and reorder the nodes to avoid edges crossing over

or running across the plot, this would undermine the

topological node placement of the SOM.

We especially recommend our approach for sys-

tems with predictable behavior, otherwise the amount

of false positives may easily become overwhelming.

8 CONCLUSION

In this paper, we introduced an approach to visu-

alize high-dimensional syscall log lines using self-

organizing maps. Other than most existing ap-

proaches, our solution incorporates parameters as

context information, which is necessary to identify at-

tacks that do not manifest themselves as anomalous

sequences of syscall types, but rather involve unusual

combinations of parameter values. Our visualizations

involve hit histograms that show the number of input

vectors mapped to each node, as well as transitions

that display hit sequences. We used a sliding window

approach to analyze consecutively generated SOMs

and computed an anomaly score based on their pair-

wise changes. In addition, we proposed to aggregate

the syscalls within time windows and also visualized

their occurrence counts. We generated syscalls on a

real system to validate our approach. All attacks in-

jected in the system were identiﬁed as changes of the

SOMs. We therefore conclude that SOMs are suitable

to be applied for semi-automatic anomaly detection

in ﬁxed data sets by supporting exploratory analyses

with visual cues.

ACKNOWLEDGEMENTS

This work was partly funded by the FFG projects IN-

DICAETING (868306) and DECEPT (873980), and

the EU H2020 project GUARD (833456).

REFERENCES

Abed, A. S., Clancy, T. C., and Levy, D. S. (2015). Ap-

plying bag of system calls for anomalous behavior de-

tection of applications in linux containers. In IEEE

Globecom Workshops, pages 1–5. IEEE.

Chandola, V., Banerjee, A., and Kumar, V. (2009).

Anomaly detection: A survey. ACM Computing Sur-

veys, 41(3):15.

Creech, G. and Hu, J. (2014). A semantic approach to host-

based intrusion detection systems using contiguous

and discontiguous system call patterns. IEEE Trans-

actions on Computers, 63(4):807–819.

Eskin, E., Lee, W., and Stolfo, S. (2001). Modeling sys-

tem call for intrusion detection using dynamic window

sizes. Proceedings DARPA Information Survivability

Conference and Exposition II, pages 165–175.

Forrest, S., Hofmeyr, S. A., Somayaji, A., and Longstaff,

T. A. (1996). A sense of self for unix processes. In

Proceedings of the IEEE Symposium on Security and

Privacy, pages 120–128. IEEE.

Girardin, L. and Brodbeck, D. (1998). A visual approach for

monitoring logs. In Proceedings of the 12th Systems

Administration Conference, pages 299–308.

Harris, D. M. and Harris, S. L. (2007). Chapter 3 - se-

quential logic design. In Digital Design and Com-

puter Architecture, pages 103 – 165. Morgan Kauf-

mann, Burlington.

Kavanagh, K., Bussa, T., and Sadowski, G. (2018). Magic

quadrant for security information and eventmanage-

ment. Gartner.

Kim, G., Yi, H., Lee, J., Paek, Y., and Yoon, S. (2016).

Lstm-based system-call language modeling and robust

ensemble method for designing host-based intrusion

detection systems. arXiv preprint.

Kohonen, T. (1982). Self-organized formation of topolog-

ically correct feature maps. Biological Cybernetics,

43:59–69.

Liu, A., Jiang, X., Jin, J., Mao, F., and Chen, J. (2011). En-

hancing system-called-based intrusion detection with

protocol context. pages 103–108.

Mandal, S. (2018). Operating system — introduc-

tion of system call. https://www.geeksforgeeks.org/

operating-system-introduction-system-call/. Online;

accessed: 2019-12-04.

Saxe, J., Mentis, D., and Greamo, C. (2012). Visualization

of shared system call sequence relationships in large

malware corpora. In Proceedings of the 9th Interna-

tional Symposium on Visualization for Cyber Security,

pages 33–40. ACM.

Shu, X., Yao, D., and Ramakrishnan, N. (2015). Un-

earthing stealthy program attacks buried in extremely

long execution paths. In Proceedings of the 22nd ACM

SIGSAC Conference on Computer and Communica-

tions Security, pages 401–413. ACM.

Skopik, F., Settanni, G., Fiedler, R., and Friedberg, I.

(2014). Semi-synthetic data set generation for secu-

rity software evaluation. In Proceedings of the 12th

Annual International Conference on Privacy, Security

and Trust, pages 156–163. IEEE.

Yoon, M.-K., Mohan, S., Choi, J., Christodorescu, M., and

Sha, L. (2017). Learning execution contexts from sys-

tem call distribution for anomaly detection in smart

embedded system. In Proceedings of the 2nd Interna-

tional Conference on Internet-of-Things Design and

Implementation, pages 191–196. ACM.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

360
