Bident Structure for Neural Network Model Protection

Hsiao-Ying Lin, Chengfang Fang and Jie Shi

Huawei International, Singapore

Keywords: Machine Learning Security, Deep Neural Networks, Learning Model Protection, Model Confidentiality.

Abstract: Deep neural networks are widely deployed in a variety of application areas to provide real-time inference

services, such as mobile phones, autonomous vehicles and industrial automation. Deploying trained models

in end-user devices rises high demands on protecting models against model stealing attacks. To tackle this

concern, applying cryptography algorithms and using trusted execution environments have been proposed.

However, both approaches cause significant overhead on inference time. With the support of trusted execution

environment, we propose bident-structure networks to protect the neural networks while maintaining

inference efficiency. Our main idea is inspired by the secret-sharing concept from cryptography community,

where we treat the neural network as the secret to be protected. We prove the feasibility of bident-structure

methods by empirical experiments on MNIST. Experimental results also demonstrate that efficiency overhead

can be reduced by compressing sub-networks running in trusted execution environments.

1 INTRODUCTION

Artificial neural networks based machine learning

techniques have achieved great advancements in

many tasks, such as image classification, language

model and speech recognition. To provide a faster

inference services, models are deployed in end-user

devices for many services or applications. For

instance, deep learning based object detection and

classification techniques have been deployed in

image-based advanced driver-assistance systems.

However, deploying models in devices brings

new challenge on model protection. It takes

considerable amount of time and effort to train a

learning model to its peak accuracy, especially for

collecting training data and sophisticated training

processes. It is important to protect those trained

model against model stealing attacks.

There are two types of model stealing attacks. The

first type attempts to learn the network parameters

and structure by probing the runtime environment in

order to obtain the ability of the train model. The

second type tries to construct an equivalent model by

adaptively querying the model (Tramér et al., 2016).

Here we address the first type of attacks.

Previous studies took cryptographic approaches

that applying secure computation for secure training

and inference of machine learning models while

keeping parameters in encrypted format (Chen et al.,

2018; Jiang et al., 2018; Juuti et al., 2019). Another

approach is to use trusted execution environments,

such as Inter SGX (Olga et al., 2016; Gu et al., 2018;

Tramér & Boneh, 2019), or TEE (Volos et al., 2018;

VanNostrand et al., 2019). Both approaches introduce

significant performance overhead.

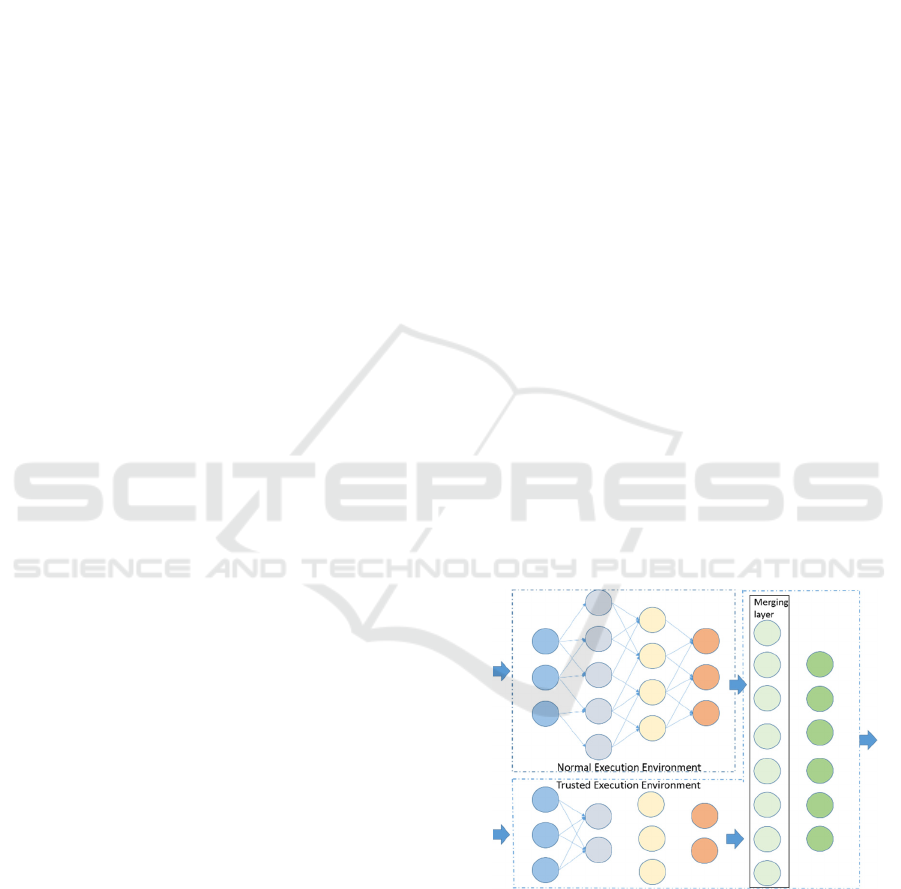

Figure 1: Bident structure based neural network.

We use a hybrid approach that combines the

secret-sharing concept from cryptography

community and trusted execution environments

supported by commercial hardware, where the model

is the secret to be protected. We propose the method

of using bident structure based neural networks,

bident networks in short, where inference can be

Lin, H., Fang, C. and Shi, J.

Bident Structure for Neural Network Model Protection.

DOI: 10.5220/0008923403770384

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 377-384

ISBN: 978-989-758-399-5; ISSN: 2184-4356

377

executed along two sub-networks in two separated

environments with no intermediate interaction. As

long as one cannot obtain both parts of the model, one

is unable to reconstruct an effective model which has

the same ability as the original one. An abstract

network structure is illustrated in Figure 1. Each

circle is a neural and each edge is a data flow path.

The whole neural network consists of two sub-

networks and they are glued by a merge layer where

output from two sub-networks are merged. One part

of the network is deployed in untrusted environment

(also called normal execution environment.) Another

part of the network including the final output is

deployed in trusted execution environment.

To validate the feasibility of our proposed method,

we conduct experiments on MNIST datasets by

exploring several bident structure based neural

networks. Experimental results not only prove the

feasibility. They also show that the efficiency

overhead can be reduced by compressing the sub-

network in trusted execution environment while

keeping the same accuracy.

Our main contribution is providing a model

protection method by utilizing bident structures in

neural networks and leveraging trusted execution

environment while maintaining performance.

2 BACKGROUND

2.1 Deep Neural Network

For a classification service, at a high level, a deep

neural network model takes an input, transforms it

along the network layers of neurons and finally

outputs the predicted class. It requires a training

dataset and an initial deep neural network model to

generate such a model. For each neuron, the

computation is applying an activation function on the

weighted summation of input. An example is shown

in Figure 2. Two input a

and a

are summed up by

weights w

and w

on the corresponding edges and

then provided to activation function f to generate the

output. Generating a neural network model is called

training and using a trained model is call inference.

In this study, we focus on convolutional neural

networks.

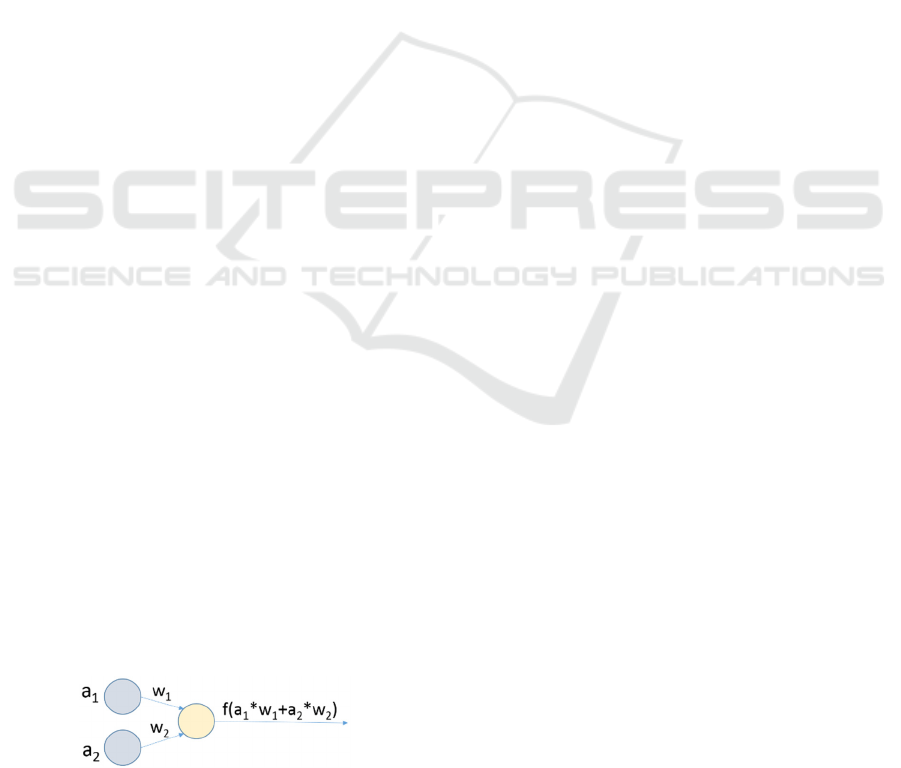

Figure 2: Computation of a neuron.

2.2 Trusted Execution Environment

A trusted execution environment is isolated from an

untrusted execution environment. It is implemented

by hardware-software co-design. The isolated

environment guarantees integrity of the execution

codes, privacy of the execution processes, and data

confidentiality in secure memory. Available

providers include Intel SGX, ARM TrustZone and

Sanctum.

Operations in trusted execution environments are

usually slower than ones in untrusted execution

environment. Experimental results from (Tramér &

Boneh, 2019) show that neural network operations in

trusted execution environment is 50 times slower than

in untrusted execution environment. Interactions

between processes in two separated environment are

also costly in terms of performance. Secure memory

that can only be accessed from trusted execution

environment is usually limited. For instance, the

secure execution environment OP-TEE based on

ARM TrustZone allocates 7MB secure memory while

running neural networks requires much more memory

(VanNostrand et al., 2019).

3 RELATED WORK

Previous studies took cryptographic approaches or

used trusted execution environments.

Applying secure computation for secure training

and inference of neural network models keeps the

model in encrypted format (Chen et al., 2018; Jiang

et al., 2018; Juuti et al, 2019). Specifically, weights

of the model are encrypted and then inference is

performed in encrypted format. Those cryptographic

operations results in significant computation

overhead.

Another approach is to use trusted execution

environments. As described in previous section,

trusted execution environments have performance

constraints: less computation efficiency, limited

memory space, and latency introduced by interaction

between two environments.

To address the efficiency constraint, researchers

divide the inference computation into two parts and

outsource the part of matrix multiplications from

trusted execution environment to untrusted one

(Tramér & Boneh, 2019). Figure 3 illustrates the main

idea. During executing the neural network, for each

layer in the network, there is one matrix

multiplication. Matrices are masked in trusted

execution environment and then sent to untrusted

execution environment where matrix multiplication is

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

378

done. The result is sent back and unmasked in trusted

environment. This method reduced the cost of matrix

multiplication in trusted execution environment.

However, inference computation involves many

interaction between untrusted and trusted execution

environments. The interaction cost is linear in the

number of neurons in the network.

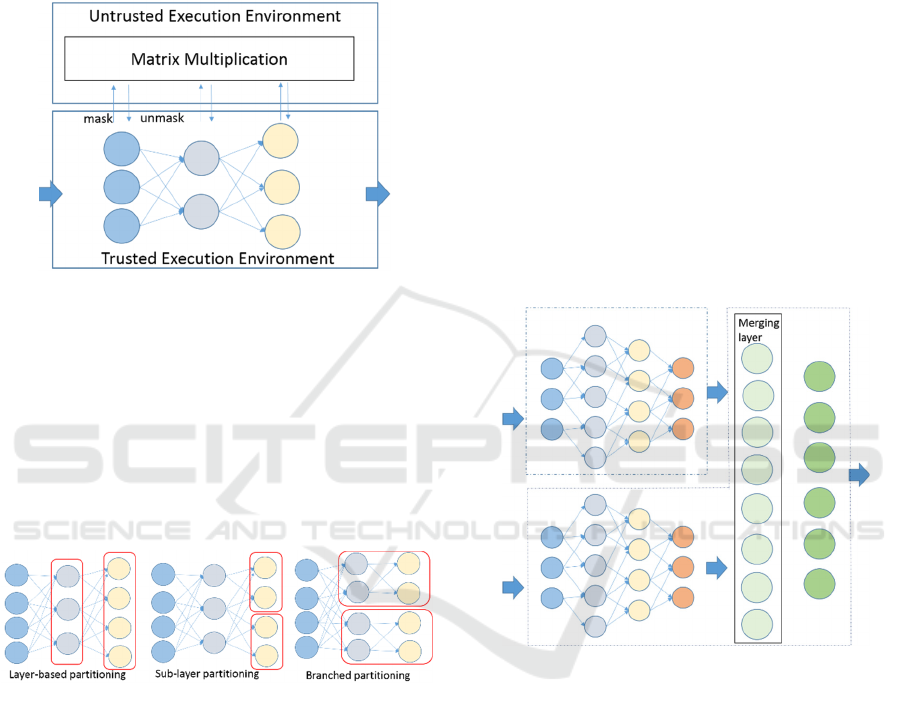

Figure 3: Outsource matrix multiplications.

To address the limited memory space constraint,

researchers partition the neural network into several

sub-networks and sequentially perform inference

computation for each sub-networks in trusted

execution environments (VanNostrand et al., 2019).

Figure 4 illustrates the proposed partitioning method.

The partition principle is that computation of each

partition can be completed in trusted execution

environment within the memory space limitation.

Figure 4: Partitioning types.

Above two methods address the model protection

issue after the neural network model is made. We take

another viewpoint to manage the model protection

need. With the need in mind, a sophisticatedly

designed neural network can be considered before the

training phase, not after. It makes our method

different from other similar approaches.

Bident network structures are not new in the areas

of applying machine learning. They are applied to

processing heterogeneous input for object detection

in autonomous vehicles (Chen et al. 2017). However,

it is the first time that it is used for protecting models.

4 BIDENT NETWORK

We assume that a trusted execution environment is

available in deployed devices. Our idea is to build the

model in a structure such that part of the model is

running in trusted execution environment. Analog to

secret sharing techniques in cryptography, the secret

(i.e. the model) is firstly transformed into another

format (i.e. bident network structure.) Later the

transformed format is split into pieces and each piece

is hold by a different entity. As long as over a certain

number of pieces are available, the secret can be

reconstructed back. Inspired by this concept, we

propose bident network structure for designing the

neural network. Figure 5 illustrates an example of

symmetric bident network structure where the

network consists of two sub-networks deployed in

two environments separately. Both sub-network takes

the same input and their output are merged by the

merging layer.

Figure 5: Symmetric bident network.

The generalized bident network structure takes

input for two sub-networks without any limitation on

how input are prepared. We focus on duplications

here where input to sub-networks are identical.

By putting a sub-network in trusted execution

environment, corresponding parameters are protected.

By putting another sub-network in untrusted

execution environment, computation cost is partially

offloaded from the trusted execution environment. By

the bident structure, sub-networks can be performed

in parallel, so the interaction between two

environments is massively reduced.

One may concern about the sub-network exposed

in untrusted execution environment, the feasibility of

the solution and the impact on the performance. We

investigate them in the following.

Bident Structure for Neural Network Model Protection

379

With the bident network structure, when the sub-

network in untrusted execution environment makes

major influence on the result, it reveals too much

information. To avoid this situation, we implement

the merging layer by operations that both input make

influence, such as multiplication, maximum and

average operations.

To prove the feasibility of bident network

structures, two issues need to be addressed. The first

one is the potential overfitting issue since the network

structure may be overkilled. We investigate this issue

by conducting experiments where networks are fine-

tuned.

The second issue is the offloading functionality.

That is whether the computation in trusted execution

environment can be reduced by the help of one in

untrusted execution environment. We conducted

experiments on asymmetric bident network to explore

the opportunity. Figure 6 illustrates an example of

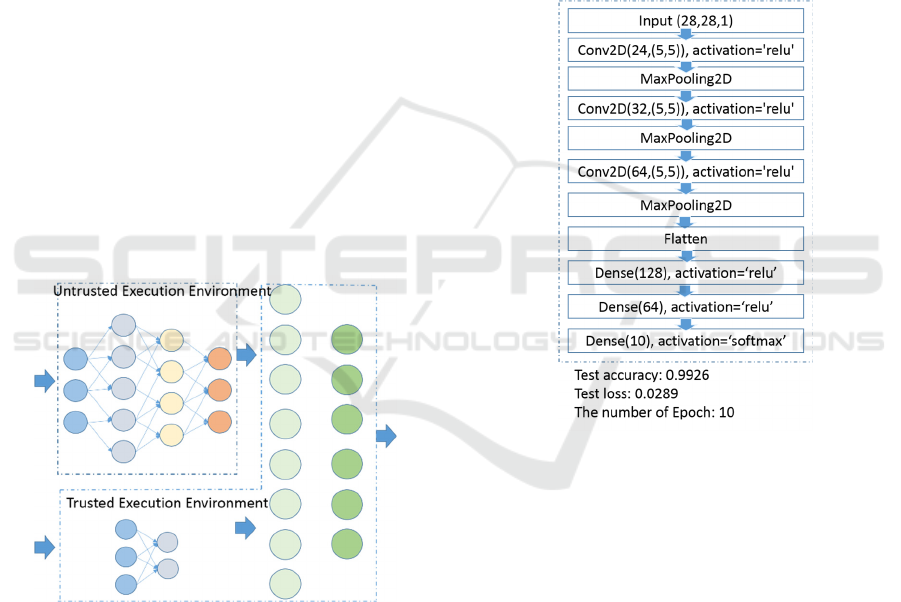

asymmetric bident network structure. Our

experiments are conducted to show that it is feasible

to find a bident network structure where the resulting

accuracy is above 99% and the sub-network in trusted

execution environment can be slightly reduced.

To observe the impact on performance, we

analyse experimental results of variant networks in

the next section.

Figure 6: Asymmetric bident network.

5 EMPIRICAL EVALUATION

To evaluate the feasibility and performance, we

conduct experiments on National Institute of

Standards and Technology (MNIST) dataset, a

handwritten classification dataset. Firstly, we train a

base model with at least 99% accuracy as a baseline

for the network configuration and the number of

epochs.

We then evaluate a symmetric bident network

structure with concatenation operation to test the

water. Taking one more step, we evaluate symmetric

bident network structures with other merging

operations, i.e. multiplication, maximum and average.

Finally, in order to see if a sub-network can be

reduced, we evaluate asymmetric bident networks.

5.1 Setup

Our experiment dataset is MNIST, where the training

and test datasets contain 60,000 and 10,000 samples

respectively. The training dataset is divided into two

subsets with 50,000 samples and 10,000 samples for

training and validation.

Figure 7: Base convolution neural network.

Each experiment has two major steps. The first

one is to set the batch size as 32, train the model with

30 epochs, and find the suitable number of epochs. A

suitable number of epochs is where the accuracy is

over 99% and there is no overfitting sign. Here we

consider the overfitting sign is that when the number

of epoch is increasing, accuracy of training dataset

gets better and one of validation dataset gets worse.

The second step is to train a model based on the

original training dataset of 60,000 samples with the

selected number of epochs and test on test dataset of

10,000 samples.

Over all experiments, the optimizer is the Adam

optimization algorithm and the loss function is

categorical cross entropy. We start from a basic

convolution neural network (CNN) shown in Figure

7. This neural network model is modified from

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

380

LeNet-5 (LeCun et al., 1998) by adding one more

pooling layer, replacing activation functions as

rectified linear unit (ReLU) and tuning detailed

parameters. The number of epochs is set to 10 since it

results in 99% accuracy without overfitting sign.

Figure 8 shows how the number of epochs is selected.

Dotted lines give the result of training and solid lines

give the result of validation. After 10 epochs,

validation loss and accuracy do not continue

improving as training loss and accuracy do. It shows

that more than 10 epochs may be overfitting.

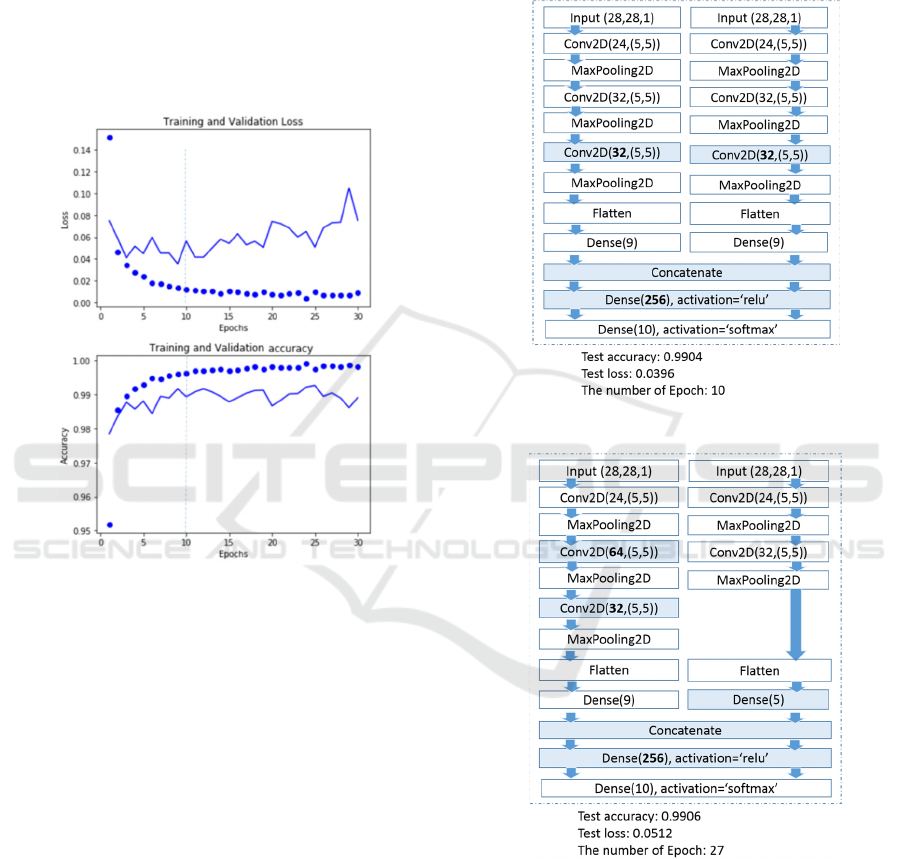

Figure 8: Training process of base CNN.

5.2 Experiments

We consider four different implementations for the

merging layers. They are concatenation,

multiplication, maximum and average. For each of

them, we conduct a pair of experiments for symmetric

and asymmetric bident networks. Among all

networks in our experiments, activation functions are

all rectifiers except for the final dense layer which

uses softmax. For each experiment, we measure

accuracy, loss and the required number of epochs for

training.

The first pair of experiments use concatenation

operation for the merging layer. Experimental results

of symmetric and asymmetric networks are shown in

Figure 9 and Figure 10, respectively. The left sub-

network is in untrusted execution environment while

the right one is in trusted execution environment. The

colored boxes and numbers in bold font indicate

major differences from the base model. Those

differences are made in order to achieve 99% accura-

accuracy without overfitting sign.

There are several ways to mitigate overfitting,

such as reducing the network size, using weight

regularization and applying dropout technique. Here

we take the approach of reducing the network size by

using less layers and/or less neurons.

Figure 9: Symmetric bident network with concatenation.

Figure 10: Asymmetric network with concatenation.

We then implement the merging layer by using

multiplication. The results of symmetric and

asymmetric bident networks are shown in Figure 11

and Figure 12, respectively.

Similarly, we implement the merging layer by

using maximum and average operations for both

symmetric and asymmetric networks, shown in

Figure 13 and Figure 14, respectively.

Bident Structure for Neural Network Model Protection

381

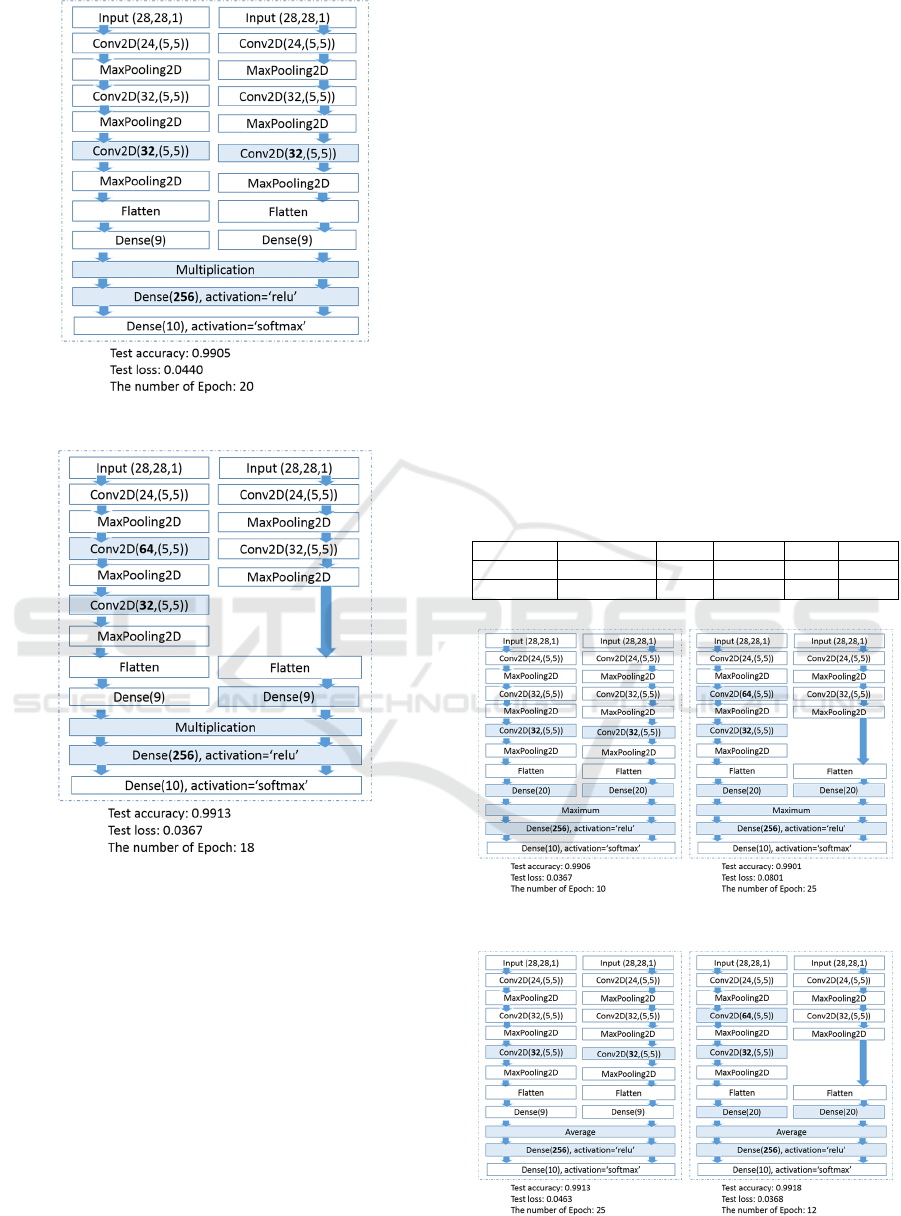

Figure 11: Symmetric bident network with multiplication.

Figure 12: Asymmetric bident network with multiplication.

Our approach of making asymmetric bident

networks is to reduce layers in trusted execution

environment as the asymmetric one with

concatenation. We tried to reduce more layers but the

resulting accuracy cannot fulfil our requirement.

There are other ways of forcing both sub-

networks jointly to decide the final result. For

instance, weights on edges from sub-networks to the

merging layer can be pre-configured significant

enough.

5.3 Summary

We summarize experimental results of epochs in

Table 1 where 99% accuracy is guaranteed.

The performance overhead of the training phase

can be observed by the number of epochs. Table 1

shows training cost when using bident networks. The

comparison between the base model and bident

networks present the training overhead. In most cases,

training overhead is significant. However, training is

usually performed offline, we consider the overhead

is acceptable in most scenarios.

The comparison between symmetric and

asymmetric bident networks gives no tendency on

which one having higher training overhead. Networks

with concatenation and maximum have higher

training cost in asymmetric structure. Yet networks

with multiplication and average have higher training

cost in symmetric structure.

The performance overhead of inference phase is

well-maintained by the number of layers in the

network.

Although the experiment scale is limited, results

still provide an initial positive evidence on the

feasibility.

Table 1: Required Epochs for Different Structures.

Base Conca

Multi Max Avg

Symmetric 10 10 20 10 25

Asymmetric N/A 27 18 25 12

Figure 13: Bident networks with maximum.

Figure 14: Bident networks with average.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

382

6 DISCUSSION

From experimental results, we validate the feasibility

of our idea on bident network structure. For each

considered structure, the trained model can achieve at

least 99% accuracy. In addition, results of using

asymmetric network structures show that offloading

computation from trusted execution environment to

untrusted execution environment is doable.

However, the training overhead varies among

different operations. We evaluate the performance

overhead for the training phase and the inference

phase by the required number of epochs and the layers

in the model. We consider the overhead of the

training phase is more acceptable than one of the

inference phase. The required numbers of epochs

indeed are increased, so it takes more time to

accomplish the training processes. We do not change

the total numbers of layers among models in

experiments, so the real-time performance (the

inference phase) remains.

Bident network structures protect the model by

embedding it into two different environments. This

method does not prevent the query-based model

stealing attack. To fully protect the model, a

complementary protection is preferred, such as

limiting the query throughput or detecting query-

based attacks.

7 CONCLUSION

As trained models are crucial intelligent properties for

deep learning based applications, we propose the use

of bident network structure to protect model

confidentiality. By dividing the neural network into

two sub-networks and minimizing their intermediate

interaction, each sub-network is deployed in a

different environment. As long as one cannot obtain

parameters from both environments, one cannot

reconstruct the model. Experimental results of

difference bident network structures on MNIST

dataset show the feasibility with low performance

overhead of the inference phase.

We list some potential directions to explore more

related to this research.

 To validate the feasibility of bident networks in

general, more experiments are required on

different datasets, different types of input data

(such as texts instead of images), different ways

of inputting data into sub-networks (such as

dividing instead of replication), and different

types of models (such as recurrent neural

networks instead of CNN.)

 To quantify the impact on confidentiality, more

investigations are required to analyze the

information entropy on the sub-network.

 In addition to trusted execution environment in

devices, bident network structures are potentially

applicable to machine learning-as-a-service cloud

with multi-server structures where each server

holds a sub-network. As an extension, bident

network structures can be expanded to trident-

network, quadruplet-network, and more.

REFERENCES

Florian Tramér, Fan Zhang, Ari Juels, Michael K. Reiter

and Thomas Ristenpart. 2016. Stealing Machine

Learning Models via Prediction APIs. In Proceedings

of the 25th USENIX Security Symposium, pp.601-608

Xuhui Chen, Jinlong Ji, Lixing Yu, Changqing Luo and Pan

Li. 2018. SecureNets: Secure Inference of Deep Neural

Networks on an Untrusted Cloud. In Proceedings of the

10th Asian Conference on Machine Learning 2018,

646-661

Xiaoqian Jiang, Miran Kim, Kristin E. Lauter, and Yongsoo

Song: 2018. Secure Outsourced Matrix Computation

and Application to Neural Networks. In Proceedings of

2018 ACM SIGSAC Conference on Computer and

Communications Security.1209-1222

Mika Juuti, Sebastian Szyller, Samuel Marchal, and N.

Asokan 2019. PRADA: Protecting Against DNN

Model Stealing Attacks. IEEE European Symposium on

Security and Privacy 2019

Olga Ohrimenko, Felix Schuster, Cédric Fournet, Aastha

Mehta, Sebastian Nowozin, Kapil Vaswani, Manuel

Costa. 2016. Oblivious Multi-Party Machine Learning

on Trusted Processors. The USENIX Security

Symposium 2016: 619-636

Zhongshu Gu, Hani Jamjoom, Dong Su, Heqing Huang,

Jialong Zhang, Tengfei Ma, Dimitrios Pendarakis, Ian

Molloy. 2018. Reaching Data Confidentiality and

Model Accountability on the CalTrain, arXiv preprint

arXiv:1812.03230

Stavros Volos, Kapil Vaswani, Rodrigo Bruno. 2018.

Graviton: Trusted Execution Environments on GPUs,

In Proceedings of the 13th USENIX Symposium on

Operating Systems Design and Implementation, 2018:

681-696

Xiaozhi Chen, Huimin Ma, Ji Wan, Bo Li, and Tian

Xia.2017. Multi-view 3D Object Detection Network for

Autonomous Driving. In Proceedings of the IEEE

Conference on Computer Vision and Pattern

Recognition 2017. 6526-6534

Florian Tramèr, Dan Boneh. 2019. Slalom: Fast, Verifiable

and Private Execution of Neural Networks in Trusted

Hardware. ICLR 2019

Bident Structure for Neural Network Model Protection

383

Peter M. VanNostrand, Ioannis Kyriazis, Michelle Cheng,

Tian Guo, Robert J. Walls. 2019. Confidential Deep

Learning: Executing Proprietary Models on Untrusted

Devices. arXiv preprint arXiv:1908.10730

Yann LeCun, Léon Bottou, Yoshua Bengio, Patrick Haffner.

1988. Gradient-based learning applied to document

recognition. In Proceedings of the IEEE 86 (11), 2278-

2324.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

384
