Real Models are Really on M0 - Or How to Make Programmers

Use Modeling

Joachim Fischer

1 a

, Birger Møller-Pedersen

2 b

and Andreas Prinz

3 c

Department of Computer Science, Humboldt University, Berlin, Germany

Department of Informatics, University of Oslo, Oslo, Norway

Department of ICT, University of Agder, Grimstad, Norway

Keywords:

Model, System, Language, Ontological Modeling.

Abstract:

This paper discusses the term ’model’ and the role of the level M0 in the four-layer metamodeling architecture

of MOF/OMG. It illustrates the failures of the OMG MOF standard and how a model is an abstraction, not a

description. We apply two simple approaches: (1) observing the use of models (of real or planned systems) in

system development, including prototyping, simulations, and models in general, and (2) comparing modeling

with programming. These approaches lead to the conclusion that models should be placed on M0, while UML

models are model descriptions. This conclusion leads to a better understanding of InstanceSpeciﬁcation for

description of snapshots, and of metamodeling applied to ontologies.

1 INTRODUCTION

Modeling and programming communities are diverg-

ing, each developing their own languages and tools

Programmers mainly focus on (program) execu-

tions, while modellers handle different kinds of what

in the modeling community are called models (do-

main models, requirements and design models) in a

mixture of diagrams and text. Programmers are to

a certain extent also modeling, but in order to have

programmers apply modeling for real, (and to have

modellers also focus on executions), there has to be a

shared understanding of what models are.

The notions of models and metamodels from the

(UML) modeling community do not help. As long as

the four-levels OMG/MOF architecture (OMG, 2016)

with the levels M0 to M3 has existed, the role of

M0 has been discussed, questioned, misunderstood,

or even ignored (Atkinson and K

uhne, 2003; B

ezivin

and Gerb

e, 2001; Eriksson et al., 2013; Favre, 2004).

In this paper, we will contribute to a shared under-

https://orcid.org/0000-0003-2476-3996

https://orcid.org/0000-0003-2123-3260

https://orcid.org/0000-0002-0646-2877

Domain-speciﬁc languages (DSL) (Fowler, 2005) and

Problem Solving Environments (PSE) (Kawata, 2015) are

approaches that bring modeling and programming together

in speciﬁc domains.

standing by looking at the use of models in systems

development, thereby giving the right role to models.

The ultimate goal of systems development is to

produce systems, i.e. changing sets of executing ob-

jects that interact with each other and with entities in

the environment of the systems. Systems are made

using various kinds of descriptions, ultimately pro-

grams from which executions with objects (on level

M0) are created. Similarly, execution of Executable

UML(OMG, 2018) models will generate a structure

of objects at M0. That is, Executable UML models

are also descriptions (prescriptions) of executions.

We will also look at the general notion of model. It

is generally agreed that a model is an abstraction of an

existing or planned system. A model is made from a

perspective and has a purpose. Therefore, only a sub-

set of the properties of a system are represented in the

model. It is possible to experiment with the models in-

stead of with the real systems and deduce properties

– for good reasons, it is not possible to experiment

with planned systems. This idea of model is indepen-

dent of the model being material or mathematical or

digital. In programming (and in modeling with Exe-

cutable UML), experiments are not experiments with

the prescriptions, but experiments are done with the

executions (the systems).

The arguments above indicate that models are at

M0, while descriptions and prescriptions are on lev-

Fischer, J., Møller-Pedersen, B. and Prinz, A.

Real Models are Really on M0 - Or How to Make Programmers Use Modeling.

DOI: 10.5220/0008928403070318

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 307-318

ISBN: 978-989-758-400-8; ISSN: 2184-4348

307

els M1-M3. We are aware that this is different from

the common terminology, where descriptions and pre-

scriptions on M1 are called (UML) models. However,

placing models on M0 matches how programmers and

system developers think about models, and it matches

the everyday use of the term model.

In(Madsen and Møller-Pedersen, 2018), the au-

thors have made the same argument, i.e. that program

executions are models. We will apply this understand-

ing to the MOF architecture, which is not addressed

in (Madsen and Møller-Pedersen, 2018).

The (UML) modeling community has different

opinions on M0: (K

uhne, 2006) has the reality to be

modeled there, while UML in 2011 (OMG, 2011) had

InstanceSpecifications there. The understanding

of having models at M0 provides a better understand-

ing of UML InstanceSpecification, metamodel-

ing, and domain modeling, including ontologies.

The paper is structured as follows. In Section 2,

we discuss the role of models in systems develop-

ment, including the general understanding of the con-

cept ’model’. Section 3 compares modeling and pro-

gramming. Section 4 covers different understandings

of InstanceSpecification, including its basis for

ontological metamodeling, followed by a review of

existing understandings of M0 in Section 5. Finally,

we summarize in Section 6.

2 SYSTEM DEVELOPMENT

System and System Description

Systems development produces systems that fulﬁl a

given purpose and provide required functionalities.

For this paper, we assume that system development

uses object-oriented programming and modeling.

Deﬁnition 1 (System). A system is a changing set of

executing objects that interact with each other and

with entities in the environment of the system. Objects

may be existing entities like devices, and they may be

entities that have to be made as part of the systems

development. This way, a system is a set of possible

executions, i.e. a set of object conﬁgurations that exist

at different time points.

Systems are made using various kinds of system

descriptions from which these executing objects are

created, see the left side of Figure 1.

Among these kinds of descriptions, programs are

prescriptions of systems as possible program execu-

tions. A program execution will consist of a changing

structure of objects according to the prescriptions of

objects and classes in the program, and these objects

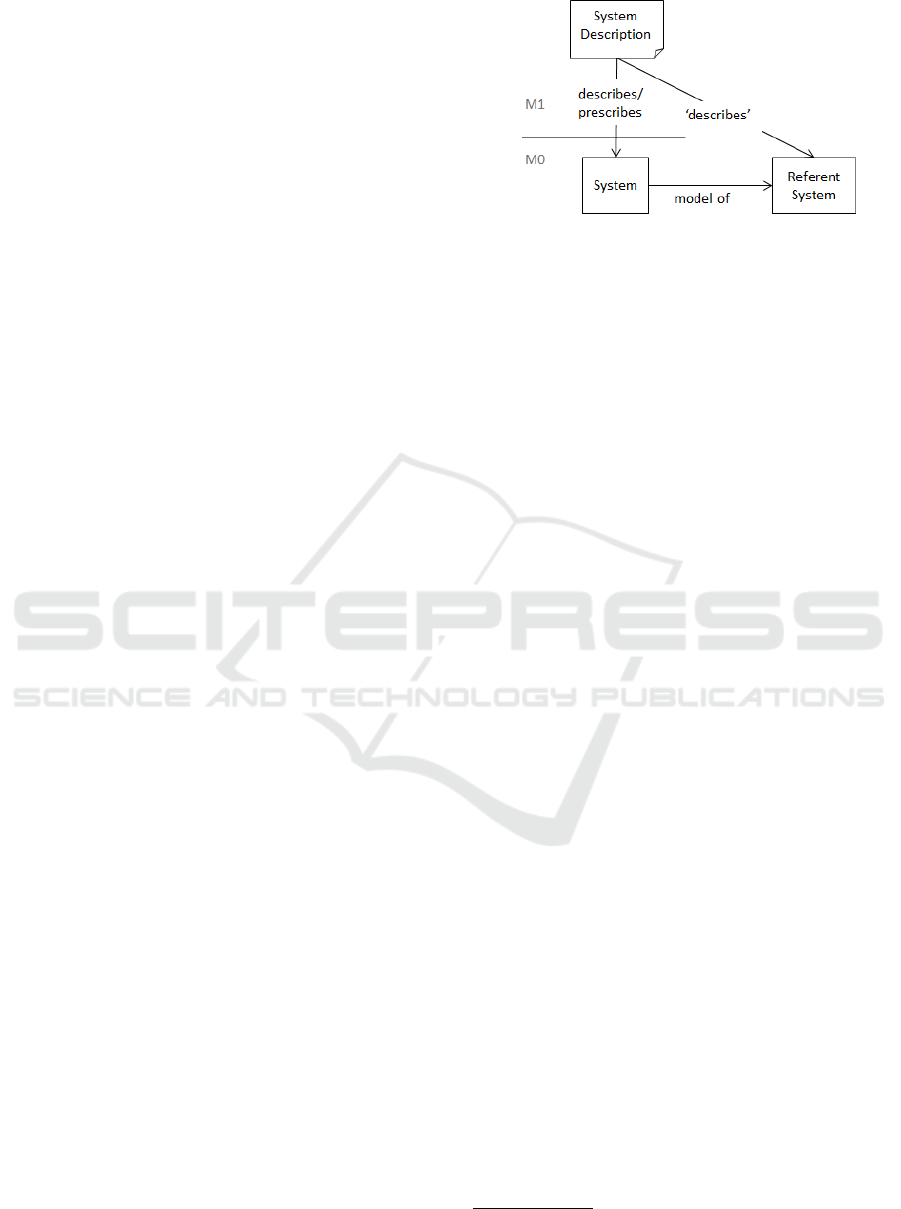

Figure 1: Description and Prescription, adapted from (Fis-

cher et al., 2016).

will obviously be on M0 and thereby the systems are

at M0.

For Executable UML (OMG, 2018) the situation is

the same: Executable UML model execution will gen-

erate a structure of objects on M0. That is, Executable

UML models are really prescriptions of executions.

Deﬁnition 2 (Model). A model is a system that is in

the model-of relationship to a referent system, existing

or planned.

Note that both physical and mathematical models

are systems, because it is their behaviour (their execu-

tions) that makes them models. Scale models are also

concrete representations, but typically with the same

object structure that does not change over time.

As can be seen in Figure 1, a system description

always leads to a system, which is a set of possible

executions. The system does not need to be a model

if there is no related referent system.

Figure 1 is based upon the system and model con-

cepts from the language DELTA

((Holbæk-Hanssen

et al., 1973)) placed in the context of the MOF four-

layer architecture. Note that the system (the execution

of the system description) is at M0, whereas the ref-

erent system (the system to be modeled) is not part

of this architecture. Still, it is placed at the level of

M0 to indicate that this is an existing or planned real

system, not a description.

A UML model is not a model according to this

deﬁnition of model, but rather a model description.

We will use the term ’UML model’ to denote model

descriptions expressed in UML.

Experiments with systems, like testing and simu-

lations, are experiments with an execution, not with

descriptions. Validation is the process of ﬁnding out

whether a system has the right model-of relation to an

existing or planned real system, i.e. whether their exe-

cutions match. Even for review, it may be interesting

to compare, e.g. required sequence diagrams with the

DELTA was a very early (1973) modeling language, at

that time called ’system description language’.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

308

sequence diagrams of the system (for a given func-

tionality), as reported in (Daun et al., 2019), where

the generated sequence diagrams are called ’review

models’.

Another kind of experiment is prototyping. In

(Exner et al., 2014), it is well documented that proto-

typing is experimenting with systems in varying de-

grees of completeness, not experimenting with de-

scriptions. Validation by prototyping is the process

of ﬁnding the system that is the desired model of a

planned system.

Modeling in Systems Development

In system development with modeling languages, a

system description will typically be a graphical de-

scription of a planned system combining new ele-

ments with existing (real) elements. The example

in Figure 2 of a temperature controlling system ex-

empliﬁes this. It describes a class of systems con-

sisting of existing (white) elements like Heating and

Cooling actuators, and a Temperature sensor; the

(grey) Controller is the one to be made so that it ﬁts

into this architecture.

Figure 2: UML diagram that describes a temperature con-

trolling system (from (Fischer et al., 2016)).

Note that Figure 2 is not a picture of a class of

systems, but a UML description of a composite class

with parts and connectors.

Sensors and actuators model the real sensors and

actuators. A simulation will simulate the Room, the

sensors and the actuators, while the Controller will

be tested or experimented with. In this process,

the description of the Controller will probably be

changed according to the simulations. However, it is

still the running Controller that is the model of the

controller to be in a building when it is deployed.

Programming in Systems Development

If only programming languages are exploited in sys-

tem development, the situation is the same. Some

class descriptions are descriptions of concepts from

the application domain (like real passengers, ﬂights,

seats, tickets), and objects of these classes model the

corresponding passengers, ﬂights, seats etc. Other

class descriptions are descriptions of elements of the

planned system (e.g. elements of the planned reser-

vation system). Few programming languages support

the kind of description in Figure 2. However, there is

no fundamental reason for not being able to express

this in programming languages, see, e.g. (Aldrich

et al., 2002).

When it comes to systems as introduced in Figure

1, programmers do not doubt that they are part of sys-

tem development (which of course includes more than

programming) where the goal is to produce systems

by making programs that are executed by computers.

For Executable UML the experiments will also

be with executions, not with diagrams, so real Ex-

ecutable UML systems really reside on level M0.

There is no difference between program executions

and executions for Executable UML, except for the

different abstraction levels of the language mecha-

nisms. For Executable UML the artefacts at M1 are

therefore descriptions of systems.

What then about the parts of UML that are not

covered by Executable UML, e.g. interactions and

use cases, and that are still used in system develop-

ment? They both reside at M1. Use cases are typ-

ically used as prescriptions of required functionality

of the system, while interactions may be used as both

prescriptions of required behaviour (or undesired be-

haviour) and descriptions of what happens with a sys-

tem. So they are not models, according to the deﬁni-

tion of model above. As mentioned above, in general,

a UML model on M1 is a system description, or more

precisely a description of a system that is a model of

a referent system.

Models in General

The following deﬁnition of model in general sum-

marizes deﬁnitions from Webster, Collins, Wikipedia,

(Bossel, 2013), and a general understanding of model.

A model is a small or large, abstract or ac-

tual, representation of a planned or existing

entity or system from a particular viewpoint

and with a speciﬁc purpose.

Observe that this deﬁnition of model always de-

ﬁnes a relationship between the system acting as the

model, and the system being modeled, see also Figure

1 and Deﬁnition 2.

Mathematical models are examples of abstract

representations. A mathematical model is usually a

Real Models are Really on M0 - Or How to Make Programmers Use Modeling

309

set of equations describing properties of a given sys-

tem, e.g. in the form of differential equations.

Libraries are systems with changing sets of books

and loans. Models of libraries with the purpose to un-

derstand libraries or to make computer-based library

systems must be systems of objects representing real

books and loans. The model, in this case, is an actual

representation. Similarly, the model of the tempera-

ture controlling system in Figure 2 is an actual repre-

sentation: it contains sensors and actuators that model

the real sensors and actuators that are part of the real

building when the Controller is deployed.

In (Madsen and Møller-Pedersen, 2018), the fol-

lowing illustrative example of a model as an actual

representation is used. Consider the Mini in Figure 3.

Figure 3: Mini.

What is the model of the Mini: the Lego car to the

right in Figure 4 or the description of how to build it to

the left in Figure 4? Any child will answer ’the Lego

car’. Even grown-up people (they have been children

too) will answer that the Lego car is the model of the

real car.

Figure 4: Description and Model.

This example also illustrates the notion of inter-

acting or experimenting with a model. A kid playing

with the Lego car to imitate driving interacts with the

model (the Lego car), its different states, like posi-

tion, orientation, and velocity, while imitating how a

car turns around. In case the Lego car has no engine

and no steering control, playing with it simulates the

execution. In case of a machine and steering capa-

bilities, the kid will control the execution at crucial

points, like changing orientation and speed. In case

of a more elaborate Lego car (or even a Lego robot)

that is prescribed to follow a given route and avoid ob-

stacles, kids will experiment with the running model

car by, e.g. placing or moving obstacles.

Some people get the chance to be trained as pi-

lots in ﬂight simulators. Flight simulators are models

of real ﬂights, and the pilots interact (maybe also ex-

perimenting) with the program execution (and some

specialised hardware), not with the program that im-

plements the simulator. Had it been done entirely in

Executable UML, then the pilots would interact with

the execution on level M0, not with the descriptions at

M1. Descriptions of classes, state machines and ac-

tivities as part of Executable UML are model descrip-

tions, while the executions are models for interaction

and experimentation.

3 MODELING AND

PROGRAMMING

Metamodels and Grammars

It is established that Figure 5 gives the correspon-

dence between the deﬁnition of modeling and pro-

gramming languages, see, e.g. (Butting et al., 2018)

and (B

ezivin and Gerb

e, 2001).

M3 meta-metamodel EBNF

M2 metamodel grammar

M1 (UML) model program

M0 model execution program execution

Figure 5: Metamodels and Grammars.

This correspondence is obvious, provided that the

modeling language is executable, like, e.g. Exe-

cutable UML. However, even for UML in general this

is the case: objects of classes deﬁned in UML at M1

reside at M0.

However, metamodels and grammars are not com-

pletely the same. Metamodels describe abstract syn-

tax (structure) of a language only and their concrete

syntax usually is deﬁned using editors. Grammars

deﬁne the concrete syntax, and parsers generate ab-

stract syntax trees from concrete syntax. Metamodels

may include links, e.g. from the use of a concept to

the deﬁnition of the concept. Parsers use attributes

in the objects of the abstract syntax trees instead of

such links. Even with the apparent correspondence

between metamodels and grammars, the switch be-

tween them requires some effort, see again (Butting

et al., 2018).

Programs and UML Models

A program (on M1) is a prescription of a number of

possible program executions. A program execution

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

310

will consist of a changing structure of objects accord-

ing to the prescriptions of objects and classes in the

program, and these objects will be on M0. Objects

behave according to their prescription of behaviour as

part of the program at M1.

As mentioned above, some objects, like passen-

ger objects in a reservation system, will model the

corresponding real passengers. Properties (like name

and address) and capabilities (like changing address)

of the passengers will be reﬂected by corresponding

properties of the objects that model the passengers.

A similar approach should be taken for executable

modeling languages, and for modeling languages in

general. As an example: Executable UML model ex-

ecution will generate a structure of objects according

to the prescriptions of Executable UML classes at M1,

and these objects will be on M0. Objects behave ac-

cording to their prescription of behaviour as part of

the Executable UML model at M1, i.e. Executable

UML models are prescriptions of executions.

This approach divides the world into descrip-

tions/prescriptions and objects, as shown in Figure 6.

Descriptions and prescriptions, in terms of

diagrams, text, or combined

Objects, with behaviours, states and

links between objects

Figure 6: Descriptions and objects.

Below the line, there are objects, there are states of

objects, and there are state changes resulting from the

behaviour of the objects. Objects model phenomena

in the application domain.

Above the line, there are no objects, there are no

states, and there are no state changes. However, there

are prescriptions of objects (singular or by means of

classes), there are prescriptions of states (e.g. descrip-

tions of attributes of objects), and there are prescrip-

tions of state changes, e.g. assignments and behaviour

prescriptions in general.

In the following, we will use the term description

for both description and prescription, except in cases

where it is essential to distinguish. The main differ-

ence is between objects (at M0) and descriptions of

objects (at M1-M3).

Compared with M0, not only M1 but also M2 and

M3 contain descriptions. The fact that M1 and M2

have objects of metaclasses at the level above does

not change this. These objects are there just for rep-

resenting descriptions, just like a structure of linked

objects represents programs in the form of abstract

syntax trees. These objects are handled by tools (e.g.

editors) that manipulate descriptions; they are not ob-

jects being parts of executions.

Programmers and Modeling?

How does the idea of model presented here relate to

programmers, who more often than not live by the slo-

gan ’Real programmers do not model’? They argue

that making separate descriptions of what they can do

in their favourite programming language is a waste

of time. Besides, such descriptions often become ob-

solete because of inadequate tools with no two-way

transformations.

However, programmers do model, but not in mod-

eling languages. Programming involves modeling be-

cause application domain concepts are identiﬁed and

represented by classes with properties that are given

by the purpose of the system being developed. Ob-

jects of these classes model the corresponding phe-

nomena. If the domain is library systems, there will

be books, in programs described by a class Book and

with Book objects being models of the real books, see

Figure 7 for the situation with UML and Java. Start-

ing with a UML class book, the Java class is generated

from a class description in UML. However, this does

not make the UML description a model of the Java

code; a model has to be a system, not just a descrip-

tion. Similarly, in a reservation system, there will be

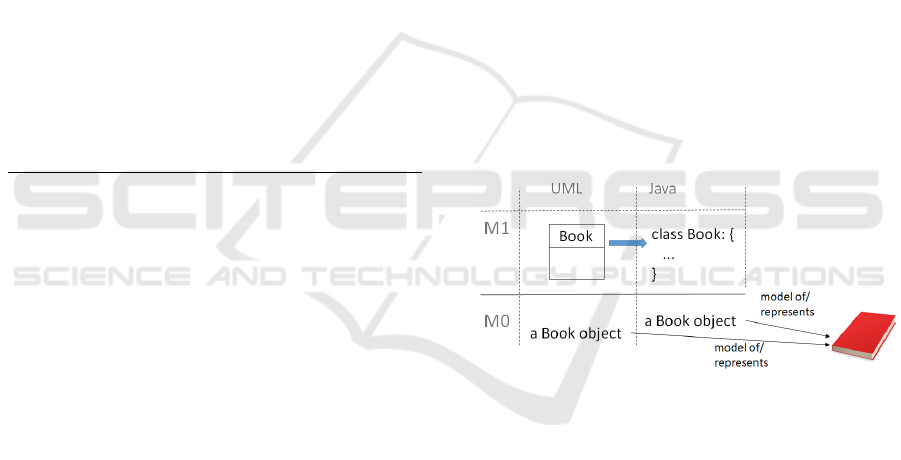

Figure 7: UML and Java class at M1, objects at M0 model-

ing the real book.

Passenger and Flight objects that model the corre-

sponding real passengers and ﬂights.

It is important to emphasize that the UML class

Book is not a model of the Java class Book. Instead,

both of them are prescriptions of objects that are mod-

els of the real books.

This way, a shared understanding of models and

modeling can (in addition to better tool support) help

programmers use modeling. A programmer would

not call the program (Figure 5) a model, as the pro-

gram is ’just’ a prescription. The ultimate goal is

the program execution. As illustrated above, the pro-

gram executions (library system, reservation system)

will have objects that model the corresponding ele-

ments from the application domain and even from re-

ality. So, for programmers, the models are on M0.

Of course, a program execution contains elements

Real Models are Really on M0 - Or How to Make Programmers Use Modeling

311

that are there just to have the execution on a speciﬁc

platform or because of the implementation technique

used. Some of these elements are simply platform- or

implementation speciﬁc. However, there may also be

elements that are modeled according to some techni-

cal domain, like, e.g. communication using a speciﬁc

protocol.

Semantics and Meaning

There is a strong connection between level M0 and the

semantics of a modeling or a programming language.

Moreover, there is a relation that relates the model

with the real referent system it models, which we have

called model-of.

Let us look into semantics. Any formal language

provides a semantics detailing the transition from a

(system) description into a system. In the metamod-

eling architecture, this is the move from descriptions

on levels M1-M3 to objects and executions on level

M0. Therefore, (formal) semantics is a relation, and it

is vertical (crossing levels). The level crossing might

not happen in the ﬁrst step, as, e.g. with translational

or denotational semantics. However, someplace down

the line, the description has to come to life, crossing

the level. We generalize the idea of semantics as fol-

lows.

Deﬁnition 3 (Semantics). Semantics is the relation

between a (system) description and its prescribed

possible executions (the system)

. Sometimes, the de-

scribe relationship can be considered semantics.

It is important to note that the language deﬁnes

the semantics - in fact, this is the only aspect of the

language crossing the level boundaries. So the lan-

guage description on level M2 details the transition

of a description on level M1 into a system on level

M0. The user is then free to create descriptions on

M1 in the language, which will be turned into execu-

tions (systems) on M0 by way of the semantics. This

way, semantics is deﬁning linguistic instantiation as

deﬁned in (K

uhne, 2006). Moreover, it also deﬁnes

the semantics of ontological instantiation in case the

language provides it (see Section 4 for more details).

The model-of relation is different from semantics.

There can be many models of the same system. Even

though the real systems are outside the metamodeling

architecture, they are at the same level as the execu-

tions in the architecture, which reside at M0. So it is

most meaningful to consider the real referent systems

The DELTA language report used the neutral term

’generator’ that generates a system based upon a system

description. A generator could be a machine or a human

being, or a mixture.

on level M0 as well. This way, the model-of relation

is horizontal, informal and connected to abstraction.

Behaviour Descriptions for Metaclasses

With the above understanding of models as systems

on level M0, and with just descriptions at M1, what

is then the understanding of metamodels at M2? M1

contains descriptions of objects at M0. The descrip-

tions are represented by objects (of classes at M2), so

M2 similarly contains descriptions. In relation to M1,

they are descriptions, while in relation to M0, they are

meta-descriptions.

Metamodeling allows deﬁning abstract syntax for

languages, and the levels M1 to M3 express this well.

As we shall see below, modeling ontologies is not

metamodeling (Aßmann et al., 2006). Languages for

modeling ontologies, like OWL (W3C, 2012), may,

however, be deﬁned by metamodels. OMG has, in

fact, deﬁned the language ODM (OMG, 2014) for

deﬁning ontologies.

Deﬁnition 4 (Metamodel). A metamodel is a descrip-

tion of a language. The corresponding executions be-

long to an implementation of the language, i.e. an

IDE. The relation between a metamodel on M2 and

its execution on M1 is the same as the relation be-

tween descriptions on M1 and models on M0, namely

semantics.

The narrow deﬁnition of metamodel in OMG

would only allow structural deﬁnitions of languages.

However, there could also be behaviour descriptions

as part of metaclasses, e.g. metaclass Class. Such

behaviour would not be M0-behaviour common to

all instances of all classes of the metaclass Class.

Two classes A and B, both represented by objects of

the metaclass Class, would not get the behaviour of

metaclass Class. Instead, as objects of metaclasses

are instances that represent descriptions, then opera-

tions on these objects would typically change the ob-

jects, and thereby the description represented by these

objects. This could, e.g. be operations to be used in

refactoring of descriptions.

Such behaviour is executed on the level M1, i.e.

with tools handling descriptions. The most obvious

tools here would be editors and IDEs, with functional-

ity for changing descriptions. In this case, the descrip-

tions on level M1 would be changing, such that the

description that is executed here would be the meta-

model on M2, which is a model of the language ex-

ecution (the editor or the IDE). The same thought is

used in language workbenches (Fowler, 2005).

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

312

4 UNDERSTANDING

INSTANCESPECIFICATIONS

InstanceSpeciﬁcations as Snapshots

We have established a distinction between the world

of descriptions and the world of systems of objects,

see ﬁgure 6. For programming and for Executable

UML, the objects will be elements of executions (sys-

tems), and as such, they do not belong to the de-

scription stack of M1-M3. These systems at M0 are

created using prescriptions. Most often, they should

model a referent system. In case an execution does

not match the corresponding execution in the referent

system, the usual way is to use some debugging tool

to provide descriptions (snapshots) of objects as they

are at a particular stage of execution.

Deﬁnition 5 (Snapshot). A snapshot is a description

of the current state of execution. This way, a snapshot

relates to an execution semantics and has to be able

to represent all instances existing at runtime

UML provides InstanceSpecifications for

expressing snapshots, see Figure 8. An Instance-

Specification will have a slot for each of the

features of the object, describing the current value

of the feature. InstanceSpecifications are de-

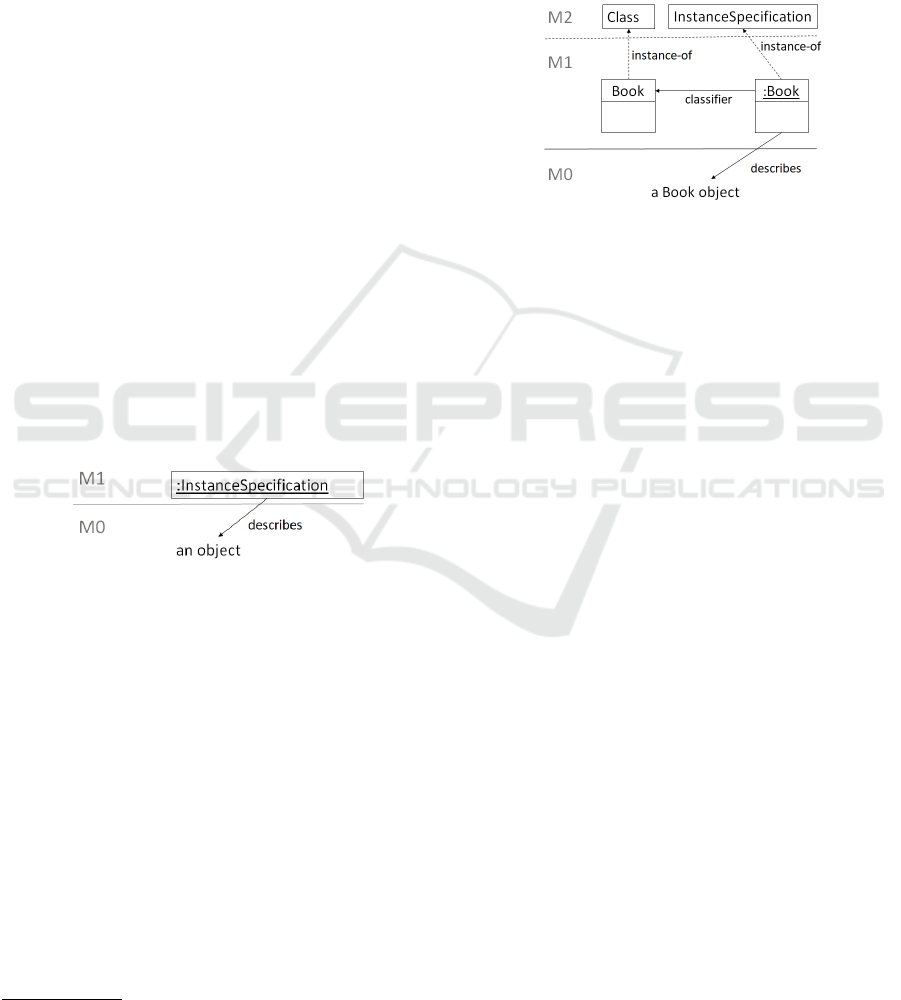

Figure 8: Instance Speciﬁcation.

scriptions at M1 for describing objects at M0. An

InstanceSpecification may, however, also be

used to prescribe objects, see the following quote

from (OMG, 2011).

An InstanceSpecification may spec-

ify the actual existence of an instance

in a modeled system. Alternatively, an

InstanceSpecification may provide an il-

lustration or example of a possible instance in

a modeled system.

Is then InstanceSpecification enough to

form the basis for making snapshots? Instance-

Specifications can represent instances of classes.

However, at runtime, there are also instances of other

entities, for example, methods, variables, and threads.

A debugger is a tool that can show the current state of

execution in some notation, which we call snapshot.

The name InstanceSpecification was deliber-

ately chosen over the name Object of the early ver-

sions of UML. One reason was that Object was of-

ten confused with objects at M0. Another reason was

that it is now possible to use it for describing other

kinds of instances. An InstanceSpecification has

a classiﬁer that is the classiﬁer of the instance being

described, as illustrated in Figure 9.

Figure 9: Instance Speciﬁcation with classiﬁer.

The classiﬁer property of InstanceSpecification

may refer to Behaviours (as Behaviour is a

subclass of Class which in turn is a subclass

of Classifier). Method is a Behaviour as-

sociated with an Operation of a class, so an

InstanceSpecification may also be a description

of a method invocation instance, commonly called ac-

tivation record.

An activation record of a method call includes val-

ues for its attributes. However, it also includes the

current stage of execution, a so-called dynamic link

to the activation record of the calling method (form-

ing a call stack). A similar case is the so-called static

link of an object of a class going to the object of the

enclosing scope.

In principle, an InstanceSpecification could

represent the current state of execution, the static and

dynamic links and other required elements as slots.

However, the slots are related to the features of the

classiﬁer, and it is evident that classiﬁers do not have

features for the particular elements described above.

The classiﬁer property of InstanceSpecification

only denotes the classiﬁer of the instance.

Moreover, a snapshot must be able to indicate how

far the execution has come. In implementations of

programming languages this is represented by a pro-

gram counter, a link into the behaviour description, to

the action (e.g. as part of a method description) cur-

rently being executed. UML is somewhat more gen-

eral in that a classiﬁer behaviour may be an activity or

a state machine. In the last case, the correspondence

to program counter would, e.g. be the current state,

but the current stage of execution may also be a point

in a transition.

Real Models are Really on M0 - Or How to Make Programmers Use Modeling

313

These elements belong to the instantiation seman-

tics of the classiﬁer, see (Prinz et al., 2016). UML

uses its built-in instantiation semantics for classes,

but this does not extend to the general case of

classiﬁers being something else than classes. This

built-in semantics - missing the extra elements -

is also valid for InstanceSpecification, which

makes it not in itself sufﬁcient for general snap-

shots. It would, however, be straight forward to

use InstanceSpecification to convey the values

of features according to its classiﬁer, and then pro-

vide dynamic link and static link associated with the

InstanceSpecifications.

Ontological Instances

The classiﬁer relation from an Instance-

Specification to, e.g. a Class (see Figure 9)

is by some authors called ontological instance-of,

see (Atkinson and K

uhne, 2003; K

uhne, 2006). As a

consequence, the notion of ontological metamodeling

is introduced, leading to a different understanding

of M0 than ours. As an example, in (Atkinson and

uhne, 2003) the Lassie InstanceSpecification

is said to model the real Lassie, see Figure 10.

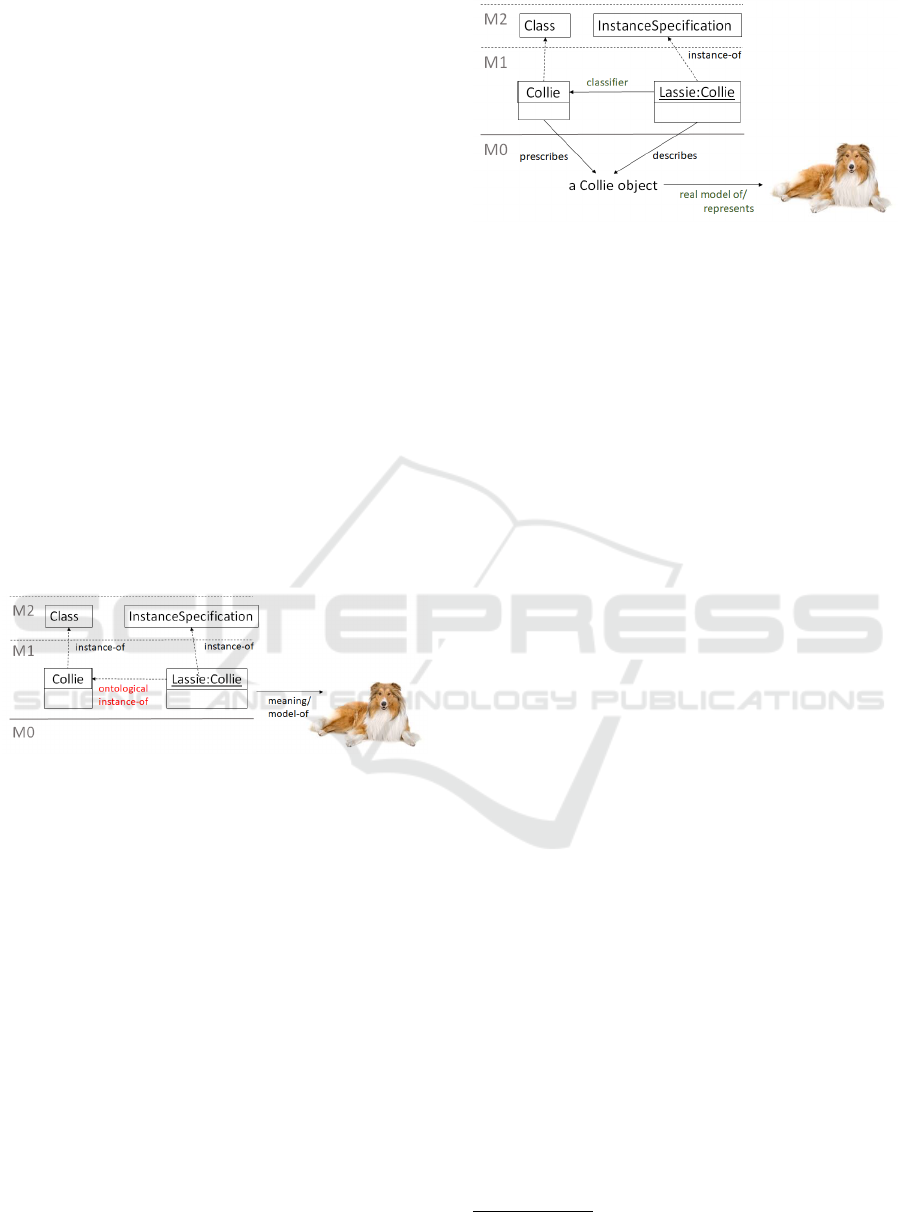

Figure 10: Ontological instance-of as deﬁned in (Atkinson

and K

uhne, 2003).

The InstanceSpecification Lassie is correctly

placed on level M1 and is an instance of the M2

metaclass InstanceSpecification, which was the

metaclass Object at the time of (Atkinson and

uhne, 2003). In addition, Lassie is said to be an

(ontological) instance of the class Collie, thus be-

ing an instance of two classiﬁers. Objects of the class

Collie as part of model execution at M0 have no role

in ontological metamodeling.

We have seen that for programming (and also for

Executable UML), the objects that model real objects

from the domain (like real passengers, real ﬂights) are

objects at M0 and not at M1, and there is no reason to

distinguish between Executable UML and plain UML

on this issue. With this understanding, the object that

really models the real Lassie is a Collie object at M0.

The Lassie is just a description of the Collie object

that exists as part of the execution at M0, see Figure

11.

Figure 11: The real model of Lassie.

The relation between the Lassie instance speciﬁ-

cation and Collie is that of classifier. Note

that the classifier attribute of Lassie does not

make it an instance of the class Collie. In-

stances of class Collie reside in executions at

M0; Lassie is an instance at M1 of the metaclass

InstanceSpecification at M2.

It is claimed that there is a paradox between

linguistic and ontological instantiation in that on-

tological classes have to be linguistic instance-of a

metaclass on level M3, thereby having a linguistic

instance-of crossing two levels, as ontological classes

are on level M1.

The example used to illustrate this is the notion of

breed. In a linguistic view, Collie is a class at M1,

that is an instance of the metaclass Class on level

M2. Applying an ontological view, the class Collie

is said to be an ontological instance-of a class Breed,

making Breed a kind of metaclass residing at a higher

level than Collie. This way, ontological modeling

becomes metamodeling even though it takes place at

the M1 level.

We will use a programming viewpoint to resolve

(in fact, dissolve) the paradox because things become

more evident when applied to a real case. It is strik-

ing that the whole breed discussion does not relate to

a real application. In a real application, the number of

objects will change during the execution. There will

be so many objects

, that it would not be meaning-

ful to make an InstanceSpecification for each of

them in order to describe the execution.

Programs reside on M1, even though program-

mers do not think in these terms. Part of program-

ming is modeling in the sense that domain concepts

are identiﬁed and represented by classes, and special-

ized concepts by means of subclasses. This kind of

modeling from programming is not different from the

kind of modeling that is applied when using modeling

languages.

For a programmer, Breed will be a class describ-

Considering all possible executions, there are inﬁnitely

many objects to consider.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

314

ing the characteristics of breeds, and there may be

subclasses for the various breeds. Dog will be an

abstract subclass of class Canine, and it will have a

Breed property as follows.

abstract class Dog extends Canine {

breed: Breed

...

}

Even though there are no pure Dog objects, all

dogs have a breed, therefore the property breed

of the class Dog. Breed is the type of the prop-

erty breed, and the various values are deﬁned, e.g.

as elements of an enumeration or as subclasses of

Breed. A Collie is thereby a subclass of Dog where

breed=CollieBreed for all objects of class Collie

(i.e. it cannot be changed for individual Collie

objects), and each collie is an instance of the class

Collie. There may be other properties of Dog, and

these may be set for the different instances of Collie.

In languages with class attributes, i.e. attributes that

apply to all instances of a class, breed would be

such an attribute. The value breed=CollieBreed as-

signed to breed will be assigned upon creation of a

objects and from then on being constant/ﬁnal. Note

that we assume the language to only support single

inheritance, so Dog cannot be said to be classiﬁed as

both a Canine and a Breed. With multiple inheri-

tance, it would be possible to classify in both direc-

tions.

class Dog extends Canine, Breed {

...

}

Still, this would not help, as the superclass Breed

would have to be a kind of ’virtual superclass’ in or-

der to specify that for Collie the superclass Breed

really should be CollieBreed (a subclass of Breed)

and not Breed. Very few languages support virtual su-

perclasses, so programmers that are modeling will ap-

ply inheritance for the primary classiﬁcation and then

use properties for secondary characterization.

One may argue that it is not obvious what should

be the primary classiﬁcation and what should be prop-

erties. However, modeling always uses a particular

viewpoint and a speciﬁc purpose, and these will de-

termine the primary classiﬁcation. In (Eriksson et al.,

2013) a ’language use approach’ is applied to solve

the above mentioned paradox. They also conclude

that there is no paradox, and they use the terms ’sub-

stantial types’ for the primary classiﬁcation and ’mo-

ment types’ for the types of properties. Ontologies

also make a distinction between classes of objects and

properties of these objects, so there would be no prob-

lem in deﬁning an ontology where breed is a property.

Another argument against Breed being a class and

class Collie being an instance of this is that dogs as

we know them not only have different breeds, they

also have different roles:

class Dog extends Canine {

breed: Breed

role: Role

}

There are, e.g. pet dogs, guide dogs, watchdogs,

shepherd dogs, sledge dogs. Different breeds are

suited for different roles. For example, the collie

breed is suitable for shepherding.

To be complete, the breed attribute is really typed

by a Breed with more than one species involved, e.g.

class BengalCat extends Cat {

breed: Breed (LeopardCat, DomesticCat)

}

where Breed is deﬁned as

class Breed (list<Species>) {}

It would complicate the notion of ontological meta-

modeling further to cover this situation.

5 RELATED WORK

In this section, we review different ways to look at

the term ’model’ and in particular different views on

M0. We have so far only covered the situations where

’model’ is the term used for ’description’ of what will

be at M0, and thereby implicitly a model of some ref-

erent system in some domain. The notion of UML

models as blueprints

is very different from this, but

in fact supported by section 6.3.1 in the UML 2.5.1

speciﬁcation

For example, for a model of factory processes,

the execution scope may encompass the exe-

cution of those processes within a single fac-

tory, while, for a model of a software program,

the execution scope will correspond to a sin-

gle execution of that program.

For M0, we consider here the following two main ap-

proaches: real-world objects and execution instances,

see also (Gjøsæter et al., 2016). For the approaches

covered in this section, we judge if they resonate with

system development in general and with programmers

in particular, because if not, there will be no chance

that a given approach will be accepted outside the

modeling community.

https://martinfowler.com/bliki/UmlAsBlueprint.html

https://www.omg.org/spec/UML/2.5.1/PDF

Real Models are Really on M0 - Or How to Make Programmers Use Modeling

315

M0 as Real-world Objects

In this view, M0 is the area of reality containing “real

things” (e.g., real books, passengers and dogs). The

other levels belong to the modeling realm being fun-

damentally different from M0, such that M0 is not

part of the metamodel stack (Eriksson et al., 2013).

James Skene states in (Skene, 2007):

On level M0 are real-world objects. These are

described by UML models at level M1. The

metamodel of UML is at M2, an instance of

the MOF model on level M3.

This view will not resonate at all with Executable

UML, where M0 obviously will have instances of

classes at M1, not “real things”. It also resonates

badly with programmers, as they have instances of

M1 classes at M0. In this approach, we also ﬁnd

the idea that M1 contains two ontological levels: One

for user classes and one for user class objects. See

also the discussion in Section 4 about ontological in-

stances. Colin Atkinson and Thomas K

uhne state in

(Atkinson and K

uhne, 2003):

The M0 level is no longer inhabited by user

objects, but rather by the real-world elements

that they model. Note that the real Lassie is

said to be represented by object Lassie, i.e.,

“instance-of” is no longer used to character-

ize the real Lassie as an instance of Collie.

User objects (i.e., model representatives of

real-world objects) now occupy the M1 level,

along with the types of which they are (onto-

logical) instances. From level M1 on, every

level is regarded as a model expressed in the

language deﬁned at the level above.

Wikipedia shows the same understanding. The illus-

tration of M0 in Figure 12 is part of the Wikipedia on

UML

This understanding is said to be based on UML2.3

, but is apparently a misunderstanding, as UML2.3

has runtime instances at M0.

In (Seidewitz, 2003) it is referred to what is said

about M0 in MOF1.4

: M0 is ’What is to be mod-

eled’, see ﬁgure 13:

This is in contrast to the view put forward in this

paper: The real things (phenomena) being modeled

are at the level of M0, but outside the stack, and the

https://en.wikipedia.org/wiki/Uniﬁed Modeling Language

https://www.omg.org/spec/UML/2.3/Infrastructure/PDF

Meta Object Facility (MOF) Speciﬁcation, ver. 1.4,

OMG document formal/02-04-03, Object Management

Group, Apr. 2002, Section 2.2; www.omg.org/technol-

ogy/documents/formal/mof.htm

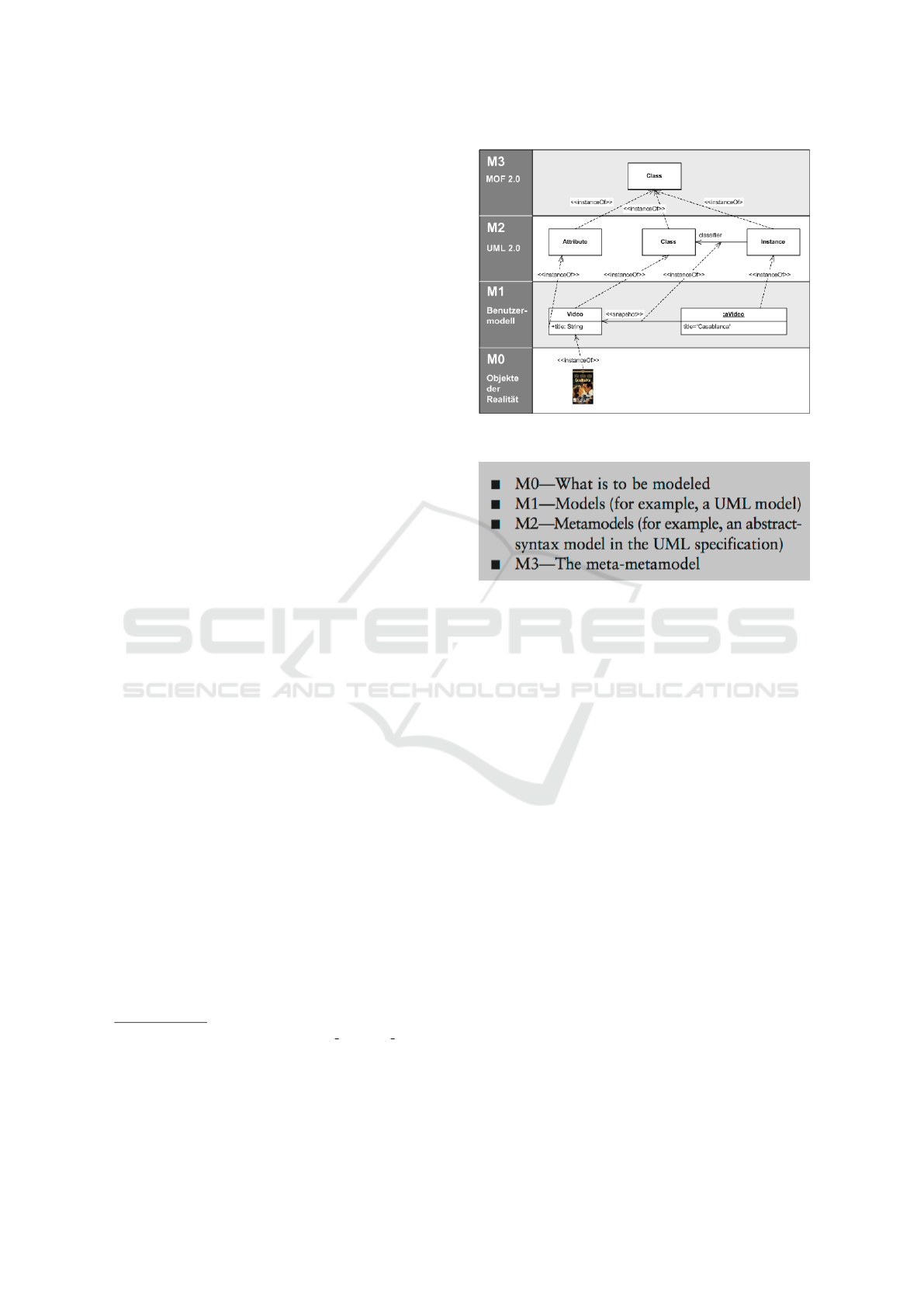

Figure 12: M0 at Wikipedia.

Figure 13: M0 for MOF 1.4.

objects at M0 model these things. Of course, the ob-

jects in executions at M0 are real-world objects in the

sense that they physically exist in a computer.

M0 with Execution Instances

The objects (in general instances) on M0 are instances

of the class descriptions (in general classiﬁers) at M1.

Some use the term data instead of instance; as in a hi-

erarchy where a database schema language is on M2,

database schema on M1, and database tables with data

on M0. The model (M1) provides a design of the

system, and level M0 contains the data objects de-

scribed at M1. Runtime instances are an extension of

this view. Instantiation depends upon the semantics

of the language. Colin Atkinson and Thomas K

uhne

state (Atkinson, 1997):

Thus, the information at the data level is

known as an M0 model, the traditional model

level is known as the M1 level, the metamodel

level is known as the M2 level, and so on...

The M0 level is unique because it can contain

no instantiable elements (i.e. templates). It is

unique among the levels, therefore, in being

populated solely by objects.

The execution instances view is supported by (OMG,

2011; Clark et al., 2004; B

ezivin and Gerb

e, 2001;

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

316

Favre, 2004). Jean-Marie Favre states in (Favre,

2003):

The model level is used to manage the set

of all possible real-world situations which are

represented at the instance level (M0). For in-

stance “Tom” might be a client that owns two

accounts “a4099” and “a2394” with a respec-

tive balance of $800 and $2000. A point at

the instance level describes a particular state

of a software at a particular point in time. It

corresponds to a program state. Program exe-

cution indeed corresponds to the evolution of

this state.

Jean Bezivin states in (B

ezivin and Gerb

e, 2001) that

M0 corresponds to one given dynamic execution of a

program. However, it is unrelated to modeling (it does

not contain model elements, but rather real or imag-

inary situational items and facts). A given execution

of a program on level M0 is not itself a model; it is

depicted by a model (the source code of the program

that describes the inﬁnite number of different execu-

tions of the program). Precisely the same situation ex-

ists in the four OMG metamodeling layers: M0: the

concrete level (any real situation, unique in space and

time, represented by a given model from M1).

In (Seidewitz, 2003), the following is said about

models.

A model’s meaning has two aspects. The ﬁrst

is the model’s relationship to the thing being

modeled. This is meaning in the sense of ’This

class model means that the Java program must

contain these classes.’

This corresponds to the UML-as-blueprint approach

mentioned above. The second aspect (according to

(Seidewitz, 2003)) is in line with the execution in-

stances approach:

The second aspect is the model’s relationship

to other models derivable from it. This is

meaning in the sense of ’This class model

means that instances of these classes are re-

lated in this way.’ I have called this a theory

of the modeling language; this is often called

the modeling language’s ’semantics’ ...

In a presentation

at a workshop on uniﬁed model-

ing and programming

Ed Seidewitz says that ’All

https://www.slideshare.net/seidewitz/xuml-

presentation-111023-models-programs-and-x-uml, 2011

https://pure.au.dk/portal/en/publications/coomp-2011-

ﬁrst-international-workshop-on-combined-objectoriented-

modeling-and-programming(77ac2dea-fa3a-49cb-b5b9-

76d6361b447f).html

programs are models’ ’Executable Models are Pro-

grams’, and ’Programming in UML is just Program-

ming’. This view is the same as presented here; the

only difference is that we term the execution a model.

In (Seidewitz, 2016) it is said that Executable UML

models and programs are models of executions.

The notion of executable models was coined way

before plain UML (1997) and therefore before Ex-

ecutable UML. In 1992, SDL (Union, 2011) was

turned into an object-oriented speciﬁcation language

with well-deﬁned execution semantics, exploiting

processes with state machines, and in 1994 ROOM

(Selic et al., 1994) did the same with processes and

Statecharts.

6 SUMMARY

This paper has clariﬁed artefacts like models, descrip-

tions and executions, and the relations between these

artefacts in systems development.

Executing a System Description Leads to a System.

In this paper we have argued that in order to have

programmers employ modeling for real, a model

has to be the executing system of objects that has

a model-of relation to a planned system. Such a

model will have a system model prescription, and

the execution of this prescription will create the

model. In UML, this system model description is

called a UML model.

A System Can be Model-of a Referent System. It

appears quite obvious in a programming context

that some objects (existing during the execution

of a program) model the corresponding entities

in the application domain. This view applies to

modeling as well.

Ontological Instantiation Relates Descriptions.

The possibility to describe objects in UML

using InstanceSpecification has created

considerable confusion about the levels, about

instantiation, and about M0. The idea of models

being executions at M0 helps in understanding

that there is a major difference between onto-

logical instantiation and linguistic instantiation.

Based on this difference, ontological instantiation

is only a relation between different description

elements: InstanceSpecification and its

classiﬁer.

Model and Code can Describe the Same System.

A UML model does not model the corresponding

Java code, but both are descriptions of systems

that might model some referent system. They can

Real Models are Really on M0 - Or How to Make Programmers Use Modeling

317

describe the same system on different levels of

abstraction.

These clariﬁcations contribute to the alignment of

programming and modeling. This paper has just

touched upon semantics and meaning; an in-depth

coverage of semantics and meaning, which are closely

related to M0, is planned for a future article.

REFERENCES

Aldrich, J., Chambers, C., and Notkin, D. (2002). Archjava:

Connecting software architecture to implementation.

In Proceedings of the 24th International Conference

on Software Engineering, ICSE ’02, pages 187–197,

New York, NY, USA. ACM.

Aßmann, U., Zschaler, S., and Wagner, G. (2006). Ontolo-

gies, meta-models, and the model-driven paradigm.

In Calero C., Ruiz F., Piattini M. (eds): Ontologies

for Software Engineering and Software Technology.

Springer Berlin Heidelberg.

Atkinson, C. (1997). Meta-modeling for distributed ob-

ject environments. In In Enterprise Distributed Object

Computing, pages 90–101. Published by IEEE Com-

puter Society.

Atkinson, C. and K

uhne, T. (2003). Model-driven develop-

ment: A metamodeling foundation. Software, IEEE.

ezivin, J. and Gerb

e, O. (2001). Towards a Precise Deﬁ-

nition of the OMG/MDA Framework. Proceedings of

ASE’01, Automated Software Engineering.

Bossel, H. (2013). Modeling and Simulation.

Vieweg+Teubner Verlag.

Butting, A., Jansen, N., Rumpe, B., and Wortmann, A.

(2018). Translating grammars to accurate metamod-

els. In Proceedings of the International Conference

on Software Language Engineering (SLE’18).

Clark, T., Evans, A., Sammut, P., and Williams, J.

(2004). Applied Metamodelling. A Foundation for

Language Driven Development. Xactium. Available

at http://www.xactium.com.

Daun, M., Brings, J., Krajinski, L., and Weyer, T. (2019).

On the beneﬁts of using dedicated models in valida-

tion processes for behavioral speciﬁcations. In Pro-

ceedings of IEEE/ACM Internatioal Conference and

System Processes (ICSSP).

Eriksson, O., Henderson-Sellers, B., and

Agerfalk, P. J.

(2013). Ontological and linguistic metamodelling re-

visited: A language use approach. Information and

Software Technology.

Exner, K., Lindowa, K., Buchholz, C., and Stark, R. (2014).

Validation of product-service systems – a prototyping

approach. In Proceedings of 6th CIRP Conference on

Industrial Product-Service Systems.

Favre, J.-M. (2003). Meta-model and model co-evolution

within the 3D software space. In Proceedings of

ELISA 2003.

Favre, J.-M. (2004). Foundations of meta-pyramids: Lan-

guages vs. metamodels - episode ii: Story of thotus the

baboon. In Language Engineering for Model-Driven

Software Development.

Fischer, J., Møller-Pedersen, B., and Prinz, A. (2016). Mod-

elling of systems for real. In Proceedings of the 4th In-

ternational Conference on Model-Driven Engineering

and Software Development, pages 427–434.

Fowler, M. (2005). Language workbenches: The

killer-app for domain speciﬁc languages?

http://www.martinfowler.com/articles/language

Workbench.html.

Gjøsæter, T., Prinz, A., and Nytun, J. P. (2016). MOF-VM:

Instantiation revisited. In Proceedings of the 4th In-

ternational Conference on Model-Driven Engineering

and Software Development, pages 137–144.

Holbæk-Hanssen, E., H

andlykken, P., and Nygaard, K.

(1973). System description and the delta language.

Technical report, Oslo: Norwegian Computing Cen-

ter.

Kawata, S. (2015). Computer Assisted Problem Solving En-

vironment (PSE), pages 1251–1260. IGI Global.

uhne, T. (2006). Matters of (meta-) modeling. Software

and Systems Modeling (SoSyM), 5(4):369–385.

Madsen, O. L. and Møller-Pedersen, B. (2018). This is not

a model : On development of a common terminology

for modeling and programming. In Proceedings of the

8th International Symposium, ISoLA 2018: Leverag-

ing Applications of Formal Methods, Veriﬁcation and

Validation - Modeling, Lecture Notes in Computer Sci-

ence 2018 ;Volume 11244 LNCS, pages 206–224.

OMG (2011). Uniﬁed Modeling Language: Infrastructure

version 2.4.1 (OMG Document formal/2011-08-05).

OMG Document. Published by Object Management

Group, http://www.omg.org.

OMG (2014). Ontology Deﬁnition Metamodel Version 1.1.

Technical report, Object Management Group.

OMG (2016). Meta Object Facility (MOF). Technical re-

port, Object Management Group.

OMG (2018). Semantics of a Foundational Subset for Exe-

cutable UML Models (fUML). Technical report, Ob-

ject Management Group.

Prinz, A., Møller-Pedersen, B., and Fischer, J. (2016).

Object-oriented operational semantics. In Proceed-

ings of SAM 2016, LNCS 9959, Berlin, Heidelberg.

Springer-Verlag.

Seidewitz, E. (2003). What models mean. IEEE Software.

Seidewitz, E. (2016). On a uniﬁed view of modeling

and programming, position paper. In Proceedings of

ISoLA 2016.

Selic, B., Gullekson, G., and Ward, P. T. (1994). Real-time

Object-oriented Modeling. John Wiley & Sons, Inc.,

New York, NY, USA.

Skene, J. (2007). Language Support for Service-Level

Agreements for Application-Service Provision. PhD

thesis, University of London. Accessed January, 2015:

http://eprints.ucl.ac.uk/5607/1/5607.pdf.

Union, I. T. (2011). Z.100 series, speciﬁcation and de-

scription language sdl. Technical report, International

Telecommunication Union.

W3C (2012). OWL 2 Web Ontology Language. Technical

report, W3C.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

318
