Segmentation of Moving Objects in Trafﬁc Video Datasets

Anusha Aswath

, Renu Rameshan

, Biju Krishnan

and Senthil Ponkumar

Indian Institute of Technology, Mandi, Himachal Pradesh, India

Continental Tech Centre, Bengaluru, Karnataka, India

Keywords:

Multi-object Tracking, CNN Model, Re-identiﬁcation, Instance Segmentation, Ground Truth, Interactive

Correction, Annotation Tool.

Abstract:

In this paper, we aim to automate segmentation of multiple moving objects in video datasets speciﬁc to trafﬁc

use case. This automation is achieved in two steps. First, we generate bounding boxes using our proposed

multi-object tracking algorithm based on convolutional neural network (CNN) model which is capable of re-

identiﬁcation. Second, we convert the various tracked objects into pixel masks using an instance segmentation

algorithm. The proposed method of tracking has shown promising results with high precision and success rate

in trafﬁc video datasets speciﬁcally when there is severe object occlusion and frequent camera motion present

in the video. Generating instance aware pixel masks for multiple object instances of a video dataset for ground

truth is a tedious task. The proposed method offers interactive corrections with human-in-the-loop to improve

the bounding boxes and the pixel masks as the video sequence proceeds. It exhibits powerful generalization

capabilities and hence the proposed tracker and segmentation network was applied as a part of an annotation

tool to reduce human effort and time.

1 INTRODUCTION

Advanced Driver Assistance Systems (ADAS) are

systems with camera sensors for vision, radar sensors

for detection and lidar sensors for distance measure-

ments. The camera images and information obtained

from fusion of different sensors are utilized by com-

puter vision algorithms to train models to perform

functions like vehicle and pedestrian detection, traf-

ﬁc sign recognition, lane change assist and assisted

speed control to name a few. Algorithms developed

for computer vision tasks require machine learning

models and deep neural networks to be trained. To

train these networks, huge amounts of labeled data are

required to obtain generalised results. The data avail-

able for ADAS mostly consists of long video record-

ings (some millions of kilometers).

Data labeling task requires human-in-the-loop to

annotate images using an annotation tool. Some of

the latest annotation tools provide markers for line,

box, polyline, polygon and pixel annotation. Mech-

anisms like superpixel (Achanta et al., 2012) or wa-

tershed (Beucher and Meyer, 1993) have also been

introduced for assisted pixel labeling. Artiﬁcial In-

telligence (AI) assisted web-based platforms are also

being developed for automating labeling of data. Cur-

rently, the effort for manual data labeling for one hour

of recording (which consists of 1500000 frames) is

149 hours for cars and 79 hours for pedestrians for

ﬁne pixel masks (outlining the object). It is also of

concern that a company has a few hundreds of in-

house workers to do annotation. Hence a lot of capital

is invested by companies and time of individuals lost

for doing annotation.

Deep learning methods have helped in achiev-

ing state-of-the-art results in various computer vision

tasks. We shall utilize deep learning algorithms to

segment multiple moving objects and identify the ob-

jects with same labels throughout the video. We shall

apply this solution as a part of an annotation tool to

automate labeling process. As the segmentation of

multiple objects requires a bounding box around the

object to be segmented, we start with the process of

tracking for multiple objects in a video frame. This is

followed by segmentation of objects inside the bound-

ing boxes obtained. We also aim at interactive correc-

tions for labeling apart from only reviewing and ad-

justing the generated labels on the annotation tool. In

case of any correction required in the bounding boxes

generated, the annotator should be able to shift the

box and consequently improve the tracking accuracy

in further frames which is enabled in our solution.

Though there exist various deep learning algo-

rithms which achieve multiple object tracking (Chu

Aswath, A., Rameshan, R., Krishnan, B. and Ponkumar, S.

Segmentation of Moving Objects in Trafﬁc Video Datasets.

DOI: 10.5220/0008940403210332

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 321-332

ISBN: 978-989-758-397-1; ISSN: 2184-4313

321

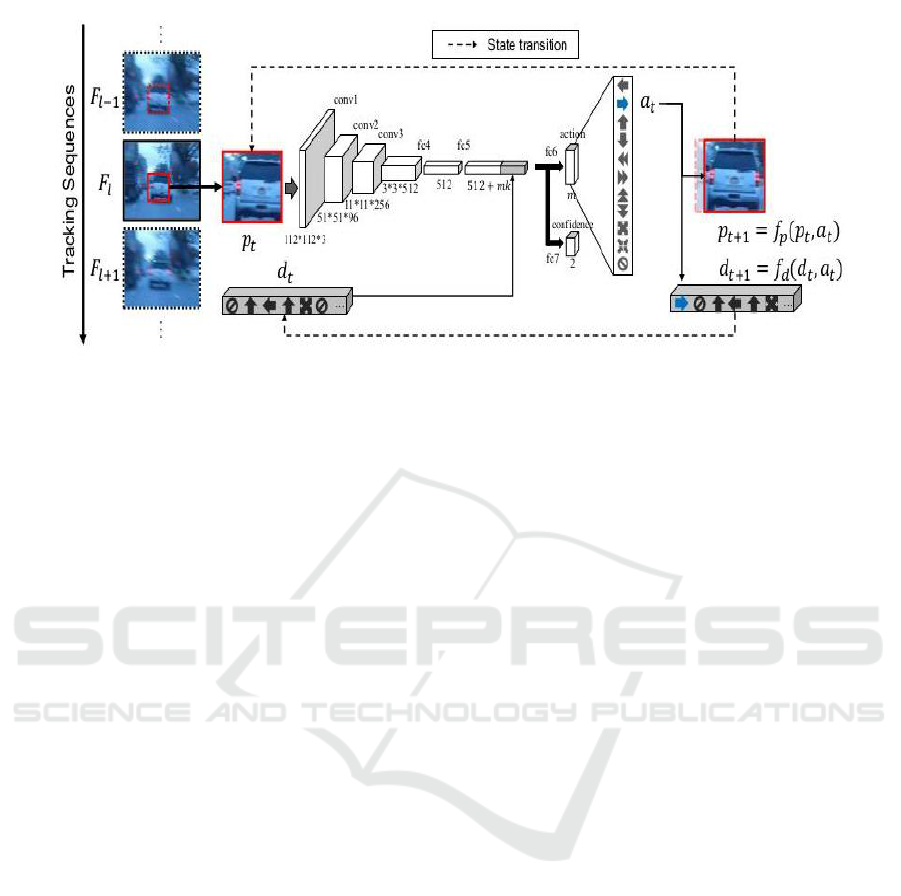

et al., 2017; Gordon et al., 2018), we propose to use

a conﬁdence score based CNN tracker that initalizes

on a target and updates online for tracking (which also

facilitates interactive corrections). For tracking multi-

ple objects, a single object tracker (Yun et al., 2017) is

modiﬁed to a multi-object tracker using multi-domain

learning technique (Nam and Han, 2016). The posi-

tion of the target in the next frame is predicted using

the appearance and motion information to predict lin-

ear transformations in the form of certain actions. To

automate the process of incorporating new objects in

the tracking framework we make use of a data associ-

ation module. It uses similarity learning to associate

detections with their corresponding tracks and to han-

dle re-identiﬁcation.

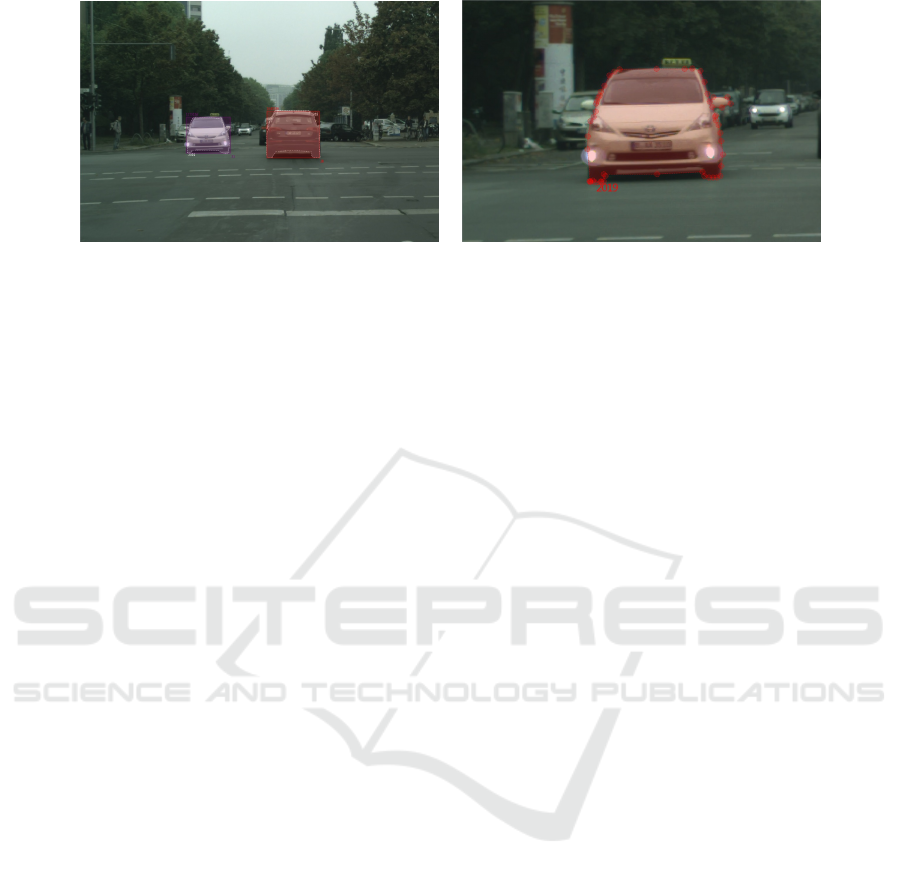

For instance segmentation, using the multiple

bounding boxes for all the tracked objects in a video

frame we outline the objects using polygon vertices

predicted by Polygon RNN++ (Acuna et al., 2018).

This mimics the common technique used for gener-

ating pixel masks through polygon or polyline mark-

ers. We combine these two solutions for segmenting

multiple objects in trafﬁc videos and thus provide a

solution to reduce the effort of manual annotation for

multiple object instances.

This is an application based paper which aims to

assist annotation of multiple objects in trafﬁc video

datasets. The main contributions of this paper are

summarized as follows-

• A novel multiple object tracking network for an-

notation

– CNN based multi-object tracker with online up-

date based on a dynamic tracking score for each

object.

– Maintain track with consistent identities during

occlusions or complex interactions.

– Perform re-identiﬁcation of targets for trafﬁc

datasets on a search area determined by the mo-

tion model.

• Integrating the tracker and segmentation network

as part of a custom label tool.

The rest of the paper is organised as follows: Sec-

tion 2 gives the related work, the proposed solution is

discussed in Section 3, followed by results and con-

clusion in Sections 4 and 5, respectively.

2 RELATED WORK

Multi-object tracking (MOT) is the problem of si-

multatneously solving for the trajectories of individ-

ual objects, while maintaining their identities over

time through occlusions, clutter and complex inter-

actions. There are two broad categories for solving

the MOT problem - 1) global data association and 2)

visual tracking. Global data association method for-

mulates the tracking problem as forming trajectories

by recursively connecting the detections. It uses opti-

mization methods to minimize cost functions formu-

lated through network ﬂow (Pirsiavash et al., 2011) or

using continuous energy minimization (Milan et al.,

2013). It also includes linear programming (Jiang

et al., 2007) and MAP (Maximum a posteriori) es-

timation (Pirsiavash et al., 2011) to track multiple

objects simultaneously. Tracking-by-detection is a

tracking paradigm where tracked objects are linked to

detections, treated as a data association problem (An-

driluka et al., 2008). All the above methods heavily

rely on the detection performance.

With the increasing work on appearance based

models for visual tracking, trackers can be broadly

classiﬁed into two groups - discriminative and gen-

erative trackers. Discriminative methods deﬁne the

tracking problems as a binary classiﬁcation task,

which attempts at designing a classiﬁer to separate

targets from their surrounding background. It is

important to update the target appearance model to

take into account appearance changes, cluttered back-

ground, blur or deformations. Various online up-

date techniques include online mixture model (Jepson

et al., 2003), incremental subspace update (Ross et al.,

2008) and online boosting (Grabner et al., 2006). For

discriminative models, the main issue has been im-

proving the sample collection part to make the online-

trained classiﬁer more robust (Grabner et al., 2008;

Babenko et al., 2009; Kalal et al., 2010; Hare et al.,

2015).

A discriminative single object tracker can also be

used for tracking multiple objects (Chu et al., 2017).

This also demonstrates the problem of online update

in MOT scenarios which include complex interactions

among targets. For tracking multiple objects, we pro-

pose to use a single object tracker which uses a so-

phisticated appearance model through online update

along with incorporating a motion model for each tar-

get (Yun et al., 2017). The proposed tracker carefully

updates the model in MOT scenarios by maintaining

the discriminative appearance model through time.

To handle this issue of maintaining the temporal

information of the object to avoid drifts, we resolve to

generative method of tracking. These methods search

for the most similar regions of the object appearance

at each frame, based on learning only the appearance

model for object representation. In correlation ﬁlter

based trackers features are learnt by minimizing the

distance between embeddings (measuring similarity)

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

322

learnt from the network. Pre-trained CNN models are

used to obtain feature maps to correlate two images

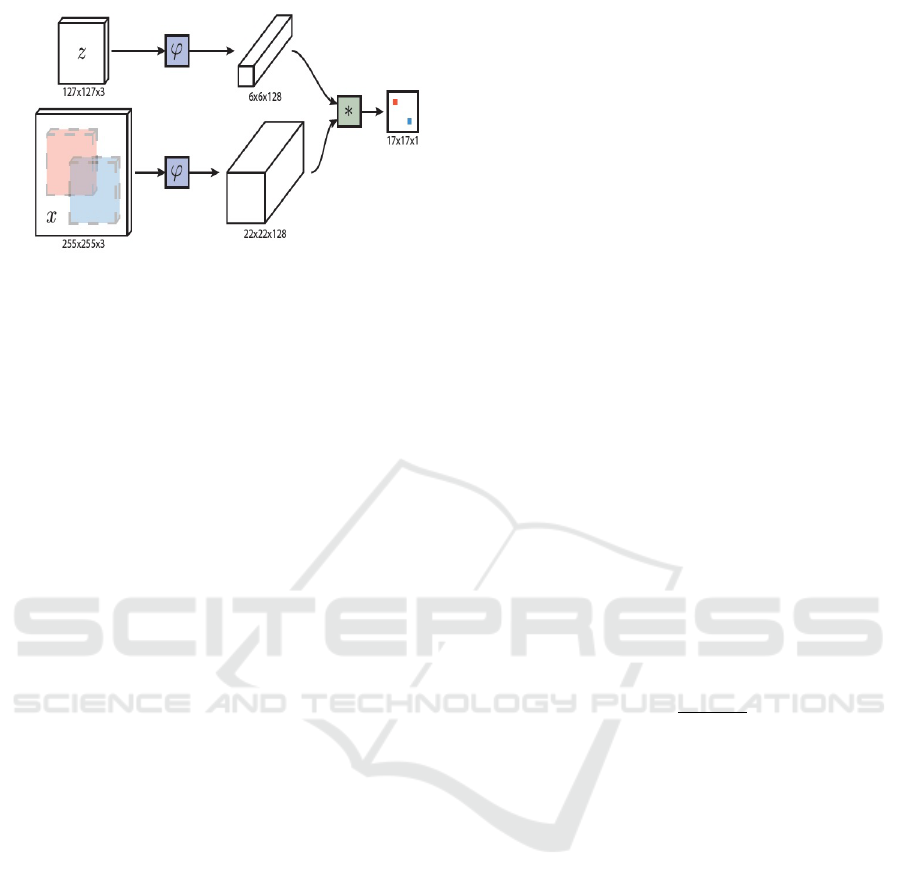

(Tao et al., 2016). A fully convolutional network that

produces a score map from the correlation of a tar-

get and search patch was proposed (Bertinetto et al.,

2016) with element-wise logistic loss function on the

score map. New loss functions such as triplet loss

were applied to Siamese networks to learn embed-

dings (Zhuang et al., 2016). We shall use the ofﬂine

model for similarity measurement (Bertinetto et al.,

2016) for maintaining temporal information while up-

dating our network for tracking.

Recurrent Neural Network (RNN) is another ar-

chitecture which can be used to model the object

motion information along with modeling appearance

information. GOTURN (Held et al., 2016) uses a

CNN model to regress the location of the object in

next image from the previous image. This was im-

proved upon in Real-time Recurrent Regression net-

work (Re3 tracker) (Gordon et al., 2018) using an

LSTM (Long Short Term Memory) to model the tem-

poral dependencies. The input to the LSTM is in the

form of current and previous frame which helps it

learn motion information between pixels. Re3 adapts

itself to appearance changes in a single forward pass,

through its LSTM cell states and requires resetting at

every 32 frames to avoid model drift. This resetting is

done as the LSTM states are trained only to remem-

ber a maximum of past 32 cell states of the tracked

object. It is reset with the ﬁrst forward pass of the

tracked object to retain the previous information in-

stead of setting it all to zero. However it easily drifts

in case of signiﬁcant occlusions and does not track the

same object on disappearance and reappearance of the

object or during object interactions.

Semi-automatic semantic segmentation is used to

obtain labels with human-in-the-loop to obtain guid-

ing signals like bounding boxes, points, edges, scrib-

bles etc. Interactive mechanisms like DeepMask

(Pinheiro et al., 2015) provide instance segmentation

through its pixel wise prediction map inside a bound-

ing box. Deep Extreme Cut (Xu et al., 2017) offers

a guided and interactive annotation method using ex-

treme points. The grab-cut based method extended

to Deep Grab Cut (Maninis et al., 2018) produces

pixel-wise classiﬁcation inside bounding boxes. All

these techniques classify each pixel inside the bound-

ing box as an object class. Such methods are unsuit-

able as the labelers need to unmark each pixel care-

fully when labeled incorrectly, which makes it time

consuming. Hence, we propose to use polygon ver-

tices for semantic segmentation which is generated

through deep learning based network (Acuna et al.,

2018).

3 PROPOSED SOLUTION

In this work, we provide an instance aware segmen-

tation solution for multiple objects in trafﬁc video

data sets. Our solution is two-fold, ﬁrstly the track-

ing of multiple objects through trafﬁc videos and sec-

ondly the segmentation of these object instances. The

proposed multi-object tracker is discussed along with

addressing the problems of maintaining consistent

tracks in MOT scenarios. This is followed by using

the boxes to generate instance aware masks using a

segmentation algorithm.

3.1 Tracking Multiple Objects using a

Single Object Tracker

We have modiﬁed Action Decision Network (ADNet)

(Yun et al., 2017), which is a single object tracker for

tracking multiple objects.

3.1.1 Overview of Single Object Tracker

ADNet tracks objects through a sequential Markov

Decision Process (MDP) which consists of a set of

states and actions. The actions (a

) are taken on the

basis of the probabilities predicted by the trained net-

work to provide transitions between states. The state

information consists of appearance and motion infor-

mation. The appearance information (p

) is the im-

age (F

) cropped by the bounding box and resized to

112 × 112 × 3. The motion information (d

) is given

by a constant vector of length 110 which includes the

past ten actions encoded in the form of one-hot eleven

length vector. In case the action taken is left then the

bounding box is moved as [x − δx, y, w, h], where δ is

some small value. The appearance information for the

next step in the MDP (p

t+1

) is given by the image crop

obtained from the moved bounding box. The motion

information (d

t+1

) is given by adding the left action

one-hot vector and removing the past action vector

using the last in ﬁrst out rule.

This process of tracking through sequential ac-

tions is continued for the next time steps in the MDP if

the class conﬁdence score for a given target is greater

than 0.5. The tracking is continued for a maximum of

twenty sequential actions or till stop action is reached

on the image (F

). Once this iteration for taking

sequential actions gets completed the bounding box

from the previous frame position (F

l−1

) is said to have

reached the target in F

. This is taken to be the ﬁrst

box in the next frame (F

l+1

) to start with the MDP

to reach the target in F

l+1

. The network architecture

and tracking mechanism using sequential actions and

class conﬁdence scores is illustrated in Figure 1.

Segmentation of Moving Objects in Trafﬁc Video Datasets

323

Figure 1: Action Decision Network for tracking single object. The network architecture and tracking sequence illustration is

taken from (Yun et al., 2017).

If the class conﬁdence score is less than 0.5 for

the given state information then the tracking process

is said to have failed and is stopped. We then perform

redetection by sampling which involves sampling a

set of candidate patches around the last bounding box

obtained in the MDP. The candidate patch that has the

highest class conﬁdence score is selected as the target

for continuing the track as given in Equation 1.

b = arg max

[class conﬁdence scores(b

)]

(1)

where i denotes the index of the sampled patch and

the box with the highest class conﬁdence score is se-

lected.

During tracking, online adaptation for structured

data (such as video) is performed for the targets using

p-n (positive-negative) learning (Kalal et al., 2010).

p (positive) and n (negative) samples are collected

from the successfully redetected position whenever

the class conﬁdence score is greater then 0.5. Super-

vised training is done for the ﬁnal layers using patches

) sampled randomly around the tracked patch (t p).

The corresponding action labels (a

) and class conﬁ-

dence labels (c

) are obtained for the patches (p

) (Yun

et al., 2017) through equation 2.

= arg max

IoU(p

,t p)

(

1, if IoU(p

,t p) > 0.7

0, otherwise

(2)

where IoU refers to intersection over union and

refers to that action a on patch p

that gave the

maximum IoU with the redetected patch. All sample

patches that have an IoU greater than 0.7 with the re-

detected patch are positive class and the rest are neg-

ative class. Cross entropy loss is used to train the f c6

and f c7 layers for actions and class conﬁdence scores.

The samples from recent successfully tracked frames

are collected for short-term update. For training the

action layer only positive samples are used whereas

for the class conﬁdence layer a discriminative classi-

ﬁer is trained using both positive and negative sam-

ples.

3.1.2 Proposed Multi-object Tracker

To track multiple objects using actions and conﬁ-

dence scores, we propose different ﬁnal layers for

the last fully connected layer and prediction layers.

The network (Yun et al., 2017) learns a generic rep-

resentation from many videos during training to pro-

duce certain actions given certain states, using shared

and domain speciﬁc layers for each new video us-

ing the multi-domain learning technique (Nam and

Han, 2016; Dredze and Crammer, 2008). We utilize

this trained network to do multiple object tracking by

treating each target to be a new video domain. To

learn multiple domains simultaneously, we utilize the

shared layers and initialize domain speciﬁc ones to

learn each of the targets. The f c5 layer is initialized

with pretrained weights whereas the action vectors

vary for each of the target. The f c6 and f c7 layers

are initialized with new weights.

Before starting a track, the ﬁnal layers initialized

with new weights are adapted with p and n samples

obtained from the ﬁrst bounding box on the target.

Once K different ﬁnal layers are adapted for K differ-

ent objects, the binary classiﬁcations and predictions

of actions become domain speciﬁc. Online adapta-

tions are performed through the respective ﬁnal lay-

ers during tracking. In case of tracking failure due to

low class conﬁdence score for one of the actions taken

in MDP, redetection using sampling is performed and

we adapt to the features through their speciﬁc ﬁnal

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

324

112*112*3

11*11*256

3*3*512

1*1*512

conv3

fc4

fc5

fc6_1

fc7_1

fc7_3

fc6_3

fc7_2

fc6_2

1*1*512 concat 1*1*110

conv2

conv1

51*51*96

action

class

action

class

action

class

Figure 2: Proposed multi-object tracking network modiﬁed through ADNet.

branches. Figure 2 shows the ﬁnal layers and the

domain speciﬁc branches for action and class layers

for three targets being tracked. As the number of tar-

gets increases, the number of branches initialized for

tracking also increases. Once a track is said to have

ended, then the corresponding branch is reinitialized

with a new target when it appears.

We have modiﬁed a single object tracker for track-

ing multiple objects through online update. We shall

now discuss our solution for handling MOT chal-

lenges in the next section.

3.1.3 Challenges in MOT Scenario

In case of tracking failure with the proposed method,

the tracking process is continued from the redetected

patch. If the class conﬁdence score of the redetected

patch were greater than 0.5, then we update the fully

connected layers for adapting to changes in appear-

ance of the patch that caused the tracking failure.

However this method fails for targets with occlusions,

frequent disappearance or reappearance and during

target interactions, a common scenario in the case

of multi-object tracking. This is because even if the

score is greater than the threshold of 0.5, it does not

indicate whether it is the entire object, partial object,

cluttered background or noisy image due to occlu-

sions.

However, performance of the tracker which de-

pends on the threshold for class conﬁdence score is

kept as 0.5 for the proposed multi-object tracker. The

justiﬁcaton for the selection of threshold is as follows:

1. During the MDP process, if we keep a higher

threshold for class conﬁdence score to continue

tracking with linear actions, it leads to more fail-

ures in the tracking process. This is because the

bounding box starts from the previous frame po-

sition and it requires a relaxation in the class con-

ﬁdence score to take actions to reach the target in

the current frame.

2. Increasing the threshold for accepting the highest

class conﬁdence score based sampled patch dur-

ing redetection is also not feasible. This is be-

cause ﬁxing a high threshold for one of the targets

may not be suitable for the other target which has

a lower threshold for its full appearance. There is

a need to select some dynamic threshold based on

the target’s features which is elaborated in section

3.2.2.

Thus, we keep our threshold at 0.5 and perform

tracking. However, the tracker fails for multi-object

tracking as explained below -

• Tracker fails to track the target through target

drift, target loss, occlusions or confusion.

– Drift can occur due to fast motion, blur, illumi-

nation variation etc.

– Target loss occurs during disappearance of the

target from the frame or during severe and long

occlusions.

– Confusions occur due to targets with similar ap-

pearance or cluttered background.

• Updating the tracker with other features leads

to degradation of the model learnt online during

short-term update. This is because the tracker

only accounts for some of the recent past features

which have chances of getting corrupted without

the lack of target’s temporal information.

As mentioned, there is a need to select a threshold

for update based on the temporal and spatial features

of the target.

Segmentation of Moving Objects in Trafﬁc Video Datasets

325

Figure 3: Fully convolutional siamese architecture. The net-

work diagram is taken from (Bertinetto et al., 2016).

3.2 Handling Model Update and Target

Drift

The issues arising from choice of class conﬁdence

score as 0.5 are handled by using correlation maps.

We use correlation maps as an occlusion or noise at-

tention mechanism. We give a brief overview of the

network (Bertinetto et al., 2016) that is used for gen-

erating the correlation map for the ease of understand-

ing.

3.2.1 Using Fully Convolutional Siamese

Tracker

The Siamese architecture in Figure 3 is trained us-

ing similarity learning between a pair of positive and

negative image pairs. The ground truth labels are gen-

erated from a pair of images (positive pairs) obtained

from corresponding images of a video at most hun-

dred frames apart.

The spatial map is obtained by correlating two im-

ages, the exemplar patch x and search image patch z

using the below operation

(x, z) = φ(x) ∗ φ(z)+ b (3)

here ∗ is the cross correlation operator on the fea-

tures of the exemplar image x and the search image

z, by applying the function φ obtained by the trained

network . As the network is fully convolutional, there

is no risk of learning a bias on the centre of the search

image, even if training is with ground truth maps cen-

tered on the positive search image.

The output of this network is not a single score

between the target and the search image. Instead it is

a list of scores between each translated sub-window

in the search area with the target image, obtained

through a single forward pass.

3.2.2 Handling Occlusions through Generated

Correlation Maps

In case of tracking failure we use the generated cor-

relation maps to determine a dynamic threshold for

each of the targets. The maps are generated between

an exemplar patch (target template) representing the

full appearance of the target and a search area patch

centered on the redetected patch (as given in Equa-

tion 1) or the associated detection (explained in sec-

tion 3.2.3).

The Siamese model was trained to generate em-

beddings that produces a high score for positive pairs

and a low score for negative (dissimilar) pairs. We ob-

tain high peaks for similar targets and low peaks for

dissimilar targets.

The correlation map generated provides a spatial

support in the search area region centered on rede-

tected patch or associated detection. We also get a

temporal reference with respect to a full target ap-

pearance to check for occlusions or noise. During

tracking the map has different values for the same

target depending on the features in the search area.

The peak to side lobe ratio (PSR) as employed in the

MOSSE tracker (Bolme et al., 2010) can serve the

purpose of providing a measure for dynamic thresh-

old on the correlation map. To calculate PSR we have

taken 150 × 150 area around the peak value and per-

formed the following calculation

PSR =

max

− µ

, (4)

where R

max

is the peak value of the response map.

µ and σ are deﬁned as the mean and standard devia-

tion of the side lobe area.

The dynamic threshold (θ) for each target is set

by the PSR value obtained from the correlation map.

This is set by the initial exemplar image (ﬁrst target

template) and the search area image centered on the

ﬁrst target template or successfully associated detec-

tion that represents the full target appearance.

3.2.3 Long Term Tracking through Detections

To perform long term tracking and tracking of new

targets, we use detections from a pre-trained detector

(Redmon and Farhadi, 2018) to automate the process

of tracking with minimal human intervention.

For associating with the tracked objects, we centre

the search area on the detections and correlate it with

the target templates to get PSR values. After feature

association we also perform a proximity check using

intersection over union (IoU). The method for using

the PSR values based on the set dynamic thresholds

(θ) for each of the targets is as follows

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

326

High PSR PSR within threshold θ Low PSR

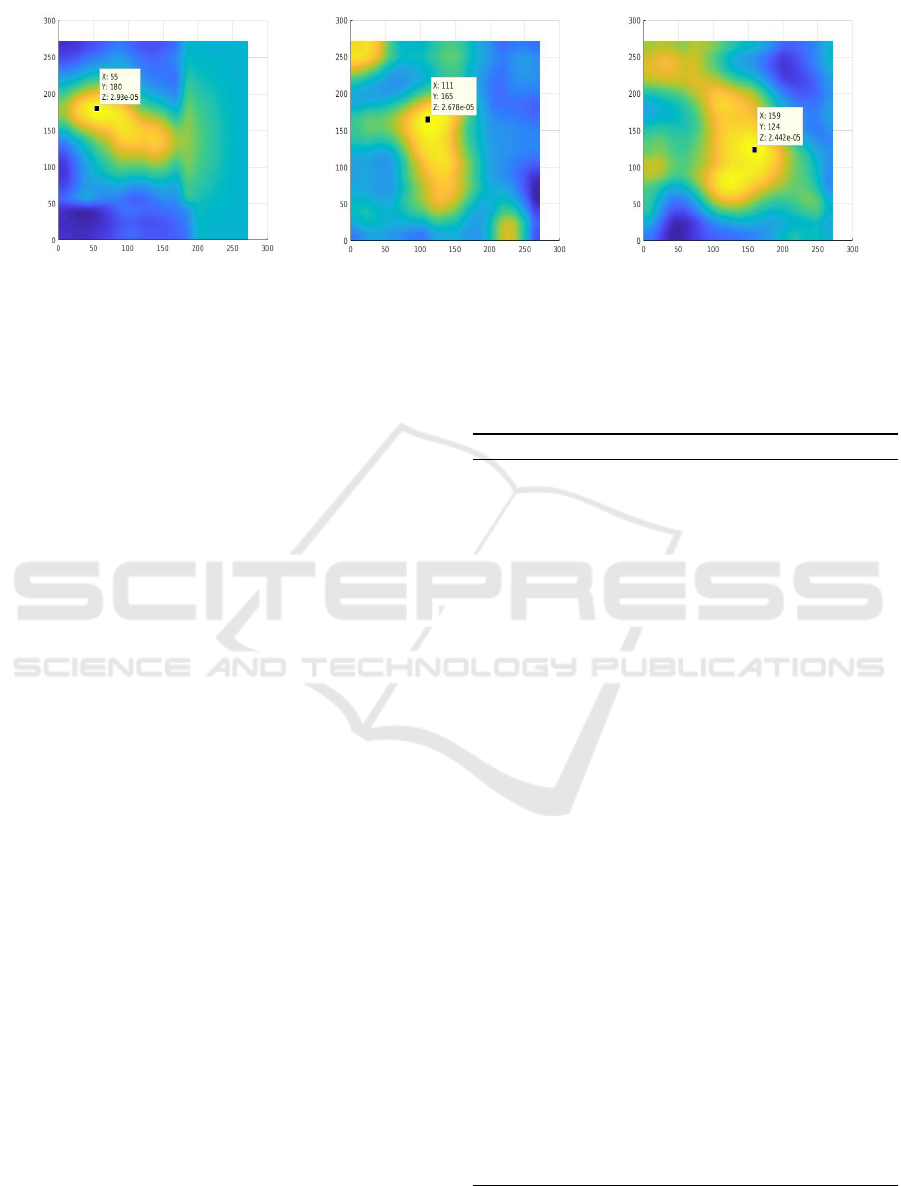

Figure 4: Correlation maps for PSR calculation.

1. Associate with an active track (object tracked suc-

cessfully in previous frames and current frame)

(a) Detections are associated with the track when

PSR is less than or equal to θ. The track ID

(identity) is assigned to the detection and θ

value is reset using the detection features.

(b) If none of the detections are associated with

the track then the corresponding detection must

have missed the frame. We then associate the

track with the previous frame information and

assign it the same track ID.

2. Associate with an inactive track (object tracked

unsuccessfully in previous frames and current

frame). If detection is associated with an inactive

track, reassign θ with the detection template and

change its state to active track.

3. When number of detections are more than the

number of tracks, initialize new tracks for the

unassociated detections.

4 SUMMARY OF PROPOSED

MOT

The proposed tracker handles update through the

mulit-domain network and performs re-identiﬁcation

on a search area maintained by the motion model.

Our proposed method is called MDT_RCM (Multi-

domain Tracking with Re-identiﬁcation using Corre-

lation Maps). We provide a summary of the pro-

posed multi-object tracking method with the help of

a pseudo code.

The assignment of bounding box as redetected

patch for inactive state helps in re-identiﬁcation as

mentioned in step 18 of the algorithm. This is because

inactive track’s search area is near the target in cases

where the motion model predicted linear actions suc-

cessfully, but failed in the last few steps of the MDP.

It is from this position given by the motion model that

redetection is performed.

Algorithm 1: MDT_RCM.

1: Get bounding boxes for ﬁrst frame using detections.

2: Initialize the ﬁrst K detections through K multi-domain

branches.

3: Set dynamic threshold values θ for each initial target.

4: for n=2 ; number of frames; n=n+1 do

5: Read image for frame n.

6: Track all the boxes parallelly through their corre-

sponding multi-domain branches.

7: Associate active and inactive tracks with detections.

Assign new tracks if necessary.

8: for all unsuccessful tracks do

9: Perform redetection by sampling as in eq 1.

10: Correlate with the target template and redetected

patch to get PSR value.

11: if PSR ≤ θ then

12: Active state: Consider it a successful track.

Collect positive and negative samples for on-

line update.

13: else

14: Inactive state :Maintain track in inactive state

till there is no re-identiﬁcation or associated

detection.

15: if Number of inactive states > γ then

16: Terminate state : Remove this track. Here

γ is a threshold for number of frames for

which inactive state continues.

17: end if

18: Box position for tracking in the next frame is

set to the redetected patch position.

19: end if

20: end for

21: for all active tracks do

22: Finetune network with samples collected in the

recent past successfully tracked frames.

23: end for

24: end for

Segmentation of Moving Objects in Trafﬁc Video Datasets

327

Table 1: Description of MOT16 dataset used for evaluation.

Name Type of dataset Camera Description

MOT16-02 Training set static Elevated night view of pedestrian street, interacting

objects, linear motion model, no long occlusions.

MOT16-04 Training set static People walking around a large square, full frontal

view from camera, include far targets with cluttered

background.

MOT16-13 Training set dynamic Camera mounted on a bus, frequent shaking and

rotation of camera, provides an elevated view of cars

and pedestrians.

MOT16-01 Test set static Side view of people walking around a large square,

include both static and moving targets with

interactions.

MOT16-06 Test set dynamic Street scene with moving platform, camera rotation

and complex interactions with severe occlusions.

This helps in re-identiﬁcation through successful

tracking or redetection with acceptable PSR values in

the consequent frames.

4.1 Generation of Pixel Masks

Using PolyRNN++ (Acuna et al., 2018), we have

been able to obtain pixel masks for all the tracked

objects in trafﬁc video datasets. We have chosen a

segmentation method that predicts pixel masks using

polygon vertices which helps in easy correction by the

human reviewer on an annotation tool.

5 RESULTS

First, we improve our model update for the single ob-

ject tracker on OTB-100 dataset (Wu et al., 2015).

Second, we test the proposed method for multiple ob-

ject tracking on MOT16 dataset (Milan et al., 2016).

Third, we use PolyRNN++ (Acuna et al., 2018) model

tested on the Cityscapes dataset (Cordts et al., 2016)

on trafﬁc video recordings. The tracker and instance

segmentation network are then combined in a cus-

tom label tool to provide the annotator with a solution

for instance aware segmentation of multiple objects in

different trafﬁc video datasets.

5.1 Dataset Description and Evaluation

Metrics

OTB-100 dataset consists of 100 video sequences

covering different challenges like illumination and

scale variations, fast motion, motion blur, occlusions,

deformations etc. MOT16 dataset has severe occlu-

sions, interacting targets and frequent disappearance

0.2

0.4

0.6

0.8

Location Threshold

Precision

Precision Plot

ADNet

Re3

Proposed

(a) Precision Plot on OTB-100 dataset

1 2 3 4 5 6

8 9

0.2

0.4

0.6

0.8

Overlap Ratio

Success

Success Plot

ADNet

Re3

Proposed

(b) Success Plot on OTB-100 dataset

Figure 5: Performance of single object tracking on

OTB-100 dataset. Here the proposed method refers to

MDT_RCM.

and appearance of objects. Table 1 provides a sum-

mary of the nature of objects in MOT16 dataset (Mi-

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

328

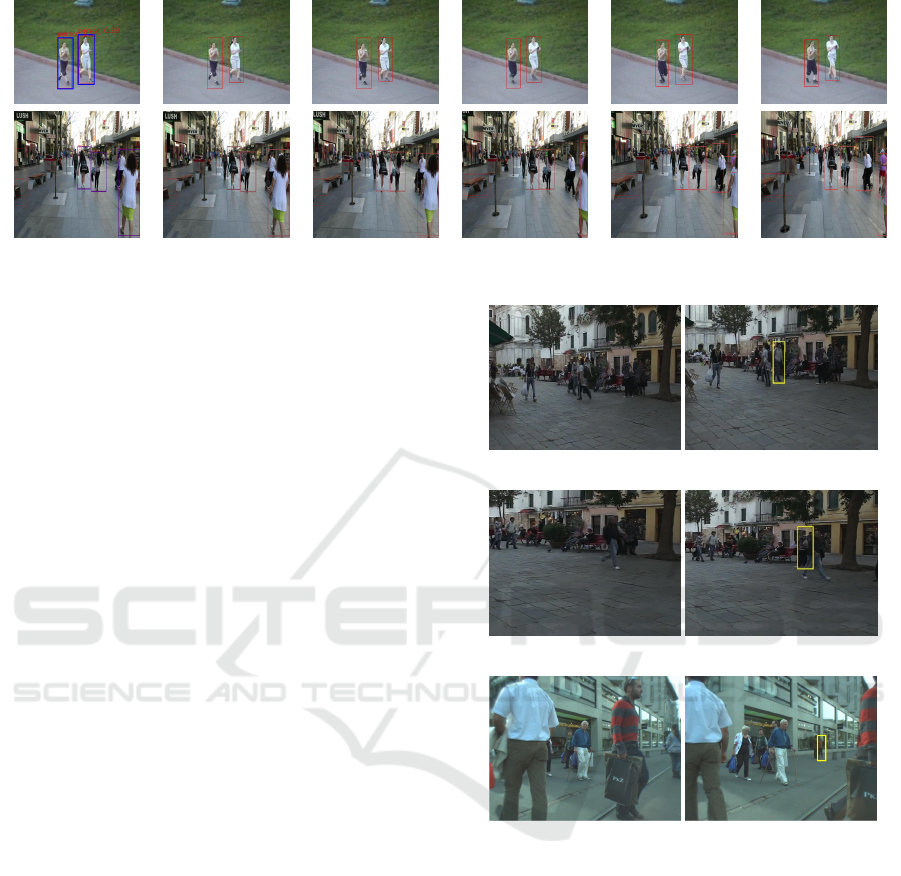

Figure 6: Multi-object tracking results on OTB-100 (top row) and MOT16 (bottom row) datasets.

lan et al., 2016) we use for evaluating our method.

To evaluate the performance of the tracker we

have used the precision and success plots of OPE

(One pass evaluation) (Wu et al., 2013).

1. Precision Plot (Wu et al., 2013): This plot cal-

culates the percentage of frames within a location

error threshold. The location value is given by

the Euclidean distance between the centers of the

tracked targets and the manually labeled ground

truths.

2. Success Plot (Wu et al., 2013): For this plot,

we calculate the IoU of the tracked box with the

ground truth box and check for the percentage

of frames whose overlap is greater than a certain

threshold.

5.2 Multi-object Tracking

Improving the model update and target drift improves

the single object tracker as compared to the original

ADNet and Re3 trackers. From the graphs in Figure

5, we see that the precision values at location error

threshold of 20 pixels are 74.2, 40.5 and 80.7 for AD-

Net, Re3 (Gordon et al., 2018) and the improved AD-

Net tracker respectively. And the success rate at an

overlap ratio of 0.5 are 78.6, 30.8 and 80.6 respec-

tively.

The results on evaluating for multi-object track-

ing using MDT_RCM is shown in Figure 6. This is

shown for two objects from the OTB-100 dataset and

ﬁve objects from the MOT16 dataset.

Figure 7 shows re-identiﬁcation of tracks where

the left column refers to inactive tracks when PSR

is below threshold and the right column shows re-

identiﬁcation when PSR is above threshold. Figure 7

(a) show the process of tracking through moving ob-

jects, where the model is not updated with features of

the occluding person. Figure 7 (b) demonstrate suc-

cessful tracking of a stationary and moving object.

Finally, Figure 7 (c) indicate tracking in the case of

moving cameras along with severe occlusion.

(a)

(b)

(c)

Figure 7: Re-identiﬁcation of tracks in MOT scenario.

Figure 8 shows the performance of MDT_RCM

on MOT16 dataset for both precision and success plot,

obtained by averaging over all objects for all frames

of the video. The values for precision and success ra-

tios are shown in Table 2. The results vary in improve-

ments on different videos on an average over vary-

ing number of objects and scenarios. We see that the

proposed method performs well in general on success

rates due to better motion model. As it is capable of

re-identiﬁcation, MDT_RCM shows better improve-

ment on the precision rates over other methods.

The MDT_RCM has performed well in MOT sce-

narios with promising results. The timing perfor-

mance of the proposed method has been improved

using parallel computing from 2.9 s per object (AD-

Segmentation of Moving Objects in Trafﬁc Video Datasets

329

0.2

0.4

0.6

Location Threshold

Precision

Precision - MOT16-02

2 3 4 5 6

8 9

0.2

0.4

0.6

0.8

Overlap Ratio

Success

Success - MOT16-02

0.2

0.4

0.6

0.8

Location Threshold

Precision

Precision - MOT16-04

1 2 3 4 5 6

8 9

0.2

0.4

0.6

0.8

Overlap Ratio

Success

Success - MOT16-04

0.2

0.4

0.6

Location Threshold

Precision

Precision - MOT16-13

1 2 3 4 5 6

0.2

0.4

0.6

0.8

Overlap Ratio

Success

Success - MOT16-13

0.2

0.4

0.6

0.8

Location Threshold

Precision

Precision - MOT16-01

1 2 3 4 5 6

0.2

0.4

0.6

0.8

Overlap Ratio

Success

Success - MOT16-01

0.2

0.4

0.6

0.8

Location Threshold

Precision

Precision - MOT16-06

1 2 3 4 5 6

0.2

0.4

0.6

Overlap Ratio

Success

Success - MOT16-06

Proposed

Re3

ADNet

Figure 8: Precision and Success Plots for multi-object tracking on MOT16 datasets. In these plots the proposed method refers

to MDT_RCM.

Table 2: Results on MOT16 training and test sets.

VideoSet ADNet Re3 Proposed method ADNet Re3 Proposed method

Precision Success

MOT16-02 61.51 24.42 66.38 47.10 19.24 61.17

MOT16-04 87.69 86.28 88.04 87.69 85.17 87.72

MOT16-13 68.14 46.69 68.23 64.10 39.28 65.45

MOT16-01 67.40 75.9 79.6 69 65.77 79.2

MOT16-06 41.18 67.20 67.86 37.75 45.58 60.71

Net) to 0.6 s per object (MDT_RCM). Compared to

the real-time Re3 tracker (0.3 s per object), it is a

slower ofﬂine tracker which assigns the same track

ID to all moving objects and has the advantage of re-

identiﬁcation.

5.3 Instance Aware Segmentation

We combine the multi-object tracking and segmenta-

tion method through a custom label tool, where the

output of the tracker is fed to the segmentation net-

work using a communication protocol (Varda, 2008)

and pixel masks are obtained simultaneously for all

the objects in the frame.

Figure 9 shows the masks of two objects using our

multi-object tracker and segmentation algorithm dis-

played on a custom label tool. The annotator can ad-

just the box or mask when necessary on the annotation

tool while reviewing the ground truth generated.

The annotator can choose to update the model of

MDT_RCM for a slight correction in the bounding

box and improve the accuracy of a particular target

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

330

(a) Bounding box and polygon mask (b) Polygon vertices outlining the target

Figure 9: Displaying the tracked boxes and pixel masks on annotation tool.

for future frames. In this case, the segmentation algo-

rithm is also connected to the tool through the proto-

col to display the new pixel masks.

6 CONCLUSIONS

We have automated the process of segmenting multi-

ple moving objects with instance-aware labels using

deep learning techniques. To achieve this we pro-

posed a two-fold solution, ﬁrstly to obtain tracks for

multiple objects and secondly to use a segmentation

algorithm on the boxes obtained.

We developed a scalable multi-domain network

for tracking multiple objects in trafﬁc video datasets

called MDT_RCM (Multi-domain Tracking with Re-

identiﬁcation using Correlation Maps). It performs

well in tracking multiple objects along with success-

ful re-identiﬁcation in MOT scenarios with high pre-

cision and success rates.

The initial layers of the CNN in ADNet can be

improved upon for multi-object tracking by using Re-

gion Proposal Networks (RPN) for foreground and

background classiﬁcation. Anchor boxes for simulta-

neously predicting the boxes for all objects in the im-

age could provide an advantage in terms of speed over

parallel computing. The Siamese architecture could

be used a part of the RPN network for tracking (Li

et al., 2018) without any online update. An LSTM can

also be used for predicting a series of actions instead

of using a CNN network based on Markov Decision

Process.

From the output of the tracker, we obtained iden-

tity aware pixel masks using PolyRNN++ as the seg-

menation algorithm. Both the boxes and segmenta-

tion masks generated can be visualized on an anno-

tation tool to help in completing the labeling for an

entire recording with minimal human effort and inter-

active corrections.

This solution can be used in diverse applications

involving video data processing. Motion detection,

intrusion detection, suspicious behaviour analysis, se-

curity access point monitoring, vehicle monitoring,

parking management and people counting are a few

examples of where the core solution can be applied.

REFERENCES

Achanta, R., Shaji, A., Smith, K., Lucchi, A., Fua, P., and

Süsstrunk, S. (2012). Slic superpixels compared to

state-of-the-art superpixel methods. IEEE transac-

tions on pattern analysis and machine intelligence,

34(11):2274–2282.

Acuna, D., Ling, H., Kar, A., and Fidler, S. (2018). Ef-

ﬁcient interactive annotation of segmentation datasets

with polygon-rnn++. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 859–868.

Andriluka, M., Roth, S., and Schiele, B. (2008).

People-tracking-by-detection and people-detection-

by-tracking. In 2008 IEEE Conference on computer

vision and pattern recognition, pages 1–8. IEEE.

Babenko, B., Yang, M.-H., and Belongie, S. (2009). Vi-

sual tracking with online multiple instance learning.

In 2009 IEEE Conference on Computer Vision and

Pattern Recognition, pages 983–990. IEEE.

Bertinetto, L., Valmadre, J., Henriques, J. F., Vedaldi, A.,

and Torr, P. H. (2016). Fully-convolutional siamese

networks for object tracking. In European conference

on computer vision, pages 850–865. Springer.

Beucher, S. and Meyer, F. (1993). The morphological ap-

proach to segmentation: the watershed transforma-

tion. Mathematical morphology in image processing,

34:433–481.

Bolme, D. S., Beveridge, J. R., Draper, B. A., and Lui, Y. M.

(2010). Visual object tracking using adaptive corre-

lation ﬁlters. In 2010 IEEE Computer Society Con-

ference on Computer Vision and Pattern Recognition,

pages 2544–2550. IEEE.

Chu, Q., Ouyang, W., Li, H., Wang, X., Liu, B., and Yu, N.

(2017). Online multi-object tracking using cnn-based

single object tracker with spatial-temporal attention

Segmentation of Moving Objects in Trafﬁc Video Datasets

331

mechanism. In Proceedings of the IEEE International

Conference on Computer Vision, pages 4836–4845.

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The cityscapes dataset for semantic urban

scene understanding. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 3213–3223.

Dredze, M. and Crammer, K. (2008). Online methods for

multi-domain learning and adaptation. In Proceed-

ings of the Conference on Empirical Methods in Nat-

ural Language Processing, pages 689–697. Associa-

tion for Computational Linguistics.

Gordon, D., Farhadi, A., and Fox, D. (2018). Re3: Re al-

time recurrent regression networks for visual tracking

of generic objects. IEEE Robotics and Automation

Letters, 3(2):788–795.

Grabner, H., Grabner, M., and Bischof, H. (2006). Real-

time tracking via on-line boosting. In Bmvc, volume 1,

page 6.

Grabner, H., Leistner, C., and Bischof, H. (2008). Semi-

supervised on-line boosting for robust tracking. In

European conference on computer vision, pages 234–

247. Springer.

Hare, S., Golodetz, S., Saffari, A., Vineet, V., Cheng, M.-

M., Hicks, S. L., and Torr, P. H. (2015). Struck:

Structured output tracking with kernels. IEEE trans-

actions on pattern analysis and machine intelligence,

38(10):2096–2109.

Held, D., Thrun, S., and Savarese, S. (2016). Learning to

track at 100 fps with deep regression networks. In Eu-

ropean Conference on Computer Vision, pages 749–

765. Springer.

Jepson, A. D., Fleet, D. J., and El-Maraghi, T. F. (2003).

Robust online appearance models for visual tracking.

IEEE transactions on pattern analysis and machine

intelligence, 25(10):1296–1311.

Jiang, H., Fels, S., and Little, J. J. (2007). A linear pro-

gramming approach for multiple object tracking. In

2007 IEEE Conference on Computer Vision and Pat-

tern Recognition, pages 1–8. IEEE.

Kalal, Z., Matas, J., and Mikolajczyk, K. (2010). Pn

learning: Bootstrapping binary classiﬁers by struc-

tural constraints. In 2010 IEEE Computer Society

Conference on Computer Vision and Pattern Recog-

nition, pages 49–56. IEEE.

Li, B., Yan, J., Wu, W., Zhu, Z., and Hu, X. (2018). High

performance visual tracking with siamese region pro-

posal network. In Proceedings of the IEEE Confer-

ence on Computer Vision and Pattern Recognition,

pages 8971–8980.

Maninis, K.-K., Caelles, S., Pont-Tuset, J., and Van Gool,

L. (2018). Deep extreme cut: From extreme points to

object segmentation. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 616–625.

Milan, A., Leal-Taixé, L., Reid, I., Roth, S., and Schindler,

K. (2016). Mot16: A benchmark for multi-object

tracking. arXiv preprint arXiv:1603.00831.

Milan, A., Roth, S., and Schindler, K. (2013). Continuous

energy minimization for multitarget tracking. IEEE

transactions on pattern analysis and machine intelli-

gence, 36(1):58–72.

Nam, H. and Han, B. (2016). Learning multi-domain con-

volutional neural networks for visual tracking. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition, pages 4293–4302.

Pinheiro, P. O., Collobert, R., and Dollár, P. (2015). Learn-

ing to segment object candidates. In Advances in

Neural Information Processing Systems, pages 1990–

1998.

Pirsiavash, H., Ramanan, D., and Fowlkes, C. C. (2011).

Globally-optimal greedy algorithms for tracking a

variable number of objects. In CVPR 2011, pages

1201–1208. IEEE.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Ross, D. A., Lim, J., Lin, R.-S., and Yang, M.-H. (2008).

Incremental learning for robust visual tracking. Inter-

national journal of computer vision, 77(1-3):125–141.

Tao, R., Gavves, E., and Smeulders, A. W. (2016). Siamese

instance search for tracking. In Proceedings of the

IEEE conference on computer vision and pattern

recognition, pages 1420–1429.

Varda, K. (2008). Protocol buffers: Google’s data inter-

change format. Google Open Source Blog, Available

at least as early as Jul, 72.

Wu, Y., Lim, J., and Yang, M.-H. (2013). Online object

tracking: A benchmark. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 2411–2418.

Wu, Y., Lim, J., and Yang, M.-H. (2015). Object tracking

benchmark. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 37(9):1834–1848.

Xu, N., Price, B., Cohen, S., Yang, J., and Huang, T. (2017).

Deep grabcut for object selection. arXiv preprint

arXiv:1707.00243.

Yun, S., Choi, J., Yoo, Y., Yun, K., and Young Choi, J.

(2017). Action-decision networks for visual tracking

with deep reinforcement learning. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 2711–2720.

Zhuang, B., Lin, G., Shen, C., and Reid, I. (2016). Fast

training of triplet-based deep binary embedding net-

works. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

5955–5964.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

332
