Hybrid Tiled Convolutional Neural Networks (HTCNN)

Text Sentiment Classiﬁcation

Maria Mihaela Trus¸c

and Gerasimos Spanakis

2 a

Department of Informatics and Economic Cybernetics, Bucharest University of Economic Studies, Bucharest, Romania

Department of Data Science and Knowledge Engineering, Maastricht University, Maastricht, The Netherlands

Keywords:

Hybrid Tiled Convolutional Neural Network, Sentiment Analysis.

Abstract:

The tiled convolutional neural network (TCNN) has been applied only to computer vision for learning invari-

ances. We adjust its architecture to NLP to improve the extraction of the most salient features for sentiment

analysis. Knowing that the major drawback of the TCNN in the NLP ﬁeld is its inﬂexible ﬁlter structure, we

propose a novel architecture called hybrid tiled convolutional neural network (HTCNN) that applies a ﬁlter

only on the words that appear in similar contexts and on their neighbouring words (a necessary step for pre-

venting the loss of some n-grams). The experiments on the IMDB movie reviews dataset demonstrate the

effectiveness of the HTCNN that has a higher level of performance of more than 3% and 1% respectively than

both the convolutional neural network (CNN) and the TCNN. These results are conﬁrmed by the SemEval-

2017 dataset where the recall of the HTCNN model exceeds by more than six percentage points the recall of

its simple variant, CNN.

1 INTRODUCTION

Sentiment analysis or opinion mining is a sort of text

classiﬁcation that assigns a sentiment orientation to

documents based on the detected contextual polarity

(Liu, 2012). In the past, research work has focused

only on the overall sentiment of a document, trying to

determine if the entire text is positive, neutral or neg-

ative (Liu and Zhang, 2012). However, besides pre-

dicting the general sentiment, a better understanding

of the reviews could be undertaken using the more in-

depth aspect based sentiment analysis (ABSA) (Thet

et al., 2010; Liu and Zhang, 2012). Speciﬁcally,

ABSA’s goal is to predict the sentiment polarity of

the corpus’ target entities and aspects (e.g. the possi-

ble aspects of the entity “movie” could be “the plot”,

“the actors’ acting” or “the special effects”). While

it is easy to establish the text entities based on the a

priori information about text corpus, the aspect terms

are difﬁcult to infer and usually the training process

requires to use a predeﬁned set of term categories

(Wang and Liu, 2015; Zhang et al., 2012; Ma et al.,

2018).

In this paper, we propose a framework that ap-

plies the idea of ABSA only conceptually and tries

https://orcid.org/0000-0002-0799-024

to enhance the performance of one of the most popu-

lar baseline models for sentiment classiﬁcation. More

speciﬁcally, we adjust a convolutional neural network

(CNN) to the ABSA requirements forcing it to cap-

ture more diverse features (both sentiment informa-

tion and aspects). The CNN models were proposed

for object recognition (LeCun et al., 1999) and ini-

tially were used within computer vision. Soon they

were adapted or integrated with other deep learning

architectures to be compatible with a broad array of

tasks, including NLP: classiﬁcation (Lai et al., 2015),

recognition of entailment and contraction between

sentences (Mou et al., 2015) or question answering

(Feng et al., 2015).

Even if the CNN model already captures the most

salient features by employing global max-pooling op-

erations on multiple feature maps, the effectiveness

of extraction depends not only on the number of fea-

ture maps but also on the initialisation of their ﬁlter

weights. Usually, all the ﬁlter weights of a convolu-

tional layer are initialised with small values, follow-

ing a uniform distribution. The max-pooling opera-

tions can generate a smaller number of different fea-

tures than the given number of feature maps as a re-

sult of using the same input and of applying ﬁlters

with weights of the same distribution. Our approach

to control better features extraction and to force the

506

Tru¸sc

a, M. and Spanakis, G.

Hybrid Tiled Convolutional Neural Networks (HTCNN) Text Sentiment Classiﬁcation.

DOI: 10.5220/0008946505060513

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 506-513

ISBN: 978-989-758-395-7; ISSN: 2184-433X

network to look for features in different regions of a

text consists of applying the tiled CNN (TCNN), a

variant of the CNN architecture which considers mul-

tiple ﬁlters per feature map.

The TCNN is an improved CNN that was pro-

posed for image processing to capture a wide range

of picture invariances (Ngiam et al., 2010). Tradition-

ally, the CNN architecture already learns the transla-

tional invariance due to its convolving operation but

the TCNN goes forward and handles more complex

cases such as viewpoint/rotation and size invariances.

Since its development, the TCNN model has been

mainly used for computer vision in tasks like im-

age classiﬁcation (Wang and Oates, 2015), object and

emotion recognition (Gao and Lee, 2016; Qiu et al.,

2018).

The reason behind the TCNN’s restricted applica-

bility is its nature of multiple invariances learner. In

this paper we adjust the model to meet the NLP re-

quirements and set each ﬁlter of the feature map to

cover only a set of n-grams (not all n-grams as in the

case of pure CNN models). Following a precise ﬁlter

structure per feature map, the extraction of the most

relevant features is more effective and depends less on

the initial values of the weights.

In addition to the TCNN, a new network called hy-

brid tiled CNN (HTCNN) is introduced to outweigh

the disadvantage of the TCNN model’s inﬂexible ﬁl-

ter structure. Using the idea of more diverse feature

extraction with multiple ﬁlters, we create word clus-

ters and allow a ﬁlter of a feature map to convolve

only on the words that appear in the same context (as-

signed to the same cluster) and on their n–1 neigh-

bouring words (where n is the size of the n-gram or

the ﬁlter size).

In this paper, word clusters are computed using

the expectation-maximization (EM) algorithm using

Gaussian distribution. Since we do not include in-

formation about aspects, this approach allows us to

identify only the document-level sentiment polarities.

However, HTCNN’s structure with multiple ﬁlters per

feature map can be easily adjusted to ABSA senti-

ment classiﬁcation task. An interesting idea could be

to replace general word clusters deﬁned a priori with

sentence-level word clusters deﬁned with respect to

each aspect based on attention scores. We let this ex-

tension for future work.

Our contributions are summarized as follows:

1. We adjust the TCNN (which so far has been used

only for image processing) to the NLP ﬁeld.

2. We design a novel hybrid tiled CNN model with

multiple ﬁlters per feature map. The ﬁlter struc-

ture is ﬂexible and each ﬁlter of the feature map

can convolve only on the similar words of a given

word cluster and on its n −1 neighbouring words,

where n is the window size.

3. Experimental results prove the effectiveness of the

introduced model over the simple architecture of

the CNN.

The remainder of the paper is organized as follows.

The next section discusses the related literature. The

third section depicts the TCNN in NLP and its hybrid

variant. The fourth section presents the details of the

experiments and the results and the last one concludes

the paper. The source code used to implement the

proposed models can be found at https://github.com/

mtrusca/HTCNN

2 RELATED WORK

In text classiﬁcation and sentiment analysis, CNN and

RNN are the two main deep neural network architec-

tures that produce similar results. While the CNN

extracts the most relevant n-grams, the RNN ﬁnds

context dependencies within an entire sentence. Still,

for sentence classiﬁcation, especially sentiment anal-

ysis it is tempting to use CNN models since polari-

ties are usually determined only by some keywords

(Yin et al., 2017). Regarding the sentence’s length,

both neural networks have similar performances, es-

pecially for the case of short text. While for long sen-

tences, the RNN could be considered more adequate

than the CNN, some studies prove the contrary (Adel

and Sch

utze, 2016; Wen et al., 2016), arguing that the

RNN is a biased model where the later words of a se-

quence are more important than the others.

Currently, the CNN is a popular method for text

classiﬁcation (Kalchbrenner et al., 2014; Hassan and

Mahmood, 2018) and even models with little tuning

of the hyperparameters provide competitive results

(Kim, 2014; Zhang and Wallace, 2015). The vari-

ant of the CNN applied for sentiment analysis task

could vary from simple approaches (Liao et al., 2017)

to more complex ones. For example, in (Yang and

Eisenstein, 2017), the idea of linguistic homophily

is exploited and sentiment polarities are found by

combining a single-layer CNN model with informa-

tion about users’ social proximity. In (Shin et al.,

2016), the results of a CNN sentiment model are im-

proved by employing lexicon embeddings and atten-

tion mechanism.

Regarding the ABSA task, CNNs are not as popu-

lar as memory networks like LSTM and GRU even if

they have shown potentiality to address this problem

recently. The CNN model was introduced to tackle an

ABSA problem in (Huang and Carley, 2019) by us-

ing parameterized gates and parameterized ﬁlters to

Hybrid Tiled Convolutional Neural Networks (HTCNN) Text Sentiment Classiﬁcation

507

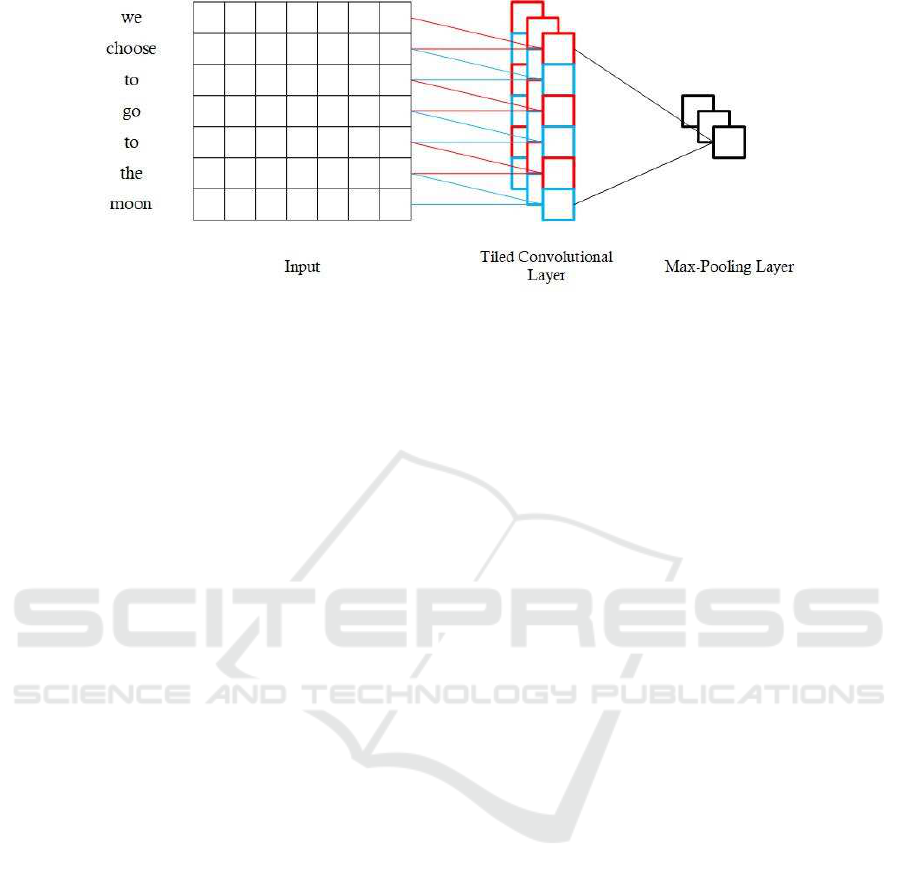

Figure 1: The TCNN has three feature maps and each one has two ﬁlters convolving over bigrams. A global max-pooling

operation is applied over the convolving results. The ﬁgure is adapted from (Kim, 2014).

include aspect information. Similar, in (Xue and Li,

2018), it was proved that a simple CNN model with

Gated Tanh-ReLU units is more accurate than the tra-

ditional approach with LSTM and attention mecha-

nism.

Since not all datasets provide information about

aspects, we try to increase the sensitivity of convolu-

tional neural networks to the aspects and their related

keywords by using a novel hybrid tiled CNN model.

Our approach is similar to the one proposed in (Zhang

et al., 2016) in terms of multiple inputs for simultane-

ous convolutional layers but instead of using different

word embeddings we create word clusters and deﬁne

sentence representation for each one.

3 MODELS

The standard one-dimensional CNN architecture em-

ployed in (Collobert et al., 2011) and since then

widely used in many papers, assumes that the feed-

forward neural network is a composition of convolu-

tional layers with the max-pooling operation and one

or more fully connected layers with non-linear acti-

vation functions. An input text of length m is rep-

resented as a matrix obtained by concatenating word

embedding vectors (Kim, 2014):

i:m

= {w

, w

, ..., w

} (1)

This matrix is used as an input for a convolution

operation that applies a ﬁlter w on all possible win-

dows of n consecutive words at a given stride value. A

new feature map is computed by applying a non-linear

function f with a bias term b (b ∈ R) on the convolv-

ing results. Given the window of n words X

i:i+n−1

, the

generic object C

of the feature map is generated by:

= f (w∗X

i:i+n−1

+ b) (2)

To capture the most important feature C

, we apply

the max-pooling operation.

max

= max{C

, ...,C

m−n+1

} (3)

Usually, a single feature is not enough for depict-

ing the entire sentence and therefore it is a common

practice to generate multiple feature maps for each

convolutional layer. All features, with the highest

value for each feature map, input the following con-

volutional or fully connected layers. In terms of sen-

timent analysis, we are interested to extract not only

sentiment information but also information about text

corpus’ entities and their aspects (attributes) (Liu,

2012). Based on this need, the use of multiple fea-

ture maps per convolutional layer turns out to be a

compulsory step.

3.1 TCNN

In this paper, we attempt to introduce the TCNN in

the ﬁeld of textual classiﬁcation. The idea behind the

TCNN is simple and assumes that each feature map

is computed using at least two ﬁlters (Ngiam et al.,

2010). The map of ﬁlters applied on the input is not

randomly chosen but it has to follow a structure that

imposes for each ﬁlter to have different nearby ﬁlters,

while the next and previous k-th ﬁlters have to be the

same. Term k is known as the tile size and it is a hy-

perparameter that indicates the number of ﬁlters cor-

responding to each feature map. The generic object

of a feature map is deﬁned as:

= f (w

∗X

i:i+n−1

+ b) (4)

If k is 1 then the tiled convolutional layer turns

into a simple convolutional layer and if k is greater

or equal to m − n + 1 then we have a fully connected

layer. While one of CNN’s rules is parameter sharing,

the tiled CNN follows it only partially so that weights

are not entirely tied.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

508

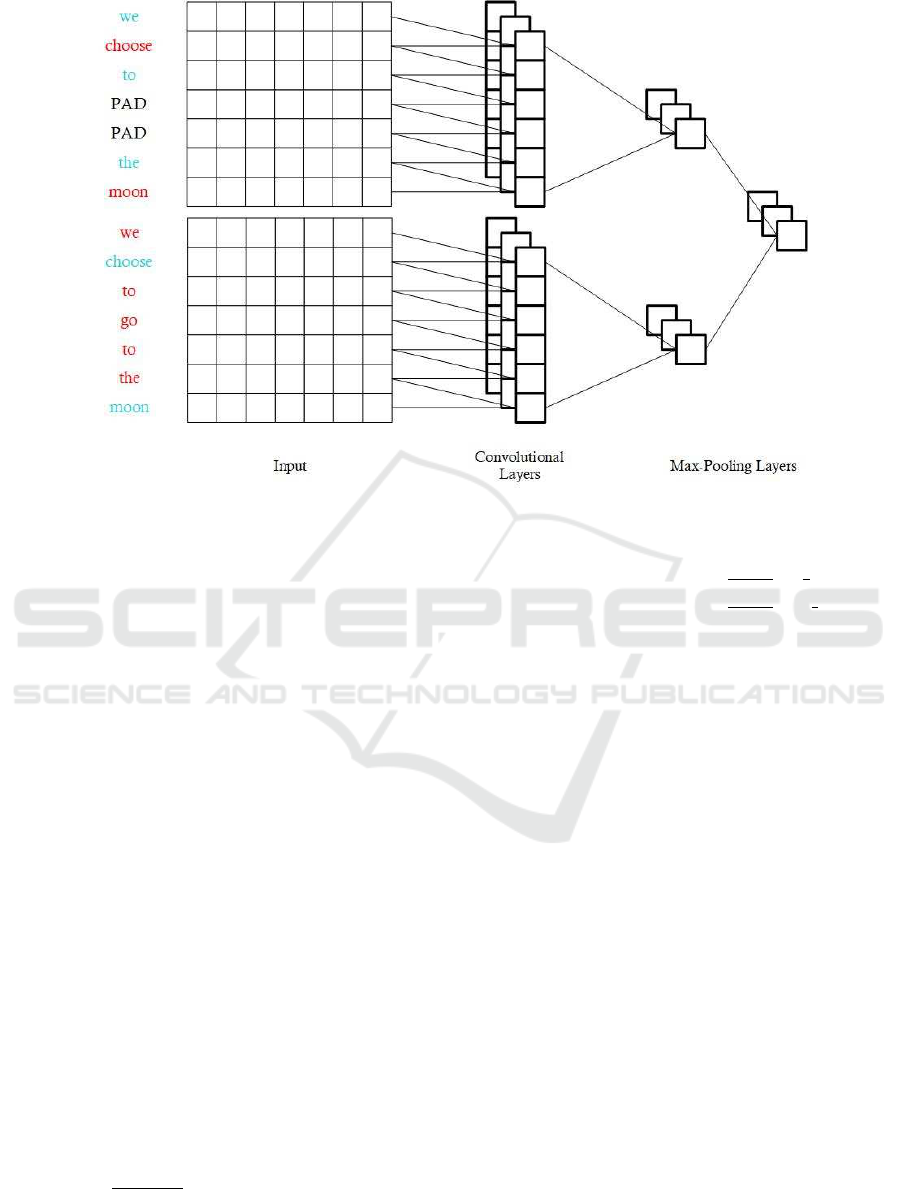

Figure 2: HTCNN represented as a multiple simultaneous CNN with the number of clusters and the ﬁlter size equal to two

and the number of feature maps equal to three.

To better understand the way the tiled CNN works

with textual data we consider an example sentence

(“We choose to go to the moon”) in Figure 1. We

set the number of feature maps to three and the ﬁl-

ter size and the tile size to two. The ﬁrst ﬁlter con-

volves over the ﬁrst two words (”we” and ”choose”),

then the second one covers the second and the third

words (”choose” and ”to”), then the ﬁrst ﬁlter goes

over the third and the fourth words (”to” and ”go”)

and so on. This rule is applied for each feature map,

which means that six weight matrices have to be ini-

tialised. Then a global max-pooling operation covers

each of the three feature maps and the most repre-

sentative n-grams are obtained (no matter the initial

ﬁlter that identiﬁed them). The CNN’s representation

is similar to the one presented in Figure 1 but, unlike

its tiled variant, there is only a ﬁlter per feature map

(the tile size is equal to 1).

The TCNN implementation can be seen as a neu-

ral network with multiple simultaneous convolutional

layers. Each layer corresponds to a ﬁlter and uses a

stride value equal to the tile size. An important note

to this process is related to the shape of the input

that feeds each convolutional layer. Generally, ﬁlter

i (i ≤ k) can slide from the i-th word to the word with

the index equal to:

k + n −1

∗(k + n −1) + ϕ

(5)

(

n + i − 2, if {

k+n−1

}≥

i − k, if {

k+n−1

} <

(6)

where bxc and {x} represent the integer and decimal

part of a number x, respectively. According to this

rule, we have to adjust the input of each convolu-

tional layer. This rule together with the constraint of

the stride value enforces the ﬁlters to convolve on dif-

ferent n-grams and to cover together the entire input.

Before moving further, we have to add two sets of

pooling layers. The layers of the ﬁrst set correspond

to the k convolutional layers. The second set has just

one layer covering the previous concatenated results.

By this means, it is assured that the multiple simulta-

neous CNN behaves just like a TCNN model with a

single pooling operation.

The reasoning behind using the TCNN model for

text classiﬁcation is the need to capture more diverse

features (like aspects and sentiment words) that could

take our results closer to the sentences’ labels. Even if

this task is theoretically accomplished by the simple

CNN, the risk of getting a smaller number of different

features than the number of feature maps is high. On

the other side, TCNN with its integrated multiple ﬁl-

ters per feature map forces the model to look for fea-

tures in diverse regions of a sequence enhancing the

quality of extraction. By choosing different values of

k, we get a palette of models that are a trade-off be-

tween estimating a small number of parameters and

having more different features.

Hybrid Tiled Convolutional Neural Networks (HTCNN) Text Sentiment Classiﬁcation

509

Table 1: The conﬁguration of models for IMDB and SemEval 2017 datasets.

IMDB SemEval 2017

Activation Function

Convolutional Layer ReLu ReLu

Fully Connected Layer Tanh ReLu

Output Layer Sigmoid Softmax

Filter Size (n) 2, 3, 4 2, 3, 4

Tile Size / No. of Clusters (k) 2, 3 3

3.2 HTCNN

The disadvantage of TCNN is the inﬂexible structure

of ﬁlters sliding on the input that requires to have k

repetitive ﬁlters with no possibility to change the or-

dering. Knowing that words with semantic similarity

are likely to appear in a similar context (Harris, 1954),

one reasonable ﬁlter map could be the one that applies

the same ﬁlter on all these words and other ﬁlters on

the remaining words. For example in a sentence like

“The lens of my digital camera have a powerful/weak

optical zoom” it could be useful to apply the same ﬁl-

ter on the “powerful” and “weak” words and different

ones on the other words.

Knowing that word embeddings are built to cap-

ture not only words’ context but also their syntactic

and semantic similarity, words like “powerful” and

“weak” have similar word embeddings and could be

assigned to the same cluster. Using an appropriate

clustering model, we can group the word vectors in k

clusters. In the experiments, the clustering solution is

provided by the EM algorithm using Gaussian distri-

bution. The reason behind this choice is that Gaus-

sian mixture models support mixed membership and

are robust against errors and ﬂexible regarding cluster

covariance (Meila and Heckerman, 2013). The EM

algorithm has two steps that are repeatedly applied

till the convergence is noticed. First, we compute the

probability of a word to belong to a cluster, knowing

that the words of clusters follow normal distributions

(the expectation step). Second, we update the clus-

ter means accordingly with the previously computed

probabilities (the maximization step).

For each cluster, we code the outside cluster words

of a sentence with “PAD” and leave unchanged its

associated words. Sequences generated based on in-

dices of dictionary words, get 0 for “PAD” word and a

value greater than 0 otherwise. In this way, we deﬁne

k inputs (one for each cluster) and use them to feed

k multiple simultaneous convolutional layers. The

stride value constraint is used no more because simul-

taneous layers already convolve on different words.

The problem of the last depicted neural network

is the loss of the n-grams concept caused by the re-

placement of the some words’ indexes with 0 (words

assigned to other clusters than the one associated with

the given convolutional layer). This idea is supported

by the assumption that words are dependent on their

neighbouring words. To overcome this problem, for

each convolutional layer we have to modify the input

by adding in the left and in the right side (if it is pos-

sible) of each word (whose index is different than 0)

its n − 1 neighbouring words. The added words could

be in the same cluster or not. We call this model, the

hybrid tiled CNN (HTCNN).

Considering the above sentence and setting the ﬁl-

ter size and the number of clusters to two (the same

as setting the tile size value for the TCNN), we as-

sign the words “choose” and “moon” to the ﬁrst clus-

ter and the other words to the second one. Firstly we

assign to the each cluster the same sentence and re-

place the words of the other cluster with “PAD”. The

modiﬁed input sentences are: “PAD choose PAD PAD

PAD PAD moon” and “we PAD to go to the PAD”. If

we add the neighbors (a single word to the left and the

right for bigram cases) of each word, the input sen-

tences will change into “we choose to PAD PAD the

moon” and “we choose to go to the moon”. The sen-

tence of the ﬁrst cluster gets the words “we” and “to”

as the neighbors of the “choose” word and the word

“the” as the neighbor of the “moon” word. The words

of the second cluster are: “we”, “to”, “go”, “to”, “the”

and the sentence gets the word “choose” as the neigh-

bor of the words “we” and “to” and the word “moon”

as the neighbor of the word “the”. This process is

described in Figure 2, for representative reasons we

use sentences instead of sequences. The colour of the

cluster words assigned to each convolutional layer is

red. The colour of the neighbouring words is blue.

The remaining words are coded with the word ”PAD”.

If the blue words are replaced with ”PAD” words then

we get a new model that does not consider the n-gram

concept and it is called simple HTCNN (SHTCNN).

4 EXPERIMENTAL RESULTS

We test the TCNN and the HTCNN models on the

IMDB movie reviews dataset (Maas et al., 2011). The

collection has 50000 documents, evenly separated be-

tween negative and positive reviews.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

510

Our models based on convolution operation are

compared to a one-layer one-dimensional CNN. The

conﬁguration of the CNN baseline model and of the

proposed models is presented in Table 1. Regarding

word vectors initialisation, we use word embeddings

trained on the current dataset with word2vec models

(Mikolov et al., 2013). Each word is represented by

a 200 dimension vector computed by concatenating

a continuous bag-of-words (CBOW) 100 dimension

vector with a skip-gram (SG) vector of the same size.

Sentences are represented using zero-padding strat-

egy which means we are applying the wide convo-

lutions (Kalchbrenner et al., 2014).

Knowing that the IMBD dataset is balanced, the

evaluation of models is done in terms of test accu-

racy. We use the binary cross entropy loss function

and unfreeze the word embeddings during the train-

ing phase. Using 4-fold cross-validation, 10,000 re-

views are allocated to the testing set and the rest of

them are divided between training and validation sets.

The cross-validation process has four iterations and at

each time step other 10,000 reviews are allocated to

the validation set.

In addition to the TCNN and its hybrid variant,

we present the results SHTCNN model to see how

the lack of the neighbouring words affects the per-

formance of the HTCNN. The results of our compari-

son between the baseline network and our models are

listed in Table 2.

The baseline CNN has a volatile performance, un-

like all other models. While for a ﬁlter size equal

to two the model has one of the best test accuracies,

for bigger sizes (trigram and fourgram cases) the per-

formance decreases quickly and reaches the lowest

threshold. All proposed networks have a natural be-

haviour and their performance grows proportionally

with the ﬁlter size. Besides the n-gram dimension,

the tile size or the number of word clusters has also

impact on the results, generally leading to a gradual

improvement.

Results of the TCNN and of the SHTCNN are

complementary and while the ﬁrst one performs bet-

ter when we set the tile size to three, the second one

has better results for two word clusters. However, we

note that the HTCNN achieves the best performance

without having the drawbacks of the other two mod-

els: the inﬂexible ﬁlter structure of the the TCNN and

the SHTCNN’s lack of n-grams.

Natural, more ﬁlters per feature map makes the

model more sensitive to different features but in the

same way, increases the number of estimated parame-

ters or the model complexity. Further on, the HTCNN

is tested for larger tile sizes, precisely for four and

ﬁve word clusters. The results are listed in Table 3.

Only the pair (k = 4, n = 2) has a slightly better result

than the previous model variants with the same ﬁlter

size (the pairs (k = 3, n = 2) and (k = 2, n = 2)). All

other results are worse than the ones of HTCNN with

the tile size equal to three and the difference is more

signiﬁcant for the case of ﬁve word clusters. We con-

clude that the optimal tile size value corresponding to

the IMBD dataset that balances the model capacity to

extract different features with its complexity is equal

to three.

To conﬁrm the performance of HTCNN over

single-layer CNN, we undertake a second test on the

SemEval-2017 English dataset for task 4: Sentiment

analysis in Twitter, subtask A: Message Polarity Clas-

siﬁcation (Rosenthal et al., 2017). The dataset has

62,617 tweets with the following statistics: 22,277

positive tweets, 28,528 neutral tweets and 11,812 neg-

ative tweets. The approach with the highest rank on

this subtask was proposed by Cliche (Cliche, 2017)

and ensembles a LSTM and a neural network with

multiple simultaneous convolutional layers. Since the

Cliche’s CNN structure is similar to the structure of

HTCNN, we use some of his default settings: the

length of the word embeddings, the activation func-

tions, the number of ﬁlters per convolutional layer, the

dropout layers (with the same dropout probabilities)

and the number of epochs. The number of simultane-

ous convolutional layers utilizes in the Cliche’s struc-

ture is equal to three which means that we have to run

our HTCNN model for the same number of ﬁlters. Ta-

ble 1 shows an overview of the models’ architecture

for the SemEval dataset.

Word embeddings are trained using CBOW and

SG models in a similar way as the one depicted above

for the IMDB dataset and remain frozen over the en-

tire training phase. 10% of the corpus tweets are al-

located to the testing set while the remaining tweets

are separated between validation and training sets us-

ing 9-fold cross-validation. Because the dataset is im-

balanced, the evaluation is done using macro-average

testing recall. To counteract the imbalance, the cross-

entropy loss function uses class weights adjusted in-

versely proportional to the class frequencies in the

training phase. Both the HTCNN and the CNN share

the above hyperparameters. Similar to the IMDB ex-

periments, we set the window size to two, three or

four. The results of our comparison on the SemEval

dataset are shown in Table 4 and conﬁrm the perfor-

mance of HTCNN over simple CNN.

Hybrid Tiled Convolutional Neural Networks (HTCNN) Text Sentiment Classiﬁcation

511

Table 2: Comparison between CNN and TCNN, SHTCNN and HTCNN on the IMDB dataset. (Bold denotes the best

performance per model and italics the best performance overall).

CNN TCNN SHTCNN HTCNN

accuracy accuracy p-value* accuracy p-value* accuracy p-value*

k=2**; n=2 0.8783 0.8789 0.8560 0.8641 0.3739 0.8688 0.0410

k=2**; n=3 0.8445 0.8586 0.2677 0.8667 0.1203 0.8718 0.0720

k=2**; n=4 0.8528 0.8577 0.4685 0.8786 0.0158 0.8723 0.0387

k=3**; n=2 0.8783 0.8693 0.0610 0.8658 0.3820 0.8786 0.9360

k=3**; n=3 0.8445 0.8775 0.0191 0.8727 0.0439 0.8796 0.0166

k=3**; n=4 0.8528 0.8762 0.0113 0.8736 0.0360 0.8825 0.0025

*P-value is the probability of the null hypothesis associated with the paired Student’s t-test that measures the similarity

between the baseline model and each of the three networks.

**The number of clusters is equal to the tile size (k).

Table 3: Comparison between CNN and HTCNN on the

IMDB dataset for larger tile sizes. (Bold denotes the best

performance per model and italics the best performance

overall).

CNN HTCNN

accuracy accuracy p-value

k=4; n=2 0.8783 0.8788 0.8719

k=4; n=3 0.8445 0.8674 0.0699

k=4; n=4 0.8528 0.8815 0.0010

k=5; n=2 0.8783 0.8767 0.6096

k=5; n=3 0.8445 0.8758 0.0236

k=5; n=4 0.8528 0.8812 0.0025

Table 4: Comparison between CNN and HTCNN on the

SemEval-2017 dataset, task 4: Sentiment analysis in Twit-

ter, subtask A: Message Polarity Classiﬁcation. (Bold de-

notes the best performance per model and italics the best

performance overall).

CNN HTCNN

recall recall p-value

k=3; n=2 0.7285 0.7715 0.1783

k=3; n=3 0.7881 0.8516 0.0400

k=3; n=4 0.8042 0.8472 0.0425

5 CONCLUSIONS

In this paper, we present the TCNN model in the

ﬁeld of sentiment classiﬁcation to improve the pro-

cess of feature extraction. Due to the constraint of

partial untying of ﬁlter weights that forces the net-

work to apply the same ﬁlter at each k step, we in-

troduced the HTCNN model. The new architecture

combines the beneﬁts of word embeddings clustering

with the idea of tiling and if the tile size is chosen

properly, the model could achieve competitive perfor-

mance with the TCNN and better results than the ref-

erence CNN model. Setting the tile size or the num-

ber of word clusters could be difﬁcult. Because the

HTCNN works like a simultaneous CNN structure,

too many parallel convolutional layers could lead to

both higher feature sensitivity and higher complex-

ity. CNN does not implicitly ﬁt the ﬁne-grained as-

pect based sentiment analysis, but using the right net-

work conﬁguration we can adjust it to be more sensi-

tive to the corpus’ features and to increase the over-

all performance. Even if the results of our experi-

ments are modest compared with the state-of-art sen-

timent analysis models for IMDB and SemEval-2017

datasets, we prove that the HTCNN is a good substi-

tute for CNN in the NLP ﬁeld and the replacement

of the CNN with the HTCNN in more laborious ar-

chitectures could lead to higher rates of performance

than CNN.

As our future work, it would be interesting to

see how word networks based on word embeddings

improve the clustering solution incorporated in the

HTCNN, perhaps in an approach similar to the one

proposed in (Feria et al., 2018). Moreover, a promis-

ing direction would be to have meaningful clusters

that denote speciﬁc functions (e.g. aspect) or other

roles (e.g. syntactic). This would give a boost to the

transparency of deep models in natural language pro-

cessing, since the CNN ﬁlters (and consequently, the

weights) would be directly interpretable.

REFERENCES

Adel, H. and Sch

utze, H. (2016). Exploring different di-

mensions of attention for uncertainty detection. arXiv

preprint arXiv:1612.06549.

Cliche, M. (2017). Bb twtr at semeval-2017 task 4: Twitter

sentiment analysis with cnns and lstms. arXiv preprint

arXiv:1704.06125.

Collobert, R., Weston, J., Bottou, L., Karlen, M.,

Kavukcuoglu, K., and Kuksa, P. (2011). Natural lan-

guage processing (almost) from scratch. Journal of

machine learning research, 12(Aug):2493–2537.

Feng, M., Xiang, B., Glass, M. R., Wang, L., and Zhou, B.

(2015). Applying deep learning to answer selection:

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

512

A study and an open task. In 2015 IEEE Workshop

on Automatic Speech Recognition and Understanding

(ASRU), pages 813–820. IEEE.

Feria, M., Balbin, J. P., and Bautista, F. M. (2018). Con-

structing a word similarity graph from vector based

word representation for named entity recognition.

arXiv preprint arXiv:1807.03012.

Gao, Y. and Lee, H. (2016). Local tiled deep networks

for recognition of vehicle make and model. Sensors,

16(2):226.

Harris, Z. S. (1954). Distributional structure. Word, 10(2-

3):146–162.

Hassan, A. and Mahmood, A. (2018). Convolutional recur-

rent deep learning model for sentence classiﬁcation.

Ieee Access, 6:13949–13957.

Huang, B. and Carley, K. M. (2019). Parameterized con-

volutional neural networks for aspect level sentiment

classiﬁcation. arXiv preprint arXiv:1909.06276.

Kalchbrenner, N., Grefenstette, E., and Blunsom, P. (2014).

A convolutional neural network for modelling sen-

tences. arXiv preprint arXiv:1404.2188.

Kim, Y. (2014). Convolutional neural networks for sentence

classiﬁcation. arXiv preprint arXiv:1408.5882.

Lai, S., Xu, L., Liu, K., and Zhao, J. (2015). Recurrent

convolutional neural networks for text classiﬁcation.

In Twenty-ninth AAAI conference on artiﬁcial intelli-

gence.

LeCun, Y., Haffner, P., Bottou, L., and Bengio, Y. (1999).

Object recognition with gradient-based learning. In

Shape, contour and grouping in computer vision,

pages 319–345. Springer.

Liao, S., Wang, J., Yu, R., Sato, K., and Cheng, Z. (2017).

Cnn for situations understanding based on sentiment

analysis of twitter data. Procedia computer science,

111:376–381.

Liu, B. (2012). Sentiment analysis and opinion mining.

Synthesis lectures on human language technologies,

5(1):1–167.

Liu, B. and Zhang, L. (2012). A survey of opinion mining

and sentiment analysis. In Mining text data, pages

415–463. Springer.

Ma, Y., Peng, H., and Cambria, E. (2018). Targeted

aspect-based sentiment analysis via embedding com-

monsense knowledge into an attentive lstm. In Thirty-

Second AAAI Conference on Artiﬁcial Intelligence.

Maas, A. L., Daly, R. E., Pham, P. T., Huang, D., Ng, A. Y.,

and Potts, C. (2011). Learning word vectors for sen-

timent analysis. In Proceedings of the 49th annual

meeting of the association for computational linguis-

tics: Human language technologies-volume 1, pages

142–150. Association for Computational Linguistics.

Meila, M. and Heckerman, D. (2013). An experimen-

tal comparison of several clustering and initialization

methods. arXiv preprint arXiv:1301.7401.

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013).

Efﬁcient estimation of word representations in vector

space. arXiv preprint arXiv:1301.3781.

Mou, L., Men, R., Li, G., Xu, Y., Zhang, L., Yan, R.,

and Jin, Z. (2015). Natural language inference by

tree-based convolution and heuristic matching. arXiv

preprint arXiv:1512.08422.

Ngiam, J., Chen, Z., Chia, D., Koh, P. W., Le, Q. V., and Ng,

A. Y. (2010). Tiled convolutional neural networks. In

Advances in neural information processing systems,

pages 1279–1287.

Qiu, J.-L., Qiu, X.-Y., and Hu, K. (2018). Emotion recog-

nition based on gramian encoding visualization. In

International Conference on Brain Informatics, pages

3–12. Springer.

Rosenthal, S., Farra, N., and Nakov, P. (2017). Semeval-

2017 task 4: Sentiment analysis in twitter. In Proceed-

ings of the 11th international workshop on semantic

evaluation (SemEval-2017), pages 502–518.

Shin, B., Lee, T., and Choi, J. D. (2016). Lexicon inte-

grated cnn models with attention for sentiment analy-

sis. arXiv preprint arXiv:1610.06272.

Thet, T. T., Na, J.-C., and Khoo, C. S. (2010). Aspect-based

sentiment analysis of movie reviews on discussion

boards. Journal of information science, 36(6):823–

848.

Wang, B. and Liu, M. (2015). Deep learning for aspect-

based sentiment analysis. Stanford University report.

Wang, Z. and Oates, T. (2015). Encoding time series as

images for visual inspection and classiﬁcation using

tiled convolutional neural networks. In Workshops at

the Twenty-Ninth AAAI Conference on Artiﬁcial Intel-

ligence.

Wen, Y., Zhang, W., Luo, R., and Wang, J. (2016). Learn-

ing text representation using recurrent convolutional

neural network with highway layers. arXiv preprint

arXiv:1606.06905.

Xue, W. and Li, T. (2018). Aspect based sentiment analy-

sis with gated convolutional networks. arXiv preprint

arXiv:1805.07043.

Yang, Y. and Eisenstein, J. (2017). Overcoming language

variation in sentiment analysis with social attention.

Transactions of the Association for Computational

Linguistics, 5:295–307.

Yin, W., Kann, K., Yu, M., and Sch

utze, H. (2017). Com-

parative study of cnn and rnn for natural language pro-

cessing. arXiv preprint arXiv:1702.01923.

Zhang, W., Xu, H., and Wan, W. (2012). Weakness ﬁnder:

Find product weakness from chinese reviews by using

aspects based sentiment analysis. Expert Systems with

Applications, 39(11):10283–10291.

Zhang, Y., Roller, S., and Wallace, B. (2016). Mgnc-cnn:

A simple approach to exploiting multiple word em-

beddings for sentence classiﬁcation. arXiv preprint

arXiv:1603.00968.

Zhang, Y. and Wallace, B. (2015). A sensitivity analysis

of (and practitioners’ guide to) convolutional neural

networks for sentence classiﬁcation. arXiv preprint

arXiv:1510.03820.

Hybrid Tiled Convolutional Neural Networks (HTCNN) Text Sentiment Classiﬁcation

513
