A DSL-Driven Development Framework for Components to Provide

Environmental Data in Simulation based Testing

Liqun Wu and Axel Hahn

University of Oldenburg, Ammerländer Heerstraße 114-118, 26129 Oldenburg, Germany

Keywords: Simulated Environment Description Language, CIM-PIM Transformation, Model-Driven Development.

Abstract: Developing components that produce data representing simulated environments for spatial-aware simulations

could be difficult and error-prone. Knowledges of the required outputs of these components and

computational models of the environmental phenomena are often held by different roles in the development.

Miscommunications may appear among involved roles due to their different perspectives to view

environmental phenomena. Consequently, requirements of simulated environments in simulation scenarios

may not be correctly preserved in the developed components. This paper presents a domain-specific

development framework to overcome this problem. It focuses on bridging the gap between human-view

requirement descriptions of simulated environments and system-view component design models to produce

digital representations of these environments. It specifies a CIM (Computation-Independent Model) -layer

language which supports system of interest modelers to document required context of simulated environments

in their simulation scenarios in a half-formal manner. Transformation rules from these CIMs are established

to derive necessary data structures and computation flows as PIM (Platform-Independent Model) -layer

models of simulated environment components. These transformations are further combined with general

Model-Driven Development (MDD) solutions to create platform-specific component skeletons.

1 INTRODUCTION

In a computer simulation, the system of interest is

often modelled with the logic about how the system

behaves in reaction to the influence from phenomena

in its situated environment. At an execution step of

this simulation, a component should feed the system

model with data of these phenomena, which are

needed by the system model to compute a new state.

This component provides the simulated environment

(Klügl, Fehler, & Herrler, 2004) in the simulation.

The environment component may need to enclose

realistic observation data or its own simulation

models of the involved phenomena types. Due to the

inherited complexity from their real-world

counterparts, these data and models are not

straightforward to be adjusted and integrated into the

simulation by non-experts. Safety-critical simulations

in the marine domain provide a typical example.

Maritime systems situate in the environment with

spatio-temporal varied phenomena such as other

artificial systems, wind and ocean currents. The

influences of these phenomena cannot be ignored in

safety-critical simulations, while modelling such

complex phenomena are likely beyond the expertise

of the system of modelers.

Thus, environment components in these

simulations may have to be developed by experts

other than the system modelers. However, for

acquiring meaningful simulation outcomes,

environmental data produced by such a component

should match simulation scenarios that the system

modelers want to execute. Thus, requirements about

the simulated environments in the scenarios must be

communicated between system modelers and experts

who are able to develop this environment component.

Mismatches may appear during the communication

due to different perspective of involved roles to view

the environmental phenomena. This could cause that

the developed component does not correctly preserve

requirements from system modelers. The produced

data may miss some aspects that are required inputs

of the system model. Further, the data values

produced in an execution may not match the expected

environmental conditions of the executed scenario.

To overcome the above-mentioned problems, this

paper proposes a language-driven framework to assist

the development of environment components in

328

Wu, L. and Hahn, A.

A DSL-Driven Development Framework for Components to Provide Environmental Data in Simulation based Testing.

DOI: 10.5220/0008948403280335

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 328-335

ISBN: 978-989-758-400-8; ISSN: 2184-4348

simulations. It focuses on bridging the gap between

conceptual level requirements of simulated

environments and design models of environment

components, which is comparable to the view switch

when transforming domain-oriented CIMs to system-

oriented PIMs in Model-Driven Architecture (MDA)

(OMG, 2014). This framework follows the MDA

principles. It uses Domain-Specific Languages

(DSLs) (van Deursen, Klint, & Visser, 2000) to

describe simulated environments as CIMs and

environment component models as PIMs.

Transformation rules are established between these

two types of models, so that necessary elements of an

environment component to produce a described

environment can be derived from the description of

the environment via transformations.

The rest of the paper is organized as follows.

Section 2 reviews existing works related to the

presented framework. Section 3 gives an overview of

this framework. Section 4 and 5 introduce modelling

languages used in the framework and transformations

among them. Section 6 shows a prototypical

implementation of the framework, followed by a use

case to demonstrate the transformation process.

Section 7 summarizes the contributions of this

framework and discusses open issues.

2 RELATED WORK

Most researches on CIM-PIM transformations focus

on the business processes and requirements

modelling. These works rely on OMG-managed

modelling languages to describe CIMs and PIMs, as

well as transformation languages to specify

transformations among them. At the CIM layer, the

business processes are often expressed by BPMN

(OMG, 2011) or its specialization (Hahn, Panfilenko,

& Fischer, 2010; Rodríguez et al., 2011; Bousetta, El

Beggar, & Gadi, 2013; Kriouile, Addamssiri, & Gadi,

2015; Rhazali, Hadi, & Mouloudi, 2015a). Some

approaches also model functional requirements as use

case diagrams. (Gutiérrez et al., 2008; Bousetta et al.,

2013; Kriouile et al., 2015) PIMs in these researches

usually cover the structural aspect and the behaviour

aspect of a system. The former is frequently

expressed by class diagrams (Bousetta et al., 2013;

Kriouile et al., 2014; Rhazali et al., 2015a), while

activity diagrams (Gutiérrez et al., 2008), sequence

diagrams (Bousetta et al., 2013) and state machines

(Rhazali, Hadi, & Mouloudi, 2015b) have been used

to express the latter. Some approaches also define

specialized metamodels for describing PIMs, such as

the PIM4Agent from (Hahn et al., 2010) and DSLs

used by (De Castro, Marcos, & Vara, 2011).

Transformations in existing researches are

formulized using QVT languages (Gutiérrez et al.,

2008; Rodríguez et al., 2010; Kriouile et al., 2014;

Kriouile et al., 2014) or ATL (Hahn et al., 2010; De

Castro et al., 2011; Rhazali, Hadi, & Mouloudi,

2016). Most of them have multiple steps. The overall

transformation chains of these researches are usually

performed in a semi-automatic manner with human

interference between steps to improve the model

quality.

Similar researches can be found in other

application domains, e.g., for the development of data

warehouses (Mazón, Pardillo, & Trujillo, 2007) and

Web applications (Kraus, Knapp, & Koch, 2007;

Fatolahi, Somé, & Lethbridge, 2008). Existing

researches provide the foundation on the components

which our framework should have and references

about how it may be built. However, they focus on

other context domains.

In the context domain we are interested in,

human-oriented DSLs to express spatial phenomena

based on common sense conceptualizations have

been proposed, such as database languages using the

“moving objects” concept (Güting & Schneider,

2005), the general type "field" to represent and

operate on spatio-temporal data (Camara et al., 2014)

and core concepts for spatial computations (Kuhn &

Ballatore, 2015) etc. Their implementations are often

embedded in spatial DBMS, GIS software or code

libraries. They aim to raise the usability of spatial

database and systems by hiding a fixed

implementation behind cognitive level concepts. On

the other side, various system-oriented models have

been adapted as ISO/TC 211 (ISO, n.d.) and OGC

(Open Geospatial Consortium, n.d.) standards to

support to build and exchange spatial data or

information services. Models of these standards focus

on spatial data sharing and system interoperability.

These researches provide fundamental terms of

spatial representations that we can utilize. These

models are defined at various abstraction levels and

are not clearly aligned with the software development

phases. The development of environment

components in simulations with or without using

some of these models is still solved in a case-by-case

manner.

3 THE PROPOSED

FRAMEWORK

Functional scenarios described at the conceptual level

A DSL-Driven Development Framework for Components to Provide Environmental Data in Simulation based Testing

329

are determined in the requirement analysis phase

when developing computer simulations. (Menzel et

al., 2018). Our research classifies the context of

description about environmental phenomena in the

functional scenarios based on conceptual forms of

phenomena and types of their exhibited changes.

After that, necessary elements in the simulation

program for producing the described context type are

identified. The proposed framework in this paper is

built on the research outcome and MDA as introduced

below.

First, a DSL Simulated Environment Description

Language (SEDL) is specified to describe the

required context of simulated environments as CIMs.

A SEDL description corresponds to a simulation

program. It is half-formal with application-specific

requirements captured by free text and enclosed by a

SEDL description item. A phenomenon expressed in

SEDL corresponds to all possible phenomena

instances of the same type that can be produced by a

component under development.

Then, mapping rules are established from SEDL

descriptions to PIM-layer component models in

UML. They enable automatic transformations which

derive artefacts of environment components from

SEDL descriptions. Three types of sub models are

included in the PIMs: the configuration schema that

describes the parameters to be set for running a

component; the data structure that carries state values

of computed phenomena during simulations; the

computation flows that compute the states of

phenomena at a simulation step.

Further transformations from PIMs to models and

code in a specific platform can utilize general MDA

solutions, since they are rather technical refinement

which does not involve the view switch or the domain

knowledge. An implementation of the framework

supports to describe simulated environments as

SEDL descriptions, execute transformations of SEDL

descriptions to derive component models and code

skeletons. Application-specific requirements

captured in the free text are preserved within model

elements or code units to guide implementation.

4 LANGUAGES FOR

SIMULATED ENVIRONMENTS

This section introduces modelling languages used in

this framework at the CIM layer and the PIM layer.

4.1 Simulated Environment

Description Language (SEDL)

Terms in the CIM-layer language SEDL classifies

pieces of descriptions about simulated environments

in simulation scenarios. All SEDL terms are made as

subtypes of DescriptionItem which has an attribute

description to capture application-specific

requirements in the free text. Besides, each type has

attributes to capture the type-specific context.

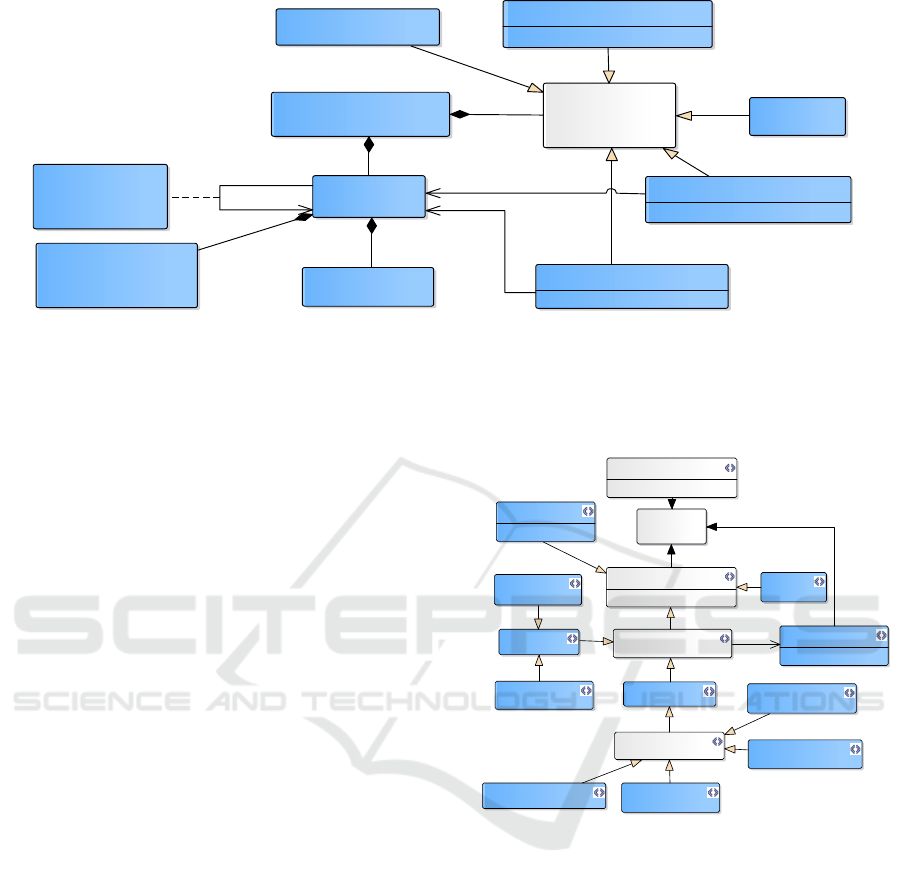

Figure 1: The Description Structure of SEDL.

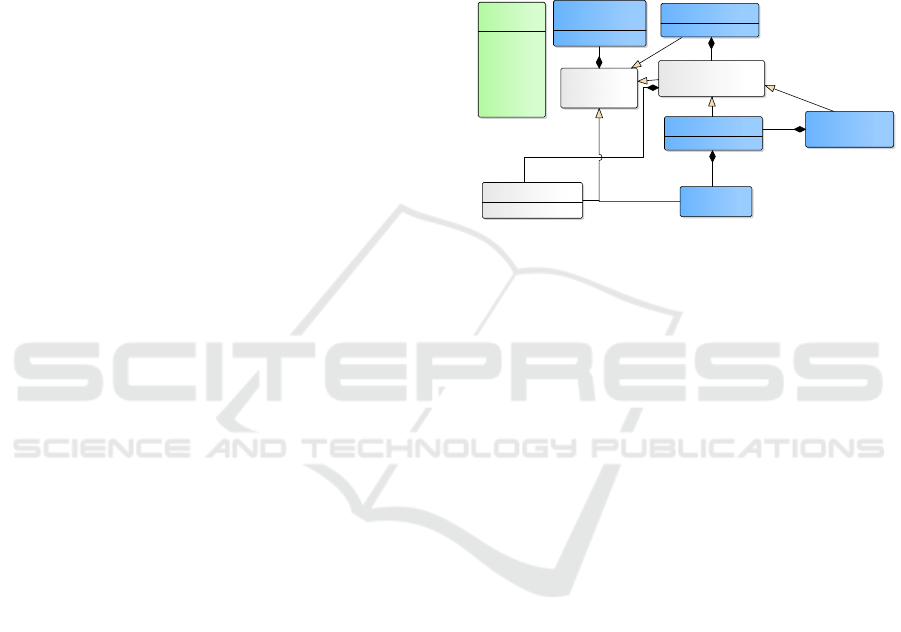

SEDL uses an entity-property hierarchy to

organize description pieces as show in Figure 1. An

instance of the entry term SimulatedEnvironment

encloses all description pieces about an environment

component. Terms that describe environmental

phenomena are subtypes of Configurable. Their

instances may have ConfigurableParameter-s, each

of which describe a modifiable condition about this

Configurable for different executions. Two concrete

types can be chosen to describe a type of

environmental phenomena. SpatialIndividuality

describes a type of phenomena which appear as an

identifiable individual substance in space.

FieldOfIndividualities describes a set of

individuality from the same type with no significant

member, such as a group of randomly moving ships.

All members in this field together exhibit some

spatial pattern. Which subtype to choose depends on

the simulation scale, the way that system modelers

view the phenomenon etc. It does not mean to reflect

the “truth" of the real-world entities.

SEDL supports to classify description of changes

that environmental phenomena should exhibit in

simulation scenarios.

The CharacteristicVariation is used to describe

the value variation of a characteristic index or several

correlated indexes among a whole set of instances of

a phenomenon type, e.g., some initial state. The

described variation is a value distribution of these

indexes. A CharacteristicVariation instance

belongs to an EnvironmentalPhenomenon E. If E is

SimulatedEnvironment

- dimensionNum: Integer

SpatialIndividuality

- dimensio nNum: Integer

FieldOfIndividualities

«enumeration»

ParameterType

FreeText

DataSource

Spatial

Time

Options

Switch

Number

ThematicProperty

EnvironmentalPhenomenon

CharacteristicVariation

- indexName: String [1.."]

DescriptionItem

ConfigurableParameter

- type: ParameterType

DescriptionItem

Configurable

0..*

+memeber

+field 1

0..*

+theme

0..*

+individuali ty

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

330

Figure 2: Change Types of SpatialIndividuality.

the member of a FieldOfIndividualities F, when

creating an instance of the phenomenon described by

F, relevant index values of its members should be

drawn from the distribution. Otherwise, when

creating an instance of the type described by E,

relevant index values of this instance should be drawn

from the distribution.

Change types about an individuality that shall be

perceived by human are identified as shown in Figure

2. An instance of them expresses a change pattern

which a phenomenon type should exhibit during

simulations. Essentially, it is the pattern of difference

about one characteristic of a phenomenon P, when

another characteristic of P is altered in a controlled

way. It can be viewed as a relationship between states

of this phenomenon in two value domains: A → B.

Change types are identified based on rational

combinations of the A’s type and B’s type.

The types of the value domains can be spatial

locations, temporal locations and thematic properties

(Guttag & Horning, 1978). Further, location

differences in high-level descriptions shall be

approximately viewed as self-referenced and

externally-referenced. E.g., the “Movement” in

Figure 3 is the observed spatial location differences

relative to an external reference (often the earth) over

time. The application-specific pattern of a change

description instance is informally captured by its

description slot.

4.2 PIM-Layer Metamodels of

Environment Components

In this framework, UML is used as the metamodel to

describe PIMs. To facilitate the object-oriented code

generation, PIMs are expressed in the class view. A

computation flow is presented as a uml:Class and a

uml:Operation in this class. Each of its computation

units is presented in the class as a uml:Operation and

statements within the body of the flow operation that

invokes the unit operation.

Figure 3: Stereotypes of Simulated Feature Types.

The framework specifies a UML profile to

provide a set of stereotypes for describing structural

models of environment component more concisely as

shown in Figure 3. It includes subtypes of

SimulatedFeatureType which represent the data

structure to hold state values about a phenomenon

type during simulation executions. Each subtype

restricts following aspects of a class: 1) how the

geometry of a phenomenon type is represented by this

class; 2) how property values representing the

phenomenon's thematic characteristics are linked to

its geometry. These types are introduced in a two-

dimensional context here. Nevertheless, each of them

has its three-dimensional counterpart. They are

specified based on popular spatial computation

paradigms. For instance, subtypes of

Configurable

ThematicProperty

Configurable

Variation

IndividualityChange

GeometryLoc a tionDependency

- roleOfGeometry: RoleInVariation

Deformation

LocationThemeDepende nc y

- roleOfTheme: RoleInVariation

RigidBodyMovement

GeometryThemeDependency

- roleOfTheme: RoleInVariation

Configurable

Variation

ThematicValueDistribution

Configurable

Variation

ThemeDependency

Variation

ThemeDynamics

EnvironmentalPhenomenon

SpatialIndividuality

0..*

+variant

+variable

0..*

SimulatedFeatureType

- timestamp: TemporalPosition

CollectiveFeatureTypePointSetFeature

PointSitesFeature

GridOfPointsFeature

TesserlatedFeature

SquareGridsFeature

HaxagonalGridsFeature

PolygonalMapFeature

VoronoiTesserlatedFeature

«metaclass»

Class

GlobeFeature

LocalFeature

- geometry: Geometry

CollectiveFeatureUnit

- geometry: Geometry

PolygonSetFeature

SpatialFunction

- timestamp: TemperalPosition

1«hasUnit»

+unit

A DSL-Driven Development Framework for Components to Provide Environmental Data in Simulation based Testing

331

CollectiveFeatureType are used to represent

phenomenon types that are computed as a set of units,

each of which occupies a spatial location. Such

representations are used in multi-agent spatial

simulations. Each subtype of the

CollectiveFeatureType regulates a spatial

representation of the units, including the type of their

geometries and spatial relationships among them.

Besides, SpatialFunction is a class which holds

the function to represent the form of a spatially

heterogeneous theme. It shall appear as the attribute

type of a GlobeFeature or a LocalFeature.

5 CIM-PIM TRANSFORMATIONS

This framework specifies three CIM-PIM

transformations to derive design models of

environment components from SEDL descriptions.

First, the transformation SEDL2Config generates

a configuration schema whose structure is aligned

with the structure of the input SEDL description. In

general, it transforms each Configurable to a

uml:Class. The parameters of the Configurable are

mapped to attributes of the output class.

Then, the transformation SEDL2Structure derives

data structure models of environment components

based on following principles:

1) A class stereotyped with a

SimulatedFeatureType subtype is created for each

EnvironmentalPhenomenon. The applied

stereotype is derived from the type and the spatial

form of Environmental Phenomenon and its change

types. For instance, a FieldOfInvidualities whose

members are 0-dimensional entities and have changes

involving locations is transformed to a

PointSetFeature.

2) For each ThematicProperty of a

SpatialIndividuality, an attribute is added to the

output feature class, or the output unit class when this

Spatial Individualties is the member of a

FieldOfIndividualities.

3) A SpatialFunction class is created for a

ThematicValueDistribution to hold the distribution

function that determines a value at a spatial location.

This class is set to be the attribute type created from

the ThematicProperty with this distribution.

The transformation SEDL2Computation uses the

output of the above two transformations and the input

SEDL description to generate computation units and

build computation flows with these units, which

update states of simulated feature properties.

First, it creates a uml:Class for each

EnvironmentalPhenomenon Ep. An uml:Operation

is added to the class for each of its

CharacteristicVariations and individuality changes.

Then, a directed graph is derived based on

individual changes of Ep, or of its member if Ep is a

FieldOfIndividualities. Nodes of the graph represent

properties of Ep. Edges correspond to the relation

between the connected nodes expressed by a change

description, e.g., an edge t → tp denotes a

ThemeDynamics of its ThematicProperty tp. A

reference to the generated operation of this

ThemeDynamics is stored with the edge. This graph

implies the appropriate order to update properties of

an instance phenomenon. Cycles in the graph are

detected and replaced by a compound node. The

compound node corresponds to a sub-computation

that determines the values of the nodes in the cycle.

An uml:Operation is generated, which executes

the computation flow to update states of a simulated

feature at a simulation step. It contains statements that

invoke the operations to update the attributes of the

feature data object held by the computation class, in a

sequence based on the topological order of the

generated graph. This flow applies to an individual

feature. For a FieldOfIndividualities, the generated

operation updates a unit of the

CollectiveFeatureType generated from it. An

iteration is also generated to execute this function

over units of this CollectiveFeatureType.

It is suggested to have a manual refinement on the

intermediate output to bring in more details which is

not derivable. For instance, the unit geometry of a

TessellatedFeature is decided by the developers.

The transformation generates a TessellatedFeature

with denotation that the applied stereotype should be

replaced by a subtype of the TessellatedFeature.

6 USE CASE

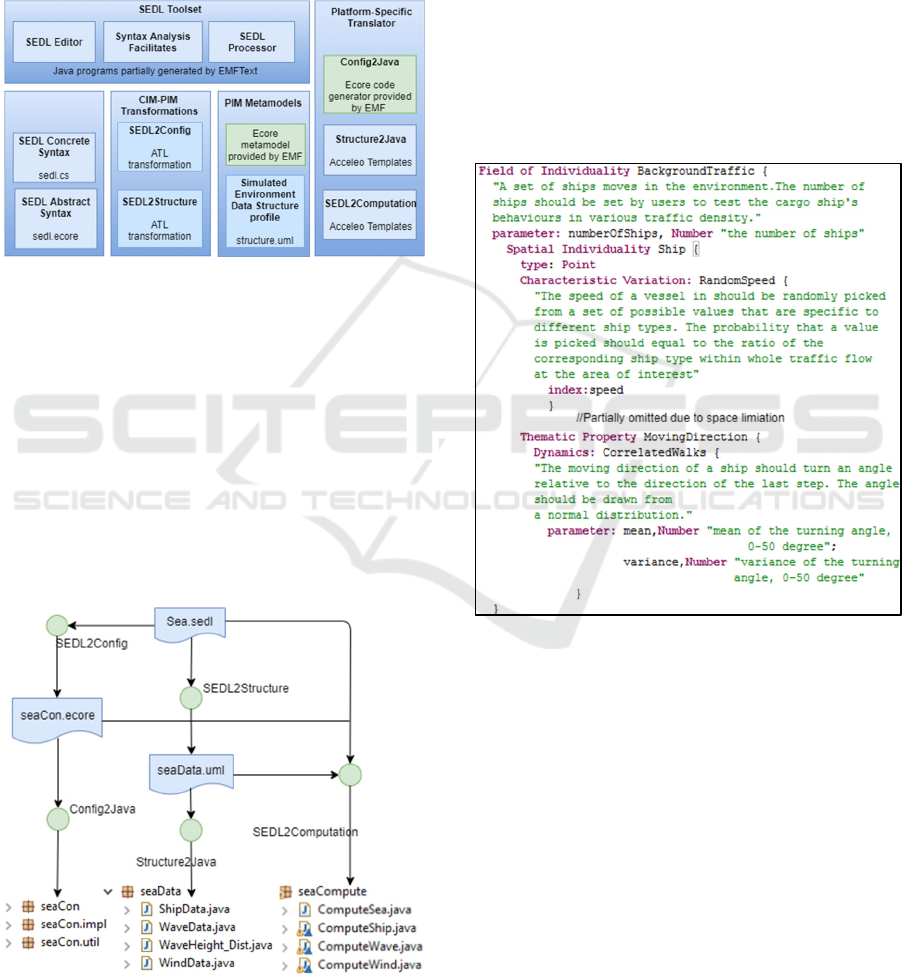

A prototype of the framework is implemented based

on Eclipse Modeling Framework (EMF) (Steinberg et

al., 2008) as summarized in Figure 4.

The SEDL Abstract Syntax is encoded as an Ecore

(Steinberg et al., 2008) model. The SEDL2Config

and SEDL2Structure are implemented as ATL

transformations. The data structure profile is encoded

using the UML2 plugin (Eclipse, n.d.). The Platform-

Specific Translator can be varied in different

implementations of the framework. In this prototype,

they are three code generators which create Java files

for developing Eclipse plugins. The EMF code

generator is used to create code for configuration

schemas. The other two generators are implemented

as Acceleo (OBEO, n.d.) templates. PIMs from

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

332

SEDL2Computation are made implicit in the

prototype. The generator for computation models

uses SEDL descriptions as inputs and produced Java

files. Operations on graphs are implemented by Java.

The simulation library Mason (Luke et al., 2005) and

its spatial extension GeoMason (Sullivan, Coletti, &

Luke, 2010) are used in the output code to deal with

simulation routines and spatial-related issues.

Figure 4: Components of the Framework Prototype.

The SEDL Toolset is implemented using

EMFText(Heidenreich, Johannes, Karol, Seifert, &

Wende, 2009). A textual SEDL Concrete Syntax is

specified in a file with “.cs” extension and referenced

to the SEDL Ecore model. EMFText creates various

language facilitates from this “.cs” file, which are

customized afterwards. The prototype can be used to

write SEDL descriptions in the concrete syntax and

store them in files with the ".sedl" extension. The

transformations are integrated into the SEDL

processor, which can be invoked to execute a file with

this extension.

Figure 5: Transformation Steps and Outputs.

A demonstrative use case is presented, which uses

the prototype to develop an environment component

for a vessel simulation. This component is

implemented as an Eclipse plugin. The functional

scenario is that a cargo vessel executes a planned path

under various weather conditions. During the

simulation, the environment component should

simulate environmental data required by the vessel

model execution with desired conditions, e.g., force

of wave, information of other ships etc.

The required environment is documented in the

“Sea.sedl” file using the implemented textual syntax.

Various artefacts are generated from this file by the

framework prototype. Figure 5 shows the

transformation flows. Classes in the “seaCon”

package are generated by EMF.

Figure 6: SEDL Description of BackgroundTraffic.

Figure 6 shows a description piece of a

phenomenon type in the “Sea.sedl” file for

illustration, in which the free-text descriptions are

displayed in green. The key word “Dynamics” in the

concrete syntax corresponds to the ThemeDynamics.

Figure 7 shows a visualized diagram of the

generated configuration schema for the

“BackgroundTraffic” in Figure 6 (left) and the data

class for a ship in the background traffic (right).

Attribute access methods are omitted due to space

limitation. The PIM layer data class for the

“BackgrounTraffic” is mapped to a PointSetFeature

as Section 5 introduced. In the prototype, it is further

transformed to a GeomVectorField object whose

geometry is initialized as a set of points managed by

the generated class “ComputeSea.java” in Figure 5.

A DSL-Driven Development Framework for Components to Provide Environmental Data in Simulation based Testing

333

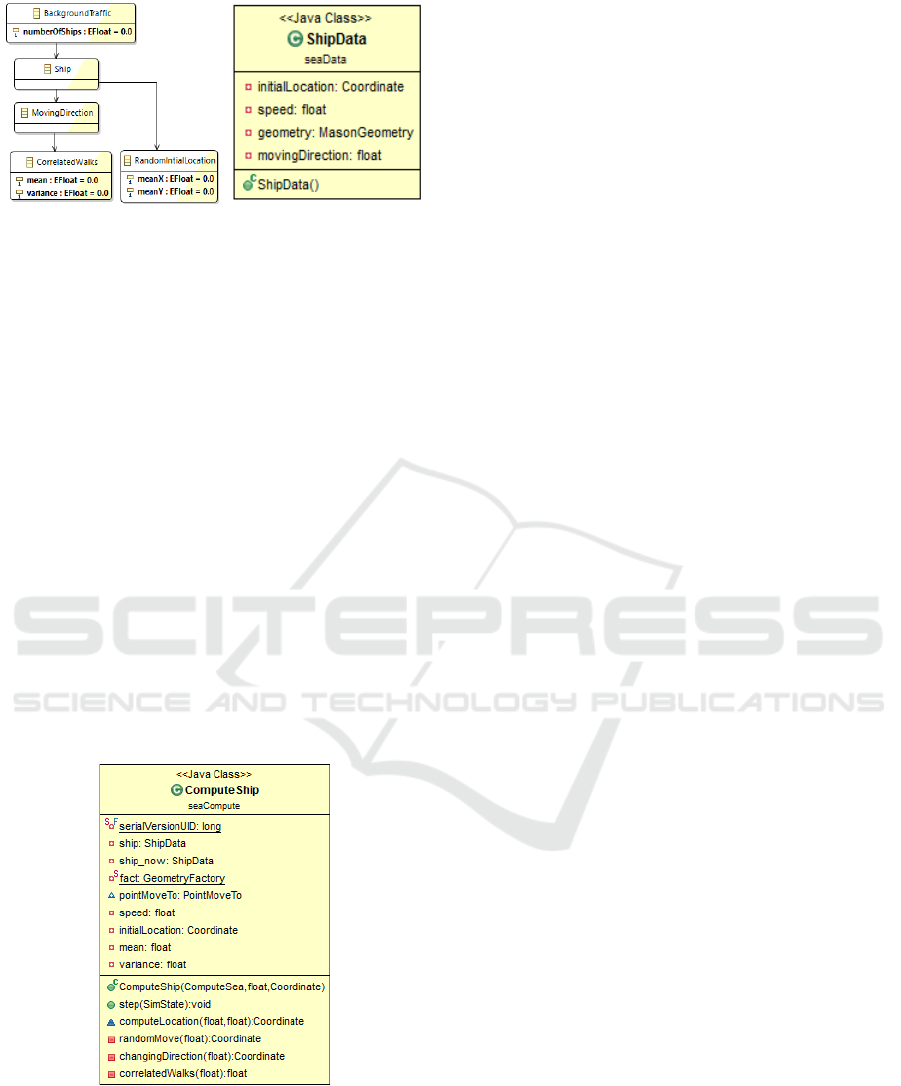

Figure 7: Structural Models for BackgroundTraffic.

Figure 8 shows a visualized diagram of the

“ComputeShip.java” class. It is a Mason Steppable

which is used to implement the computation model

for a ship in the background traffic. It includes

Mason-specific supportive structures such as

“GeometryFactory fact”, objects to hold states of the

computed ship and attributes to hold the ship indexes.

The following methods are generated in this class: the

constructor method “ComputerShip(…)” that is used

to initialize an instance of this class with given ship

indexes; the “step(SimState)” which holds the

computation flow to update states of the “ship”

object; method skeletons which should implement a

computation unit or the combined effort of involved

units to update an attribute of the “ship” object. The

free-text descriptions of corresponding SEDL items

are generated as Java comments near these methods

to guide the implementation. Same as the

GeomVectorField object that represents the whole

traffic set, code for iterating over the ships are placed

in “ComputeSea.java” class.

Figure 8: Computation Class for BackgroundTraffic.

A transformation step costs between 1~ 1×10

seconds, which can be neglected compared with the

total development time of this component.

7 CONCLUSIONS

A domain-specific framework is presented in this

paper, which eases the development of environment

components in computer simulations by following

means. First, it provides a CIM-layer DSL SEDL as a

communication tool to discuss and document the

requirements of components under development.

Second, it establishes mappings between conceptual

contexts of simulated environments expressed in

SEDL and necessary artefacts in computer programs

in order to produce them. Thus, system-perspective

design models can be derived from human-

perspective requirements. Third, it enables automatic

generations of program models from the requirements

descriptions. Architectural code can be further

generated with only application-specific methods to

be filled. The application-specific requirements are

preserved within corresponding code units to guide

the implementation.

Our future work focuses on the optimization of

transformations to the chosen technical platforms, the

test of the implemented framework with our marine

simulation development and the strategies to reuse

programs of environmental phenomena developed

within this framework in other simulations.

REFERENCES

Bousetta, B., El Beggar, O., & Gadi, T. (2013). A

methodology for CIM modelling and its transformation

to PIM. Journal of Information Engineering and

Applications, 3(2).

Camara, G., Egenhofer, M. J., Ferreira, K., & Andrade, P.

(2014). Fields as a generic data type for big spatial data.

Proceedings of 8th International Conference,

GIScience 2014. Presented at the Vienna, Austria.

Vienna, Austria.

De Castro, V., Marcos, E., & Vara, J. M. (2011). Applying

CIM-to-PIM model transformations for the service-

oriented development of information systems.

Information and Software Technology, 53(1), 87–105.

Eclipse. (n.d.). Model Development Tools (MDT).

Retrieved from http://www.eclipse.org/modeling/

mdt/uml2

Fatolahi, A., Somé, S. S., & Lethbridge, T. C. (2008).

Towards A Semi-Automated Model-Driven Method for

the Generation of Web-based Applications from Use

Cases.

Gutiérrez, J. J., Nebut, C., Escalona, M. J., Mejías, M., &

Ramos, I. M. (2008). Visualization of Use Cases

through Automatically Generated Activity Diagrams.

In K. Czarnecki, I. Ober, J.-M. Bruel, A. Uhl, & M.

Völter (Eds.), Model Driven Engineering Languages

and Systems: 11th International Conference, MoDELS

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

334

2008, Toulouse, France, September 28—October 3,

2008. Proceedings (pp. 83–96).

Güting, R. H., & Schneider, M. (2005). Moving objects

databases.

Guttag, J. V., & Horning, J. J. (1978). The algeraic

specification of abstract data types. Acta Informatica,

10(1), 27–52.

Hahn, C., Panfilenko, D., & Fischer, K. (2010). A Model-

Driven Approach to Close the Gap between Business

Requirements and Agent-Based Execution.

Proceedings of the 4th Workshop on Agent-Based

Technologies and Applications for Enterprise

Interoperability. International Joint Conference on

Autonomous Agents and Multiagent Systems (AAMAS-

10), May 10-14, Toronto, Canada, 13–24.

Heidenreich, F., Johannes, J., Karol, S., Seifert, M., &

Wende, C. (2009). Derivation and Refinement of

Textual Syntax for Models. Model Driven Architecture

- Foundations and Applications, 114–129. Enschede,

The Netherlands: Springer.

International Organization for Standardization. (n.d.). ISO

TC 211 Technical Committee on Geographic

Information and Geomatics. Retrieved from

https://www.isotc211.org/

Klügl, F., Fehler, M., & Herrler, R. (2004). About the Role

of the Environment in Multi-agent Simulations.

Proceedings of First International Workshop, E4MAS

2004, 127–149. New Yourk, NY, USA.

Kraus, A., Knapp, A., & Koch, N. (2007). Model-Driven

Generation of Web Applications in UWE. MDWE, 261.

Kriouile, A., Addamssiri, A., & Gadi, T. (2015). An MDA

Method for Automatic Transformation of Models from

CIM to PIM. American Journal of Software

Engineering and Applications, 4(1), 1–14.

Kriouile, A., Addamssiri, N., Gadi, T., & Balouki, Y.

(2014). Getting the static model of PIM from the CIM.

2014 Third IEEE International Colloquium in

Information Science and Technology (CIST), 168–173.

Kriouile, A., Gadi, T., Addamssiri, N., & Khadimi, A. E.

(2014). Obtaining behavioral model of PIM from the

CIM. 2014 International Conference on Multimedia

Computing and Systems (ICMCS), 949–954.

Kuhn, W., & Ballatore, A. (2015). Designing a language for

spatial computing. Proceedings of AGILE 2015,

Geographic Information Science as an Enabler of

Smarter Cities and Communities, 309–326.

Lisbon,Portugal.

Luke, S., Cioffi-Revilla, C., Panait, L., Sullivan, K., &

Balan, G. (2005). MASON: A Multi-Agent Simulation

Environment. Simulation: Transactions of the Society

for Modeling and Simulation International, 82(7), 517–

527.

Mazón, J.-N., Pardillo, J., & Trujillo, J. (2007). A Model-

Driven Goal-Oriented Requirement Engineering

Approach for Data Warehouses. In J.-L. Hainaut, E. A.

Rundensteiner, M. Kirchberg, M. Bertolotto, M.

Brochhausen, Y.-P. P. Chen, … E. Zimányie (Eds.),

Advances in Conceptual Modeling – Foundations and

Applications: ER 2007 Workshops CMLSA, FP-UML,

ONISW, QoIS, RIGiM,SeCoGIS, Auckland, New

Zealand, November 5-9, 2007. Proceedings (pp. 255–

OBEO. (n.d.). Generate Anything From Any EMF Model.

Retrieved from https://www.eclipse.org/acceleo/

Object Management Group. (2011). Business Process

Model and Notation (BPMN), Version 2.0. Retrieved

from https://www.omg.org/spec/BPMN/2.0/

Object Management Group. (2014). Model Driven

Architecture (MDA)—MDA Guide rev. 2.0. Retrieved

from http://www.omg.org/mda/

Open Geospatial Consortium. (n.d.). Open Geospatial

Consortium Site. Retrieved from

https://www.opengeospatial.org/

Rhazali, Y., Hadi, Y., & Mouloudi, A. (2015a). Disciplined

approach for transformation CIM to PIM in MDA. 2015

3rd International Conference on Model-Driven

Engineering and Software Development

(MODELSWARD), 312–320.

Rhazali, Y., Hadi, Y., & Mouloudi, A. (2015b).

Transformation approach CIM to PIM: from business

processes models to state machine and package models.

2015 International Conference on Open Source

Software Computing (OSSCOM), 1–6.

Rhazali, Y., Hadi, Y., & Mouloudi, A. (2016). A new

methodology CIM to PIM transformation resulting

from an analytical survey. 2016 4th International

Conference on Model-Driven Engineering and

Software Development (MODELSWARD), 266–273.

Rodríguez, A., Fernández-Medina, E., Trujillo, J., &

Piattini, M. (2011). Secure Business Process Model

Specification Through a UML 2.0 Activity Diagram

Profile. Decis. Support Syst., 51(3), 446–465.

Rodríguez, A., Guzmán, I. G.-R. de, Fernández-Medina, E.,

& Piattini, M. (2010). Semi-formal transformation of

secure business processes into analysis class and use

case models: An MDA approach. Information and

Software Technology, 52(9), 945–971.

Steinberg, D., Budinsky, F., Paternostro, M., & Merks, E.

(2008). EMF: Eclipse Modeling Framework (2nd ed.).

Addison-Wesley Professional.

Sullivan, K., Coletti, M., & Luke, S. (2010). GeoMason:

Geospatial Support for MASON [Technical Report

Series]. Retrieved from Department of Computer

Science, George Mason University website:

http://mars.gmu.edu/handle/1920/8739

Till Menzel, Gerrit Bagschik, & Markus Maurer. (2018).

Scenarios for Development, Test and Validation of

Automated Vehicles. 2018 IEEE Intelligent Vehicles

Symposium (IV), 1821–1827.

van Deursen, A., Klint, P., & Visser, J. (2000). Domain-

specific languages: An annotated bibliography. Sigplan

Notices, 35(6), 26–36.

A DSL-Driven Development Framework for Components to Provide Environmental Data in Simulation based Testing

335
