A Method to Identify the Cause of Misrecognition for Offline

Handwritten Japanese Character Recognition using Deep Learning

Keiji Gyohten, Hidehiro Ohki and Toshiya Takami

Faculty of Science and Technology, Oita University, Dannoharu 700, Oita 870-1192, Japan

Keywords: Offline Handwritten Character Recognition, Deep Learning, Convolutional Neural Network, Stroke

Recognition, Identifying the Cause of Misrecognition.

Abstract: In this research, we propose a method to identify the cause of misrecognition in offline handwritten character

recognition using a convolutional neural network (CNN). In our method, the CNN learns not only character

images augmented by applying an image processing method, but also those generated from character models

with stroke structures. Using these character models, the proposed method can generate character images

which lack one stroke. By learning the augmented character images lacking a stroke, the CNN can identify

the presence of each stroke in the characters to be recognized. Subsequently, by adding dense layers to the

final layer and learning the character images, obtaining the CNN for the offline handwritten character

recognition becomes possible. The obtained CNN has nodes that can represent the presence of the strokes and

can identify which strokes are the cause of misrecognition. The effectiveness of the proposed method is

confirmed from character recognition experiments targeting 440 types of Japanese characters.

1 INTRODUCTION

Recent progress in deep learning is remarkable, and

is driving the current artificial intelligence boom.

Deep learning techniques can be applied to various

pattern recognition problems, resulting in significant

breakthroughs. Character recognition, one of the

pattern recognition problems, also benefits from the

advancement of deep learning techniques.

In order to achieve high recognition performance

in deep learning, a large amount of training data is

required. Also, in the character recognition problem,

the number of handwritten images that can be

collected as training data is important. For example,

He et al.’s (2015) research achieves high character

recognition performance by collecting a large amount

of handwritten character images and using them as

training data. However, there are limitations in

collecting a large amount of handwritten character

images.

From this background, data augmentation has

become common for enlarging training data for deep

learning. When increasing image data for training, it

is normal to apply various image processing methods

to the given image data. In the case of character

recognition problems, methods such as applying

geometrical transformation to given character images

and generating character images of various

handwritings using character models have been

proposed.

In particular, we consider that generating training

character images using character models could

contribute to the interpretability of deep learning for

character recognition. Today, a neural network is

expected to provide human-understandable

justifications for its output, leading to insights about

its inner workings. This is called the interpretability

of deep learning (Chakraborty et al. 2017). In order to

tackle this approach, various studies on object

recognition have been undertaken in recent years.

However, since various conceptual semantic

structures are possible in a natural scenario, it is

difficult to clearly identify judgment parameters for

recognizing objects. On the other hand, in the case of

character recognition, since the characters are

composed of strokes arranged in clear logical

structures based on the positional relationships, image

features characterizing the recognition judgment can

be clearly identified. We consider the possibility of

recognizing the logical structure of the strokes in

characters by learning the character images generated

by combining the presence or absence of strokes from

the character model.

446

Gyohten, K., Ohki, H. and Takami, T.

A Method to Identify the Cause of Misrecognition for Ofﬂine Handwritten Japanese Character Recognition using Deep Learning.

DOI: 10.5220/0008949004460452

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 446-452

ISBN: 978-989-758-397-1; ISSN: 2184-4313

In this paper, we propose a character recognition

method that can grasp the logical structures of the

strokes in the character by learning the augmented

images generated from the character models. The

proposed method consists of two phases: the phase of

learning the structures of the strokes in the characters

and the phase of learning the characters in

consideration from the results of stroke recognition.

In the phase of learning strokes, each node in the

convolutional neural network’s (CNN's) output layer

corresponds to each stroke in the characters. In the

learning process, character images lacking one stroke

are provided to learn the presence or absence of a

stroke. Thereafter, dense layers are added to output

the final result of character recognition. The nodes in

the output layer of the added network correspond to

each character to be recognized.

2 RELATED WORKS

With the progress of research on deep learning,

handwriting recognition using CNN has achieved

remarkably high performance. Excellent performance

has also been achieved in handwritten Chinese

character recognition, for example, in the study of

Zhang et al. (2017). This method achieved a

recognition rate of 97.37% using 720 training images

and 60 evaluation images for each of the 3,755

Chinese characters. Since Chinese characters have

thousands of character types and their structure is

complicated, a larger amount of training character

images will be needed to improve handwritten

Chinese character recognition performance using

CNN. To solve this problem, it is common to apply

data augmentation on the training data for CNN.

Applying various image processing methods to the

given character images is the easiest way to increase

the training image data.

However, a problem in the data augmentation of

training character images for Chinese character

recognition is that various handwritings cannot be

generated only by applying general image processing

methods to original images. The training data

generated by general image processing methods

could be correlated with each other and overfitting

may occur in the learning. We consider the use of

character models to be efficient in generating various

handwritings. These methods have been mainly used

for script recognition (Bhattacharya and Chaudhuri

2009; Saabni and El-Sana 2013), font generation

(Miyazaki et al. 2017), and so on. In addition, Liu et

al. 2018; Ly et al. 2018; Shen and Messina 2016; and

Wigington et al. 2017, use character models for the

data augmentation in deep learning. Further progress

in this type of approach is expected in the future.

Furthermore, the augmentation of character

images using stroke-based character models may also

contribute to constructing interpretable neural

networks in character recognition using deep

networks. The interpretable neural networks provide

human-understandable justifications for its output,

leading to insights about their inner workings

(Chakraborty et al. 2017). If it is possible to make the

network learn the training character images generated

by controlling their logical character structure using

the character models, the resulting network might be

able to explain why such a judgment is made.

3 PROPOSED METHOD

3.1 Outline

Our method is characterized by recognizing

characters after understanding the stroke structure of

each character. This approach is realized by learning

not only character images augmented by applying

image processing, but also ones generated from

character models having stroke structure. The method

is based on the traditional CNN and is learned through

the following two phases. The network first learns the

augmented character images to be able to recognize

the presence of each stroke in characters. Then, a

dense layer is added to the network as the new output

layer where each node corresponds to a character to

be recognized. By learning the augmented character

images, the network can recognize not only the

characters but also the presence of each stroke in

them.

3.2 Character Image Augmentation

The character image augmentation based on image

processing is done by applying projective

transformations to the original character images to

imitate various handwritings. After obtaining a four-

sided figure whose corners are placed randomly near

the corners of the original character image, our

method applies the projective transformation to the

image to fit the distorted figure as shown in Fig. 1.

Fig. 2 shows some examples of the augmented

character images, where various handwritings can be

imitated.

A Method to Identify the Cause of Misrecognition for Ofﬂine Handwritten Japanese Character Recognition using Deep Learning

447

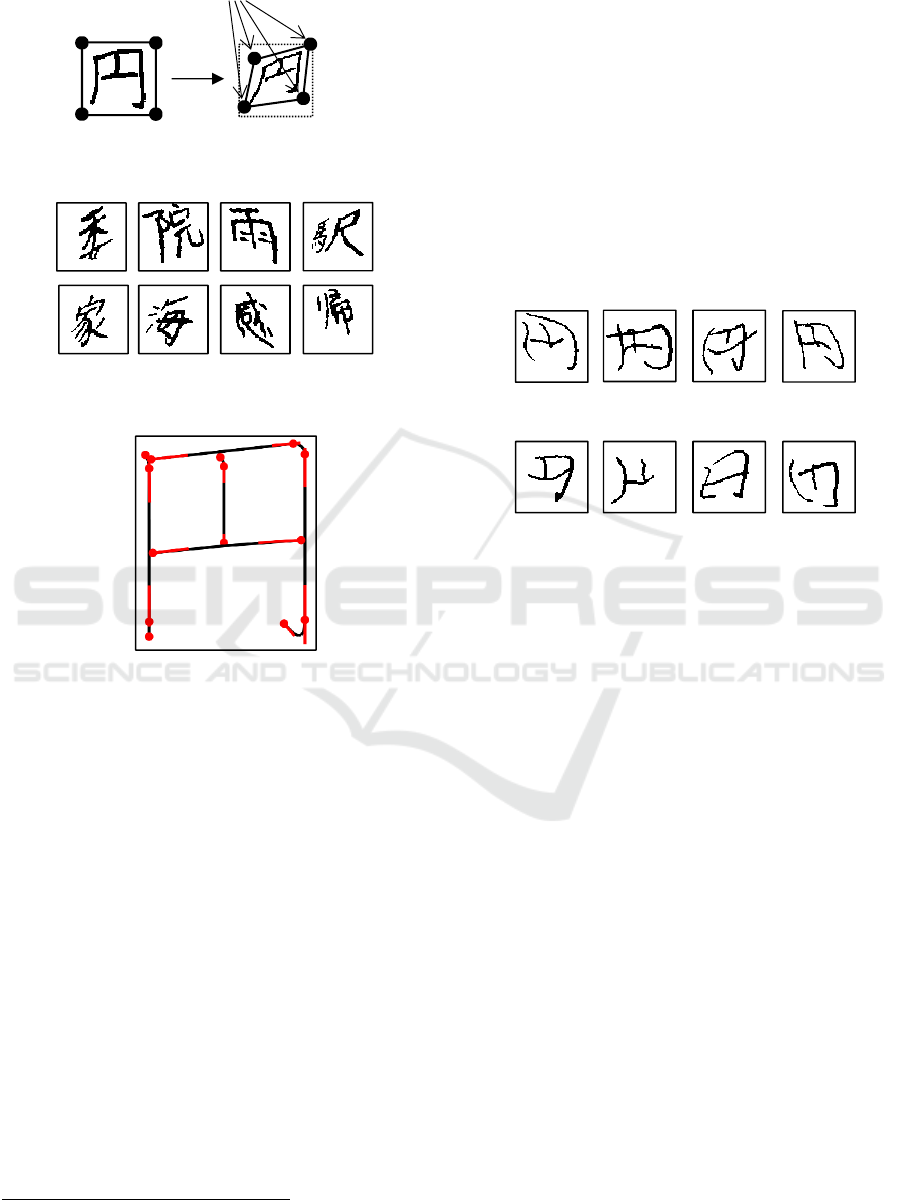

Figure 1: Character image augmentation based on

projective transformation.

Figure 2: Examples of the character images generated by

applying projective transformation.

Figure 3: Example of characters represented by KanjiVG.

In the character image augmentation using stroke-

based character models, we use KanjiVG

created by

Ulrich Apel. KanjiVG is the character model that

provides shapes and orders of strokes in each

Japanese character as SVG (scalable vector graphics)

files. The strokes are represented as Bezier curves and

their orders for writing a character are described in

the file. In addition, the data of the radicals that

compose the characters are also described in the file,

but not used in our method. Fig. 3 shows an example

of a character represented by KanjiVG.

Our method generates character images using

KanjiVG according to the procedure described below.

First, our method generates strokes of a character

from KanjiVG and approximates them to polylines.

In order to change the appearance of the character, our

method generates a Voronoi diagram whose seeds

correspond to the vertices on the polylines, and moves

each vertex randomly in the cell. Each vertex is

moved according to the stroke order of the character,

KanjiVG https://kanjivg.tagaini.net/

and the Voronoi diagram is updated with each

movement of the vertex. This procedure makes it

possible to change the appearance of the character

without breaking the positional relationships among

the strokes.

In order to construct the CNN that can identify the

presence of each stroke in the characters to be

recognized, our method needs to use augmented

character images lacking a stroke as the training data.

Since KanjiVG is composed of Bezier curves

corresponding to each stroke, these models can be

used to easily generate character images lacking a

stroke. Fig. 4 shows the examples of character images

generated using KanjiVG.

Figure 4: Examples of the character images generated using

KanjiVG.

3.3 Construction of the CNN for Stroke

Recognition

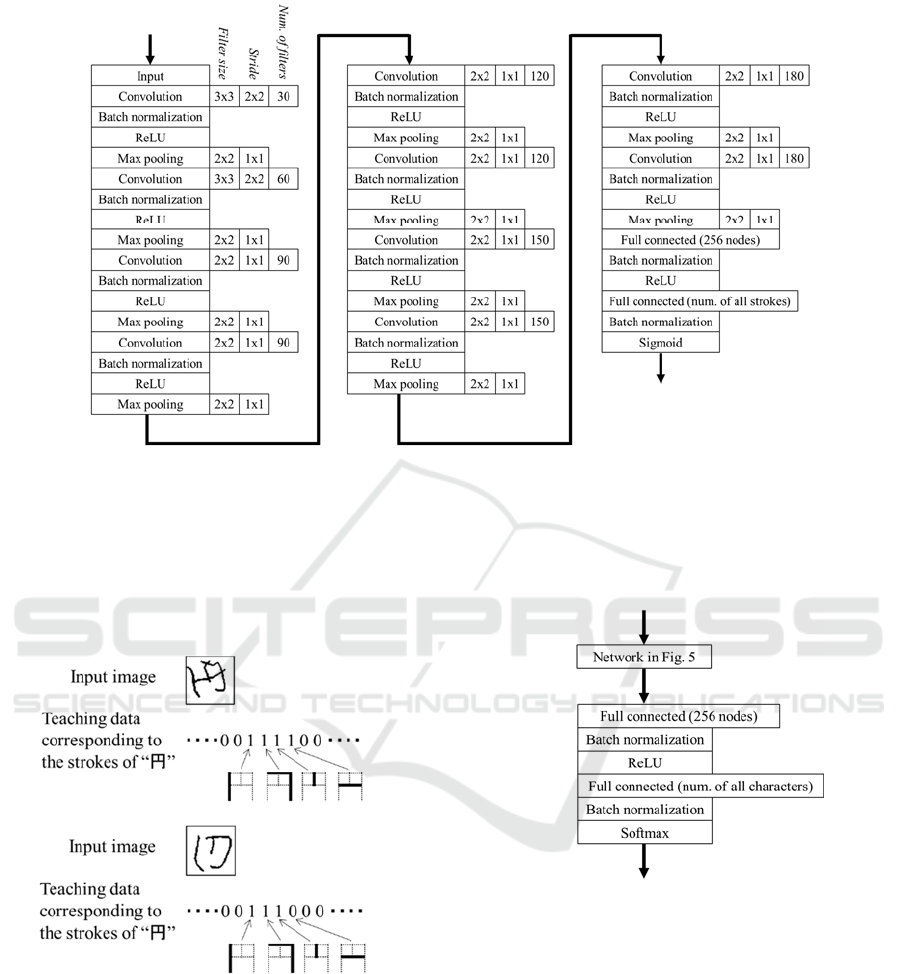

Fig. 5 shows the CNN that can identify the presence

of each stroke in the characters to be recognized.

Nodes in the output layer correspond to each stroke

in the characters. Thus, the number of nodes in the

output layer is the sum of the strokes in the characters

to be recognized.

The CNN first learns to recognize the presence of

strokes in the characters using the character images

augmented with image processing. Since the nodes in

the output layer correspond to each stroke in the

characters, the teaching data are given as multi-hot

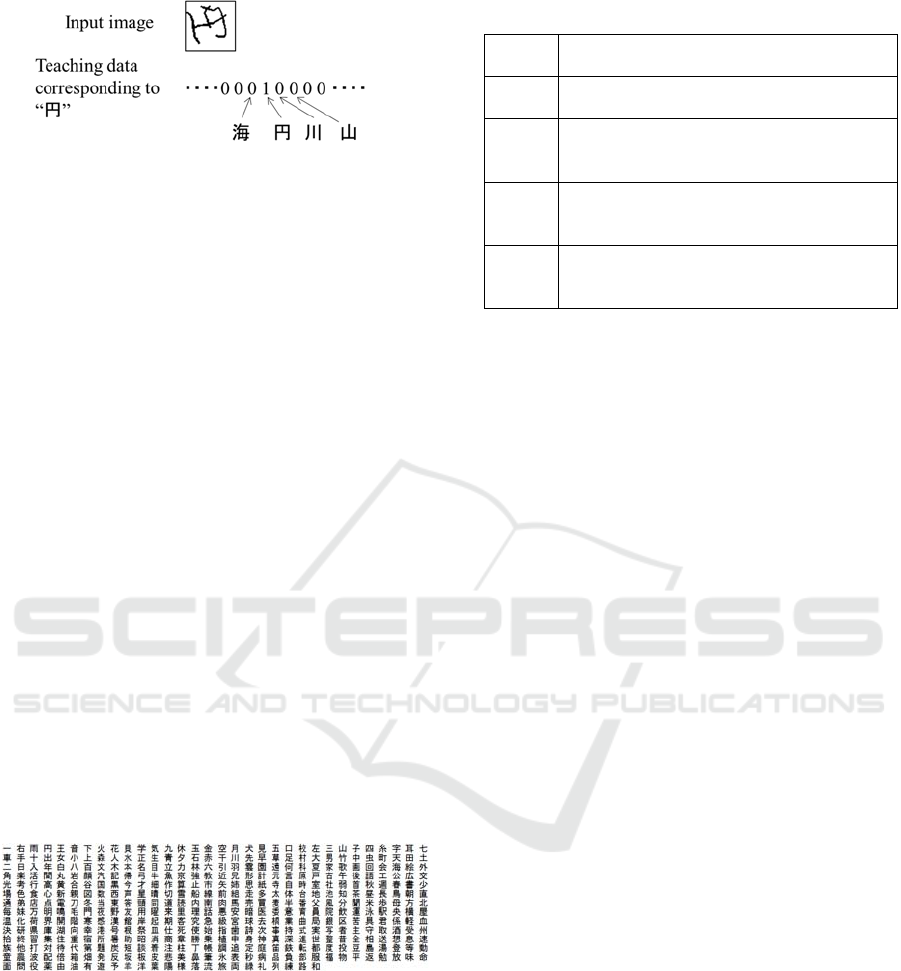

vectors as shown in Fig. 6(a). We used Adam

optimizer and binary cross-entropy as the loss

function. In this step, the CNN cannot recognize the

presence of each stroke but tries to select features in

the images to recognize the characters.

Next, this CNN learns to identify the presence of

each stroke in the characters using the character

images generated with KanjiVG. The

characters in

these augmented images lack one of the strokes.

oved

Characters consisting of all strokes

Characters lacking one stroke

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

448

Figure 5: The CNN for identifying the presence of each stroke in the characters.

Along with this, our method uses teaching data where

the value of the node corresponding to the lacking

stroke is 0, as shown in Fig. 6(b). In this step, the

CNN attempts to recognize the presence of each

stroke by selecting the features obtained in the

previous step.

(a) A normal character

(b) A character lacking one stroke

Figure 6: The teaching data in training data for learning the

presence of each stroke in the characters.

3.4 Construction of the CNN for

Character Recognition

As shown in Fig. 7, our method builds the CNN for

character recognition by adding two dense layers to

the output layer of the network obtained in section

3.3. The last of the added layers becomes the new

output layer with nodes corresponding to each

character to be recognized. Thus, the number of nodes

in the output layer is that of the characters to be

recognized.

Figure 7: The CNN for recognizing the characters.

After transferring the weights obtained in section

3.3 to this network, our method learns to recognize

the characters using the character images augmented

through image processing. In this learning, the

transferred weights are frozen and only the weights in

the last two added layers are optimized. As shown in

Fig. 8, the teaching data are given as one-hot vectors

representing the corresponding characters. We used

Adam optimizer and categorical cross-entropy as the

loss function. In this step, the CNN attempts to

recognize the characters by considering firing of the

nodes corresponding to each stroke in the characters.

A Method to Identify the Cause of Misrecognition for Ofﬂine Handwritten Japanese Character Recognition using Deep Learning

449

Figure 8: The teaching data in the training data for learning

the characters.

4 EXPERIMENTAL RESULTS

In this section, we describe the experimental results

of the proposed method. The proposed method is

implemented on Intel core i7-6700 3.40GHz CPU

with 16.0GB RAM and GeForce GTX1080 GPU chip.

The character image augmentation method is coded

in Python and uses OpenCV. The CNN for character

recognition is implemented with Keras and

Tensorflow in Python.

In this experiment, ETL9B was used as the

handwritten character image dataset. This is a

handwritten Japanese character database composed

of 201 binary character images, sized 64x63 for each

of the 3,036 character types, including Chinese

characters called Kanji in Japan. In this experiment,

440 types of Kanji characters learned at an

elementary school were used as the characters to be

recognized, as shown in Fig. 9. The 201 images for

each character type were divided into 120 training

images, 60 test images, and 21 verification images.

As shown in Table 1, a set of character images for

learning and verification and their corresponding

teaching data for stroke and character recognition

were used for learning. We call them data set A.

Figure 9: Japanese characters to be recognized.

First, we increased the volume of training data by

applying the projective transformation described in

section 3.2 to the images in data set A. As shown in

Table 1, the number of augmented character images

for each character type is 50 times the number of its

strokes. We call these along with their corresponding

teaching data as set B. In data set B, 90% and 10% of

the number of character images for each character

type were used for training and verification,

respectively.

Table 1: Data set for the experiments.

Data

set

Types of the input images

/ Num. of images for each character

A The original character images in ETL9B

/ 120

B The character images augmented by

applying projective transformations

/ 50 x the number of strokes in a character

C The character images augmented using

KanjiVG (one of the strokes is lacking)

/ 50 x the number of strokes in a character

D The character images augmented using

KanjiVG

/ 50 x the number of strokes in a character

Next, we increased the volume of training data by

applying the character augmentation method using

the character model KanjiVG described in section 3.2.

The character images of data set C in Table 1 lack one

stroke as shown in Fig. 4. In data set C, the number of

the augmented character images for each character

type lacking a specific stroke is 50. Therefore, the

number of the augmented character images for each

character type lacking a stroke is 50 times the number

of its strokes. We also generated the character images

consisting of complete strokes using the character

model KanjiVG. We call these images and their

corresponding teaching data as set D. In data set D,

the number of the augmented character images for

each character type is 50 times the number of its

strokes. In data set C and D, 90% and 10% of the

number of character images for each character type

were used as training and verification data,

respectively.

First, we compared the character recognition

performance of the conventional CNN and the

proposed method. The conventional CNN structure is

exactly the same as the CNN shown in Fig. 5 except

that each node in the output layer corresponds to each

character to be recognized and uses the softmax

function as the activation function. Table 2 shows the

recognition rates of the conventional CNN using

dataset A and dataset A + B. In order to avoid

overlearning, we applied early stopping strategies to

the learning phase using validation image data in all

experiments. The recognition rate was obtained by

testing 60 test images for each character in ETL9B

described above. In addition, after constructing the

CNN for stroke recognition described in section 3.3

by learning data set A + B + C, the CNN for character

recognition described in section 3.4 was constructed

by learning data set A + B + D. Its recognition rate is

also shown in Table 2. From these results, it was

confirmed that the recognition rate significantly

improved after using the augmented character image.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

450

However, the proposed method could not exceed the

performance of the conventional CNN that had

learned the data set A + B. This result was unexpected

because our method is designed to overcome the

traditional CNN for character recognition considering

the positional relationships of the strokes. One

possible cause is that the character images generated

from the character models are unnatural, as shown in

Fig. 4. The generation of more natural character

images should be considered in future. Furthermore,

it is possible that the hyperparameters of the CNN for

stroke recognition were inappropriate. It is also

necessary to adjust the appropriate values of the

hyperparameters to correctly recognize a large

number of strokes.

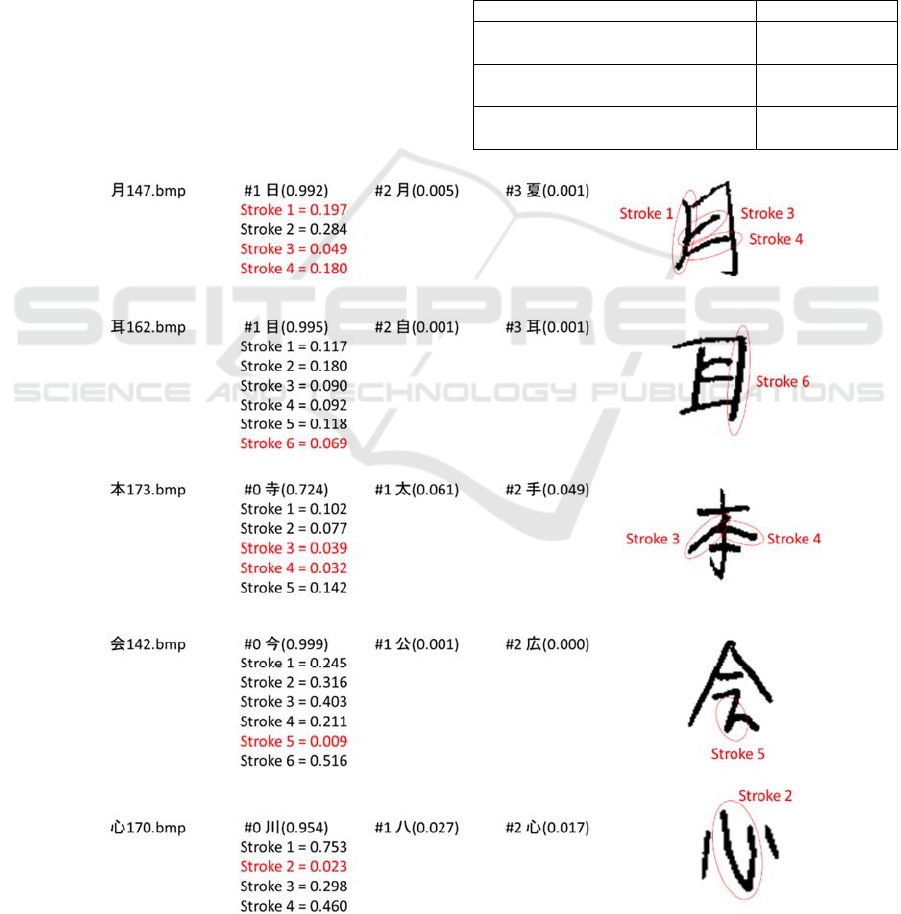

Next, we examined the firing status of the nodes

corresponding to each stroke in the characters. Fig. 10

shows some of the results of recognized characters

misclassified by the proposed method. In Fig. 10, we

selected those results where the outputs of the nodes

corresponding to the strokes in a desired character are

unbalanced. Strokes surrounded by red circles

indicate that firing was weaker than other strokes.

These results show the possibility of identifying

unclear parts in the character images by analyzing the

firing status of the nodes in the middle layer.

However, in most misrecognition results, all nodes

corresponding to the stroke in the correct character

did not fire. In the future, we think that it would be

necessary to examine the structure of CNN that can

recognize strokes more carefully.

Table 2: Recognition rates of the experiments.

Types of methods Recognition rate

The conventional CNN obtained by

learning A

97.8%

The conventional CNN obtained by

learning A+B

99.7%

The proposed method obtained by

learning A+B+C and A+B+D

99.5%

Figure 10: Firing status of the nodes corresponding to the strokes in the characters misclassified by the proposed method.

A Method to Identify the Cause of Misrecognition for Ofﬂine Handwritten Japanese Character Recognition using Deep Learning

451

5 CONCLUSIONS

In this study, we proposed a method to investigate the

cause of false recognition in offline handwritten

character recognition using CNN. Our approach is

based on a CNN which can recognize stroke structure

by learning character images generated from stroke-

based character models. The resulting CNN has nodes

that can represent the presence of strokes, and can

identify which stroke is the cause of the

misrecognition. Consequent to the application of the

proposed method to the Japanese character

recognition problem, the possibility of identifying

which stroke caused the misrecognition was

confirmed to a certain extent.

However, since many misrecognitions were not

caused by specific strokes, all nodes corresponding to

the strokes in the desired character did not fire in most

cases. Therefore, it was impossible to identify the

cause of all misrecognitions by the proposed method.

In order to explain the cause of misrecognition, it

would be necessary to adopt a completely different

approach. We think that the proposed method can

point to mistakes in writing characters, and can be

applied to support the writing of beautiful characters.

In the future, we plan to improve the method

assuming such types of applications.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Number JP 19K12045.

REFERENCES

Bhattacharya, U. and Chaudhuri, B. B. (2009). Handwritten

Numeral Databases of Indian Scripts and Multistage

Recognition of Mixed Numerals. In IEEE Transactions

on Pattern Analysis and Machine Intelligence,

31(3):444-457

Chakraborty, S., Tomsett, R., Raghavendra, R., Harborne,

D., Alzantot, M., Cerutti, F., Srivastava, M., Preece, A.,

Julier, S., Rao, R. M., Kelley, T. D., Braines, D.,

Sensoy, M., Willis, C. J. and Gurram, P. (2017).

Interpretability of deep learning models: A survey of

results. In Proceedings of IEEE SmartWorld,

Ubiquitous Intelligence & Computing, Advanced &

Trusted Computed, Scalable Computing &

Communications, Cloud & Big Data Computing,

Internet of People and Smart City Innovation

(SmartWorld/SCALCOM/UIC/ATC/CBDCom/IOP/S

CI), 1-6.

He, M., Zhang, S., Mao, H. and Jin, L. (2015). Recognition

confidence analysis of handwritten Chinese character

with CNN. In Proceedings of the 13th International

Conference on Document Analysis and Recognition

(ICDAR), 61-65.

Liu, M., Xie, Z., Huang, Y., Jin, L. and Zhou, W. (2018).

Distilling GRU with Data Augmentation for

Unconstrained Handwritten Text Recognition. In

Proceedings of 16th International Conference on

Frontiers in Handwriting Recognition (ICFHR), 56-61.

Ly, N. A., Nguyen, C. T. and Nakagawa, M. (2018).

Training an End-to-End Model for Offline Handwritten

Japanese Text Recognition by Generated Synthetic

Patterns. In Proceedings of 16th International

Conference on Frontiers in Handwriting Recognition

(ICFHR), 74-79.

Miyazaki, T., Tsuchiya, T., Sugaya, Y., Omachi, S.,

Iwamura, M., Uchida, S. and Kise, K. (2017).

Automatic Generation of Typographic Font from a

Small Font Subset. In CoRR arXiv: 1701.05703.

Saabni, R. M. and El-Sana, J. A. (2013). Comprehensive

synthetic Arabic database for on/off-line script

recognition research. In International Journal on

Document Analysis and Recognition (IJDAR),

16(3):285-294.

Shen, X. and Messina, R. (2016). A Method of Synthesizing

Handwritten Chinese Images for Data Augmentation.

In Proceedings of 15th International Conference on

Frontiers in Handwriting Recognition (ICFHR), 114-

119.

Wigington, C., Stewart, S., Davis, B., Barrett, B., Price, B.

and Cohen, S. (2017). Data Augmentation for

Recognition of Handwritten Words and Lines Using a

CNN-LSTM Network. In Proceedings of 14th IAPR

International Conference on Document Analysis and

Recognition (ICDAR), 639-645.

Zhang, X.-Y., Bengio, Y. and Liu, C.-L. (2017). Online and

Offline Handwritten Chinese Character Recognition: A

Comprehensive Study and New Benchmark. In Pattern

Recognition, 61(1):348-360.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

452
