Exploration and Exploitation of Sensorimotor Contingencies for a

Cognitive Embodied Agent

Quentin Houbre, Alexandre Angleraud and Roel Pieters

Cognitive Robotics Group, Automation Technology and Mechanical Engineering, Tampere University, Tampere, Finland

Keywords:

Cognitive Robotics, Embodiment, Sensorimotor Contingencies, Dynamic Neural Fields.

Abstract:

The modelling of cognition is playing a major role in robotics. Indeed, robots need to learn, adapt and plan

their actions in order to interact with their environment. To do so, approaches like embodiment and enactivism

propose to ground sensorimotor experience in the robot’s body to shape the development of cognition. In this

work, we focus on the role of memory during learning in a closed loop. As sensorimotor contingencies, we

consider a robot arm that moves a baby mobile toy to get visual reward. First, the robot explores the continuous

sensorimotor space by associating visual stimuli to motor actions through motor babbling. After exploration,

the robot uses the experience from its memory and exploits it, thus optimizing its motion to perceive more

visual stimuli. The proposed approach uses Dynamic Field Theory and is integrated in the GummiArm, a 3D

printed humanoid robot arm. The results indicate a higher visual neural activation after motion learning and

show the beneﬁts of an embodied babbling strategy.

1 INTRODUCTION

The role of robotics in society is increasing, and with

it comes the problem of modelling intelligence. With

more complex tasks to perform, robots need to adapt

to their environment. To address these issues, re-

searchers are focusing on cognition, autonomy, their

development in humans and how to model them in

robots.

Developmental approaches in robotics try to re-

produce experimental results observed in infants to

understand cognition. The notion of Sensorimotor

Contingency ties together perceptions and motor ac-

tions in a situated agent. For example, the mo-

tor babbling behavior provides an explanation for

the learning of sensorimotor contingencies by asso-

ciating actions with their outcomes. Piaget (Piaget

and Cook, 1952) formulated the ”primary circular-

reaction hypothesis” where children generate ”re-

ﬂexes” and these reﬂexes change (even slightly) when

they produce an effect on the children’s environment.

Later, the hypothesis was experimentally conﬁrmed

(Von Hofsten, 1982). This behavior led researchers to

investigate such early behavior as a learning mech-

anism in robotics. One cognitive architecture im-

plements this mechanism with Bayesian Belief Net-

works (Demiris and Dearden, 2005) where a robot

learns to associate motor commands with their sen-

sory consequences and how the inverse association

can be used for imitation. Other research (Saegusa

et al., 2009) applied motor babbling with neural net-

works to predict future motor states to inﬂuence the

exploration strategy, avoiding to learn all the motor

states and perception associations. Around the same

time, researchers proposed a model (Caligiore et al.,

2008) using motor babbling to support the learning of

more complex skills such as reaching with obstacles

and grasping. The problem was mainly to demon-

strate that motor babbling is suitable to generate ac-

tion sequences in time. More recent work (Mahoor

et al., 2016) proposed a neurally plausible model of

reaching by encoding the trajectory of the movements

within three interconnected neuron maps. These in-

teresting but non-exhaustive works provide interest-

ing ways on how motor babbling could be imple-

mented in robotics, allowing us to propose our own

model based on Neural Dynamics with an enactive

approach.

To understand enactivism, the notion of embod-

iment needs to be deﬁned. Embodiment (Francisco

J. Varela and Rosch, 1991) is an approach where the

body is an interface that shapes the development of

cognition through its interactions with the environ-

ment. More than an interface, the body is a struc-

tured living organism and so must be considered em-

bodiment in robotics (Chrisley and Ziemke, 2006;

Morse et al., 2011; Ziemke, 2016). For example, in

(Laﬂaqui

ere and Hemion, 2015) researchers proposed

an architecture to ground object perception from a

robot’s sensorimotor experience. As a simple form

546

Houbre, Q., Angleraud, A. and Pieters, R.

Exploration and Exploitation of Sensorimotor Contingencies for a Cognitive Embodied Agent.

DOI: 10.5220/0008951205460554

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 546-554

ISBN: 978-989-758-395-7; ISSN: 2184-433X

of embodiment, proprioceptive signals from the robot

to improve the learning to count, was demonstrated in

(Ruci

nski et al., 2012). To go beyond embodiment,

some researchers proposed a new multi-disciplinary

approach named computational grounded cognition

(Pezzulo et al., 2013), where every aspect of cognition

is grounded through sensorimotor experience. Even if

such approach is beneﬁcial to help the design of cog-

nitive architectures, the concept of autonomy needs

to be addressed and integrated with grounding. En-

activism is an answer to this issue, even if here we

distinguish sensorimotor enactivism, which puts per-

ceptual abilities at the center, with autopoietic enac-

tivism where there is a necessary link between con-

scious experiences and autopoietic processes (Dege-

naar and O’Regan, 2017). This means the grounding

of experience depends on the internal system’s orga-

nization and the ability to change it, but also on the

regulation of the system itself (Barandiaran, 2017).

The ﬁrst statement remains problematic and complex

to deal with in robotics, but the second one can be

addressed. In this case, we talk about homeostasis

(Cannon, 1929), the process of self-regulation. The

design of a cognitive architecture must take into ac-

count the circular causality of the sensorimotor ex-

perience if this exhibits autonomy with an enactive

approach (Vernon et al., 2015). In order to produce

these self-regulated dynamics, the use of neural ﬁelds

is promising.

Dynamic Field Theory (DFT) is a new approach to

understand cognitive and neural dynamics (Sch

oner

et al., 2016). This is suitable to deliver homeosta-

sis to the architecture and provides various ways of

learning. The most basic learning mechanism in DFT

is the formation of memory traces of positive activa-

tion of a Dynamic Neural Field (Perone and Spencer,

2013). Hebbian Learning is possible (Luciw et al.,

2013) and the learning of sequences could be done

via a structure involving elementary behaviors, inten-

tions and conditions of satisfaction (Sandamirskaya

and Sch

oner, 2010).

In this work, we propose a new mechanism of ex-

ploration and exploitation with Dynamic Field The-

ory. We set up an experiment where the robot is

attached to a baby mobile toy with a rubber band,

similar to the baby mobile experiment with infants

(Watanabe and Taga, 2006). We investigate how

memory is shaping the experience of the robot and

thus how this helps to optimize the robot’s motion.

The proposed architecture is self-regulated and uses

Dynamic Neural Fields in a closed loop, meaning the

actions inﬂuence future perceptions. In particular, we

propose the following contributions:

• A dynamic exploration architecture based on mo-

tor babbling.

• The grounding of visual stimuli with motor ac-

tions in a memory ﬁeld.

• A dynamic exploitation mechanism using new

neural dynamics and taking inspiration from Re-

inforcement Learning (Q-Learning).

• Implementation and experimental results of the

dynamic exploration architecture.

The paper is organized as follows. Section 2 de-

scribes the methodological background, with the dy-

namic ﬁeld theory and the associated related work.

Section 3 presents the model design, that includes

the action selection strategy and the exploration and

exploitation stage that compose the learning mecha-

nism. Following, Section 4 presents the experimental

setup and the results of the experiments. Finally, Sec-

tion 5 discusses the limitations of our work, future

efforts, and concludes the paper.

2 METHODOLOGICAL

BACKGROUND

Dynamic Field Theory is a theoretical framework

that provides a mathematically explicit way to model

the evolution in time of neural population activity

(Sch

oner et al., 2016). It was originally used to model

reactive motor behavior (Kopecz and Sch

oner, 1995)

but demonstrated its ability to model complex cog-

nitive processes (Spencer et al., 2009). The core el-

ements of DFT are Dynamic Neural Fields (DNF)

that represent activation distributions of neural pop-

ulations. Stable peaks of activation form as a result

of supra-threshold activation and lateral interactions

within a ﬁeld. A DNF can represent different fea-

tures and a peak of activation at a speciﬁc location

corresponds to the current observation. For exam-

ple, a DNF can be used to represent a visual color

space (Red, Green, Blue) and a peak at the ”blue loca-

tion” would mean a blue object is perceived. Neural

Fields are particularly suitable to represent continu-

ous space.

Dynamic Neural Fields evolve continuously in

time under the inﬂuence of external inputs and lateral

interactions within the Dynamic Field as described by

the integro-differential equation :

τ ˙u(x,t) = −u(x,t) + h + S(x,t)

f (u(x,t))ω(x − x

)dx

(1)

where h is the resting level (h < 0) and S(x,t) is the

external inputs. u(x,t) is the activation ﬁeld over fea-

ture dimension x at time t and τ is a time constant.

Exploration and Exploitation of Sensorimotor Contingencies for a Cognitive Embodied Agent

547

An output signal f(u(x,t)) is determined from the acti-

vation via a sigmoid function with threshold at zero.

This output is then convoluted with an interaction ker-

nel ω that consists of local excitation and surrounding

inhibition (Amari, 1977). The role of the Gaussian

kernel is crucial since different shapes inﬂuence the

neural dynamics of a ﬁeld. For example, local exci-

tatory (bell shape) coupling stabilizes peaks against

decay while lateral inhibitory coupling (Mexican-hat

shape) prevents activation from spreading out along

the neural ﬁeld. By coupling or projecting together

several neural ﬁelds of different features and dimen-

sions, DFT is able to model cognitive processes. If

neural ﬁelds are the core of the theory, other elements

are essential to our work.

Dynamic neural nodes are basically a 0-

dimensional neural ﬁeld and follow the same dy-

namic:

τ ˙u(x,t) = −u(x, t) + h + c

f (u(t)) +

∑

S(x, t). (2)

The terms are similar to a Neural Field except for c

which is the weight of a local nonlinear excitatory in-

teraction. A node can be used as a boost to another

Neural Field. By projecting its activation globally, the

resting level of the neural ﬁeld will rise allowing to

see the rise of peaks of activation (Figure 4).

Finally, the memory trace is another important

component of DFT:

˙v(t) =

(−v(t) + f (u(t))) f (u(t))

−

(−v(t)(1 − f (u(t))),

(3)

with τ

< τ

−

. A memory trace in DFT has two dif-

ferent time scales, a build up time τ

that corresponds

to the time for an activation to rise in the memory and

a decay time τ

−

which is the time decay of an activa-

tion. In our model, we use a 2-dimensional memory

trace which keeps track of visual activation.

2.1 Q-Learning

Q-Learning algorithm (Watkins and Dayan, 1992;

Sutton et al., 1998) is a model-free reinforcement

learning algorithm that learns a policy in order to

choose the best action according to a given state. The

learned action/value function Q is deﬁned by :

Q(s

, a

) ← Q(s

, a

) + α

t+1

+ γ.max

Q(s

t+1

, a) − Q(s

, a

)],

(4)

where s

and a

are, respectively, a state and an action

at time t, α is the learning rate, r

t+1

the reward at time

t+1 and γ the discount factor. In practice, the learn-

ing rate determines to what extent newly acquired in-

formation overrides old information and the discount

factor γ determines the importance of future rewards.

The Q-Values are stored and updated in a table (Q-

Table) divided along a state and action dimension. Af-

ter learning, and given a state s

, a Q-Value represents

a probability of obtaining a certain reward in time af-

ter performing an action. The next section introduces

our model and draws the parallel of the Q-Learning

inspiration with Dynamic Neural Fields.

3 MODEL

In this work, we propose a cognitive architecture al-

lowing a robot to learn a speciﬁc movement with a

visual motion detector. The robot resembles a human

arm, where the upper arm roll motor is used for ex-

ploration and exploitation. For simplicity, we split

our architecture according to the different phases: ex-

ploration with an action generation mechanism and

exploitation of the motor babbling outcomes.

3.1 Action Generation for Motor

Babbling

As described earlier, motor babbling consists of asso-

ciating motor actions with their perceptual outcome.

In this work, we show the possibility to generate ac-

tions directly from a neural ﬁeld. To do so, we com-

bine two different neural mechanisms: A slow boost

of the resting level and an Inhibition of return (Fig-

ure 1). With DFT, the tuning of the resting level is

an essential component that leads to express differ-

ent neural behavior (Sch

oner et al., 2016). It is well-

known that the resting membrane potential of neu-

rons can vary under different conditions (Wilson and

Kawaguchi, 1996)(Franklin et al., 1992). Here, in-

stead of deﬁning a static resting level, we choose to

dynamically vary the resting level of two neural ﬁelds

to generate a new action. The slow boost module in-

creases the resting level of the action formation (AF)

ﬁeld until a peak of activation emerges. The module

ceases to increase the activation when the stop node

is active and resets the activation to zero when the

reset node is active. The peak within the AF ﬁeld

is then projected to a set of neural ﬁelds reproduc-

ing an inhibition of return. This mechanism is well

studied, especially regarding visual attention (Posner

et al., 1985), (Tipper et al., 1991), where immediately

following an event at a peripheral location, there is fa-

cilitation for the processing of other stimuli near that

location. Here, we use this effect to avoid generat-

ing the same action twice given a motor state. When

a peak emerges from the AF ﬁeld and is projected to

the Inhibition Of Return excitatory ﬁeld (IOR excit),

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

548

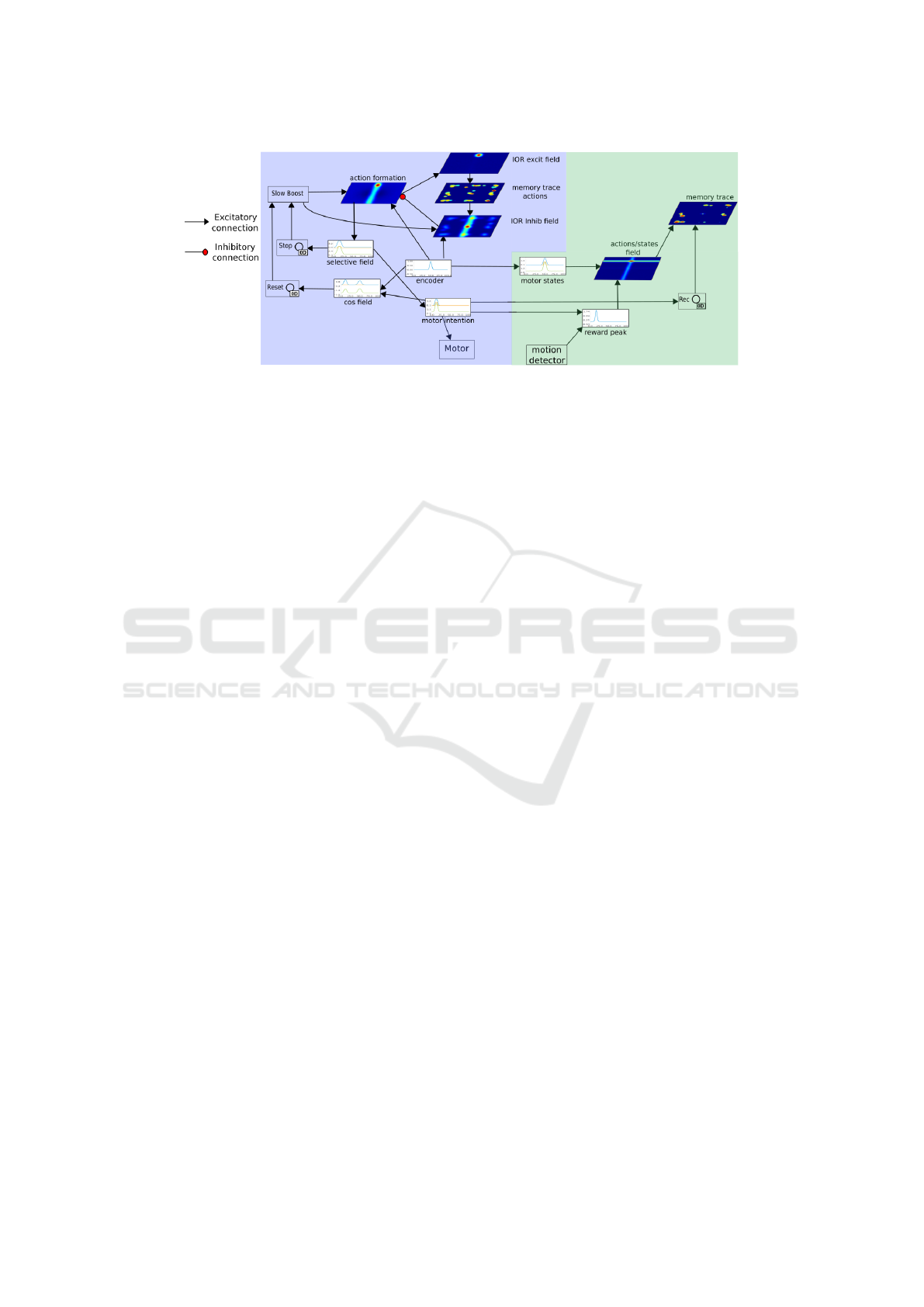

Figure 1: Exploration stage divided by the action generation mechanism with the inhibition of return (blue) and the recording

of the visual outcomes (green). A peak of activation from actions/states ﬁeld spreads in memory trace only when the Rec node

is active. This means storing the visual activation exactly while an action is performing. The decay of the memory trace τ

−

10 seconds, and only happens when the Rec node is active. The motor module converts the neural ﬁeld value to the desired

angle position.

a memory trace stores this activation. This memory

trace is recording all the actions taken during the mo-

tor babbling with a slow decay τ

−

. The memory trace

then projects all the activation into an Inhibition Of

Return ﬁeld (IOR inhib). This last neural ﬁeld closes

the loop of the Inhibition of Return mechanism by

projecting an inhibitory connection to the AF ﬁeld.

The kernel interaction within that ﬁeld allows the rise

of peaks of activation. When the slow boost module

begins to rise the resting level of both action forma-

tion and IOR Inhib ﬁeld, the activation within the ac-

tion ﬁeld generates a stable peak and projects it to the

selective ﬁeld. In some rare cases, the neural dynam-

ics generate more than one action within the action

formation ﬁeld. Thus, the selective ﬁeld assures the

emergence of a single peak. The dynamics observed

within the AF ﬁeld are inﬂuenced by the speed of the

increasing boost. If we increase the resting level of

the ﬁelds too quickly, they begin to oscillate between

a supra-threshold and a below-threshold states. Nev-

ertheless, this mechanism allows the generation of a

unique single action at a given state.

All neural ﬁelds are deﬁned in the interval [0;100]

and represent a motor angle position within the inter-

val [-1;1]. The action formation ﬁeld is divided along

the state space on the horizontal dimension and the

action space along the vertical dimension. If a peak

emerges at position [50;90], that means at motor state

50, the action 90 is taken. The encoder module cor-

responds to the motor value from the upper arm roll

motor (e.g motor angle with the interval [-1;1]).

The Condition of Satisfaction (CoS) ﬁeld receives

inputs from the encoder and the motor intention ﬁeld.

When both of them reach the same location within the

CoS ﬁeld, the activation goes beyond threshold and

activates a node that will reset the slow boost module.

3.2 Exploration

The ﬁrst stage of our model consists of exploring the

sensorimotor space (Figure 1) with the action genera-

tion mechanism. The purpose of exploration is quite

simple: generate an action to perform and store the

visual outcome into a 2-dimensional memory trace.

Thus, the architecture performs an action, stores the

neural activation within a memory trace while execut-

ing the action, then stops storing the activation when

the action is over.

The actions/states ﬁeld, memory trace and record

(Rec) node are the core components of the explo-

ration. As stated earlier, the condition of satisfaction

ﬁeld (CoS Field) is a one dimensional neural ﬁeld

representing the motor space and basically indicates

when an action is over. It receives activation from

both the motor intention ﬁeld and the encoder. When

a new action is selected, the CoS ﬁeld receives an ac-

tivation from the intention ﬁeld. The motor module

performs the action and the encoder’s new value is

updated. This causes a peak to rise within the CoS

ﬁeld and activates a node that resets the slow boost

component.

Concerning the reward peak module, it receives

input from the motion detector and the motor inten-

tion ﬁeld. This is where the grounding of visual per-

ception is happening. The implementation gathers the

motor state position and the visual perception value to

form a Gaussian curve centered on the motor’s posi-

tion with an amplitude corresponding to the the mo-

tion detector’s value.

The actions/states ﬁeld is a 2-dimensional neural

ﬁeld where the horizontal axis represents the motor

states and the vertical axis the motor actions. When a

new action is executed, the grounding of vision/action

Exploration and Exploitation of Sensorimotor Contingencies for a Cognitive Embodied Agent

549

peak ﬁeld projects along the horizontal axis of the ac-

tion/state ﬁeld while the current motor state projects

along the vertical axis. This creates a 2 dimensional

peak of activation depending of the strength of the vi-

sual input. Finally, the memory trace ﬁeld stores ac-

tivation from the action state neural ﬁeld. A convolu-

tion (gaussian kernel) is applied to the output of the

actions/states ﬁeld to smooth the peak of activation

in the memory trace. The rec node plays the role of

trigger for the storage of neural activation since it al-

lows them to happen only when the node is active. In

our design, the rec node is active only when an action

is generated (peak within the motor intention ﬁeld).

This way, the memory trace accepts input from the

actions/states ﬁeld only when an action is currently

being executed (Figure 2).

Figure 2: 3D view of the Memory Trace after exploration

with 100ms of build up activation (τ

) and 10 seconds de-

cay (τ

−

The inspiration from Q-Learning comes from the

memory trace storing the visual outputs. Since the

actions/states ﬁeld is divided along, respectively, the

vertical and horizontal space, the memory trace stores

peaks with the amplitude of a visual activation given

a speciﬁc action taken at a speciﬁc state. Similarly

to a Q-Value that represent a probability to get a re-

ward from a state/action pair, the amplitude of a peak

within the memory trace reﬂect the probability of get-

ting a high visual neural activation. The memory trace

is then analogous to a Q-Table where the highest peak

along the current state dimension represents the ac-

tion with the highest visual outcome. Contrary to

Q-Learning, the actions/states neural ﬁeld is updated

with the current visual activation, without a discount

factor and a learning rate. The goal of exploration

is purely to observe all sensorimotor outcomes after

performing an action.

3.3 Exploitation

The last step of our architecture is the exploitation

phase (Figure 3). The architecture runs by following

the different activations within the memory trace. The

goal is to follow the ”path” left by every high activa-

tion until reaching an optimal sequence of actions.

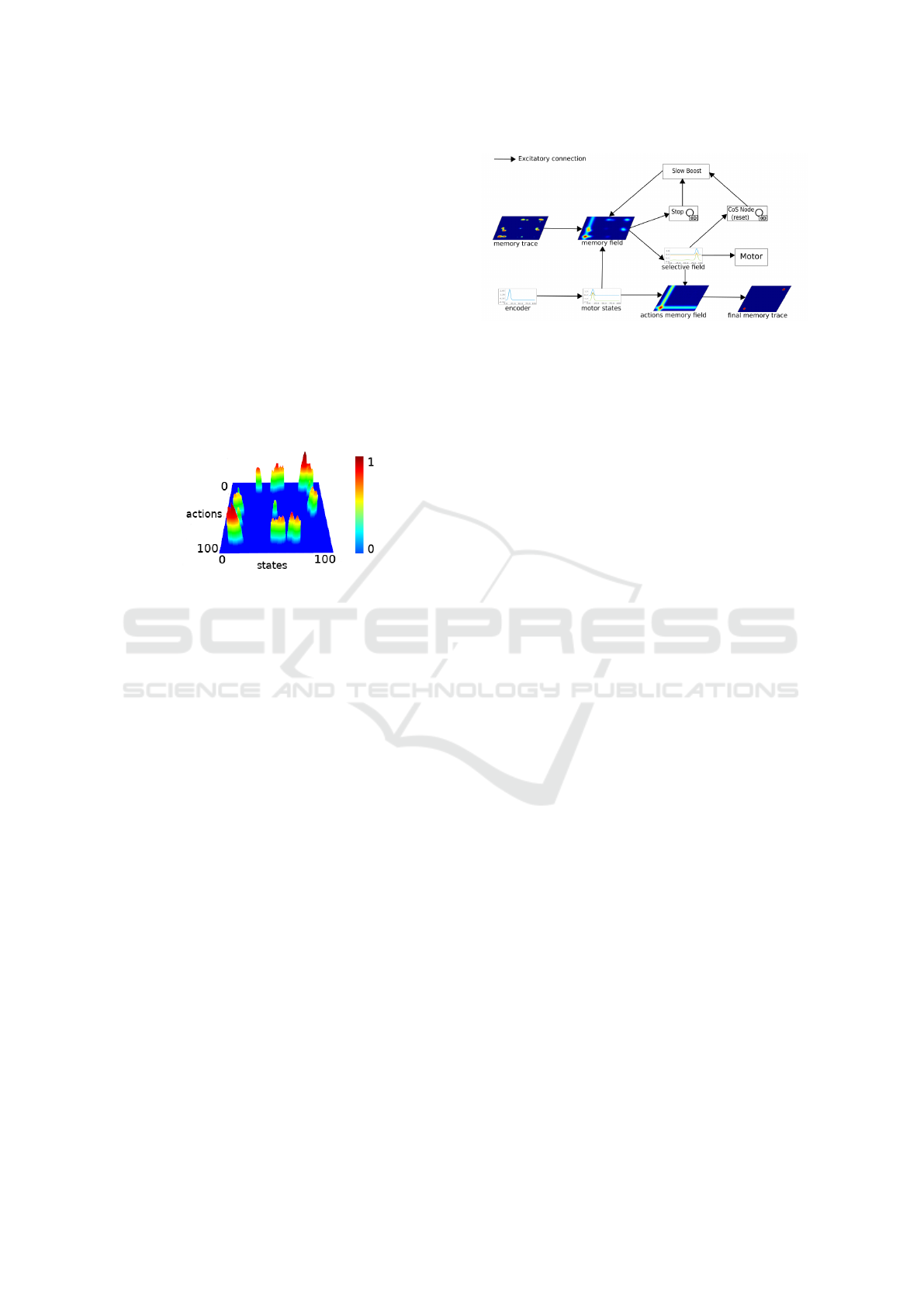

Figure 3: Exploitation phase. The slow boost node slowly

rises the resting level of the memory ﬁeld provoking a peak

at the location of the best action taken during exploration.

The memory trace from the exploration serves as

input to a 2-dimensional neural ﬁeld. This memory

ﬁeld is the core component of the exploitation mech-

anism. First, a motor state ﬁeld spans the current mo-

tor state over the horizontal dimension of the mem-

ory ﬁeld which rises the neural activation of taken

actions during the exploration stage at that particular

state. The neural activation within the memory ﬁeld

remains below the threshold of activation. To see the

rise of the highest activation, we apply a slow boost.

This component remains the same seen during the ac-

tion generation dynamics. This slow boost stops to

increase the resting level when an activation appears

(Stop node). The 2-dimensional memory ﬁeld then

projects the output activation to a 1-dimensional se-

lective action ﬁeld. Finally, the selective ﬁeld repre-

sents the best action taken (the best visual outcome)

at that state (Figure 4).

The activation within the selective action ﬁeld is

projected into the motor module that will perform the

corresponding action. The selective ﬁeld will emit the

action’s ending to a Condition of Satisfaction (CoS)

node then to the slow boost. The boost already re-

ceives an activation from the Stop node to block the

increase of the resting level. The signal coming from

the CoS node resets the iterative boost to its initial

resting level. The CoS node is mainly a trigger in-

forming the boost module that an action has been per-

formed and the selection of a new action from the new

state can take place.

Finally, the actions memory ﬁeld forms a peak of

activation at each action taken if the visual outcomes

are strong enough. It then stores it into a ﬁnal mem-

ory trace ﬁeld that represents the optimal sequence

of actions. During the exploitation phase, the mo-

tion takes some time to reach the stabilized sequence

of motor state transitions. At the beginning, it might

go through some motor states that will not be visited

again and this is why we use a ﬁnal memory trace.

With an arbitrary chosen activation decay of 4 sec-

onds (τ

−

), the motor states that are visited only once

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

550

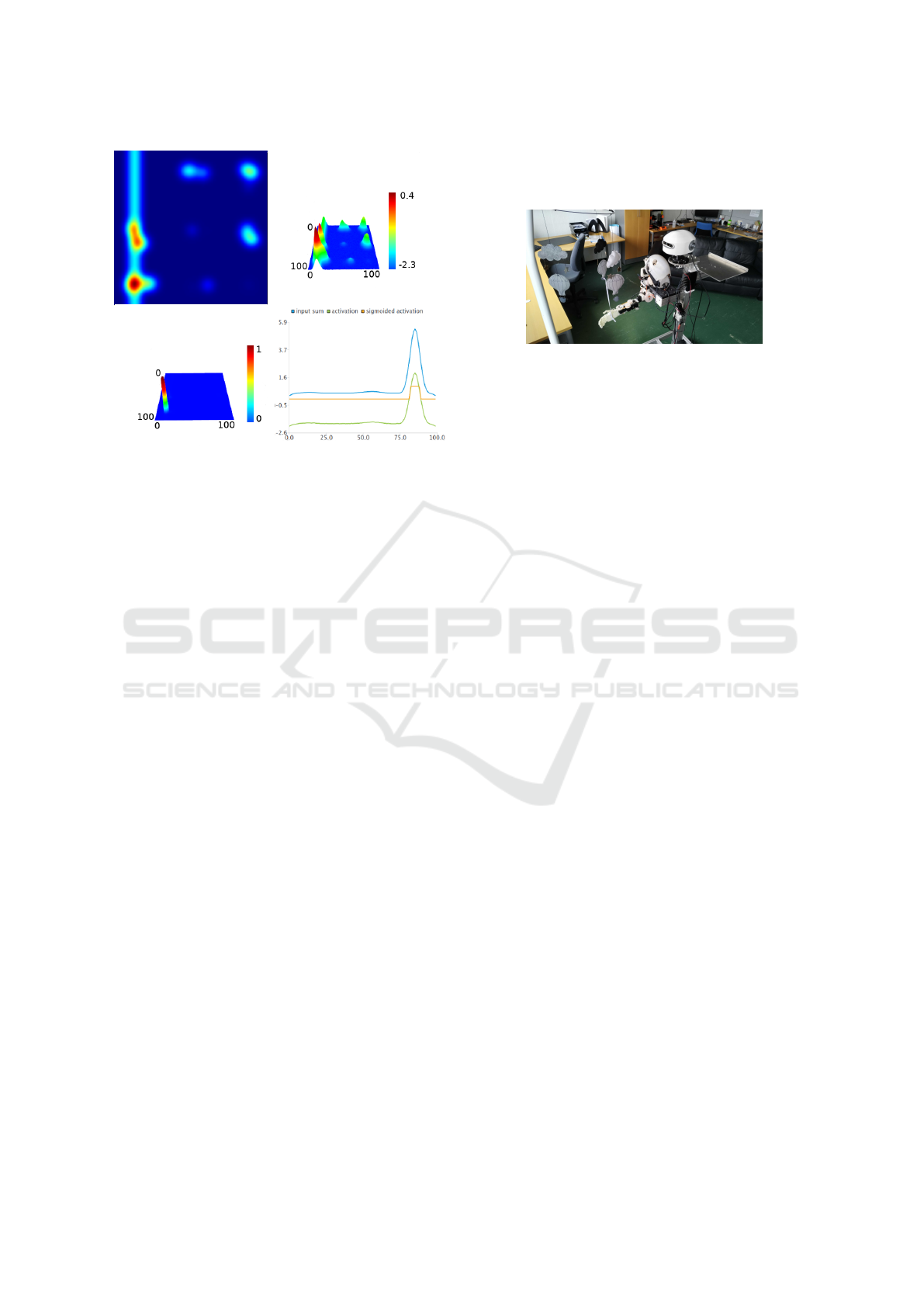

Figure 4: Top panel: projection of the current motor state

on the memory ﬁeld, the slow boost node is active and

stopped. Bottom left: results of the sigmoid activation when

the boost is active and stopped. Bottom right: projection of

the action dimension to a 1-dimensional selective ﬁeld. In

the rare case where two peaks have exactly the same activa-

tion, only one of them will remain above threshold.

during the whole exploitation step disappear, while

the most used motor states are kept active. One could

see the ﬁnal memory trace as a clean (for a given ex-

ploration) sequence of actions since the unused acti-

vations are pulled off.

The exploitation phase in our architecture is anal-

ogous to exploitation with Q-Learning. Indeed, the

choice of the next action to perform within the mem-

ory ﬁeld is always the highest peak given a motor

state. With Q-Learning, this would mean choosing

the action with the highest Q-value.

4 EXPERIMENT AND RESULTS

In order to validate our approach, a set of 10 ex-

plorations and 10 exploitations are performed with a

robot arm that mimics a human arm and torso.

4.1 Setup

The gummiArm robot (Stoelen et al., 2016) is a 7 de-

grees of freedom (+2 for the head) 3D printed arm. In

our case, only the upper arm roll joint will be used for

demonstration of the architecture. A rubber band is

attached from the palm of the hand to one of the mov-

ing toys in the baby mobile (Figure 5). The motor

space of the upper arm roll joint is an angle position

situated within the interval [-1;1] where -1 and 1 rep-

resent respectively the extreme left and extreme right

position of the end-effector. The motor space interval

is scaled along the Motor Intention Field from 0 to

100.

Figure 5: GummiArm robot in initial position, with the

palm of the hand attached to the baby mobile (grey balloon).

The camera mounted inside the head (Intel Re-

alSense D435), is used for the motion detector

that subtracts two consecutive images and applies a

threshold to observe the changed pixels. The result re-

turns the sum of changed pixels which is scaled from

0 to 3 and represents the visual neural activation. The

toys hanging from the baby mobile are within the vi-

sual ﬁeld of the camera whereas the arm itself is out

of sight. Despite the noisiness of the motion detector,

the exploration mechanism allows the emergence of a

pattern during motor babbling.

The exploration phase begins with the robot’s arm

at 0 position (50 over the motor intention ﬁeld). As al-

ready mentioned, the memory ﬁeld applies the decay

time τ

−

only when the trigger node associated is also

active. The exploration and exploitation stages run

for 210 seconds each. The length of these two stages

were chosen according to the memory trace’s decay

(τ

−

) and the slow boost mechanism. For exploration,

we apply a decay τ

−

of 10 seconds. This is enough to

see a pattern emerging and thus support the exploita-

tion of the sensorimotor contingencies. As mentioned

earlier, the slow boost module slowly increases the

resting level of the memory ﬁeld, strongly inﬂuenc-

ing the time needed to choose an action. Since we

use the same parameters to increase the resting level

for both stages, the time needed to generate an action

remain the same.

For exploring, we record the visual neural acti-

vation happening during an action (when the mem-

ory node is active) every 50ms. In the meantime, we

record the activation within the motor intention ﬁeld

module to keep track of the actions taken with the

same rate (50ms). We apply the same procedure for

the exploitation (a vision module is used in the archi-

tecture to record the visual activation the exact same

way as for the ﬁrst phase). We run 10 explorations,

then apply the exploitation stage to each of these runs.

Exploration and Exploitation of Sensorimotor Contingencies for a Cognitive Embodied Agent

551

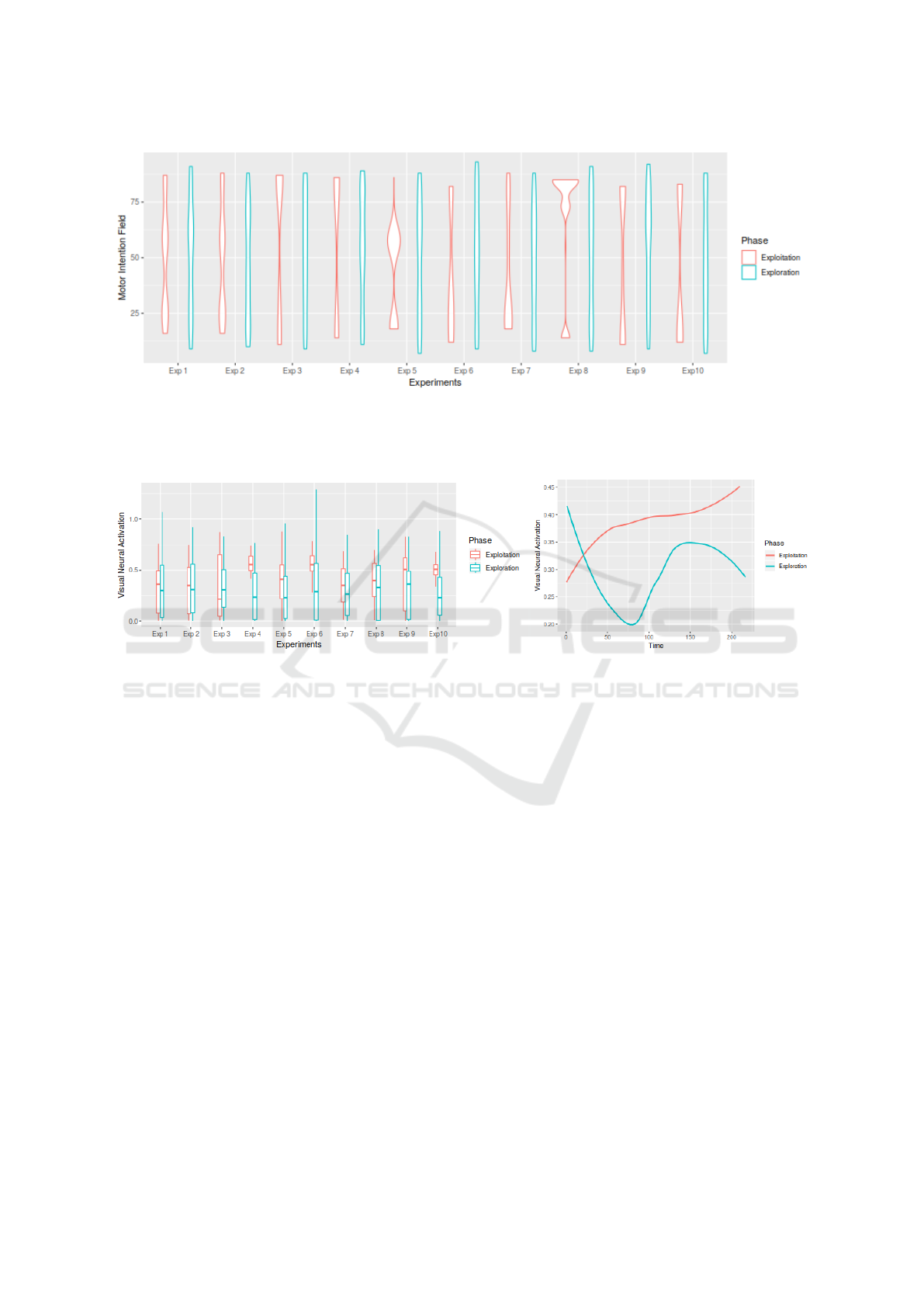

Figure 6: Violin plots for the distribution of Motor Intention. The plots show a speciﬁc motor space distribution during

exploitation, while the exploration stage motor distribution is more uniform. The distribution of motor intention demonstrate

a focus at three particular interval corresponding to the extreme left, center and extreme right position of the gummiArm.

Figure 7: The ﬁgure shows the visual activation for the 10 experiments, for both exploration and exploitation. Left ﬁgure

depicts that, for each experiment, a gain of visual neural activation during exploitation can be seen. Right ﬁgure depicts the

sum of visual activation in time for each experiment and represented by a linear regression. This indicates a general higher

neural activation during the exploitation of the sensorimotor contingencies.

4.2 Results

Figure 6 depicts the motor distribution of actions dur-

ing the 10 experiments. These reﬂect the particu-

lar setting of the experiment, however, the motor in-

tentions during exploitation show a preferred motor

space to three different intervals: [10;30],[48;65] and

[70;85]. This corresponds respectively to the extreme

left, center and extreme right location of the arm.

These motor positions represent the actions with a

high neural visual activation.

For only one action performed there are many vi-

sual activations recorded. The distribution of the vi-

sual neural activation per experiment are presented in

Figure 7-left. It can be seen that the visual activation

is higher during exploitation than during exploration

for most of the experiments. For the ﬁrst three ex-

periments, there is no clear gain of visual activation

during exploitation. This is mostly due to the noisi-

ness of the motion detector.

The average neural activation of the 10 experi-

ments in time is shown in Figure 7-right and depicts

the beneﬁts of exploitation. It is difﬁcult to analyse

why the linear regression of visual activation for ex-

ploration follows such dynamics. The experiment’s

dynamics represent this particular set up (head cen-

tered on the baby mobile) and would evolve differ-

ently with a different setting. If these results represent

the dynamics of this particular settings, they still show

an improvement of the visual activation when exploit-

ing the ”knowledge” gathered during motor babbling.

To conclude, experimental demonstration shows that

there is a gain of visual activation during the exploita-

tion stage.

5 DISCUSSION AND

CONCLUSION

This work proposes a cognitive architecture with an

embodiment approach that allows a robotic arm to op-

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

552

timize its motion based on the neural activation com-

ing from a motion detector. As such, the approach

is grounding the sensorimotor experience within Dy-

namic Neural Fields. The intrinsic properties of the

latter provides a certain level of homeostasis, mean-

ing that a self regulation of the system is realized.

In experiments, a GummiArm robot is moving a

baby mobile and observes the outcome of the action

taken to optimize its motion. After the selection of

an action, the model records the visual outcome in a

visual memory trace. Indeed, the sensorimotor con-

tingencies can be encoded as neural activation within

neural ﬁelds and explored through motor babbling.

Then, an exploitation mechanism optimizes the mo-

tion of the robot, following the path left by high neu-

ral activation. Exploiting the high neural activations

means choosing actions leading to the best visual re-

ward.

Furthermore, the robot observes the outcomes of

every action taken during exploration. The exploita-

tion phase then selects only the actions with the high-

est visual outcomes. The results validate our approach

by showing a restricted motor space during exploita-

tion and demonstrates higher neural activation. The

purpose of this work serves as a proof of concept and

justiﬁes further investigation on dynamical learning

in a closed-loop fashion, with an embodied approach.

However, few issues remain.

Firstly, the exploration does not stop indepen-

dently. It was expected that the action selection mech-

anism will stop by itself when all motor positions

were selected given a motor state. This was not con-

clusive since the IOR inhib ﬁeld does not project

enough inhibition to stop the emergence of a new peak

within the action formation ﬁeld. This is therefore a

current limitation of the model. Future work will in-

vestigate the tuning of the kernel interaction of the

IOR Inhib ﬁeld as well as the excitatory connections

coming from the memory trace actions ﬁeld to resolve

this. During experiments, it was noted that inﬂuence

from the inhibition of return and tuning it could lead

to different exploratory behavior. Future work will

determine how the strength of the inhibition could

help the exploitation stage to converge faster toward

an optimal sequence of actions.

Secondly, the motor babbling behavior remains

divided between the exploration and the exploitation

stage. The exploration of the sensorimotor space di-

rectly inﬂuences the exploitation process. The gen-

eral architecture will be further investigated to allow

a switch from exploration to exploitation and vice

versa. In general, the switch from exploration to ex-

ploitation is a major issue in unsupervised learning

or reinforcement learning. This would mean inves-

tigating how such switch mechanism could be im-

plemented dynamically, and more speciﬁcally, decide

when the exploration ceases to improve the exploita-

tion stage.

In this work, only a single degree of freedom was

utilized to drive the baby mobile. This demonstrates

the work as a proof of concept, with a focus on the

motor babbling strategies. In a future work, we intend

to use the whole robotic arm with an inverse kinemat-

ics model. Practically, this will mean dealing with 3D

Cartesian space instead of motor position. In terms

of embodiment, this will result in grounding the 3D

position of the robot’s end-effector with the neural

activation from the motion detector. With the nec-

essary cognitive transformation and gain modulation

(Sch

oner et al., 2016), the different motor spaces will

be reduced to be explored with motor babbling.

Finally, the embodiment of the sensorimotor expe-

rience within neural ﬁelds is promising for the learn-

ing of skills. Here, the task is only to shake a baby

mobile toy with the feedback of a motion detector,

but a certain pattern of neural activation can still be

observed and exploited. In the future, we will investi-

gate the grounding of more complex stimulis such as

the orientation or the movement of an object and see if

it supports the learning of higher cognitive tasks such

as reaching, pushing or pulling objects.

REFERENCES

Amari, S.-I. (1977). Dynamics of pattern formation in

lateral-inhibition type neural ﬁelds. Biological Cyber-

netics, 27(2):77–87.

Barandiaran, X. E. (2017). Autonomy and Enactivism:

Towards a Theory of Sensorimotor Autonomous

Agency. Topoi, 36(3):409–430.

Caligiore, D., Ferrauto, T., Parisi, D., Accornero, N.,

Capozza, M., and Baldassarre, G. (2008). Using mo-

tor babbling and hebb rules for modeling the devel-

opment of reaching with obstacles and grasping. In

International Conference on Cognitive Systems, pages

E1–8.

Cannon, W. B. (1929). Organization for physiological

homeostasis. Physiological reviews, 9(3):399–431.

Chrisley, R. and Ziemke, T. (2006). Embodiment. In Ency-

clopedia of Cognitive Science. American Cancer So-

ciety.

Degenaar, J. and O’Regan, J. K. (2017). Sensorimotor The-

ory and Enactivism. Topoi, 36(3):393–407.

Demiris, Y. and Dearden, A. (2005). From motor babbling

to hierarchical learning by imitation: a robot develop-

mental pathway. In International Workshop on Epi-

genetic Robotics: Modeling Cognitive Development

in Robotic Systems, volume 123, pages 31–37. Lund

University Cognitive Studies.

Exploration and Exploitation of Sensorimotor Contingencies for a Cognitive Embodied Agent

553

Francisco J. Varela, E. T. and Rosch, E. (1991). The Em-

bodied Mind | MIT CogNet. MIT Press.

Franklin, J., Fickbohm, D., and Willard, A. (1992). Long-

term regulation of neuronal calcium currents by pro-

longed changes of membrane potential. Journal of

Neuroscience, 12(5):1726–1735.

Kopecz, K. and Sch

oner, G. (1995). Saccadic motor

planning by integrating visual information and pre-

information on neural dynamic ﬁelds. Biological cy-

bernetics, 73(1):49–60.

Laﬂaqui

ere, A. and Hemion, N. (2015). Grounding ob-

ject perception in a naive agent’s sensorimotor experi-

ence. In 2015 Joint IEEE International Conference on

Development and Learning and Epigenetic Robotics

(ICDL-EpiRob), pages 276–282.

Luciw, M., Kazerounian, S., Lakhmann, K., Richter, M.,

and Sandamirskaya, Y. (2013). Learning the percep-

tual conditions of satisfaction of elementary behav-

iors. In Robotics: science and systems (RSS), work-

shop “active learning in robotics: exploration, curios-

ity, and interaction”.

Mahoor, Z., MacLennan, B. J., and McBride, A. C. (2016).

Neurally plausible motor babbling in robot reach-

ing. In 2016 Joint IEEE International Conference on

Development and Learning and Epigenetic Robotics

(ICDL-EpiRob), pages 9–14.

Morse, A. F., Herrera, C., Clowes, R., Montebelli, A.,

and Ziemke, T. (2011). The role of robotic mod-

elling in cognitive science. New Ideas in Psychology,

29(3):312–324.

Perone, S. and Spencer, J. P. (2013). Autonomy in action:

Linking the act of looking to memory formation in in-

fancy via dynamic neural ﬁelds. Cognitive Science,

37(1):1–60.

Pezzulo, G., Barsalou, L. W., Cangelosi, A., Fischer,

M. H., McRae, K., and Spivey, M. (2013). Com-

putational Grounded Cognition: a new alliance be-

tween grounded cognition and computational model-

ing. Frontiers in Psychology, 3.

Piaget, J. and Cook, M. (1952). The origins of intelligence

in children, volume 8. International Universities Press

New York.

Posner, M. I., Rafal, R. D., Choate, L. S., and Vaughan, J.

(1985). Inhibition of return: Neural basis and func-

tion. Cognitive Neuropsychology, 2(3):211–228.

Ruci

nski, M., Cangelosi, A., and Belpaeme, T. (2012).

Robotic model of the contribution of gesture to learn-

ing to count. In 2012 IEEE International Confer-

ence on Development and Learning and Epigenetic

Robotics (ICDL), pages 1–6. IEEE.

Saegusa, R., Metta, G., Sandini, G., and Sakka, S. (2009).

Active motor babbling for sensorimotor learning. In

2008 IEEE International Conference on Robotics and

Biomimetics, pages 794–799.

Sandamirskaya, Y. and Sch

oner, G. (2010). Serial order in

an acting system: A multidimensional dynamic neu-

ral ﬁelds implementation. In 2010 IEEE 9th Inter-

national Conference on Development and Learning,

pages 251–256.

Sch

oner, G., Spencer, J., and Group, D. F. T. R. (2016). Dy-

namic Thinking: A Primer on Dynamic Field Theory.

Oxford University Press. Google-Books-ID: ySex-

CgAAQBAJ.

Spencer, J., Perone, S., and Johnson, J. (2009). Dynamic

Field Theory and Embodied Cognitive Dynamics.

Stoelen, M. F., Bonsignorio, F., and Cangelosi, A. (2016).

Co-exploring actuator antagonism and bio-inspired

control in a printable robot arm. In From Animals to

Animats 14, pages 244–255, Cham. Springer Interna-

tional Publishing.

Sutton, R. S., Barto, A. G., et al. (1998). Introduction to

reinforcement learning, volume 135. MIT press Cam-

bridge.

Tipper, S. P., Driver, J., and Weaver, B. (1991). Short re-

port: Object-centred inhibition of return of visual at-

tention. The Quarterly Journal of Experimental Psy-

chology Section A, 43(2):289–298.

Vernon, D., Lowe, R., Thill, S., and Ziemke, T. (2015). Em-

bodied cognition and circular causality: on the role

of constitutive autonomy in the reciprocal coupling

of perception and action. Frontiers in Psychology,

6:1660.

Von Hofsten, C. (1982). Eye–hand coordination in the new-

born. Developmental psychology, 18(3):450.

Watanabe, H. and Taga, G. (2006). General to speciﬁc de-

velopment of movement patterns and memory for con-

tingency between actions and events in young infants.

Infant Behavior and Development, 29(3):402–422.

Watkins, C. J. and Dayan, P. (1992). Q-learning. Machine

learning, 8(3-4):279–292.

Wilson, C. and Kawaguchi, Y. (1996). The origins of two-

state spontaneous membrane potential ﬂuctuations of

neostriatal spiny neurons. Journal of Neuroscience,

16(7):2397–2410.

Ziemke, T. (2016). The body of knowledge: On the role

of the living body in grounding embodied cognition.

Biosystems, 148:4–11.

APPENDIX

We would like to thank Mathis Richter and Jan

Tek

ulve from the Institut f

ur Neuroinformatik. The

code, parameters and architecture ﬁles are available

at https://github.com/rouzinho/DynamicExploration/

wiki

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

554
