An Architecture-independent Data Model for Managing Information

Generated by Human-chatbot Interactions

Massimiliano Luca

1 a

, Alberto Montresor

1 b

, Carlo Caprini

and Daniele Miorandi

2 c

Department of Information Engineering and Computer Science, University of Trento, Via Sommarive 5, Trento, Italy

U-Hopper S.r.l., Via R. da Sanseverino, 95, 38122, Trento, Italy

Keywords:

Chatbot, Data Modeling, Data Representation, Knowledge Representation.

Abstract:

This paper introduces a data model for representing humans-chatbots interactions. Despite there are many

models that allow representing the usage and the behaviour of bots, a service that can store information from

any conversational agent regardless the architecture is still missing. With this work, we introduce a general-

purpose data model to store both messages and logs. To succeed, we raise the level of abstraction of the other

analyzed models and we focused on the core logic of chatbots: conversations and interactions with the users

1 INTRODUCTION

In the last few years, the development of new tech-

nologies such as Artiﬁcial Intelligence (AI) led to a

drastic change in the way people interact with ser-

vices and companies. In particular, chatbots have be-

come more and more popular, and they are redeﬁn-

ing interactions in many different ﬁelds. Accord-

ing to Market Research Future, the usage of chatbots

will increase up to 37% between 2016 and 2023 (Fu-

ture, 2019). The ﬁrst chatbot prototype, ELIZA, was

developed in 1966 by Joseph Weizenbaum (Weizen-

baum, 1966), with the goal of emulating a psychother-

apist. In Weizenbaum’s project, the bot creates the

answers by looking for speciﬁc patterns in the user

request. Now, bots create their responses using Ma-

chine Learning (ML) and Natural Language Process-

ing (NLP), leading to a signiﬁcantly higher quality of

conversations. For this reason and due to the obses-

sion of the companies for customers, bots are now ev-

erywhere. This recent technology is now used for cus-

tomer service and marketing (Chakrabarti and Luger,

2015), (Verhagen et al., 2014), (Gnewuch et al.,

2017), healthcare (Kethuneni et al., 2009), (Brixey

et al., 2017), lifestyle (Fadhil and Gabrielli, 2017),

education (Heller et al., 2005), (Kerlyl et al., 2007),

tourism (Nica et al., 2018) and so on.

In the last few years, the number of platforms

for creating conversational agents increased as well.

Diederich, Brendel and Kolbe counted 51 different

https://orcid.org/0000-0001-6964-9877

https://orcid.org/0000-0001-5820-8216

https://orcid.org/0000-0002-3089-977X

services within this scope (Diederich et al., 2019).

Some of them can be used to analyze the usage and

the performance of a chatbot hosted on a third-party

platform, while others provide all the tools needed to

create a bot (e.g., Dialogﬂow or IBM Watson Assis-

tant). The problem is that, at the moment, there is

not a common data model for representing the inter-

actions between users and chatbots. In other terms,

each platform represents messages and conversations

in different ways.

After an analysis of the existing models, in this

work we deﬁne a general-purpose and platform-

independent data model to represent the interactions

between users and chatbots. The ﬁnal goal is to have

a representation that developers and researchers can

use to integrate data coming from different platforms.

In Section 2, we describe how other services faced

this issue and we analyze the proposed models. In

Section 3, we discuss our solution by focusing on the

messages (Section 3.1) and logs (Section 3.2). In Sec-

tion 4, we focus on how three different chatbots with

different architectures used our proposed data model

to store the interactions generated by their bots.

2 RELATED WORK

The spread of platforms that allow developers to ana-

lyze the behavior of a chatbot correlates with the num-

bers of data models proposed. The platforms listed

in (Diederich et al., 2019) usually do not provide the

data model used to store the interactions. This is

mainly because these platforms have their core busi-

344

Luca, M., Montresor, A., Caprini, C. and Miorandi, D.

An Architecture-independent Data Model for Managing Information Generated by Human-chatbot Interactions.

DOI: 10.5220/0008953703440351

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 344-351

ISBN: 978-989-758-400-8; ISSN: 2184-4348

ness in letting companies develop and deploy a bot.

Other platforms, instead, are focused on chatbot an-

alytics and usually share a way to integrate a bot in

their systems. We used such platforms to create a

general model and to compare the expressiveness of

the representations. In particular, we selected ﬁve an-

alytics platforms: Botanalytics, Botlytics, Botmetrics

Dashbot and Chatbase. For each of them, we discuss

their proposed models. There are also some services

that cannot be taken into account because their mod-

els are too tailored for speciﬁc chatbots (e.g. Face-

book Analytics for Messenger Bots).

Botanalytics

is a platform that allows analyzing

chatbot data to get insights regarding the engagement

of the users. It supports 19 different platforms among

the most common ones such as Facebook Messen-

ger, Google RBM, Slack, Telegram an others. More-

over, it supports generic chatbots, webchats, SMS and

emails. Regarding the well-known supported plat-

forms, for each of them, Botanalytics uses a speciﬁc

data model. As stated in Section 1, the goal of this pa-

per is to provide a generic, platform-independent data

model that can ﬁt with any service.

Therefore, the most interesting part offered by

Botanalytics are the models used for generic chatbots

and web chats. The two models are identical and con-

sist of three ﬁelds. is sender bot is a boolean value

that is true if the message is sent by the bot, false oth-

erwise. user is an object to identify the user in the

system while message is an object and can be used to

store the content of the message. We believe that in

such a model, there are some signiﬁcant limitations.

First of all, some basic concepts are missing. For ex-

ample, there is no way to identify a conversation and

it is impossible to understand whether a message adds

values or a context to a message received before.

Moreover, there is no way to determine the order

of the messages (e.g., there is not a timestamp or a

ﬁeld to understand which was the previous message).

Last but not least, all the modern chatbots use ML and

NLP to extract entities, intent, domain and sometimes

also the language of a message. In the model pro-

posed by Botanalytics, it is not possible to store such

information.

Botlytics

partially solve the limits of Botanalyt-

ics. It allows to save data coming from any plat-

form and it does not have tailored models for each

of them. It only has a general representation for the

messages composed by six different ﬁelds. text is

the content of a message and kind is similar to the

is sender bot shown before. It can be ﬁlled with

”incoming” or ”outgoing” to understand whether the

https://botanalytics.co

https://botlytics.co

message is received or sent. Botlytics solves the ma-

jor problem of the conversation by using the ﬁeld

conversation identifier, a unique string that or-

ganizes messages into conversations. With this ﬁeld,

they partially solved the problem of the order of the

messages. The ﬁeld sender identifier is used to

identify the sender of the message while platform

represents the name of the platform that the message

was sent on. An interesting feature introduced by Bot-

lytics is the design of the payload of a message. It is

deﬁned as the payload from complex messages that

include than just text. In other terms, it is common

nowadays that bots answer to a question with com-

plex objects such images, carousels, maps or a set

of buttons representing suggested actions. Therefore,

it is important to model such responses. A critical

point of Botlytics concerns the issue with the meta-

information extracted with ML and NLP that cannot

be modelled.

Botmetrics

is based on six ﬁelds: text,

message

type, user id, platform similar

to those we saw in the other platforms; it adds

create at and metadata. The former gives the

possibility to represent the timestamp when the

message was sent or received, while the latter can

be used to store additional information. By using

metadata, domain-speciﬁc information can be easily

associated with a message. A metadata ﬁeld is

deﬁned also in the model proposed in Section 3; in

Section 4.1, we show how this ﬁeld can be used to

store such additional information. Unfortunately,

neither information about ML and NLP nor data

related to conversations are included in Botmetrics.

The data model proposed by Dashbot

differs

from the others. Apart from the text and the

user id, the other standard ﬁelds are missing (e.g.,

the id of the type of the message and the platform). It

contains a ﬁeld intent that partially solve the NLP

and ML issue discussed above; unfortunately, ﬁelds

for the domain, the entities and the language of the

message are still missing. Optionally, the developer

can store a list of images and a list of buttons where

an image consists of a URL, and a button consists of

an identiﬁer, a label and a text. It is also possible to

use postback: an object that contain the identiﬁer of

the button clicked. It is an interesting way of design-

ing an eventual, complex message. As mentioned, it

is common to have carousels as responses and the one

proposed in Dashbot can be a way for representing

them. What is interesting is that there are two other

ﬁelds, platformJson and platformUserJson, that

can be used to store platform- and user-speciﬁc infor-

https://bot-metrics.com

https://www.dashbot.io

An Architecture-independent Data Model for Managing Information Generated by Human-chatbot Interactions

345

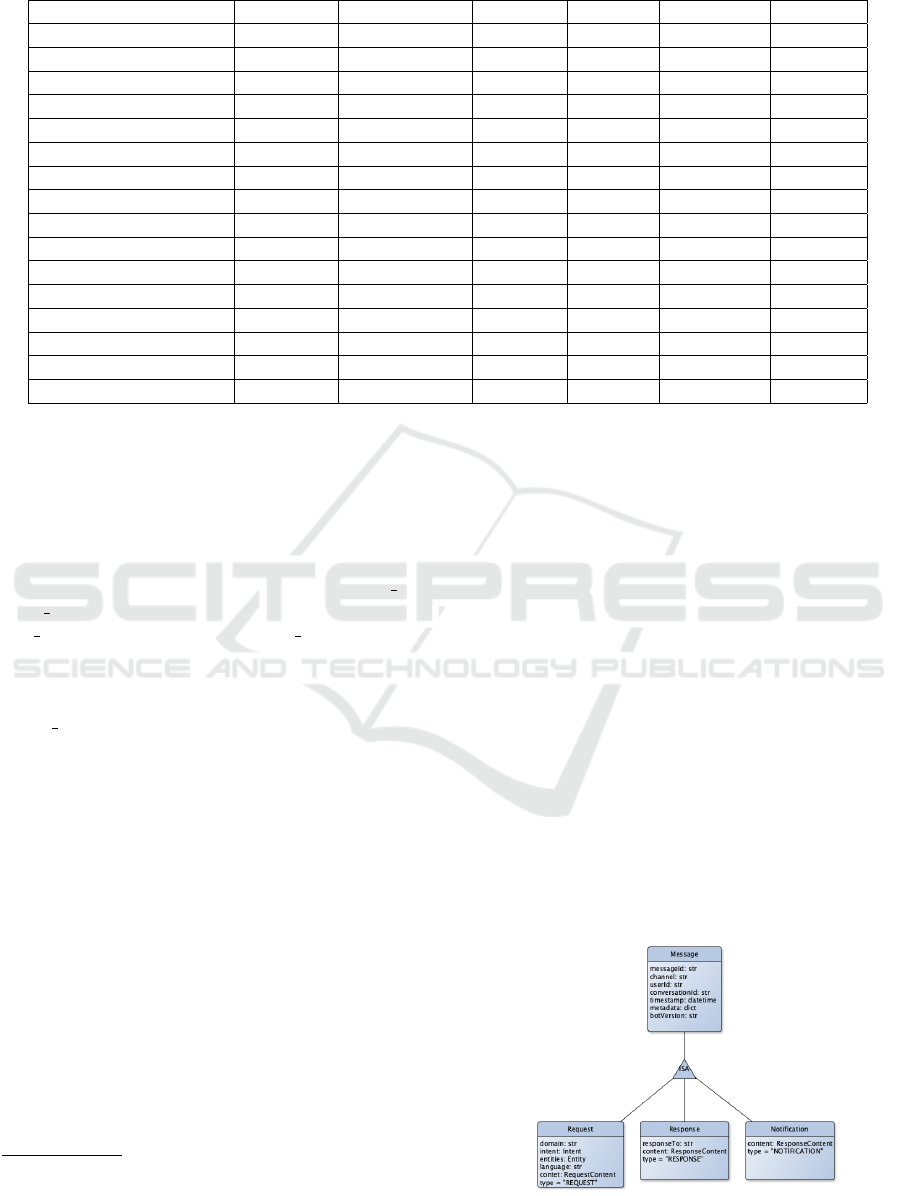

Table 1: Summary of the features supported by the platforms analyzed in Section 2.

Our solut. Bot Analytics Botlytics Dashbot Botmetrics Chatbase

Message type X X X X X

Platform X X X X

User identiﬁer X X X X X X

Conversation identiﬁer X X X

Timestamp X X X

Content - text X X X X X X

Other contents X Partially Partially

Domain X

Intent X X X

Entities X

Language X

Bot Version X X

Domain Speciﬁc Data X X

Platform Speciﬁc Data X

User Proﬁle X

Message Handled X

mation. Regarding the model we propose, we decided

to model users and messages as two completely sepa-

rated entitities. Thus, the user proﬁle and user-related

information should be saved and handled apart from

the messages.

Another data model that we analyzed is proposed

by Chatbase

. In their model, type, user id,

time stamp, platform, message, intent,

not handled, version, session id are deﬁned.

What is interesting is that they use both the times-

tamp and the identiﬁer of the session for handling

messages. Concerning the other services, they have

a not handled variable to understand whether the

chatbot handled a message or not. What is interesting

is that they only model the raw message of the body

regardless of the type of the original message, and

they partially collect the information coming from

NLP and ML modules.

Other platforms and frameworks such as LinTO

and Xakit

but due to their complex pipeline, we

found it difﬁcult to map the in Table 1.

3 PROPOSED SOLUTION

In this section, an overview of our proposed data mod-

els proposed is given. In particular, we introduce two

different models: one for messages and one for logs.

The general idea is to use the message data model

to store information about the conversations between

https://chatbase.com

https://linto.ai

https://xatkit.com

users and chatbots, while the log data model should

be used to handle the interactions.

3.1 Messages

The data model proposed for the messages is summa-

rized in Figure 1. It shows three different kinds of

messages: requests, responses and notiﬁcations. All

types of messages share the following attributes:

• messageId: a mandatory ﬁeld that uniquely rep-

resents a message entity into the system. In other

terms, it is not possible to have two messages with

the same messageId.

• channel: a mandatory string that represents the

channel in which the conversation is taking place.

For example, a channel can be ’MESSENGER’ or

’TELEGRAM’.

• userId: a mandatory string that is used to identify

a user. The user identiﬁer can be handled at three

Figure 1: The ﬁelds of the three different types of messages.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

346

different levels. The userId can be either pro-

vided by the platform (e.g., Messenger can pro-

vide the id of the user you are chatting with), or

be generated locally. Note that if the userId is

provided by the platform on which the chatbot is

hosted, users can be tracked on multiple bots, a

feature not available otherwise.

• conversationId: an optional ﬁeld that can be

used to identify a conversation. A conversation is

given by a non-empty set of messages. Most of

the platforms that host bots automatically provide

an id for the conversation.

• timestamp: it represents the instance in which the

message has been generated. Note that it can dif-

fer from the time when the message reach the log-

ging system. In general, it is interesting to save the

moment in which the interaction between the user

and the bot happened. The ISO Standard 8601 is

suggested here.

• botVersion: an optional ﬁeld useful to distin-

guish different versions of the bot generating the

message (e.g., in A/B testing).

• metadata: a ﬁeld that store any extra informa-

tion not modelled by the other ﬁelds. For instance,

in the Memorable Experience project (Section 4),

this ﬁeld is used to associate with a message the

id of the hotel involved in the conversation, the

name of the hotel and the number of nights the

user stayed in the hospitality structure.

All the other attributes and the content depends on the

type of message. The value of the ﬁeld type can be

REQUEST, RESPONSE or NOTIFICATION.

3.1.1 Request Messages

A request message is a message that, in the interaction

ﬂow, goes from the user to the chatbot. In general, in

a request message, a user may ask the chatbot to per-

form an action, can send a comment or start a conver-

sation. The user may use different means to interact

with a chatbot, such as natural language (using voice

or text) or by using predeﬁned actions (buttons). To

model these needs, we designed the ﬁeld content of

a request message in two different ways: text contents

are the messages that involve natural language while

action content represents the interaction through but-

tons. The data models for text messages and action

messages are shown in Figure 2.

In modern chatbots, there is also the possibility to

interact using non-verbal communications. We iden-

tiﬁed two main cases: sharing location data (an exam-

ple is shown in Section 4) and sharing ﬁles. To fulﬁll

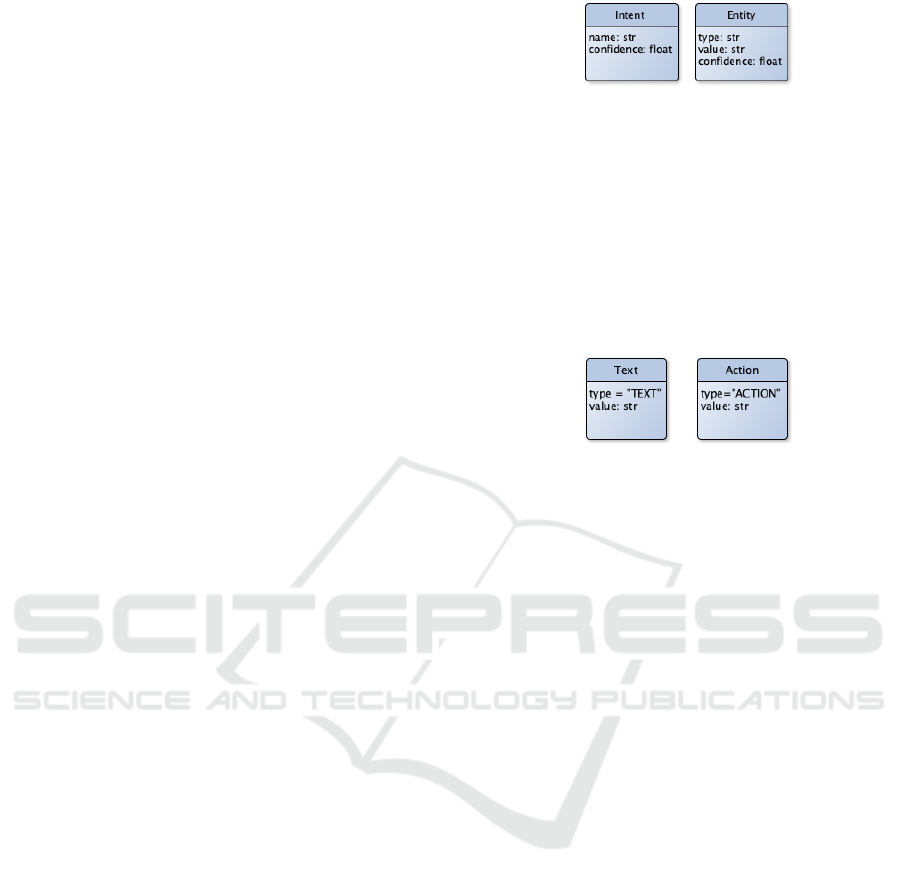

Figure 2: On the left, a representation for intents. On the

right, a representation for an entity. In a single message, it

is possible to have than one entity.

these needs, we designed two additional types of con-

tent. Regarding the location, we simply designed a

data model that support longitude and latitude; for the

attachment, we deﬁned a model that contains the URI

of the ﬁle and an optional alternative text. The data

models proposed can be seen in Figure 3.

Figure 3: On the left, the characterization of a textual re-

quest. On the right, the description of an action-based re-

quest.

Our model fully supports the meta-information

generated by NLP and ML modules. In fact, as shown

in Figure 1, it is possible to associate a domain, an

intent and a list of entities to each request mes-

sage.

A domain can be deﬁned as a way to organize in-

tents and entities in groups. Usually, a domain is a

general term representing the topic of a conversation

(e.g., travel, work). It is common to have bots with a

single domain, but it is possible to develop bots with

multiple domains. Therefore, we decided to track the

domain of the conversation and to represent it as a

string. The usage of this ﬁeld may become helpful

also in terms of computing analytics. For instance, a

person may be interested in analyzing only the con-

versations within a certain domain.

For similar reasons, we decided to model the in-

tent, a string representing the goal that the user wants

to achieve. It is speciﬁc than the domain, and is usu-

ally associated with a conﬁdence score – a metric of

accuracy that varies between 0 and 1, representing the

quality of the detection of the intent.

Finally, the NLP and ML modules provide also

information about the language of the messages and

a set of entities. An entity represents something the

users are likely to talk about and which has mean-

ing to the business. For example, if a user is looking

for a ﬂight, a meaningful part of the text is the des-

tination. Once extracted, an entity is associated with

a conﬁdence score and with a type. The conﬁdence

works like the one introduced for the intent, while the

An Architecture-independent Data Model for Managing Information Generated by Human-chatbot Interactions

347

type is meta-information associated with the part of

the extracted text. Using the same example, suppose

that Boston is detected as the destination. The string

”Boston” may be associated with the type geo city

and, eventually, to a conﬁdence score. From a sin-

gle message, it is possible to extract than one entity.

The data models for entities and intents are depicted

in Figure 4.

Figure 4: The characterization of two additional requests:

location on the left and attachment on the right.

3.1.2 Response Messages and Notiﬁcations

Response messages represent the answer of the bot to

the user. Thus, there is no need to take into account

metadata generated by ML and NLP modules. An im-

portant ﬁeld to add is responseTo. Many bots tend

to send multiple messages to answer a speciﬁc ques-

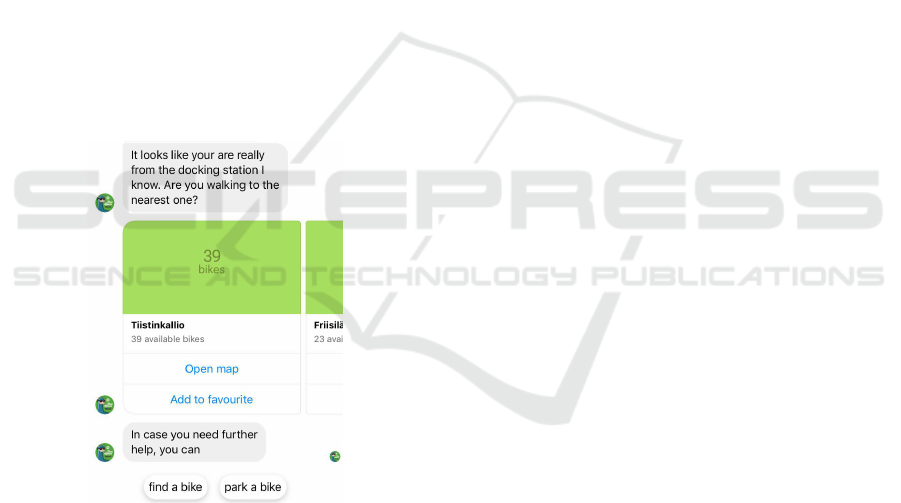

tion. An example can be seen in Figure 8 where once

the user shared the location, the bot answered with

three messages: two text messages and a carousel. All

three messages are part of the same conversation, and

each of them should be represented as a single mes-

sage with a unique identiﬁer. In this sense, having a

conversationId and a messageId is not enough to

catch the fact that the three messages are trying to an-

swer to a single message. This is why we designed

responseTo.

Another point that emerges from Figure 1 is that

the types of content associated to response messages

differ from the ones associated to requests. Figure 5

shows the possible types of contents for responses.

While text, attachment and location responses work

similarly to the ones of request messages, the are two

main novelties: multi-action and carousel responses.

Both of them can be seen in Figure 8. In particular,

a multi-action content consists in a set of buttons that

can be used to suggest actions to take to the users,

while carousel responses are set of cards that are used

to share a set of items with users.

A peculiarity of the buttons is that it is uncom-

mon to have messages containing only buttons (multi-

action responses). The designers tend to attach but-

tons to standard messages. For instance, the buttons

showed in Figure 8 are not part of a multi-action re-

sponse; they are attached to a text message. To fulﬁl

this need, we decided to add the ﬁeld buttons to each

possible response and each card. Cards and buttons

are complex object that are represented in Figure 6.

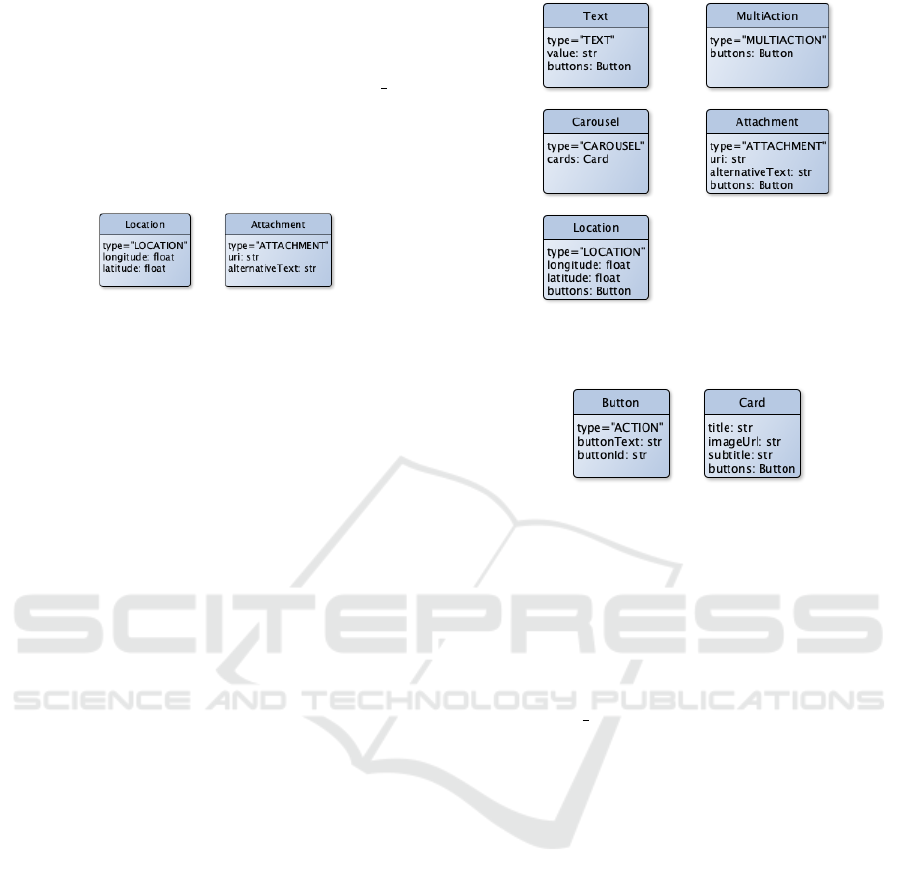

Figure 5: The models for the possible contents of response

messages and notiﬁcations.

Figure 6: The description of buttons (on the left) and cards

(on the right).

A button is characterized by buttonText and

buttonId. While the ﬁrst one corresponds to the text

that the users are going to ﬁnd in the chat, the lat-

ter is used to identify the buttons in the system. For

instance, in the example in Figure 8, the text of the

button is ”ﬁnd a bike” while an example of identi-

ﬁer is ”button 1”. Cards are represented using title,

subtitle, imageUrl and buttons. By mapping the

features with the example of Figure 8, we ﬁnd that the

title is the highlighted line (”Tiistinkallio”) while the

subtitle is the other lines of text (”39 available bikes”).

The buttons are ”Open map” and ”Add to favourite”.

Having an image on each card is highly suggested but

not mandatory. Whenever an image is present, the

ﬁeld imageUrl can be used to link a resource. The

only difference between a response message and a no-

tiﬁcation is that in the ﬁrst one the communication

ﬂow starts from the user, while in the latter, the chat-

bot send the ﬁrst message. For this reason, the only

difference between them is the responseTo ﬁeld that

is not present in the notiﬁcations. Regarding the con-

tents for a notiﬁcation, the possibilities are the same

offered for response messages (Figure 5).

3.2 Logs

When we decided to model the interactions between

bots and humans, we discovered that logging mes-

sages was not enough. In particular, by modelling

the content of the message and the other attributes

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

348

described in Section 3.1, the interaction between the

user and the message is missing. To store actions such

as click on buttons; scroll over a carousel and others,

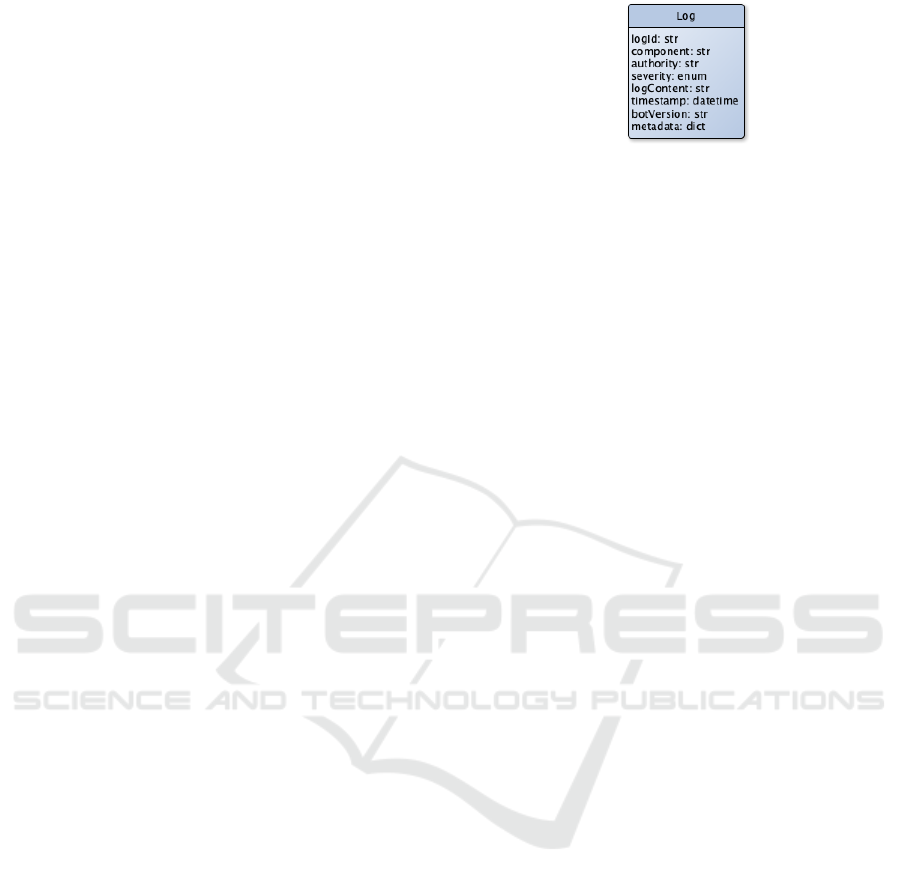

we propose a data model for logs. The model pro-

posed is shown in Figure 7.

What follows is the detailed description of each

ﬁeld:

• logId: a string that uniquely represents the log

inside the system. In other terms, it is not possible

to have two logs with the same identiﬁer.

• component: the name of the object that generated

the log.

• authority: the namespace of the component that

generated the log. A namespace can be deﬁned as

a set of symbols that are used to organize objects

of various kinds, so that these objects may be re-

ferred to by name.

• severity: a ﬁeld that takes values such as ER-

ROR, WARNING, INFO and DEBUG.

• logContent: a string that represents the message

of the log. This string can be arbitrarily long and

should be signiﬁcant enough to let people under-

stand the situation and, possibly, the meaning of

the log. An example of the possible malformed

log is “ERR001” while an example of a simpler

log is “ERR001: Wrong password.”;

• timestamp: the instant in which the message has

been generated. Note that it may differ concerning

the moment in which the message reach the log-

ging system. In general, it is interesting to save

the moment in which the interaction between the

user and the bot happened. We suggest to use the

standard ISO 8601;

• botVersion: it contains the version of the bot

that generated the log;

• metadata: it is a ﬁeld that represents any extra

information not modelled by the other ﬁelds.

4 USE CASES

In this section of the paper, we show how different

architecture can be mapped to the model proposed

4.1 Memorable Experience

The customization of the experience is fundamental

in today’s world and is a crucial factor in becoming

competitive on the market, even in the tourism sector.

The idea of this project sponsored by FESR fundings

is to create a chatbot providing a fully-customized ex-

perience for tourists.

Figure 7: Data models of possible contents of a request mes-

sage.

This chatbot is hosted on Facebook Messenger,

and the business logic has been developed from

scratch from a private company. For this reason, it

represents a challenge for the model proposed. More-

over, in this project emerged the need to associate

some domain-speciﬁc information to each message

such as the name of the hospitality structure and the

length of the stay. What follows is an example of how

they use our data model for storing messages.

{

" messag e I d ": " M 3 19 3 8 1 2 9 ",

" channel ": " Faceboo k " ,

" use r I d ": " U 5 4 5 9 4 0 " ,

" co n v e rs a ti on I d ": " C095 3 2 " ,

" timest a m p ": " 2 0 1 9 -10 -10:12 . 4 5 . 2 3 T ",

" botV e r s i o n ": " 1.0 A" ,

" metadata ": {

" hotelN a m e ": " H otel M a r i a " ,

" num b e r N ig h ts ": 4

" dom a i n ": " g e n e r a l "

" int e n t ": {

" na me ": " greet i n g " ,

" conf i d e n c e ": 0 .94

" content ":{

" ty pe ": " TE X T " ,

" va l u e ": " Hi "

}

" ty pe ": " REQUEST "

}

Our model succeeds in ﬁtting all the needs that

emerged from this project. Moreover, our model suc-

cessfully store data coming from a complex pipeline.

The companies involved in this project decided to

use also the logs for modeling the interaction between

the users and some items of the conversations. In par-

ticular, they decided to count the number of taps per

user per card. To succeed, they used the data model

proposed in Section 3.2 as follow.

" lo g I d " : " L O G 3 12 3 12 3 13 " ,

" project ": " mem e x " ,

" compon e n t ": " dim . meme x " ,

" author i t y ": " d e te c t i o n . c l ick ",

" severity ": " INFO " ,

" logC o n t e n t ": " bu t t o n pressed " ,

An Architecture-independent Data Model for Managing Information Generated by Human-chatbot Interactions

349

" timest a m p ": "201 9 -07 - 04 T08 : 3 3:48 T "

" botV e r s i o n ": "1.0" ,

" metadata ":{

" buttonId ": " B T N 03 0 21 3 12 " ,

" messag e I d ": " M SG 0 3 1 23 1 2 " ,

" use r I d ": " U S R3 2 1 3 21 " ,

" li nk ": " ht t p : // w3u . it "

}

4.2 BlueAlpaca

It is a chatbot developed in the context of the Syn-

chroniCity project funded by the European Union. It

uses our data model to store messages. Differently

from Memorable Experience, it is hosted on Face-

book Messenger, and the business logic is handled

with wit.ai, a service by Facebook to create chat-

bots. We believe it is a relevant case study to check the

validity of our data models for two main reasons. First

of all, as shown if Figure 8, this bot uses a complex

type of responses such as cards and buttons. More-

over, in their stack, there is a well-known and widely-

used service to extract knowledge from the messages.

Figure 8: Data models of possible contents of a request mes-

sage.

Considering the carousel response, what follows is

the mapping with our data model of the content of

the message.

" ty pe ": " CAROU S E L " ,

" ca r d s ": [

{

" ti t l e ":" T ii s ti nk a ll io " ,

" imageUrl ":" i m a ges / ima g e . png ",

" subtitle ": " 3 9 avail a b l e bikes ",

" buttons ": [ . . . ]

}, ...

]

Concerning the other models, our one is the only

one that fully supports complex types of responses.

Moreover, with this project, we found out that our

model can also be used if services such as wit.ai

are used to compute ML and NLP metrics.

4.3 PathFinder

To further validate our model, we took into account

PathFinder: an Action on Google service that accepts

both text and voice-based requests. The bot is man-

aged using DialogFlow, and its goal is to provide di-

rections for any transports using multiple sources of

data. For instance, PathFinder can provide directions

for bicycle users in areas (e.g., Italy) where some map

providers do not support such kind of directions. Our

model was used to store messages in a structured and

organized way, and it fulﬁls all the needs of the devel-

opers that successfully mapped the information com-

ing from Google’s DialogFlow with the model pro-

posed.

5 CONCLUSIONS

After an analysis of other models, we described a

generic and architecture-independent model that, as

proven in Section 4, can be used with bots hosted

on several platforms, based on a large range of ser-

vices. We found that the most complete model is the

one offered by Chatbase. However, we found some

limitations. In particular, it partially covers the needs

of NLP and ML modules. Chatbase allows to rep-

resent the intent, but entities, domains and language

should also be considered. Another big limitation of

its model is that the only content type supported is

text. Whenever a message contains more than just

text, it must be converted into a string and only af-

ter this processing step, the message can be stored.

By looking at the case studies analyzed in Section 4,

we decided that modelling the content as text is not

enough. Our data model is the only one that sup-

ports a variety of different content types and only

Botlytics and Dashbot partially support other types of

messages. In particular, on Botlytics, a ﬁeld called

payload can be used to represents all the content of

a message which is not text. Concerning Dashbot, it

gives the possibility to store a text, a list of images and

a list of buttons. In our opinion, this model presents

some limitations. First of all, it is not possible to rep-

resent complex responses such as location messages.

Moreover, the meta-information representing the type

of message is missing. In other terms, if a message

contains an image and a button, it is not possible to

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

350

establish whether it is a simple image or a card of

a carousel. Thus, we believe that having a uniﬁed

model for a type of message such as a card can im-

prove the quality of the data stored. Finally, having

a uniﬁed data model means that data from different

platforms can be saved in the same way, and thus,

data can be analyzed more efﬁciently. As described

in Section 1, it is and common for companies to pub-

lish their bot and offer their services on more than one

platform. Thus, we believe it is fundamental to have

a unique representation of data.

Another limit that we found is the possibility

of associate domain-speciﬁc information to the mes-

sages. For instance, we showed that by using

metadata, in Memorable Experience, the developers

could associate the name of the hospitality structure

to the message. As showed in Table 1, apart from

Botmetrics this kind of information cannot be stored

with the analyzed models. A similar approach is pro-

vided by Dashbot. They allow to store platform and

user-related data in two speciﬁc ﬁelds. We decided

to do not store user data in the messages because we

believe that the proﬁle of a user should be managed

with a completely different data model and we think

that platform-speciﬁc information should be modelled

using the metadata ﬁeld.

With the introduction of this model for repre-

senting interactions between human and chatbots, we

hope to contribute to the analysis and the manage-

ment of data coming from bots hosted on different

platforms and based on different services.

ACKNOWLEDGEMENTS

The project is carried out within the ERDF Re-

gional Operational Programme 2014-2020 of the Au-

tonomous Province of Trento, and it is co-ﬁnanced by

the European Union through the European Fund for

Regional Development, for the Italian state and the

Province of Trento.

REFERENCES

Brixey, J., Hoegen, R., Lan, W., Rusow, J., Singla, K., Yin,

X., Artstein, R., and Leuski, A. (2017). SHIHbot:

A Facebook chatbot for sexual health information on

HIV/AIDS. In Proceedings of the 18th Annual SIG-

dial Meeting on Discourse and Dialogue, pages 370–

373, Saarbr

ucken, Germany. Association for Compu-

tational Linguistics.

Chakrabarti, C. and Luger, G. F. (2015). Artiﬁcial conversa-

tions for customer service chatter bots: Architecture,

algorithms, and evaluation metrics. Expert Systems

with Applications, 42(20):6878 – 6897.

Diederich, S., Brendel, A. B., and Kolbe, L. M. (2019).

Towards a taxonomy of platforms for conversa-

tional agent design. In In Proc. of the 14th Int.

Tagung Wirtschaftsinformatik - Human Practice. Dig-

ital Ecologies. Our Future., pages 1100–1114.

Fadhil, A. and Gabrielli, S. (2017). Addressing challenges

in promoting healthy lifestyles: The al-chatbot ap-

proach. In Proceedings of the 11th EAI Interna-

tional Conference on Pervasive Computing Technolo-

gies for Healthcare, PervasiveHealth ’17, pages 261–

265, New York, NY, USA. ACM.

Future, M. R. (2019). Chatbots market research report –

global forecast 2023.

Gnewuch, U., Morana, S., and Maedche, A. (2017). To-

wards designing cooperative and social conversational

agents for customer service. In Proceedings of the

38th International Conference on Information Sys-

tems (ICIS), Seoul, ROK, December 10-13, 2017.

Research-in-Progress Papers. AISeL, Seoul, ROK.

Heller, B., Proctor, M., Mah, D., Jewell, L., and Cheung, B.

(2005). Freudbot: An investigation of chatbot tech-

nology in distance education. In Kommers, P. and

Richards, G., editors, Proceedings of EdMedia + In-

novate Learning 2005, pages 3913–3918, Montreal,

Canada. Association for the Advancement of Comput-

ing in Education (AACE).

Kerlyl, A., Hall, P., and Bull, S. (2007). Bringing chatbots

into education: Towards natural language negotiation

of open learner models. In Ellis, R., Allen, T., and Tu-

son, A., editors, Applications and Innovations in Intel-

ligent Systems XIV, pages 179–192, London. Springer

London.

Kethuneni, S., August, S. E., and Vales, J. I. (2009). Per-

sonal health care assistant/companion in virtual world.

In Proc. of the 2009 AAAI Fall Symposium. AAAI.

Nica, I., Tazl, O. A., and Wotawa, F. (2018). Chatbot-based

tourist recommendations using model-based reason-

ing. In ConfWS.

Verhagen, T., van Nes, J., Feldberg, F., and van Dolen,

W. (2014). Virtual Customer Service Agents: Using

Social Presence and Personalization to Shape Online

Service Encounters*. Journal of Computer-Mediated

Communication, 19(3):529–545.

Weizenbaum, J. (1966). Eliza;a computer program for

the study of natural language communication between

man and machine. Commun. ACM, 9(1):36–45.

An Architecture-independent Data Model for Managing Information Generated by Human-chatbot Interactions

351
