Anomaly Detection in Communication Networks of Cyber-physical

Systems using Cross-over Data Compression

Hubert Schölnast

1,a

, Paul Tavolato

1,a

and Philipp Kreimel

2,b

Institute of IT Security Research, St. Pölten UAS, Matthias-Corvinus-Straße 15, St. Pölten, Austria

Limes Security GmbH, Hagenberg, Austria

Keywords: Anomaly Detection, Industrial Security, Substation Security, Cross-over Data Compression CDC.

Abstract: Anomaly detection in operational communication data of cyber-physical systems is an important part of any

monitoring activity in such systems. This paper suggests a new method of anomaly detection named cross-

over data compression (CDC). The method belongs to the group of information theoretic approaches and is

based on the notion of Kullback-Leibler Divergence. Data blocks are compressed by a Sequitur-like algorithm

and the resulting grammars describing the compression are applied cross-over to the all the other data blocks.

Divergences are calculated from the length of the different compressions and the mean values of these

divergences are used to classify the data in normal and anomalous. The paper describes the method in detail

and shows the results derived from a real-world example (communication data from a substation).

1 INTRODUCTION

Systems where embedded computing devices sense,

monitor, and control physical processes through

networks, usually with feedback loops in which

physical processes affect computations and vice versa

(Lee, 2008) are called cyber-physical systems (CPS).

These systems are becoming literally ubiquitous, and

our society and economy depends in a high degree on

the precise and stable operation of these systems.

Therefore, it is of course necessary to build and

install such systems according to rules of safety and

security. Besides that – which is a big challenge of its

own – it is necessary to monitor the operational

system continuously. External influence from the

environment might seriously disturb the system’s

operation, which could lead to unwanted

malfunctioning and in case of safety-critical system

even have disastrous consequences. Such external

influences may have their causes in abnormal changes

in the environment, in malfunctions of the interfaces

between the environment and the CPS, or in attacks

against the system. Especially the threat of cyber-

attacks legitimately gets more and more attention as

their number is increasing rapidly. The majority of

applications makes use of IP-based technology and

https:// https://isf.fhstp.ac.at/en

https://www.limessecurity.com

standard computing devices, hence opening points of

exposure and increasing the attack surface of CPSs in

a way that cannot be neglected any more. Moreover,

the complexity of the systems is growing rapidly as

they become smarter, make use of advanced

technologies, and consist of a high number of devices.

So the protection of these systems is a challenging

task.

One measure to meet these challenges are so-

called intrusion prevention and intrusion detection

systems. But, these defence mechanisms were

designed for common IT systems and often are not

applicable in smart CPS environments. Moreover,

there is no guarantee that any intrusion will be

detected in time. To ensure the protection of these

environments, a second line of defence is needed:

Certain security controls that monitor system

communication and operation in real-time, or at least

close-to-real-time are necessary. One possibility for

such defence systems is the implementation of an

anomaly detection system. Anomaly detection

systems consist of a formal model of normal system

behaviour and a monitoring component that compares

in real time the actual behaviour of the system with

the formal model. Too large deviations of the

498

SchÃ˝ulnast, H., Tavolato, P. and Kreimel, P.

Anomaly Detection in Communication Networks of Cyber-physical Systems using Cross-over Data Compression.

DOI: 10.5220/0008964104980505

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 498-505

ISBN: 978-989-758-399-5; ISSN: 2184-4356

system’s behaviour from the model forecasts are

identified as anomalies and will raise an alarm.

As of today, various formal models are used in

connection with anomaly detection: many of

statistical nature, such as outlier detection, cluster

analysis, or hidden Markov models; others are of

structural nature: neural networks, association rules

and syntactic pattern matching (Chandola et al.,

2009).

This paper suggests a new method for defining the

behaviour model of a CPS belonging to the family of

information theoretic models.

2 RELATED WORK

2.1 Anomaly Detection in General

For the field of anomaly detection there exists a still

valid survey article from 2009 by Chandola et al.

(Chandola et al., 2009) that gives a comprehensive

overview of methods and applications of anomaly

detection covering most of the field. With respect to

anomaly detection in (computer) networks there are

three more survey articles from recent years (Bhuyan

et al., 2013), (Ahmed et al., 2016), (Fernandes et al.,

2019) with thorough overviews.

The generally accepted definition of an anomaly

from (Chandola et al., 2009) reads as follows:

Anomalies are patterns in data that do not conform to

a well-defined notion of normal behaviour.

(Fernandes et al., 2019) gives a structured

overview of methods used for anomaly detection:

 Statistical Methods

 Clustering Methods

 Finite State Machines

 Classification Methods

 Information Theory Models

 Hybrid/Others

2.2 Statistical Methods

Statistical methods are based on stochastic models

and assume that normal “events” are found in regions

predicted by the model with high probabilities, while

anomalies are located in regions with low probability.

The use of wavelet analysis for anomaly detection

is described by (Hamdi et al., 2007) in detail.

Principal Component Analysis (PCA) is a method

based on dimension reduction and was first

introduced by (Lakhina et al., 2004). Several

improvements of the approach have been suggested.

(Yeung et al., 2007) introduced covariance matrices

to filter for variables having a high discriminatory

effect.

2.3 Clustering Methods

The 𝑘-means algorithm (MacQueen, 1967) assumes

that there are 𝑘 given clusters to group the elements

and is mainly based on comparing distances. The

method 𝑘-Nearest Neighbour first published in 1967

(Cover et al., 1967) clusters training data in an 𝑛-

dimensional space and uses these clusters to assign

new instances to the best-fitting cluster.

(Agrawal et al., 1998) describes a method for

dimensional reduction and calls it Subspace

Clustering; the approach assumes that projecting data

into a space with fewer dimensions may facilitate

clustering.

2.4 Finite State Machines

Finite state machines are an often-used mechanism to

detect anomalies. Normal data sequences are

modelled by regular expressions and the

corresponding finite state machine is used to verify

normal behaviour. Any data sequence not accepted by

the automaton is rejected as anomaly. This method

often comes along together with Markov chains

(Estevez-Tapiador et al., 2003). Intrusion detection

and prevention systems for conventional IT systems

often use this approach.

2.5 Classification Methods

Classification methods play an important role in

machine learning. The most important representatives

are Bayesian Networks (Jensen, 1997) and (Nielsen

et. al., 2007), Support Vector Machines (SVM)

(Schölkopf et al., 2001) and Neural Networks

(Haykin, 1994).

2.6 Information Theoretic Models

Shannon Entropy (Shannon, 1948) measures the

amount of uncertainty involved in the value of a

random variable.

Kullback-Leibler Divergence (Kullback et al.,

1951) is a measure for the difference between two

probability distributions. It can be used when

comparing two segments of data that represent the

behaviour of a system. The suggestion for a method

of anomaly detection described in this paper is

inspired by Kullback-Leibler Divergence. For further

details, see below.

Anomaly Detection in Communication Networks of Cyber-physical Systems using Cross-over Data Compression

499

Lee et al. (Lee et al., 2001) suggest a variety of

entropy-based methods to detect anomalies in data

used by intrusion detection systems. They analyse

Shannon Entropy, the entropy of dependent

probability distributions, the relative entropy of two

probability distributions, and information gain of the

attributes of a set of data. Bereziński (Bereziński et

al., 2015) and Martos (Martos et al., 2018) published

work using entropy-based methods, too.

2.7 Other Methods

Other methods used for anomaly detection are

derived from evolution theory (Kar, 2016), Artificial

Immune Systems (Castro et al., 2002), (Hooks et al.,

2018), Genetic Algorithms (Aslahi-Shahri et al.,

2016), (Hamamoto et al., 2018), Particle Swarm

Optimization (Bamakan et al., 2016), (Wahid et al.,

2019), Differential Evolution (Storn et al., 1997),

(Elsayed et al., 2015), and some hybrid approaches

combining two or more of the methods mentioned.

3 ANOMALY DETECTION BY

CROSS-OVER DATA

COMPRESSION

We define features relevant in describing the (normal)

operation of the CPS and an observation interval 𝑖.

We then collect the relevant data transmitted during

this interval in the network giving one block of data.

We do this with 𝑛 consecutive intervals. Each

interval yields a data block 𝑏



. Now we compress

each data block separately as described later on. Each

compression results in a compressed file 𝑐

,

and a

grammar (substitution table) 𝑔



describing the

compression; we assume 𝑔



is contained in 𝑐

,

. In the

next step we use all grammars 𝑔



instead of 𝑔



compress the block 𝑏



which results in the

compressed files 𝑐

,

. We do this for all combinations

of 𝑖 and 𝑗. Since 𝑔



is not optimal to compress 𝑏



, the

compressed file 𝑐

,

will be larger than 𝑐

,

. The

difference of the lengths of 𝑐

,

and 𝑐

,

is called the

divergence 𝑑

,

. It is a measure for the degree of

similarity of the block 𝑏



(which was compressed)

compared to the block 𝑏



(from which the grammar,

used in the compression algorithm, was extracted).

3.1 Data Acquisition and Features

We consider a communication network in a CPS. We

collect the data transmitted over the network splitting

it into segments. These segments or blocks will be the

units of analysis later on. There are two main features

we have to take into consideration:

a) Whether the data stream is encrypted or not.

b) Whether the protocol used in the network is

synchronous (like Modbus, HDLC and others) or

asynchronous (like Canbus or IEC 61850 or IEC

60879-5-104).

If the data stream is encrypted and we do not have

the possibility to access the decrypted information,

anomaly detection can be based on the available

metadata only, like packet frequency or roundtrip

times.

The type of protocol (synchronous or

asynchronous) has influence on the collection

intervals of the data. If the protocol is synchronous,

we can construct data segments by simple time

slicing: In case of an asynchronous protocol, time

slicing is not an appropriate method as data packets

arrive in arbitrary intervals. In this case, we can

construct segments by counting the number of

packets of a certain important type: a segment is

defined as the interval necessary to transmit a

predefined number of packets.

3.2 Anomaly Detection

The method so far yields a sequence of features from

each block of data analysed. The question now is how

to compare these blocks to decide whether the data

describes normal or abnormal operation of the

system.

We suggest a method that measures a special form of

“distance” between the blocks by looking at the

amount of redundancy contained in a block. The

method is inspired by the notion of Kullback-Leibler

Divergence (also known as “relative entropy”). This

is a non-negative real number that can be calculated

from two probability distributions 𝑃 and 𝑄, where 𝑄

in many cases is a predicted distribution (a

hypothesis) and 𝑃 is a measured distribution

(empirical data). The formula is:

𝐷



𝑃∥𝑄



=𝑃



𝑥



∙log



𝑃



𝑥



𝑄



𝑥



∈

The alphabet 𝑋 is the set of all characters 𝑥 that

may appear in both distributions. 𝑃



𝑥



is the

probability that the character 𝑥 will appear at any

arbitrary position within the distribution 𝑃;

analogously for 𝑄



𝑥



The formula above can be converted to:

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

500

𝐷



𝑃∥𝑄



=−𝑃



𝑥



∙log



𝑄



𝑥



∈



−−𝑃



𝑥



∙log



𝑃



𝑥



∈



The part in the first pair of big brackets is the cross

entropy of 𝑃 and 𝑄, the part in the second pair of

brackets is the well-known Shannon Entropy 𝛨 of 𝑃.

The Shannon Entropy is a property of a character-

source that emits characters from the alphabet 𝑋 with

probability distribution 𝑃. 𝛨 is the amount of

information per character emitted by this source.

Often 𝛨 is interpreted as a compression factor: A

string of 𝑛 characters, which is emitted from this

source can (so says theory), be compressed to a binary

string with a length of 𝑛∙𝛨 bits.

In accordance with this interpretation of Shannon

Entropy, Kullback-Leibler Divergence can be inter-

preted as the average number of bits wasted per

character when a string, emitted by a source having

probability distribution 𝑃 is not compressed by a

method optimized for its own distribution 𝑃 but using

a method that is optimized for the probability

distribution 𝑄.

The problem with the value calculated using the

formula shown above is that within probability

distributions the effective order of the characters is

irrelevant. Take these 3 strings as an example:

A: 00000000000000001111111111111111

B: 01010101010101010101010101010101

C: 01101001000110010001111101110100

They all consist of 16 zeros and 16 ones, so for all

3 examples we have 𝑃





=𝑃









and therefore

all three have the same Shannon Entropy 𝛨



=𝛨



𝛨



=1. However, compressing those strings

optimally (make them as short as possible), one finds

that A and B will result in shorter compressed strings

than C.

If you calculate the Kullback-Leibler Divergence

for any pair of those strings, you will always get

𝐷=0, which is correct because all three probability

distributions are equal, so there is no difference.

However, if you find the optimal method to compress

string C and use this very method to compress string

A, the compression result is worse than if you had

taken the method optimal for A. Therefore, if you

really compress strings or files, you get different

results than what the common interpretation of

Kullback-Leibler Divergence suggests.

However, we assume that the effective number of

wasted bits you get when compressing a string with a

method optimized for another string might be a good

candidate to measure how different two strings are.

Therefore, we developed a method to do exactly what

corresponds to the common interpretation of

Kullback-Leibler Divergence.

Practically the method works as follows: Let the

data from each interval 𝑖 be a block 𝑏



and the

number of blocks be 𝑛. To each block belongs a

grammar (a set of replacement rules) which at the

beginning is empty. 𝑏



is compressed by a Sequitur-

like algorithm (Nevill-Manning et al., 1997) yielding

a compressed file 𝑐

,

and a grammar 𝑔



describing

the compression. The compression method searches

for the most frequent bigram in 𝑏



(a bigram is a

group of two subsequent characters) and substitutes

each instance of this bigram with a single character,

which did not appear in any 𝑏



before. The new

replacement character and the two characters forming

the replaced bigram together build one replacement

rule that is added to the grammar. So, each rule in the

grammar consists of exactly 3 characters. The data

block wherein the bigrams have been replaced plus

the grammar together build a compressed version of

𝑏



(i.e. 𝑏





). This procedure is repeated until no more

improvement in the compression ratio is achieved, i.e.

as long as 𝑏





becomes shorter from round to round.

The minimum-length version of 𝑏





(compressed data

plus grammar) is the compressed file 𝑐

,

and the

grammar 𝑔



is part of 𝑐

,

In the next step each data block 𝑏



is compressed

using all other grammars 𝑔



. This means: You don’t

search for the most frequent bigram, but take the

bigram that is contained in the grammar and replace

each instance of it with the character from the

grammar. You repeat this for each rule in the

grammar. Compressing 𝑛 data blocks with 𝑛

grammars gives 𝑛



compressed files 𝑐

,

Now we subtract the length of the optimal

compression 𝑐

,

from the length of 𝑐

,

where the

length 𝑙 is the number of characters. The difference is

the divergence 𝑑

,

𝑑

,

∶= 𝑙𝑐

,

−𝑙𝑐

,



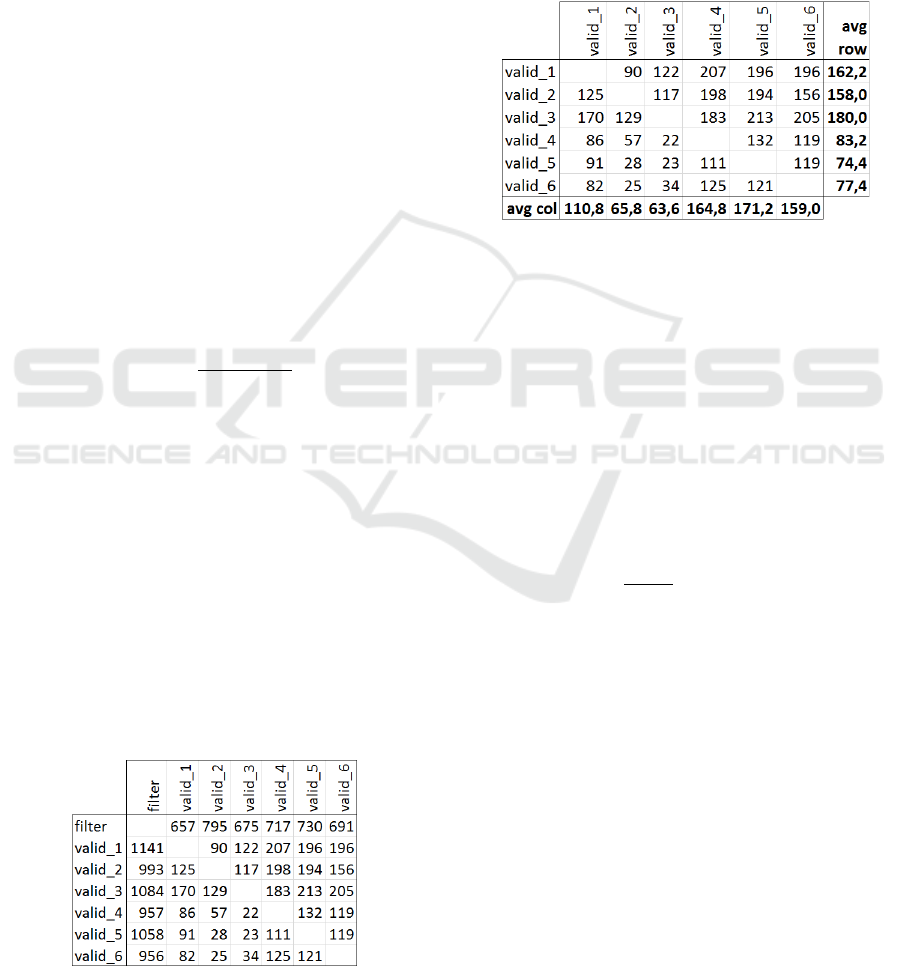

These lengths form an 𝑛×𝑛 divergence matrix ℒ.

Note: the elements in the main diagonal of the

matrix are always 0: 𝑑

,

=0 for all 𝑖. 𝑑

,

≥0 for all

𝑖≠𝑗, which means that ll other values are non-

negative integers (equal only when 𝑏



and 𝑏



are two

identic instances of the same string).

𝑑

,

≠𝑑

,

for most 𝑖,𝑗. The matrix is not

symmetric. By accident 𝑑

,

and 𝑑

,

can be equal, but

generally they are not.

A column of ℒ represents the length differences

of all blocks compressed with one specific grammar.

Anomaly Detection in Communication Networks of Cyber-physical Systems using Cross-over Data Compression

501

A row of ℒ represents the length differences of all

compressions of one specific block using different

grammars.

Now we calculate for each column and each row

the average value of non-diagonal elements. For

comparison we can look either at the averages of

columns or at the averages of rows. Both should give

a reasonable measure of the information distance

between the blocks. The smaller the difference

between the averages of two rows 𝑖 and 𝑗, the smaller

is the information theoretic distance between the

blocks 𝑏



and 𝑏



Whether the column averages or the row averages

show a better correspondence seems to depend on the

specific application where the data comes from. This

topic still needs further investigations. For our

analysis we use both.

To the end of anomaly detection, we must

calculate the matrix ℒ from a number of data blocks

taken from a system showing normal behaviour. For

the row averages (and the column averages), we can

then calculate a mean value (which by definition is

equal for rows and columns) and the standard

deviation (which is not equal). These two values can

be used to detect a data block that shows a value

differing more than say 3 times the standard deviation

from the mean value derived from normal behaviour.

4 EXAMPLE: SUBSTATION

4.1 Topology of the Example CPS

To demonstrate the viability of the proposed anomaly

detection method we chose a component from the

distribution network for electrical energy: a

substation. Generally, substations transform electric

current changing its voltage. As part of the

distribution network for electrical energy, substations

are an eminent part of the critical infrastructure.

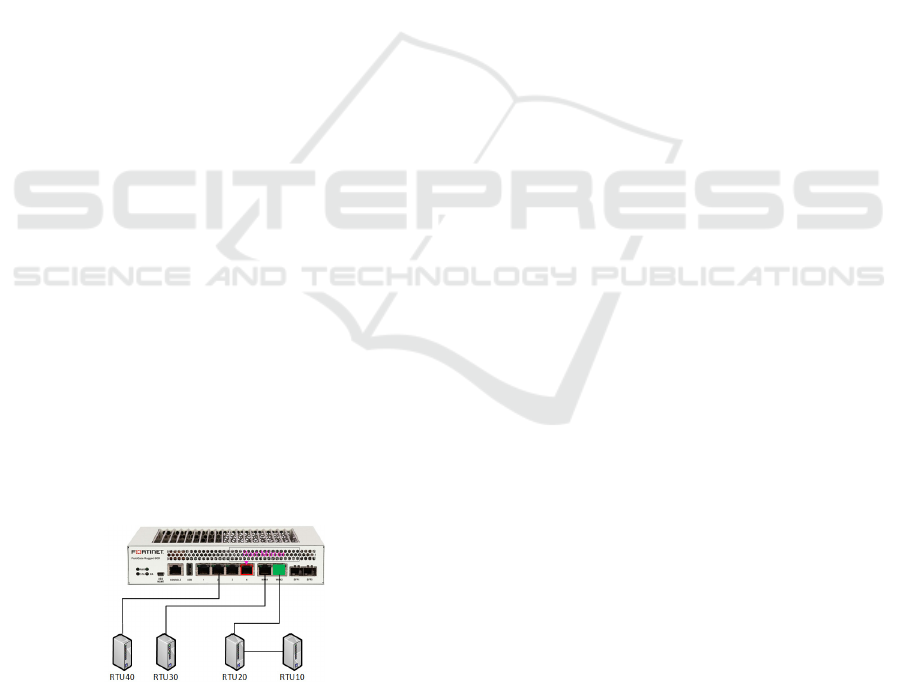

Figure 1: Configuration of a substation.

We used a testbed of a (small) substation. Figure

1 shows the main elements of the configuration of the

testbed resembling an automation network of a

typical substation. The RTUs (remote terminal units)

are connected to a switch. For the experiments, the

testbed we used was equipped with 4 RTUs. The

switch connects the protection zone to an engineering

zone in the substation and further on to the outside

world.

In this testbed, we simulated the operation of a

substation used in a solar plant by a software

developed for testing purposes. The protocol used

was IEC 60870-5-104. This protocol is TCP/IP-based

and by definition does not provide up-to-date security

mechanisms. For example, the protocol transmits

messages in clear text without any form of

authentication. Therefore, such systems are very

susceptible for network-based attacks such as Man-

in-the-Middle and protocol-specific attacks.

4.2 Data Collection

We captured the network traffic from a mirror port of

the switch. The protocol IEC 60879-5-104 is an

asynchronous protocol and the number of messages

defined the collection interval. For each

measurement, we selected the following data:

 rtt: round-trip-time of the packet

 length: packet length

 wsize: TCP window size

 ioa89: information object at address 89 containing

the voltage of the input current from the solar

panel

We collected 200 data blocks during normal

operation of the substation. The data was stored in

form of a csv-file for each block and the following

compression algorithm worked solely on the text

(characters) in the file (even for the numbers). Here

we use the label “valid” for these valid data.

Furthermore, we performed cyber-attacks against

the system and collected the data from the system

under attack. The following attacks have been

performed:

 Man-in-the-Middle Filter Attack (labelled as

“filter”): overwrites the transmitted measurement

data with a constant value.

 Man-in-the-Middle Increment Attack (label:

“incr”): changes the transmitted measurement

data by a small amount (+ 0,1-1,0). This can result

in unknown system states.

 Man-in-the-Middle Drop Attack (label: “drop”):

packets containing a certain value are dropped.

The data collected during the attacks was the same as

during normal operation: rtt, length, wsize, ioa89. The

files are structurally identical with files gathered

during normal operation.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

502

In both cases (data describing valid behaviour of

the system and data gathered from the system under

attack), we have discarded measurements about

packages that did not transmit a voltage, as they were

not significant for the behaviour of the system and

could be considered outliers.

4.3 Anomaly Detection

To describe the normal behaviour of the system we

started with 𝑛=200 data files collected during

normal operation of the system. Every file is a data

block 𝑏



and was compressed with a Sequitur-like

algorithm giving 200 compressed files 𝑐

,

and 200

grammars 𝑔



. In the next step each (original) file is

compressed by using all other grammars 𝑔



, yielding

40.000 compressions 𝑐

,

. From this, we calculate the

divergence matrix ℒ. From this matrix we calculate

the row and column averages. At last, we calculate

the mean value and standard deviation of these

averages. These values (one total average and two

standard deviations) describe the normal behaviour of

the system. To facilitate further comparisons, we

consolidated the two standard deviations into one

single number by taking the square root from the sum

of the squares of the two standard deviations.

𝜎∶=



𝜎





+𝜎





Now we carry out the same procedure with the

data we collected from the system during each of the

attacks. This leads to a mean value and a consolidate

standard deviation for each attack allowing a

comparison of these values to check whether

 anomalies can be detected with appropriate

accuracy

 an anomaly can be assigned to the right attack.

4.4 Example Calculation

The numbers in the following example are taken from

the data collected from the testbed (during normal

operation and under attack).

Figure 2: Excerpt of the complete divergence matrix.

There is the divergence matrix ℒ (showing a

small section of the large 271x271 matrix). The 6

rows and columns with valid data define the normal

behaviour of our system. The values in the row and

the column labelled “filter” come from an attack. We

want to find out, if those values are sufficiently

different from valid data. So considering valid data

only, we calculate the average of the non-diagonal

values for each row and each column. This leads to

the following table:

Figure 3: Averages for valid data.

Next we calculate the total average, which is

122.5, and the standard deviations which are 44.79 for

the column “avg row” and 45.30 for the row “avg

col”. The consolidated standard deviation is 𝜎=

63.70.

Then we calculate the average of the values in the

row “filter” and the column “filter” shown in the first

matrix. This average value is 871.2. From this value

we subtract the average value for the block of valid

values (122.5) and we get:

871.2 – 122.5 = 748.6

Dividing this number by 𝜎 gives:

748.6

63.70

=11.75

We now know that the values from the file “filter”

are 11.75 times 𝜎 away from the average of the valid

data. As this is much more than the usually used limit

in statistics of 3𝜎, we can conclude, that the data in

the row and column “filter” are anomalous.

4.5 Results

Calculations were carried out on the 200 files

collected during normal (valid) operation, and on 71

additional files collected from the system under

attack. There were three different attack classes (34

“filter”, 17 “drop” and 20 “incr”). Figure 4 shows a

colour-encoded picture of the complete 271x271

divergence matrix ℒ as. The 0’s in the diagonal are

shown as white pixels.

Anomaly Detection in Communication Networks of Cyber-physical Systems using Cross-over Data Compression

503

Bright green stands for low divergence (i.e. high

similarity), bright yellow and medium bright brown

depict medium values and dark violet stands for high

values of 𝑑

,

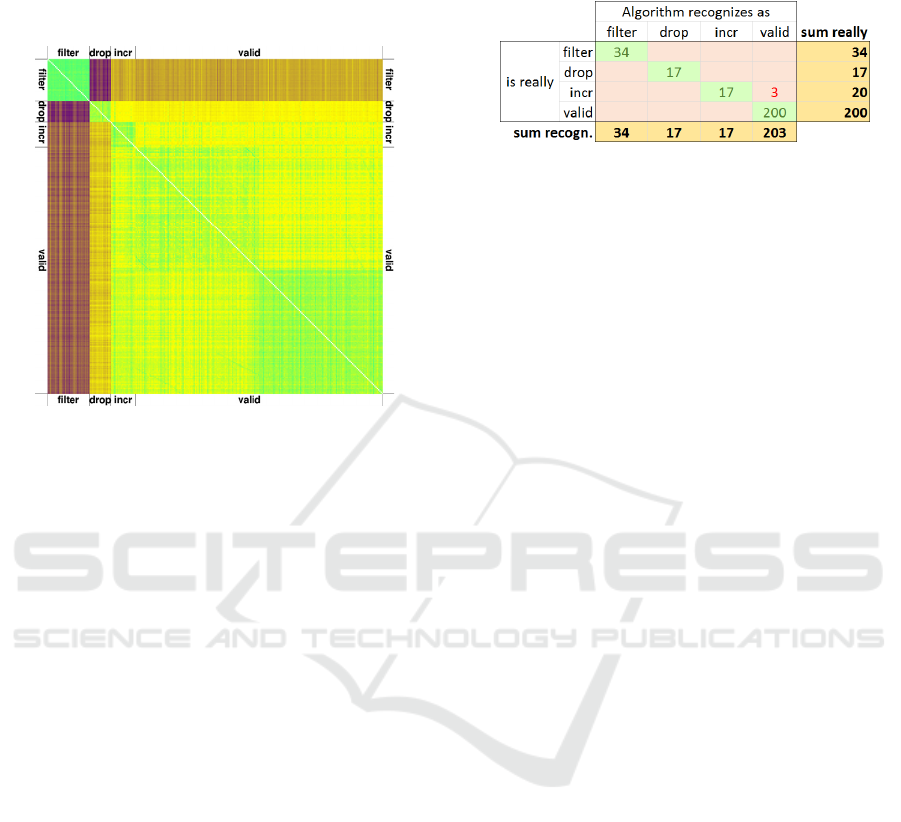

Figure 4: Colour-encoded 271x271 div-matrix.

We see from this picture, that the filter attacks are

all very homogenous (bright green square in the upper

left corner), but they differ strongly from the rest. The

highest divergence exists between the attack types

“filter” and “drop”. The divergence of “drop” and

“valid” can be separated by sight, but “incr” is hard

to distinguish from “valid”.

By visual inspection one can find four quadrants

(green and yellow) within the block of valid data. The

reason for this is that the data was collected from two

different RTUs (remote terminal units), and hence

contain slightly different voltages.

To distinguish between “incr” and “valid” using

cross-over data compression we have to take a closer

look at the numbers:

The method used above to determine whether the

data from a specific file corresponds to normal

operation (is valid) or not can also be applied to test

the membership of the data to the attack types “filter”,

“drop” or “incr” (or any other class).

To do so, we compare the differences between the

file of interest and the classes, measured in units of 𝜎.

We allocate each file to the class that produces the

lowest 𝜎- distance for this file.

Using cross-over data compression 268 files are

allocated to the correct class. Only three files

belonging to the attack class “incr” were

misrecognized. They were classified as “valid” by the

algorithm. However, attacks from the class “incr”

have proven to be hard to detect by other methods,

too. Some of these attacks changed the voltage value

only insignificantly, making the distinction from

valid data tricky.

Figure 5: Summary of assignments.

5 CONCLUSIONS

This paper presents a novel way of anomaly detection,

which we call Cross-over Data Compression (CDC).

The key characteristic of the method is the calculation

of differences between the lengths of compressed files

where different grammars were used for compression.

In an information theoretic sense one could summarize

the method by saying that we use the divergence of

redundancies between data blocks to define similarities

of the blocks. By observing a reasonable number of

data blocks collected during normal operation of the

system we can find a mean value and standard

deviation of the compressions – be it in terms of the

data blocks compressed with the grammars of the all

the other blocks or be it in terms of the grammars

applied to all blocks. Which of these two versions

yields better results seems to depend on the application

where the original data was collected. In case of the

data from the substation network, it did not show big

differences. But this is not necessarily the case in any

situation, as we have observed. This question sure

needs further investigation.

The results of the experiments we conducted on

data from substations show that the method of cross-

over data compression is a suitable possibility for

anomaly detection in network data from industrial

communication networks.

ACKNOWLEGDEMENTS

The project is funded by the KIRAS program and the

Energy Research program of the Austrian Research

Promotion Agency (FFG).

REFERENCES

Lee, Edward A. (2008) "Cyber physical systems: Design

challenges." Technical Report UCB/EECS-2008-8.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

504

EECS Department, UC California, Berkeley.

http://www.eecs.berkeley.edu/Pubs/TechRpts/2008/EE

CS-2008-8.html [online; Oct 24th 2019]

Chandola, V., Banerjee, A. and Kuma, V. (2009) "Anomaly

detection: A survey" ACM computing surveys (CSUR),

41(3), 15.

Bhuyan, M. H., Bhattacharyya, D. K., and Kalita, J. K. (2013)

"Network anomaly detection: methods, systems and

tools" Ieee communications surveys & tutorials, 16(1),

303-336.

Ahmed, M., Mahmood, A. N., and Hu, J. (2016) "A survey

of network anomaly detection techniques" Journal of

Network and Computer Applications, 60, 19-31.

Fernandes, G., Rodrigues, J. J., Carvalho, L. F., Al-Muhtadi,

J. F., and Proença, M. L. (2019) "A comprehensive

survey on network anomaly detection"."

Telecommunication Systems, 70(3), 447-489.

Hamdi, M., and Boudriga, N. (2007) "Detecting Denial-of-

Service attacks using the wavelet transform" Computer

Communications, 30(16), 3203-3213.

Lakhina, A., Crovella, M., and Diot, C. (2004) "Diagnosing

network-wide traffic anomalies" ACM SIGCOMM

computer communication review (Vol. 34, No. 4, pp.

219-230). ACM.

Yeung, D. S., Jin, S., and Wang, X. (2007) "Covariance-

matrix modeling and detecting various flooding attacks"

IEEE Transactions on Systems, Man, and Cybernetics-

Part A: Systems and Humans, 37(2), 157-169.

MacQueen, J. (1967) "Some methods for classification and

analysis of multivariate observations" Proceedings of the

fifth Berkeley symposium on mathematical statistics and

probability (Vol. 1, No. 14, pp. 281-297).

Cover, T., and Hart, P. (1967) "Nearest neighbor pattern

classification" IEEE transactions on information theory,

13(1), 21-27.

Agrawal, R., Gehrke, J., Gunopulos, D., and Raghavan, P.

(1998) "Automatic subspace clustering of high

dimensional data for data mining applications" (Vol. 27,

No. 2, pp. 94-105). ACM.

Estevez-Tapiador, J. M., Garcia-Teodoro, P., and Diaz-

Verdejo, J. E. (2003) "Stochastic protocol modeling for

anomaly based network intrusion detection" First IEEE

International Workshop on Information Assurance,

2003. IWIAS 2003. Proceedings. (pp. 3-12). IEEE.

Jensen F. V. (1997) "An introduction to Bayesian networks"

Springer, ISBN 9780387915029

Nielsen T. D., Jensen F. V. (2007) "Bayesian Networks and

Decision Graphs" Springer, ISBN 9780387682815

Schölkopf B., and Smola A. J. (2001) "Learning with kernels:

support vector machines, regularization, optimization,

and beyond" MIT press, ISBN 9780262256933

Haykin S. (1994) "Neural networks: a comprehensive

foundation". Prentice Hall New York, ISBN

9780132733502

Shannon C. E. (1948) "A mathematical theory of

communication" The Bell System Technical Journal

27(3), 379-423

Kullback, S., and Leibler, R. A. (1951) "On information and

sufficiency" The annals of mathematical statistics, 22(1),

79-86.

Lee, W., and Xiang, D. (2001) "Information-theoretic

measures for anomaly detection" Proceedings 2001 IEEE

Symposium on Security and Privacy. S&P 2001 (pp.

130-143).

Bereziński, P., Jasiul, B., and Szpyrka, M. (2015) "An

entropy-based network anomaly detection method"

Entropy, 17(4), 2367-2408.

https://www.mdpi.com/1099-4300/17/4/2367 [online;

Oct 24th 2019]

Martos, G., Hernández, N., Muñoz, A., and Moguerza, J.

(2018) "Entropy measures for stochastic processes with

applications in functional anomaly detection". Entropy,

20(1), 33. https://www.mdpi.com/1099-4300/20/1/33

[online; Oct 24th 2019]

Kar, A. K. (2016) "Bio inspired computing – a review of

algorithms and scope of applications". Expert Systems

with Applications, 59, 20-32.

Castro, L. N., De Castro, L. N., and Timmis, J. (2002)

"Artificial immune systems: a new computational

intelligence approach" Springer.

Hooks, D., Yuan, X., Roy, K., Esterline, A., and Hernandez,

J. (2018) "Applying artificial immune system for

intrusion detection" 2018 IEEE Fourth International

Conference on Big Data Computing Service and

Applications (BigDataService) (287-292).

Aslahi-Shahri, B. M., Rahmani, R., Chizari, M., Maralani,

A., Eslami, M., Golkar, M. J., and Ebrahimi, A. (2016)

"A hybrid method consisting of GA and SVM for

intrusion detection system" Neural computing and

applications, 27(6), 1669-1676.

Hamamoto, A. H., Carvalho, L. F., Sampaio, L. D. H., Abrão,

T., and Proença Jr, M. L. (2018) "Network anomaly

detection system using genetic algorithm and fuzzy

logic" Expert Systems with Applications, 92, 390-402.

Bamakan, S. M. H., Wang, H., Yingjie, T., and Shi, Y. (2016)

"An effective intrusion detection framework based on

MCLP/SVM optimized by time-varying chaos particle

swarm optimization" Neurocomputing, 199, 90-102.

Wahid, A., and Rao, A. C. S. (2019) "A distance-based

outlier detection using particle swarm optimization

technique" Information and Communication Technology

for Competitive Strategies (pp. 633-643). Springer,

Singapore.

Storn, R., and Price, K. (1997) "Differential evolution – a

simple and efficient heuristic for global optimization

over continuous spaces" Journal of global optimization,

11(4), 341-359.

Elsayed, S., Sarker, R. and Slay, J. (2015) "Evaluating the

performance of a differential evolution algorithm in

anomaly detection" 2015 IEEE Congress on

Evolutionary Computation (CEC) (pp. 2490-2497).

Nevill-Manning, C.G. and Witten, I.H. (1997) "Linear-Time,

Incremental Hierarchy Inference for Compression"

Proceedings DCC '97. Data Compression Conference.

pp. 3–11

Anomaly Detection in Communication Networks of Cyber-physical Systems using Cross-over Data Compression

505
