Correctness of an ATL Model Transformation from

SysML State Machine Diagrams to Promela

Georgiana Caltais, Stefan Leue and Hargurbir Singh

University of Konstanz, Germany

Keywords:

Model Transformation, ATL, SysML, Promela, Correctness, Observational Equivalence.

Abstract:

In this paper we discuss the correctness of an ATL-based model transformation from the systems engineering

modelling language SysML into Promela, the input language of the SPIN model checker. More precisely, we

reduce showing the correctness of the transformation to showing a notion of what we refer to as observational

equivalence of the SysML and the generated Promela models, respectively. This paves the way to a proof

technique that could be further exploited in order to argue the correctness of model transformations from

SysML to various model checkers, based on the observable actions generated by the systems under analysis.

1 INTRODUCTION

The implementation of a comprehensive Model-

Based Systems and Software Engineering (MBSSE)

methodology faces the challenge that, at least at the

time of writing, a plethora of disconnected, incongru-

ent and somewhat orthogonal modeling and analysis

methods and tools are available in academia and in-

dustrial practice. This becomes particularly evident

when considering modeling environments for safety-

critical system architectures, such as SysML (Ob-

ject Management Group, 2017a), on the one hand

side, and formal analysis and veriﬁcation tools, such

as SPIN (Holzmann, 2004), NuSMV 2 (Cimatti

et al., 2002), UPPAAL (Bengtsson et al., 1995) or

PRISM (Kwiatkowska et al., 2004), just to mention

some of them, on the other hand. Modeling languages

supporting MBSSE, such as SysML, possess an, at

best, semi-formally deﬁned semantics. With few ex-

ceptions, the semantics that the tools supporting these

languages offer are undocumented. Some of the tools

supporting UML-style languages offer a limited form

of commonly understood syntactic model represen-

tation, for instance using the XMI standard (Object

Management Group, 2015). On the other hand, for-

mal veriﬁcation tools such as the ones cited above

possess a somewhat rigorous semantics, which is nec-

essary for the formal analysis to return meaningful

and reproducible results. These semantics are some-

times openly deﬁned, at least in parts, but sometimes

deeply buried in the code of the analysis tool. For-

mal veriﬁcation tools typically possess tool-speciﬁc,

sometimes rather idiosyncratic input languages.

However, linking the worlds of modeling and for-

mal analysis both syntactically and semantically is

highly desirable. This is in particular true in the

realm of MBSSE of safety-critical systems, where

formal assurance cases for the safety of a system are

of prime interest to industry, and society as a whole.

We claim that to enable an automated translation and

transformation process from MBSSE languages to

models understood by formal analysis and veriﬁca-

tion tools is pivotal in order to obtain both syntacti-

cally and semantically dependable mappings between

these model domains. In particular, we maintain that

an excellent way to reach this goal is to use rule-based

transformations, such as it is for instance supported

by the Atlas Transformation Language (ATL) (Jouault

et al., 2008). While ATL based model transformation

rules deﬁne the syntactic correctness of these trans-

formations, it is the objective of this paper to consider

a framework for proving the semantic correctness of

ATL based model transformations. In doing so, we

will focus on the semantics of an SysML model as

deﬁned by its state machine (stm) diagrams. Stm dia-

grams are derived from the Statechart (Harel, 1987)

notation and are widely used in UML and SysML

based MBSSE.

Contributions of this Paper. Related work doc-

umented in (Kölbl et al., 2018) has considered an

ATL-based translation from SysML into the input

language of various model checking tools, includ-

ing Promela (Holzmann, 2004), the input language of

the widely popular SPIN explicit state model checker.

The approach taken there deﬁnes ATL rules to trans-

late SysML into an intermediate model, and then uses

a hand-coded code generator for the translation from

the intermediate model to Promela.

360

Caltais, G., Leue, S. and Singh, H.

Correctness of an ATL Model Transformation from SysML State Machine Diagrams to Promela.

DOI: 10.5220/0008968303600372

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 360-372

ISBN: 978-989-758-400-8; ISSN: 2184-4348

We take this idea further and deﬁne an ATL trans-

lation from SysML to Promela as follows. We ﬁrst

consider a suitable SysML source meta-model and

a Promela target meta-model. Then, we deﬁne an

ATL translation from SysML models conforming to

the aforementioned source meta-model into Promela

models conforming to the target meta-model. Note

that both the meta-models and the models are in XMI

format, as required by the ATL framework. Finally,

we provide a simple and straightforward hand-written

translation from the Promela models in XMI format

into Promela code.

The key contribution of this paper is then to show

that the ATL-based transformation above is correct.

The novelty of our approach consists in reducing the

correctness proof to showing that the SysML source

models and their corresponding Promela target mod-

els are observationally equivalent. The sets of obser-

vations are derived in accordance with the operational

semantics of SysML and Promela as in (Liu et al.,

2013; Weise, 1997), for instance.

In our case, observational equivalence coincides

with trace equivalence between the SysML models

and the Promela models. Consequently, safety prop-

erties proven during state space exploration of the

Promela models, including the presence of faults, also

hold of the SysML model from which the Promela

code was derived. Recall that safety properties can be

proven or disproven using reachability analysis.

More broadly speaking, the approach presented

here can be adapted to other ATL-based model to

model transformations as long as the involved mod-

els can be given an observational semantics similarly

to the one sketched in this paper.

Related Work. There is a wide plethora of work

dedicated to the topic of model transformation.

The results in (Mikk et al., 1998) tackle the trans-

lation of statecharts into Promela sequential or paral-

lel code. The main difference with our work is that the

approach is not based on ATL-like rule based trans-

formations, and no behavioural equivalence between

the two models is shown. Performance analysis of the

resulted code is performed.

(Anastasakis et al., 2007) proposes a declara-

tive model transformations in a formalism called Al-

loy (Jackson, 2019). The main difference with our

work is that Alloy does not have any built in notion of

state machine, hence the approach can only be used to

reason about static properties of the transformation.

Graph transformation based approaches to show-

ing correctness of model transformations in terms

of behavioural equivalence were proposed in (Dyck

et al., 2015; Engels et al., 2008), for instance.

ATL was not exploited in the aforementioned works.

In (Dyck et al., 2015), correctness is addressed in

the context of a more simplistic case study on trans-

forming lifelines into automata. In (Engels et al.,

2008), the authors show trace equivalence between

activity diagrams and the corresponding translated

TAAL (Rensink, 2006) programs.

The work in (Lano et al., 2015) introduces a sys-

tematic language-independent framework and tech-

niques for model transformation veriﬁcation. As a

veriﬁcation technique for statemachines transforma-

tions, the authors suggest showing preservation of

traces by proving preservation of a suitable invariant

formula.

For a more comprehensive study on formal veriﬁ-

cation techniques for model transformations we refer

to the survey in (Amrani et al., 2015), for instance.

Closer related to our approach in this paper,

we address the following contributions. The work

in (Latella et al., 1999) proposes a transformation

from a behavioural subset of UML Statechart dia-

grams into Promela. The correctness of the approach

relies on a translation solely based on the operational

semantics of hierarchical automata. The beneﬁts of

using a modular, syntax-based framework such as

ATL are, nevertheless, not exploited.

The veriﬁcation of ATL transformations was also

addressed in (Büttner et al., 2012). The main differ-

ence with our work is that the correctness is estab-

lished based on an additional encoding of ATL into

OCL. The latter is further used to analyze different

properties of the transformations, but not a semantic

equivalence between the source and target models.

In (Troya and Vallecillo, 2011) the authors in-

troduce a formal semantics of the ATL language it-

self, using rewriting logic semantics implemented in

Maude (Clavel et al., 2003). The Maude toolkit is

then exploited to reason about the application of the

ATL rules, and syntactic properties of the target mod-

els. In our approach, the focus is on reasoning about

the semantic equivalence of the source and its trans-

lation into the target model.

Structure of the Paper. In Section 2 we provide an

overview of SysML, Promela and ATL. In Section 3

we discuss the ATL transformation from SysML into

Promela. Section 4 sets the basis for the observational

semantics of SysML and Promela. The correctness of

the ATL transformation is shown in Section 5. Con-

clusions and pointers to future work are provided in

Section 6.

Correctness of an ATL Model Transformation from SysML State Machine Diagrams to Promela

361

2 PRELIMINARIES

In this section we provide a brief overview of the

SysML, Promela and ATLAS Transformation Lan-

guage aspects relevant for our work.

2.1 SysML

The Systems modeling language (SysML) (Object

Management Group, 2017a), is a standardized, semi-

formal language for deﬁning static and dynamic as-

pects of systems as well as their communication be-

havior. SysML uses a subset of the UML (Ob-

ject Management Group, 2017b). It encompasses,

amongst others, state-machine (stm) diagrams and, at

the same time, extends UML with block deﬁnition

and internal block deﬁnition diagrams.

In this paper, we focus on stm diagrams like the

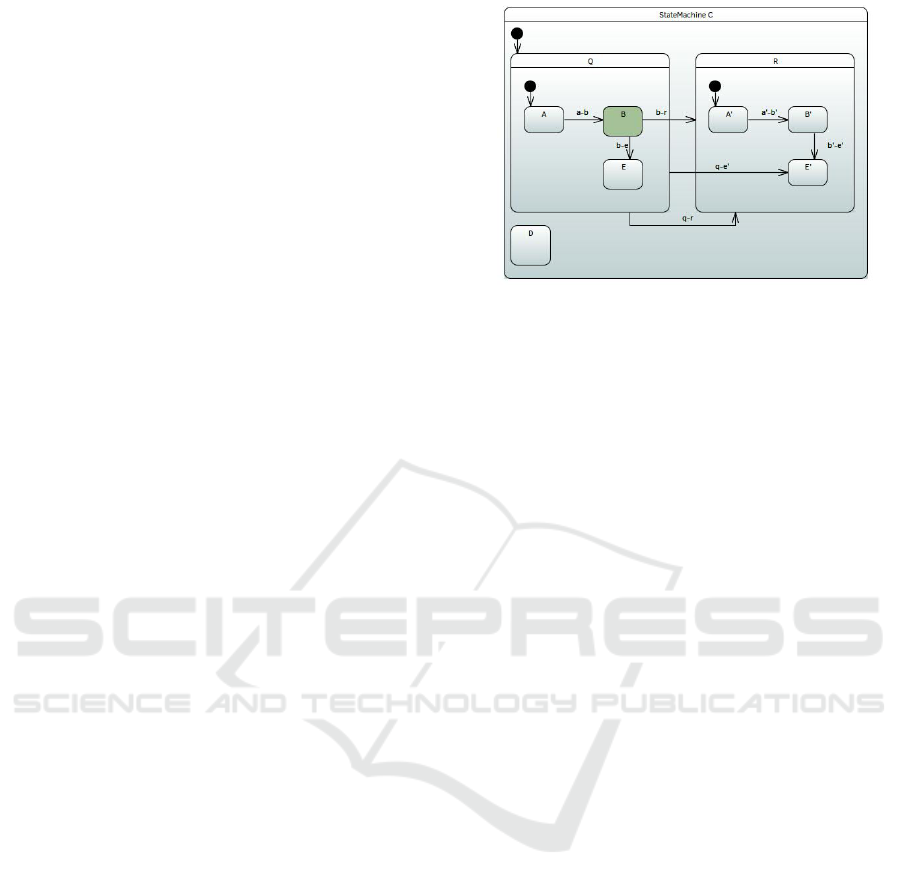

one in Fig. 1. A stm diagram consists of states and la-

belled transitions deﬁning the behaviour of a system

component such as StateMachine C in Fig. 1. States

play the role of control locations for the system. In

Fig. 1, the current control location, or the active state

is B (note that B is coloured darker). Moreover, some

states are called “initial” and, intuitively, serve as en-

try points within the behaviour of a stm. See, for ex-

ample, states Q, A or R in Fig. 1. Each transition is

labelled with a guard that needs to be satisﬁed, and an

action that is performed whenever transiting between

the states. A guard in SysML can be a trigger wait-

ing for the occurrence of an event, or a check on a

variable value. An action can be the initialization of

an event or a variable value change. For an exam-

ple, the generic label a−b in Fig. 1 could be of shape

true/[x ← v], for the trivial guard true and the action

associating to variable x value v. Each component in

SysML can have multiple behaviors, but we restrict

each component to one behavior for our work. Hence,

we have one stm for each component. A system mod-

elled by means of several SysML components is un-

derstood as a set of associated stms operating concur-

rently. Note that stms can be hierarchical, i.e., they

consist of subsequent stms (such as Q in Fig. 1). We

refer to hierarchical stms as complex, and single-state

stms such as D in Fig. 1 as single, or simple. In this

paper, we limit ourselves to at most two-level stms.

The stms semantics is “run-to-completion”. The

semantics is deﬁned with respect to an active state,

which is the current control location of the model.

If a complex state is active, it means that one of the

sub-states is active along with the complex state. We

restrict the behavioral information to transitions and

do not use the SysML semantics of state entry and

exit behaviors. Moreover, the model can only have

Figure 1: SysML Component.

one action per transition. SysML execution seman-

tics deﬁnes an event pool that stores events which are

available for “consumption”. The basic semantics de-

ﬁnes the execution environment for the selection of

an event from the event pool, but the precise mecha-

nism is not speciﬁed. The run-to-completion seman-

tics states that whenever the action of the current tran-

sition is completed, SysML will select an event from

the event pool to trigger a transition. The commu-

nication among processes in SysML is deﬁned based

on First-In-First-Out (FIFO) queues, with the ability

to lose messages if the queue is full. In our work, we

consider message-based (a)synchronous communica-

tion, with simple messages lacking parameters and re-

turn values.

We support activity diagrams as a way to input the

communication information. The usage of activity di-

agrams is limited to sendSignalAction and callOpera-

tionAction with only one action per diagram.

2.2 Promela

Promela has similar syntax to the C programming

language, with guarded commands and communica-

tion primitives. Processes in Promela are deﬁned

as proctypes and are concurrent in nature. Intu-

itively, such processes correspond to SysML compo-

nents. Promela syntax uses variables that can be de-

ﬁned with both local and global scope. Additionally,

channels are constructs used according to the intended

operational semantics to send and receive messages

between processes. These channels are FIFO queues

and have user-deﬁned size. A channel of size 0 cannot

save the message and is called synchronous: both the

sender and receiver processes need to be ready to per-

form the communication. Otherwise, the sender has

to wait. An asynchronous channel can become full

and the message is discarded, similarly to the SysML

behavior for full channels.

Listing (1) illustrates a toy Promela process en-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

362

coding the SysML component in Fig. 1. The corre-

spondence is easy to follow: proctype C deﬁnes a

Promela process corresponding to the aforementioned

component C. Each state within C is associated with

a ﬂattened state in Promela. For instance, state A in C

can be interpreted as state Q_A_ini in Promela. The

naming convention is made in order to preserve the

static information on the “ancestry” and “initial na-

ture” of A. Namely, A is within the hierarchical stm

Q and is also the initial state of Q. Q_A_ini has tran-

sitions without any guard. State label changes are de-

scribed with the goto statement. break deﬁnes states

with no behaviour.

1 proctype C {

2 Q_A_ini :

3 do

4 :: a -b -> goto Q_B ;

5 :: q -r -> goto R_A ’ _in i ;

6 :: q-e ’ -> goto R_E ’;

7 od

8 Q_B : [.. . ]

9 Q_E : [.. . ]

10 R_A ’ _in i :

11 do

12 :: a’ - b ’ -> R_B ’;

13 od

14 R_B ’: [...]

15 R_E ’:

16 do

17 :: br e a k ;

18 od

19 D:

20 do

21 :: br e a k ;

22 od

23 }

Listing 1: Promela Code of the SysML Component in

Fig. 1.

2.3 ATL

ATL (Jouault et al., 2008) is a domain speciﬁc lan-

guage which was designed to provide a framework for

rule-based model-to-model transformation of XMI

models. ATL has two beneﬁts over conventional pro-

gramming languages: due to its rule-based nature it

provides syntactic correctness of the source and tar-

get models, and it supports uniqueness of the trans-

formation rules which means that each type of source

element will be mapped only once per target element.

ATL uses the concept of meta-models for representing

the structure of the models. A meta-model is a special

model that contains the meta-deﬁnitions of all model

elements used in the transformation. Intuitively, a

meta-model can be seen as a grammar, whereas the

corresponding model is given according to the rules

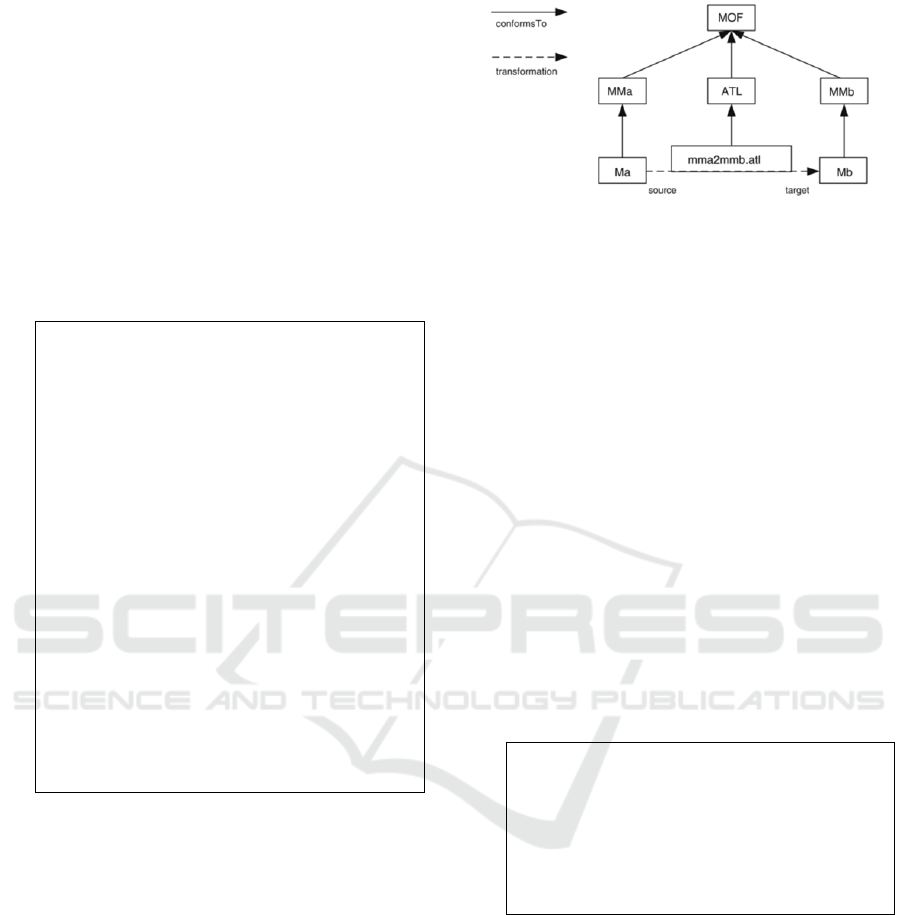

Figure 2: Overview of the ATL Transformation.

of the grammar. ATL requires meta-models for both

the source and the target models. The transformation

rules can refer to elements from the source and target

models.

The idea behind an ATL transformation is

sketched in Figure (2). ATL reads a source model Ma

which has to conform to a source meta-model MMa.

If the source model does not conform to the source

meta-model, ATL throws an error advising that the

source model is ill-deﬁned. The ATL transformation

in mma2mmb.atl describes how a source model can

be converted to a target model Mb which conforms

to a target meta-model MMb. All meta-models must

conform to the meta-meta-model Meta Object Facility

(MOF). ATL deﬁnes its own syntax but also borrows

some functions from Java and OCL. All transforma-

tion rules in ATL are a set of mappings between the

source model elements and the target model elements

with imperative operations performed on the source

elements.

1 rule ex a m p l eATL {

2 from s : M M S y s M L ! S t ate (

3 s. name .startsWith(‘A ’)

4 )

5 to t : M M P r o m ela ! State (

6 n a me < - s . name , ID < - s . ID

7 )

8 }

Listing 2: ATL-code.

To illustrate the ATL translation mechanism, in

Listing 2 we deﬁne a sample rule which accepts

State elements from a SysML source model where

the name of the element starts with A. This set of

elements are then transformed to State elements of

the Promela target model where the name and ID at-

tributes are transferred.

Correctness of an ATL Model Transformation from SysML State Machine Diagrams to Promela

363

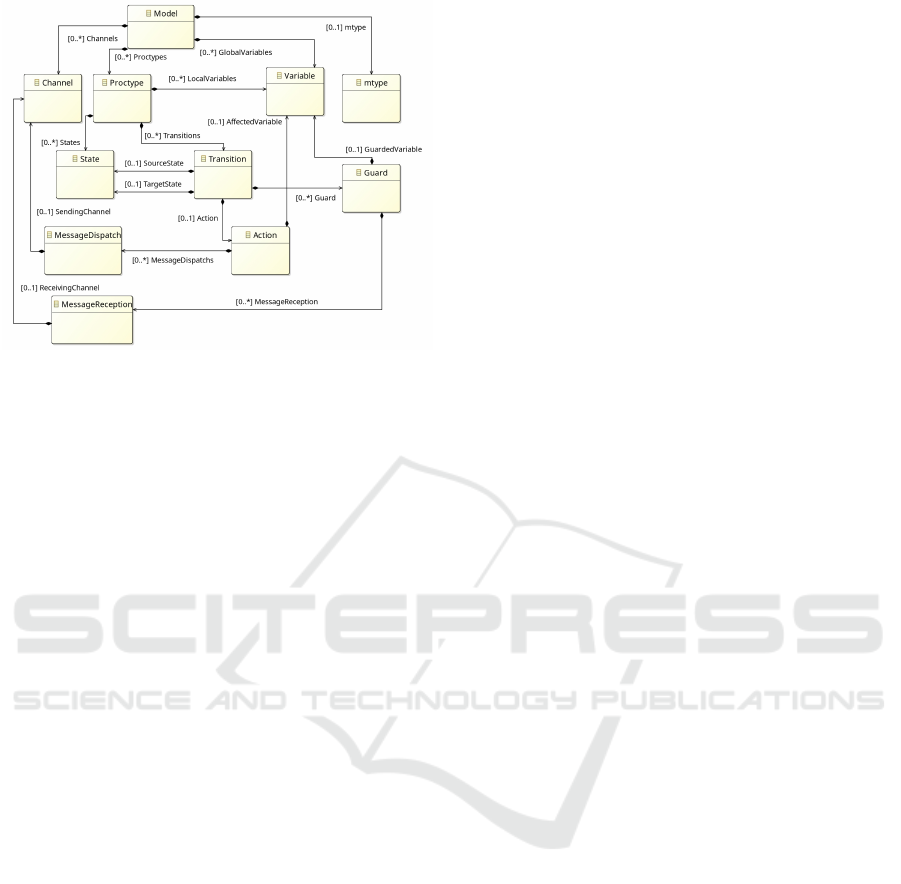

Figure 3: Class Diagram of the Promela Target Meta-

Model.

3 ATL TRANSFORMATION

FROM SysML TO Promela

As previously mentioned, the ATL transformation re-

lies on the meta-models of the source and target, re-

spectively. In short, ATL parses the SysML model

and checks whether it conforms to the UML 2.5.0

meta-model of Eclipse, encoded in XMI format. On

the Promela side, the equivalent class-diagram repre-

sentation of the XMI target meta-model is given in

Fig. 3. The referred class diagram encodes models

formed from several Proctype elements, which con-

sist of states and transitions labelled with actions and

guards, in the spirit of the Promela description in Sec-

tion 2.2.

The ATL transformation performs a syntactic con-

version of the SysML source model into the Promela

target model. The rules specify how the source model

elements must be processed and translated to the tar-

get model. It is important to observe that the conver-

sion from SysML into Promela is based on a “ﬂat-

tening” procedure, which maps hierarchical state-

machines into corresponding proctypes. Intuitively,

the mapping transfers states and transitions as fol-

lows.

States:

(1) A simple state from SysML is translated into a

Promela state with the same name.

(2) All simple states within hierarchical SysML stms

are translated into Promela states respecting the

naming convention: the Promela names should

encode the “ancestry” and possibly the “initial na-

ture” information.

Transitions:

(3) If the source state of a SysML transition is simple,

then (a) if the SysML target is simple, then the

transition is translated into Promela directly or (b)

if the SysML target is complex, then the transition

is translated with the Promela target as the initial

state of the target hierarchical state-machine pre-

serving the naming convention.

(4) If the source state of the SysML transition is com-

plex, then (a) if the SysML target is simple, then

corresponding transitions originating from each

state of the hierarchical source state-machine are

translated into Promela (again, the naming con-

vention is fulﬁlled) or (b) if the SysML target is

complex, transitions as above are created with tar-

get as the initial state of the hierarchical target

state-machine (naming convention preserved).

The ﬂattening procedure can be easily identiﬁed

based on the SysML source model in Listing 3 and

the derived Promela target model in Listing 4. Note

that both models are given in XMI format as required

by ATL, and provide corresponding encodings of the

component in Fig. 1.

The XMI format provides entries for the

Components (line 1 in Listing 3 and, line 1 in List-

ing 4) and entries for the InitialState of the pos-

sibly hierarchical stms (e.g., lines 2, 6 in Listing 3,

and line 2 in Listing 4). Each State entry has a name

and an ID that coincides with the name, in our ex-

amples. States have outgoing transitions speciﬁed via

their ID’s within the outTrans ﬁeld. Additionally,

each transition is deﬁned in terms of its label, Source

and Target, as expected.

Simple states such as D are translated directly from

SysML to Promela, as mentioned in (1) above. We

refer to line 3 in both Listing 3 and Listing 4 for the

corresponding entries.

Complex states are ﬂattened as described in (2)

above. For instance, the complex state Q starting at

line 4 in Listing 3 is represented via the three enclosed

simple states Q_A_ini, Q_B and Q_E at lines 4, 8 and

13 in Listing 4. Observe that their ID’s are in accor-

dance with the naming convention.

For an example of a “simple to complex” transi-

tion as in (3)(b) above, we refer to the b-r labelled

transition at line 15 in Listing 3. Its Promela corre-

spondent is encoded at line 25 in Listing 3. Note how

in Promela, the target becomes the initial state of the

state-machine R.

An example of “complex to simple” transition as

in (4)(a) is the q-e’ labelled transition at line 32 in

Listing 3. On the Promela side, it is captured via

the transition at line 37 Listing 4. Observe how, the

source in Promela becomes the initial state of the hi-

erarchical stm Q.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

364

A “complex to complex” transition as in (4)(b) is

given in Listing 3 at line 30. It corresponds to the

q-r labelled transition between the hierarchical stms

Q and R. The translation to Promela is realized in terms

of the q-r labelled transitions at lines 31, 33, 35 in

Listing 4. Observe that, all targets are the initial state

of R, whereas the sources are the stms enclosed within

1 < Co m p o n e n t C ID = C >

2 < Init i a l S tate Q / >

3 < S t a te D ID = D/ >

4 < S t a te Q ID = Q

5 outTrans = Qq - rR , Qq -e ’E

’>

6 < Init i a l S tate A / >

7 < S t a te A ID = A outTrans = Aa -

bB / >

8 < S t a te B ID = B

9 outTrans = Bb - eE , Bb - rR

10 < S t a te E ID = E/ >

11 < T r a ns a - b ID = Aa - bB

12 Source = A Target = B / >

13 < T r a ns b - e ID = Bb - eE

14 Source = B Target = E / >

15 < T r a ns b - r ID = Bb - rR

16 Source = B Target = R / >

17 < S t a te / >

18 < S t a te R ID = R >

19 < Init i a l S tate A ’/ >

20 < S t a te A ’ ID = A ’

21 outTrans = A ’a ’ -b ’B

’/ >

22 < S t a te B ’ ID = B ’

23 outTrans = B ’b ’ -e ’E

’/ >

24 < S t a te E ’ ID = E ’/ >

25 < T r a ns a ’ - b ’ ID = A ’a ’-b ’ B ’

26 Source = A ’ Target

= B ’/ >

27 < T r a ns b ’ - e ’ ID = B ’b ’-e ’ E ’

28 Source = B ’ Target

= E ’/ >

29 < S t a te / >

30 < T r a ns q - r ID = Qq - rR

31 Source = Q Target =

R/ >

32 < T r a ns q -e ’ ID = Qq -e ’E ’

33 Source = Q Target =

E ’/ >

34 </ C ompone n t >

Listing 3: The XMI Source Model for the Component in

Fig. 1.

We continue by providing some details about the

actual ATL transformation rules encoding the map-

ping described above. Each of the discussed rules

is invoked with respect to the name-space of the el-

ements. Moreover, each rule works on a type of

1 < Co m p o n e n t C ID = C >

2 < I n i t i alSta t e Q _ A _ i n i / >

3 < State D ID = D / >

4 < State Q _ A _ i n i ID = Q_ A _ i n i

5 o u t T r a n s = Q_A_i nia - bQ_B ,

6 Q_ A _iniq - rR_A ’ _ini ,

7 Q_ A _iniq - e ’ R_E ’/ >

8 < State Q_B ID = Q_B

9 o u t T r a n s = Q_Bb - eQ_E ,

10 Q_Bb - rR_A ’ _ini ,

11 Q_Bq - rR_A ’ _ini ,

12 Q_Bq -e ’ R_E ’/ >

13 < State Q_E ID = Q_E

14 o u t T r a n s = Q_Eq - rR_A ’ _ini ,

15 Q_Eq -e ’ R_E ’/ >

16 < State R_A ’ _ini ID = R_A ’ _ini

17 o u t T r a n s = R_A ’ _inia ’ - b ’ R_B ’/ >

18 < State R_B ’ ID = R_B ’

19 o u t T r a n s = R_Ba ’-b ’ R_E ’/ >

20 < State R_E ’ ID = R_E ’/ >

21 < Trans a -b ID = Q _ A_ini a - bQ_B

22 S o urce = Q_A_ini T a r g e t = Q_ B

23 < Trans b -e ID = Q_Bb - eQ_E

24 S o urce = Q_B T a r g e t = Q_E / >

25 < Trans b -r ID = Q_Bb - rR_A ’ _ ini

26 S o urce = Q_B T a r g e t = R_A ’ _ini

27 < Trans a ’-b ’ ID = R_A ’ _inia ’ - b ’

R_B ’

28 S o urce = R_A ’ _ ini T a r g e t = R_B

’/ >

29 < Trans b ’-e ’ ID = R_Bb ’-e ’R_E ’

30 S o urce = R_B ’ Target = R_E ’/ >

31 < Trans q -r ID = Q_A_i n iq - rR_A ’

_in i

32 S o urce = Q _ A _ i n i T arget = R_A ’

_in i / >

33 < Trans q -r ID = Q_Bq - rR_A ’ _ ini

34 S o urce = Q_B Target = R_A ’ _ini

35 < Trans q -r ID = Q_Eq - rR_A ’ _ ini

36 S o urce = Q_E Target = R_A ’ _ini

37 < Trans q -e ’ ID = Q _A_ini q -e ’ R_E ’

38 S o urce = Q _ A _ i n i T arget = R_E

’/ >

39 < Trans q -e ’ ID = Q_Bq -e ’ R_E ’

40 S o urce = Q_B Target = R_E ’/ >

41 < Trans q -e ’ ID = Q_Eq -e ’ R_E ’

42 S o urce = Q_E Target = R_E ’/ >

43 </ C ompone n t >

Listing 4: The ATL-generated XMI Target Model.

source element and can be used to generate one or

more target elements. The transformation reads a

SysML model and extracts information which is tar-

geted through the rules. We navigate the model us-

ing subsequent calls to (lazy) sub-rules: the model

rule will call the component rule for each component

in the source model. The transformation completes

Correctness of an ATL Model Transformation from SysML State Machine Diagrams to Promela

365

1 lazy rule C 2P {

2 from s : M M S y s M L ! Component

3 to t : M M P r o m ela ! P r o c t y p e (

4 \\ c o l l e c t c o m p o n e n t a t tributes

5 ID <- s . id , [...]

6 )

7 do{

8 \\ i t e r a t e ove r co m p o n e n t s t ates

9 for ( p in s . n o r m alBe h a v iour .

states ){

10 if( p . subM a c h i nes .

ocl I s U ndef i n e d () ) {

11 \\ cal l sub - rul e for s i m p l e

states

12 t. S t ates <- thisModule. S2S

(p ) ;

13 }

14 else{

15 for ( q in p . s u b M a chines .

states ){

16 \\ ca ll sub - ru le for c o m p l e x

states

17 t. S t ates <- thisModule.

SMS2S ( q) ;

18 }

19 }

20 } [ . ..]

21 \\ i t e r a t e ove r co m p o n e n t s t ates

22 for (p in s. n o rmal B e h avio u r .

tran s i t i ons . union (thisModule.

Tra n s i tion L i s t )) {

23 \\ call sub - rul e fo r trans i t i o n s

24 if( p . sourc e )

25 t. Tr a n s i t ions <- thisModule.

T2T ( p );

26 } [ . ..] }

Listing 5: Component to Proctype Transformation.

when each relevant element is processed. The ATL

code in the listings of this section has been simpliﬁed

for presentation. The rule in Listing 5, for instance,

is used to transfer information about a component of

the SysML model and create an equivalent proctype

in the Promela model. The rule extracts information

about the simple states, complex states, and transi-

tions. This information is further sent to sub-rules for

processing.

Listing 6 deﬁnes a rule which is used to transfer

states which are of simple type and mark the initial

state, according to the naming convention. This rule

is a sub-rule of the component rule and operates on

elements received from its parent rule as parameters

(see line 12 in Listing 5).

In a similar fashion, we deﬁned a rule which

for transferring SysML complex states into Promela.

This rule receives the children of the complex state as

parameters and names them according to the naming

convention. We also deﬁned a rule which is used to

1 lazy rule S 2S {

2 from s : M M S y s M L ! S t ate

3 to t : M M P r o m ela ! State (

4 \\ c o l l e c t state a t t r ibutes

5 ID <- s . id

6 )

7 do{

8 \\ check if sta t e is i n i t i a l

9 if( s .refImmediateComposite() .

ini t i a l State . name = s . name ){

10 \\ annotate nam e wi t h ‘ ini tial ’

inf o

11 t. Nam e <- s . name .concat( ‘ _init

’) ;

12 t. IsIn i t i a l <- true ;

13 } } }

Listing 6: State to State Transformation.

transfer transitions along with the source and target

state information. This rule changes the source and

target states based on their type. So, if source is com-

plex, it will generate multiple transitions with source

state’s children as source. If target is complex then

target is changed to the initial state of the target state.

Our automated ATL-based tool for gen-

erating Promela models from SysML speci-

ﬁcations can be found at: https://github.com/

SysMLATL/SysMLPromelaTransformation

4 ENRICHING XMI MODELS

WITH OBSERVATIONAL

SEMANTICS

In this section we provide an observational semantics

of SysML and Promela models, on top of their XMI

encodings discussed in Section 3. Intuitively, this se-

mantics “collects” the sequences of actions that can

be executed by the SysML and Promela models, ac-

cording to associated operational semantics as in (Liu

et al., 2013; Weise, 1997), for instance.

At this point we would like to emphasize on the

uniformity of the proposed observational semantics.

The latter enables computing the possible observable

executions of both SysML and Promela models by us-

ing the same sets of semantic rules. This, despite the

fact that SysML allows the speciﬁcation of hierarchi-

cal state-machines, whereas Promela does not.

The observational semantics will be further ex-

ploited in order to show the correctness of the ATL

transformation in terms of a notion of observational

equivalence of the SysML and the associated Promela

models.

We write obs to denote the set of traces w that can

be observed by executing a certain SysML/Promela

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

366

model. Executions w are words over SysML/Promela

actions. As usual, we write ε to denote the empty

word, and w

to represent the concatenation of two

words w

and w

In order to mimic variable and channel updates,

we introduce a notion of memory (mem) that asso-

ciates values v to variables and, respectively, channels

x. Such an assignment is denoted by mem[x ← v]. A

lookup function is denoted by lkp(mem,x). For sim-

plicity, and without loss of generality, we assume that

all variables x within a model are “allocated” in the

memory and initialised with the default value ⊥.

The observational semantics will be given via

rules:

... p

... c

consisting of premises p

,..., p

and conclusions

,..., c

which capture sequences of observations

that simulate model executions and, whenever ap-

propriate, memory updates. Due to typesetting con-

straints, we sometimes syntactically split the semantic

rules into “shorter” rules such as, for instance:

... p

... c

i+1

... p

j+1

... c

Furthermore, in the subsequent sections we deﬁne a

series of notational conventions enabling the uniform

handling of the aforementioned XMI representations

and their observational semantics. More precisely, we

will provide equivalent, but more compact and mod-

ular representations of concurrent components and

their state-machines.

4.1 An Observational Semantics of

SysML

As seen in Section 3, SysML source models are

given as a “conﬁguration” encoding a set of concur-

rent components C

, for i ∈ {1,..., N}. We write

| ... | C

, or |

i∈{1,...,N}

for these components.

Naturally, each such component is deﬁned in terms

of a set of stms, a current state curr

and an initial

state ini

. When proving correctness of our transfor-

mation, we let curr

“evolve” according to the obser-

vational semantics of SysML provided later on in this

paper. Initially, the current state curr

is set to ini

A stm of C is given by: its ID, its type (that is

either complex and denotes a SysML hierarchical stm,

or simple and denotes a state), a set of sub-machines

(possibly empty, if type is simple), a set of transitions

and an initial state ini. A transition is deﬁned over

the ID of its source (that corresponds to the ID of the

stm) and the ID of its target. More formally, a state-

machine SM

of a SysML component C can be given

as:

hID

,type

[

j∈{1,...,m}

{SM

i, j

[

l∈{1,...,r}

{ID

−→ ID

i,t

},ini

(1)

If type

is complex, then each SM

i, j

stands

for a simple sub-machine of SM

. Otherwise,

j∈{1,...,m}

{SM

i, j

} =

0, as expected. We deﬁne

ID(SM

) = ID

, type(SM

) = type(ID

) = type

and

ini(SM

) = ini(ID

) = ini

for a stm as in (1). Re-

call that, in accordance with the SysML semantics, ini

is the initial state of the sub-machine for hierarchical

stms. Naturally, for simple sub-machines (or states),

ini is deﬁned as the associated ID.

In short, we write SM

∈ C in order to refer to a

(hierarchical) stm of C as in (1). Subsequently, we

write SM

i, j

∈ SM

in order to refer to a simple stm of

For an example, the complex stm Q in Fig. 1 is

equivalently represented as:

= hQ,complex, {SM

,SM

q−e

−−−→ E

q−r

−−→ R},Ai

(2)

The simple sub-machine SM

, for instance, is given

as:

= hB,simple,

0,{B

b−r

−−→ R, B

b−e

−−→ E},Bi

(3)

A component C is captured as:

C = [

[

i∈{1,...,n}

,curr

,ini

]

(4)

with SM

as in (1), for i ∈ {1,..., n}.

For an example, component C in Fig. 1 is:

C = [{SM

,SM

},B,Q]. (5)

Given C as in (4) and SM

as in (1), we write tr

(ID

)

for the set of “ﬁrst-level” transitions:

[

l ∈ {1,. ..,r}

{ID

i,s

−→ ID

i,t

Intuitively, these transitions originate in hierarchical

stms, or simple state machines at the top-most level

in a component C. Symmetrically, we write tr

(ID

for the “second-level” transitions:

[

j ∈ {1,.. . ,m}

(ID(SM

i, j

)).

Correctness of an ATL Model Transformation from SysML State Machine Diagrams to Promela

367

These are transitions that originate in simple states of

the hierarchical stms of C. For the simplicity of nota-

tion, we write tr

to denote the set of all ﬁrst, respec-

tively, second-level transitions of a component C, for

i = 1, respectively i = 2.

For an example, the set of ﬁrst-level transitions tr

in Fig. 1 is:

q−r

−−→ R,Q

q−e

−−−→ E

The set of second-level transitions is:

b−r

−−→ R,A

a−b

−−→ B,B

b−e

−−→ E,A

−b

−−−→ B

−e

−−−→ E

We also deﬁne a “children” function that extracts the

ID’s of the sub-machines of a given stm:

ch(ID

,C)=



i, j

∈Set

{ID(SM

i, j

)} if Set

{ID

} [owise]

if ∃SM

∈ C s.t ID(SM

) = ID

and

Set

= ∪

j={1,...,m}

{SM

i, j

| SM

i, j

∈ SM

}

(6)

With these ingredients at hand, we are ready to pro-

vide the semantics of the SysML stms relevant to our

purpose. Let C,C

range over components of a

SysML “conﬁguration” C

| . .. | C

. Let obs refer

to the current set of executions, and mem stand for the

content of the memory.

We proceed by ﬁrst formalising asynchronous

communication. Intuitively, a transition ID

g/α

−−→ ID

where α is an action, can be triggered whenever (one

of the children of) its source matches the current state

of the enclosing component C, and the guard g is sat-

isﬁed. As a consequence, the observation set is en-

riched with the corresponding action α and the cur-

rent state becomes the initial state of the transition’s

target as in (7).

g/α

−−→ ID

∈ tr

curr

∈ ch(ID

) lkp(mem,g) = true

curr

:= ini(ID

) obs := ∪

w∈obs

{w.α}

i ∈ {1, 2}

(7)

Variable or channel updates in the context of asyn-

chronous communication are handled in a similar

fashion, with the additional observation that the cor-

responding update is stored in the memory as shown

in (8).

g/x←v

−−−−→ ID

∈ tr

curr

∈ ch(ID

) lkp(mem, g) = true

curr

:= ini(ID

) obs := ∪

w∈obs

{w.x ← v} mem[x ← v]

i ∈ {1, 2}

(8)

Synchronous communication is formalised as in (9).

The transition is triggered when its guard g is satisﬁed

and the synchronous action α can see its synchronous

reception g(α). In other words, we write g(α) as a

syntactic sugar for a guard g “waiting” to synchronise

with its counterpart α (here, by α we denote both an

action, and a variable/channel update). Note that the

synchronising transitions can be at different levels in

the corresponding (hierarchical) stms.

g/α

−−→ ID

∈ tr

curr

∈ ch(ID

)

curr

:= ini(ID

)

g(α)/β

−−−−→ ID

∈ tr

curr

∈ ch(ID

)

curr

:= ini(ID

)

lkp(mem,g) = true

obs := ∪

w∈obs

{w.α.β}

i, j ∈ {1, 2}

(9)

Synchronous variable or channel updates is handled

in a similar fashion, with an additional memory up-

date, as formalised in (10).

g/x←v

−−−−→ ID

∈ tr

curr

∈ ch(ID

)

curr

:= ini(ID

)

g(x←v)/β

−−−−−−→ ID

∈ tr

curr

∈ ch(ID

)

curr

:= ini(ID

)

lkp(mem,g) = true

obs := ∪

w∈obs

{w.(x ← v).β} mem[x ← v]

i, j ∈ {1, 2}

(10)

4.2 An Observational Semantics of

Promela

Similarly to the approach in Section 4.1, we base the

semantic rules of Promela on conﬁgurations C

| ... |

encoding the components C

within the XMI tar-

get model of the ATL transformation. The main dif-

ference with the SysML counterpart is that each such

component encloses a set of simple stms. The lat-

ter are “ﬂattened” versions of the (hierarchical) stms

speciﬁed in SysML, derived as described in Section 3.

Recall that the ﬂattening procedure entails simple

stms with ID’s built according to the naming conven-

tion encoding their “ancestry” and “initial nature”,

whenever the case. We formalize the naming con-

vention by means of the function in (11). Assume a

SysML component C (in essence, encoded as in (4)),

and let ID

refer to a stm of C (s.a, Q, A or D in Fig. 1).

The naming convention maps ID from the SysML

XMI to nmc(ID

,C) in the Promela XMI, where:

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

368

nmc(ID

,C) =











ID(SM

)_ID

_ini

if ∃SM

∈ C,∃SM

i, j

∈ SM

s.t.

ID(SM

i, j

) = ID

and

ID(SM

i, j

) = ini(SM

)

ID(SM

)_ID

if ∃SM

∈ C,∃SM

i, j

∈ SM

s.t.

ID(SM

i, j

) = ID

and

ID(SM

i, j

) 6= ini(SM

)

[owise]

(11)

In words:

• If the stm ID

refers to a simple (and initial) state

within a hierarchical stm, then the ancestry-based

ﬂattening keeps track of the enclosing parent (and

the initially information) as well. This is the case

of ID

= B and ID

= A.

• If the stm is a stm not enclosed within another ma-

chine, then there is no ﬂattening. This is the case

of ID

= D.

Assume a SysML component C, consisting of n (hier-

archical) state-machines SM

, for i = {1,. . .,n}, each

of each consisting of a (possibly empty) set of sim-

ple state-machines SM

i, j

, for j = {1,... , m}, naturally

captured as:

C = [

i∈{1,...,n}

,curr

,ini

]

hID

,type

j∈{1,...,m}

{SM

i, j

l∈{1,...,r}

{ID

−→ ID

i,t

},ini

i, j

= hID

i, j

,simple,

k∈{1,...,o}

{ID

i, j

−→ ID

},ID

i, j

(12)

The corresponding “ﬂattened” component C within

the XMI target model is:

C = [

[

i ∈ {1,... , n}

j ∈ {1,.. . ,m}

i, j

∈ SM

({hID,simple,

0,T,IDi}),curr

,ini

]

(13)

where

ID = nmc(ini(SM

i, j

),C) and T stands for the

set of transitions

[

k = {1, . ..,o}

i, j

−→ ID

∈ tr

(ID

i, j

)

{ID

−→ nmc(ini(ID

),C)} (14)

[

l = {1, . ..,r}

−→ ID

∈ tr

(ID

)

∈ ch(ID

,C)

ID = nmc(ID

,C)

{ID

−→ nmc(ini(ID

),C)} (15)

curr

= nmc(curr

,C) and ini

= nmc(ini(ini

),C).

For an example, the target XMI in Listing 4 is

equivalently represented as the component:

C = [{

hQ_A_ini,simple,

0,T

Q_A_ini

,Q_A_inii,

hQ_B,simple,

0,T

Q_B

,Q_Bi,

hQ_E,simple,

0,T

Q_E

,Q_Ei,

hR_A

_ini,simple,

0,T

R_A

,R_A

hR_B

,simple,

0,T

R_B

,R_B

hR_E

,simple,

0,T

R_E

,R_E

hD,simple,

0,T

,Di

}

Q_B,Q_A_ini]

(16)

where, for instance, the transitions of the simple stm

Q_A_ini are

Q_A_ini

= {Q_A_ini

a−b

−−→ Q_B,

Q_A_ini

q−r

−−→ R_A

_ini,

Q_A_ini

q−e

−−→ R_E

The “observational” semantics of Promela can be

now deﬁned as in (7)–(10), based on a conﬁguration

| ... | C

a set obs of executions, and the memory mem.

5 A PROOF OF CORRECTNESS

In this section we formalize the correctness of the

ATL transformation in Section 3, in terms of the

so-called observational equivalence of the associated

SysML and Promela XMI’s as in Sections 4.1 and 4.2.

Let MMS, MS, MMT and MT refer to the source

meta-model, source model, target meta-model and

target model, respectively, as in Section 3. We write

ATL(MMS,MS,MMT) = MT

as a shorthand for the aforementioned transformation.

Assume mem a memory-like structure whose vari-

ables could be initially set to the default value ⊥. Fur-

thermore, consider obs a set of observations. We write

i∈{1,...,N}

mem obs

((7)−(10))

∗

−−−−−−−→

i∈{1,...,N}

mem

obs

(17)

to denote the evolution of components

, for i ∈

{1,..., N}, into

, via the repeated application of

the semantic rules (7)–(10), given the memory mem

and a set of observations obs.

Intuitively, we say that a set of concurrent compo-

nents |

i∈{1,...,m}

are observational equivalent with

the concurrent components |

i∈{1,...,n}

whenever,

Correctness of an ATL Model Transformation from SysML State Machine Diagrams to Promela

369

given the same initial memory conﬁguration, they

produce the same observations under the repeated ap-

plication of derivations

((7)−(10))

∗

−−−−−−−→.

Deﬁnition 1 (Observational Equivalence). Consider

a memory conﬁguration mem and a set of observa-

tions obs. The concurrent components |

i∈{1,...,m}

are observational equivalent with the concurrent com-

ponents |

i∈{1,...,n}

whenever the following holds:

(a) If

i∈{1,...,m}

mem obs

((7)−(10))

∗

−−−−−−−→

i∈{1,...,m}

mem

obs

then there exists a derivation

i∈{1,...,n}

mem obs

((7)−(10))

∗

−−−−−−−→

i∈{1,...,n}

mem

obs

(b) Symmetrically.

We write |

i∈{1,...,m}

≈ |

i∈{1,...,n}

to denote

the observational equivalence above.

Theorem 1 (Correctness). Assume

ATL(MMS,MS,MMT) = MT.

Let |

i∈{1,...,N}

be the concurrent components asso-

ciated to MS, and |

i∈{1,...,N}

be the components of

MT. Then:

i∈{1,...,m}

≈ |

i∈{1,...,n}

Theorem 1 follows as a direct consequence of

Lemma 1.

Lemma 1. Assume

ATL(MMS,MS,MMT) = MT.

Let |

i∈{1,...,N}

denote the concurrent components

corresponding to MS, and |

i∈{1,...,N}

denote the

components of MT. Consider the initial memory con-

ﬁguration mem and the initial set of observations obs.

Then:

(a) If

i∈{1,...,m}

mem obs

((7)−(10))

∗

−−−−−−−→

i∈{1,...,m}

mem

obs

then there exists a derivation

i∈{1,...,n}

mem obs

((7)−(10))

∗

−−−−−−−→

i∈{1,...,n}

mem

obs

(b) Symmetrically.

And, moreover,

nmc(curr

) = curr

,∀i ∈ {1,... , N}.

for (a) and (b) above.

Observe that, apart from observational equiva-

lence, Lemma 1 guarantees equality of memory con-

tents and a one-to-one correspondence between the

current states of the SysML and Promela components.

Lemma 1 – Proof Sketch. The proof of both cases

“(a)” and “(b)” is by induction on the length of the

semantic rules derivation ((7) − (10))

∗

Remark 1. A direct consequence of Lemma 1 is that

observational equivalence coincides with trace equiv-

alence between the SysML models and the Promela

models. Hint: assume derivations

((7)−(10))

∗

−−−−−−−→ of

length 1.

6 DISCUSSION

In this paper we presented an ATL transforma-

tion from SysML hierarchical state-machines

into Promela, the input language of the SPIN

model-checker. The transformation is imple-

mented in an automated tool that can be found at

https://github.com/SysMLATL/SysMLPromelaTrans

formation

The ATL transformation is syntactic in na-

ture, whereas state-machines are inherently semantic.

Thus, the main challenge of our work consisted in ﬁll-

ing the gap between the two worlds of syntax and

semantics, and proving the proposed transformation

correct. We chose to formulate the correctness result

in terms of a notion of observational equivalence be-

tween the SysML source models and the Promela tar-

get models. The interplay between syntax and seman-

tics can be better observed in the context of Lemma 1.

The proof of Lemma 1 shows that both models dis-

play the same observational behaviour by exploiting

the fact that the associated current states are in a one-

to-one correspondence which preserves the naming

convention characteristic to the ﬂattening procedure

encoded within the ATL transformation.

We believe that our approach to proving correct-

ness can be easily adapted for similar ATL trans-

formations into the input languages of other model-

checkers. As future work we consider tackling more

such transformations.

It is beyond the scope of this paper to cover the

entire SysML. In this work, we mainly focused on

devising a methodology for proving semantic correct-

ness of the ATL syntactic transformation. Additional

aspects such as entry/exit behaviours, for instance,

could be handled in a rather straightforward fashion

by simply inserting additional states and transitions

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

370

labelled accordingly within the Promela model. Fur-

ther features of the SysML state-machines, such as

multiple-layer hierarchies, or time events, are left as

future work.

ACKNOWLEDGEMENTS

The work of Georgiana Caltais and Hargurbir Singh

was supported by the DFG project “CRENKAT”,

proj. no. 398056821.

REFERENCES

Amrani, M., Combemale, B., Lucio, L., Selim, G. M. K.,

Dingel, J., Traon, Y. L., Vangheluwe, H., and Cordy,

J. R. (2015). Formal veriﬁcation techniques for

model transformations: A tridimensional classiﬁca-

tion. Journal of Object Technology, 14(3):1:1–43.

Anastasakis, K., Bordbar, B., and Küster, J. (2007). Anal-

ysis of model transformations via alloy. In Baudry,

B., Faivre, A., Ghosh, S., and Pretschner, A., edi-

tors, Proceedings of the workshop on Model-Driven

Engineering, Veriﬁcation and Validation (MoDeVVA

2007), Nashville, TN (USA), volume 5002, pages 47–

56. Springer.

Bengtsson, J., Larsen, K. G., Larsson, F., Pettersson, P., and

Yi, W. (1995). UPPAAL - a tool suite for automatic

veriﬁcation of real-time systems. In Hybrid Systems,

volume 1066 of Lecture Notes in Computer Science,

pages 232–243. Springer.

Büttner, F., Egea, M., Cabot, J., and Gogolla, M. (2012).

Veriﬁcation of ATL transformations using transfor-

mation models and model ﬁnders. In Aoki, T.

and Taguchi, K., editors, Formal Methods and Soft-

ware Engineering - 14th International Conference on

Formal Engineering Methods, ICFEM 2012, Kyoto,

Japan, November 12-16, 2012. Proceedings, volume

7635 of Lecture Notes in Computer Science, pages

198–213. Springer.

Cimatti, A., Clarke, E. M., Giunchiglia, E., Giunchiglia,

F., Pistore, M., Roveri, M., Sebastiani, R., and Tac-

chella, A. (2002). Nusmv 2: An opensource tool for

symbolic model checking. In CAV, volume 2404 of

Lecture Notes in Computer Science, pages 359–364.

Springer.

Clavel, M., Durán, F., Eker, S., Lincoln, P., Martí-Oliet, N.,

Meseguer, J., and Talcott, C. L. (2003). The Maude

2.0 system. In Nieuwenhuis, R., editor, Rewriting

Techniques and Applications, 14th International Con-

ference, RTA 2003, Valencia, Spain, June 9-11, 2003,

Proceedings, volume 2706 of Lecture Notes in Com-

puter Science, pages 76–87. Springer.

Dyck, J., Giese, H., Lambers, L., Schlesinger, S., and

Glesner, S. (2015). Towards the automatic veriﬁcation

of behavior preservation at the transformation level

for operational model transformations. In Dingel, J.,

Kokaly, S., Lucio, L., Salay, R., and Vangheluwe, H.,

editors, Proceedings of the 4th Workshop on the Anal-

ysis of Model Transformations co-located with the

18th International Conference on Model Driven Engi-

neering Languages and Systems (MODELS 2015), Ot-

tawa, Canada, September 28, 2015., volume 1500 of

CEUR Workshop Proceedings, pages 36–45. CEUR-

WS.org.

Engels, G., Kleppe, A., Rensink, A., Semenyak, M.,

Soltenborn, C., and Wehrheim, H. (2008). From UML

activities to TAAL - towards behaviour-preserving

model transformations. In Schieferdecker, I. and Hart-

man, A., editors, Model Driven Architecture - Foun-

dations and Applications, 4th European Conference,

ECMDA-FA 2008, Berlin, Germany, June 9-13, 2008.

Proceedings, volume 5095 of Lecture Notes in Com-

puter Science, pages 94–109. Springer.

Harel, D. (1987). Statecharts: A visual formalism for com-

plex systems. Sci. Comput. Program., 8(3):231–274.

Holzmann, G. J. (2004). The SPIN Model Checker - primer

and reference manual. Addison-Wesley.

Jackson, D. (2019). Alloy: a language and tool for explor-

ing software designs. Commun. ACM, 62(9):66–76.

Jouault, F., Allilaire, F., Bézivin, J., and Kurtev, I. (2008).

ATL: A model transformation tool. Sci. Comput. Pro-

gram., 72(1-2):31–39.

Kölbl, M., Leue, S., and Singh, H. (2018). From SysML

to Model Checkers via Model Transformation. In

Gallardo, M. and Merino, P., editors, Model Check-

ing Software - 25th International Symposium, SPIN

2018, Malaga, Spain, June 20-22, 2018, Proceedings,

volume 10869 of Lecture Notes in Computer Science,

pages 255–274. Springer.

Kwiatkowska, M. Z., Norman, G., and Parker, D. (2004).

Probabilistic symbolic model checking with PRISM:

a hybrid approach. STTT, 6(2):128–142.

Lano, K., Clark, T., and Rahimi, S. K. (2015). A frame-

work for model transformation veriﬁcation. Formal

Asp. Comput., 27(1):193–235.

Latella, D., Majzik, I., and Massink, M. (1999). Automatic

veriﬁcation of a behavioural subset of UML statechart

diagrams using the SPIN model-checker. Formal Asp.

Comput., 11(6):637–664.

Liu, S., Liu, Y., André, É., Choppy, C., Sun, J., Wadhwa,

B., and Dong, J. S. (2013). A formal semantics for

complete UML state machines with communications.

In Johnsen, E. B. and Petre, L., editors, Integrated

Formal Methods, 10th International Conference, IFM

2013, Turku, Finland, June 10-14, 2013. Proceedings,

volume 7940 of Lecture Notes in Computer Science,

pages 331–346. Springer.

Mikk, E., Lakhnech, Y., Siegel, M., and Holzmann,

G. J. (1998). Implementing statecharts in PROME-

LA/SPIN. In 2nd Workshop on Industrial-Strength

Formal Speciﬁcation Techniques (WIFT ’98), Octo-

ber 20-23, 1998, Boca Raton, FL, USA, pages 90–101.

IEEE Computer Society.

Object Management Group (2015). XML

metadata interchange, speciﬁcation 2.5.1.

http://www.omg.org/spec/XMI/.

Object Management Group (2017a). OMG Sys-

tems Modeling Language, Speciﬁcation 1.5.

http://www.omg.org/spec/SysML.

Correctness of an ATL Model Transformation from SysML State Machine Diagrams to Promela

371

Object Management Group (2017b). Uniﬁed

Modelling Language, Speciﬁcation 2.5.1.

http://www.omg.org/spec/UML.

Rensink, A. (2006). Model checking quantiﬁed computa-

tion tree logic. In Baier, C. and Hermanns, H., editors,

CONCUR 2006 - Concurrency Theory, 17th Interna-

tional Conference, CONCUR 2006, Bonn, Germany,

August 27-30, 2006, Proceedings, volume 4137 of

Lecture Notes in Computer Science, pages 110–125.

Springer.

Troya, J. and Vallecillo, A. (2011). A rewriting logic se-

mantics for ATL. Journal of Object Technology, 10:5:

1–29.

Weise, C. (1997). An incremental formal semantics for

PROMELA. In In Proceedings of the Third SPIN

Workshop, SPIN97.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

372
