A Generic Projectional Editor for EMF Models

Johannes Schr

opfer, Thomas Buchmann and Bernhard Westfechtel

Chair of Applied Computer Science I, University of Bayreuth, Universit

atsstrasse 30, 95440 Bayreuth, Germany

Keywords:

Model-driven Development, Projectional Editing, ALF, Java, Ecore, Syntax-directed Editor, Generic Frame-

work.

Abstract:

The Eclipse Modeling Framework (EMF) constitutes a popular ecosystem for model-driven development. In

the technological space of EMF, a wide variety of model-based tools have been developed, including tools

for transforming and editing models. Model editors may display models in different representations such

as diagrams, trees, or tables. Due to the increasing popularity of human-readable textual syntax, there is a

growing demand for textual model editors. In EMF, this demand is currently satisﬁed by syntax-based editors

which persist models as text ﬁles. In contrast, we propose a projectional editor that persists models natively

as EMF models; the textual representation constitutes a projection of the underlying EMF model. Projectional

editing does not only exclude syntactic errors; in addition, maintaining the underlying model persistently

facilitates tool integration. The projectional editor is generic; it may be instantiated for different modeling

languages by declarative deﬁnitions of their concrete syntax. So far, model editors for subsets of Java and

ALF (Action Language for Foundational UML) have been built to demonstrate the feasibility of the generic

approach.

1 INTRODUCTION

The Eclipse Modeling Framework (EMF) (Stein-

berg et al., 2009) constitutes a popular ecosystem

for model-driven development. In the technological

space of EMF, a wide variety of tools for model-

driven development have been implemented. EMF

has established itself as a de facto standard for data

models upon which many technologies and frame-

works are based, including server solutions, persis-

tence frameworks, UI frameworks, and support for

transformations

Model editors which provide tool support for cre-

ating, modifying, analyzing, and displaying mod-

els, constitute key components of environments for

model-driven development. Probably the ﬁrst EMF-

based editor that has been provided is the tree editor

belonging to the EMF core. Since then, a number of

frameworks for building model editors have been de-

veloped for different model representations. For ex-

ample, frameworks such as GMF

and Sirius

(Ma-

diot and Paganelli, 2015) support the development of

https://www.eclipse.org/modeling/emf

https://www.eclipse.org/modeling/gmp/

https://www.eclipse.org/sirius/

diagram editors while EMF Parsley

(Bettini, 2014)

focuses on visualizations as trees, forms, or tables.

While diagrams have been frequently used for

representing models, human-readable textual syntax

has become more and more popular recently. The

term “human-readable” excludes textual representa-

tions such as XML that have been designed for data

exchange. Rather, human-readable syntax for mod-

els resembles the textual syntax of programming lan-

guages. The trend towards human-readable syntax

may be exempliﬁed by recent work on the Action Lan-

guage for Foundational UML (ALF) (OMG, 2017a).

While the UML standard (OMG, 2017b) originally

deﬁned only the abstract syntax of models and their

representation as diagrams, ALF provides a textual

language for both structural and behavioral model-

ing of a subset of UML (Foundational UML or fUML

(OMG, 2018)) that features foundational execution

semantics.

Textual editors may be divided roughly into two

categories. Syntax-based editors (cf. Figure 1) treat

the text as the primary artifact that is stored persis-

tently. A command issued by the user results in the

text being updated. Subsequently, the changes are

propagated to the model – i.e., to the abstract syntax

https://www.eclipse.org/emf-parsley/index.html

Schröpfer, J., Buchmann, T. and Westfechtel, B.

A Gener ic Projectional Editor for EMF Models.

DOI: 10.5220/0008971003810392

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 381-392

ISBN: 978-989-758-400-8; ISSN: 2184-4348

381

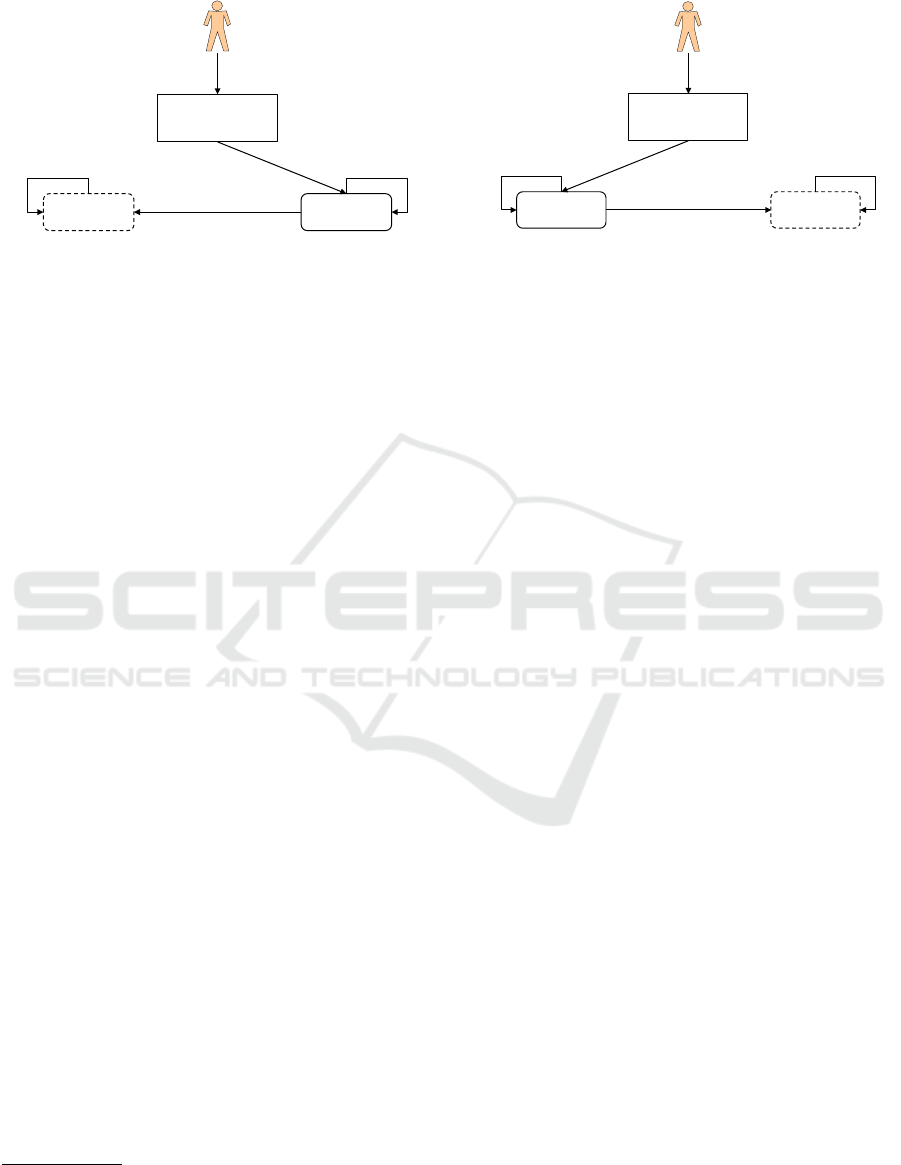

Syntax-Based

Editor

Modeler

(1) Issues Command

TextModel

(3) Propagates Changes

(4) Updates Model (2) Updates Tex t

(Transient) (Persistent)

Figure 1: Syntax-based editing.

tree that is represented by the plain text. The model

is maintained only transiently, during an editing ses-

sion, and is used primarily for incremental syntactic

and semantic analysis.

In the technological space of EMF, among several

tools for building syntax-based editors, e.g., EMF-

Text

(Heidenreich et al., 2011) for textual languages

that can be easily extended and integrated with other

languages, the framework Xtext

(Bettini, 2016) is

the most prominent one. The editors are generated

from a grammar deﬁnition that refers to an underly-

ing metamodel. Grammar rules in Xtext are based

on the Extended Backus-Naur Form (EBNF) (Yue,

2014). Either the starting point is the grammar from

which the metamodel is generated (concrete syntax

ﬁrst) or the grammar is speciﬁed for an existing meta-

model (abstract syntax ﬁrst) which has been built us-

ing any tool in the EMF context (e.g., the Ecore tree

editor). The generated editor artifacts can be aug-

mented with Xtend

classes describing the custom

scoping rules, validation constraints, hovering infor-

mation, highlighting, etc. The (customized) editor

plug-ins for the speciﬁc language may be used by ar-

bitrary EMF-based projects.

Syntax-based editors are ﬂexible since they allow

the modeler to issue arbitrary text-based commands.

For the same reason, they are easy to learn (usually,

the modeler is familiar with the operation of text edi-

tors). On the other hand, they suffer from the follow-

ing shortcomings:

• There is a high risk of syntactic errors since the

modeler may type arbitrary text. This may be

problematic for beginners who are not familiar

with the respective modeling language.

• Tool integration may be hampered by storing

models as text ﬁles. For example, models may

https://marketplace.eclipse.org/content/emftext

https://www.eclipse.org/Xtext/

a Java dialect, see https://www.eclipse.org/xtend/

Projectional

Editor

Modeler

(1) Issues Command

TextModel

(3) Propagates Changes

(2) Updates Model (4) Updates Tex t

(Persistent) (Transient)

Figure 2: Projectional editing.

be related by inter-model links, e.g., traceability

links connecting models at different levels of ab-

straction or links between features and domain

model elements in software product lines. Since

text ﬁles do not provide for reliable identiﬁers of

model elements, inter-model links may be easily

corrupted.

Projectional editors (cf. Figure 2) invert the

syntax-based approach to model editing. Rather than

the text (concrete syntax), the model (abstract syn-

tax) is persisted. In the context of product line engi-

neering, a great importance is attached to projectional

editors, e.g., the PEoPL approach (Behringer et al.,

2017) combines different representations. Commands

issued by the modeler affect the model rather than the

text. After the model has been updated, the changes

are propagated to the text which is updated accord-

ingly in turn. For experienced users, projectional

editors may feel less natural and comfortable than

syntax-based editors (V

olter et al., 2014). On the

other hand, projectional editors solve the problems

mentioned above:

• A projectional editor guarantees syntactic cor-

rectness by offering only commands that per-

form correctness-preserving in-place model trans-

formations. For example, a command for insert-

ing some syntactic unit is allowed only at loca-

tions where this unit is legal and ensures syntactic

correctness of the inserted syntactic unit.

• A projectional editor facilitates tool integration by

providing reliable means for identifying model el-

ements. While line numbers in text ﬁles are sub-

ject to change, elements may be assigned uni-

versally unique identiﬁers (UUIDs) that are im-

mutable.

This paper ﬁlls a gap in the EMF tool landscape by

providing a generic projectional editor for EMF mod-

els that is distinguished by the following key proper-

ties:

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

382

• The projectional editor stores the abstract syntax

of some model as an ordinary EMF model, en-

abling integration with any EMF-based tool for

model transformations, code generation, etc.

• The projectional editor is generic inasmuch as an

EMF model may be instantiated from an arbi-

trary metamodel (deﬁning the abstract syntax of

some modeling language) that provides univer-

sally unique identiﬁers for objects.

• So far, the projectional editor supports textual rep-

resentations. However, its underlying design is

extensible such that support for other representa-

tions (e.g., diagrams) may be added in the future.

• Deviating from Figure 2, representations are per-

sisted, as well – again as EMF models. This

approach allows to persist representation-speciﬁc

information such as layout of text or diagrams

(which may be improved manually by the mod-

eler).

• The editor may be adapted to a speciﬁc modeling

language by providing a declarative syntax deﬁ-

nition which is used to map abstract to concrete

syntax. No programming is required to this end.

Projectional editors are not a new invention.

Rather, they were devised several decades ago

as components of integrated programming environ-

ments; see (Medina-Mora and Feiler, 1981; Haber-

mann and Notkin, 1986; Bahlke and Snelting, 1986;

Ballance et al., 1992; Klint, 1993) for some early ap-

proaches. In this context, they were called syntax-

directed editors. Currently, the Meta Programming

System (MPS)

by JetBrains (Campagne, 2015) con-

stitutes a contemporary framework for developing

projectional editors – not just for text but also for

other representations such as two-dimensional math

notations, tables, or forms. MPS also provides sup-

port for language modularization as well as compo-

sition (Voelter, 2011). In (Ratiu et al., 2017), expe-

riences with teaching MPS in industry are outlined.

Recent research deals with support for incremental

model transformations (Voelter et al., 2019).

While this framework is powerful, it comes with

a proprietary data model. Instead of an open ecosys-

tem, MPS provides a closed language workbench that

requires its users to commit to the MPS data model

and tool set. For deﬁning languages, MPS uses hier-

archies of concepts and their implementations: While

in the world of EMF, the abstract syntax of a language

may be deﬁned by metamodels using arbitrary editors

(e.g., the standard Ecore tree editor but also graphi-

cal editors), in MPS one concept is deﬁned textually

https://www.jetbrains.com/mps/

for each type in a separate ﬁle – similar to deﬁning

Java classes. Furthermore, instead of specifying the

concrete syntax similar to a grammar, each concept

provides an additional text ﬁle to describe the nota-

tion of the respective element. For deﬁning custom

scoping, validation, building a type system, etc. also

a special textual notation is used instead of providing

artifacts in a common general-purpose language.

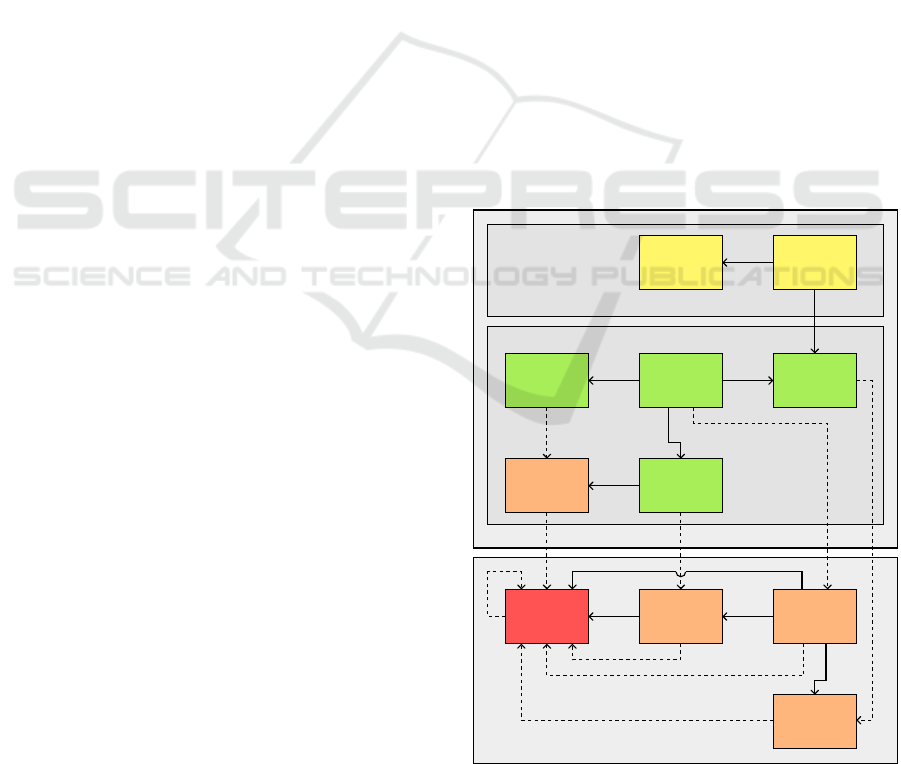

The rest of this paper is structured as follows: Sec-

tion 2 provides an overview of our approach to pro-

jectional editing. Section 3 explains the functionality

and the user interface of the projectional editor by out-

lining an exemplarily editing process within a sample

ALF editor. Section 4 describes its underlying soft-

ware architecture. Section 5 introduces the language

that is used for context-free syntax deﬁnitions while

Section 6 illustrates implementing static semantics by

means of respective extension points. Finally, Sec-

tion 7 concludes by an outlook on current and future

work.

2 APPROACH

As stated above, projectional (syntax-directed) edit-

ing differs signiﬁcantly from syntax-based editing

since the abstract syntax rather than the concrete syn-

tax serves as the primary artifact.

In the current implementation of our framework,

we assume that the abstract syntax, i.e., the meta-

model of the language to be developed, has been

speciﬁed yet in terms of an Ecore model. In order

to be used for arbitrary Ecore models, our frame-

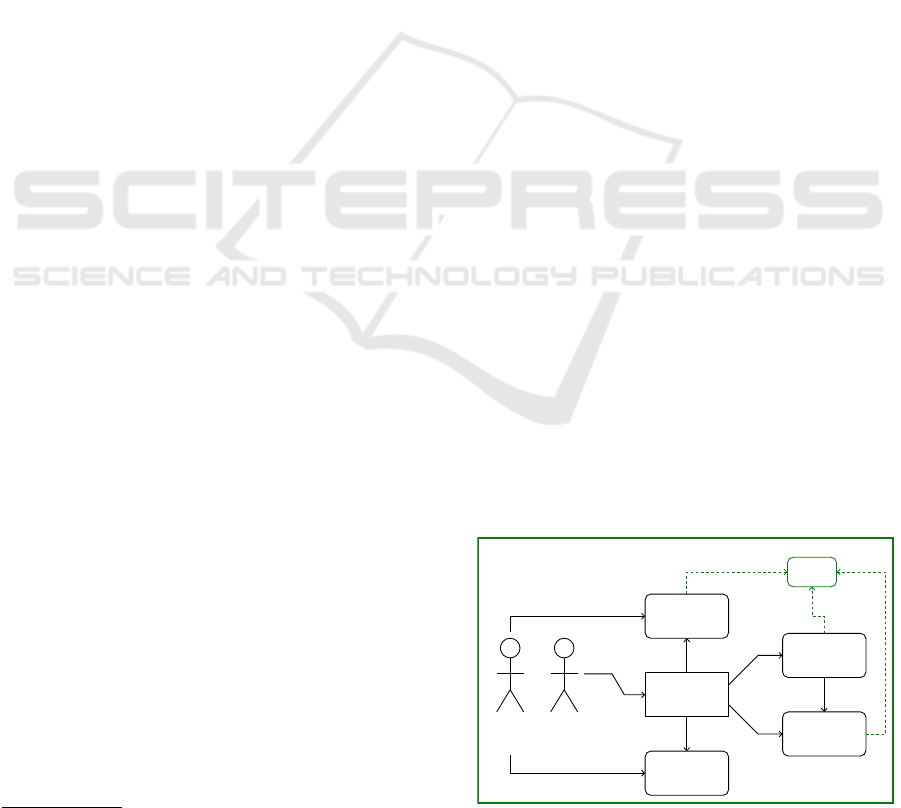

work has to be as generic as possible. Figure 3

depicts an overview of our basic editing approach

within the EMF context. Two different kinds of users

are distinguished: While the DSL Developer deﬁnes

the context-free syntax of the language as well as

the static semantics including scoping rules and type

checking, the Modeler uses the conﬁgured editor for

Context: Eclipse Modeling Framework

Ecore

Syntax

Deﬁnition

Projectional

Editor

Providers

Abstract

Syntax Tree

Representation

Model

DSL

Developer

Modeler

interprets

uses

customizes

speciﬁes

issues

command

modiﬁes

semantics

modiﬁes

layout

propagates

changes

based on

Figure 3: The editing approach of the framework.

A Generic Projectional Editor for EMF Models

383

creating and modifying models.

First, the DSL developer is considered. This actor

deﬁnes the concrete syntax (cf. Section 5) as well as

static semantics (cf. Section 6). From the metamodel

describing the abstract syntax of the language, an in-

complete editor plug-in is generated. It contains one

(initially empty) text ﬁle where the DSL developer

deﬁnes the context-free syntax; to this end, an intu-

itive textual language is used that allows for declara-

tive syntax deﬁnitions. The projectional editor works

with generic commands that are executed by inter-

preting the persisted syntax deﬁnition. In order to

provide further customizations, in particular static se-

mantics, code stubs are generated in which the DSL

developer can override the default behavior, e.g., by

specifying custom scoping rules and validation con-

straints. Our primary design decision was to generate

only the most essential parts (i.e., a minimum number

of lines of code) and to provide the main functional-

ity, especially the edit commands, in global modules.

As a result, the DSL developer is not bothered with a

large number of generated code lines including tech-

nical details concerning the editing commands and the

possible extension points which allow for customiz-

ing the default behavior become clearly visible.

After the context-free syntax and the static seman-

tics have been speciﬁed completely, the modeler uses

the editor (cf. Section 3) in order to alter a persisted,

underlying model while the editor visualizes its repre-

sentation that is also persisted such that view-speciﬁc

information can be stored. After the abstract syntax

tree has been modiﬁed by means of appropriate com-

mands, the changes are propagated to the represen-

tation model. Apart from commands modifying the

abstract syntax tree, several commands are provided

in order to customize the representation (e.g., insert-

ing layout elements) without having any impact on the

abstract syntax tree.

The editing process in projectional editors is based

upon commands which alter the underlying model.

Consequently, free text editing is no longer possible

even for textual representations (editing commands

have to be used instead). However, we strive for an

editing experience which comes close to free text edit-

ing. While our primary focus is a textual representa-

tion of the model, we do not want to limit ourselves to

plain text. Instead the framework is designed in a way

which allows for adding other model representations

(diagrams, tables, etc.) in a later stage.

3 PROJECTIONAL EDITING

This section outlines the functionality of our frame-

work from the modeler’s point of view. After a gen-

eral description, a sample scenario using the frame-

work is demonstrated; the example considers the tex-

tual modeling language ALF for which a projectional

editor is developed.

3.1 General Aspects

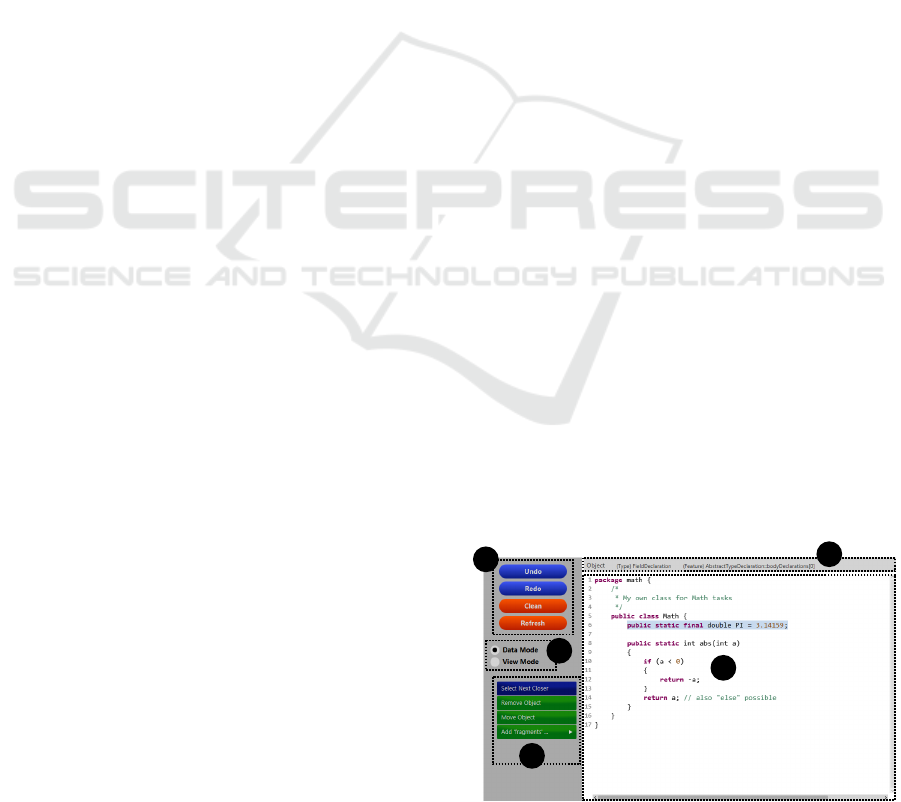

Figure 4 depicts a screenshot of the user interface of

the editor. The major part of the editor constitutes the

main pane (cf. part 1) that presents the representa-

tion of an underlying abstract syntax tree. The editor

provides two modes from which the user may choose

(cf. part 2): the data mode and the view mode. De-

pending on the chosen mode, adequate operations are

provided by means of buttons (cf. part 3) when the

user performs a selection within the main pane. For a

representation element that is selected within the data

mode, summarizing information about the underlying

model element is provided (cf. part 4). Additionally,

some independent operations – e.g., Undo and Redo

– can be invoked (cf. part 5).

The data mode supports commands in the form of

button events (cf. Figure 4, part 3) for editing the

abstract syntax tree. After modifying the underly-

ing model, the changes are propagated to the repre-

sentation model and become visible at the user inter-

face. The list of available commands depends on the

selection performed by the user; besides single cells

representing values, also representation elements of

objects or structural features of them – which con-

sist of several cells that are logically connected – can

be selected. Editing commands comprise setting val-

ues and links, adding and removing objects, as well

as adding and removing optional representation ele-

ments based on (boolean) structural features (e.g., the

keyword abstract is visible if and only if the respec-

Figure 4: The editor user interface and its components.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

384

Figure 5: Exemplary editing workﬂow for an ALF model.

tive attribute isAbstract is set to true). Future work

will deal with extensions and additional keyboard ac-

tions in order to provide a more comfortable look-

and-feel when using the editor. In addition, the view

mode supports commands which affect the represen-

tation only and do not affect the underlying abstract

syntax tree. For instance, in order to modify the lay-

out, space characters, tabulators, and line breaks can

be inserted using keyboard events.

While the commands described above only con-

sider an editing process that is performed completely

within the editor, an independent evolution of the ab-

stract syntax tree outside the editor is also captured.

This facilitates a pretty ﬂexible integration with other

frameworks, e.g., the abstract syntax tree can be the

target of a model transformation. For an incremen-

tal synchronization, a Refresh button is provided (cf.

Figure 4, part 5). This process is also used for generat-

ing an initial representation model for a given abstract

syntax tree; this action can be executed by means of a

right-click operation on the model ﬁle containing the

abstract syntax tree.

3.2 Example Scenario

We demonstrate the functionality of our framework

for the textual modeling language ALF that allows for

specifying models comprising structural as well as be-

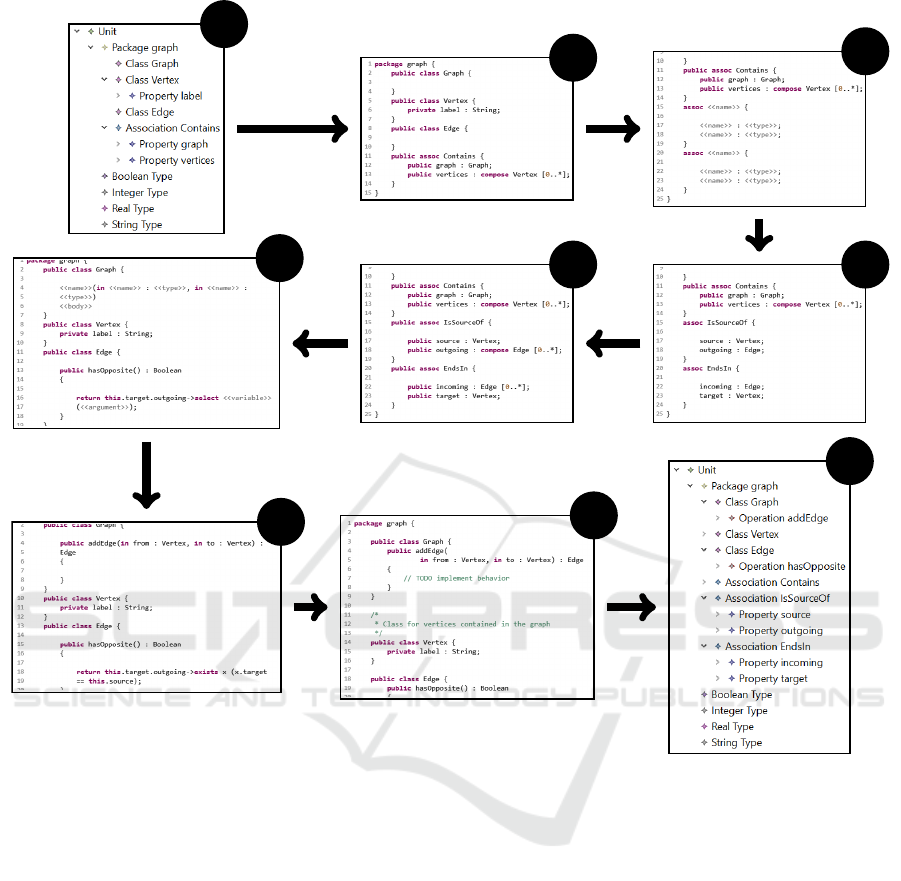

havioral elements. An example workﬂow is shown in

Figure 5. The general case is considered that the mod-

eler starts with an initial abstract syntax tree which

is modiﬁed and extended using the projectional edi-

tor within several subsequent editing steps. The ini-

tial abstract syntax tree (cf. step 1; the model is

shown within the generic EMF model tree editor) has

a package containing several classes and one associ-

ation describing the structure of graphs. This model

could also constitute the result of a model transforma-

A Generic Projectional Editor for EMF Models

385

tion with a UML model (class diagram) as its source

model. Invoking the initial synchronization command

results in creating the representation model for the

given abstract syntax tree (cf. step 2; the model is

displayed now in the projectional editor).

Next, two additional associations containing prop-

erties as their association ends are added. Neither val-

ues nor cross links have been speciﬁed yet (cf. step 3,

gray placeholders represent representation elements

for missing values, links, or child objects). There-

upon, the names of the association and its properties

as well as the missing types are speciﬁed (cf. step 4).

Currently, the objects are still not complete. After in-

voking commands for setting optional elements (e.g.,

visibilities and multiplicities), the missing informa-

tion is added (cf. step 5).

During the next steps, operations are added. First,

the objects are created. The operation hasOpposite()

is also augmented with several values and child ob-

jects (name, return type, parameters, and body); for

its implementation, a SequenceExpansionExpression

instance is used that applies a functional operation to a

collection (cf. step 6). Aside from the behavior of the

operation addEdge(. . . ), the objects are deﬁned com-

pletely (cf. step 7).

Before ﬁnishing the editing process, representa-

tion commands are used in order to customize the lay-

out by means of additional line breaks, whitespaces,

etc. (cf. step 8). The commands modify the represen-

tation model while the underlying abstract syntax tree

is not affected. In addition, some comments are in-

serted. Finally, the changes performed using the pro-

jectional editor are saved which stores the underlying

abstract syntax tree as displayed in the EMF tree edi-

tor (cf. step 9).

4 ARCHITECTURE

This section describes the architecture of the frame-

work. After a brief overview of involved (internal

and external) components and their dependencies, the

foundations of the representation metamodel are pre-

sented. Finally, details about the presentation within

the editor are given.

4.1 Overview

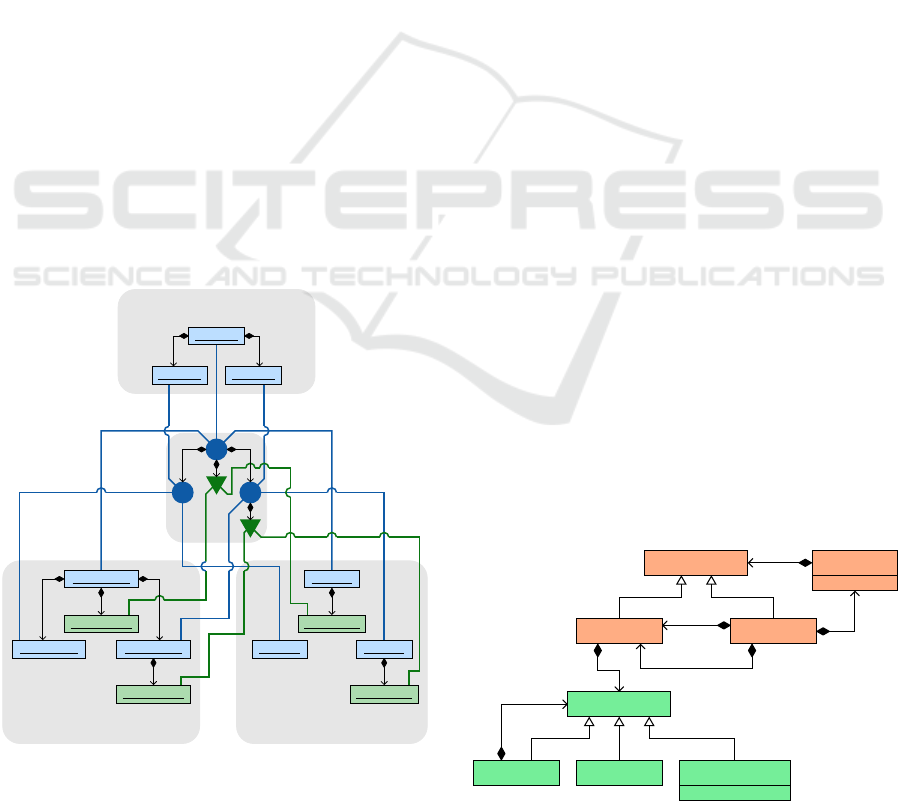

Figure 6 depicts an overview of the models in-

volved in a general editing workﬂow and the rela-

tionships between them. Currently, the framework

works with exactly one model that contains the ab-

stract syntax tree (AST Model). The metamodel of

the AST model (AST Metamodel) may be an arbi-

trary Ecore model; besides the prerequisite that it

constitutes an instance of Ecore using universally

unique identiﬁers (UUIDs) for objects, there are no

further assumptions or restrictions. For a speciﬁc

metamodel, its concrete syntax is stored within the

Syntax Deﬁnition Model (cf. Section 5). The editor

(Editor GUI) shows a representation of the AST model

(Representation Model, cf. Section 4.2). At runtime,

a data structure (Representation/Presentation Map-

ping) stores the traces connecting graphical elements

of the user interface with persisted representation ele-

ments (cf. Section 4.3).

Elements from the abstract syntax tree, the repre-

sentation, and the syntax deﬁnition are connected by

means of a Mapping Model. It persists the traces be-

tween the involved models storing different informa-

tion and therefore serves as the technical background

enabling the functionality of the editor and its com-

mands. The structure of a model system contain-

ing mapping model, abstract syntax tree, representa-

tion model, and syntax deﬁnition model is depicted in

Figure 7. Two kinds of mappings are distinguished:

the object mappings and the feature mappings (where

features refer to structural features). For each object

within the abstract syntax tree (an EObject instance),

Editor

GUI

Representation/

Presentation

Mapping

Representation

Model

Mapping

Model

AST

Model

Syntax

Deﬁnition

Model

AST

Metamodel

Ecore

Syntax

Deﬁnition

Metamodel

Mapping

Metamodel

Representation

Metamodel

runtime artifacts

persisted models

speciﬁc externals

generic (ﬁxed) internals

Figure 6: Overview of the underlying architecture. Solid

arrows visualize dependencies in terms of references while

dashed arrows indicate instanceOf-relationships.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

386

the mapping model contains an object mapping. Each

object mapping provides traces between the AST el-

ement, the respective representation element, and the

underlying pattern within the syntax deﬁnition. Fur-

thermore, elements within the syntax deﬁnitions that

refer to structural features of the considered meta-

model (e.g., the feature reference for the list of param-

eters within the pattern for operations) of the abstract

syntax tree are connected with respective representa-

tion elements by means of feature mappings.

The mapping model contains its elements within

a containment hierarchy corresponding to the objects

within the abstract syntax tree as well as their repre-

sentation objects. If an AST object o

is contained in

the object o

, the representation element r

(that rep-

resents o

) is contained in r

(that represents o

) and

the object mapping m

(that maps o

to r

) is con-

tained in m

(that maps o

to r

). Feature mappings

are contained in the object mappings that refer to the

respective objects within the abstract syntax tree.

4.2 Representation Concepts

The representation metamodel allows for instances

that represent arbitrary abstract syntax trees. Cur-

rently, a purely textual representation is supported.

The metamodel is designed in a way that allows for

extensions with additional forms of representation,

e.g., graphical representation. The concepts refer-

: EObject

: EObject : EObject

: ObjectRepr

: ObjectRepr : ObjectRepr

: FeatureRepr

: Pattern

: Pattern : Pattern

: FeatureRef

Representation Syntax Deﬁnition

Abstract Syntax Tree

Figure 7: The structure of a mapping model containing

mappings for objects (denoted by circles) as well as map-

pings for features (denoted by triangles). Diamond arrows

visualize (direct or transitive) containment relations.

ring to textual representation are inspired by program-

ming languages as Java. The model elements possess

block or line structures: While a for-loop or a switch-

statement in Java constitute block patterns containing

head lines and bodies, assignments or arithmetic ex-

pressions are line patterns.

The simpliﬁed representation metamodel is shown

in Figure 8. A block always contains a body and may

have an optional head line and an optional tail line. A

body has an indentation number and contains a col-

lection of body elements. A body element is either a

block or a line. A line instance constitutes the connec-

tion between block and line structure and describes a

logical line that may comprise several physical lines.

To this end, besides the cells storing the text visible to

the user, a logical line contains line breaks; line breaks

can be generated in order to ensure width bounds of

the surrounding pane. Syntactically linked line ele-

ments can be grouped to fragments.

The representation models contain logical ele-

ments for object representations and feature repre-

sentations. An object representation – which is con-

nected to an AST object and a syntax deﬁnition ele-

ment via a proper element within the mapping model

– is either a block (block structure) or a fragment

(line structure); a feature representation – that is con-

nected to a corresponding syntax deﬁnition element

via a mapping element – is either a body or a frag-

ment. The design principle of logical lines instead

of modeling a container object for each physical line

facilitates modiﬁcations of the representation model

with only a small effort when physical line breaks are

added, removed, or moved, e.g., after cells and frag-

ments have been changed.

4.3 From Representation to

Presentation

The editor user interface visualizes the representation

model using proper JavaFX elements. The Java-based

BodyElement

Line Block

Body

LineElement

Fragment

Cell LineBreak

generated : Boolean

indent : Integer

0..1

tail

0..1

head

elements

body

elements

Figure 8: Kernel of the representation metamodel.

A Generic Projectional Editor for EMF Models

387

framework JavaFX

comes along with a GUI library

for creating desktop and rich web applications. It in-

cludes special components to support an integration

with SWT (Standard Widget Toolkit)

, the graphical

toolkit used for the Eclipse IDE. When the editor is

saved, all model ﬁles involved in the model system

– representation model, mapping model, and the ab-

stract syntax tree – are saved.

The major editor part is the main pane. For per-

formance reasons, only a subset of all representation

elements are mapped to corresponding GUI elements.

Fragments are not mapped to presentation elements at

all. Cells contained in the representation model are

mapped to JavaFX labels. Blocks and their bodies are

mapped to rectangles.

When a GUI element is created for a representa-

tion element, the trace that connects the runtime ele-

ment and the persisted representation object is stored

within a mapping structure. Using this data structure,

the presentation can be modiﬁed incrementally when

the representation model is changed.

4.4 Sample Model System

In this section, the architecture concepts depicted

above are applied to an exemplary cutout of an ALF

model. Figure 9 shows the relevant part of the ALF

metamodel as well as an example abstract syntax tree

and its representation model. The cutout of the meta-

model (cf. Figure 9a) refers to feature access expres-

sions, i.e., references to ALF properties or calls of

ALF operations. In this case, a reference of an ALF

property is considered (cf. Figure 9b); the FeatureAc-

cess object contains a ThisExpression and has an out-

going cross link to a Property instance. The repre-

sentation model (cf. Figure 9c) consists of line ele-

ments only; it contains three cells which are grouped

by means of fragments. For both references expres-

sion and feature, corresponding FeatureFragment ob-

jects are present. For the FeatureAccess and the This-

Expression objects within the abstract syntax tree, the

representation model contains corresponding Object-

Fragment objects.

The abstract syntax tree, the representation ele-

ments, and the elements within the syntax deﬁnition

are connected by mappings. An object mapping con-

nects an object in the abstract syntax tree with the

corresponding pattern in the syntax deﬁnition as well

as the representation element (in this case an Object-

Fragment object) in the representation model. Feature

references within the syntax deﬁnition are connected

with appropriate representation elements (in this case

https://www.eclipse.org/efxclipse/index.html

https://www.eclipse.org/swt/

FeatureAccess

PropertyAccessExpression FeatureInvocationExpression

Expression

Feature

Property Operation

expression

feature

access

target

(a) Cutout of the ALF metamodel.

: FeatureAccess

: ThisExpression

: Property

expression

feature

name = label

(b) The abstract syntax tree as an instance.

this.label

: ObjectFragment

: FeatureFragment : FeatureFragment: ConstantCell

: ConstantCell

: ObjectFragment : CrossLinkCell

elements elements elements

elements elements

elements

constant = .

constant = this

value = label

in abstract syntax.

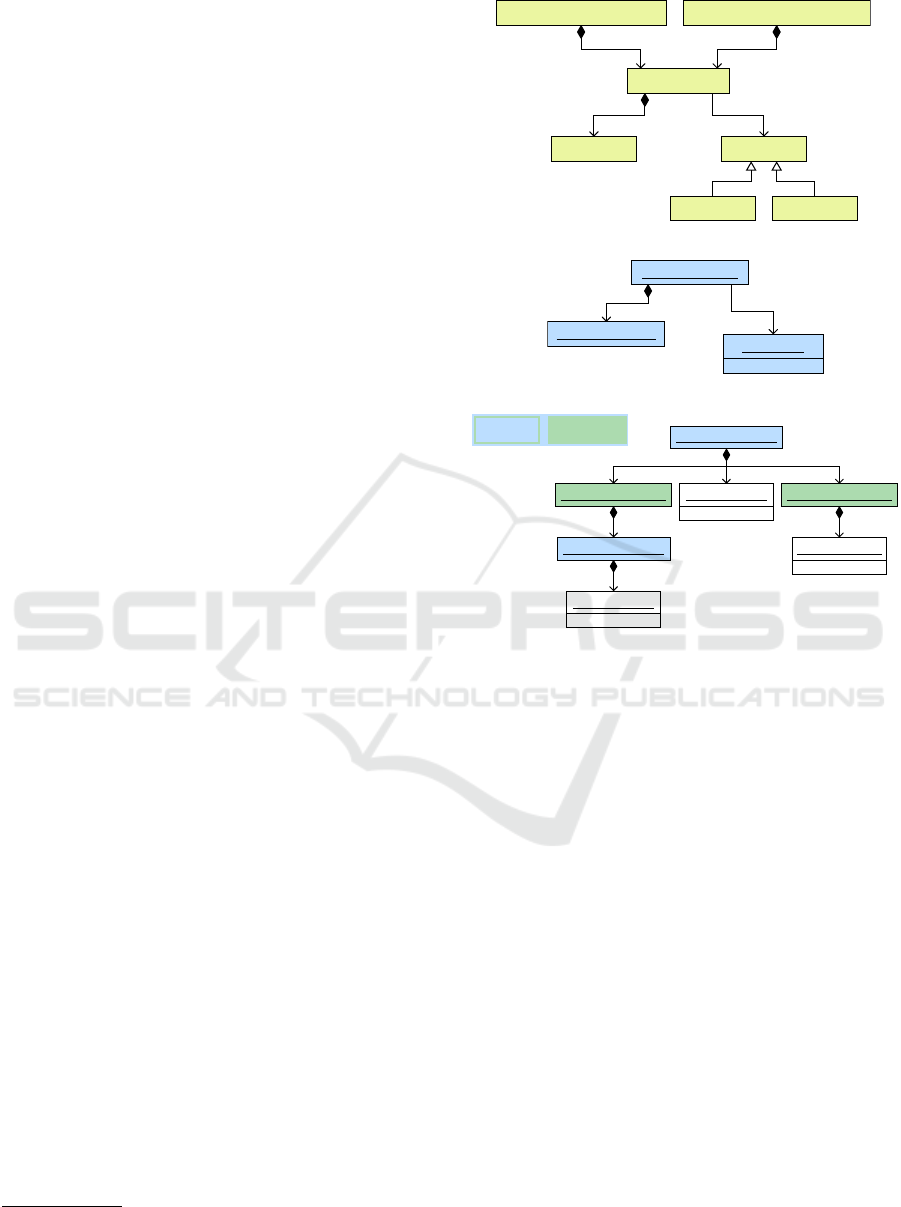

Figure 9: The model system for an exemplary ALF model.

FeatureFragment objects) by feature mappings. The

object hierarchy of the abstract syntax tree is retained;

the object mapping for the ThisExpression is con-

tained in the one for the FeatureAccess instance. The

feature mappings for the references are child elements

of the object mapping for the FeatureAccess object.

The user interface of the projectional editor shows

labels for the cells contained in the representation

model. When the modeler, for instance, changes the

referenced property, i.e., the value label is altered, ﬁrst

the cross link within the abstract syntax tree is mod-

iﬁed, afterwards the cross link cell in the representa-

tion model is adapted, and ﬁnally the corresponding

label of the user interface is changed.

5 CONTEXT-FREE SYNTAX

DEFINITIONS

The context-free mapping from the abstract syntax to

the concrete syntax is performed by means of projec-

tion rules. This section describes the structure and

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

388

feasibilities of the textual metalanguage for the pro-

jection rules as well as the editor for deﬁning them.

The language is exemplarily depicted by syntax deﬁ-

nitions of some ALF elements that are visible in Sec-

tion 3.2, Figure 5 which employ the most important

language features.

5.1 The Syntax Deﬁnition Language

Analogously to the representation concepts (cf. Sec-

tion 4.2), the structure comprises blocks and lines.

The layout of the projection rules does not have any

semantical background. Rather, keywords are used

to describe blocks, bodies, lines, and line elements.

For each non-abstract metaclass, several patterns can

be deﬁned. Each pattern is surrounded by the key-

words def and enddef and is either a block pattern –

containing an optional head directive, a body with a

collection of body elements, and an optional tail di-

rective – or a line pattern – containing a collection of

line elements. Listing 1 depicts a projection rule that

deﬁnes the syntax of ALF classes (Class objects) by

means of a block pattern. It contains a head directive

(cf. lines 2 ff.) as well as a body (cf. lines 7 ff.).

1 def C la ss

2 head [ftr v is ib il i t y Vi si bi l i t y endftr]

3 [ ’ ab st r a c t ’ ? i sA b s t ra ct ]

4 ’ c l as s ’ ftr n am e String endftr

5 [ftr s p e c ia li z at io n seq cross Cl a ss

6 delim ’ , ’ endseq endftr]

7 body ind 4 ftr o w n e dM em be r delim ’{ ’ ’} ’

8 seq

9 M em be r

10 endseq

11 enddef

Listing 1: A projection rule for deﬁning ALF classes.

Patterns contain feature references, i.e., elements

referring to structural features. A feature reference is

either a line element containing further line elements

or a body containing body elements. All structural

features of the class or of a supertype can be addressed

by feature references contained in the patterns with

the restriction that in each pattern, each structural fea-

ture is referenced at most once. The head directive of

the pattern shown in Listing 1 contains aside from the

keyword class feature references for the attributes vis-

ibility (cf. line 2) and name (cf. line 4) as well as the

cross reference specialization (cf. lines 5 f.). All fea-

ture references in the head directive are line elements,

starting with the keyword ftr followed by the name of

the feature and ending with the keyword endftr with

the containing line elements in between.

The feature references for the attributes visibility

and name contain access elements for their values.

While for the string value of the attribute name, the

keyword String is provided (cf. line 4), the feature

reference for the attribute visibility contains a link to

the enumeration deﬁnition Visibility (cf. line 2, con-

tains a link to Listing 3). Cross links (e.g., the links

for the reference specialization) are denoted by the

keyword cross followed by the expected type (in this

case the metaclass Class, cf. line 5). Sequences of

elements (e.g., sequences of referenced superclasses,

cf. lines 5 f.) are represented by the surrounding key-

words seq and endseq with an optional separator ele-

ment between the elements (keyword delim). For op-

tional fragments, square brackets are used – inspired

by EBNF. Since neither a visibility value nor super-

classes are mandatory elements within in the con-

crete syntax, the fragments are optional. Additionally,

the keyword abstract is optional; it is bound to the

boolean attribute isAbstract, i.e., the keyword is set if

and only if the boolean value is set to true, denoted by

the quotation mark followed by the respective boolean

attribute (cf. line 3).

The body (cf. lines 7 ff.) constitutes another fea-

ture reference that refers to the containment reference

ownedMember (keyword ftr) and possesses a speciﬁed

indentation (keyword ind) as well as delimiters (key-

word delim); while for sequences the keyword delim

is followed by the separator (e.g., a comma for sep-

arating ALF parameters), for bodies it introduces the

surrounding characters (e.g., curly brackets surround-

ing class bodies). The body of an ALF Class contains

a collection of members. For containment references,

the feature reference contains access to a pattern or an

alias (cf. line 9, contains a link to the alias deﬁnition

shown in Listing 2).

1 alias M em be r

2 (

3 line P r o p e r t y endline |

4 Op er a t i o n

5 )

6 endalias

Listing 2: An alias for ALF properties and operations.

Members of ALF classes can be Property and Op-

eration objects. In order to bundle the metaclasses,

an alias Member can be deﬁned that is shown in List-

ing 2. In contrast to patterns, aliases are named deﬁni-

tions for parts of patterns – as a kind of variables used

several times – which do not refer to metaclasses.

Disjunctions are denoted by surrounding parenthe-

ses and a delimiting pipe symbol – also inspired by

EBNF. While operations have a block structure, a

A Generic Projectional Editor for EMF Models

389

property has a line structure. Therefore, properties

constitute line elements and not block elements; by

means of surrounding line and endline keywords (cf.

line 3), line elements can be converted into a block

element in order to be compatible to the structure of

the respective context.

While for primitive attributes, the keywords

String, Integer, etc. are provided, for enumerations,

special deﬁnitions are speciﬁed by using the key-

words enum and endenum. Listing 3 depicts the enu-

meration rule for visibilities (referenced by Visibility

in Listing 1). Enumeration literals are identiﬁed by

their literal strings. After all the visible literals are

deﬁned (cf. line 2), an optional blank value can be

added (cf. line 3); blank values are default values for

which no literal is set within the concrete syntax (in

this case, for package visibility, no keyword is pro-

vided by ALF).

1 enum Vis i b i li ty

2 ’ p ub l ic ’ ’ pr iv at e ’ ’ p ro te ct ed ’

3 blank ’ p ac ka ge ’ endenum

Listing 3: An enumeration for ALF visibilities.

The editor commands for mapping the abstract

syntax tree elements to elements of the representation

models interpret the resulting syntax deﬁnition model.

Block and line structures of the projection rules are

mapped to block and line structures of the represen-

tation model. Line elements within the syntax deﬁni-

tion (e.g., keywords and value access elements) are in-

serted in representation lines with separating whites-

paces, by default. In order to prevent a whitespace

at the speciﬁed position (e.g., for ALF multiplici-

ties, the square brackets surround the bounds without

any whitespaces), the keyword nospace is provided.

In the representation model, bodies are contained in

blocks with an indentation that is speciﬁed by the cor-

responding body in the syntax deﬁnition. In order to

add additional empty lines within a body, the keyword

extraline can be used.

5.2 The Syntax Deﬁnition Editor

For specifying the context-free syntax, a textual edi-

tor is provided. So far, for our framework we assume

that the projection rules are ﬁxed and do not change

after they have been deﬁned by the DSL developer.

Currently, the editor is realized with Xtext. When

the rules are speciﬁed completely, a persistent model

is built from the text ﬁle that is used for references

within the architecture of the framework.

Besides comfortable tool support as highlight-

ing, hovering, and code completion, the editor comes

along with a validator that checks for compliance with

several constraints. One signiﬁcant constraint is that

referenced patterns for child objects are compatible to

the context. The type of a referenced pattern within a

feature reference must conform to the type of the fea-

ture reference. Apart from type compatibility, also

structural compatibility must be ensured; an object

with block structure cannot be contained in a line,

for instance. Furthermore, for each metaclass, all pat-

terns must be unique with respect to the names.

For the future, we plan a bootstrapping process

that provides for using our editor for the syntax deﬁni-

tion language in order to avoid dependencies to third-

party frameworks.

6 IMPLEMENTING STATIC

SEMANTICS

This section describes the extension points to our

framework for deﬁning static semantics of the lan-

guages that are implemented by the DSL developers.

When a plug-in is generated for a language, empty

high-level code stubs are generated which can be im-

plemented by the DSL developer. We strive for a very

user-friendly environment which makes customizing

the providers as intuitive as possible. Future work

comprises support for custom validation, code high-

lighting, hovering, etc.

Listing 4 shows a cutout of the scope provider for

ALF as the example language (cf. Section 3.2, Fig-

ure 5). Currently, Xtend stubs, i.e., the head lines of

Xtend classes, are generated; within the class body,

custom scoping rules can be deﬁned by overriding the

related method. For the future, we plan to change

from Xtend to Java stubs to avoid dependencies to

third-party frameworks. The language-speciﬁc class

AlfScopeProvider inherits from the default implemen-

tation DefaultScopeProvider (cf. line 2) that provides

the method getScope(. . . ); it is called when a link

from a context element to a target element – that is

identiﬁed by a speciﬁed value, e.g., its name – is re-

solved. The method provides a parameter for the con-

text element and another one for the reference (cf.

lines 4 f.).

The scope provider refers to the cutout of the ALF

metamodel shown in Figure 9a. In this scenario, the

cross reference FeatureAccess::feature is considered

(cf. lines 7 f.). A FeatureAccess object links to a Fea-

ture instance, i.e., a Property – then the feature access

object is contained in a PropertyAccessExpression

object – or an Operation object – then it is contained

in a FeatureInvocationExpression object. The listing

depicts the case where the context element (a Fea-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

390

tureAccess instance) is directly contained in a Prop-

ertyAccessExpression (cf. lines 11 f.) – i.e., it links

to a Property instance – and a ThisExpression is spec-

iﬁed (cf. lines 13 f.) – i.e., the properties within the

surrounding classiﬁer or a supertype are taken into ac-

count. For simpliﬁcation reasons, no association ends

are considered by this listing (they are not contained

in the member classes). Visibilities are not considered

since respective constraints are usually captured by an

additional validation provider in order to provide ad-

equate error information. The method hierarchy(. . . )

(cf. line 19) returns the inheritance hierarchy built by

the given classiﬁer and its supertypes. The scope is

built hierarchically, in the opposite order of the classi-

ﬁer hierarchy (by using the method reverseView(. . . ),

cf. line 20).

1 class Al fS co p eP ro v id er

2 extends De fa ul t Sc o p e Pr o vi d e r {

4 override g et Sc op e (

5 E O b je ct co nt ex t El em , ERe f e r en ce ref ) {

7 if ( ref = = Al fP a c k ag e . L i t e r a l s

8 :: F EA TU R E_ A CC E S S __ F EA T UR E ) {

9 val fr = c o n t ex tE le m as F ea tu r eA cc es s

11 if ( fr . e Co n t a in er instanceof

12 Pr o pe r ty A cc es s Ex p re s s i on &&

13 fr . e xp r es si on instanceof

14 Th i sE xp r e s si on ) {

15 var s co pe = S co pe :: BO T T O M_ SC O P E

16 val c on tC lz = co nt e x t El em e nt

17 . g e tC on t ai ne r Of T y p e ( Cl a s s if ie r )

19 for ( clz : con tC lz . h ie ra rc hy

20 . r ev e r s eV ie w ) {

21 val EL ist < EO b jec t > pr o p er ti es =

22 clz . ow ne d Me mb er

23 .filter [it instanceof Pr op er ty ]

24 . n ew B as ic E L i st

25 s cop e = S c op e :: c r e a te Sc op e (

26 p ro pe r ti es , s co pe )

27 }

28 return s co pe

29 }

30 }

31 ...

32 }

33 }

Listing 4: A cutout of the scope provider for ALF.

For each classiﬁer in the hierarchy, its contained

properties are added to the scope (cf. lines 21 ff.).

A scope comprises a collection of objects as well as

a reference to another scope (the next scope). This

forms a chain of scopes which provides shadowing

strategies; when a link is resolved, the chain is tra-

versed successively. The end of the chain constitutes

the bottom scope that does not contain any objects

(cf. line 15). Additionally, each scope has an iden-

tifying strategy that describes the mapping between

string values and link target objects. By default, ob-

jects within a scope are identiﬁed by their names. The

method createScope(. . . ) (cf. lines 25 f.) returns a

scope for a speciﬁed collection of objects as well as

the given next scope. In order to provide a customized

identifying strategy – e.g., for primitive types –, an ex-

tended method is available that comes along – besides

parameters for the elements and the next scope – with

a parameter for the identifying strategy (not shown in

the listing).

7 CONCLUSION

In this paper we presented our framework for generic

projectional editors for arbitrary EMF models. In

contrast to syntax-based editors which are derived

from the grammar of a modeling language and which

persist the representation, e.g., text, instead of model

ﬁles, our approach allows for persisting models in-

cluding the preservation of inter-model references.

The main beneﬁt of persisting models instead of their

representations, e.g., plain text, is a much easier in-

tegration in the existing EMF modeling ecosystem as

existing tools and technologies for processing the ob-

tained models can be used out of the box.

In its current state, the framework allows develop-

ing customized textual editors for textual languages

with minimal effort. While the context-free syn-

tax of the language is speciﬁed by means of an in-

tuitive declarative language, static semantics can be

customized by implementing high-level code stubs.

The feasibility of our approach has been demonstrated

by a projectional editor for the textual modeling lan-

guage ALF.

Future work comprises the integration of other

model representations including diagrams and tables

and support for user-speciﬁc validation, code high-

lighting, hovering, etc. Concepts for language im-

ports and compositions will be taken into consider-

ation, as well. Furthermore, we plan to remove de-

pendencies to the Xtext and Xtend implementations.

REFERENCES

Bahlke, R. and Snelting, G. (1986). The PSG system:

From formal language deﬁnitions to interactive pro-

gramming environments. ACM Trans. Program. Lang.

Syst., 8(4):547–576.

A Generic Projectional Editor for EMF Models

391

Ballance, R. A., Graham, S. L., and de Vanter, M. L. V.

(1992). The pan language-based editing system. ACM

Trans. Softw. Eng. Methodol., 1(1):95–127.

Behringer, B., Palz, J., and Berger, T. (2017). Peopl: pro-

jectional editing of product lines. In Uchitel, S., Orso,

A., and Robillard, M. P., editors, Proceedings of the

39th International Conference on Software Engineer-

ing, ICSE 2017, Buenos Aires, Argentina, May 20-28,

2017, pages 563–574. IEEE / ACM.

Bettini, L. (2014). Developing user interfaces with EMF

parsley. In Holzinger, A., Cardoso, J. S., Cordeiro, J.,

van Sinderen, M., and Mellor, S. J., editors, ICSOFT-

PT 2014 - Proceedings of the 9th International Con-

ference on Software Paradigm Trends, Vienna, Aus-

tria, 29-31 August, 2014, pages 58–66. SciTePress.

Bettini, L. (2016). Implementing Domain-Speciﬁc Lan-

guages with Xtext and Xtend. Packt Publishing Ltd.,

Birmingham B3 2PB, UK, second edition.

Campagne, F. (2015). The MPS Language Workbench, vol-

ume I. Fabien Campagne, second edition.

Habermann, A. N. and Notkin, D. (1986). Gandalf: Soft-

ware development environments. IEEE Trans. Soft-

ware Eng., 12(12):1117–1127.

Heidenreich, F., Johannes, J., Karol, S., Seifert, M., and

Wende, C. (2011). Model-based language engineering

with emftext. In (L

ammel et al., 2013), pages 322–

345.

Klint, P. (1993). A meta-environment for generating pro-

gramming environments. ACM Trans. Softw. Eng.

Methodol., 2(2):176–201.

ammel, R., Saraiva, J., and Visser, J., editors (2013). Gen-

erative and Transformational Techniques in Software

Engineering IV, International Summer School, GTTSE

2011, Braga, Portugal, July 3-9, 2011. Revised Pa-

pers, volume 7680 of Lecture Notes in Computer Sci-

ence. Springer.

Madiot, F. and Paganelli, M. (2015). Eclipse sirius demon-

stration. In Kulkarni, V. and Badreddin, O., edi-

tors, Proceedings of the MoDELS 2015 Demo and

Poster Session co-located with ACM/IEEE 18th In-

ternational Conference on Model Driven Engineer-

ing Languages and Systems (MoDELS 2015), Ottawa,

Canada, September 27, 2015., volume 1554 of CEUR

Workshop Proceedings, pages 9–11. CEUR-WS.org.

Medina-Mora, R. and Feiler, P. H. (1981). An incremen-

tal programming environment. IEEE Trans. Software

Eng., 7(5):472–482.

OMG (2017a). Action Language for Foundational UML

(ALF). Object Management Group, Needham, MA,

formal/2017-07-04 edition.

OMG (2017b). Uniﬁed Modeling Language (UML). Object

Management Group, Needham, MA, formal/2017-12-

05 edition.

OMG (2018). Semantics of a Foundational Subset for Ex-

ecutable UML Models (fUML). Object Management

Group, Needham, MA, formal/2018-12-01 edition.

Ratiu, D., Pech, V., and Dummann, K. (2017). Experiences

with teaching MPS in industry: Towards bringing do-

main speciﬁc languages closer to practitioners. In

20th ACM/IEEE International Conference on Model

Driven Engineering Languages and Systems, MOD-

ELS 2017, Austin, TX, USA, September 17-22, 2017,

pages 83–92. IEEE Computer Society.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Boston, MA, 2nd

edition.

Voelter, M. (2011). Language and IDE modularization and

composition with MPS. In (L

ammel et al., 2013),

pages 383–430.

Voelter, M., Birken, K., Lisson, S., and Rimer, A. (2019).

Shadow models: incremental transformations for

MPS. In Nierstrasz, O., Gray, J., and d. S. Oliveira,

B. C., editors, Proceedings of the 12th ACM SIGPLAN

International Conference on Software Language En-

gineering, SLE 2019, Athens, Greece, October 20-22,

2019, pages 61–65. ACM.

olter, M., Siegmund, J., Berger, T., and Kolb, B. (2014).

Towards user-friendly projectional editors. In Combe-

male, B., Pearce, D. J., Barais, O., and Vinju, J. J.,

editors, Software Language Engineering - 7th Inter-

national Conference, SLE 2014, V

aster

as, Sweden,

September 15-16, 2014. Proceedings, volume 8706

of Lecture Notes in Computer Science, pages 41–61.

Springer.

Yue, J. (2014). Transition from EBNF to xtext. In Sauer,

S., Wimmer, M., Genero, M., and Qadeer, S., editors,

Joint Proceedings of MODELS 2014 Poster Session

and the ACM Student Research Competition (SRC)

co-located with the 17th International Conference on

Model Driven Engineering Languages and Systems

(MODELS 2014), Valencia, Spain, September 28 -

October 3, 2014., volume 1258 of CEUR Workshop

Proceedings, pages 75–80. CEUR-WS.org.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

392
