Lost and Found: Predicting Airline Baggage At-risk of Being Mishandled

Herbert van Leeuwen

, Yingqian Zhang

2 a

, Kalliopi Zervanou

2 b

Shantanu Mullick

, Uzay Kaymak

2 c

and Tom de Ruijter

Jheronimus Academy of Data Science, The Netherlands

School of Industrial Engineering, Eindhoven University of Technology, The Netherlands

KLM, The Netherlands

Keywords:

Baggage Transfer Process Model, Baggage At-risk Prediction, Gradient Boosting Machine.

Abstract:

The number of bags mishandled while transferring to a connecting ﬂight is high. Bags at-risk of missing their

connections can be processed faster; however, identifying such bags at-risk is still done by simple business

rules. This work researches a general model of baggage transfer process and proposes a Gradient Boosting

Machine based prediction model for identifying the bags at-risk. Our prediction model is compared to the

current rule based method and a benchmark using logistic regression. The results show that our model offers

an increase in accuracy coupled with a marked increase in precision and recall when identifying bags that are

transferred unsuccessfully.

1 INTRODUCTION

The increase in airline passengers has put pressure

on the aviation industry infrastructure and processes,

especially in baggage management (SITA, 2018),

where a serious problem raised is mishandled bag-

gage, namely checked baggage that is delayed, dam-

aged, pilfered, lost, or stolen (SITA, 2018) and in

particular bags mishandled during connecting ﬂight

transfer. Within this context, applications, such as

digital baggage tracking, not only facilitate baggage

tracing, but also create an opportunity for data-driven

operation support and priority shunting, where bag-

gage with short connection time are processed faster

(SITA, 2018). However, such solutions do not fully

address the problem because the process for transfer-

ring baggage is complex and involves a large degree

of uncertainty stemming from different factors, such

as arrival or departure punctuality of the aircraft, re-

assignment of aircraft aprons, changes in connection

times, availability of resources, customs checks, and

breakdowns of baggage handling systems. As a con-

sequence bags mishandled during the transfer process

account for about 47 percent of all mishandled bag-

gage worldwide (SITA, 2018).

https://orcid.org/0000-0002-5073-0787

https://orcid.org/0000-0001-9036-354X

https://orcid.org/0000-0002-4500-9098

Solutions typically involve ad-hoc interventions in

the baggage transfer process based on an estimation

of whether a bag will miss its connecting ﬂight. This

throws up a major challenge, namely identifying such

bags at risk. For this purpose, digital baggage tracking

data could be used for developing a decision support

system (DSS) to identify bags in the transfer process

that are at risk of an unsuccessful transfer.

In this paper, we develop such a DSS in collab-

oration with an airline operating one of the biggest

transfer hubs in the world, processing approximately

10 million transfer baggage per year with a rate of

mishandled baggage of about 20 bags for every thou-

sand passengers and respective rectiﬁcation costs of

more than 50 million euros a year. Based on Wirth

and Hipp (2000), we create a general model of the

baggage transfer process by systemically gathering

domain knowledge, using a combination of human

expert interviews and process observation. Subse-

quently, based on this process model and related lit-

erature, we extract a set of relevant features for a

machine learning model that predicts whether a bag

will have an unsuccessful transfer before the airplane

lands at the airport. In order to evaluate the im-

provement in the identiﬁcation of unsuccessful bag-

gage transfers, we compare our model with the cur-

rent rule based method of identiﬁcation used by hu-

man experts. In addition, we illustrate the motivation

for our complex model by comparing it with a logis-

172

van Leeuwen, H., Zhang, Y., Zervanou, K., Mullick, S., Kaymak, U. and de Ruijter, T.

Lost and Found: Predicting Airline Baggage At-risk of Being Mishandled.

DOI: 10.5220/0008977801720181

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 172-181

ISBN: 978-989-758-395-7; ISSN: 2184-433X

tic regression model. The results show that our model

offers an increase in accuracy coupled with a marked

increase in precision and recall when identifying bags

that are transferred unsuccessfully.

The contribution of this paper lies in (i) the imple-

mentation of a machine learning technique in a unique

operational setting and assessment of its effectiveness

compared to conventional decision rule methods; (ii)

the development of a general baggage transfer process

model which can be used for the extraction of similar

features from baggage processes at other transfer hubs

facing the same challenge and may eventually allow

for comparative studies and data source acquisition

for the airline baggage management domain.

In the remainder of this paper, we ﬁrst discuss re-

lated work on baggage handling, in Section 2. Then,

in Section 3, we present our formalised transfer bag-

gage model and the features resulting from the analy-

sis of this process and our data set. In Section 4, we

discuss the three models we experimented with in this

work, a model following the current business rules, a

logistic regression model and a Light-GBM model.

We ﬁnally conclude with an overview of our observa-

tions and results.

2 RELATED WORK

Current research reveals that most mishandled bag-

gage results from the transfer process (Alsyouf et al.,

2014; SITA, 2018). Work by Alsyouf et al. (2018)

shows that interventions in staff training, working

hours and conveyor system improvements may reduce

the problem. Despite these insights into causes and

possible improvements, these approaches focus in the

handling system, rather than the transfer baggage pro-

cess and its inherent uncertainty, a gap that our work

is attempting to address.

Beyond transfer baggage, other aspects of the bag-

gage handling system have been researched and im-

proved with innovations, such as new RFID tags (Ara-

bia, 2014), robotic loading of baggage and integrated

baggage handling systems (Faas, 2018), computer vi-

sion applications detecting baggage suitability (Gar-

ret, 2015), and use of autonomous baggage vehi-

cles (Smith, 2017; Vanderlande, 2019). These de-

velopments may improve the baggage handling per-

formance but they are costly and take time to im-

plement, whereas limited research currently exists in

approaches addressing mishandled bags issues using

existing infrastructure and resources. An example of

such an approach is a simulation study by Wuisman

(2016) aimed at identifying a better system feed in

strategy relating to short and long connection bag-

gage. Nevertheless, such approaches do not address

the uncertainty in the transfer process that leads to

mishandled bags.

Also, there has been recent research related to

airport operations management (Atkin et al., 2019).

However, they focus on other areas of airport opera-

tions related to gate assignment (Dijk et al., 2019), air-

craft landing and take-off coordination (Sam

a et al.,

2019), and design of baggage storage systems (Yalcin

et al., 2019). However, these papers do not speak to

the problem we are addressing.

Related research in similar logistics problems,

such as estimation of travel time has been shown to re-

duce transport cost and increase service quality (Lin,

Hong-en, 2005; Wei and Lee, 2007). Furthermore, the

road geometry, i.e., the route, has a signiﬁcant impact

on the travel time (Lin, Hong-en, 2005; Wei et al.,

2003), while in situations with unstable trafﬁc con-

ditions complex prediction models are essential (van

Grol et al., 1999; Tang et al., 2016).

In this paper, we propose a new technique to pre-

dict unsuccessful transfers of baggage with the use

of machine learning that permits us to deal with the

uncertainty inherent in the transfer baggage process.

We borrow from research related to the travel time

prediction that offers us several relevant features and

suggest the use of sophisticated modeling techniques.

Due to the absence of data on travel time of baggage

through the airport, we frame our problem as a classi-

ﬁcation algorithm to predict unsuccessful transfer of

baggage.

3 TRANSFER BAGGAGE

PROCESS AND FEATURE

EXTRACTION

In this section, we ﬁrst develop a formalised gen-

eral transfer baggage process model following the

methodology of Wirth and Hipp (2000) for domain

knowledge elicitation. Subsequently, based on this

process model, we extract the features for our predic-

tion model.

3.1 Transfer Baggage Process

The transfer process consists of two main parts, (i) the

incoming and (ii) the outgoing transfer process.

Figure 1a shows a detailed view of the incom-

ing transfer baggage process. After landing, the air-

plane arrives at the aprons, where aircraft are parked,

(un)loaded, refueled, or boarded. Apron Services

begins unloading the baggage. Then Baggage Ser-

Lost and Found: Predicting Airline Baggage At-risk of Being Mishandled

173

(a)

(b)

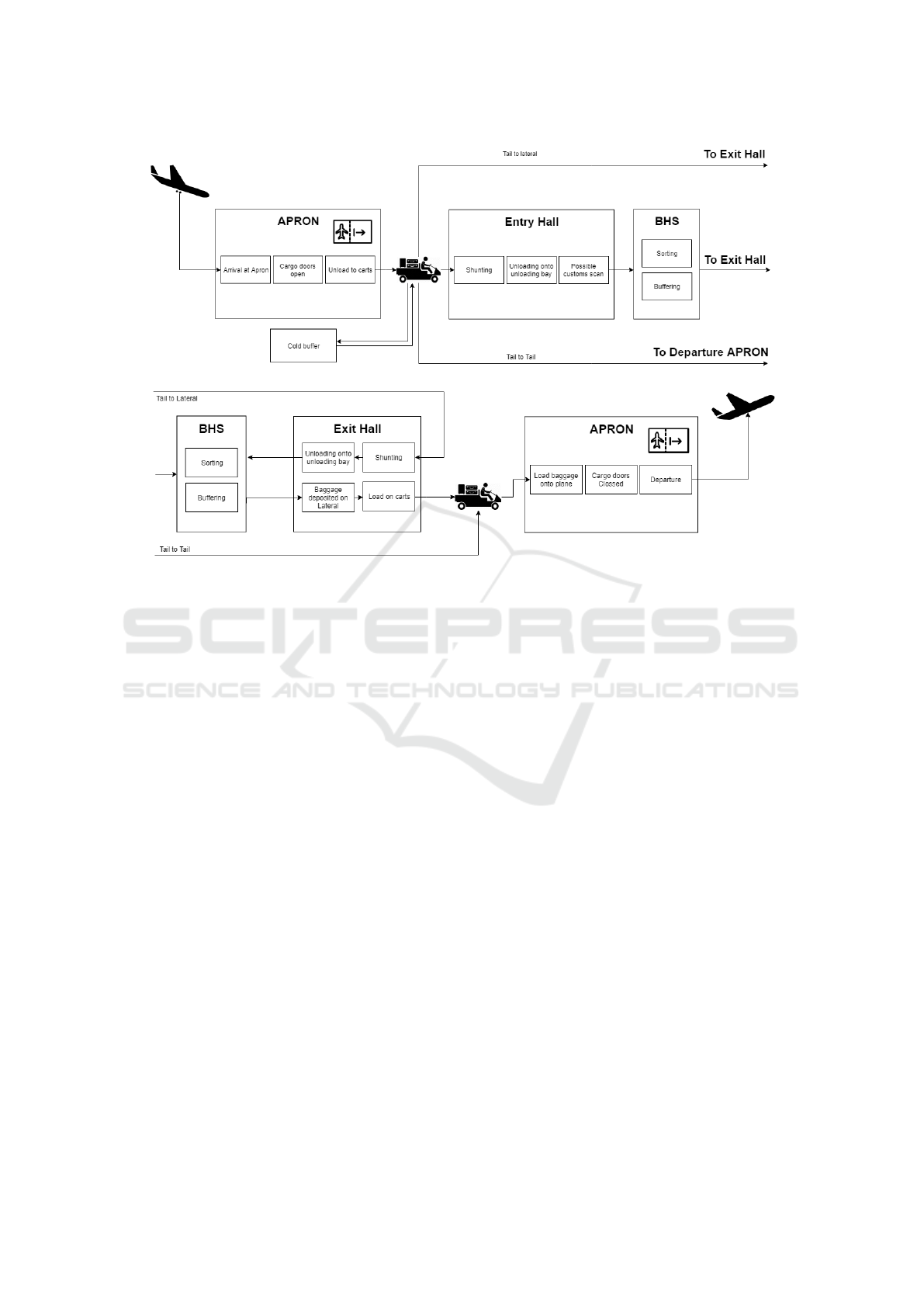

Figure 1: Incoming (a) and outgoing (b) transfer baggage ﬂows.

vices loads the baggage onto separate carts depend-

ing on the airport baggage ﬂow destination. The stan-

dard transfer ﬂow goes from the apron to the entry

hall where baggage is shunt according to priority and

eventually loaded into the baggage handling service

(BHS), which is a conveyor system that sorts, buffers,

and transports the bags to the exit hall where the bag-

gage can be loaded on the aircraft.

Although the physical process starts with the ar-

rival of the plane, the decision process starts thirty

minutes before the plane lands. The baggage ﬂow

controller (BFC) may consider some of the incoming

baggage to be at risk of an unsuccessful transfer based

on business rules. The BFC use their judgement to al-

ter the route of a bag ﬂagged to be at risk.

The baggage route typically consists of the entry

point into the BHS (entry hall and unloading bay), and

the exit point from the BHS (exit hall and lateral, i.e.,

loading conveyor). The BFC may intervene in two

ways to change the baggage route; (i) a tail-to-tail in-

tervention entails that the baggage is directly trans-

ported to the apron of the outgoing ﬂight, whereas

(ii) a tail-to-lateral intervention implies that the BFC

assigns the exit hall as entry hall for such baggage,

thereby reducing the time in the BHS. These inter-

ventions have a ﬁnancial cost attached to them.

Figure 1b illustrates the main baggage ﬂows of the

outgoing transfer baggage process. In the standard

transfer ﬂow, the baggage is transferred from the en-

try hall, to the BHS, to the exit hall and to the apron,

whereas baggage in the tail-to-lateral ﬂow is to be

shunted and unloaded directly in the exit hall instead

of the entry hall, where the BHS sorts and deposits

the baggage on the lateral. The processing time for

baggage following this tail-to-lateral ﬂow is signiﬁ-

cantly shorter. Subsequently, the baggage is loaded

onto carts and transferred to the apron by riders.

3.2 Feature Extraction

For building our prediction model, we collected his-

torical operational data from transfer baggage ser-

vices, spanning a 14 month period, from January 1st,

2018 to March 1st, 2019, where the last two months,

starting January 1st, 2019 are used for testing. The 48

in total identiﬁed features relate to two main aspects,

(i) process level features (ii) bag level features.

3.2.1 Process Level Features

These are features describing the overall state of the

BHS at the moment of handling. For this reason,

the month and hour of the day can be used as prox-

ies for several inﬂuences on the process. The month

and hour of the day are circularly encoded as de-

scribed in (1) and (2), where sin

time

and cos

time

stand

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

174

Table 1: Class distribution in data sets.

Class No. instances Percentage

Training set

Normal bags 8.869.014 96.36%

Mishandled bags 334.789 3.64%

Test set

Normal bags 1.347.516 96.33%

Mishandled bags 44.059 3.17%

for the temporal value that is circularly encoded and

cardinality

time

, stands for the number of time units

we consider, e.g. days for a month unit, or hours for

a day unit. This circular encoding encapsulates the

circularity of time, thus making sure that the value of

December is closer to January than to September and

that the value of 12 am is closer to 1 pm (London,

2016).

sin

time

= sin(

2 ∗ π ∗ x

cardinality

time

) (1)

cos

time

= cos(

2 ∗ π ∗ x

cardinality

time

) (2)

The number of bags being processed by the BHS

at a speciﬁc time impacts the system’s performance.

In addition, Wei and Lee (2007) ﬁnd that trafﬁc data

can predict travel time. Because such data were not

available, we use the number of transfer passengers

and the number of transfer bags as a proxy for trafﬁc

ﬂow. Unfortunately, the data related to the workforce,

e.g., the number of baggage handling personnel at a

given time, could not be reliably extracted from our

data. For this reason, these features could not be used.

3.2.2 Bag Level Features

For every bag, the target label, normal or mishandled

is extracted from the data warehouse. As can be ob-

served in Table 1, the distribution of classes in the

data set is not balanced in both the train and test sets.

During training this class imbalance is dealt with (cf.

Sec.4).

Because data relating to customs checks and the

physical baggage dimensions are not available, we

use the incoming and outgoing outstations as prox-

ies for the type of baggage, the chance of customs

checks, and the load compliance of the outstations.

We also extract the inter-handler feature, namely the

airline code in the ﬂight number.

From the scheduled and actual arrival and depar-

ture times, we extract several features: arrival delay,

scheduled connection time, and connection time ad-

justed for arrival delay. All three of these features are

created by subtracting the relevant timestamps from

each other. For arrival delay, we use the exact time

of delay (available post-hoc) which is not available

at the time when the BFC predicts a baggage may

not make the transfer successfully. However, our data

provider conﬁrms that reasonably accurate estimation

of arrival delay is generally available.

With the extracted connection times and the ﬂight

numbers, the connection type can be determined us-

ing some rules. First, if the scheduled connection time

is less than 90 minutes, the baggage is designated as

short-connection baggage and is given priority dur-

ing shunting and ofﬂoading. Second, based on the

the ﬂight number, the bags are assigned as intercon-

tinental or European connection ﬂights. The process

differs for these two types because most container-

ized baggage is intercontinental baggage. Container-

ization also depends on plane type. For this reason,

we also extract the plane type (wide- or narrow body).

An important subgroup of features related to bag-

gage is its route within the airport, as also indicated

in related research in logistics travel time estimation

problems (Lin, Hong-en, 2005; Wei et al., 2003).

The simplest implementation of route features is

including the aprons and entry and exit halls as cate-

gorical features. However, the number of unique com-

binations of these would be so big that the number

of samples in each combination would be too small

for proper model training. For this reason, continuous

features are preferred, by relating route parts to pro-

cessing times. We identify thus four different route

parts for which we can calculate the processing time

using our data set:

• Time to ofﬂoad baggage into BHS (Ofﬂoading):

The time it takes to unload the baggage from the

plane and load it into the BHS. This time encom-

passes several actions: unloading, driving to the

hall, shunting, waiting, and loading into the BHS.

• Time in BHS (BHS): Time between BHS entry and

exit.

• Time to load baggage into airplane from BHS

(Loading): Time between BHS exit and departure

apron of the plane. This encompasses the load-

ing onto baggage carts, driving to the apron, and

loading into the plane.

• Time to open cargo doors (Cargo doors): The dif-

ference in time between the actual time of bag-

gage arrival and the opening of the airplane cargo

doors.

These processing times are extracted by subtracting

timestamps from each other. The processing times

differ depending on the assigned aprons and halls but

also depending on the time of day.

Combining these processing times should give an

unambiguous indication if a bag has made the trans-

fer. However, in reality, this data includes cases with

Lost and Found: Predicting Airline Baggage At-risk of Being Mishandled

175

negative loading time and cases with very long load-

ing times. In reality, not every bag loaded into the

system will make it in time to the lateral, or might be

wrongly sorted, or the ﬂight might be delayed. Such

outliers in our processing times were ﬁltered out.

Another issue related to these route times arises

from the fact that the moment at which we need

to predict the success of baggage transfer, typically

30 minutes before plane landing, the exact values of

these features are not yet known. For this reason, we

use the route processing times in the training set to

estimate the respective times in the planned route for

the test set (Lin, Hong-en, 2005).

Many factors inﬂuence the route of the baggage

and speed at which baggage services process bag-

gage. For example for the loading time, these factors

are the exit hall, the departure apron, connection type

(i.e., short connection and Europe or intercontinental

ﬂights), and the hour of the day. For this reason, we

calculate an estimate of the processing time for each

unique combination of these factors. For an estima-

tion of a combination to be calculated, the combina-

tion has to occur more than 200 times. Thus, a single

batch of bags from a ﬂight cannot set the estimate for

a combination. This number is based on the maxi-

mum quantity of bags from a single ﬂight in the data

set. If a combination does not meet that threshold,

the median processing time of that process part is im-

puted by the pipeline before modeling. The median is

used rather than the mean because of the outlying val-

ues in the data set, so our estimation is less sensitive

to the lower and higher values still in the data set.

Table 2: Comparison of actual processing times and estima-

tions, Mean of Actual (A), Mean of the estimation (E) and

the mean absolute error (MAE).

Sub process Mean (A) Mean (E) MAE

Ofﬂoading 42.561 35.381 17.899

BHS 53.131 29.170 36.692

Loading 98.148 94.417 33.046

Cargo doors 1.949 1.877 0.946

The estimated processing times are compared to

the actual processing times in Table 2 using the mean

absolute error (MAE). The MAE values are high

when compared to the mean, indicating that this is

a rough estimate. We consider that this is due to our

occurrence threshold which ﬁlters out a lot of extreme

and incidental cases.

In addition, we check the relationships between

the individual features and the mishandled bag la-

bels. For the numerical features, the point biserial

correlation coefﬁcients are used (Tate, 1954). For the

categorical features, we use the crammer’s V that is

a measure of association between two nominal vari-

ables, giving a value between 0 and 1 (Cramer, 1946).

The results are shown in Table 3 and Table 4, respec-

tively. Although logically the features should indicate

the chance of mishandled baggage, the correlations

metrics do not show any particularly predictive fea-

tures, implying that a more complex model is needed

to model the underlying complexities of the process.

Table 3: Categorical feature descriptions with Cramer V.

Feature Cramer V

Connection type 2.60E-01

LegTypeInbound 3.74E-02

OutStationIn 7.72E-02

AircraftTypeIn 5.10E-02

InBodyType 3.83E-02

GateCodeIn 4.98E-02

Entryhall 3.54E-02

LegTypeOutbound 5.58E-02

OutStationOut 8.09E-02

AircraftTypeOut 5.98E-02

OutBodyType 5.54E-02

GateCodeOut 6.22E-02

Exit hall 4.11E-02

Interhandeler clustered 3.25E-02

gate hall entry 8.59E-02

hall combination 6.14E-02

hall gate exit 1.44E-01

weekend 4.30E-04

season 1.06E-02

Holiday 4.88E-03

Night 2.15E-02

4 EXPERIMENTS AND RESULTS

For predicting whether a bag has been unsuccessfully

transferred, we train three models: a business rule

model, a logistic regression model, and a light gra-

dient boosting machine (Light-GBM) model. In this

section, we discuss these models, and compare their

prediction results.

We ﬁrst prepare all features using a pipeline,

which treats the various data types differently:

• Numeric features are standardized by removing

the mean and scaling to unit variance.

• Categorical features are encoded according to the

model. For logistic regression we use one-hot

encoding whereas for Light-GBM we use ordi-

nal encoding (encoding strings as integers ranging

from 0 to [the number of unique values - 1]).

• Boolean features do not need to be prepossessed

as all models can handle them.

In order to address the class imbalance in our data

set, as illustrated in Table 1, we implement and com-

pare two sampling techniques: random oversampling

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

176

Table 4: Numerical feature descriptions with point biserial correlation.

Feature Corr P value

Arrival Delay (min) 1.33E-01 < 1E-293

Departure Delay (min) -3.68E-03 6.22E-29

Scheduled connection time (min) -1.08E-01 <1E-293

Adjusted connection time (min) -1.30E-01 <1E-293

Est. Time to cargo doors open (min) 8.25E-02 <1E-293

Est. Ofﬂoading time (min) -3.93E-02 <1E-293

Est. BHS time (min) 8.71E-02 <1E-293

Est. Loading time (min) -1.23E-01 <1E-293

Month of year 9.16E-04 0.005476

Month of year circular (sin) -3.49E-03 3.57E-26

Month of year circular (cos) 9.17E-04 0.005392

Departure Weekday 3.12E-03 2.58E-21

Departure Weekday circular (sin) -2.24E-03 1.1E-11

Departure Weekday circular (cos) -9.25E-03 2.8E-173

Departure Hour of day -4.33E-02 <1E-293

Departure Hour of day circular (sin) 4.60E-02 < 1E-293

Departure Hour of day circular (cos) -1.99E-02 <1E-293

Arrival Weekday 3.12E-03 3.31E-21

Arrival Weekday circular (sin) -2.15E-03 6.97E-11

Arrival Weekday circular (cos) -9.28E-03 2.6E-174

Arrival Hour of day 2.16E-02 0

Arrival Hour of day circular (sin) -1.08E-02 3.1E-235

Arrival Hour of day circular (cos) -2.45E-02 < 1E-293

Total Pax 3.32E-03 8.06E-24

Transfer Pax 3.50E-03 2.37E-26

Total Bax 6.44E-03 5.18E-85

Transfer Bax 6.45E-03 2.56E-85

and random undersampling. Random oversampling

samples instances from the underrepresented class at

random until both classes are distributed evenly in

the data set, while random undersampling reduces

the over-represented class by removing instances ran-

domly until the classes are balanced. Both of these

sampling techniques have drawbacks. Oversampling

can lead to overﬁtting while undersampling can lead

to information loss (He and Garcia, 2009).

We evaluate the models using Overall Accuracy

metric, Recall of the class of unsuccessfully trans-

ferred bags, Precision of the class of unsuccessfully

transferred bags, and F1 score (i.e. the weighted har-

monic average of both recall and precision). These

metrics were deemed appropriate for our use case,

because it is essential to correctly identify as many

mishandled bags as possible without overgenerating

baggage at-risk predictions (Nguyen and Armitage,

2008; Fawcett, 2006). The model’s scores are op-

timized, by adjusting the classiﬁcation threshold for

assigning a bag to the class of unsuccessfully trans-

ferred bags, to maximize the F1 score on the training

set. We also compare the models by inspecting the

distribution of predicted probabilities. The prediction

distribution of a proper classiﬁcation model would be

a concave histogram with a peak on the left-hand side

indicating many predictions on the class of success-

fully transferred bags and a much smaller peak on the

right-hand side representing a small number of un-

successfully transferred bags. In addition, one would

expect, a low “valley” between the peaks to indicate a

limited number of ambiguous predictions.

4.1 Business Rule Model

The business rule model formalizes the current hu-

man experts method of identifying baggage at-risk.

The current method identiﬁes these bags by applying

a set of rules based on the connection time between

the incoming and outgoing ﬂight. Our business rule

model simulates the method of the BFCs by applying

their rules on the data. All transfer bags with a sched-

uled connection time of fewer than 55 minutes are im-

mediately assigned to a tail-to-tail intervention. Fur-

thermore, the BFC compares the adjusted connection

time with expected baggage processing times. How-

ever, currently the baggage processing time expecta-

tion differs per BFC.

The results of the rule-based model described in

Algorithm 1 are illustrated in Table 5. These show

that F1 score is just above 40% in both the test and

train sets. The performance of the business rule-based

model is good, considering its simplicity. However,

the number of false positives for the mishandled bag-

gage class is high, as also illustrated in the confusion

matrix depicted in Table 6, thus indicating that the

BFC examines more baggage than necessary.

Lost and Found: Predicting Airline Baggage At-risk of Being Mishandled

177

Algorithm 1: Business rule model.

Data: Data frame containing Bag ID and the

Adjusted connection time

Result: Returns list of probabilities for each

bag of becoming mishandled

initialization;

for each instance do

if Adjusted connection time < 60 then

Assign 100% probability;

else

Assign 0% probability;

end

Return Probabilities;

Table 5: Business rule model results.

Training set

Accuracy Score 0.957039

Recall score 0.436077

Precision score 0.414049

F1 score 0.424778

Test set

Accuracy score 0.960504

Recall score 0.437609

Precision Score 0.389777

F1 score 0.412310

Table 6: Confusion matrix of business rule model on test set

- MB: mishandled baggage.

Predicted Predicted

non-MHB MHB

Actual non-MHB 1294091 20517

Actual MHB 53322 23536

4.2 Logistic Regression

Logistic regression models are popular in different

ﬁelds because of their simplicity, ease of interpreta-

tion, and robustness (Kleinbaum and Klein, 2010).

We use the logistic regression model as a benchmark

for the complexity of the classiﬁcation problem, since

it generally does not perform well for complex multi-

dimensional prediction problems. The logistic regres-

sion model was trained on all available features. We

present here the model trained with the undersampled

data set, because it had the best performance. After

training, the threshold for assigning an instance to the

mishandled baggage class, is optimised using the F1

score. The ﬁnal results, with the optimal threshold

0.75, are illustrated in Table 7. The logistic regression

model performs worse than the business rule model in

both precision and recall. Closer examination of the

impact of individual features on predicted probabil-

Table 7: Logistic regression model results (using undersam-

pling & threshold optimised for F1).

Training set

Accuracy Score 0.944211

Recall score 0.403952

Precision score 0.301097

F1 score 0.345022

Test set

Accuracy score 0.956478

Recall score

0.313894

Precision Score 0.313126

F1 score 0.313510

ities in terms of logistic regression coefﬁcient mea-

sure shows that continuous features, such as the ad-

justed connection time, which intuitively would have

the most signiﬁcant impact on the probability of a bag

becoming mishandled has a low impact on the predic-

tion result, while categorical features with limited al-

ternative values have a more signiﬁcant coefﬁcient.

Given that the business rule model performs better

merely using the adjusted connection time, more fea-

tures logically adding information about the process

should have performed better. However, these results

indicate that logistic regression does not properly in-

corporate these features. For this reason, these results

indicate a need for a model that may capture the un-

derlying process of baggage transfer.

4.3 Light-GBM

Light-GBM is an improvement upon the Gradient

Boosting Decision Tree (GBDT), which provides

state-of-the-art performances for categorical predic-

tions (Friedman, 2001), and thus appropriate for pre-

dicting unsuccessfully transferred baggage. How-

ever, implementing GBDT with big data can be time-

consuming, and for our decision support system we

needed (i) a fast, easy to implement model for com-

plex interactions between variables describing the

process, and (ii) a model compatible with the exist-

ing software infrastructure of our data provider. For

this reason, we adopted the Light-GBM method pro-

posed by Ke et al. (2017), and used its Scikit-learn

implementation in Python.

To further optimize the performance of the model

we used the random-search algorithm. Bergstra and

Bengio (2012) showed randomized search to be more

efﬁcient than grid-search and manual search. In Ta-

ble 8, an overview is provided of the parameters op-

timized to maximize the F1 score. The implemen-

tation of random-search used also incorporates strat-

iﬁed k-fold validation to prevent overﬁtting. Only

three folds are used to minimize the computational

power needed.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

178

Figure 2: Prediction and recall over threshold; Prediction distribution for Light-GBM.

Table 8: Hyperparameters tuned in the Light-GBM models

(Microsoft Corporation, 2019).

Parameter Values

Number of estimators Range from 100 - 500

Number of leaves Range from 6 - 50

Min child samples Range from 100 - 500

Min child weight 1e-5, 1e-3, 1e-2, 1e-1,

1, 1e1, 1e2, 1e3, 1e4

Learning Rate 0.01, 0.1, 0.2, 0.3, 0.4, 1

Regularisation alpha 0, 1e-1, 1, 2, 5, 7,

10, 50, 100

Regularisation lambda 0, 1e-1, 1, 5,

10, 20, 50, 100

Table 9: Results for Light-GBM model (using oversampling

& optimal hyperparameters).

Training set

Accuracy Score 0.967760

Recall score 0.540973

Precision score 0.558704

F1 score 0.549696

Test set

Accuracy score 0.969334

Recall score 0.520351

Precision Score 0.515540

F1 score 0.517934

The model presented here is the Light-GBM

model with oversampled training set because it had

the highest performance of the random-searched

models. We train the Light-GBM model on all avail-

able features; then the threshold is optimized for F1

score and set to 0.9. The evaluation results are illus-

trated in Table 11. The Light-GBM model scores are

higher in every aspect compared to both the business

rule model and the logistic regression model. The

higher scores on the training set do imply some over-

ﬁtting on the training set. Despite this slight over-

ﬁtting, the F1 score of 52% is the highest for this

model. Both recall and precision scores are above

50%. Thus the model identiﬁes more mishandled

bags while misidentifying less than the other models.

The confusion matrix for the test set in Table 10 leads

to the same conclusion.

Table 10: Confusion matrix for Light-GBM with optimized

threshold of 0.9 - MB: mishandled baggage.

Predicted Predicted

non-MHB MHB

Actual non-MHB 1326608 20805

Actual MHB 21351 22702

The prediction distribution in Figure 2 has the ex-

pected concave shape with a high peak on the left,

indicating many predictions with a low probability of

becoming mishandled and a small peak on the right

for the identiﬁed mishandled bags. This discrepancy

in peak sizes is expected because of the imbalanced

nature of the problem.

We investigate the feature importance in terms of

information gain. The top 10 features are: Adjusted

connection time, Scheduled connection time, OutSta-

tionOut, Hall-gate exit, ArriveDelay, OutStationIn,

estimated ofﬂoadingtime, estimated loadingtime,

gate hall entry, and hall combination. The adjusted

connection time is the main feature in terms of infor-

mation gain. This is expected due to the business rule

model. Compared to the adjusted connection time,

the other features have relatively little information

gain. However, most of the top 10 features relate

to the route through the airport. Especially the

features relating to the loading and unloading process

have high information gain. These features were

expected to have higher information gain because

they describe the sub-process creating the highest

number of mishandled bags.

Lost and Found: Predicting Airline Baggage At-risk of Being Mishandled

179

Table 11: Results for Light-GBM model (using oversam-

pling & optimal hyperparameters).

Critical instances of test set

Accuracy Score 0.898529

Recall score 0.565709

Precision score 0.506751

F1 score 0.534609

When we compare cases identiﬁed by the Light-

GBM and business rule models, we observe that the

Light-GBM model identiﬁes 91% of the cases iden-

tiﬁed by the business rule model successfully. Fur-

thermore, the Light-GBM classiﬁes 29% more cases

correctly compared to the business rule model while

having a signiﬁcantly higher precision.

4.3.1 Performance on Critical Subgroup

To further analyze the performance of our model, we

evaluate its performance on the critical subgroup of

bags, known as short connection bags, namely bag-

gage with an adjusted connection time between 40-90

minutes.

In this critical subgroup of short connection bag-

gage, the mishandled bags are a larger percentage of

the total bags, namely 13% instead of 3% of bags. As

depicted in the results in Table 11 in this baggage sub-

group, our model performs slightly poorer in compar-

ison with the entire data set. In Figure 3 illustrating

the probability distribution of predictions for this sub-

group it can be observed that the model for this group

is a lot more ambiguous. This ambiguity is to be ex-

pected due to the importance of the adjusted connec-

tion time and because most mishandled bags are real-

ized in this subgroup. Therefore it becomes harder to

distinguish between the two classes and consequently

achieves lower performance scores. Nevertheless, this

model still comfortably outperforms the business rule

model.

Based on these results, we can conclude that the

features extracted using the generalized view of the

baggage process are predictive, especially the fea-

tures relating to the problematic parts of the baggage

process. Furthermore, we can conclude that a com-

plex model will identify more mishandled bags with

higher accuracy than the rule-based identiﬁcation pro-

cess would. It is possible to intervene more precisely

using a machine learning model.

As discussed in Section 3.1, the BFC assesses the

risk of transfer baggage missing its connection un-

til 30 minutes before the plane lands and adjusts the

baggage route accordingly. At this stage, our model

The minimum connection time served by transfer bag-

gage services is 40 minutes.

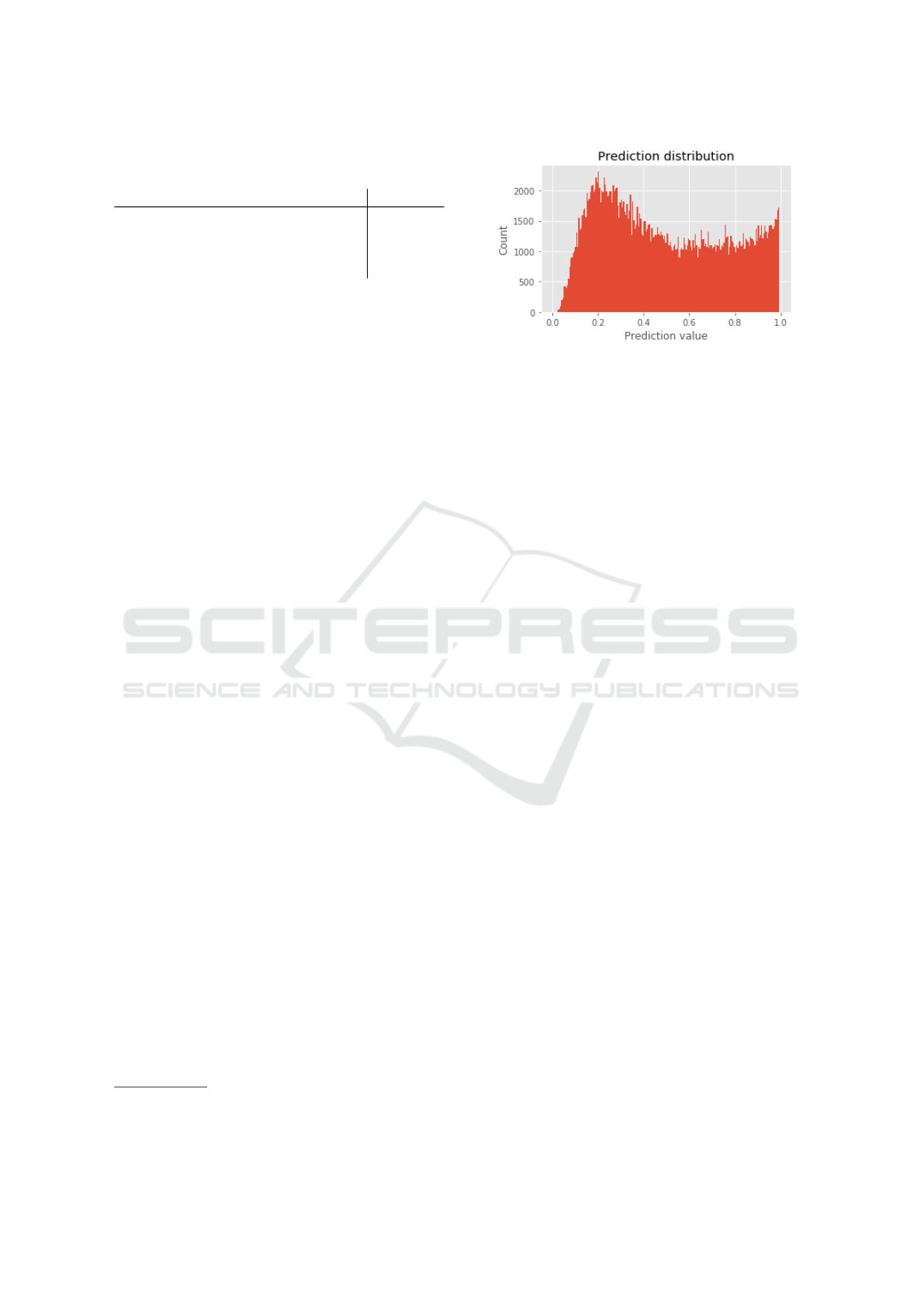

Figure 3: Probability distribution of predictions on critical

subgroup.

can be implemented to supply the BFC with a prob-

ability of a non-successful baggage transfer. Our

model’s improved recall and precision in the iden-

tiﬁcation of baggage at-risk, may assist the human

expert, the BFC in making more focused route in-

terventions. Moreover, as opposed to human expert

judgments, computer models are generally more con-

sistent in applying weights (Karelaia and Hogarth,

2008). Thus, baggage with a high probability of be-

coming mishandled would be more consistently con-

sidered for intervention and the intervention associ-

ated costs also reduced. At a later stage such interven-

tions could be automated and incorporate the transfer

baggage risk estimations and associated costs in rela-

tion to changes in the ﬂight schedule.

5 CONCLUSION

We have shown that it is possible to improve the

identiﬁcation of bags that are at risk of not mak-

ing their transfer connection using machine learning

techniques. The proposed Light-GBM model per-

forms better than the current identiﬁcation business

rule based method in both precision and recall. The

results demonstrate how the current machine learn-

ing models can be used to increase the effectiveness

of baggage ﬂow coordination by acting more targeted

due to better and more precise identiﬁcation.

We discuss some areas of future work. A more

ﬁne grained analysis of the baggage transfer process

can be done by including more complex features re-

lated to the route and processing time in the model.

In addition, some airports may also capture some in-

formation related to the baggage transfer process as

short unstructured texts. In such cases, recent NLP

methods, e.g. (Paalman et al., 2019), can be used to

extract information from these texts, which can sub-

sequently be incorporated as additional features in the

model.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

180

REFERENCES

Alsyouf, I., Humaid, F., and Al Kamali, S. (2014). Mishan-

dled baggage problem: Causes and improvement sug-

gestions. In Industrial Engineering and Engineering

Management (IEEM), 2014 IEEE International Con-

ference on, pages 154–158. IEEE.

Alsyouf, I., Kumar, U., Al-Ashi, L., and Al-Hammadi, M.

(2018). Improving baggage ﬂow in the baggage han-

dling system at a UAE-based airline using lean Six

Sigma tools. Quality Engineering, 30(3):432–452.

Arabia, T. (2014). Lost luggage is history. Travel & Tourism

News Middle East, pages 1–2.

Atkin, J., Hoogeveen, H., and Stolletz, R. (2019). Airport

operations management. OR Spectrum, 41(3):613–

614.

Bergstra, J. and Bengio, Y. (2012). Random search for

hyper-parameter optimization. Journal of Machine

Learning Research, 13:281–305.

Cramer, H. (1946). Mathematical methods of statics.

Princeton Mathematical Series, University Princeton,

Princeton.

Dijk, B., Santos, B. F., and Pita, J. P. (2019). The recov-

erable robust stand allocation problem: a gru airport

case study. OR Spectrum, 41(3):615–639.

Faas, R. (2018). Case Study 70 MB: Amsterdam Airport

Schiphol. Technical report.

Fawcett, T. (2006). An introduction to ROC analysis. Pat-

tern Recognition Letters, 27(8):861–874.

Friedman, J. H. (2001). Greedy function approximation: A

gradient boosting machine. The Annals of Statistics,

29(5):1189–1232.

Garret, R. L. (2015). Baggage-scanning system minimizes

lost luggage. SITA Baggage report, 85:80–81.

He, H. and Garcia, E. (2009). Learning from Imbalanced

Data. IEEE Transactions on Knowledge and Data En-

gineering, 21(9):1263–1284.

Karelaia, N. and Hogarth, R. M. (2008). Determinants of

Linear Judgment: A Meta-Analysis of Lens Model

Studies. Psychological Bulletin, 134(3):404–426.

Ke, G., Meng, Q., Finley, T., Wang, T., Chen, W., Ma, W.,

Ye, Q., and Liu, T.-Y. (2017). LightGBM: A highly

efﬁcient gradient boosting decision tree. In Guyon, I.,

Luxburg, U. V., Bengio, S., Wallach, H., Fergus, R.,

Vishwanathan, S., and Garnett, R., editors, Advances

in Neural Information Processing Systems 30, pages

3146–3154. Curran Associates, Inc.

Kleinbaum, D. G. and Klein, M. (2010). Logistic Regres-

sion – A Self-Learning Text. Statistics for Biology and

Health. Springer-Verlag New York.

Lin, Hong-en, A P Taylor, M. Z. R. (2005). A Review

of Travel-Time Prediction in Transport and Logistics.

Proceedings of the Eastern Asia Society for Trans-

portation Studies, 5(March):1433 – 1448.

London, I. (2016). Encoding cyclical continuous features -

24-hour time. https://ianlondon.github.io/.

Microsoft Corporation (2019). Parameters Tuning — Light-

GBM 2.2.4 documentation.

Nguyen, T. T. T. and Armitage, G. (2008). A survey of tech-

niques for internet trafﬁc classiﬁcation using machine

learning. IEEE Communications Surveys & Tutorials,

10(4):56–76.

Paalman, J., Mullick, S., Zervanou, K., and Zhang, Y.

(2019). Term based semantic clusters for very short

text classiﬁcation. In Proceedings of the International

Conference Recent Advances in Natural Language

Processing 2019. Association for Computational Lin-

guistics (ACL).

Sam

a, M., D’Ariano, A., Palagachev, K., and Gerdts, M.

(2019). Integration methods for aircraft scheduling

and trajectory optimization at a busy terminal ma-

noeuvring area. OR Spectrum, 41(3):641–681.

SITA (2018). Air Transport Industry Insights - The Baggage

report. Technical report, Soci

e Internationale de

ecommunications A

eronautiques, Heathrowstraat

10, 1043 CH Amsterdam Netherlands.

Smith, J. (2017). GSE Technology Continues to Evolve.

Aviationpros.

Tang, J., Zou, Y., Ash, J., Zhang, S., Liu, F., and Wang,

Y. (2016). Travel time estimation using freeway point

detector data based on evolving fuzzy neural inference

system. PLoS ONE, 11(2).

Tate, R. F. (1954). Correlation between a discrete and a con-

tinuous variable. point-biserial correlation. The An-

nals of mathematical statistics, 25(3):603–607.

van Grol, R., Lindveld, K., Manfredi, S., and Danech-

Pajouh, M. (1999). DACCORD: On-line travel

time estimation/prediction results. In Proceedings of

Sixth World Congress on Intelligent Transport Systems

(ITS), Toronto, volume 37, pages 14–15.

Vanderlande (2019). FLEET - Vanderlande. Vander-

lande.com.

Wei, C., Lin, S., and Li, Y. (2003). Empirical validation

of freeway bus travel time forecasting. Transportation

Planning Journal, 32:651–679.

Wei, C. H. and Lee, Y. (2007). Development of freeway

travel time forecasting models by integrating different

sources of trafﬁc data. IEEE Transactions on Vehicu-

lar Technology, 56(6 II):3682–3694.

Wirth, R. and Hipp, J. (2000). CRISP-DM: Towards a stan-

dard process model for data mining. In Proceedings of

the 4th international conference on the practical ap-

plications of knowledge discovery and data mining,

pages 29–39. Citeseer.

Wuisman, I. G. (2016). Simulating the performance of the

integral transfer baggage handling process at KLM.

Yalcin, A., Koberstein, A., and Schocke, K.-O. (2019). Mo-

tion and layout planning in a grid-based early baggage

storage system. OR Spectrum, 41(3):683–725.

Lost and Found: Predicting Airline Baggage At-risk of Being Mishandled

181
