Deﬁning Referential Integrity Constraints in Graph-oriented Datastores

Thibaud Masson

, Romain Ravet

, Francisco Javier Bermudez Ruiz

, Souhaila Serbout

Diego Sevilla Ruiz

and Anthony Cleve

NADI Research Institute, PReCISE Research Center, University of Namur, Belgium

ModelUM Research Group, Department of Computer Science and Systems, University of Murcia, Spain

Keywords:

Referential Integrity, NoSQL, Graph-oriented Datastores, Model-driven Engineering, Domain-speciﬁc

Languages.

Abstract:

Nowadays, the volume of data manipulated by our information systems is growing so rapidly that they cannot

be efﬁciently managed and exploited only by means of standard relational data management systems. Hence

the recent emergence of NoSQL datastores as alternative/complementary choices for big data management.

While NoSQL datastores are usually designed with high performance and scalability as primary concerns, this

often comes at a cost of tolerating (temporary) data inconsistencies. This is the case, in particular, for managing

referential integrity in graph-oriented datastores, for which no support currently exists. This paper presents

a MDE-based, tool-supported approach to the deﬁnition and enforcement of referential integrity constraints

(RICs) in graph-oriented NoSQL datastores. This approach relies on a domain-speciﬁc language allowing

users to specify RICs as well as the way they must be managed. This speciﬁcation is then exploited to support

the automated identiﬁcation and correction of RICs violations in a graph-oriented datastore. We illustrate the

application of our approach, currently implemented for Neo4J, through a small experiment.

1 INTRODUCTION

Since the 1970s, Information Systems (IS)

have widely been dependent on relational

databases (Wiederhold, 1992). Nowadays, those

systems are becoming more and more complex due to

the increasingly large amount of data that they need

to manage. The enormous growth of data that the

world is facing has pushed organisations to migrate

to more ﬂexible data storage mechanisms. Therefore,

non-relational (NoSQL) datastores became more

popular due to their scalability, their ﬂexibility

and their ability to easily adapt. NoSQL platforms

typically store data without explicit structure, i.e.,

they are schema-less. This ensures a higher level of

ﬂexibility during the development process (Leavitt,

2010), and this may also lead to better data access

performance (Hendawi et al., 2018). Although in a

relational database, a schema clearly describes the

characteristics (structures and constraints) of the

information stored in the database, it is not the case

for a NoSQL datastore (Jatana et al., )

NoSQL datastores are classiﬁed into four distinct

paradigmatic families: (1) key-value: every data item

Note that we typically use database as the term to refer

to a relational database, while we use datastore to designate

a NoSQL database.

is stored as a key and a value; (2) document-oriented:

links every item with a (possibly) complex data struc-

ture; (3) column store: structures data as columns to

optimise queries; (4) graph-oriented: uses nodes and

relationships to represent data (Nayak et al., 2013).

Graph-oriented datastores are used to represent ref-

erences in a simple way, which would be more dif-

ﬁcult to model in the relational paradigm. Such a

datastore uses nodes, edges and properties to build

a graph representing the data. The data items (en-

tities) are represented by nodes, with properties and

edges. Node properties correspond to attributes and

edges correspond to relationships with other nodes. A

graph-oriented datastore can apply CRUD operations

(create, recovery, update and delete) on top of a graph

data model. This datastore becomes very useful in

cases where tree-like or network-like data structures

have to be manipulated, e.g., when analyzing social

networks. It is no longer necessary to make joins be-

tween primary keys, which simpliﬁes the task.

In contrast with relational databases, non-

relational datastores do not explicitly handle data in-

tegrity constraints, which can prevent users to ex-

ploit them. The present work aims to provide a

Model Driven Engineering (MDE-based) (Brambilla

et al., 2012) approach to handle data integrity in

NoSQL datastores in general, and in particular, to

Masson, T., Ravet, R., Ruiz, F., Serbout, S., Ruiz, D. and Cleve, A.

Deﬁning Referential Integrity Constraints in Graph-oriented Datastores.

DOI: 10.5220/0008991004090416

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 409-416

ISBN: 978-989-758-400-8; ISSN: 2184-4348

409

manage Referential Integrity Constraints (RICs) in

graph-oriented datastores. This approach aims to im-

prove data consistency and therefore data integrity in

graph-oriented datastores.

A Referential Integrity Constraint is a rule that en-

sures that the references and relationships between the

elements of a datastore are correct. In other words,

it prevents users or other applications from impact-

ing negatively the data and the structure within the

Database Management System. The aim is to ensure

consistency within the database when several data en-

tities are in relationship, like a reference between a

Foreign Key of a table and a Primary Key in an-

other table. In this case, a row in the target table can-

not be modiﬁed or deleted without impacting on the

other table(s) referencing it.

MDE uses models to improve software produc-

tivity and some aspects of software quality such as

maintainability and interoperability. The advantage

is that models and metamodels provide a high level

formalism to represent artefacts. Moreover, the deﬁ-

nition of a Domain-Speciﬁc Language (DSL) enables

users to work in the proper (domain) abstraction level.

Metamodelling and Model Transformations are also

MDE techniques for deﬁning and transforming mod-

els meaning concepts from different paradigms and

different abstraction levels.

In this paper we propose an approach to man-

age referential integrity constraints in NoSQL, graph-

oriented datastores. Most of the time, RICs are used

within relational databases but rarely in a NoSQL

context. However, using integrity constraints in non-

relational datastores allows developers to discover

data inconsistencies and to enforce data integrity by

ﬁxing those inconsistencies. Therefore, this paper ex-

plores this possibility as NoSQL datastores become

more and more popular. Our approach makes use of

MDE techniques for supporting the deﬁnition of RICs

and enforcing their validation in a graph-oriented

datastore. The main contributions of this work in-

clude (1) the deﬁnition of a DSL to specify referen-

tial integrity constraints (RICs) in a graph-based data

model along with an editor for the DSL; and (2) a gen-

erative approach that produces a referential integrity

management component from the RICs speciﬁcation.

This component automatically identiﬁes RICs viola-

tions in the graph-based datastores, and applies data

modiﬁcations to reestablish consistency if needed, in

conformance with the RICS speciﬁcation.

This paper is organised as follows: Section 2

describes the background needed for a good under-

standing of our proposal; Section 3 presents our ap-

proach, by describing the DSL, its syntax and seman-

tics. A simple proof-of-concept, illustrative experi-

ment of the DSL is presented in Section 4. Finally, we

give concluding remarks and anticipate future work in

Section 5.

2 BACKGROUND

In this section we will present and describe those con-

cepts required for a better understanding of the solu-

tion. Firstly, we will introduce the concept of RICs

and some work dealing with its inferring and enforc-

ing. Later, a technological background is given, about

graph-oriented datastores and the MDE technologies

used in this work.

2.1 Referential Integrity Constraints

The integrity constraints are used to enforce business

rules by specifying conditions or relationships among

the data. So that any operation that modiﬁes the

database must satisfy the corresponding rules without

the need to perform any checking within the applica-

tion. The term integrity with respect to databases in-

cludes both database structure integrity and semantic

data integrity. Data integrity in the relational context

is managed by primary key, foreign key and unique

constraints. They corresponds well to the integrity

constraints for the non-relational domain and, in addi-

tion, check constraints could also be used to improve

data consistency.

In (Blaha, 2019) a referential integrity is deﬁned

as a protection for the database which makes sure that

the references between the data are valid and undam-

aged. The use of these constraints allows several ben-

eﬁts, such as: improve data quality to preserve refer-

ences, make the development faster, reduce the bugs

amount thanks to better data consistency, enhance the

consistency through applications.

Unlike relational databases, where the same struc-

ture must be maintained for each set of records (rela-

tions or tables), the nodes and relationships in graph

databases do not need to have the same number of at-

tributes. If a value is not known or deﬁned, we are not

required to have this attribute.

2.1.1 Inferring Referential Integrity Constraints

In (Meurice et al., 2014), the authors carried out a de-

tailed analysis of the problems posed by the reengi-

neering of a complex information to support RICs,

where they found that many of the assumptions gen-

erally used in database re-engineering methods do

not apply easily. Therewith, they designed a process

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

410

and implemented tools for detecting RICs in the con-

text of a real-world problem. Also in (Weber et al.,

2014), the authors presented the previous problem in

the context of the metaphor of technical debt, used to

characterise issues derived from software evolution.

The article deals with the problem in the context of

databases, and concretely in the technical debt related

to database schemas, and the absence of explicit ref-

erential constraints (foreign key technical debt).

In (Cleve et al., 2011) the authors use dynamic

program analysis as a basis for reverse engineering

on relational databases. They show several techniques

allowing, in an automate way, to capture the trace of

SQL executions and analyse them by applying sev-

eral heuristics supporting the discovery of referential

constraints (implicit foreign keys).

2.1.2 Enforcing Referential Integrity

Constraints

In (Georgiev, 2013), the authors address several prob-

lems by using foreign keys and some semantic re-

lationships between documents which are lying in

the same collection or in different collections. They

implement a veriﬁcation approach which uses the

MapReduce programming model in document ori-

ented databases.

In (Pokorn

y and Kova

c, 2017), it is presented

the concept of Integrity constraints in graph-oriented

databases. Various kinds of integrity constraints are

developed in the article,including referential integrity

for checking that only existing entities can be refer-

enced, and each entity should have at least one rela-

tionship with an entity of another label to validate a

RIC (foreign key constraint in relational databases).

2.2 Technological Background

Neo4J

is a NoSQL database management system

which uses the approach of graph-oriented datastores.

It allows data to be represented in a graph as nodes

connected by a set of arcs. It presents also Cypher,

a language that allows to perform queries (on term of

nodes and edges) on the datastore and it is composed

of a set of clauses, keywords and expressions. Sev-

eral APIs are provided for executing Cypher. In Java,

there are two the main libraries for managing Cypher

queries: the Java Driver API for Neo4J and JCypher.

The Java Driver API enables developers to manage

the Neo4J graph database directly from the Java code

by writing a Cypher query in a String literal. JCypher

provides also a ﬂuent Java API that allows to concate-

nate methods for each clause of a Cypher query.

https://neo4j.com/

MDE techniques have been useful for developing

solutions based on code-generation (Kelly and Tolva-

nen, 2008). Metamodeling and model transforma-

tions are the most common techniques, along with

the deﬁnition of DSLs. Building a DSL involves the

deﬁnition of its concrete and abstract syntax. Con-

crete Syntax is normally graphical or textual. Xtext

is a framework for building DSLs workbenches using

a textual syntax. When the grammar is deﬁned, its

corresponding Ecore metamodel is generated. Also

a model serializer to create examples beside a parser

and an injector. All these artefacts are provided in

the context of an editor. Acceleo

is a model-to-text

transformation language which is based on the deﬁ-

nition of templates that generate the output code by

querying the model inputs to be transformed.

3 APPLYING REFERENCTIAL

INTEGRITY CONSTRAINTS TO

Neo4J

In this section the proposal of the work is described.

The grammar of the DSL is deﬁned, detailing the

clauses composing the RIC declaration. Later, the

metamodel generated by the grammar is depicted. Fi-

nally, the semantic of the DSL is presented, showing

how the semantic is implemented by using model-to-

text transformations and what are the type of Cypher

queries generated by the transformation, in order to

validate the RICs.

3.1 Proposal

NoSQL datastores lacks of explicitly handle the data

integrity. Thus, we propose in this work a solution

for managing data integrity in NoSQL graph-oriented

datastores by using RICs. The goal of our proposal

is therefore to improve the data consistency and in-

tegrity.

In order to create the support for deﬁning RICs

and applying them on NoSQL datastores, two main

artefacts have been deﬁned and implemented. The

ﬁrst artefact is the Domain Speciﬁc Language (DSL)

for declaring the language intend to deﬁne the RICs

and the connection to the datastore. The second arte-

fact is a Java code generator to produce the code in

order to validate and enforce the declared RICs (pro-

viding thus the semantic of the DSL).

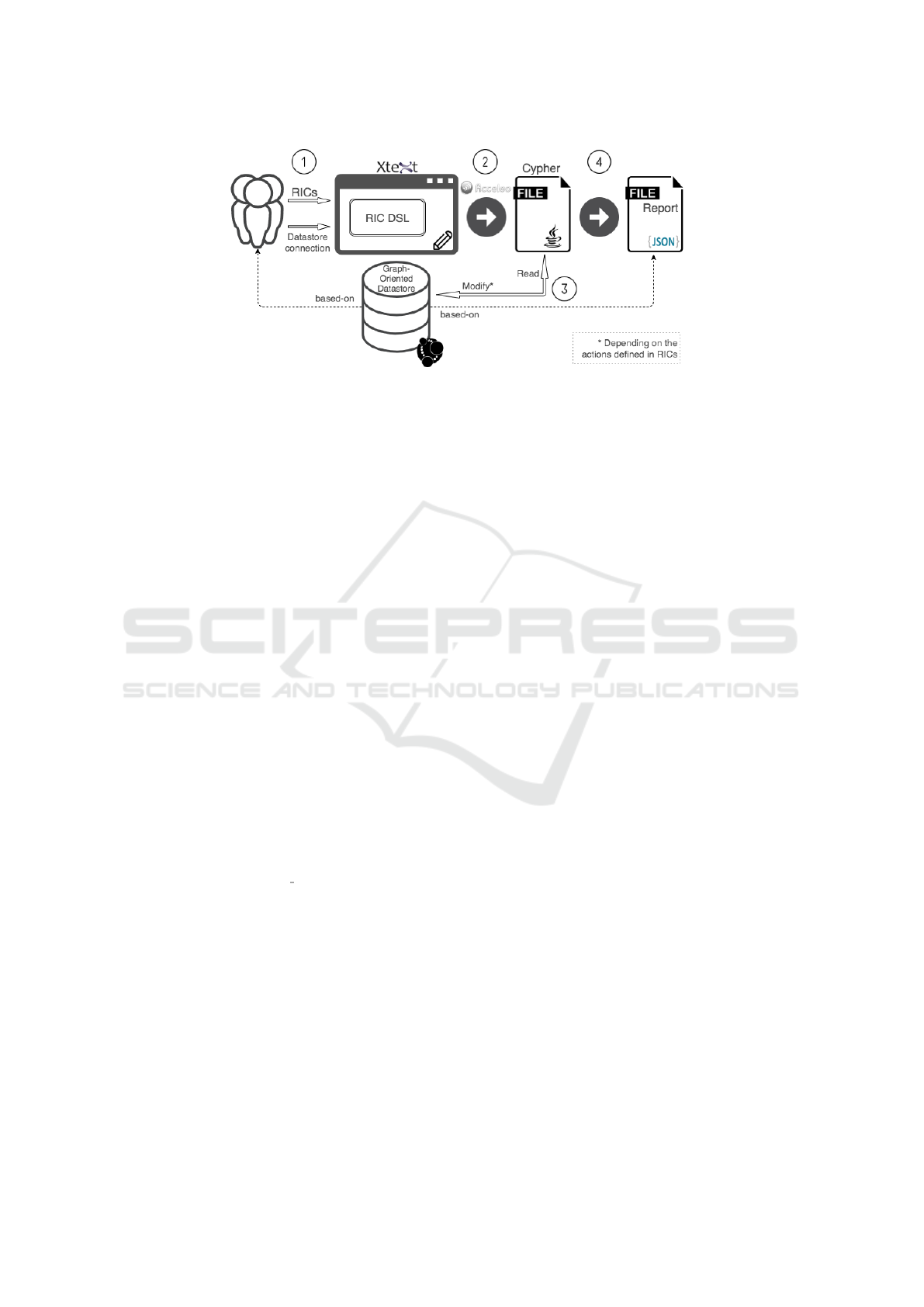

Figure 1 depicts the process that developers have

to execute using our proposal. In the step (1), devel-

opers use the editor provided by the RIC DSL in or-

https://www.eclipse.org/acceleo

Deﬁning Referential Integrity Constraints in Graph-oriented Datastores

411

Figure 1: Schema of the proposal.

der to introduce the datastore connection and mainly

to deﬁne the set of RICs. Developers design the set of

RICs based on the graph-oriented datastore in which

they want to enforce the constraints. The editor has

been made by XText. The grammar of the RICs def-

initions has been designed in order to have an appro-

priate referring metamodel. In the step (2), the editor

is generating automatically the validation code in Java

for checking and enforcing (if required) the RICs on

the datasource. To do this, it is necessary to build

the code in charge of sending the data requests to the

graph-oriented datastore. As the datastore that has

been selected is Neo4J, the queries have been written

in the Cypher language. The execution of the gener-

ated code requires to read the datastore and also mod-

ify it, in case that the actions in the RICs are deﬁned

for updating the datastore (step 3). In addition, a re-

port ﬁle in JSON format is generated for documenting

the results of the RICs checking and enforcing on the

datastore (step 4).

3.2 Grammar of the DSL

In this section the grammar of the DSL is depicted,

starting by deﬁning the main structure and clauses.

Datasource(url=’connection url’,

usr=’user’, pwd=’password’)

RIC ric_identifier1

message: info_message

[ entity1.attributeA -> entity2.attributeB ]

[ entity1 -(tag)-> entity2 ]

in-condition: entity1.attributeA = ’value’

in-fail: [INFO/ADD/DELETE]

RIC ric_identifier2

...

The ﬁrst data that has to be provided is the info

about the database connection, in the Datasource

clause. Then, the set of RICs are listed. Each con-

straint is deﬁned after the token RIC. Firstly, a RIC

identiﬁer is declared. Then the message that will

be shown in case that it would be required to no-

tify the violation of a constraint in the datasource.

Following, the RIC is declared using the appropri-

ate structure of the relationship underlying the con-

straint: a classical one (entity1.attributeA ->

entity2.attributeB) that establishes a reference

between two attributes of two nodes, or one based

on arc tags (entity1 -(tag)-> entity2). Then

an optional condition could be deﬁned after the to-

ken ’in-condition’ for deﬁning an extra-condition to

be applied beside the referential constraint. Finally

(and also optionally), we could indicate the action to

be done in case that a RIC was violated. More details

about all this clauses are provided in the following

subsections.

3.2.1 Structure of a Relationship

As we described before, we have determined in our

language that a RIC can be classiﬁed by two main

types: Classic relationship or Tag relationship.

The Classic relationship is a RIC based on

attributes and is deﬁned with the following syntax:

entity1.attribute1 -> entity2.attribute2.

The goal will be to compare the values of the

attribute of a ﬁrst entity with regards to the values

of the attribute of a second entity. To have a valid

relationship, every value contained in attribute1,

belonging to entity1 has to match to a value of

attribute2, belonging to entity2.

Tag relationship is the reference between two

nodes with an arc whose label will be the Tag.

This type of relationship present the next syntax:

entity1 -(TAG)-> entity2. Every node belong-

ing to entity1 should have at least one arc, with the

TAG name, with an entity2 element.

Afterwards, we can conﬁgure a new type of re-

striction in the relationship for a RIC. A relation-

ship can be also bi-directional, which would mean

that the previous deﬁnition will be applied for both

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

412

ends of the relationship arrow. That is, the relation-

ship will ﬁrst be analyzed from left to right and then

from right to left, as if they were two simple rela-

tionships. Thus, a bi-directional relationship will be

represented by the next syntax (going from the Clas-

sic relationship to the Tag relationship, respectively):

entity1.attribute1 <-> entity2.attribute2

entity1 <-(TAG)-> entity2

3.2.2 Cardinalities

The cardinality deﬁnes the number of occurrences in

one entity/attribute which are associated (in a rela-

tionship) to the number of occurrences in another. It

will be necessary to verify if the value is in the in-

terval specifying the cardinality. In a unidirectional

relationship, a cardinality can be added to the desti-

nation side of the arrow (for example after entity2).

While in bi-directional relationships, cardinalities can

be added to both sides of the relationship at the same

time. It is not mandatory to specify cardinalities but

it can be interesting for consistency reasons. An ex-

ample of their syntax could be entity1.attribute1

-> entity2.attribute2[MIN..MAX]

3.2.3 Actions

Actions are deﬁned in order to improve the consis-

tency of the datasource by enforcing the RICs. The

actions are checking the validity of a RIC, and they

will be performed when a constraint is not accom-

plished, allowing the user to adapt the content of the

database to the constraints deﬁned. We decided to

represent them under four different cases, that will be

explained in this part. It is important to indicate that

this feature will be optional for the user, but also it is

the only way to modify the content of the datastore.

This ﬁrst action is named Add Info and it

will add some information in the dataset. Its

behaviour depends on the relationship type. In

the case of a Classic relationship, an edge

is created when it does not already exist but

the constraint is declared. Being a datastore

with a classical RIC: entityRed.attributeRed ->

entityBlue.attributeBlue. With the action Add

Info, the proposal will add an edge between nodeA

(of entityRed) and nodeC (of entityBlue) only if the

value of attributeRed corresponds to the value of at-

tributeBlue of nodeC meaning that there is a reference

between nodeA and nodeC, but there is no arc on the

graph. For the case of Tag relationship (entityRed

-(TAG)-> entityBlue) a checking is made to know

if there are relationships, deﬁned by edges, between

nodeRed nodes and nodeBlue nodes. If there is any

relationship, the identiﬁer value (in attributeBlue)

of the nodeBlue node is added to the attributeRed

of the nodeRed node.

Summarising, the goal of this action is to keep

consistency between nodes and attributes referenced

by classical and tag relationships, by means of adding

to the nodes the required edges or attribute values, in

order to reﬂect the relationship deﬁned in the RIC.

The purpose of the Delete action will be to delete

an information or a node violating a RIC. Cautions

are needed when this type of actions is used, as it is

always risky to delete data from the database. In the

case of Classic relationship as deﬁned before, each

value of the AttributeRed are taken. We will check if

there is a nodeBlue that have this value in its Attribute-

Blue. If no match exists, the value of the AttributeRed

is removed. For Tag relationships as deﬁned before,

a node of the source entity nodeRed should have at

least one relationship with a node of the target entity

nodeBlue. If there is no relationship, the ﬁrst node

would be deleted. Another kind of deletion of infor-

mation has been found out: Deleting information in

cascade. Even though in the case of classical rela-

tionship it will not change anything, it will require

a special attention for tag relationships. If a source

node is removed, and this one has other relations with

other entities, this action will permit to delete all of its

relative nodes in cascade.

The last action is Info. The idea here is to show

information about a violated RIC. It will return all the

information about the node and entity, and its direct

relationships with other entities.

3.2.4 Condition

The concept of condition here is to act as an extra-

validation for the RIC by checking if the attribute

value in the dataset accomplishes with the written

condition to validate the RIC. Therefore, not only

the classical or tag relationship must be accom-

plished for not violating a RIC, but also the con-

dition declared in the corresponding clause. The

syntax of the condition is described as follow-

ing: entity.attribute {RelationalOperator}

value {LogicalOperator}. Although the expres-

sion declared for a condition could be very complex,

as a simple proof of concept, this work only com-

pares a property with a value using one of these ﬁve

different relational operators: equals (=), greater than

(>), lesser than (<), greater than or equals (>=), lesser

than or equals (<=). A property is the value of an

attribute of a particular entity represented like this:

entity.attribute. The compared value can be either a

String, an Integer or a Boolean. This condition can be

linked to one or a few more thanks to a logical opera-

tor, AND and OR.

Deﬁning Referential Integrity Constraints in Graph-oriented Datastores

413

3.3 RIC Metamodel

Figure 2 represents the Referential integrity constraint

metamodel for the grammar deﬁned in the RICs DSL,

after integrating all the elements discussed in the pre-

vious grammar section. All classes correspond to the

elements of the grammar section, except the RicDSL

class which represents the root element of the meta-

model.

3.4 Semantic of the DSL

The semantic of the RICs DSL has been provided by

means of a model-to-text transformation in charge of

generating the validation code in accordance with the

set of RICs deﬁned. Therefore, a model-to-text trans-

formation translates the RIC declaration in Cypher

queries that will be executed on the speciﬁed NoSQL

datasource. The execution could or not modify the

datasource (depending on the action conﬁgured) and

a JSON ﬁle is reporting the status of the validation of

each RIC.

3.4.1 M2T Transformation

The model-to-text transformation is done using Ac-

celeo. We have considered a hypothesis based on the

next assumption about the structure of the nodes of

the Neo4J datastore, as simple proof of concept: each

node in the dataset is identiﬁed by a property id that is

of type Integer. This attribute will be unique and will

allow us to browse through all the nodes in a sim-

ple and efﬁcient way. The previous hypothesis can

obviously be modiﬁed and adapted later according to

future needs. The transformation implemented in Ac-

celeo is generating the Java ﬁles that implement, in

JCypher and/or Java Driver API for Neo4J, the val-

idating queries. Regarding to the clauses deﬁned in

the RIC grammar, for a constraint we can combine

until three criteria with two possible values each one:

(1) the structure of the relationship deﬁning the RIC

(Classical or Tag), (2) the directionality of the rela-

tionship (unidirectional or bi-directional); and (3) the

use of cardinality (yes or not). Therefore, the model

transformation is generating eight different methods

resulting of combining the previous criteria.

We take as an example, for illustrating our expla-

nations, a Classic relationship without cardinality be-

tween two attributes of different entities. The method

must verify that all the values present in the attribute1

of the ﬁrst node correspond to a value existing in the

attribute2 of one of the nodes of the second entity. In

the algorithm, for each node of the ﬁrst entity whose

identiﬁers will be kept in a list, it is checked that these

values correspond to a value of a node of the second

entity. Nodes that do not meet this condition will have

their identiﬁer added to a list of failed nodes (named

idNodeFail). As shown in the pseudocode below,

in case where this list is not empty, we know that at

least one node has failed, so the RIC will not be val-

idated and we do not need to test the condition, even

if there is one. If this list is empty, it means that each

node is valid, we can then test the condition if there

is any. listCondition is a list containing all subcon-

ditions. If it does not contain any condition, we can

return the previous result of the validation of the RIC.

In the opposite case, we must have to test the condi-

tion(s). If the global condition is valid, the RIC will

be validated, otherwise it will fail. In addition, if an

action had been provided, the action would be tested.

if(!idNodeFail.isEmpty()) {

validRIC=false;

for(int id : idNodeFail){

Map<Str,Obj> attNode = info(firstEnt, id);

nodeFail.add(attNode);

}

} else {

if(!listCondition.isEmpty()){

conditions = checkCondition(listCondition);

for (Entry<Str,Bool> entry : conditions) {

if (entry.getKey().equals("result")) {

validCondition = entry.getValue();

validRIC = validCondition;

break;}}

} else validRIC=true;

}

Finally, for the conditions added to the RICs valida-

tion, only one version of code is sufﬁcient for all the

possible relationships due to the conditions are not de-

pendent on the type of relationship. In order to imple-

ment the condition testing, a hypothesis was made:

the values checked in the condition are single values

(i.e. no arrays or lists), and moreover their type must

be either String, Integer or Boolean.

3.4.2 Generated Results

As result of applying the Cypher Java code for vali-

dating the set of RICS, a JSON ﬁle is reporting the

status of the validation. The important information

that will be found in the result ﬁle is: (1) the validity

of the RIC, (2) information about nodes that do not

comply with the RIC, (3) the action, if there is one,

(4) changes produced by the action on the dataset, (5)

the global condition, if there is one, (6) the validity of

each of the conditions. For the sake of space reasons,

not ﬁgures could be included.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

414

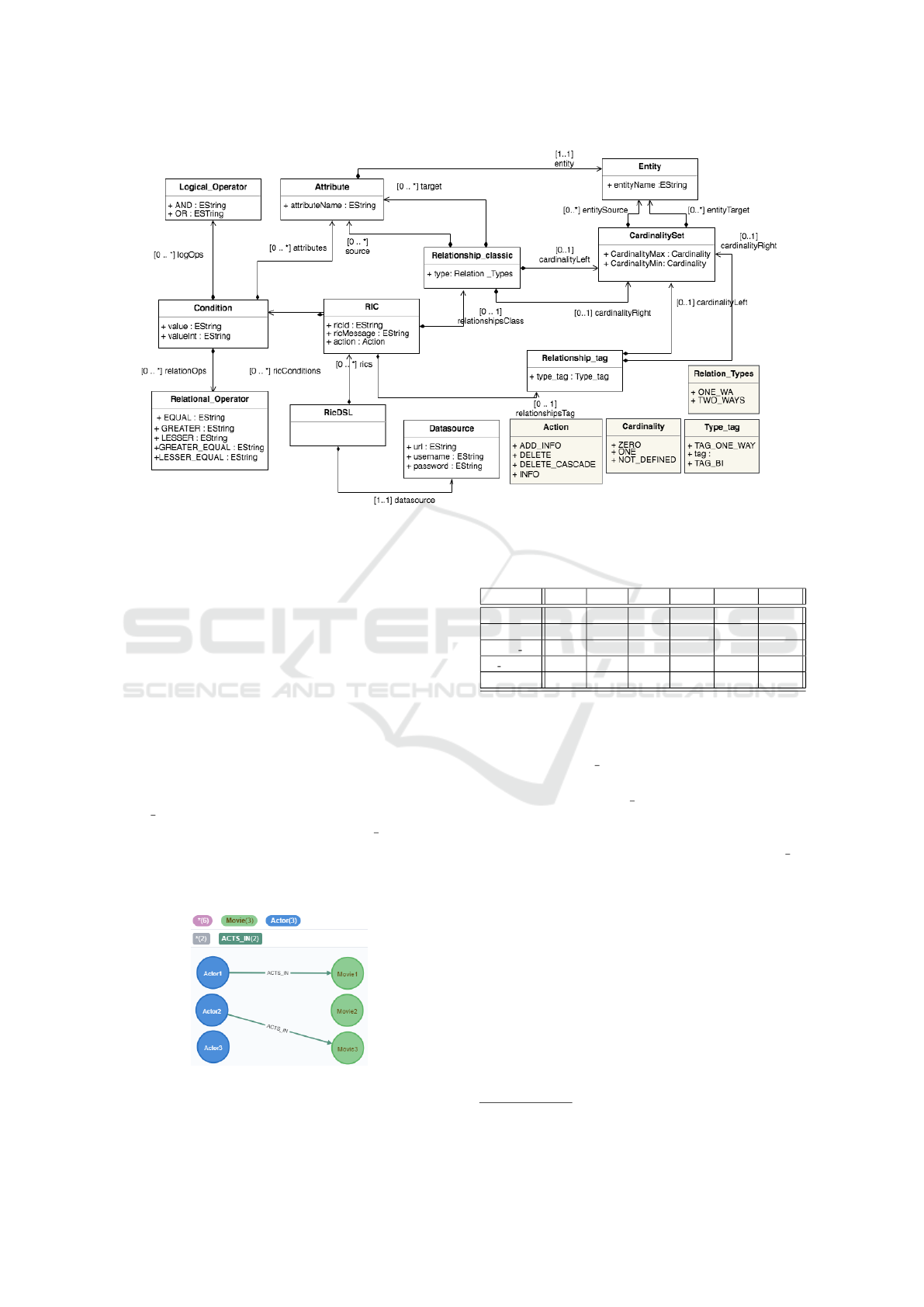

Figure 2: RIC Metamodel generated by XText.

4 EXPERIMENTATION

This section aims to experiment with a simple run-

ning example in order to test the different kinds of

RICs, vary according their type, the cardinalities of

the attribute as well as their possible conditions and

actions. The simple dataset used in the experimen-

tation is composed of Actor and Movie nodes. Only

one type of relationship is represented: the ACTS IN

relationship from an Actor node to a Movie node. The

relationship can have an attribute, that is the role the

actor plays in a ﬁlm (see Figure 3). The properties

of nodes before validation are shown in Table 1. The

ACTS IN property contains the list of identiﬁers of

the movies in which the actor played. is linked is a

Boolean property indicating that an actor has played

in at least one movie. Finally, numMovie corresponds

to the number of ﬁlms to which the actor is linked.

Figure 3: Initial dataset of the experiment.

These properties present several inconsistencies.

Table 1: Properties of nodes before validation.

Property Node1 Node2 Node3 Node4 Node5 Node6

name Actor1 Actor2 Actor3 Movie1 Movie2 Movie3

id 101 102 103 1 2 3

ACTS IN [1,2] [1,19]

is linked true true false

numMovie 2 2 0

First, the Actor1 node have only one relationship with

a node of label Movie while it has two references in

its attribute ACTS IN. Afterwards, the Actor2 node

is linked to a node whose identiﬁer is ’19’ accord-

ing to its attribute ACTS IN. However, no node in the

dataset has this identiﬁer, which makes it an incorrect

reference. It also has a relationship with the Movie3

node which is not indicated by its property ACTS IN.

Lastly, the Actor3 node is not relevant because it has

no reference with other nodes.

We deﬁned a set of RICs in order to validate and

correct inconsistencies. Another goal has been to en-

sure that the RICs also work properly depending on

the type of relationship. The test composed of 19

RICs is accessible online

, and it includes a short

description of each RIC.

Figure 4 shows the datastore ﬁxed by the RIC def-

inition. We can see that some relationships have been

added to strengthen the consistency of the data. The

Actor3 node has ﬁnally been removed as it had no

reference with other elements of the graph. As men-

https://cutt.ly/ErqJMtT

Deﬁning Referential Integrity Constraints in Graph-oriented Datastores

415

tioned earlier, the user must be very careful when

deleting data from the database. Finally, we can see

in Table 2 that the properties of the Actor nodes have

also been updated to ensure data consistency. The

ACTS IN property has been adapted to match the re-

lationships with the Movie nodes. Applying the RICs

to this database, each element linked to another will

be linked both by a direct relationship (an edge) and

also by the value present in its ACTS IN property.

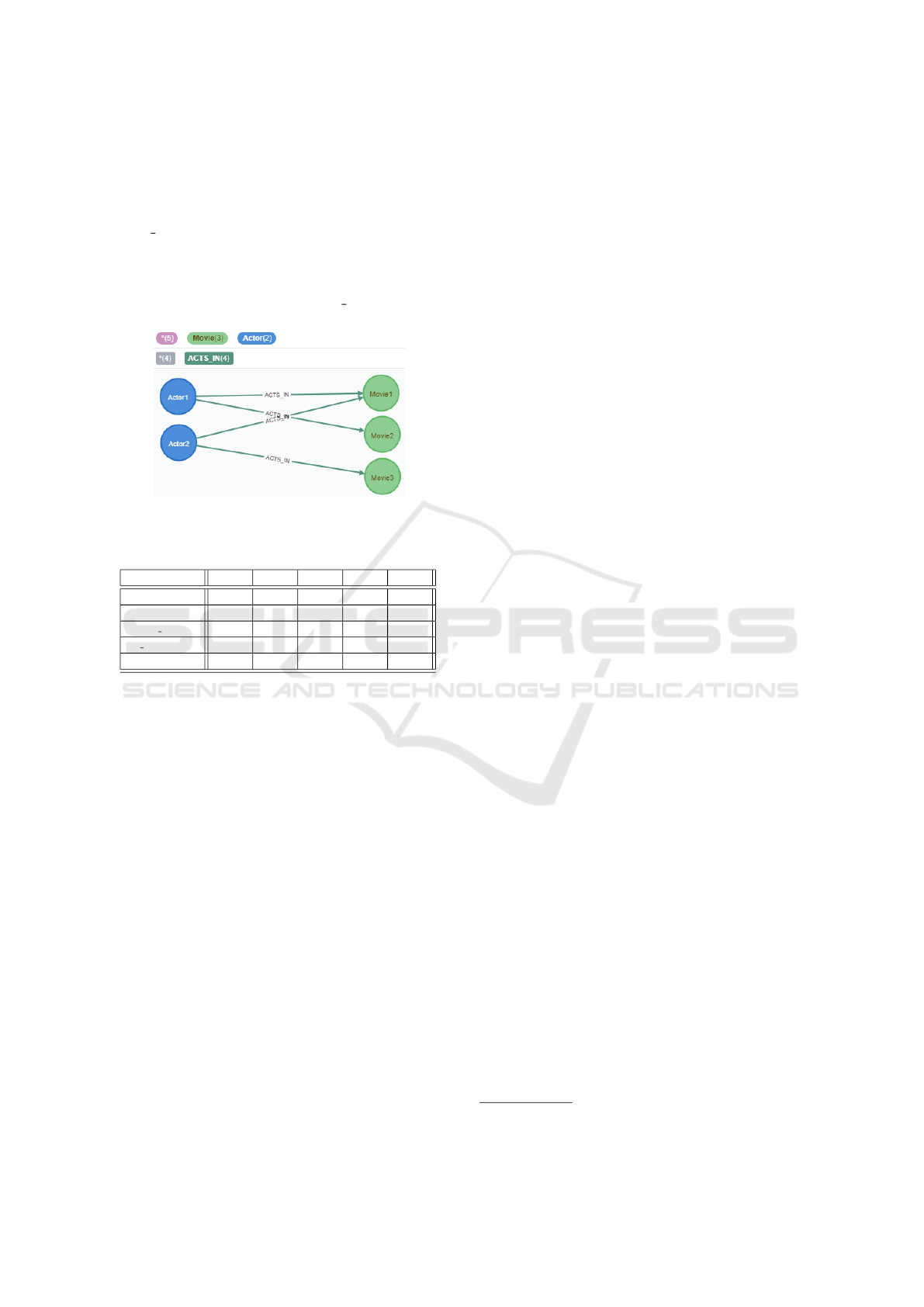

Figure 4: Fixed dataset of the experiment.

Table 2: Properties of nodes after validation.

Property Node1 Node2 Node4 Node5 Node6

name Actor1 Actor2 Movie1 Movie2 Movie3

id 101 102 1 2 3

ACTS IN [1,2] [1,2]

IS LINKED true true

numMovie 2 2

5 CONCLUSIONS AND FUTURE

WORKS

In this work we have proposed a solution enabling

the deﬁnition of Referential Integrity Constraints in

graph-oriented datastores. For that, a DSL for stat-

ing RICs in details has been built. In addition to

a code generation for being able to execute the de-

ﬁned RICs in a Neo4J graph-oriented NoSQL datas-

tore. The DSL provided for deﬁning RICs includes

several clauses to conﬁgure the semantic of the RIC

deﬁnition: bidirectionality, cardinality, extra condi-

tions and the action to apply in case that a RIC was

violated. The implementation has been addressed us-

ing MDE techniques, such as the creqtion of a DSL

and the implementation of a model-to-text transfor-

mation for generating code. The access to the Neo4J

datastore relies on the Cypher Java APIs.

In the proposal, we have observed some weakness

that have to be improved in future work. First of all,

the testing of the tool has to be extended. Not all the

possible test cases have been covered. Moreover, the

deleting on cascade action has been partially imple-

mented. The editor and the tool to generate the code

are not integrated in a unique solution, thus currently

it has to be executed separately. Finally, the grammar

(concrete and abstract syntax) of the DSL, as well as

the semantics must be extended in order to consider

other NoSQL datastores (e.g. MongoDB

ACKNOWLEDGEMENTS

This work was supported in part by the Spanish Min-

istry of Science, Innovation and Universities, under

Grant TIN2017-86853-P.

REFERENCES

Blaha, M. (2019). Referential integrity is important for

databases.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

driven software engineering in practice. Synthesis

Lectures on Software Engineering, 1(1):1–182.

Cleve, A., Noughi, N., and Hainaut, J. (2011). Dynamic

program analysis for database reverse engineering. In

GTTSE 2011, Braga, Portugal, July 3-9, 2011. Re-

vised Papers, pages 297–321.

Georgiev, K. (2013). Referential integrity and dependencies

between documents in a document oriented database.

GSTF Journal on Computing (JoC), 2:24–28.

Hendawi, A., Gupta, J., Jiayi, L., Teredesai, A., Naveen, R.,

Mohak, S., and Ali, M. (2018). Distributed nosql data

stores: Performance analysis and a case study. pages

1937–1944.

Jatana, N., Puri, S., Ahuja, M., Kathuria, I., and Gosain,

D. A survey and comparison of relational and non-

relational database.

Kelly, S. and Tolvanen, J.-P. (2008). Domain-Speciﬁc Mod-

eling: Enabling Full Code Generation. Wiley.

Leavitt, N. (2010). Will nosql databases live up to their

promise? Computer, 43(2):12–14.

Meurice, L. et al. (2014). Establishing referential integrity

in legacy information systems - reality bites! In Pro-

ceedings of ICSME 2014, pages 461–465.

Nayak, A., Poriya, A., and Poojary, D. (2013). Article:

Type of nosql databases and its comparison with re-

lational databases. International Journal of Applied

Information Systems, 5(4):16–19.

Pokorn

y, J. and Kova

c, J. (2017). Integrity constraints

in graph databases. Procedia Computer Science,

109:975–981.

Weber, J. H. et al. (2014). Managing technical debt in

database schemas of critical software. In 2014 6th Int.

Workshop on Managing Technical Debt, pages 43–46.

Wiederhold, G. (1992). Mediators in the architecture of fu-

ture information systems. Computer, 25(3):38–49.

https://www.mongodb.com

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

416
