Approximate Analysis of Transfer Line with PH-service Time and Parts

Assemble

Yang Woo Shin

1 a

, Gyeong Min Baek

2 b

, Dong Ok Kim

2 c

and Dug Hee Moon

3 d

Department of Statistics, Changwon National University, Changwon, Gyeongnam 51140, Korea

Department of Eco-friendly Marine Plant FEED Engineering, Changwon National University,

Changwon, Gyeongnam 51140, Korea

School of Industrial Engineering and Naval Architecture, Changwon National University,

Changwon, Gyeongnam 51140, Korea

Keywords:

Tandem Queue, Phase Type Distribution, Decomposition, Blocking, Assembly.

Abstract:

We consider a transfer line in which workstations are linked in series. Each station consists of single machine

and two buffers of ﬁnite capacity, one for product and the other for part to be assembled. The product is

supplied to the ﬁrst workstation of the system and they are processed along the line, and a part is supplied to

each station according to independent Poisson processes. The processing time distribution of each machine is

of phase type (PH). Blocking-After-Service (BAS) rule is adopted. In this paper, we present an approximate

analysis for the system based on the decomposition method. Some numerical examples are presented for

accuracy of approximation.

1 INTRODUCTION

As a motivating example, we consider a railway ve-

hicle manufacturing process. All railway vehicles are

manufactured to the customer’s speciﬁc order. In the

railway vehicle assembly shop, various parts are as-

sembled according to the customer’s requirements.

The layout of the assembly shop is divided into two

types: ﬁxed position production and ﬂow production.

Here, we consider the ﬂow production layout. The

assembly shop has limited space to store work in pro-

cess due to space constraints. Due to the nature of

the assembly shop that performs various processes,

automation is difﬁcult, and most of the processes are

performed manually. Various parts are supplied to the

assembly station as a kit to carry out the process ac-

cording to the customer’s order.

For modeling the ﬂow production layout we con-

sider a ﬂow line in which workstations are linked

in series and there is a buffer of ﬁnite capacity be-

tween two consecutive like this ﬁgure. Workstations

are assumed to be reliable. The processing time is

https://orcid.org/0000-0002-3107-4569

https://orcid.org/0000-0001-8421-3430

https://orcid.org/0000-0002-7239-2002

https://orcid.org/0000-0001-7660-4976

assumed to be of phase type (PH) for modelling the

manual operation. Parts are supplied to each worksta-

tion M

according to a Poisson process with rate λ

The buffer for parts is ﬁnite and the parts are lost if

the part buffer is full upon an arrival of a part. Each

workstation does not work if it has no parts to be as-

sembled. Transportation times of customers through

buffers and workstations are assumed to be negligible

comparing to processing time. By setting the arrival

rate of the parts to be inﬁnite, our model reduces to

a transfer line without part assemble which has been

widely used for performance modeling of computer

systems and production systems. e.g. see the mono-

graphs Gershwin (1994), Buzzacott and Shanthiku-

mar (1993), the survey papers Dallery and Gershwin

(1992), Li et al. (2009), Papadopoulos and Heavey

(1996) and the references therein. In this paper, we

present an outline of approximate analysis for tandem

queues with a buffer of ﬁnite capacity for products be-

tween two workstations. Each workstation has a sin-

gle reliable server and a supplementary buffer of ﬁnite

for part to be assembled. Our approach is based on

well-known decomposition method, e.g. see Gersh-

win (1978, 1994), Shin and Moon (2018), Moon and

Shin (2019).

The paper is organized as follows. The model is

described in Section 2. In Section 3, an approxima-

212

Shin, Y., Baek, G., Kim, D. and Moon, D.

Approximate Analysis of Transfer Line with PH-service Time and Parts Assemble.

DOI: 10.5220/0009092802120217

In Proceedings of the 9th International Conference on Operations Research and Enterprise Systems (ICORES 2020), pages 212-217

ISBN: 978-989-758-396-4; ISSN: 2184-4372

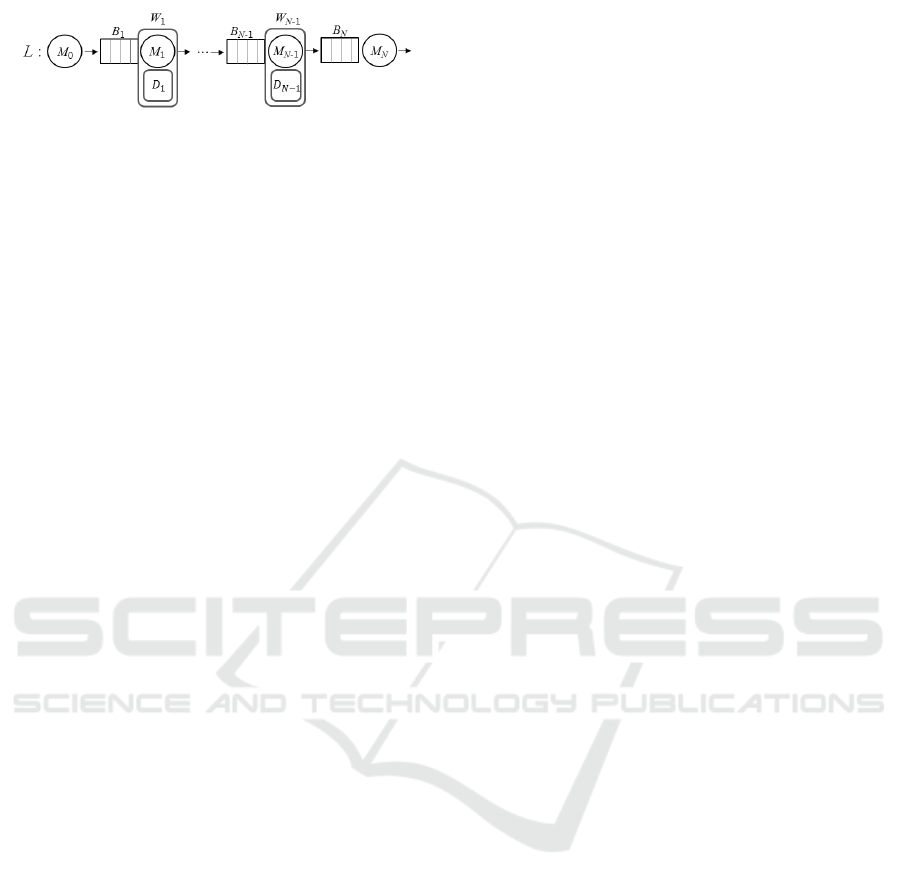

Figure 1: Tandem queue with parts assembly.

tion method is described brieﬂy. Numerical examples

are given in Section 4. Finally, concluding remarks

are given in Section 5.

2 THE MODEL

We consider a transfer line L in which

N = N + 1

workstations W

, i = 0, 1, ··· , N are linked in series

and there is a buffer B

for customers (products) of

capacity 0 ≤ c

< ∞ between W

i−1

and W

as de-

picted in Figure 1. The station W

, 1 ≤ i ≤ N − 1

has a server (machine) M

and a buffer D

of capacity

0 ≤ d

− 1 < ∞ for parts to be assembled and denote

the station i by the pair W

= (M

, D

The customers are processed along the line and

leave the system immediately after service comple-

tion at W

. When a server completes its service at a

stage, if the buffer for the customers of next station is

full at that time, then the server is forced to stop its

service and the customer is held at the station where

it just completed its service until the destination can

accommodate it. A server M

is said to be starved if

there are no customers to be served on the server M

and the station is said to be lacked if there are no parts

in W

. The station W

, 1 ≤ i ≤ N − 1 does not work if

it is in starved, lacked and blocked.

The initial station W

and the last station W

are

for preparation and investigation of ﬁnal product, re-

spectively, and assume that they consist of a server M

and M

without buffers for parts, respectively, and

they process their work without parts. We assume

that the initial server M

is never starved and never

lacked and it starts new service immediately after a

service completion unless the server is blocked. The

last server M

is never blocked and never lacked, and

the customer at M

leaves the system immediately af-

ter completing its service.

Parts are supplied to each station W

according to

independent Poisson processes with rate λ

and arriv-

ing parts enter the server M

if there is an available

space for the part in M

. Note that the maximum num-

ber of parts that can be stored in the station W

is d

1 ≤ i ≤ N − 1. If the buffer D

is full, that is, if there

are d

parts in the station W

, the arrivals of the parts

to D

is forced to stop and begin again at the epoch

when there is an available space in W

Service time distribution of M

is of phase

type with representation PH(α

, T

), where α

(α

(1), · ·· , α

)) is a probability distribution and T

is a nonsingular matrix of size h

with negative diago-

nal elements and nonnegative off-diagonal elements.

Let T

= −T

e = (t

(1), · ·· ,t

))

, where e is the

column vector of appropriate size whose components

are all 1. See Neuts (1981) for phase type distri-

bution. Transportation times of customers through

buffers and servers are assumed to be negligible com-

paring to service time.

Stochastic processes. Let D

(t) be the number

of parts in W

at time t. The state space of D

(t) is

{0, 1, ··· , d

}. Deﬁne the state M

(t) of M

at time t

(t) =







s, M

is starved

j, M

is working with service phase j

b, M

is blocked.

The state space of W

(t) = (M

(t), D

(t)) of the

station W

= (M

, D

), 1 ≤ i ≤ N − 1 is W

{(0, 0),s

s,w

w,b

b}, where (0, 0) is the state that X

(t) ≥

1 and D

(t) = 0, s

s = {(s, k), k = 0, 1, · ·· , d

w = {( j, k), k = 1, 2, ··· , d

, j = 1, 2, · ·· , h

}, b

b =

{(b, k), k = 1, 2, ··· , d

} and let w

∗

= {(0, 0),w

w}.

Since W

and W

consist of only one server M

and

and have no buffers for part, the state space of

(t) = M

(t) and W

(t) = M

(t) are given by W

{b} ∪ { j, j = 1, 2, ·· · , h

} and W

= {s} ∪ { j, j =

1, 2, ··· , h

Let X

(t) be the total number of customers wait-

ing in the buffer B

, the customers that are being

served, lacked or blocked at M

, and the customers

blocked at M

i−1

at time t. Then X

(t) takes values on

{0, 1, ··· , K

}, where K

= c

+ 2. Note that X

(t) = K

is equivalent to M

i−1

(t) = b.

Approximation method. Approximation is based

on decomposition approach. The ﬁrst step is to de-

compose the N + 1 station system into a set of sub-

systems L

, i = 1, 2, ·· · , N. Each subsystem L

is con-

sists of upstream station W

i−1

, downstream station W

and a buffer B

between them. Model the subsys-

tem L

with a Markov chain with generator, say Q

and the unknowns in Q

are calculated by an itera-

tion method. Finally, performance measure such as

throughput is calculated with the stationary distribu-

tion of L

. Since W

is a downstream station in L

and upstream server in L

i+1

, denote the downstream

server in L

by W

and the upstream server in L

i+1

, if necessary to distinguish them.
