Early Synthesis of Timing Models in AUTOSAR-based Automotive

Embedded Software Systems

Padma Iyenghar

, Lars Huning and Elke Pulvermueller

Research Group Software Engineering, University of Osnabrueck, Germany

Keywords:

Model-based Timing Analysis, Uniﬁed Modeling Language (UML), AUTOSAR, Embedded Software.

Abstract:

Development of AUTOSAR-based embedded systems in Uniﬁed Modeling Language (UML) tools is an

emerging state-of-the-art practice in the automotive industry. In case of such automotive systems with strict

timing requirements (e.g. advanced driver assistance systems), not only the correctness of the computation

results is important, but also their timeliness. This necessitates comprehensive and early veriﬁcation and

validation procedures to ensure desired software quality without overshooting the budget. The main input

required for such timing analysis, in specialized timing analysis tools, is the AUTOSAR-timing model corre-

sponding to the timing annotated AUTOSAR-design model. Thus, synthesis of such a timing analysis model

from AUTOSAR-based design model (developed in UML tools), early in the development stages, constitutes

an important step and a research gap. Towards this direction, this paper presents a systematic approach for

extraction and synthesis of timing analysis model from AUTOSAR-based embedded system design models

developed in UML tools. A prototype of model transformations for the synthesis of timing models and its

evaluation in an automotive use case are presented.

1 INTRODUCTION

In the recent decade, model-based techniques have

become important to conquer the development com-

plexity in large embedded projects such as modern

cars. They provide systematic, cost-effective develop-

ment processes which help reduce time-to-market and

development costs, whilst enhancing software qual-

ity (Navet and Simonot-Lion, 2009). Models of the

software and hardware architecture can be reused in

multiple development phases to automate the process,

e.g. by generating code from a design model. Ideally

this not only saves time, but also reduces human er-

rors and bugs in the production code. Thus, for auto-

motive embedded software rich in safety-critical and

timing functions, it is imperative to integrate timing

validation into the model-based development process

as early as possible.

By standardizing the model-based techniques, the

players in the industry can settle on best practices and

further reﬁne and streamline the embedded software

development process. The AUTomotive Open Sys-

tem ARchitecture (AUTOSAR) initiative is an effort

to standardize the software architecture of automo-

https://orcid.org/0000-0002-1765-3695

tive electronic systems (AUTOSAR, 2018). Its main

goal is to introduce a standardized layer between ap-

plication software and the hardware of an Electronic

Control Unit (ECU)

. Thus, the software is largely in-

dependent from any chosen microcontroller and car

manufacturer, making it reusable for several individ-

ual ECU systems.

The AUTOSAR Timing Extensions (TE) is a

standardized formal timing model to capture tim-

ing constraints of automotive systems (AUTOSAR,

2018). With this, it is possible to include the sys-

tem’s timing behavior already in the design models.

The AUTOSAR timing language (Artime)

(Sche-

ickl et al., 2012) supports a formal speciﬁcation of

timing descriptions using a textual representation of

the AUTOSAR TE. On the other hand, development

of AUTOSAR-based embedded systems in Uniﬁed

Modeling Language (UML)

tools (IBM Software,

2019) is a state-of-the-art practice in the automotive

industry. Thus, it is intuitive to perceive that mod-

eling timing requirements using AUTOSAR-TE in

AUTOSAR-based design models in UML tools and

An embedded system that controls one or more of the

electrical systems or subsystems in a vehicle.

https://www.artop.org/

https://www.uml.org/

Iyenghar, P., Huning, L. and Pulvermueller, E.

Early Synthesis of Timing Models in AUTOSAR-based Automotive Embedded Software Systems.

DOI: 10.5220/0009095000260038

In Proceedings of the 8th International Conference on Model-Dr iven Engineering and Software Development (MODELSWARD 2020), pages 26-38

ISBN: 978-989-758-400-8; ISSN: 2184-4348

analysis of AUTOSAR timing models in specialized

timing analysis tools (INCHRON, 2019), (Luxoft –

Symtavision, 2019) is the step forward in the automo-

tive development processes.

Validating the timing behavior and checking for

adherence to real-time constraints in early design

stages could save costly corrections of potential errors

in the design of the system (Navet and Simonot-Lion,

2009). For this purpose, the timing requirements

speciﬁed in the design model have to be translated

and a timing analysis model needs to be synthesized.

This model can then be provided as input to a timing

analysis tool for validation. To achieve this step at an

early point in the developmental stages, an early syn-

thesis of timing models from the AUTOSAR-based

UML design model is necessary.

In this context, a timing metamodel for synthesis

of a timing analysis model from timing annotated de-

sign models is proposed in (Iyenghar et al., 2016).

This work deals with time modeling in generic em-

bedded software development using UML. The work

presented in (Iyenghar and Pulvermueller, 2018), ex-

tends the timing metamodel in (Iyenghar et al., 2016)

with energy properties and proposes energy-aware

timing analysis for IoT use cases. Though these re-

lated work deal with timing analysis, they do not deal

with AUTOSAR-based development and timing mod-

eling. Addressing this gap, this paper presents the fol-

lowing novelties:

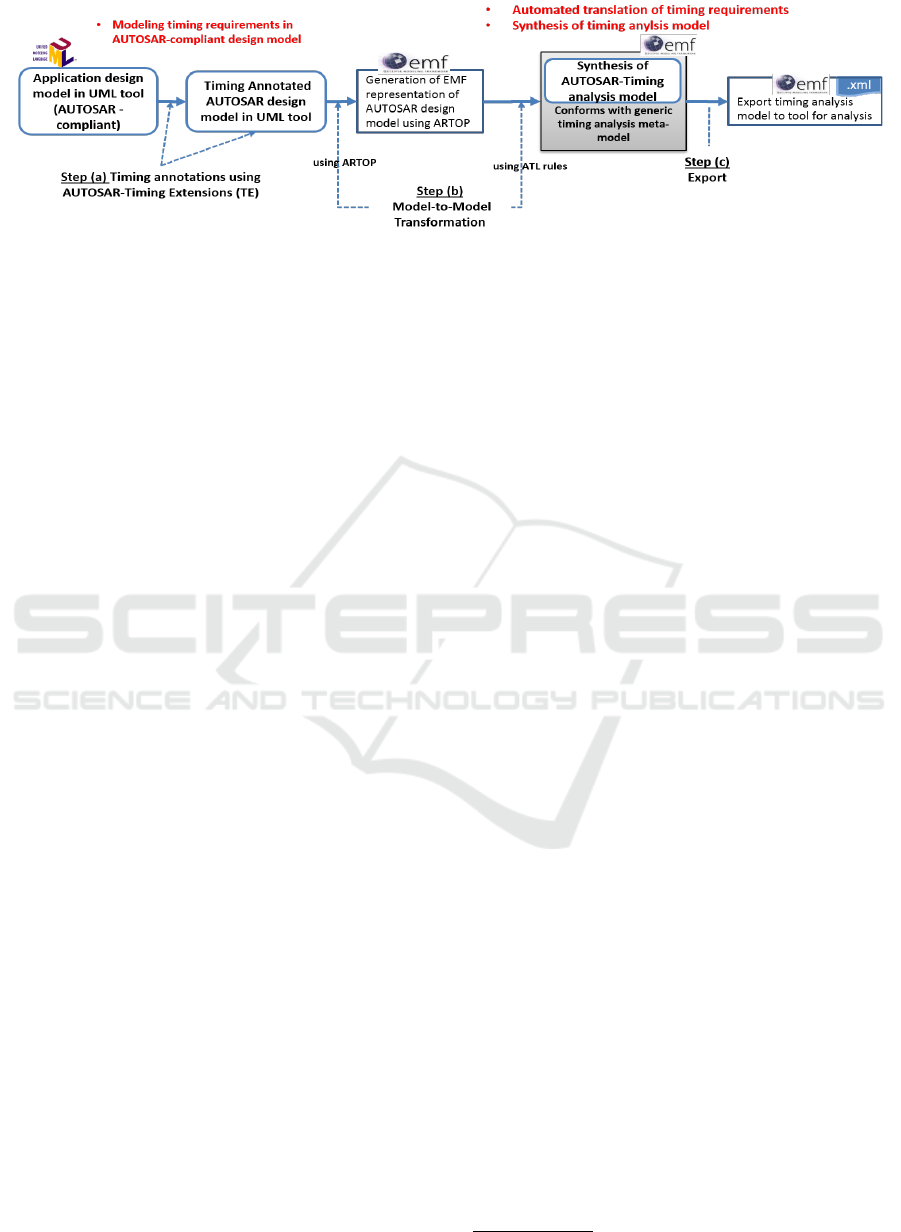

1. A systematic series of steps towards extrac-

tion and synthesis of timing analysis models in

AUTOSAR-based embedded system design mod-

els (which are developed in UML tools).

2. Mapping of AUTOSAR-timing extensions to the

generic timing metamodel introduced in (Iyeng-

har et al., 2016).

3. A prototype implementation of the model trans-

formations (in Eclipse Modeling Framework

(EMF)

) for synthesis of AUTOSAR timing anal-

ysis model and its evaluation in a practical auto-

motive use case.

In the remainder of this paper, background and re-

lated work is presented in section 2. The proposed

approach for synthesis of AUTOSAR-timing analysis

model and an experimental evaluation in an automo-

tive case study are presented in section 3 and 4 respec-

tively. Section 5 concludes the paper.

http://www.eclipse.org/modeling/emf/

2 BACKGROUND AND RELATED

WORK

In this section, background and related work pertain-

ing to general modeling options for automotive em-

bedded software systems is presented in section 2.1.

In section 2.2, related work on model-based timing

speciﬁcation and a brief background on AUTOSAR-

TE is provided. In section 2.3 the identiﬁed gaps

are summarized and the challenges addressed are out-

lined.

2.1 Modeling Automotive Embedded

Software Systems

Today, there are up to 80 ECUs developed by differ-

ent manufacturers, integrated in a modern car (Bosch

GmbH, 2014), (Bucaioni et al., 2017), wherein the

ECU software is also getting more and more com-

plex. To address the increasing complexity in devel-

opment of such systems, Model Driven Development

(MDD)

, is considered as the next paradigm shift. In

MDD, the requirements are speciﬁed as models at a

higher abstraction level (e.g. using UML diagrams).

They are then reﬁned, starting from higher and mov-

ing to lower levels of abstraction, via model transfor-

mations.

Further, MDD methodology also provides support

for analysis of non-functional properties such as tim-

ing and reliability parameters. For instance, UML

supports generic system and software modeling and

also UML proﬁles for speciﬁc aspects such as qual-

ity analysis. Some examples of employing UML

for MDD and examining quality properties such as

timing and reliability are available in (Petriu, 2013),

(Iyenghar et al., 2016), (Noyer et al., 2016).

Matlab/Simulink (M/S) is a popular example for

a modeling tool with non-UML modeling language,

which is established in the industry, including the au-

tomotive domain (Jianqiang et al., 2010), (Franco and

et. al, 2016), especially focusing on modeling control

loops. Further, the Rubus Component Model (RCM)

(Bucaioni et al., 2017) and EAST-ADL are among

other established solutions used within the vehicular

domain.

2.1.1 AUTOSAR Framework

Apart from the aforementioned solutions, another

promising approach is the standardization of the soft-

ware architecture used in ECU development (Navet

and Simonot-Lion, 2009). A comprehensive and

https://www.omg.org/mda/

Early Synthesis of Timing Models in AUTOSAR-based Automotive Embedded Software Systems

well- established solution used in the automotive sec-

tor is the AUTOSAR standard. It emphasizes to shift

the ECU development from an ECU-centric approach

to a functionality-based approach. AUTOSAR uses

a component-based software architecture, with cen-

tral modeling elements called Software Components

(SWCs or SW-Cs). The SWCs describe a completed,

self-contained set of functionality. The AUTOSAR

methodology describes various steps, namely, Sys-

tem conﬁguration, ECU conﬁguration and compo-

nent implementation involved in the development pro-

cess. It also describes the artifacts created and inter-

changed between the steps. In between these steps,

the ARXML ﬁle format (AUTOSAR, 2018) is used

for the exchange of development artifacts, which is an

XML-based ﬁle format. The functionality-based ap-

proach aims to specify the functions of the complete

vehicle ﬁrst in the so-called system conﬁguration, and

afterwards extract speciﬁcations for the suppliers to

implement an ECU. This way, the automotive soft-

ware can be interchanged on a function level instead

of the ECU level, which increases its reusability.

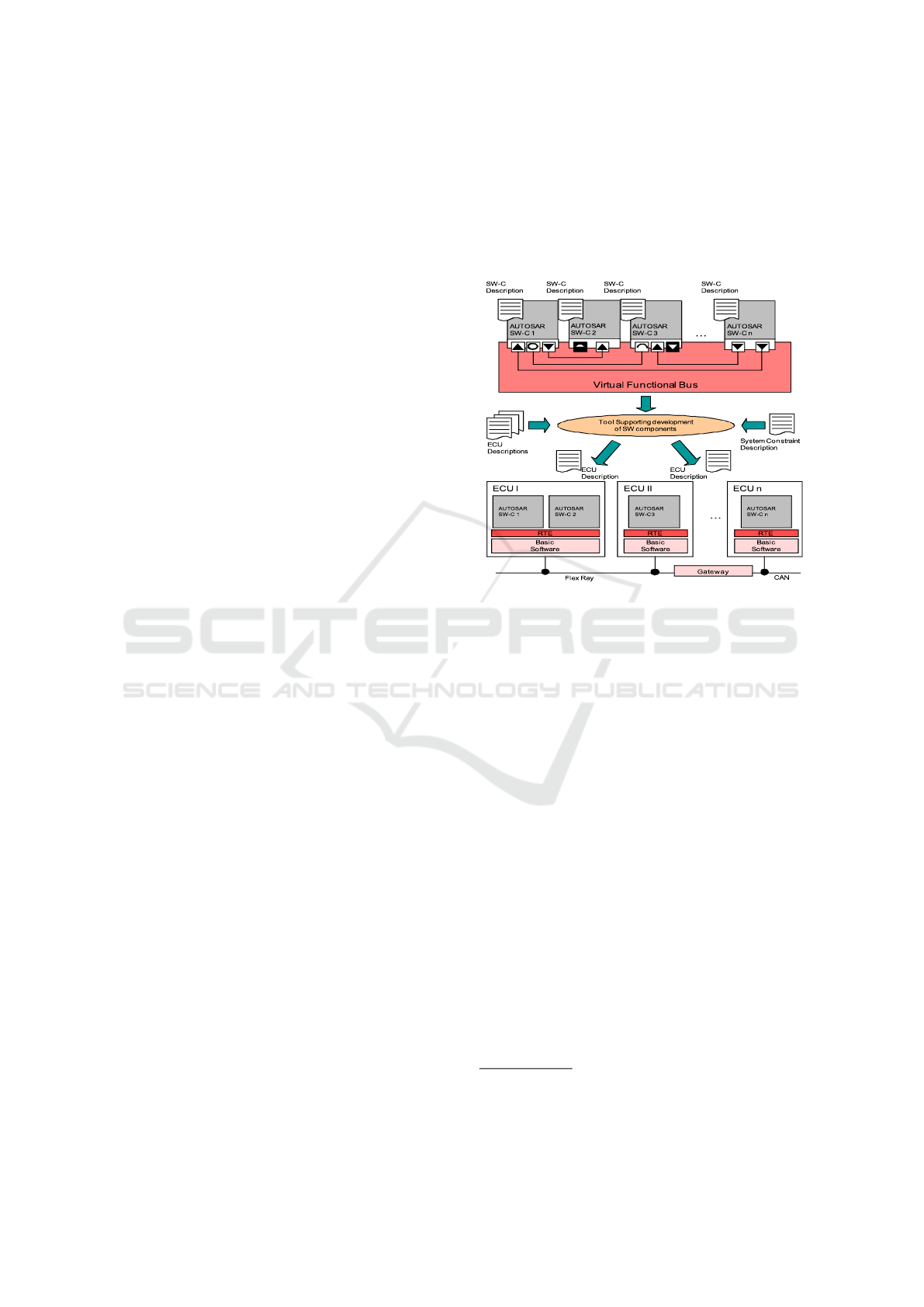

The various components of the AUTOSAR frame-

work are illustrated together with the mapping of soft-

ware components to ECUs, in the system conﬁgura-

tion step, in Fig. 1. The software components (seen

at the top of Fig. 1, e.g., SW-C1) are used to structure

the AUTOSAR model and group functionality into in-

dividual components. These components can be con-

nected together, oblivious of the hardware they will

be running on. This is handled by the Virtual Func-

tion Bus (VFB), which provides an abstraction layer

for the SWC to SWC communication. Components

distributed over different ECUs however, may use the

network bus for communication. This is determined

automatically by the Run-Time Environment (RTE),

which is a communication interface for the software

components.

The lower part of the Fig. 1 represents the map-

ping of ECUs to SW-Cs in the system conﬁguration

step. Here, the ECUs 1, 2..n are seen communicat-

ing over a network bus (e.g. FlexRay, CAN). In each

ECU (e.g. ECU 1 in lower part of Fig. 1), the RTE

provides interfaces between SW-Cs (e.g. AUTOSAR

SW-C 1 and AUTOSAR SW-C 2 in ECU 1) and be-

tween SW-C and basic software (BSW). Further it

provides the BSW services (as API abstraction) to

SW-C.

The underlying software functions which imple-

ment the given requirements are contained inside the

SW-Cs. These are later on implemented manually by

the software developers. The RTE and Basic Soft-

ware (BSW) which are provided by third-party AU-

TOSAR software vendors are at the disposal of the

developer for communication and hardware abstrac-

tion. The inner functionality of the application and

sensor/actuator SWCs is deﬁned in Internal Behavior

elements. They encapsulate Runnable Entities, which

correspond to atomic functions on the code level that

are implemented later in the development process.

Figure 1: Mapping of software components to ECUs in the

system conﬁguration step.

In this paper, we deal with the system conﬁguration

step and speciﬁcation of timing properties in the SW-

Cs. The communication between the SWCs is mod-

eled by using communication ports.

2.2 Model-based Timing Speciﬁcation

Alternatives for specifying timing behavior in the

UML domain have been introduced more than a

decade ago

. The Systems Modeling Language

(SysML)

, is often used as a standard, general pur-

pose modeling language for model-based systems en-

gineering. Modeling and Analysis of Real-Time

and Embedded Systems (MARTE)

is a standardized

UML proﬁle, which extends UML and provides sup-

port for modeling the platform, software and hard-

ware aspects of an application (Iqbal et al., 2012),

(Peraldi and Sorel, 2008), (Anssi et al., 2011a). There

are several approaches in the direction of model-based

timing speciﬁcation. But, modeling constraints using

AUTOSAR-TE and an automated extraction of tim-

ing parameters, synthesis of an analysis model and

analysis of the timing analysis model in a state-of-the-

http://www.omg.org/

http://www.omgsysml.org/

http://www.omg.org/omgmarte/

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

art timing analysis tool, such as SymTA/S, is miss-

ing. There are also several modeling alternatives in

non-UML domains such as SystemC (Bhasker, 2010),

Event-B

and Matlab/Simulink to name a few. Unlike

UML-based proﬁles, support for speciﬁcation and

analysis of timing properties is very limited in Sys-

temC, Event-B and Matlab/Simulink. Related work

for the aforementioned alternatives can be found in

(Kirner et al., 2000), (Cervin et al., 2006), (Di Na-

tale et al., 2010), (Al-bayati et al., 2013). However,

in these studies, model-based timing analysis in auto-

motive embedded software systems is not discussed.

Further, several modeling languages, domain-speciﬁc

languages and a number of generic approaches have

emerged that include timing behavior. PTIDES (Zhao

et al., 2007), (Derler et al., 2011) and Giotto (Hen-

zinger et al., 2001) provide a good basis for deﬁning

an approach to model timing requirements. However,

these are often used to analyze system behavior rather

than speciﬁcation of timing properties (Alur, 1999),

(Amnell et al., 2001), (Kaynar et al., 2003).

2.2.1 AUTOSAR-timing Extensions

The AUTOSAR-timing Extensions (TE) metamodel

is separate from the AUTOSAR metamodel, in order

to leave the option whether to provide timing speci-

ﬁcations or not. They feature an event-based model

for the description of the software’s temporal behav-

ior and can be deﬁned on top of a system architec-

ture. The AUTOSAR release with timing extensions

and own timing model, ﬁnds extensive usage in the

automotive industry. This is supported by studies in-

cluding (Hans et al., 2009), (Peraldi-Frati et al., 2012)

and (Ficek et al., 2012)

The TE metamodel (Fig. 2) provides ﬁve differ-

ent views for timing speciﬁcation, depending on what

kind of timing behavior of the AUTOSAR model is

described (AUTOSAR, 2018). The ﬁve views are Vf-

bTiming, SwcTiming, SystemTiming, BswModuleTim-

ing and EcuTiming. In the experimental evaluation,

the SwcTiming view is employed, as in the system

conﬁguration step and timing speciﬁcation step the

SWCs are employed (cf. section 2.1.1). SwcTiming

view describes the internal behavior timing of soft-

ware components. Further explanation of AUTOSAR

methodology and AUTOSAR-TE are not provided

here because of space limitations (interested readers

are referred to (AUTOSAR, 2018)).

http://www.event-b.org/index.html

2.2.2 Model-based Timing Analysis

The speciﬁed timing behavior can be analyzed us-

ing dedicated timing analysis tools. There are several

open source tools such as Cheddar (Singhoff et al.,

2004) and MAST (Harbour et al., 2001). Some pop-

ular proprietary timing analysis tools include chron-

SIM (INCHRON, 2019), SymTA/S (Henia et al.,

2005) and Timing Architect

. These tools are in-

dependent of the modeling languages used. There-

fore, they require the timing speciﬁcations to be in a

particular format, although some provide import func-

tions for common modeling languages. But, there is

no tool support for automated synthesis and export

of AUTOSAR-based timing analysis model (from

AUTOSAR-based application design model in UML

tools) to these timing analysis tools. AUTOSAR

TE were used for a model-based timing analysis in

works such as (Anssi et al., 2011b), (Klobedanz et al.,

2010), (Kim et al., 2016) and (Scheickl et al., 2012).

Some do not have a systematic model-based approach

in timing analysis of AUTOSAR systems. Whereas

a few others do not concentrate on synthesis of a

AUTOSAR-based timing analysis model. It is imper-

ative to note that the design errors realised from such

late timing analysis would be costly to ﬁx at a later

development stage.

A recently developed work on timing and schedul-

ing employing a timing metamodel is available in

the AMALTHEA platform

. This platform allows

users to distribute data and tasks to the target hard-

ware platforms, with the focus on optimization of tim-

ing and scheduling. However, timing modeling in

AMALTHEA has to be done at the EMF level and

not the UML model level. Further, there is no tool

support in AMALTHEA to synthesize an AUTOSAR-

based timing analysis model from the ARXML ﬁles

of the timing annotated design model (esp. from

UML tools).

2.3 Research Gaps and Challenges

Addressed

On examining the related work, it can be stated that

validation of timing properties early in AUTOSAR-

based automotive embedded software development in

UML tools, especially in specialized timing analy-

sis tools is beneﬁcial. Nevertheless an approach to-

wards realising this is missing. The main input re-

quired for such timing analysis in specialized timing

analysis tools (e.g. in SymTA/S, chronSIM) is the

https://www.timing-architects.com/

https://www.eclipse.org/app4mc/

Early Synthesis of Timing Models in AUTOSAR-based Automotive Embedded Software Systems

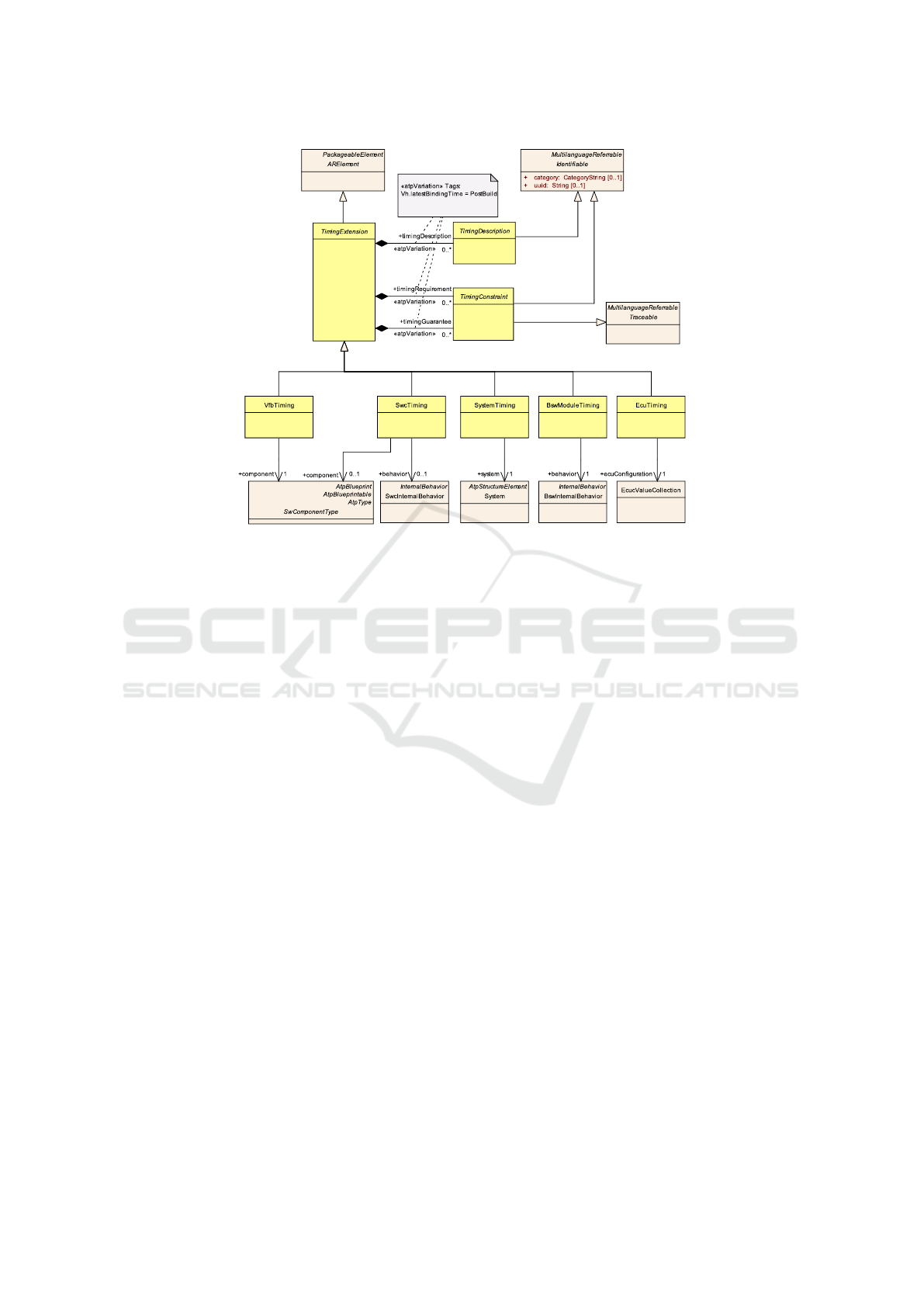

Figure 2: Overview of AUTOSAR Timing Extensions (TE) metamodel (AUTOSAR, 2018).

AUTOSAR-timing model corresponding to the anno-

tated AUTOSAR-based design model developed in

UML tool. Thus, synthesis of a timing analysis model

from AUTOSAR-based design model in UML tools

forms an important step. With the help of such a tim-

ing analysis model a systematic and extensive tim-

ing validation can be carried out in specialized tim-

ing analysis tools, in early development stages. Ad-

dressing the gaps identiﬁed above and in line with the

novelties outlined in section 1, in the remainder of

this paper, the steps involved in synthesis of a tim-

ing analysis model and an experimental evaluation are

presented in section 3 and 4 respectively.

3 SYNTHESIS OF TIMING

MODEL

The proposed approach for the synthesis of a timing

analysis model is outlined in section 3.1. The generic

timing metamodel and its mapping to the AUTOSAR

metamodel elements are discussed in section 3.2 and

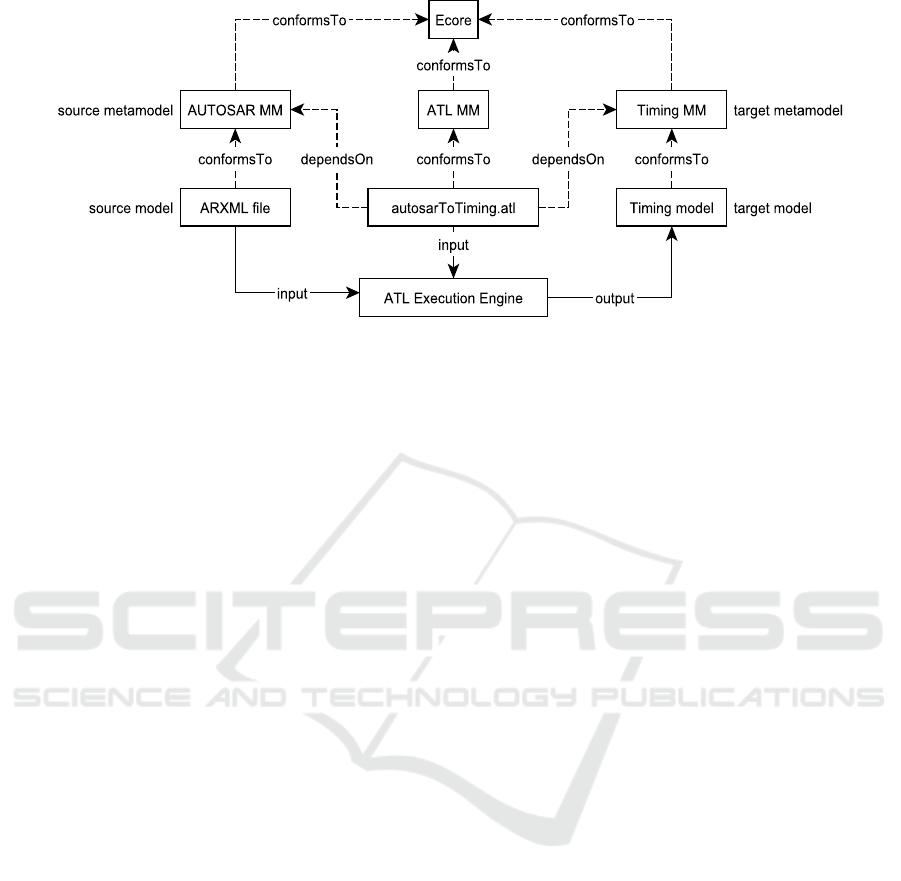

3.3 respectively. The model transformations are de-

tailed in section 3.4.

3.1 Steps Involved in the Synthesis of

Timing Analysis Model

The proposed approach for automated synthesis of an

AUTOSAR timing analysis model is shown in Fig. 3

and comprises of the following steps.

(a) In the ﬁrst step, it is considered that an initial

AUTOSAR-based design model of the automo-

tive embedded software application under con-

sideration is already modeled in the UML tool

(e.g. Rhapsody developer). Note that step-(a) in

Fig. 3 is applied in an early stage of develop-

ment process. Step-(a) involves the speciﬁcation

of the timing requirements in the design model

using AUTOSAR-TE to obtain an annotated AU-

TOSAR design model.

(b) In line with the main scope of this paper, an

AUTOSAR-based timing analysis model needs to

be synthesised based on the inputs from step-(a)

in Fig. 3. For this purpose, given the timing

annotated design model as input, model transfor-

mations are implemented for extracting the tim-

ing properties. This results in the synthesis of

the AUTOSAR-timing analysis model (conform-

ing to a generic metamodel, cf. section 3.2). Thus,

the output of step-(b) in Fig. 3 is the synthesized

AUTOSAR timing model, which can be used for

timing validation in timing analysis tools such as

SymTA/S and Timing Architect.

3.2 Intermediate Generic Timing

Metamodel

As mentioned earlier, a generic timing metamodel

has been developed using the EMF and introduced in

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

Figure 3: Steps involved in synthesis of timing analysis model incorporated in AUTOSAR development process.

(Iyenghar et al., 2016). This metamodel comprises

of a basic set of timing properties needed for per-

forming a timing analysis. This can be termed as a

generic metamodel, as it closely adheres with timing

models used in several timing validation tools (e.g.

SymTA/S). This intermediate timing metamodel also

bears similarity to the AUTOSAR metamodel in re-

spect to the software and hardware architecture ele-

ments. The main elements of the metamodel can be

seen in Fig. 4. It consists of elements such as Pack-

ages, containing the different model elements such

as Runnables, SoftwareComponents, Tasks, Cores,

ECUs and ExecutionPaths.

A Runnable represents an operation, or a function.

It is contained in a SoftwareComponent and executed

by a Task. These tasks have speciﬁc activation mod-

els, e.g. a periodic activation, which triggers the task

with a certain period. They can also have priorities,

which make it possible to preempt a task (of a pre-

emptible taskType) when a different task with a higher

priority is to be executed. A task can execute multi-

ple runnables in a row, whose order attribute states,

which runnable comes ﬁrst. Additionally, runnables

are only executed at a multiple of the repetitionFac-

tor and they have a baseCycle attribute, which spec-

iﬁes, at which task execution they are going to be

executed the ﬁrst time. Every task is assigned to a

Core, which is in turn assigned to an ECU. The Ex-

ecutionPaths in the model can be used to represent

an end-to-end functionality. They aggregate either a

set of runnables or a set of tasks as ordered path ele-

ments. Timing properties such as executionTimes can

be added to tasks or runnables and responseTimes can

be added to tasks or execution paths. They are spec-

iﬁed with a TimeBoundary, which contains an upper

and a lower time bound.

3.3 Mapping Among Metamodels

In this section, the relevant metamodel elements from

the intermediate timing metamodel (cf. section 3.2,

Fig. 4) are mapped to their counterparts in the AU-

TOSAR metamodel (AUTOSAR, 2018). The AU-

TOSAR Tool Platform

provides an EMF model,

which contains the element names as per speciﬁca-

tion. An evaluation version of this AUTOSAR EMF

model is used in this paper for mapping the timing

metamodel elements to the AUTOSAR metamodel el-

ements. It is also used as an input metamodel for the

automated model transformations (cf. section 3.4).

A summary of relevant mappings of elements is

shown in Table 1. Please note that most of the el-

ements described in Table 1 are show in Fig. 4.

However, some elements such as Model, ICATObject,

Clock and System are not shown in Fig. 4 because of

space constraints. In the following, these mappings

are described in more detail.

1. The top-most element of every AUTOSAR model

is the AUTOSAR element. It denotes the AU-

TOSAR revision and links to the corresponding

XML schema deﬁnition. This element is mapped

to the Model element, as it represents a dedicated

model.

2. All following AUTOSAR elements inherit from

Identiﬁable, which provides name, description

and id parameters for the ICATObject element, on

which the timing metamodel elements are based

upon.

3. The ARPackage element gets mapped to the Pack-

age timing element, as it structures the different

AUTOSAR elements in packages and subpack-

ages.

4. The mapping of software components is straight-

forward, because these elements exist similarly as

central modeling elements in the AUTOSAR stan-

dard. Every AtomicSwComponentType of the AU-

TOSAR application model is mapped to a Soft-

wareComponent in the timing metamodel. This

includes SensorActuatorSwComponentTypes and

ApplicationSwComponentTypes, as they inherit

from the atomic software component type.

https://www.artop.org/

Early Synthesis of Timing Models in AUTOSAR-based Automotive Embedded Software Systems

Package

Core

scheduler : EString

minTotalLoad : EDouble =

maxTotalLoad : EDouble =

ECU

ExecutionPath

semantic : ExecutionPathSemantic =

ReactionSemantic

hasSampleDelay : EBoolean = false

Runnable

repetitionFactor : EInt = 1

baseCycle : EInt = 0

order : EInt = 0

Task

useRunnables : UseRunnables = IfExist

taskType : TaskType = Cooperative

priority : EInt =

IPathElement

IResponseTim

IExecutionTime

TimeBoundary

TimeValue

value : EDouble = 0.0

unit : TimeUnit = ms

SoftwareComponent

IEventModel

timeUnit : TimeUnit =

SimplePeriodic

period : EDouble = 0.

jitter : EDouble = 0.

[0..*] subPackages

[0..*] runnables

[0..*] cores

[0..*] tasks

[0..*] ecus

[0..*] executionPaths

[0..*] runnables

[0..1] parentTask

[0..1] parentCore

[0..*] tasks

[0..*] cores

[0..1] parentECU

[0..*] pathElements

[0..1] responseTime

[0..1] coreExecutionTime

[0..1] lowerBound

[0..1] upperBound

[0..*] softwareComponents

[0..*] runnables

[0..1] parentSWComponent

[0..1] parentCore

[0..*] softwareComponents

[0..1] activation

minimumDistance : EDouble = 0.0

Figure 4: Excerpt of the timing metamodel (Iyenghar et al., 2016).

Table 1: Mapping of elements in proposed generic metamodel (in Fig. 4) to AUTOSAR elements.

Nr Timing element in Fig. 4 AUTOSAR element Description

1 Model AUTOSAR Top-level model element

2 ICATObject Identiﬁable Identiﬁable element

3 Package ARPackage Structuring element

4 SoftwareComponent AtomicSwComponentType Encapsulates functionality

5 Runnable RunnableEntity Executable operation

period Period of TimingEvent Period of operation

coreExecutionTime LatencyTimingConstraint Execution time of runnable

order RtePositionInTask Execution order of runnable

baseCycle RteActivationOffset First runnable execution

repetitionFactor runnable period / task period How often it is executed

6 ECU EcuInstance Electronic control unit

7 Core HwElement Processing core

8 Clock OsCounter Synchronization element

period OsSecondsPerTick Seconds per clock tick

9 System System Network of ECUs

10 Task OsTask Schedulable unit

priority OsTaskPriority Fixed priority of task

taskType OsTaskSchedule Preemptability of task

synchronizationMechanism OsAlarmCounterRef Reference clock

synchronizationOffset OsAlarmAlarmTime Offset for the reference clock

activation OsAlarmCycleTime Periodic task activation

11 ExecutionPath TimingDescriptionEventChain End-to-end path

5. The Runnable timing elements exist in AU-

TOSAR inside the InternalBehavior of an Atom-

icSwComponentType as RunnableEntities. They

represent the executable operations of the soft-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

ware components.

6. The ECU elements can be mapped to the AU-

TOSAR EcuInstance. This is used for linking the

software components, and therefore runnables, to

their dedicated ECUs, on which they are later on

implemented and executed.

7. The Core elements are mapped to HwElements in

the AUTOSAR model. They need to be linked to

a HwCategory of the type ProcessingCore. Each

core belongs to an ECU and is linked to it in the

system mapping.

8. The Clock element is mapped to an OsCounter el-

ement in the AUTOSAR operating system conﬁg-

uration. It provides an OsSecondsPerTick param-

eter, which can be translated to a period by taking

the inverse value.

9. The System element in timing metamodel corre-

sponds to a System element AUTOSAR model.

Overall, they represent a top-level element corre-

sponding to a network of ECUs.

10. Task elements are created in the AUTOSAR Os

conﬁguration as OsTasks. A task is deﬁned as a

schedulable unit in timing analysis.

11. The end-to-end ExecutionPaths in the timing

metamodel can be represented in the AUTOSAR

model as TimingDescriptionEventChains. These

event chains group a set of events belonging to the

activation and termination of runnable entities.

3.4 Model Transformations

After step (a) in Fig. 3 (cf. section 3.1), a timing

annotated AUTOSAR design model is now available

(also in ARXML format (AUTOSAR, 2018)). This is

provided as input for step (b) in Fig. 3.

Note that while employing Model-to-Model

(M2M) transformations, both source and target mod-

els must conform with their respective metamodels.

Here the source model is the annotated AUTOSAR

design model obtained from the system description

speciﬁcation in the Rhapsody UML tool in ARXML

format. This conforms with the AUTOSAR meta-

model (AUTOSAR, 2018). The target metamodel is

the timing metamodel introduced in section 3.2. Dur-

ing the M2M transformations the timing properties

are extracted from the annotated AUTOSAR design

model (developed in chosen UML tool) and a corre-

sponding instance of the timing analysis target meta-

model is synthesized. Note that here both the meta-

models are available in EMF format. The synthesized

model is also available in EMF and XML formats,

may now be used for timing validation in timing anal-

ysis tools such as SymTA/S.

In this work, the ATLAS transformation language

(ATL)

is used for implementing the M2M transfor-

mations. ATL is a widely used M2M transforma-

tion language, readily available as plug-in for Eclipse

development environment. Thus using ATL, a set

of rules can be written to transform the AUTOSAR-

based design model to an instance of the intermediate

timing meta model, based on the mappings listed in

Table 1.

In other words, declarative rules map elements

from the input timing annotated AUTOSAR-design

model to the intermediate timing metamodel and

create a corresponding instance of the AUTOSAR-

timing analysis model. In these rules, the elements

can either be altered (e.g., attribute changes) or new

elements from a different metamodel can be created

for each mapped element. The latter is called an out-

place transformation, because it creates a new output

model, which may conform to any metamodel. In or-

der to transform an AUTOSAR-based design model

annotated with timing attributes, to an instance of the

intermediate timing metamodel (cf. Fig. 4), such out-

place transformations are proposed.

The outline of the transformation can be seen in

Fig. 5. At the center is the autosarToTiming.atl ﬁle,

which contains the matching-rules, mapping from the

AUTOSAR to timing metamodel according to sec-

tion 3.3. This ﬁle references both metamodels (MM),

namely AUTOSAR MM and Timing MM, which are

available as Ecore

models. Together with the an-

notated AUTOSAR-based design model, available as

ARXML ﬁle, the mapping rules are used as input by

the ATL Execution Engine to produce a correspond-

ing Timing model as output.

Listing 1: Examples of ATL rules.

1 abstract rule Id e n t i f ia b l e 2 I C A T O b j e c t {

2 from

3 in p u t : AR ! I d e n t if i a b l e

4 to

5 out p u t : T i m i ng ! I C A T O b j e c t (

6 na me < - input . s hort N ame ,

7 descr i p t i o n <- in p u t . d esc )}

8 rule A t o m i c S W C 2 S W C o m p o n e n t extends

9 I d e n ti f i a b le 2 I C A T O b j e c t {

10 from

11 inp u t : AR ! At o mi c S w C o m p o n e n tT y p e

12 to

13 outpu t : T i m i n g ! So f t w a r e C o m p o n e n t (

14 runnables < - i nput . i n t e r n a l B e h a v i o r s

15 -> co l l ect ( ib | ib . r u n n a b l e s )

16 -> f l a t t e n () )}

http://www.eclipse.org/atl/

https://www.eclipse.org/ecoretools/doc/

Early Synthesis of Timing Models in AUTOSAR-based Automotive Embedded Software Systems

Figure 5: AUTOSAR to timing model transformation pattern.

The rules consist of a source pattern in the from sec-

tion and a target pattern in the to section. The source

pattern speciﬁes the type of the source model ele-

ment to be matched and the target pattern contains

the output model element that will be created by the

transformation for each source element. The ﬁrst rule

Identifiable2ICATObject (line:1-7 in listing 1)

maps the Identifiable element to the ICATObject

element and assigns the name and description at-

tributes according to the shortName and desc tags

from the AUTOSAR model element. All relevant AU-

TOSAR elements from Table 1, except the top-most

AUTOSAR element, inherit from the Identifiable el-

ement. Thus, they all feature a name and a descrip-

tion parameter. Hence, the Identifiable2ICAT-

Object rule can be reused for all other rules in the

ATL ﬁle as a parent rule. Therefore, it is distinguished

as an abstract rule. This means, it is not going to

be matched directly on Identifiable elements, but

rather is the target pattern inherited by the inheriting

rules.

For example, the AtomicSWC2SWComponent rule

(line: 8-16 in listing 1) extends the parent rule

Identifiable2ICATObject and thus, its target pat-

tern is inherited. This means that, the target ele-

ment SoftwareComponent automatically receives the

name and description attributes. Additionally, it re-

ceives the runnables attribute speciﬁed in the new

target pattern, to link to the software component’s

runnables. To collect the runnable elements, the in-

ternal behavior elements of the software component

are accessed, because they store the runnable enti-

ties in the AUTOSAR model. The collect oper-

ation iterates through all internal behavior elements

(ib) and returns the list of runnables for each. As this

statement returns a two-dimensional list, the flatten

operation ensures that a list directly containing the

runnables is returned and assigned to the runnables

attribute.

Similar to the above rules, for the remaining el-

ements in table 1, a total of ﬁfteen rules are imple-

mented in the prototype. Please note that, the pro-

posed steps (a), (b) in Fig. 3 are independent of the

timing analysis tool. With the timing information

gathered in the AUTOSAR modeling phase and ex-

tracted by the model transformations according to the

mappings in 3.3, a timing analysis model is synthe-

sized. This model may now be used for various types

of timing validation in timing analysis tools.

4 AUTONOMOUS EMERGENCY

BRAKING SYSTEM EXAMPLE

The main purpose of Autonomous Emergency Brak-

ing Systems (AEBSs) is to warn the driver in case of

an imminent frontal collision. This happens through

visual and acoustic warning signals as a ﬁrst step,

followed by a tactile warning as the next level.

The AEBS in cars use the Time-To-Collision (TTC)

value (van der Horst and Hogema, 1993)(Kusano and

Gabler, 2011) to estimate the danger of the situation.

It is deﬁned as the time left until a collision hap-

pens, if every object continues to move at the same

speed. To calculate TTC, AEBS needs data such as

the distance to frontal objects (e.g. from rador sen-

sors) and wheel speed sensor input at certain speed

ranges. Please note that, though an extensive use case

has been implemented for experimental evaluation,

only a very brief subset of details are presented in this

section due to space limitations.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

4.1 AUTOSAR Design Model

The AUTOSAR system description of the AEBS is

modeled using the IBM Rational Rhapsody Devel-

oper modeling tool (IBM Software, 2019). Rhapsody

is among the most popular UML modeling tool with

AUTOSAR support used in the automotive industry,

hence it is used in this paper.

The ﬁrst step in implementing the AUTOSAR de-

sign model is to deﬁne the software components, of

which the system is composed of as shown in Fig. 6.

• The sensor ﬁlter modules on the left-hand side

are modeled as SensorActuatorSwComponent-

Types. They have client ports (speedSensorPort,

radarSensorPort) to be able to connect to the cor-

responding sensors. These ports are typed by

ClientServerInterfaces that provide an operation

for retrieving the sensor value. This is illustrated

by the association between the ports and the in-

terfaces, which is stereotyped as a portType. The

rest of the modules are modeled as Application-

SwComponentTypes, as they do not directly rep-

resent a sensor or an actuator.

• The communication between the sensor ﬁlters

and the CollisionDetection and ObstacleLoca-

tion components happens through sender/receiver

ports. The ﬁltered dataElements get sent to the

processing components. Equally, the Obstacle-

Location sends a list of obstacles (comprising

of distance and relative speed) to the Collision-

Detection. The communication between Colli-

sionDetection and DriverWarning is also typed

as sender/receiver and the corresponding dataEle-

ment is the TTC value.

• In the end, the DriverWarning component is con-

nected by client ports (ledPort, speakerPort and

brakePort) to the three actuators. The correspond-

ing interfaces provide the necessary operations for

the different levels of driver warning, e.g., setting

the warning LED light status (setLight), playing a

warning sound (playWarningSound) or perform-

ing an emergency brake (emergencyBrake).

4.2 Timing Speciﬁcation

The timing constraints of the AEBS are added to the

model in Fig. 6 with the help of AUTOSAR-TE in the

UML tool Rhapsody.

Fig. 7 shows a latency constraint for the check-

TTC runnable entity of the DriverWarning software

component (seen at top-right of Fig. 6). An Swc-

Timing is created for each software component in the

AEBS, which link to the component’s internal be-

havior with the l behavior association. Inside these

elements, two TDEventSwcInternalBehaviors are de-

ﬁned for each runnable entity (in this case, checkTTC

of IBDriverWarning). The ﬁrst event highlights the

activation of the runnable, while the second highlights

the termination. This is deﬁned by setting the tag td-

EventSwcInternalBehaviorType of the timing event to

either runnableEntityActivated or runnableEntityTer-

minated. Both these events are now used to form

a TimingDescriptionEventChain, in which the event

chain stimulus is the runnable activation and the event

chain response is the runnable termination.

Finally, the core execution time of the runnable

checkTTC is speciﬁed by the checkTTCLatency-

Constraint that links to its event chain with l scope.

The role timingGuarantee stereotype declares that

this constraint is the expected execution time instead

of a requirement (role timingRequirement). The re-

lated timing information can be given as maximum

and minimum execution time and is speciﬁed by

ASAM CSE codes (Scheid, 2015). The cseCode

speciﬁes the time base (e.g., 2 = 100µs, 3 = 1ms and

4 = 10ms) and the cseCodeFactor determines an inte-

ger scaling factor. Thus, in this case, the execution

time of the checkTTC runnable entity lies between

3ms and 5ms.

4.3 Model Transformations

In the above steps, the AUTOSAR-based de-

sign model and its corresponding timing annotated

AUTOSAR-based design model are created in the

UML modeling tool Rhapsody (cf. step(a) in Fig. 3).

This model is exported from the UML tool in the in-

terchangeable AUTOSAR ARXML format for M2M

transformations (cf. step (b) in Fig. 3). The trans-

formations are invoked in the experimental evaluation

directly from the Eclipse development environment.

The synthesized AUTOSAR-timing analysis

model of the AEBS use case is shown in Fig. 8.

The necessary elements for a timing analysis were

extracted from the AUTOSAR design model anno-

tated with timing properties (cf. Fig. 6, 7) according

to the mapping in Table 1. As seen in Fig. 8, the

AEBS model is structured by different Packages and

the System element contains the complete software

and hardware elements in a hierarchy. For example,

the runnable timeToCollision with its corresponding

execution time can be seen, allocated to the System-

Task, which is in turn allocated to Core1 of the ECU.

Please note that the results from timing validation of

the synthesized timing model in specialized timing

analysis tools such as SymTA/S, are not presented in

this paper due to space limitations.

A quantitative performance analysis of the pro-

Early Synthesis of Timing Models in AUTOSAR-based Automotive Embedded Software Systems

CollisionDetection

«ApplicationSwComponentType»

obsPort:IfObstacles

speedPort:IfSpeed

TTCPort:IfTTC

obsPort:IfObstacles

speedPort:IfSpeed

TTCPort:IfTTC

ObstacleLocation

«ApplicationSwComponentType»

distPort:IfDistance

obsPort:IfObstacles

distPort:IfDistance

obsPort:IfObstacles

DriverWarning

«ApplicationSwComponentType»

brakePort:IfBrake

speakerPort:IfSpeaker

ledPort:IfLED

TTCPort:IfTTC

brakePort:IfBrake

speakerPort:IfSpeaker

ledPort:IfLED

TTCPort:IfTTC

SpeedFilter

«SensorActuatorSwComponentType»

speedSensorPort:IfSpeedSensor

speedPort:IfSpeed

speedSensorPort:IfSpeedSensor

speedPort:IfSpeed

DistanceFilter

«SensorActuatorSwComponentType»

radarSensorPort:IfRadarSensor

distPort:IfDistance

radarSensorPort:IfRadarSensor

distPort:IfDistance

IfTTC

«SenderReceiverInterface»

«dataElement» ttc:int

IfLED

«ClientServerInterface»

«ClientServerOperation» setLight(on:Boolean):void

IfSpeaker

«ClientServerInterface»

«ClientServerOperation» playWarningSound():void

IfBrake

«ClientServerInterface»

«ClientServerOperation» emergencyBrake():void

«ClientServerOperation» prepareBrake():void

«ClientServerOperation» releaseBrake():void

«ClientServerOperation» warningBrake():void

IfSpeedSensor

«ClientServerInterface»

«ClientServerOperation» getSensorValue():int

IfRadarSensor

«ClientServerInterface»

«ClientServerOperation» getSensorValue():int

IfSpeed

«SenderReceiverInterface»

«dataElement» speed:int

IfDistance

«SenderReceiverInterface»

«dataElement» distance:int

IfObstacles

«SenderReceiverInterface»

«dataElement» obstacles:list

Figure 6: AEBS software components as seen in the software component diagram modeled in Rhapsody.

DriverWarningTiming

«SwcTiming»

checkTTCActivated

«TDEventSwcInternalBehavior»

checkTTCTerminated

«TDEventSwcInternalBehavior»

checkTTCLatencyConstraint

«LatencyTimingConstraint,role_timingGuarantee»

minLatency

«minimum»

cseCode:CseCodeType=3

cseCodeFactor:RhpInteger=3

maxLatency

«maximum»

cseCode:CseCodeType=3

cseCodeFactor:RhpInteger=5

checkTTCEventChain

«TimingDescriptionEventChain»

«l_response»

«l_stimulus»

«l_scope»

Application::SoftwareComponents::DriverWarning::IBDriverWarning

«SwcInternalBehavior»

checkTTC

«RunnableEntity»

«l_runnable» «l_runnable»

«l_behavior»

Figure 7: Timing attributes for the checkTTC runnable entity.

totype was carried out by invoking the transforma-

tions for the AEBS use case with varying number of

SWCs in the AUTOSAR-UML design model. This is

because, the number of software components (apart

from tasks) may be considered as a primary factor

for computing complexities involved in schedulabil-

ity analysis of systems.

For varying input size (i.e., SWCs in annotated

design model), time and memory requirement of the

ATL module to synthesize the respective instance of

the AUTOSAR-timing analysis model is determined

(cf. Table 2). The experiments were carried out on a

standard X-86 based host with Windows-XP OS. The

results indicate that the ATL transformations termi-

nate once the generation of the timing analysis model

is completed.

The generation time and memory requirement

is bounded for varying input sizes. This demon-

strates the applicability and suitability of the steps

involved in the proposed approach for early, auto-

matic synthesis of AUTOSAR-timing analysis model

from AUTOSAR-based design models developed in

Table 2: Set of inputs, time & memory requirement on a

standard X-86 based host (with Windows-XP OS), for au-

tosarToTiming ATL module.

SWCs Time (s) Memory(MB)

4 10.3 2.1

10 23.3 3.3

18 40.2 5.3

23 46.34 8.7

UML tools. Please note that a detailed analysis of

the transformations such as their computational com-

plexity are not provided in this paper, due to space

limitations.

5 CONCLUSION

In this paper, an approach towards early synthesis of

AUTOSAR-based timing models from timing anno-

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

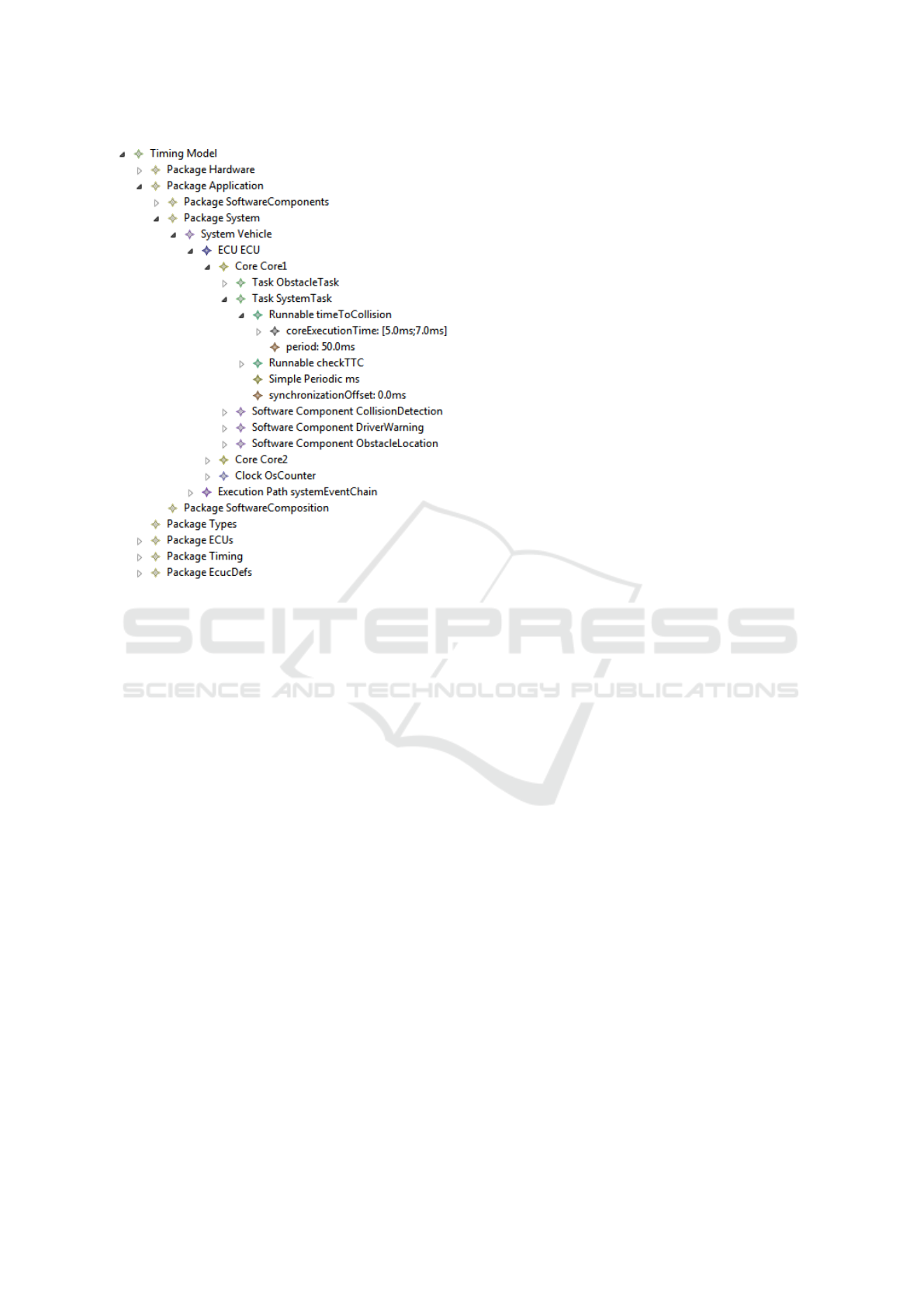

Figure 8: Synthesized timing model of AEBS use case.

tated AUTOSAR-based design models, developed in

state-of-the-art UML tools, is presented. ATL trans-

formations are employed to extract timing properties

from the timing annotated AUTOSAR-based design

model to generate a timing analysis model. The tim-

ing analysis model was synthesized in the early stages

of AUTOSAR-development process. Timing analy-

sis of this model in specialized timing analysis tools

(e.g. SymTA/S, chronSIM and Timing Architect)

would provide an early estimated timing behavior of

the system. At such an early development phase this

enables design changes without much consequences.

An AEBS practical use case was employed for exper-

imental evaluation. Extending this approach to dis-

tributed systems is an item for future work.

ACKNOWLEDGEMENTS

This work is supported by a grant (id:

KF2312004KM4) from BMWi-ZIM co-operation,

Germany and carried out in cooperation with Willert

Software Tools GmbH and SymtaVision GmbH.

REFERENCES

Al-bayati, Z., Zeng, H., Di Natale, M., and Gu, Z. (2013).

Multitask implementation of synchronous reactive

models with earliest deadline ﬁrst scheduling. In In-

dustrial Embedded Systems (SIES), 2013 8th IEEE In-

ternational Symposium on, pages 168–177.

Alur, R. (1999). Proceedings of Computer Aided Veriﬁca-

tion: 11th International Conference, CAV’99, chapter

Timed Automata, pages 8–22. Springer.

Amnell, T., Behrmann, G., Bengtsson, J., et al. (2001).

Modeling and Veriﬁcation of Parallel Processes:

MOVEP 2000, Revised Tutorial Lectures, chapter

UPPAAL - Now, Next, and Future, pages 99–124.

Springer.

Anssi, S., G

erard, S., Kuntz, S., and Terrier, F. (2011a). Au-

tosar vs. marte for enabling timing analysis of automo-

tive applications. In International SDL Forum, pages

262–275. Springer.

Anssi, S., Tucci-Piergiovanni, S., Kuntz, S., G

erard, S., and

Terrier, F. (2011b). Enabling scheduling analysis for

autosar systems. In IEEE ISORC 2011, pages 152–

159. IEEE.

AUTOSAR (2018). Release 4.4.0: Methodology and

templates. https://www.autosar.org/standards/classic-

platform/classic-platform-440/. Accessed Nov 2019.

Bhasker, J. (2010). A SystemC Primer. Star Galaxy.

Bosch GmbH, editor (2014). Bosch Automotive Electrics

and Automotive Electronics. Springer.

Bucaioni, A., Cicchetti, A., Ciccozzi, F., Mubeen, S., and

odin, M. (2017). A metamodel for the rubus com-

ponent model: Extensions for timing and model trans-

formation from east-adl. IEEE Access, 5:9005–9020.

Cervin, A., Arzen, K. E., Henriksson, D., Lluesma, M., Bal-

bastre, P., Ripoll, I., and Crespo, A. (2006). Control

loop timing analysis using truetime and jitterbug. In

IEEE International Conference Computer Aided Con-

trol System Design.

Derler, P., Eidson, J., Lee, E. A., Matic, S., and Zimmer, M.

(2011). Model-based development of deterministic,

event-driven, real-time distributed systems. In Work-

shop on Model-Based Design with a Focus on Extra-

Functional Properties.

Di Natale, M., Guo, L., Zeng, H., and Sangiovanni-

Vincentelli, A. (2010). Synthesis of multitask imple-

mentations of simulink models with minimum delays.

IEEE Transactions on Industrial Informatics, 6/4.

Ficek, C., Feiertag, N., Richter, K., and Jersak, M. (2012).

Applying the AUTOSAR timing protection to build

safe and efﬁcient ISO 26262 mixed-criticality sys-

tems. Proceedings of ERTS.

Franco, F. R. and et. al (2016). Workﬂow and toolchain for

developing the automotive software according autosar

standard at a virtual-ecu. In 2016 IEEE 25th Inter-

national Symposium on Industrial Electronics (ISIE),

pages 869–875.

Hans, B., Rolf, J., and Henrik, L. (2009). Annotation with

Timing Constraints in the Context of EAST-ADL2

and AUTOSAR-the Timing Augmented Description

Language. In STANDRTS’09.

Early Synthesis of Timing Models in AUTOSAR-based Automotive Embedded Software Systems

Harbour, M. G., Garc

ıa, J. G., Guti

errez, J. P., and Moyano,

J. D. (2001). Mast: Modeling and analysis suite for

real time applications. In Real-Time Systems, 13th Eu-

romicro Conference on, 2001., pages 125–134. IEEE.

Henia, R., Hamann, A., Jersak, M., Racu, R., Richter, K.,

and Ernst, R. (2005). System level performance anal-

ysis – the symta/s approach. IEE Proceedings – Com-

puters and Digital Techniques, 152(2):148–166.

Henzinger, T. A., Horowitz, B., and Kirsch, C. M. (2001).

Giotto: A time-triggered language for embedded pro-

gramming. In Proceedings of the 1st International

Workshop on Embedded Software, EMSOFT ’01.

IBM Software (2019). Ibm rational rhapsody developer.

https://www.ibm.com/software/products/en/ratirhap.

Accessed Nov 2019.

INCHRON (2019). chronSIM.

https://www.inchron.com/tool-suite/chronsim.html.

Nov 2019.

Iqbal, M. Z., Ali, S., Yue, T., and Briand, L. (2012). Ex-

periences of Applying UML/MARTE on Three Indus-

trial Projects. In Proceedings of the 15th International

Conference MODELS’12.

Iyenghar, P., Noyer, A., Engelhardt, J., Pulverm

uller, E.,

and Westerkamp, C. (2016). End-to-end path delay

estimation in embedded software involving heteroge-

neous models. In 11th IEEE Symposium on Industrial

Embedded Systems, SIES, 2016, pages 183–188.

Iyenghar, P. and Pulvermueller, E. (2018). A model-driven

workﬂow for energy-aware scheduling analysis of iot-

enabled use cases. IEEE Internet of Things Journal,

5(6):4914–4925.

Jianqiang, W., Shengbo, L., Xiaoyu, H., and Keqiang,

L. (2010). Driving simulation platform applied to

develop driving assistance systems. IET Intelligent

Transport Systems, 4(2):121–127.

Kaynar, D. K., Lynch, N., Segala, R., and Vaandrager, F.

(2003). Timed I/O Automata: A Mathematical Frame-

work for Modeling and Analyzing Real-Time Sys-

tems. In Proceedings of the 24th IEEE RTSS.

Kim, J. H., Kang, I., Kang, S., and Boudjadar, A.

(2016). A process algebraic approach to resource-

parameterized timing analysis of automotive software

architectures. IEEE Transactions on Industrial Infor-

matics, 12(2):655–671.

Kirner, R., Lang, R., Puschner, P., and Temple, C. (2000).

Integrating WCET Analysis into a Matlab/Simulink

Simulation Model. In Proceedings of 16th IFAC Work-

shop on Distributed Computer Control Systems 2000.

Klobedanz, K., Kuznik, C., Thuy, A., and Mueller,

W. (2010). Timing modeling and analysis for

AUTOSAR-based software development: a case

study. In Proceedings of Conference on Design, Au-

tomation and Test in Europe, pages 642–645. Euro-

pean Design and Automation Association.

Kusano, K. D. and Gabler, H. (2011). Method for estimat-

ing time to collision at braking in real-world, lead ve-

hicle stopped rear-end crashes for use in pre-crash sys-

tem design. SAE International Journal of Passenger

Cars – Mechanical Systems, 4(1):435–443.

Luxoft – Symtavision (2019). Timing analysis so-

lutions. https://auto.luxoft.com/uth/timing-analysis-

tools/. Accessed Nov 2019.

Navet, N. and Simonot-Lion, F., editors (2009). Automotive

embedded systems handbook. CRC press.

Noyer, A., Iyenghar, P., Engelhardt, J., Pulvermueller, E.,

and Bikker, G. (2016). A model-based framework

encompassing complete workﬂow from speciﬁcation

until validation of timing requirements in embedded

software systems. Software Quality Journal, pages 1–

31.

Peraldi, M. and Sorel, Y. (2008). From high-level modelling

of time in marte to realtime scheduling analysis. In

First International Workshop on Model Based Archi-

tecting and Construction of Embedded Systems.

Peraldi-Frati, M.-A., Blom, H., Karlsson, D., and Kuntz, S.

(2012). Timing modeling with autosar - current state

and future directions. In Design, Automation Test in

Europe Conference, DATE.

Petriu, D. C. (2013). Software Model-based Performance

Analysis, pages 139–166. John Wiley & Sons, Inc.

Scheickl, O., Ainhauser, C., and Gliwa, P. (2012). Tool sup-

port for seamless system development based on au-

tosar timing extensions. In Proceedings of Embedded

Real-Time Software Congress(ERTS).

Scheid, O. (2015). AUTOSAR Compendium, Part 1: Appli-

cation & RTE. CreateSpace Independent Publishing

Platform.

Singhoff, F., Legrand, J., Nana, L., and Marc

e, L. (2004).

Cheddar: a ﬂexible real time scheduling framework.

In ACM SIGAda Ada Letters, volume 24, pages 1–8.

ACM.

van der Horst, R. and Hogema, J. (1993). Time-to-collision

and collision avoidance systems. In Proceedings of

the 6th ICTCT Workshop.

Zhao, Y., Liu, J., and Lee, E. A. (2007). A program-

ming model for time-synchronized distributed real-

time systems. In Proceedings of 13th IEEE Real Time

and Embedded Technology and Applications Sympo-

sium, RTAS, pages 259–268.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development
