What Does Multi-agent Path-ﬁnding Tell Us About Intelligent

Intersections

era

Skopkov

a, Roman Bart

and Ji

Svancara

Charles University, Faculty of Mathematics and Physics, Prague, Czech Republic

Keywords:

Multi-agent Systems, Centralized Planning, Cooperative Navigation, Intelligent Intersection.

Abstract:

In this paper, we study the problem of an intelligent intersection. There are many studies that present an

algorithm that tries to efﬁciently coordinate many agents in a given intersection, however, in this paper, we

study the layout of the intersection and its implications to the quality of the plan. We start with two of today

commonly used road intersections (4-way intersection and roundabout) and compare them with an intersection

that is less restrictive on the movements of the agents. This means that the agents do not have to use predeﬁned

lanes or follow a prescribed driving direction. We also study the effect of granularity of the intersection. The

navigation of the agents in a given intersection is solved as an instance of (online) multi-agent path-ﬁnding

problem.

1 INTRODUCTION

Intersections are nowadays one of the most problem-

atic parts of our roads. According to the statistics

(Huang et al., 2008), intersections are the place where

most accidents happen. Navigating through an inter-

section is problematic because the paths of the vehi-

cles cross each other and so not all vehicles can move

at the same time. This means that some vehicles must

stand still and yield the others. If the trafﬁc around

the intersection is dense enough, then a situation can

happen when every newly arriving vehicle must spend

more and more time waiting to get through the inter-

section.

In order to make the intersection effective, and

above all safe, various intersection management

mechanisms have been utilized. In low-trafﬁc inter-

sections, following the trafﬁc regulations and respect

the trafﬁc signs is enough. In busier intersections, we

encounter trafﬁc lights that can control trafﬁc in all

directions. However, these mechanisms are not efﬁ-

cient. For example, if we arrive at an empty intersec-

tion but have a red light, we must not continue our

journey, although there is no one to whom we are giv-

ing way. In this case, the light signal control does not

behave optimally at all, because otherwise, it would

recognize that we are alone at the intersection and let

us through.

https://orcid.org/0000-0002-6717-8175

https://orcid.org/0000-0002-6275-6773

If we take into account the rise of autonomous ve-

hicles, we can further develop the idea of an intelli-

gent intersection in such a way that it can communi-

cate with the vehicles that want to go through. Instead

of the intersection recognizing a vehicle and changing

lights, the vehicle asks for permission to pass through

the intersection at a given time and the intersection

navigates it safely with other present vehicles.

Note that while we are using the terminology from

car navigation, the same problems can be found in

other areas of agent navigation. For example ware-

house robots – navigation between shelves, where

movement in only one direction is allowed, is easy

using only sensors. However, navigation through a

crossing of these corridors is hard due to the presence

of other robots. Some other examples include ship

navigation within harbors in comparison with naviga-

tion on the open sea, and airplane navigation in the

proximity to an airport with comparison to ﬂights in

predeﬁned ﬂight corridors. For this reason, we will

use the more general term agents.

Several studies present an algorithm that navigates

agents through a ﬁxed intersection. In contrast, we

will study the effect of the layout of the intersection

on the quality of plans. The intersections can be ab-

stracted as a shared graph and the navigation part is

then solved as an instance of multi-agent path-ﬁnding

(MAPF) problem.

250

Škopková, V., Barták, R. and Švancara, J.

What Does Multi-agent Path-ﬁnding Tell Us About Intelligent Intersections.

DOI: 10.5220/0009098502500257

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 1, pages 250-257

ISBN: 978-989-758-395-7; ISSN: 2184-433X

2 MAPF PROBLEM

Ofﬂine MAPF. An instance of ofﬂine MAPF problem

can be formally deﬁned as a pair (G, A), where G is a

graph and A is a set of agents. The graph G can be di-

rected or undirected. Each agent a ∈ A is deﬁned as a

pair (a

, a

), where a

and a

correspond to a starting

location and goal location respectively in graph G.

The time is assumed discretized and in each

timestep, all of the agents can perform either a move

action to one of the neighboring vertices or a wait ac-

tion to remain in the current vertex. All of the agents

are moving simultaneously.

A plan for a single agent i is a sequence of loca-

tions where the agent is located at a given time. Let π

denote a plan for agent i, where π

( j) = v represents

that agent i is located in vertex v at timestep j. We

denote |π

| as the length of the plan.

A plan π

is a valid plan if π

(0) and π

(|π

|) are

the initial and goal locations of a

, respectively, and

for every j ∈ {0, . . . , |π

|} either π

( j) = π

( j + 1)

or (π

( j), π

( j + 1)) ∈ E. This means that at each

timestep, the agent is either waiting in the current ver-

tex or moves to a neighboring vertex.

A joint plan π is a set of valid plans, one for each

agent. The joint plan must further satisfy the follow-

ing constraints:

• ∀i, j ∈ A, ∀t : π

(t) 6= π

(t) Meaning that no two

agents can occupy the same vertex at the same

time.

• ∀i, j ∈ A, ∀t : π

(t) 6= π

(t + 1) ∨ π

(t + 1) 6= π

(t)

Meaning that no two agents can use the same edge

in the opposite direction at the same time.

In the context of MAPF, we call these constraints a

vertex conﬂict and a swapping conﬂict (Stern et al.,

2019). On the other hand, we allow two agents to

closely follow each other. This means that agent a can

move into a vertex that is currently occupied by some

other agent, provided that the vertex will be empty be-

fore the arrival of the agent a. This situation is for ex-

ample forbidden in the setting of MAPF that is called

Pebble Motion (Kornhauser et al., 1984).

When creating a plan, we often prefer to ﬁnd

an optimal plan with respect to some cost function.

The two functions often used in the literature are

makespan and sum of costs.

The makespan function is deﬁned as:

max

i∈A

|π

The sum of costs function is deﬁned as:

∑

i∈A

|π

While there are many polynomial-time algorithms

that can ﬁnd a feasible solution (de Wilde et al., 2014;

Surynek, 2009), the task to ﬁnd either a makespan op-

timal solution or a sum of costs optimal solution is

an NP-Hard problem (Ratner and Warmuth, 1990; Yu

and LaValle, 2013).

Online MAPF. As opposed to the ofﬂine setting,

where all of the agents are known in advance, we

can deﬁne an online MAPF (

Svancara et al., 2019),

where new agents can appear over time, while agents

that reached their goal location disappear. This set-

ting very closely represents the intersection model we

are interested in.

Formally an online MAPF instance includes in ad-

dition to the ofﬂine instance a set of new agents A

new

Each new agent a is a triple (a

, a

, t), where t is the

timestep at which the agent wants to enter the graph.

If it is not possible for the agent to enter at the desired

time (because it would cause an unavoidable colli-

sion), it is possible to delay the agent.

The solution to the online MAPF is then a se-

quence of valid joint plans Π = (π

, . . . , π

), where

m = |A

new

| and π

is the joint plan for the ofﬂine part

of the instance. Each time a new agent enters the

graph, we produce a new plan including that agent.

Depending on the solver strategy, we may forbid or

allow to change plans for the agents that were already

present in the graph.

Note that the online nature of the problem means

that there is no solver that can compute the overall

optimal solution (

Svancara et al., 2019).

3 INTERSECTION MODEL

An intersection is a part of a shared environment

where several roads with simple navigation rules

cross each other. Intersections are typically hard for

agents to navigate through due to the presence of

many other agents, whose desired paths cross each

other.

A way to deal with this challenge is for the agents

to be coordinated by some centralized autonomous in-

tersection management that organizes the agents in

such a way that they do not collide and, furthermore,

the time spend crossing the intersection is minimized

(Dresner and Stone, 2008b). There are some ba-

sic logical requirements for this intersection manage-

ment such as that all of the independent agents (driver

agent) respect the commands of the central agent (in-

tersection manager). For simplicity, we assume that

all of the driver agents are homogeneous and are trav-

elling at the same speed.

What Does Multi-agent Path-ﬁnding Tell Us About Intelligent Intersections

251

The intersection is characterized by some loca-

tions, where an agent can enter and some locations

where the agent may leave the intersection. Once the

agent leaves the intersection, it is again an indepen-

dent agent.

The driver agents send a request for traversing the

intersection with the desired entrance time and trajec-

tory. The intersection manager then either approves

or rejects this request. A simple strategy to coordinate

the intersection can be described as ﬁrst-come, ﬁrst-

served (Dresner and Stone, 2008b). In this strategy,

the intersection manager simply checks if the request

can be executed without causing a collision with pre-

viously approved trajectory and if so it approves the

request.

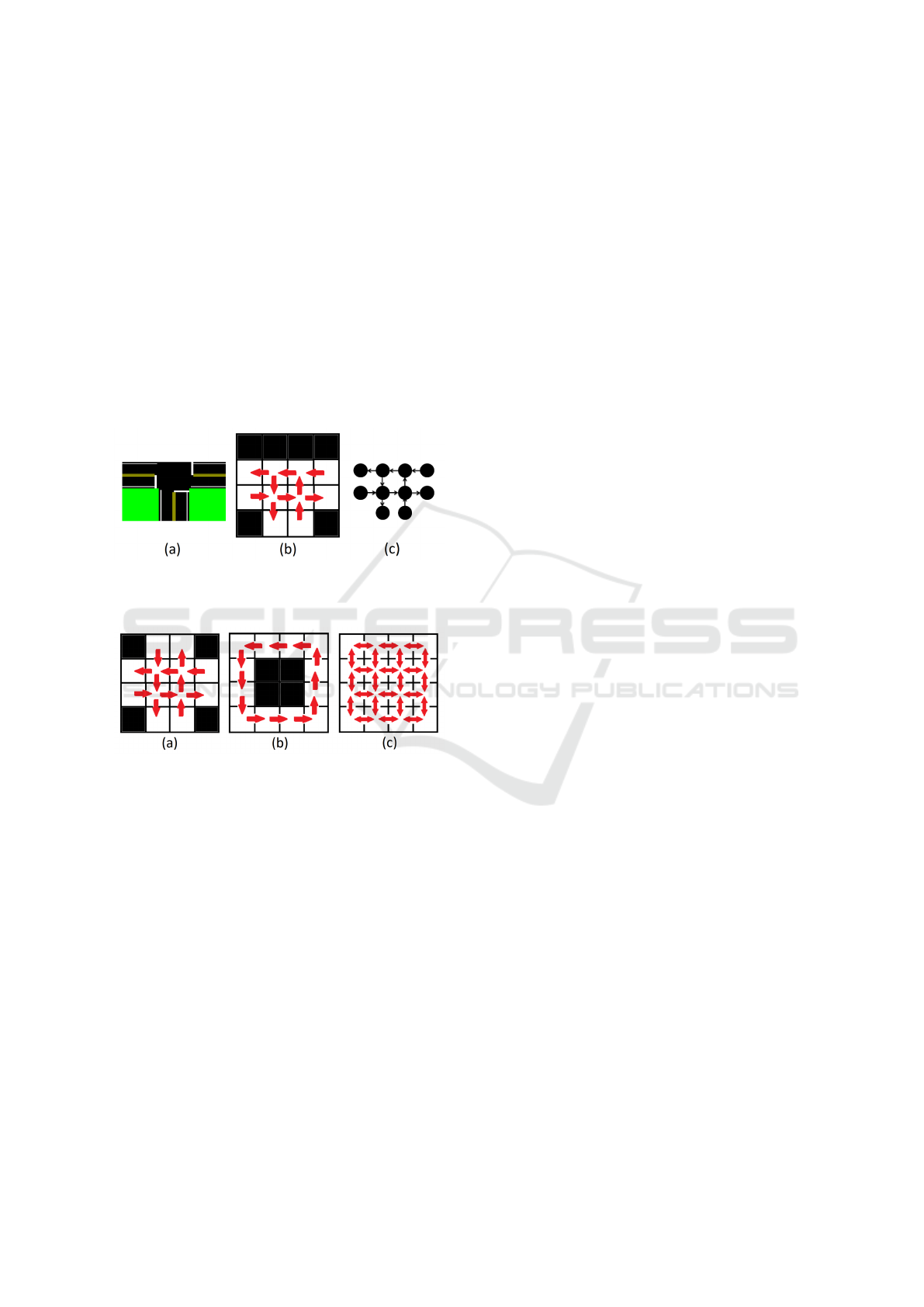

Figure 1: The process of creating an input graph for MAPF

from real intersection: (a) real intersection (b) tiles repre-

sentation (c) oriented graph.

Figure 2: Intersection types: (a) corridors intersection (b)

roundabout intersection (c) free movement intersection.

In this paper, we try to improve the intersection man-

ager by letting it decide the trajectory of the agent.

We will also consider a model, where the intersection

manager can change the already approved trajectories

of the agents that are already traversing the intersec-

tion. This approach can be used also for emergencies

when an accident happens in the intersection and we

need to change the approved trajectories to avoid the

collision (Dresner and Stone, 2008a).

4 COORDINATING

INTERSECTION USING MAPF

Intersection Representation. We divide the space of

the intersection into a grid of n × n tiles, we call n the

granularity of the intersection. In every timestep, an

agent can occupy only one tile and a tile can be occu-

pied by at most one agent. We suppose that the agents

move synchronously and in every discrete timestep

they move to one of their neighboring tiles, they are

not allowed to stay on the same tile in two consequent

timesteps (wait actions are not allowed).

Every tile has at most 4 neighboring tiles —- they

can be situated to the north, to the south, to the east

and to the west of that tile. The diagonal tiles are not

neighbors. The space of the intersection is described

as a graph in this way: The tiles correspond to the ver-

tices of the graph and the edges represent all couples

of the neighboring edges. An example of translating a

real intersection into tiles representation and then into

oriented graph representation can be seen in Figure 1.

Then we can apply MAPF on this graph in order to

ﬁnd paths for agents in the intersection. We reduced

the intersection manager to an online MAPF problem.

A tile might have less than 4 neighbors because

of two reasons. Firstly, edge tiles do not have natu-

rally some neighbors because they simply do not ex-

ist. Secondly, it may be forbidden to perform some

moves in the intersection. This can be achieved by

forbidding a tile to be a neighbor of any other tile by

deleting an appropriate edge from the graph. If the

edge is completely missing, two tiles are not neigh-

boring although they lay physically next to each other.

In case there is a directed edge between two tiles, it is

possible to move between these tiles in the direction

of that edge, but movement in the opposite direction

is forbidden.

Intersection Models. We created three different in-

tersection types to compare (see Figure 2). Two of

them are a sample of intersections used in the real

world, while the last one gives the agents more free-

dom in movement.

The Corridors Intersection is represented by a di-

rected graph. Its edges limit the movement of the

agents through the intersection in such a way that the

trajectories approximately correspond to those which

a human driver would choose. This is a representation

of a typical 4-way intersection that is usually coordi-

nated by trafﬁc lights or by signs.

The Roundabout Intersection is also represented

by a directed graph. It simulates a roundabout build

on the space reserved for the intersection —- it is of

the same size but it allows only the movement through

the margin tiles of the intersection in the counter-

clockwise direction. The tiles in the middle of the

intersection are unreachable.

The Free Movement Intersection is represented by

an undirected graph. It contains an undirected edge

between each couple of tiles laying next to each other.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

252

The two previous intersections are used today in traf-

ﬁc because a few simple rules can achieve coordinated

movement of agents inside the intersection. The free

movement intersection, on the other hand, is not vi-

able to use without some centralized entity that coor-

dinates the movement of agents. The beneﬁt of this

intersection is that it allows the agents to move freely

through the whole space of the intersection, thus the-

oretically increasing throughput.

Incoming Requests. Every request consists of in-

put and output direction and of the required time (in

abstract discrete units) for entering the intersection.

Before every experiment, we always set the space

limit – maximum delay allowed on every entrance

to the intersection. Requests for which there is no

free path starting between required time and (required

time + maximum delay) are rejected.

Solvers. We always process one new request in one

run of the solver although it is possible to process

more requests at once. In most cases, we search

path for a new request in such a way that we re-

spect the found paths for all previous requests and

we do not change them. We shall call this approach

adding-solver. In some experiments we use also

rescheduling-solver which, in contrast to the previ-

ous one, also might change some paths found before.

Such solver is more powerful — it might succeed in

some cases in which the adding-solver fails but its

computations may take a longer time.

We should mention that it is reasonable to use

rescheduling-solver only for the model of free move-

ment intersection. In the rest of the models there is

always only one possible path in every direction, no

alternative paths exist. Then the rescheduling of pre-

vious agents does not bring us any new information.

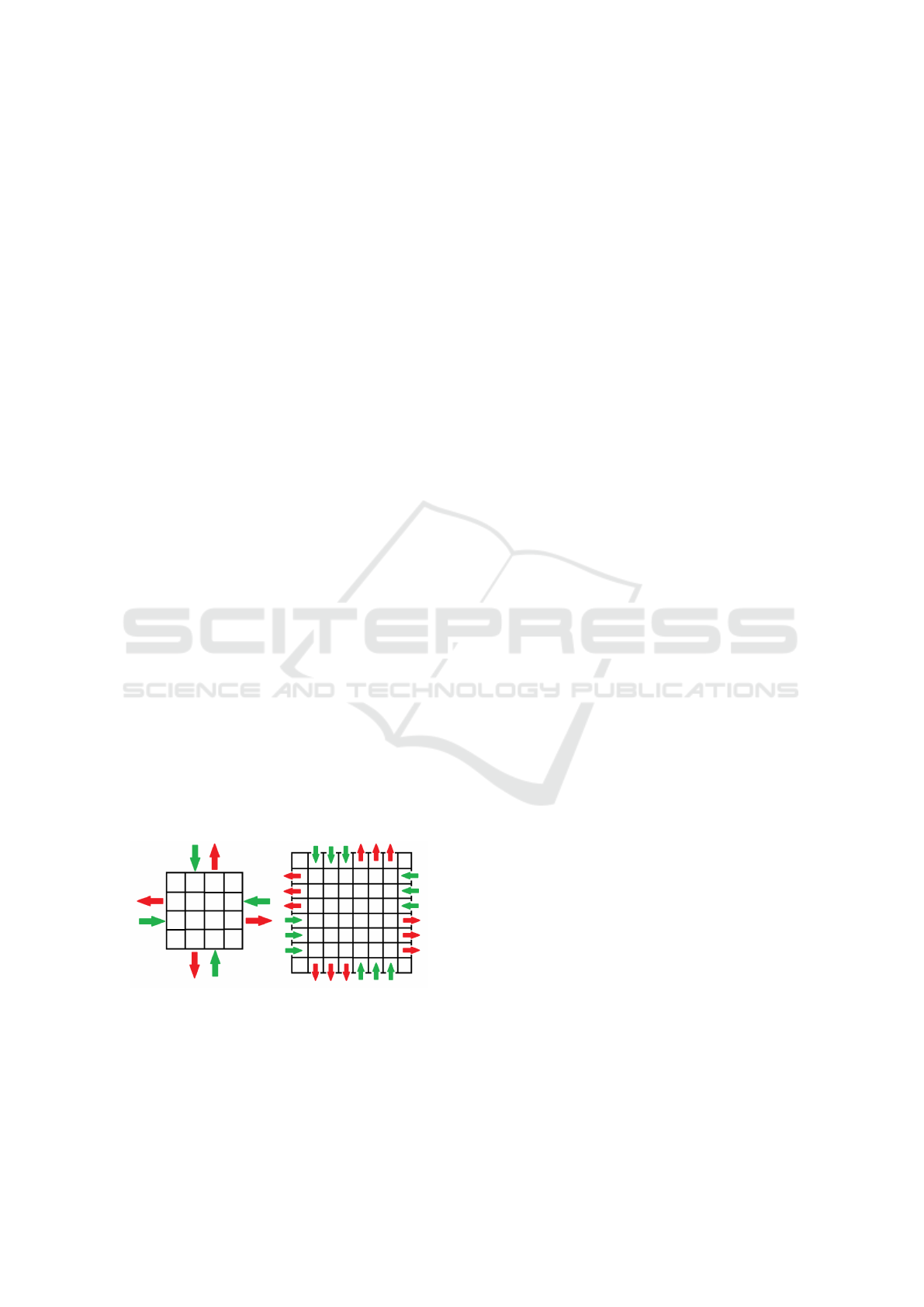

Figure 3: Input tiles for intersections with granularities

n = 4 and n = 8.

Experimental Settings. In our experiments we use

two granularities: n = 4 and n = 8. For n = 4 we have

one input tile and one output tile for every direction,

for n = 8 we chose to have 3 input tiles and 3 output

tiles in every direction (see Figure 3). In this case, we

allow the agents to use arbitrary input and output tile

in a requested direction. The requests do not corre-

spond to a particular tile, only to directions. Speciﬁc

tiles for every agent are chosen by the solver.

Since there are more options for the agents to en-

ter the graph in the 8 by 8 grid, there are more possi-

bilities of how to deﬁne the corridors in the intersec-

tion (see Figure 4). We can either forbid to change

lines once the agent enters the intersection or we can

allow it. If the line switching is forbidden then one

input tile corresponds exactly to one output tile, thus

the agent is forced to enter the graph based on the

desired output direction (Figure 4 (a)). On the other

hand, if we allow the agent to change lines, the solver

has more choices where the agent can enter (Figure

4 (b)). We can increase the number of choices even

more by allowing the agents to move even over the

input tiles (Figure 4 (c)). Note that the version (c) has

still only three input and output tiles in each direction.

Also, there is a difference between corridor versions

(b) and (c), and the free movement intersection. The

free movement intersection allows movement in every

direction, while the corridor intersection only allows

movement in up to two directions in any given tile.

Increasing the granularity does not change the in-

ternal structure of the roundabout intersection and

free movement intersection.

5 EXPERIMENTS

In this section, we describe experiments in which

we tested the performance of our models at differ-

ent levels of trafﬁc density. For every experiment, we

generated 5 random sequences of input requests cor-

responding to parameters stated before and we pro-

cessed them by tested intersections. Every sequence

was characterized by minimum and maximum num-

ber of requests which could appear in every discrete

timestep, by the timestep in which the last request

came and by space limit used.

To generate the requests we used a generator with

uniform distribution. At ﬁrst we always randomly

chose the number of requests for a timestep (within a

given range) and then we generated input and output

direction for particular requests independently. The

only condition was that the directions can not be equal

(we do not support the so-called U-turns).

Since it is not important how a particular instance

of a MAPF problem is solved, we do not describe in

much detail the MAPF solver that was used in the ex-

periments. The solver is based on reducing the in-

stance into a satisﬁability problem using the declar-

What Does Multi-agent Path-ﬁnding Tell Us About Intelligent Intersections

253

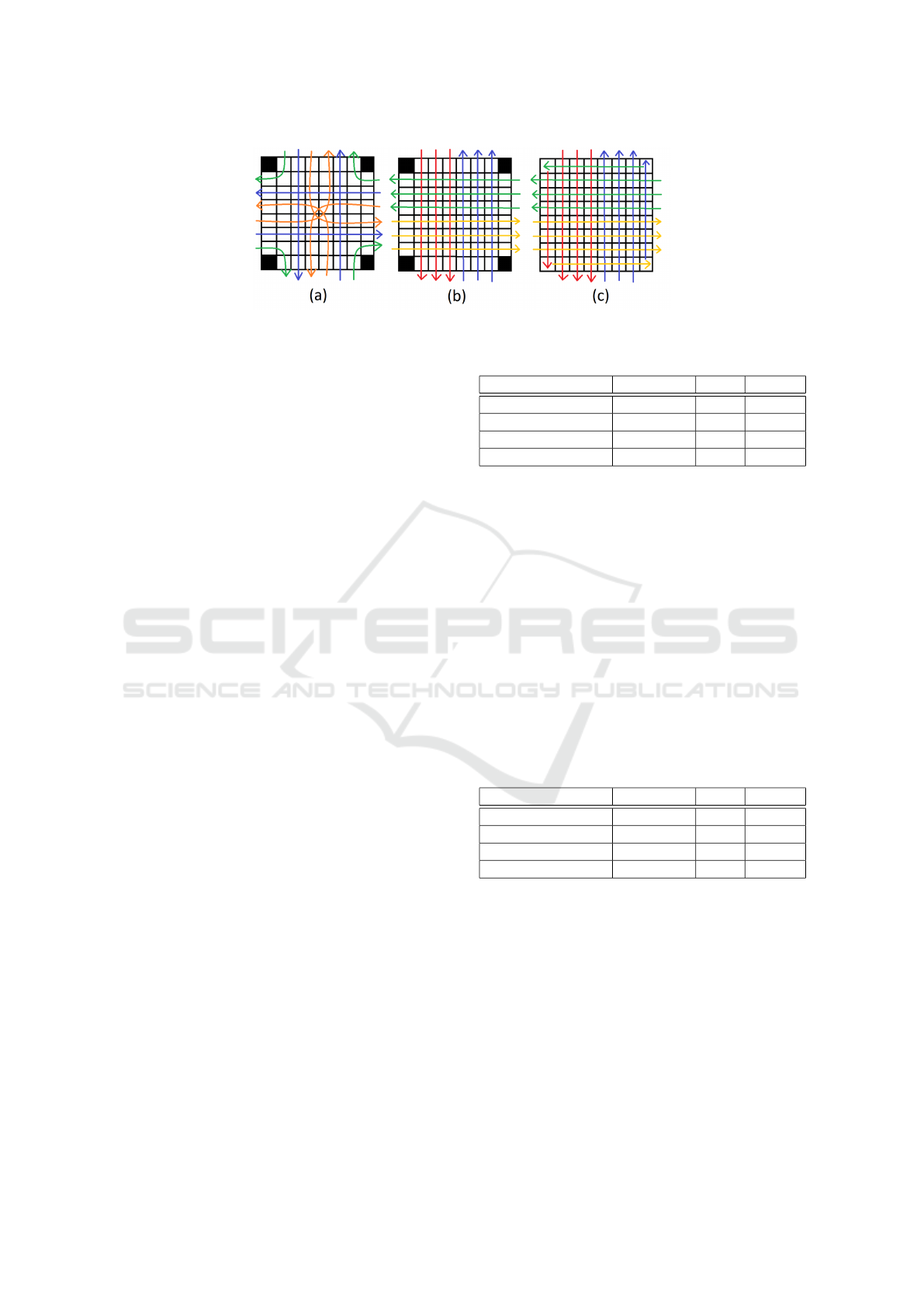

Figure 4: Three different line settings in the 8 × 8 corridor intersection. (a) strict lines (b) free lines (c) oriented graph.

ative language Picat (Bart

ak et al., 2017). In the

adding-solvers, we always compute a path for only

one agent (while avoiding the planned agents), thus

it is the problem of ﬁnding the shortest path. In the

rescheduling-solver, we ﬁnd the makespan optimal

solution.

In our tables we always present averages of results

of 5 inputs generated with equal parameters. There

are three metrics we are interested in:

Plan Length corresponds to the number of discrete

timesteps needed to transport all agents to their goals

according to the plan. We measure the experiment

from time 1.

Delay is the cumulative number of timesteps each

agent has to spend in the intersection (or waiting

before entering the intersection) over the minimum

number of timesteps it would take the agent to reach

the goal position if there were no other agents present.

Refused is the number of requests which were not

possible to plan within a given space-limit. The re-

quests that were refused did not move through the in-

tersection at all.

Light Trafﬁc. In the ﬁrst experiment, we worked

with intersections with granularity n=4. Tested input

sequences consisted of exactly one request in every

timestep which corresponded to light trafﬁc situation.

The space limit was set to 1.

We tested all three models in connection with

adding-solver, the free movement intersection model

was tested also together with rescheduling-solver.

The results of this experiment are noted in table 1.

Almost every request in every model was accepted,

the only model which refused some requests was the

corridors model. The plan of the roundabout model

was a bit longer than the other plans but the difference

was not considerable.

The free movement intersection model had a

smaller delay than the corridors model, the best result

was achieved by free movement intersection model

together with rescheduling solver. It means in some

situations there existed a better solution than the one

Table 1: Results for light trafﬁc with space limit of 1.

Intersection type plan length delay refused

Roundabout 15.6 1 0

Corridor 13 2.4 0.2

Free – adding 13 1.4 0

Free – rescheduling 13 0.8 0

adding-solver found but it had required a change of

the plan of some agent(s) planned before.

Medium Trafﬁc. In this experiment, we use the

same parameters except that there can be from 0 to 2

requests in every timestep. Generated sequences rep-

resent medium trafﬁc density.

The results of this experiment are summarized

in table 2. The most successful model was the

model of free movement intersection, this time in

connection with adding-solver. It happened be-

cause rescheduling-solver time-outed on some re-

quests, otherwise it should always ﬁnd at least the

same results as adding-solver.

Table 2: Results for medium trafﬁc with space limit of 1.

Intersection type plan length delay refused

Roundabout 20.2 2.4 0.8

Corridor 17.2 4.4 1.6

Free – adding 17.4 5.8 0.4

Free – rescheduling 18 4.75 1

As in the previous example, the plan length of the

roundabout model is worse in comparison with the

rest of the models. But we should notice that the de-

lay of this model was the smallest of all models.

Since the rescheduling-solver tends to time-out,

we will no longer consider it in further experiments.

The experiments will increase in difﬁculty and the

trend of time-outing will be more prominent. The

intersection management should be a fast responding

entity, the agent can not afford to wait several minutes

before receiving approval to enter the intersection.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

254

Heavy Trafﬁc. In this example, there will be heavy

trafﬁc consisting of 1 to 3 requests in every timestep.

We can expect a bigger number of refused requests.

We run the testing input sequences twice. First,

there will be a space limit of 1, in the second run space

limit will be 5.

The results of both variants of this experiment are

compared in tables 3 and 4. In both cases, we can see

that free movement intersection refused the smallest

number of agents. With the space limit of 1, there

was a shorter plan length and smaller delay when us-

ing the corridor model. But we should mention that

this number is inﬂuenced by the fact that some agents

were refused so the resulting plan of corridor model

is in reality simpler.

Table 3: Results for heavy trafﬁc with space limit of 1.

Intersection type plan length delay refused

Roundabout 18.4 5.2 4.2

Corridor 14 8.4 3.4

Free 15 10.8 2

Table 4: Results for heavy trafﬁc with space limit of 5.

Intersection type plan length delay refused

Roundabout 18.8 20 0.6

Corridor 16.4 31.4 0.4

Free 15.4 19.2 0

When comparing both tables we can notice that with

increasing space limit, the number of refused agents

decreases and the delay increases. The length of the

plan stays almost the same. Higher space limit adds

ﬂexibility to solver so it is able to schedule some ex-

tra agents but there is no other possibility than to de-

lay their starts so the delay increases rapidly (almost

twice).

Extremely Heavy Trafﬁc. In the following experi-

ment, we have extremely heavy trafﬁc consisting of 2

to 5 requests in every timestep. At ﬁrst, we allow only

a space limit of 2, later we increase it to 5. We expect

there will be a huge number of refused requests and

the majority of the others will have big delays.

Results of this experiment are available in tables

5, 6. In both cases we can see similar results as in

previous experiments: free movement intersection re-

fused the fewest requests and the roundabout model

had the largest plan length.

When comparing both tables we can notice that

with a space limit of 5 there is a signiﬁcant decrease

in the number of refused requests. Since the length of

the plan stayed almost the same, it means the space of

the intersection is better utilized.

Table 5: Results for extremely heavy trafﬁc with space limit

of 2.

Intersection type plan length delay refused

Roundabout 17.2 15 8.2

Corridor 14 21.4 9.6

Free 14.8 36.2 5.8

Table 6: Results for extremely heavy trafﬁc with space limit

of 5.

Intersection type plan length delay refused

Roundabout 19 47 3.6

Corridor 17 59.2 3.8

Free 16.2 63.6 1.6

Unfortunately with a space limit of 5, the delay in-

creased considerably which was caused mainly be-

cause of the additional space limit. We can observe

it in the results of the roundabout model. With the

space limit of 2, there was only 15 timesteps delay in

this model. But with the space limit of 5, it increased

to 47. Since there are no alternative (and longer) paths

in the roundabout model the value of the delay in this

model consists only of waiting in front of the intersec-

tion. Thus on average, in the intersection with space

limit of 5 an agent waits in front of the intersection

three times longer than in the intersection with space

limit of 2.

It means that if we want the solver to accept as

many requests as possible and to plan their paths with

minimum delay all at once, we have to reach a com-

promise.

Long-term Extremely Heavy Trafﬁc. In this ex-

periment, we will simulate the situation of an arising

trafﬁc jam. Every timestep there will be between 2

and 5 requests and the experiment will run 3 times

longer than all previous experiments. Only free move-

ment intersection will be tested and there will be two

runs of the experiment - with a space limit of 2 and 5.

The results of this experiment can be seen in table

7. When using the space limit of 5, there were ac-

cepted 2 more agents but otherwise, the result is not

very successful. The delay increased more than twice

which is quite unsatisfying.

Table 7: Results for long-term extremely heavy trafﬁc over

the free-movement intersection solved by the adding-solver.

Space limit plan length delay refused

2 36 169 32

5 40 350 30

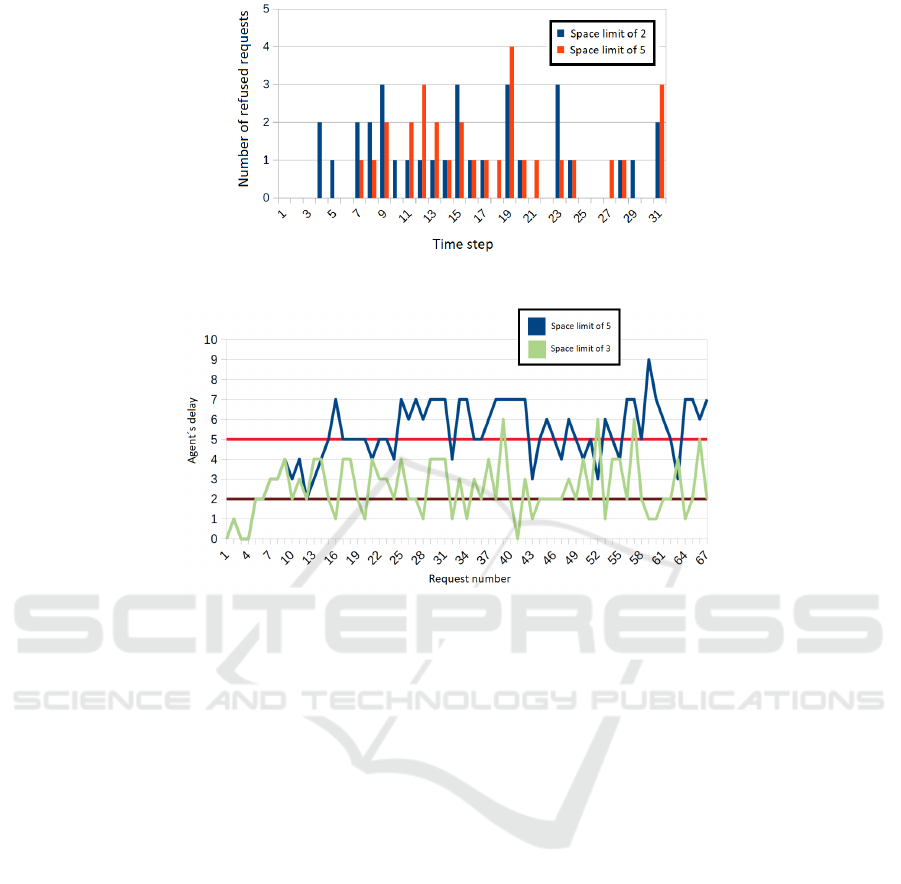

Figure 5 shows the number of refused requests in ev-

What Does Multi-agent Path-ﬁnding Tell Us About Intelligent Intersections

255

Figure 5: Number of refused requests in individual timesteps in long-term extremely heavy trafﬁc.

Figure 6: Delay of particular agents in long-term extremely heavy trafﬁc.

ery timestep. We can see that there were 2 requests

refused in space limit of 2 before refusal of the ﬁrst

request in space limit of 5. The reason for that was

probably the size of the space limit — a smaller time

window was ﬁlled up sooner so the solver had to start

refusing the requests sooner. After a 5-step window

was ﬁlled up the number of refused requests was al-

most the same.

In the ﬁgure 6 we can observe the origin of the

trafﬁc jam. A few agents at the beginning have just

small delays but quickly the majority of agents start

to have delay approximately the size corresponding to

the relevant space limit. This means that the majority

of agents are planned at the end of the allowed time

window, almost none of them were planned at their

required time.

We can conclude that in the longer horizon, a big-

ger space limit does not increase the throughput of

the intersection, in contrast, it only delays particular

agents more. On average, an agent has a 2.5 step de-

lay in plan with a space limit of 2 while it has a 5.1

step delay in plan with a space limit of 5.

By increasing the space limit we slightly post-

poned the formation of the trafﬁc jam but we had not

avoided it. So it is reasonable to use a small space

limit to increase the throughput of the intersection.

Intersection 8 × 8. In the last experiment, we use

intersection with granularity n = 8 and we test several

corridor models which we compare with free move-

ment intersection.

After extending the corridor model to an intersec-

tion with higher granularity, we can observe two inter-

esting issues. At ﬁrst such an intersection should have

more than one input and output tiles for every direc-

tion, otherwise, input tiles would be a bottleneck of

the intersection. Furthermore, if we model corridors

in a bigger intersection we can have separate lanes for

particular directions.

In our experiment, we use 3 input and output tiles

for every direction and 3 different types of corridor

model described before.

The results of this experiment are described in ta-

ble 8. The models are ordered from the most restric-

tive to the most liberal one in the table. The number

of refused agents corresponds to this ordering, more

liberal models refused fewer agents. The length of

the plan is almost equal, the most interesting metric

in this experiment is the delay.

The smallest delay had the model of strict lines

corridor. It was because its graph has almost no alter-

native paths and thus the planned paths are optimal.

An interesting result is that the free lines corridor has

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

256

a bigger delay although it has an equal number of re-

fused requests. It is probably the result of freedom

which was given to the model, it used some unsuit-

able paths in the beginning and then the other agents

had to wait in front of the intersection.

Table 8: Results for 8×8 intersections based on different

line management.

Intersection type plan length delay refused

Corridor – strict lines 17.8 12.4 1.2

Corridor – free lines 18.5 15.8 1.2

Corridor – oriented graph 18.4 17 1

Free 17.6 13 0

6 CONCLUSION

In this paper, we studied an intelligent intersection

design. The intersection manager receives requests

for traversing the shared environment and its job is

to navigate all of the agents through the intersection

safely and as efﬁciently as possible.

Rather than an algorithm that plans and schedules

the paths itself, we studied the spatial design of the in-

tersection and its effect on the efﬁciency of the found

plan. The planning itself can be seen as an instance

of multi-agent path-ﬁnding. We assumed two types of

intersections that are commonly used on roads today -

4-way intersection with turning lanes and roundabout.

We also added an intersection with less restriction on

the movements, where agents can travel in any direc-

tion.

The extensive simulation experiments show that

while roundabout type intersections do not cause

much extra delay to the agents, the traversed path is

quite long in comparison with other types. The free

movement type intersection has the highest through-

put of the agents at the expense of higher delay. This

is caused by the higher ﬂexibility of the paths the

agents can traverse. If the optimal path in the re-

stricted intersection is occupied, the agent has to wait,

however, in the free movement intersection, the agent

can still ﬁnd some less optimal path to go through.

ACKNOWLEDGEMENTS

This research is supported by the Czech Science

Foundation under the project P103-19-02183S, by

SVV project number 260 453, and by the Charles

University Grant Agency under the project 90119.

REFERENCES

Bart

ak, R., Zhou, N., Stern, R., Boyarski, E., and Surynek,

P. (2017). Modeling and solving the multi-agent

pathﬁnding problem in picat. In 29th IEEE Interna-

tional Conference on Tools with Artiﬁcial Intelligence,

ICTAI 2017, Boston, MA, USA, November 6-8, 2017,

pages 959–966.

de Wilde, B., ter Mors, A., and Witteveen, C. (2014). Push

and rotate: a complete multi-agent pathﬁnding algo-

rithm. J. Artif. Intell. Res., 51:443–492.

Dresner, K. M. and Stone, P. (2008a). Mitigating catas-

trophic failure at intersections of autonomous vehi-

cles. In 7th International Joint Conference on Au-

tonomous Agents and Multiagent Systems (AAMAS

2008), Estoril, Portugal, May 12-16, 2008, Volume 3,

pages 1393–1396.

Dresner, K. M. and Stone, P. (2008b). A multiagent ap-

proach to autonomous intersection management. J.

Artif. Intell. Res., 31:591–656.

Huang, H., Chin, H. C., and Haque, M. M. (2008). Severity

of driver injury and vehicle damage in trafﬁc crashes

at intersections: A bayesian hierarchical analysis. Ac-

cident Analysis & Prevention, 40(1):45 – 54.

Kornhauser, D., Miller, G. L., and Spirakis, P. G. (1984).

Coordinating pebble motion on graphs, the diame-

ter of permutation groups, and applications. In 25th

Annual Symposium on Foundations of Computer Sci-

ence, West Palm Beach, Florida, USA, 24-26 October

1984, pages 241–250.

Ratner, D. and Warmuth, M. K. (1990). Nxn puzzle

and related relocation problem. J. Symb. Comput.,

10(2):111–138.

Stern, R., Sturtevant, N. R., Felner, A., Koenig, S., Ma, H.,

Walker, T. T., Li, J., Atzmon, D., Cohen, L., Kumar,

T. K. S., Boyarski, E., and Bart

ak, R. (2019). Multi-

agent pathﬁnding: Deﬁnitions, variants, and bench-

marks. In the International Symposium on Combina-

torial Search (SoCS).

Surynek, P. (2009). A novel approach to path planning

for multiple robots in bi-connected graphs. In 2009

IEEE International Conference on Robotics and Au-

tomation, ICRA 2009, Kobe, Japan, May 12-17, 2009,

pages 3613–3619.

Svancara, J., Vlk, M., Stern, R., Atzmon, D., and Bart

ak,

R. (2019). Online multi-agent pathﬁnding. In The

Thirty-Third AAAI Conference on Artiﬁcial Intelli-

gence, AAAI 2019, The Thirty-First Innovative Ap-

plications of Artiﬁcial Intelligence Conference, IAAI

2019, The Ninth AAAI Symposium on Educational

Advances in Artiﬁcial Intelligence, EAAI 2019, Hon-

olulu, Hawaii, USA, January 27 - February 1, 2019.,

pages 7732–7739.

Yu, J. and LaValle, S. M. (2013). Structure and intractability

of optimal multi-robot path planning on graphs. In

Proceedings of the Twenty-Seventh AAAI Conference

on Artiﬁcial Intelligence, July 14-18, 2013, Bellevue,

Washington, USA.

What Does Multi-agent Path-ﬁnding Tell Us About Intelligent Intersections

257
