Affordable Remote Terminal for Sensor Observation Service

Laura La Gattuta

, Alessio Langiu

, Luca Sabatucci

, Vincenzo Suraci

and Mario Sprovieri

National Research Council, IAS-CNR, Capo Granitola (TP), Italy

National Research Council, ICAR-CNR, Palermo, Italy

DIIAG A. Ruberti, Univ. Rome La Sapienza, Roma (RM), Italy

mario.sprovieri@cnr.it

Keywords:

Internet of Things, Environmental Monitoring, Sensor Observation Service, Low-cost Data Acquisition.

Abstract:

In the Internet of Things era, where the availability of data connectivity and smart devices is every day spread-

ing more and more, the capability of acquiring sensor data through a simple, affordable and power efﬁcient

solution is a promoting factor for the collaborative creation of data set according to the Open Data philoso-

phy. This setting is particularly ﬁtting the agent environmental monitoring through repetitive measurement of

physical-chemical parameters. This manuscript presents a new software solution for data acquisition based on

a Raspberry PI terminal equipped with a thermal sensor and data connectivity at the system level. It exploits

the features of the Sensor Observation Service (SOS) standard, such as the data model and the communication

formats, and it assumes the availability of an SOS server to archive the data.

1 INTRODUCTION

The purpose of any data acquisition system is to cre-

ate a data set containing a record for each observation.

The standard layout of such a system, particularly in

the case of acquiring physical-chemical parameters,

is composed of sensors or probes, a data logger or a

small processing unit physically interfaced to the sen-

sors, and a local or remote post-processing of data in

order to create a consistent data set compliant to some

format. In many cases, a comma separated values

(csv) ﬁle, or collection of ﬁles, is used as a data set. In

this scenario, aspects as data validation, standardisa-

tion, data availability, data accessibility and even the

data format speciﬁcations are aspects which have to

be manually addressed.

We can summarise the above layout in three con-

ceptual blocks. 1. the physical layer with the sen-

sor and its communication interface to the monitoring

agent; 2. the data layer with the validation and the

handling of the data conversion from a raw reading

on the sensor to a value in a proper unit of measure,

the formatting of such data in some archiving format;

3. the data set layer with the responsibility of collect-

ing the data over time and, desirably, of offering the

data for further use.

Usually, when custom data acquisition solutions

are used, the data set structure and its description are

relegated to a spreadsheet or a csv ﬁle with some

heading comments or a database scheme with com-

ments. In this way, any usage of the data set, such

as analysis, retrieval, sharing or publication, requires

manual intervention. Data accessibility is usually an

underestimated problem and common custom solu-

tions are far from the Open Data philosophy which is

lately gaining public attention even from governmen-

tal institutions. Data sharing and data reusability is

a complex task when custom data set format is used,

and it is usually a time consuming task, because it is

necessary to provide, beside the data, a description of

the content. On the contrary, using a standard data

model and a set of standard operations makes pos-

sible to give automatic access to the data which are

self-described.

In the case of sensor observations, a comprehen-

sive solution for the data set layer is the Sensor Ob-

servation Service (sos, ) which is able to provide such

data in an easy and well-described way, also support-

ing spatial query. Furthermore, there are several com-

patible software for displaying data and for data ma-

nipulation. In fact, many Spatial Data Infrastructure

and Geographic Information System platforms recog-

nize the SOS service as a data source.

IoT solutions give easy access to raw sensor data

via a plethora of devices and communication proto-

cols that can be easily attached to a smart device, like

the Raspberry PI (RPI). The RPI is a low-cost pro-

272

Gattuta, L., Langiu, A., Sabatucci, L., Suraci, V. and Sprovieri, M.

Affordable Remote Terminal for Sensor Observation Service.

DOI: 10.5220/0009149802720278

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 1, pages 272-278

ISBN: 978-989-758-395-7; ISSN: 2184-433X

cessing unit that, having a full Unix-like operating

system, is powerful, ﬂexible and it automatically rec-

ognize many data acquisition devices.

We present in this manuscript a new simple solu-

tion for remote data acquisition based on the Rasp-

berry PI and the SOS standard. The key advantage of

this solution is twofold: to keep simple the tasks to be

accomplished on board of the remote terminal toward

solidity and power efﬁciency in order to make it ﬁt a

long-term remote monitoring plan; and maximize the

accessibility and reusability of the produced data set

through standardization. The novelty of the presented

approach is the presence of above two key elements

in a single solution, as will be expanded in the fol-

lowing section about related works. In fact, even if

many data acquisition solutions have been presented

in past decades, they suffer of lack of standardisa-

tion or lack of simplicity, that means maintainability,

solidity, conﬁgurability and lightness. Assuming to

have access to online SOS services, the presented so-

lution turns a smart device with a sensor into an au-

tonomous, real-time, long-term data acquisition sta-

tion.

2 RELATED WORKS

This section contains an overview of recent works re-

lated to sensor data acquisition systems that make use

of low-cost devices. A comparison of the approach

used and the solution presented in this manuscript is

made for each of them.

A Ferdoush and Li paper (Ferdoush and Li, 2014)

of 2014 describes a wireless sensor network system

that uses a Raspberry PI as base station and some

other a Raspberry PIs as remote acquisition stations

for environmental monitoring. The system is de-

signed to work in indoor small environment. The base

station is in charge of archiving all the data in a lo-

cal database and to run the visualization Web-based

service. This solution has two drawbacks. The data

security and service availability are demanded to a a

Raspberry PI which has notoriously long-term stor-

age issues. Data accessibility is relegated to a visu-

alization Web interface without any data set sharing

service that will allow data usage from third parts.

In 2016, Saraiva et al. (Saraiva et al., 2016) pre-

sented a solution for data acquisition based on a low-

power single board computer as remote terminal and

a free online service for data storage. They witnessed

high latency between data acquisition and data online

publication, together with number precision, due to

the limitation of the online service used as data set

manager. They used a Google spreadsheet as archive

ﬁle. Even if the usage of an online data repository of-

fers good data availability, the use of a custom table

format is still a limit for data access and data reuse.

Shete and Agrawal paper (Shete and Agrawal,

2016) of 2016 presents a stand-alone system based on

the Raspberry Pi and Python scripts for environmen-

tal observation. The system provides near real time

data to subscribed clients via Internet, but it lacks a

storage feature. The clients are ad-hoc software that

use an optimized transmission protocol, namely MQTT

which is a machine-to-machine/IoT connectivity pro-

tocol.

Mohanraj et al. paper (Mohanraj et al., 2017) of

2017 presents a solution for monitoring critical pa-

rameters of patients using sensors that uses a low-cost

terminal with connected sensors to collect data and a

standard PC to process and visualise them through a

Lab VIEW interface. This solution is designed for

real-time monitoring on a single station running the

appropriate graphical interface and, so, it lacks any

data access and data availability feature.

Samourkasidis and Athanasiadis paper

(Samourkasidis and Athanasiadis, 2017) of 2017

introduce a Python based software solution for

Raspberry PI able to collect local attached sensor

data, stores the data using a lightweight database and

provides the data according the Sensor Observation

Service speciﬁcation. It is basically an all-in-one

solution that has the capability of back up the data in

an online service. This approach suffers, on the data

availability side, of the limited computing power of

the Raspberry that might be stressed in the case of

clients intense requests.

Alkandari and Moein paper (Alkandari and

Moein, 2018) of 2018 presents a solution for air qual-

ity monitoring. It uses a Raspberry PI connected to

some sensors to acquire data, then a record is created

into a local excel ﬁle and further processing may trig-

ger a warning email along with a local graphics in-

terface that plots the collected data. This solution is

an interesting case of stand-alone station for environ-

mental monitoring but it has a drawback about data

accessibility and security due to the data set design

which is locally managed in a simple spreadsheet.

The Chase et al. paper (Chase et al., 2018) ap-

peared on Sensors (2018) describes a stand-alone

platform based on a low-cost IoT terminal with sen-

sors for in-situ monitoring of environmental param-

eters. It uses ThingSpeak (thi, ) online platform to

archive and analyze data. The paper deeply analyzes

the power consumption of the solution which is de-

signed for applications in remote environment and

then it is designed to be power efﬁcient and mainte-

nance free. Internet connection is provided by a Wi-Fi

Affordable Remote Terminal for Sensor Observation Service

273

router for mobile network. The use of an online data

repository guarantees good data accessibility and se-

curity, but the selected solution is a spreadsheet like

data set which store values as rows. Despite the ef-

forts in maintaining low the power requirement, the

overall hardware solution is not so far from a Rasp-

berry PI in terms of power drain since it uses Wi-Fi,

writes on a SD card and uses IO signals with the sen-

sors. The drawback here is to require a more low level

of programming of the selected hardware with respect

to a Unix-like system that provides IO, networking

and storage management by default. Furthermore, the

presence of an online repository gives to the solution a

good level of data security and data accessibility, also

via REST API, but even this requires a low-level pro-

gramming and a deep knowledge of the data formats

rather than use a standard data model and a standard

communication protocol for sensor data such as SOS.

Del R

ıo et al. paper (Del Rio et al., 2018) of

2018 presents a data acquisition solution tailored for

oceanographic sensor observation. It reports the re-

sult of an ongoing project supported by an European

grant. It describes the NeXOS (nex, ) architecture as

a complex system that extends the Sensor Observa-

tion Service and standard. The prototype system is

composed by a low-power terminal that collects sen-

sor data and transmit them to an online server, as de-

scribed in the within referenced paper (Toma et al.,

2014) of some of the same authors. Standardisation

helps to reduce operating costs of the observatory sta-

tion, as well as the risk of failures due to manual er-

rors. Standard protocols and formats also facilitate in-

teroperability, maintenance, data access and reusabil-

ity. To the best of our knowledge, no implementation

is freely available of the low-level acquisition system.

3 ART4SOS SOLUTION

In this section we present a new data acquisition sys-

tem for sensor observations. The goal of this system is

to read data from a sensor attached to a remote smart

device, like a Raspberry PI, and to send the data to an

online SOS server.

Affordable Remote Terminal for Sensor Observa-

tion Service (ART4SOS) is a software solution that

runs on Unix-like systems. It takes sensor data and

puts them on an SOS server as observations. The data

comes from a physical sensor that is recognized at the

system level. The core task is to handle data conver-

sion from a raw reading of a sensor to a SOS com-

patible data format and to transmit the data to a SOS

server. It secondarily address issues like the time syn-

chronization and the connectivity disruptions as de-

scribed later in this section.

The key design points are: Power Efﬁciency: to

be run on small and low-power device; Flexibility: to

be adapted to any physical IoT device with low man-

ual effort; Reliability: and Maintainability to be used

on remote location with a very low manual interven-

tion rate required; Interoperability: to be connected to

standardised systems; Data Accessibility: to promote

data sharing and even Open Data philosophy.

We assume to have access to a remote SOS server,

for instance the open-source server from 52

◦

North

(52s, ) , that is responsible to create a data set of sen-

sor readings according to the SOS data model. This

implies that the remote terminal is connected to Inter-

net.

ART4SOS addresses three aspects of data acqui-

sition: the temporary management of the data on the

remote terminal in the sensor based raw format; the

validation of the data and therefore the data set based

conversion; and the transmission of the data to the

server.

We have devised a set of three command line

scripts in Python, which satisﬁed the above design re-

quirement in terms of code simplicity, running perfor-

mance and standard data model and communication

compliant. They accomplish to the following three

steps:

• Data Acquisition

• Data Format

• Data Transmission

Once the raw data are available, a JSON package is

prepared compliant to the Insert-Observation service

of SOS. The data are time and space referenced and

are temporarily buffered on the remote terminal wait-

ing for an Internet access.

In the following section we give a better descrip-

tion of these three steps of the ART4SOS solution,

as well as a description of the system installation, the

conﬁguration, the description of some secondary as-

pects.

3.1 Conﬁguration

ART4SOS conﬁguration ﬁle is a text ﬁle used for the

conﬁguration of the service parameters via a name-

value pair. It includes various necessary ﬁelds such as

the name and the coordinates of the acquisition sta-

tion, that is the feature of interest according to the

SOS model. The spatial deﬁnition follows the sam-

pling point standard and it is expressed in latitude,

longitude, altitude and projection values. This static

spatial deﬁnition is needed because this version of the

system does not have a GPS installed. It is simple to

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

274

[DEFAULT]

FEATUREOFINTEREST = roosvelt

OBSERVABLEPROPERTY = air:temperature

PROCEDURE = temperature

OFFERING = temperature

UNITOFMEASURE = DEG

LATITUDE = 38.190234

LONGITUDE = 13.350320

ALTITUDE = 2.0

PROJECTION = EPSG:4326

VERBOSE = True

PATH = ./data

SERVER = http://art4sos.local/sos/service

USER = user

PASSWORD = pass

Figure 1: ART4SOS conﬁguration ﬁle example. It supports

environmental deﬁnitions, in this case only DEFAULT en-

vironment is reported. Similarly, TEST and DEVELOP-

MENT environment are present in the complete ﬁle.

extend the system to make use of a GPS but it is out of

the scope of this manuscript. We use the PATH vari-

able as the mounting point of a RAM partition, and,

hence, the place where the produced ﬁles are buffered.

The conﬁguration includes the SOS service interface,

which is an accessible Internet URL, on which the

data will be loaded. An example is reported in Fig-

ure 1.

The ART4SOS conﬁguration script is a Python

script that prepares the SOS server to receive the re-

mote observations. According to the SOS data model,

an observation, e.g. a measurement, it is accom-

plished through a procedure and the result of the ob-

servation, e.g. the measured value, must be assigned

to an offering in order to be published. The proce-

dure is described by using the SensorML (sen, ) lan-

guage of OpenGIS. The description of the procedure

contains its name, the offering name, the feature of

interest name and the spatial attributes of the fea-

ture of interest (composed of the latitude, the longi-

tude, the altitude and the projection). It also contains

the observed property name, the type of observation,

OM Measurement in the simplest case, and the fea-

ture of interest type, e.g. a sampling point in space.

The conﬁguration script takes these parameters from

the above conﬁguration ﬁle and, then, it uses the In-

sertSensor (sos, , Section 10.2.1) service on the SOS

server in order to deﬁne the new sensor and all the

related parameters. The JSON package used for the

Insert Sensor call is locally archived. Once this con-

ﬁguration is accomplished, the service is ready for au-

tomatic data entry.

3.2 Data Acquisition

This module deals with querying the sensor making

the syntactic validation of the retrieved value, adapt-

#!/usr/bin/env python

import w1thermsensor

sensor = w1thermsensor.W1ThermSensor()

temp = sensor.get_temperature()

print(‘{:.2f}’.format(temp))

Figure 2: ART4SOS acquisition script.

ing the value to the desired precision, scale and unit

of measure, and returning it to the system shell. It is

voluntarily left simple for the sake of clarity. We as-

sume that a thermal sensor is connected to the GPIO

and mounted to the ﬁle system as a ﬁle.

The data acquisition task is performed via a sim-

ple Python script which uses a library to handle the

thermal sensor via the 1-wire MicroLAN (one, ). The

code is reported in Figure 2. This script is meant to

be adapted to the actual sensor or sensors accessible

from the remote terminal as long as it returns a value

as OUTPUT. We do not give more details on how to

use different sensors or IoT devices to retrive sensor

data and any further customisation is left to the user.

Anyway, it is straight forward to adapt this script to

many existing sensors as they come with Python sup-

port and, often, Raspberry PI support at the system

level.

Figure 3: Sketch of the core components of the SOS Data

Model.

3.3 Data Format

ART4SOS format is a Python script that takes a nu-

meric value as INPUT parameter and produces a

JavaScript Object Notation (JSON) package that is

compatible to the SOS Insert Observation service

(sos, , Section 10.4.1).

The SOS Data Model is based on the concept of

observation. An observation is the act of observing

a phenomenon, which might be of physical nature or

might be a virtual, derived or complex operation. The

basic act of observation is the measurement of a pa-

rameter. Different kind of observations are performed

by the means of appropriate procedure. The act of

measuring a phenomenon via a physical probe or sen-

sor produces a numeric value. The feature of interest

Affordable Remote Terminal for Sensor Observation Service

275

{

"request": "InsertObservation",

"service": "SOS",

"version": "2.0.0",

"offering": STRING,

"observation": {

"type": "http://www.opengis.net/def/observationType/

OGC-OM/2.0/OM_Measurement",

"procedure": STRING,

"observedProperty": STRING,

"featureOfInterest": ...,

"phenomenonTime": STRING,

"resultTime": TIME,

"result": {

"uom": STRING,

"value": VALUE

}

Figure 4: Extract of the Insert Observation template used

by ART4SOS format script where STRING, TIME and

VALUE are the token replaced by the script.

is the presence of a phenomenon in a georeferenced

point in space. The repetition in time of sensor read-

ing referring to the same phenomenon, feature of in-

terest and procedure together with the appropriate unit

of measure are connected to form a time series. Fig-

ure 3 reports a sketch of the core components of the

SOS Data Model as it is reﬂected in the database im-

plementation.

The data format script uses a Insert Observation

template for measurements and produces a JSON

package with the input value, the current time and

Procedure, Feature of Interest and Observable Prop-

erty taken from the conﬁguration ﬁle, as reported in

Figure 4. It is straight forward to extend this script in

order to use the time and the coordinates of the Fea-

ture of Interest coming from a GPS in case of mobile

data acquisition stations. The JSON data ﬁle is saved

on the disk.

3.4 Data Transmission

ART4SOS data transmission script is in charge of

making the actual call to the insert observation ser-

vice of the selected SOS server by using the JSON

packages buffered on the local system.

Since the SOS services are accessible via a Web

interface, the data transmission makes a http request

with an attached POST data package by using the

curl tool, which is a command line tool for data ex-

change over internet. ART4SOS data transmission is

designed to run asynchronously with respect to the

data acquisition and the data format scripts in order

to manage connectivity issues like network disruption

or temporary unavailability. At every run, it looks for

local buffered observation ﬁles and it tries to trans-

mit each of them to the server. If the transmission

is successfully performed, it removes the transmitted

observation from the local terminal, otherwise the ob-

servation ﬁle is left to be later transmitted. Hence, the

answer of the server is analyzed, if it has status "http

200 OK" and it does not contain any "exception"

then the transmission is successfully accomplished

and the observation correctly inserted on the data

set. Figure 5 reports an extract of the code of the

ART4SOS data transmission Python script that han-

dle the service call. According to the SOS specs, the

insert observation service is one of the so called trans-

actional operations which usually require user authen-

tication. User and password authentication is handled

by using conﬁgurable variables.

3.5 Secondary Features

Since Art4SOS uses the system time as the time of

the observation, i.e. the reading from the sensor, it

assumes that the system time is properly managed. It

would be easy to extend this service with the addition

of a GPS in order to manage the time synchronization,

and to update the geo-references of the data.

Since the RPI does not have by default a real-

time clock, ART4SOS addresses a time loss issue,

e.g. caused by a system halt, by forcing the system

time to be set at boot to the time of a reliable server

(e.g. google) as described in the installation script of

Section 3.6.

Small computing boards like the RPI do not have

storage disk but they use instead of ﬂash memory data

storage devices. Such kind of devices have limited

write cycles that might lead to a system failure in ap-

plication like long term data acquisition station.

ART4SOS assumes to be normally connected to

Internet and does not guarantee to save data acqui-

sition over a power loss by design. Hence, it uses

a very small disk space for the conﬁguration ﬁle, the

scripts, and for buffering the acquired data waiting for

data transmission. In order to save disk write cycles,

ART4SOS uses a virtual disk in RAM for data buffer-

ing as described in Section 3.6. A memory based disk

is a ﬁle system that uses a portion of RAM as storage.

This type of storage is ideally suited for applications

which need repetitively small data areas for caching

or using as temporary space.

In a clean installation of Raspian on the RPI there

are about 700 Mega Byte of free RAM that can be

used for the creation of a RAM disk without compro-

mising basic system performance. In ART4SOS typi-

cal setting, which is the acquisition of one value with

a frequency of seconds or minutes, few megabyte of

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

276

curl -vs -u USER:PASSWORD -d ’@FILENAME’ -H ’Content-Type:

application/json’ SERVER

Figure 5: ART4SOS data transmission script core. Send-

ing an Insert Observation package FILENAME to the SOS

server SERVER via the Curl command line tool.

space are enough to handle the buffering of a few days

of data. Since ART4SOS produce a ﬁle of about one

kilobyte after each acquisition, using the full RAM

capacity it is possible to buffer all the reading of one

week at the rate of one per second. The amount of

space to be devoted to locally buffer the data is meant

to be adapted to the length of the expected loss of In-

ternet connectivity and service availability.

3.6 Installation

The installation of ART4SOS service is performed via

a Bash script as reported in Figure 6. It assumes that

the ART4SOS conﬁguration ﬁle has been properly

set. It ﬁrstly calls the ART4SOS conﬁguration script

in order to deﬁne the observation attributes on the

SOS server. It creates a directory for locally buffer-

ing the observation data ﬁles. This directory is used

as mounting point of a RAM disk that is deﬁned at the

system level via the fstab ﬁle. For time synchroniza-

tion purpose, due to the lack of a Real Time Clock on

board of the Raspberry PI, a job is deﬁned to be run

at every boot. A simple call to a reliable Web site,

e.g. Google Web site, is used to set the system time

as the time stated in the response header. The CRON

management system is used to set periodic run of the

ART4SOS data acquisition and data format scripts, in

a single system call combining the value through the

system pipe. A further system call is used to periodi-

cally run the ART4SOS transmission script.

ART4SOS is available on GitHub at the following

address: https://github.com/lauralagattutacnr/art4sos

4 EXPERIMENTS

The prototype used for this manuscript uses a Rasp-

berry PI 3+ with a pre-installed Raspbian distribution

and a digital temperature sensor with one-wire con-

nection to the GPIO and Internet connection man-

aged at system level. For simplicity, we suppose

to have Internet access via Wi-Fi with availability

below 100%. The SOS server used in the exper-

iments is an open-source implementation of SOS

ver. 2.0 from 52

◦

North. A demo version of SOS

server is available on http://sensorweb.demo.52north.

org/sensorwebtestbed.

In our prototype environment, the RPI with a clean

#!/bin/bash

python3 art4sosconfigure.py

cat << EOF >> /etc/fstab

tmpfs $PWD/data tmpfs

nodev,nosuid,noexec,nodiratime,size=24M 0 0

EOF

mkdir $PWD/data; mount $PWD/data

(crontab -l && echo "@reboot sleep 30 && date -s

$(wget -qSO- --max-redirect=0 google.com 2>&1 |

grep Date: | cut -d’ ’ -f5-8)Z ") | crontab -

(crontab -u pi -l && echo "* * * * * cd $PWD &&

python3 $PWD/art4sosformat.py

$(python3 $PWD/art4sosacquisition.py)") | crontab -u pi -

(crontab -u pi -l && echo "* * * * * cd $PWD &&

python3 $PWD/art4sostransmission.py") | crontab -u pi -

Figure 6: ART4SOS installation Bash script.

OS uses less of 1% of CPU either with and without

ART4SOS running or installed, according to what re-

ported by the top command line tool. So, the comput-

ing and the power impact on this device is not appre-

ciable at a macro scale. The memory footprint of any

running script of ART4SOS is below ten megabytes,

mostly due to the Python framework. The transmis-

sion bandwidth is proportional to the JSON packages

plus a little overhead due to TCP/IP and http proto-

col. Network load reduction can be obtained by using

common strategies not covered in this manuscript.

An investigation was conducted by using the GNU

time command line tool for each script and the results

are reported in Table 1. The CPU utilisation is low for

acquisition and transmission as they wait for external

resources, such as the sensor IO, the network delay

and the server response. Transmission uses the full

processing power, only for a very short time, because

it uses resources on the RAM disk.

Having a SOS standard services, the visualiza-

tion of sensor data is possible thought the open-source

Helgoland (hel, ) graphical interface, which is a SOS-

compatible Web-based sensor data visualization tool.

Figure 7 reports a graph of data collected in our de-

velopment prototype, where a list and a diagram of

values of sensor is shown.

Table 1: Result of GNU time of Acquisition, Format and

Transmission script, with Time, CPU and memory usage.

Script Time (sec.) CPU (%) Mem. (KB)

Acquisition 0.21 22% 7924

Format 0.21 99% 7896

Trasmission 0.26 67% 8148

Affordable Remote Terminal for Sensor Observation Service

277

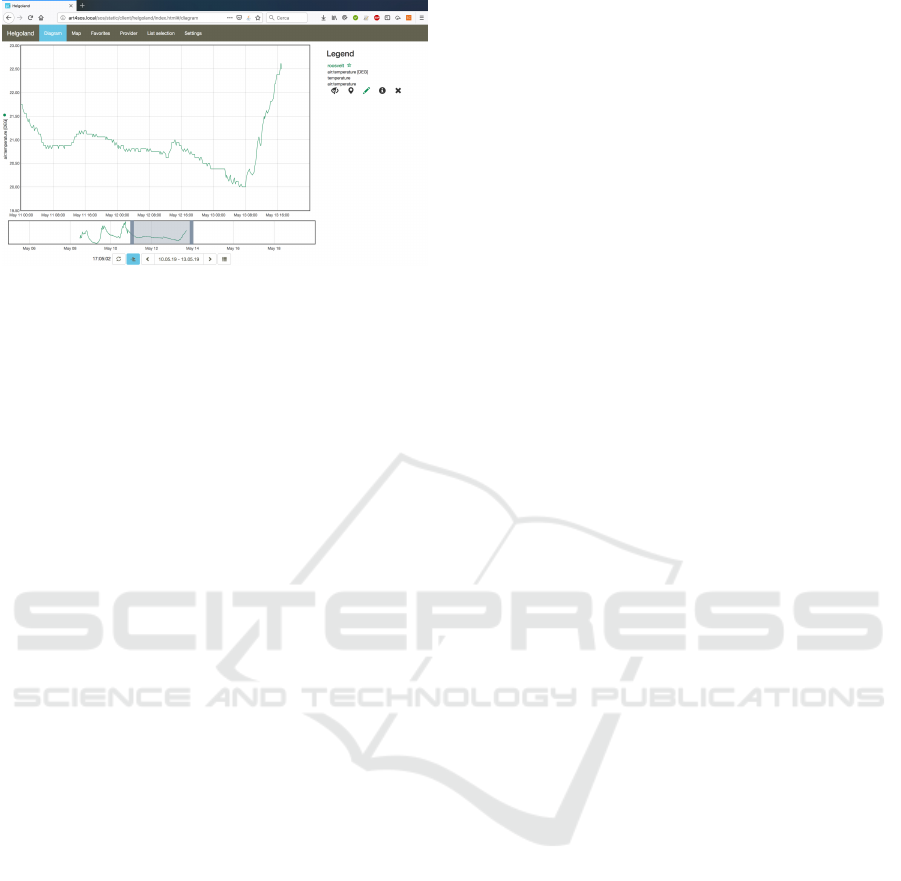

Figure 7: Screenshots of a graphics interface for SOS show-

ing data acquired in ART4SOS experiments.

5 CONCLUSION

This manuscript presents a new software solution for

sensor data acquisition based on a low-cost process-

ing board with sensor and Internet connectivity at sys-

tem level. It exploits Sensor Observation Service fea-

tures such as the data model and the communication

formats and it assumes the availability of a SOS server

to archive the data. This settings is particularly ﬁtting

the environmental monitoring through repetitive mea-

surement of chemical physical parameters. The pre-

sented solution achieves data accessibility, data secu-

rity, interoperability by using a SOS online server and

it achieves maintainability, reusability and reliability

by using basic Linux tools combined in simple Python

and Bash scripts. It can run on common IoT enabled

small devices since it uses very low system resources,

in terms of computing power and memory usage. Its

code simplicity contributes to reducing possible er-

rors from manual intervention. The code is available

online for free use and modiﬁcation.

ACKNOWLEDGMENTS

This work has been supported by the Italian PON

grant Integrated system for monitoring and protec-

tion of the urban, suburban and marine environment

- MAGINOT, and by the Italian FISR grant Interna-

tional Center for Advanced Studies on Environment,

Ecosystem and Human Health - CISAS.

REFERENCES

◦

North helgoland, visual exploration and analysis of sen-

sor web data. https://52north.org/software/software-

projects/helgoland.

◦

North SOS server. https://52north.org/software/software-

projects/sos.

Next generation Web-enabled sensors for the monitoring of

a changing ocean. http://www.nexosproject.eu.

A python package for one wire temperature sensors.

https://github.com/timofurrer/w1thermsensor.

Sensor Model Language from

Open Geospatial Consortium.

https://www.opengeospatial.org/standards/sensorml.

Sensor Observation Service standard from Open

Geospatial Consortium, ver. 2.0, 20 april 2012.

http://www.opengis.net/doc/IS/SOS/2.0.

Thingspeak open-source tool and API for IoT from Math-

works. https://thingspeak.com.

Alkandari, A. and Moein, S. (2018). Implementation of

monitoring system for air quality using Raspberry Pi:

Experimental Study. Indonesian Journal of Electrical

Engineering and Computer Science.

Chase, O., Teles, M., Rodrigues, M., de Almeida, J.,

Mac

edo, W., and da Costa Junior, C. (2018). A low-

cost, stand-alone sensory platform for monitoring ex-

treme solar overirradiance events. Sensors (Switzer-

land).

Del Rio, J., Toma, D., Martinez, E., O’Reilly, T., Delory, E.,

Pearlman, J., Waldmann, C., and Jirka, S. (2018). A

sensor web architecture for integrating smart oceano-

graphic sensors into the semantic sensor web. IEEE

Journal of Oceanic Engineering.

Ferdoush, S. and Li, X. (2014). Wireless sensor network

system design using Raspberry Pi and Arduino for en-

vironmental monitoring applications. Procedia Com-

puter Science.

Mohanraj, K., Balaji, N., and Chithrakkannan, R. (2017).

IoT based patient monitoring system using Raspberry

Pi 3 and Lab view. Pakistan Journal of Biotechnology.

Samourkasidis, A. and Athanasiadis, I. (2017). A minia-

ture data repository on a Raspberry Pi. Electronics

(Switzerland).

Saraiva, L., Alcaso, A., Vieira, P., Ramos, C., and Cardoso,

A. (2016). Development of a cloud-based system for

remote monitoring of a PVT panel. Open Engineer-

ing.

Shete, R. and Agrawal, S. (2016). IoT based urban climate

monitoring using Raspberry Pi. International Confer-

ence on Communication and Signal Processing.

Toma, D., Del Rio, J., Jirka, S., Delory, E., and Pearlman,

J. (2014). Smart electronic interface for web enabled

ocean sensor systems. 2014 IEEE Sensor Systems for

a Changing Ocean, SSCO 2014.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

278
