Deep Learning Techniques for Dragonﬂy Action Recognition

Martina Monaci

, Niccol

o Pancino

1,2 a

, Paolo Andreini

1 b

, Simone Bonechi

1 c

Pietro Bongini

1,2 d

, Alberto Rossi

1,2 e

, Giorgio Ciano

1,2 f

, Giorgia Giacomini

3 g

Franco Scarselli

1 h

and Monica Bianchini

1 i

University of Siena, Department of Information Engineering and Mathematics, via Roma 56, 53100, Siena (SI), Italy

University of Florence, Department of Information Engineering, via S. Marta 3, 50139, Florence (FI), Italy

University of Siena, Department of Biochemistry and Molecular Biology, via Aldo Moro 2, 53100, Siena (SI), Italy

Keywords:

Dragonﬂy, Machine Learning, Action Recognition, Deep Learning.

Abstract:

Anisoptera are a suborder of insects belonging to the order of Odonata, commonly identiﬁed with the generic

term dragonﬂies. They are characterized by a long and thin abdomen, two large eyes, and two pairs of transpar-

ent wings. Their ability to move the four wings independently allows dragonﬂies to ﬂy forwards, backwards,

to stop suddenly and to hover in mid–air, as well as to achieve high ﬂight performance, with speed up to 50

km per hour. Thanks to these particular skills, many studies have been conducted on dragonﬂies, also using

machine learning techniques. Some analyze the muscular movements of the ﬂight to simulate dragonﬂies as

accurately as possible, while others try to reproduce the neuronal mechanisms of hunting dragonﬂies. The

lack of a consistent database and the difﬁculties in creating valid tools for such complex tasks have signiﬁ-

cantly limited the progress in the study of dragonﬂies. We provide two valuable results in this context: ﬁrst, a

dataset of carefully selected, pre–processed and labeled images, extracted from videos, has been released; then

some deep neural network models, namely CNNs and LSTMs, have been trained to accurately distinguish the

different phases of dragonﬂy ﬂight, with very promising results.

1 INTRODUCTION

Odonata are an order of medium/large

hemimetabolous insects, composed of more than

5000 species which differ in color and size. Odonata

are morphologically divided into two main in-

fraorders: Zygoptera and Anisoptera. Although they

are very similar in structure, they can be easily distin-

guished by the shape of the wings. In fact, Zygoptera,

commonly called “damselﬂies”, are characterized by

two pairs of almost identical wings, kept folded at

rest, along or above the abdomen. Unlike Zygoptera,

forewings of Anisoptera are narrower than the hind

https://orcid.org/0000-0003-2212-4728

https://orcid.org/0000-0002-7790-6818

https://orcid.org/0000-0002-5540-3742

https://orcid.org/0000-0001-9074-0587

https://orcid.org/0000-0003-1688-6961

https://orcid.org/0000-0003-2863-4315

https://orcid.org/0000-0002-2939-7203

https://orcid.org/0000-0002-8206-8142

https://orcid.org/0000-0003-1307-0772

wings; they are kept ﬂat and far from the body at rest,

and make Anisoptera much more skilled in ﬂight.

Commonly, Anisoptera are also referred to as

“Dragonﬂies”. They live mainly in freshwater envi-

ronments, such as ponds, rivers and lakes. They are

characterized by a long and thin body, two large mul-

tifaceted eyes — made up of thousands of elementary

eyes called ommatidia —, two pairs of transparent

wings and six legs. They can move the four wings in

a fully independent way. This feature, unique in the

world of insects, allows them to reach speeds of up

to 50 km/h and to obtain formidable performance in

ﬂight and hunting, where they can perform backward

movements, very narrow turns of death and stops in

mid–air.

Although the biology of dragonﬂies has been

widely surveyed, there are still very few studies on

the kinematic analysis of these insects. In 1975, the

Swedish biologist Norberg was the ﬁrst to study their

ﬂight by ﬁlming a dragonﬂy in the open ﬁeld (Nor-

berg, 1975). He measured parameters such as the

width and frequency of the wing ﬂapping, revealing

that dragonﬂies keep their body in an almost horizon-

562

Monaci, M., Pancino, N., Andreini, P., Bonechi, S., Bongini, P., Rossi, A., Ciano, G., Giacomini, G., Scarselli, F. and Bianchini, M.

Deep Learning Techniques for Dragonﬂy Action Recognition.

DOI: 10.5220/0009150105620569

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 562-569

ISBN: 978-989-758-397-1; ISSN: 2184-4313

tal position during ﬂight. A decade later, Azuma et

al., using a more advanced video camera, showed that

the ﬂaps of the dragonﬂy’s wings follow a trajectory

which can be well represented by a sinusoidal func-

tion (Azuma et al., 1985), thus conﬁrming the vor-

tex theory, postulated since 1979. Moreover, by col-

lecting both morphological and kinematic data, they

were able to deﬁne the ﬁrst mathematical expression

of the wing speed. Since then, numerous experiments

have been carried out in this particular research con-

text. New technologies (Wang et al., 2003) were ex-

ploited, for instance, to analyze the muscle move-

ments during ﬂight (Faller and Luttges, 1991a; Faller

and Luttges, 1991b), in order to produce prototypes

of robotic drones capable of accurately simulating the

ﬂight of a dragonﬂy (Couceiro et al., 2010). These

simulations, however, failed to fully reproduce the

dexterity, capacity, ﬂexibility and freedom of maneu-

ver of dragonﬂies (Hu et al., 2009).

This paper aims at creating an action recognition

model capable of distinguishing the different phases

of the dragonﬂy ﬂight, using deep learning tech-

niques. Given the wide interest of the biological re-

search community in the study of dragonﬂies

, we as-

sume that it is quite useful to develop a reliable system

for recognizing dragonﬂy actions. Indeed, research in

different ﬁelds could beneﬁt from the recognition sys-

tem to test hypotheses on dragonﬂy anatomy, ﬂight

dynamics and predatory behaviors.

The term Deep Learning (DL) refers to neural net-

work models composed by many layers, arranged in a

cascade, so that the information fed to the network is

processed thoroughly, layer after layer. Despite their

considerable computational complexity, these mod-

els have proved to be particularly ﬂexible for differ-

ent tasks, such as object recognition in images and

video, speech recognition, up to the classiﬁcation of

phenomena of the animal world (Trnovszky et al.,

2017), and in particular of insects (Stern et al., 2015).

Deep learning, and speciﬁcally Convolutional Neural

Networks (CNNs), is actually emerging as the lead-

ing machine learning tool in computer vision. Re-

cently, deep learning has achieved impressive results

in several visual recognition tasks, often outperform-

ing classical image processing approaches. CNNs

are currently broadly employed in different domains

that range from object classiﬁcation and detection

(Krizhevsky et al., 2012; He et al., 2016; Szegedy

et al., 2017), to semantic segmentation (Donahue

Odonata are very ancient animals. Fossils dating back

to the Permian period have been found, coming from ap-

proximately 285 million years ago; dragonﬂy–like fossils

date back 300 million years (Carboniferous period), about

40 million years before the appearance of dinosaurs.

et al., 2015; Zhao et al., 2017; Andreini et al., 2018)

and medical image analysis (Spanhol et al., 2016;

Pereira et al., 2016; Andreini et al., 2019; Anthi-

mopoulos et al., 2016; Milletari et al., 2016). De-

spite huge efforts made by the research community

in developing methods able to reduce the amount of

data needed for training DL architectures (Khoreva

et al., 2017; Bonechi et al., 2018; Shu et al., 2018;

Bonechi et al., 2019a), the success of state–of–the–art

CNNs is usually based on the availability of large sets

of supervised images. For this reason, the release of

public benchmarks to develop and evaluate new algo-

rithms is becoming increasingly critical (Deng et al.,

2009; Lin et al., 2014; Bonechi et al., 2019b; Bonechi

et al., 2019c). Just as CNNs signiﬁcantly increased

the performance in computer vision tasks, a compa-

rable success has been obtained by Recurrent Neural

Networks (RNNs) in the analysis of sequential data.

Long Short–Term Memory (LSTM) networks are one

of the most successful RNN models, designed to re-

duce the problems caused by long–term dependen-

cies and vanishing gradients. LSTMs are currently

broadly employed in tasks involving the analysis of

sequential data, which range from Natural Language

Processing (NLP) (Graves and Jaitly, 2014; Sutskever

et al., 2014; Kowsari et al., 2019) to human mobil-

ity (Rossi et al., 2019) and music composition (Sturm

et al., 2016). The integration of CNNs and RNNs al-

lows to take advantage from the characteristic of both

the models, and has been successfully applied to tasks

like video classiﬁcation and image captioning (Don-

ahue et al., 2015; Vinyals et al., 2015).

In this work, we propose a dragonﬂy action recog-

nition system capable of classifying video frames in

ﬁve classes: take–off, ﬂight, landing, stationary and

absent (frames in which the dragonﬂy is not present).

Deep learning requires a huge set of fully annotated

data, but, unfortunately, we are not aware of a pub-

licly available labeled dataset of dragonﬂy images. To

train a deep learning architecture, we ﬁrst collected a

suitable number of samples from online videos, which

were appropriately preprocessed and labeled frame

by frame. Then, different classiﬁer networks for ac-

tion recognition were compared. First of all, a stan-

dard convolutional neural network was tested: this

model elaborates one frame at a time, discarding the

information of previous frames. To correctly iden-

tify the action, the information contained in the previ-

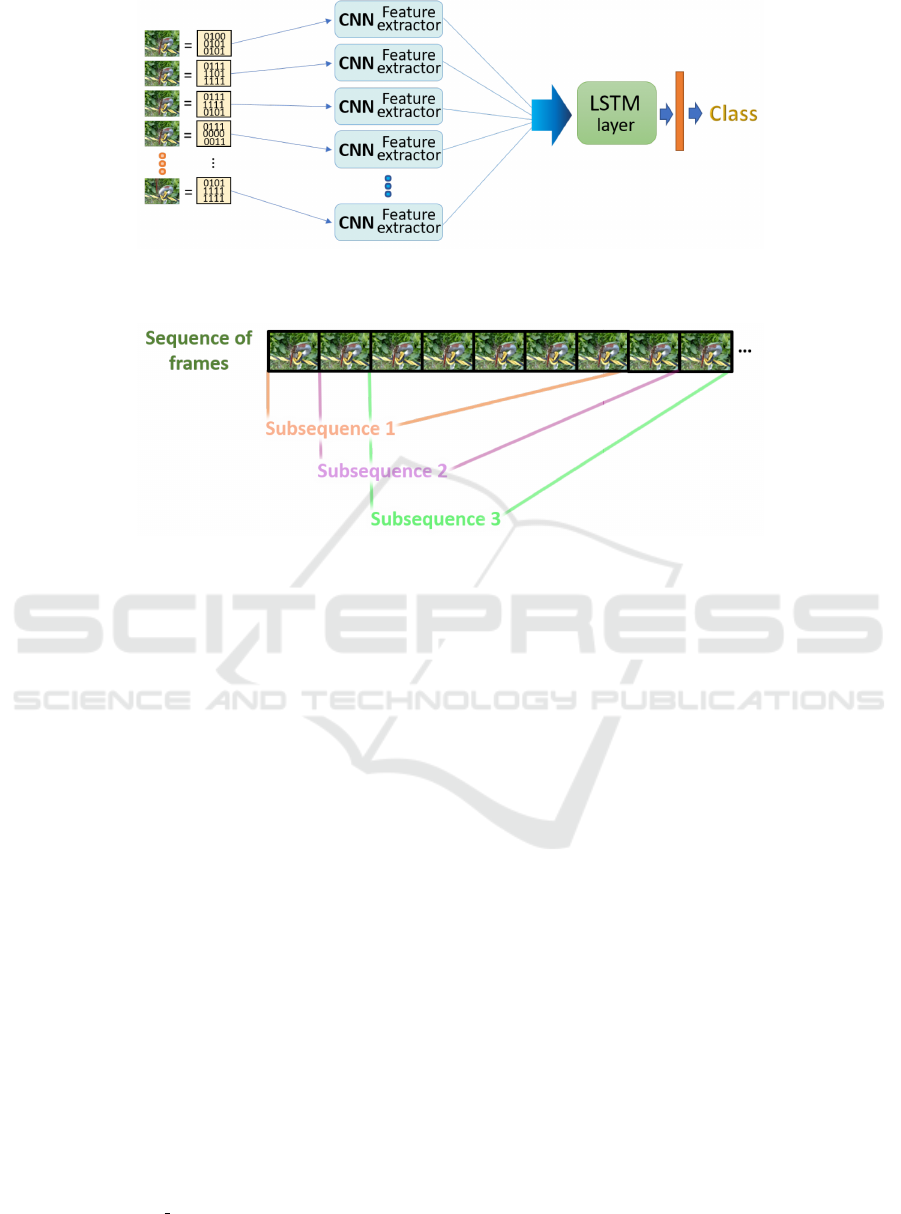

ous frame could be fundamental. Therefore, we also

trained an LSTM model, which is capable of elabo-

rating frame sequences.

The paper is organized as follows. In Section 2,

the dataset construction is described. Then, in Sec-

tion 3, the main architectural components responsible

Deep Learning Techniques for Dragonﬂy Action Recognition

563

for processing (sequences of) images are brieﬂy in-

troduced, as well as the experimental settings and the

obtained results, comparing the performance of dif-

ferent architectures and providing a detailed analysis

of the problems encountered during their implemen-

tation. Finally, Section 4 draws some conclusions and

proposes future works.

2 DRAGONFLY DATASET

COLLECTION

Generally, datasets used to study insects are com-

posed of pre–processed videotapes recorded by re-

searchers or by specialized personnel with ad hoc

equipments. Nevertheless, for this project, it was

not possible to proceed in the usual way, mainly due

to two reasons: ﬁrst of all, we did not have access

to adequate recording tools, since qualitatively valid

videos require a suitable equipment, such as a sta-

ble tripod, high resolution video cameras, powerful

zoom, which were not available. Last but not least,

the speed and the “nomadic” nature of the dragon-

ﬂy make the process of positioning the shooting in-

struments extremely complex. Under these circum-

stances, we decided to build a dataset using dragonﬂy

videos readily available online. Although this kind of

set–up may seem more superﬁcial than direct record-

ing, it offers the substantial advantage of the variabil-

ity in setting and recorded specimens, thus being po-

tentially useful to improve the generalization capabil-

ities of machine learning models.

Therefore, about 40 videos have been downloaded

and converted, through a frame–by–frame decompo-

sition, into several image sequences. In particular, the

sequence generation process was composed of three

phases. First, it was veriﬁed that the number of frames

per second was comparable for all the videos and, ac-

tually, we found that they were constituted by 25 to

30 fps, so no further data pre–processing was neces-

sary. Then the speed of each video was standardized,

i.e. the slow–motion videos were “speeded up”. Due

to the documentary nature of the videos — composed

of several independent sequences related to different

specimens of dragonﬂies, recorded in different phases

of ﬂight — in the last phase, several ﬂight sequences

were extrapolated.

The creation of classiﬁers, based on supervised

learning, requires the availability of a consistent set

of labeled data, that is, in which a speciﬁc target class

is associated with each example. For this reason, a

class label has been manually associated with each

frame of the dataset. In particular, ﬁve classes have

been identiﬁed: three of them describe the different

phases of the dragonﬂy ﬂight, namely take–off, ﬂight

and landing, together with two more classes which

refer to the dragonﬂy states immediately preceding or

following its movement, such as stationary and ab-

sent. From the original set of videos, about 400 dis-

tinct sequences were manually identiﬁed, correspond-

ing to a hundred targeted sub–sequences, for a total of

about 61K frames.

Most of the data — approximately 77% of the im-

ages — belongs to the stationary class, probably due

to the aforementioned difﬁculty in capturing dragon-

ﬂies during their ﬂight, making the dataset strongly

unbalanced. This issue could compromise the pro-

cess of learning, because the model tends to follow

the prior probability, assigning all the examples to the

most common class and ignoring the others. Since

the dataset is intended for the use in machine learn-

ing applications, we decided to pre–process the data,

randomly removing about 80% of the frames labeled

as stationary (also getting rid of many sequences en-

tirely composed of such images). By doing so, a ﬁnal

dataset of about 300 sequences was obtained, for a to-

tal of about 23k images: more precisely, 41% of the

images belongs to the stationary class, 12% to the ab-

sent class, 4% to the take off class, 8% to the landing

class, and 35% to the ﬂight class

The DragonFly dataset is composed of strongly

heterogeneous images, from the recorded setting to

the aspect ratio or the resolution of the tapes. For this

reason, the images have been further processed by re-

moving noisy elements — such as logos or text — and

by scaling them to a ﬁxed square size of 224 × 224

pixels, a format often used in convolutional networks

(Simonyan and Zisserman, 2014) running on a stan-

dard computer. Since the aspect ratio of all videos

was not 1:1, images have been resized to have the

longest horizontal side at a ﬁxed length, maintaining

unchanged the original aspect ratio. Given an image

with width x and height y, the new dimensions x

and

are computed according to:

= 224

= x ·

224

(1)

which means that the longest dimension x has been

scaled to 224 pixels, while y has been adapted ac-

cordingly. Therefore, in order to obtain square im-

ages, a padding operation was performed, inserting

two bands of the same thickness, composed of black

pixels, above and below the image, as shown in Fig.1.

This technique is very common in image processing,

since the insertion of rows and columns coded with

constant values for all the images of the dataset is

The Dragonﬂy dataset is available upon request.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

564

easily learnable and, therefore, does not constitute a

disturbing element for the training

Images are represented in the RGB color space,

where each color is coded by three values correspond-

ing to the red, green and blue channels. In conclusion,

the size of a generic input image is 224 × 224 × 3,

where the last dimension is given by the three RGB

channels associated with each pixel.

Figure 1: Example of the dataset transformation: On the

left, the raw image, with size 640 × 360 pixels; on the

right, the ﬁnal image, with size 224 × 224, after resizing

and padding.

3 EXPERIMENTAL SETUP AND

RESULTS

To develop a dragonﬂy action recognition method,

we used two types of neural networks: CNNs and

LSTMs. Both models take color images as input data,

with size 224× 224× 3 as described in Section 2, with

normalized values in the range [−1, 1]. The models

were trained with Adam optimizer (Kingma and Ba,

2014), based on the cross–entropy loss function. In

the following, the classes are referred to by their ini-

tials:

• A: Absent;

• S: Stationary;

• TO: Take–Off;

• L: Landing;

• F: Flight.

All the procedures described in this section have been

entirely developed in Python, with the help of the

Keras API (TensorFlow backend) for the realization

of the neural architectures and the analysis of the ob-

tained results (Rossum, 1995; Chollet, 2015). The

experiments were carried out in a Linux environment

on a single NVIDIA GeForce GTX 1080 with 8 GB

GDDR5X.

Initial tests were performed using CNNs. This

kind of network is typically used to process only one

Actually, padding allows also to design deeper net-

works and improves performance by keeping information

at the borders. The main drawback of padding is to increase

computational time and memory consumption. Possible ar-

tifacts can be avoided by using mirror padding.

image at a time. In fact, it is not designed to deal

with video analysis: CNNs only extract features from

the individual frames, without capturing the temporal

correlation between the elements of a sequence. Al-

though this task is well suited for LSTM models —

they can make predictions based on time series data

— the use of CNNs is fundamental because it allows

to extract relevant features from each of the frames.

Two methods based on CNNs are proposed in the

following, based respectively on architectures which

were built from scratch and on pre–trained models.

3.1 Classiﬁcation via non Pre–trained

CNNs

In this experiment, we tried to devise an ad hoc model

for the dragonﬂy action recognition task. Several ar-

chitectures, with different depths, were tested. All the

networks share the functional and structural charac-

teristics described below:

• Weights are randomly initialized using a Standard

Normal Distribution;

• The convolutional layers have a kernel size of 3

and a stride equal to 1 pixel;

• The layers are grouped in blocks of two, with a

number of ﬁlters which is doubled from a block

to the next one;

• At the output of each convolutional layer, a batch–

normalization function and a ReLu activation

function are applied;

• After each block, a max–pooling procedure is ap-

plied on non–overlapping 2 × 2 regions of the fea-

ture maps;

• A ﬂatten or global max 2D pooling function is

applied at the end of the convolutional layer se-

quence, in order to transform a multidimensional

structure into a vector;

• Two fully connected layers are used to process the

results of the global max–pooling, the latter hav-

ing a softmax activation function, obtaining the

ﬁnal output of the network.

A ﬁrst set of experiments was designed with the aim

of identifying a good combination of hyperparame-

ters, such as the number of convolutional blocks or

the number of feature maps. The best performing ar-

chitecture is shown in Fig.2. It is based on 5 convolu-

tional blocks associated with 16, 32, 64, 128 and 256

feature maps, respectively. Its predictions reached an

accuracy of 77% on the validation set and 71% on the

test set.

Table 1 shows the confusion matrix related to the

test set, as well as the performance on each class. This

Deep Learning Techniques for Dragonﬂy Action Recognition

565

Figure 2: Best non pre–trained CNN architecture. The input image is processed by ﬁve convolutional blocks (in light blue)

and then by two fully connected layers (in orange).

Table 1: Confusion Matrix and Accuracy of a non pre–

trained CNN. The generic element m

i j

represents the num-

ber of images belonging to the i–th class misclassiﬁed as

belonging to the j–th class. The number of correct predic-

tions associated with each class is then found on the main

diagonal. The last column shows the accuracy on each class.

A S TO L F Accuracy

A 131 10 0 29 119 45,3%

S 36 1518 65 15 179 83,7%

TO 3 61 12 0 107 6,6%

L 6 67 15 37 73 18,7%

F 19 107 42 6 659 79,1%

network can classify the images belonging to classes

S and F with high accuracy, while it has more dif-

ﬁculties in recognizing class A. Furthermore, as we

can see from the results, this model is completely

unable to correctly distinguish elements belonging to

class TO and L. As expected, given the nature of this

network, which processes one image at a time, it is

challenging for it to distinguish take–off images from

landing ones, and ﬂight images from stationary ones.

3.2 Classiﬁcation via CNNs and

Transfer Learning

Transfer learning is a machine learning technique

where a network is pre–trained on a task and then used

as a starting point for a new model, which is trained

to solve another task, not necessarily related to the

ﬁrst one. Some form of correlation between the two

problems, though, guarantees better results. The main

advantage of this technique is the reduction in train-

ing times, because the second model weights are ini-

tialized according to the knowledge acquired during

the ﬁrst training, rather than at random. For the same

reason, the minimum number of examples required

for training the second model is reduced. These two

advantages are often fundamental for deep networks,

which require vast amounts of data and long times to

be properly trained.

Three CNN models, which are well known in liter-

ature, were used for transfer learning: the MobileNet

(Sandler et al., 2018), the VGG16 (Simonyan and Zis-

serman, 2014) and the DenseNet121 (Huang et al.,

2016). All of them are pre–trained on the ImageNet

dataset (Deng et al., 2009). Two different transfer

learning methods were adopted, which represent two

different degrees of “preservation” of the knowledge

acquired on ImageNet. The ﬁrst method consists in

re–training only the last (fully–connected) layers of

the CNN, while the weights inherited from the origi-

nal network are kept unchanged. In this experiment,

the convolutional section of the network behaves like

a feature extractor, while the fully connected layers al-

low the network to deal with the new task. The second

strategy, called ﬁne tuning, consists in adapting all the

weights of the original CNN model by re–training the

entire network on new data. The latter (see Fig.3)

showed better performance, correctly classifying 69%

of images belonging to the test set.

The performance on the classes S and F are sat-

isfactory, while there is a certain difﬁculty in recog-

nizing the other three classes (see Table 2). As men-

tioned in Section 3.1, this result was expected, con-

sidering the frame–by–frame classiﬁcation logic of a

CNN.

Table 2: Confusion Matrix and Accuracy of the transfer–

learning–based CNN.

A S TO L F Accuracy

A 131 188 41 14 1 34,9%

S 110 1553 5 49 96 85,7%

TO 14 136 9 1 23 4,9%

L 27 77 6 21 67 10,6%

F 66 120 10 4 633 76,0%

Figure 3: Fine–tuning–based CNN architecture. The input

image is processed by the MobileNet (pre–trained on Im-

ageNet, in light blue), and then by three fully connected

layers (in orange) composed by 1024, 512 and 5 neurons,

respectively.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

566

3.3 Recurrent Classiﬁcation with

LSTMs

The basic idea is to process a video sequence as it

is, rather than analyzing its frames separately. This

aspect is fundamental since each frame is inevitably

related to the others by a cause–effect relationship.

Indeed, taking into account the information coming

from adjacent images is useful to obtain a more ade-

quate recognition of the different phases of ﬂight.

Since the recurrent layers are not able to process

multidimensional data, a feature extractor network —

composed of replicas of the same MobileNet model

showed in Fig.3 — has been inserted upstream, fol-

lowed by a ﬂattening–merge mechanism to produce

one–dimensional data, compatible with the recurrent

layers of the LSTM model. The resulting composite

network, shown in Fig.4, is a hybrid “CNN+LSTM”

model, and represents the architectural prototype of

the second classiﬁcation approach. The LSTM net-

work is characterized by two dense layers composed

of 100 and 5 neurons, respectively. To analyze the

entire sequence, a sliding window with a size of 7

frames was used. A supersource transduction was car-

ried out in the LSTM layers, meaning that the output

propagated to the ﬁnal dense layers comes from the

last frame of the analyzed subsequence (i.e. the sev-

enth frame).

Two different strategies for providing sequences

to the network were adopted in the training process.

The ﬁrst consists in training on sub–sequences ob-

tained by extracting the sliding windows in each se-

quence of the training set, so as to obtain more over-

lapping sub–sequences (sequential approach, Fig.5).

The second strategy is based on a random selection

of sub–sequences from randomly selected sequences.

The results for both the approaches are shown in Ta-

bles 3 and 4, respectively. It is worth noticing that the

sequential approach reaches an accuracy of 73,9%,

while the random one got 68,8%.

As shown by these results, the random approach

does not seem to bring advantages to classiﬁcation,

while the network trained with a sequential approach

can appropriately manage the information coming

from temporal coherence. Unfortunately, once again,

the results improve only for classes A, S and F,

while performance on classes S and TO are really

low. These latter classes are inherently difﬁcult to

be distinguished and, in addition, sequences belong-

ing to these two classes are only a small subset of the

dataset, making the learning process even harder.

Table 3: Confusion Matrix and Accuracy of the LSTM–

based architecture for sequential frames.

A S TO L F Accuracy

A 180 12 8 0 77 65,0%

S 70 1299 1 11 168 83,9%

TO 1 136 2 0 44 1,1%

L 10 64 0 0 112 0,0%

F 33 36 0 0 740 91,5%

Table 4: Confusion Matrix and Accuracy of the LSTM–

based architecture for randomly selected frames.

A S TO L F Accuracy

A 211 12 17 2 35 76,2%

S 124 1202 113 19 91 77,6%

TO 21 107 23 9 23 12,6%

L 23 64 7 13 79 7,0%

F 48 94 46 2 619 76,5%

4 CONCLUSIONS

This paper proposes some deep learning approaches

to dragonﬂy action recognition from images/videos

(see Table 5, in which performance and time per

epoch are summarized for all the analyzed models).

In particular, apart from the collection of a large la-

beled dataset, some guidelines for the calibration, de-

sign and implementation of deep models to face this

task have been provided.

Table 5: Performance for all the above analyzed deep archi-

tectures.

Tested Networks Accuracy Time per epoch

CNN 3.1 71% 30 sec

CNN 3.2 69% 30 sec

LSTM 3.3 Seq 73,9% 5 min

LSTM 3.3 Rand 68,8% 10 min

It will be a matter of future research to improve

the classiﬁcation performance of the proposed mod-

els, for instance by collecting a larger dataset —

in particular providing more frames for the take–

off/landing classes — or employing data augmenta-

tion techniques in order to extend the available data.

A further improvement could be brought by the in-

troduction of more pre–processing operations, com-

patible with the data type, in order to reduce the dis-

turbing elements in the images and to facilitate the

classiﬁcation task.

Deep Learning Techniques for Dragonﬂy Action Recognition

567

Figure 4: Architecture of the CNN + LSTM hybrid model. The images are converted into 224 × 224 × 3 matrices and

processed separately by replicas of the same CNN model (in blue). The results are then processed by the LSTM layer (in

green). Finally, dense layers (in orange) re–elaborate the information and perform the classiﬁcation.

Figure 5: Sequential sub–sampling of frames for training the LSTM–based network.

REFERENCES

Andreini, P., Bonechi, S., Bianchini, M., Mecocci, A., and

Scarselli, F. (2018). A deep learning approach to bac-

terial colony segmentation. In International Confer-

ence on Artiﬁcial Neural Networks, pages 522–533.

Springer.

Andreini, P., Bonechi, S., Bianchini, M., Mecocci, A.,

Scarselli, F., and Sodi, A. (2019). A two stage GAN

for high resolution retinal image generation and seg-

mentation. ArXiv, abs/1907.12296.

Anthimopoulos, M., Christodoulidis, S., Ebner, L., Christe,

A., and Mougiakakou, S. (2016). Lung pattern clas-

siﬁcation for interstitial lung diseases using a deep

convolutional neural network. IEEE Transactions on

Medical Imaging, 35(5):1207–1216.

Azuma, A., Azuma, S., Watanabe, I., and Furuta, T. (1985).

Flight mechanics of a dragonﬂy. Journal of Experi-

mental Biology, 116(1):79–107.

Bonechi, S., Andreini, P., Bianchini, M., Pai, A., and

Scarselli, F. (2019a). Conﬁdence measures for deep

learning in domain adaptation. Applied Science,

9(11):2192.

Bonechi, S., Andreini, P., Bianchini, M., and Scarselli, F.

(2018). Generating bounding box supervision for se-

mantic segmentation with deep learning. In LNCS

11081, pages 190–200. Springer.

Bonechi, S., Andreini, P., Bianchini, M., and Scarselli, F.

(2019b). COCO TS dataset: Pixel–level annotations

based on weak supervision for scene text segmenta-

tion. In LNCS 11729, pages 238–250.

Bonechi, S., Andreini, P., Bianchini, M., and Scarselli, F.

(2019c). Weak supervision for generating pixel-level

annotations in scene text segmentation.

Chollet, F. (2015). Keras. https://github.com/fchollet/keras.

Couceiro, M., Ferreira, N., and Tenreiro Machado, J.

(2010). Modeling and control of a dragonﬂy-like

robot. Journal of Control Science and Engineering,

2010.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). ImageNet: A Large–Scale Hierarchical

Image Database. In CVPR09.

Donahue, J., Anne Hendricks, L., Guadarrama, S.,

Rohrbach, M., Venugopalan, S., Saenko, K., and Dar-

rell, T. (2015). Long–term recurrent convolutional

networks for visual recognition and description. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 2625–2634.

Faller, W. E. and Luttges, M. W. (1991a). Flight control

in the dragonﬂy: a neurobiological simulation. In

Advances in Neural Information Processing Systems,

pages 514–520.

Faller, W. E. and Luttges, M. W. (1991b). Recording of si-

multaneous single–unit activity in the dragonﬂy gan-

glia. J. Neurosci. Methods, 37(1):55–69.

Graves, A. and Jaitly, N. (2014). Towards end–to–end

speech recognition with recurrent neural networks.

In International Conference on Machine Learning,

pages 1764–1772.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

568

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 770–778.

Hu, Z., McCauley, R., Schaeffer, S., and Deng, X. (2009).

Aerodynamics of dragonﬂy ﬂight and robotic design.

2009 IEEE International Conference on Robotics and

Automation, pages 3061–3066.

Huang, G., Liu, Z., and Weinberger, K. Q. (2016). Densely

connected convolutional networks. 2017 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 2261–2269.

Khoreva, A., Benenson, R., Hosang, J., Hein, M., and

Schiele, B. (2017). Simple does it: Weakly supervised

instance and semantic segmentation. In Proceedings

of the IEEE Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 876–885.

Kingma, D. and Ba, J. (2014). Adam: A method for

stochastic optimization. International Conference on

Learning Representations.

Kowsari, K., Jafari Meimandi, K., Heidarysafa, M., Mendu,

S., Barnes, L., and Brown, D. (2019). Text classiﬁca-

tion algorithms: A survey. Information, 10(4):150.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in Neural Information Pro-

cessing systems, pages 1097–1105.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P., Ra-

manan, D., Doll

ar, P., and Zitnick, C. L. (2014). Mi-

crosoft COCO: Common objects in context. In Euro-

pean Conference on Computer Vision, pages 740–755.

Springer.

Milletari, F., Navab, N., and Ahmadi, S.-A. (2016). V–

net: Fully convolutional neural networks for volumet-

ric medical image segmentation. In 2016 Fourth Inter-

national Conference on 3D Vision (3DV), pages 565–

571. IEEE.

Norberg, R. (1975). Hovering ﬂight of the dragonﬂy

Aeschna Juncea l., kinematics and aerodynamics. In

Swimming and Flying in Nature, volume 2, pages

763–781.

Pereira, S., Pinto, A., Alves, V., and Silva, C. A. (2016).

Brain tumor segmentation using convolutional neural

networks in MRI images. IEEE Transactions on Med-

ical Imaging, 35(5):1240–1251.

Rossi, A., Barlacchi, G., Bianchini, M., and Lepri, B.

(2019). Modelling taxi drivers’ behaviour for the next

destination prediction. IEEE Transactions on Intelli-

gent Transportation Systems.

Rossum, G. (1995). Python reference manual. Technical re-

port, Amsterdam, The Netherlands, The Netherlands.

Sandler, M., Howard, A. G., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residuals

and linear bottlenecks. 2018 IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

4510–4520.

Shu, R., Bui, H., Narui, H., and Ermon, S. (2018). A DIRT–

T approach to unsupervised domain adaptation. In In-

ternational Conference on Learning Representations.

Simonyan, K. and Zisserman, A. (2014). Very deep convo-

lutional networks for large–scale image recognition.

CoRR, abs/1409.1556.

Spanhol, F. A., Oliveira, L. S., Petitjean, C., and Heutte, L.

(2016). Breast cancer histopathological image classi-

ﬁcation using convolutional neural networks. In 2016

International Joint Conference on Neural Networks

(IJCNN), pages 2560–2567. IEEE.

Stern, U., He, R., and Yang, C.-H. (2015). Analyzing an-

imal behavior via classifying each video frame us-

ing convolutional neural networks. Scientiﬁc Reports,

5:14351.

Sturm, B., Santos, J., Ben-Tal, O., Korshunova, I., et al.

(2016). Music transcription modelling and composi-

tion using deep learning. arXiv:1604.08723.

Sutskever, I., Vinyals, O., and Le, Q. (2014). Sequence to

sequence learning with neural networks. Advances in

NIPS.

Szegedy, C., Ioffe, S., Vanhoucke, V., and Alemi, A. A.

(2017). Inception–v4, inception–resnet and the impact

of residual connections on learning. In Thirty–First

AAAI Conference on Artiﬁcial Intelligence.

Trnovszky, T., Kamencay, P., Orjeek, R., Benco, M., and

Sykora, P. (2017). Animal recognition system based

on convolutional neural network. Advances in Electri-

cal and Electronic Engineering, 15.

Vinyals, O., Toshev, A., Bengio, S., and Erhan, D. (2015).

Show and tell: A neural image caption generator. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 3156–3164.

Wang, H., Zeng, L., Liu, H., and Yin, C. (2003). Measuring

wing kinematics, ﬂight trajectory and body attitude

during forward ﬂight and turning maneuvers in drag-

onﬂies. Journal of Experimental Biology, 206(4):745–

757.

Zhao, H., Shi, J., Qi, X., Wang, X., and Jia, J. (2017).

Pyramid scene parsing network. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 2881–2890.

Deep Learning Techniques for Dragonﬂy Action Recognition

569
