A Meta Model for a Comprehensive Description of Network Protocols

Improving Security Tests

Steffen Pfrang

1 a

, David Meier

1 b

, Andreas Fleig

and J

urgen Beyerer

1,2

Fraunhofer IOSB, Karlsruhe, Germany

Vision and Fusion Laboratory, Institute for Anthropomatics, Department of Informatics,

Karlsruhe Institute of Technology, Germany

Keywords:

Meta Model, Network Protocols, Packet Structure, Protocol Behavior, Security Testing, Industrial Automa-

tion, IACS.

Abstract:

Modern industrial automation and control systems (IACS) are highly interconnected via Ethernet. Performing

security tests to detect possible vulnerabilities in IACS is one of the measures requested by the IEC 62443

series of standards in order to improve their security. However, security testing tools and frameworks which

exceed the power of random fuzzing require precise network protocol deﬁnitions. Unfortunately, those def-

initions vary greatly from tool to tool. Additionally, their creation and maintenance is time-consuming and

error-prone. In consequence, especially common IACS protocols like Proﬁnet IO or OPC UA are seldom to

never implemented. To overcome this issue, this work proposes and implements an approach of a generic

meta model for a comprehensive description of arbitrary network protocols. An important use case of this

meta model is the export of network protocol deﬁnitions for different testing tools.

1 INTRODUCTION

Security tests on IACS gain an increasing signiﬁ-

cance the more industrial devices get interconnected

via Ethernet. Emerging concepts like Industrial In-

ternet of Things (IIoT) and Industrie 4.0 are strong

drivers for new connections of IACS even to the Inter-

net. Security tests aim at detecting vulnerabilities in

the network protocol implementations or in the design

of the devices which might stop production processes

or even harm humans. Once detected, manufactur-

ers and integrators of IACS are enabled to patch their

systems and close the respective security gaps.

Security tests are conducted utilizing specialized

tools and frameworks. Their purposes range from

protocol analysis to fuzzing to stress tests with a very

high transmission rate. Except simple fuzzing tests

with random data as payload, the tools depend on

precise network protocol deﬁnitions. Unfortunately,

these deﬁnitions vary greatly from tool to tool. This

leads to the situation that especially common IACS

protocols like Proﬁnet IO (PNIO) or OPC UA are sel-

dom to never implemented in these tools.

https://orcid.org/0000-0001-7768-7259

https://orcid.org/0000-0003-0660-8087

To solve this problem, this work proposes a

generic and universal meta model for a comprehen-

sive description of arbitrary network protocols. The

general idea of this meta model is that network pro-

tocols can be speciﬁed in a standardized way as an

instance of the meta model. Then, exporters allow for

creating network protocol deﬁnitions speciﬁc to the

respective testing tools. Moreover, the meta model

enables several other valuable applications in the do-

main of security analysis.

The main contributions of this paper are

• a use case analysis of a meta model for network

protocols,

• a requirement analysis for such a meta model,

• the design of the meta model, and

• the evaluation of the meta model by conducting a

security test on real IACS devices.

The rest of the document is organized as follows: In

section 2, background information on network proto-

col design, industrial automation protocols and secu-

rity testing is given. A broad use case analysis is made

in section 3, the section closes with the formulation of

requirements which the developed meta model has to

fulﬁll. The meta model design is presented in sec-

tion 4. Its implementation is evaluated in section 5 by

Pfrang, S., Meier, D., Fleig, A. and Beyerer, J.

A Meta Model for a Comprehensive Description of Network Protocols Improving Security Tests.

DOI: 10.5220/0009150206710682

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 671-682

ISBN: 978-989-758-399-5; ISSN: 2184-4356

671

combining several use cases with a real industrial pro-

tocol and common industrial devices in a security test.

The paper ﬁnally concludes with section 6 including

possible future work.

2 NETWORK-BASED

COMMUNICATION AND

SECURITY TESTING

This sections motivates the need for a meta model de-

scribing network protocols comprehensively. It starts

with industrial automation protocols and moves on to

the design of common network protocols. Then, secu-

rity testing as a means to analyze security properties

is introduced brieﬂy, next a reference protocol and ﬁ-

nally the deducted implications.

2.1 Industrial Automation Protocols

Modern industrial facilities are based on highly

automated processes that are controlled by IACS.

Widespread network protocols in this area are PNIO

and OPC UA.

The PNIO communication suite is used to enable

real-time Ethernet-based communication in industrial

networks, for example between programmable logic

controllers (PLC) and sensors or actuators. It con-

sists of several sub-protocols. The PNIO protocol de-

sign is described in Technical Speciﬁcations. They are

published as IEC standard and formatted as PDF doc-

uments with several hundreds of pages (IEC, 2019a)

and (IEC, 2019b). Meanings of options and state tran-

sitions are depicted in tables and diagrams.

The OPC UA protocol stack is designed for

machine-to-machine communication. It features dif-

ferent communication architectures like server/client

and publish/subscribe. OPC UA is also published as

IEC standard in 15 parts as PDF documents. The

mapping how data and information are transferred be-

tween OPC UA Servers and Clients is speciﬁed in part

6 (OPC Foundation, 2017). In addition to tables and

diagrams, the information model and type deﬁnitions

are supplied as XML schema deﬁnitions.

2.2 Protocol Design

Network communication protocols are deﬁned by two

main properties: Packet structure descriptions and the

protocol behavior.

The packet description deﬁnes the structure of the

individual protocol data units (PDUs) – also referred

to as messages – that are transmitted over the network.

PDUs can be further dissected into data ﬁelds. Every

ﬁeld consists of data coded in a certain way and can

inﬂuence the meaning of other ﬁelds, the PDU and

the overall protocol state. Packet structure descrip-

tions vary from simple structures and protocols with

only a single packet type to more complex protocols

with different kinds of PDUs and packet ﬁelds that

inﬂuence the structure of every individual PDU.

The protocol behavior describes the communica-

tion ﬂow of a protocol. This includes the connection

initiation, data ﬂow, control messages, as well as the

connection closing. Besides stateful protocols, there

exist also stateless protocols which do not hold any

information about previous messages.

In most cases, PDUs transmitted over a network

not only consist of a single protocol but are consist-

ing of multiple parts, each representing a protocol.

This layering approach is formalized, for example, in

the ISO/OSI-model (ISO, 1994) or the Internet pro-

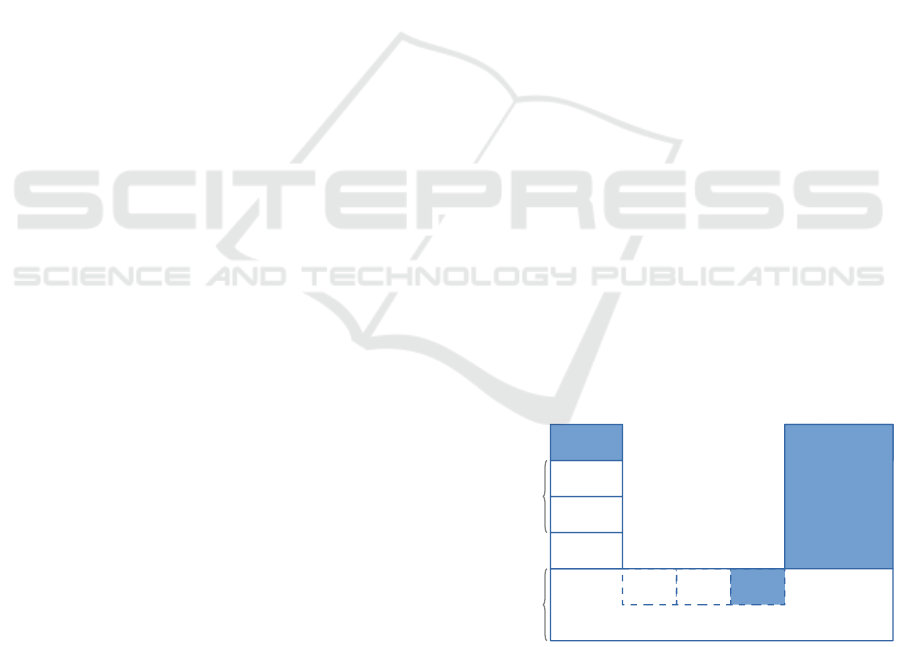

tocol (IP) stack (Braden, 1989). The PNIO stack

aligned to the IP stack is shown in Figure 1. Proto-

cols in shaded boxes are deﬁned in the PNIO standard,

non-shaded boxes represent protocols that are used by

PNIO. While the conﬁguration and management pro-

tocol (CM) is based on IP and UDP, the real-time pro-

tocol (RT) is based directly on Ethernet. The discov-

ery and conﬁguration protocol (DCP) is also based on

Ethernet and is used to discover and conﬁgure PNIO-

compliant devices in a sub-network. DCP enables,

for example, to ﬁnd all available devices using a DCP

Identify Request.

Each layer can have various ties to upper or lower

layers. For example, the type ﬁeld in the Ethernet

packet determines the protocol used as its payload.

While IP uses the type 0x0800, DCP and CM use

0x8892 and LLDP uses 0x88CC.

Rec IO Al

Ethernet

ARP LLDP DCP

UDP

DCE/RPC

Application

Transport

Internet

Link

Figure 1: The PNIO stack aligned to the IP stack.

When interpreting the binary data transmitted by a

PDU, it can be dissected into its different protocol

parts. Each part consists of a header, containing pro-

tocol and payload information, and the payload itself.

Some protocols, like Ethernet, also have a footer fol-

lowing the payload that can contain, for example, er-

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

672

ror detection data. The payload can be the PDU of

another protocol, consisting again of header and pay-

load, and so on.

Internet protocols like IP or UDP are described in

so-called Requests for Comments (RFC) or Internet

Standards and published by the Internet Engineering

Task Force (IETF). The format of those documents

is speciﬁed in (Flanagan and Ginoza, 2014). It con-

sists of plain text or XML pages; packet structures and

state diagrams are formatted as ASCII art.

2.3 Security Testing

Security testing aims at detecting vulnerabilities

which can be exploited by attackers. In case of IACS

connected to networks, ﬂaws in network protocols are

a main gateway for attacks. Part 4-1 (IEC, 2018) of

the IEC 62443 standard consequentially requires in-

dustrial product suppliers to conduct different kinds

of security tests during the life-cycle of their devices.

Generally, security considerations should be part of

every network protocol design process. Nevertheless,

the results need to be veriﬁed. Also the security prop-

erties of existing protocols actively used need to be

assessed and validated.

According to (Felderer et al., 2016), security test-

ing can be classiﬁed in four categories: Model-based

security testing (MBST), code-based testing and

static analysis (CBTSA), penetration testing and dy-

namic analysis (PTDA) and security regression test-

ing (SRT). The application to network protocol anal-

ysis will be presented in the following. While MBST

techniques analyzes the speciﬁcation, CBTSA and

PTDA analyze implementations of a network proto-

col. SRT is related to both areas.

MBST. Deals with the analysis of the protocol spec-

iﬁcation. It presumes the existence of architectural

and functional models of the network protocol. As al-

ready depicted, most protocols are speciﬁed in plain

text, diagrams and tables. If a protocol is modeled

manually, there is no guarantee of completeness and

correctness. So in the strict sense, results of this

method are only valid for the particular model, not

the original speciﬁcation.

CBTSA. Focuses on the source code of a protocol

implementation. Manual or automated code reviews

are common means, the latter is called static code

analysis. These approaches are deﬁned as white-box

security testing techniques.

PTDA. Is a black-box approach. Testing is per-

formed in practice by using a live system running

the protocol implementation. There is no need to

have insights into the implementation, only messages

transferred via Ethernet are regarded. PTDA includes

manual penetration testing, automated scanning for

known vulnerabilities, dynamic analysis of data sani-

tization, and fuzzing.

A widespread tool for a manual network packet

analysis is Wireshark

. Wireshark dissects network

packets in its layers and ﬁelds. Additionally, for some

protocols like TCP it provides a basic state analysis

which aggregates several packets to a session. Wire-

shark uses packet deﬁnitions that are programmed in

Network packet crafting can be performed us-

ing Scapy

, an interactive packet manipulation pro-

gram. It supports both packet deﬁnitions and a state

model. Scapy, as well as its packet deﬁnitions, is pro-

grammed in Python. Besides a manual usage, Scapy

can be used as a library in Python scripts. Indus-

trial security testing or exploit frameworks like ISF

or ISuTest (Pfrang et al., 2017) employ Scapy packet

deﬁnitions.

Fuzzing can be used to automatically test net-

work protocol implementations. The effectiveness of

fuzzing can be improved if the network protocol def-

inition is available to the fuzzing tool. Then, fuzzing

tools like ISuTest purposefully change values in the

PDU ﬁelds, including creating invalid combinations

of values (Pfrang et al., 2018).

High loads of network trafﬁc can lead to denial of

service. Packet generators can be used to test which

loads are acceptable for a device and how it reacts to

overload. There are several different types of packet

generators available. Their maximal load ranges from

slower ones with Scapy deﬁnitions to faster ones with

native network interface support, or even hardware-

based generators. Ostinato

is a packet generator and

network trafﬁc generator which can be extended by

packet deﬁnitions. Unimplemented protocols can be

added to Ostinato as userscripts. They are imple-

mented in QtScript.

SRT. Is intended to ensure that changes that are

made to a system do not decrease its security. In re-

gard to network protocols, this could happen if a spec-

iﬁcation is, for example, extended by new options or

features. Then both the speciﬁcation and implementa-

tion should be subject to a new security test. In order

to minimize the effort needed for these tests, auto-

mated testing would be most beneﬁcial.

https://www.wireshark.org/

https://scapy.net/

https://github.com/dark-lbp/isf

https://ostinato.org/

A Meta Model for a Comprehensive Description of Network Protocols Improving Security Tests

673

2.4 Example Network Protocol

The Example Network Protocol (ENP) is an artiﬁcial

network-based communication protocol. It was in-

troduced in (Pfrang et al., 2019b), motivated by the

need of a reference protocol targeting tool developers

to design, implement and test their tools against. The

authors examined common Internet protocols as well

as speciﬁc industrial automation protocols like PNIO

and OPC UA. They developed the ENP to contain ev-

ery observed peculiarity with the idea in mind that

a tool that is able to handle the ENP is able to han-

dle every imaginable network protocol (Pfrang et al.,

2019a).

During their analysis, the authors developed a

packet ﬁeld categorization which is based on the

ﬁelds’ lengths and parsing rules. Both can be either

ﬁxed or variable; the variability can depend or be de-

ﬁned by several different causes. Additionally, sev-

eral protocol state related requirements were deﬁned.

Examples are triggers for and effects of state changes.

2.5 Conclusion

Network protocol speciﬁcations are rarely described

in a machine-readable way. Security testing ap-

proaches, like model-based testing, essentially need

complete network protocol models. Fuzzing gets

more powerful if packet deﬁnitions are used instead

of random data as payload. But also tools for man-

ual security research, like Wireshark or Scapy, de-

pend on the existence of protocol deﬁnitions. Unfor-

tunately, most of the tools use different formats for

their deﬁnitions – they cannot be easily interchanged.

Especially in the industrial domain, protocols are sel-

dom to never implemented in every tool. As security

testing is essential for discovering vulnerabilities be-

fore attackers can exploit them, this work proposes a

meta model for a comprehensive description of net-

work protocols.

3 USE CASE ANALYSIS

A meta model for network protocols offers various

kinds of use cases. The ones that are considered

within this paper are depicted in Figure 2. A special

focus is laid on the clariﬁcation how these use cases

can help to improve security tests.

The big box represents the meta model. Inside the

meta model, there are different model instances which

represent different network protocols. For each of the

protocols, the model instances contain both packet de-

scriptions and protocol behavior. At the bottom left

Meta Model

Model Instances

External Tools Real Devices

pcap

Import Export CompareTest

Specify

Security

Testing

Visualize

Detect

Inconsistencies

Verify

Simulate

TCP

PNIO-

DCP

…

Validate

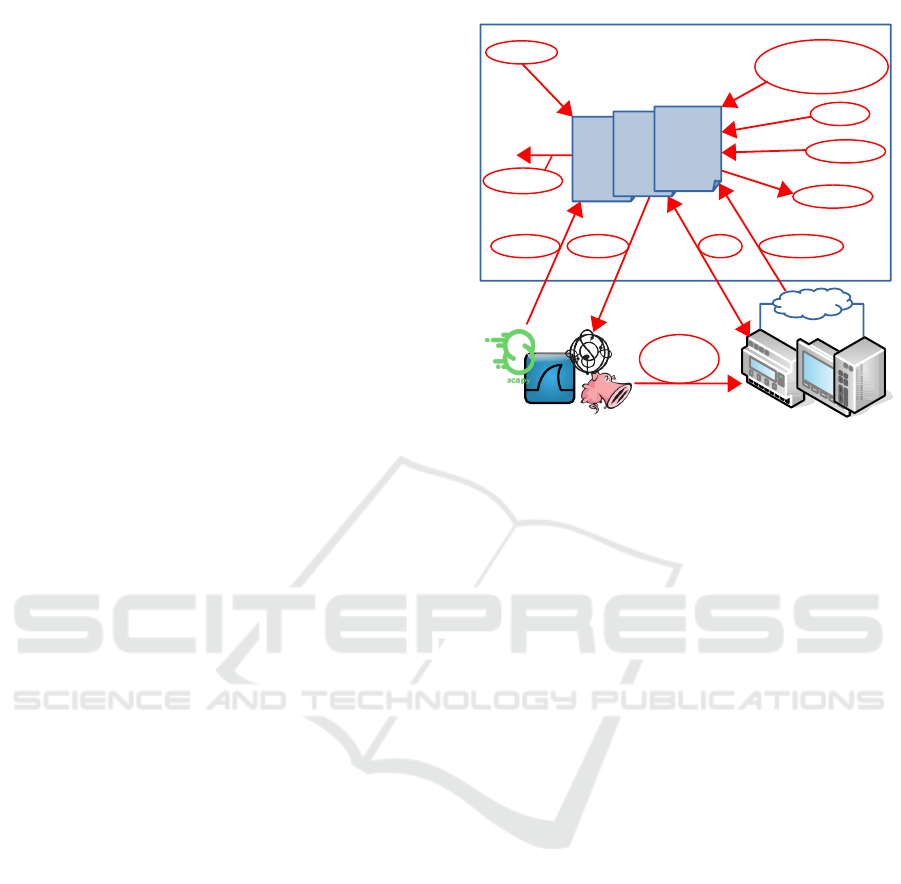

Figure 2: Use cases of the meta model.

side, external tools like Wireshark or Scapy are de-

picted. Each of those tools use different formats for

their own protocol descriptions which are not compat-

ible. At the bottom right side, real devices communi-

cating over a network with the speciﬁc protocols are

displayed. Recorded network trafﬁc can be stored as

a packet capture (pcap). Italic terms in red ovals with

arrows represent use cases that are being described

in the following two subsections. The section closes

with the formulation of requirements which have to

be fulﬁlled by the meta model design.

3.1 Basic Use Cases

Basic use cases deal with network protocols as an in-

stance of the meta model. They are about the speciﬁ-

cation and the reﬁnement of the protocol instance.

Speciﬁcation of Network Protocols (Specify). In

protocol engineering, network protocols can be spec-

iﬁed as an instance of the meta model. Their deﬁ-

nitions include both packet descriptions and protocol

behavior. The knowledge of data types and depen-

dencies between different packet ﬁelds lays the foun-

dation for targeted security tests. The speciﬁcations

are readable for machines as well as for humans. This

allows for the use of different kinds of tools which

supports the development process. In addition to the

creation of new protocols, existing protocols can be

speciﬁed formally.

Import of Existing Deﬁnitions (Import). Existing

network protocol deﬁnitions from other tools can be

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

674

imported as an instance of the meta model. A com-

plete and fully automated import of both packet def-

initions and state models is desirable but not realistic

in every case. But any help of an at least partially

automated import could improve the situation of se-

curity researchers.

Visualization of State Machines (Visualize). Def-

initions of stateful network protocols comprise a state

model as a vital part. This state model does not only

describe the states and transitions, but also explains

the protocols processes. A machine-readable protocol

instance allows for the automatic generation of those

charts which improves the clarity of even complex

state models. This can simplify the process for se-

curity researchers to understand the protocol in depth.

Detection of Protocol Inconsistencies (Detect In-

consistencies). Both existing and network protocols

in development can be underspeciﬁed. There could

exist mistakes like in the message deﬁnitions, or non-

reachable states in the state machine. The machine-

readability of a meta model instance of the given

network protocol allows for automatic inconsistency

checks. Once detected, those protocol implementa-

tions can be corrected which might close security is-

sues. Besides that, security tests can be focused on

discovered inconsistencies which might detect vulner-

abilities.

Veriﬁcation of Protocol Properties (Verify). Var-

ious kinds of complex protocol analyses and veriﬁ-

cation methods can be employed to an instance of a

meta model. The machine-readability allows for a

fully-automated processing. This could help to prove

certain properties of network protocols like security

features.

Export in Various Formats (Export). Instances of

the meta model can be exported in network protocol

deﬁnitions for different tools. Like in the case of the

import of protocol deﬁnitions, a fully automated ex-

port is desirable. In practice, even an only partially

automated export could facilitate the use of tools with

the speciﬁc network protocol. The export feature is

one of the most valuable parts for security testers

since it enables the usage of arbitrary testing tools.

3.2 Advanced Use Cases

Advanced use cases make use of one or more basic

use cases and add further functionality.

Conversion of Protocol Deﬁnitions. A combina-

tion of the import and export use case is the con-

version of protocol deﬁnitions from one tool to an-

other. It is not depicted explicitly in Figure 2. A com-

mon case is that a protocol deﬁnition exists only in

Wireshark, but a security tester needs to craft network

packets for example with Scapy.

Validation of External Protocol Deﬁnitions (Vali-

date). Given a reference speciﬁcation of a network

protocol as instance of the meta model. Then protocol

implementations from external tools can be imported

and compared to the reference. This allows for the

validation of external implementations.

Comparison with Recorded Trafﬁc (Compare).

A network protocol is deﬁned as a protocol instance

of the meta model. The network trafﬁc of real

implementations using this speciﬁc protocol can be

recorded as packet capture. Then it is possible to

check both the packet deﬁnitions and the protocol be-

havior. This feature can be used in two directions:

Either one assumes the real implementation to be cor-

rect, then the meta model instance can be adapted.

Or the protocol implementation of a device has to be

changed. Additionally, security testers can verify a

speciﬁc testing process and identify if a discovered

anomaly is caused by the testing tool itself.

Support of Protocol Prototyping (Test). A proto-

col instance which fully describes a certain protocol

allows for using a simulator. The simulator can send

and receive network packets and additionally execute

the state model. This enables fast prototyping of pro-

tocols.

Security Testing. Security research can proﬁt from

different features of the meta model. This ranges from

the veriﬁcation of protocols inside the meta model to

tests of real devices applying external tools. An exam-

ple is the setup in the evaluation: Several IACS will

be tested with the external network packet generator

Ostinato. Ostinato does not support the industrial net-

work protocol by default, but the meta model enables

it.

3.3 Meta Model Requirements

Based on the needs for the realization of the use

cases presented above, the following requirements

have been established and grouped into three require-

ment types: General meta model requirements, mes-

sage speciﬁcation requirements and state model re-

quirements.

A Meta Model for a Comprehensive Description of Network Protocols Improving Security Tests

675

General Meta Model Requirements (GR). De-

scribe universal requirements for the meta model de-

sign.

GR-1 Universal Applicability: Similar to an RFC,

the meta model has to be capable of specifying arbi-

trary network protocols. It has to be possible to create

a detailed model instance for any conceivable network

protocol.

GR-2 Modularity: The meta model should follow

a modular design to decrease its complexity and in-

crease its adaptivity. This applies for both tools like

an importer or an exporter, and parts of message or

behavior deﬁnitions that different protocols have in

common.

GR-3 Extensibility: Both the meta model itself

and the protocol deﬁnitions, which are described as

instances of the meta model, need to be easily exten-

sible.

GR-4 Machine-Readability: Instances of the meta

model need to be in a machine-readable format to en-

able automated and tool-supported usage.

GR-5 Human-Readability: Additionally, in-

stances of the meta model have to be human-readable.

This allows for an easy handling of meta model in-

stances even without using complex tools.

Message Speciﬁcation Requirements (MR). Rep-

resent the speciﬁc needs for implementing arbitrary

network protocol messages as instances of the meta

model.

MR-1 Message Type Speciﬁcation: A network

protocol may consist of different messages. Every

message needs a unique message name, a message

type indicator and a list of contained ﬁelds.

MR-2 Field Speciﬁcation: A message can con-

tain multiple ﬁelds. Every ﬁeld needs a unique ﬁeld

name and can be either atomic or compound. The

length speciﬁcation is either ﬁxed or variable. In the

latter case, the length value always has to be speci-

ﬁed within an external ﬁeld, within the ﬁeld itself or

within a separate request. The parsing rule speciﬁ-

cation is either ﬁxed or variable. A variable parsing

rule has to be speciﬁed or named either within an ex-

ternal ﬁeld, the ﬁeld itself or by a separate request.

Both the variable length speciﬁcations and the vari-

able parsing rule speciﬁcations may be based on quite

complex rules. The meta model has to be able to spec-

ify arbitrary and Turing-complete length and parsing

rules.

MR-3 Underlying Protocols: To be able to realize

today’s protocol stacks, it has to be possible to ref-

erence the underlying protocol. On the one side, the

meta model must be able to specify a certain under-

lying protocol. On the other side, it also has to be

possible to reference certain details within this under-

lying protocol.

State Model Requirements (SR). Describe re-

quirements which are derived from the necessity of

being able to implement the protocol behavior of ar-

bitrary network protocols.

SR-1 State Speciﬁcation: For each possible state

of the protocol, there has to be a corresponding state

in the state model.

SR-2 Transition Speciﬁcation: Every possible

change of the protocol state has to be speciﬁed by a

corresponding transition in the state model.

SR-3 Transition Trigger: Each of those transi-

tions has to have exactly one of the following trig-

gers: (a) A certain message or the content of a certain

ﬁeld within a message, (b) a temporal condition like

a timeout or a timed event, or (c) an action within the

protocol execution which triggers a certain transition.

SR-4 Arbitrary Actions: The state model has to

allow the execution of arbitrary, Turing-complete ac-

tions, including special constructs like conditional ac-

tions or loops.

SR-5 Roles: It has to be possible to specify differ-

ent roles. The most common examples of such roles

are client and server. Depending on the current role,

the states and transitions may differ.

SR-6 Data Model: The state model has to offer

some kind of data model which allows to access data

objects or data structures. This is meant to be used

to maintain all kinds of local and global information

related to messages and states.

SR-7 Message Speciﬁcation References: It has to

be possible to reference parts of the message spec-

iﬁcations of the corresponding meta model instance

from inside the state model. For example, one of

those actions may depend on some speciﬁc details of

the message speciﬁcations.

SR-8 State Model References: It has to be pos-

sible to reference other model instances for arbitrary

actions. It is particularly important to be able to ac-

cess the underlying protocol since the protocol may

depend on certain details of it.

4 META MODEL DESIGN

The meta model design comprises three parts as de-

picted in Figure 3: The meta model speciﬁcation,

meta model instances and the meta model framework.

The speciﬁcation deals with the concepts of how a

network protocol can be described comprehensively

as an instance of the meta model. Meta model in-

stances are actual implementations of network pro-

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

676

tocols. The framework design contains the software

components which allow users to interact with the

meta model instances.

Meta Model

Specification

Message

Specifications

State Model

Model

Extensions

references

instance of

TCP

Meta Model

Instances

PNIO-DCP

ToolsCore

Plug-ins

Meta Model

Framework

use

create, use, …

Users

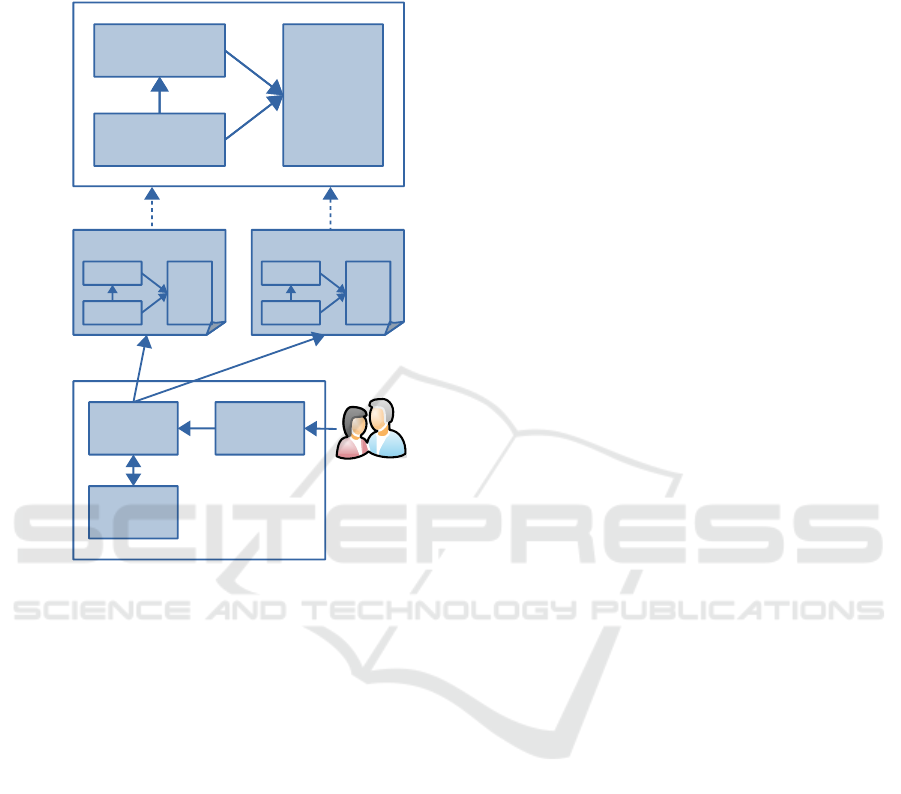

Figure 3: Meta model design overview.

4.1 Meta Model Speciﬁcation

The meta model speciﬁcation consists of three con-

ceptual parts: Message speciﬁcations, a state model

and model extensions. While the ﬁrst two parts fol-

low an XML-based approach, the latter makes use of a

Turing-complete programming language. A network

protocol like TCP would need to be speciﬁed by creat-

ing instances of these three parts. This separation into

different parts demands that the consistency within a

meta model instance is ensured.

Message Speciﬁcation. The basic idea for the spec-

iﬁcation of messages is to deﬁne an instance of a cer-

tain message as an XML document. That way, every

message can be represented by a corresponding XML

document. Figure 4 depicts an Identify all request of

DCP in its XML representation.

To specify the format and characteristics of

those XML documents, an XML schema is created.

The most powerful XML schema language is XML

Schema Deﬁnition (XSD) (W3C, 2012). It com-

bines both an assertion-based and a grammar-based

1 <DCP>

2 <DCPHeader>

3 <ServiceId>5</ServiceId>

4 <ServiceType>

5 <ServiceTypeFlag>0</ServiceTypeFlag>

6 <ServiceTypeType>00</ServiceTypeType>

7 </ServiceType>

8 <Xid>3256714648</Xid>

9 <ResponseDelayFactor>0

</ResponseDelayFactor>

10 <DCPDataLength>4</DCPDataLength>

11 </DCPHeader>

12 <IdentifyAllReqPDU>

13 <AllSelectorBlock>

14 <Option>ff</Option>

15 <SubOption>ff</SubOption>

16 <DCPBlockLength>0000</DCPBlockLength>

17 </AllSelectorBlock>

18 </IdentifyAllReqPDU>

19 </DCP>

Figure 4: The DCP Identify all request denoted as XML

document.

approach. There exist different external tools which

allow for checking XML documents against an XSD

schema.

Figure 5 shows excerpts of the corresponding

XSD schema. Within the schema deﬁnition, messages

and their ﬁelds employ grammar-based XSD rules.

For example, line 2 deﬁnes that there has to be ex-

actly one DCPHeader. The header has a ﬁeld Servi-

ceId (line 4) which is restricted (line 6) to a Byte. If

the ServiceId is 5, the message has to be interpreted

as IDENTIFY request (line 10).

More complex rules like dependencies between

ﬁelds, however, make use of assertions. An example

for an assertion determining the type of the PDU is

printed in line 12ff. Applying XPath selectors, values

of message ﬁelds are evaluated against a ﬁxed value.

Such rules have to be written for each PDU type.

If the needs exceed the capability of XSD asser-

tions, like in the case of a hash calculation, external

assertions will be used. They are marked as annota-

tions and employ model extensions.

State Model. The state model is realized as stat-

echart XML (SCXML) (W3C, 2015). SCXML is a

simple, standardized way to specify all kinds of state

models in XML documents. The meta model design

employs Harel statecharts (Harel, 1987) which are

slightly more powerful than classic ﬁnite state ma-

chines. For example, they easily allow the speciﬁ-

cation of sub-states or concurrent tasks. This even

allows the speciﬁcation of complex protocols.

Figure 6 illustrates excerpts of the statechart def-

initions of the ENP. The name of the protocol in-

A Meta Model for a Comprehensive Description of Network Protocols Improving Security Tests

677

1 <xs:schema [...]

2 <xs:element name="DCPHeader" minOccurs="1"

maxOccurs="1">

3 [...]

4 <xs:element name="ServiceId"

minOccurs="1" maxOccurs="1">

5 <xs:simpleType>

6 <xs:restriction

base="xs:unsignedByte">

7 [...]

8 <xs:enumeration value="5">

9 <xs:annotation>

10 <xs:documentation>IDENTIFY

</xs:documentation>

11 [...]

12 <xs:assert test="if (

DCPHeader/ServiceId = 5 and

DCPHeader/ServiceType/ServiceTypeFlag =

0 and

DCPHeader/ServiceType/ServiceTypeType =

’00’)

13 then (IdentifyAllReqPDU)

14 else true()">

Figure 5: Extracts of the corresponding DCP XSD.

1 <scxml [...] name="enp"

initial="connecting">

2 <state id="connecting">

3 <transition type="external" event=

"conn_ok" target="connected"/>

4 <transition type="external" event=

"error_occ" target="error_occ"/>

5 <transition type="internal" event=

"state_act">

6 <assign location="res" expr="fkt_connect

((’localhost’, 1337))"/>

7 <if cond="res == -1">

8 <raise event="error_occ"/>

9 </if>

10 </transition>

11 </state>

Figure 6: Extract of the state model of the ENP.

stance is enp, its initial state is connecting (line 1).

In this state, three transitions are deﬁned. In case of a

conn ok event, the transition to the state connected is

triggered. If an error occurs, the target state error occ

will be aimed.

Harel statecharts execute actions – like Moore ma-

chines – within states. For that reason, actions have to

be described in an internal event. This internal event

(line 5) will be triggered once the state is reached and

executes a function call. In case of an error (line 7),

the external event deﬁned in line 4 will be triggered.

Model Extensions. There are two different types of

model extensions. The ﬁrst one serves the re-usability

of common types within the message speciﬁcations

and the state model.

The second one is used whenever needed func-

tionality exceed the features of XSD and SCXML.

These features are implemented in JavaScript, a

Turing-complete programming language, which is the

standard in SCXML. However, the complexity of

these extensions prevents automatic processing by

conversion tools and, thus, should only be used when

unavoidable.

4.2 Meta Model Framework

The meta model framework is structured in three con-

ceptual parts: The core, tools and plug-ins.

The core is the central component of the frame-

work. On the one hand, it represents the interface be-

tween the tools and meta model instances. It offers

high-level functionality, like checking the validity of a

model instance via an application programming inter-

face (API). An example for a tool is the pcap checker,

which interprets network messages from a pcap and

compares both packets and protocol behavior with a

given model instance. Tools are the only interface be-

tween a user and the meta model.

On the other hand, the core interfaces with plug-

ins. These plug-ins enable the framework to import

and export protocol deﬁnitions to and from a meta

model instance. A plug-in contains code to both in-

terpret and write one speciﬁc protocol deﬁnition lan-

guage. It is independent from a speciﬁc meta model

instance.

5 EVALUATION

The evaluation of the meta model consists of three

parts. The ﬁrst part combines four use cases from the

speciﬁcation of a well-known network protocol to the

analysis of a security test targeting real IACS. Those

use cases were selected because the implementation

of meta model tools was focused on the ones from

which security testing beneﬁts most. The second part

examines if the meta model provides the needed func-

tionality to specify arbitrary network protocols. The

third part compares the meta model with related ap-

proaches. Finally, the section closes with a discussion

of the results.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

678

5.1 Use Case Evaluation

The use case evaluation consists of four steps which

are depicted in Figure 7. It applies the use cases Spec-

ify, Export, Security Testing and Compare. Security

testing is conducted with the packet generator Osti-

nato. Targets for the security test were two embedded

PLCs and two PNIO gateways for analog and digital

signals.

Meta Model

External Tools Real Devices

pcap

Import CompareTest

TCP

…

Specify

Security

Testing

Visualize

PNIO-

DCP

Model Instances

Export

Detect

Inconsistencies

Verify

Simulate

Validate

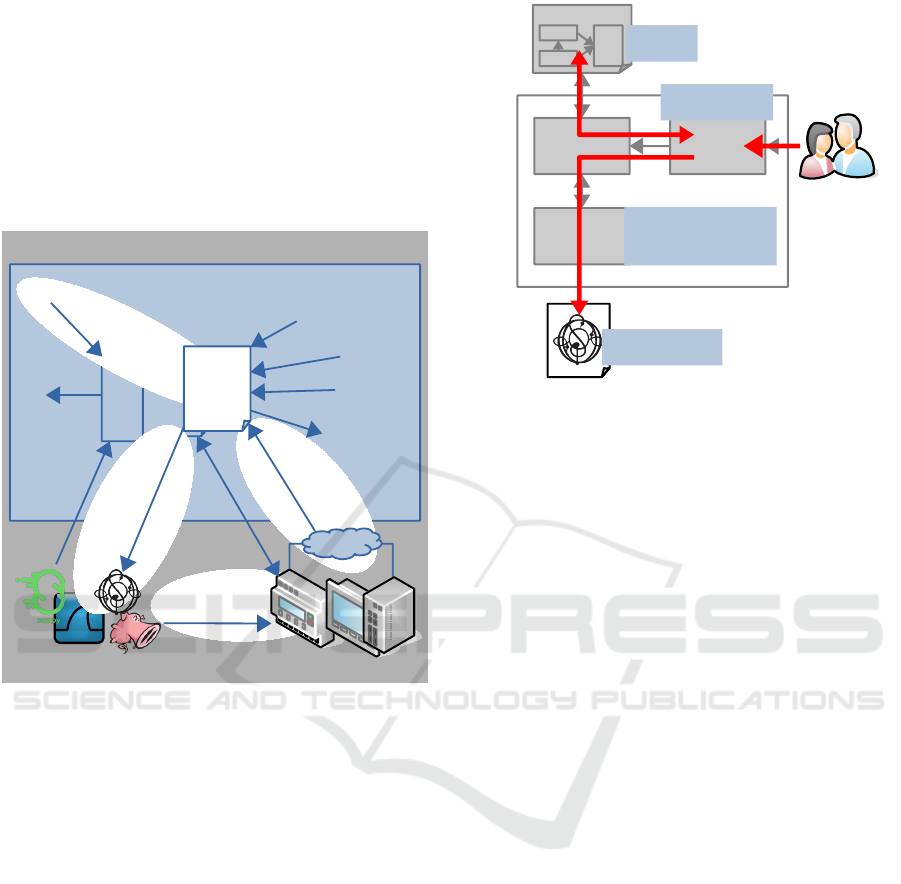

Figure 7: The use-case-based evaluation plan.

In step 1, the DCP protocol will be analyzed manually

from the PNIO standard document and implemented

as an instance of the meta model. DCP is a stateless

protocol which means only a packet description is re-

quired. Excerpts of the resulting XML schema are

depicted in ﬁgure 5 in the design section.

The second step will export the network packet

deﬁnitions for Ostinato. This workﬂow is depicted in

Figure 8. It starts with a user interaction (A) and runs

the Exporter tool with the name of the meta model

instance and the format that shall be created. The ex-

porter then accesses the DCP model instance via the

API of the Core (B). Making use of the export rules of

the Ostinato plug-in (C), the corresponding Ostinato

userscript is written to a ﬁle. Note that the generic ex-

porter tool is able to export any model instance into

any target ﬁle format for which export rules exist.

In step 3, a security test with Ostinato will be con-

ducted on a test bed of IACS. The packet generator

Ostinato is conﬁgured with the packet deﬁnitions of

DCP as a userscript. Then, the devices to be tested

are conﬁgured as targets of the test. Further settings

concern the number of packets to be generated and the

Meta Model Instance

ToolsCore

Plug-ins

Meta Model Framework

Users

Exporter

Ostinato

Export Rules

Ostinato Userscript

dcp.proto

DCP

Figure 8: The workﬂow for exporting protocol deﬁnitions.

number of packets to be sent per second. In this case,

none of the attacked IACS crashed – those devices are

not vulnerable to a high load of DCP messages.

Step 4 concludes the evaluation with a proof of

the correctness of the DCP model instance, the ex-

porter tool and the Ostinato export plug-in. Taking a

pcap of the security test as input, both a manual anal-

ysis with Wireshark and an automated analysis with

the pcap-checker tool were conducted. The analysis

with Wireshark showed that the network packets gen-

erated by Ostinato could be dissected as valid DCP

messages without any error. Additionally, the devices

answered the DCP identify request with a DCP iden-

tify response. This shows that the messages were pro-

cessed correctly by the PNIO devices.

Finally, the pcap-checker tool was employed. It

showed that the generated DCP messages were cor-

rect DCP messages according to the meta model in-

stance of DCP.

5.2 Requirement Evaluation

The goal of the meta model is that it allows for a com-

prehensive modeling of every network protocol, re-

gardless of its complexity. The evaluation of this goal

can be reduced to the implementation of the ENP as a

meta model instance.

Based on the requirement analysis, the satisfac-

tion of both the message speciﬁcation (MR) and state

model requirements (SR) is also shown through the

ENP instance.

Regarding the satisfaction of the general meta

model requirements, universal applicability (GR-1)

has been shown by both the implementation of the ar-

tiﬁcial ENP and the real DCP protocol, with the latter

having been used for a security test. The modular-

A Meta Model for a Comprehensive Description of Network Protocols Improving Security Tests

679

ity (GR-2) is ensured by the design of plug-ins and

tools as well as in common types for protocol deﬁ-

nitions. The extensibility (GR-3) in respect to new

protocol deﬁnitions is guaranteed by the design of

meta model instances. The extensibility in relation

to the meta model is ensured by the separation of the

meta model speciﬁcation and framework. Finally, the

readability of meta model instances by both machines

(GR-4) and humans (GR-5) is offered by the usage of

XML as the description language.

5.3 Comparative Evaluation

There exist different other approaches which target

only parts of the meta model’s features. Some of them

are only usable for packet deﬁnitions, others target

solely the speciﬁcation of a protocol’s state model. In

the following, six approaches are presented and com-

pared to the meta model. The reasons for not being

used within the meta model design get motivated.

YANG. YANG (M. Bjorklund, 2010) (Bjorklund,

2016) is a data modeling language. It was developed

to model conﬁguration and state data for the network

management protocol NETCONF (R. Enns, 2006).

While YANG itself only describes data models, JSON

or XML can be used to describe data instances. To

describe data models, YANG supports XPath 1.0 ex-

pressions.

The speciﬁcation of simple ﬁelds with ﬁxed length

and ﬁxed parsing rules – like a simple integer ﬁeld –

is easily possible using YANG’s primitive data types.

But the speciﬁcation of ﬁelds with variable lengths or

parsing rules is much more complex. Especially be-

cause it is not possible to deﬁne real custom types in

YANG, but only to derive custom types from the pre-

deﬁned ones. So even the speciﬁcation of simple type

deﬁnitions are much more complex compared to the

presented XML-based approach of the meta model.

This especially contradicts the requirement of human-

readability (GR-5), and also increases complexity for

the automated processing of the meta model (GR-4).

PacketTypes. The authors of PacketTypes (Mc-

Cann and Chandra, 2000) introduced a type system

similar to type systems in programming languages

like C. It is particularly designed to specify messages

of network protocols.

In PacketTypes, there are no primitive data types,

but only one generic data type called bit. Thus, con-

tent restrictions of any kind have to be speciﬁed using

the where-clause of PacketTypes. That way, an 8 bit

integer ﬁeld can be speciﬁed using the two clauses

ﬁeld#value >= 0 and ﬁeld#value < 256. Unfortu-

nately, the authors only discuss some basic examples

like this. Therefore, it would be necessary to heavily

extend this approach to be able to specify arbitrary re-

strictions or dependencies between ﬁelds as required.

Protocol Buffers. Google released Protocol

Buffers (protobuf) in 2008 aiming at a simple mech-

anism for serializing structured data. Its protocol

compiler is written in C++, but is able to output

source code in currently ten different programming

languages (Google, 2008). Protobuf deﬁnes its own

syntax to deﬁne messages and types in .proto-ﬁles.

They are mainly based on messages and ﬁelds and

can include options for the compiler.

Protobuf does not provide any possibility to model

the state of a network protocol, missing all State

Model Requirements (SR) of the Meta Model. The

protobuf compiler also produces its own binary for-

mat of the serialized data, meaning it cannot be used

to output arbitrary binary network data. This would

be needed to create or dissect real communication

data.

Formal Description Techniques (FDT). Standard-

ized by organizations like ISO and CCITT, FDTs are

are developed since the 1970s. They aim at speci-

fying formally a whole system’s features, functional-

ity and behavior. Major examples for FDTs are Es-

telle (Extended Finite State Machine Language), Lo-

tos (Language Of Temporal Ordering Speciﬁcation)

and SDL (Speciﬁcation and Description Language).

They are broadly described and compared in (Turner

et al., 1993).

Since FDTs focus on specifying systems’ behav-

ior, messages and specialized data types are less de-

veloped. But the main reason for not using FDTs

within the meta model is the absence of current im-

plementations and tools.

Model Checking. Regarding the state model of net-

work protocols, there are multiple approaches like

(Musuvathi et al., 2004), aiming to specify network

protocols for model checking purposes. The basic

idea is to perform automated tests on those models,

utilizing formal veriﬁcation methods. This requires

to create a formal model of the network protocol.

While the very structural and mathematical repre-

sentation of models like this is necessary to perform

those formal veriﬁcations, they also make the mod-

els quite complex and especially less human-readable.

Additionally, while such a representation is perfectly

suitable to perform automated checking, it is much

more complex to interpret those models. Therefore,

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

680

similar to YANG, both the human-readability (GR-

5) and the automated processing (GR-4) of the meta

model is much more complex with such models com-

pared to the XML-based approach of the meta model.

Object-oriented Petri Nets. For the speciﬁcation

of the protocols state model, Petri nets are a con-

ceivable alternative for the Harel statecharts used in

the meta model. In general, Petri nets are especially

suitable for the speciﬁcation of more complex pro-

cedures such as parallel actions. Compared to clas-

sic state machines, they are more powerful. On the

contrary, Petri net based representations are gener-

ally more complex. Additionally, it is possible to ex-

tend Petri nets by object-oriented aspects. This allows

the easy speciﬁcation of network protocol messages

within the speciﬁcation of the state model. So this ap-

proach allows a combined model for both parts of the

protocol speciﬁcation.

For the description of such object-oriented Petri

nets (OPNs), there exist multiple different ap-

proaches. Two examples for available languages are

LOOPN (Lakos and Keen, 1991) and the more ad-

vanced version LOOPN++ (Lakos and Keen, 1994).

Unfortunately, many of the object-oriented aspects of

OPNs like polymorphism or dynamic binding do not

offer a great advantage for the speciﬁcation of net-

work protocols, but introduce additional complexity

to the model. Thus, in many cases, a representation

using ﬁnite state machines is much simpler, and there-

fore both easier to read for humans (GR-5) and easier

to process automatically (GR-4).

5.4 Discussion

In combination, all three parts of the evaluation have

shown that the meta model is powerful enough to

specify arbitrary network protocols. Particularly, it

has been shown that the meta model enabled an exist-

ing security testing tool to test a protocol which was

not implemented before. That is a very valuable fea-

ture in the industrial domain because many domain-

speciﬁc network protocols are seldom to never imple-

mented in widespread tools. Additionally, the design

of the meta model framework allows for exporting ev-

ery model instance for a given testing tool, requiring

only a single plug-in.

As the meta model is a new approach, the imple-

mentation currently supports only one industrial com-

munication protocol and one security testing tool. But

through the design of the meta model, new protocols

and tool support can be easily added.

The evaluation showed that export features need

little to no manual work in order to create runnable

protocol speciﬁcations. Import features tend to be

more complicated because external code has to be in-

terpreted. Nevertheless, even a small support in deﬁn-

ing PDU ﬁeld types is better than having to start from

scratch.

Finally, it turned out that machine-readability is

necessary, but not sufﬁcient for a protocol instance of

the meta model. Different assertions, rules and, op-

tionally, model extensions have to be combined man-

ually. This can be a time-consuming and error-prone

task. Particularly, automatic completeness and cor-

rectness checks are complicated since there is not yet

a deﬁned order and usage of the constraints. For ex-

ample, the occurrence 1 of the ﬁeld X can be en-

sured with the rule minOccurs=1 and maxOccurs=1

or an assertion which checks if the number of ﬁelds X

equals 1. The same applies to the model extensions in

JavaScript. Since the chosen programming language

has to be Turing-complete by design, it is challeng-

ing to determine which functionality a method imple-

ments.

6 CONCLUSION AND FUTURE

WORK

This work proposed a generic and universal meta

model for a comprehensive description of arbitrary

network protocols. A special focus was laid on se-

curity testing for the industrial domain since IACS

testing suffers most from missing network protocol

deﬁnitions.

A broad use case analysis led to the formulation of

requirements for such a network protocol meta model.

Since no known approach proved to be sufﬁcient, a

new solution was designed. It is based on well-known

XML speciﬁcations which allow for the reuse of ex-

isting tools and tool chains.

During the evaluation, a special reference proto-

col (ENP) was implemented using the meta model, as

well as a typical industrial network protocol (DCP).

As a result, a testing tool which did not support this

speciﬁc protocol before was enabled to test embedded

IACS. This clearly showed the possible beneﬁts of the

meta model.

There are many more use cases in the domain of

security testing which can proﬁt from additional pro-

tocol speciﬁcations. Examples are the veriﬁcation of

protocol properties or the support of protocol proto-

typing. Beyond that, other domains, like intrusion de-

tection, could beneﬁt from protocol deﬁnitions, espe-

cially in the industrial domain.

Future work includes the implementation of ad-

ditional export rules in order to supply more testing

A Meta Model for a Comprehensive Description of Network Protocols Improving Security Tests

681

tools. Also more protocols will have to be imple-

mented as instances of the meta model. The pool of

available network protocols could be increased with

import functionality from other tools. Furthermore,

new tools like a visual editor for network protocols

would facilitate working with the meta model.

The most important task is indeed the design of

an abstraction layer for the constraints regarding ﬁeld

types and dependencies between ﬁelds. These con-

straints are deﬁned by multiple assertions, rules, and

optionally by model extensions. This abstraction

layer could be applied as speciﬁc comments or anno-

tations within the different XML documents of a meta

model instance. It combines a set of assertions and

rules, and supplies the upper layer with a semantic de-

scription of its functionality. For example, it ensures

that ﬁeld X is an integer and has to be interpreted as

length of ﬁeld Y. Meta model tools could implement

this abstraction layer and help to improve the com-

pleteness and correctness of meta model instances.

ACKNOWLEDGEMENTS

This work was supported by the German Federal Min-

istry of Education and Research within the framework

of the project KASTEL SKI in the Competence Center

for Applied Security Technology (KASTEL).

REFERENCES

Bjorklund, M. (2016). The YANG 1.1 Data Modeling Lan-

guage. RFC 7950.

Braden, R. (1989). Requirements for Internet Hosts - Com-

munication Layers. RFC 1122.

Felderer, M., B

uchler, M., Johns, M., Brucker, A. D., Breu,

R., and Pretschner, A. (2016). Security testing: A sur-

vey. In Advances in Computers, volume 101, pages

1–51. Elsevier.

Flanagan, H. and Ginoza, S. (2014). RFC Style Guide. RFC

7322.

Google (2008). Protocol buffers. https://developers.google.

com/protocol-buffers/. Online; accessed 2020-01-06.

Harel, D. (1987). Statecharts: a visual formalism for com-

plex systems. Science of Computer Programming,

8(3):231 – 274.

IEC (2018). Security for industrial automation and con-

trol systems - Part 4-1: Secure product development

lifecycle requirements. International Electrotechnical

Commission (IEC), Geneva, Switzerland.

IEC (2019a). Industrial communication networks - Fieldbus

speciﬁcations - Part 5-10: Application layer service

deﬁnition - Type 10 elements. IEC 61158-5-10:2019.

IEC (2019b). Industrial communication networks - Field-

bus speciﬁcations - Part 6-10: Application layer pro-

tocol speciﬁcation - Type 10 elements. IEC 61158-6-

10:2019.

ISO (1994). ISO/IEC 7498-1:1994 - Information technol-

ogy – Open Systems Interconnection – Basic Refer-

ence Model: The Basic Model. International Orga-

nization for Standardization (ISO), Geneva, Switzer-

land.

Lakos, C. A. and Keen, C. D. (1991). Modelling layered

protocols in loopn. In Proceedings of the Fourth In-

ternational Workshop on Petri Nets and Performance

Models PNPM91, pages 106–115.

Lakos, C. A. and Keen, C. D. (1994). LOOPN++: A new

language for object-oriented Petri nets. Department

of Computer Science, University of Tasmania.

M. Bjorklund, E. (2010). YANG - A Data Modeling Lan-

guage for the Network Conﬁguration Protocol (NET-

CONF). RFC 6020.

McCann, P. J. and Chandra, S. (2000). Packet types:

abstract speciﬁcation of network protocol messages.

ACM SIGCOMM Computer Communication Review,

30(4):321–333.

Musuvathi, M., Engler, D. R., et al. (2004). Model check-

ing large network protocol implementations. In NSDI,

volume 4, pages 12–12.

OPC Foundation (2017). OPC Uniﬁed Architecture Speci-

ﬁcation Part 6: Mappings. OPC Foundation, version

1.04 edition.

Pfrang, S., Giraud, M., Borcherding, A., and Meier, D.

(2019a). Example network protocol. https://github.

com/stepfr/ExampleNetworkProtocol. [Online; ac-

cessed 2019-11-03].

Pfrang, S., Giraud, M., Borcherding, A., Meier, D., and

Beyerer, J. (2019b). Design of an example network

protocol for security tests targeting industrial automa-

tion systems. In Proceedings of the 5th International

Conference on Information Systems Security and Pri-

vacy - Volume 1: ForSE, pages 727–738. INSTICC,

SciTePress.

Pfrang, S., Meier, D., Friedrich, M., and Beyerer, J. (2018).

Advancing protocol fuzzing for industrial automation

and control systems. In Proceedings of the 4th Inter-

national Conference on Information Systems Security

and Privacy - Volume 1: ForSE,, pages 570–580. IN-

STICC, SciTePress.

Pfrang, S., Meier, D., and Kautz, V. (2017). Towards a mod-

ular security testing framework for industrial automa-

tion and control systems: Isutest. In Proceedings of

the 22nd IEEE International Conference on Emerging

Technologies and Factory Automation, ETFA 2017.

R. Enns, E. (2006). NETCONF Conﬁguration Protocol.

RFC 4741.

Turner, K. J. et al. (1993). Using formal description tech-

niques: an introduction to Estelle, LOTOS and SDL,

volume 154. Wiley New York.

W3C (2012). Xml schema deﬁnition. [Online; accessed

2019-11-17].

W3C (2015). State chart xml. [Online; accessed 2019-11-

17].

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

682
