Towards a Generalized Queuing Network Model for Self-adaptive

Software Systems

Davide Arcelli

1,2 a

Universit

a degli Studi dell’Aquila, via Vetoio 1, L’Aquila, Italy

Department of Information Engineering, Computer Science and Mathematics, L’Aquila, Italy

Keywords:

Self-adaptive Software Systems, Software Architecture, Architectural Patterns, Performance, Queuing

Networks.

Abstract:

A Self-adaptive Software Systems (SASSs) is composed by a managing and a managed subsystem. The

former comprises system’s adaptation logic and controls the latter, which provides system’s functionalities by

perceiving and affecting the environment through its sensors and actuators, respectively. Such control often

conforms to a MAPE-K feedback loop, i.e. a Knowledge-based architecture model that divides the adaptation

process into four activities, namely Monitor, Analyze, Plan and Execute. Performance modeling notations,

analysis methods and tools, have been coupled to other kinds of techniques (e.g. control theory, machine

learning) for modeling and assessing the performance of managing subsystems, possibly aimed at supporting

the identiﬁcation of more convenient architectural alternatives. The contribution of this paper is a generalized

Queuing Network model for SASSs, where the managed subsystem is explicitly modelled, thus widening

performance modeling and analysis scope to the whole system. Job classes ﬂowing through the QN represent

activities of a global feedback control loop, which is based on the system’s mode proﬁle and implemented

by class-switches operating in conformance to proper predeﬁned class-switching and routing probabilities.

Results obtained by means of a proof-of-concept addressing a realistic case study show that the generalized

QN model can usefully support performance-driven architectural decision-making.

1 INTRODUCTION

Self-adaptation has emerged as a primary concern in

the context of modern software systems, due to the

high dynamicity of the environments where they oper-

ate, which implies the need for such systems to prop-

erly face signiﬁcant degrees of uncertainty (Perez-

Palacin and Mirandola, 2014; C

amara et al., 2017).

To this aim, much work has been done, mainly by

introducing autonomic managers – namely managing

subsystems – comprising the adaptation logic; The

latter are coupled with managed subsystems, which

comprise the application logic providing system’s do-

main functionalities while perceiving and affecting

the environment (Weyns et al., 2012). Such coupling

often results into MAPE-K feedback loop(s) (Kephart

and Chess, 2003), i.e. “an architecture model that di-

vides the process of adaptation into four phases: Mon-

itor (M), Analyze (A), Plan (P), and Execute (E). Data

that is collected and used during adaptation is stored

https://orcid.org/0000-0002-8919-9831

in the so-called Knowledge base (K)” (Becker et al.,

2012).

In such a context, performance is a top concern,

as from (Weyns et al., 2012; Shevtsov et al., 2018;

Becker et al., 2012). In fact, performance modeling

notations, analysis methods and tools, have been in-

troduced and coupled to techniques of different na-

ture, in order to support performance modeling and

assessment of managing subsystems. For example,

Control Theory allowed to introduce (global or lo-

cal) MAPE feedback controllers able to provide for-

mal guarantees within performance models such as

Queuing Networks (QNs) (Arcelli et al., 2015; Ar-

celli et al., 2016; Incerto et al., 2017); Machine Learn-

ing and Model-Driven Engineering (MDE) have been

used in heuristic or semi-formal approaches to (semi-

)automatically reasoning and deciding about (read an-

alyzing and planning) adaptation, driven by perfor-

mance requirements (Jung et al., 2008; Elkhodary

et al., 2010; Barati et al., 2019; Grassi et al., 2009;

Becker et al., 2013; Calinescu et al., 2011; Lung

et al., 2016; Kounev et al., 2010). While the math-

Arcelli, D.

Towards a Generalized Queuing Network Model for Self-adaptive Software Systems.

DOI: 10.5220/0009180304570464

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 457-464

ISBN: 978-989-758-400-8; ISSN: 2184-4348

457

ematical underpinning and soundness of those tech-

niques are assumed for granted but usually not pro-

vided, their different natures and the speciﬁcity of the

introduced adaptation mechanisms bring to a global

under-exploitation of methods and tools in the ﬁeld

(Weyns et al., 2012).

This paper presents an approach to enhance the

casting of a Self-Adaptive Software System (SASS)

as a QN (Lazowska et al., 1984), and to thus be able

to leverage queuing networks analysis tools and meth-

ods in analyzing the performance of the system, in

ways that were not previously possible.

In fact, differently from existing approaches,

whose main goal is to introduce and validate the per-

formance of autonomic managing subsystem(s) en-

abling self-adaptation mechanisms, we introduce in

this paper a generalized performance model – in

the form of QN – that widens the focus of perfor-

mance analysis from the self-adaptation mechanisms

(in charge of the managing subsystem only) to the

whole SASS, thus involving sensing and actuating

components belonging to the managed subsystem.

Hence, both the subsystems are abstracted by our

QN models. In particular, system’s components are

represented by stations, which are visited by job

classes corresponding to the different tasks performed

by the managing and managed subsystems, i.e. MAPE

and sensing/actuating, respectively. A MAPE feedback

loop is implemented by exploiting advanced QN con-

structs supported by JMT (Bertoli et al., 2018) (i.e. a

standard de-facto), namely class switches, which en-

able dynamic job transformation conforming to the

system’s mode proﬁle (Musa, 1993).

The paper is structured as follows: Section 2 re-

views existing approaches exploiting the QNs as per-

formance notation for SASSs. Section 3 illustrates the

generalized QN model and the underlying reference

self-adaptation model. Section 4 provides a proof-of-

concept showing our approach can usefully support

performance-driven architectural decisions. Section 5

concludes the paper and points out our future intents.

2 RELATED WORK

We consider related work approaches relying on the

QN paradigm for performance assessment of SASSs.

In this context, (Weyns et al., 2012) and (Becker

et al., 2012) surveyed the state-of-art on address-

ing non-functional concerns through formal notations

and MDE, respectively, until 2012. A more re-

cent study by (Shevtsov et al., 2018) reviewed ap-

proaches exploiting Control Theory, able to provide

non-functional formal guarantees.

Among the approaches included in those studies,

ﬁve exploit the QN paradigm to address performan-

ce modeling and analysis, namely SimuLizar (Becker

et al., 2013), QoSMOS (Epifani et al., 2009; Cali-

nescu et al., 2011), SAFCA (Zhang et al., 2010; Lung

et al., 2016), ICAC (Jung et al., 2008)

and Adaptive

Queuing Networks (AQNs) (Arcelli et al., 2015; Ar-

celli et al., 2016). By additional search, we identiﬁed

a recent work by (Incerto et al., 2017) exploiting Ef-

ﬁcient Model Predictive Control (EMPC

) to enable

performance-driven self-adaptation within QNs.

SimuLizar, QoSMOS, SAFCA and ICAC intro-

duce self-adaptation by enabling architecture recon-

ﬁguration. SimuLizar and QoSMOS enable recon-

ﬁguration onto architecture models, which implies a

need for model transformation towards the QN no-

tation; in SAFCA and ICAC, instead, reconﬁgura-

tion takes place directly onto QNs, without involving

any additional architecture model

. Both SAFCA and

ICAC rely on Layered Queuing Networks (LQNs) –

i.e. a well-known extension of QNs – as performance

notation, which likely resulted suitable for the archi-

tectural paradigms addressed by those approaches, i.e.

concurrent and multi-tier systems, respectively.

Differently from the four aforementioned ap-

proaches, EMPC and AQNs – that rely on control

theory – introduce self-adaptation by automated tun-

ing of predeﬁned knobs (i.e. routing probabilities,

concurrency level and components’ service rates) in

a proactive and reactive manner, respectively, aimed

at satisfying global (EMPC) or local (AQNs) perfor-

mance requirements. It is worth to notice that, in

AQNs, the system can adapt over a (discrete) set of

predeﬁned service rates that abstract the provision

of different service quality levels (e.g. gold, silver,

bronze users), thus resulting into a mode-based adap-

tation type (Shevtsov et al., 2018). Such kind of adap-

tation is the one supported by our approach and it can

be suitably modeled by exploiting the class-switch

QN construct, which is able to transform jobs modulo

available job classes, conforming to predeﬁned prob-

abilities. Such probabilities are fundamental doma-

in-speciﬁc input parameters to be provided – as for

any stochastic performance model – representing a

part of the system’s operational proﬁle, often referred

as mode proﬁle (Musa, 1993). However, since they

strictly depend on the speciﬁc application domain,

This approach has not been named, so we introduced

the acronym ICAC from its publication venue.

This acronym will be be used throughout the paper to

refer (Incerto et al., 2017).

Readers interested in a comparison between working at

software and performance model sides may refer to (Arcelli

and Cortellessa, 2013).

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

458

their setting is out from the scope of this paper, that is

introducing a generalized QN model supporting per-

formance modeling and analysis of SASSs.

Performance analysis methods of related work

equally distributes between analytical and simulative.

Our approach adopts the latter, due to advanced con-

structs (e.g. class-switches) within the QN models,

which inhibit the former methods. This might limit

the adoption of the approach at run-time, i.e. when

several performance models are generated from an

existing SASSs and analyzed to explore better per-

forming architectural alternatives, because simulation

might take long with respect to dynamics occurring

at run-time, especially in the context of safety-critical

systems with real-time performance requirements.

3 APPROACH DESCRIPTION

As mentioned before, the goal of this paper is to in-

troduce a generalized QN model supporting perfor-

mance modeling and analysis of SASSs, in terms of

both managing and managed subsystems. To this aim,

prior to the deﬁnition of the generalized QN model,

we deﬁne the underlying reference model for self-

adaptation, which comes from a reworking on the

autonomic control loop model proposed by (Weyns

et al., 2013).

3.1 Self-adaptation Model

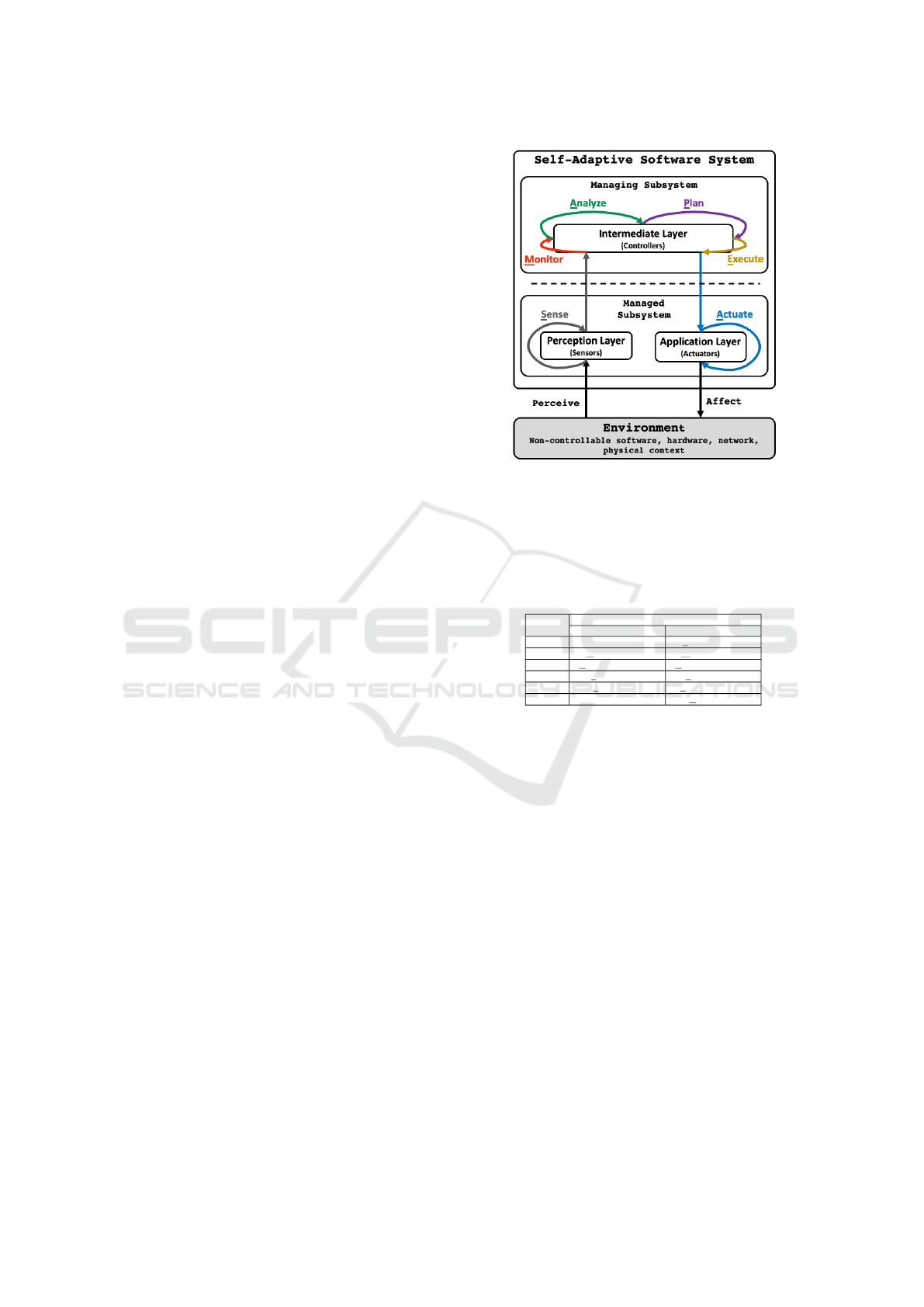

Figure 1 illustrates the reference self-adaptation

model our approach relies on. The managed sub-

system represents an interface through which the sys-

tem perceives the environment – by means of sensors

within a Perception Layer (PL) – and applies onto the

latter – by means of actuators within an Application

Layer (AL); The managing subsystem interprets such

perceptions and may consequently react with adapta-

tion of system’s behavior – by means of controllers

within an Intermediate Layer (IL), aimed at achiev-

ing system’s goals. The two subsystems are usually

connected through network(s) (see the dashed line).

Conforming to (Weyns et al., 2013), adaptation

logic involves MAPE control loops (Kephart and Chess,

2003) and its four sequential activities. As from Table

1, our self-adaptation model devises two additional

activities, namely (0) Sense and (5) Actuate, both lo-

cated within the managed subsystem. Sense is associ-

ated to the term “measure” to distinguish raw data re-

trieval from their subsequent aggregation (read “col-

lect”) performed during Monitor. Moreover, we asso-

ciate the term “contrive” to Plan, whilst “prepare” and

“act” shift to Execute and Actuate, respectively. We

Figure 1: Reference model for self-adaptation.

think that Plan activity is better associated to conceiv-

ing (read “contrive”) a solution rather than its prepa-

ration. The latter, in turn, remains in charge of the

managing subsystem, but is associated to Execute.

Table 1: MAPE Vs SMAPEA control loops.

Order

Activities

(Weyns et al., 2013) Our approach

0 - Sense (measure)

1 Monitor (collect) Monitor (collect)

2 Analyze (determine) Analyze (determine)

3 Plan (prepare) Plan (contrive)

4 Execute (act) Execute (prepare)

5 - Actuate (act)

Devising the two activities within the managed sub-

system allows to widen the modeling scope to the

boundaries of the system, i.e. sensing and actuat-

ing components – where interactions with the en-

vironment take place. Furthermore, (Weyns et al.,

2013) directly map MAPE activities to ad-hoc com-

ponents, each dedicated to perform the correspond-

ing activity, whilst SMAPEA activities are properly

performed spanning among sensors (responsible for

Sense), controllers (responsible for Monitor, Analyze,

Plan and Execute) and actuators (responsible for Ac-

tuate). Such distinction brings to a natural mapping

of: (i) system’s components onto QN stations and (ii)

activities onto QN job classes, resulting into the gen-

eralized model described in the next section.

The concept of mode is known by more than a

decade in the context of dynamic adaptive systems

and it has been used to devise different conﬁgurations

among which a system may transit for self-adaptation

(Morin et al., 2009), based on predeﬁned probabilities

representing a mode proﬁle (Musa, 1993). As an ex-

ample, Figure 2 shows a mode proﬁle of a SASS for

emergency response.

Towards a Generalized Queuing Network Model for Self-adaptive Software Systems

459

Figure 2: Example of self-adaptation within SMAPEA Queuing Networks.

Figure 3: Generalized SMAPEA Queuing Network Model.

The system is allowed to switch between normal

and critical modes with 12% and 88% probability, re-

spectively. Such probabilities allow to switch from

Sense to mode-based Monitor jobs, corresponding to

the adoption of a particular mode. Monitor, Analyze,

Plan, Execute and Actuate classes shall be thus “in-

stantiated” modulo those two modes, resulting into

10 MAPEA instances, i.e. tNormal, Criticalu

tMo-

nitor, Analyze, Plan, Execute, Actuateu.

Actuate instantiation depends on the speciﬁc

type of actuations across the different system

modes. For example, supposing the SASS

for emergency response above has two actuating

components, namely Dashboard and Evacuation-

Signs, four Actuate instances might be devised,

i.e. tNormal, Criticalu

tDashboardActuate, Eva-

cuationSignsActuateu. Similarly, Sense instantiation

depends on the speciﬁc type of sensing activities. For

example, assuming two sensing components, namely

Camera and Temperature, two Sense instances might

be devised, i.e. CameraSense and TemperatureSense.

3.2 Generalized Queuing Network

Model for SASSs

Figure 3 depicts the generalized QN conforming to

the reference self-adaptation model of Section 3.1, in

terms of (i) stations and their connections and (ii) job

classes visiting such stations.

The QN is partitioned in three parts, namely S,

MAPE and A, each containing a conceptual macro-

component corresponding to PL, IL and AL, respec-

tively. The actual system’s components belonging to

macro-components, i.e. sensors, controllers and ac-

tuators, are mapped onto (properly connected and pa-

rameterized) stations. Hence, SMAPEA activities natu-

rally map onto job classes visiting QN stations.

PL and AL, that are the parts of the managed

subsystem interacting with the environment, are con-

nected to Sampling and Done, i.e. a source and a sink

node that participate to Perceive and Affect inter-

actions, respectively (Figure 1). In particular, at the

S-side, Sampling emulates environmental stimuli by

generating SENSE jobs, based on a certain probabil-

ity distribution to be speciﬁed

. For example, a single

workload source is illustrated in Figure 3, i.e. sen-

sors have the same sampling rate, although introduc-

ing more workload sources to differentiate sampling

rates is possible. At the A-side, instead, Done repre-

sents the fact that actuation has been performed and

the environment has been (possibly) affected.

Both the PL and the AL are connected to the IL

– which contains controllers – through PL2IL and

IL2AL delay stations, respectively. The latter rep-

resent the network(s) between the managed and the

managing subsystems.

In order to implement the SMAPEA control loop,

two class-switches are introduced, namely SÑM

and MÑAÑPÑEÑA , placed before and after the

IL, respectively. SÑM transforms SENSE jobs

into MONITOR, whilst MÑAÑPÑEÑA transforms

each MAPEA job into a job of the subsequent type.

Transformation from SENSE to MONIT OR

grounds on mode-switching probabilities mentioned

By uppercase words we denote all Sense,

Monitor, Analyze, Plan, Execute and Actuate job

classes. E.g., with respect to Figure 2, MONIT OR “

tNormalMonitor, CriticalMonitoru.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

460

in Section 3.1 and exempliﬁed in Figure 2. Mode-

speciﬁc MONITOR jobs are forwarded to the con-

trollers, spending their demands before visiting

MÑAÑPÑEÑA . The latter transforms them into

ANALY ZE jobs, which are routed back to SÑM . The

loop is further iterated by producing the subsequent

mode-speciﬁc PLAN, EXECUT E and ACTUAT E

jobs. Finally, ACTUAT E jobs are forwarded to the

A-side for actuation.

When a MAPE job is forwarded back to the IL,

it must be decided which controller shall serve the

job. This choice is part of the so-called Controller

Selection Policy (CSP), demanded to SÑM . Hence,

specifying a CSP for a SMAPEA QN corresponds to

the speciﬁcation of SÑM routing strategies for each

job class. Several routing strategies are available

and some of them allow to introduce run-time self-

adaptation. However, the latter is out of the scope

of this paper, which covers probability-based rout-

ing strategies only, leaving other strategies as future

work without jeopardizing paper contribution. In fact,

a probability-based strategy for SÑM could be ex-

ploited to implement several architectural patterns, as

shown later in the paper (Section 4).

4 EVALUATION

This section provides a proof-of-concepts for the gen-

eralized QN model, by exploiting a revised version of

the case study addressed in our previous work (Arbib

et al., 2019). The considered SASS grounds on a reac-

tive IoT architecture for emergency response designed

for a real exhibition venue in Alan Turing Building

– Department of Information Engineering, Computer

Science and Mathematics – L’Aquila, Italy.

CCTV cameras detect people position and move-

ment, used in conjunction with data from temperature

and CO

sensors to feed an algorithm run by control

components. The latter decide on the actuation set

based on the situation: (i) In normal mode, the system

shows a 2D-representation of the monitored space on

a dashboard, locating crowds and tracing their move-

ments, while periodically estimating the minimum

evacuation time required under current conditions; In

critical mode – e.g. an emergency happens needing

people evacuation – additional information is shown

on the dashboard, alarm actuators are activated and

evacuation signs indicate the best evacuation routes.

Figure 4 shows a SMAPEA QN representing an ar-

chitecture model for the case study. Note that, S,

MAPE and A partitions, are actually delimited by

forks/joins, needed to create sensor/actuator-speciﬁc

jobs and properly route them to the corresponding

sensing/actuating component. Beside these PL/AL

components, we introduce two local controllers –

namely CentralController and PeerController – and

a remote controller deployed at the cloud – namely

CloudController, placed between Uplink and Down-

link delay stations (i.e. the cloud access network).

Concerning service demands distributions, we

reuse most of the ones exploited in our previous work

(Arbib et al., 2019), since they resulted from a deep

investigation conducted by means of other simulation

tools – i.e. CAPS (Muccini and Sharaf, 2017) and the

well-known CPLEX

– which carried out transmis-

sion and propagation delays for sensing, actuating and

networking components, as well as controllers’ pro-

cessing times for performing the different MAPE ac-

tivities

. Notice that, the combination between high

demands for planning and IL2AL during emergen-

cies makes the critical mode crucial as it determines

a physiological lower bound to system performance.

For this reason, we assume a mode adaptation proba-

bility of 12% for Normal and 88% for Critical), which

allow to stress the system during emergencies.

The (shared) sampling rate is modeled by a deter-

ministic distribution, denoted by det(k), as the latter

describes a constant ﬂow of customers, arriving ex-

actly every k time units (Bertoli et al., 2018).

We thus conduct an experiment aimed at ﬁnding

convenient IL patterns in terms of NormalActuate and

CriticalActuate response times, i.e. the performance

indices of interest. By means of a probability-based

CSP, we devise centralized, collaborative and

hybrid IL patterns, as reported in Table 2. Per-

formance are assessed with respect to several inter-

arrival time (deterministic) distribution means, to-

wards a sensitivity analysis modulo different work-

load intensities.

The investigation starts with the identiﬁcation of a

workload intensity that can be faced by all the patterns

without saturation. We thus tried different mean val-

ues for the inter-arrival time distribution, ﬁnding 2.5

as a reasonable workload intensity that results into the

(heterogeneous) mean response times reported in Ta-

ble 2

http://www.cplex.com/.

In order to avoid unnecessary complexity in the inter-

pretation of performance analysis results, all the controllers

have the same MAPE processing times.

All the QN models have been developed and simulated

within the JSimGraph tool available within JMT 1.0.3, run-

ning onto a machine equipped with an Intel Core i5 CPU

and 16 GB of DDR3 RAM at 1867 MHz. For sake of

space, we do not provide simulation conﬁguration param-

eters. However, they can be found in the JSimGraph .jsimg

ﬁle at https://goﬁle.io/?c=S5gWYV, which can be used to

replicate the experiment and to devise new ones.

Towards a Generalized Queuing Network Model for Self-adaptive Software Systems

461

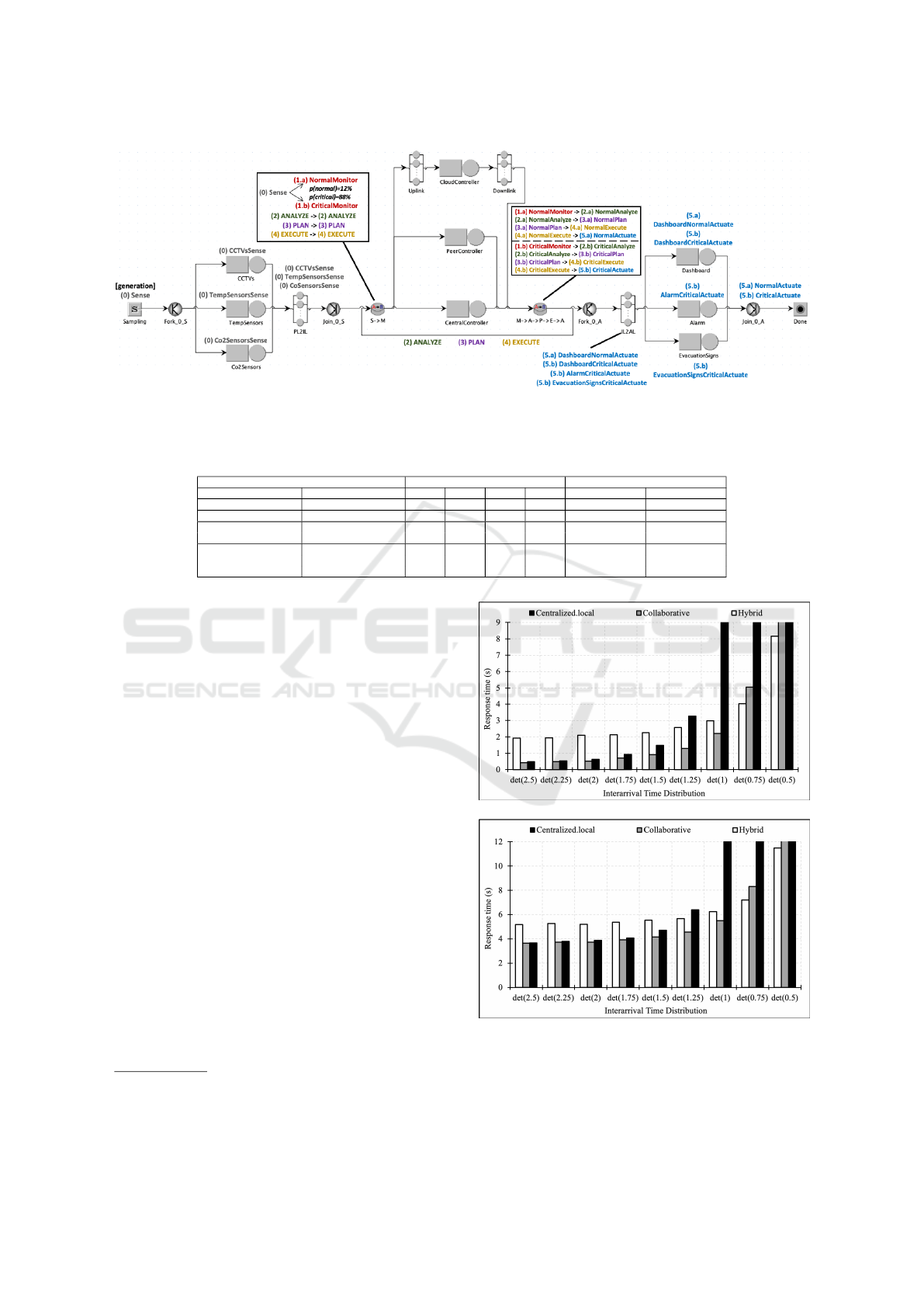

Figure 4: SMAPEA QN for the considered case study. For sake of illustration SÑM routing probabilities are not reported,

due to the fact that they vary during the experimentation.

Table 2: Considered patterns and corresponding SÑM routing probabilities (rp). Performance indices of interest, i.e. Nor-

malActuate and CriticalActuate mean response times under det(2.5) workload, are also reported.

Pattern Normal/Critical System Response Time (s)

Name Routing probabilities M A P E NormalActuate CriticalActuate

Centralized.local rp(CentralController) 1 1 1 1 0.4828 3.6604

Centralized.remote rp(CloudController) 1 1 1 1 5.4192 8.7421

Collaborative

rp(CentralController) 0.5 0.5 0.5 0.5

0.4313 3.6488

rp(PeerController) 0.5 0.5 0.5 0.5

Hybrid

rp(CentralController) 0.334 0.334 0.334 0.334

1.9206 5.1792

rp(PeerController) 0.333 0.333 0.333 0.333

rp(CloudController) 0.333 0.333 0.333 0.333

We observe that Centralized.remote performs

much worse than the other patterns. This is intu-

itive, because in such pattern any job spends pos-

itive delays at Uplink and Downlink in order to

be processed by CloudController, which has the

same demands of local controllers. These de-

lays make Centralized.remote “dominated” by

Centralized.local by construction

, hence the for-

mer can be immediately discarded.

The investigation continues by considering more

intense workloads. The mean value of the determin-

istic inter-arrival time distribution is thus decreased

by 0.5 (seconds) at each step of the sensitivity analy-

sis. Simulation results under the 9 workload intensi-

ties are shown in Figure 5. Response times increase

exponentially, as expected, since QN stations service

demands are modeled as exponential distributions and

workloads as deterministic. For the last three work-

load intensities (i.e. 1, 0.75 and 0.5, respectively), at

least one pattern saturates, hence those workloads are

referred as “most intense” (conversely, the remaining

six workloads are referred as “least intense”).

The obtained results pave the way to several hints:

• Collaborative manages least intense workloads

better than the other patterns. Also, it can manage

A pattern dominates another pattern when the former

shows both NormalActuate and CriticalActuate mean re-

sponse times lower than the latter.

Figure 5: Patterns mean response times for NormalActuate

(top) and CriticalActuate (bottom) under different workload

intensities. Values overcoming the maximum y value de-

note saturation.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

462

two out of the three most intense workloads, while

dominating Hybrid once (i.e. for det(1)).

• Centralized.local can manage least intense

workloads only, for which it represents the sec-

ond better option, except for det(1.25), which can

be better handled by Hybrid (and, optimally, by

Collaborative).

• Hybrid is the only pattern able to handle all the

considered workloads. However, it represents the

best solution for the two most intense workloads

only, while being dominated by (i) Collabora-

tive for det(1) and det(1.25) and (ii) any other

pattern for the remaining least intense workloads.

Consequently, architectural decisions could be carried

out based on speciﬁc requirements, e.g.:

• If saturation is not allowed, then Hybrid is the

unique option. However, it is dominated by both

the other patterns under ﬁve out of six least intense

workloads, while worsening its performance by

few seconds for NormalActuate and fractions of

second for CriticalActuate; This could represent

an acceptable trade-off in a real context, as degra-

dation mostly affects the non-critical scenario (i.e.

NormalActuate).

• If saturation is allowed, then Collaborative

may represent the best solution, since it dominates

any other pattern for seven out of the nine con-

sidered workloads (i.e. 77.7%). Moreover, un-

der the remaining 2 workloads (i.e. det(0.75) and

det(0.5)), it is dominated by Hybrid only.

• As a consequence of the two points above,

Centralized.local is always dominated by at

least one of the other patterns hence, in gen-

eral terms, it would never be chosen. However,

economic constraints could inhibit some patterns,

thus forcing the consideration of non-optimal so-

lutions like that.

5 CONCLUSION

In this paper, we have introduced a generalized QN

model enabling performance modeling and assess-

ment of SASSs, aimed at supporting performance-

driven architectural decision-making. Differently

from existing approaches, our model includes sensing

and actuating components, thus widening the scope of

performance modeling and assessment to the whole

system. Jobs ﬂowing through the QN represent se-

quences of Sense, Monitor, Analyze, Plan, Execute

and Actuate (SMAPEA) activities, each visiting speciﬁc

parts of the model. A global MAPE control loop is im-

plemented by two class-switches embracing system’s

controllers and operating in conformance to prede-

ﬁned class-switching and routing probabilities: the

former are used to progress through the control loop,

whilst the latter implement controller selection poli-

cies.

We have preliminary evaluated our work with re-

spect to a realistic case study for emergency response,

by a workload-driven sensitivity analysis of four ar-

chitectural patterns. Results have shown that the gen-

eralized QN model can usefully support decision-

making towards convenient alternative architectures.

However, further experiments are needed in or-

der to enforce the validity of this work. Such ex-

periments might represent an opportunity for investi-

gating additional controller selection policies deriving

from the different routing strategies available in JMT,

especially the ones considering controllers’ metrics at

the time the routing is performed (e.g. routing to the

controller showing the shortest queue length), which

seem particularly suitable to introduce dynamic adap-

tation of the controller selection policy.

The generalized QN model introduced in this pa-

per supports a single MAPE loop. This does not al-

low to model decentralized architectural patterns such

as the ones introduced by Weyns et al (Weyns et al.,

2013), where different MAPE loops (or parts of them)

interact each other and participate to the adaptations

concerning other portions of the system. To this aim,

we plan to address SMAPEA QNs “composition”, i.e.

two ILs belonging to different QNs might be con-

nected such that controllers within an IL can process

activities from the other IL.

In terms of practical applicability, we plan to de-

velop a pattern-based model-driven framework aimed

at introducing automation in performance modeling,

analysis and decision-making, along SASS’s life-

cycle. Key-capabilities of such framework might be:

(i) designing SMAPEA QNs; (ii) generating huge sets of

SMAPEA QNs, analyzing them and suggesting conve-

nient alternative architectures; (iii) deriving SMAPEA

QNs from existing SASSs and/or from their archi-

tecture models conforming to modeling notations that

allow to embed performance parameters (e.g. work-

load, demands, indices), such as UML (Rumbaugh

et al., 2004) with MARTE (Selic and Grard, 2013).

ACKNOWLEDGEMENTS

This research has been funded by the Italian Ministry

of Education, University and Research – MIUR, L.

297, art. 10.

Towards a Generalized Queuing Network Model for Self-adaptive Software Systems

463

REFERENCES

Arbib, C., Arcelli, D., Dugdale, J., Moghaddam, M. T., and

Muccini, H. (2019). Real-time Emergency Response

through Performant IoT Architectures. In Interna-

tional Conference on Information Systems for Crisis

Response and Management (ISCRAM).

Arcelli, D. and Cortellessa, V. (2013). Software model

refactoring based on performance analysis: better

working on software or performance side? In Buh-

nova, B., Happe, L., and Kofron, J., editors, FESCA,

volume 108 of EPTCS, pages 33–47.

Arcelli, D., Cortellessa, V., Filieri, A., and Leva, A. (2015).

Control theory for model-based performance-driven

software adaptation. In QoSA, pages 11–20. ACM.

Arcelli, D., Cortellessa, V., and Leva, A. (2016). A li-

brary of modeling components for adaptive queuing

networks. In EPEW, volume 9951 of LNCS, pages

204–219. Springer.

Barati, S., Bartha, F. A., Biswas, S., Cartwright, R., Duracz,

A., Fussell, D. S., Hoffmann, H., Imes, C., Miller,

J. E., Mishra, N., Arvind, Nguyen, D., Palem, K. V.,

Pei, Y., Pingali, K., Sai, R., Wright, A., Yang, Y.-H.,

and Zhang, S. (2019). Proteus: Language and runtime

support for self-adaptive software development. IEEE

Software, 36:73–82.

Becker, M., Becker, S., and Meyer, J. (2013). Simulizar:

Design-time modeling and performance analysis of

self-adaptive systems. In Kowalewski, S. and Rumpe,

B., editors, Software Engineering, volume 213 of LNI,

pages 71–84. GI.

Becker, M., Luckey, M., and Becker, S. (2012). Model-

driven performance engineering of self-adaptive sys-

tems: A survey. In QoSA, pages 117–122. ACM.

Bertoli, M., Casale, G., and Serazzi, G. (2018). Java Mod-

elling Tools – user manual. http://jmt.sourceforge.

net/Papers/JMT users Manual.pdf. [Online; accessed

January, 2020].

Calinescu, R., Grunske, L., Kwiatkowska, M., Mirandola,

R., and Tamburrelli, G. (2011). Dynamic qos man-

agement and optimization in service-based systems.

IEEE Trans. on Softw. Eng., 37(3):387–409.

amara, J., Garlan, D., Kang, W. G., Peng, W., and

Schmerl, B. R. (2017). Uncertainty in self-adaptive

systems categories, management, and perspectives.

Technical report, Institute for Software Research,

Carnegie Mellon University.

Elkhodary, A., Esfahani, N., and Malek, S. (2010). Fusion:

A framework for engineering self-tuning self-adaptive

software systems. In FSE, pages 7–16. ACM.

Epifani, I., Ghezzi, C., Mirandola, R., and Tamburrelli, G.

(2009). Model evolution by run-time parameter adap-

tation. In ICSE, pages 111–121. IEEE Computer So-

ciety.

Grassi, V., Mirandola, R., and Randazzo, E. (2009). Model-

driven assessment of qos-aware self-adaptation. In

Cheng, B. H. C., de Lemos, R., Giese, H., Inver-

ardi, P., and Magee, J., editors, Software Engineering

for Self-Adaptive Systems, pages 201–222. Springer

Berlin Heidelberg.

Incerto, E., Tribastone, M., and Trubiani, C. (2017). Soft-

ware performance self-adaptation through efﬁcient

model predictive control. In ASE, pages 485–496.

Jung, G., Joshi, K. R., Hiltunen, M. A., Schlichting, R. D.,

and Pu, C. (2008). Generating adaptation policies for

multi-tier applications in consolidated server environ-

ments. In ICAC, pages 23–32.

Kephart, J. O. and Chess, D. M. (2003). The vision of auto-

nomic computing. Computer, 36(1):41–50.

Kounev, S., Brosig, F., Huber, N., and Reussner, R. (2010).

Towards self-aware performance and resource man-

agement in modern service-oriented systems. In

ICSC, pages 621–624.

Lazowska, E. D., Zahorjan, J., Graham, G. S., and Sevcik,

K. C. (1984). Quantitative system performance - com-

puter system analysis using queueing network models.

Prentice Hall.

Lung, C., Zhang, X., and Rajeswaran, P. (2016). Improving

software performance and reliability in a distributed

and concurrent environment with an architecture-

based self-adaptive framework. JSS, 121:311–328.

Morin, B., Barais, O., Nain, G., and Jezequel, J.-M. (2009).

Taming dynamically adaptive systems using models

and aspects. In ICSE, pages 122–132. IEEE Computer

Society.

Muccini, H. and Sharaf, M. (2017). Caps: Architecture de-

scription of situational aware cyber physical systems.

In Software Architecture (ICSA), 2017 IEEE Interna-

tional Conference on, pages 211–220. IEEE.

Musa, J. D. (1993). Operational proﬁles in software-

reliability engineering. IEEE Software, 10(2):14–32.

Perez-Palacin, D. and Mirandola, R. (2014). Uncertainties

in the modeling of self-adaptive systems: A taxonomy

and an example of availability evaluation. In ICPE,

pages 3–14. ACM.

Rumbaugh, J., Jacobson, I., and Booch, G. (2004). Uni-

ﬁed Modeling Language Reference Manual, The (2nd

Edition). Pearson Higher Education.

Selic, B. and Grard, S. (2013). Modeling and Analysis

of Real-Time and Embedded Systems with UML and

MARTE: Developing Cyber-Physical Systems. Mor-

gan Kaufmann Publishers Inc., 1st edition.

Shevtsov, S., Berekmeri, M., Weyns, D., and Maggio, M.

(2018). Control-theoretical software adaptation: A

systematic literature review. IEEE Trans. on Softw.

Eng., 44(8):784–810.

Weyns, D., Iftikhar, M. U., de la Iglesia, D. G., and Ahmad,

T. (2012). A survey of formal methods in self-adaptive

systems. In C3S2E, pages 67–79. ACM.

Weyns, D., Schmerl, B., Grassi, V., Malek, S., Mirandola,

R., Prehofer, C., Wuttke, J., Andersson, J., Giese, H.,

and G

oschka, K. M. (2013). On patterns for decentral-

ized control in self-adaptive systems. In Software En-

gineering for Self-Adaptive Systems II, volume 7475

of LNCS, pages 76–107. Springer, Berlin, Heidelberg.

Zhang, X., Lung, C., and Franks, G. (2010). Towards

architecture-based autonomic software performance

engineering. In Drira, K., editor, CAL, volume L-5 of

Revue des Nouvelles Technologies de l’Information,

pages 144–156. C

epadu

es-

Editions.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

464
