Generation and Optimization of Inspection Routes

for Economic and Food Safety

Telmo Barros

, Alexandra Oliveira

1,2 a

, Henrique Lopes Cardoso

1 b

, Luís Paulo Reis

1 c

Cristina Caldeira

and João Pedro Machado

Laboratório de Inteligência Artiﬁcial e Ciência de Computadores (LIACC),

Faculdade de Engenharia da Universidade do Porto, Rua Dr. Roberto Frias, s/n, 4200-465 Porto, Portugal

Escola Superior de Saúde do Instituto Politécnico do Porto (ESS-IPP),

Rua Dr. António Bernardino de Almeida, 400 4200 - 072, Porto

Autoridade de Segurança Alimentar e Económica (ASAE), Rua Rodrigo da Fonseca, 73, 1269-274 Lisboa, Portugal

Keywords:

Planning, Scheduling, Optimization, Decision Support, Vehicle Routing Problem.

Abstract:

Artiﬁcial intelligence techniques have been applied to diverse business and governmental areas, in order to take

advantage of the huge amount of information that is generated within speciﬁc organizations or institutions.

Business intelligence can be seen as the process of converting such information into actionable knowledge,

which is the basis for data-driven decision making. With this in mind, this work is framed in a project that

seeks to improve the activity of the Portuguese Food and Economic Safety Authority, regarding prevention in

the areas of food safety and economic enforcement. More speciﬁcally, this paper focuses on the generation

and optimization of ﬂexible inspection routes. An optimal inspection route seeks to maximize the number

of targeted Economic Operators, or the utility gained from the set of Economic Operators that are actually

inspected. For that, each Economic Operator is assigned an inspection utility value. The problem was then

modelled as a Multi-Depot Periodic Vehicle Routing Problem with Time Windows, and solved using both

exact and meta-heuristic methods. The comparison of the meta-heuristic algorithms showed a versatile Hill

Climbing implementation in different test cases that explored the effect of the Economic Operators dispersion

and density.

1 INTRODUCTION

A considerable amount of work has been developed,

throughout the last decades, in the areas of Artiﬁcial

Intelligence (AI) and machine learning. Such techno-

logical advancements have been used successfully as

components of decision support systems in private or-

ganizations. Governments and public administration

institutions have also started to follow this trend and

use AI techniques not only to extract useful knowl-

edge from their huge amounts of data, but also to op-

timize their processes.

The work presented in this paper is part of a

broader project, that seeks to improve the activity of

the Portuguese Food and Economic Safety Author-

ity (ASAE), regarding prevention in the areas of food

safety and economic enforcement. The mentioned

https://orcid.org/0000-0001-5872-5504

https://orcid.org/0000-0003-1252-7515

https://orcid.org/0000-0002-4709-1718

organism is an authority in Portugal, whose mission

is to supervise and prevent non-compliance with the

national and European legislation regarding the food

and non-food sectors. It is also responsible for risk

assessment and reporting of hazards detected in the

food chain. For that, it is a reference entity in con-

sumer protection, public health, safeguarding market

rules and free competition by providing a public ser-

vice of excellence.

The contribution of this work is related with a

complex problem of generation and optimization of

inspection routes to surveil Economic Operators. For

that, it is necessary to develop models for inspection

utility assessment and procedures for selection of rel-

evant Economic Operators in need to be inspected

from large amount of registered and geographical

sparse number of agents. Moreover, due the mission

and area of inﬂuence of this entity, it is important to

use as much information as possible such as risk ma-

trices and number and type of complaints per Eco-

268

Barros, T., Oliveira, A., Cardoso, H., Reis, L., Caldeira, C. and Machado, J.

Generation and Optimization of Inspection Routes for Economic and Food Safety.

DOI: 10.5220/0009182002680278

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 268-278

ISBN: 978-989-758-395-7; ISSN: 2184-433X

nomic Operators. The inspection routes generation

process must be capable of maximizing the number

of inspections to Economic Operators that present a

high inspection utility. The solutions found should be

adaptable upon suggestions by the user, reﬂecting the

nature of the work of the human inspectors. Previ-

ous research has shown that vehicle routing optimiza-

tion can promote signiﬁcant economic savings (Hasle

et al., 2007; Toth and Vigo, 2002; Cattaruzza et al.,

2017).

The problem was modelled under the Vehicle

Routing Problem (VRP) family, as it tries to ﬁnd the

optimal route for a ﬂeet of vehicles that maximizes

the global utility of the Economic Operators selected

for inspection. Due to speciﬁc constraints that need

to be taken into account, such as opening hours of

Economic Operators, the existence of multiple oper-

ational units and the need to extend the planning to

multiple days the VRP formulation needs to be ex-

panded.

In Section 2, the related work is discussed. The

details about current processes, data size and the rout-

ing problem formulation are given in Section 3. Sec-

tion 4 explains the main choices regarding the imple-

mentation of the algorithms to best solve the prob-

lems. Several experiments were performed and their

details and results appear in Section 5. In Section 6

the paper’s conclusions and some suggestions for fu-

ture work are presented.

2 RELATED WORK

The VRP can be described as a complex combina-

torial optimization problem that, given a ﬂeet of ve-

hicles with uniform capacity, a common depot, and

several costumer demands, ﬁnd the set of routes with

overall minimum route cost which service all the de-

mands (Machado et al., 2002). One of the ﬁrst prob-

lems modeled as a VRP was the Truck Dispatching

Problem (Dantzig and Ramser, 1959). As stated by

the authors, it may be considered as a generaliza-

tion of the Traveling Salesman Problem (TSP) (Flood,

1956; Kruskal, 1956).

A VRP can be modeled as a weighted graph

G = (V , A, C)

where: V = {v

, v

, ..., v

} is a set of vertices repre-

senting various cities or customers to visit and the de-

pot is indicated by vertex v

; A is the set of arcs join-

ing these vertices; C is a matrix of non-negative dis-

tances c

i j

associated with each arc (v

, v

), for i 6= j. In

some cases, the distances may be interpreted as travel

costs or travel times. There is also a set of m vehicles

available at the depot. The purpose of the problem is

to determine the lowest cost vehicle route set, subject

to the following restrictions (Laporte, 1992): (i) each

city is visited exactly once by exactly one vehicle; and

(ii) all vehicle routes start and end at the depot.

This problem can be mathematically expressed by

a set of four equations modeling the objective func-

tion and the restrictions (Cardoso, 2009; Toth and

Vigo, 2002). Given that, x

i jk

is a binary decision vari-

able taking the value of 1 if vehicle k traverses the

arc (v

, v

), and 0 otherwise and c

i j

deﬁned as above,

the minimum sum of costs of all the arcs is given by

Equation 1:

min

∑

k=1

∑

i=0

∑

j=0

i j

i jk

(1)

Equation 2 limits to one visit per vertex, with ex-

ception of the depot:

∑

i=0

∑

k=1

i jk

= 1, ∀ j > 0 (2)

Equation 3 ensures that the number of the vehicles

arriving at every customer and entering the depot is

equal to the number of the vehicles leaving:

∑

j=0

jik

∑

j=0

i jk

, ∀ i ≥ 0, i 6= j, ∀ k = 1, ..., m (3)

Equation 4 ensures that all vehicle depart from the

depot:

∑

j=1

∑

k=1

0 jk

= |K| (4)

This family of problems has been studied inten-

sively over the last few years. In general, they are

associated with speciﬁc problems of supplying prod-

ucts to customers, supplying supermarket chains or

collecting waste from a locality.

Because of the diversity of applications of the

VRP problem, several variants have been proposed

from adding or removing constraints from the deﬁni-

tion (Braekers et al., 2016; Weise et al., 2009). Some

of the most well known variations are: the VRP with

Time Windows (VRPTW) that is obtained by assign-

ing a time window to each customer (Caric and Gold,

2008; Zhu, 2000); the Multi-Depot VRP (MDVRP)

which accommodates more than one depot (Ho et al.,

2008; Montoya-Torres et al., 2015); the Periodic VRP

(PVRP) that considers multiple days planning (Camp-

bell and Wilson, 2014); the Capacitated VRP (CVRP)

where the vehicles have capacity constraints (Breslin

and Keane, 1997); or the Open VRP (OVRP) which

does not require the vehicle to end the route in the

depot (Li et al., 2007).

Generation and Optimization of Inspection Routes for Economic and Food Safety

269

All the mentioned VRP variants consider routes

planning for a single time instant, with exception of

the PVRP. The PVRP is a multi-day model where it

is possible to choose the day(s) to serve a customer

from a set of possible dates. This ability overrules the

constraint in Equation 2. The following elements are

added to the classical VRP:

i T days horizon and

ii a list of feasible days where the customers can be

visited.

For each day deﬁned in T , a VRP is then solved. Ev-

idently, the choice of the visiting schedules and the

deﬁnition of the routes are interrelated problems (An-

gelelli and Grazia Speranza, 2002). There exist also a

PVRP formulated in Cordeau et al. (1997) that com-

bines the service time (visit duration for each cus-

tomer) with a work shift for each vehicle (a maximum

duration of a route).

Although the study of such methods is not a re-

cent topic, the discussion on how to best solve them is

something that still remains today. The reason behind

that is that the TSP, the VRP and its variant problems

are NP-hard since they are not solved in polynomial

time (Caric and Gold, 2008).

There are exact approaches that always determine

the optimal solution to the problem, but because they

require a high computational power they are only fea-

sible in small data sets. On the other hand, heuris-

tic and meta-heuristic approaches can return solutions

close to the optimum and present lower (and often ad-

justable) execution times, even for large data sets. The

difference between these two categories is related to

the behaviour of algorithms when determining the so-

lution (Laporte, 1992). To the best of our knowledge,

a Tabu Search heuristic is the most explored tech-

nique to solve the Periodic Vehicle Routing Problem

with Time Windows (PVRPTW) and the Multi-Depot

Vehicle Routing Problem with Time Windows (MD-

VRPTW) separately (Cordeau et al., 2001).

3 INSPECTIONS ROUTE

PROBLEM

In this section it is given an overview of the dataset

dimension used in this paper followed by the formu-

lation of the problem.

3.1 Dataset Description

The Authority has currently registered more than

3,500,000 Economic Operators in their internal

database. More than 200,000 customer complaints

against Economic Operators are registered in an an-

nual basis, both via the complaint book and into

ASAE’s website. The number of complaints, the

infractions implied by them and the type of eco-

nomic activity will determine the utility of inspection.

Consequently, complaint-targeted Economic Opera-

tors should be more likely to be included in inspection

operations.

The organic structure of the Authority has a na-

tionwide coverage divided into three regional units

each divided into variable number of operational units

(total of twelve operational units). Each operational

unit has a speciﬁc number of inspectors and vehicles

at their disposal.

The information system in use relies on multiple

data sources and platforms. All the referred factors

make it very difﬁcult to automate some processes,

such as the identiﬁcation of the Economic Operators

that need to be supervised (a time-consuming manual

procedure), the assignment of these Economic Oper-

ators to brigades of inspectors, or the determination

of optimal inspection routes taking into consideration

the minimization of travel distances or time.

It is noticeable that there is scope for improve-

ment in the visualization of georeferenced informa-

tion (Economic Operators) and in the inspections

planning. Regarding the inspections planning it is

possible to enhance the selection of Economic Oper-

ators that maximize the usefulness of being inspected

and also the ﬂexible routes generation for the inspec-

tors while minimizing the spent resources.

3.2 Formulation

With respect to the routing problem at hands, it falls

into the family of vehicle routing problems as it

tries to ﬁnd the set of inspection routes that maxi-

mize the global inspection utility of Economic Op-

erators. Given the speciﬁc inherent constraints of in-

spection routing, it is possible to classify the prob-

lem as a Multi-Depot Periodic Vehicle Routing Prob-

lem with Time Windows (MDPVRPTW) (Cordeau

et al., 2002). An example of a geographical represen-

tation of a solution of MDPVRPTW with four routes

starting (and ending) from three operational units (or-

ange circles) and visiting thirteen Economic Opera-

tors (blue circles) are shown in Figure 1.

The main differences between this modelling of

the problem as a MDPVRPTW and the classical VRP

are:

i the Multi-Depot takes into account the existence

of more than one depot where the vehicles starts

and arrives;

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

270

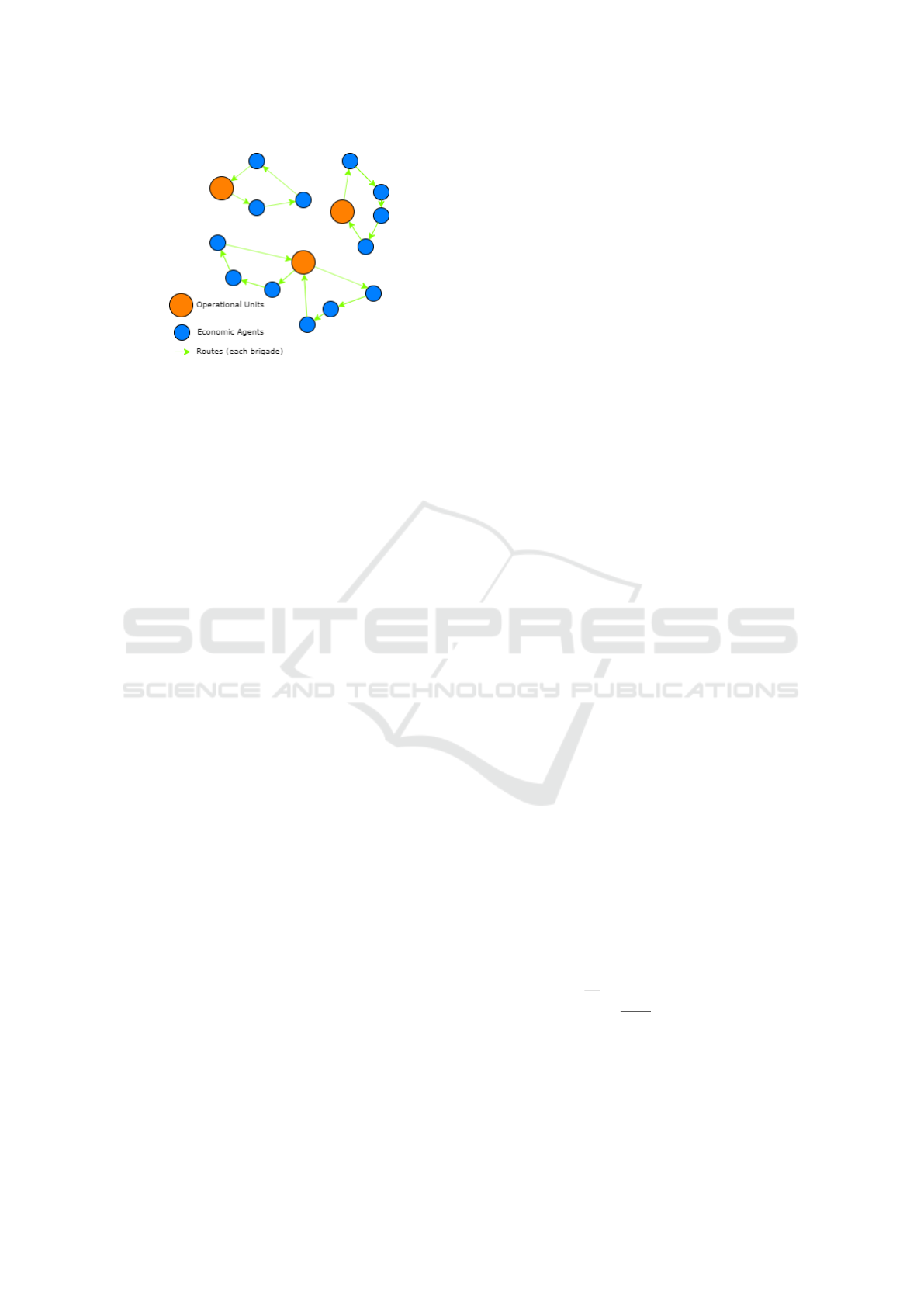

Figure 1: MDPVRPTW representation.

ii the Periodic nature establishes a multi-day plan-

ning with the ability to choose when to visit an

Economic Operator; and

iii the Time Windows set a list of visiting schedules

when each Economic Operator can be visited.

This family of route generation problems encom-

passes the main constraints of the route inspection

problem within the geographical limits of an opera-

tional unit follows the ﬂow-based formulation below.

The problem can be also modeled as a graph

G(V , A, c)

where V = EO ∪ D is a set of nodes composed of

depots D = {v

, ..., v

|D|

} and Economic Operators

EO = {v

|D|+1

, ..., v

|D|+|EO|

}. The set of arcs that con-

nect these nodes is A = {(i, j) : i, j ∈



1, . . . , |V |



, i 6=

j, {i, j} 6⊂ D}}. There is also a set of brigades B

which will perform the inspections. Each brigade

b ∈ B is a combination of a vehicle w (from a set

W of all available vehicles) and a set of inspectors I

(from a set I of all inspectors) where |I

| ≥ 2, ∀b ∈ B.

Similar to Cordeau et al. (1997), each brigade b ∈ B

has also an associated work shift [SS

, ES

], where SS

and ES are starting and ending of the work shift time,

respectively. Each Economic Operator eo ∈ EO has

a set of associated time windows OH

which cor-

respond to the opening hours where they can be in-

spected. OH

= {[ot

, ct

]

: j = 1, . . .} where ot

and ct

are the opening and closing times of consecu-

tive working periods j in a day, respectively. Thus, a

brigade has to wait if the time of arrival at Economic

Operator eo is not between any pair of [ot

, ct

] ∈

. Each brigade b ∈ B has a foreseen break time

BT = [bs

, be

] of ﬁxed size. Every eo ∈ EO has an

expected time of inspection ti

according to the type

of their economic activity, e

. Another key factor is

the u

∈ [0, 1] which corresponds to the utility of in-

specting Economic Operator eo.

The objectives for this paper are either the maxi-

mization of the global utility (deﬁned in Equation 5)

or the maximization of the number of inspected Eco-

nomic Operators in each day of inspection planning

(deﬁned in Equation 6). They must be achieved while

satisfying the constraints for the classical VRP with

Multi-Depot, the time window of each Economic Op-

erator and the brigade’s work shift.

max

∑

b∈B

∑

i∈V

∑

j∈EO

i jb

(5)

max

∑

b∈B

∑

i∈V

∑

j∈EO

i jb

(6)

This formulation makes the present problem of

route generation a very challenging one from a tech-

nical point of view. The solution here presented re-

quired some relaxation of constraints in order to ob-

tain results in a reasonable amount of time.

4 FLEXIBLE ROUTES

GENERATION

The methodologies implemented to solve the problem

involved one exact method and three meta-heuristic

methods. In Section 4.1 the notion of inspection util-

ity is detailed, and in Section 4.2 the representation

of the solution is presented. Then, the details of the

implemented algorithms are included in Sections 4.3

and 4.4. Section 4.5 gives an overview of the devel-

oped web application to interact with such methods.

4.1 Inspection Utility

The utility u

of inspecting an Economic Operator is

the basis for determining optimal inspection routes,

since it is the element that is intended to be maxi-

mized when seeking to obtain an optimal inspection

route. In the current approach, this value is obtained

empirically through the evaluation of customer com-

plaints. Based on this information, we deﬁne a utility

transformation function, shown in Equation 7. The

value of u

is based on the number of complaints NC

regarding Economic Operator eo registered in the sys-

tem.

(NC) =











0.05 if NC = 0

if 1 ≤ NC < 10

0.9 +

NC−9

100

if 10 ≤ NC < 19

1 if NC ≥ 19

(7)

Every Economic Operator has a non-null utility

because, even in the absence of complaints, it can be

subject to inspection. Economic Operators with 1 ≤

NC < 10 have a transformation with a slope higher

Generation and Optimization of Inspection Routes for Economic and Food Safety

271

than agents with 10 ≤ NC < 19. Economic Operators

with NC ≥ 19 are classiﬁed with the ﬁxed maximum

value of u

= 1.

The determination of this function was based on

the analysis of the distribution of the number of com-

plaints per Economic Operator, graphically visible in

Figure 2 (the vertical axis is in logarithmic scale). The

number of agents with NC < 19 represent 99.84% of

the population of Economic Operators with reported

complaints; therefore, above that number of com-

plaints the utility gets its highest value of 1. The de-

cline is more pronounced in Economic Operators that

have 1 ≤ NC < 10 since this group represents 99.51%

of the population of agents with complaints.

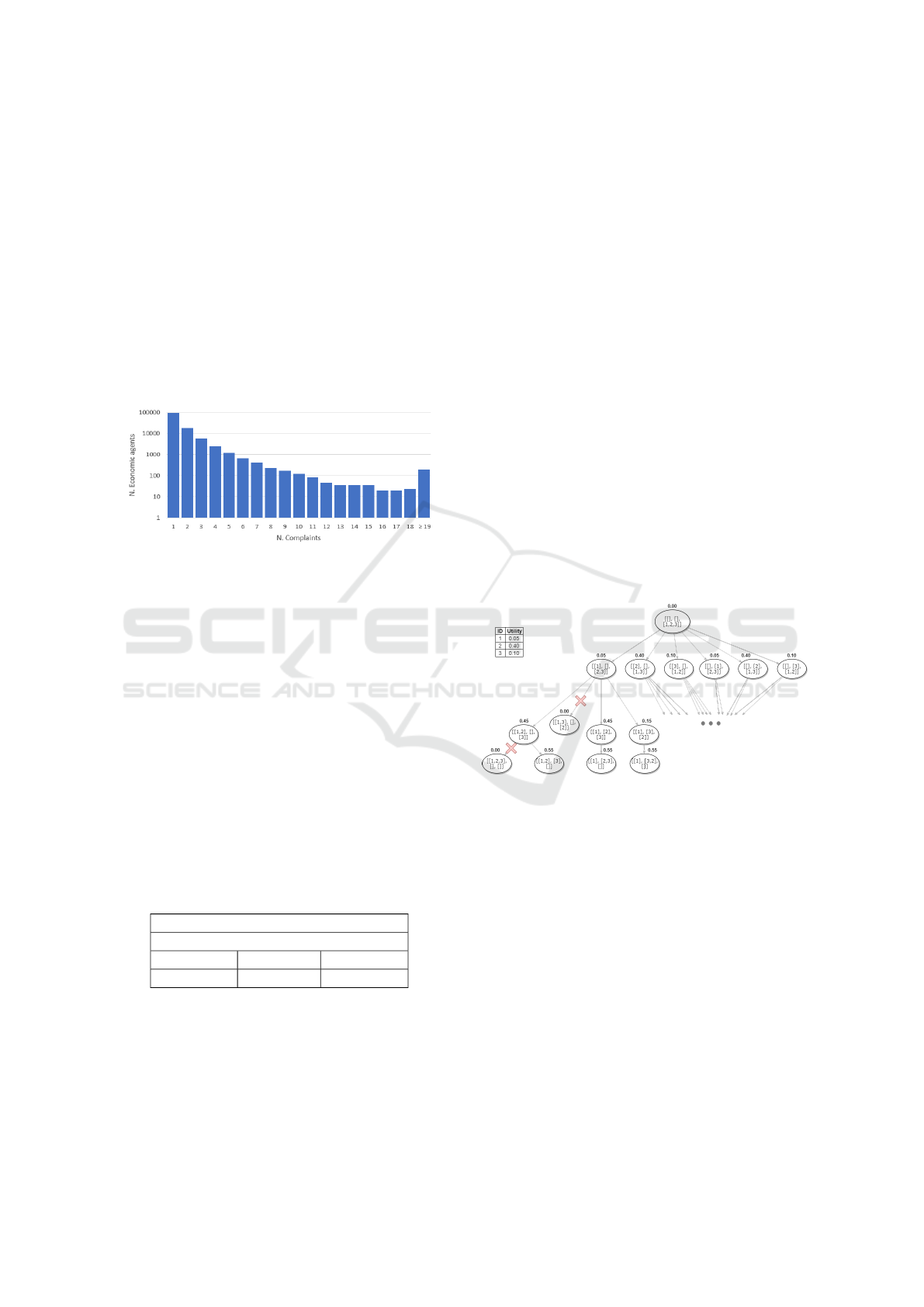

Figure 2: Number of complaints distribution from 2013-

2018 (logarithmic Y axis).

4.2 Representation

To obtain the optimal inspection routes for |B|

brigades, routes are represented by a set of |B| + 1

lists. This form of representation allows us to deal

with the periodic nature of the VRP, which does not

require all Economic Operators to be visited in one

day. As the planning is calculated daily, the ﬁrst |B|

lists include the actual inspection routes, while the

last list contains those Economic Operators that are

not part of the solution but may be integrated in the

next day plan. The generated routes include, for each

brigade, the Economic Operators stored by inspection

order. As an example, Table 1 represents a solution

for 2 brigades and 8 Economic Operators.

Table 1: Solution representation.

Representation

[6,3,4], [1,8], [2,5,7]

Brigade 1 Brigade 2 Unused eo

6 → 3 → 4 1 → 8 2, 5, 7

This solution representation is used by all al-

gorithms with exception for the genetic algorithm,

which requires another form of representation in order

to enable crossover and mutation operations between

individuals. This adaptation is achieved by convert-

ing the multidimensional list into a linearized single-

dimensional one. For the same example illustrated in

Table 1, the representation of the individual in the ge-

netic algorithm is [6, 3, 4, 1, 8, 2, 5, 7]. To decode the

individual into the routes solution, each eo is inserted

sequentially in the brigades until no more eo ﬁt their

work shift duration (Zhu, 2000).

4.3 Exact Approach

The Branch and Bound algorithm is part of the set of

exact methods that solve the Vehicle Routing Prob-

lem. It always ensures the discovery of the best ex-

isting solution, despite its high temporal complexity.

For the problem in hands the branching strategy al-

lows to traverse all the solution space by adding each

possible Economic Operator to each brigade at a time.

The bounding occurs when the generated solution dis-

respects the work shift duration of any brigade.

The application of the method to the speciﬁc prob-

lem is shown in Figure 3. The example includes three

Economic Operators (1, 2 and 3) with utilities of 0.05,

0.40 and 0.10 respectively. In the ﬁrst node all the

agents compose the set of agents not inspected by any

brigade, so the utility of the solution is 0. At each

layer, an agent is removed from the last array and in-

serted into one of the brigades.

Figure 3: Branch Bound applied to the routing problem.

Although this type of approaches is only practi-

cable with small sized problems, the implementation

is useful to perform comparable tests with the other

algorithms.

4.4 Meta-heuristic Approaches

Regarding meta-heuristic approaches, three different

methods were developed: (i) Hill Climbing, (ii) Sim-

ulated Annealing and (iii) Genetic Algorithm. The

main details are described in this section.

Hill Climbing and Simulated Annealing allowed

to obtain a sufﬁciently good solution in a short execu-

tion time, when compared to the Branch and Bound

algorithm, for instance.

In this concrete implementation, the algorithms

start by generating an initial valid solution, generated

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

272

by trying to allocate Economic Operators in a random

way to each brigade, having as limit the work shift

of each one. The remaining Economic Operators are

kept on the last list. From this solution they proceed

to ﬁnd the optimal solution out of all possible solu-

tions (the search space). The neighborhood function

is based on two equiprobable operators (Figure 4):

• Repositioning consists of exchanging the position

of an Economic Operator, either within the same

brigade or to a different brigade (when reposi-

tioning an Economic Operator in the last ﬁctitious

brigade list, it becomes part of the agents not in-

cluded in the solution).

• Swap consists of changing the order of two

Economic Operators; just as with repositioning,

swapping can also occur between two agents of

the same brigade or different brigades.

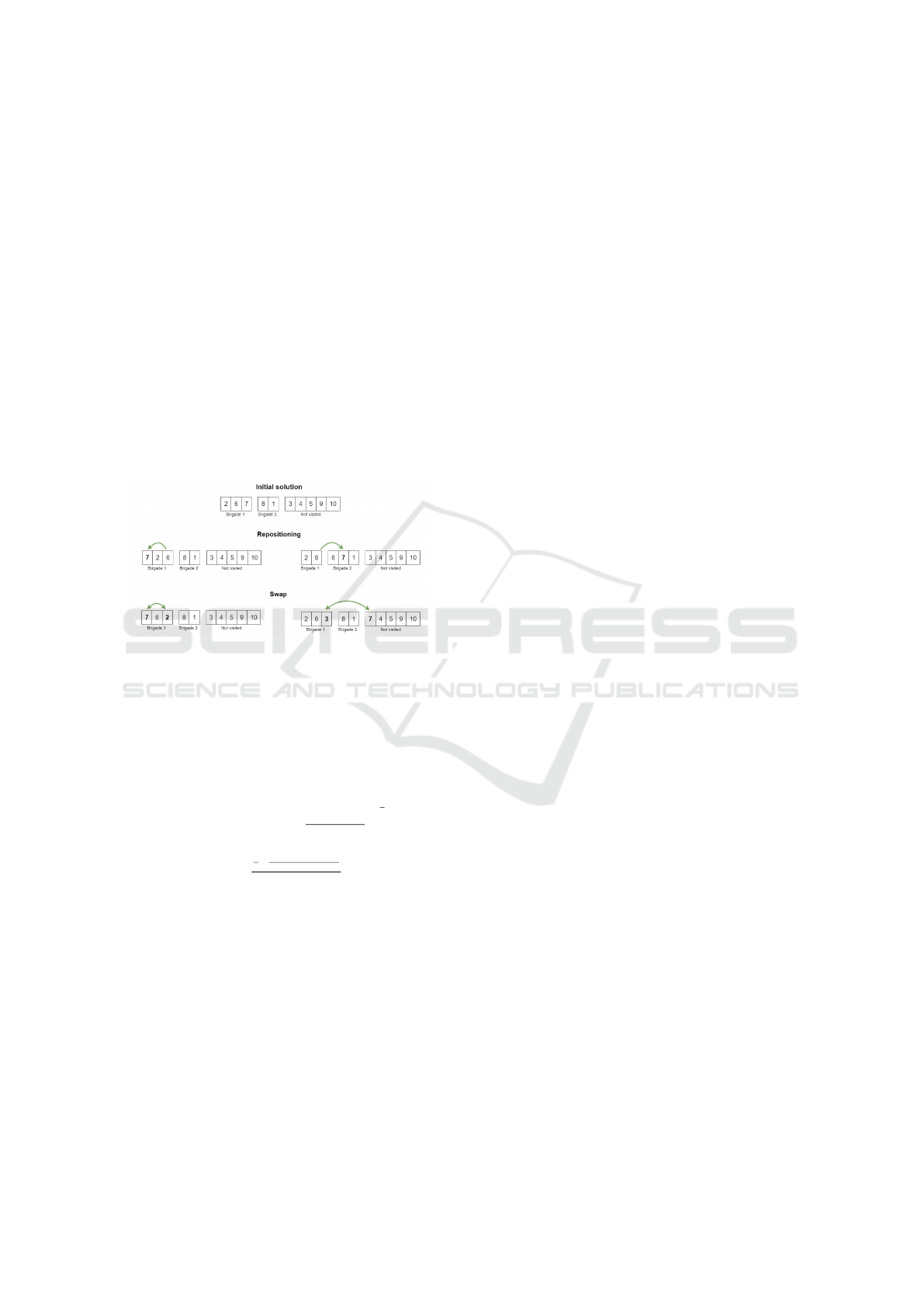

Figure 4: Neighborhood generation operations.

The implementation of Simulated Annealing has

the speciﬁcity of probabilistically accepting solutions

with lower utility than the best solution at the mo-

ment. Equation 8 shows the temperature update func-

tion, while Equation 9 shows the acceptance probabil-

ity formula in this speciﬁc application of the method.

temperature = 1 −



iteration

n of steps



(8)

p = e

new utility−utility

utility

temperature

(9)

The probability of accepting solutions with lower

utility is related with the differences in utility and the

number of iterations already performed. Regarding

the implementation of the Genetic Algorithm, the se-

lection process suggested by Zhu (2000) was used –

selection by tournament. The implication in this se-

lection scheme is that genetically superior chromo-

somes are given priority in mating but average en-

tities have some chances of being selected too, pro-

vided they happen to be compared with a ’worse-off’

chromosome.

Regarding the crossover process, two options

were implemented: PMX and heuristic crossover.

The application of common crossover operations un-

avoidably produces invalid offspring that have dupli-

cated genes in one string. With PMX, two arbitrary

points are selected, the portions of the chromosomes

between these points are swapped and in order to re-

move duplicate Economic Operators, a series of gene

swappings are performed. This crossover operation

originates two descending chromosomes.

Heuristic crossover is a slightly different process

because it takes into account the distance between the

Economic Operators. It starts with an arbitrary cut on

both chromosomes and one of the genes immediately

following the cut position is chosen to be maintained.

The not selected gene is replaced or deleted to avoid

duplication in the following iterations. After this de-

cision, an iterative process begins that traverses the

chromosomes and compares, in each iteration i, the

distance between the gene at position i and position

i + 1 of both progenitor chromosomes. The i + 1 po-

sition gene presenting lower distance is selected to be

part of the descending chromosome. The gene that

was not selected is either deleted or swapped with the

selected gene. In the current implementation, two de-

scendants are generated, one from repositioning and

the other from deletion (Zhu, 2000).

After crossover, there is a low probability of mu-

tation in the descending chromosomes. The current

implementation encompasses four types of mutations,

equally likely to occur:

• Gene Repositioning: a gene / Economic Operator

is randomly selected and repositioned at a random

position inside the chromosome.

• Sequence Repositioning: it is similar to the pre-

vious operation, however repositioning is per-

formed on a set of consecutive genes.

• Gene Swap: two genes / Economic Operators

are selected randomly and their positions are

swapped.

• Sequence Swap: it is similar to the previous op-

eration, however position swapping is performed

between a set of consecutive genes and a gene.

4.5 Applicability

A crucial factor for being successful in solving so-

phisticated vehicle routing problems (VRP) is to offer

reliable and ﬂexible solutions (Ritzinger et al., 2016).

Taking this into account, an Web application was de-

signed to interact with the logic layer (that solves the

problem following the approaches above) and to vi-

sualize the solutions from a geographical and chrono-

logical point of view.

Generation and Optimization of Inspection Routes for Economic and Food Safety

273

The Web application shown in Figure 5 is the part

of the solution implemented for visualization and in-

teraction with the core of the developed work, where

the Inspections Planning Assistant is the most rele-

vant for this paper. It contains two main pages: an

application page where it is possible to request the

generation of inspection routes, consult the solution

produced in three different views, change the routes

by adding agents to the solution or removing them,

and storing the routes permanently. The other page is

used to query inspection actions already stored.

The developed system is capable of creating a

daily plan for one or more brigades of inspectors in

order to promote a maximum number of inspections

in a day or to maximize the value of the utility of

inspected agents with an efﬁcient use of resources.

This way it can work as a decision support system

for inspectors. The inspection plan can be consulted

by any worker and the system is amenable to eval-

uation by workers who suggest changes in the route

or additions/removals of Economic Operators. These

changes affect directly the deﬁned utility of each Eco-

nomic Operator from the previous solution and there-

fore the solution is recalculated and presented.

5 RESULTS

Followed by the development of the four algorithms,

multiple tests and experiments, in simulated environ-

ment, were performed in order to promote a better

evaluation of the implemented methods. Based on

such experiments, relevant information has been col-

lected regarding algorithms performance, and solu-

tions quality.

Regarding the exact algorithm (Branch and

Bound), the capabilities of returning the optimal so-

lution were tested given an execution time limit of

300 seconds. The results are presented in Table 2,

which covers executions from 1 to 8 brigades for the

maximization of the number of inspected Economic

Operators. For 1 brigade it presented a maximum in-

put size of 24 Economic Operators, and 14 Economic

Operators for 8 brigades. In the rightmost columns it

is possible to verify the execution times for inputs of

4, 8, 12, and 14 Economic Operators.

The evaluation of the meta-heuristic methods

varies essentially according to the size and the type

of the input data (Economic Operators). The follow-

ing issues were taken into account:

• The values shown for meta-heuristic methods are

always the average of 3 executions.

• Brigades always start their route at the same hour

and their work shift has the same duration. Start-

ing and ending points are also the same.

• For the Genetic Algorithm, executions were per-

formed using a population of 100 individuals,

with crossover, mutation and recovery probabil-

ities of 80%, 5% and 4% respectively.

Varying parameters were:

• Objective Function: Maximization of the total

utility of inspected agents, or maximization of the

number of Economic Operators to be inspected.

• Number of Brigades: 2 brigades per 100 Eco-

nomic Operators, or 8 brigades per 100 Economic

Operators.

• Number of Iterations: 10,000 or 100,000 for Hill

Climbing and Simulated Annealing, and 100 or

200 to the Genetic Algorithm.

Varying the objective function and the number of

brigades allowed us to analyze the direct effect of

these variables in the performance of the ﬁnal solu-

tion.

The test set is shown in Table 3, representing 8

Portuguese municipalities, the number of Economic

Operators located in those municipalities, and the

travel cost (distance and time) between the municipal-

ity and the center of operational unit (Figure 6). The

set of municipalities was carefully split into three test

subsets. (i) The red subset has only one municipality

and a low density of Economic Operators; (ii) the blue

subset is composed of four geographically dispersed

municipalities, also with low densities; on the other

hand, (iii) the orange subset has three municipalities

close to the starting/ﬁnishing place and a total of 424

Economic Operators.

The results for the referred three subsets are pre-

sented in Tables 4, 5 and 6. For each test case we show

the number of brigades used to determine the solu-

tion, the number of iterations used as stop conditions

and the results for the two objective functions: maxi-

mization of the global inspection utility (max u

) and

maximization of the number of inspected Economic

Operators (max inspected eo). The avg u

and the

avg eo columns contain the average of obtained in-

spection utilities and number of inspected Economic

Operators, respectively. Regarding the average for

the total execution times and the times to determine

the best solution, they are displayed in the avg T and

the avg t columns, respectively. Through the global

analysis of the obtained results it is possible to con-

clude that they are satisfactory as all the tests returned

a possible solution within the previously deﬁned pa-

rameters.

Table 4, speciﬁcally, allows to compare the three

implemented meta-heuristic methods with the exact

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

274

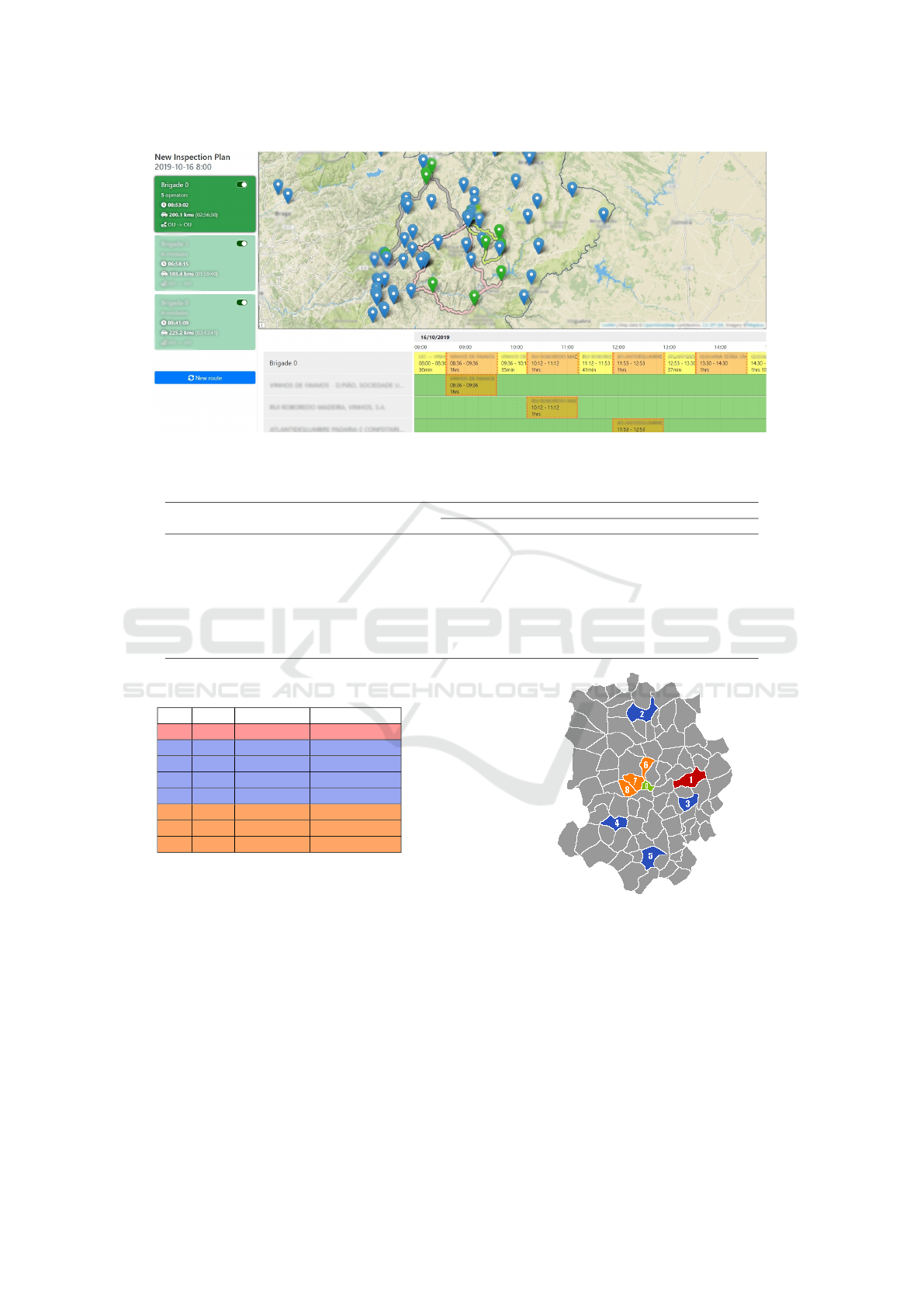

Figure 5: Web application overview.

Table 2: Branch and Bound results.

# Brigades Max. input eo Inspected eo

Execution time (secs)

4 eo 8 eo 12 eo 14 eo

1 24 7 0.0004943 0.003002 0.083515 0.097988

2 17 9 0.001474 0.012493 0.621539 0.722548

3 16 8 0.003000 0.035997 2.502038 2.944052

4 15 7 0.006986 0.085037 7.63200 8.982038

5 15 6 0.011999 0.167528 19.607051 23.136030

6 14 6 0.021499 0.308495 44.219024 52.153544

7 14 6 0.031999 0.537499 91.563532 107.494027

8 14 6 0.048499 0.871530 175.266998 205.784034

Table 3: Supporting information about each place from test

set.

ID # eo Dist (km) Time (mins)

1 32 8.6 14

2 15 9.9 16

3 25 8.2 16

4 32 9.2 12

5 35 10.5 18

6 126 2.3 6

7 150 2.0 6

8 148 2.8 7

one. For one brigade and the maximization of in-

spected eo it is possible to verify that every algo-

rithm got 7 Economic Operators, the same value as

the Branch and Bound, Table 2. The fastest imple-

mentation to retrieve this solution is the Hill Climb-

ing, with the lowest avg t, followed by the Genetic

Algorithm.

Hill Climbing was the most versatile method and

capable of returning a solution with high utility in a

shorter time period than other meta-heuristic meth-

ods. Regardless of the number of Economic Oper-

ators, brigades or distribution relative to the opera-

tional unit, this was the best performing method.

In theory, Simulated Annealing should allow to

Figure 6: Geographical distribution of the places used in the

experiments.

achieve solutions of superior utility than Hill Climb-

ing. However, this has rarely been observed. The

main explanation for this phenomenon is due to the

equation deﬁnition for determining the temperature

and probability of acceptance of solutions with infe-

rior utility. Even with equation tuning, Hill Climbing

outperformed Simulated Annealing in terms of exe-

cution time and solution utility.

As expected, the increment of iterations allowed

Generation and Optimization of Inspection Routes for Economic and Food Safety

275

Table 4: Case 1 results.

Algorithm # Brigades Iterations

max u

max inspected eo

avg u

avg t avg T avg eo avg t avg T

HC 1

10000 0.035 0.047 0.540 7 0.020 0.574

100000 0.035 0.038 5.398 7 0.022 5.428

SA 1

10000 0.035 0.156 0.555 7 0.077 0.541

100000 0.035 0.176 5.368 7 0.354 5.383

GA (PMX) 1

100 0.035 0.033 1.593 7 0.030 1.459

200 0.035 0.031 2.851 7 0.029 2.868

GA (Heuristic) 1

100 0.035 0.027 2.020 7 0.029 1.989

200 0.035 0.029 4.385 7 0.038 4.447

HC 3

10000 0.097 0.339 0.724 19 0.211 0.733

100000 0.100 3.579 7.170 20 2.063 7.276

SA 3

10000 0.092 0.618 0.690 19 0.631 0.710

100000 0.095 6.283 7.048 19 6.704 7.093

GA (PMX) 3

100 0.095 0.656 2.332 19 0.288 2.164

200 0.097 0.454 4.631 19 1.300 4.243

GA (Heuristic) 3

100 0.098 1.001 2.893 19 0.423 2.622

200 0.100 2.748 5.455 20 1.712 5.390

Table 5: Case 2 results.

Algorithm # Brigades Iterations

max u

max inspected eo

avg u

avg t avg T avg eo avg t avg T

HC 3

10000 0.100 0.462 1.328 20 0.812 1.332

100000 0.105 2.405 12.807 21 1.767 12.747

SA 3

10000 0.093 1.049 1.276 19 1.750 2.013

100000 0.100 11.400 12.690 20 11.317 12.651

GA (PMX) 3

100 0.095 0.590 3.894 20 1.770 3.933

200 0.098 2.008 7.790 20 3.254 7.804

GA (Heuristic) 3

100 0.103 2.352 6.664 21 2.857 6.542

200 0.103 3.994 13.171 21 4.929 13.145

HC 9

10000 0.268 1.355 1.806 54 1.114 1.796

100000 0.287 9.377 18.000 58 14.304 17.843

SA 9

10000 0.187 1.611 1.638 41 1.628 1.630

100000 0.263 17.403 17.678 53 16.845 16.934

GA (PMX) 9

100 0.262 4.375 5.887 50 2.824 5.815

200 0.268 9.897 11.984 53 7.219 12.258

GA (Heuristic) 9

100 0.248 4.514 8.280 47 4.810 8.085

200 0.250 6.539 16.329 52 12.161 16.534

Table 6: Case 3 results.

Algorithm # Brigades Iterations

max u

max inspected eo

avg u

avg t avg T avg eo avg t avg T

HC 9

10000 1.017 2.692 3.638 63 1.648 3.440

100000 1.270 11.184 34.606 63 1.869 34.499

SA 9

10000 0.910 3.260 3.297 51 3.255 3.288

100000 1.085 29.929 34.233 63 33.311 33.582

GA (PMX) 9

100 1.240 9.184 14.733 60 7.205 14.143

200 1.242 20.861 26.842 63 16.717 28.364

GA (Heuristic) 9

100 0.953 31.613 40.209 57 22.291 40.170

200 1.055 74.048 80.185 58 56.362 78.068

HC 34

10000 1.218 4.353 4.473 113 4.405 4.542

100000 2.080 52.686 53.695 228 53.100 54.150

SA 34

10000 0.957 4.082 4.113 66 4.093 4.205

100000 1.473 46.820 46.878 124 45.202 45.334

GA (PMX) 34

100 1.953 21.786 22.326 201 21.420 22.797

200 1.992 45.537 46.535 210 36.678 46.717

GA (Heuristic) 34

100 1.752 45.362 48.584 171 36.859 47.450

200 1.760 79.721 92.696 175 53.993 95.598

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

276

to achieve solutions with equal or greater utility in

every test case but the added time of execution is con-

siderable.

The analysis of the Genetic algorithm concluded

that the heuristic crossover was the best option in the

ﬁrst case studied, where the number of Economic Op-

erators and its dispersion were short. It presented the

best solution for 3 brigades alongside Hill Climbing,

but with a shorter avg t. In the remaining two cases,

with higher dispersion and density of Economic Oper-

ators, the PMX crossover was the one that allowed to

determine solutions with better utility and in a shorter

period of time. In general, the addition of brigades

under each test case have a greater impact on the ex-

ecution times for the Genetic algorithm than for the

Hill Climbing or the Simulated Annealing.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we presented the modeling and resolu-

tion of a complex combinatorial optimization prob-

lem related with the inspections planning process of

the Portuguese Economic and Food Safety Authority.

The deﬁnition of the constraints of the problem was

important to classify the problem at hands as a MD-

PVRPTW. Another key factor was the determination

of a utility function capable of determining the in-

spection utility of an Economic Operator based on the

number of associated complaints. Finally, four strate-

gies to solve the routing problem were implemented:

one exact and three meta-heuristic approaches. This

work is integrated in a Web application targeted to

support the decision of the Authority’s personnel and

enhance current processes of Economic Operators se-

lection for inspection and inspections routing.

The development prospects for a project of this

nature and scope are varied. In particular, the ﬂexi-

ble inspection route generation module developed in-

cludes several perspectives for future development,

both in terms of optimization and in terms of addi-

tional features:

• Expansion of the number of implemented meth-

ods and/or parameters in order to obtain better so-

lutions.

• Inclusion of break-time periods for inspectors and

supervisors during the inspection route. The fact

that this period is ﬂexible and can be different ac-

cording to the start time of the inspection actions

makes it difﬁcult to add to the methods currently

implemented, but should be taken into account in

a next version of the system since it compromises

the use of the routes in a real context.

• Addition of different starting and ﬁnishing points.

Changing the methods for the fulﬁllment of these

conditions is a lengthy process, so the current ver-

sion only includes solutions to start and end at the

same geographic point – the headquarters of the

operational unit.

• Test the whole system in the ﬁeld with the collab-

oration of the Authority, to extract metrics from

algorithms in a real context and detect gaps that

are not visible in a simulated environment with-

out professionals in the area.

Within the scope of the project as a whole, there

are development prospects that will directly and indi-

rectly affect the module of the generation of ﬂexible

routes, such as:

• Implementation of risk matrices that will al-

low a determination of more accurate inspection

utilities. Optionally, the calculation should be

changed as new information is extracted from the

internal system.

• Development of an inspection durations adaptive

approach, based on actual practice. The catego-

rization of average inspection durations per area

of activity of Economic Operators will increase

the quality of the solutions obtained.

ACKNOWLEDGEMENTS

This work is supported by project IA.SAE,

funded by Fundação para a Ciência e a Tec-

nologia (FCT) through program INCoDe.2030.

This research was partially supported by LIACC

(FCT/UID/CEC/0027/2020).

REFERENCES

Angelelli, E. and Grazia Speranza, M. (2002). The pe-

riodic vehicle routing problem with intermediate fa-

cilities. European Journal of Operational Research,

137(2):233–247.

Braekers, K., Ramaekers, K., and Nieuwenhuyse, I. V.

(2016). The vehicle routing problem: State of the art

classiﬁcation and review. Computers & Industrial En-

gineering, 99:300 – 313.

Breslin, P. and Keane, A. (1997). The capacitated arc rout-

ing problem: Lower bounds. Master’s thesis, Uni-

versity College Dublin, Department of Management

Information Systems, Dublin.

Campbell, A. M. and Wilson, J. H. (2014). Forty years of

periodic vehicle routing. Networks, 63(1):2–15.

Generation and Optimization of Inspection Routes for Economic and Food Safety

277

Cardoso, S. R. d. S. N. (2009). Optimização de rotas e da

frota associada. Master’s thesis, Universidade Técnica

de Lisboa, Instituto Superior Técnico, Lisbon.

Caric, T. and Gold, H. (2008). Vehicle routing problem. In-

Teh, Vienna, Austria.

Cattaruzza, D., Absi, N., Feillet, D., and González-Feliu,

J. (2017). Vehicle routing problems for city logis-

tics. EURO Journal on Transportation and Logistics,

6(1):51–79.

Cordeau, J.-F., Gendreau, M., and Laporte, G. (1997). A

Tabu Search heuristic for periodic and multi-depot ve-

hicle routing problems. Networks, 30:105–119.

Cordeau, J.-F., Gendreau, M., Laporte, G., Potvin, J.-Y., and

Semet, F. (2002). A guide to vehicle routing heuris-

tics. Journal of the Operational Research society,

53(5):512–522.

Cordeau, J.-F., Laporte, G., and Mercier, A. (2001). A uni-

ﬁed tabu search heuristic for vehicle routing problems

with time windows. Journal of the Operational Re-

search Society, 52:928–936.

Dantzig, G. B. and Ramser, J. H. (1959). The truck dis-

patching problem. Management science, 6(1):80–91.

Flood, M. M. (1956). The traveling-salesman problem. Op-

erations research, 4(1):61–75.

Hasle, G., Lie, K.-A., and Quak, E. (2007). Geometric

modelling, numerical simulation, and optimization.

Springer.

Ho, W., Ho, G. T., Ji, P., and Lau, H. C. (2008). A hybrid

genetic algorithm for the multi-depot vehicle routing

problem. Engineering Applications of Artiﬁcial Intel-

ligence, 21(4):548–557.

Kruskal, J. B. (1956). On the Shortest Spanning Subtree of a

Graph and the Traveling Salesman Problem. Proceed-

ings of the American Mathematical Society, 7(1):48.

Laporte, G. (1992). The vehicle routing problem: An

overview of exact and approximate algorithms. Euro-

pean journal of operational research, 59(3):345–358.

Li, F., Golden, B., and Wasil, E. (2007). The open vehicle

routing problem: Algorithms, large-scale test prob-

lems, and computational results. Computers & Op-

erations Research, 34(10):2918–2930.

Machado, P., Tavares, J., Pereira, F. B., and Costa, E.

(2002). Vehicle routing problem: Doing it the evo-

lutionary way. In Proceedings of the 4th Annual Con-

ference on Genetic and Evolutionary Computation,

pages 690–690. Morgan Kaufmann Publishers Inc.

Montoya-Torres, J. R., López Franco, J., Nieto Isaza, S., Fe-

lizzola Jiménez, H., and Herazo-Padilla, N. (2015). A

literature review on the vehicle routing problem with

multiple depots. Computers & Industrial Engineering,

79:115–129.

Ritzinger, U., Puchinger, J., and Hartl, R. F. (2016). A sur-

vey on dynamic and stochastic vehicle routing prob-

lems. International Journal of Production Research,

54(1):215–231.

Toth, P. and Vigo, D. (2002). The Vehicle Routing Problem.

Society for Industrial and Applied Mathematics.

Weise, T., Podlich, A., and Gorldt, C. (2009). Solving real-

world vehicle routing problems with evolutionary al-

gorithms. In Natural intelligence for scheduling, plan-

ning and packing problems, pages 29–53. Springer.

Zhu, K. Q. (2000). A new genetic algorithm for VRPTW.

In Proceedings of the international conference on ar-

tiﬁcial intelligence. Citeseer.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

278
