MedBIoT: Generation of an IoT Botnet Dataset in a Medium-sized IoT

Network

Alejandro Guerra-Manzanares

, Jorge Medina-Galindo, Hayretdin Bahsi

and Sven N

omm

Department of Software Science, Tallinn University of Technology, Tallinn, Estonia

Keywords:

Botnet, Internet of Things, Dataset, Intrusion Detection, Anomaly Detection, IoT.

Abstract:

The exponential growth of the Internet of Things in conjunction with the traditional lack of security mecha-

nisms and resource constraints associated with these devices have posed new risks and challenges to security

in networks. IoT devices are compromised and used as ampliﬁcation platforms by cyber-attackers, such as

DDoS attacks. Machine learning-based intrusion detection systems aim to overcome network security lim-

itations relying heavily on data quantity and quality. In the case of IoT networks these data are scarce and

limited to small-sized networks. This research addresses this issue by providing a labelled behavioral IoT

data set, which includes normal and actual botnet malicious network trafﬁc, in a medium-sized IoT network

infrastructure (83 IoT devices). Three prominent botnet malware are deployed and data from botnet infec-

tion, propagation and communication with C&C stages are collected (Mirai, BashLite and Torii). Binary and

multi-class machine learning classiﬁcation models are run on the acquired data demonstrating the suitability

and reliability of the generated data set for machine learning-based botnet detection IDS testing, design and

deployment. The generated IoT behavioral data set is released publicly available as MedBIoT data set

∗

1 INTRODUCTION

The adoption of the Internet on an increasing wider

scope, i.e., providing connectivity capabilities to ev-

eryday objects, is a reality. In fact, the rise of the

Internet of Things (IoT) has just begun and it is ex-

pected to have a major increase in the near future. It

was estimated that there would be 26.66 billion active

IoT devices by 2019, a ﬁgure that may be increased

up to 75 billion by 2025 (Statista, 2019). 127 new

IoT devices are connected to the Internet every second

(McKinsey, 2017) in a wide range of applications,

from factories and smart cities sensors to healthcare

and car products. The market size is calculated to

grow over $212 billion by 2019 and reach $1.6 trillion

by 2025 (Liu, 2019). However, the adoption of the

IoT technology still poses usability concerns even to

early adopters and eager customers, related to device

security and data privacy issues (Bosche et al., 2018;

Sklavos et al., 2017). Thus, despite its huge growth,

the Internet of Things market explosion is still being

limited by its main barrier: security (Bertino and Is-

https://orcid.org/0000-0002-3655-5804

https://orcid.org/0000-0001-8882-4095

https://orcid.org/0000-0001-5571-1692

lam, 2017; Bosche et al., 2018; Pratt, 2019).

Their ubiquity will pose a major challenge to secu-

rity as IoT devices have traditionally lacked of proper

control measures and proactive security management

(e.g., usage of default passwords, no ﬁrmware up-

dates, no access control policy), featuring them as

high vulnerable and prone to be compromised devices

(Bertino and Islam, 2017). These features have been

exploited by malicious actors, being able to compro-

mise the defenseless devices by exploiting its vulnera-

bilities, gaining remote access and using them as mag-

niﬁcation platforms for their massive attacks (Kolias

et al., 2017). An IoT botnet is just a particular type of

botnet in which the compromised devices are IoT de-

vices, thus showing analogous scheme and dynamics

to computer botnets. In this regard, when a vulnera-

ble device is compromised it becomes a bot, a mem-

ber of a larger community of compromised devices,

called botnet, under the control of a malicious actor,

the botmaster. The botmaster has remote access and

control of the bot over the Internet, without the con-

sent and awareness of the actual owner of the com-

promised device, using a Command&Control (C&C)

server (Silva et al., 2013). Botnets have been used

to perpetrate a wide range of malicious attacks, from

∗

Available at https://cs.taltech.ee/research/data/medbiot

Guerra-Manzanares, A., Medina-Galindo, J., Bahsi, H. and Nõmm, S.

MedBIoT: Generation of an IoT Botnet Dataset in a Medium-sized IoT Network.

DOI: 10.5220/0009187802070218

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 207-218

ISBN: 978-989-758-399-5; ISSN: 2184-4356

207

massive SPAM and phishing campaigns to distributed

denial-of-service (DDoS), the most common usage of

a botnet. A DDoS attack targets the availability of

online resources, such as websites or services. The

main goal is to saturate the targeted server or network

with more trafﬁc than it can handle (e.g., receiving

an overwhelming amount of messages, connection re-

quests or forged packets) thus provoking the service

or website to crash and become unavailable to legiti-

mate users requests (Weisman, 2019).

1.1 Data Sets for IoT Anomaly

Detection

The phenomenon of botnet detection in computer net-

works has been widely studied (Garcia et al., 2014;

Feily et al., 2009), with many available data sets at

hand (Shiravi et al., 2012), while the most recent IoT

network botnet phenomenon has not received the re-

quired attention yet, showing a remarkable lack of

available data sources.

Data sets for building effective IoT anomaly de-

tection methods rely on the acquisition of both le-

gitimate (normal) and malicious (botnet) behavioral

data from IoT networks. Anomaly models are built

and trained using only legitimate data to establish the

so-called normality patterns. The induced models are

tested using legitimate and malicious data, where the

metrics related to model’s detection performance are

evaluated. Therefore, proper and complete data are

key components for a high-performance effective in-

trusion detection system (IDS). Table 1 summarizes

the available data sets for IoT anomaly-based intru-

sion detection systems. As can be observed, a small

amount of data sets are available for the speciﬁc IoT

botnets issue. The available data sets are focused on

small-sized IoT networks, reﬂecting the behavior of

a small set of IoT devices. Additionally, a speciﬁc

and small variety of devices are used (mostly security

cameras) limiting the scope of the IoT devices ana-

lyzed from the broad domain of available IoT devices.

None of the available IoT data sets combine real and

emulated devices, which limit the scope of their re-

sults to either real or emulated devices. In this regard,

our generated data set combines real and emulated de-

vices, using different but common types of IoT de-

vices, not investigated by previous data sets (i.e., fans,

locks, light bulbs and switches), in a medium-sized

network composed of more than 80 devices. Fur-

thermore, our data set focuses on the ﬁrst stages of

a botnet deployment, such as infection and propaga-

tion, while the rest of the data sets focus on the last

stages of the botnet lifecycle, mainly detection of at-

tacks (Kirubavathi and Anitha, 2014).

As already stated, the Internet of Things is a real-

ity that will become ubiquitous in the following years.

This fact combined with the lack of proper security

measures and devices inherent vulnerabilities make

IoT devices an easy and appealing target for cyber

attackers (Bertino and Islam, 2017). Thus, proper

data are in need to create machine learning-based ef-

fective detection systems that may help to overcome

these limitations. In this regard, there is a remarkable

lack of available data sets that might help to build ef-

fective IDSs in IoT networks. This research aims to

ﬁll this signiﬁcant gap in IoT anomaly-based IDSs by

providing a novel IoT data set obtained from medium

size IoT network architecture (more than 80 devices),

which includes normal and malicious behavior from

different devices (real and emulated) and the deploy-

ment of prominent IoT botnets (Mirai, BashLite and

Torii). The scale extension enables to capture mal-

ware spreading patterns that cannot be seen in small-

sized networks, thus providing a more realistic envi-

ronment. Additionally, this data set includes the be-

havior of Torii botnet malware which has not been

addressed in any other data set before. Finally, this

data set provides data for the ﬁrst stages of botnet de-

ployment (i.e., infection, propagation and communi-

cation with C&C server stages), thus complementing

the available data sets which mainly focus on attack

detection, the main outcome and part of the last stages

of the botnet lifecycle (Hachem et al., 2011; Kiruba-

vathi and Anitha, 2014).

This paper is structured as follows: Section 2 pro-

vides background information and a review of re-

lated literature, Section 3 explains the methodology

followed to implement the experimental setup while

Section 4 offers a detailed overview of the main out-

come of this study, a novel IoT data set for botnet

detection, and its veriﬁcation. Finally, Section 5 con-

cludes the study and highlights its main contributions.

2 LITERATURE REVIEW &

BACKGROUND INFORMATION

2.1 Botnets & DDoS Attacks

Botnets have been used to perpetrate record-breaking

DDoS attacks. In this regard, in 2016, the journalist

Brian Krebs was the target of a record-breaking attack

(620 Gbps) to its blog KrebsOnSecurity.com, speciﬁ-

cally tailored to take the site ofﬂine (Krebs, 2016). A

month later, the french hosting provider OVH was at-

tacked by the same botnet (probably BashLite), reach-

ing 1 Tbps and involving over 140.000 compromised

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

208

Table 1: Data sets for IoT Anomaly-based IDS.

Data set Botnet

Number

of devices

Device type

Real or

Emulated

Network

Size

Data set features Date Reference

N-Baiot

Mirai

BashLite

Doorbell

Webcam

Thermostat

Baby monitor

Security Camera

Real Small 115 - statistics 2018

(Meidan et al.,

2018a)

(Meidan et al.,

2018b)

IoT host-based

datasets for ID

research

Hajime

Aidra

BashLite

Mirai

Doﬂo

Tsunami

Wroba

Multimedia Center

Security Camera

Emulated Small

NA - PCAP &

Netﬂow/Host

2018

(Bezerra et al.,

2018a)

(Bezerra et al.,

2018b)

IoT Network

Intrusion Dataset

Mirai 2

Speaker

Wi-Fi Camera

Real Small NA - PCAP 2019

(Kang et al.,

2019)

Bot-IoT

No actual

malware -

simulated

Refrigerator

Smart Garage door

Weather Monitoring

Smart Lights

Smart thermostat

Emulated Small 31+14 - ﬂow 2019

(Moustafa,

2019)

(Koroniotis

et al., 2019)

cameras/dvr (Pritchard, 2018). The same year, Dyn, a

domain name system provider of major websites and

services such as CNN, Netﬂix, Paypal, Visa or Ama-

zon was attacked by the Mirai botnet, using around

100.000 IoT devices and reaching up to 1.2 Tbps,

causing the servers to be inoperative and the web-

sites unreachable by the legitimate users for several

hours (Weisman, 2019; Hilton, 2016). It is estimated

that Dyn lost around 8% of its customers (i.e., 14000

domains) as a consequence of the attack and the lost

of trust (Weagle, 2017). This was just the onset for

the IoT botnet-based attacks. Since then, the attacks

have not stopped, evolving in sophistication and ca-

pabilities as the source code of the malware behind

the botnets became available to the public (Asokan,

2019). A recent report by F-secure states that cyber-

attacks on IoT devices rouse 300% in 2019, reaching

the 3 billion attacks, an unprecedented ﬁgure (Doff-

man, 2019). The threat is still alive and growing,

caused mainly by the combination of the increase of

the number of IoT devices deployed worldwide and

the intrinsic vulnerabilities carried by such devices,

which can also contain valuable data related to med-

ical or control issues. Nevertheless, one of the major

risks is the usage of the IoT endpoints (e.g., a printer

or a fridge) as an easy-to-reach and vulnerable en-

try points to wider and secured networks (Doffman,

2019).

As a result, cyber security for IoT, in the form of

early detection of threats, becomes a key issue to de-

tect and mitigate such attacks. In this regard, intru-

sion detection systems are widely used network secu-

rity components which aim to detect security threats

where preventive security measures are not feasible to

implement (Benkhelifa et al., 2018; Sun et al., 2007).

2.2 Intrusion Detection Systems

An intrusion could be deﬁned as a set of activities

or actions that compromise one or more components

of the IT security model known as CIA triad (i.e.,

short for Conﬁdentiality, Integrity and Availability)

of a speciﬁc entity or system. These systems are not

restricted to computers, network equipment, ﬁrewall,

routers or networks but to any information technol-

ogy system which is under the monitoring scope of

an intrusion detection system (IDS) (Sun et al., 2007).

Based on that, an intrusion detection system is a secu-

rity tool that aims to detect and identify the unautho-

rized individuals willing to break into and misuse a

system and also those authorized and legitimate users

that abuse of their privileges within the system (Sun

et al., 2007). There are four common approaches used

for intrusion detection: misuse, anomaly, speciﬁca-

tion and hybrid (Benkhelifa et al., 2018; Sun et al.,

2007; Butun et al., 2013; Zarpel

ao et al., 2017). They

are brieﬂy explained as follows:

• Misuse or signature-based detection systems use

known ﬁngerprints or signatures from attacks

stored in a database. If an IDS ﬁnds a match be-

tween the current activities and a known signa-

ture it raises the alarm about the detected suspi-

cious behavior. This systems are easily bypassed

by not-known or novel attacks, when a signature

is not yet available.

• Anomaly-based detection systems are based on

the creation of a typical or normal activity pro-

ﬁle. Current activities are compared against this

normal behavior. If the IDS ﬁnds a signiﬁcant de-

viation or discrepancies from the normality model

it raises the alarm about the suspicious behavior.

MedBIoT: Generation of an IoT Botnet Dataset in a Medium-sized IoT Network

209

These systems success on the detection of novel

attacks but they are prone to false positives (i.e.,

legitimate behavior is detected as malicious be-

havior) as the normal behavior might not be easy

to model, so that being very sensitive to the cor-

rectness of the normality model created.

• Speciﬁcation-based detection systems combine

features of misuse and anomaly approaches. They

apply anomaly-based principle on set of human

generated speciﬁcations or constraints about the

normal or legitimate behavior. These systems aim

to detect novel attacks based on anomalous behav-

ior while reducing the amount of false positives.

• Hybrid detection systems involve the combination

of any of the previous approaches, aiming to over-

come the weaknesses of one approach using the

strengths of another.

One of the most effective and widely used detection

methods is the anomaly-based approach, which en-

ables to detect novel attacks but with the inevitable

trade-off of being sensitive to the correctness of the

generated normality model. In this regard, statistical

methods and machine learning algorithms are gen-

erally used to generate the normal behavior proﬁle

(Zarpel

ao et al., 2017). Therefore, valid behavioral

models should be used in order to obtain the max-

imum beneﬁt of this approach, depending in a direct

manner on the available training data (Bolzoni, 2009).

In IoT networks, where a wide variety of devices may

coexist in the same network, it is likely to have dif-

ferent normality proﬁles which emphasizes the need

of accurate IoT behavioral data that enable the imple-

mentation of effective anomaly-based IDS. Thus, the

need of proper data encompassing such differences

are highly in demand. However, there is a remarkable

lack of available data sets that consider the different

network behaviors, devices and architectures that can

be found in IoT networks and its major threats. As

a result, proper IoT behavioral data are key to train

the IDS model for effective intrusion detection in IoT

networks.

2.3 Machine Learning-based IDS

Machine learning has shown promising results re-

garding computer botnet trafﬁc detection (Livadas

et al., 2006) and more lately, in the speciﬁc IoT botnet

detection issue (Zarpel

ao et al., 2017). As a result of

the remarkable increase in IoT related security inci-

dents, researchers have reoriented their focus to deal

with the investigation of feasible and effective IoT

botnet detection methods involving anomaly-based

machine learning approaches. These approaches aim

to overcome the intrinsic hardware and software lim-

itations and capabilities of these devices (Zarpel

et al., 2017). In this regard, in Meidan et al. (2018b),

Deep Autoencoders, Local Outlier Factor, One-Class

Support Vector Machines and Isolation Forest algo-

rithms models built and evaluated using the N-baiot

dataset. The results show that all algorithms, except

Isolation Forest, effectively detected all Mirai and

BashLite simulated attacks. Their proposed method,

based on Deep Autoencoders, showed the lowest false

alarms ratio and required less time to detect the at-

tacks than the other approaches. Prokoﬁev et al.

(2018) used Logistic Regression algorithm to esti-

mate the probability that a device was part of an

IoT botnet, focusing on the connection initiation at

the propagation stage. Lin et al. (2014) proposed an

IoT botnet detection method which combines Sup-

port Vector Machines and Artiﬁcial Fish Swarm al-

gorithms. McDermott et al. (2018) provided a new

application for a text recognition deep learning algo-

rithm (Bidirectional Long Short Term Memory based

Recurrent Neural Network), with remarkable success

on Mirai botnet attack detection. Doshi et al. (2018),

used different network features to train and evaluate

the accuracy of k-Nearest Neighbors, Support Vector

Machines, Decision Tree, Random Forest and Artiﬁ-

cial Neural Networks algorithms on the detection Mi-

rai DDoS attacks. A novel IoT malware detection ap-

proach using network trafﬁc is proposed in Shire et al.

(2019) where Convolutional Neural Networks and bi-

nary visualisation technique were used to provide a

fast detection method for zero-day malware.

As can be observed, the application of anomaly

detection requires the acquisition of malicious traf-

ﬁc which is tested against normal or legitimate trafﬁc

in order to evaluate the goodness of the proposed de-

tection model. For this purpose, the data sets should

provide both kinds of network trafﬁc in order to as-

sess the effective detection of threats. In this paper

we provide demonstrability of the generated data set

on classiﬁcation issues (i.e., supervised learning), for

the easiness of interpretation of the results and com-

parison, but this data set may also be used to build

effective anomaly detection models, considered tradi-

tionally unsupervised learning.

3 METHODOLOGY

The main outcome of this research is the generation of

a labelled behavioral IoT data set, which includes nor-

mal and actual botnet malicious network trafﬁc, in a

medium-sized IoT infrastructure (composed of more

than 80 devices). The focus was on the acquisition

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

210

of network data from all the endpoints and servers

during the initial propagation of Mirai, BashLite and

Torii botnets.

3.1 IoT Network Topology

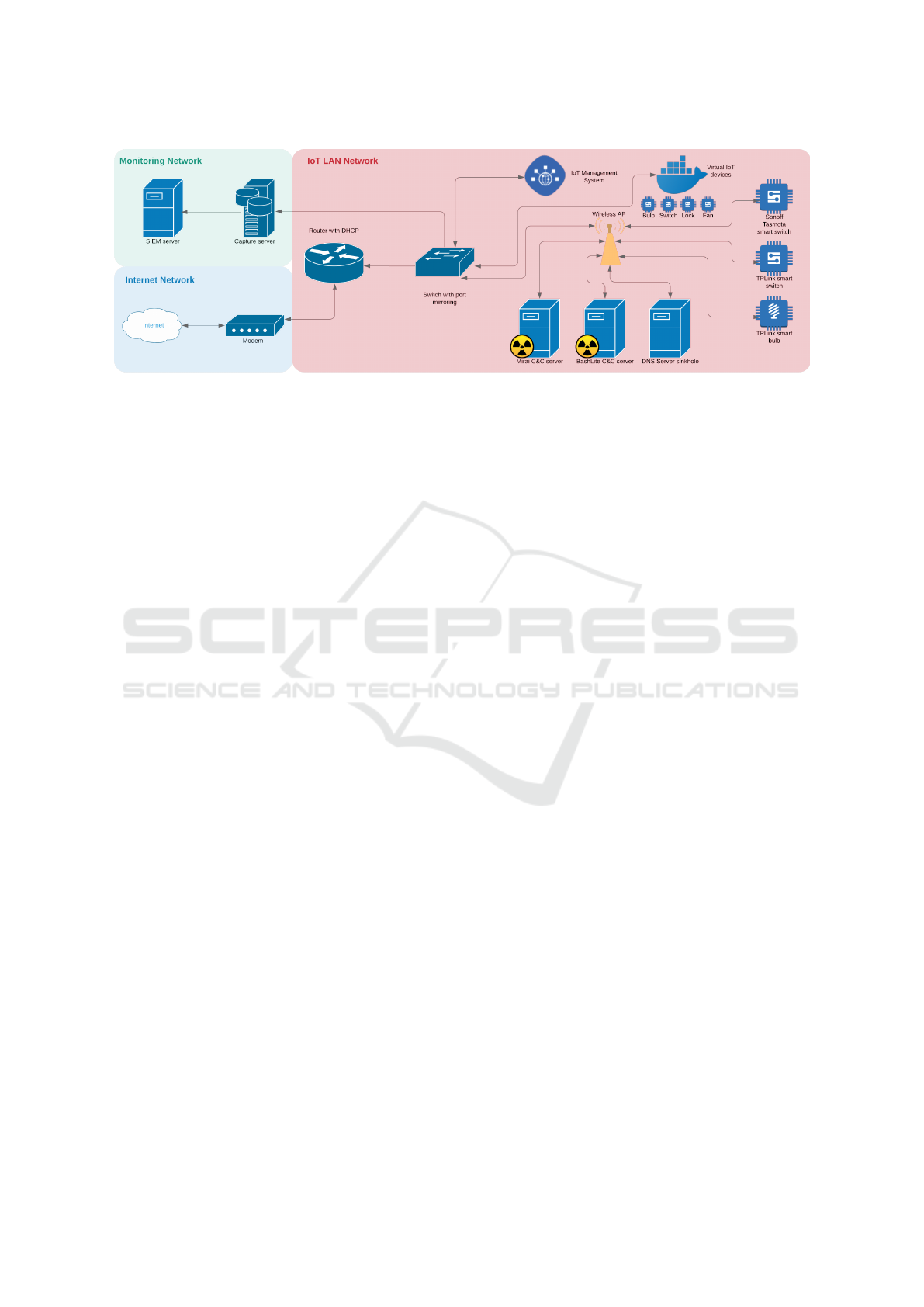

The network topology created for the purpose of this

study is provided in Figure 1. It is composed by

3 connected networks: internet network, monitoring

network and IoT LAN network. Their functions and

components are described as follows:

• Internet Network: this network is directly con-

nected to the internet in order to provide internet

connectivity for the initial conﬁguration of differ-

ent devices. To restrict the connectivity between

networks, a different subnetwork mask is estab-

lished.

• Monitoring Network: this network provides stor-

age and processing capabilities for the data re-

ceived from the switch. It is composed by a cap-

ture server and a security information and event

management (SIEM) server. The capture server

is responsible for the collection and storage of the

acquired network packages within the whole in-

frastructure. Tcpdump is used to monitor and log

the network trafﬁc and store the data in pcap ﬁle

format which is later used as an input by the SIEM

server. The SIEM server is a Splunk software in-

stance which is responsible for data indexing, ﬁl-

tering, analysis and data set generation (i.e., data

processing and labelling).

• IoT LAN Network: this local area network (LAN)

allows to spread the malware in a contained man-

ner. This network is composed of physical and

virtual IoT devices that generate the behavioral

trafﬁc collected by the monitoring network, ei-

ther benign or malware generated trafﬁc. Virtual

devices are deployed using containerization soft-

ware (i.e., Docker). The composition and capa-

bilities of this network devices are explained as

follows:

– Router: this device is responsible for the gener-

ation of an isolated network segment allowing

only communication between internal devices

within this network (i.e., using ﬁrewall rules).

The router provides IP addresses to this inter-

nal devices using Dynamic Host Conﬁguration

Protocol (DHCP).

– Switch: this device is responsible for the ac-

quisition and transfer of the network packages

using the port mirroring technique. Port mir-

roring is used to clone and transfer network

packages that ﬂow through one port to another

port, in real time, without affecting the network

performance. In this scenario, all devices gen-

erated data are captured and transferred to the

monitoring network.

– IoT Management System: this device allows

the management of all the IoT devices in a cen-

tralized manner. It is deployed using Hassio

software running on a Raspberry Pi, which al-

lows to simulate the same network behavior of

real implementations. In this network, 4 differ-

ent IoT devices were emulated: fan, lock, light

bulb and switch. Each device allows the re-

mote control of different features. For instance,

the fan allows the selection of speed, oscillation

state, current fan state and turning on/off capa-

bilities.

– Virtual IoT Devices: this device allows the vir-

tualization of IoT devices using Docker con-

tainers. It is deployed using a Raspberry Pi

which allows to emulate the behavior of an IoT

device.

– Wireless Access Point: this device allows net-

work connection to the non-ethernet compati-

ble devices. It is conﬁgured to allow the router

the capability of assigning IP addresses (via

DHCP), thus avoiding the possibility of IP ad-

dress duplicates.

– BashLite C&C Server: this server is the com-

mand and control unit of the BashLite botnet.

FTP and web services are installed to allow the

spreading of the malware. The server is also

used to compile the malware binaries used to

propagate the infection.

– Mirai C&C Server: this server is the command

and control device of the Mirai botnet. FTP and

web services are installed to allow the malware

propagation. The server is also used to compile

the malware binaries used to spread the infec-

tion.

– DNS Server Sinkhole: this server provides the

domain name resolution for the Mirai botnet. It

is also used as a sinkhole for the domains that

Torii malware requests connection. The sink-

hole avoids the actual connection between Torii

and the domain of its C&C server, providing ef-

fective malware contention.

– Physical Devices: this devices compose the col-

lection of real IoT devices of this network. It is

composed by 3 different devices: Sonoff tas-

mota smart switch, TpLink smart switch and

TpLink smart bulb. All of them allow exter-

nal device management and provide different

features. For instance, the light bulb allows to

MedBIoT: Generation of an IoT Botnet Dataset in a Medium-sized IoT Network

211

control light intensity, status and turn on/off ca-

pabilities.

In order to create a medium-sized network, virtual de-

vices are created and physical devices deployed, sum-

ming up a total amount of 83 devices. Table 2 shows

the composition of the IoT LAN network. As can

be observed, 80 devices are emulated and 3 are ac-

tual physical devices. The virtual devices have ARM

architecture as it is inherited from the Raspberry Pi

while the physical devices have MIPS architecture.

This fact conditions the malware binary used to in-

fect the device, being architecture-dependant, and en-

riches the spectrum of the data, considering a wider

variety of IoT devices. The features column provides

outlines the actions that the deployed IoT devices are

capable to perform.

Table 2: IoT network device composition.

Device Type Features Architecture

Number of

devices

Switch Physical

Turn On

Turn Off

MIPS 2

Light

bulb

Physical

Turn On

Turn Off

Intensity

MIPS 1

Lock Virtual

Lock

Unlock

ARM 20

Fan Virtual

Turn On

Turn Off

Speed

Oscillation

ARM 20

Switch Virtual

Turn On

Turn Off

ARM 20

Light

bulb

Virtual

Turn On

Turn Off

Intensity

ARM 20

3.2 IoT Behavior

The simulation of devices’ behavior can be performed

in several ways, ranging from the imitation of the be-

havior by manual usage of the devices to the automa-

tion of the execution of speciﬁc functions/tasks using

scripts. The quality and consistency of the simulated

behavior is key to create a high quality data set that

provide realistic data input for effective IDS solutions.

In such cases, the acquisition of real and relevant data

regarding the normal usage patterns provide a realis-

tic baseline for the simulation of the behavior. For in-

stance, in a normal living room, the research showed

that a light bulb had a mean usage of 1.7h per day

while this value achieved 2.3h in the case of a light

bulb in the kitchen (Gifford et al., 2012). This infor-

mation provided a baseline for the simulation of be-

nign behavior in our experimental setup. In the case

of malware behavior it is simulated by the execution

of the different modules within the botnet, providing

a real output of the botnet behavior.

3.2.1 Legitimate Behavior

An automated execution approach is utilised for the

simulation of benign behavior. This approach takes

into account the architecture of the device, as stated in

Table 2, performed using a python script and MQTT

(MQ Telemetry Transport) protocol, which is a com-

munication protocol used to control IoT devices. The

IoT management system allows to automate this con-

trol and perform scheduled tasks on connected IoT

devices. A script with trigger actions is conﬁgured

and deployed. In this scenario, the following legiti-

mate behavior is simulated using the following trig-

gers:

• All devices are turned on at 8.00 AM

• Each time a device state changes, the manage-

ment system starts a countdown until the next

state change.

• The countdown value is randomized.

• The maximum limit of changes is established in

20 and a maximum of 3h on ON state is set.

• All devices are turned off at 07.00 PM

• In order to simulate a working environment, exe-

cution of the triggers is limited from Monday to

Friday.

By the usage of the previous triggers, network pack-

ages are generated along the network, captured and

stored. The captured network packages provide the

following communication information: time, protocol

used, TCP stream, TCP stream size, source IP, desti-

nation IP, MAC addresses, TCP raw message and re-

sponse code.

3.2.2 Malicious Behavior

The malicious behavior is generated by the deploy-

ment of three prominent botnet malware within the

controlled environment: Mirai (Antonakakis et al.,

2017), BashLite (Marzano et al., 2018) and Torii

(Kroustek et al., 2018). Mirai and BashLite botnets

have been widely studied and malware source code is

available on the Internet. Thus its deployment is fully

controlled in the lab environment using a C&C server

for each botnet and the source code is modiﬁed to con-

nect with this speciﬁc C&C server. Torii source code

is not yet available on the Internet, thus the samples

used for its deployment within the controlled envi-

ronment were obtained from Hybrid Analysis archive

(Crowdstrike, 2019). In order to avoid Torii malware

to connect with its actual C&C server, special con-

tention measures are in place. Mirai, BashLite and

Torii botnet propagation is performed and controlled

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

212

Figure 1: Medium-sized IoT network topology.

within the environment using different strategies, ex-

plained in the following paragraphs.

• Botnet Propagation Techniques

– Mirai and Yakuza version of BashLite are con-

ﬁgured and executed within the controlled envi-

ronment, modifying the malware source codes

in order to link the infection binaries with the

corresponding in-lab C&C servers. Once the

botnet is properly set, droppers are the medium

used by these botnets to download and install

the appropiate malware ﬁle according to the

victim’s architecture which once executed will

run the bot daemon, compromising the device

successfully.

– Torii malware has not been profoundly studied

yet, so the deployment of this malware in the

lab environment carries further risks. In order

to contain and eliminate the risks of improper

use of the devices by Torii’s actual botmaster, a

sinkhole in the DNS server and ﬁrewall rules

are used. Torii connection attempts with its

C&C server are permanently denied and redi-

rected. As a result of the lack of proper knowl-

edge of Torii malware spreading methods and

source codes, the binaries are deployed manu-

ally within the lab environment. The obtained

sample is speciﬁcally tailored to target ARM

devices. The malware is executed running the

executable with root privileges in the target de-

vices, allowing to spread the malware through

the IoT devices.

• Botnet Contention Methods

– One of the major risks within the lab is the

abuse of the devices by real attackers. In this

regard, Torii poses a major challenge. Contrar-

ily to Mirai and BashLite, Torii has not been

deeply analyzed and poses a risk within the lab

environment that has to be addressed. Unsuc-

cessful botnet contention may lead to unautho-

rized usage of the IoT devices by real attackers

to perpetrate attacks or collect rellevant data.

Two major risks are found within this experi-

mental setup which are addressed and outlined

as follows:

1. Possibility of existence of hidden code in Mi-

rai’s source code to connect to the real C&C

server

2. Torii’s unknown spread techniques and func-

tionalities

Even though Mirai spreading techniques are

well-known, additional security measures are

taken to ensure effective contention of the mal-

ware. To address this issues, a sinkhole and

ﬁrewall rules are in place to deny possible con-

nection attemps to the real C&C servers. The

DNS sinkhole redirects the connection attempts

by resolving the name resolution request with a

controlled IP address. Firewall rules are set in

the router to block/control the trafﬁc based on

known network masks.

Botnet malware are deployed at different times within

6 days (i.e., each let run free for 2 consecutive days)

aiming to obtain relevant botnet information and elim-

inate undesired overlapping of information. Further-

more, Mirai malware is capable of detect malware

running on a speciﬁc device and remove it in order

to take the single control of it. A limited number of

devices are infected in each botnet deployment. In the

case of BashLite malware, 40 devices were infected,

chosen in a pseudo-randomized way by limiting the

scope of devices scanned and infected. Mirai botnet

malware infected 25 devices, limited by the change of

conﬁguration to restrict the internal scanner to spread

within the lab IP ranges. Torii botnet malware was

manually deployed in 12 devices, all under the con-

trolled scope of the DNS sinkhole.

MedBIoT: Generation of an IoT Botnet Dataset in a Medium-sized IoT Network

213

3.3 IoT Behavior Veriﬁcation

In order to verify the suitability of the IoT behavioral

data set generated within the experimental setup for

detection purposes, the generated data are further pro-

cessed and used to build and test machine learning-

based classiﬁcation models. Machine learning clas-

siﬁcation models aim to correctly predict the label or

category of an unknown data point based on features

(also called predictors) found on the training data pro-

vided during the model training/building phase (i.e.,

supervised learning). Binary classiﬁcation is used

when the data points are split into to two mutually

exclusive categories (e.g., benign and malware) while

multi-class classiﬁcation deals when more than two

categories are present within the data (e.g., benign,

Mirai, BashLite and Torii). In order to validate the

outcome of the experimental setup, both approaches

are used, inducing binary and multi-class machine

learning classiﬁcation models, which are validated us-

ing k-fold cross validation.

From the source pcap ﬁles captured within the lab,

features are extracted and used as predictors/input for

the machine learning models. The features used in

this lab are computed as in Mirsky et al. (2018). A

total of 100 network trafﬁc statistical features are cal-

culated, within different time windows. Table 3 pro-

vides a brief description of the generated features. As

can be observed, statistical features are calculated in

relation to 4 major categories for each of the 5 time

windows (i.e, 100ms, 500ms, 1.5s, 10s and 1min).

Table 3: Feature Categories.

Categories Features

Host-MAC&IP Packet count, mean and variance

Channel

Packet count, mean, variance, magnitude, ra-

dius, covariance, and correlation

Network Jitter

Packet count, mean and variance of packet jit-

ter in channel

Socket

Packet count, mean, variance, magnitude, ra-

dius, covariance and correlation

After the features are extracted, a random sample

of data points are selected for each class and used

to train/test machine learning models using 10-fold

cross validation. Four traditional machine learning

algorithms are used to induce and test classiﬁer mod-

els. The main objective for these tests is to demon-

strate the suitability of the present data set for ma-

chine learning-based anomaly and classiﬁcation de-

tection models. In this regard, there is no model

hyper-parameter optimization performed on the in-

duced models. Default scikit

learn library (version

0.20) conﬁgurations are used, leaving room for im-

provement on the classiﬁers performance. In this re-

lation, k-Nearest Neighbors (k-NN), Support Vector

Machines (SVM), Decision Tree (DT) and Random

Forest (RF) algorithms are implemented. For each of

the models, four performance metrics are reported:

accuracy, precision, recall and F

score. They are

brieﬂy described as follows:

• Accuracy: ratio of the correctly classiﬁed test in-

stances among all test instances.

• Precision: fraction of positive instances correctly

classiﬁed among all the positive classiﬁed in-

stances.

• Recall: fraction of positive instances correctly

classiﬁed among all the actual positive instances.

• F

score: harmonic mean of precision and recall

metrics.

All the performance metrics are bounded on the in-

terval [0, 1]. In general, a value close to 1 may be

deemed as a positive or good result for the given task

while a value close to 0 as a bad performance. In this

regard, for classiﬁcation tasks, the higher the value

the better the classiﬁer performance on label detection

and discrimination, thus inferring that the data and the

classiﬁer are suitable for that purpose. In our speciﬁc

case, if the classiﬁers show a performance close to 1

in all metrics it may be inferred that the data is suit-

able for machine learning-based IoT botnet detection

and that the data labels (e.g., legitimate and malware)

can be discriminated effectively.

4 RESULTS

4.1 IoT Behavioral Data Set

The network packets collected in the IoT LAN net-

work are redirected to the monitoring network using

the port mirroring technique, where the SIEM soft-

ware (i.e., Splunk) was used to process and label the

data, thus allowing to create the ﬁnal data set. This ﬁ-

nal data set is generated in two versions: structured

(features are computed and extracted from the raw

data) and non-structured format (raw pcap ﬁles). The

total number of packets captured during the experi-

mental setup are provided in Table 4.

Table 4: Network data captured.

Number of packets Trafﬁc type Number of devices

4,143,276 BashLite 40

842,674 Mirai 25

319,139 Torii 12

12,540,478 Benign 83

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

214

As can be observed, a total amount of 17,845,567

network packets were captured within the experimen-

tal setup. Around 30% of this trafﬁc was deemed

and labelled as malicious while 70% corresponds to

legitimate network trafﬁc. Using Splunk it is possi-

ble to analyze and provide further details about the

type of communication. Regarding the legitimate net-

work trafﬁc, 32% of the packages are found to be

related to system updates, 53% to device communi-

cation (MQTT protocol) and 15% to other network

data (e.g., TLS errors, pings, etc). Mirai and BashLite

source codes are conﬁgured to convey different kind

of communications on different ports, with the pur-

pose of facilitating the posterior analysis of the data.

In this relation, malicious trafﬁc analysis shows that

68% of the data captured is related to the malware

propagation activity while 32% to the communica-

tion between the C&C servers and bots. In the case

of Torii, malicious trafﬁc only includes data regard-

ing the initial infection of the device as the contain-

ment measures did not allow the real C&C to reach

the device and trigger posterior botnet events such

as propagation. The generated data set is made pub-

licly available in the following url: https://cs.taltech.

ee/research/data/medbiot

4.2 IoT Behavior Veriﬁcation

4.2.1 Binary Classiﬁcation

Binary or two-class classiﬁcation models are induced

and 10-fold cross validated for four widely used ma-

chine learning classiﬁcation models. In this case, the

data is divided in two classes or labels: legitimate

and malware (mixed data from the three malware sub-

classes). More speciﬁcally, the data set used is created

by random selection of 3000 data points from the le-

gitimate trafﬁc, thus conforming the legitimate class

data. The malware class is composed of 1000 ran-

dom selected data points for each one of the malware

botnets deployed within the lab, summing up to 3000

data points for this class. As a result, a balanced data

set is created and used to perform the binary clas-

siﬁcation task. Support Vector Machines algorithm

showed a poor performance in all assessed metrics,

thus is not reported in the results, which are provided

in Table 5.

Table 5: Binary classiﬁcation results.

Model Accuracy Precision Recall F

score

k-NN 0.9025 0.9082 0.9025 0.9001

DT 0.9315 0.9448 0.9315 0.9293

RF 0.9532 0.9580 0.9532 0.9481

As can be observed, Random Forest algorithm is

able to discriminate over 95% of the data points, thus

detecting effectively the vast majority of the malware

trafﬁc. Decision Tree and k-NN show slightly less

discriminatory performance, but over 90% in all per-

formance metrics in both cases. The malware trafﬁc,

which is composed of a mixture of 3 different bot-

net malware, is effectively discriminated from legit-

imate trafﬁc, as can be conﬁrmed by the normalized

confusion matrix provided in Table 6, extracted from

a Random Forest model. As already stated, SVM

showed bad performance, and its results are not re-

ported. Nevertheless, this fact may suggest that the

data is not linearly separable, thus being SVM a not

suitable classiﬁer model for this task unlike the other

algorithms used. These results emphasize the effec-

tive capabilities of machine learning approaches to

detect botnet malware trafﬁc, even in the ﬁrst stages of

its deployment (i.e., infection, propagation and com-

munication with the C&C server stages) and disre-

garding the botnet malware employed. Furthermore,

the data set created within this lab demonstrates its

suitability to be used as a medium-sized realistic IoT

data set for IoT botnet detection scenarios and IDS

testing.

Table 6: Confusion matrix of RF binary classiﬁcation.

Predicted

Malware Legitimate

Actual

Malware 291 9

Legitimate 7 293

4.2.2 Multi-class Classiﬁcation

In this setting, multi-class classiﬁcation models are

induced and 10-fold cross validated for the same algo-

rithms employed in the binary approach. In this case,

the data was divided in four classes or labels: legit-

imate, Mirai, BashLite and Torii. The data set used

is created by random selection of 2000 data points

of each of the possible classes, summing up to 8000

data points, evenly distributed in 4 labels. The main

aim of this conﬁguration is not only to test the le-

gitimate/malware discrimination, as in the binary ap-

proach, but also the discrimination of the speciﬁc mal-

ware source. As in the previous setting, Support Vec-

tor Machines algorithm showed a poor performance

in all metrics, thus its performance is not reported.

Table 7 provides the results for the multi-class classi-

ﬁcation task.

As can be seen, Random Forest model outper-

forms Decision Tree and k-NN algorithms in the

multi-class classiﬁcation task, in a similar fashion as

in the binary models. More speciﬁcally, RF algorithm

MedBIoT: Generation of an IoT Botnet Dataset in a Medium-sized IoT Network

215

Table 7: Multi-class classiﬁcation results.

Model Accuracy Precision Recall F

score

k-NN 0.8706 0.8849 0.8706 0.8505

DT 0.9516 0.9584 0.9516 0.9499

RF 0.9766 0.9824 0.9766 0.9657

is able to discriminate more accurately the labels in

the multi-class scenario than in the binary setting, be-

ing able to discriminate accurately over 97% of the

data points. As shown in Table 8, extracted from the

Random Forest model, the classiﬁcation model is very

accurate in all cases, not showing any signiﬁcant bias

towards any of the possible labels. The results ob-

tained suggest that the source of network trafﬁc can

be effectively discriminated in earlier stages of bot-

net infection. They also demonstrate that the learning

capabilities of machine learning-based detection can

be accurate not only in the binary setting but also in

the speciﬁc discrimination of different sources of ma-

licious trafﬁc in medium-sized IoT networks.

Table 8: Confusion matrix of RF multi-class classiﬁcation.

Predicted

Mirai BashLite Torii Legitimate

Actual

Mirai 197 0 0 3

BashLite 2 196 0 2

Torii 0 0 198 2

Legitimate 2 0 0 198

5 CONCLUSIONS

The exponential growth of the Internet of Things is a

fact and these devices will become ubiquitous in the

near future. The increasing connectivity capabilities

of these devices in conjunction with their traditional

lack of security features make them an appealing tar-

get for cyber-attackers. Malicious actors compromise

the vulnerable IoT devices and use them as an ampli-

ﬁcation platform of their attacks, becoming part of the

so-called botnet. Botnets have been extensively used

to deliver massive spam campaigns and perpetrate

record-breaking DDoS attacks that may lead to nefar-

ious consequences. Therefore, there is an increasing

need to overcome the lack of security of these devices.

The proposed solutions are mainly coming from ma-

chine learning-based approaches.

The performance of machine learning algorithms

heavily rely on data quality and quantity. In this re-

lation, there is a remarkable lack of data sources in

the speciﬁc IoT networks scenario. The experimen-

tal setup of this research aims to fulﬁll this gap by

providing a novel data set with network data col-

lected from a medium-sized IoT network architecture,

which is composed of legitimate and botnet malware

trafﬁc. Three IoT botnet malware are deployed in

real and emulated IoT devices and data are acquired

from the ﬁrst stages of botnet deployment, such as

infection, propagation and communication with C&C

server. These data complements the already existing

data sets which mainly focus on detection of botnet

attacks, part of the last stages of a botnet deployment.

In this sense, by focusing on early stages of botnet

deployment, the proposed data set provides the op-

portunity to perform early detection of the threat, pre-

vious to the perpetration of an attack, being able to

prevent such attacks and botnet growth. Three promi-

nent botnet malware are deployed in this research, one

of them is a complete novelty (i.e., Torii), not be-

ing deployed before in any other available data set.

The other two are well-known IoT botnet malware

whose source code is publicly available and have been

used in other data sets (i.e., Mirai and BashLite). The

currently available data sets, summarized in Table 1,

focus on small-sized networks (usually less than 10

devices), using either emulated or real devices, thus

providing limited interactions between devices inside

the network. The generated data set addresses these

limitations by combining emulated and real devices

to create a medium-sized network (i.e., 83 devices).

A larger network size may provide different insights

and interactions than smaller IoT networks. Finally,

machine learning models are built and validated us-

ing this data to demonstrate the suitability of this data

set as a reliable data source for botnet detection in

general and IDS testing and deployment in particu-

lar. The data set generated within the experimental

setup is made publicly available, aiming to overcome

the scarcity of relevant data sources in IoT network

security and limitations of the existing data sets.

REFERENCES

Antonakakis, M., April, T., Bailey, M., Bernhard, M.,

Bursztein, E., Cochran, J., Durumeric, Z., Halder-

man, J. A., Invernizzi, L., Kallitsis, M., et al. (2017).

Understanding the mirai botnet. In 26th {USENIX}

Security Symposium ({USENIX} Security 17), pages

1093–1110.

Asokan, A. (2019). Massive botnet attack used

more than 400,000 iot devices. Retrieved

from: https://www.bankinfosecurity.com/massive-

botnet-attack-used-more-than-400000-iot-devices-a-

12841.

Benkhelifa, E., Welsh, T., and Hamouda, W. (2018). A crit-

ical review of practices and challenges in intrusion de-

tection systems for iot: Toward universal and resilient

systems. IEEE Communications Surveys & Tutorials,

20(4):3496–3509.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

216

Bertino, E. and Islam, N. (2017). Botnets and internet of

things security. Computer, (2):76–79.

Bezerra, V. H., da Costa, V. G. T., Martins, R. A., Ju-

nior, S. B., Miani, R. S., and Zarpelao, B. B. (2018a).

Data set. http://www.uel.br/grupo-pesquisa/secmq/

dataset-iot-security.html.

Bezerra, V. H., da Costa, V. G. T., Martins, R. A., Junior,

S. B., Miani, R. S., and Zarpelao, B. B. (2018b). Pro-

viding iot host-based datasets for intrusion detection

research. In Anais do XVIII Simp

osio Brasileiro em

Seguranc¸a da Informac¸

ao e de Sistemas Computa-

cionais, pages 15–28. SBC.

Bolzoni, D. (2009). Revisiting Anomaly-based Network In-

trusion Detection Systems. University of Twente, En-

schede, Netherlands.

Bosche, A., Crawford, D., Jackson, D., Schallehn,

M., and Schorling, C. (2018). Unlocking op-

portunities in the internet of things. Retrieved

from: https://www.bain.com/contentassets/

5aa3a678438846289af59f62e62a3456/bain brief

unlocking opportunities in the internet of things.

pdf.

Butun, I., Morgera, S. D., and Sankar, R. (2013). A sur-

vey of intrusion detection systems in wireless sensor

networks. IEEE communications surveys & tutorials,

16(1):266–282.

Crowdstrike (2019). Hybrid analysis. Retrieved from:

https://www.hybrid-analysis.com/.

Doffman, Z. (2019). Cyberattacks on iot de-

vices surge 300% in 2019, ‘measured in

billions’, report claims. Retrieved from:

https://www.forbes.com/sites/zakdoffman/2019/09/14/

dangerous-cyberattacks-on-iot-devices-up-300-in-

2019-now-rampant-report-claims/#574229995892.

Doshi, R., Apthorpe, N., and Feamster, N. (2018). Ma-

chine learning ddos detection for consumer internet of

things devices. In 2018 IEEE Security and Privacy

Workshops (SPW), pages 29–35. IEEE.

Feily, M., Shahrestani, A., and Ramadass, S. (2009). A

survey of botnet and botnet detection. In 2009 Third

International Conference on Emerging Security Infor-

mation, Systems and Technologies, pages 268–273.

IEEE.

Garcia, S., Grill, M., Stiborek, J., and Zunino, A. (2014).

An empirical comparison of botnet detection methods.

computers & security, 45:100–123.

Gifford, W. R., Goldberg, M. L., Tanimoto, P. M., Cel-

nicker, D. R., and Poplawski, M. E. (2012). Residen-

tial lighting end-use consumption study: Estimation

framework and initial estimates. Retrieved from:

https://www1.eere.energy.gov/buildings/publications/

pdfs/ssl/2012 residential-lighting-study.pdf.

Hachem, N., Mustapha, Y. B., Granadillo, G. G., and Debar,

H. (2011). Botnets: lifecycle and taxonomy. In 2011

Conference on Network and Information Systems Se-

curity, pages 1–8. IEEE.

Hilton, S. (2016). Dyn analysis summary of friday octo-

ber 21 attack. Retrieved from: https://dyn.com/blog/

dyn-analysis-summary-of-friday-october-21-attack/.

Kang, H., Ahn, D. H., Lee, G. M., Yoo, J. D., Park, K. H.,

and Kim, H. K. (2019). Iot network intrusion dataset.

http://dx.doi.org/10.21227/q70p-q449.

Kirubavathi, G. and Anitha, R. (2014). Botnets: A study

and analysis. In Computational Intelligence, Cyber

Security and Computational Models, pages 203–214.

Springer.

Kolias, C., Kambourakis, G., Stavrou, A., and Voas, J.

(2017). Ddos in the iot: Mirai and other botnets. Com-

puter, 50(7):80–84.

Koroniotis, N., Moustafa, N., Sitnikova, E., and Turnbull,

B. (2019). Towards the development of realistic botnet

dataset in the internet of things for network forensic

analytics: Bot-iot dataset. Future Generation Com-

puter Systems, 100:779–796.

Krebs, B. (2016). Krebsonsecurity hit with record ddos.

Retrieved from: https://krebsonsecurity.com/2016/09/

krebsonsecurity-hit-with-record-ddos/.

Kroustek, J., Iliushin, V., Shirokova, A., Neduchal, J., and

Hron, M. (2018). Torii botnet - not another mi-

rai variant. Retrieved from: https://blog.avast.com/

new-torii-botnet-threat-research.

Lin, K.-C., Chen, S.-Y., and Hung, J. C. (2014). Botnet de-

tection using support vector machines with artiﬁcial

ﬁsh swarm algorithm. Journal of Applied Mathemat-

ics, 2014.

Liu, S. (2019). Global iot market size 2017-2025.

Retrieved from: https://www.statista.com/statistics/

976313/global-iot-market-size/.

Livadas, C., Walsh, R., Lapsley, D. E., and Strayer, W. T.

(2006). Using machine learning techniques to identify

botnet trafﬁc. In LCN, pages 967–974. Citeseer.

Marzano, A., Alexander, D., Fonseca, O., Fazzion, E.,

Hoepers, C., Steding-Jessen, K., Chaves, M. H.,

Cunha,

I., Guedes, D., and Meira, W. (2018). The

evolution of bashlite and mirai iot botnets. In 2018

IEEE Symposium on Computers and Communications

(ISCC), pages 00813–00818. IEEE.

McDermott, C. D., Majdani, F., and Petrovski, A. V. (2018).

Botnet detection in the internet of things using deep

learning approaches. In 2018 International Joint

Conference on Neural Networks (IJCNN), pages 1–8.

IEEE.

McKinsey (2017). What’s new with the inter-

net of things? Retrieved from: https:

//www.mckinsey.com/industries/semiconductors/

our-insights/whats-new-with-the-internet-of-things.

Meidan, Y., Bohadana, M., Mathov, Y., Mirsky, Y.,

Breitenbacher, D., Shabtai, A., and Elovici, Y.

(2018a). detection

of iot botnet attacks n baiot data

set. http://archive.ics.uci.edu/ml/datasets/detection

of IoT botnet attacks N BaIoT.

Meidan, Y., Bohadana, M., Mathov, Y., Mirsky, Y., Breit-

enbacher, D., Shabtai, A., and Elovici, Y. (2018b). N-

baiot—network-based detection of iot botnet attacks

using deep autoencoders. IEEE Pervasive Computing,

17(3):12–22.

Mirsky, Y., Doitshman, T., Elovici, Y., and Shabtai, A.

(2018). Kitsune: an ensemble of autoencoders for

online network intrusion detection. arXiv preprint

arXiv:1802.09089.

MedBIoT: Generation of an IoT Botnet Dataset in a Medium-sized IoT Network

217

Moustafa, N. (2019). The bot-iot dataset. http://dx.doi.org/

10.21227/r7v2-x988.

Pratt, M. K. (2019). Top challenges of iot adop-

tion in the enterprise. Retrieved from:

https://internetofthingsagenda.techtarget.com/feature/

Top-challenges-of-IoT-adoption-in-the-enterprise.

Pritchard, M. (2018). Ddos attack timeline: Time

to take ddos seriously. Retrieved from:

https://activereach.net/newsroom/blog/time-to-

take-ddos-seriously-a-recent-timeline-of-events/.

Prokoﬁev, A. O., Smirnova, Y. S., and Surov, V. A. (2018).

A method to detect internet of things botnets. In

2018 IEEE Conference of Russian Young Researchers

in Electrical and Electronic Engineering (EIConRus),

pages 105–108. IEEE.

Shiravi, A., Shiravi, H., Tavallaee, M., and Ghorbani, A. A.

(2012). Toward developing a systematic approach to

generate benchmark datasets for intrusion detection.

computers & security, 31(3):357–374.

Shire, R., Shiaeles, S., Bendiab, K., Ghita, B., and

Kolokotronis, N. (2019). Malware squid: A novel

iot malware trafﬁc analysis framework using convo-

lutional neural network and binary visualisation. In

Internet of Things, Smart Spaces, and Next Genera-

tion Networks and Systems, pages 65–76. Springer.

Silva, S. S., Silva, R. M., Pinto, R. C., and Salles, R. M.

(2013). Botnets: A survey. Computer Networks,

57(2):378–403.

Sklavos, N., Zaharakis, I. D., Kameas, A., and Kalapodi,

A. (2017). Security & trusted devices in the context

of internet of things (iot). In 2017 Euromicro Con-

ference on Digital System Design (DSD), pages 502–

509. IEEE.

Statista (2019). Internet of things - number of con-

nected devices worldwide 2015-2025. Retrieved

from: https://www.statista.com/statistics/471264/

iot-number-of-connected-devices-worldwide/.

Sun, B., Osborne, L., Xiao, Y., and Guizani, S. (2007).

Intrusion detection techniques in mobile ad hoc and

wireless sensor networks. IEEE Wireless Communi-

cations, 14(5):56–63.

Weagle, S. (2017). Financial impact of mirai ddos

attack on dyn revealed in new data. Re-

trieved from: https://www.corero.com/blog/797-

ﬁnancial-impact-of-mirai-

ddos-attack-on-dyn-revealed-

in-new-data.html.

Weisman, S. (2019). Emerging threats - what is a

distributed denial of service attack (ddos) and

what can you do about them? Retrieved

from: https://us.norton.com/internetsecurity-

emerging-threats-what-is-a-ddos-

attack-30sectech-by-norton.html.

Zarpel

ao, B. B., Miani, R. S., Kawakani, C. T., and de Al-

varenga, S. C. (2017). A survey of intrusion detection

in internet of things. Journal of Network and Com-

puter Applications, 84:25–37.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

218
