Tool Support for Risk-driven Planning of Trustworthy Smart IoT

Systems within DevOps

Andreas Thompson

and Gencer Erdogan

University of Oslo, Oslo, Norway

Software and Service Innovation, SINTEF Digital, Oslo, Norway

Keywords: Security, Privacy, Cyber-risk, DevOps, IoT, Method, Risk-driven, Planning, Tool Support, Smart Home.

Abstract: There is a serious lack of support for trustworthy smart IoT systems within DevOps. Security and privacy are

often overlooked in DevOps cultures and almost absent in the context of IoT. In this paper, we focus on the

planning stage of DevOps and propose a tool-supported method for risk-driven planning considering security

and privacy risks. Our method consists of five steps: establish context, analyse dataflow, model privacy and

security risk, develop risk assessment algorithm based on risk model, and execute risk assessment algorithm.

Our tool supports this method in the first and the last step and facilitates dynamic risk assessment based on

input provided by the user or collected from the monitoring stage into predefined risk models. The output of

the tool is a risk assessment which the end users, e.g. developers, can use as decision support to prioritize

certain parts of the target under analysis in the next cycle of DevOps. The tool and the method are evaluated

in a real-world smart home case. Our initial evaluation indicates that the approach is comprehensible for our

intended users, supports the planning stage in terms of security and privacy risk assessment, and feasible for

use in the DevOps practice.

1 INTRODUCTION

As the number of Internet-of-Things (IoT) devices

grows ever more rapidly (Gartner envisions that 21

billion IoT endpoints will be in use by 2020 (Meulen,

2017)), systems and networks become more complex,

and the need for proper security becomes important.

According to Leukert (2016), risks related to security,

trust, privacy and identity management are major

challenges in today's IoT systems. Ardagna, Damiani,

Schütte, and Stephanow (2018) reports that assessing

the quality and security risks of IoT systems however

is not a simple task, and due to services and devices

having constraints on cost, time to market and

functionality, developers of these services and devices

often disregard this assessment. Because IoT systems

typically operate in highly dynamic environments, they

need to be able to continuously evolve and adapt, to

ensure and increase their trustworthiness. The DevOps

software engineering culture and practice aims at

shorter development cycles, increased deployment

frequency and more dependable releases, which makes

for a more agile and dynamic development process.

However, according to Taivalsaari and Mikkonen

(2017), there is a serious lack of support for

trustworthy smart IoT systems in DevOps.

Since the DevOps practice is a continuous loop of

planning, developing, releasing and monitoring,

automating and streamlining the process is key. By

developing a software tool for risk assessment of the

IoT system architecture to be used in the planning stage

of DevOps, we can help ensure trustworthy execution

of IoT systems, as well as reduce manual labour in the

DevOps cycle.

The contribution of this paper is twofold. First, we

propose a method with the purpose of assisting

developers in the planning phase of DevOps with

identifying security and privacy risks. Second, we

present a web-based tool to support our method in

executing risk assessment algorithms to facilitate

dynamic risk assessment. Our tool is open source and

freely available online (Thompson, 2019).

To address the abovementioned needs and develop

artefacts that appropriately meet these needs, we define

the following success criteria and their justification.

Success Criterion 1: The tool and method must be

easy to use and comprehensible for developers.

As the main beneficiaries of this tool are

developers, the tool must be comprehensible and the

features sufficiently intuitive for developers.

742

Thompson, A. and Erdogan, G.

Tool Support for Risk-driven Planning of Trustworthy Smart IoT Systems within DevOps.

DOI: 10.5220/0009189307420753

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 742-753

ISBN: 978-989-758-399-5; ISSN: 2184-4356

Success Criterion 2: The tool-supported method

should support the planning of trustworthy smart IoT

systems in the DevOps practice in terms of security and

privacy risk assessment.

By this we mean that the tool must provide the

developers with risk levels based on the risk

assessment. This is necessary to support developers

prioritize the areas of the system that need to be treated

in order to mitigate the privacy and security risks the

system is exposed to.

Success Criterion 3: The tool and method should

be appropriate for use in the DevOps practice in terms

of adapting to new plans and flexible in response to

changes in the system.

For the tool to be efficient in a DevOps

environment, it is important that it follows the agile

paradigms. Features such as importing and exporting

information will help the iterative nature of the practice.

In Section 2, we describe our research method. In

Section 3, we describe the steps of our tool-supported

method, while in Section 4 we provide an overview of

our tool and apply our tool-supported method in a real-

world smart home case. In Section 5, we provide

related work. In Section 6, we discuss the extent to

which we have fulfilled our success criteria described

above, before concluding in Section 7.

2 RESEARCH METHOD

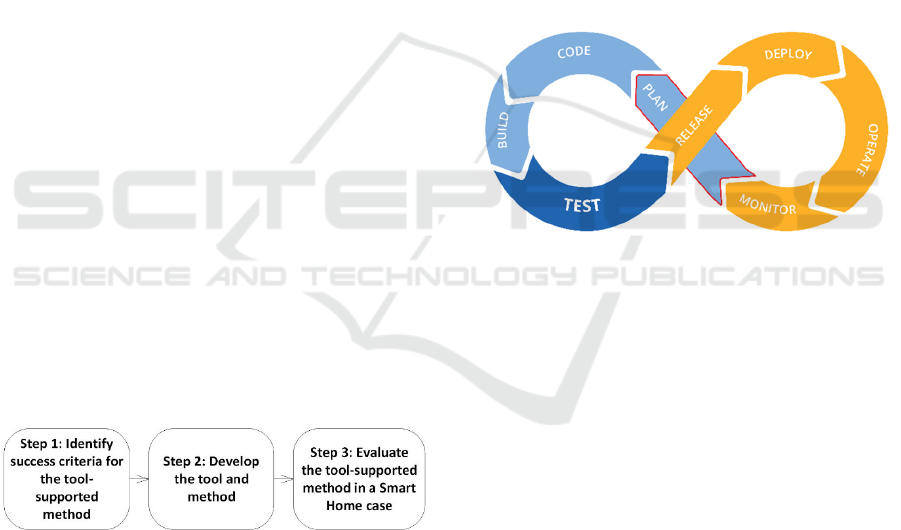

Figure 1 illustrates the steps of our research method,

which is in line with the design science approach by

Wieringa (2014). Although Figure 1 illustrates

sequential steps, the method was carried out iteratively

where some of the steps were revisited during the

process.

Figure 1: Research method.

In Step 1, we identified three success criteria which

act as requirements for our tool-supported method

based on the background and needs as explained in

Section 1.

In Step 2, we developed our tool-supported method

for risk-driven planning of trustworthy smart IoT

systems in DevOps. The method consists of five main

steps, namely: establish context, analyse data flow,

model privacy and security risk, develop risk

assessment algorithm, and finally execute risk

assessment algorithm. We also developed a tool to

support the first and the last step of our method.

In Step 3, we evaluated the tool-supported method

in a realistic smart home case study to assess the

feasibility of our approach w.r.t. our success criteria.

3 TOOL-SUPPORTED METHOD

FOR RISK-DRIVEN PLANNING

Before explaining our tool-supported method, it is

necessary to place our approach in the DevOps process.

The aim of our tool-supported method is to support

risk-driven planning in the DevOps process. As

illustrated in Figure 2, the DevOps process consists of

the following steps: planning, coding, building, testing,

release, deployment, operation and monitoring. The

process then repeats iteratively.

Figure 2: The DevOps process.

Our tool-supported method is to be used

continuously in the planning phase of the DevOps

cycle. Planning is the first step of every cycle, and the

aim is to define criteria and functionalities to be

fulfilled by the end of each phase. Planning is usually

done without the use of distinct tools in short iterations,

and teams are planning with high-level objectives in

mind.

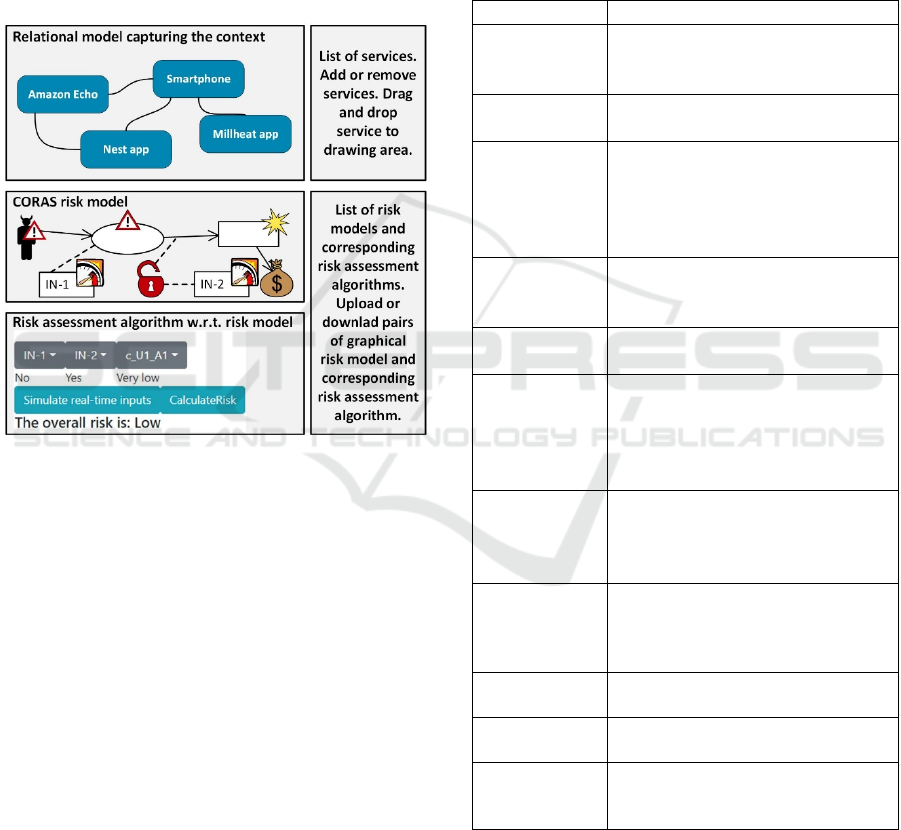

With this in mind, our tool is suitable for quick

iterations, with a high-level of abstraction. Our tool

provides a simple to use, high-level modelling

interface. Moreover, one of the main objectives of our

method is to define machine-readable risk assessment

algorithms and execute them in our tool. Once a risk

model and its corresponding risk assessment algorithm

has been developed, the risk assessment can be

executed repeatedly in our tool based on information

provided by the user or collected dynamically from the

monitoring stage. This means that once a risk model

and its corresponding risk assessment algorithm is

defined, continuous risk assessment is possible if no

updates to the system model is made. An update to the

system models means that the risk model also needs

Tool Support for Risk-driven Planning of Trustworthy Smart IoT Systems within DevOps

743

update. The output of the tool is a risk assessment,

which then is used by the developer to plan the DevOps

cycle with respect to prioritized risks. Our method

supports trustworthy planning in the sense that it

focuses on privacy and security risks, which according

to Myrbakken and Colomo-Palacios (2017) is often

overlooked in DevOps cultures and almost absent in

the context of IoT according to a recent systematic

literature review by Nguyen et al. (2019).

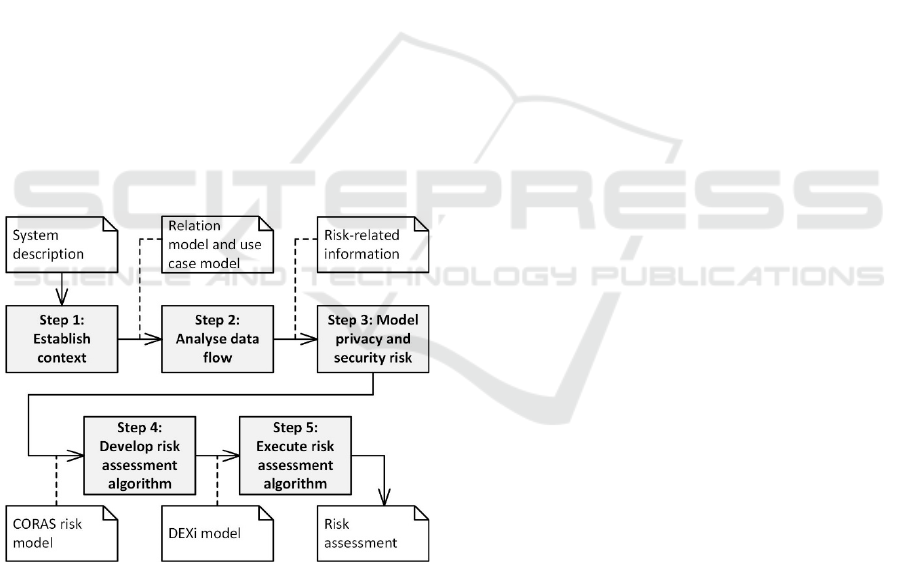

As illustrated in Figure 3, our tool-supported

method consists of five steps. In Step 1, we establish

the context following the principles of the

corresponding step in the risk management standard

ISO/IEC 27005 by ISO (2018). This step establishes

the foundation for the risk assessment that follows in

the subsequent steps of our method. Step 1 takes as

input the system description (documentation, diagrams,

expert knowledge from the system owners, etc.). Based

on the system description, we identify the services in

the (IoT) system architecture and how they

communicate. The services are first added

conceptually to the list of services in our tool, then

based on the list of services, we create a relational

model by drag-and-drop functionality from the list of

services into the drawing area of our tool, and finally

draw edges between the services representing the

communication between services.

Figure 3: Tool-supported method for risk-driven planning.

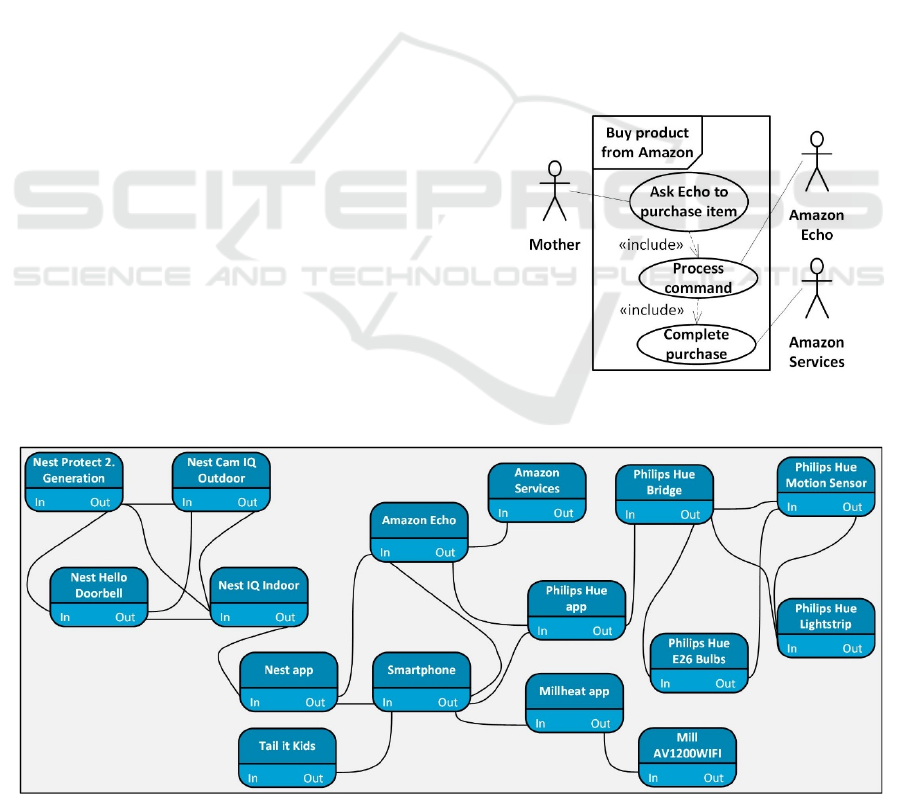

Having created the relation model, we then create

use case models based on the relation model to obtain

an overview and easier understand the relationship

between different use cases.

Finally, as part of Step 1, we also identify security

and privacy assets we are interested in protecting, as

well as scales for likelihood and consequence. The

security and privacy assets are important to identify as

part of the context establishment because the assets are

what motivates the conduction of the risk assessment

in the first place. If there are no assets to protect, then

there is also no need to conduct risk assessment. This

is true for defensive risk assessment, which is the case

of our approach. The likelihood and consequence

scales are important later in the process to estimate the

identified risks.

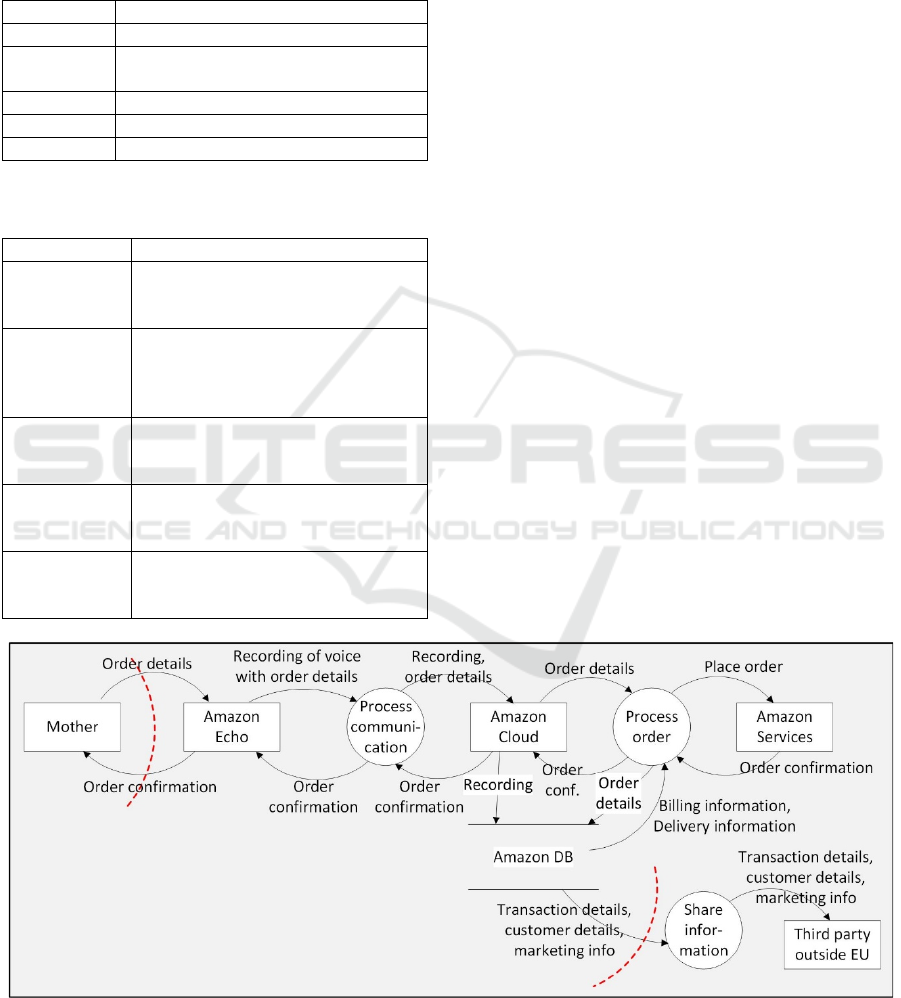

In Step 2, we use the relation models and use cases

created in Step 1 to create data flow diagrams capturing

information flow. Moreover, with the knowledge of

what information flows through the different actors

and services, we identify information regarding

potential privacy and security risks using the STRIDE

method by Microsoft. STRIDE is a lightweight and

effective methodology to identify vulnerabilities based

on Data Flow Diagrams including trust boundaries,

which can in turn be used as basis for security and

privacy risk modelling and assessment.

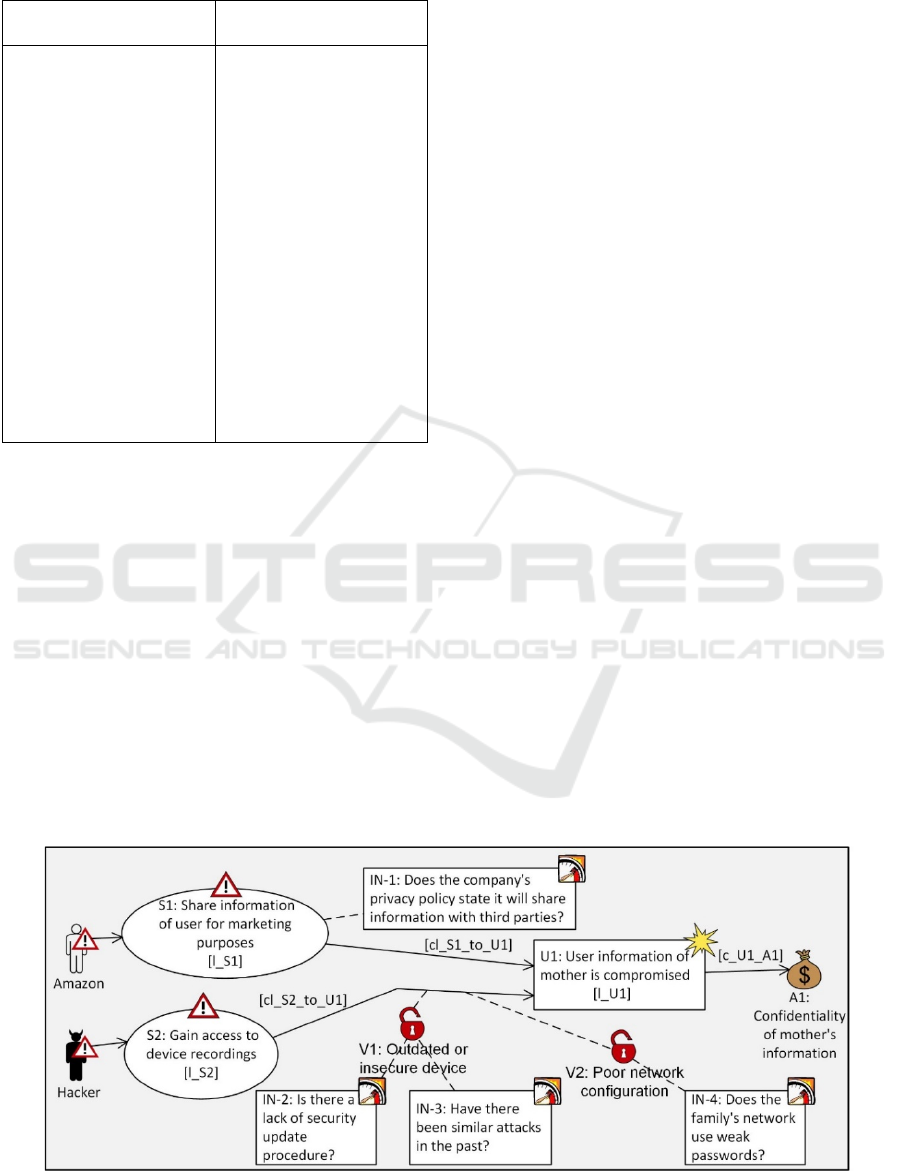

In Step 3, we use the CORAS approach by Lund,

Solhaug, and Stølen (2011) to create graphical risk

models based on the data-flow diagrams created in the

previous step in order to capture privacy and security

risks the target of analysis is exposed to.

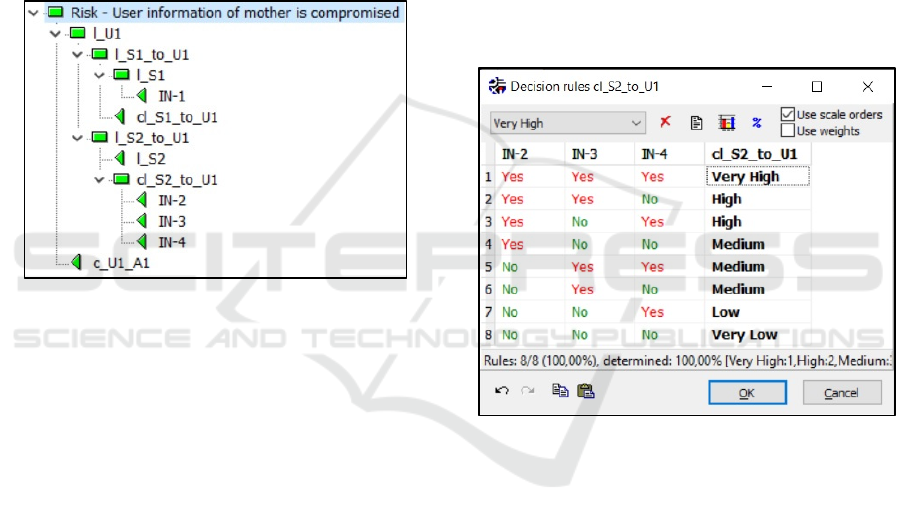

In Step 4, we schematically translate CORAS risk

models developed in Step 3 into machine-readable risk

assessment algorithms in terms of DEXi models. DEXi

is a computer program for development of multi-

criteria decision models and the evaluation of options

as described by Bohanec (2017).

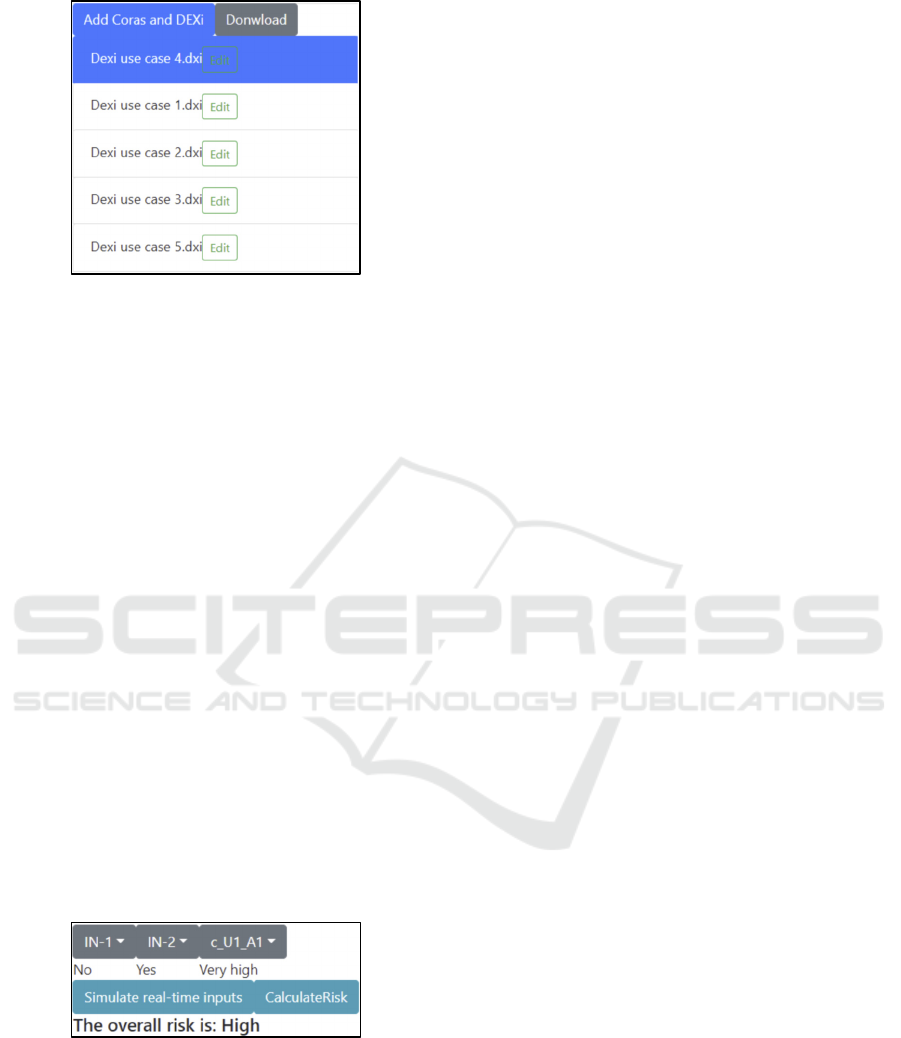

In Step 5, we execute the risk assessment

algorithms in our tool. The algorithm produces a risk

assessment in terms of risk levels based on input

provided by the user or collected from the monitoring.

4 SMART HOME CASE

In this section, we apply our tool-supported method in

a real-world smart home case. However, before

applying our approach, it is necessary to provide an

overview of the different parts of our tool.

4.1 An Overview of Our Tool

Figure 4 illustrates the main parts of our tool from a

graphical user interface perspective. The top section of

the tool has an in-browser drawing area where the end

user can draw a relational model of the target system.

For example, in Figure 4 we have illustrated a Smart

Phone that communicates with the services Amazon

Echo, Nest app and Millheat app. On the right hand-

side of the drawing area, there is a list of available

services the end user can drag and drop into the

drawing area to model the IoT system architecture

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

744

considered. The end user can also add or remove

services. The complete list of services is stored in the

back-end database for later use. This part of the tool is

mainly used in Step 1 (establish context) of our method

illustrated in Figure 3.

Having developed the relational model in the tool,

the user carries out Steps 2, 3 and 4 of our method

illustrated in Figure 3, and then returns to our tool in

Step 5. The remaining parts of the tool is dedicated to

the risk models and their corresponding risk

assessment algorithms capturing security and/or

privacy risks the system is exposed to.

Figure 4: Main parts of our tool from a GUI perspective.

The end user uses the menu on the right-hand side

to upload a pair of CORAS risk model and

corresponding risk assessment algorithm in terms of a

DEXi model. The user may upload more than one pair,

and the complete list of pairs of {CORAS risk model,

DEXi file} is stored in the back-end database for later

use. Having uploaded CORAS risk models and

corresponding risk assessment algorithms, the end-

user can select a pair to assess risks and the tool will

automatically displays the CORAS risk model in the

middle section of the tool as well as input options for

the risk assessment algorithm in the bottom section of

the tool as illustrated in Figure 4. The user is now able

to execute the risk assessment algorithm as part of Step

5 of our method by selecting values for what we refer

to as risk indicators (IN-1, IN-2, etc.). The tool then

automatically produces a risk level where the possible

risk levels are {Very Low, Low, Medium, High, Very

High}. The meaning of these risk levels is described as

part of the context establishment in Step 1 of our

method. The end user, e.g. the developer, can now use

this information to plan the next cycle of the DevOps

process considering these risk levels and prioritize

development activities.

4.2 Establish Context

Our smart home case considers a family of three living

in the outskirts of a large city. The family consists of a

mother, a father and an eight-year-old daughter.

Table 1: Devices and services required by the family.

Device Description

Tail it kids

A smart watch for kids with

functionality of tracking, phoning

and an emer

enc

SOS button.

Mill

AV1200WIFI

Smart home heater which can be

controlle

from

our smar

hone.

Amazon Echo

A smart home device which plays

music, makes calls, sets alarms,

answers questions, controls other

smart devices and can buy things

online for

ou.

Nest Cam IQ

Outdoor

High quality outdoor camera that

alerts your phone when spotting a

erson.

Nest Cam IQ

Indoo

High quality indoor camera with

spea

ers.

Nest Hello

Doorbell

Smart home doorbell which

includes a camera, a continuous

video log, and the possibility of

alerting when people arrive at the

door.

Nest Protect

2. Generation

Smart home smoke detector with

alerts of which room there is

smoke, and the possibility of

sendin

warnin

s to

hone.

Philips Hue

Bridge

A smart home bridge which allows

for scheduling of timers and

control of your lights when away

or from

our phone.

Philips Hue

E26 Bulbs

A smart light with the

ossibility

of chan

colours.

Philips Hue

htstrip

A smart light strip with the

ossibilit

of chan

colours.

Philips Hue

Motion

Senso

A motion sensor which triggers

lights when motion is detected.

The father has recently picked up an interest for smart

homes and wants a large collection of smart devices to

help automate the family's daily lives, help save money

on power, and keep their home and family members

safe.

Tool Support for Risk-driven Planning of Trustworthy Smart IoT Systems within DevOps

745

The family has different requirements with respect

to security and privacy. The mother is sceptical of

smart home technology and wants to keep the privacy

high for herself and their daughter. Privacy is not a

concern for the father, but he is more concerned about

their valuables and requires a way to watch their home

when physically not at home. Both the mother and

father own an android smart phone, which they wish to

use together with services to control their devices, and

to view their child's location and phone usage if there

should be a need for it. To achieve their goals, the

family needs a selection of devices, which come with

several services. Table 1 lists the devices and services

selected in this case.

Based on the above description and selected

devices and services, we create a relational model

using our tool to capture the high-level overview of

how these services are related and communicate.

Figure 6 illustrates the resulting relational model in

which we include all services and devices in Table 1.

Note that Smartphone, Nest app, Philips Hue app,

Millheat app and Amazon Services are added to the

model in Figure 6 for completeness (these are

implicitly part of the services in Table 1). Each node in

the relational model in Figure 6 represents a service (or

device). Each node is graphically divided in two where

the upper part of the node shows the name of the

service, and the lower part of the node shows incoming

(In) and outgoing (Out) communication from and to

other services, respectively.

Next, we describe the use cases addressing the

objectives described above. The use cases for this

smart home case are the following:

1. The dad uses his phone to check on his daughter's

location with the use of the Tail It Kids smart watch

and the Tail It app.

2. The mother uses Amazon Echo to buy a new hair

product online.

3. The family drives to cabin and are expecting a

package delivery while away. The Nest automated

doorbell detects a person at the door and alerts the

father.

4. While on the way home from the cabin trip, the

father wants to come home to a heated house.

Using the Millheat app, he turns the heater to 22

degrees Celsius.

5. When they arrive home, the Philips Hue motion

sensor senses motion and turns on their Philips Hue

lighting.

Due to space limitations we focus on Use Case 2

(buy product from Amazon) in the following sections.

Our complete smart home case study is available

online in a technical report by Thompson (2019).

Figure 5 illustrates the use case model of Use Case 2

described above, in which we include the services

captured in Figure 6. Recall that the mother is worried

about her privacy, we therefore identify

"confidentiality of mother's information" as an asset

we need to protect throughout the analysis.

Figure 5: Use case model of Use Case 2.

Figure 6: Devices and services to be used by the family.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

746

Finally, as part of the context establishment we

identify a likelihood scale (Table 2) and a consequence

scale (Table 3) for the abovementioned privacy asset.

These scales will later be used to estimate the

likelihood and consequence of risks, respectively.

Table 2: Likelihood scale.

Likelihoo

Description

Ver

h Happens more than two times a

ear.

High

Happens between once a year to

twice a

ear.

Mediu

Happens once ever

ears.

Low Happens once every 5 years.

Ver

Low Happens once ever

ears.

Table 3: Consequence scale for asset "confidentiality of

mother's information".

Consequence Description

Very High

Sensitive information regarding

health and/or beliefs is leaked or

used inappropriatel

High

Sensitive location data, or data

gathered from devices in an

automatic fashion is leaked or

used inappropriatel

Medium

Information that can be used to

identify a specific person is leaked

and/or is shared with a third part

Low

Information that can be used to

identify a specific person is used

advertisemen

Very Low

Information that can be used to

identify a specific person is

collected b

a compan

4.3 Analyse Data Flow

After performing the context establishment, we

continue with a data flow analysis to gather

information related to security and privacy. For each of

the use cases presented in the previous section, we

create a Data Flow Diagram (DFD). Moreover, we

base ourselves also on the different companies' privacy

policies in mind for their respective services as we do

not have access to proper data flow within their

systems. Some of these policies are vague and group

different types of information into a general term "your

data" or just "data" which is why the models are kept

at a high-level of abstraction.

In addition, we also create tables for each of the

DFDs in which we extract information from empirical

sources, such as privacy policy from the company

producing the service and based on that identify

information that may be of relevance for security and

privacy risks.

Figure 7 shows the DFD diagram for Use Case 2.

The mother speaks to Amazon Echo, and a recording

of the voice is sent to the Amazon Cloud to be

processed. Amazon then stores the recording,

transaction details and billing information which have

been given by the mother earlier. Transaction details,

costumer details and marketing info may then be

shared with third parties. Based on the DFD diagram,

and the identified trust boundaries, we look for security

and privacy related information that may be useful for

the next step, which is risk modelling.Table 4 shows a

table in which we have gathered security and priv acy

related information for the Amazon Echo service. This

information was gathered from sources: Privacy Policy

by Amazon (2019), Report by Wired (2018), and Paper

by Kumar et al. (2018).

Figure 7: DFD diagram for Use Case 2: The mother uses Amazon Echo to buy a new hair product online.

Tool Support for Risk-driven Planning of Trustworthy Smart IoT Systems within DevOps

747

Table 4: Security and privacy related information gathered

for Amazon Echo from different sources.

Information regarding

Privac

Information regarding

Securit

Amazon receive and

store certain types of

information whenever a

person interacts with

them. Amazon shares

user data with their

parent corporation,

Amazon.com, Inc., and

the subsidiaries it

controls, and they may

share personally

identifiable information

with third parties.

Alexa, a part of the

Amazon Echo, also has

third party “skills”, each

with their own privacy

olic

Alexa has so calle

skills, which can be used

to perform an attack

called "Skill squatting".

Another attack was

disclosed by Chinese

hackers at DefCon in

2018, where they could

remotely control an

Alexa. This attack has

been patched.

4.4 Model Privacy and Security Risk

For each of the DFD diagrams and security and privacy

related information identified in the previous step, we

create a CORAS risk model capturing potential threats,

threat scenarios, vulnerabilities, and unwanted

incidents that may harm the security/privacy assets we

need to protect. Figure 8 illustrates the CORAS risk

model created for Use Case 2 taking into account the

information captured by the DFD diagram in Figure 7

and related information in Table 4.

The CORAS risk model in Figure 8 illustrates two

potential threats. An unintentional threat (Amazon)

which may initiate threat scenario "S1: share

information of user for marketing purposes", which in

turn may lead to the unwanted incident "U1: user

information of mother is compromised". The second

threat is an intentional threat (Hacker) which may

initiate threat scenario "S2: Gain access to device

recordings", which in turn also leads to unwanted

incident U1. The hacker may exploit the vulnerabilities

"V1: outdated or insecure device" and "V2: poor

network configuration" in order to cause unwanted

incident U1. Finally, the unwanted incident U1 may

harm the asset we need to protect "A1: confidentiality

of mother's information". The reader is referred to

Lund et al. (2011) for a detailed explanation of the

CORAS semantics.

In addition, the risk model represents indicators

(IN-1, IN-2, IN-3, and IN-4). Indicators are used to

assess the likelihood and consequence of risks captured

by the risk model. An indicator may be attached to a

threat scenario or unwanted incident to help assess the

likelihood of that threat scenario or unwanted incident.

Indicators can also be attached to vulnerabilities in

order to assess the conditional likelihood going from

one threat scenario or unwanted incident to another

threat scenario or unwanted incident.

In a typical CORAS risk analysis, we provide the

estimates for likelihood, conditional likelihood, and

consequence directly in the risk model. However, in

our approach we parameterize these values which we

will use in the next step as variables in the

corresponding risk assessment algorithm. The

likelihood of threat scenarios S1 and S2 are represent-

ed by l_S1 and l_S2, respectively. The likelihood of

unwanted incident U1 is represented by l_U1. The

conditional likelihood going from S1 to U1 is

represented by cl_S1_to_U1, while the conditional

likelihood going from S2 to U1 is represented by

cl_S2_to_U1. Finally, the consequence of U1 on A1 is

represented by c_U1_A1. All these variables are used

in the next step to construct the risk assessment algo-

rithm.

Figure 8: CORAS risk model with indicators for Use Case 2.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

748

4.5 Develop Risk Assessment Algorithm

Once the CORAS risk models are completed, we

schematically translate the risk models into DEXi

models following the guidelines provided by Erdogan

and Refsdal (2017). Figure 9 represents the DEXi

model corresponding to the risk model in Figure 8.

According to (Erdogan & Refsdal, 2017), DEXi

models have attributes that are either a basic attribute

(illustrated as green triangles in Figure 9) or an

aggregate attribute (illustrated as green rectangles in

Figure 9). Basic attributes have no child attributes. This

means that a basic attribute represents an input to the

DEXi model, as its value is assigned directly, rather

than being computed from child attributes.

Figure 9: DEXi model corresponding to the risk model in

Figure 8.

Aggregate attributes are characterized by having

child attributes. The value of an aggregate attribute is a

function of the values of its child attributes. This

function is called the utility function of the attribute.

The utility function of each aggregate attribute is

defined by stating, for each possible combination of its

child attribute values, what is the corresponding value

of the aggregate attribute (illustrated in Figure 10). The

DEXi tool automatically computes the value of all

aggregate attributes as soon as values have been

assigned to the basic attributes. Hence, a DEXi model

can be viewed as an algorithm where the basic attribute

values constitute the input, and the values of the

aggregate attributes constitute the output. Our tool

provides an API that makes use of the DEXi java

library provided by Bohanec (2017) to execute DEXi

files. For example, having developed the DEXi model

in Figure 9, we upload this model to our web-based

tool which automatically creates a graphical user

interface to select input to the model as explained in

Section 4.1. Thus, we make the risk models

"executable" to the end user by letting the end user

select the input variables. Notice that for the risk

assessment values that do not have indicators attached

we define them as basic attributes. For example, the

likelihood of S2 (l_S2) has no indicators attached.

Thus, we define l_S2 as a basic attribute and let the end

user select the likelihood value (see Figure 8 and

Figure 9).

Figure 10 is a screenshot from the DEXi tool in

which we have defined the utility function for the

aggregate attribute named cl_S2_to_U1, which is the

conditional likelihood going from S2 to U1 (see Figure

8 As can be seen from Figure 10, the conditional

likelihood is assigned different values depending on

the values of the indicators. For example, if the answers

to the questions in indicators IN-2, IN-3, and IN-4

(depicted in Figure 8) are "Yes", then it is very likely

that the hacker will successfully obtain the user

information of the mother. In this case, the value for

cl_S2_to_U1 is therefore set to Very High.

Figure 10: Utility function for conditional likelihood

cl_S2_to_U1 based on indicator values IN-2, IN-3, IN-4.

4.6 Execute Risk Assessment Algorithm

Finally, having created risk assessment algorithms in

terms of DEXi models, we return to our tool and

upload the CORAS risk model together with its

corresponding DEXi model. Figure 11 is a screenshot

of our tool in which we see the feature to upload and

download a pair of CORAS risk model and

corresponding DEXi model.

Having uploaded a pair of {CORAS model, DEXi

model}, the tool generates a GUI just below the risk

model (as explained in Section 4.1) enabling the end

user to select input to the risk assessment algorithm.

Due to space limitations, we do not include a complete

screenshot showing the uploaded risk model together

with the system model created in the context

establishment step. However, all models created in the

Tool Support for Risk-driven Planning of Trustworthy Smart IoT Systems within DevOps

749

Figure 11: Screenshot of our tool showing upload/download

feature of CORAS and DEXi models.

smart home case (including all use cases described

earlier) are available online as provided by Thompson

(2019). Figure 12 illustrates only the portion of the

GUI generated after uploading a pair of {CORAS

model, DEXi model}. In this example, the risk model

has two indicators for likelihood estimation (IN-1 and

IN-2) and one indicator for consequence estimation

(c_U1_A1). We see from Figure 12 that the user has

selected "No" for IN-1, "Yes" for indicator IN-2, and

"Very High" as consequence value c_U1_A1. Beneath

the indicator values, we see a button to calculate risk

based on the provided values, which when pressed

calculates the risk based on the provided values and (in

this example) returns the text "The overall risk is:

High". This risk value is dynamically calculated when

changing the selectable values (IN-1, IN-2, and

c_U1_A1). The button "Simulate real-time inputs" is

added as a proof-of-concept showing that the tool

facilitates the possibility to assess risks automatically

based on input obtained from external sources (such as

monitoring data). In other words, it demonstrates the

capability of the tool's API for dynamically executing

algorithms and that this can be easily integrated in

other software systems.

Figure 12: Screenshot of our tool showing the execution of a

risk assessment algorithm based on selected values.

As mentioned in Section 4.1, having uploaded the

CORAS/DEXi risk models, we obtain a complete

overview of the relations between the services in the

first part of the tool, alongside a depiction of the

appropriate risk models and their input variables in the

second part of the tool.

Using the tool, we may select which risk model we

wish to use for calculations, and then either manually

provide input for the risk algorithms, or use the tool to

automate the process by monitoring variables and feed

the risk assessment algorithm via the tool's API. In

relation to our smart home case, the latter results in an

automated risk analysis of the system based on the

devices/services being monitored in the family's home.

5 RELATED WORK

For state-of-the-art tool support for risk-driven

planning of IoT devices and services, the choices are

limited. There have been a lot of research on decision

support systems (DSS) in general such as Zeleny

(1998) and Bi, Da Xu, and Wang (2014).

Gupta et al. (2015) present an analysis of the state-

of-the-art in decision support systems, and critical

shortcomings in the existing tools. While not all their

work is relevant to this paper, the research is valuable

to us. Currently there does not exist any clear

mechanisms to collect data about different

characteristics of available IoT devices and services,

while ensuring trustworthiness and up-to-datedness.

There is also a lack of tools to help users link the

characteristics of IoT devices and services with the

actual risks for their applications or infrastructures.

When it comes to tools, there are many available

for use in the DevOps practice. For the different stages

there are different tools. Popular ones are Jenkins

(2019) or Maven (2019) for testing and NewRelic

(2019) for monitoring. These tools are valued as

automation; monitoring and continuity are key in the

DevOps practice.

The planning phase does not have a lot of dedicated

tools, there exists a few such as Jira (2019), but teams

often utilize backlogs and Kanban boards to better gain

an overview of what needs to be done when as reported

by Hüttermann (2012) and Kim, Humble, Debois, and

Willis (2016). Overall, there is a lack of tool-support

for risk-driven planning in DevOps and almost absent

in the context of IoT as reported in a comprehensive

systematic literature review by Nguyen et al. (2019).

There also exists general privacy and security risk

management tools such as RiskWatch (2019) and

ISRAM by Karabacak and Sogukpinar (2005).

However, while these tools are quantitative in terms of

risk assessment, our tool produces qualitative risk

assessment. Moreover, our approach to construct risk

assessment algorithms is based on the approach

reported by Erdogan and Refsdal (2017). However,

while they aim at creating risk assessment algorithms

only to be executed inside a software not reachable by

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

750

the end user, we bring the risk assessment algorithm to

the end user by providing the option of manually

selecting risk-indicator values via our web-based tool

and apply it in the context of DevOps. In addition, we

provide the option of executing the risk assessment

algorithm via the API of our tool (Thompson (2019)).

In addition, our approach is different from the

approaches above in the sense that we provide a tool to

support the agile nature of DevOps and to automate

risk estimation (once risk models have been created) as

part of risk-driven planning for trustworthy smart IoT

systems.

6 DISCUSSION

In this section, we discuss the extent to which we have

fulfilled our success criteria described in Section 1.

6.1 Fulfilment of Success Criterion 1

The first criterion states: The tool and method must be

easy to use and comprehensible for developers.

The first module of our tool is the modelling tool.

This module is used for context establishment, where

the user creates system diagrams to depict the services

and devices to be used (or that are already in use) in a

given IoT system. The modelling is fairly straight

forward and resembles many other popular modelling

languages such as UML class diagrams. Developers

often have experience with UML, and it is therefore

reasonable to argue that the modelling section of our

tool is easy to use and comprehensible by developers.

According to Xie, Lipford, and Chu (2011),

developers often need to consider security when

developing software. For capturing risk models, we

chose CORAS because as reported by Solhaug and

Stølen (2013), it has been empirically shown that the

CORAS language is intuitively simple for stakeholders

with different backgrounds. We may therefore argue

that the risk-model section of the tool is reasonably

easy to understand by developers. CORAS is also

based on the international standards like ISO 27005

and ISO 31000. Moreover, Xie et al. (2011) report that

as part of development activities, developers often use

concepts such as threat, unwanted incident,

vulnerability and risk.

The design of the tool is made such that roughly

half the screen is to be used for modelling of the IoT

system, while the bottom half is for depicting the

CORAS models and executing their respective DEXi

algorithms (as illustrated in Figure 4). This design

follows the design of the method, in that the user starts

by using the tool to design the IoT system, then later

uses the tool again to visualize the CORAS diagrams,

and then execute the risk assessment algorithms

defined in DEXi corresponding to the CORAS models.

This helps making the tool pedagogical and easy to use.

According to Bohanec, Žnidaršič, Rajkovič, Bratko,

and Zupan (2013), DEXi has also been designed to

produce models that are comprehensible to end users.

6.2 Fulfilment of Success Criterion 2

The second criterion states: The tool-supported method

should support the planning of trustworthy smart IoT

systems in the DevOps practice in terms of security and

privacy risk assessment.

Our tool-supported method is constructed to fit

within the DevOps planning phase, and with security

and privacy risk assessment in mind. The planning

phase of DevOps is the first activity of the DevOps

cycle. This first step either has initial input from

developers/domain experts (when first starting the

DevOps process) or receives additional input from the

final monitoring step of the cycle. The input for this

step is therefore either initial input from

developers/domain experts as part of initiating the

DevOps process, or additional input from the

monitoring. The planning phase must however output

something of value to the next step; coding. Figure 2

illustrates the DevOps process. As our tool and method

may receive risk assessment values from the

monitoring, and supports changes based on this input,

we may argue that our tool and method satisfy the first

criterion of the planning phase. Moreover, our tool and

method produce risk values as an output, which may

be used in the next step (coding) as to help decide what

areas need to be worked on and treated regarding

privacy and security risks.

Automation, measurements, and tools are key

points in the DevOps practice. There exist many tools

for DevOps users to use for the different steps of the

cycle. Typical tools are Git (2019) for code

management, Gradle (2019) or Maven (2019) for build

automation, Jenkins (2019) for automation of building,

testing and deployment/release, and Nagios (2019) for

monitoring. While these tools are powerful and greatly

help the steps mentioned, there is a serious lack of tool

support for the planning phase as reported by Nguyen

et al. (2019). We mentioned Jira (2019) as a popular

planning tool, but other than this there are few popular

planning tools. By building a tool to suit planning in

DevOps for privacy and security risk assessment, we

aim to fill this gap.

Since our tool has an API for input and execution

of our DEXi risk assessment algorithms, we facilitate

automatic and dynamic risk assessment. This can be

Tool Support for Risk-driven Planning of Trustworthy Smart IoT Systems within DevOps

751

seen in the tool by clicking on the "Simulate real-time"

button (as illustrated in Figure 12), where the front-end

makes frequent API calls to the back-end to simulate

input from monitors. Thus, by using the DEXi API

provided by our tool and feeding the risk model

algorithms with risk-indicator values from a running

system, it is possible to support automatic real-time

risk assessment.

6.3 Fulfilment of Success Criterion 3

The third criterion states: The tool and method should

be appropriate for use in the DevOps practice in terms

of adapting to new plans and flexible in response to

changes in the system.

We can argue that due to the flexible nature of the

method, it is appropriate to use within the agile

DevOps planning phase. If there are changes made to

the system regarding architecture after risk diagrams

and risk assessment have been created, it is possible to

create new risk models and algorithms or update

existing ones ready to be executed.

Our tool and method support modular modelling.

The user may focus on small parts of the system,

creating smaller system diagrams (example provided

in Figure 6), specific risk models for the given context,

and risk assessment algorithms. This allows for the

possibility of assessing risk with regards to specific

parts of a system. It also allows for flexibility when

making changes to the system, as not all parts depend

on each other. On the other hand, one may also create

large system diagrams, encapsulating larger parts of

the system. This may be helpful if we want to create a

risk picture of a larger part of the system. One may then

also create large CORAS diagrams, which results in

fewer but larger risk assessment diagrams. Because of

the possibility of creating either small diagrams and

algorithms, large diagrams and algorithms, or a

combination of large and small diagrams and

algorithms, we may argue that the tool and method is

flexible in response to changes to the system.

7 CONCLUSION

In general, there is a serious lack of support for

trustworthy smart IoT systems within DevOps. In

addition, there are only a few tools aimed at the

planning phase of DevOps. To the best of our

knowledge, there is no tool support specifically for

risk-driven planning with focus on security and privacy

risks. To fill this gap, we propose a tool-supported and

risk-driven method for planning in DevOps

considering security and privacy risk.

We have applied our tool-supported method in a

real-world smart home case. Our initial results indicate

that the approach is easy to use and comprehensible for

developers, supports the planning of trustworthy smart

IoT systems in the DevOps practice in terms of security

and privacy risk assessment, and is appropriate for use

in the DevOps practice in terms of adapting to new

plans and flexible in response to changes in the system.

The tool supported method has, at the time of

writing, been carried out in its entirety by the authors.

This was a deliberate first-hand evaluation as part of

developing our approach to investigate its applicability

and feasibility. However, this is also a threat to validity

as it has not yet been tried out by potential users other

than the authors. These aspects need therefore to be

addressed in future work as case studies and

experiments.

On the positive side, however, we know that

CORAS has been tried out in practice in sharp

industrial cases as reported by Lund et al. (2011). The

DEXi tool has also been tried out in industrial cases as

reported by Bohanec et al. (2013) and Bohanec (2017).

The STRIDE method by Microsoft (2019) including

DFD diagrams is one of the most popular approaches

in identifying cyber risks with respect to data flow.

Finally, the schematic translation of CORAS risk

models to risk assessment algorithms in terms of DEXi

models have been tried out in full-scale industrial pilots

in the EU projects WISER and CYBERWISER.eu

(2019). In other words, the different parts of our tool-

supported method have been thoroughly tried out

individually in real-life industrial settings, which in

turn supports the feasibility and applicability of our

method.

Nevertheless, considering the serious lack of tools

and approaches for planning within DevOps with focus

on security and privacy risks, we believe our approach

is one step towards the right direction in addressing this

need and interesting for the Security/DevOps

community.

ACKNOWLEDGEMENTS

This work has been conducted as part of the

CYBERWISER.eu project (786668) as well as the

ENACT project (780351) funded by the European

Commission within the Horizon 2020 research and

innovation programme.

ICISSP 2020 - 6th International Conference on Information Systems Security and Privacy

752

REFERENCES

Amazon. (2019). Amazon Privacy Notice. Retrieved from

https://www.amazon.co.uk/gp/help/customer/display.ht

ml/ref=gss?nodeId=502584

Ardagna, C. A., Damiani, E., Schütte, J., & Stephanow, P.

(2018). A case for IoT security assurance. In Internet of

Everything (pp. 175-192): Springer.

Bi, Z., Da Xu, L., & Wang, C. (2014). Internet of things for

enterprise systems of modern manufacturing. IEEE

Transactions on industrial informatics, 10(2), 1537-

1546.

Bohanec, M. (2017). DEXi: A Program for Multi-Attribute

Decision Making. Retrieved from

https://kt.ijs.si/MarkoBohanec/dexi.html

Bohanec, M., Žnidaršič, M., Rajkovič, V., Bratko, I., &

Zupan, B. (2013). DEX methodology: three decades of

qualitative multi-attribute modeling. Informatica, 37(1).

CYBERWISER.eu. (2019). CYBERWISER.eu - Cyber

Range & Capacity Building in Cybersecurity. Retrieved

from https://www.cyberwiser.eu/

Erdogan, G., & Refsdal, A. (2017). A method for developing

qualitative security risk assessment algorithms. Paper

presented at the International Conference on Risks and

Security of Internet and Systems (CRiSIS'17).

Git. (2019). Git. Retrieved from https://git-scm.com/

Gradle. (2019). Gradle. Retrieved from https://gradle.org/

Gupta, S., Muntes-Mulero, V., Matthews, P., Dominiak, J.,

Omerovic, A., Aranda, J., & Seycek, S. (2015). Risk-

driven framework for decision support in cloud service

selection. Paper presented at the 15th IEEE/ACM

International Symposium on Cluster, Cloud and Grid

Computing (CCGrid'15).

Hüttermann, M. (2012). DevOps for developers: Apress.

ISO. (2018). ISO/IEC 27005:2018(en) Information

technology — Security techniques — Information

security risk management. In.

Jenkins. (2019). Jenkins. Retrieved from https://jenkins.io/

Jira. (2019). Atlassian Jira. Retrieved from

https://www.atlassian.com/

Karabacak, B., & Sogukpinar, I. (2005). ISRAM:

information security risk analysis method. Computers &

Security, 24(2), 147-159.

Kim, G., Humble, J., Debois, P., & Willis, J. (2016). The

DevOps Handbook:: How to Create World-Class Agility,

Reliability, and Security in Technology Organizations:

IT Revolution.

Kumar, D., Paccagnella, R., Murley, P., Hennenfent, E.,

Mason, J., Bates, A., & Bailey, M. (2018). Skill squatting

attacks on Amazon Alexa. Paper presented at the 27th

USENIX Security Symposium (USENIX'18).

Leukert, B. (2016). IoT 2020: Smart and secure IoT platform.

Retrieved from

http://www.iec.ch/whitepaper/pdf/iecWP-loT2020-

LR.pdf

Lund, M. S., Solhaug, B., & Stølen, K. (2011). Model-Driven

Risk Analysis - The CORAS Approach: Springer-Verlag

Berlin Heidelberg.

Maven. (2019). Apache Maven Project. Retrieved from

https://maven.apache.org/

Meulen, R. v. d. (2017). Retrieved from

http://www.gartner.com/newsroom/id/3598917

Microsoft. (2019). Microsoft Threat Modeling. Retrieved

from https://www.microsoft.com/en-

us/securityengineering/sdl/threatmodeling

Myrbakken, H., & Colomo-Palacios, R. (2017). DevSecOps:

a multivocal literature review. Paper presented at the

17th International Conference on Software Process

Improvement and Capability Determination (SPICE'17).

Nagios. (2019). Nagios. Retrieved from

https://www.nagios.org/

NewRelic. (2019). New Relic. Retrieved from

https://newrelic.com/

Nguyen, P., Ferry, N., Erdogan, G., Song, H., Lavirotte, S.,

Tigli, J.-Y., & Solberg, A. (2019). Advances in

deployment and orchestration approaches for iot-a

systematic review. Paper presented at the 2019 IEEE

International Congress on Internet of Things (ICIOT'19).

RiskWatch. (2019). RiskWatch. Retrieved from

https://riskwatch.com/

Solhaug, B., & Stølen, K. (2013). The CORAS Language-

Why it is designed the way it is. Paper presented at the

11th International Conference on Structural Safety and

Reliability (ICOSSAR’13).

Taivalsaari, A., & Mikkonen, T. (2017). A roadmap to the

programmable world: software challenges in the IoT era.

IEEE Software, 34(1), 72-80.

Thompson, A. (2019). Tool-support for risk-driven planning:

risk-tool-frontend and risk-tool-backend. Retrieved from

https://github.com/ribako/risk-tool-frontend

Wieringa, R. J. (2014). Design science methodology for

information systems and software engineering: Springer.

Wired. (2018). Hackers Found a (Not-So-Easy) Way to Make

the Amazon Echo a Spy Bug. Retrieved from

https://www.wired.com/story/hackers-turn-amazon-

echo-into-spy-bug/

Xie, J., Lipford, H. R., & Chu, B. (2011). Why do

programmers make security errors? Paper presented at

the 2011 IEEE symposium on visual languages and

human-centric computing (VL/HCC).

Zeleny, M. (1998). Multiple criteria decision making: eight

concepts of optimality. Human Systems Management,

17(2), 97-107.

Tool Support for Risk-driven Planning of Trustworthy Smart IoT Systems within DevOps

753
