Aware and Intelligent Infrastructure for Action Intention Recognition of

Cars and Bicycles

Cristofer Englund

1,2

Center for Applied Intelligent Systems Research (CAISR), Halmstad University, SE 30118 Halmstad, Sweden

RISE Research Institutes of Sweden, Mobility and Systems, Humanized Autonomy, Lindholmspiren 3A,

SE 41756 Goteborg, Sweden

Keywords:

Intention Recognition, Random Forest, Data Mining, Trafﬁc Behavior Modelling, Variable Selection, Aware

Systems.

Abstract:

Action intention recognition is becoming increasingly important in the road vehicle automation domain. Au-

tonomous vehicles must be aware of their surroundings if we are to build safe and efﬁcient transport systems.

This paper explores methods for predicting the action intentions of road users based on an aware and intelli-

gent 3D camera-based sensor system. The collected data contains trajectories of two different scenarios. The

ﬁrst one includes bicyclists and the second cars that are driving in a road approaching an intersection where

they are either turning or continuing straight. The data acquisition system is used to collect trajectories of the

road users that are used as input for models trained to predict the action intention of the road users.

1 INTRODUCTION

Trafﬁc accidents have become one of the most com-

mon causes of death among young people (World

Health Organization (WHO), 2015). Although fa-

talities have decreased for motorists in most coun-

tries, this is not the case for vulnerable road users

(VRUs), (Niska and Eriksson, 2013) including pedes-

trians, bicyclists and moped riders. With the trend

towards increased vehicle automation, there is a large

potential for reducing the effects of an accident, or, if

possible, avoiding the accident completely. This can

be done by building sensor-based safety systems that

can detect vehicles and VRUs and give warnings or

actively react on the information. The practical use of

an aware and intelligent infrastructure system as pro-

posed in this work is to enhance the performance of

connected and automated vehicles in cooperative in-

telligent transportation systems (C-ITS). With support

from wireless communication, the system allows fu-

ture connected and automated vehicles to receive col-

lision warnings about approaching vehicles or VRUs

from the infrastructure-based sensor system well in

advance to enable better planning and foremost, avoid

accidents.

Enabling the development of such systems re-

quires knowledge on how road users behave, and how

that behavior can be described so that the automated

vehicle functions can make correct interpretations and

decisions. Another possible outcome of this research

is insights on how vehicles should be programmed

to be interpretable by other road users. This work

focuses on data mining for action intention recogni-

tion of bicycles and cars using trajectories of road

users captured with a 3D camera-based data acqui-

sition system mounted in the infrastructure. Further-

more, the focus is also to ﬁnd the input variables that

enable high accuracy modeling performance.

2 RELATED WORK

Previous work on data driven methods for predict-

ing future events of road users include (Lidstr

om and

Larsson, 2009) where the authors propose an artiﬁcial

potential ﬁeld approach to predict driver intentions

based on vehicle speed and location along with trafﬁc

light status. Lidstr

om and Larsson also elaborate on

using particle ﬁlters (Lidstrom and Larsson, 2008) to

predict the driver intentions. In both approaches they

use Vehicle-to-Vehicle communication to collect data

from cars maneuvering in an intersection, turning ei-

ther left or right. In a recent study (Muhammad and

Astrand, 2018) bicycle and car trajectories indicating

a vehicle driving straight or turning are used to train

a binary classiﬁer based on particle ﬁlters to separate

Englund, C.

Aware and Intelligent Infrastructure for Action Intention Recognition of Cars and Bicycles.

DOI: 10.5220/0009316002810288

In Proceedings of the 6th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2020), pages 281-288

ISBN: 978-989-758-419-0

281

the two different behaviors. In (Doshi and Trivedi,

2009) the authors explore the possibility of including

features indicating the drivers visual search prior to

maneuver i.e. head pose and eye gaze to predict driver

behavior. The results indicate that these features im-

prove driver attention and behavior estimation, as well

as intent prediction. The research group further pro-

poses to use a Bayesian extension to a support vec-

tor machine (SVM), known as a relevance vector ma-

chine (RVM) to detect lane following and lane change

behavior (Morris et al., 2011). The classiﬁer uses ap-

proximately 500 input signals from e.g. the vehicle

CAN bus, tracked objects from the on-board radar and

parameters from a driver monitoring system capable

of tracking head motions. These methods however

require detailed information from the vehicles (Doshi

and Trivedi, 2009). In (Lidstr

om and Larsson, 2009)

advanced technologies from infrastructure are needed

and in (Morris et al., 2011) information from the ob-

served vehicles is needed. Our approach, however,

only needs the positions of the observed road users.

Deep learning, as presented in (Alahi et al., 2016),

show that using Long Short-Term Memory for pre-

dicting human-human interactions and their future

trajectories is highly effective. Based on 3.2 s of

video data of a pedestrian, this system provides a

heat map of possible trajectories for the next 4.8 s.

In (Dominguez-Sanchez et al., 2017), an end-to-end

pedestrian intention prediction system is proposed

based on a Convolutional Neural Network (CNN).

This approach uses the video data alone to extract

the current movement direction of the pedestrians. In

a previous study, based on data from the Joint At-

tention in Autonomous Driving (JAAD) data set, ex-

tensive examination of data driven approaches was

performed for feature extraction and classiﬁcation to

predict intentions of pedestrians (Varytimidis et al.,

2018). The task was to predict whether the pedestri-

ans were to cross a street or not. Combining a CNN

as a feature extractor and a support vector machine

as classiﬁer yielded the best performance. In (Fang

and L

opez, 2019) a monocular camera is used as in-

put to a CNN used for human pose estimation and

intention recognition for VRUs. The JAAD data set

was used for pedestrian intention recognition, and a

new video data set was created for cyclists. The cy-

clists used their arm to indicate their intention and the

CNN was trained to detect their intention. In a recent

study (Mohammed et al., 2019) ﬁxed cameras were

used to capture bicyclist behavior with the purpose to

improve trafﬁc microsimulation models. The study

focuses on following and overtaking behavior and the

data used for the analysis come from bicycle trajec-

tories including position coordinates of the bicycle,

object size and speed.

In (Walker et al., 2014) a framework for visual

prediction on static scenes from video data is pre-

sented. The framework is based on representative and

discriminative mid-level elements and combines a vi-

sual representation with a decision theoretic frame-

work. The framework can predict how vehicles will

move in a possible future given that all other objects

in the scene remain stationary. In (M

ınguez et al.,

2018), balanced Gaussian process dynamical models

are used to build action recognition models of pedes-

trian activities i.e. walking, stopping, starting, and

standing. The model is capable of predicting actions

1 s in advance with high accuracy.

Equipping all vehicles with connected satellite

navigation receivers, such as Global Positioning Sys-

tem (GPS) devices, could be used to capture the tra-

jectories as suggested in (Herrera et al., 2010) (Carli

et al., 2015). However, to obtain high accuracy posi-

tions an additional correction signal is required such

as differential GPS or Real Time Kinematics (RTK)

GPS. Relying on the self-reported GPS-positions, re-

quires that all vehicles are equipped and connected.

With an intelligent and aware Infrastructure-based

data acquisition system, the behavior of all vehicles

can be captured.

This paper explores different classiﬁers for build-

ing aware and intelligent infrastructure capable of rec-

ognizing actions and intentions of cars and bicycles.

The proposed models take a few positions along with

speed and heading samples to predict the road users’

intention to go either straight or turn at an upcoming

intersection. In addition, by using a data mining ap-

proach, the paper explores which input variables con-

tribute the most to the correct classiﬁcation. Certain

subsets of variables, compared to using all available

variables, are found that improve the performance of

the two models.

The contribution of this paper is twofold, a com-

parison between four well known classiﬁcation meth-

ods is made where the models make use of a limited

number of historical samples to predict the road users’

intention. Secondly, the paper extracts a subset of

variables that improves the classiﬁcation performance

for the car and bicycle models.

The rest of the paper is organized as follows, Sec-

tion 3 describes the data used. Section 4 describes

the methodology used for the proposed approach and

Section 5 presents the experimental investigations.

Finally, Section 6 concludes the work and presents

future research directions.

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

282

3 DATA

The data used in this study is collected with a com-

mercial 3D camera data acquisition system with low

visual light capabilities (OTUS3D

) with built-in ob-

ject detection and trajectory estimation. The stereo

base for the two cameras is 50 cm and the ﬁeld of

view is 95

◦

. The system is mounted in the infrastruc-

ture at an elevated position in a streetlight post to give

an overview of the observed areas. The two available

data sets consist of trajectories of bicycles or cars cap-

tured in real trafﬁc. The bicycle data is collected at a

bicycle path with a turn off. The car data is collected

at an urban road section with an intersection. The ve-

hicles (bicycles and cars) are either going straight on

the road or turning off the road. There are in total

134 trajectories with bicycles, whereof 70 are turning.

There are in total 217 trajectories with cars, whereof

22 are turning. In all the scenes, there is only one

road user present. Instead of pre-processing the data

Table 1: Description of Variables Captured by the 3D Cam-

era Data Acquisition System.

Variable Description

Longitudinal position (m)

Lateral position (m)

t Time (timestamp)

v Speed from camera system (m/s)

v Estimated speed from p

, p

, t (m/s)

h Heading (degree)

by, for example, calculating any modes of the signals,

the input vectors in this paper consists of only the raw

data, described in Table 1, forming n multivariate time

series vectors x ∈ ℜ

, where m is the number of vari-

ables. The data is collected with a ﬁxed sampling rate

(4 Hz).

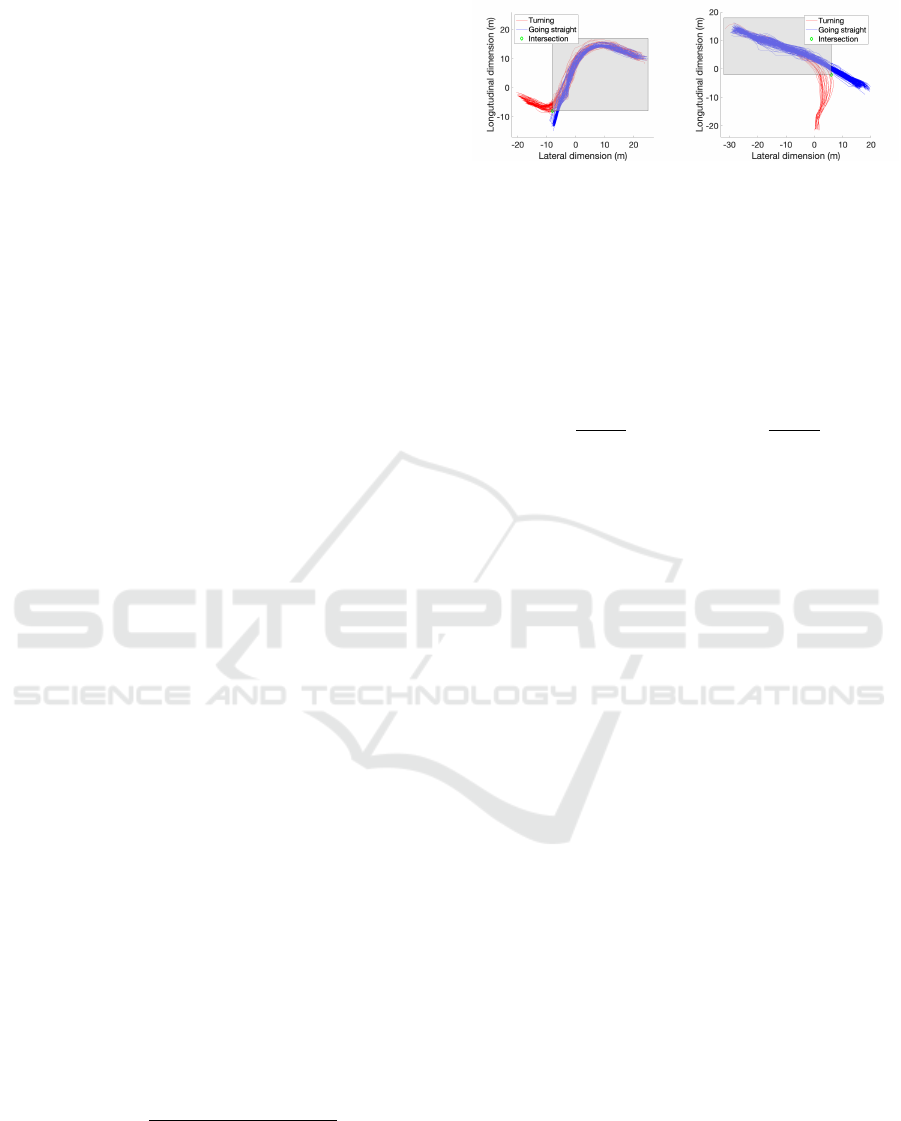

Each vector is extracted from the trajecto-

ries in Fig. 1 and is a sliding window includ-

ing the variables p

(t), p

(t − 1), p

(t − 2), ..., p

(t −

T ), p

(t), p

(t − 1), p

(t − 2), ..., p

(t − T ), v(t), v(t −

1), v(t −2), ..., v(t − T),

v(t),

v(t − 1),

v(t − 2), ...,

v(t −

T ), h(t), h(t − 1), h(t − 2), ..., h(t − T ). Where t is the

time and T is the number of previous samples to use.

In this work ﬁve different variables are used and for

each variable the time stamps t, t − 1,t − 2,t − 3, t − 4

i.e. T=4 are used, which will result in m = 25. For

each input vector x

the associated output y

indicates

whether the vehicle is turning or not in the upcoming

exit. Thus, all vectors that come from a trajectory that

describe a turning vehicle have y=0, and vehicles that

go straight have y=1.

https://viscando.com/

4 PROPOSED APPROACH

The proposed approach is motivated by the fast de-

velopment of autonomous vehicular transport sys-

tems. To improve safety, vehicle awareness of their

surroundings is of utmost importance. The vehicles

themselves have perception sensors capable of detect-

ing obstacles and other road users. Combined with the

additional sensor systems in a connected infrastruc-

ture, as in this research, it may be possible to provide

additional valuable information about complex trafﬁc

situations such as intersections.

In this work the data is collected using a ﬁxed

camera system mounted in the infrastructure. The aim

is to understand what the most relevant variables are

for predicting intentions, regardless of how the data

is collected. Trafﬁc behavior is highly dynamic and

there is often only limited time available for detec-

tion, monitoring and decision making. Typically, it is

difﬁcult to obtain a clear line of sight for long time

periods, particularly if the sensor is placed on a vehi-

cle (instead of in the infrastructure). The models in

this study use short time series, 5 samples that cor-

responds to 1.25 s, to predict if the bicycle or car

will turn at the upcoming exit. The description of the

method to extract which variables, and how many pre-

vious time stamps are needed to make accurate pre-

dictions, is presented in the next section.

This section describes the four classiﬁcation meth-

ods that are compared while predicting the driver’s

intended actions. The tool used for classiﬁcation is

Matlab. The ﬁrst model is a plain linear classiﬁcation

model (LM) (Hastie et al., 2009) y = Xw +ε, where y

is the predicted output, w is the model weights found

with least squares, and X is the input variables, see

Section 3, and ε is the vector of random errors as-

sumed to be identically distributed with zero mean

and unknown variances. The second model is a multi-

layer perceptron neural network (NN) (Bishop, 1995),

trained using the Bayesian regularization backpropa-

gation training rule in Matlab. The third model is a

support vector machine (SVM) (Vapnik, 1998), using

a radial basis function (RBF) as a kernel. The fourth

model is a random forest (RF) (Breiman, 2001) con-

sisting of 100 trees trained to full depth and a majority

vote is used to obtain the ﬁnal output of the RF. De-

tails of the classiﬁers are presented in the next Sec-

tion.

It should be noted that the model is not predict-

ing the next action as described in the literature re-

viewed in Section 2 but rather, what action the vehicle

will take at the upcoming exit. Depending on where

the sample is collected the distance to the intersection

varies.

Aware and Intelligent Infrastructure for Action Intention Recognition of Cars and Bicycles

283

4.1 Classiﬁer Conﬁguration

All hyper-parameters of the models are found experi-

mentally. The network conﬁguration for the NN that

yielded the best performance was a one hidden layer

perceptron with 3 hidden nodes, a Symmetric sigmoid

transfer function was used in the hidden layer and a

Logarithmic sigmoid transfer function in the output

layer. The network is trained for 50 epochs. The SVM

with the RBF function use σ=0.8 and the parameter

C, which controls the trade-off between the training

error and the rigid margins allowing some miss clas-

siﬁcations, is set to 0.1. In a RF each tree is trained

using data selected using random sampling with re-

placement (bootstrapping) resulting in that approxi-

mately one-third of the data is left out. For each tree

k, the data that is not used for training, the out-of-bag

(OOB) data, is used to estimate the generalization per-

formance and variable importance (Breiman, 2001).

Initially 25 input signals are used for the model-

ing task. For the variables p

, p

, v,

v, h the time in-

stances at t, t − 1, t − 2, t − 3 and t − 4 are used to

predict if the vehicle will make a turn or go straight in

the upcoming intersection. For the bike data set there

are 5640 samples generated from the 135 trajectories;

2451 samples in the turning class and 3189 in the go-

ing straight class. For the car data there are 2593 sam-

ples generated from the 217 trajectories; 388 in the

turning class and 2205 in the going straight class. A

model trained with an unbalanced data set, however,

may favor the majority class, which in this case is not

desirable. Therefore the data is balanced resulting in

2451 samples in each of the bicycle classes and 388

samples in each of the car classes. Data from posi-

tions after the vehicles have turned at the turn off are

not considered. The data used is visualized in Fig. 1.

In this work, the models are built using ﬁve-fold cross

validation and throughout this paper the result pre-

sented is the mean of the ﬁve models.

For model evaluation, four different metrics are

used: (i) the mean classiﬁcation error rate is used to

ﬁnd model parameters and for variable selection; (ii)

distance to the intersection is used to benchmark the

models and to understand how early the models can

predict whether the bicycle or car is turning or not.

For each sample, the distance is approximated with

the Euclidean distance d

to the intersection, as shown

in Eq. 1

− p

)

+ (p

− p

)

, (1)

where o indicates the coordinate of the intersection

and i is the coordinate of the current sample. In Fig. 1

the lower left corner of the gray box (-8,-8) is the point

for the intersection used in the bicycle dataset and the

(a) Bicycle Trajectories. (b) Car Trajectories.

Figure 1: The Highlighted Area Limited by the Solid Line

Indicate the Regions from Where Data Is Used for Training

and Testing the Models.

lower right corner (-6,2) is the intersection point for

the car data set. These points are from hereon called

the intersection; (iii) true positives (TP), true nega-

tives (TN), false positives (FP) and false negatives

(FN) are used to illustrate the performance and; (iv)

ﬁnally, to allow comparison between models, the pre-

cision PR =

T P

T P+FP

and recall RE =

T P

T P+FN

are used.

4.2 Variable Selection

Initially the 25 input signals described above are used

to build the classiﬁers, ﬁve variables with ﬁve samples

t,t − 1, t − 2, t − 3 and t − 4 corresponds to time series

of 1.25 s. The backward elimination method is used to

ﬁnd the most important input variables that inﬂuence

the modeling of the behavior. The process uses the RF

model as the classiﬁer. The variable selection method

is described below:

1. Build M models and for each model m, remove

the m-th input variable.

2. Use the OOB data set to estimate the performance

of each model m.

3. The model m with the lowest error indicates the

signal m that inﬂuences the model the least and is

removed.

4. The removed input variable is given a score indi-

cating the order it was removed.

5. Remove the input variable and restart from 1 with

M=M-1 input variables until M=1.

6. When M=1, the scores indicate the importance of

each input variable.

5 EXPERIMENTAL

INVESTIGATIONS

5.1 Classiﬁcation

This section describes the initial classiﬁcation results.

In Fig. 2 a comparison of the classiﬁcation accuracy

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

284

(a) Bicycle. (b) Car.

Figure 2: True Positives (TP), True Negatives (TN), False

Positives (FN) and False Negatives (FN) for the Models Us-

ing All Available Variables.

Table 2: Mean, m, Distance Error along with the Standard

Deviation (σ) of the Mean, for the Bicycle and Car Action

Intention Models.

Model LM NN SVM RF

Bicyle 8.5 (0.13) 7.6 (0.18) 6.8 (0.47) 5.9 (0.45)

Car 5.0 (0.21) 4.8 (0.33) 4.4 (0.43) 3.7 (0.40)

is found regarding true positives (TP — Samples cor-

rectly classiﬁed in trajectory going straight), true neg-

atives (TN — Samples correctly classiﬁed in trajec-

tory that is turning), false positives (FP — Samples

erroneously classiﬁed as going straight) and false neg-

atives (FN — Samples erroneously classiﬁed as turn-

ing). Generally, the RF model yields the best per-

formance for both bicycle and car model whereas the

performance of the NN, SVM is diversiﬁed. The LM

yields overall poor performance.

Table 2 present mean distance from the samples

to the intersection in meters for the samples that are

miss classiﬁed. The standard deviation of the mean

distance is also presented. As can be seen in both

Fig. 2, Table 2 and Table 3 while using all available in-

put variables, the RF model provides the best perfor-

mance for both bicycle and car data sets. In addition,

the performance of the car model is generally better

than the bicycle model. In the next section, the search

for the subset of the most important input variables

is presented that can be used to model the action in-

tention for both the bicyclists and the cars. Typically,

one wants to ﬁnd a few information-rich input vari-

ables that can be used to build a cost efﬁcient (with

few variables) model.

In Table 3 the results from the recall and precision

analysis are presented. These results also indicate that

the RF model for both bicycle and car data provide the

best performance. Generally, the non-linear models

NN, SVM and RF yield better performance than the

LM, in particular for the bicycle model.

Table 3: Average Precision and Recall for the Bicycle and

Car Data Sets Using All Available Variables.

Model Bicycle Car

Recall % Precision % Recall % Precision %

LM 55.1 60.3 74.0 75.5

NN 58.2 65.8 72.2 75.2

SVM 69.3 66.6 78.6 73.2

RF 70.8 73.5 81.4 79.3

5.2 Variable Selection

While applying the backward elimination variable se-

lection method, the importance scores of the input

variables are estimated and presented in Table 4 for

both the bicycle and car models. The selection pro-

cedure is made on the ﬁve cross validation set, thus,

the presented score along with the standard deviation

is given in the table. The mean error of the RF clas-

siﬁer while performing the variable selection proce-

dure can be found in Fig. 3 and Fig. 4 for the bicycle

and car respectively. The graphs show how the perfor-

mance of the model varies as variables are removed.

The minimum error for the bicycle model is obtained

by removing 20 of the 25 variables, see Fig. 3. In

Table 4 the ﬁve variables with the highest score are

highlighted (bold type): v(t), v(t − 4), p

(t), p

(t) and

h(t). Consequently, these variables are the most im-

portant for deciding whether the bicyclist will turn or

not. Beside the current position of the bicyclist, the

model utilizes the speed variation of the bicyclist, thus

the speed dynamics, v(t) and t − 4 are among the most

important variables.

Fig. 4 illustrate the mean error for the car action

intention prediction model and it is shown that by re-

moving 19 of the 25 input variables the lowest mean

prediction error is achieved. The six variables with

the highest score from Table 4 are:

v(t), p

(t), p

(t −

4), p

(t), p

(t − 4) and h(t). Whereas current position

and the speed variation are important for the bicycle

model, road position dynamics provide valuable in-

formation for the model predicting action intentions

of the car i.e. time steps t and t − 4 for both p

and

are among the most important variables along with

current estimated speed and car heading.

As can be seen in Table 4, the standard deviation

of the score is low for the most important variables,

indicating that the selection order is very similar be-

tween the cross-validation data sets, in particular for

the variables with high score. The standard deviation

is slightly higher for the variables that are less impor-

tant.

Aware and Intelligent Infrastructure for Action Intention Recognition of Cars and Bicycles

285

Figure 3: Mean Error as a Function of Variables Re-

moved during the Variable Selection Process for the Bicycle

Model.

Figure 4: Mean Error as a Function of Variables Removed

during the Variable Selection Process for the Car Model.

5.3 Classiﬁcation with Best Set of

Variables

By using a subset of the input variables, found using

the backward variable selection method described in

Section 5.2, the models are retrained. The results are

found in Fig. 5 and Table 5. Both the bicycle and

car models improved slightly with the reduced num-

ber of input variables, compared to using all available

variables, leading to an observed lessening in distance

error, see Table 5. This means that the model is ca-

pable of accurately predict the intention further away

without using all variables. The standard deviation is

also slightly lower for the models trained with the re-

duced number of variables. The best improvements

are found for the car NN model, where the mean er-

ror decrease from 4.8 to 3.6, an improvement of 25%.

While comparing the classiﬁcation results in Fig. 2

and Fig. 5, for the bicycle RF model the performance

is slightly improved. Notably only 5 out of the orig-

inal 25 variables are used. In Fig. 5, for the RF car

model, slight increase in TP and TN and a small de-

crease in FP and FN is observed, despite using only 6

out of the original 25 input variables. This indicates

that, for the current trafﬁc situations and the available

data sets, an efﬁcient subset of variables is found that

the model can utilize to predict the action intention of

both bicyclists and cars.

In addition, the performance is visualized as a

function of the distance to the intersection for each

trajectory. Fig. 6 visualizes the time series mapped

to its trajectory ID along with a bar graph showing

Table 4: Scores from Backward Elimination Variable Selec-

tion for Both Bicycle and Car Action Intention Models. The

Mean of the Selection Scores Obtained over the Five Cross

Validation Data Sets Is Presented along with the Standard

Deviation inside Parenthesis.

Variable Bicycle Car

(t) 23.0 (0.0) 25.0 (0.0)

(t − 1) 5.8 (0.8) 16.6 (0.5)

(t − 2) 14.6 (0.9) 6.6 (1.3)

(t − 3) 1.6 (0.9) 14.0 (0.0)

(t − 4) 4.4 (2.4) 21.6 (0.9)

(t) 21.2 (0.4) 20.2 (0.4)

(t − 1) 7.2 (1.9) 11.8 (2.7)

(t − 2) 4.2 (2.8) 5.6 (3.0)

(t − 3) 4.4 (5.9) 18.6 (0.5)

(t − 4) 15.8 (2.7) 23.2 (1.8)

v(t) 25.0 (0.0) 18.4 (0.5)

v(t − 1) 18.8 (0.8) 10.6 (0.9)

v(t − 2) 16.2 (0.4) 6.8 (1.3)

v(t − 3) 21.2 (1.8) 6.0 (3.5)

v(t − 4) 24.0 (0.0) 8.4 (3.0)

v(t) 18.6 (0.5) 21.8 (0.4)

v(t − 1) 11.0 (1.4) 15.6 (1.7)

v(t − 2) 6.2 (0.8) 15.4 (0.5)

v(t − 3) 12.0 (1.4) 6.0 (1.7)

v(t − 4) 10.4 (1.5) 12.4 (0.5)

h(t) 20.2 (0.4) 23.2 (0.4)

h(t − 1) 7.6 (2.7) 10.2 (0.8)

h(t − 2) 5.0 (1.7) 1.0 (0.0)

h(t − 3) 12.4 (0.9) 2.6 (0.9)

h(t − 4) 14.2 (1.3) 3.4 (0.9)

Table 5: Mean, m, Distance to the Intersection for the Miss

Classiﬁed Samples along with the Standard Deviation (σ) of

the Mean, for the Bicycle and Car Action Intention Models

While Using the Variables That Yield the Best Performance

According to the Backward Elimination Variable Selection

Method.

Model LM NN SVM RF

Bike 8.5 (0.12) 7.6 (0.18) 6.0 (0.45) 5.7 (0.44)

Car 4.7 (0.20) 3.6 (0.27) 3.6 (0.39) 3.7 (0.41)

the percentages of samples in each trajectory that are

miss classiﬁed. The miss classiﬁed time series are in-

dicated by black markers. As can be seen, in the vast

majority of the trajectories >50% of the time series

are correctly classiﬁed.

Fig. 7 shows the mean error rate of all trajectories

as a function of the distance to the intersection. While

approaching the intersection the error rate is decreas-

ing, this is in particular evident for the car model.

As can be seen, already at 20 m from the intersec-

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

286

(a) Bicycle. (b) Car.

Figure 5: True Positives (TP), True Negatives (TN), False

Positives (FN) and False Negatives (FN) of the Models

Trained Using the Variables That Yield the Best Perfor-

mance According to the Backward Elimination Variable Se-

lection Method.

(a) RF Bicycle. (b) RF Car.

Figure 6: Percent of Time Series in Each Trajectory That

Is Being Miss Classiﬁed (Left) along with a Visualization

of, at What Distance the Model Make Errors (Right) for the

Bicycle and Car RF Models. The Trajectories above the

Red Line Are the Ones That Make the Turn, 70 Traces for

the Bike and 22 for the Car.

tion the error rate is around 25% for the bike and for

the car the performance is even more impressive, at

20 m from the intersection the error rate is <10%.

The performance increase at 17 m for the car model

depends on the very few data points available at that

distance. In Table 6 the results from the recall and

precision analysis are shown. For the bicycle data set,

the SVM and RF clearly outperform the other two

methods for both recall and precision performance.

For the car data, the SVM model yields the best recall

performance and the NN and the RF have similar pre-

cision performance. Another observation is that the

difference between the models while using all vari-

ables is quite limited, however, while using a limited

(a) Bicycle. (b) Car.

Figure 7: Error Rate as a Function of the Distance to the

Intersection for the Bicycle and Car Model Trained Using

the Subset of Variables Found Using Backward Elimination

Variable Selection Method.

Table 6: Average Precision and Recall for the Bicycle and

Car Data Sets Using the Subset of Variables Found Using

Backward Elimination Variable Selection Method.

Model Bicycle Car

Recall % Precision % Recall % Precision %

LM 54.9 59.9 72.6 75.7

NN 58.8 66.1 82.8 79.5

SVM 75.7 70.9 83.7 78.5

RF 71.6 73.7 80.2 79.5

number of variables the LM model is outperformed

by the non-linear models (NN, SVM and RF), which

may indicate that the modeled trafﬁc behavior is non-

linear. Finally a comparison is made between the per-

formance of the models presented here and previous

ﬁndings from (Muhammad and

Astrand, 2018). In

their work only heading was used as input for a par-

ticle ﬁlter-based model and performance of around

80% correct classiﬁcations of the intentions for both

bicycle and car models is reported. While using three

variables, heading, speed and the shortest distance

from the border of the path are used for predicting

the intention in the intersection, the performance is

slightly lower, however the variance of the predic-

tions also become lower. In this work, it was found

that heading receives high scores for both bicycle and

car models. This corresponds well with the ﬁndings

in (Muhammad and

Astrand, 2018), where heading

is found to be the most signiﬁcant variable. Another

comparison can be made to the ﬁndings in (Phillips

et al., 2017) where the authors use a rich data set com-

prising 104 featured such as base features describing

dynamics and position from the ego vehicle, history

features from past states, trafﬁc features based on sur-

rounding vehicles, and rule features indicating legal

actions at the next intersection. The data set consists

of historical base features extracted from frames 0.5

s, 1 s, 2 s and 3 s in the past. The results from an

LSTM indicate 80-85% accuracy on predicting the

intention in upcoming intersections. The results ob-

tained in this work, the car intention prediction model

is within this range i.e. for distances above 20 m the

accuracy is around 80%, and for distances below 20

m the accuracy is around 90%.

From a computational effort point of view, the

models have low complexity and could execute fast

on any modern vehicle ECU or C-ITS road side unit.

6 CONCLUSION

A method for predicting action intentions, i.e.

whether to turn or go straight in an upcoming intersec-

Aware and Intelligent Infrastructure for Action Intention Recognition of Cars and Bicycles

287

tion, of road users is presented. Trajectory data sets

from both bicyclists and cars are used to demonstrate

the proposed approach. From the trajectories a slid-

ing window is applied creating short time series used

for building models that predicts the action intention.

The no free lunch theorem is put to use as it was found

that the RF yields the best performance for the bicy-

cle data and the NN for the car data. The search for

the most important variables for the classiﬁcation task

resulted in slightly improved performance while us-

ing only ﬁve variables for the bicycle model and six

for the car model. For the bicycle model longitudinal

and lateral position along with speed dynamics v(t),

v(t − 4) and h(t) are needed. With the car model, es-

timated speed, heading and position dynamics (t) and

(t − 4) for both longitudinal and lateral position are

among the most important input variables.

Future work includes incorporating data describ-

ing relations between different road-users to enable

modelling of how the behavior of different road users

interplay in decision making. Moreover, while mod-

eling interplay, time to decision becomes a natural

model output instead of only the actual action inten-

tion, as used in this work.

ACKNOWLEDGMENT

Viscando Trafﬁc Systems are greatly acknowledged

who have provided the data. This work is part of the

AIR project (action and intention recognition in hu-

man interaction with autonomous systems), ﬁnanced

by the KK foundation under the grant agreement

number 20140220.

REFERENCES

Alahi, A., Goel, K., Ramanathan, V., Robicquet, A., Fei-

Fei, L., and Savarese, S. (2016). Social lstm: Human

trajectory prediction in crowded spaces. In The IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR).

Bishop, M. C. (1995). Neural Networks for Pattern Recog-

nition., volume 92.

Breiman, L. (2001). Random Forests. Machine Learning,

45(1):5–32.

Carli, R., Dotoli, M., Epicoco, N., Angelico, B., and Vinci-

ullo, A. (2015). Automated evaluation of urban traf-

ﬁc congestion using bus as a probe. In 2015 IEEE

International Conference on Automation Science and

Engineering (CASE), pages 967–972.

Dominguez-Sanchez, A., Cazorla, M., and Orts-Escolano,

S. (2017). Pedestrian movement direction recog-

nition using convolutional neural networks. IEEE

Transactions on Intelligent Transportation Systems,

18(12):3540–3548.

Doshi, A. and Trivedi, M. (2009). Investigating the rela-

tionships between gaze patterns, dynamic vehicle sur-

round analysis, and driver intentions. In 2009 IEEE

Intelligent Vehicles Symposium, pages 887–892.

Fang, Z. and L

opez, A. M. (2019). Intention recognition of

pedestrians and cyclists by 2D pose estimation. IEEE

Transactions on Intelligent Transportation Systems,

pages 1–11.

Hastie, T., Tibshirani, R., and Friedman, J. (2009). The

Elements of Statistical Learning. Elements, 1:337–

387.

Herrera, J. C., Work, D. B., Herring, R., Ban, X. J., Ja-

cobson, Q., and Bayen, A. M. (2010). Evaluation of

trafﬁc data obtained via gps-enabled mobile phones:

The mobile century ﬁeld experiment. Transportation

Research Part C: Emerging Technologies, 18(4):568 –

583.

Lidstrom, K. and Larsson, T. (2008). Model-based estima-

tion of driver intentions using particle ﬁltering. In

2008 11th International IEEE Conference on Intelli-

gent Transportation Systems, pages 1177–1182.

Lidstr

om, K. and Larsson, T. (2009). Act normal: using

uncertainty about driver intentions as a warning cri-

terion. In 16th World Congress on Intelligent Trans-

portation Systems (ITS WC), 21-25 September, 2009,

Stockholm, Sweden, page 8.

ınguez, R. Q., Alonso, I. P., Fern

andez-Llorca, D., and

Sotelo, M. A. (2018). Pedestrian path, pose, and in-

tention prediction through gaussian process dynami-

cal models and pedestrian activity recognition. IEEE

Transactions on Intelligent Transportation Systems,

pages 1–12.

Mohammed, H., Bigazzi, A. Y., and Sayed, T. (2019). Char-

acterization of bicycle following and overtaking ma-

neuvers on cycling paths. Transportation Research

Part C: Emerging Technologies, 98:139 – 151.

Morris, B., Doshi, A., and Trivedi, M. (2011). Lane change

intent prediction for driver assistance: On-road de-

sign and evaluation. In Intelligent Vehicles Symposium

(IV), 2011 IEEE, pages 895–901. IEEE.

Muhammad, N. and

Astrand, B. (2018). Intention estima-

tion using set of reference trajectories as behaviour

model. Sensors, 18(12):4423.

Niska, A. and Eriksson, J. (2013). Statistik

over cyklis-

ters olyckor: faktaunderlag till gemensam strategi f

aker cykling. vti.

Phillips, D. J., Wheeler, T. A., and Kochenderfer, M. J.

(2017). Generalizable intention prediction of human

drivers at intersections. In 2017 IEEE Intelligent Ve-

hicles Symposium (IV), pages 1665–1670. IEEE.

Vapnik, V. N. (1998). Statistical Learning Theory (Adaptive

and Learning Systems for Signal Processing, Commu-

nications and Control Series). Wiley-Interscience.

Varytimidis, D., Alonso-Fernandez, F., Englund, C., and

Duran, B. (2018). Action and intention recognition

of pedestrians in urban trafﬁc. In SITIS.

Walker, J., Gupta, A., and Hebert, M. (2014). Patch to the

future: Unsupervised visual prediction. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition, pages 3302–3309.

World Health Organization (WHO) (2015). Global Status

Report on Road Safety 2015. WHO Press, Geneva.

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

288
