A Practical Methodology to Learn

Computer Architecture, Assembly Language, and Operating System

Hiroaki Fukuda

, Paul Leger

and Ismael Figueroa

Department of Computer Science and Engineering, Shibaura Institute of Technology, 3-7-5 Toyosu, Koto, Tokyo, Japan

Escuela de Ingenier

ıa Civil, Universidad Cat

olica del Norte, Coquimbo, Chile

Ingenier

ıa en Informaci

on y Control de Gesti

on, Universidad de Valpara

ıso, Valpara

ıso, Chile

Keywords:

Educational Methodology, Operating System, Virtual Machine, Assembly Language, Computer Architecture.

Abstract:

System-level details, such as assembly language and operating systems, are important to develop/debug em-

bedded systems and analyze malware. Therefore it is recommended to teach every topic of these subjects.

However, their learning cost has been signiﬁcantly increased due to current system complexities. To solve

this problem, several visualization techniques have been proposed to help students in their learning process.

However, observing only the computer system behaviors may be insufﬁcient to apply it to real systems due to

the lack of practical experiences and a comprehensive understanding of system-level details. To address these

issues, we propose a novel methodology where students implement a virtual machine instead of using exist-

ing ones. This virtual machine needs to execute binary programs that can be run on a real operating system.

Through implementing this virtual machine, students improve by experience their understanding of computer

architecture, assembly languages, instruction sets, and the role of operating systems. We also provide MMVM

that is a virtual machine implementation reference, and can execute the binary programs while showing the

internal states of CPU (registers & ﬂags) to users (students) to support their implementation. Finally, this

paper reports the education results applying this methodology to 15 students that consist of 3rd-year students

and 1st year of master students.

1 INTRODUCTION

For computer science students (shortly students),

systems-level details such as computer architecture,

assembly languages, and operating systems are still

important. However, it is difﬁcult to spend enough

time to learn these details due to increasing their

complexities and/or appearing on new topics such as

Cloud Computing (Armbrust et al., 2010) and Ar-

tiﬁcal Intelligence (AI) (Russell and Norvig, 2009).

Thereby students mainly learn these details from text-

books, acquiring abstract knowledge without any ex-

perience. As a result, there might be a big gap when

students face real problems (e.g., debugging embed-

ded systems, analyzing computer viruses by binary

dump). Some researchers propose visualize within

computers such as stored values in registers, mem-

ories, and how the stored values will be changed as

a program is executed on the computer (Zeng et al.,

2009). Visualization techniques are useful because

students can understand the inside behavior of com-

puter systems; however, two learning issues appear.

The ﬁrst one is the lack of experience. Even though

students understand the correct behavior, they have

not learned real skills but knowledge, therefore they

may fail with programming and debugging tasks in

practice. The second one is the lack of comprehen-

sive understanding. Due to the increase in complex-

ities and specialties of each subject, giving adequate

exercises is also difﬁcult. Even though implement-

ing an operating system helps students to understand

the difference, it is too difﬁcult because students need

to know other subjects such as assembly languages,

hardware (e.g., CPU) and a binary format.

To solve the previous two learning issues, we pro-

pose a novel methodology that is based on the con-

struction of a virtual machine. In this methodology,

we give students a set of exercises (binary programs)

that will lead to a virtual machine implementation in-

stead of using existing ones. The virtual machine

will execute binary programs that can be run on cer-

tain hardware and an operating system. Implement-

ing this virtual machine requires students to emulate

existing hardware (e.g., CPU and memory) and un-

Fukuda, H., Leger, P. and Figueroa, I.

A Practical Methodology to Learn Computer Architecture, Assembly Language, and Operating System.

DOI: 10.5220/0009319503330340

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 1, pages 333-340

ISBN: 978-989-758-417-6

333

Our methdology

Visualization

Implement from scratch

Extreme Abstract

Extreme Technical

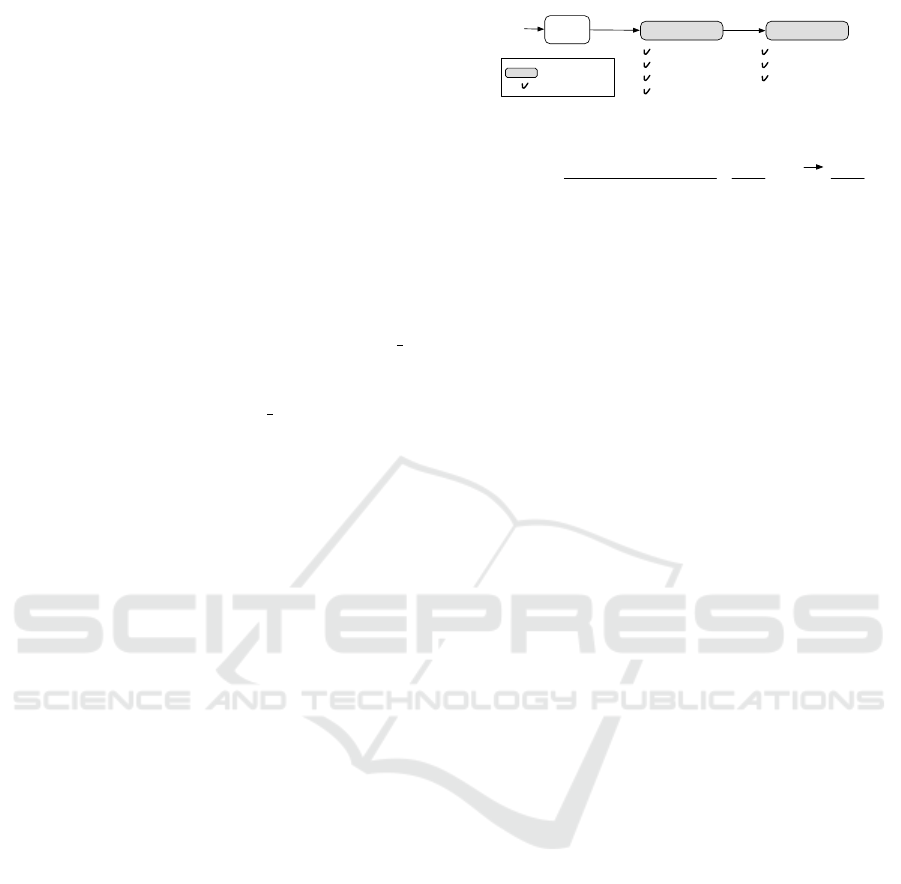

Figure 1: The position of our methodology between abstract

and technical.

derstand instruction sets in addition to assembly lan-

guages. Besides, we assume these binary programs

are executed on userland, meaning that the virtual ma-

chine needs to emulate system calls that are usually

provided by an operating system. With this method-

ology, students can learn systems-level details with

experiences and connections among mainly computer

architecture, assembly language and operating sys-

tems. For this methodology, we provide a tool called

MMVM that can execute binary programs and show

the internal states (registers & ﬂags) to users (i.e., stu-

dents) to support a virtual machine implementation.

Students can start from small binary programs that

have only limited instruction sets and system calls to

large programs that have many instruction sets and

system calls with a step-by-step manner. As shown

in Figure 1, our methodology is located in the mid-

dle between abstract and technical learning. On the

one hand, our methodology offers students to imple-

ment their virtual machines instead of just observing

behavior (abstract learning). On the other hand, the

implementation of a virtual machine is simple using

MMVM because students do not need to implement a

complete operating system or virtual machine (techni-

cal learning). We show the educational results apply-

ing this methodology to 15 students as a preliminary

evaluation.

The rest of this paper is organized as follows. Sec-

tion 2 explains the overview of our methodology. Sec-

tion 3 provides learning processes in our methodology

with a tool (MMVM). Section 4 gives a preliminary

evaluation and Section 5 describes related work. Fi-

nally, Section 6 gives the conclusion and future work.

2 METHODOLOGY OVERVIEW

This section explains our methodology where stu-

dents can learn systems-level details in practice.

As we can see in Figure 2-(i), a set of source code

will be compiled and assembled by a compiler and

an assembler, generating a binary program. This bi-

binarybinary

Hardware

Operating System

Hardware

Operating System

Virtual Machine(MMVM)

binary

Source code

binarybinarybinary

compile/assemble

resource access

system call

instructions

system call

resource access

system call instructions

system call

memory

( i )

( ii )

binarybinarybinary

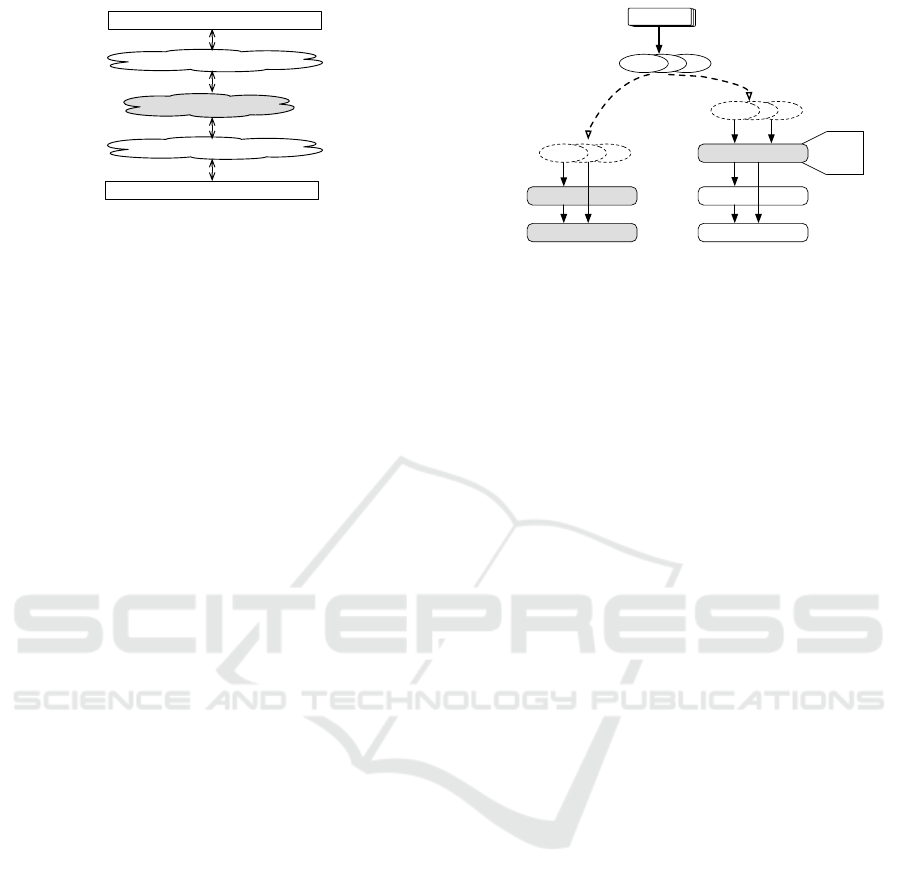

Figure 2: Connections among binaries to be executed, Vir-

tual Machine and Operating System in our methodology.

nary program consists of instruction sets and system

calls provide by a certain CPU and an operating sys-

tem. Thereby the program is executed on the CPU di-

rectly and uses system resources via system calls. In

our methodology, as shown in Figure 2-(ii), we offer

to execute the program on their virtual machines that

need to emulate an architecture and instruction sets of

the original CPU, and also system calls of the orig-

inal operating system (i.e., both are shown in Figure

2-(i)). In our methodology, students have to imple-

ment their virtual machines, which is corresponding

to Virtual Machine in Figure 2-(ii), resulting in par-

tial learning about computer architecture, instruction

sets, assembly languages, and operating system be-

cause their virtual machines have to emulate this be-

havior. We also give MMVM which can execute the

binaries with showing internal states to support stu-

dents’ implementation.

There have been two categories to learn system-

level details: 1) preparing simulators that provide

simpliﬁed execution environments (CPU and/or pro-

gramming languages) of a program, and 2) using real

systems. Each category has advantages and disadvan-

tages. Using simulators makes learning easier; how-

ever, simulators are imitations, which demotivate stu-

dents to learn (Gondow et al., 2010). In contrast,

using real systems is difﬁcult; however real systems

motivate students to learn, and knowledge and expe-

riences will be widely applicable. Considering these

advantages and disadvantages, we have chosen using

a real system (Gondow et al., 2010) such as real in-

struction sets, an assembly language, and an operat-

ing system. Taking these points into account, we have

selected a CPU (computer architecture) and the cor-

responding operating system. Next, we explain both

selections.

CSEDU 2020 - 12th International Conference on Computer Supported Education

334

2.1 CPU Selection

A variety of CPUs for computers are currently avail-

able including a series of x86 from Intel, a series of

CPUs from AMD and ARM. On the one hand, the

mainstream of usage in current computers is 64-bit

computing, implying a difﬁcult to learn for students

from the beginning. On the other hand, we can also

choose 8-bit old CPUs for the sake of education; how-

ever, the acquired knowledge might be useless when

students face problems related to current CPU archi-

tectures. As a conclusion of this selection, we choose

the 8086 16-bit CPU from Intel because of the follow-

ing reasons. Firstly, a majority of people use a series

of x86 CPUs then this trend continue until x86 64.

Therefore we think the acquired knowledge and ex-

periences of 8086 can be a base for students to learn

about current CPUs such as x86

64 and ARM. Sec-

ondly, we consider the bit length of CPUs is important

because: a) values consist of many bits (e.g., 64bit) is

difﬁcult to trace when we ﬁnd and ﬁx bugs in imple-

mentations of emulators, and b) 8bit CPUs such as

8080 has a limited number of instructions, meaning

that knowledge from 8080 is not enough to apply cur-

rent CPUs.

2.2 Operating System Selection

As requirements for the selection of an operating sys-

tem in our methodology, we identify three. Firstly, as

students need to implement virtual machines that em-

ulate the system calls, they should refer source code to

emulate each system call correctly; meaning that a set

of source code for a certain operating system needs

to be open access. Secondly, the size and complexity

of an operating system need to be small and simple

enough to understand its behavior. Finally, hopefully,

the acquired knowledge and experiences, via reading

source code, can be a base for students to tackle cur-

rent and industrial operating systems.

Based on operating system requirements, we

thought that UNIX V6 could fulﬁll these requirements

because it is considered as an origin of BSD Unix

and its total lines of code are around 10,000. Besides,

we can refer to the book (John Lions, 1977) that ex-

plains pieces of code in detail. Unfortunately, UNIX

V6 was designed for PDP 11, therefore it cannot run

on 8086 that we choose as a CPU. As a consequence,

we chose the minix2 operating system (Tanenbaum

and Woodhull, 2005). As an explanation, minix2 is

designed for multiple CPUs including 8086 and it can

be considered as an operating system for education,

meaning that it is open source and lines of kernel

code is around 30,000. In addition, minix2 follows

Displacement Semantics of Instruction Sets

System Call

Computer Architecture

Format of Instruction Sets

Binary Format

Assembly Language

Disassembler Virtual Machine

Step1 Step2

MMVM

Compiler

Source

Code

executable

binary

Subject to be learned

Students implement

Figure 3: Learning Process.

>mmvm /minix2/usr/local/bin/cc ./1.c

a.out

passed to cccc is executed by mmvm

generated

Figure 4: The usage example of MMVM.

the POSIX, meaning that the kind and behavior of its

system calls are the same as current operating systems

that follow POSIX.

3 LEARNING PROCESSES

This section explains how students can learn system-

level details using our methodology as shown in Fig-

ure 3. We divide the entire educational processes

into two steps: Step1) disassembler implementation

and Step2) virtual machine implementation. This is

because the disassembler implementation is almost a

subset and simpliﬁed version of a virtual machine im-

plementation. As Figure 3 shows, each step gives

detailed subjects related to system-level details such

as Binary Format, Assembly Languages, and Sys-

tem Call. Besides, in this methodology, we use two

kinds of documents: 8086 16Bit Microprocessor (In-

tel, 1990), and Intel 64/IA-32 Architecture Software

Developer’s Manual (Intel, 2018). This is to conﬁrm

the available instruction sets and compile source code

using MMVM to the minix2’s binary, and thus, ob-

serving the correct internal states. Figure 4 shows

how to use MMVM and compile source code. As

MMVM can run binaries for minix2, we use cc dis-

tributed by minix2 as binary to compile source code.

3.1 Disassembler Implementation

When students start implementing their disassembler,

they should learn the ﬁle format such as Executable

and Linkable Format (ELF) (Committee, 1995) be-

cause they have to run binary programs which can be

run on minix2. Since minix2 adopted a.out as a ex-

ecutable ﬁle format, students need to understand the

a.out format, then extract text (i.e., executable code)

from the binary program. As shown in Figure 5, the

a.out format consists of a header of 32 bytes of length,

text and data, whose lengths are recorded as 4 bytes in

the header respectively. Therefore students start from

analyzing the header. We think this process is suit-

able because this task only requires the knowledge of

A Practical Methodology to Learn Computer Architecture, Assembly Language, and Operating System

335

header text data

32 bytes any bytes

any bytes

Figure 5: The binary format of a program in minix2.

the a.out format shown in Figure 5; however students

have to analyze binary, resulting in a good introduc-

tion to handle binaries directly. Since almost all stu-

dents have never analyzed binary programs manually,

they may think to analyzing binary programs seems

to be difﬁcult. Therefore extracting text from an a.out

format can break their way of thinking.

After extracting the text part, students start ana-

lyzing text part using the document (Intel, 1990). As

we will explain in the next section, students can start

from a small binary program. In addition, students

can see the disassemble result using MMVM with an

option (see Listing 6), implying students can easily

ﬁnd their mistakes comparing each result.

Compared to virtual machine implementation,

disassembler implementation is easier because the re-

sult is always the same if the input binary program is

the same. Therefore students can complete their dis-

assembler implementation. When students ﬁnish this

implementation, we can consider that students under-

stand how to read binary such as displacement and

variable-length operators following the speciﬁcation,

which is an initial step for virtual machine implemen-

tation.

3.2 Virtual Machine Implementation

The virtual machine implementation is an extension

of the disassembler implementation because it also

requires analyzing the binary ﬁle formatted by a.out

to extract text and data. In addition to the tasks

required by disassembler implementation, students

need to prepare registers, ﬂags, memories and extract

data from the binary program. Since 8086 CPU con-

sists of 14 registers including the ﬂag register and

program counter, the virtual machine must prepare

them. Besides, the virtual machine should also allo-

cate memories to store programs and data, the size of

which is 0x10000 because 8086 is 16 bit CPU, mean-

ing that a register can represent from 0x0000 to 0xffff.

We show an example implementation of a virtual

machine in Listing 1. In Listing 1, we deﬁne nec-

essary registers (Line1) and keep memories for text

and data (Line2). The run represents the execution of

CPU, then fetch

and decode in Line 6 returns an op-

erator by fetching and decoding an instruction from

memory. The opcode represents a kind of operator,

therefore the behavior of each operator is deﬁned us-

ing switch-case statements.

1 unsigned short AX, BX. . .

2 unsigned char memory[0x10000] = {0};

3 . . . . . .

4 void run ( ) {

5 while( true ) {

6 opcode = fetch and decode ()

7 switch(opcode) {

8 case 0x20: / / interrupt

9 system call (BX) ; / / emulate system calls

10 case 0x88: / / mov instruction

11 . . . .

12 }}}

Listing 1: An example of virtual machine implementation.

3.2.1 Instruction Sets

After loading the text and data on corresponding

memory, the virtual machine starts executing the bi-

nary program. Since an instruction cycle (i.e., fetch-

decode-execute cycle) is the most basic operational

process of a computer, the virtual machine has to em-

ulate this cycle. In this instruction cycle, the emu-

lations of fetch and decode have been done partially

in the disassemble implementation. Therefore stu-

dents can start virtual machine implementation with-

out much stress. The virtual machine generally con-

sists of an inﬁnite loop that involves a large switch-case

branches. Each case corresponds to each instruction,

therefore students will implement each instruction’s

behavior referring to the document (Intel, 2018). Dur-

ing this implementation, students can check the cor-

rect behavior of each instruction using an option in

the MMVM execution, showing all values stored in

registers at every execution step. Thereby, students

can ﬁnd and ﬁx their mistakes easily. Note that stu-

dents do not need to implement all instructions at a

time but implement requisite instructions involved in

the binary program to be executed.

1 typedef struct {

2 int m source; / / caller information

3 int m type; / / kind of system calls

4 union {

5 mess 1 m m1;

6 mess 2 m m2;

7 mess 3 m m3;

8 mess 4 m m4;

9 mess 5 m m5;

10 mess 6 m m6;

11 } m u; // for arguments

12 } Message;

Listing 2: The deﬁnition of struct message.

3.2.2 System Calls

As the binary programs that are executed by a vir-

tual machine contain system calls to use system re-

sources such as I/O, students have to interrupt and

CSEDU 2020 - 12th International Conference on Computer Supported Education

336

capture system call invocations and provides corre-

sponding results to the program. The 0xcd instruction

represents an interruption in 8086 and 0x20 represents

the interruption for system calls in minix2. There-

fore the 0xcd20 represents the system call interrup-

tion in the current environment (e.g., minix2 running

on 8086). In minix2, arguments of a system call are

passed to the kernel using message structure deﬁned

in ”/usr/include/minix/type.h” as shown in Listing 2. Then

the address of the message is stored in bx register.

Thereby we can access all requisite information using

message. After a system call ends, its result is stored

in ax register, restarting the interrupted program exe-

cution. To sum up, implementing system calls needs

the following steps:

1. Find the 0xcd20 instruction.

2. Detect system calls and its arguments using

message the address of which is stored in bx reg-

ister.

3. Emulate the corresponding system call behavior.

4. Store the execution result in ax register.

5. Restart the program.

Note that, system calls supported by minix2 fol-

low POSIX (Oracle Corporation and/or its afﬁliates,

2010); therefore we can easily ﬁnd out the behavior

from documents and/or using them in current operat-

ing systems that follow POSIX.

4 PRELIMINARY EVALUATION

IN EDUCATION

This section discusses our experience using our edu-

cational methodology with MMVM in under/graduate

students in Shibaura Institute of Technology in Japan.

4.1 Educational Methodology Details

We have applied our methodology to 15 students: 10

from 3rd-year of undergraduate and 5 from 1st year of

master. Although students’ skills vary, all students at

least passed one programming course and can use one

programming language. Besides, we do not require

any special knowledge and skills about low-level de-

tails such as binary data, assembly language, and ma-

chine instruction sets. In this methodology, we ﬁrstly

give two simple assembly code for students to get

used to binary programs and disassembling. Listing 3

shows the simplest assembly code that we prepare.

Apart from the data section (i.e., after 6 line), this

program has only 4 lines. Besides, Listing 4 shows

the corresponding disassemble result. As we can see

in this ﬁgure, the disassemble result from line 1 to 4

easily seems to be corresponding to from line 1 to 4

in Figure 3. Moreover, observing the disassembled

result without any document, it can intuitively imag-

ine that bb is corresponding to mov bx, and the next

two bytes should be ﬂipped (1000 → 0010) and might

be the second arguments of mov instruction.

1 mov bx, #message

2 int 0x20

3 mov bx, #exit

4 int 0x20

6 . sect . data

7 message: . data2 1, 4, 1, 6, 0, hello , 0 , 0

8 exit : . data2 1, 1, 0, 0, 0 , 0, 0 , 0

9 hello : . ascii ”hello\n”

Listing 3: The ﬁrst test code written by assembly language.

After having intuition from the disassembled re-

sult, students start to implement their disassemblers

that will show the same result of MMVM from the

same input binary program. We think that students

who ﬁnish implementing this disassembler correctly

(which just accepts only two kinds of binary programs

that we provide) have understood the a.out format by

analyzing its header, and the basic structure of a disas-

sembler such as an inﬁnite loop and switch-case state-

ments.

1 0000: bb0000 mov bx, 0000

2 0003: cd20 int 20

3 0005: bb1000 mov bx, 0010

4 0008: cd20 int 20

Listing 4: The disassemble result of Listing 3 using

MMVM.

4.1.1 Disassembler Implementation

After disassembling the previous two simple binary

programs, students start from Step1 shown in Fig-

ure 3.

We give the document (Intel, 1990) and explana-

tions on how to interpret it. Although the document

seems to be difﬁcult at a glance for students, they are

ready to read it because they have had experiences of

a simple disassembler implementation, helping stu-

dents understanding. We teach several important ele-

ments such as byte order, byte/word instructions, dis-

placement, and effective address. For the practical

disassembler and virtual machine implementation, we

prepare six kinds of source code (from 1.c to 6.c) writ-

ten in C language, and nm (nm.c) provided by the

source tree of minix2 (we reuse these pieces of code

in virtual machine implementation). For example, al-

though Listing 5 shows the source code of 1.c output

A Practical Methodology to Learn Computer Architecture, Assembly Language, and Operating System

337

of which is the same as Listing 3, the disassemble re-

sult shown in Listing 6 reaches 114 lines and students

have to understand the issues that we teach (e.g., byte

order and/or effective address). Although the difﬁ-

culty will much increase compared to the former dis-

assembler, students can follow these difﬁculties in a

step-by-step manner.

4.1.2 Virtual Machine Implementation

We assume that students who can complete a disas-

sembler implementation understand how to divide a

sequence of byte data (binary) into instruction sets

and their arguments, meaning that they are ready to

start Step2 in Figure 3. The basic structure of a virtual

machine is similar to that of a disassembler (i.e., an

inﬁnite loop and switch-case structure), therefore stu-

dents can reuse and extend their disassemblers for vir-

tual machine implementation.

Virtual machine implementation also starts from

executing the simplest binary program. Figure 7

shows the execution result of Figure 3 using MMVM

with -m option. As we can see in Listing 7, this pro-

gram ends only 7 steps that consists of two instruc-

tions (mov and int) and two system calls (write and exit).

For executing this binary program, we need to

implement the behavior of the two instructions, and

two system calls referring documents and results of

MMVM with -m option. For example in Figure 7, the

value of bx register is changed from line 6 to line 7,

and mov instruction is executed with 0x0010 at line 6.

We can intuitively imagine what’s happened in exe-

cuting mov instruction, conﬁrm its semantics using the

document (Intel, 2018), resulting in the correct im-

plementation. As for the system call implementation,

we will refer the document of POSIX system calls for

conﬁrming the correct behavior, and message struc-

ture for receiving requisite arguments for each system

call.

4.2 Educational Result and Discussion

We summarize the result of the preliminary evalu-

ation in Table 1 that consists of the name of pro-

grams (Name), the number of disassemble result (Dis-

asm), number of execution steps (Execution), the

number of kinds of executed system calls (System

Call) and the number of students who have completed

each task (Disassembler and Virtual Machine). We

applied this methodology to two cases: (1) 10 stu-

dents from 3rd-year who would join our laboratory,

(2) 5 students from a master course class. We men-

tion the positive and negative results respectively as

follows.

main() {

write (1 , ”hello\n” , 6);

}

Listing 5: The source code of 1.c.

1 0000: 31ed xor bp, bp

2 0002: 89e3 mov bx, sp

3 0004: 8b07 mov ax, [bx]

4 0006: 8d5702 lea dx, [bx+2]

5 0009: 8d4f04 lea cx, [ bx+4]

6 000c: 01c1 add cx, ax

7 . . . . . . . . . . . (continue) . . . . . . . . . .

Listing 6: The disassemble result of 1.c using MMVM.

1 AX BX CX DX SP BP SI DI FLAGS IP

2 0000 0000 0000 0000 ffd c 0000 0000 0000 −−−−00: bb0000 mov bx,0000

3 0000 0000 0000 0000 ffd c 0000 0000 0000 −−−−03: cd20 int 20

4 <write (1 , 0x0020 , 6) he llo

5 => 6>

6 0000 0000 0000 0000 ffd c 0000 0000 0000 −−−−05: bb1000 mov bx,0010

7 0000 0010 0000 0000 ffd c 0000 0000 0000 −−−−08: cd20 int 20

8 <exit(0)>

Listing 7: The execution result of Listing 3 using MMVM

with -m.

As positive results, as shown in Table 1, all stu-

dents have completed disassembler and virtual ma-

chine implementations for almost all given programs

except for nm.c. In case (1), we did not measure

time students consumes

because we wanted to con-

ﬁrm whether this educational methodology could be

applied to students or not. Also in case (1), one stu-

dent completed executing nm.c while the rest of the

students failed it. However, we thought this method-

ology could be applicable for systems-level education

for students because at least all students could exe-

cute until 6.c. In case (2), due to the result of the case

(1), we applied this method to a master course class

that consists of 14 classes each class of which reserves

100 minutes. The 5 master students took this class,

then 4 students completed executing all given pro-

grams within 14 classes. In each case, we observed

the progress of each student, then we found that stu-

dents made several misunderstanding and wrong im-

plementation the kinds of which varied, for example

displacement, effective address, sign-extended in dis-

assembler implementation and ﬂag register, relative

address and the role of a stack in virtual machine

implementation. At that time students focused on

the difference of the results between their own dis-

assembler/virtual machine and MMVM, they needed

to consider the reason and refer documents, source

code and sometimes implemented a small test pro-

gram if needed. We think these iterative processes

change their shallow knowledge to deep knowledge

with experiences. Besides, we think they understood

In fact, it varies from several days to a month.

CSEDU 2020 - 12th International Conference on Computer Supported Education

338

Table 1: The number of students who complete each program.

Program Complete number of Students

Name Disasm (Step1) Execution (Step2) System Call (Step2) Disassembler Virtual Machine

1.s 4 4 2 15 15

2.s 5 5 2 15 15

1.c 140 140 2 15 15

2.c 148 152 2 15 15

3.c 1,929 1,014 4 15 15

4.c 1,933 1,665 4 15 15

5.c 1,945 1,896 4 15 15

6.c 177 597 2 15 15

nm.c 2,912 553,722 7 15 5

systems-level details comprehensively with experi-

ences because a function call should be emulated by

instruction sets while a system call should be emu-

lated by students in a virtual machine implementation,

which are different clearly.

As negative results, 10 students could not com-

plete executing nm.c. We think this is because the ex-

ecution step of nm (553,722, see Table 1) is much dif-

ferent from other programs. Therefore it was difﬁcult

to ﬁnd their mistakes only using MMVM with an op-

tion. In other words, the main reason might be the dif-

ference in programming skills because the program-

ming skills of master students are better than 3rd-year

students in general. We need to extend MMVM for

students to ﬁnd their mistakes easily.

5 RELATED WORK

There have been several types of research and edu-

cational software systems for teaching systems-level

details. We divide them into two categories: operating

systems and computer architecture.

Operating System. In articles like (Atkin and Sirer,

2002; Black, 2009; Brylow, 2008), we can ﬁnd pro-

posals that teach details of an operating system. These

proposals generally offer students to implement an

operating system from scratch or modify an educa-

tional operating system. Students can learn the main

roles of an operating system such as process manage-

ment, semaphore, system calls, and ﬁle systems with

experiences. (Dall and Nieh, 2014) gives a tool to

review the source code of operating systems for stu-

dents to learn existing operating systems. These pro-

posals can give experiences to learn operating systems

partially such as scheduler, ﬁle systems; however

these works sometimes might not produce good ed-

ucational results because students can refer the com-

plete code, meaning that they can copy and paste

without much consideration, leading to shallow un-

derstanding. Besides, implementing operating system

from scratch is too difﬁcult because students have to

understand speciﬁcations of hardware such as CPU

and BIOS. Instead, implementing virtual machine in

our methodology is not so difﬁcult because we do not

need to use physical hardware and the structure of a

virtual machine implementation is simple. Moreover,

students can use MMVM to see the internal state of

the correct implementation.

Computer Architecture. Proposals found in arti-

cles (Skrien, 2001; Warford and Okelberry, 2007) are

CPU simulators that allow students to create or mod-

ify the architectures being studied. Students can de-

sign their architecture and write machine language

or assembly language programs and run them on the

CPU. However, students cannot learn the connection

between hardware (e.g., CPU) and software (e.g., op-

erating system) because they focus on studying the

architecture of the CPU. Besides, we cannot use the

knowledge directly in practice because the CPUs are

enough simpliﬁed for learning. In article (Black and

Komala, 2011), the authors provide a graphical com-

puter simulator for educations. Unlike other teaching

simulators, the proposed simulator faithfully models

a complete personal computer including i386 proces-

sor, memories, I/O ports interrupts, timers and a se-

rial port. Students can execute any programs that ex-

pected to run on x86 processor including an operating

system and conﬁrm the values stored in memories and

registers. Although students can learn the real CPU

architecture (i.e., x86), they can only conﬁrm the val-

ues being changed as a program is being executed.

However the knowledge between hardware and soft-

ware is still shallow because they can only observe to

be changed inside the CPU.

6 CONCLUSIONS

Due to appearing new topics in computer science, and

increasing complexities in hardware and software, the

learning process about systems-level details such as

A Practical Methodology to Learn Computer Architecture, Assembly Language, and Operating System

339

computer architecture, programming language, and

operating system becomes difﬁcult. To overcome the

previous difﬁculty, we propose a methodology for stu-

dents to learn systems-level details with a tool called

MMVM. Unlikely existing researches and software

systems, our methodology is based on the implemen-

tation of a virtual machine instead of using existing

ones. We conducted a preliminary evaluation in terms

of learning in which we offer 15 under/graduate stu-

dents to implement a virtual machine. As a result,

we found two observations. Firstly, all students could

implement a disassembler for all programs, the kinds

of them varies from just invoking printf to using func-

tions, arguments and control statements (e.g., for, if)

and system calls, generating various kinds of 8086’s

instruction. Secondly, all students could execute 8 of

9 programs in the virtual machine and only one stu-

dent executed all of them. Through these observa-

tions, we realized that students could learn system-

level details such as assembly language, computer ar-

chitecture, and operating systems as real skills. This

is because if they did not understand these details,

they could not ﬁnish to implement a disassembler and

a virtual machine. Thereby we can claim that our

methodology could address the two problems men-

tioned in this paper: lack of experiences and compre-

hensive understanding in system-level details, leading

to improving students’ knowledge and skills.

REFERENCES

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., and Zaharia, M. (2010). A view of cloud

computing. Commun. ACM, 53(4):50–58.

Atkin, B. and Sirer, E. G. (2002). Portos: An educational

operating system for the post-pc environment. In Pro-

ceedings of the 33rd SIGCSE Technical Symposium

on Computer Science Education, SIGCSE ’02, pages

116–120, New York, NY, USA. ACM.

Black, M. D. (2009). Build an operating system from

scratch: A project for an introductory operating sys-

tems course. In Proceedings of the 40th ACM Tech-

nical Symposium on Computer Science Education,

SIGCSE ’09, pages 448–452, New York, NY, USA.

ACM.

Black, M. D. and Komala, P. (2011). A full system x86

simulator for teaching computer organization. In

Proceedings of the 42Nd ACM Technical Symposium

on Computer Science Education, SIGCSE ’11, pages

365–370, New York, NY, USA. ACM.

Brylow, D. (2008). An experimental laboratory environ-

ment for teaching embedded operating systems. In

Proceedings of the 39th SIGCSE Technical Sympo-

sium on Computer Science Education, SIGCSE ’08,

pages 192–196, New York, NY, USA. ACM.

Committee, T. (1995). Tool interface standard (tis) exe-

cutable and linking format (elf) speciﬁcation version

1.2.

Dall, C. and Nieh, J. (2014). Teaching operating systems

using code review. In Proceedings of the 45th ACM

Technical Symposium on Computer Science Educa-

tion, SIGCSE ’14, pages 549–554, New York, NY,

USA. ACM.

Gondow, K., Fukuyasu, N., and Arahori, Y. (2010). Mieru-

compiler: Integrated visualization tool with ”horizon-

tal slicing” for educational compilers. In Proceedings

of the 41st ACM Technical Symposium on Computer

Science Education, SIGCSE ’10, pages 7–11, New

York, NY, USA. ACM.

Intel (1990). 8086 16-bit microprocessor. http://www.ece.

cmu.edu/

∼

ece740/f11/lib/exe/fetch.php?media=wiki:

8086-datasheet.pdf.

Intel (2018). Intel 64 and ia-32 architecture soft-

ware developer’s manual. https://software.

intel.com/sites/default/ﬁles/managed/39/c5/

325462-sdm-vol-1-2abcd-3abcd.pdf.

John Lions (1977). Lions’ Commentary on Unix 6th Edi-

tion. Peer to Peer Communications/ Annabook.

Oracle Corporation and/or its afﬁliates (2010). Posix system

calls. https://docs.oracle.com/cd/E19048-01/chorus4/

806-3328/index.html.

Russell, S. and Norvig, P. (2009). Artiﬁcial Intelligence: A

Modern Approach. Prentice Hall Press, Upper Saddle

River, NJ, USA, 3rd edition.

Skrien, D. (2001). Cpu sim 3.1: A tool for simulating com-

puter architectures for computer organization classes.

J. Educ. Resour. Comput., 1(4):46–59.

Tanenbaum, A. S. and Woodhull, A. S. (2005). Operat-

ing Systems Design and Implementation (3rd Edition).

Prentice-Hall, Inc., Upper Saddle River, NJ, USA.

Warford, J. S. and Okelberry, R. (2007). Pep8cpu: A pro-

grammable simulator for a central processing unit. In

Proceedings of the 38th SIGCSE Technical Sympo-

sium on Computer Science Education, SIGCSE ’07,

pages 288–292, New York, NY, USA. ACM.

Zeng, H., Yourst, M., Ghose, K., and Ponomarev, D. (2009).

Mptlsim: A cycle-accurate, full-system simulator for

x86-64 multicore architectures with coherent caches.

SIGARCH Comput. Archit. News, 37(2):2–9.

CSEDU 2020 - 12th International Conference on Computer Supported Education

340
