QoS-aware Autonomic Adaptation of Microservices Placement on Edge

Devices

Bruno St

evant

, Jean-Louis Pazat

and Alberto Blanc

IMT Atlantique, IRISA, France

Univ. Rennes, INRIA, CNRS, IRISA, France

Keywords:

Edge Computing, Performance Modelization, QoS-aware Placement, Particle Swarm Optimization,

Microservice Application Design, Adaptation Strategies.

Abstract:

Given the widespread availability of cheap computing and storage devices, as well as the increasing popularity

of high speed network connections (e.g., Fiber To The Home (FTTH)), it is feasible for groups of users to share

their own resources to build a service hosting platform. In such use-case, the response-time of the service is

critical for the quality of experience. We describe a solution to optimize the response-time in the case of an

application based on microservices. This solution leverages the ﬂexibility of microservices to dynamically

adapt the placement of the application workloads on edge devices. We validate this solution on a production

edge infrastructure and discuss possible strategies for the decision rules.

1 INTRODUCTION

Cloud@Home (Cunsolo et al., 2009) or Community

Clouds (Khan et al., 2014) are examples of systems of

where users contribute with computing and network-

ing resources to a participatory infrastructure capable

of processing workloads such as services and Virtual

Machine (VM)s. Such systems can provide an alter-

native to public clouds for users concerned with data

privacy and service continuity. Consider, for exam-

ple, a sport club willing to host community services

such as photo-sharing. Using a public cloud provider

to host these services is a free and appealing solution,

but data is stored by the provider, with potential pri-

vacy violations. Furthermore, the provider could uni-

laterally decide to modify or stop its service.

Participatory cloud solutions propose to use user-

owned resources on their premises and federate them

in a managed infrastructure comparable to a public

cloud. With such solutions, it is possible for a com-

munity, such the aforementioned sport club, to create

an infrastructure to support its online services with the

help of its members. We consider in this work the use-

case where some users shares the resources of devices

inside their residential network with the community.

The services will be executed in the runtime environ-

ment created by these devices connected throught the

Internet. Data for these services will reside on user

devices, thus alleviating privacy concerns. This in-

frastructure will stay operational as long as commu-

nity members provide resources.

When using such a solution, the application

response-time is a critical parameter for user satisfac-

tion (Egger et al., 2012). Efﬁcient management of

such Quality of Service (QoS) parameters is a difﬁ-

cult task in this context because there is no possibility

to control the devices and networks. The only way

to inﬂuence the application response-time is to place

the application workloads on devices offering the best

performance. Applications based on microservices

can help in this endeavor as one can place each mi-

croservice independently as opposed to monolithic

applications.

In this work, we study a photo-sharing applica-

tion, decomposed in interdependent microservices as

depicted in Figure 1. The WebUI (UI) service pro-

vides a web photo gallery with thumbnails. The Pho-

toHub (PH) service stores the photos. The ThumbHub

(TH) service produces on demand thumbnails of pho-

tos. The MetaHub (MH) service stores photo meta-

data. We have previously shown (Stevant et al., 2018)

how the Particle Swarm Optimization (PSO) heuristic

can place each microservice on user-provided devices

to minimize the response time (weighted sum of re-

sponse times corresponding to different user cases, to

be precise), in a static case, i.e., where the different

parameters (Round Trip Time (RTT), bandwidth, etc.)

do not change over time.

Stévant, B., Pazat, J. and Blanc, A.

QoS-aware Autonomic Adaptation of Microservices Placement on Edge Devices.

DOI: 10.5220/0009319902370244

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 237-244

ISBN: 978-989-758-424-4

237

Client

Figure 1: Call graph for the photo-sharing application.

1.1 Problem Statement

In the contribution mentioned above, the PSO heuris-

tic calculates placement solutions from known values

of the response-time for each microservice. However

these input values may vary according to the avail-

ability of computing resources and variations of net-

work QoS parameters (Nishio et al., 2013). These

parameters can ﬂuctuate in the context of edge de-

vices connected to residential networks. A solution

found by the proposed heuristic will therefore result

in an near-optimal response-time but only as long

the system’s parameters do not change. We started

by measuring these parameters (downstream and up-

stream bandwidth, RTT) for devices connected to

various residential networks (Fiber, VDSL) and de-

vices connected to administrated networks (campus

lab, Virtual Private Server (VPS) in a datacenter). Fig-

ure 2 shows the variations of these parameters over

86 hours. We found that the QoS parameters, espe-

cially bandwidths, ﬂuctuate signiﬁcantly in residen-

tial networks because of concurrent usages of these

resources from other connected devices.

We characterized the impact of these variations of

the network QoS on the response-time of the photo-

sharing application by deploying its microservices on

the same devices used for the above measurements

according to the solution presented in (Stevant et al.,

2018). The devices are dedicated to this experiment,

therefore computing resources are always available

for the application. Figure 2 shows the variations of

the response-time of the application and of its mi-

croservices measured at the same time as the mea-

surements presented above. We observe that, during a

ﬁrst part of this experiment, while the network QoS

parameters are ﬂuctuating, the measured response-

time is almost stable. On the last part of the exper-

iment, changes observed in the QoS parameters of a

single device (VDSL) after 4000min. resulted in a in-

crease of almost 20% of the application.

We conclude from this experiment that variations

of network QoS parameters can have an important im-

pact on the response-time of the application. The de-

terioration we observed in the previous experiment is

sufﬁcient to be perceived by the users. We propose,

as a solution to mitigate this, to dynamically adapt the

placement according to the variations of the network

QoS parameters. A solution for managing such adap-

tation needs to consider two main issues. The ﬁrst

issue is to detect when an adaptation is needed. The

second issue is to specify a suitable alternative place-

ment of the microservices considering the current val-

ues of network QoS parameters.

1.2 Contribution

In this article, we describe an autonomic process for

adapting the placement of the microservices compos-

ing the application according to variations in the pa-

rameters inﬂuencing its response-time. As a solution

to the issues mentioned above, we propose to indi-

vidually monitor the response time of each deployed

microservice. We use these measurements to detect

when an adaptation of the placement is needed based

on pre-deﬁned decision rules. We use again the PSO

heuristic with these measurements to ﬁnd a new opti-

mized placement of the microservcies.

We validated our approach on an existing partic-

ipatory infrastructure with devices connected to pro-

duction networks on which we deployed the photo-

sharing application. We integrated probes in the de-

vices to monitor the different response-times and de-

tect any performance change. We tested different de-

cision rules for triggering the adaptation.

2 RELATED WORKS

To identify potential solutions to the mentioned is-

sues, we studied the litterature of three domains

closely related to our speciﬁc use-case. Differ-

ent approaches in the ﬁeld of QoS-aware autonomic

resources management in cloud computing are re-

viewed in (Singh and Chana, 2015). They share

with our use case the same objectives of optimizing

and adapting the runtime environment of an appli-

cation according to variations of the underlying in-

frastructure. Solutions such as (Aryal and Altmann,

2018) and (Khorsand et al., 2018) target different

QoS parameters to be optimized, either user-oriented

(response-time, availability, throughput) or provider-

oriented (consumed energy). We found that these

solutions usually consider monolithic or at best 3-

tier applications, and static network QoS parameters.

These solutions will not ﬁt our use-case, which in-

volves a multi-component application and variations

of network QoS parameters.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

238

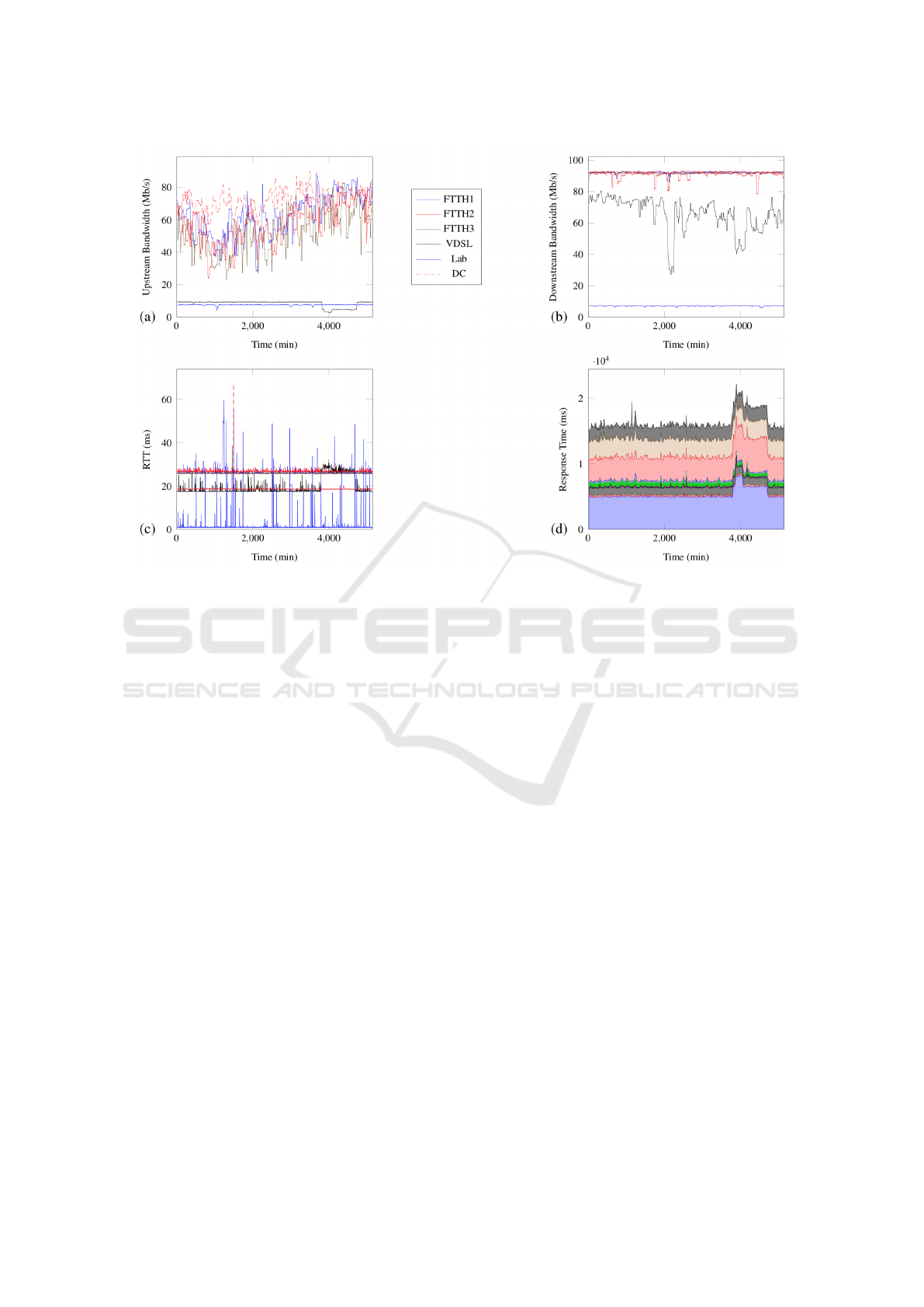

Figure 2: Measured QoS parameters for edge devices and response-time for application using these devices.

A possible option is to consider the architectural

model for a microservice based application as a com-

position of services. We therefore studied Service

oriented Architecture (SoA) adaptation solutions re-

viewed in (Mutanu and Kotonya, 2018). These so-

lutions commonly include network QoS parameters

in the criteria for selecting the optimal service lo-

cation (Cardellini et al., 2017)(Aschoff and Zisman,

2011). These solutions use different strategies for

adapting the composition, which try to avoid Service

Level Agreement (SLA) violations, either by predict-

ing such problems or reacting to detected violations.

To the best of our knowledge, no published work in

this area demonstrated how such strategies behave

when services are deployed on edge devices.

In (Brogi et al., 2019) the authors explore the

problem of placing services in the context of Edge

and Fog Computing, and reviewed several solutions

capable of dynamically adapting this placement

(Skarlat et al., 2018)(Zhang et al., 2016)(Yousefpour

et al., 2019). While they consider multi-component

applications deployed on edge devices, we found that

their adaptation mechanism only react to node arrival,

overload or departure, but not to variations of net-

work QoS parameters. Based on these related works,

we conclude that our contribution provides an origi-

nal solution to the problem of QoS-aware placement

adaptation of microservices on edge devices.

3 PROPOSED SOLUTION

We describe in this section a solution to optimize

the response-time of the application deployed on edge

devices, and to adapt the placement of the microser-

vices with the variation of the QoS parameters of the

network interconnecting these devices. We propose

an approach where the adaptation of the placement is

triggered by decisions based on measurements of the

response-time of the application. The different func-

tions involved in such decision are structured as repre-

sented in Figure 3, and follow the blueprint of an auto-

nomic system deﬁned by IBM in (Kephart and Walsh,

2003). It deﬁnes the system as an iterative process

with interactions between the infrastructure where the

application is deployed, and a decision-making algo-

rithm structured in differents functions.

The Monitor function collects response-time mea-

surements from participating nodes. Devices act-

ing as clients of the application measure the global

response time of the application. Devices host-

ing the microservices of the application measure the

response-time for function calls between microser-

vices. These different measurements are stored in-

side Response-Time (RT) Matrices for further analy-

sis. The Analyze function calculates key indicators

from the different measured response-times. The De-

cision Rules, deﬁned by the system administrator, use

QoS-aware Autonomic Adaptation of Microservices Placement on Edge Devices

239

Monitor

(RT Matrices)

Analyse

Decision

Rules

Plan

(PSO)

Execute

Adapt

placement

Keep placement

New

deployment

measurements

Figure 3: Flowchart for an autonomic adaptation process.

these indicators to decide on the necessity of an adap-

tation and, in such case, generates an alert. The Plan

function, triggered by this alert, speciﬁes the adequate

actions to be taken to optimize the response-time of

the application. This function uses the PSO heuris-

tic to calculate a new placement of the microservices

from the values stored in the Response-Time (RT)

Matrices. Finally the Execute function deploys the

planned placement of the microservices and reconﬁg-

ure the application.

3.1 Reponse-time Monitoring

The goal of this system is to optimize the response-

time of the application from the point of view of

the clients. The system monitors the application re-

sponse time by collecting measurements on the client

nodes. These nodes generate calls to the applica-

tion representing different user actions and measure

the time needed by the application to process each

of these calls. By collecting and aggregating the

response-times of the different user actions measured

by all of the clients nodes, the system can compute

a (weighted) average value representing the global

response-time of the application for the considered

clients.

The Monitor function collects the response-time

of each deployed microservice. Thanks to these mea-

surements it is possible to decompose the application

response time as the sum of the response times of

each one of the microservices involved in satisfying

a user request. The measurements of the response-

time for one microservice is stored in the response-

time (RT) matrice corresponding to this service. Each

response-time measurement is speciﬁc to a microser-

vice deployed on a particular node and requested from

another node. For the microservice s, R

(i, j ) gives

the value for the response-time of service located on

i when requested by client j. Once the Monitor func-

tion has collected sufﬁcient measurements to compute

the global response-time of the application, the value

is forwarded to the Analyze function that will apply

rules to decide if an adaptation of the placement is

needed.

3.2 Decision Rules

The Analyze function decides when adaptation is

needed based on the measured response-times and on

the rules deﬁned by the system administrator. In this

article, we consider two different adaptation strate-

gies.

A ﬁrst strategy (reactive), triggers the adaptation

when the monitored values are outside acceptable

boundaries . With such a strategy, it is possible for the

system to react to a deterioration of the response-time

of the application as observed in Figure 2. This reac-

tive strategy should deﬁne an appropriate threshold as

the least-acceptable response-time for the application.

This value can be a ﬁxed number or computed from

previous measurements of the response-time.

A second strategy (proactive) continuously tries to

improve the response-time of the application even if

there is no observed deterioration. Indeed, as the net-

work QoS parameters are ﬂuctuating, there is a possi-

bility that an alternative placement of the microser-

vices may result in a lower response-time than the

current deployment of the application. This proactive

strategy will trigger the evaluation of alternative so-

lutions when a sufﬁcient amount of monitoring infor-

mation has been collected since the last deployment.

3.3 QoS-aware Placement Algorithm

The algorithm used in the Plan function is based on

the PSO meta-heuristic presented in (Stevant et al.,

2018). A ﬁrst input parameter for this algorithm is the

call-graph of the microservices composing the appli-

cation, as shown in Figure 1 for the case of the photo-

sharing application. This workﬂow is required to cal-

culate the response-time of the different user requests

from the response-time of each microservice. A sec-

ond parameter of the algorithm is the list of the de-

vices serving as clients of the application. The place-

ment heuristic will ﬁnd a solution that globally op-

timize the response-time of the application from the

point of view of these clients.

The PSO algorithm searches for a placement

among the different possible locations for each mi-

croservice of the application. Each placement solu-

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

240

tion is evaluated by calculating the expected response-

time of the application from values of the RT matri-

ces. The considered placement with the call graph

of the application gives the different nodes pairs in-

volved in the network communications implied by

the user-actions, hence the values of microservice

response-times to be aggregated to estimate the result-

ing response time. The PSO algorithm is able to ﬁnd

a near-to-optimal solution lowering the response-time

in a relatively short time (a couple of seconds).

4 IMPLEMENTATIONS AND

RESULTS

To validate our approach in real conditions, we de-

ployed a test infrastructure of nodes connected to res-

idential networks where we can instanciate the mi-

croservices of our application. We managed the de-

ployement of the application through the adaptation

algorithm described in the previous section and ob-

served during different experiments how the different

strategies reacted to the variation of the QoS parame-

ters of these residential networks.

4.1 Testbed

We deployed a testbed using ﬁve PC-Engine APU2

small-factor computers and a VPS hosted in a data-

center. Table 1 describes the physical conﬁguration

of the devices. A server orchestrates the deployment

of the application on designated devices. It remotely

manages the activation of the different microservices

of the application by instancing containerized images

through automation scripts. We used the same scripts

in our tests to automate the users requests to the ap-

plication, from the devices designated as clients.

The physical devices are connected to the Inter-

net through different edge networks. Table 2 de-

scribes their nominal values of network QoS parame-

ters. The deployed devices are dedicated to our tests,

therefore computing resources are always available

for the hoted microservices. However the network be-

tween each devices is shared ﬁrst with the users trafﬁc

on their residential network, then globally with other

trafﬁc on the Internet. We already have shown the

impact of the sharing of this networking resources on

QoS parameters in Figure 2.

Table 1: Devices physical conﬁguration.

Device CPU Bogomips RAM

APU2 1x Emb.AMD 1GHz 2000 4 GB

VPS 1x Corei7 3GHz 6400 1 GB

4.2 Monitoring Solution

In addition to the software required for microser-

vices deployment and operation, we integrated in

the devices a monitoring tool measuring the different

response-times of the services. Each request to a mi-

croservice is routed through a transparent proxy that

measures the response time for each request and then

forwards the result to a monitoring server. This server

centralizes all measurements and exposes them to the

adaptation algorithm as the Response-Time (RT) ma-

trices described in the previous section.

Before updating the RT matrices, the monitor-

ing server needs to correlate the different measured

response-time for each request. This computation is

required so that each value of the matrix R

(i, j ) de-

pends only on the QoS parameters between devices

i and j. As the proxy is located at the origin of the

request, the measured response-time includes the de-

lay for the request to reach the server, for the service

to process the request and ﬁnally for the response to

come back from the server to the client. The tran-

sit delay on the network for the request and the reply

is dependent of the QoS parameters speciﬁc to this

device pair. However, in the case of a microservice

calling another, the processing time includes the tran-

sit delay for a request to a different microservice be-

tween another device pair. In such case, the measured

response-time should be substracted of the delay im-

plied by this subsequent call before updating the ma-

trix.

To solve this issue, we managed decompose the

response-time for a speciﬁc request to the application

into individual response-times for each involed mi-

croservice by ﬁrst identifying the request with a corel-

lation ID. The client of the application injects this

identiﬁer as an extra parameter to its request. Each

microservice involved in the processing of this re-

quest copies the corresponding correlation ID in ev-

ery following requests. The measurement proxies in

the path forward the correlation ID to the monitoring

server along with the measured response-times. The

monitoring server is then able to correlate the differ-

ent response-times for each request, using the corre-

lation ID and the call graph of the application.

Table 2: Network QoS parameters of the testbed.

Network Device Up/Down BW RTT

FTTH1,2,3 APU2 100/100 Mbits 30ms

VDSL APU2 20/80 Mbits 40ms

Lab APU2 10/10 Mbits 10ms

DC VPS 100/100 Mbits 20ms

QoS-aware Autonomic Adaptation of Microservices Placement on Edge Devices

241

4.3 Methodology for Evaluation

We realized several experiments using the setup

described above to evaluate how much different

adaptation strategies can perform in optimizing the

response-time of the application with actual variations

of the QoS parameters in a production network. We

have chosen as comparison criterion between strate-

gies, the ratio of adaptations of the placement result-

ing in an improvement of the response-time of the ap-

plication.

We implemented the different adaptation strate-

gies inside the Analyse function of the architecture.

This function is realized inside a single process, con-

ﬁgured to apply a single strategy. This process ana-

lyzes the monitored response-time and decide if a new

placement for the microservices is needed. This pro-

cess interacts with the monitoring server to analyze

the values of the RT matrices and with the server man-

aging the microservices instances to trigger a new de-

ployment of the application. This new process com-

pletes the adaptation loop described in section 3.

Each experiment consists ﬁrst in deploying the

photo-sharing application on the test infrastructure.

Due to the limited number of available devices, we

chose to deploy only a single instance of each of mi-

croservices. For this initial deployment, we chose a

random location for each instance. We also constrain

all deployments to deploy at most one microservice

on each device. By forbidding service collocation, we

want to maximize the impact of remote communica-

tions on the response-time of the application. The RT

matrices are initialized before each test with the actual

response-times, obtained from a sufﬁcient number of

prior tests.

All the devices involved in the test infrastructure

serve as clients of the application. We automated the

generation of the client requests from the devices in

a round-robin scheme: a single device generates se-

quential requests corresponding to all possible user-

actions to the application before another device gen-

erates its own requests. The application processes

only one client request at a time, without any interfer-

ence from other concurrent requests. The measured

response-time for each user-action of the application

is measured by the client and forwarded to the mon-

itoring server. The monitoring server calculates the

global response-time of the application once every

clients have forwarded their measurements. By con-

tinuously generating user requests from the clients,

we can observe the variations of the response-time

and the impact of changes in network QoS. This

value, as well as values in the RT matrices are ana-

lyzed by the adaptation strategies.

4.4 Evaluation of a Proactive

Adaptation Strategy

We ﬁrst implemented a proactive adaptation strategy

based on periodic adaptations of the placement of the

microservices. This strategy originated from the as-

sumption that variations on the response-time may

follow a regular pattern as the volunteers use their net-

works in a predictable manner. We chose to trigger a

new adaptation of the placement of the service every

three hours. This time interval roughly corresponds

in our tests to the time needed for ten consecutive

tests from each client. The requests generated by the

clients update the RT matrices with new values for the

response-time of the microservices. When triggered,

the PSO heuristic will be able to ﬁnd possible alterna-

tive placements based on up-to-date values.

We evaluated this proactive strategy on our test in-

frastructure through experiments running for a min-

imum of 50 hours. The observed variations of the

response-time of the application of one of the most

representative experiments involving the proactive

strategy are presented in Figure 4 (a). Adaptations

of the placement are represented in this graph using

vertical plain lines. We can observe that each adapta-

tion of the placement does not always result in an im-

proved response time of the application. We counted

that, over all the adaptations triggered by the proac-

tive strategy in our different experiments, only half of

them managed to improve the response-time.

We explain these unsatisfactory results by con-

sidering a possible inconsistency between some

response-times in the RT matrices and the actual

response-times measured with the new placement. In-

deed, even if the RT matrices have been updated by

prior measurements, some values might not be rele-

vant when a new placement is to be chosen, due to

variations of the network QoS parameters. There is

therefore a probability that the PSO heuristic, based

on these biased values, could choose a placement re-

sulting in a higher response-time than the previous

placement.

4.5 Evaluation of a Reactive Adaptation

Strategy

We designed a new adaptation strategy to overcome

the problem found in the proactive strategy. This

strategy enables the system to trigger a new deploy-

ment of the microservices in the case of a deteriora-

tion of the response-time of the application. At each

iteration, the system evaluates the global response

time of the application and the strategy compares this

value with a threshold, corresponding to the worst

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

242

Figure 4: Variations of the application response-time with different adaptation strategies.

acceptable response-time. We deﬁned this threshold

from prior experiments as the average of the 10 last

global response-times multipled by 110%. If the cur-

rent global response-time for the application exceeds

this threshold, the strategy will trigger the selection

of a new placement of the microservices. We have

chosen to keep in this strategy the principle of a peri-

odic adaptation as a mean to continuously update the

values inside the RT matrices.

This strategy will be able to mitigate at least two

situations of response-time deviation. The ﬁrst situ-

ation occurs when variations of the network QoS pa-

rameters have a signiﬁcant impact on the response-

time. In such case, the values inside the RT matrices

should indicate which microservices are responsible

for the deviation of the response-time of the applica-

tion. Based on these values, the PSO heuristic will

disqualify these particular locations when selecting a

new placement. Another situation is the case when

a periodic adaptation results in a deterioration of the

reponse-time. The updated values in the RT matrices

should prevent PSO heuristic to choose a poor solu-

tion for this new adaptation.

We evaluated this reactive strategy on our test in-

frastructure using the same methodology as the pre-

vious strategy evaluation. Figure 4 (b) shows the

variations of the response-time of the application for

one of the most representative experiment. Periodic

adaptations of the placement are represented in this

graph using vertical plain lines. Adaptations triggered

by the reactive strategy are represented using vertical

dashed lines. We observed that most of adaptations

due to the reactive strategy occurred right after a pe-

riodic adaptation which resulted to a poor placement

solution. We also observed reactive adaptations due

to a deviation of the response-time corresponding to

variation of network QoS parameters.

In some cases, we noticed that the strategy trig-

gers repeated adaptations. During these iterations,

the placement proposed after a reactive adaptation

request did not result in an improvement of the

response-time. The strategy will therefore trigger

a new adaptation until an improvement can be ob-

served. To prevent an inﬁnite-loop, we limited the

number of consecutive adaptations the strategy can

trigger. As a positive side effect, these tests of alter-

native placements enable the system to update others

values inside the RT matrices.

We performed several experiments to get a repre-

sentative view of the behavior of both strategies with

different network QoS variations. Table 3 presents

the key indicators extracted from these experiments.

This table shows that the reactive strategy presents a

higher ratio of adaptations resulting in an improve-

ment of the response-time than the proactive strategy.

It can be noted that the strategy can still make poor

choices. Indeed, even if the RT matrices are updated

more frequently, they still can present some inconsis-

tencies with current response-times.

Table 3: Key indicators for evaluated strategies.

Strategies Proactive Reactive

Elapsed Time (hours) 248 180

Adaptations 81 83

RT improvement > 10% 30 45

RT deterioration > 10% 27 16

Stable RT 24 21

QoS-aware Autonomic Adaptation of Microservices Placement on Edge Devices

243

5 CONCLUSION AND FUTURE

WORKS

In this article we have considered the case of a

microservice-based application deployed on devices

distributed on the edge of the network. We observed

that variations of parameters on these edge devices,

such as network QoS, may impact the response-time

of the application. We proposed a solution to dy-

namically adapt the placement of the microservices

to these variations. The adaptation process we de-

scribed in this article is based on the knowledge of

the response-time of each microservice. These values

are directly measured by the devices participating to

the application and stored in RT matrices. The PSO

heuristic uses these values to propose adapted place-

ment solutions.

We evaluated on a production infrastructure two

strategies to decide when the system should adapt

the placement of the microservices. A ﬁrst proac-

tive strategy tries to periodicaly adapt this placement.

We observed that half of the adaptations resulted in

a deterioration of the response-time. We explained

that, when such adaptation occurred, the RT matri-

ces were inconsistent with the actual response-times.

We proposed to supplement this strategy with a reac-

tive behavior which allows the system to trigger a new

adaptation in case of deviations of the response-time.

We concluded from our experiments that this strategy

gave satisfactory results.

We observed that the reactive strategy resulted in

consecutives iterations where several placements are

tested. These iterations led to a perceptible unstabil-

ity of the response-time of the application. To keep

a stable experience for the users, we propose, as an

improvement of the solution, to test these alternative

placements in parallel with the current deployment of

the application. Thanks to the ﬂexibility of microser-

vices, a subset of the clients can transparently use an

alternative deployment of the application. Measure-

ments from the devices participating in this deploy-

ment will help the heuristic to ﬁnd a suitable place-

ment solution.

REFERENCES

Aryal, R. G. and Altmann, J. (2018). Dynamic applica-

tion deployment in federations of clouds and edge re-

sources using a multiobjective optimization AI algo-

rithm. In Third International Conference on Fog and

Mobile Edge Computing (FMEC).

Aschoff, R. and Zisman, A. (2011). QoS-Driven Proac-

tive Adaptation of Service Composition. In Service-

Oriented Computing, Springer.

Brogi, A., Forti, S., Guerrero, C., and Lera, I. (2019). How

to Place Your Apps in the Fog – State of the Art and

Open Challenges. Software: Practice and Experience.

Cardellini, V., Casalicchio, E., Grassi, V., Iannucci, S.,

Lo Presti, F., and Mirandola, R. (2017). MOSES:

A Platform for Experimenting with QoS-Driven Self-

Adaptation Policies for Service Oriented Systems. In

Soft. Eng. for Self-Adaptive Systems. Springer.

Cunsolo, V. D., Distefano, S., Puliaﬁto, A., and Scarpa,

M. (2009). Volunteer Computing and Desktop Cloud:

The Cloud@Home Paradigm. In IEEE International

Symposium on Network Computing and Applications.

Egger, S., Reichl, P., Hoßfeld, T., and Schatz, R. (2012).

Time is bandwidth ? Narrowing the gap between sub-

jective time perception and Quality of Experience. In

IEEE International Conference on Communications.

Kephart, J. and Walsh, W. (2003). An architectural blueprint

for autonomic computing. Technical report, IBM.

Khan, A. M., Selimi, M., and Freitag, F. (2014). Towards

Distributed Architecture for Collaborative Cloud Ser-

vices in Community Networks. In 6th International

Conference on Intelligent Networking and Collabora-

tive Systems (INCoS’14). Salerno, Italy: IEEE.

Khorsand, R., Ghobaei-Arani, M., and Ramezanpour, M.

(2018). FAHP approach for autonomic resource pro-

visioning of multitier applications in cloud computing

environments. Software: Practice and Experience.

Mutanu, L. and Kotonya, G. (2018). What, Where, When,

How and Right of Runtime Adaptation in Service-

Oriented Systems. In Service-Oriented Computing –

ICSOC 2017 Workshops, Lecture Notes in Computer

Science, pages 30–42. Springer.

Nishio, T., Shinkuma, R., Takahashi, T., and Mandayam,

N. B. (2013). Service-oriented Heterogeneous Re-

source Sharing for Optimizing Service Latency in Mo-

bile Cloud. In First International Workshop on Mobile

Cloud Computing & Networking.

Singh, S. and Chana, I. (2015). QoS-Aware Autonomic Re-

source Management in Cloud Computing: A System-

atic Review. ACM Comput. Surv., 48.

Skarlat, O., Karagiannis, V., Rausch, T., Bachmann, K., and

Schulte, S. (2018). A Framework for Optimization,

Service Placement, and Runtime Operation in the Fog.

In 2018 IEEE/ACM 11th International Conference on

Utility and Cloud Computing (UCC), pages 164–173.

Stevant, B., Pazat, J.-L., and Blanc, A. (2018). Optimizing

the Performance of a Microservice-Based Application

Deployed on User-Provided Devices. In 2018 17th

International Symposium on Parallel and Distributed

Computing (ISPDC), pages 133–140.

Yousefpour, A., Patil, A., Ishigaki, G., Kim, I., Wang, X.,

Cankaya, H. C., Zhang, Q., Xie, W., and Jue, J. P.

(2019). FOGPLAN: A Lightweight QoS-Aware Dy-

namic Fog Service Provisioning Framework. IEEE

Internet of Things Journal, 6(3):5080–5096.

Zhang, W., Hu, Y., Zhang, Y., and Raychaudhuri, D. (2016).

SEGUE: Quality of Service Aware Edge Cloud Ser-

vice Migration. In 2016 IEEE International Confer-

ence on Cloud Computing Technology and Science

(CloudCom), pages 344–351.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

244
