Online Automatic Characteristics Discovery of Faulty Application

Transactions in the Cloud

Shay Horovitz

1 a

, Yair Arian

2 b

and Noam Peretz

2 c

School of Computer Science, College of Management Academic Studies, Israel

Huawei, China

Keywords:

Application Faults, Transaction, Cloud, Insights, Online.

Abstract:

Performance debugging and fault isolation in distributed cloud applications is difﬁcult and complex. Existing

Application Performance Management (APM) solutions allow manual investigation across a huge space of

metrics, topology, functions, service calls, attributes and values - a frustrating resource and time demanding

task. It would be beneﬁcial if one could gain explainable insights about a faulty transaction whether due to

an error or performance degradation, such as speciﬁc attributes and/or url patterns that are correlated with the

problem and can characterize it. Yet, this is a challenging task as demanding resources of storage, memory and

processing are required and insights are expected to be discovered as soon as the problem occurs. As cloud

resources are limited and expensive, supporting a large number of applications having many transaction types

is impractical. We present Perceptor – an Online Automatic Characteristics Discovery of Faulty Application

Transactions in the Cloud. Perceptor discerns attributes and/or values correlated with transaction error or

performance degradation events. It does so with minimal resource consumption by using sketch structures and

performs in streaming mode. Over an extensive set of experiments in the cloud, with various applications and

transactions, Perceptor discovered non-trivial relevant fault properties validated by an expert.

1 INTRODUCTION

Cloud application performance degradation and fault

debugging is a challenging task becoming more

widely spread with the migration of applications to

the cloud. Even when transaction trace data is avail-

able there are many transactions and attributes mak-

ing it difﬁcult to discern the attributes and the values

related to a problem. In the current state of debug-

ging large scale distributed system, there are tools like

PinPoint (Chen et al., 2002) and other APM tools that

present application topology, monitor the application

in real-time, and install APM agents without requir-

ing code modiﬁcation by using instrumentation. The

instrumentation data collection can be implemented

using a tracing mechanism (Leavitt, 2014). For appli-

cation developers, traces contain valuable information

that may explain the reason for a transaction failure or

performance degradation.

In Figure 1 a simple web application is presented.

https://orcid.org/0000-0002-9285-3937

https://orcid.org/0000-0003-4720-656X

https://orcid.org/0000-0002-9867-4446

OpenTracing agents track the trace of each transac-

tion and report it using for example the Zipkin format.

The Publish-Subscribe (Yongguo et al., 2019) plat-

form assembles and distributes the transaction data in

streaming mode. Perceptor - an insights engine, re-

ceives per transaction trace data from which it extracts

insights. The insights produced by Perceptor are dis-

played to the user to help in the debugging process.

In the ﬁgure, the rows with green bullets display pa-

rameter values typical of the normal (no faults) trafﬁc,

while the red contain the same parameters but with

values typical of faulty transactions. For instance,

the URL parameter values in the buy transaction have

a range [1001-1991] in the Normal trafﬁc while in

faulty trafﬁc the range is [1-531].

Other insight types include certain SQL query

structure or parameter values that may be linked with

database performance issues or HTTP speciﬁc status

codes and user-agent values that may be related to

transaction errors. Such insights on the correlation

between certain values and errors or performance is-

sues are essential in order to narrow down the poten-

tial causes. Yet, a cloud service may contain mil-

lions of customers or applications, each may con-

Horovitz, S., Arian, Y. and Peretz, N.

Online Automatic Characteristics Discovery of Faulty Application Transactions in the Cloud.

DOI: 10.5220/0009320402450252

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 245-252

ISBN: 978-989-758-424-4

245

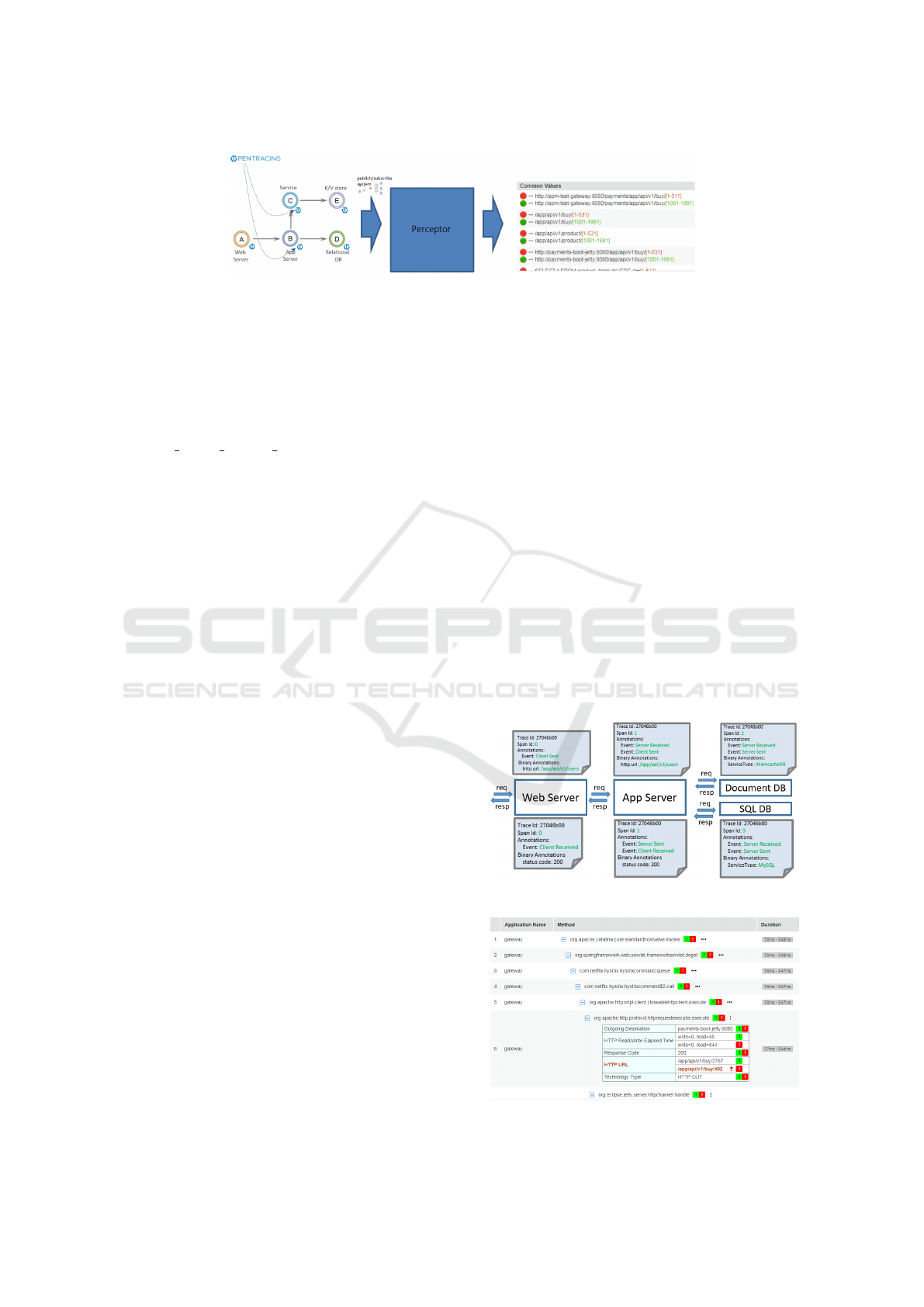

Figure 1: High-Level Insights Process.

tain tens of transaction types, where each transaction

trace may have tens of spans (trace data structure)

and each span contains tens of Key:Value attributes,

thus it would be challenging to manually track for

the attribute values that may link to a certain prob-

lem. A Zipkin trace is denoted here as a Call Chain,

with annotations as Key:Value attributes. For exam-

ple, CPU QUEUE LENGTH AVG represents the average

CPU queue length with a value of 0.8.

Traversing through all of the above instrumented

data and extracting values that are related to the trans-

action faults is tedious. This challenge calls for an

automatic solution that would scan all call-chain data

and ﬁlter only the key-value pairs that are highly cor-

related with problems. Perceptor is designed for au-

tomating the discovery of insights that characterize

the faulty transaction call-chain attribute values. Per-

ceptor analyses call chain data (attribute value pairs)

of each transaction and compares the presence and

value of each attribute under normal transaction op-

eration (denoted ”good” transaction) with the values

under faulty conditions (denoted ”bad” transaction)–

such as errors or performance degradation. It does

so online in streaming mode by employing an ef-

ﬁcient data structure for accumulating statistics on

each attribute using a collection of sketch data struc-

tures (Count Min Sketch, histogram, Linear Count-

ing) for minimal memory footprint. The attributes in

the Call Chain, to name a few, include HTTP Url,

Tier Name, Host Name, Service Instance, Method

Name, Response Code, HTTP Status Code etc. For

each transaction, its key-value pairs are aggregated in

a sketch data structure. Perceptor deduces insights

by comparing counts of an attribute that differ be-

tween the “bad” sketch and the “good” sketch in a

statistically signiﬁcant amount. For example, for at-

tribute “HTTP status code” and value 404, if the count

for good transactions is 0 and for bad transactions

is 5, http.status.code:404 is displayed among the in-

sights. “Bad” transaction trafﬁc includes also slow

transaction trafﬁc (e.g. the tail of the 95-percentile).

In ﬁgure 3, the HTTP URL of /app/api/v1/buy/402

ends up with an error while for another URL such as

/app/api/v1/buy/2767 there’s no error. Perceptor can

handle both categorical and numerical attributes.

Call chain terminology is discussed in (Leavitt,

2014; OpenTracing, 2020). In Figure 2 an example

of a call chain is displayed where a request is sent to

a Web Service with a speciﬁc trace id of 27046b00,

traversing through the other services. Each service

method belongs to a speciﬁc span. The RPC spans

between services contain timestamped events (a.k.a

logs or annotations) such as Client Sent (CS), Server

Received (SR), Server Sent (SS) and Client Received

(CR). Additional Key-Value information under each

span is regarded as Tags or binary annotations, such as

message/payload size, HTTP method or status code,

and Service type. With Perceptor, a call chain as dis-

played in Figure 3 is enriched with insights on the

difference between good and bad transactions. The

following is a list of call chain attributes accord-

ing to hierarchical order of invocation: Tier, Tier to

Tier, Instance, Instance to Instance, Method, Method-

to-Method, Categorical Binary Annotation Attribute,

Numerical Attribute, Categorical Annotation feature.

Figure 4 lists examples of Insight types that Perceptor

is able to automatically discover.

Figure 2: Zipkin Call Chain.

Figure 3: Call Chain Attributes of the Payment Application.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

246

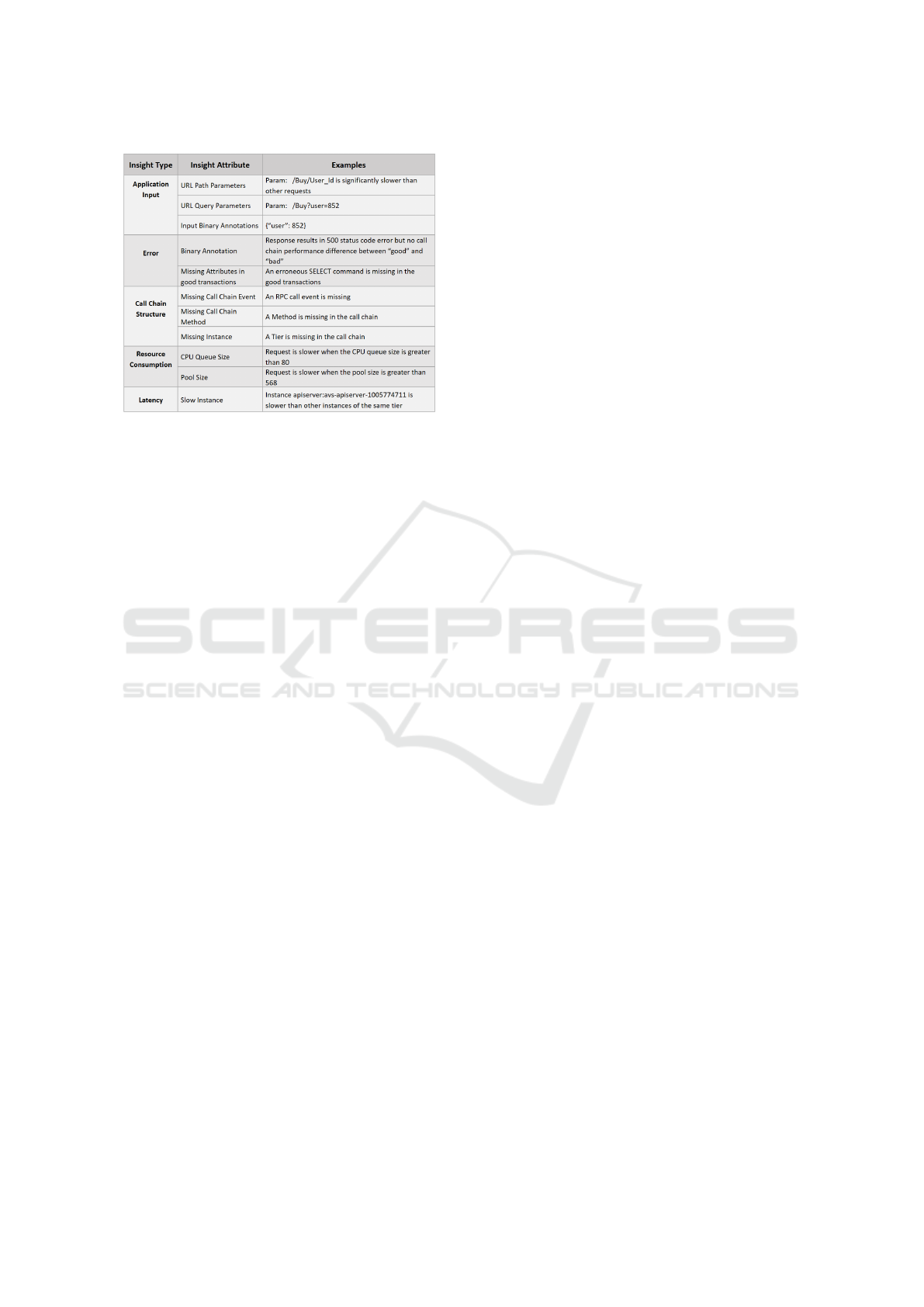

Figure 4: Table of Insight Types.

The remainder of the paper is organized as fol-

lows. In section 2 we review related work. In section

3 we describe the data structures used for automatic

discovery of Insights in streaming mode. In section

4 the details of the Insights auto-discovery process

are presented. Sections 5 and 6 provide extensions

for CMS Error Reduction and for Numerical attribute

treatment. In section 7 we present experimental re-

sults and in section 8 the conclusions.

2 RELATED WORK

In order to track for errors or performance degrada-

tion of applications, Application Performance Man-

agement (APM) products are used, mainly focused on

application mapping and transaction proﬁling. Appli-

cation mapping is concerned with metric level real-

time discovery and visualization of all the interac-

tions of an application with the underlying infrastruc-

ture. Transaction proﬁling distinguishes unique trans-

actions and tracks the unique ﬂow and code execu-

tion of a single business transaction across the under-

lying distributed application infrastructure. Yet, both

of these features do not currently allow to automat-

ically ﬁnd transaction-level attributes that are corre-

lated with faults or with performance degradation.

Existing methods for fault isolation in APM in-

clude topology based tools that provide visualization

of service dependency e.g., Dynatrace, Stackify, Ap-

pDynamics and Kieker (Brunnert et al., 2015). These

allow the user to narrow the search for signals of a

problem on the tier level. At a deeper level Code-

level diagnostics such as AppDynamics diagnostics

(Diagnostics, 2020) allow the user to diagnose down

to an individual line of code. YTrace (Kanuparthy

et al., 2016), an End-to-end Performance Diagnosis

in Large Cloud and Content Providers is another ex-

ample of a tool that aims at troubleshooting and ﬁx-

ing performance problems after the problems occur.

It requires the system to deliver near real time, ac-

tionable insights as to the signs of performance prob-

lems. However, in all these diagnostic tools the user

has to manually look for the cause of a problem rather

than have an automatic tool that discovers the insights

linked to the problem without any user intervention.

Error proﬁling is another set of tools that pro-

vides information about attribute values that differen-

tiate between errors and non-errors. For each call the

attributes and their values are provided using APM

monitoring capabilities and instrumentation. Indus-

trial solutions such as New Relic (NewRelic, 2020)

take advantage of this data to provide insight as to

possible attributes or values related to a problem.

However, current approaches require the user to pro-

vide the list of suspected attributes that relate to the

debugged problem. In addition, they also require a

manual conﬁguration of thresholds for the values of

these attributes in order to check whether the values

below or above the thresholds are related to the prob-

lem at hand. Currently, error proﬁling is limited to

metrics or requires custom deﬁned attributes.

All existing methods lack automatic insight dis-

covery at the level of call-chain attributes and val-

ues that allows deeper understanding of the problem,

without having the user pre-conﬁgure where the in-

sight might be found.

Large-Scale complex distributed systems need a

special tracing infrastructure to gather timing data

needed to troubleshoot latency problems and faults.

Understanding system behavior requires observing

related activities across many different programs and

machines. Dapper (Sigelman et al., 2010) by Google

and its derivation Zipkin (Leavitt, 2014) provide a

distributed tracing system for micro-service architec-

tures that manages both the collection and lookup of

tracing data. Pinpoint (Chen et al., 2002) provides

the runtime tracing needed by Zipkin using instru-

mentation. It traces requests as they travel through a

system and it is agnostic to application-level knowl-

edge. Pivot-Tracing (Mace et al., 2018) is a dy-

namic instrumentation framework that enables opera-

tors to iteratively install new queries during the diag-

nosis process. Canopy (Kaldor et al., 2017) is Face-

book tracing system constructing and sampling per-

formance traces by propagating identiﬁers through

the system. Finally, the Open Tracing Project (Open-

Tracing, 2020) is an open tracing standard for dis-

tributed applications with micro-services.

Online Automatic Characteristics Discovery of Faulty Application Transactions in the Cloud

247

3 DATA STRUCTURES FOR

INSIGHT DISCOVERY

The Insights discovery method of comparing at-

tributes and values between “good” transactions and

“bad” transactions requires the handling of many at-

tributes and their values per each transaction per each

application per each user. This makes it very expen-

sive to store and analyze the data in batch mode and

requires a low memory footprint and a scalable solu-

tion. In addition, it is desirable to have the insights

as close as possible to the time of fault. Therefore,

an online streaming solution is preferable to a batch

mode solution.

A Decision Tree (Salzberg, 1994) solution pro-

vides explainable rules for the user, with optional efﬁ-

cient versions such as Hoeffding Decision Tree (Bifet

et al., 2017). Yet, the disadvantages include large

space, instability, and overﬁtting.

An alternative solution could be having a key

value store of counters – where each attribute key

has 2 counters – one for bad transactions and one for

good transactions. Yet, this solution will be expen-

sive in memory, as for example a value may represent

a timestamp of a business transaction or a product id

in a large online retail service.

A hash table is a good alternative due to the con-

trol over memory – in particular for large cardinality

cases, yet an even more space efﬁcient alternative is

a Count Min Sketch (CMS) (Cormode, 2008) where

unlike a hash table uses only sub-linear space, at the

expense of over-counting some events due to colli-

sions. Perceptor utilizes the CMS structure for ag-

gregating statistics on each feature:value pair and can

provide an insight without the lead time required by

a batch solution. For each transaction we maintain a

data structure storing the minimum necessary data to

detect insights online.

A sketch is maintained storing counts of fea-

ture:value pairs for the good call chains and a sep-

arate sketch is maintained for the bad call chains

(per transaction type). Counts are compared between

the bad and the good sketches to detect feature:value

pairs that differ between the sketches. For each at-

tribute:value pair there are k counters each having a

different hash function and therefore a different hash

value for the pair. Each counter is in a separate hash

“table”, a row of size m. Since we aggregated many

attribute:value pairs in the same table, collisions may

arise and therefore the redundancy of several hash

functions and hash “tables” are needed. When adding

an attribute:value pair to the matrix, k hashes are cal-

culated for the pair (in the range [1 : m]) and the coun-

ters at those k locations are incremented by 1. To ex-

tract the counter value of an attribute:value pair, the

minimum counter from all the k hashed locations is

chosen. The reason is that collisions can cause some

of the counters to have a greater value than the true

count.

Perceptor maintains a separate CMS matrix for the

good and for the bad transaction instances (per trans-

action). It then looks for an insight by comparing

counters between the bad sketch and the good sketch

in real time when the attribute:value pair is inserted

into the CMS. Since most transactions are good, the

good sketch will usually have enough statistics while

the bad sketch may have only rare events. Therefore,

when the attributes of the bad transaction are inserted

into the bad sketch, the counters of the attribute can

be compared to their value in the good sketch at that

moment and an insight can be produced if no such

value exists in the good sketch. It is also possible

to compare the “good” and “bad” counters of an at-

tribute:value when inserting the pair for a good trans-

action. An additional case for an insight is when the

“bad” counter is signiﬁcantly higher than correspond-

ing “good” counter. Wilk’s theorem (Wilks, 1938)

can be used to quantify the statistical signiﬁcance as

in the coin tossing example in reference (WilksTheo-

rem, 2020).

Comparing a “good” attribute:value pair to the

corresponding entry in the “bad” sketch is more sub-

tle. For example, HTTP status code 200 OK is likely

to appear in the good sketch and not in the bad sketch.

Yet, this attribute:value pair does not provide any use-

ful insight as to the cause of the faulty transaction

behavior. For some attributes such as topological at-

tributes (Tier, Instance, method, etc.) if the attribute

exists in the good sketch and does not appear in the

bad sketch, an insight can be derived as to missing

services and methods in the bad transactions.

The use of CMS is memory efﬁcient especially for

long strings since the hashed value can be either a

short or a long taking only up to 4 bytes for the at-

tribute:value pair. In addition, all the attributes of a

transaction can be stored in the same CMS data struc-

ture. In principle the attributes of several transactions

can be stored in the same CMS table by hashing the

combination transaction:attribute:value. This requires

a larger hash table but is more efﬁcient since some

transactions may have less attributes resulting in a

waste of memory with a dedicated CMS per transac-

tion.

Features having many distinct values can pollute

the CMS data structure and therefore should be de-

tected and their value range limited. We detect such

features using a Linear Counting (Whang et al., 1990)

count-distinct algorithm discussed in section 5. We

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

248

use the same algorithm to detect when the CMS data

structure has been polluted so that we can either ex-

pand it or limit new attributes and values from using

the data structure. This is necessary in order to limit

the amount of FP and FN in practical applications (see

section 5 for CMS sizing).

4 INSIGHTS AUTO-DISCOVERY

PROCESS

We describe the steps taken in Perceptor to discover

Insights for application transactions.

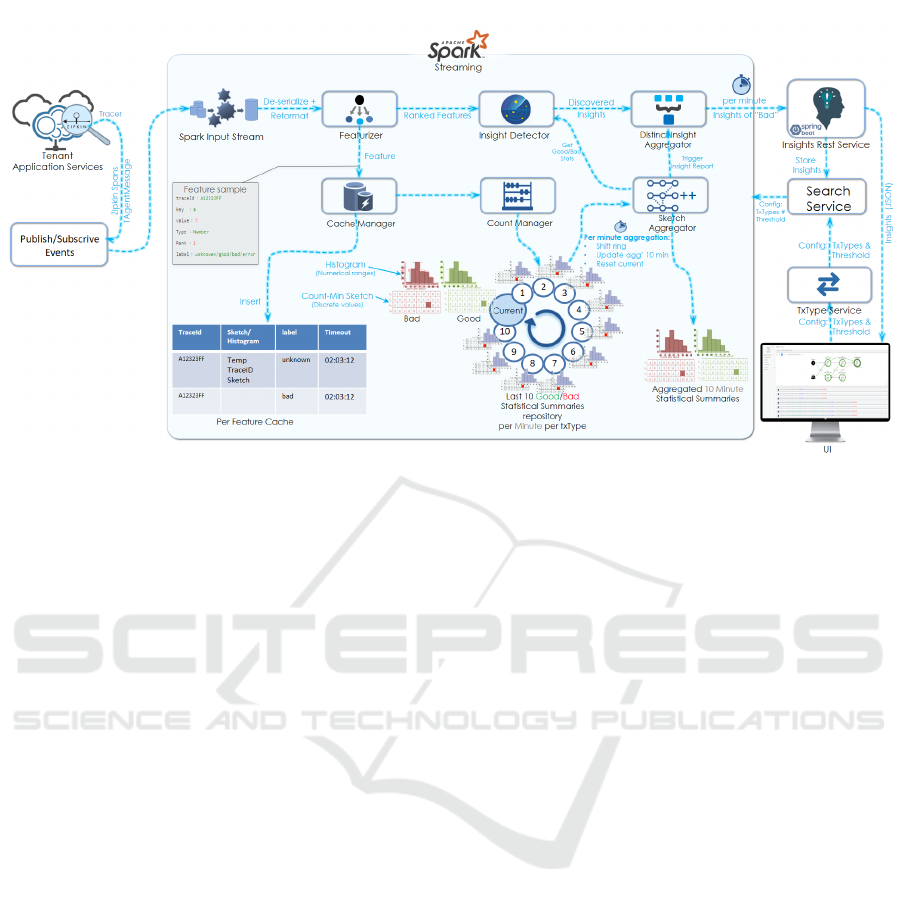

In Figure 5, the process of insights discovery is

depicted. The ﬁrst step is Data Collection, Tracing

and collecting call chain data from agents as in Zip-

kin (Leavitt, 2014) collection of span data. Zipkin is

a distributed tracing system which helps gather data

needed to troubleshoot latency problems in micro-

service architectures. It manages both the collection

and lookup of this data.

The next step is Data Distribution, the call chain

streaming data from all agents is collected and dis-

tributed per application per transaction using for ex-

ample a Publish-Subscribe system (Yongguo et al.,

2019). The data is then normalized by eliminating

duplicates, arranging the data according to time, and

breaking the call chains and spans into feature:value

pairs in the Featurizer.

The call chain data is then sent to the Cache Man-

ager as well as to the Insight Detector. The reason

we need a Cache Manager is that we do not know

if the transaction is good or bad until span 0 is com-

plete (with the ﬁnal response of the transaction). Only

when the transaction is complete we can insert the at-

tribute:value pairs of the call chain to the right sketch,

to the “bad” sketch or to the “good” sketch. On the

other hand the Insight Detector does not have to wait

for span 0 completion. It compares the bad sketch

with the good sketch so it has to look up the counters

in both sketches anyway. The Insight Detector does

not insert attributes into the CMS (Cormode, 2008),

this is the role of the Count Manager. Instead, the In-

sight Detector utilizes the attribute:value pairs to look

up their counts in the hash tables. It compares the

counts between the bad and the good sketches for the

speciﬁc attribute:value pair.

The features passed to the Insight Detector are

ranked according to the progress in the call chain

so that instances appearing earlier in time are ranked

higher. In addition, concurring features are ranked ac-

cording to their order, for example, a missing method

is ranked higher than its attributes. The ranking pre-

vents a ﬂood of Insights since as in the last exam-

ple when the missing method produces an Insight, all

lower ranked attributes under this method are disre-

garded.

The Count Manager receives transactions that are

labeled good or bad and inserts all attributes of a

transaction into the right sketch counting the fre-

quency of each feature:value pair. However, there is

a problem of discovering Insights in streaming mode,

for example, discovering problems that show up in

the last minute. To overcome this problem, the Count

Manager maintains a rotating window of for exam-

ple 10 minutes with each minute having its own CMS

counters. Together with the Sketch Aggregator the

streaming mode insights of the last minute can be

discovered. The Sketch Aggregator aggregates coun-

ters to a larger time interval depending on the desired

window size. For example, when each sketch spans

one minute, aggregation is done by adding sketch

matrixes of several minutes to a single aggregated

sketch. Since the per minute sketch and the per win-

dow size sketch are of the same size, it is possible

every minute to add the new one minute sketch to the

aggregated sketch and at the same time subtract the

oldest one minute sketch from the aggregated sketch.

With this mechanism a memory-efﬁcient history of

window size duration for the good and bad transac-

tions can be maintained up-to-date and insights can

be drawn as they occur. The Insights Detector, upon

each feature:value pair arrival checks for an insight in

the aggregated sketch.

The insights are then sent to the Insight Aggrega-

tor whose role is to consolidate them to a few distinct

insights since each attribute:value pair may produce

the same insight several times per each transaction in-

stance. The distinct insights are sent to the Insight

Presentation service and it presents them to the user

via a User Interface.

5 CMS ERROR REDUCTION

The sketch data structure is a two-dimensional array

of w columns and d rows that are chosen by set-

ting w =

e/ε

and d =

1/δ

, where the error in

answering a query is within an additive factor of ε

with probability 1 − δ and e is Euler’s number (Cor-

mode, 2008). The use of CMS is dynamic in our case,

and therefore we cannot tell in advance if transactions

may have too many attributes or if attributes may have

too many distinct values. As new values are added to

the sketch more collisions occur, and the gap between

our approximated counts using the minimum value of

the counters, and the true count grows larger. If the

number of distinct attributes and values becomes too

Online Automatic Characteristics Discovery of Faulty Application Transactions in the Cloud

249

Figure 5: Perceptor Insight Discovery Process.

large they may pollute the sketch making the initial

chosen parameters w and d not reﬂect the current er-

ror and probability of answering a query. Therefore,

count-distinct data structures (Whang et al., 1990) are

used to limit the extreme cases from polluting the

sketch.

The count-distinct problem is a cardinality estima-

tion problem where the number of distinct elements

in a data stream with repeated elements is calculated

using an efﬁcient time and space algorithm. The Hy-

perLogLog (Flajolet et al., 2007) (based on the orig-

inal Flajolet–Martin algorithm (Durand and Flajolet,

2003)) is a very efﬁcient algorithm for estimating the

cardinality of a multiset. However we have used the

Linear Counting (LC) (Whang et al., 1990) algorithm

as it is better for small cardinalities. The memory re-

quired by the algorithm is very low, one bit per each

distinct value.

The count-distinct algorithm has been used in two

cases: to track and control the size of the sketch and

to track the range of values of an attribute. In the ﬁrst

case, since the algorithm provides an estimate of the

current number of occupied CMS cells, we can con-

trol the use of the sketch when the number of distinct

values is of the order of w, by either enlarging the

sketch or by limiting insertions of new attribute:value

pairs to the sketch. The count-distinct algorithm en-

ables the auto-scaling of the CMS, with one bit per

each cell of the sketch.

In the second case, the count-distinct algorithm is

used to track the range of values of a categorical at-

tribute taking several values. Even though the sketch

data structure is very efﬁcient for long strings, a sin-

gle attribute may pollute the whole sketch which is

common to all the attributes of the transaction. It is

possible to limit the number of distinct values of each

attribute to a small number (e.g. 24) and since 24

bits take only 3 bytes of memory, it is possible with a

few bytes per attribute to track each categorical vari-

able. When a polluting attribute is detected, it can be

limited to the maximum distinct values allowed, and

any new values are not inserted into the sketch. The

new values are detected by having a minimum counter

value of 0 in the sketch.

6 NUMERICAL ATTRIBUTES

Attributes taking numerical values such as a User Id,

pose a problem to the CMS, each transaction instance

may have a different value for the attribute. For such

attributes the range of values typical of bad transac-

tions versus the range for the good transactions can

provide a valuable insight linking to the cause of a

fault.

As depicted in Figure 5, a histogram is used to

derive insights from numerical attributes. Two his-

tograms are maintained, one for the “good” transac-

tions and one for the “bad” transactions where each

numerical attribute can be added to a per-minute his-

togram. The per-minute-based Histograms are aggre-

gated to a ten minute histogram and the ten minute

histograms are compared between the good transac-

tions and the bad transactions. A High Dynamic

Range (HDR) (HdrHistogram, 2020) histogram may

be used to save memory, its sub-ranges have a log

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

250

scale width and the accuracy of the aggregated values

is ﬁxed in terms of the number of signiﬁcant digits.

7 EXPERIMENTAL RESULTS

We have performed all experiments of the proposed

method on several applications in the Cloud, among

them providing sample insights for an online store ap-

plication with 7 micro-services.

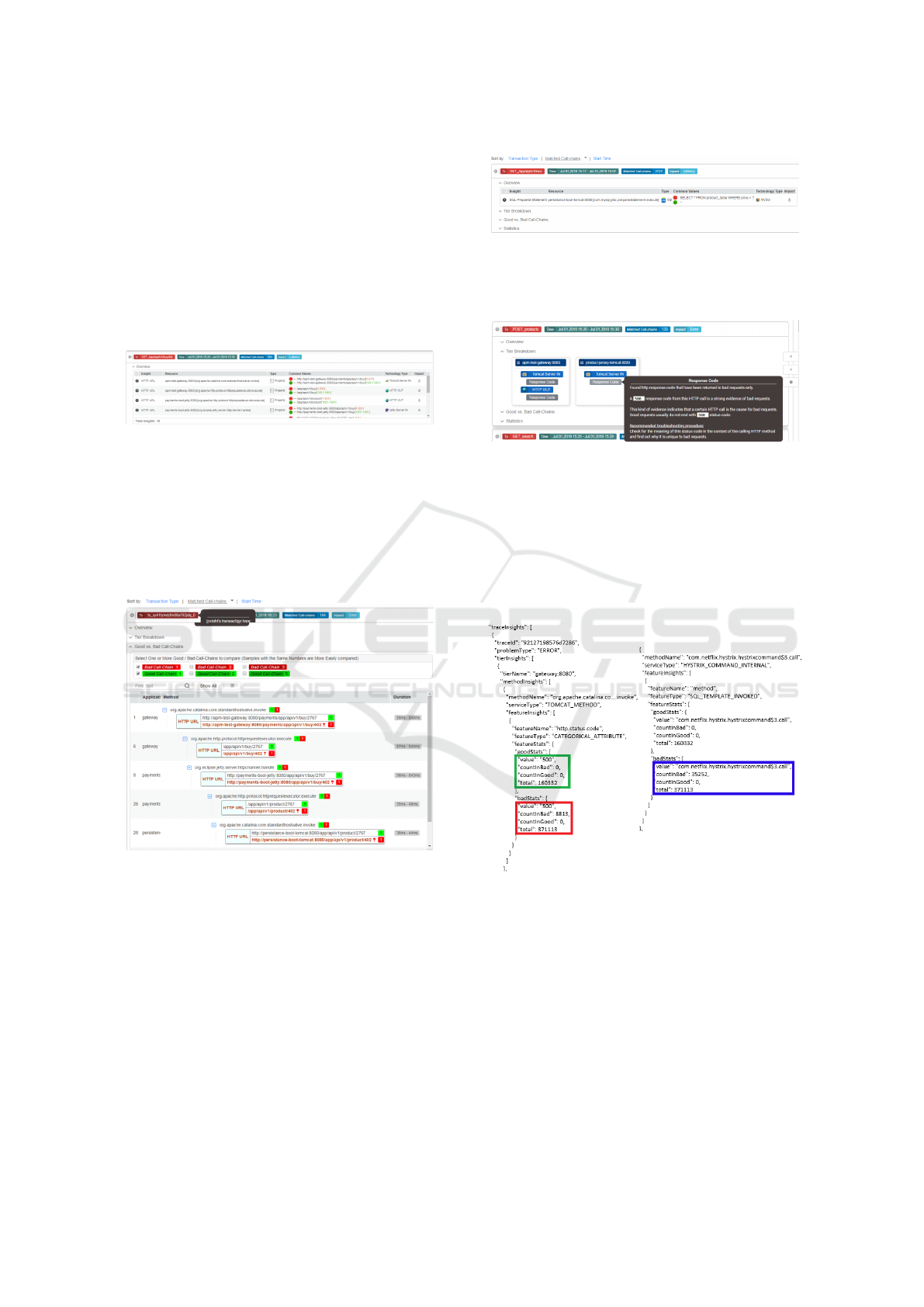

Figure 6: Buy Product Insights Numeric.

In Figure 6 an Insight discovered for a URL pa-

rameter range is displayed where the range of the pa-

rameter differs between the bad (red) and the good

(green) transaction instances. This is an example of

a numerical attribute where we have used an HDR

(HdrHistogram, 2020) histogram to ﬁnd the ranges of

the attribute.

Figure 7: Buy Product Good vs. Bad.

In Figure 7, we display two instances of the call

chain for the BuyProduct transaction of Figure 6, one

instance from the good transactions (green) and one

instance from the bad transactions (bad). For each

micro-service the duration of the spans for the two

instances is displayed on the right side of the ﬁgure.

The bad transaction has a degraded execution time of

around 840ms while the good transaction execution

time is around 60ms.

In Figure 8 an Insight for a categorical attribute

in an SQL SELECT sent from the Persistence to the

MySQL database is displayed. The SELECT com-

mand with the red dot does not appear in the good

Figure 8: Buy Product Insights Categorical Attributes.

transactions. The “bad” transactions here signify a

slow transaction relative to the good transactions.

Figure 9: Buy Product Insights Categorical Error.

In Figure 9 we depict an insight for a categorical

attribute where a bad transaction is one that returns an

error. The breakdown this time is according to the tier

and the attributes with the Insight are colored gray.

The insight found is that the attribute Response Code

has a value 500 that does not appear in the good trans-

action instances.

Figure 10: Buy Product Insight Error Detail.

In Figure 10 more information is provided for the

above Status Code insight. It can be seen on the

left that for the good transactions (in a green rect-

angle) there were 0 instances where the status code

was 500 (out of 160332 good transactions). On the

other hand the bad transactions (in red rectangle) had

8813 instances with status code 500 out of a total

of 371113 bad transaction instances. The other in-

sight presented in Figure 10 is a Structural Insight for

the same transaction and the same test. The method

com.net f lix.hystrix.hystrixcommand$3.call (in blue

rectangle) was executed for 35252 instances of the

Online Automatic Characteristics Discovery of Faulty Application Transactions in the Cloud

251

bad transactions but was never executed in the good

transactions.

8 CONCLUSIONS

The method we have developed can be used for Cloud

PaaS debugging and performance analysis, fault anal-

ysis and root cause analysis. It can be used online

in streaming mode and is efﬁcient in both memory

and speed. It is possible to adjust the method to re-

duce False Positives by requiring that an insight be

restricted to an attribute:value pair appearing in the

“bad” transactions and not appearing in the “good”

transactions. This is very desirable in practical appli-

cations where customers lose trust in alerting systems

due to many False Positives.

Perceptor can ﬁnd Insights of various types in-

cluding structural attributes such as micro-services,

methods, instances not visited by good transactions

versus bad transactions or the opposite. Attributes can

be categorical taking a small set of discrete values in-

cluding strings, or numerical attributes taking a large

set of values such as UserId. Call-chain data on which

Perceptor relies as input is rich with useful informa-

tion and makes Perceptor a major help in performance

debugging and in isolating faults.

REFERENCES

Bifet, A., Zhang, J., Fan, W., He, C., Zhang, J., Qian, J.,

Holmes, G., and Pfahringer, B. (2017). Extremely

fast decision tree mining for evolving data streams. In

Proceedings of the 23rd ACM SIGKDD International

Conference on Knowledge Discovery and Data Min-

ing, pages 1733–1742. ACM.

Brunnert, A., van Hoorn, A., Willnecker, F., Danciu, A.,

Hasselbring, W., Heger, C., Herbst, N., Jamshidi,

P., Jung, R., von Kistowski, J., et al. (2015).

Performance-oriented devops: A research agenda.

arXiv preprint arXiv:1508.04752.

Chen, M. Y., Kiciman, E., Fratkin, E., Fox, A., and Brewer,

E. (2002). Pinpoint: Problem determination in large,

dynamic internet services. In Proceedings Interna-

tional Conference on Dependable Systems and Net-

works, pages 595–604. IEEE.

Cormode, G. (2008). Count-min sketch. Encyclopedia of

Algorithms, pages 1–6.

Diagnostics (2020). Appdynamics diagnostics.

https://www.appdynamics.com/how-it-works/

application-diagnostics/.

Durand, M. and Flajolet, P. (2003). Loglog counting of

large cardinalities. In European Symposium on Algo-

rithms, pages 605–617. Springer.

Flajolet, P., Fusy,

E., Gandouet, O., and Meunier, F. (2007).

Hyperloglog: the analysis of a near-optimal cardinal-

ity estimation algorithm. In Discrete Mathematics and

Theoretical Computer Science, pages 137–156. Dis-

crete Mathematics and Theoretical Computer Science.

HdrHistogram (2020). Hdr histogram. http://hdrhistogram.

org/.

Kaldor, J., Mace, J., Bejda, M., Gao, E., Kuropatwa, W.,

O’Neill, J., Ong, K. W., Schaller, B., Shan, P., Vis-

comi, B., et al. (2017). Canopy: An end-to-end per-

formance tracing and analysis system. In Proceedings

of the 26th Symposium on Operating Systems Princi-

ples, pages 34–50. ACM.

Kanuparthy, P., Dai, Y., Pathak, S., Samal, S., Benson, T.,

Ghasemi, M., and Narayan, P. (2016). Ytrace: End-to-

end performance diagnosis in large cloud and content

providers. arXiv preprint arXiv:1602.03273.

Leavitt, J. (2014). End-to-end tracing models: Analysis and

uniﬁcation. B. Sc. esis, Brown University,. Page.

Mace, J., Roelke, R., and Fonseca, R. (2018). Pivot

tracing: Dynamic causal monitoring for distributed

systems. ACM Transactions on Computer Systems

(TOCS), 35(4):11.

NewRelic (2020). New relic. https://newrelic.com/

products/insights/.

OpenTracing (2020). Open tracing project. https://

opentracing.io/.

Salzberg, S. L. (1994). C4. 5: Programs for machine learn-

ing by j. ross quinlan. morgan kaufmann publishers,

inc., 1993.

Sigelman, B. H., Barroso, L. A., Burrows, M., Stephenson,

P., Plakal, M., Beaver, D., Jaspan, S., and Shanbhag,

C. (2010). Dapper, a large-scale distributed systems

tracing infrastructure.

Whang, K.-Y., Vander-Zanden, B. T., and Taylor, H. M.

(1990). A linear-time probabilistic counting algo-

rithm for database applications. ACM Transactions

on Database Systems (TODS), 15(2):208–229.

Wilks, S. S. (1938). The large-sample distribution of the

likelihood ratio for testing composite hypotheses. The

Annals of Mathematical Statistics, 9(1):60–62.

WilksTheorem (2020). Wikipedia: Wilks theorem. https:

//en.wikipedia.org/wiki/Wilks%27 theorem/.

Yongguo, J., Qiang, L., Changshuai, Q., Jian, S., and Qian-

qian, L. (2019). Message-oriented middleware: A re-

view. In 2019 5th International Conference on Big

Data Computing and Communications (BIGCOM),

pages 88–97. IEEE.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

252
