Empirical Task Analysis of Data Protection Management and Its

Collaboration with Enterprise Architecture Management

Dominik Huth

, Michael Vilser, Gloria Bondel and Florian Matthes

Chair of Software Engineering for Business Information Systems, Department of Informatics,

Technical University of Munich, Boltzmannstr. 3, Garching, Germany

Keywords:

Data Protection Management, General Data Protection Regulation, GDPR, Enterprise Architecture

Management.

Abstract:

The General Data Protection Regulation has forced organizations worldwide to rethink their processing ac-

tivities of personal data. One of the key difﬁculties of ensuring GDPR compliance is the scope of the regu-

lation and its interdisciplinarity: Data protection management (DPM) has to address challenges on the legal,

business and technical level over the entire organization. Enterprise architecture management (EAM) is a

well-established discipline that follows a holistic approach to strategically develop the enterprise architecture,

consisting of people, processes, applications, and their interrelationships. Thus, DPM can be considered a

stakeholder in the EA management process. In this paper, we report on a survey with 38 data protection of-

ﬁcers that investigates the main challenges for DPM, as well as the collaboration between DPM and EAM

during the implementation of the GDPR.

1 INTRODUCTION

The GDPR has entered into force in 2018, replacing

the previous EU directive from 1995 - a time when

less than 1% of the world population used internet

services (Miniwatts Marketing, 2019). Besides its up-

dated deﬁnitions and the extended data subject rights,

one of the key changes of the regulation are the dra-

matic ﬁnes (Christina Tikkinen-Piri et al., 2018). Re-

cent announcements by national data protection au-

thorities, e.g. e 50 for Google, GBP 183 million

British Airways or GBP 99 million for Marriott (CMS

Hasche Sigle, 2019), underline the need to maintain

compliance with the regulation.

However, according to a recent industry report,

less than half of privacy professionals consider their

organization to be “fully compliant” or “very com-

pliant” (Ernst & Young and International Associa-

tion of Privacy Professionals, 2019). A key problem

that is associated with the regulation is its enterprise-

wide scope and the interdisciplinarity that this brings

with it. While data protection management (DPM) is

most frequently conducted by legal functions (Inter-

national Association of Privacy Professionals, 2019),

the GDPR’s accountability principle creates a need to

https://orcid.org/0000-0003-2924-8598

work more closely with IT and business departments.

Enterprise architecture management (EAM) is a

holistic approach to strategically develop and align

the technical and business architecture of an enter-

prise to realize cost saving potentials and increase ef-

fectiveness (Farwick et al., 2013). Recent research

has stressed its applicability to security and privacy

topics as well (Larno et al., 2019; Burmeister et al.,

2019).

This work investigates the possible support of

EAM for the data protection management tasks. To

this end, we deﬁne the following research questions:

• RQ1: Which DPM activities are necessary to

achieve GDPR compliance?

• RQ2: What are the most severe problems when

conducting these activities?

• RQ3: How are DPOs collaborating with EAM

and how do they evaluate the helpfulness of

EAM?

We ﬁrst provide an overview about the existing lit-

erature that addresses GDPR tasks and concepts de-

scribing the interrelationship between GDPR tasks

and EAM in section 2. Section 3 describes our re-

search approach and section 4 presents the results ob-

tained from our research. We conclude and point to

future areas of work in section 5.

656

Huth, D., Vilser, M., Bondel, G. and Matthes, F.

Empirical Task Analysis of Data Protection Management and Its Collaboration with Enterprise Architecture Management.

DOI: 10.5220/0009342506560665

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 656-665

ISBN: 978-989-758-423-7

2 RELATED WORK

2.1 Data Protection Tasks - Academic

Contributions

From the academic body of knowledge, we identiﬁed

a range of analytical and qualitative contributions.

An analytical comparison between the GDPR and

the previous Directive 95/46/EC was conducted by

(Christina Tikkinen-Piri et al., 2018). Based on the ar-

ticles of both the directive and regulation, the changes

between them are identiﬁed and the consequences for

organizations processing personal data derived. The

authors identify twelve implications for companies

that process personal data, of which we consider ten

as DPM tasks.

(Sirur et al., 2018) interviewed twelve cyber secu-

rity experts about the difﬁculties of implementing the

GDPR’s requirements. They show that these issues

are mainly based on the large scope of the regulation,

the enactment of its qualitative recommendations and

the necessity of mapping out the organizations’ com-

plex data networks.

The work of (Almeida Teixeira et al., 2019)

presents a literature review concerning the critical

success factors of GDPR implementation. They

found out that, among other factors, GDPR analysis,

risk identiﬁcation, process documentation and train-

ing awareness are seen as enablers of GDPR imple-

mentation. On the other hand, interpretation of the

regulation, lack of practical guidelines and standard

procedures are some of the barriers identiﬁed in their

study.

2.2 Data Protection Tasks - Industry

Contributions

There exists a substantial amount of industry reports

on GDPR implementation, mainly by software ven-

dors or consulting agencies. These reports are often

focused on the need to act, with less detailed practical

recommendations. We only review a small selection

here.

A study that was published shortly before the

GDPR entered into force mentions the reengineering

of systems and processes as one of the main concerns

of respondents (CIPL and AvePoint, 2018). The au-

thors conclude that clariﬁcation on how to implement

various provisions are needed, among them the con-

ditions for processing, impact assessments and third

party processing agreements. According to another

global study, less than half of the respondents report

being compliant (Ernst & Young and International

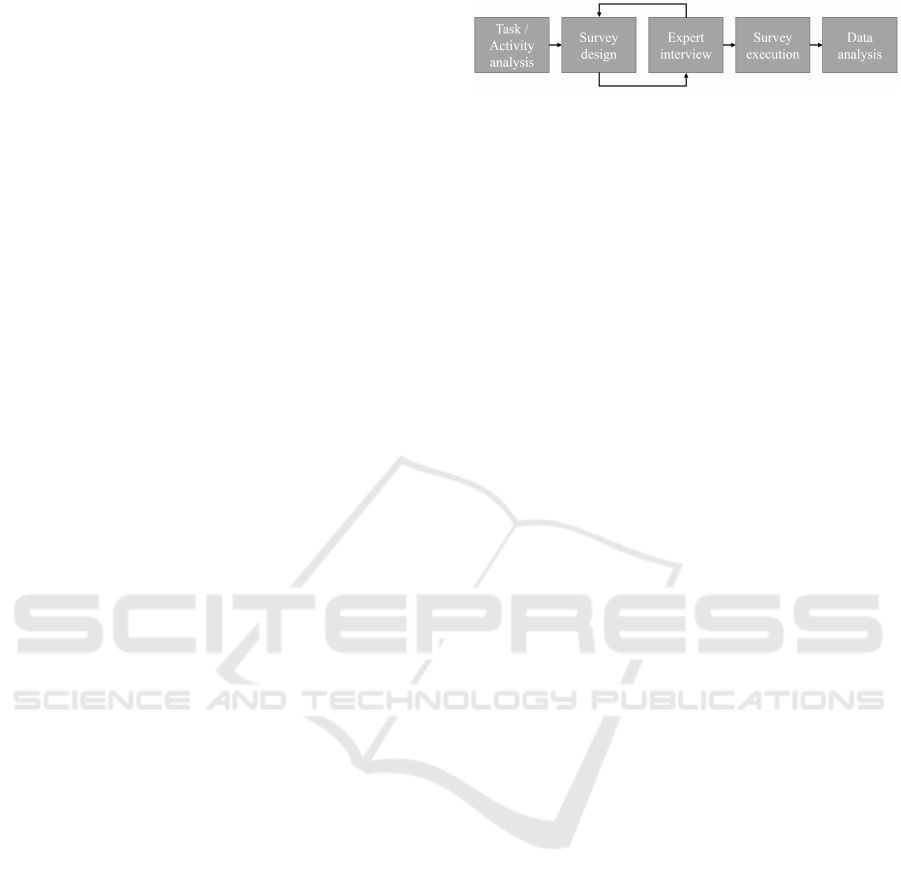

Figure 1: Research Approach.

Association of Privacy Professionals, 2019). As the

top responsibilities of DPM, the study cites privacy

policies and internal trainings, higher than address-

ing compliance of single processing activities. In

turn, roles outside of the core DPM team are mostly

involved in data mapping and addressing process-

ing activities. Recent privacy regulation worldwide

seems to support a trend for single global data protec-

tion strategies (International Association of Privacy

Professionals, 2019). The most frequent operational

DPM task from this study are privacy policy changes,

followed by privacy impact assessments and records

of processing activites. An observation that seems

consistent with other studies is the limited occurrence

of data subject access requests.

2.3 Collaboration between EAM and

DPM

(Burmeister et al., 2019) derive a privacy-driven EA

metamodel from an analysis of the GDPR provi-

sions, which represents EA elements and their rela-

tionships across six layers. The authors conclude that

EA models are useful for achieving compliance with

the GDPR and suggest additional research on the in-

tegration of EA, privacy and security. One of the

DPM tasks that has been addressed in EA research is

the record of processing activities (RPA) (Koc¸ et al.,

2018; Huth et al., 2019). Other researchers use Archi-

Mate for modeling security principles, e.g. (Larno

et al., 2019).

3 RESEARCH APPROACH

The goal of this study is to derive and validate a set of

reccurring tasks in DPM on an organizational level. In

detail, we aim to rate each task in terms of complexity

and time consumption, discover frequently emerging

problems and evaluate the status quo of the collabo-

ration between DPM and EAM at this point in time.

We illustrate our research process in ﬁgure 1:

First we conducted an in-depth analysis of the

GDPR, as well as secondary literature from academia

and industry that is presented in section 2. The result

of this step was an initial list of DPM tasks.

In the second step, we created a questionnaire that

consists of four categories:

Empirical Task Analysis of Data Protection Management and Its Collaboration with Enterprise Architecture Management

657

• Descriptive information about the participant

• The list of tasks, for which we asked the partici-

pants to rate their complexity on a ﬁve-point Lik-

ert scale and to assess their time consumption rel-

ative to the participant’s total work time

• Problems that arise in the context of addressing

the tasks

• The participant’s position on collaboration with

EAM

We validated and developed our task list and question-

naire iteratively together with four different DPM ex-

perts. Three of the experts work as external DPO and

one works in DPM in a large organization. We always

incorporated the feedback before conducting another

interview and did not observe any major changes in

the last two iterations.

Fourth, we implemented the questionnaire in the

survey tool Questback

and distributed the survey in

data protection interest groups in professional net-

works, as well as among personal contacts of the au-

thors.

In the ﬁfth and ﬁnal step, we visualized and ana-

lyzed the survey data. We present the results in the

next section.

4 RESULTS

The survey was conducted from August 15th to

September 30th of 2019 and resulted in 38 complete

responses from data protection ofﬁcers. 15 of the re-

spondents work as internal DPOs, while the remain-

ing 23 work as external DPOs. When grouping the

sample based on the collaboration with EAM, only

12 respondents already collaborate with EAM, leav-

ing 26 DPOs that did not collaborate with EAM at that

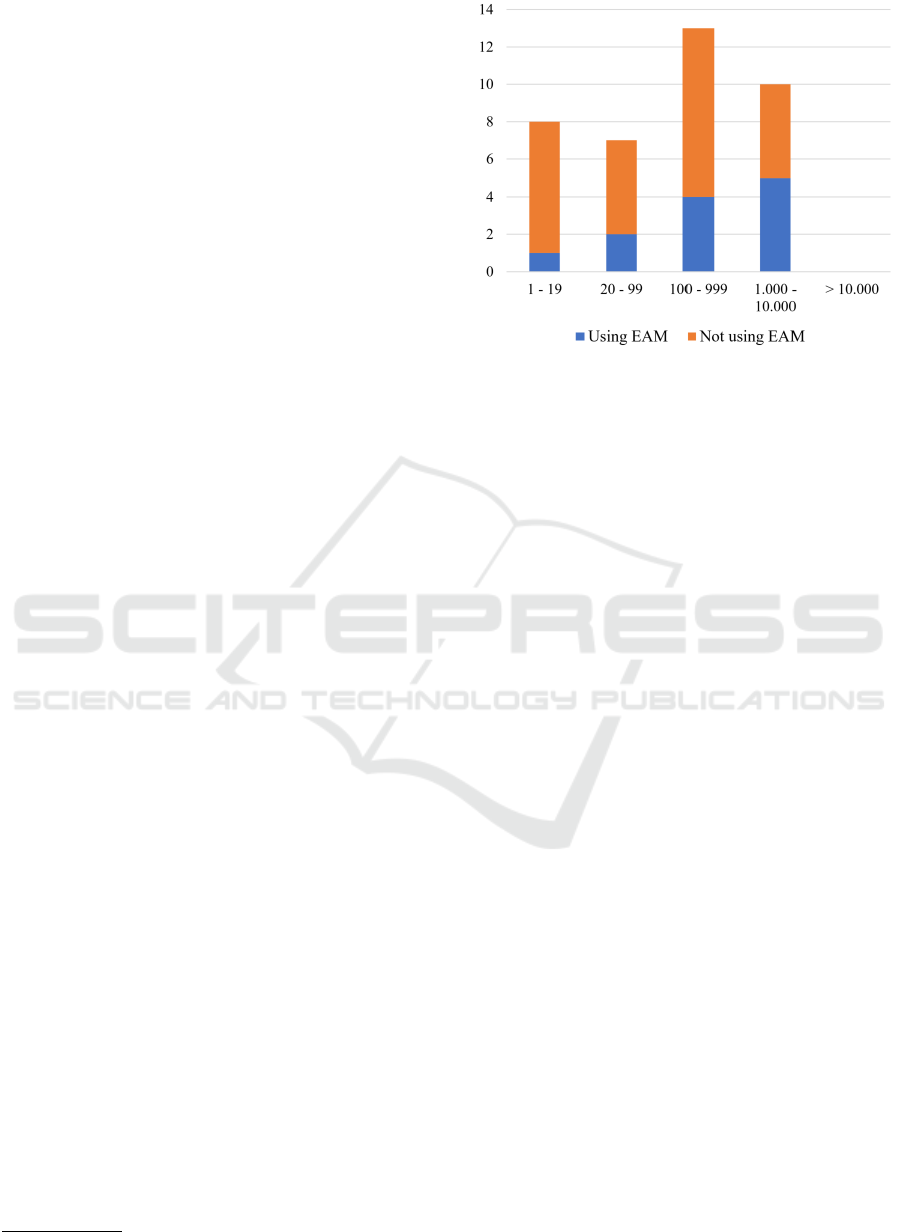

point in time. Figure 2 shows the (absolute) distribu-

tion of participants by company size and the propor-

tions of respondents who collaborate with EAM. The

collaboration between DPM and EAM is more pro-

nounced in larger organizations, reﬂecting the obser-

vation that EAM is a discipline that is more prevalent

there.

4.1 DPM Activities

As described before, we conducted a literature anal-

ysis of primary and secondary sources to identify a

valid list of DPM tasks. Choosing the right granular-

ity for these activities poses a challenge, since each of

the activities itself consists of multiple steps, which

https://www.questback.com/

Figure 2: Collaboration with EAM Depending on Company

Size (N=38).

are executed by different stakeholders. We opted to

deﬁne nine activities. Since we evaluated them with

four DPM experts we are conﬁdent that they repre-

sent a valid characterization of data protection man-

agement. Further, our questionnaire provided the op-

tion of adding further activities. Only one participant

used this option to point out certiﬁcation mechanisms.

We argue that these can be included in the veriﬁcation

of compliance and in conducting audits. Our ﬁnal list

of is as follows:

• Awareness-raising and Schooling within the

Organization: Informing individuals within a

company about the GDPR and its implications. It

is the responsibility of the DPO to organize train-

ing and provide information material to Data Con-

troller, Data Processor and Management.

• Verifying Compliance of Existing Data Han-

dling Processes: Processing activities that have

already been established before the GDPR might

pose a risk for compliance. This also means that

if a certain data processing activity is not regula-

tion compliant, measures need to be taken to en-

sure lawful processing, which is the obligation of

the Data Controller. The Data Processor is con-

sulted to actually verify if its provided processing

activity is GDPR compliant while the DPO and

the Supervisory Authority are only contacted for

supporting or clariﬁcation purposes.

• Creation of New Data Handling Processes: re-

lates to verifying new processing activities that are

developed regarding regulation compliance. This

activity contains not only setting boundary condi-

tions during the planning phase, for example spec-

ifying which kind of data and for what purpose it

may be used, but also constantly supervising the

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

658

progress of the development. Similar to the prior

activity, those tasks often require a thorough un-

derstanding of legal obligations imposed by the

GDPR. The DPO is usually strongly involved in

this activity. In summary, this activity is mainly

about applying the data protection by design and

by default principle speciﬁed in Art. 25 GDPR.

• Identify Need & Conducting DPIAs: As de-

scribed in (Bieker et al., 2016), the data protec-

tion impact assessment (DPIA) consists of three

stages. In the Preparation stage, it is determined

if a DPIA is necessary at all. If that is the case, the

scope, involved actors and targets are deﬁned and

legal requirements are identiﬁed. During the Eval-

uation stage, the total risk of a processing activity

is evaluated. This is done by identifying protec-

tion goals, potential attackers and their motives as

well as determining evaluation criteria and bench-

marks. In the last stage, the Report and Safeguard

stage, appropriate safeguards to mitigate the iden-

tiﬁed risks are selected and implemented. Lastly,

a report documenting the evaluation results is cre-

ated and published, which can then be evaluated

by a third party. Once a new processing activity

is developed or extended, the process is repeated.

For all this, the Data Controller is the responsible

actor while relying on the support of the DPO and

may consult the Supervisory Authority for clariﬁ-

cation purposes.

• Cooperation with Supervisory Authority: in-

cludes the DPO acting “as the contact point for

the supervisory authority on issues relating to pro-

cessing, including the prior consultation referred

to in Article 36, and to consult, where appropri-

ate, with regard to any other matter” as required

by Art. 39 GDPR. However, also the Data Con-

troller and Processor are required to cooperate

with the Supervisory Authority if necessary (Art.

31 GDPR).

• Maintaining Records of Processing Activities

(RPAs): Article 30 describes the information that

is required in the record of processing activites

(RPA), such as the responsible person, the legal

basis for processing, or the categories of data sub-

jects and personal data. The DPO supports in

compiling the information about all processing

activities.

• Conducting Audits: Based on a guide published

in (UK ICO, 2018), the scope of an audit may

cover, inter alia, data protection governance and

accountability, data protection training and aware-

ness, and risk management. In summary, an audit

is used to verify that all other activities described

in this section are carried out correctly and to dis-

cover areas of noncompliance. An audit may be

initiated by the Data Controller or by the respon-

sible Supervisory Authority and is performed by

the DPO (Art. 28, Art. 39, Art. 58).

• Dealing with Data Subjects: Besides reacting to

requests based on the Data Subject’s rights (Art.

12 through 22), the communication of a personal

data breach to the data subject is also addressed by

this activity. The responsible actor thereby is the

Data Controller, although usually the DPO acts as

the ﬁrst point of contact, given that his/her contact

details normally are publicly available as speciﬁed

in Art. 37.

• Report to Management: is not directly required

by the GDPR itself. However, during the ex-

pert interviews two interviewees suggested to in-

clude reporting to Management as a separate ac-

tivity. Since it is accountable for the execution of

all the activities described above, it is necessary

that an organization’s Management is constantly

informed about the current situation in DPM.

Note that it is not possible to strictly separate the ac-

tivities: supporting the creation of processing activi-

ties can involve considering a DPIA and preparing in-

formation about the processing activity for the RPA.

Nonetheless, we consider these tasks to be sufﬁciently

delineated so survey participants could assign them

without further explanation.

4.2 Task Complexity & Time

Consumption

Figure 3 shows the distribution of responses regarding

task complexity, where 1 indicates the lowest level of

complexity and 5 indicates the highest level. We ar-

ranged the activities in descending order of their aver-

age complexity (x

), with “Identify need & conduct-

ing DPIAs” being rated as the most complex and “Co-

operation with supervisory authority” being rated as

the least complex activity. Based on the sample distri-

bution of the ﬁve complexity levels for each activity,

we assign the activities to three groups:

The ﬁrst group consists of “Identify need & con-

ducting DPIAs” (x

= 3.47), “Verifying already ex-

isting data handling processes regarding compliance”

= 3.45) and “Creation of new data handling pro-

cesses” (x

= 3.32) and can be described as the group

of “most complex” activities because of the large

amount of participants rating these activities with a

complexity level of 4 or 5.

The group of “moderately complex” activities is

composed of “Maintaining records of processing ac-

Empirical Task Analysis of Data Protection Management and Its Collaboration with Enterprise Architecture Management

659

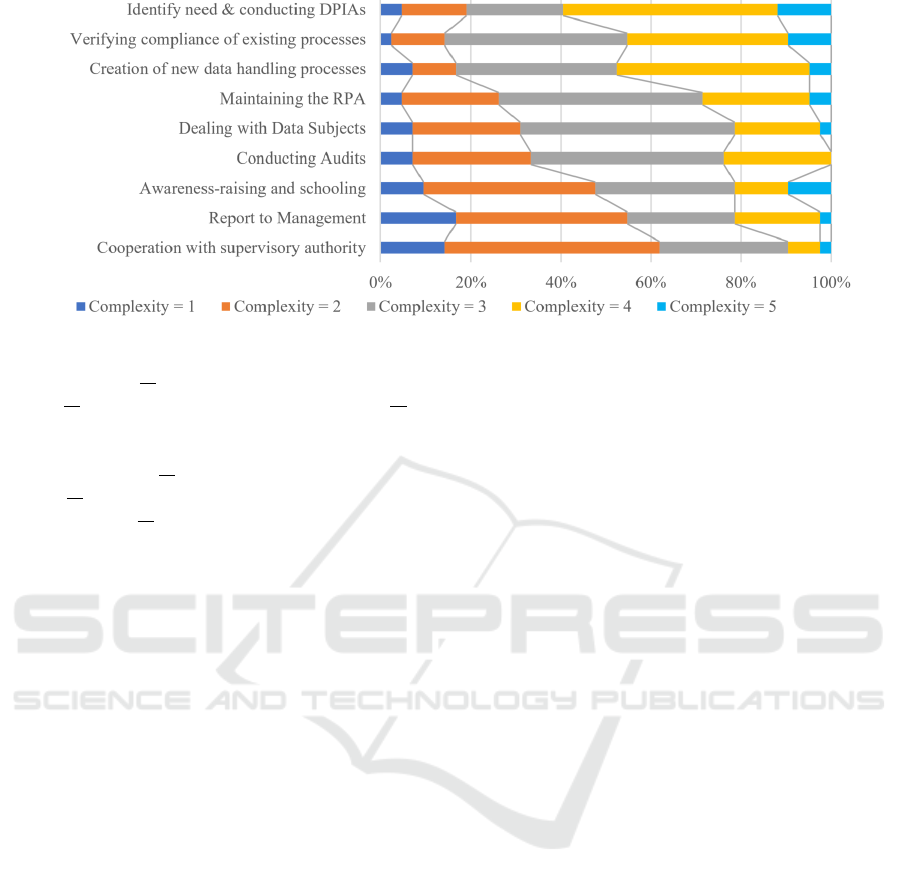

Figure 3: Complexity Distribution of Activities (N=38).

tivities (RPAs)” (x

= 3.05), “Dealing with Data Sub-

jects” (x

= 2.89) and “Conducting Audits” (x

2.87), given that complexity level 3 is prevalent here.

Finally, “Awareness-raising and schooling within

the organization” (x

= 2.76), “Report to Manage-

ment” (x

= 2.55) and “Cooperation with supervi-

sory authority” (x

= 2.39) build the group of “least

complex” activities, which is based on the high count

of complexity level 1 and 2 ratings. Although as-

signed to the group with the least average complex-

ity, “Awareness-raising and schooling within the or-

ganization” was rated as very complex by four partic-

ipants.

The average time consumption of each activity is

shown in ﬁgure 4. To prevent a distortion of the re-

sults, we decided to exclude the answers of one partic-

ipant from this examination, given that the time con-

sumption of “Awareness-raising and schooling within

the organization” was rated with 100%.

With on average just over 20%, “Verifying already

existing data handling processes regarding compli-

ance” was rated as the most time consuming activ-

ity by far. While most of the activities consume be-

tween 10% to 14% of a DPOs time, “Report to Man-

agement”, “Dealing with Data Subjects” and “Coop-

eration with supervisory authority” were rated as less

time intensive.

4.3 Most Frequent Problems

The results of the problem analysis for the whole sam-

ple are summarized in Table 5. Per row, the relative

frequency of the 38 participants that selected a prob-

lem as one of the two most severe ones is shown. Con-

sequently, the upper limit for the sum of each row’s

values is 200%. However, it is important to note that

the total amount of selected problems differs in same

cases signiﬁcantly from each other. For example, with

an average of 1.7 selected problems per participant,

“Verifying already existing data handling processes

regarding compliance” shows the highest number of

problems of the nine activities. In contrast, usually

less than one problem per participant was selected

for “Report to Management”, resulting in the lowest

number of ticked problems of all activities. For all

nine activities on average 1.3 problems were selected.

In the following, the characteristics of the problems’

frequency distributions are addressed for each activ-

ity.

• For the activity “Awareness-raising and schooling

within the organization” especially “Lack of per-

sonnel” and “Missing practical guidelines/ stan-

dard procedures” often pose a problem.

• When looking at the activities “Verifying already

existing data handling processes regarding com-

pliance” and “Creation of new data handling pro-

cesses”, it is apparent that their frequency dis-

tribution of problems is very similar. In both

cases, “Lack of personnel” and “Missing practical

guidelines/ standard procedures” again are an is-

sue. However, also “Finding the right contact per-

son(s)” and having “Insufﬁcient information on

single data processing activities” pose a challenge

with almost equal frequency.

• The problems’ frequencies for “Identify need &

conducting DPIAs” are quite evenly distributed

with around 20% of participants selecting them as

most severe. Only the absence of practical guide-

line and/or standard procedures seems to pose a

challenge more often, whereas on the other hand

the lack of authority and a holistic view seem like

less important problems in that context.

• The “Cooperation with supervisory authority” is

mostly hindered because of “Missing practical

guidelines/ standard procedures”, “Lack of per-

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

660

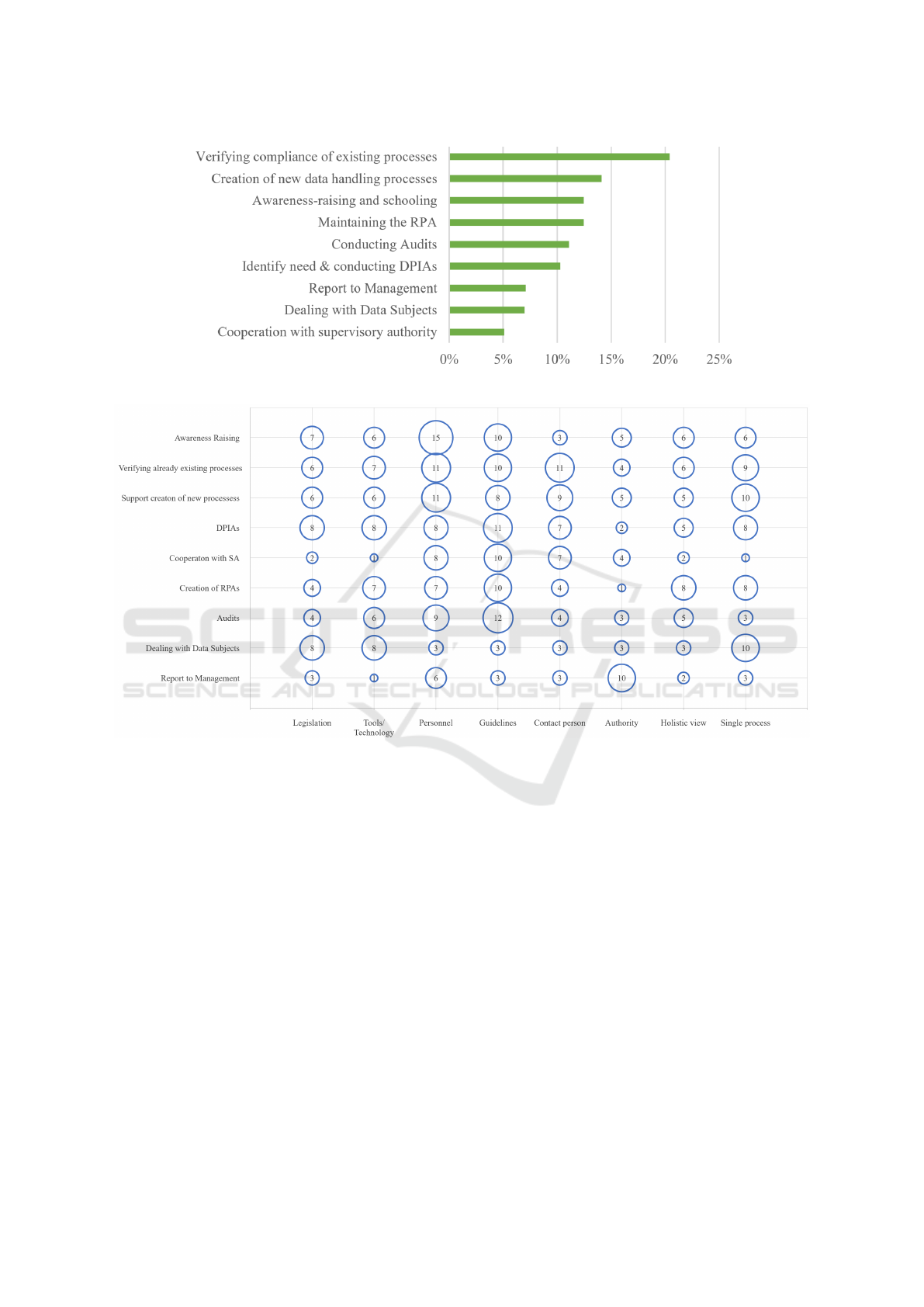

Figure 4: Mean Time Consumption of Activities (N=37).

Figure 5: Frequencies of Problems Rated as Most Severe (N=38).

sonnel” and difﬁculties with “Finding the right

contact person(s)”. The remaining problems

thereby only play a subordinate role for most par-

ticipants.

• For the activity “Maintaining records of process-

ing activities (RPAs)” the problem “Missing prac-

tical guidelines/ standard procedures” was se-

lected most frequently by the participants. Al-

though showing lower frequencies, the issues

“Missing holistic view on system landscape” and

“Insufﬁcient information on single data process-

ing activities” chosen by 21% as well as “Lack of

right tools/technology” and “Lack of personnel”

selected by 18% of the participants should not be

neglected.

• Looking at the activity “Conducting audits”, the

issue “Missing practical guidelines/ standard pro-

cedures” reaches its highest frequency of all ac-

tivities with 32% of respondents rating it as one of

the two most severe ones. However, also a short-

age of personnel was reported by 24% of the ques-

tioned DPOs.

• When it comes to “Dealing with Data Sub-

jects”, most often “Insufﬁcient information on

single data processing activities”, “Inaccuracy

of European legislation” and “Lack of right

tools/technology” were chosen as most serious

issues. The remaining problems were selected

equally frequent by 8% of the participants.

• For the last activity, “Report to Management”,

the “Lack of Authority” is by far the most severe

problem with a selection rate of 26%. Further-

more, a lack of additional personnel was chosen

by 16% of the participants. All other problems

show a frequency of under 10% in each case.

The problems “Lack of personnel” and “Missing

Empirical Task Analysis of Data Protection Management and Its Collaboration with Enterprise Architecture Management

661

practical guidelines/ standard procedures” were espe-

cially common for most of the activities and were

therefore often directly addressed in this section.

However, since the frequencies are in general rather

evenly distributed, less often selected issues should

not be neglected. For example, although the two

aforementioned problems show high frequencies in

“Awareness-raising and schooling within the organi-

zation”, their share of the total number of selected

problems for this activity is only 42%.

4.4 Collaboration with EAM

In the last part of the survey, the current status of the

collaboration between DPM and EAM was evaluated.

The questionnaire was forked to examine the value

of EAM support if EAM is already supporting DPM

and to discover reasons for a missing collaboration if

that is not the case. We therefore use a similar struc-

ture for this section by ﬁrst inspecting the results of

the 12 EAM collaborators followed by the reasons for

non-collaboration provided by the remaining 26 par-

ticipants. Finally, the (potential) support of EAM in

general is analyzed for both groups.

The participants who are already collaborating

with EAM were ﬁrst asked to rate the support for each

of the nine activities. We present the results in ﬁg-

ure 6. The activities are presented in decreasing or-

der depending on the average value of EAM support

based on the answers for the different levels of help-

fulness. For the calculation of the arithmetic mean

) the amount of people not using EAM for an ac-

tivity were therefore excluded. The different levels of

helpfulness were weighted as follows: (1) Not very

helpful; (2) Somewhat helpful; (3) Very helpful; (4)

Extremely helpful. The majority of participants who

receive support rated the same as either very or ex-

tremely helpful.

For the activities “Verifying already existing

data handling processes regarding compliance” (x

2.67), “Creation of new data handling processes” (x

= 2.58), Maintaining records of processing activities”

(RPAs) (x

= 2.58) and “Identify need & conduct-

ing DPIAs” (x

= 2.33) each of the 12 participants

said they are supported by EAM. Except for DPIAs,

the support was rated as very or extremely helpful

by at least half of the DPOs. Although the number

of EAM supported DPOs decreases for the activities

“Awareness-raising and schooling within the organi-

zation” (x

= 2.33), “Dealing with Data Subjects” (x

= 2.00) and “Conducting Audits” (x

= 1.91), in the

case of the former two activities 75% and in the case

of the latter activity 92% of participants still collabo-

rate with EAM. Only the activity “Cooperation with

supervisory authority” (x

= 1.80) is usually not sup-

ported by EAM and if it is, the value of the support is

also rated rather low when compared to other activi-

ties.

The 26 participants that stated they are not col-

laborating with EAM were asked to justify that by

providing one or more reasons. Around half of

the respondents (n=14) answered that “EAM does

not exist in the organization”, by far the most fre-

quently selected reason. Other explanations are

“I don’t know if EAM exists in the organization”

(n=4) or “Missing contact (persons)” (n=4), followed

by “Other goals/objectives/level of detail” (n=3),

“No Time/Resources for my part” (n=3) and No

Time/Resources on the part of EAM (n=2). Each of

the remaining justiﬁcations were only selected once.

Although the participants were given the opportunity

to add their own reasons, only one stated that “The

soft- and hardware is provided by an external organi-

zation”.

In the last section of the questionnaire the respon-

dents were asked to rate the (potential) support of

EAM for DPM, and vice versa, using a 10-point rat-

ing scale

. As shown in ﬁgure 7, the participants who

already collaborate with EAM rated the support pro-

vided by EAM generally higher than the participants

that do not. However, also two respondent who col-

laborate with EAM evaluate it as “Very low”.

Examining the support of support of DPM for

EAM (see ﬁgure 8 we see a similar trend. While the

distribution of ratings of non-collaborators is almost

equal to the one of the general support of EAM for

DPM, the DPOs receiving support rate the use of their

discipline for EAM lower than the other way around.

Nevertheless, collaborators still see a higher value of

DPM for EAM than non-collaborators. This time,

only one person of the collaborator group rated the

support with the lowest possible value.

5 CONCLUSION & OUTLOOK

In this work, we empirically evaluated DPM tasks

with respect to their complexity, the time consump-

tion and the main problems that occur when conduct-

ing these activities. We did this with literature analy-

sis, four qualitative expert interviews and a quantita-

tive survey with 38 DPOs. Additionally, we evaluated

the current or potential future support with EAM from

the DPO’s perspective. Thus, our three research ques-

tions can be answered:

Due to the different sample sizes (12 to 26), we use

relative frequencies in ﬁgures 7 and 8.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

662

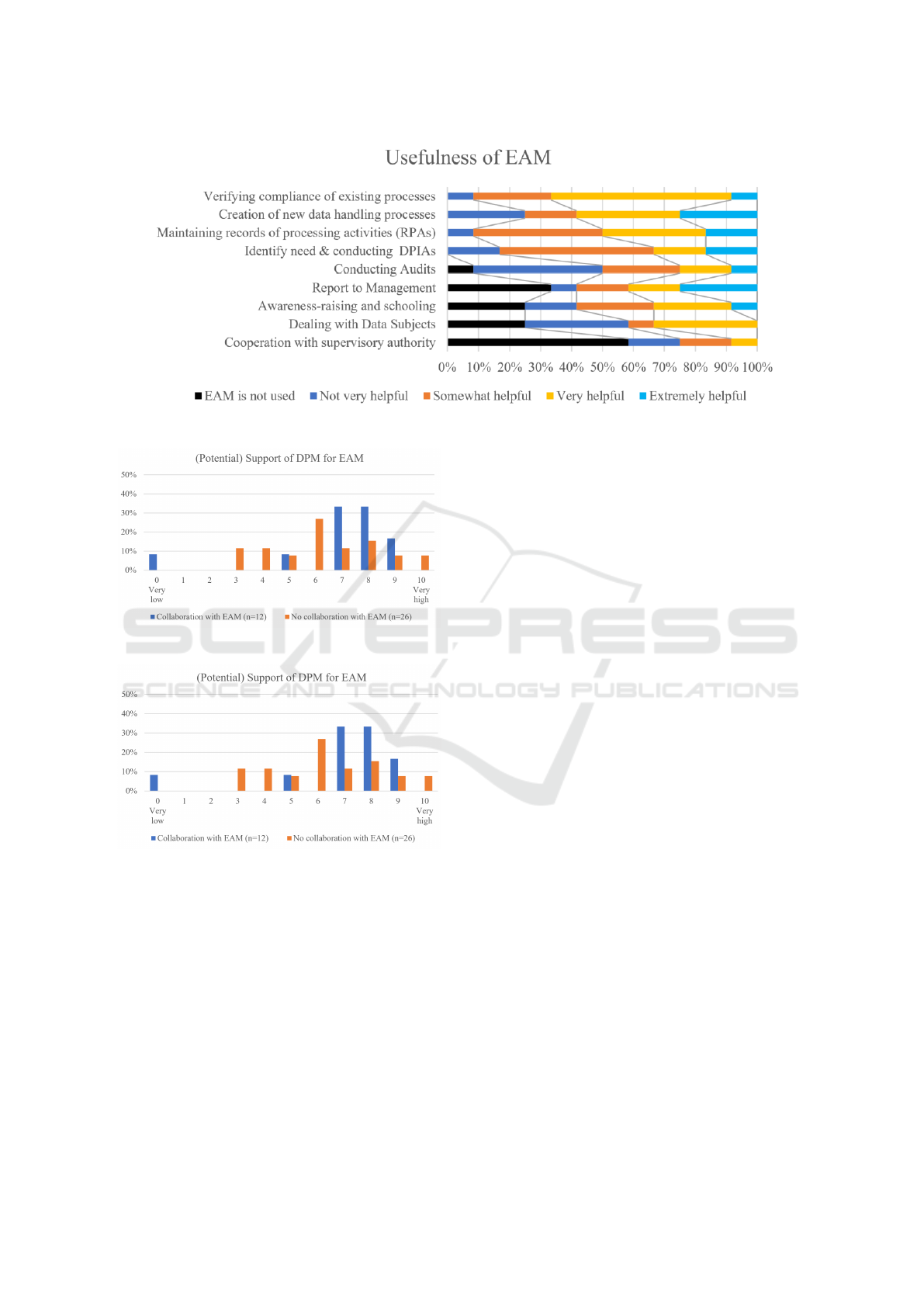

Figure 6: Distribution of EAM Support Effectiveness (N=12).

Figure 7: (Potential) Support of EAM for DPM (N=38).

Figure 8: (Potential) Support of DPM for EAM (N=38).

RQ1: Which DPM Activities are Necessary to

Achieve GDPR Compliance?

Based on related work and the input of four DPM ex-

perts, the spectrum of tasks in DPM was grouped into

nine activities which were rated in terms of complex-

ity and time consumption by the survey participants.

Based on the distribution of rated complexity levels,

each activity could be assigned to a group of either

rather complex, moderately complex or rather easy

activities. For an activity’s time consumption its rela-

tive average share of a DPOs total work time is used

as a measure. In the following, the ﬁnal list of ac-

tivities with their respective rating in complexity and

time consumption (TC) is presented:

Most Complex:

• Identify need & conducting DPIAs

(TC ≈ 10%)

• Verifying already existing data handling pro-

cesses regarding compliance (TC ≈ 20%)

• Creation of new data handling processes

(TC ≈ 14%)

Moderately Complex:

• Maintaining records of processing activities

(RPAs) (TC ≈ 13%)

• Dealing with Data Subjects (TC ≈ 7%)

• Conducting Audits(TC ≈ 11%)

Least Complex:

• Awareness-raising and schooling within the or-

ganization (TC ≈ 13%)

• Report to Management (TC ≈ 7%)

• Cooperation with supervisory authority

(TC ≈ 5%)

Given that the nine activities were selected and eval-

uated during the four expert interviews and subse-

quently veriﬁed by 38 DPOs during the questionnaire,

it can be said with conﬁdence that these activities may

be used to reliably cover the range of tasks in DPM.

Furthermore, the activities’ complexity and time con-

sumption characteristics may be used to determine

the activities where support is most urgently needed.

Following this line of thought, especially the activ-

ities “Verifying already existing data handling pro-

cesses regarding compliance” and “Creation of new

data handling processes” should be considered ﬁrst

when designing support measures, which in turn may

focus on mitigating the respective problems for these

activities.

Empirical Task Analysis of Data Protection Management and Its Collaboration with Enterprise Architecture Management

663

RQ2: What are the Most Severe Problems when

Conducting these Activities?

In the second part of the survey, the participants were

asked to rate the two (or less) most severe problems

for every activity. As we show in ﬁgure 5, the fre-

quencies of the different problems vary considerably

depending on the underlying activity. Nonetheless,

we found that a lack of personnel is for many ac-

tivities one of the most severe issues which might

be rooted in organizations seeing GDPR compliance

more as a hindrance that must be overcome with as

little resources as possible, instead of viewing it as

an opportunity for achieving a competitive advan-

tage (Almeida Teixeira et al., 2019). Furthermore,

implementing guidelines or standard procedures may

be supported by an integrated tool support approach

and might reduce the effort of performing certain ac-

tivities. An ofﬁcial guide or self assessment as pro-

vided in (UK ICO, 2018) may therefore be integrated

in DPM and should at the same time reduce the am-

biguity of the legislation. Finally, we showed that for

process-heavy activities there is often a lack of de-

tailed information about a single data handling pro-

cess as well as missing contact persons. A stronger

focus on documentation (for future veriﬁcation pur-

poses) as well as using other information sources (for

current veriﬁcation purposes), such as the EA, may

therefore be necessary to effectively mitigate these

problems.

RQ3: How are DPOs Collaborating with EAM

and How do they Evaluate the Helpfulness of

EAM?

From the 38 participants, only 12 stated they col-

laborate with EAM. The most often provided reason

for this low collaboration rate is by far the nonexis-

tence of EAM in the organizations. While the group

of non-collaborators is rather indecisive in their at-

titude towards a collaboration with EAM, the DPOs

that do work together with EAM consider the collab-

oration signiﬁcantly more helpful. Furthermore, in

both groups the (potential) support of EAM for DPM

was rated higher than the support of DPM for EAM.

When looking at the EAM support for the nine activi-

ties, it can in general be described as quite effective. It

proves especially helpful for reporting to management

and verifying already existing data handling processes

as well as for the creation of new data handling pro-

cesses and maintaining RPAs. Only the cooperation

with the supervisory authority is rather ineffectively

supported if it is at all.

Outlook

Our ﬁndings validate future research that addresses

one or more DPM activities. With respect to the col-

laboration between EAM and DPM, future research

might detail on organizational factors that inﬂuence

this collaboration, e.g. maturity levels of EAM. Our

future work aims at advancing the notions of privacy

and data protection from the perspective of EAM.

ACKNOWLEDGEMENTS

This work was sponsored by the German Federal

Ministry of Education and Research (BMBF) grant

01IS17049 / UMEDA and X-DACE. The responsibil-

ity for the content of this publication lies with the au-

thors.

REFERENCES

Almeida Teixeira, G., Mira da Silva, M., and Pereira, R.

(2019). The critical success factors of gdpr implemen-

tation: a systematic literature review. Digital Policy,

Regulation and Governance, 25(4):1.

Bieker, F., Friedewald, M., Hansen, M., Obersteller, H., and

Rost, M. (2016). A process for data protection impact

assessment under the european general data protec-

tion regulation. In Schiffner, S., Serna, J., Ikonomou,

D., and Rannenberg, K., editors, Privacy Technolo-

gies and Policy, pages 21–37, Cham. Springer Inter-

national Publishing.

Burmeister, F., Drews, P., and Schirmer, I. (2019). A

privacy-driven enterprise architecture meta-model for

supporting compliance with the general data protec-

tion regulation. In Proceedings of the 52nd Hawaii

International Conference on System Sciences.

Christina Tikkinen-Piri, Anna Rohunen, and Jouni

Markkula (2018). Eu general data protection regula-

tion: Changes and implications for personal data col-

lecting companies. Computer Law & Security Review,

34(1):134–153.

CIPL and AvePoint (2018). Organisational Readiness for

the European Union General Data Protection Regula-

tion. Technical report.

CMS Hasche Sigle (2019). GDPR Enforcement Tracker.

http://www.enforcementtracker.com/, accessed 2019-

11-29.

Ernst & Young and International Association of Privacy

Professionals (2019). IAPP-EY annual privacy gov-

ernance report 2019. Technical report.

Farwick, M., Breu, R., Hauder, M., Roth, S., and Matthes, F.

(2013). Enterprise architecture documentation: Em-

pirical analysis of information sources for automation.

In Proceedings of the Annual Hawaii International

Conference on System Sciences, pages 3868–3877.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

664

Huth, D., Tanakol, A., and Matthes, F. (2019). Using Enter-

prise Architecture Models for Creating the Record of

Processing Activities (Art . 30 GDPR). In 23rd IEEE

International Distributed Object Computing Confer-

ence (EDOC), Paris.

International Association of Privacy Professionals (2019).

Measuring Privacy Operations. Technical report.

Koc¸, H., Eckert, K., and Flaig, D. (2018). Daten-

schutzgrundverordnung (dsgvo): Bew

altigung der

herausforderungen mit unternehmensarchitekturman-

agement (eam). HMD Praxis der Wirtschaftsinfor-

matik, 55(5):942–963.

Larno, S., Sepp

anen, V., and Nurmi, J. (2019). Method

Framework for Developing Enterprise Architecture

Security Principles. Complex Systems Informatics and

Modeling Quarterly (CSIMQ), 117(20):57–71.

Miniwatts Marketing (2019). Internet World Stats. https:

//internetworldstats.com/stats.htm, accessed 2019-10-

01.

Sirur, S., Nurse, J. R. C., and Webb, H. (2018). Are we there

yet? Understanding the challenges faced in complying

with the General Data Protection Regulation (GDPR).

In Proceedings of the 2nd International Workshop on

Multimedia Privacy and Security, pages 88–95. ACM.

UK ICO (2018). A guide to ICO audits. https:

//ico.org.uk/media/for-organisations/documents/

2787/guide-to-data-protection-audits.pdf, accessed

2019-11-28.

Empirical Task Analysis of Data Protection Management and Its Collaboration with Enterprise Architecture Management

665
