Efﬁcient Decorator Pattern Variants through C++ Policies

Virginia Niculescu

Faculty of Mathematics and Computer Science, Babe¸s-Bolyai University, 1 M. Kogalniceanu, Cluj-Napoca, Romania

Keywords:

Decorator, Patterns, Templates, Policy, Accessibility, Extensibility, Interfaces, C++.

Abstract:

C++ Policies represent an interesting metaprogramming mechanism that allows behavior infusion in a class. In

this paper, we will investigate the possibility of using them for the implementation of some extended Decorator

pattern variants. For the MixDecorator variant, policies are used to simulate extension methods, which are

needed for implementation. Beside this, other two alternatives for Decorator pattern are proposed: one purely

based on inheritance, and another that is a hybrid one; the last one wraps an object with decorations deﬁned

as a linear hierarchy of classes – introduced using policies. This is possible since a policy introduces a kind

of recursive deﬁnition for inheritance. The advantages and disadvantages of these variants are analyzed on

concrete examples. The hybrid variant presents many important advantages that qualify it as a valid and

efﬁcient Decorator pattern variant – HybridDecorator.

1 INTRODUCTION

C++ Policies could be considered a very interesting

and useful metaprogramming mechanism that allows

behavior infusion in a class through templates and in-

heritance (Alexandrescu, 2001; Abrahams and Gur-

tovoy, 2003). They have been also described as a

compile-time variant of the Strategy pattern. Instead

of parameterizing the class through a strategy object

able to solve a required problem, the solving strat-

egy is introduced through a template parameter from

which the class also is inherited from. In addition,

policies could be very useful as a mean for specifying

implementation of extended interfaces. We intend to

introduce here another interesting usage of the poli-

cies, related to static implementations of Decorator

pattern and its variants.

Decorator and Strategy patterns provide both al-

ternative designs to address problems that involve

changing or extending the objects’ functionalities,

possibly dynamically (Gamma et al., 1994; Pikus,

2019; Shalloway and Trott, 2004). Strategy is a be-

havioral pattern that encapsulates a family of algo-

rithms, and make them interchangeable; it changes

an object from inside. On the other side, Decorator,

classiﬁed as fundamental design pattern in (Zimmer,

1995), is considered a structural design pattern; but

since it is used to dynamically attach additional re-

sponsibilities to an object it also affects the behaviour

of that object.

The reason for this investigation is given also by

the fact that static deﬁnitions are considered in gen-

eral more optimal since the number of operations to

be executed at the runtime is reduced, but the main

advantage is given by the enhanced functionality. In

the classical deﬁnition of Decorator pattern, the ini-

tial object is wrapped with several “decorations” that

not only could change the functionality of the initial

object interface but also, they could enlarge its inter-

face with new methods. This extension of the inter-

face brings some problems related to the accessibil-

ity of the new introduced methods. This have been

analysed in (Niculescu, 2015) and the solution for this

was expressed as a new enhanced variant of the Dec-

orator pattern named MixDecorator. The implemen-

tation of MixDecorator requires (if we want to allow

extensibility in time, which means adding new deco-

rations with the same accesibility properties) a form

of extension methods mechanism to be existent into

the implementation language. Implementation solu-

tions were given for Java – through interface default

methods (Oracle, 2018), and in C# – through exten-

sion methods (Microsoft Contributors, 2015). Since

in C++ there is not such an extension methods mech-

anism (Stroustrup, 2018), we proposed here a C++

solution based on policies.

The paper also presents other two variants for

Decorator implementation, which could be consid-

ered as compile-time variants of the Decorator pat-

tern. One purely based on inheritance, and another

that is a hybrid one, which wraps an object with deco-

rations that are deﬁned as a linear hierarchy of classes.

Niculescu, V.

Efﬁcient Decorator Pattern Variants through C++ Policies.

DOI: 10.5220/0009342802810288

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 281-288

ISBN: 978-989-758-421-3

281

The paper is structured as follows: Section 2 suc-

cinctly describes what policies means in C++ together

with their applicability. Section 3 presents the classi-

cal Decorator pattern with the associated challenges,

and the MixDecorator solution. In section 3.1 a C++

implementation of the MixDecorator pattern is ex-

plained, and Section 4 analyses the two new proposed

variants of the Decorator pattern. Conclusions and fu-

ture work are presented in section 5.

2 C++ POLICIES

Generally, a policy is deﬁned as a class or class tem-

plate that deﬁnes an interface as a service to other

classes (Alexandrescu, 2001). A key feature of the

policy idiom is that, usually, a template class will de-

rive from (make itself a child class of) each of its pol-

icy classes (template parameters).

More speciﬁcally, policy based design implies the

creation a template class, taking several type param-

eters as input, which are instantiated with types se-

lected by the user – the policy classes, each imple-

menting a particular implicit interface – called pol-

icy, and encapsulating some orthogonal (or mostly or-

thogonal) aspect of the behavior of the template class.

Through policies the code is minimized, while

still allowing solutions for speciﬁc class related func-

tionalities. In (Alexandrescu, 2001) it is stated that

policy-based class design fosters assembling a class

with complex behavior out of many little classes

(called policies), each of which taking care of only

one behavioral or structural aspect. As the name sug-

gests, a policy establishes an interface pertaining to

a speciﬁc issue. It is possible to implement poli-

cies in various ways as long as the policy interface

is respected. Policies have been also described as a

compile-time(static) variant of the Strategy pattern.

For example, if we need to enlarge the capacity

of a container when a new element is added, we can

increase it with one or with half of the existing size

(or other strategies could be used, too). The strategy

will be chosen depending on the speciﬁc usage of the

container – Listing 1.

1 t e m p l a t e < c l a s s T >

2 c l a s s i n c r e m e n t E n l a r g e r {

3 p r o t e c t e d :

4 v o i d e n l a r g e ( i n t & c a p a c i t y ) {

5 c a p a c i t y ++ ;

6 }

7 }

8 t e m p l a t e < c l a s s T >

9 c l a s s h a l f E n l a r g e r {

10 p r o t e c t e d :

11 v o i d e n l a r g e ( i n t & c a p a c i t y ) {

12 c a p a c i t y += c a p a c i t y / 2;

13 }

14 }

15 t e m p l a t e < t y p e n a m e E n l a r g e P o l i c y >

16 c l a s s C o n t a i n e r :

17 p r o t e c t e d E n l a r g e P o l i c y {

18 .. .

19 p r o t e c t e d :

20 v o i d d o E n l a r g e () c o n s t {

21 e n l a r g e ( c a p a c i t y ) ;

22 .. .

23 }

24 .. .

25 };

Listing 1: An example of using policies.

Policies have direct connections with C++ template

metaprogramming and they have been used in many

examples; classical examples are: string class, I/O

streams, the standard containers, and iterators (Abra-

hams and Gurtovoy, 2003).

3 DECORATOR PATTERN

In (Gamma et al., 1994) book the Decorator pattern

is described as a pattern that provides a ﬂexible al-

ternative to using inheritance for modifying behavior.

By using it we may add additional functionalities or

change the functionality of an object. This is a struc-

tural design pattern used to extend or alter the func-

tionality of objects by wrapping them into instances

of some decorator classes. Figure 1 presents the struc-

ture of its solution. It is generally agreed that deco-

rators and the original class object share a common

interface, and different decorators can be stacked on

top of each other, each time adding new functionality

to the overridden method(s).

Still, there are many situations when the decora-

tors need to add also new methods (i.e. methods that

are not in the initial object interface) that bring addi-

tional behavior; a very well known example is rep-

resented by the Java decorator classes for input and

output streams.

Since the interface IComponent deﬁnes only the

initial set of operations, the new added methods are

accessible only if they belongs to the last added dec-

orator, and the object is used through a reference of

that decorator type.

Also, removing and adding decorations at the run-

ning time is a requirement stated into the classical

pattern deﬁnition. Adding decorations is not difﬁcult,

since they could be added on top. If we understand by

removing decorations that we can remove the top dec-

oration, then this is only possible if a method that re-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

282

Figure 1: The Class Diagram of the Classical decorator Pat-

tern.

turns the wrapped object is deﬁned in the IDecorator

interface (e.g. getBase()). But if we would like to

remove a decoration, which is in the middle of the

decoration chain, this is not a trivial task.

3.1 MixDecorator Pattern with Policies

MixDecorator is an enhanced version of Decorator

pattern that eliminates some constraints of the classi-

cal pattern – most importantly the limitation to initial

interface. In the same time, it could also be seen as a

general extension mechanism (Niculescu, 2015).

The structure of the MixDecorator is similar to

that of the classical Decorator pattern but with some

important differences. Figure 2 shows the UML class

diagram of the MixDecorator solution.

Figure 2: The Class Diagram of the MixDecorator Pattern.

As for the classical decorators, the subject (a con-

crete component) is enclosed into another object – a

decorator object, but the decorator has an interface

that could extend the general component interface.

This means that the decorators could deﬁne new pub-

lic methods, which could be refered to as interface-

responsibilities.

In addition to the classical Decorator struc-

ture, there is a special class Operations, which de-

ﬁnes methods that correspond to all new interface-

responsibilities deﬁned in all decorators. As it can

be seen from Figure 2, the concrete decorator classes

Decorator1, Decorator2 are derived from Decorator

but also from Operations. The implementation of an

Operations method hides a recursion that tries to call

the method with the same name from the enclosed ob-

ject, and if this is not available, it goes further to the

previous decoration. The recursion stops either when

the concrete method is found or when it arrives to an

undecorated component.

Another possible variant would be to consider

Operations as a class derived from Decorator, and

then all concrete decorators extend only Operations

class – the problem with this approach is related to

the difﬁculties in extending the set of newly added

interface-responsibilities.

For a particular application/framework, after the

new interface-responsibilities are inventoried, then a

particular class Operations could be deﬁned. But, in

time, it is possible that new decorators with new meth-

ods are required to be deﬁned. For example, consid-

ering the diagram presented in Figure 2 it would be

possible to introduce a new decorator – Decorator3

that deﬁnes a new method f3; this requires an exten-

sion of the class Operations – OperationsExtended

that deﬁnes the method f3(), as well. The integration

of this kind of extension of the Operations class rep-

resents the implementation challenge of the MixDec-

orator pattern.

1 t e m p l a t e < t y p e n a m e B >

2 c l a s s D e c o r a t o r : p u b l i c B

3 {

4 p r o t e c t e d :

5 I C o m p o n e n t * c ;

6 p u b l i c :

7 D e c o r a t o r ( I C o m p o n e n t * c ) {

8 t h i s -> c = c ;

9 }

10 I C o m p o n e n t * g e t B a s e () {

11 r e t u r n c ;

12 }

13 v o i d o p e r a t i o n () {

14 c - > o p e r a t i o n () ;

15 }

16 };

Listing 2: Decorator class deﬁnition based on a policy.

A simple extension through inheritance of the

Operations interface that will be implemented by the

Efﬁcient Decorator Pattern Variants through C++ Policies

283

new decorators is not enough since we also have to al-

low direct access to all responsibilities independently

of the order in which decorators are added. If, for ex-

ample, a previously deﬁned decorator is added on top,

the new added responsibilities would not be accessi-

ble. In Java, or C# we may use default interface meth-

ods, respectively extension methods, to overcome this

requirement.

Because in C++ it is not possible to deﬁne exten-

sion methods or other similar mechanisms, a solution

is to use policies in order to postpone the speciﬁcation

of the parent class for decorators.

The Decorator class is deﬁned as a template class,

and the template parameter is also used as a parent

class for the Decorator class – Listing 2. The class

Operations is needed to be deﬁned as a parent class

of the Decorator class, but this relation will be deﬁned

through the template parameter. The policy that is in-

troduced this way speciﬁes which kind of Operations

to be used. So, we may postpone the speciﬁcation

of the base class, and allow this base to be either

Operations or OperationsExtended.

1 t e m p l a t e < t y p e n a m e B >

2 c l a s s D e c o r a t o r 1 : p u b l i c D e c o r a t o r < B >

3 {

4 p u b l i c :

5 D e c o r a t o r 1 ( I C o m p o n e n t * c ) :

6 D e c o r a t o r < B >( c ) { }

7 v i r t u a l v o i d f 1 () {

8 c o u t << " f 1 " << e n d l ;

9 }

10 };

Listing 3: An example of a concrete Decorator

implementation.

The concrete decorators are also deﬁned as

template classes, since they are derived from the

Decorator class – Listing 3 presents the implemen-

tation for Decorator1.

1 c l a s s O p e r a t i o n s : p u b l i c I C o m p o n e n t ,

2 p u b l i c I D e c o r a t o r

3 {

4 p u b l i c :

5 O p e r a t i o n s () { }

6 v i r t u a l v o i d f 1 () {

7 I C o m p o n e n t * c = g e t B a s e () ;

8 O p e r a t i o n s * d c =

9 s t a t i c _ c a s t < O p e r a t i o n s * >( c );

10 i f ( d c != N U L L ) d c -> f 3 () ;

11 }

12 v i r t u a l v o i d f 2 () {

13 / / s i m i l a r t o f 1

14 }

15 };

Listing 4: Operations class in C++ implementation.

The class Operations implements the IDecorator

interface and deﬁnes the corresponding searching

methods for the newly deﬁned methods in the con-

crete decorators (Listing 4).

The Decorator class inherits IComponent and

IDecorator through Operations class. (By letting

Decorator to specify directly the inheritance from

IComponent and IDecorator then virtual inheritance

would be needed, and in this case static_cast should

be replaced with dynamic_cast.)

The class Operations could be extended with classes

that deﬁne new methods that corresponds to the new

responsibilities added into additional decorators. For

example, if we have a new decorator Decorator3

that deﬁnes a new method f3(), than a new class

OperationsExtended that extends Operations is de-

ﬁned, and when using this new decorator we need

to specify OperationsExtended as a parameter for

Decorator (Listing 5).

1 c l a s s O p e r a t i o n s E x t e n d e d :

2 p u b l i c O p e r a t i o n s

3 {

4 p u b l i c :

5 O p e r a t i o n s E x t e n d e d () { }

6 v i r t u a l v o i d f 3 () {

7 I C o m p o n e n t * c = g e t B a s e () ;

8 O p e r a t i o n s E x t e n d e d * d c =

9 s t a t i c _ c a s t < O p e r a t i o n s E x t e n d e d * >( c );

10 i f ( d c != N U L L ) d c - > f 3 ();

11 }

12 };

Listing 5: Extending the Operations class in C++

implementation.

1 v o i d m a i n () {

2 I C o m p o n e n t * c =

3 n e w C o n c r e t e C o m p o n e n t () ;

4 D e c o r a t o r < O p e r a t i o n s > * d c =

5 n e w D e c o r a t o r 1 < O p e r a t i o n s >( c ) ;

6 d c -> f 1 () ;

7 D e c o r a t o r < O p e r a t i o n s E x t e n d e d >*

8 d c 1 3 =

9 n e w D e c o r a t o r 1 < O p e r a t i o n s E x t e n d e d >(

10 n e w D e c o r a t o r 3 < O p e r a t i o n s E x t e n d e d > ←-

( c ) ) ;

11 d c 1 3 -> f 3 () ;

12 d c 1 3 -> f 1 () ;

13 d c 1 3 -> o p e r a t i o n ()

14 }

Listing 6: Testing different methods’ calls in C++

implementation.

The example in Listing 6 shows ﬁrst a decora-

tion with Decorator1 (for which the class Operations

is enough to be used), and then Decorator3 is

added (for which we have the correspondent class

OperationsExtended). Since OperationsExtended ex-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

284

tends Operations the function f3() could be called

even after Decorator1 was added.

Because the template instantiation leads to the cre-

ation of a new class this is a statical efﬁcient approach.

4 DECORATOR VARIANTS

BASED ON POLICIES

The principal intent of the Decorator pattern is to

avoid the class explosion when there are many com-

bination of a set of functionalities/responsibilities.

In the classical Decorator deﬁnition, composition

is used instead of inheritance as a mean of avoiding

the class explosion; but if we can avoid this explo-

sion while still using inheritance, this should not be

excluded.

In order to better explain the proposed solutions,

and also to link to a real example, we will consider a

concrete example on which we will analyze the pos-

sibilities to deﬁne a kind of Decorator based on tem-

plate inheritance.

Case Study: [ReaderDecorator]. We consider a

case when we intend to deﬁne text analyzer decora-

tions, which decorate a Reader (an object that could

retrieve from a text stream, a single character, an en-

tire line, or a speciﬁed number of characters). There

are examples of such readers in Java and also in C# -

(Java: the class Reader; C# - the class StreamReader).

The basic method of the Reader is readChar() that

extracts a character from the associated stream and

returns it. Some basic decorations that could be pro-

vided are:

1. CharDecorator – a decoration that is able to count

the number of already read characters; this deﬁnes

an attribute no_of_chars that will be updated by

the overridden readChar() method, and deﬁnes

a method getNoChars() that returns the value of

no_of_chars.

2. WordDecorator – a decoration oriented to words

that provides a method getNoWords() that returns

the number of already read words) (optionally the

class could stores all the read words into an inter-

nal list, which could be returned).

3. SentenceDecorator – a decoration oriented to sen-

tences that provides a method getNoSentence()

(optionally the class could stores all the read sen-

tences into an internal list, which could be re-

turned).

We will consider a general IReader interface that

deﬁnes a method readChar(), and a concrete class

StringReader that uses strings as sources. For other

types of sources, correspondent IReader specializa-

Figure 3: The Class Diagram of the Template Inheritance

Solution Applied to Reader Problem.

tions could be deﬁned. The use of decorations is ap-

propriate since if we do not need to read or count sen-

tences, we don’t have to add the SentenceDecorator,

and similarly for WordDecorator, or CharDecorator.

When needed, other decorations could be added:

counting the number of proper nouns, the number of

non-blank characters, the number of sections, chap-

ters, etc.

4.1 Inheritance based Solution

The simplest way to assure the possibility to create an

object that offers any combination of the three respon-

sibilities enumerated before is to create three template

classes that are derived from their template parameter.

* This means that each decorator is deﬁned using a

policy – that should be either a IReader or other

decorator.

1 t e m p l a t e < t y p e n a m e T >

2 c l a s s C h a r R e a d e r : p u b l i c T {

3 p r i v a t e : i n t n o _ o f _ c h a r s ;

4 p u b l i c :

5 C h a r R e a d e r ( s t d :: s t r i n g r ) : T ( r ) {

6 n o _ o f _ c h a r s =0;

7 };

8 c h a r r e a d C h a r () {

9 c h a r c = T :: r e a d C h a r () ;

10 i f ( c !=0) n o _ o f _ c h a r s + +;

11 r e t u r n c ;

12 }

13 i n t g e t N o C h a r s () {

14 r e t u r n n o _ o f _ c h a r s ;

15 }

16 }

Listing 7: Inheritance based solution – Deﬁnition of

CharReader class.

In this way, a recursive composition of the decorators

is possible. Even if there is no explicit constraint re-

garding the template type, it is implicitly assured that

Efﬁcient Decorator Pattern Variants through C++ Policies

285

1 C h a r R e a d e r <

2 S e n t e n c e R e a d e r <

3 W o r d R e a d e r < S t r i n g R e a d e r > > > * w r =

4 n e w

5 C h a r R e a d e r <

6 S e n t e n c e R e a d e r <

7 W o r d R e a d e r < S t r i n g R e a d e r > > >

8 ( " H a p p y B i r t h d a y ! " ) ;

10 w h i l e (( c = w r -> r e a d C h a r () ) != 0)

11 c o u t < < c ;

13 c o u t < < w r - > g e t N o W o r d s () < < e n d l ;

14 c o u t < < w r - > g e t N o C h a r s () < < e n d l ;

15 c o u t < < w r - > g e t N o S e n t e n c e s () < < e n d l ;

Listing 8: Inheritance based solution – Usage example.

a class of IReader type (e.g. StringReader) will be

the last in the chain, since it is not generic.

The associated diagram, shown in the Figure 3,

does not emphasizes any relation between the classes.

They will be connected only when concrete examples

are created.

Listing 8 shows a usage example. In the usage

example, all three decorators are added (the order has

no importance), but depending on the needs only one,

or a combination of two could be used.

This solution based only on inheritance (without

composition) has advantages, but also some disadvan-

tages:

Advantages:

• only classes for the needed combinations are cre-

ated;

• all new deﬁned methods in different decorators

are accessible;

• the solution is very simple,

• static class creation assures efﬁciency.

Disadvantages:

• for each specialization of IReader, new classes

should be deﬁned for each particular combination

of decorators. If FileReader is a basic reader

with a text ﬁle as a source, in order to use an

instance similar to that deﬁned in the previous

usage example then another distinct class should

be deﬁned as:

1 C h a r R e a d e r <

2 S e n t e n c e R e a d e r <

3 W o r d R e a d e r < F i l e R e a d e r >>>

• the combination of functionalities could not be

changed during the source traversal;

• the decorations could not be dynamically add or

retrived.

Figure 4: The Class Diagram of the HybridDecorator Pat-

tern Applied to the Reader Problem.

4.2 Hybrid Solution – HybridDecorator

A hybrid solution that uses both inheritance and com-

position could be deﬁned. This preserves the basic

object wrapping, but the decorations will be deﬁned

as a single class obtained through a chain of inheri-

tance derivation. In order to assure this, we need to

deﬁne a class ExtReader that provides the support for

composition, but in the same time, intermediates the

decorations inheritance.

1 t e m p l a t e < t y p e n a m e T = I R e a d e r >

2 c l a s s E x t R e a d e r : p u b l i c T ,

3 p u b l i c I D e c o R e a d e r , p u b l i c I R e a d e r

4 {

5 p r o t e c t e d :

6 I R e a d e r * b a s e ;

7 p u b l i c :

8 E x t R e a d e r ( I R e a d e r * r ) : T ( r ) {

9 t h i s - > b a s e = r ;

10 }

11 c h a r r e a d C h a r () {

12 r e t u r n T :: r e a d C h a r () ;

13 }

14 I R e a d e r * g e t B a s e () {

15 r e t u r n T :: g e t B a s e () ;

16 }

17 };

Listing 9: The deﬁnition of the class ExtReader for the

general parameter value.

The class is deﬁned for the following two cases:

- the basic case with the template parameter equal to

IReader,

- the general case with a general template parame-

ter(T)

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

286

The deﬁnitions for these two cases are different, and

the difference is related to the call of the overridden

method readChar():

- for the basic case the call is sent to the wrapped

object (base);

- for the general case the call is sent up to the super-

class – T.

Listing 9 presents the implementation the class

ExtReader for the general template parameter case,

and Listing 10 presents the implementation of the

ExtReader for the implicit case when the template pa-

rameter is IReader.

1 t e m p l a t e <>

2 c l a s s E x t R e a d e r < I R e a d e r >:

3 p u b l i c I R e a d e r , p u b l i c I D e c o R e a d e r

4 p r o t e c t e d :

5 I R e a d e r * b a s e ;

6 p u b l i c :

7 E x t R e a d e r ( I R e a d e r * r ) {

8 t h i s -> b a s e = r ;

9 }

10 c h a r r e a d C h a r () {

11 r e t u r n b a s e - > r e a d C h a r ();

12 }

13 I R e a d e r * g e t B a s e () {

14 r e t u r n b a s e ;

15 }

16 };

Listing 10: The deﬁnition of the class ExtReader for the

implicit parameter value (IReader).

1 t e m p l a t e < t y p e n a m e T = I R e a d e r >

2 c l a s s C h a r R e a d e r : p u b l i c E x t R e a d e r < T >

3 {

4 p r i v a t e :

5 i n t n o _ o f _ c h a r s ;

6 p u b l i c :

7 C h a r R e a d e r ( I R e a d e r * r ):

8 E x t R e a d e r < T >( r ) {

9 E x t R e a d e r < T >:: b a s e = r ;

10 n o _ o f _ c h a r s =0;

11 }

12 c h a r r e a d C h a r () {

13 c h a r c = E x t R e a d e r < T >:: r e a d C h a r ();

14 i f ( c ! =0) n o _ o f _ c h a r s ++;

15 r e t u r n c ;

16 }

17 i n t g e t N o C h a r s () {

18 r e t u r n n o _ o f _ c h a r s ;

19 }

20 };

Listing 11: CharReader class deﬁnition.

For the concrete decorators, which are extended

from ExtReader, there is no need to explicitly de-

ﬁne the class for the implicit value of the parameter;

this is solved through the ExtReader deﬁnition. List-

ing 11 shows the deﬁnition of the CharReader class.

WordReader and SentenceReader have similar deﬁni-

tions.

The associated UML diagram for this hybrid im-

plementation is shown in Figure 4. The interface

IDecoReader is similar to the interface IDecorator,

and it just deﬁnes the method getBase().

A usage example based on this solution is given

in the Listing 12: a reader associated to a string

source is decorated with CharReader, WordReader, and

SentenceReader in order to allow the counting of

the read characters, words and sentences. It can be

noticed that the usage is very similar to the classi-

cal Decorator implementation, but composition is re-

placed with the template parameter speciﬁcation.

1 S t r i n g R e a d e r * r =

2 n e w S t r i n g R e a d e r ( " H a p p y B i r t h d a y ! " );

4 S e n t e n c e R e a d e r <

5 C h a r R e a d e r <

6 W o r d R e a d e r < > > > * w r =

7 n e w S e n t e n c e R e a d e r <

8 C h a r R e a d e r <

9 W o r d R e a d e r < > > >( r );

11 w h i l e (( c = w r -> r e a d C h a r ()) != 0)

12 c o u t << c ;

14 c o u t << w r - > g e t N o W o r d s () << e n d l ;

15 c o u t << w r - > g e t N o C h a r s () << e n d l ;

16 c o u t << w r - > g e t N o S e n t e n c e s () << e n d l ;

Listing 12: Hybrid solution – Usage example.

Advantages of the hybrid solution:

• only the classes for the needed combinations are

created;

• all new deﬁned methods in different decorators

are accessible;

• the combination of functionalities could be

changed during the source traversal – the basic ob-

ject is retrieved (through the method getBase()),

and then it could be passed to another combina-

tion of functionalities.

• for all the specializations of IReader only one par-

ticular class that corresponds to a particular func-

tionality combination could be used;

• in order to add a new decoration a new ob-

ject wrapping (similar to the classical Decorator)

could be done – the wrapping will specify a new

class with the desired decoration.

• static class creation assures efﬁciency.

Disadvantages:

• The decorations could not be dynamically re-

trieved;

Based on the advantages that this solution offers, we

may consider that it represents a valid and efﬁcient

Efﬁcient Decorator Pattern Variants through C++ Policies

287

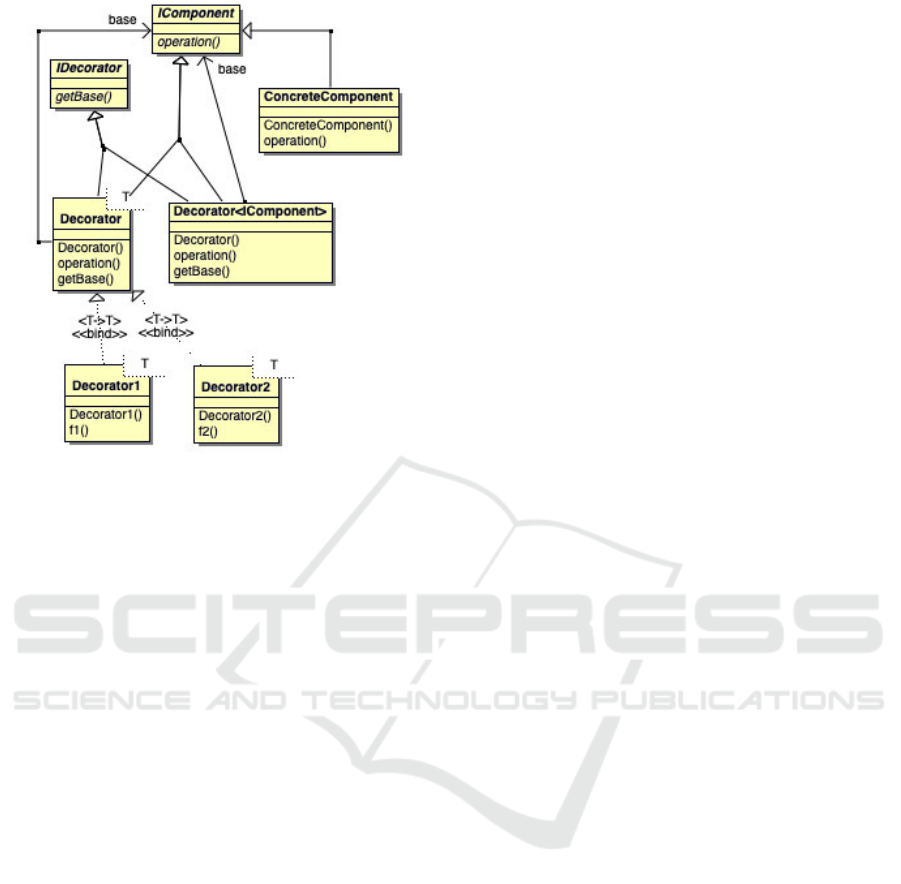

Figure 5: The Class Diagram of the HybridDecorator Pat-

tern - The General Solution.

Decorator variant – HybridDecorator. The general

structure of this is presented in the Figure 5. If

we compare the structure diagram of the MixDec-

orator (Figure 2) and the HybridDecorator struc-

ture diagram, we may notice that even HybridDec-

orator assures full accesibility of all new interface-

responsibilities, it is not necessary to deﬁne another

special class Operations to assure this.

5 CONCLUSIONS

The paper analyzes policy based C++ implementa-

tions of the Decorator pattern. Since the classical

Decorator has an accessibility problem if new respon-

sibilities are added to the interface, MixDecorator is

an alternative that solves this problem. But its imple-

mentation (in the extensible mode) requires some lan-

guage mechanisms that allow interface extension (or

extension methods). For MixDecorator C++ imple-

mentation, we have shown how the template policies

could be used as a mean for deﬁning new interfaces,

and in fact to cover the need for extension methods.

Template policies are proposed to be also used

for deﬁning other alternative solutions of the Deco-

rator pattern. Both of the two proposed variants as-

sure complete accessibility over new deﬁned methods

(since inheritance is used for decorations). The Hy-

bridDecorator has a higher degree of reusability, and

it also offers the advantages of the MixDecorator re-

lated to accessibility (so more than the classical Dec-

orator) but with a simpler structure.

The implementation of the MixDecorator pattern

preserves the characteristics of the classical Decora-

tor pattern regarding the possibility to dynamically

remove or add decorations. Also, for the HybridDec-

orator we have the possibility to add decoration, since

the initial decorated object could be wrapped into a

new decoration, similarly deﬁned.

In the Decorator pattern deﬁnition is it stated that

the composition is a good alternative to inheritance.

The presented solutions that are based on policies are

implicitly based on inheritance, but the idea that in-

heritance should be avoided was in the context of us-

ing inheritance for creating all possible combinations

- and this is not the case for the policy solution. The

recursion implicitly involved by the templates poli-

cies ﬁts very well to the recursion implied by the Dec-

orator deﬁnition.

REFERENCES

Abrahams, D. and Gurtovoy, A. (2003). C++ Template

Metaprogramming: Concepts, Tools, and Techniques

from Boost and Beyond. Addison-Wesley.

Alexandrescu, A. (2001). Modern C++ design: generic

programming and design patterns applied.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1994).

Design Patterns: Elements of Reusable Object Ori-

ented Software. Addison Wesley.

Microsoft Contributors (2015). Extension methods

(C# programming guide). [online: https://msdn.

microsoft.com/en-us/library/bb383977.aspx]. [Ac-

cessed: 07.20.19].

Niculescu, V. (2015). Mixdecorator: An enhanced version

of decorator pattern. In Proceedings of the 20th Eu-

ropean Conference on Languages of Programs, Euro-

PLoP ’15, pages 36:1–36:12, New York, USA. ACM.

Oracle (2018). JAVA SE 8: Default methods. [online: https:

//docs.oracle.com/javase/tutorial/java/IandI/]. [Ac-

cessed:07.20.19].

Pikus, F. G. (2019). Hands-On Design Patterns with C++:

Solve common C++ problems with modern design

patterns and build robust applications. Packt Publ.

Shalloway, A. and Trott, J. R. (2004). Design Patterns Ex-

plained: A New Perspective on Object Oriented De-

sign, 2nd Edition. Addison Wesley.

Stroustrup, B. (2018). A Tour of C++ (2nd Edition) (C++

In-Depth Series). Addison-Wesley Professional.

Zimmer, W. (1995). Relationships between Design Pat-

terns, page 345–364. ACM Press/Addison-Wesley

Publishing Co., USA.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

288
