Facial Expressions Animation in Sign Language based on

Spatio-temporal Centroid

Diego Addan Gonc¸alves

, Maria Cec

ılia Calani Baranauskas

, Julio C

esar dos Reis

and Eduardo Todt

Institute of Computing, University of Campinas, S

ao Paulo, Brazil

Department of Informatics, Universidade Federal do Paran

a, Curitiba, Brazil

Keywords:

3D Avatar, Sign Language, Facial Expression.

Abstract:

Systems that use virtual environments with avatars for information communication are of fundamental im-

portance in contemporary life. They are even more relevant in the context of supporting sign language com-

munication for accessibility purposes. Although facial expressions provide message context and deﬁne part

of the information transmitted, e.g., irony or sarcasm, facial expressions are usually considered as a static

background feature in a primarily gestural language in computational systems. This article proposes a novel

parametric model of facial expression synthesis through a 3D avatar representing complex facial expressions

leveraging emotion context. Our technique explores interpolation of the base expressions in the geometric

animation through centroids control and Spatio-temporal data. The proposed method automatically generates

complex facial expressions with controllers that use region parameterization as in manual models used for sign

language representation. Our approach to the generation of facial expressions adds emotion to representation,

which is a determining factor in deﬁning the tone of a message. This work contributes with the deﬁnition of

non-manual markers for Sign Languages 3D Avatar and the reﬁnement of the synthesized message in sign

languages, proposing a complete model for facial parameters and synthesis using geometric centroid regions

interpolation. A dataset with facial expressions was generated using the proposed model and validated using

machine learning algorithms. In addition, evaluations conducted with the deaf community showed a positive

acceptance of the facial expressions and synthesized emotions.

1 INTRODUCTION

Systems that use virtual environments for informa-

tion communication are of fundamental importance

in everyday life, providing ﬂexibility and speed in the

transmission of information (Lombardo et al., 2011)

(Punchimudiyanse and Meegama, 2015). Studies on

gesture synthesis in 3D space have an immediate im-

pact on the development of new essential technologies

and deserve attention and investment. Although sign

languages have been documented since the 17th cen-

tury, their practical deﬁnitions and modeling vary lo-

cally based on countries’ legislation (Lombardo et al.,

2011) (Kacorri et al., 2015) (Soﬁato, 2014), most of

which based on recent studies.

Several computational systems have been devel-

oped for Sign Languages based on signal synthesis

through the user interaction (Bento et al., 2014) (Ad-

han and Pintavirooj, 2016) (Ratan and Hasler, 2014),

(Kacorri et al., 2015). In general, those systems

use conﬁguration parameters for hand-based gestures,

body and arms positioning, aiming at the ﬁdelity be-

tween the virtual and real representations. Although

facial expressions provide message context and de-

ﬁne part of the information transmitted (Elons et al.,

2014), e.g., irony or sarcasm, there is a serious lack of

such features in most of the existing software tools.

In this direction, systems that use virtual interpreters

need a greater focus on the parameterized representa-

tion of facial expressions, which is an indispensable

element in the effective transmission of a message

(Hyde et al., 2016).

According to Neidle et al. (Neidle et al., 1998),

it is remarkable that an addressee in a sign language

dialogue tends to look more to the eyes of the partner

than to the hands, reinforcing the importance of fa-

cial expressions in the communication. In this sense,

the accurate transmission of a message using sign lan-

guages needs a facial expression representation as a

feeling modiﬁer or as a context supplement for the

Gonçalves, D., Baranauskas, M., Reis, J. and Todt, E.

Facial Expressions Animation in Sign Language based on Spatio-temporal Centroid.

DOI: 10.5220/0009344404630475

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 463-475

ISBN: 978-989-758-423-7

463

raw gesture information as well as for morphological

signs.

However, facial parameters for the computational

representation of sign languages are scarce and lack

details that correspond with the models applied to the

manual elements of the language. Facial expressions,

that also provides the emotion, should consider cul-

tural elements, morpho-syntactic elements and facial

expression interpolations. Although some systems

implement facial expressions in their avatars, they of-

ten do not follow any models integrated with the other

parameters and do not associate the emotional expres-

sion with the message. To this end, it is necessary

a control model that understands the relationship of

each facial region with facial expressions for the gen-

eration of a virtual environment. A model with these

characteristics facilitates the integration of complex

features in the system.

The manual sign language parameters has well-

deﬁned models, such as the CORE-SL (Iatskiu et al.,

2017), that describes the hand parameters as shape,

location, movement and orientation. Each parame-

ters have values and hierarchy relationship that com-

pounds a signal. These models do not incorporate

detailed facial parameters, or Non-Manual Markers

(NMM), a fact that unfortunately holds for models

and systems for other sign languages as well.

In this paper, we propose and validate a novel

parametric model of facial expression applied to a

3D avatar dedicated to Sign Language synthesis. The

animation of facial expressions can be controlled by

understanding the behavior of facial landmarks and

the geometric animations allowing the implementa-

tion of automatic signal synthesis and a facial model

for sign languages. In particular, we propose a func-

tional facial model for Sign Languages 3D animation

that considers parameters of the face using Spatio-

temporal information. The Spatio-temporal informa-

tion enables to control the behavior of the geometric

landmarks and to generate an automatic synthesis of

emotions through a 3D avatar.

Our investigation involved the deﬁnition and ap-

plication of a parameterized landmark-based model

of facial expressions in a signal language synthesis

system. We aimed to enhance the animation process

supporting a more accurate representation of sign lan-

guage messages and integrating into the Core-SL hi-

erarchic model.

The conducted methodology is synthesized as fol-

lows:

• Proposed a parameterized computational model

for facial representation in sign language 3D

avatar.

• Identiﬁed the main components of deformation

landmarks in the avatar face to deﬁne the relation-

ship between facial regions and base expressions.

Base expressions are the main emotions used to

generate all the secondary interpolations. This en-

ables to generate expressions that follow the de-

scriptive sign language model by associating the

expression with the signal message. This allows

full control of the geometric mesh of the face.

• Applied concepts of temporal data related to a ge-

ometric mesh to control and optimize the 4D ac-

tions of a 3D avatar.

• Evaluated the proposed system through a data set

based on interpolation of parameters and genera-

tion of simpliﬁed and adapted expressions. The

evaluation was carried out in two steps: Using

machine learning to classify avatar generated ex-

pressions and based on the feedback of the Deaf

community concerning the outputs.

Our contribution offers a ﬁne control of the geometric

deformations in the representation of emotions during

the transmission of the message, deﬁning which pa-

rameters are the most relevant in the representation of

the main expressions, allowing local control for each

parameter. The main contributions are the deﬁnition

of a NMM model for sign languages avatar and a pro-

cess to synthesize emotions and expressions in a 3D

avatar for synthesis systems, supported by the extrac-

tion of the spatio-temporal data of facial animation

that deﬁnes facial behavior.

The remaining of this paper is organized as fol-

lows: Section 2 presents a synthesis of related work.

Section 3 presents the built model for facial parame-

ters in the 3D avatar. Section 4 reports on our tech-

nique for the automatic generation of complex facial

expressions based on behaviors of facial landmarks.

Section 5 describes the evaluations conducted to as-

sess our proposal. Section 6 refers to the ﬁnal re-

marks.

2 RELATED WORK

The use of virtual agents for educational or entertain-

ment systems has increased as well as the interest

by target users (Grif and Manueva, 2016) (Ratan and

Hasler, 2014) (Wiegand, 2014). Basawapatna et al.

(Basawapatna et al., 2018) reinforce the importance

of 3D avatars in educational environments, compar-

ing the impact of more dynamic virtual environments

with traditional concepts in programming teaching.

The avatar motions may be generated by con-

trollers associated with the 3D geometric mesh us-

ing techniques such as Blend Shapes or Morph Tar-

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

464

gets as well as the tracking of geometric controllers

based on a set of features and classiﬁer cascade (Feng

and Prabhakaran, 2016) (Ahire et al., 2015) (Kacorri,

2015). Some models can use notation based on sign

languages, as Signwriting and HamNoSys, extending

them for characteristics of manual signal elements,

using terms such as symmetry, hand position, rota-

tion and location, associated with values of move-

ments or coordinates among other information (Kaur

and Singh, 2015). These models make a parallel be-

tween sign language representation and their descrip-

tive notations, but do not cover complex elements for

facial deﬁnitions (Lombardo et al., 2011).

Modulation in the mouth, eyebrows and other

points of interest in the face can change the meaning

of expressions in sign languages (Huenerfauth et al.,

2011), reinforcing the necessity of a facial model that

deﬁnes complex elements of the face. There are facial

expression deﬁnitions for sign languages such as the

work of Elons which limits the categories of: Ques-

tion, used when the sentence is interrogative, Empha-

sis used to highlight part of the sentence, Emotion as

sadness and joy and Continue when the emitter has

paused the message momentarily.

These categories are still very generic and an ideal

deﬁnition of facial parameters is similar to used for

manual elements in the descriptive models of sign

languages (Iatskiu et al., 2017) identifying indepen-

dent elements and position values. The base classes of

emotional states used in interactive scenarios are the

Positive (joy, surprise and excited emotions), Neutral

(calm and relaxed expressions) and Negative (afraid,

anger and sadness expressions) classes (Alkawaz and

Basori, 2012). Ekman’s model (Szwoch, 2015) iden-

tiﬁes base expressions as Anger, Fear, Sadness, Sur-

prise, and Joy. Other representations of emotions are

identiﬁed as a combination and interpolation of ba-

sic expressions also called Plutchick’s Wheel of Emo-

tions.

The face can be decomposed into speciﬁc and

independent regions handling the classiﬁcation of

key points in groups (Lemaire et al., 2011). These

key points are frequently used in Facial Expres-

sions Recognition (FER) (Happy and Routray, 2015),

where mathematical spatial models can deﬁne, for ex-

ample, a distance for eyes and nose, that can be ap-

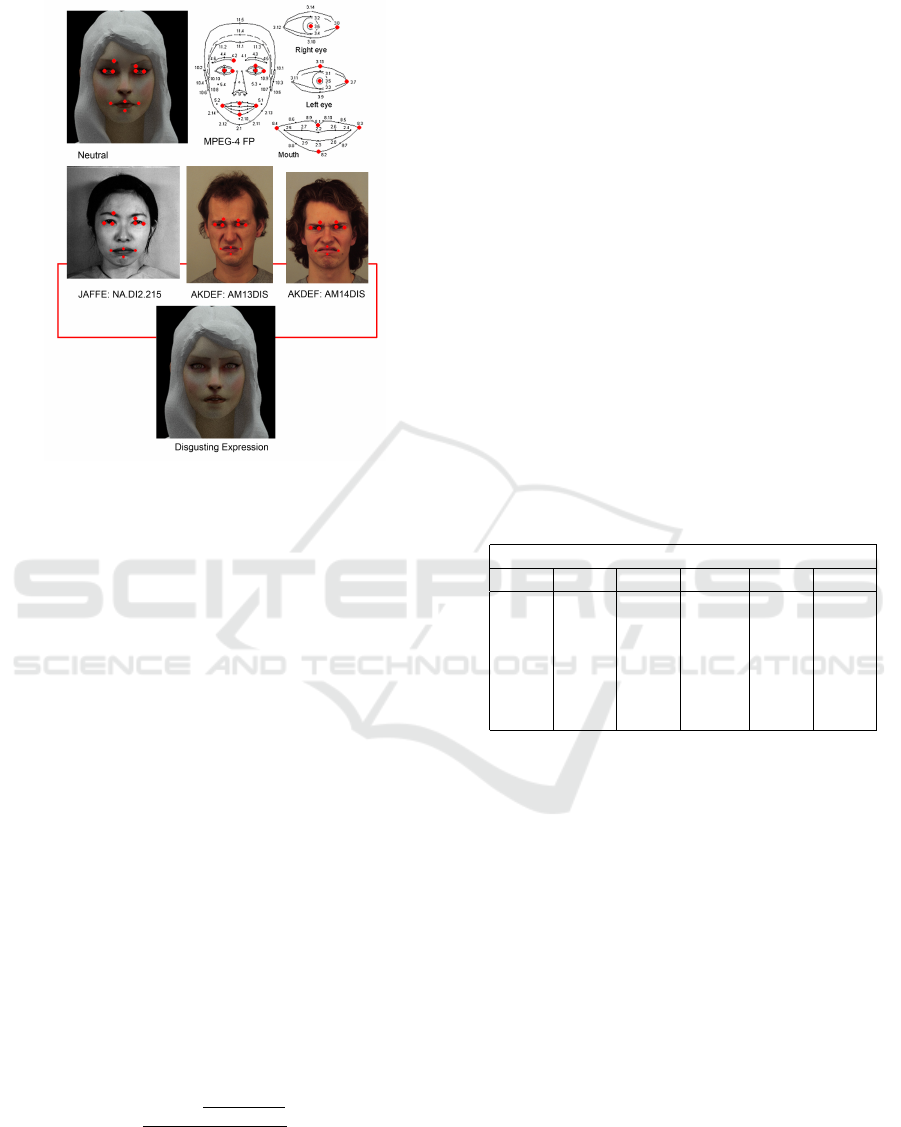

plied to the synthesis process as well. MPEG-4 Fa-

cial Points is a broadly used standard set of points of

interest in the face (Bouzid et al., 2013). It provides

84 points mapped on a model with a neutral expres-

sion, including areas such as tongue, lips, teeth, nose,

and eyes, with points distributed along the perimeter

of these regions, particularly at the corners.

Most approaches use spatio-temporal information

to classify facial data (Sikdar, 2017) (Yu and Poger,

2017). Different mathematical models for temporal

data representation are found in the literature (Erwig

et al., 1998) (Lee et al., 2016) (Mahmoud et al., 2014)

(Suheryadi and Nugroho, 2016). The general deﬁni-

tion commonly used for 4D data is for an object ob-

served temporarily in a deﬁned space.

The spatial data type, as well as the temporal en-

vironment, deﬁne the speciﬁcity of the models devel-

oped and can help to understand the behavior of emo-

tion animation.

Algorithms such as Data Time Warping (DTW),

Factor Analysis (FA) and Principal Components

Analysis (PCA) can be used to understand the correla-

tion between landmarks and the expressions through

their behavior (Mahmoud et al., 2014). Oliveira et al.

(Oliveira et al., 2017) use the PCA + k-NN algorithms

to extract features from an image base referring to the

alphabet in Irish Sign Language. According to the

authors, techniques used for sign deﬁnition include

the use of landmarks and Principal Component Anal-

ysis (PCA) and can be classiﬁed by machine learning

techniques. This concept will be used to deﬁne a fa-

cial region during an expression animation as a 4D

geometric mesh.

3 MODEL FOR AUTOMATIC

SYNTHESIS OF FACIAL

EXPRESSIONS IN SIGN

LANGUAGES THROUGH 3D

AVATAR

In the following sections, a novel model for the au-

tomatic synthesis of facial expressions in sign lan-

guages is presented using the proposed non-manual

markers based on regions and Spatio-temporal facial

behavior. The NMM model follows the manual pa-

rameters format deﬁned for sign language computa-

tional models around the world. Using this model,

methods for facial behavior analysis was applied to

extract 4D meshes that detail the relationship between

facial landmarks and base expressions. With this

model, an automatic facial expression generation and

parser system have been developed that can be in-

tegrated into automatic sign language synthesis sys-

tems.

Facial Expressions Animation in Sign Language based on Spatio-temporal Centroid

465

3.1 Proposed Sign Language

Non-manual Markers based on

Region Centroid

The model proposed in this section relies on hier-

archical modeling, compatible with concepts widely

used in the computational representation of the man-

ual parameters of sign languages, improving systems

that do not use expressions or emotions on message

transmission.

A 3D avatar was built with a geometry compatible

with the facial data-sets that require a low poly mesh

(a simple geometry with few polygons), and that can

efﬁciently represent the base expressions deﬁned by

Plutchick’s Wheel of Emotion (Figure 1). Both the

geometric model and the parameters deﬁned in the

following subsections can be used to represent any fa-

cial expression using interpolation of facial landmarks

displacement values.

Figure 1: Basic emotions represented in the virtual environ-

ment. The top row shows faces built with the 3D mesh, from

left to right: Neutral, Joy, Anger, Surprise and Sadness. The

bottom row shows the samples of the data-set (Lyons et al.,

1998) used as a reference for the base expressions.

A humanoid model was built with 598 facial polygons

and a rigging supporting the aforementioned base ex-

pressions. The facial model MPEG-4 FP (Kacorri and

Huenerfauth, 2014) was used as a points of interest

reference in avatar modeling. According to Obaid et

al. (Obaid et al., 2010), the main regions for facial

expression recognition are: forehead, eyes, cheeks,

nose, and mouth.

Other studies using facial regions for the extrac-

tion or classiﬁcation of characteristics argue for the

local division as a fundamental resource to better un-

derstand the behavior and relation between a geomet-

ric area or related spatial points (Lemaire et al., 2011)

(Lv et al., 2015).

Based on these concepts, the facial model for

sign language avatar was deﬁned as the merge of the

MPEG-4 points of interest controlled by centroids

calculated based on the ﬁve main facial regions. This

setting allows ﬁne control of expression animation

and is a new approach in sign language models.

Then, a process for generating the base expres-

sion animations was deﬁned using the morph target

method (Dailey et al., 2010), where geometric defor-

mations are processed using tracking of points of in-

terest from an input sequence. In the process of track-

ing and measuring the point of interest, distances were

used as a reference two 2D data-sets with images of

the base expressions states and representations.

Japanese Female Facial Expression (JAFFE) data-

set and the Averaged Karolinska Directed Emotional

Faces (AKDEF) data-set provide samples of the base

expressions interpreted by more than 20 subjects

providing approximately 120 samples (Lyons et al.,

1998) (Lundqvist, 1998). These data-sets classify the

images using averaged semantic ratings, which deﬁne

expressions by points of interest values, statistically

identifying which emotions each image is and its gen-

eral intensity(the displacement of the facial muscles

and facial points of interest deﬁne the expression rep-

resents and the value of intensity). Figure 2 shows

an example of the AKDEF base where the represen-

tation of base expressions uses values for synthesized

expression by intensity value.

Figure 2: AKDEF data-set sample (Lundqvist, 1998). The

images sequences follow the intensity in the representation

of the expression (0% for the neutral expression and 100%

for the angry base expression), based on the position of the

Points of Interest (POI) in the human face. The points of

interest is the facial muscles that when displaced indicate

the expression or emotion that the face intends to express.

The coordinates for each expression points of inter-

est in face region were deﬁned based on the average

values found in the data-sets. Following the semantic

values identiﬁed in each base expression, controllers

were applied to the 3D geometric mesh by deform-

ing the model in order to ﬁt in the average values as

shown in Figure 3.

With the morph targets of the applied base expres-

sions, coordinates of speciﬁc points on the 3D avatar

face, linked to controllers, can be used as predictions

of positions for interpolation of expressions. For the

input and output parser steps will be used as target de-

scriptive model the CORE-SL, which already imple-

ments manual and non-manual sign language param-

eters and elements, being the most complete model

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

466

today.

Figure 3: Generation of the synthesized expression based on

the subjects of the AKDEF and JAFFE data-sets used. The

red dots were deﬁned based on the MPEG-4 and applied to

the 3D avatar, and based on the position of the points of

interest tracked in the input images, the blend shapes were

constructed as animation for the base expressions. In the

image, inputs like the three ﬁgures displayed (NA.DI2.215,

nomenclature used in the JAFFE data-set that deﬁnes the

subject (NA), expression (DI2) and image number (215),

and the AKDEF data-set examples that represent the sub-

ject gender (AM), identiﬁcation (13 and 14) and expression

(DIS)) were used to deﬁne the displacements of each point

for the generation of the disgusting expression in the 3D

avatar.

3.2 Neutral Expression Deviation

Factor (NEDeF)

The next methods were built aiming to relate each fa-

cial region with each base expression. This process

is fundamental to identify values for the parameters

deﬁned in the previous section and can be used in au-

tomatic synthesis in the same way as the manual ele-

ments. A metric was proposed to measure the global

normalized region deformation, representing the in-

ﬂuence on the mesh for each expression, deﬁned by

the Neutral Expression Deviation Factor (NEDeF) as

follows:

∑

∈R

−d

(1)

For each expression (e) a measure of the distortion rel-

ative to the neutral expression (n) is computed. This

is done, for each facial region (R

), by the normalized

sum of differences of the Euclidean distances in the

3D space from the centroid region to each respective

landmark. A second normalization is computed con-

sidering the number of landmarks (reference points)

deﬁned for each region (NV

). The distances were

taken in absolute values because the distortion of the

regions is assumed to be additive.

The spatial location of the landmarks in the same

region (vertexes placed as MPEG-4 Point of Interest)

is deﬁned respective to the centroid. The absolute val-

ues of the displacements were used to calculate the

NEDeF considering that one distortion in the mesh

should be considered in any direction in the virtual

environment in order to evaluate deviation from the

neutral expression.

Table 1 shows the NEDeFs of the regions and

their distortion points compared to the same land-

marks with the synthesized expressions, together with

the normalized values of intensity of inﬂuence in the

3D mesh that was extracted in each region.

Table 1: NEDeF of the base expressions for main facial re-

gions, indicating the relation between the facial regions and

each expression. The displacements are calculated using

centroid position for facial region point of interest.

Geometrical Comparison of Facial Regions

Foreh. Eyes Cheeks Mouth Nose

Joy 0.18 1.00 0.80 0.79 0.37

Anger 0.62 0.90 0.95 0.70 0.08

Surp. 0.36 0.46 0.00 0.97 0.00

Fear 0.25 0.48 0.67 1.00 0.09

Sadn. 1.00 0.98 0.30 0.40 0.09

Disg. 0.73 0.05 0.66 1.00 0.00

The results presented in Table 1 allow the identiﬁca-

tion of the more affected regions for each emotion.

The forehead region is a highlight in the expressions

of anger and sadness and the mouth region is of great

importance in joy, surprise, and fear expressions. For

the joy emotion, the regions with more distortion in

the mesh were the cheeks; on the negative expressions

(anger, fear, sadness) the nose region tends to have a

more noticeable change in comparison with the posi-

tive emotions (joy and surprise).

The next facial experiment aimed to identify the

main components of the face on the emotion synthe-

sis process. This is important to identify the general

weight of each region, which will allow prioritizing

regions of greater importance in the synthesis of fa-

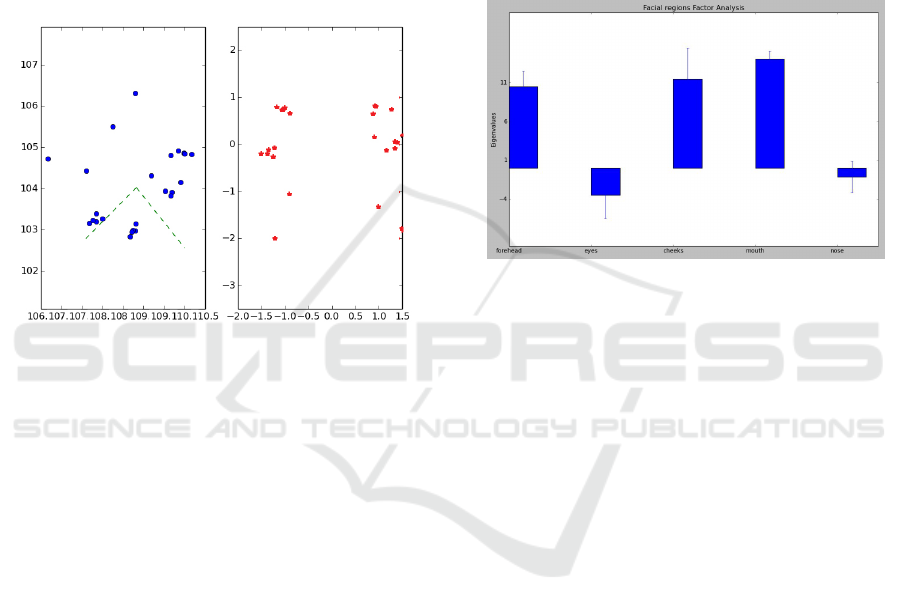

cial animations. For this process the Principal Com-

ponents Analysis (PCA) and Factor Analysis (FA) al-

gorithms were used, reducing the data dimensions,

making it easier to observe the regions with the most

relevant inﬂuence in the facial expression animations.

Facial Expressions Animation in Sign Language based on Spatio-temporal Centroid

467

The facial landmarks were used as the PCA vari-

ables with their Euclidean values ranging from a neu-

tral expression to the extracted synthesized expres-

sions. The covariance matrix was calculated as the

eigenvalues and eigenvectors of the average vector

of the samples, relating the landmarks and the eu-

clidean displacement. Then the data was rearranged

in a Hotelling matrix, used to solve such multivariate

testing problems, in order to obtain the facial principal

components. Figure4 shows a graph representing the

landmarks in two-dimensional space and their repre-

sentation after applying the PCA algorithm.

Figure 4: PCA applied to 3D mesh landmarks vector: Ac-

cording to Explained Variance Ratio (EVR), components of

Forehead and Mouth regions had the most expressive dis-

placement values. The dotted lines at left show the max-

imum variance direction of the ﬁrst and second principal

components, and the right image shows the points repre-

sented in the new principal component’s base.

The Explained Variance Ratio (EVR) was obtained

based on the eigenvectors and eigenvalues; it was ob-

served that 58 % of the variance of the data is in the

direction of the main components of the Forehead re-

gion, being the Mouth region with the second most

expressive value with 26 %, followed by Cheek’s with

11 % of the variance of the data directed to its compo-

nents. The Eye region had less expression in the tests,

followed by the nose region which had the EVR value

lower than 1 %.

In order to support the previous experiments, the

Factor Analysis Algorithm (FA) was applied. This

algorithm confronts the facial landmarks behavior

given by PCA results. The same PCA variables of

the previous analysis were used as facial landmarks

coordinates in expression animation morph target, ob-

serving the weights of their relations.

The objective of applying the FA was to ﬁnd the

co-variance between the regions in the synthesis of

facial expression, deﬁning the most relevant regions

in the synthesis of each base expression.

The normalized values for the analyzed factors

eigenvalues are 0.79 for Forehead, 0.0 for the Eyes,

0.85 for Cheeks, 1.0 for Mouth, 0.13 for Nose region,

which show that using the ﬁve main facial regions of

the proposed sign language NMM and the six base

expressions of the Ekman’s model, it’s correct to con-

sider three main factors. The graph in Figure 5 shows

the reduced factors based on the eigenvalues, where

the absolute values of mouth and nose regions can be

reduced in a single factor, as well as values for cheeks

and forehead.

Figure 5: Main factors for facial regions. The ﬁve values,

from left to right, represents the absolute values for the main

facial regions: Forehead, Eyes, Cheeks, Mouth, and Nose.

This means that, in the synthesis of base emotion ex-

pressions, using the points of interest landmarks and

regions of the proposed 3D avatar facial model, de-

ﬁned in the previous sub-section, we can point out

that the Forehead and Cheeks regions had a similar

displacement expressiveness in the geometric mesh.

The Mouth region was the most expressive with

the most noticeable details of geometric change and

Eyes and Nose can be considered as a factor with less

perceptive displacement. The PCA and FA results re-

inforce the proposed NEDeF function and point to the

more expressive facial regions and centroids in base

expression animation. Trajectories of these centroids

can deﬁne the general facial behavior of the 3D avatar

in the sign language synthesis process and can be ex-

tracted using Spatio-temporal, or 4D concepts. With

the results obtained, these strategies are explored in

the next section.

4 A MODEL FOR FACIAL

LANDMARKS TRAJECTORY

BEHAVIOR

The following methods were built aiming at the ex-

traction of the displacement geometric meshes of each

controller regarding the centroids of the main facial

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

468

regions. These results allow to deﬁne the behavior

of each controller and generate trajectories that, ob-

served as curves, allow the complete analysis of the

synthesis process of emotions and the generation of

complex facial expression interpolations.

For this process, the parameters of the NMM for

sign language 3D avatar deﬁned in the previous sec-

tions were transformed into function curve structures.

In order to represent a function curve, the values of

the points represented by t are a part of the sequence

called Knot Vector and determine the base function

that inﬂuences the shape of the B-Spline trajectory.

Knot vector is represented by t = (t

, t

, ...t

) in

range t ∈ [t

, t

] (Aldrich, 1998). Each centroid is a

spatial point in a trajectory in synthesis process. In

this way, for a trajectory referring to the synthesis of

an expression E of degree n and Controller Points

represented by the centroid of the region α observed

as a time point t(α) as follows:

t = p

, p

, ... p

t = ∀p(α) ∈ [0, 1] = (p

, p

, ... p

≥ p

i−1

t(C) =

∑

∈R

−d

B(t) =

∑

i=0

i,k

(t)C(t) +W

e(t)

For all control points p

as centroid t(C) and the knots

in B-Spline consider the parameter W based on the

value of inﬂuence extracted from PCA and FA analy-

sis. The inﬂuence parameter W is considered in the

animation generation process, where a lower value

of W corresponds to less important regions that can

be ignored in the expression synthesis, reducing the

computational load.

4.1 Spatio-temporal Centroid

Extraction

The Spatio-temporal concept used in this work fol-

lows the presented by Erwig and G

uting (Martin Er-

wig and G

uting, 1998) where the trajectory of a spa-

tial point, based on temporal readings can be observed

as a region if its spatial displacement is considered.

When the shape of the curve changes, the region dis-

placements is expanded or retracted.

The centroids trajectories along the generated fa-

cial expression animation can be represented by dy-

namic curves, controlling the edges that connect the

vertexes landmarks, producing the movement or de-

formation of facial regions. The relevant coordinates

occur in the transition between the neutral expression

to the synthesis of one of the six base emotions of the

Ekman model, since with these landmarks it is possi-

ble to observe the speciﬁc impact of these expressions

on the 3D mesh. The trajectories of the Facial Ex-

pression Landmarks (FEL) of the facial NMM model

deﬁned in the previous section were extracted using

intervals of 60 frames for each Expression by:

Tra j =

∑

i=1

Cent

, [E

, E

]

When in a range between the neutral expression and

the base expression [E

, E

], the coordinates of the

FEL are extracted by the region centroid Cent

, and

their displacement. The centroids displacements of

the region deﬁne their behavior and inﬂuence for each

expression.

The splines shown in Figure 6 represent the

geometric displacement calculated by the Three-

dimensional Euclidean Distance (3DED) of the Cen-

troid coordinates C

observed at 50 ts (t relating to

an element of the Keyframes vector for the emotion

synthesis). Each spline in images deﬁnes the Cen-

troid trajectory by the expression, the displacement

projection can be considered the 4D data as a trajec-

tory mesh (Le et al., 2011), once represent a geomet-

ric controller in a time slice.

Figure 6 shows the Spatio-temporal trajectories of

the ﬁve main facial regions for the base expressions.

Graphically it is possible to observe which region has

more spatial variation considering its geometric coor-

dinates and the shape of the curve.

The 3D Euclidean Distance values of each Cen-

troid reading are assigned to the matrix sequenced by

the Keyframe of the observed animation, where Eu-

clidean Distance Variance values of a mouth facial

region Centroid are displayed and their overall vari-

ance value. Based on 3D Euclidean Distances, Table

2 shows the Variance Analysis Matrix for each Cen-

troid in the time slice of the synthesis of each base

expression.

Most of the values in the EDVA table are rein-

forced by PCA tests, such as the fact that the Nose re-

gion is more signiﬁcant in negative expressions (such

as Anger and Sadness) with a variance of 0.00236 and

0.004911 respectively, signiﬁcant among the matrix

average.

The forehead region has a greater variance in the

positive expressions (Joy and Surprise) as well as the

mouth region, reinforcing the variance obtained with

the PCA Algorithm. For negative expressions, the

mouth region has more signiﬁcant variance values.

The expression Anger, according to the analyzed ma-

trix (Table 2) indicates that the regions of the eyes

with 0.002369 and cheeks with 0.001781 are those

that have a greater variance in the displacements also

Facial Expressions Animation in Sign Language based on Spatio-temporal Centroid

469

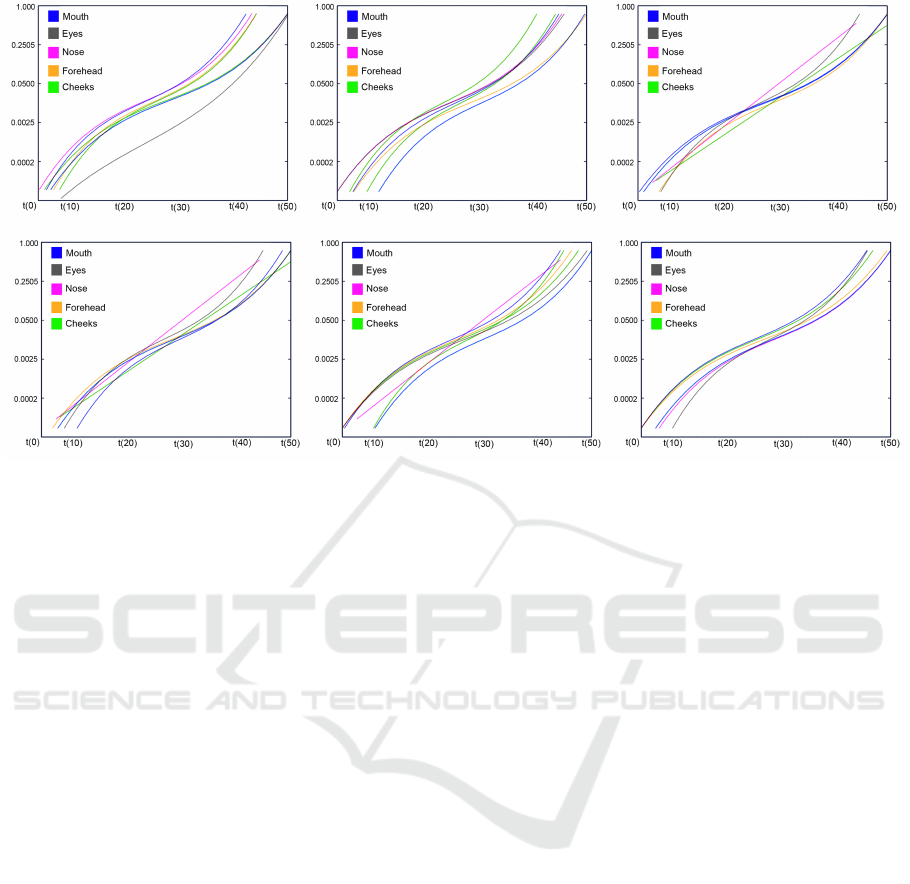

Figure 6: Spatio-temporal Centroid trajectories, from left-top to right bottom: Joy, Anger, Surprise, Sadness, Fear, Disgust

expression synthesis. The Spatio-temporal trajectories for each Centroid follow the displacement of 3D Euclidean Distance

Variance as shown in Table 2.

Table 2: Centroid trajectory EDVA values. For each base

expression, as Joy, Anger, Surprise, Fear, Sadness and Dis-

gusting, the variance value of each facial region is shown

(M. for mouth region, C. for cheeks region, N. for nose re-

gion, F. for forehead region and E. for eyes region).

EDVA values.

Joy Anger Surp. Fear Sadn. Disg.

M. .123 .001 .002 .010 .197 .182

C. .163 .001 .002 .002 .001 .003

N. .002 .000 .000 .000 .000 .002

F. .052 .001 .076 .014 .004 .011

E. .006 .002 .001 .001 .004 .001

reinforcing the values tabulated by the PCA test.

The avatar’s mouth presented high values of ge-

ometric displacement variance in practically all base

expressions, highlighting the disgust expression, with

0.1820 of variance and sadness expression, with

0.1972, reinforcing their relationship between these

expressions and facial regions. The cheek region has

a greater variance in the Joy expression synthesis with

0.16371, and its lower values are in the expressions

of surprise and fear, expressions that depend more

on the forehead region that presented high values of

0.076342 and 0.014019 respectively.

Table 3 presents the normalized variance data for

the PCA and EDVA test relating the centroids of the

facial regions and the base expressions. Although ex-

tracted values cannot be compared directly, due to the

difference between the algorithms, the data presented

for the inﬂuence of facial region on the synthesis of

expressions reinforce the main regions that character-

ize the negative and positive emotions.

There are many approaches to interpolate curves

or Spatio-temporal data where intermediate points are

calculated in order to obtain a predicted trajectory

that extends the original shape (Gloderer and Hertle,

2010) (T. Jusko, 2016). From a weight parameter,

simpliﬁes curves by interpolating duplicated or less

relevant edges shortening the number of controller

points in the spline (Li et al., 2014), a useful resource

for interpolated expressions generation.

The proposed process was applied to create a data-

set with different outputs representing interpolated

emotions or simpliﬁcation of base expressions param-

eters. The Newton Polynomial Interpolation method

was used in the process. Through a list containing

the values of the coordinates separated by sequential

readings of the expressions, the simpliﬁcation method

of the 4D regions was implemented.

In this process, the readings must contain values in

the three geometric axes for each key-frame, deﬁned

by 50 frames for each expression, plus 10 frames to

return to the neutral state, exporting a different list for

each landmark. The landmarks are further grouped by

facial region, in order to parameterize the simpliﬁca-

tion process by data-sets.

With a list of intermediate values u, spatial ver-

texes displacements are simpliﬁed generating a new

Spatio-temporal trajectory. With the exported coor-

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

470

Table 3: Centroid displacement variance for Facial Regions

in expression synthesis. The shown values were normalized

and separated by the facial region and animated expression.

For regions with more than one Centroid, the mean-variance

values were calculated ((M. for mouth region, C. for cheeks

region, N. for nose region, F. for forehead region and E. for

eyes region).

PCA normalized variance values.

Joy Anger Surp. Fear Sadn. Disg.

M. .626 .005 .011 .053 1.0 .923

C. .829 .009 .003 .003 .005 .020

N. .001 .003 .002 .003 .003 .002

F. .267 .006 .387 .071 .020 .057

E. .003 .012 .009 .009 .024 .007

3D EDVA normalized values.

M. .791 .702 .970 1.00 .400 1.00

C. .800 .953 .000 .673 .307 .667

N. .376 .080 .000 .095 .091 .000

F. .118 .628 .363 .250 1.00 .730

E. 1.00 .900 .460 .484 .980 .050

dinates it is possible to intensify the animations by

increasing the variance in the displacements or opti-

mize the generation of the expression by excluding

4D regions with a lower w parameter. The value of w

represents the weight extracted from the EDVA, PCA

and FA results, which deﬁne the weight relationship

between the expression and the facial region.

Once the value of an intermediate point u is cal-

culated, its coordinates can be inserted in Centroid

values list of the morph target by the distance be-

tween Centroid and the data matrix using the func-

tion that calculates the distance between C

and C

, C

n−1

The whole process of outputting and calculating

base expression animation or expression interpolation

has been extracted from a parser process that follows

the CORE-SL framework structure. This structure

follows an XML notation model where parameters,

relationships, and values are deﬁned in order to gener-

ate a sign. For the facial model proposed by this work,

the parameters are the points of interest and Centroid

of each facial region, and their values are the geomet-

ric displacement relations deﬁned by the 4D meshes.

In summary, the presented generation process is com-

plete and can generate any interpolation variation pro-

posed by the Plutchik Wheel of Emotions, or inten-

sify and alter the base expressions to suit local and

regional representations.

5 EVALUATION AND

DISCUSSION

In order to identify whether the generated expressions

are recognizable, two validation tests were applied:

an evaluation using K-nearest neighbors algorithm

(KNN), Support Vector Machine (SVM) and Machine

Learning, and an evaluation collecting feedback from

the Deaf community.

5.1 Using Machine Learning

Although there are no models that deﬁne detailed

NMM parameters for sign languages 3D avatar, some

models and landmarks are widely used for facial ex-

pression recognition (Figure 7), and can be used in or-

der to point out facial behaviors that deﬁne emotions

and expressions for the virtual environment genera-

tion.

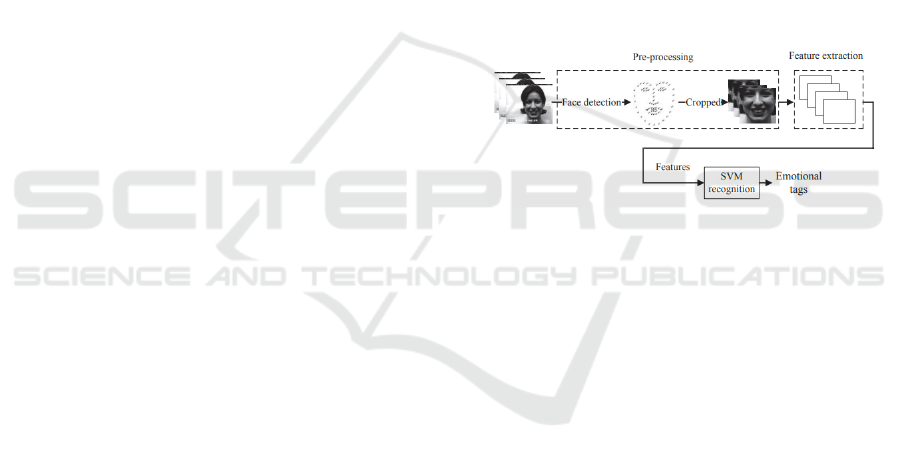

Figure 7: Facial expression recognition using Support Vec-

tor Machine (Song et al., 2018).

KNN and SVM are pattern recognition algorithms

that use machine learning to classify an input based

on a previously trained space of hypothesis H

to rec-

ognize patterns that deﬁne classes in a database.

Two facial bases, JAFEE and AKDEF, were used

in order to deﬁne the facial model in section 3. Both

bases were used in SVM training, where character-

istics such as eye position, mouth corners, nose, and

other spatial characteristics were deﬁned as parame-

ters of variables and the base expressions were de-

ﬁned as labels (Adil et al., ) and (Song et al., 2018).

The KNN algorithm does not learn any hypothesis

model being a distance-based strategy of elements by

comparing their attributes and deﬁning their dimen-

sional position based on their values.

After training with 2D image bases, 3D Facial

Expressions (3DFE) dataset was generated using the

model proposed in this work, with 21 examples of

synthesized base expressions and some interpolations

between them. Although the model generates virtual

environment animations as outputs, the ﬁnal output of

each rendered expression can be used as an example

and applied to SVM and KNN for labeling, once the

coordinates of the landmarks can be identiﬁed. In this

Facial Expressions Animation in Sign Language based on Spatio-temporal Centroid

471

way, based on H

, which is adaptable and learns from

new classiﬁcations, it is possible to label each output

of the dataset identifying if the intended expression

was generated correctly.

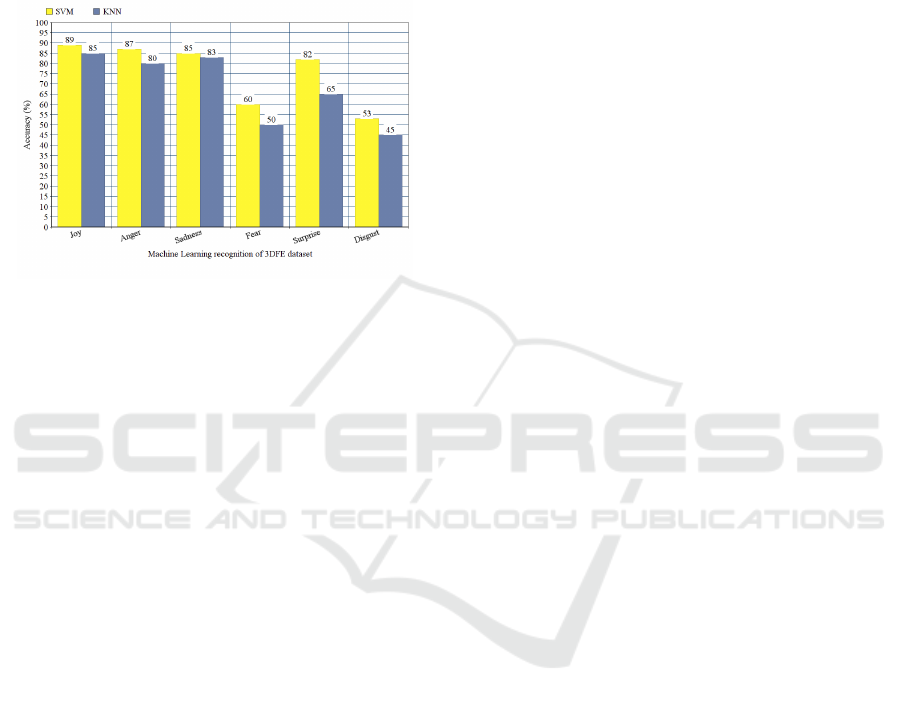

Figure 8 shows the accuracy of Machine Learning

algorithms in the labeling of facial expressions gener-

ated.

Figure 8: Average accuracy’s of 3DFE classiﬁcation.

It is possible to identify that the KNN algorithm had

had less accuracy in classifying the output images,

perhaps because its hypothesis space is totally deﬁned

by distance calculations. The SVM results were sup-

ported by the training stage based on AKDEF and

JAFEE databases, and have shown high positive clas-

siﬁcations.

The results demonstrate that the expressions gen-

erated by the methods proposed in this work are cor-

rect and highlight an important ﬁrst step in the in-

tegration of complex expressions in avatars for sign

language automatic synthesis systems, and can also

be integrated into other sign language systems around

the world. A dataset with the base expressions and

ﬁfteen interpolations was generated aiming to test the

automatic generation process and to present to the

deaf community through sign language synthesis sys-

tems through 3D avatar.

5.2 3DFE Dataset and User Evaluation

A questionnaire containing expressions generated by

the synthesis system developed in this work was or-

ganized to be presented to a university community

of deaf students. The objective was to evaluate if

the generated automatic expressions are recognizable

by the people, including the interpolations generated

through the spatio-temporal geometric meshes. This

exercise helps you identify which expressions can

have their parameters adjusted for better representa-

tion and values for interpolations.

A form containing a collection of 21 synthe-

sized expressions outputs generated using the pro-

posed technique was made available to Sign Lan-

guage users in order to evaluate the system and its

outputs. The form was made available online, and did

not require users identiﬁcation or personal informa-

tion once it was the system being analyzed and not the

people. Users should identify the facial expressions

presented, including some interpolations with inten-

sity variations in facial regions, and simpliﬁcations by

excluding regions with the less relevant w parameter.

The application of the form has received 30

anonymous responses. It was reported that 46.7% of

the respondents already used software with 3D avatars

as sign language interpreters, 10% had already used

software that uses 3D avatars but not in the context

of sign languages and 43.3% had never used software

with these characteristics.

Following, 86.7% of respondents consider facial

expressions a very important feature in a sign lan-

guage conversation, 10% consider it important and

3% consider it less important. Table 4 presents Spear-

man’s Rank Correlation coefﬁcient and signiﬁcance

applied to the data extracted from the answers feed-

back. The data below were organized in order to re-

late the importance of the parameters used to deﬁne

the outputs in the user’s responses.

Table 4: Spearman’s rank correlation coefﬁcient applied to

validated parameters in the applied formulas. The presented

values vary between 1 for a direct relation between the pa-

rameters and -1 for inverse relation. 0 represents no relation.

The parameters presented are: ”B.E.” for base expressions,

Interpolations (I.), ’N.I.’ for unidentiﬁed expressions, ’E.’

and ’H.’ for the number of errors and hits by output image.

B.E. I. N.I. E. H.

B.E. 1.00 -0.75 -0.33 -0.09 0.91

I. -0.75 1.00 -0.09 0.13 -0.06

N.I. -0.33 -0.09 1.00 0.15 -0.51

E. -0.09 0.13 0.15 1.00 -0.90

H. 0.91 0.06 -0.51 -0.90 1.00

The positive correlation between the basic expres-

sions and the hits of 0.9 justify the use of the pro-

posed and implemented system, being a viable model

in the ﬁrst moment for the parametrized representa-

tion of facial expressions in signal language systems.

Other variables in Table 4 highlight the strong

correlation of interpolated expressions with N.I. re-

sponses and the strong correlation between N.I. and

Errors. Therefore, the system would be improved if

there were image bases with representations of sec-

ondary expressions to serve as hypothesis space help-

ing to classify these variations geometrically.

Some relationships can be made between clas-

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

472

siﬁcations using artiﬁcial intelligence and user re-

sponses. Negative expressions had more false posi-

tives, especially expressions of fear and disgust. The

most successful expressions in both tests were the ex-

pressions of joy and anger, as well as sadness. One

hypothesis is that these emotions have less cultural

variation and are more recognizable regardless of fa-

cial and local characteristics. The Deaf community

response with the generated expressions was positive

as well as the SVM and KNN results; this represents

an important step in integrating complex facial ex-

pressions into avatars for automatic signal language

synthesis, using computational parameters, as it is al-

ready done with manual elements.

6 CONCLUSION

There is a lacking concerning facial parameter for

sign language avatars, despite the importance of ex-

pressions in communication. This work presented a

proposal of non-manual markers for sign language fa-

cial expressions automatic generation following com-

putational descriptive models such as CORE-SL, inte-

grating complex elements for automatic generation of

facial expressions uniﬁed to manual signals. As main

contributions the parameterized computational model

that allows the generation of base expressions and

secondary interpolations was presented, enabling the

representation of any expression based on ﬁne control

of facial regions.

The behavior of facial landmarks was also ana-

lyzed through Spatio-temporal modeling and applica-

tion of PCA, FA and EDVA algorithms, which deﬁne

the correlation between facial regions and the main

expressions. These results are important to under-

stand how to computationally generate complex facial

expression interpolations.

A dataset with facial expressions generated using

the proposed model was created and validated using

machine learning algorithms and presented to the deaf

community with positive acceptance of the facial ex-

pressions and emotions synthesized, The results ob-

tained so far represent a starting point in the inte-

gration of facial expressions for sign language for-

mal representation through 3D avatars, with a con-

trolled representation of expressions through well-

deﬁned parameters. Future works can deﬁne relations

between base expressions and interpolations and ap-

ply the parameters presented in other 3D meshes re-

inforcing the generality of the model. In addition, it

is essential that morphosyntactic elements, deﬁned in

each sign language, be integrated into the model.

ACKNOWLEDGMENTS

This work was ﬁnancially supported by the S

Paulo Research Foundation (FAPESP) (grants

#2015/16528-0, #2015/24300-9 and Number

2019/12225-3), and CNPq (grant #306272/2017-2).

We thank the University of Campinas (UNICAMP)

and Universidade Federal do Paran

a (UFPR) for

making this research possible.

REFERENCES

Adhan, S. and Pintavirooj, C. (2016). Thai sign language

recognition by using geometric invariant feature and

ann classiﬁcation. In 2016 9th Biomedical Engineer-

ing International Conference (BMEiCON), pages 1–4.

Adil, B., Nadjib, K. M., and Yacine, L. A novel approach

for facial expression recognition.

Ahire, A. L., Evans, A., and Blat, J. (2015). Animation on

the web: A survey. In Proceedings of the 20th Inter-

national Conference on 3D Web Technology, Web3D

’15, pages 249–257, New York, NY, USA. ACM.

Aldrich, J. (1998). Doing Least Squares: Perspectives from

Gauss and Yule. International Statistical Review. 66

(1): 61–81.

Alkawaz, M. H. and Basori, A. H. (2012). The effect of

emotional colour on creating realistic expression of

avatar. In Proceedings of the 11th ACM SIGGRAPH

International Conference on Virtual-Reality Contin-

uum and Its Applications in Industry, VRCAI ’12,

pages 143–152, New York, NY, USA. ACM.

Basawapatna, A., Repenning, A., Savignano, M., Manera,

J., Escherle, N., and Repenning, L. (2018). Is draw-

ing video game characters in an hour of code activ-

ity a waste of time? In Proceedings of the 23rd An-

nual ACM Conference on Innovation and Technology

in Computer Science Education, ITiCSE 2018, pages

93–98, New York, NY, USA. ACM.

Bento, J., Claudio, A., and Urbano, P. (2014). Avatars on

portuguese sign language. In Information Systems and

Technologies (CISTI), 2014 9th Iberian Conference

on, pages 1–7.

Bouzid, Y., El Ghoul, O., and Jemni, M. (2013). Synthesiz-

ing facial expressions for signing avatars using mpeg4

feature points. In Information and Communication

Technology and Accessibility (ICTA), 2013 Fourth In-

ternational Conference on, pages 1–6.

Dailey, M. N., Joyce, C., Lyons, M. J., Kamachi, M., Ishi,

H., Gyoba, J., and Cottrell, G. W. (2010). Evidence

and a computational explanation of cultural differ-

ences in facial expression recognition. Emotion, Vol

10(6).

Elons, A., Ahmed, M., and Shedid, H. (2014). Facial ex-

pressions recognition for arabic sign language trans-

lation. In Computer Engineering Systems (ICCES),

2014 9th International Conference on, pages 330–

335.

Facial Expressions Animation in Sign Language based on Spatio-temporal Centroid

473

Erwig, M., G

uting, R. H., Schneider, M., and Vazirgiannis,

M. (1998). Abstract and discrete modeling of spatio-

temporal data types. In Proceedings of the 6th ACM

International Symposium on Advances in Geographic

Information Systems, GIS ’98, pages 131–136, New

York, NY, USA. ACM.

Feng, R. and Prabhakaran, B. (2016). On the ”face of

things”. In Proceedings of the 2016 ACM on Inter-

national Conference on Multimedia Retrieval, ICMR

’16, pages 3–4, New York, NY, USA. ACM.

Gloderer, M. and Hertle, A. (2010). Spline-based trajectory

optimization for autonomous vehicles with ackerman

drive.

Grif, M. and Manueva, Y. (2016). Semantic analyses of text

to translate to russian sign language. In 2016 11th In-

ternational Forum on Strategic Technology (IFOST),

pages 286–289.

Happy, S. and Routray, A. (2015). Automatic facial ex-

pression recognition using features of salient facial

patches. Affective Computing, IEEE Transactions on,

6(1):1–12.

Huenerfauth, M., Lu, P., and Rosenberg, A. (2011). Eval-

uating importance of facial expression in american

sign language and pidgin signed english animations.

In The Proceedings of the 13th International ACM

SIGACCESS Conference on Computers and Accessi-

bility, ASSETS ’11, pages 99–106, New York, NY,

USA. ACM.

Hyde, J., Carter, E. J., Kiesler, S., and Hodgins, J. K. (2016).

Evaluating animated characters: Facial motion magni-

tude inﬂuences personality perceptions. ACM Trans.

Appl. Percept., 13(2):8:1–8:17.

Iatskiu, C. E. A., Garc

ıa, L. S., and Antunes, D. R. (2017).

Automatic signwriting generation of libras signs from

core-sl. In Proceedings of the XVI Brazilian Sympo-

sium on Human Factors in Computing Systems, IHC

2017, pages 55:1–55:4, New York, NY, USA. ACM.

Kacorri, H. (2015). TR-2015001: A Survey and Critique of

Facial Expression Synthesis in Sign Language Anima-

tion. CUNY Academic Works.

Kacorri, H. and Huenerfauth, M. (2014). Implementa-

tion and evaluation of animation controls sufﬁcient for

conveying asl facial expressions. In Proceedings of the

16th International ACM SIGACCESS Conference on

Computers & Accessibility, ASSETS ’14, pages 261–

262, New York, NY, USA. ACM.

Kacorri, H., Huenerfauth, M., Ebling, S., Patel, K., and

Willard, M. (2015). Demographic and experiential

factors inﬂuencing acceptance of sign language an-

imation by deaf users. In Proceedings of the 17th

International ACM SIGACCESS Conference on Com-

puters & Accessibility, ASSETS ’15, pages 147–

154, New York, NY, USA. ACM.

Kaur, S. and Singh, M. (2015). Indian sign language ani-

mation generation system. In Next Generation Com-

puting Technologies (NGCT), 2015 1st International

Conference on, pages 909–914.

Le, V., Tang, H., and Huang, T. (2011). Expression recog-

nition from 3d dynamic faces using robust spatio-

temporal shape features. In Automatic Face Gesture

Recognition and Workshops (FG 2011), 2011 IEEE

International Conference on, pages 414–421.

Lee, J., Han, B., and Choi, S. (2016). Interactive motion

effects design for a moving object in 4d ﬁlms. In Pro-

ceedings of the 22Nd ACM Conference on Virtual Re-

ality Software and Technology, VRST ’16, pages 219–

228, New York, NY, USA. ACM.

Lemaire, P., Ben Amor, B., Ardabilian, M., Chen, L., and

Daoudi, M. (2011). Fully automatic 3d facial expres-

sion recognition using a region-based approach. In

Proceedings of the 2011 Joint ACM Workshop on Hu-

man Gesture and Behavior Understanding, J-HGBU

’11, pages 53–58, New York, NY, USA. ACM.

Li, H., Kulik, L., and Ramamohanarao, K. (2014). Spatio-

temporal trajectory simpliﬁcation for inferring travel

paths. In Proceedings of the 22Nd ACM SIGSPATIAL

International Conference on Advances in Geographic

Information Systems, SIGSPATIAL ’14, pages 63–72,

New York, NY, USA. ACM.

Lombardo, V., Battaglino, C., Damiano, R., and Nunnari, F.

(2011). An avatar-based interface for the italian sign

language. In Complex, Intelligent and Software Inten-

sive Systems (CISIS), 2011 International Conference

on, pages 589–594.

Lundqvist, D., . L. J. E. (1998). The averaged karolin-

ska directed emotional faces - akdef. In CD ROM

from Department of Clinical Neuroscience, Psychol-

ogy section.

Lv, S., Da, F., and Deng, X. (2015). A 3d face recogni-

tion method using region-based extended local binary

pattern. In Image Processing (ICIP), 2015 IEEE In-

ternational Conference on, pages 3635–3639.

Lyons, M. J., Akemastu, S., Kamachi, M., and Gyoba,

J. (1998). Coding Facial Expressions with Gabor

Wavelets, 3rd IEEE International Conference on Au-

tomatic Face and Gesture Recognition.

Mahmoud, M. M., Baltru

saitis, T., and Robinson, P. (2014).

Automatic detection of naturalistic hand-over-face

gesture descriptors. In Proceedings of the 16th Inter-

national Conference on Multimodal Interaction, ICMI

’14, pages 319–326, New York, NY, USA. ACM.

Martin Erwig, M. S. and G

uting, R. H. (1998). Temporal

objects for spatio-temporal data models and a compar-

ison of their representations. In Int. Workshop on Ad-

vances in Database Technologies, LNCS 1552, pages

454–465.

Neidle, C., Bahan, B., MacLaughlin, D., Lee, R. G., and

Kegl, J. (1998). Realizations of syntactic agree-

ment in american sign language: Similarities between

the clause and the noun phrase. Studia Linguistica,

52(3):191–226.

Obaid, M., Mukundan, R., Billinghurst, M., and Pelachaud,

C. (2010). Expressive mpeg-4 facial animation using

quadratic deformation models. In Computer Graph-

ics, Imaging and Visualization (CGIV), 2010 Seventh

International Conference on, pages 9–14.

Oliveira, M., Chatbri, H., Little, S., O’Connor, N. E., and

Sutherland, A. (2017). A comparison between end-

to-end approaches and feature extraction based ap-

proaches for sign language recognition. In 2017 Inter-

national Conference on Image and Vision Computing

New Zealand (IVCNZ), pages 1–6.

Punchimudiyanse, M. and Meegama, R. (2015). 3d sign-

ing avatar for sinhala sign language. In Industrial and

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

474

Information Systems (ICIIS), 2015 IEEE 10th Interna-

tional Conference on, pages 290–295.

Ratan, R. and Hasler, B. S. (2014). Playing well with virtual

classmates: Relating avatar design to group satisfac-

tion. In Proceedings of the 17th ACM Conference on

Computer Supported Cooperative Work & Social

Computing, CSCW ’14, pages 564–573, New York,

NY, USA. ACM.

Sikdar, B. (2017). Spatio-temporal correlations in cyber-

physical systems: A defense against data availability

attacks. In Proceedings of the 3rd ACM Workshop

on Cyber-Physical System Security, CPSS ’17, pages

103–110, New York, NY, USA. ACM.

Soﬁato, C

assia Geciauskas, . R. L. H. (2014). Brazilian

sign language dictionaries: comparative iconograph-

ical and lexical study. In Educac¸

ao e Pesquisa,

40(1) 109-126. https://dx.doi.org/10.1590/S1517-

97022014000100008.

Song, N., Yang, H., and Wu, P. (2018). A gesture-to-

emotional speech conversion by combining gesture

recognition and facial expression recognition.

Suheryadi, A. and Nugroho, H. (2016). Spatio-temporal

analysis for moving object detection under complex

environment. In 2016 International Conference on

Advanced Computer Science and Information Systems

(ICACSIS), pages 498–505.

Szwoch, W. (2015). Model of emotions for game players.

In Human System Interactions (HSI), 2015 8th Inter-

national Conference on, pages 285–290.

T. Jusko, E. S. (2016). Scalable trajectory optimization

based on b

ezier curves.

Wiegand, K. (2014). Intelligent assistive communication

and the web as a social medium. In Proceedings of the

11th Web for All Conference, W4A ’14, pages 27:1–

27:2, New York, NY, USA. ACM.

Yu, S. and Poger, S. (2017). Using a temporal weighted

data model to maximize inﬂuence in mobile messag-

ing apps for computer science education. J. Comput.

Sci. Coll., 32(6):210–211.

Facial Expressions Animation in Sign Language based on Spatio-temporal Centroid

475
