Deﬁning Controlled Experiments Inside the Access Control Environment

Said Daoudagh

1,2 a

and Eda Marchetti

1 b

ISTI-CNR, Pisa, Italy

Department of Computer Science, University of Pisa, Pisa, Italy

Keywords:

Access Control, Controlled Experiment, Goal-Question-Metric, Testing, XACML.

Abstract:

In ICT systems and modern applications access control systems are important mechanisms for managing

resources and data access. Their criticality requires high security levels and consequently, the application of

effective and efﬁcient testing approaches. In this paper we propose standardized guidelines for correctly and

systematically performing the testing process in order to avoid errors and improve the effectiveness of the

validation. We focus in particular on Controlled Experiments, and we provide here a characterization of the

ﬁrst three steps of the experiment process (i.e., Scoping, Planning and Operation) by the adoption of the Goal-

Question-Metric template. The specialization of the three phases is provided through a concrete example.

1 INTRODUCTION

Nowadays, quality of Information and Communica-

tion Technology (ICT) systems and modern appli-

cations is strictly tied with the security and privacy.

Among security mechanisms, a critical role is played

by Access Control (AC) systems, which aim to ensure

that only the intended subjects can access the pro-

tected data and get the permission levels required to

accomplish their tasks and no much more.

Due to the complexity of AC systems, for ensur-

ing the required security level, a key factor becomes

the application of effective and efﬁcient testing ap-

proaches: knowing in advance the criticality of the

systems lets to put in practice efﬁcacious corrective

actions so as to improve the overall security of the sys-

tem. However, testing phase is a time consuming, er-

ror prone and critical step of the development process,

which involves different activities: from test strategy

selection, to the test case derivation, from execution to

the ﬁnal test results evaluation. Bad choices in each

stage of the testing phase may compromise the entire

process, with the risk of releasing inadequate secu-

rity solutions that allow unauthorized access from the

security perspective or unlawful processing from the

legal perspective.

In the last years different proposal are tar-

geting the efﬁcacious management of the testing

https://orcid.org/0000-0002-3073-6217

https://orcid.org/0000-0003-4223-8036

phase by proposing techniques that combines Model

Based Testing (MBT) (Utting et al., 2012) and Test

driven Development (TDD) (Nanthaamornphong and

Carver, 2017) techniques so that model-based tests

can guide the development. Among them the Model-

Based Test Driven Development (MBTDD) (Sadeghi

and Mirian-Hosseinabadi, 2012) one of the ﬁrst ten-

tative for extending the TDD cycle is extended with

MBT steps. However, the main issues of the MBTDD

is that it does not deal with the reuse of test cases

along the iterations. For this different improved so-

lutions have been conceived in order to better sup-

port the test phase development, management and

evaluation (Harumi et al., 2016). In line with these

proposals, this paper provides a revised approach of

MBTDD in the context of testing access control sys-

tems. In particular, the paper focuses on the use of

controlled experiments for ensuring the integrity and

replicability of the testing results.

In literature, different solutions are currently

available for testing AC systems and their behav-

ior (Bertolino et al., 2013; Bertolino et al., 2014a;

Hu et al., 2017), but there are not standardized guide-

lines for correctly and systematically performing the

testing process in order to avoid errors and improve

the effectiveness of the validation. In particular, the

lack of a formalized speciﬁcation of the testing ac-

tivity can have the following consequences: impossi-

bility of replicating and controlling the process espe-

cially in case of regression testing (Yoo and Harman,

2012), difﬁculties in the generalization of the testing

Daoudagh, S. and Marchetti, E.

Deﬁning Controlled Experiments Inside the Access Control Environment.

DOI: 10.5220/0009358201670176

In Proceedings of the 8th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2020), pages 167-176

ISBN: 978-989-758-400-8; ISSN: 2184-4348

167

results and consequent derivation of statistical signif-

icance values; and problems in deﬁning and sharing

a common testing knowledge so as to avoid recurring

failures and speeding up the corrective process.

A reply to these issues comes from the software

engineering context, where Controlled Experiments

(CEs) (Juzgado and Moreno, 2001; Wohlin et al.,

2012; Basili and Rombach, 1988) are commonly used

to investigate the cause-effect relationships of intro-

ducing new methods, techniques or tools and to build

a body of knowledge supported by observation and

empirical evidence. Therefore, the controlled experi-

ments let to validate the different activities of the test-

ing process by means of the identiﬁcation of impor-

tant variables, the deﬁnition of speciﬁc testing mod-

els and objectives, and the derivation of empirical ev-

idence. In the controlled experiment different treat-

ments can be applied to, or by, different subjects,

while other variables are kept constant and the effects

on response variables are measured.

Authors in (Juzgado and Moreno, 2001; Wohlin

et al., 2012) categorize experiments as either

technology-oriented or human-oriented, depending

on whether artifacts or human subjects have given

various treatments. In this paper, we revise and cus-

tomize the technology-oriented experiments in order

to provide general guidelines for correctly end ef-

fectively performing the testing of the AC systems.

Therefore, we provide the characterization of the ﬁrst

three (over the ﬁve) steps of the Experiment Process

that namely are Scoping, Planning, and Operation.

We refer to (Daoudagh et al., 2020) for a concrete ap-

plication example as well as a detailed checklist of the

required implementation steps.

Outline. Section 2 introduces the main concepts

used along the rest of the paper related to Controlled

Experiment, the Goal-Question-Metric, and Access

Control, as well as the related work; Section 3 illus-

trates our proposal of a family of Controlled Experi-

ments in the context of Access Control. In particular,

in Sections 4, 5 and 6 we detail the ﬁrst three phases

of the Controlled Experiment; ﬁnally, Section 7 con-

cludes the paper and depicts the future work.

2 BACKGROUND AND RELATED

WORK

In this section we ﬁrstly describe the main concepts

related with (1) Controlled Experiment; (2) Access

Control & Testing; and (3) Goal-Question-Metric

(GQM) used along the rest of the paper and their re-

lated works.

Controlled Experiment. Experiments (or CEs) are

used in software engineering to investigate the cause-

effect relationships. They consist of a well-deﬁned

Experiment Process including ﬁve speciﬁc phases: (i)

Scoping, (ii) Planning, (iii) Operation, (iv) Analysis

and Interpretation, and (v) Presentation and Package.

However, in the Experiment Process it is not manda-

tory to ﬁnish an activity before starting the next one.

As a consequence, it is possible to go back and reﬁne

a previous activities before continuing with next one.

In this sense it is partially iterative.

The purpose of a CE is therefore to systematically

deﬁne the elements necessary for ensure the integrity

and replicability of the obtained results. Very brieﬂy,

the main element are: (1) objects on which the experi-

ment is run are the experimental units and can involve

the all the systems or part of it; (2) subjects that repre-

sent artifacts on which the methods or techniques are

applied; (3) the outcome of an experiment is referred

to a quantitative response variable (also called De-

pendent Variable); (4) each considered characteristic

target of the experiment to be studied that can affect

the response variable is called a factor (also called In-

dependent Variables); (5) the possible values of the

factors are called levels; and (6) parameter, i.e., any

other invariable (qualitative or quantitative) character-

istic of the software project that does not inﬂuence the

result of the experiment.

Consequently, in each experiment a combination

of alternatives of factors are applied by a subject on an

unit. A deﬁned and precise speciﬁcation of the exper-

iment guarantees both: the External replication (Judd

et al., 1991), i.e., reproducing the experiment in dif-

ferent contexts and environments so as to increase the

conﬁdence in experiment results; the Internal replica-

tion, i.e., the repetition of the experiment more time

in the same environment or condition to increases the

reliability of the experiment results.

In Software Engineering ﬁeld, CEs are gaining

a lot of attention (Sjøberg et al., 2005; Ko et al.,

2015) and different proposals are trying to give guid-

ance on how to conduct CEs (Juzgado and Moreno,

2001; Wohlin et al., 2012). Following this tendency,

our proposal want to come up with a Goal Deﬁnition

Framework that enables one to conduct technology-

oriented experiments in the Access Control (AC) con-

text. More precisely, the novelty of our proposal is

to provide general guidelines for correctly end effec-

tively performing the testing of AC systems.

Access Control & Testing. AC systems are means

to help organizations to improve their security from

the point of view Conﬁdentiality, Integrity and Avail-

ability (i.e., the CIA Triad). Often AC systems are

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

168

regulated by Access Control Policies (ACPs) that

deﬁne which subject is allowed to access a pro-

tected resources. ACPs are usually written by us-

ing the eXtensible Access Control Markup Language

(XACML) (OASIS, 2013) standard. This standard

deﬁnes both a reference architecture and a language

based on XML to express ACPs and AC request/re-

sponse.

One of the main the main components of XACML

standard is Policy Decision Point (PDP), which eval-

uates the ACP against the request and returns the

response, including the authorization decision. For

more details about the XACML standard we remaind

the reader to its speciﬁcation (OASIS, 2013).

In literature, several works are focused on AC sys-

tems testing, and they can be mainly divided into

the following research ﬁelds: i) test strategies deﬁ-

nition (Bertolino et al., 2013; Bertolino et al., 2018);

ii) test strategy assessment (Bertolino et al., 2014b;

Lonetti and Marchetti, 2018; Daoudagh et al., 2019a);

iii) test cases generation and execution (Bertolino

et al., 2010; Hu et al., 2017); iv) test execution and

oracle derivation which are focused on approaches for

evaluating theAC replies to speciﬁc inputs (Daoudagh

et al., 2015; Calabr

o et al., 2017; Bertolino et al.,

2018; Daoudagh et al., 2019b).

The lack of formality of the conducted studies in

the above work do not enable external replication of

the result. Differently our work want to contribute to

formally and thoroughly conduct CEs in the context

of AC.

Goal-Question-Metric. Originally presented

in (Basili and Rombach, 1988), the Goal-Question-

Metric (GQM) paradigm proposes a top-down

approach to deﬁne measurement: goals lead to

questions, which are then answered by metrics. A

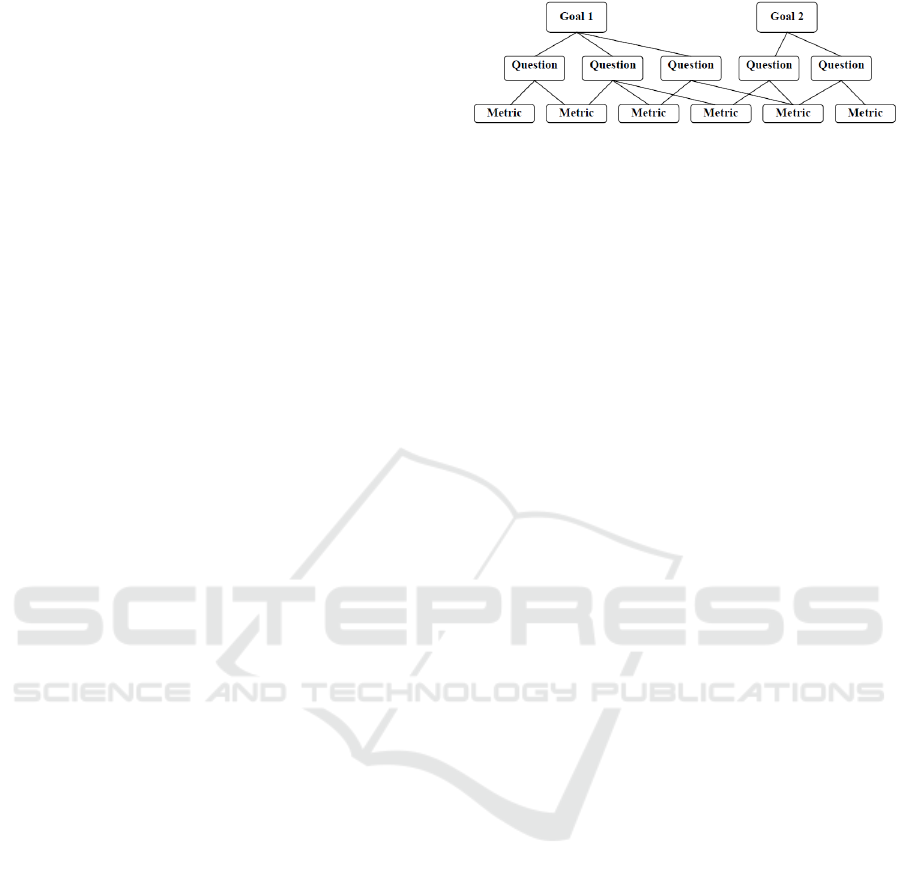

GQM model is a hierarchical structure as presented

in Figure 1 starting with a goal by specifying purpose

of measurement, object to be measured, issue to be

measured, and viewpoint from which the measure

is taken (Conceptual level). The goal is reﬁned into

several questions that usually break down the issue

into its major components (Operational level). Each

question is then reﬁned into metrics, some of them

objective and others subjective (Quantitative level).

The same metric can be used to answer different

questions under the same goal as well as different

goals (Basili et al., 1994).

In security domain there are a few proposals using

the GQM and they are used to mainly identify secu-

rity requirements and metrics. For example, authors

in (Islam and Falcarin, 2011) used GQM approach

to deﬁne clear and comprehensible measures for a

Figure 1: The Goal Question Metric (GQM) model

(adopted from (Basili et al., 1994)).

set of established security requirements. The GQM

approach based on Standard security metrics and on

Service Oriented Architecture maturity is presented

in (Kassou and Kjiri, 2013), where scholars aimed at

supporting organizations to assess SOA Security as

well as to ensure the safety of their SOA based col-

laborations. To assessing the security of data stored in

cloud storage, authors in (Yahya et al., 2015) attempt

to provide practical guidance and example of mea-

surements using GQM. A more recent work is pre-

sented in (Weldehawaryat and Katt, 2018) where the

authors presented a quantitative evaluation approach

for deﬁning security assurance metrics using two per-

spectives, vulnerabilities and security requirements.

Differently from the above works, our proposal

aims at enabling the derivation of metrics for answer-

ing questions related to investigation goals in the con-

text of AC. In particular, the intention is to enable CEs

in the context of AC by covering all the phases of the

process. In this paper however we focus on the ﬁrst

three phases of the process and we refer to (Daoudagh

et al., 2020) for more details about the remaining

phases.

3 A GQM PROPOSAL FOR

ACCESS CONTROL TESTING

The general idea behind our proposal is to provide a

set of CE families useful for formally and thoroughly

describing scientiﬁc investigations in the context of

Access Control (AC) systems. Indeed, our intuition

is to use the standard and consolidated GQM tem-

plate (Basili and Rombach, 1988), as guidance to se-

lect, and consequently classify, concepts of interest in

the domain of AC. Then, exploiting the knowledge

and the techniques typical of the software testing sci-

entiﬁc environment, a concrete AC-based goal deﬁni-

tion framework can be derived. This set will be well-

deﬁned, speciﬁc and achievable AC testing goals to

be exploited for different experimentations.

The proposal of the paper, although grounded in a

domain-related AC testing, represents an example of

realization of CE families, that can be easily applied

in all the domains where a scientiﬁc investigation in

Deﬁning Controlled Experiments Inside the Access Control Environment

169

which a formal and rigorous fashion should be per-

formed.

As in Figure 2, the proposal is composed of ﬁve

conceptual components: the Goal Question Metric

1 , the Access Control Context 2 and Software

Testing 3 , which represent the conceptual models of

the target experiment.

These models are integrated in the Goal Deﬁni-

tion Framework component 4 so as to deﬁne a spe-

cialized GQM, which is the common basic knowledge

for the AC families. Then, the GQM exploited in the

Main Research Goal component 5 for deﬁning sci-

entiﬁc testing goals in AC testing process and there-

fore for selecting speciﬁc and achievable AC testing

goals 6 to be evaluated in real context.

Figure 2: GQM Access Control Model.

In the following sections we illustrate how the use

of a specialized GQM can be a important innovation

for the development of Controlled Experiments in AC

context. In particular, by referring to the structure

of a CE presented in Section 2, we detail the execu-

tion of the ﬁrst three steps of the process (i.e., Scop-

ing, Planning and Operation), which are those that

need to be specialized for the AC domain. We refer

to (Daoudagh et al., 2020) for a complete example in-

cluding also the last two phases.

4 EXPERIMENT SCOPING

The purpose of the scoping phase is to determine

the foundations of the experiment by deﬁning goals

according to a speciﬁc framework. As described

in the previous section, The idea here is to use

the Goal-Question-Metric (GQM) method, integrated

with concepts of AC and Software Testing for deriv-

ing a specialized template for the deﬁnition of CEs

goals in the AC testing context. By referring to Fig-

ure 2, the scoping phase exploits the domain speciﬁc

concepts of components 1 , 2 and 3 so as to deﬁne

a reference framework, i.e., Goal Deﬁnition Frame-

work (component 4 ). In the remainder of the section

the use of the three components is better detailed.

According to (Basili and Rombach, 1988), the

GQM template consists of ﬁve elements: (1) object

of study is target entity of the experiment. It can be a

product, process, resource, model, metric or theory.

(2) purpose deﬁnes the intention of the experiment

is. It may be to evaluate the impact of two different

techniques or to characterize the learning curve of an

organization. (3) quality focus is the primary effect

under study in the experiment. It can y be effective-

ness, cost, reliability etc. (4) perspective describes the

viewpoint from which the experiment results are in-

terpreted. Examples are developer, project manager,

customer and researcher. (5) contextis the environ-

ment in which the experiment is run. It deﬁnes which

personnel is involved in the experiment (subjects) and

which software artifacts, called objects

are used in

the experiment.

Consequently, the intention of the GQM template

is to Analyze <Object(s) of study> for the purpose

of <Purpose> with respect to their <Quality focus>

from the point of view of the <Perspective> in the

context of <Context>.

Table 1: AC concepts.

GQM elements AC concepts

Object of study XACML-based PDPs

XACML-based ACPs

Purpose -

Quality focus -

Perspective ACP Architect

AC System Developer

AC System Administrator

Context Subjects (XACML Policies)

Objects (XACML-based PDPs)

AC Model. There are different access control

model in literature, among them, in this study we re-

fer to the Attribute-Based Access Control (ABAC)

model and in particular to its implementation, i.e.,

the XACML standard. More precisely, we refer to

both the ACP model and the XACML reference ar-

chitecture.The objective here is to characterize the

CE in the context of AC by gathering the main con-

cepts, terms and components that can be used to for-

mulate an interesting goals from the scientiﬁc point

of view. The selected elements are then used in the

GQM template for the object of the study, the pur-

pose, the perspective and the context. The classi-

Note that the objects here are generally different from

the objects of study

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

170

ﬁcation we propose in this paper is summarized in

table Table 1. In particular, the ﬁrst column (GQM

elements) lists the GQM element while the second

one (column AC concepts), reports concepts useful

for deﬁning meaningful research investigation in the

context of AC.

Software Testing. In literature different proposals

exist that leverage well-known software techniques

to test ACPs and AC mechanisms. By analyzing

current literature, we summarize in Table 2 in the

column Software Testing concepts some of the

main software testing concepts useful in generic con-

trolled experiment. We also classify them accord-

ing to the GQM template elements (column GQM

elements).

Table 2: Software Testing concepts.

GQM elements Software Testing concepts

Object of study Test case generation strategy

Test case prioritization technique

Mutation Generators

Test case reduction technique

Oracle Derivation

Purpose Characterize

Evaluate

Quality focus Effectiveness

Cost

Size

APFD

Performance

Perspective Researcher

Tester

Project manage

User

Context -

However, without the pretend to be exhaustive and

in the aim of simplicity, the table reports a simpliﬁca-

tion of a possible classiﬁcation. In particular, in this

paper we limit ourself to the deﬁnition and assessment

of a test case generation strategies, because they are

recognized as ones of the most crucial activities of

the testing process. In the assessment of the effective-

ness of a test strategy, concepts as coverage criteria

and mutation analyses or test oracle are often used,

and therefore included in Table 2. We also add the

prioritization and reduction concepts because they are

commonly adopted techniques for reducing the num-

ber of test case to be executed and consequently the

effort and time due to overall testing phase.

Goal Deﬁnition Framework. On the bases of the

concepts of Table 2 the specialized Goal Deﬁnition

Framework is derived. This is a comprehensive

framework based on the GQM for the deﬁnition of

research investigation goals for testing tools, method-

ologies and strategies in the AC (both ACPs and AC

mechanisms) context. To the best of the authors’

knowledge, this proposal is the ﬁrst attempt to provide

a formally and thoroughly solution for the deﬁnition

of a Controlled Experiment in AC domain. Table 3

reports the conceived framework, which represent the

output of component 4 of our proposal depicted in

Figure 2.

Speciﬁcally Table 3 has a column for each of

the ﬁve GQM where the identiﬁed AC and Software

Testing concepts are reported: namely Object of

study, Purpose, Quality focus, Perspective,

and Context.

Research Goals in AC Context. Combining the el-

ements of the different columns of Table 3 a deﬁned

and focused scientiﬁc investigation goals that enable

the speciﬁcation of CE in the context of AC can be

identiﬁed. Thus, the Goal Deﬁnition Framework lets

the deﬁnition of families of goals for the access con-

trol systems testing. In Table 4 a not exhaustive list

of the mostly adopted research goals are reported.

In particular, the ﬁst column (Research Goal) re-

ports a label associated to each deﬁned goal, whereas,

the second column (Goal Definition) contains the

deﬁnition of the goal using the GQM template cus-

tomized with a speciﬁc combination of the elements

of Table 3. Note that not all the possible combina-

tions of those elements enable the deﬁnition of an in-

teresting a well-deﬁned goal. It is up to the user of

the framework to choose the correct combination de-

pending on the concrete objective.

5 EXPERIMENT PLANNING

The Planning activity consists of different steps where

foundation of the experiment is deﬁned. More pre-

cisely, the context of the experiment is determined

and the hypothesis is stated formally, including a null

hypothesis and an alternative hypothesis. Then, we

need to determine variables, both independent vari-

ables (inputs) and dependent variables (outputs), and

to identify the subjects of the study. After the de-

sign step, which includes choosing a suitable exper-

iment design, the instrumentation of the experiment

is deﬁned by identifying and preparing suitable ob-

jects and measurement procedures. As a part of the

planning, it is important to consider the question of

Deﬁning Controlled Experiments Inside the Access Control Environment

171

Table 3: Goal deﬁnition framework in the context of XACML Testing.

Object of study Purpose Quality focus Perspective Context

Test case generation strategy Characterize Effectiveness Researcher Subjects (XACML Policies)

Test case prioritization technique Evaluate Cost Tester Objects (XACML-based PDPs)

Mutation Generators Assess Size Project manager

Test case reduction technique APFD User

XACML-based PDPs Performance ACP Architect

XACML Policies AC System Developer

XACML-based Oracle Derivation AC System Administrator

Table 4: Main Research Goals in the context of XACML Systems Testing.

Research Goal Goal Deﬁnition

Goal 1: Policy Testing Analyze test case generation strategies for the purpose of evaluation with respect to their effectiveness and size of test suite

produced from the point of view of the researcher in the context of XACML policy testing.

Goal 2: PDP Testing Analyze test case generation strategies for the purpose of evaluation with respect to their effectiveness and size of test suite

produced from the point of view of the researcher in the context of XACML policy decision point testing.

Goal 3: Mutation PDP Analyze mutation generators for the purpose of evaluation with respect to their applicability from the point of view of the

researcher in the context of XACML policy decision point testing.

Goal 4: Mutation Policy Analyze mutation generators for the purpose of evaluation with respect to their effectiveness and size of test suite produced

from the point of view of the researcher in the context of XACML policy testing.

Goal 5: Prioritization Analyze test case prioritization techniques for the purpose of evaluation with respect to their effectiveness (rate of fault

detection, using APFD (Average Percentage Faults Detected) metric) from the point of view of the researcher in the context of

XACML policy testing.

Goal 6: Reduction Analyze test case reduction techniques for the purpose of evaluation with respect to their effectiveness (rate of fault detection,

using APFD (Average Percentage Faults Detected) metric) from the point of view of the researcher in the context of XACML

policy and PDP testing.

validity of the results we can expect. Validity can

be divided into four major classes: internal, external,

construct and conclusion validity.

In the remainder of the section, in order to clar-

ify the steps of the Planning phase we refer to a real

example: the testing of a PDP engine. This can be

translated into the selection of the best test strategy

for testing the PDP in order to improve its quality and

reduce the testing effort. As reported in Table 5, in

this case three sub-goals, each focuses on a speciﬁc

research question, are identiﬁed:

• RQ1 Effectiveness: How much does the qual-

ity of a test suite produced by Strategy

(T GS

)

differ from the quality of test suite produced by

Strategy

(T GS

) in terms of Effectiveness, i.e.,

the mutation score?

• RQ2 Size: How much does the cost of a test suite

produced by Strategy

differ from the cost of test

suite produced by Strategy

in terms of Size, i.e.,

the number of test cases?

• RQ3 APFD: How much does the Average Per-

centage Faults Detected (APFD) of a test suite

produced by Strategy

differ from the APFD of

test suite produced by Strategy

Context Selection. The ﬁrst activity of the planning

phase is the Context Selection. According to (Wohlin

et al., 2012) the experiment contexts can be classiﬁed

as in Table 6. Considering the PDP testing example,

because two test strategies should be compared, the

context is a Multi-test within object study.

Considering the implementation of the considered

experiment, the Policy Decision Point is the Sun-

PDP (Sun Microsystems, 2006) is the target PDP,

(One Object). We decided for Sun’s PDP engine

because it is currently one of the most mature and

widespread used engine for XACML policy imple-

mentation, which provides complete support for all

the mandatory features of XACML 2.0 as well as a

number of optional features. The strategies to be com-

pared are the Multiple test strategy (Bertolino et al.,

2013) and XACMET test strategy (Daoudagh et al.,

2019b); a set of real world XACML policies are used

for test case derivation (Multiple Subjects), and mu-

tation techniques adopted to assess the test strate-

gies considered; the comparison is done by evaluat-

ing the effectiveness, the size and the APFD of the

test suite generated for each XACML policy, apply-

ing both strategies.

Hypothesis Formulation. We consider the follow-

ing null hypotheses:

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

172

Table 5: Sun PDP Testing Goal.

Policy Decision Point Testing Goal (Goal 2)

Analyze Multiple and XACMET Strategies for the purpose of evaluation with respect to their effectiveness and size of test suite produced from the point of

view of the researcher in the context of Sun PDP testing.

Research Questions

RQ 1: Effectiveness RQ 2: Size RQ 3: APFD

Research Subgoals

Analyze Multiple and XACMET Strategies for

the purpose of evaluation with respect to their

test suite effectiveness from the point of view of

the researcher in the context of Sun PDP testing

without constraints.

Analyze Multiple and XACMET Strategies for

the purpose of evaluation with respect to their

cost in terms of number of test cases generated

from the point of view of the researcher in the

context of budget programming.

Analyze Multiple and XACMET Strategies for

the purpose of evaluation with respect to their

effectiveness in terms of APFD from the point of

view of the researcher and quality manager in the

context of interruption of Sun PDP testing activ-

ity.

Metrics

m1: Effectiveness m1: Size of the test suite m1: APFD

Table 6: Experiment context classiﬁcation.

# Objects

One More than one

# Subjects per

object

One Single object

study

Multi-object

variation study

More than one Multi-test

within object

study

Blocked

subject-object

study

• H

0E f f

: µ

E f f St1

= µ

E f f St2

the Strategy1 ﬁnds on

average the same number of faults, i.e., the effec-

tiveness, as the Strategy2, where µ denotes the av-

erage percentage of the killed mutants using the

complete test suites generated by the two strate-

gies;

• H

0Size

: µ

NSizeSt1

= µ

NSizeSt2

the size of test suite is

equal for strategy1 and strategy2;

• H

0APFD

: µ

APFDSt1

= µ

APFDSt2

the average APFD

is equal for strategy1 and strategy2.

A null hypothesis states that there are no real un-

derlying trends or patterns in the experiment setting;

the only reasons for differences in the observations

are coincidental. This is the hypothesis that we wants

to reject with a high signiﬁcance as possible.

When the null hypothesis can be rejected with rel-

atively high conﬁdence, it is possible to formulate an

alternative hypothesis, as following:

• H

1E f f

: µ

E f f St1

6= µ

E f f St2

the Strategy1 and Strat-

egy2 ﬁnd on average a different number of faults,

i.e. their effectiveness are Not equal;

• H

1Size

: µ

SizeSt1

6= µ

SizeSt2

the size of test suite is

Not equal for strategy1 and strategy2;

• H

1APFD

: µ

APFDSt1

6= µ

APFDSt2

the average APFD

is Not equal for strategy1 and strategy2.

Variables Selection. By referring to the PDP test-

ing example, the unique independent variable is the

test case generation strategy with two levels or al-

ternatives (treatments) for the main factor: {Multiple

and XACMET}. The dependent variables are the Ef-

fectiveness, the Size of the test suites and the APFD

metrics.

The object of the experiment a complex object

composed by SunPDP (Gold PDP) and some mutated

versions of it. Because mutation techniques are con-

sidered in the experiment, the mutation generator can

be identiﬁed as a possible Parameter.

Selection of Subjects. The selection of subjects is

important when conducting an experiment, because

closely connected to the generalization of the results

from the experiment. In order to generalize the results

to the desired population, the selection must be repre-

sentative for that population, thus, it is also called a

sample from a population. In the example considered

the XACML Policies are the Subjects.

Experiment Design. The design we use is the

paired comparison design , a particular kind of one

factor with two treatments (Wohlin et al., 2012). The

same design is called “randomized paired compar-

ison design: two alternatives on one experimental

unit” in (Juzgado and Moreno, 2001). In this design,

each subject uses both treatments on the same object,

i.e., both Strategies are applied to each XACML pol-

icy and the obtained test suites are evaluated using

the SunPDP and its mutants. This design allows to

Deﬁning Controlled Experiments Inside the Access Control Environment

173

compare the two treatments (Multiple and XACMET

strategies) against each other; the most common oper-

ation is to compare the means of the dependent vari-

able (Effectiveness, Size and APFD) for each treat-

ment. In particular, both Strategies are applied to each

XACML policy.

Instrumentation. The overall goal of the instru-

mentation is to provide means for performing the ex-

periment and to monitor it, without affecting the con-

trol of the experiment. If the instrumentation affects

the outcome of the experiment, the results are invalid.

In the planning of an experiment, the instruments

are chosen. Before the execution, the instruments are

developed for the speciﬁc experiment. The instru-

ments for an experiment are of three types, namely

objects, guidelines and measurement instruments.

In the example considered the Object is the Sun

PDP.

Usually in a testing experiment the number and

the nature of faults in the testing objects is known

in advance. In the experiment considered the mu-

tation technique can be applied to the Object for

deriving a controlled number of faulty versions of

the Sun PDP. In this case for instantiating the mu-

tation generator parameter, different levels can be

considered, such as µJava) (seung Ma et al., 2005),

Javalanche (Schuler and Zeller, 2009), Major (Just,

2014) or Judy (Madeyski and Radyk, 2010), that may

inﬂuence the result of the experiment.

Guidelines and Measurement. Guidelines are

procedural steps for executing the Controlled Exper-

iment. They include process descriptions, checklists,

tools and facilities useful for performing measure-

ment and enabling the result analysis and interpreta-

tion. Among the available proposals for automating

the overall testing process of AC, in this paper we

use the solution provided in (Daoudagh et al., 2019a),

so as to be compliant with the selected research goal

(Goal 2 of Table 5). The selected framework enables

the collection of the target measures, i.e., Effective-

ness, Size and APFD as reported in Table 5.

6 EXPERIMENT OPERATION

The third activity of the experimental process is Oper-

ation, which consists of three steps: preparation, exe-

cution and data validation. Figure 3 reports the activ-

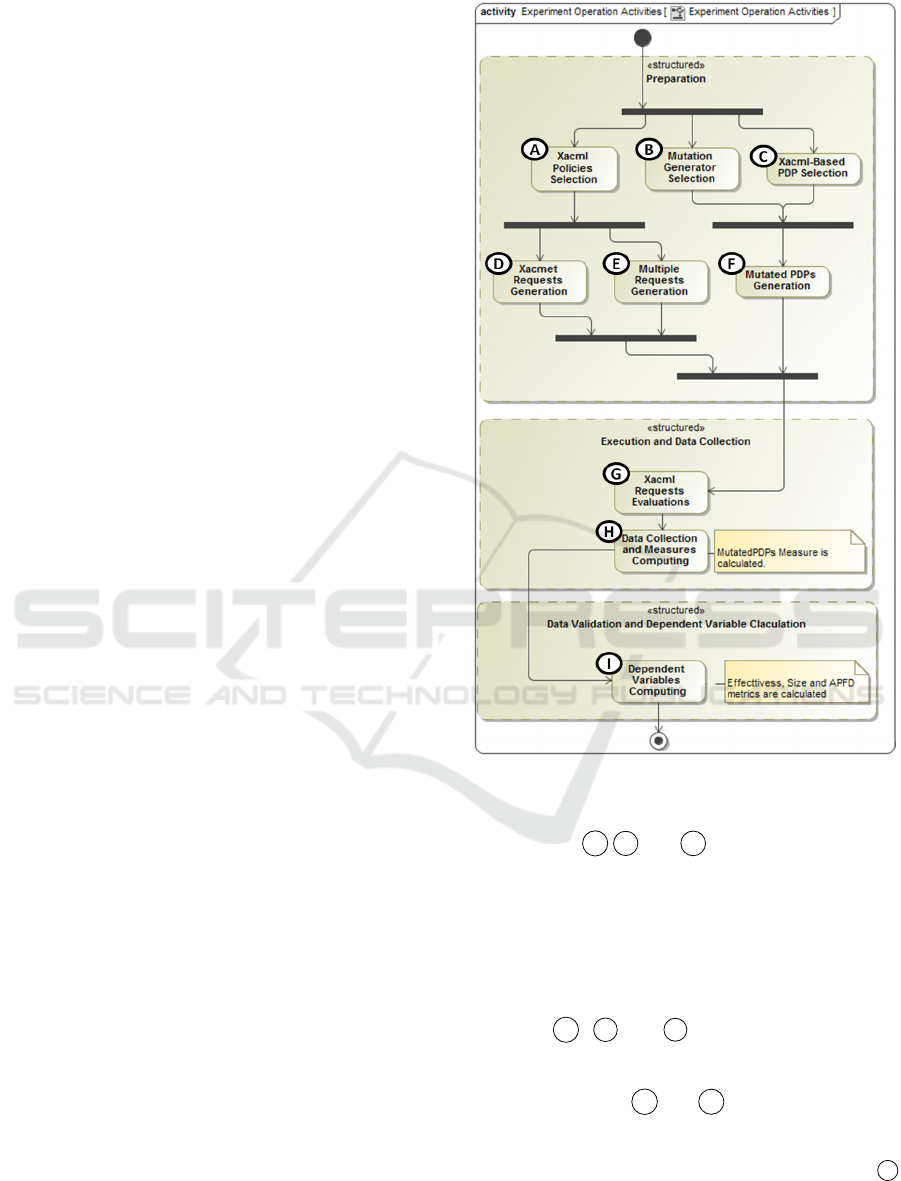

ity diagram of the experiment operation phase consid-

ering the Sun PDP Testing of the Goal 2 of Table 5.

As in the Figure 3, during the preparation step,

subjects, the object and parameters are instantiated on

Figure 3: Experiment Operation Activities.

the selected Testing Framework. In particular during

the activities A , B and C the following steps are

performed: the Subject represented by XACML poli-

cies, are selected; the treatments, i.e., the test case

generation strategies (Multiple and XACMET in the

example)and the Object of the experiment, i.e., the

Sun PDP, are deﬁned. Then, the test cases (i.e., the

XACML requests) and the required mutants (i.e., the

mutated version of SunPDP) are derived during the

activities

D , E and F . Afterwards, the execu-

tion step, which consists of XACML requests evalua-

tion, data collection, and measures computation, is in

charge of activities G and H . Finally, data valida-

tion consists of data selection, ﬁltering and measures

computing, i.e., the calculation of Size, Effectiveness

and APFD metrics that are in charge of activities I

of Figure 3.

Once the experimental data will be collected the

Null Hypothesis test could be performed. In the

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

174

considered experiment this can be translated into the

1E f f

, H

1Size

and H

1APFD

deﬁned in Section 5. Ac-

cording to (Juzgado and Moreno, 2001; Wohlin et al.,

2012), we can apply the Paired T-Test to formally ver-

ify the Null Hypothesis with the conﬁdence level of

95%. This choice was a natural consequence of the

type of design adopted, i.e., the paired comparison.

Therefore, following the standard best practices, we

can accept a probability of 5% of committing a Type-

1-Error (Juzgado and Moreno, 2001; Wohlin et al.,

2012), i.e., the Null Hypothesis is rejected if the com-

puted p-value is less or equal to 0,05 (alpha = 0.05).

7 CONCLUSIONS

In this paper we presented a family of controlled ex-

periments in the context of AC testing. The idea was

to deﬁne a set of standardized guidelines for correctly

and systematically performing the testing process in

order to avoid errors and improve the effectiveness of

the validation. The proposal relies on a characteriza-

tion of the ﬁrst three steps of the experiment process

(i.e., Scoping, Planning and Operation) by leverag-

ing the Goal-Question-Metric template. Thus, we de-

tailed the activities necessary for performing the ﬁrst

three steps of the experiment process (i.e., Scoping,

Planning and Operation). The example of the testing

of the Sun PDP engine is taken as a reference for bet-

ter explaining the three phases.

It was out of the scope of the paper providing the

complete list of testing goals or the realization of all

the possible testing frameworks. The example pro-

vided in the paper wanted to highlight the peculiar-

ity of the Controlled Experiments and the potentiality

they represent for the testing activity.

As a future work we intent to provide other im-

plementations of the Controlled Experiments for dif-

ferent testing purposes, so as to demonstrate its ﬂex-

ibility and adaptability. We want also to apply the

proposed Controlled Experiment in real environments

so as to collect testing results and perform statistical

analysis.

ACKNOWLEDGEMENTS

This work is partially supported by CyberSec4Europe

Grant agreement ID: 830929.

REFERENCES

Basili, V. R., Caldiera, G., and Rombach, H. D. (1994). The

goal question metric approach. In Encyclopedia of

Software Engineering. Wiley.

Basili, V. R. and Rombach, H. D. (1988). The tame

project: towards improvement-oriented software envi-

ronments. IEEE Transactions on Software Engineer-

ing, 14(6):758–773.

Bertolino, A., Daoudagh, S., Lonetti, F., and Marchetti, E.

(2018). An automated model-based test oracle for ac-

cess control systems. In Proceedings of the 13th In-

ternational Workshop on Automation of Software Test,

AST ’18, pages 2–8, New York, NY, USA. ACM.

Bertolino, A., Daoudagh, S., Lonetti, F., Marchetti, E., Mar-

tinelli, F., and Mori, P. (2014a). Testing of polpa-

based usage control systems. Software Quality Jour-

nal, 22(2):241–271.

Bertolino, A., Daoudagh, S., Lonetti, F., Marchetti, E., and

Schilders, L. (2013). Automated testing of extensible

access control markup language-based access control

systems. IET Software, 7(4):203–212.

Bertolino, A., Le Traon, Y., Lonetti, F., Marchetti, E., and

Mouelhi, T. (2014b). Coverage-based test cases se-

lection for xacml policies. In Proceedings of ICST

Workshops, pages 12–21.

Bertolino, A., Lonetti, F., and Marchetti, E. (2010). Sys-

tematic XACML Request Generation for Testing Pur-

poses. In Proc. of 36th EUROMICRO Conference

on Software Engineering and Advanced Applications

(SEAA), pages 3 –11.

Calabr

o, A., Lonetti, F., and Marchetti, E. (2017). Access

control policy coverage assessment through monitor-

ing. In Proc. of TELERISE, pages 373–383.

Daoudagh, S., El Kateb, D., Lonetti, F., Marchetti, E., and

Mouelhi, T. (2015). A toolchain for model-based de-

sign and testing of access control systems. In Proc.of

MODELSWARD, pages 411–418. IEEE.

Daoudagh, S., Lonetti, F., and Marchetti, E. (2019a). A

framework for the validation of access control sys-

tems. In Saracino, A. and Mori, P., editors, Proceed-

ings of the 2nd International Workshop on Emerging

Technologies for Authorization and Authentication.

Daoudagh, S., Lonetti, F., and Marchetti, E. (2019b).

XACMET: XACML modeling & testing an auto-

mated model-based testing solution for access control

systems. Software Quality Journal.

Daoudagh, S., Lonetti, F., and Marchetti, E. (2020). As-

sessing testing strategies for access control systems:

A controlled experiment. In Proceedings of ICISSP

2020, Valletta, Malta, February 25-27, 2020.

Harumi, T. et al. (2016). D-mbtdd: An approach for reusing

test artefacts in evolving systems. In 2016 46th Annual

IEEE/IFIP International Conference on Dependable

Systems and Networks Workshops (DSN-W). IEEE.

Hu, V. C., Kuhn, R., and Yaga, D. (2017). Veriﬁcation and

test methods for access control policies/models. NIST

Special Publication, 800:192.

Islam, S. and Falcarin, P. (2011). Measuring security

requirements for software security. In 2011 IEEE

Deﬁning Controlled Experiments Inside the Access Control Environment

175

10th International Conference on Cybernetic Intelli-

gent Systems (CIS), pages 70–75.

Judd, C. M., Smith, E. R., and Kidder, L. H. (1991). Re-

search methods in social relations, fort worth: Holt,

rinehart and winston.

Just, R. (2014). The major mutation framework: Efﬁcient

and scalable mutation analysis for java. In Proceed-

ings of the 2014 international symposium on software

testing and analysis, pages 433–436. ACM.

Juzgado, N. J. and Moreno, A. M. (2001). Basics of soft-

ware engineering experimentation. Kluwer.

Kassou, M. and Kjiri, L. (2013). A goal question metric

approach for evaluating security in a service oriented

architecture context. CoRR, abs/1304.0589.

Ko, A. J., Latoza, T. D., and Burnett, M. M. (2015). A

practical guide to controlled experiments of software

engineering tools with human participants. Empirical

Softw. Engg., 20(1):110–141.

Lonetti, F. and Marchetti, E. (2018). On-line tracing of

xacml-based policy coverage criteria. IET Software,

12(6):480–488.

Madeyski, L. and Radyk, N. (2010). Judy - a mutation test-

ing tool for java. IET Software, 4(1):32–42.

Nanthaamornphong, A. and Carver, J. C. (2017). Test-

driven development in scientiﬁc software: a survey.

Software Quality Journal, 25(2):343–372.

OASIS (2013). eXtensible Access Control

Markup Language (XACML) Version 3.0.

http://docs.oasis-open.org/xacml/3.0/

xacml-3.0-core-spec-os-en.html.

Sadeghi, A. and Mirian-Hosseinabadi, S.-H. (2012).

Mbtdd: Model based test driven development. Inter-

national Journal of Software Engineering and Knowl-

edge Engineering, 22(08):1085–1102.

Schuler, D. and Zeller, A. (2009). Javalanche: Efﬁcient mu-

tation testing for java. In Proceedings of ESEC/FSE,

pages 297–298, New York, NY, USA. ACM.

seung Ma, Y., Offutt, J., and Kwon, Y. R. (2005). Mujava

: An automated class mutation system. Journal of

Software Testing, Veriﬁcation and Reliability, 15:97–

133.

Sjøberg, D. I., Hannay, J. E., Hansen, O., Kampenes, V. B.,

Karahasanovic, A., Liborg, N.-K., and Rekdal, A. C.

(2005). A survey of controlled experiments in soft-

ware engineering. IEEE transactions on software en-

gineering, 31(9):733–753.

Sun Microsystems (2006). Sun’s XACML Implementation.

http://sunxacml.sourceforge.net/.

Utting, M., Pretschner, A., and Legeard, B. (2012). A tax-

onomy of model-based testing approaches. Software

Testing, Veriﬁcation and Reliability, 22(5):297–312.

Weldehawaryat, G. K. and Katt, B. (2018). Towards a

quantitative approach for security assurance metrics.

In The Twelfth International Conference on Emerging

Security Information, Systems and Technologies; SE-

CURWARE 2018 September 16, 2018 to September

20, 2018-Venice, Italy. International Academy, Re-

search and Industry Association (IARIA).

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., and

Regnell, B. (2012). Experimentation in Software En-

gineering. Springer.

Yahya, F., Walters, R. J., and Wills, G. B. (2015). Using

goal-question-metric (gqm) approach to assess secu-

rity in cloud storage. In International Workshop on

Enterprise Security, pages 223–240. Springer.

Yoo, S. and Harman, M. (2012). Regression testing mini-

mization, selection and prioritization: A survey. Softw.

Test. Verif. Reliab., 22(2):67–120.

MODELSWARD 2020 - 8th International Conference on Model-Driven Engineering and Software Development

176
