Android Run-time Permission Exploitation User Awareness by Means of

Formal Methods

Fausto Fasano

, Fabio Martinelli

, Francesco Mercaldo

1,2

and Antonella Santone

Department of Biosciences and Territory, University of Molise, Pesche (IS), Italy

Institute for Informatics and Telematics, National Research Council of Italy, Pisa, Italy

Keywords:

Mobile, Malware, Permission, Security, Model Checking, Formal Methods, Android.

Abstract:

Our mobile devices store a lot of sensitive and critical information. Moreover, considering the ability of

smartphones and tables to detect the position and to record audio, it is not absolutely an exaggeration to admit

that potentially our devices can easily spy on us. The ability to perform these crucial tasks must be granted by

the user at the time of their ﬁrst use by accepting the so-called permissions. The problem is that in Android,

once these permissions are granted, the application can always use them without notifying the user. In this

paper, we propose a methodology, based on formal methods, aimed to detect the exact point in the code (in

term of package, class and method) of an Android application where a permission is invoked at run-time.

Moreover we design a tool able to advise the user whether a permission is invoked, in this way the user can be

informed about the application behaviour.

1 INTRODUCTION AND

RELATED WORK

In last years, mobile malware increased its complex-

ity from the point of view of malicious actions able

to steal more and more sensitive and private infor-

mation. In particular, the Android ofﬁcial market,

due to the ofﬁcial market publication process, it is

the perfect vector to diffuse malware (Mercaldo et al.,

2016c; Mercaldo et al., 2016d). Another motivation

behind the increasing amount of Android malware in

the wild is represented by the easiness of requesting

permissions to sensitive resources such as, for exam-

ple, the camera and the microphone. As a matter

of fact, the Android platform employs the permis-

sion system to restrict application privileges to secure

the sensitive resources of the users. An application

needs to get a users approval for the requested permis-

sions to access the privacy-relevant resources. Thus,

the permission system was designed to protect users

from applications with invasive behaviours, but its ef-

fectiveness highly depends on the users comprehen-

sion of permission approval (Tchakount

e, 2014; Mar-

tinelli et al., 2017a; Fasano et al., 2019b). The de-

veloper is responsible for determining appropriately

which permissions an application requires. Accord-

ing to (Kelley et al., 2012; Felt et al., 2012; Tchak-

ount

e et al., 2014; Martinelli et al., 2017b), lot of

users do not understand what each permission means

and blindly grant them, allowing the application to ac-

cess sensitive information of the user. Many users,

although an app might request a suspicious permis-

sion among many seemingly legitimate permissions,

still conﬁrm the installation. Most of permissions

deﬁned by Google are coarse-grained. Especially,

the INTERNET permission (Barrera et al., 2010),

the READ PHONE STATE permission (Pearce et al.,

2012), and the WRITE SETTINGS permission (Jeon

et al., 2011) are coarse-grained as they give to an ap-

plication arbitrary access to certain resources. The

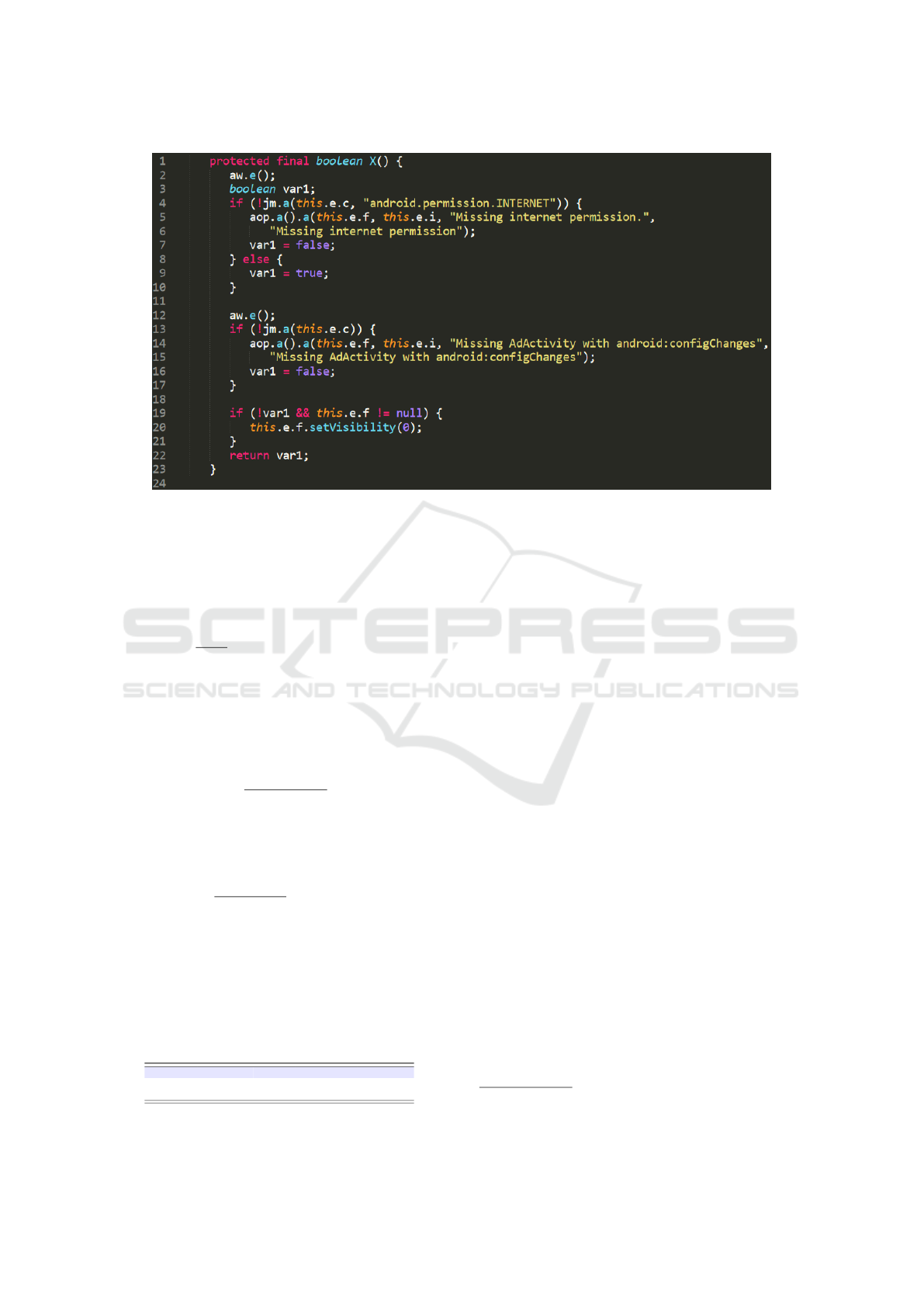

INTERNET permission allows an application to send

HTTP(S) requests to all domains, and connect to arbi-

trary destinations and ports (Felt et al., 2010). As a re-

sult, the INTERNET permission provides insufﬁcient

expressiveness to enforce control over the Internet ac-

cesses of the application (Canfora et al., 2016). Be-

cause of the previous problems, researchers have been

involved to determine mechanisms that employs in-

dividual permissions and the combination of permis-

sions to detect and characterise malware (Enck et al.,

2014; Zhou and Jiang, 2012). The Android frame-

work, starting from Android 7, allows the user to ap-

prove a subset of the permissions requested by appli-

804

Fasano, F., Martinelli, F., Mercaldo, F. and Santone, A.

Android Run-time Permission Exploitation User Awareness by Means of Formal Methods.

DOI: 10.5220/0009372308040814

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 804-814

ISBN: 978-989-758-399-5; ISSN: 2184-4356

cations

(even though some applications do not work

if not all permissions are provided) but this mecha-

nism is not enough to guarantee the security of our in-

formation stored on mobile devices (Chakraborty and

Chattopadhyay, 2020; Foster, 2020).

As such, Enck et al. (Enck et al., 2008) introduce

a policy-based system called Kirin to detect malware

at install time based on undesirable combination of

permissions. Diverse works evaluate the detection of

malware with permissions using machine learning on

Android (Huang et al., 2013). They all realise that a

permission-based mechanism can be used as a quick

ﬁlter to identify malicious applications. Zhou and

Jiang (Zhou and Jiang, 2012) characterise Android

applications (both normal and malware applications)

with individual permissions focusing on the number

of occurrences of permissions in those groups. Au-

thors in (Tramontana and Verga, 2019) propose a

method to protect data and resources in Android. ba-

sically developing a method aimed to ask user when a

permission in invoked. The main difference with re-

spect to the proposed work is represented by the adop-

tion of formal veriﬁcation environment, that demon-

strate their efﬁcacy and robustness in the detection of

malicious behaviour in software and in particular in

Android environment (Canfora et al., 2018).

In this context, the permission to use the device

camera (android.permission.CAMERA) and to record

audio (android.permission.RECORD AUDIO) ex-

ploiting the device microphone are really critical. In

fact, the android.permission.RECORD AUDIO

permission can easily turn the smartphone

into an environmental recorder, while the an-

droid.permission.CAMERA permission is able to

capture pictures and videos. Clearly, these permis-

sions can be used for purposes useful to the user (for

instance, for a voip call) but can be easily exploited

for malicious purposes from malware writers.

Basically, the purpose of a permission is to protect

the privacy of an Android user. Android apps must

request permission to access sensitive user data (such

as contacts and SMS), as well as certain system fea-

tures (such as camera and internet). Depending on

the feature, the system might grant the permission au-

tomatically or might prompt the user to approve the

request

A central design point of the Android security ar-

chitecture is that no app, by default, has permission

to perform any operations that would adversely im-

pact other apps, the operating system, or the user.

https://developer.android.com/training/permissions/

requesting

https://developer.android.com/guide/topics/

permissions/overview

This includes reading or writing the user’s private data

(such as contacts or emails), reading or writing an-

other app’s ﬁles, performing network access, keeping

the device awake, and so on.

Android basically considers two categories of per-

missions: the normal permissions, i.e., the permission

that the system automatically grants to the mobile app

and the dangerous permissions.

If the app lists dangerous permissions in its man-

ifest (that is, permissions that could potentially af-

fect the user’s privacy or the device’s normal oper-

ation), such as the SEND SMS permission, but also

the android.permission.RECORD AUDIO or the an-

droid.permission.CAMERA, the user at run-time must

explicitly agree to grant those permissions. Once the

user grants the permission, the app is able to invoke it

whenever and wherever in the code.

For this reason even if an app requires a permis-

sion just one time, the permission will be released

from the operating system forever.

Starting from these considerations, in this paper

we propose a method to automatically detect whether

an Android permission is invoked at run-time. The

ﬁnal aim is to show to the user the permission invo-

cation each time it is requested by the mobile appli-

cation. Android considers several permission as dan-

gerous, in this work we only focus on the permission

requests to access the internet connection, to use the

device camera and to record audio through the device

microphone.

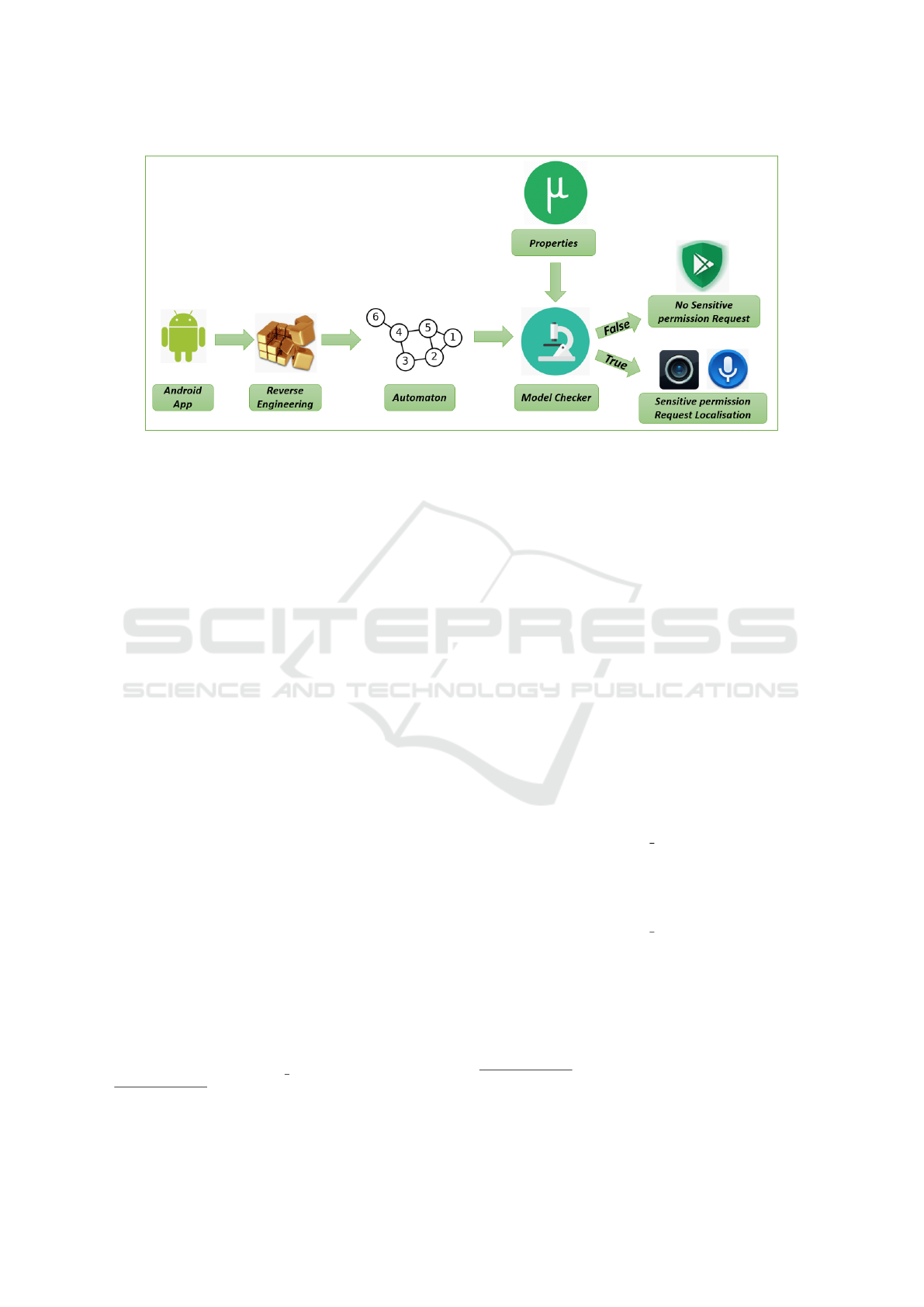

To detect whether a permission is requested we

exploit formal methods, in particular the model

checking technique. We model an Android appli-

cations and with mu-calculus properties we verify

whether a mobile app is asking for the camera and au-

dio recording dangerous permissions by using static

analysis.

The paper proceeds as follows: in the next sec-

tion we provide background notions about the model

checking and mu-calculus logic largely employed in

this paper, in Section 3 the proposed method is de-

scribed, in Section 4 we present a real-world exper-

iment aimed to demonstrate the effectiveness of the

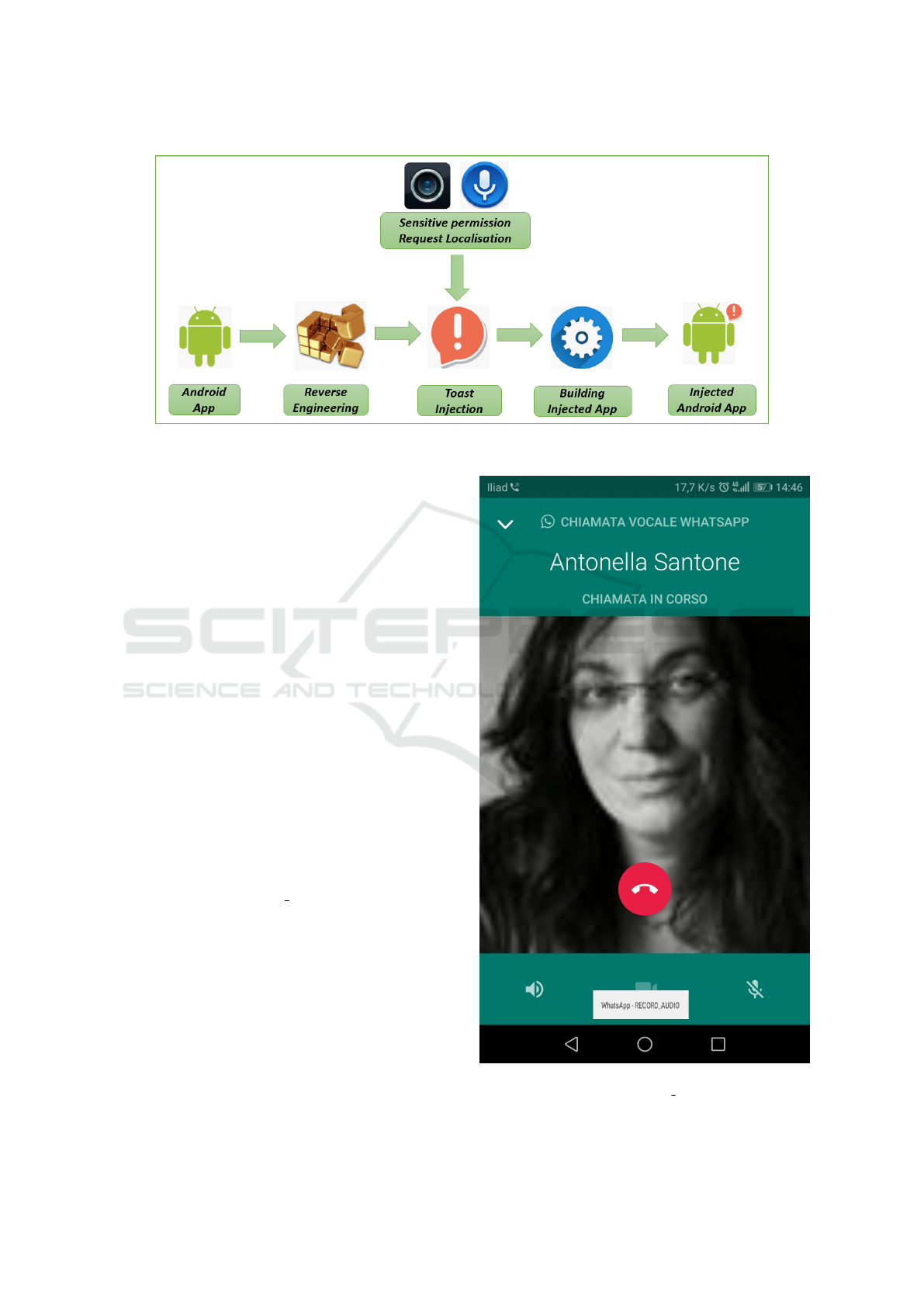

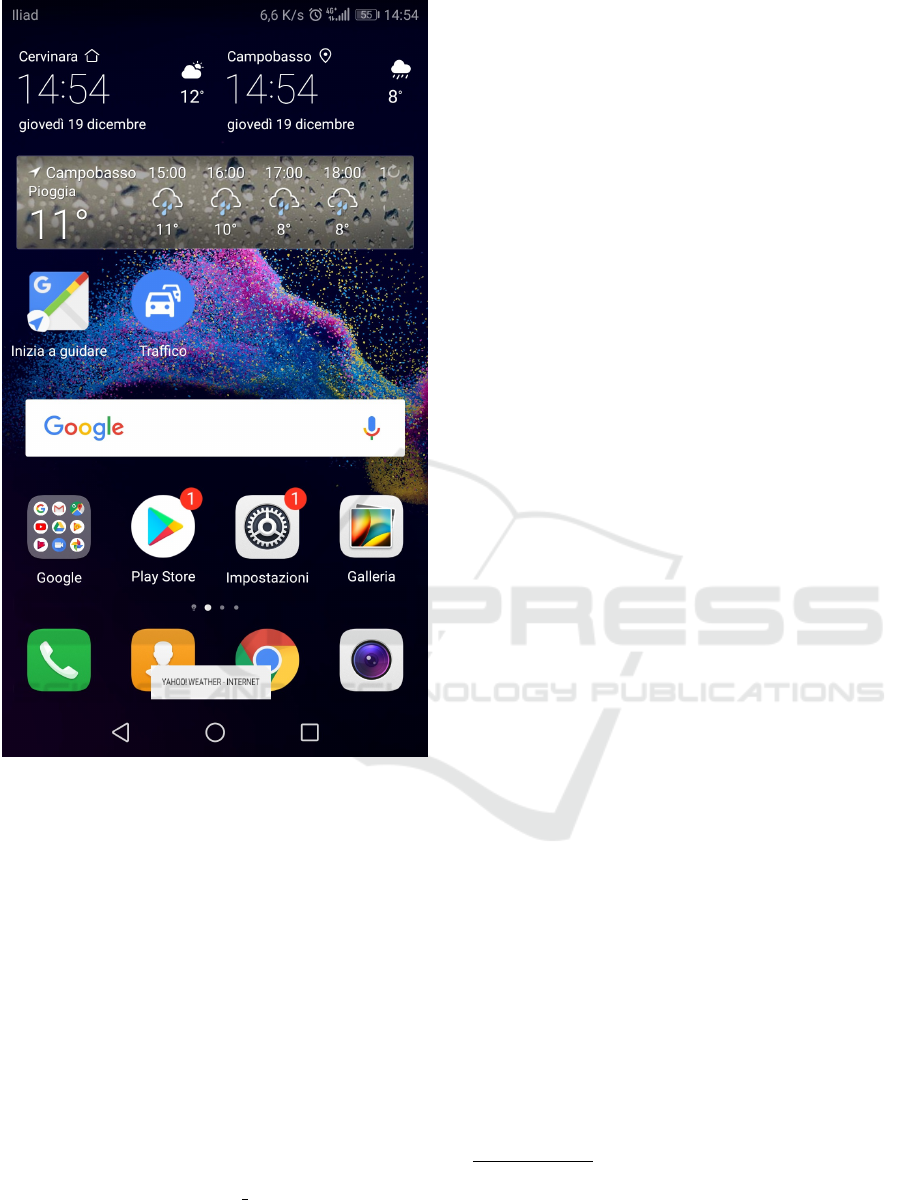

proposed method, in Section 5 a tool to inform the

user when an application is asking a permission at

run-time is introduced and, ﬁnally, in last section con-

clusion and future research directions are drawn.

Android Run-time Permission Exploitation User Awareness by Means of Formal Methods

805

2 MODEL CHECKING AND

MU-CALCULUS LOGIC

BACKGROUND

Veriﬁcation of a software or hardware system involves

checking whether the system in question behaves as

it was designed to behave. Formal methods have

been successfully applied to safety-critical systems.

One reason is the overwhelming evidence that formal

methods do result in safer systems. In this paper, we

show that formal methods are extremely well-suited

to spyware detection. First of all, in this section we

recall some basic concepts.

Model checking is an formal method for determin-

ing if a model of a system satisﬁes a correctness spec-

iﬁcation (Clarke et al., 2001). A model of a system

consists of a labelled transition system (LTS). A spec-

iﬁcation or property is a logical formula. A model

checker then accepts two inputs, a LTS and a tempo-

ral formula, and returns true if the system satisﬁes the

formula and false otherwise.

A labelled transition system comprises some num-

ber of states, with arcs between them labelled by ac-

tivities of the system. A LTS is speciﬁed by:

• A set S of states;

• A set L of labels or actions;

• A set of transitions T ⊆ S × L × S.

Transitions are given as triples (start, label,end).

In this paper, to express proprieties of the system

we use the modal mu-calculus (Stirling, 1989) which

is one of the most important logics in model checking.

The syntax of the mu-calculus is the following,

where K ranges over sets of actions (i.e., K ⊆ L) and

Z ranges over variables:

ϕ ::= tt | ff |Z | ϕ ∧ ϕ | ϕ ∨ ϕ | [K]ϕ | hKiϕ | νZ.ϕ | µZ.ϕ

A ﬁxpoint formula may be either µZ.ϕ or νZ.ϕ where

µZ and νZ binds free occurrences of Z in ϕ. An oc-

currence of Z is free if it is not within the scope of a

binder µZ (resp. νZ). A formula is closed if it con-

tains no free variables. µZ.ϕ is the least ﬁxpoint of the

recursive equation Z = ϕ, while νZ.ϕ is the greatest

one. From now on we consider only closed formulae.

Scopes of ﬁxpoint variables, free and bound vari-

ables, can be deﬁned in the mu-calculus in analogy

with variables of ﬁrst order logic.

The satisfaction of a formula ϕ by a state s of a

transition system is deﬁned as follows:

• Each state satisﬁes tt and no state satisﬁes ff;

• A state satisﬁes ϕ

∨ ϕ

(ϕ

∧ ϕ

) if it satisﬁes ϕ

or (and) ϕ

. [K] ϕ is satisﬁed by a state which, for

every performance of an action in K, evolves to a

state obeying ϕ. hKi ϕ is satisﬁed by a state which

can evolve to a state obeying ϕ by performing an

action in K.

For example, hai ϕ denotes that there is an a-

successor in which ϕ holds, while [a] ϕ denotes that

for all a-successors ϕ holds.

The precise deﬁnition of the satisfaction of a

closed formula ϕ by a state s (written s |= ϕ) is given

in Table 1.

A ﬁxed point formula has the form µZ.ϕ (νZ.ϕ)

where µZ (νZ) binds free occurrences of Z in ϕ. An

occurrence of Z is free if it is not within the scope of

a binder µZ (νZ). A formula is closed if it contains

no free variables. µZ.ϕ is the least ﬁx-point of the

recursive equation Z = ϕ, while νZ.ϕ is the greatest

one.

A transition system T satisﬁes a formula φ, writ-

ten T |= φ, if and only if q |= φ, where q is the initial

state of T .

We will use the following abbreviations:

hα

,.. .,α

i φ = h{α

,.. .,α

}i φ

h−i φ = hLi φ

h−Ki φ = hL − Ki φ

[α

,.. .,α

] φ = [{α

,.. .,α

}] φ

[−] φ = [L] φ

[−K] φ = [L − K] φ

Some examples of logic properties are now pro-

vided. The simplest formulae are just those of modal

logic:

hαi tt

means that “there exists a transition labelled by the

action α”.

If we use the two different ﬁxpoints, we obtain the

following formulae:

µZ.[α] Z : “all the sequences of α-transitions are ﬁnite”.

νY.haiY : “there is an inﬁnite sequence of α-transitions”.

We can then add a predicate p, and obtain the for-

mula:

νY.p ∧ hαiY

saying that “there is an inﬁnite sequence of α-

transitions, and all states in this sequence satisfy p”.

With two ﬁxpoints, we can write fairness formu-

lae, such as:

νY.µX.(p ∧ hαiY ) ∨ hαi X

meaning that “on some α-path there are inﬁnitely

many states where p holds”.

Changing the order of ﬁxpoints we obtain:

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

806

Table 1: Satisfaction of a closed formula by a state.

p 6|= ff

p |= tt

p |= ϕ ∧ ψ iff p |= ϕ and p |= ψ

p |= ϕ ∨ ψ iff p |= ϕ or p |= ψ

p |= [K]

ϕ iff ∀p

.∀α ∈ K.p

−→

K∪R

implies p

|= ϕ

p |= hKi

ϕ iff ∃p

.∃α ∈ K.p

−→

K∪R

and p

|= ϕ

p |= νZ.ϕ iff p |= νZ

.ϕ for all n

p |= µZ.ϕ iff p |= µZ

.ϕ for some n

where:

• for each n, νZ

.ϕ and µZ

.ϕ are deﬁned as:

νZ

.ϕ = tt µZ

.ϕ = ff

νZ

n+1

.ϕ = ϕ[νZ

.ϕ/Z] µZ

n+1

.ϕ = ϕ[µZ

.ϕ/Z]

where the notation ϕ[ψ/Z] indicates the substitution of ψ for every free occurrence of the variable Z in ϕ.

µX.νY.(p ∧ hαiY ) ∨ hαi X

saying “on some α-path almost always p holds.”

In this paper, we use CAAL (Concurrency Work-

bench, Aalborg Edition) (Andersen et al., 2015) as

formal veriﬁcation environment. It is one of the most

popular environments for verifying systems. In the

CAAL the veriﬁcation of temporal logic formulae is

based on model checking (Clarke et al., 2001).

3 THE METHODOLOGY

The proposed method is aimed to detect whether a

sensitive permission is invoked by exploiting model

checking with the aim to alert the user whenever the

permission is invoked at run-time.

In this section, we present the application of a

model checking based approach to detect run-time

permission invocation in Android environment. As

stated in the introduction, we are focused on An-

droid samples with the ability to use the internet

connection, the device camera and microphone to

record audio. We describe mobile applications by

exploiting Milner’s Calculus of Communicating Sys-

tems (CCS) (Milner, 1989) language speciﬁcation

and express behavioural properties using mu-calculus

branching temporal logic (Stirling, 1989). The

methodology, as explained in previous works (Bat-

tista et al., 2016; Canfora et al., 2018; Cimitile et al.,

2018; Mercaldo et al., 2016a; Fasano et al., 2019a;

Bernardeschi et al., 2019), is based on two main steps.

Figure 1 shows the proposed methodology main

architecture.

The ﬁrst step generates a CCS speciﬁcation start-

ing from .class ﬁles of the analyzed application writ-

ten in Java Bytecode. Then, we deﬁne a Java

Bytecode-to-CCS transformation function. This is

deﬁned for each instruction of the Java Bytecode. It

directly translates the Java Bytecode instructions into

CCS process speciﬁcations. The second step aims

to investigate Android application behaviours which

are successively expressed using mu-calculus logic.

We specify the set of properties starting from cur-

rent literature (Zhou and Jiang, 2012; Mercaldo et al.,

2016b) and with the manual inspection of a few sam-

ples. The CCS processes obtained in the ﬁrst step are

then used to verify the properties. Codes described as

CCS processes are ﬁrst mapped to labelled transition

systems and then veriﬁed with a model checker. In

our approach, we invoke the Concurrency Workbench

of New Century (CWB-NC) (Cleaveland and Sims,

1996) as formal veriﬁcation environment. When the

result of the CWB-NC model checker is true, it means

that the sample under analysis is malicious, false oth-

erwise. We formulated logic rules from the follow-

ing characterizing behaviours (typical in mobile ap-

plications): (i) the exploitation of an internet connec-

tion, (ii) the request to use the device camera, (iii) the

request to use the device microphone to record au-

dio. The distinctive features of our methodology are:

Android Run-time Permission Exploitation User Awareness by Means of Formal Methods

807

Figure 1: The proposed methodology.

(i) the use of formal methods; (ii) the inspection on

Java Bytecode and not on the source code; (iii) the

use of static analysis; (iv) the capture of malicious

behaviours at a ﬁner granularity. Summing up the

methodology, starting from the Java Bytecode appli-

cation ﬁles, we derive CCS processes, which are suc-

cessively used for checking properties expressing the

most common behaviours exhibit by the family sam-

ples. Performing automatic analysis on the Bytecode

instead of the source code has several advantages: (i)

independence of the source programming language;

(ii) identiﬁcation of malicious payload without de-

compilation even when source code is lacking; (iii)

ease of parsing a lower-level code; (iv) independence

from obfuscation (Canfora et al., 2018; Cimitile et al.,

2018).

In the follow we show a couple of code snippet we

analysed to formulate the temporal logic properties

for the detection of run-time permissions.

Let us the consider the code snippet shown in Fig-

ure 2.

This snippet is belongong to a sample identiﬁed by

the da298299c164d2584c4fee96e205bae59e35593b

SHA-1 hash i.e., the WhatsApp Messenger app

one of the most famous app to send and receive

messages, calls, photos, videos, documents, and

Voice Messages using the 4G/3G/2G/EDGE connec-

tion or Wi-Fi, as available. In detail the snippet

shown in Figure 2 is related to the Java code of the

A1I method of the VoipActivityV2 class belonging to

the com.whatsapp.voipcalling package. In the snip-

pet there are two permission invocations: the ﬁrst

one is the request for audio recording (i.e., the an-

droid.permission.RECORD AUDIO request) and the

https://play.google.com/store/apps/details?id=com.

whatsapp&hl=it

second one is the permission to use the device camera

(i.e., the android.permission.CAMERA request).

With the aim to consider another run-time request

permission, let us consider the code snippet in Figure

The snippet in Figure 3 is re-

lated to a sample identiﬁed by the

2f03011c9f7e34ad46d9a26ef47d54b38a4caa49

SHA-1 hash i.e., the Yahoo Weather app

, one of the

most widespread app for hourly, 5-day, and 10-day

forecasts with details about wind, pressure, and

chance of precipitation. In detail the snippet in Figure

3 is related to the Java code of the X method of the

bv class. In this snippet, in the 4-th row, there is

the invocation of the android.permission.INTERNET

permission. Both the analised applications were

downloaded from the APKCombo repository

Starting from the snippets in Figures 2 and 3,

we propose several formulae: the ﬁrst one (i.e., ψ)

aimed to detect whether there is a request for the an-

droid.permission.RECORD AUDIO permission, the

second one (i.e., χ) aimed to detect whether there

is a request for the android.permission.CAMERA

permission. The third formula, i.e., ϕ is aimed

to verify whether there is a request for the an-

droid.permission.RECORD AUDIO or for the an-

droid.permission.CAMERA permission. The last for-

mula i.e., ζ, is related to the invocation of the an-

droid.permission.INTERNET permission at run-time.

The ψ, χ, ϕ and ζ are satisﬁed whether at least in

one method of the application under analysis there is

an invocation of the considered permission.

The output of the proposed methodology is the list

https://play.google.com/store/apps/details?id=com.

yahoo.mobile.client.android.weather&hl=it

https://apkcombo.com/

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

808

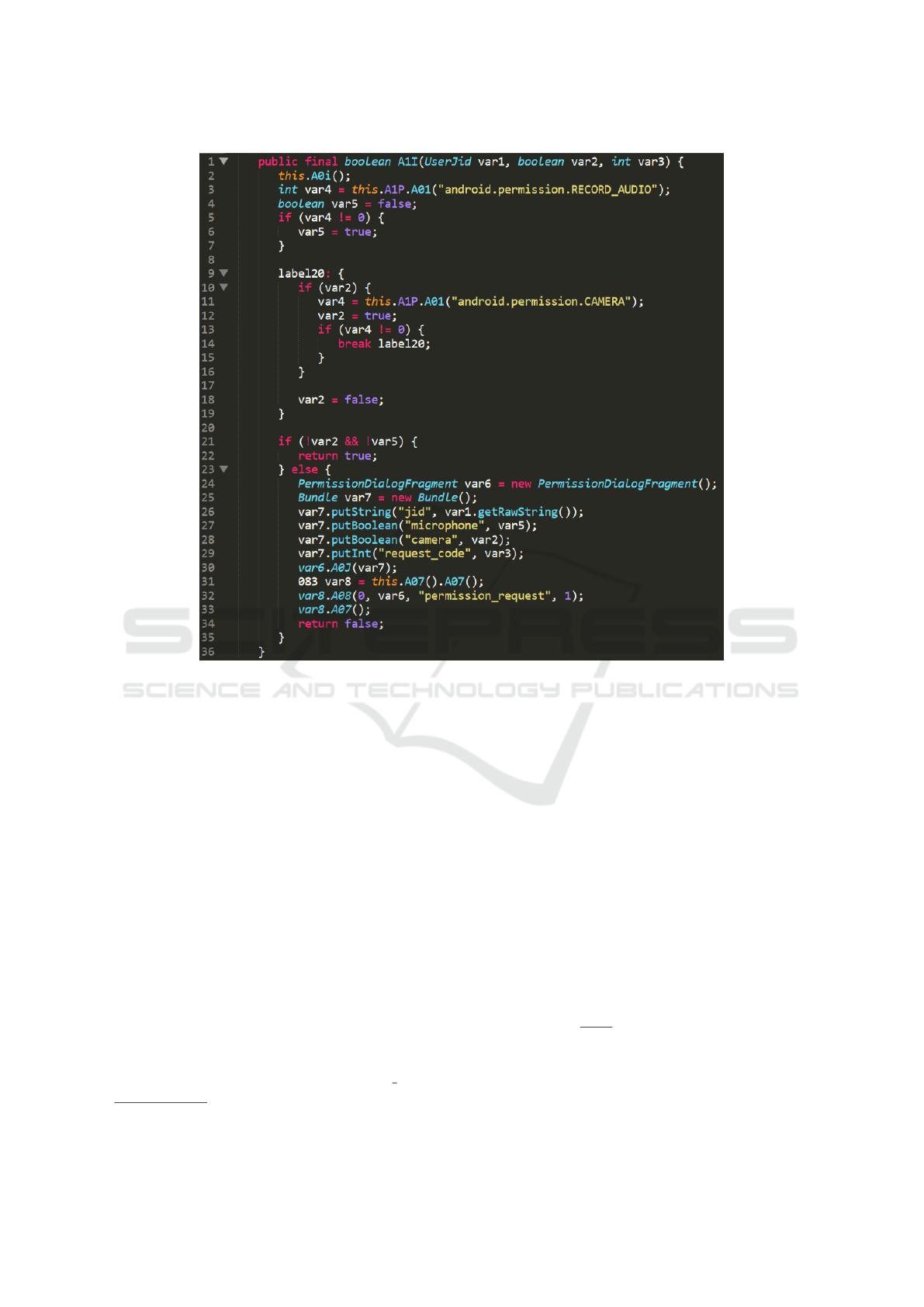

Figure 2: A code snippet belonging to the WhatsApp Messenger application.

of packages, classes and methods where the consid-

ered permission is invoked.

4 EXPERIMENTAL ANALYSIS

In this section, we describe the data-set used in the

experimental evaluation and we present the achieved

results.

4.1 The Data-set

To evaluate the proposed methodology to detect

sensitive permission request we consider a data-

set of real-world Android application obtained

from the Google Play store

. To this aim, we

crawled 200 applications from the ofﬁcial An-

droid market belonging to several categories. In

particular, within the data-set, 50 applications re-

quire the android.permission.RECORD AUDIO

https://play.google.com/store/apps

permission, 50 applications require the an-

droid.permission.CAMERA permission, 50 ap-

plications require the android.permission.INTERNET

permission at run-time. The remaining 50 applica-

tions do not require these permissions at run-time.

4.2 Performance Evaluation

We consider four metrics in order to evaluate the

results of the classiﬁcation: Precision, Recall, F-

Measure and Accuracy.

The precision has been computed as the propor-

tion of the examples that truly belong to class X

among all those which were assigned to the class. It

is the ratio of the number of relevant records retrieved

to the total number of irrelevant and relevant records

retrieved:

Precision =

t p

t p+ f p

where tp indicates the number of true positives

and fp indicates the number of false positives.

The recall has been computed as the proportion

Android Run-time Permission Exploitation User Awareness by Means of Formal Methods

809

Figure 3: A code snippet belonging to the Yahoo Weather application.

of examples that were assigned to class X, among all

the examples that truly belong to the class, i.e., how

much part of the class was captured. It is the ratio of

the number of relevant records retrieved to the total

number of relevant records:

Recall =

t p

t p+ f n

where tp indicates the number of true positives

and fn indicates the number of false negatives.

The F-Measure is a measure of a test accuracy.

This score can be interpreted as a weighted average

of the precision and recall:

F-Measure = 2 ∗

Precision∗Recall

Precision+Recall

The Accuracy is deﬁned as the ratio of number

of correct predictions to the total number of input

samples:

Accuracy =

t p+tn

t p+tn+ f p+f n

where tp indicates the number of true positives, tn

indicates the number of true negatives, fp indicates the

number of false positives and fn indicates the number

of false negatives.

Table 2 shows the results we obtained for the com-

puted metrics.

Table 2: Classiﬁcation Results.

Formula Precision Recall F-measure Accuracy

ϕ 1 1 1 1

ζ 1 1 1 1

From the results shown in Table 2 it emerges

that for both the ϕ and the ζ formulae, the proposed

methodology is able to correctly detect and localize

the code snippet where a permission is invoked at run-

time.

5 TOOL DESIGN

In this section we describe the design of the tool we

propose to inform the user about the permission that

the code running on its mobile device is requiring (see

Figure 4).

Starting from the output of the analysis of the pro-

posed method, the idea is to advise - at run-time - the

user, by showing her the permission that the Android

operating system is releasing, as shown in Figures 5

and 6.

Through a reverse engineering process (Fasano

et al., 2019c; Cimitile et al., 2017; Martinelli et al.,

2018) from the Android application the source code

of the application under analysis is obtained.

From the output of the proposed methodology

(shown in Figure 1) the set of the methods with run-

time permission is obtained: in particular from the

proposed methodology we are able to obtain the pack-

age, the class and the method where a permission is

invoked at run-time. In each of these methods a Toast

is added. In Android, a Toast is a graphical interface

element able to provide simple feedback about an op-

https://developer.android.com/guide/topics/ui/

notiﬁers/toasts

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

810

Figure 4: The tool design.

eration in a small popup. It only ﬁlls the amount of

space required for the message and the current activ-

ity remains visible and interactive and automatically

disappears after a timeout.

Once the small popups for each method invoking

at run-time a permission are injected, the application

is built with the aim to obtain the app executable. In

this way the user can be advised each time the app is

asking for a permission at run-time.

To show how the designed tool can be helpful to

make aware the user about the permissions requested

by the application, we show two screenshots about

two different applications (i.e, Whatsapp Messenger

and Yahoo Weather) when the Toasts are injected. In

these examples we manually injected the Toast in the

code localised by the proposed methodology, with the

aim to show the usefulness of the designed tool ex-

ploiting the methodology proposed in this work.

Figure 5 shows the Whatsapp Messenger screen

when the user is trying the make a voice call.

From the screenshot in Figure 5 it is pos-

sible to see the injected Android Toast advising

the user that the app is requiring for the an-

droid.permission.RECORD AUDIO permission.

The second screenshot we propose is related to the

Yahoo Weather application and it is shown in Figure

The screenshot in Figure 6 is related to the home

screen of the device, where it is visible to Yahoo

Weather widget. In Android, widgets are miniature

application views that can be embedded in other ap-

plications (for instance the Home screen) and receive

periodic updates. Clearly also widget can ask for run-

time permission, as in this case: in fact when the

user try to update the weather information, the wid-

get is requiring the android.permission.INTERNET as

Figure 5: A screenshot of the WhatsApp application when

the android.permission.RECORD AUDIO permissions is

requested.

Android Run-time Permission Exploitation User Awareness by Means of Formal Methods

811

Figure 6: A screenshot of the Yahoo Weather application

when the android.permission.INTERNET permission is re-

quested.

demonstrated by the message appeared in the Toast.

6 CONCLUSION AND FUTURE

WORK

In this paper, we proposed a static methodology

aimed to detect the usage of run-time permission

in Android environment. We model Android appli-

cations in term of CCS models and, by exploiting

model checking technique, we verify whether a set of

permission in invoked. In this work we focused on

three permissions i.e., android.permission.CAMERA,

android.permission.RECORD AUDIO and an-

droid.permission.INTERNET permissions. We

experiment a data-set composed by 200 applications

downloaded by Google Play, obtaining an accuracy

equal to 1. Moreover we propose a tool, based on the

results obtained by the proposed methodology, aimed

to inform the user at run-time when an application is

asking for permissions.

As future work, ﬁrst of all we plan to implement

and to release the designed tool in the Android ofﬁcial

market. Moreover, we plan to extend the temporal

logic formula set (Francesco et al., 2014; Ceccarelli

et al., 2014; Cimitile et al., 2018; Canfora et al., 2018;

Santone, 2002; Santone, 2011; Barbuti et al., 2005;

Gradara et al., 2005), with the aim to detect the full

set of permission provided at run-time by the Android

framework.

ACKNOWLEDGMENTS

This work has been partially supported by MIUR -

SecureOpenNets and EU SPARTA and CyberSANE

projects, the Formal Methods for IT Security Lab

and the MOSAIC Research Center

at the University

of Molise.

REFERENCES

Andersen, J. R., Andersen, N., Enevoldsen, S., Hansen,

M. M., Larsen, K. G., Olesen, S. R., Srba, J., and

Wortmann, J. K. (2015). CAAL: concurrency work-

bench, aalborg edition. In Theoretical Aspects of

Computing - ICTAC 2015 - 12th International Col-

loquium Cali, Colombia, October 29-31, 2015, Pro-

ceedings, volume 9399 of Lecture Notes in Computer

Science, pages 573–582. Springer.

Barbuti, R., De Francesco, N., Santone, A., and Vaglini, G.

(2005). Reduced models for efﬁcient ccs veriﬁcation.

Formal Methods in System Design, 26(3):319–350.

Barrera, D., Kayacik, H. G., Van Oorschot, P. C., and So-

mayaji, A. (2010). A methodology for empirical anal-

ysis of permission-based security models and its ap-

plication to android. In Proceedings of the 17th ACM

conference on Computer and communications secu-

rity, pages 73–84. ACM.

Battista, P., Mercaldo, F., Nardone, V., Santone, A., and

Visaggio, C. A. (2016). Identiﬁcation of android mal-

ware families with model checking. In ICISSP, pages

542–547.

Bernardeschi, C., Mercaldo, F., Nardone, V., and Santone,

A. (2019). Exploiting model checking for mobile bot-

net detection. Procedia Computer Science, 159:963–

972.

https://dipbioter.unimol.it/ricerca/laboratori/metodi-

formali-per-la-sicurezza-informatica/

https://dipbioter.unimol.it/ricerca/laboratori/centro-di-

ricerca-mosaic/

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

812

Canfora, G., Martinelli, F., Mercaldo, F., Nardone, V., San-

tone, A., and Visaggio, C. A. (2018). Leila: formal

tool for identifying mobile malicious behaviour. IEEE

Transactions on Software Engineering.

Canfora, G., Medvet, E., Mercaldo, F., and Visaggio, C. A.

(2016). Acquiring and analyzing app metrics for ef-

fective mobile malware detection. In Proceedings of

the 2016 ACM International Workshop on Interna-

tional Workshop on Security and Privacy Analytics.

ACM.

Ceccarelli, M., Cerulo, L., and Santone, A. (2014). De

novo reconstruction of gene regulatory networks from

time series data, an approach based on formal meth-

ods. Methods, 69(3):298–305.

Chakraborty, D. and Chattopadhyay, M. (2020). Assign-

ment tracking on android platform. In Information

and Communication Technology for Sustainable De-

velopment, pages 491–499. Springer.

Cimitile, A., Martinelli, F., Mercaldo, F., Nardone, V.,

and Santone, A. (2017). Formal methods meet mo-

bile code obfuscation identiﬁcation of code reorder-

ing technique. In 2017 IEEE 26th International Con-

ference on Enabling Technologies: Infrastructure for

Collaborative Enterprises (WETICE), pages 263–268.

IEEE.

Cimitile, A., Mercaldo, F., Nardone, V., Santone, A., and

Visaggio, C. A. (2018). Talos: no more ransomware

victims with formal methods. International Journal of

Information Security, 17(6):719–738.

Clarke, E. M., Grumberg, O., and Peled, D. A. (2001).

Model checking. MIT Press.

Cleaveland, R. and Sims, S. (1996). The NCSU concur-

rency workbench. In Computer Aided Veriﬁcation, 8th

International Conference, CAV ’96, New Brunswick,

NJ, USA, July 31 - August 3, 1996, Proceedings, pages

394–397.

Enck, W., Gilbert, P., Han, S., Tendulkar, V., Chun, B.-

G., Cox, L. P., Jung, J., McDaniel, P., and Sheth,

A. N. (2014). Taintdroid: an information-ﬂow track-

ing system for realtime privacy monitoring on smart-

phones. ACM Transactions on Computer Systems

(TOCS), 32(2):5.

Enck, W., Ongtang, M., and McDaniel, P. (2008). Mitigat-

ing android software misuse before it happens.

Fasano, F., Martinelli, F., Mercaldo, F., Nardone, V., and

Santone, A. (2019a). Spyware detection using tem-

poral logic. In 5th International Conference on Infor-

mation Systems Security and Privacy, ICISSP 2019,

pages 690–699. SciTePress.

Fasano, F., Martinelli, F., Mercaldo, F., and Santone, A.

(2019b). Energy consumption metrics for mobile de-

vice dynamic malware detection. Procedia Computer

Science, 159:1045–1052.

Fasano, F., Martinelli, F., Mercaldo, F., and Santone, A.

(2019c). Investigating mobile applications quality in

ofﬁcial and third-party marketplaces. In Proceed-

ings of the 14th International Conference on Evalu-

ation of Novel Approaches to Software Engineering,

pages 169–178. SCITEPRESS-Science and Technol-

ogy Publications, Lda.

Felt, A. P., Greenwood, K., and Wagner, D. (2010). The

effectiveness of install-time permission systems for

third-party applications. University of California at

Berkely, Electrical Engineering and Computer Sci-

ences, Technical report.

Felt, A. P., Ha, E., Egelman, S., Haney, A., Chin, E., and

Wagner, D. (2012). Android permissions: User atten-

tion, comprehension, and behavior. In Proceedings of

the eighth symposium on usable privacy and security,

page 3. ACM.

Foster, J. (2020). Who decides what is allowed? user inter-

actions and permissions use on android. ACM SIGAda

Ada Letters, 39(1):71–71.

Francesco, N. d., Lettieri, G., Santone, A., and Vaglini, G.

(2014). Grease: a tool for efﬁcient “nonequivalence”

checking. ACM Transactions on Software Engineer-

ing and Methodology (TOSEM), 23(3):24.

Gradara, S., Santone, A., and Villani, M. L. (2005). Using

heuristic search for ﬁnding deadlocks in concurrent

systems. Information and Computation, 202(2):191–

226.

Huang, C.-Y., Tsai, Y.-T., and Hsu, C.-H. (2013). Perfor-

mance evaluation on permission-based detection for

android malware. In Advances in Intelligent Systems

and Applications-Volume 2, pages 111–120. Springer.

Jeon, J., Micinski, K. K., Vaughan, J. A., Reddy, N., Zhu,

Y., Foster, J. S., and Millstein, T. (2011). Dr. android

and mr. hide: Fine-grained security policies on un-

modiﬁed android. Technical report.

Kelley, P. G., Consolvo, S., Cranor, L. F., Jung, J., Sadeh,

N., and Wetherall, D. (2012). A conundrum of per-

missions: installing applications on an android smart-

phone. In International conference on ﬁnancial cryp-

tography and data security, pages 68–79. Springer.

Martinelli, F., Marulli, F., and Mercaldo, F. (2017a). Eval-

uating convolutional neural network for effective mo-

bile malware detection. Procedia computer science,

112:2372–2381.

Martinelli, F., Mercaldo, F., Nardone, V., Santone, A., San-

gaiah, A. K., and Cimitile, A. (2018). Evaluating

model checking for cyber threats code obfuscation

identiﬁcation. Journal of Parallel and Distributed

Computing, 119:203–218.

Martinelli, F., Mercaldo, F., and Saracino, A. (2017b).

Bridemaid: An hybrid tool for accurate detection of

android malware. In Proceedings of the 2017 ACM on

Asia Conference on Computer and Communications

Security, pages 899–901. ACM.

Mercaldo, F., Nardone, V., and Santone, A. (2016a). Ran-

somware inside out. In Availability, Reliability and

Security (ARES), 2016 11th International Conference

on, pages 628–637. IEEE.

Mercaldo, F., Nardone, V., Santone, A., and Visaggio, C. A.

(2016b). Download malware? no, thanks: how formal

methods can block update attacks. In Proceedings of

the 4th FME Workshop on Formal Methods in Soft-

ware Engineering, FormaliSE@ICSE 2016, Austin,

Texas, USA, May 15, 2016, pages 22–28. ACM.

Mercaldo, F., Nardone, V., Santone, A., and Visaggio,

C. A. (2016c). Ransomware steals your phone. for-

Android Run-time Permission Exploitation User Awareness by Means of Formal Methods

813

mal methods rescue it. In International Conference

on Formal Techniques for Distributed Objects, Com-

ponents, and Systems, pages 212–221. Springer.

Mercaldo, F., Visaggio, C. A., Canfora, G., and Cimitile, A.

(2016d). Mobile malware detection in the real world.

In Proceedings of the 38th International Conference

on Software Engineering Companion, pages 744–746.

ACM.

Milner, R. (1989). Communication and concurrency. PHI

Series in computer science. Prentice Hall.

Pearce, P., Felt, A. P., Nunez, G., and Wagner, D. (2012).

Addroid: Privilege separation for applications and ad-

vertisers in android. In Proceedings of the 7th ACM

Symposium on Information, Computer and Communi-

cations Security, pages 71–72. Acm.

Santone, A. (2002). Automatic veriﬁcation of concur-

rent systems using a formula-based compositional ap-

proach. Acta Informatica, 38(8):531–564.

Santone, A. (2011). Clone detection through process alge-

bras and java bytecode. In IWSC, pages 73–74. Cite-

seer.

Stirling, C. (1989). An introduction to modal and temporal

logics for ccs. In Concurrency: Theory, Language,

And Architecture, pages 2–20.

Tchakount

e, F. (2014). Permission-based malware detec-

tion mechanisms on android: Analysis and perspec-

tives. Journal of Computer Science, 1(2).

Tchakount

e, F., Dayang, P., Nlong, J., and Check, N.

(2014). Understanding of the behaviour of android

smartphone users in cameroon: application of the se-

curity. Open J. Inf. Secur. Appl, pages 9–20.

Tramontana, E. and Verga, G. (2019). Mitigating privacy-

related risks for android users. In 2019 IEEE 28th In-

ternational Conference on Enabling Technologies: In-

frastructure for Collaborative Enterprises (WETICE),

pages 243–248. IEEE.

Zhou, Y. and Jiang, X. (2012). Dissecting android mal-

ware: Characterization and evolution. In Proceed-

ings of 33rd IEEE Symposium on Security and Privacy

(Oakland 2012).

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

814
