Serverless Container Cluster Management for Lightweight Edge Clouds

Fabian Gand, Ilenia Fronza, Nabil El Ioini, Hamid R. Barzegar and Claus Pahl

Free University of Bozen-Bolzano, Bolzano, Italy

Keywords:

Edge Cloud, Container, Cluster Architecture, Raspberry Pi, Single-board Devices, Docker Swarm, Big Data,

Data Streaming, Performance Engineering, Serverless, FaaS, Function-as-a-Service.

Abstract:

Clusters consisting of lightweight single-board devices are used in a variety of use cases: from microcon-

trollers regulating the production process of an assembly line to roadside controllers monitoring and man-

aging trafﬁc. Often, data that is accumulated on the devices has to be sent to remote cloud data centers for

processing. However, with hardware capabilities of controllers continuously increasing and the need for better

performance and security through local processing, directly processing data on a remote cluster, known as

Edge Computing, is a favourable solution. Recent trends such as microservices, containerization and server-

less technology provide solutions for interconnecting the nodes and deploying software across the created

cluster. This paper aims at proposing a serverless architecture for clustered container applications. The ar-

chitecture relies on the MQTT protocol for communication, Prometheus for monitoring and Docker swarm

in conjunction with openFaas for deploying services across a cluster. Using the proposed architecture as a

foundation, a concrete trafﬁc management application is implemented as a proof-of-concept. Results show

that the proposed architecture meets performance requirements. However, the network set-up as well as the

network capabilities of the used devices were identiﬁed as potential bottlenecks.

1 INTRODUCTION

Internet-of-Things (IoT) and edge computing plat-

forms allow to transfer computation and storage away

from classical data centre clouds. Communication in-

frastructures such as the 5G mobile standard aim at

enabling communication between edge and IoT de-

vices almost in real time with transfer rates of up to 20

Gbit/s (5G-CARMEN, 2019), driven by low latency

needs. In addition to higher transfer rates, they also

offers new technologies such as Network Function

Virtualization (NFV) allowing the execution of code

functions on generic hardware nodes without having

to install speciﬁc hardware (Kiss et al., 2018). Soft-

ware Deﬁned Networking (SDN) allows third parties

to directly use hardware resources by deﬁning the de-

sired set-up in a programmatic way.

These technologies can be based on the so-called

’serverless’ concept. Serverless aims at shifting the

responsibility of deploying, scaling and maintaining

the software to an infrastructure provider. Instead of

deploying and running an application on designated

hardware themselves, developers only need to hand it

over to the serverless platform. Despite being only a

recent trend, serverless technology is already used in a

wide variety of cases. Baldini et al. show that interest

has been increasing since 2015 (Baldini et al., 2017).

So far, published research has focused on trends and

shortcomings (Baldini et al., 2017) or reviewing dif-

ferent frameworks (Kritikos and Skrzypek, 2018). In

order to provide new experimental evidence, we im-

plement and evaluate a serverless use case application

on a lightweight edge cluster architecture. Processing

tasks are computed directly on nodes at the edge of

a cluster and are not send to remote processing hubs.

We evaluate whether a serverless system is a suitable

basis for demanding use cases in edge environments.

Since small, single-board devices, like the Raspberry

Pi, are widely adopted and will potentially keep in-

creasing their processing power, we investigate if and

under what conditions a cluster of such devices is

able to support a complex, low-latency system that is

tightly constrained by a ﬁxed set of requirements. Our

proposed architecture is based on industry-standard

technologies such as MQTT for inter-cluster commu-

nication, openFaas and Docker Swarm for the imple-

mentation of the serverless concepts and Prometheus

for monitoring. The evaluation validates how the

functional and non-functional requirements are ad-

dressed in the proposed system. We also analyse the

advantages and disadvantages the serverless concept

offers over traditional approaches of deployment. Ad-

302

Gand, F., Fronza, I., El Ioini, N., Barzegar, H. and Pahl, C.

Serverless Container Cluster Management for Lightweight Edge Clouds.

DOI: 10.5220/0009379503020311

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 302-311

ISBN: 978-989-758-424-4

ditionally, we report on the performance of the system

for different scenarios. Potential bottlenecks will be

identiﬁed and discussed.

The paper is structured as follows. In Section 2,

concepts and technologies are introduced. Section 3

discusses related work on distributed edge systems.

Section 4 describes the high-level architecture before

describing each component in greater detail. Section

5 evaluates the architecture. We conclude with a ﬁnal

overview and suggestions for future research.

2 TECHNOLOGY SELECTION

This section introduces key concepts as well as spe-

ciﬁc tools and technologies. The ﬁnal subsection de-

scribes how the tools and technologies can be com-

bined to create a lighweight edge architecture.

2.1 Background Technologies

Edge Computing is different from cloud computing.

Cloud computing is based on data centers that are able

to process large amounts of data (Kiss et al., 2018).

Data from local systems is usually sent to and pro-

cessed by the cloud. After the computation is com-

plete, a result may be returned to the local network.

This approach, however, leaves the potential local

processing power of the network unused and comes

with a signiﬁcantly increased latency. Edge comput-

ing leverages the processing power of nodes "at the

edge" of the network. These nodes are an intermedi-

ate layer between the devices (Kiss et al., 2018).

Microservices have become popular in recent

years. Traditional architectures usually ship an ap-

plication as a monolith: the entire application is bun-

dled into one executable that was deployed on speciﬁc

hardware. When switching to a microservice archi-

tecture, the monolith is split into microservices, run-

ning in an independent process and having their own

deployment artifacts (Jamshidi et al., 2018).

Serverless Computing is a new concept for the

deployment of cloud applications (Baldini et al.,

2017). Serverless allows developers to focus solely on

the application code without being concerned about

the servers it is deployed on. The tasks of managing

and scaling the application are handled by the cloud

provider: with serverless, the developer can expect

the code to be fault-tolerant and auto-scaling. In ad-

dition to the major cloud providers already offering

serverless functionality, several openSource frame-

works have been developed and released in recent

years. These solutions usually involve having to self-

host the serverless frameworks on own hardware in-

stead of relying on hardware provided by third-party

providers. This work will focus on open source,

self-hosted solutions. Serverless is different from

PaaS (Platform-as-a-service) and SaaS (Software-as-

a-Service) where the deployment of code is speciﬁ-

cally tailored to the platform.

• FaaS: usually, serverless computing is accompa-

nied by a concept called Functions-as-a-Service

(FaaS). Here, small chunks of functionality are

deployed in the cloud and scaled dynamically by

the cloud provider (Kritikos and Skrzypek, 2018).

These functions are usually even smaller than mi-

croservices. They are short-lived and have clear

input and output parameters, similarly to func-

tions used in most programming languages.

• Serverless Microservices: if the component to be

deployed is more complex than a simple function

and is supposed to stay active for a longer period

of time, a stateless microservice could be consid-

ered (Ellis, 2018). Managing and deploying these

microservices is similar to serverless functions.

Open-source serverless frameworks that we ini-

tially considered are summarised in Table 1. Com-

pleteness, licensing model and support for Docker

and Prometheus led us to select openFaas.

2.2 Platform Technology Review

The concrete hardware, software and standards used

in our architecture shall now be introduced.

The Raspberry Pi is a single-board computer

based on an ARM-processor. Since the start in 2012

there have been four major iterations of the Raspberry

Pi platform. The version 2 B models we use include a

900MHz quad-core ARM Cortex-A7 CPU and 1GB

of RAM.

Docker is a containerization software. Container-

ization is a virtualization technology that, instead of

virtualizing hardware, separates processes from each

other by utilizing features of the Linux kernel. Docker

containers bundle an application along with all of its

dependencies. Docker offers the ability to create,

build and ship containers. Compared to virtual ma-

chines, containers offer a better use of the hosts re-

source while providing similar advantages of having

a separate system. Images are the blueprints of docker

containers. Each container is created from an im-

age. The images are built using Dockerﬁles, which

describe the system to be constructed. Docker (the

Docker Engine) is based on a client-server architec-

ture. The client communicates with the Docker dea-

mon via a command-line-interface. The docker dae-

mon is in charge of managing the components and

Serverless Container Cluster Management for Lightweight Edge Clouds

303

Table 1: Comparison of open-source serverless frameworks.

Framework Languages Type License Vendor Monitoring Key components

openFaas

C#, Dockerﬁle, Go,

Java, NodeJS, PHP,

Python, Ruby

Complete

Frame-

work

MIT

community

driven

Prometheus

Container(Docker),

Prometheus, gate-

way API, GUI

OpenWhisk

NodeJS, Swift, Java,

Go, Scala, Python,

PHP, Ruby, Ballerina

Complete

Frame-

work

Apache

License

2.0

Apache

Kamon for

system metrics,

kafka events

for user metrics

nginx Web-

server, CouchDB,

Kafka, Contain-

ers(Docker)

Kubeless

Python, NodeJS,

Ruby, PHP, Go,

.NET, Java, Ballerina

Complete

Frame-

work

Apache

License

2.0

community

driven

Prometheus

Kubernetes (na-

tive)

Serverless

(community)

(Serverless,

2019)

Python, NodeJS,

Java, Go, Scala, C#

CLI for

building +

deploying

MIT

Serverless,

Inc.

Deployment to

providers: AWS,

MS Azure etc.

containers. Docker services represent the actual ap-

plication logic of a container in production. Using

services, a web application could be split into one

service for the front-end components, one for the

database and another one for the content management

system used to update the site.

Docker Swarm is the cluster management tool in-

tegrated into Docker. Instead of running the services

and their corresponding containers on one host, they

can be deployed on a cluster of nodes that is managed

like a single, docker-based system. By setting the de-

sired number of replicas of a service, scaling can also

be handled by the swarm.

Hypriot OS is an operating system based on De-

bian that is speciﬁcally tailored towards using Docker

containerization technology on ARM devices such as

the Raspberry Pi. Ansible is a tool for automating

tasks in a cluster and cloud environments such as

individual node conﬁguration or application deploy-

ment. MQTT is a network protocol designed for IoT.

It is primarily used for unreliable networks with lim-

ited bandwidth. Prometheus is a monitoring tool to

gather and process application metrics. It does not

rely on the application delivering the metrics to the

monitoring tool. Prometheus scrapes the metrics from

a predetermined interface in a given interval. This

means that the metrics are expected to be exposed by

the application.

openFaas is a Functions-as-a-Service (FaaS)

framework. It can be deployed on top of a Docker

swarm or a Kubernetes cluster. When starting the

openFaas framework, some standard docker contain-

ers are deployed: Gateway is used as the central gate-

way for calling functions from anywhere in the clus-

ter. A Prometheus instance is running on this con-

tainer. The Alertmanager reads Prometheus metrics

and issues alerts to the gateway. By default, openFaas

contains a simple autoscaling rule that leverages the

default metrics aggregated by Prometheus and scales

based on predeﬁned thresholds (openFaaS, 2019).

2.3 Requirements & Platform Selection

Among the serverless frameworks compared in Ta-

ble 1, openFaas was selected for the implementa-

tion of the application. The reasons are: (i) a wide

array of supported languages, (ii) openFaas being a

complete, all-in-one framework, (iii) Prometheus as

an integrated, extendable monitoring solution, (iv) a

simple set-up process and (v) its out-of-the-box sup-

port for Docker Swarm. Other frameworks either

lacked a simple monitoring solution (serverless), in-

cluded more custom components that needed to be

conﬁgured manually (openWhisk) or did not support

Docker Swarm (Kubeless).

To meet the requirements for a lightweight edge

platform, the tools and technologies we used need to

provide a high level of ﬂexibility while preserving the

limited hardware resources of the cluster. By splitting

the application into microservices and containerizing

it, the hardware can be reallocated dynamically (Men-

donca et al., 2019). This also enables scaling the dif-

ferent parts of the application in a simple way. The

Docker images leave a minimal footprint on the de-

vices, making efﬁcient use of the hardware. MQTT,

as a lightweight protocol, has a similar advantage,

while its underlying publisher/subscriber pattern sim-

pliﬁes communication in an environment where ser-

vices are added and removed constantly. Establishing

peer-to-peer communication would be signiﬁcantly

more complex. OpenFaas is a simple way of building

and deploying services/functions across the cluster. In

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

304

addition to the obvious functionality, some of its fea-

tures, such as the built-in Prometheus instance or the

gateway, can be extended upon to make openFaas the

central building block of the application. Even though

the openFaas scaling functionality is limited by de-

fault, it can be used as a foundation to implement a

more ﬁne-grained scaling algorithm using the built-

in monitoring options. An overview of the proposed

architecture is shown in Figure 1.

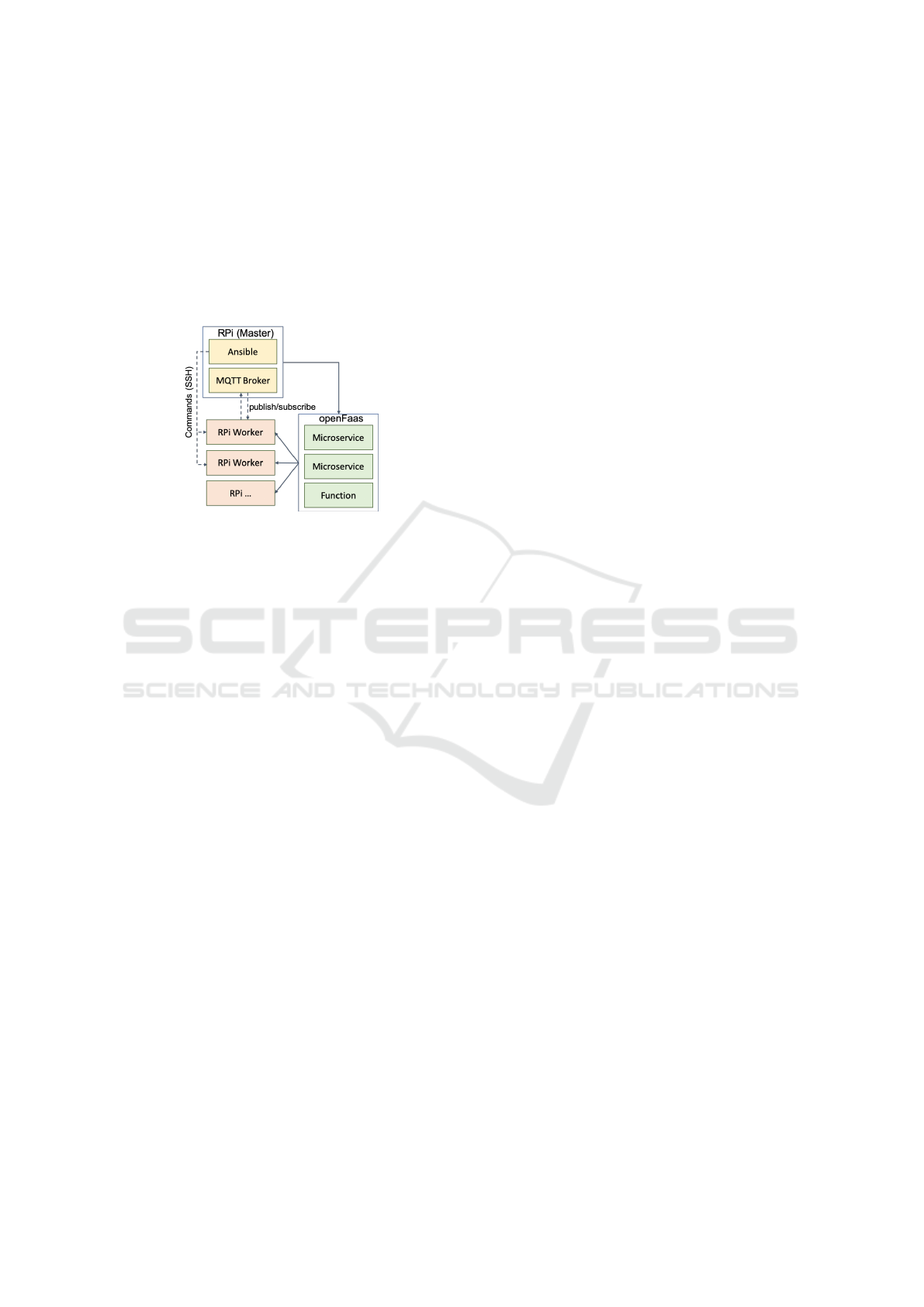

Figure 1: Hardware and networking components.

3 RELATED WORK

The discussion of serverless technology is still in its

early stages (Baldini et al., 2017). The authors in-

troduce several commercial implementations such as

Amazon’s AWS Lambda or Microsoft Azure Func-

tions. Major advantages mentioned are the responsi-

bility of managing servers and infrastructure that no

longer rests with the developer.

(Kritikos and Skrzypek, 2018) review serverless

frameworks. They highlight the need for new meth-

ods to create an architecture for applications that

contain both servlerless components like functions

as well as classic components such as microservices

running inside a Docker Container. They also note

that the decision on how the application components

should scale is largely left to the developer and sug-

gest further research into automating this.

(Kiss et al., 2018) gather requirements for appli-

cations using edge computing, speciﬁcally combining

them with the 5G standard. They mention that re-

cently released single-board devices open up the pos-

sibility of processing some of the data at the edge.

This, however, creates the challenge of orchestrating

the available processing power. The IoT system needs

to reorganize itself based on changing conditions.

(Tata et al., 2017) outline the state of the art as well

as the challenges in modeling the application archi-

tecture of IoT edge applications. A sample scenario

is a system for smart trains based on the principles of

edge computing. The system is comprised of a set of

different sensors attached to crucial components.

The papers reviewed above offer an overview over

the requirements and create proposals for the archi-

tecture of distributed IoT systems. They also offer

guidance on where more research could be conducted.

They remain, however, on an abstract level and do not

implement prototypes for analysis and experimenta-

tion. The work presented here aims at making use

of the proposed approaches to implement a concrete,

distributed IoT System based on a real-life scenario

that is executable, observable and analyzable. The de-

vised solution will be evaluated in a second step.

A system that is comparable to the one proposed

here has been presented in (Steffenel et al., 2019).

The authors introduce a containerized cluster setup

on single-board devices that is tailored towards ap-

plications that process and compute large amounts of

data. They note that the performance of the RPI clus-

ter is still acceptable and could be a suitable option

for comparable use cases. During the evaluation they

also identiﬁed the poor networking performance of

the Raspberry Pis as an additional bottleneck. Ad-

ditional topics that we will additionally address here,

such as a serverless architecture for such systems or

scaling options, are not within the scope of that paper.

4 PROPOSED ARCHITECTURE

We now provide an overview of the proposed archi-

tecture. The aim is to develop a container manage-

ment platform, deployed on a cluster of single-board

devices, based on the concepts of serverless comput-

ing and microservices architecture. We will ﬁrst in-

troduce the foundation of the application: the under-

lying hardware and the set-up process of the cluster.

In a second step, the building blocks of the application

are introduced at a conceptual level before covering

low-level implementation details. The proposed bind-

ing blocks of the application such as the serverless

and microservices-based architecture can be reused

for different applications in different contexts. The

generic scaling component is applicable in different

applications by adjusting a few constants.

4.1 Architecture Overview

The application is composed of three main architec-

ture layers (Pahl et al., 2018). The platform layer rep-

resents the hardware architecture of the cluster and

the application. The system layer includes the com-

ponents of the system. On top of these two, the con-

troller layer scales the components of the platform.

Serverless Container Cluster Management for Lightweight Edge Clouds

305

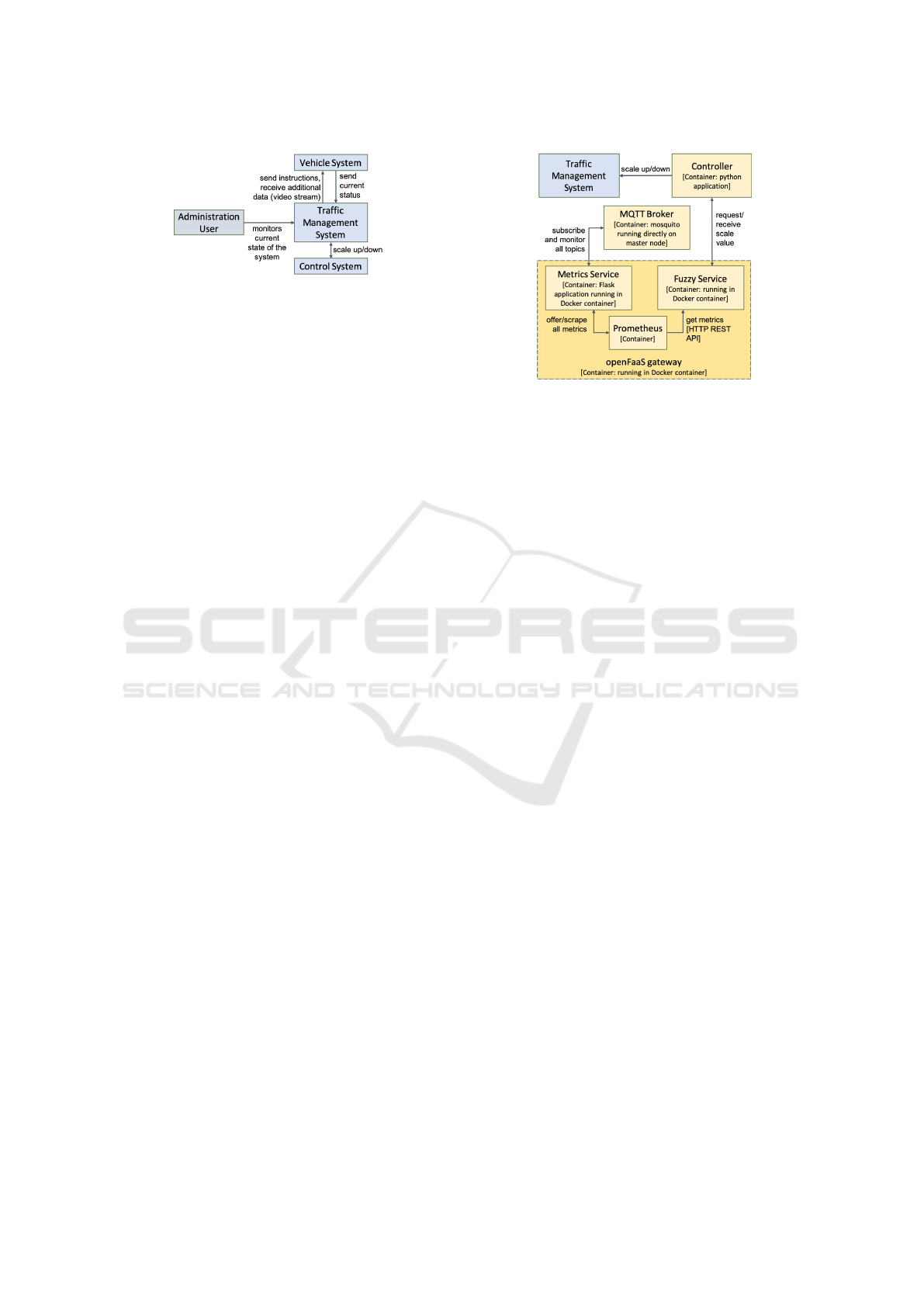

Figure 2: System context: interaction between systems.

Figure 2 shows the interaction between the system

layer, the controller layer and additional components.

We apply the generic architecture here to a traf-

ﬁc management application. A Trafﬁc Management

System (TMS) manages and coordinates a number of

cars in a road section. Services could autonomous

driving functions such as maneouvering or state share

features. The Vehicle System (VS) represents the cars

here. This application is an example of a mobile,

low=latency platform that we modelled after the 5G-

CARMEN project (5G-CARMEN, 2019). The TMS

contains all core functions of the system. There is

a constant exchange of messages between the Trafﬁc

Management System TMS and the VS that contains

simulations of vehicles. The Control System (CS) is

used to scale parts of the TMS based on the current

situation and a number of predeﬁned factors.

4.2 Platform Architecture

The high-level platform layer, shown in Figure 3,

aims at hiding some of the lower layer cluster man-

agement to the application. The application is de-

ployed on a cluster managed by Docker Swarm. The

cluster includes one master node and an arbitrary

number of worker nodes. Ansible is used to execute

commands on all nodes without having to connect to

each node individually. All nodes are able to connect

to the MQTT broker that is running on the master de-

vice after startup. All nodes establish a connection to

the master by addressing it by its hostname. Using

Docker Swarm and openFaas, the RPIs are connected

in such a way that they can be seen as one system. If a

service is supposed to be deployed, openFaas will dis-

tribute it among the available nodes. There is no need

to specify the speciﬁc node as this abstraction layer is

hidden behind openFaas. The services and functions

are built and deployed using the openFaas command

line interface. Almost all services run the python:3.6-

alpine docker image. This image is based on Alpine,

a minimalistic, lightweight Linux distribution, that is

shipped with a python 3 installation. OpenFaas is also

used to scale the services independently. Communi-

cation between the services is achieved by relying on

the openFaas gateway as well as on the MQTT broker.

Figure 3: Platform and Application Layer: platform and

trafﬁc management application components.

The cluster in our experimental setting is com-

prised of eight Raspberry Pi 2 Model B connected to a

mobile switch via 10/100 Mbit/s Ethernet that is pow-

ering the RPIs via PoE (Power over Ethernet) (Sco-

lati et al., 2019). The system components are split

into three repositories. The rpicluster repository con-

tains the clout-init conﬁguration ﬁles for setting up

the Raspberry Pis. The rpicluster-application repos-

itory ncludes all microservices and scripts that make

up the application logic. The last repository includes

a modiﬁed version of the the openFaas repository. We

provide detailled information here in order to give ev-

idence for the feasibility of the setup and provide re-

peatable conﬁguration and installation instructions.

All nodes of the cluster run HypriotOS. The mas-

ter initiates the Docker Swarm. The only com-

mand that needs to be executed on the workers is the

swarm join command. It can be distributed among

the nodes by using Ansible. After this command is

executed on each node, the swarm is fully set-up.

The worker nodes contain almost no additional de-

pendencies since they are all included in the docker

containers. The only additional dependencies that

are directly installed on the nodes are used to run a

python script that monitors system metrics and pub-

lishes them to the metrics service.

4.3 Monitoring

Monitoring utilises the openFaas Prometheus in-

stance. The metrics service is used to acquire met-

rics about the system, mainly by serving as a central

hub that accumulates all cluster-wide metrics and by

publishing those metrics via a ﬂask HTTP endpoint.

This endpoint is the central interface for Prometheus

to collect from. The Prometheus python API is used

to implement the metrics collection. The metrics ser-

vice currently exposes the number of messages, such

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

306

as the number of active cars for the TMS/VS as well

as the cumulative memory and CPU usage. The num-

ber of messages is implemented as a counter which is

continuously increasing.

The Prometheus instance is used to store metrics

and query them when needed. Prometheus provides

a rest API along with a language called PromQL to

aggregate and query metrics (?). The aggregated data

is returned in JSON format.

Before startup, Prometheus needs to be informed

about the endpoints that metrics should be collected

from. The Prometheus instance that is shipped with

openFaas only collects metrics from the openFaas

gateway since only metrics related to function ex-

ecution are being monitored by default. Conﬁg-

uring the openFaas Prometheus instance to aggre-

gate custom metrics of an application is not docu-

mented. Exploring this possibility and implement-

ing it was a part of the scope of this work. In or-

der to add a second endpoint for the additional met-

rics, the openFaas repository had to be forked and the

prometheus/prometheus.yml conﬁguration ﬁle had to

be edited, adding the metrics endpoint to the ﬁle. The

metrics microservice is accessible via the gateway.

Therefore, it is possible to address the metrics end-

point by calling the gateway without need to specify

the static IP address of the node the metrics service is

running on. Specifying the metrics path (/appmetrics)

as well as the port (8080) is also mandatory.

4.4 Application Feature Requirements

In the following section, the application-level features

and non-functional requirements of the trafﬁc man-

agement use case are described. This will be done

by highlighting which parts of the system address a

speciﬁc requirement.

• Simulate vehicles: The vehicles are simulated by

the vehicle service VS. Communication between

the gatherer and vehicle services is implemented

using MQTT. Video streams for in-car consump-

tion are received by the central openFass gateway.

• Collect vehicle information: The gatherer service

collects and aggregates vehicle information.

• Continuous modeling of current state of the road

section: The gatherer service includes an internal

representation of the road section.

• Issue commands to vehicles: Commands are is-

sued via MQTT by the gatherer service. Decision-

making functionality is both available as a sepa-

rate serverless function and as built-in functional-

ity within the gatherer service.

• Provide video streaming: The video service in-

stances act as broadcasters. Vehicles access these

broadcasters using the central openFaas gateway.

• Provide bus for communication between ser-

vices: The use of the openFaas gateway and the

mosquitto broker offer a way to access services

without having to know the address of the hard-

ware node they are running on, thus enabling the

simple transparent discovery of new services and

communication between components.

The application is split into different services that

can be easily deployed across the cluster from a cen-

tral node. Physical access to individual nodes is not

necessary. The system can be reconﬁgured by us-

ing the corresponding central service. Conﬁgura-

tion changes are automatically distributed across the

nodes by using the MQTT subscriber/publisher pat-

tern. Several gatherer services are usually deployed

at the same time. If a gatherer is added or removed

the vehicles are automatically distributed among the

available gatherers. The scaling functionality ensures

that the performance remains above a certain SLO.

5 EVALUATION

The proposed system shall be evaluated in terms of

performance and dependability (scalability) concerns.

5.1 Evaluation Objectives

The focus lies on evaluating the performance of the

proposed serverless microservice solution.

• Performance: The objectives of the evaluation are

as follows. One main goal was to ﬁnd structural

and architectural weaknesses, refactor the system

based on the ﬁndings and evaluate the effective-

ness of the refactoring process. Those weaknesses

can be found focusing on parts of the application

that introduce performance bottlenecks. The bot-

tlenecks are identiﬁed by measuring certain per-

formance metrics that are introduced later on.

We present the evaluation results of an initial

and a refactored system architecture in order to

demonstrate the importance of the architectural

design in the platform implementation. It will also

highlight generic challenges of lightweight clus-

tering and how these can be addressed. There-

fore, a two-stage evaluation approach with initial

and refactored architectures is essential.

• Scalability: Finally, based on the ﬁnal, complete

set-up of the system, there was a need to evaluate

Serverless Container Cluster Management for Lightweight Edge Clouds

307

the maximum number of vehicles the set-up (in-

cluding the network it was operated in) could sup-

port in order to maintain dependability through

determining the scalability limits.

These objectives were evaluated for two cluster

set-ups. To obtain a ﬁrst understanding of the system

and the possible range of variables, ﬁrst, an evaluation

of a calibration pilot was conducted on a small cluster

of 3 RPIs. Afterwards, the evaluation procedure was

repeated for a complete cluster of 8 devices.

5.2 Evaluation Set-up

Performance: All evaluation steps report on a num-

ber of performance metrics that indicate the effective-

ness of the system or provide insight into an internal

process. The Message Roundtrip Time (MRT) is the

central variable of the system since it reports on the

effectiveness of the autonomous driving functionality.

Included in the MRT is the (openFaas) Function Invo-

cation Time (FIT) that is listed separately to be able to

individually report on the serverless performance. In

this evaluation, all MRT and FIT values are consid-

ered average values aggregated over the last 20 sec-

onds after the previous scaling operation was com-

pleted. In our study, the maximum scale value was

unknown. In some real-life scenarios this value might

have been speciﬁed beforehand. Over the course of

this evaluation, different MRT thresholds are applied.

Workload: For all conﬁgurations and iterations

that were evaluated, the hardware workload was mea-

sured by computing the average CPU and memory us-

age over all nodes of the cluster, combining it to a sin-

gle value. This is possible, because the entire cluster

can be seen as one system by combining the individ-

ual nodes using Docker swarm and openFaas.

5.3 Evaluation – Default Architecture

The ﬁrst evaluation round looked at the default archi-

tecture with two set-ups (calibration and full).

Round 1 – Calibration Pilot: The evaluation was

started with a calibration cluster consisting of three

RPIs: a master and two worker nodes. The maximum

scale value was set to 5 in order to avoid scaling the

system to a point the set-up could not handle anymore.

Table 2 reports on the initial metrics for different

numbers of vehicles. The scaling functionality was

enabled during monitoring, with its variables set to

the values reported in Figure 3. Table 3 includes the

data of the scaling algorithm for an initial run (Gand

et al., 2020). The number of scaled components is

also reported. Manually set variables were Maximum

Scale Value: 5, MRT Threshold: 2.0 seconds.

Table 2: Results for a cluster of three RPIs.

Vehicles Memory CPU MRT FIT

2 25.55 46.97 1.63 1.51

4 37.94 47.24 1.85 1.48

8 57.1 49.36 1.79 1.61

12 71.77 51.81 4.49 1.79

14 92.78 55.49 10.24 2.13

Table 3: Scaling run for a cluster of three RPIs with a (ﬁxed)

number of 12 cars – with IT: Invocation Time after scaling,

Df: Decision Function.

Iteration IT # gatherer # DF

1 1.74 10 5

2 2.5 10 5

3 2.05 10 5

4 1.9 12 6

The CPU Usage started at 47% and showed a lin-

ear increase up to about 56% at 14 vehicles. The hard-

ware does not seem to be the limiting factor. The ini-

tal setup, however, shows a MRT of about 1.6 sec-

onds for only 2 vehicles. At 12 vehicles, a Roundtrip

Time of 4.5 seconds is reached and for 14 vehicles,

the MRT is already above 10 seconds, which is a value

that is too high for many real-world scenarios. With

only three RPIs and the given default setup, the per-

formance of the system is limited.

# vehicles

MRT

Figure 4: Average MRT - 8 RPI cluster, increase of vehicles.

Round 1 – Full System: Based on the initial ﬁnd-

ings, the complete cluster of eight RPIs was evaluated

and the data was accumulated in Table 4. The cluster

consisted of one master node and seven worker nodes.

CPU usage started out at about 30% and only showed

a slow increase as the number of cars within the sys-

tem was rising. Therefore, CPU/memory usage did

not seem to be the limiting factor. However, the in-

vocation time as well as the MRT were again surpris-

ingly high with the Function Invocation Time starting

out at 1.5 seconds and increasing to a value of over

2 seconds at only eight vehicles. The MRT values

are also ﬂuctuating greatly as can be seen in Figure

4. Looking at these values, the bottleneck appears to

be the openFaas Function Invocation Time. Figure 5

shows that the Function Invocation Time takes up a

signiﬁcant proportion of the overall MRT.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

308

# vehicles

time in seconds

FIT

Remainder of MRT

Figure 5: FIT for overall MRT - different no. of vehicles.

5.4 Performance Re-engineering

With the Function Invocation Time (FIT) as a signif-

icant factor in slowing down the system, changes to

the architecture of the application needed to be made

in order to improve the overall performance.

Figure 6: Refactored Architecture: communication be-

tween gatherer and vehicle services in the improved system.

The use of parallelism was increased by deploy-

ing more than one gatherer. Previously, a single gath-

erer was processing incoming messages in an asyn-

chronous way and calling the decision-function for

each message. This was a bottleneck since the num-

ber of messages that could be processed concurrently

was limited by the hardware. In the new version, the

gatherer itself is subject to scaling. An arbitrary num-

ber of gatherers can be deployed across the cluster.

Since the vehicles now need to be distributed across

the different gatherers, a new component was imple-

mented that computes a unique ID for each gatherer

at startup and exposes it via an openFaas function.

When a new vehicle is entering the system, it calls the

corresponding function once and is assigned a gath-

erer. Consequently, the vehicle publishes its infor-

mation to the MQTT topic of its designated gatherer.

OpenFaas alternates between the gatherers for each

new call by default. Figure 6 highlights the described

changes by emphasizing the communication between

the vehicle and gatherer services. When new gather-

ers are added or removed, a message is broadcasted

and all vehicles are being reassigned new gathers.

Additionally, since the FIT of the decision-function

seemed to be a major reason for the slow overall re-

sponse time, the decision-function was removed and

Table 4: Results for the standard set of metrics for a cluster

of eight RPIs using the original version of the system.

Vehicles Memory CPU MRT FIT

2 37.06 34.72 1.6 1.43

4 22.24 33.0 1.54 1.43

6 19.6 33.28 1.56 1.48

8 29.9 34.32 1.59 1.49

10 29.92 35.37 1.61 1.5

12 34.82 36.17 1.59 1.51

14 35.94 37.27 2.23 1.49

16 42.59 38.57 1.72 1.55

18 49.26 39.42 1.68 1.63

20 51.73 39.92 4.17 1.63

22 52.97 40.53 2.20 1.73

24 66.97 42.37 5.41 2.13

26 59.74 43.28 26.62 1.91

# vehicles

CPU Usage

Original version

Improved version

Figure 7: CPU Usage compared between the original and

improved (no openFaas function calls) versions.

its functionality was included as part of the gatherer.

Using this setup, it is no longer necessary to call an

openFass function for each received message and wait

for its return value. This demonstrates the value of ex-

perimental platform evaluation and subsequent refac-

toring. The aim here is to employ the concept of con-

tinuous experimentation in order to continuously im-

prove metrics, such as performance in this case.

5.5 Evaluation – Refactored

Architecture and Scalability

The experimental setup was similar to the previous

full system evaluation: a cluster of eight RPIs was

used. As discussed, the decision-making functionality

is included in the gatherer service, which can now be

scaled independently. Hence, there is no longer the

need to call the decision function for each message.

The results can be found in Tables 5 and 6. Con-

sidering these results, a signiﬁcant improvement in

the overall Message Roundtrip Time can be noted.

The difference between the two versions can be

clearly seen by looking at Figure 8 and comparing the

MRT of both iterations of the system. This differ-

ence was recorded for different numbers of vehicles.

It seems to be growing exponentially. Between 16 and

24 vehicles, the MRT increases by over 300% for the

original version, while the MRT of the bundled ver-

sion only increases by about 8%. If we compare the

CPU usage, we see that the refactored system uses

Serverless Container Cluster Management for Lightweight Edge Clouds

309

Table 5: Results for the standard set of metrics for a cluster

of eight RPIs using the improved system. The FIT was not

measured since the decision function was removed.

Vehicles Mem Usage CPU Usage MRT FIT

2 2.92 36.53 0.02 -

4 3.29 37.02 0.025 -

6 3.89 37.90 0.029 -

8 5.48 38.41 0.028 -

10 5.81 39.37 0.17 -

12 5.17 39.78 0.028 -

14 6.98 40.07 0.028 -

16 4.2 40.33 0.025 -

18 4.5 40.67 0.025 -

20 4.94 41.1 0.027 -

22 5.19 41.43 0.028 -

24 5.74 41.7 0.027 -

26 5.99 42.14 0.028 -

Table 6: Same as in Table 5, here higher number of vehicles.

Vehicles Mem Usage CPU Usage MRT FIT

50 8.63 46.75 0.03 -

75 11.79 51.7 0.032 -

100 14.48 56.57 0.04 -

about 8-10% more of the CPU compared to the origi-

nal application. The additional computing power and

time needed to make a decision is neglectable when

compared to the signiﬁcant overall MRT advantage.

The current set-up did not allow for more than 75

vehicles. The bottleneck appeared to be the network:

when trying to increase the number of vehicles be-

yond this, the network was unable to handle the mes-

sage volume that were exchanged, which resulted in

connections and packets being dropped continuously.

5.6 Overall Evaluation Analysis

Using a smaller cluster set-up (the calibration pilot),

it was possible to derive starting values for all vari-

ables. The overall evaluation shows that containeriza-

tion comes with a small performance loss compared

to traditional set-ups. However, the advantages of us-

ing our approach are generally more signiﬁcant than

Figure 8: Comparing MRT - original and improved system.

the downsides. The evaluation indicates that server-

less function calls should be managed carefully since

they introduce network latency problems. Refactor-

ing the proposed solution to reduce the number of

necessary calls to openFaas functions resulted in a

signiﬁcant increase in performance. The improved

version yields satisfying results in terms of hardware

consumption and performance (MRT) while the built-

in scaling algorithm scales the system as intended.

The network emerges as the limiting factor. Our set-

up was not able to process more than 75 vehicles at a

time. The CPU and memory usage numbers as well

as the steady, but slow increase of the MRT imply that

the hardware itself should be able process more. Fu-

ture improvement attempts could ﬁnd network set-ups

that allow dependable services beyond the limits.

6 CONCLUSIONS

We introduced a containerized serverless edge cluster

management, implemented for a use case for a trafﬁc

management system on a cluster of single-board de-

vices. The presented architecture is based on edge

computing principles, clusters of single-board de-

vices, microservices, serverless technology and auto-

scaling. The proposed architecture results in a recon-

ﬁgurable, scalable and dependable system that pro-

vides built-in solutions for common problems such as

service discovery and inter-service communication.

The implementation is a proof-of-concept with the

constraints of the environment playing a crucial factor

in the implementation. While we have used a trafﬁc

management system for implementation, the architec-

ture itself is generic. Vehicles in the implementation

were only simulated, representing actors that contin-

uously produce data into the system.

The advantages of our solution are reusability,

scalability and interoperability. By using openFaas

beyond its documented boundaries, it was possible

to utilise the framework for inter-service communi-

cation as well as for monitoring. The bottleneck that

prevents the system from scaling even higher appears

to be the network infrastructure as well as the lim-

ited internal networking capabilities of the RPi. More

research in terms of network conﬁguration and man-

agement would be here beneﬁcial.

Future work could focus on a number of aspects

in addition to the network concern already addressed,

e.g., improving trafﬁc management components to

drive them towards a more realistic behavior.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

310

REFERENCES

5G-CARMEN (2019). 5G-CARMEN - 5G for Con-

nected and Automated Road Mobility in the European

UnioN. https://www.5gcarmen.eu/.

Azimi, S., Pahl, C. and Shirvani, M. H. (2020). Parti-

cle swarm optimization for managing performance in

multi-cluster IoT edge architectures. In Intl Conf on

Cloud Computing and Services Science CLOSER.

Baldini, I., Castro, P. C., Chang, K. S., Cheng, P., Fink, S. J.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R. M., Slominski, A., and Suter, P. (2017). Serverless

computing: Current trends and open problems. CoRR,

abs/1706.03178.

Ellis, A. (2018). Introducing stateless microservices for

openfaas. https://www.openfaas.com/blog/. Ac-

cessed: 2019-11-11.

Fang, D., Liu, X., Romdhani, I., Jamshidi, P. and Pahl, C.

(2016). An agility-oriented and fuzziness-embedded

semantic model for collaborative cloud service search,

retrieval and recommendation. In Future Generation

Computer Systems, 56, 11-26.

Gand, F., Fronza, I., Ioini, N. E., Barzegar, H. R., Azimi,

S., and Pahl, C. (2020). A fuzzy controller for self-

adaptive lightweight container orchestration. In Intl

Conf on Cloud Computing and Services Science.

El Ioini, N. and Pahl, C. (2018). Trustworthy Orchestration

of Container Based Edge Computing Using Permis-

sioned Blockchain. Intl Conf on Internet of Things:

Systems, Management and Security (IoTSMS).

Jamshidi, P., Pahl, C., Mendonca, N. C., Lewis, J., and

Tilkov, S. (2018). Microservices: The journey so far

and challenges ahead. IEEE Software, 35(3):24–35.

Jamshidi, P., Pahl, C., Chinenyeze, S. and Liu, X. (2015).

Cloud Migration Patterns: A Multi-cloud Service Ar-

chitecture Perspective. In Service-Oriented Comput-

ing - ICSOC 2014 Workshops. 6–19.

Jamshidi, P., Shariﬂoo, A., Pahl, C., Arabnejad, H., Met-

zger, A. and Estrada, G. (2016). Fuzzy self-learning

controllers for elasticity management in dynamic

cloud architectures. QoSA, 70–79.

Jamshidi, P., Pahl, C. and Mendonca, N. C. (2016). Man-

aging uncertainty in autonomic cloud elasticity con-

trollers. IEEE Cloud Computing, 50-60.

Jamshidi, P., Pahl, C. and Mendonca, N. C. (2017). Pattern-

based multi-cloud architecture migration. Software:

Practice and Experience 47 (9), 1159-1184.

Javed, M., Abgaz, Y. M. and Pahl, C. (2013). Ontology

change management and identiﬁcation of change pat-

terns. Journal on Data Semantics 2 (2-3), 119-143.

Kiss, P., Reale, A., Ferrari, C. J., and Istenes, Z. (2018). De-

ployment of iot applications on 5g edge. In 2018 IEEE

International Conference on Future IoT Technologies.

Kritikos, K. and Skrzypek, P. (2018). A review of serverless

frameworks. In 2018 IEEE/ACM International Con-

ference on Utility and Cloud Computing Companion

(UCC Companion), pages 161–168.

Le, V. T., Pahl, C. and El Ioini, N. (2019). Blockchain Based

Service Continuity in Mobile Edge Computing. In 6th

International Conference on Internet of Things: Sys-

tems, Management and Security.

Melia, M. and Pahl, C. (2009). Constraint-based validation

of adaptive e-learning courseware. In IEEE Transac-

tions on Learning Technologies 2(1), 37-49.

Mendonca, N. C., Jamshidi, P., Garlan, D., and Pahl, C.

(2019). Developing self-adaptive microservice sys-

tems: Challenges and directions. IEEE Software.

openFaaS (2019). openfaas: Auto-scaling. https://docs.

openfaas.com/architecture/autoscaling/. Accessed:

2019-11-11.

Pahl, C. (2005). Layered ontological modelling for web

service-oriented model-driven architecture. In Europ

Conf on Model Driven Architecture – Found and Appl.

Pahl, C., Jamshidi, P., and Zimmermann, O. (2018). Archi-

tectural principles for cloud software. ACM Transac-

tions on Internet Technology (TOIT), 18(2):17.

Pahl, C., El Ioini, N., Helmer, S. and Lee, B. (2018). An ar-

chitecture pattern for trusted orchestration in IoT edge

clouds. Intl Conf Fog and Mobile Edge Computing.

Pahl, C. (2003). An ontology for software component

matching. International Conference on Fundamental

Approaches to Software Engineering, 6-21.

Pahl, C., Fronza, I., El Ioini, N. and Barzegar, H. R. (2019).

A Review of Architectural Principles and Patterns for

Distributed Mobile Information Systems. In 14th Intl

Conf on Web Information Systems and Technologies.

Samir, A. and Pahl, C. (2020). Detecting and Localizing

Anomalies in Container Clusters Using Markov Mod-

els. Electronics 9 (1), 64.

Scolati, R., Fronza, I., Ioini, N. E., Samir, A., and Pahl,

C. (2019). A containerized big data streaming archi-

tecture for edge cloud computing on clustered single-

board devices. In 9th International Conference on

Cloud Computing and Services Science.

Serverless (2019). Serverless framework. https://serverless.

com/. Accessed: 2019-11-13.

Steffenel, L., Schwertner Char, A., and da Silva Alves, B.

(2019). A containerized tool to deploy scientiﬁc ap-

plications over soc-based systems: The case of mete-

orological forecasting with wrf. In CLOSER’19.

Taibi, D., Lenarduzzi, V. and Pahl, C. (2019). Microservices

Anti-Patterns: A Taxonomy. Microservices - Science

and Engineering, Springer.

Taibi, D., Lenarduzzi, V., Pahl, C. and Janes, A. (2017).

Microservices in agile software development: a

workshop-based study into issues, advantages, and

disadvantages. In XP2017 Scientiﬁc Workshops.

Tata, S., Jain, R., Ludwig, H., and Gopisetty, S. (2017).

Living in the cloud or on the edge: Opportunities and

challenges of iot application architecture. In 2017

IEEE Intl Conf on Services Computing (SCC).

von Leon, D., Miori, L., Sanin, J., El Ioini, N., Helmer,

S. and Pahl, C. (2018). A Performance Exploration

of Architectural Options for a Middleware for Decen-

tralised Lightweight Edge Cloud Architectures. Intl

Conf Internet of Things, Big Data & Security.

von Leon, D., Miori, L., Sanin, J., El Ioini, N., Helmer, S.

and Pahl, C. (2019). A Lightweight Container Mid-

dleware for Edge Cloud Architectures. Fog and Edge

Computing: Principles and Paradigms, 145-170.

Serverless Container Cluster Management for Lightweight Edge Clouds

311
