A Fuzzy Controller for Self-adaptive Lightweight Edge Container

Orchestration

Fabian Gand, Ilenia Fronza, Nabil El Ioini, Hamid R. Barzegar, Shelernaz Azimi and Claus Pahl

Free University of Bozen-Bolzano, Bolzano, Italy

Keywords:

Edge Cloud, Container, Cluster, Self-adaptive, Performance Engineering, Auto-scaling, Fuzzy Logic.

Abstract:

Edge clusters consisting of small and affordable single-board devices are used in a range of different applica-

tions such as microcontrollers regulating an industrial process or controllers monitoring and managing trafﬁc

roadside. We call this wider context of computational infrastructure between the sensor and Internet-of-Things

world and centralised cloud data centres the edge or edge computing. Despite the growing hardware capabil-

ities of edge devices, resources are often still limited and need to be used intelligently. This can achieved

by providing a self-adaptive scaling component in these clusters that is capable of scaling individual parts of

the application running in the cluster. We propose an auto-scalable container-based cluster architecture for

lightweight edge devices. A serverless architecture is at the core of the management solution. Our auto-scaler

as the key component of this architecture is based on fuzzy logic in order to address challenges arising from an

uncertain environment. In this context, it is crucial to evaluate the capabilities and limitations of the application

in a real-world context. Our results show that the proposed platform architecture, the implemented application

and the scaling functionality meet the set requirements and offer a basis for lightweight edge computing.

1 INTRODUCTION

Edge Computing is deﬁned as a concept where most

processing tasks are computed directly on hardware

nodes at the edge of a network and are not send to cen-

tral, but remote processing hubs. The management of

these systems often covers different concepts for scal-

ing parts of the system dynamically in order to deal

with changing requirements in a constrained environ-

ment. This is achieved by various means: Proposed

solutions range from simple algorithms that deﬁne

scale values based on set thresholds (Xi et al., 2004)

to systems leveraging the power of neural networks

(Lama and Zhou, 2010). Based on past research, a

suitable auto-scaling algorithm needs to be suggested,

implemented and evaluated for our edge context.

This work aims at evaluating whether a server-

less systems managed by an intelligent auto-scaling

functionality offers a potential basis for lightweight

edge computing. Serverless aims at delegating the

deploying, scaling and maintaining of software to the

cloud/edge provider, simply requiring only to pass ap-

plications to a serverless platform. Even though a re-

cent concept, serverless technology is already in use

in a variety of application areas since it became ﬁrst

relevant around ﬁvecyears ago (Baldini et al., 2017).

Our edge platform is implemented on a cluster of

eight single-board devices. Small clusters have previ-

ously been evaluated in basic, i.e., static forms. How-

ever, they has not yet been used to run and evaluate a

complete system based on real-life requirements and

constraints with dynamic scalability included. Since

small single-board devices, like the Raspberry Pi, are

widely used, we will evaluate under which conditions

a cluster of these devices is able to support a dis-

tributed system requiring low latency that is tightly

constrained by a ﬁxed set of performance require-

ments. Our system is based on MQTT for inter-

cluster communication, openFaas and Docker Swarm

for the implementation of the serverless concept, us-

ing Prometheus for monitoring purposes and utilizing

fuzzy logic for the central auto-scaling component.

The implemented auto-scaling algorithm will be eval-

uated experimentally. We report on the performance

of the system for different scenarios.

In the remainder, in Section 2, relevant concepts,

tools and technologies are introduced. Then, work

on distributed edge systems and auto-scaling is dis-

cussed. Section 4 introduces ﬁrst a high-level archi-

tecture, before detailing the auto-scaling component

in Section 5. Finally, we evaluate the platform and

conclude with directions for future research.

Gand, F., Fronza, I., El Ioini, N., Barzegar, H., Azimi, S. and Pahl, C.

A Fuzzy Controller for Self-adaptive Lightweight Edge Container Orchestration.

DOI: 10.5220/0009379600790090

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 79-90

ISBN: 978-989-758-424-4

2 TECHNOLOGIES &

ARCHITECTURE

We introduce important concepts, tools and technolo-

gies that we combine to deﬁne the core architecture.

2.1 Architecture Concepts

The presented platform is based on a range of con-

cepts for architecture, deployment and self-adaptivity.

Cloud computing is based on centralised data cen-

ters that are able to process large amounts of data in

the "Cloud" (Kiss et al., 2018). This, however, leaves

the potential local processing power of the "Edge"

network unused, causing often signiﬁcantly increased

latency. Edge Computing leverages the processing

power of local nodes at the edge of the network.

These nodes are an intermediate layer (Kiss et al.,

2018) that process data within the local network that

would otherwise by handled by a remote cloud.

Microservices are a recent architectural paradigm.

Traditional architectures usually deliver an applica-

tion as a monolith, i.e., an application is bundled into

one executable that is then deployed. When migrating

to a microservice architecture, the monolith is split

into different parts (the microservices) that run in in-

dependent processes with their own deployment arti-

facts (Jamshidi et al., 2018).

The serverless concepts allows developers to fo-

cus only on the application without having to con-

sider the deployment servers, which is handled by

the cloud provider. This allows for features such as

fault-tolerance and auto-scaling to be managed (Bal-

dini et al., 2017). Usually, serverless computing

is linked to a concept called Functions-as-a-Service

(FaaS), which means that small chunks of function-

ality are deployed in the cloud and scaled dynami-

cally by the cloud provider (Kritikos and Skrzypek,

2018). These functions are usually smaller than mi-

croservices, are short-lived and have clear input and

output parameters. If the component to be deployed is

more complex than a simple function and is supposed

to stay active for a longer period of time, a stateless

microservice is another option (Ellis, 2018).

2.2 Self-adaptiveness and Fuzzyness

A self-adaptive system dynamically adapts its be-

havior to either preserve or enhance required qual-

ity attributes in the presence of uncertain operating

conditions. The development of microservice appli-

cations as self-adaptive systems is still a challenge

(Mendonca et al., 2019). In practice, e.g., the Ku-

bernetes container orchestration platform facilitates

to deploy and manage microservice applications, but

natively only supports basic autoscaling by automati-

cally change the number of instances of a service.

Computers traditionally excel at tasks that contain

simple mathematical calculations. Human reasoning,

however, is usually more complex. Natural language

is rarely precise in a way that it quantiﬁes something

as one thing or the other: words can have uncertain,

ambiguous meanings (Hong and Lee, 1996), human

reasoning is fuzzy. Uncertainty also arises in edge en-

vironments through incomplete or potentially incor-

rect or conﬂicting observations. Fuzzy logic is try-

ing to represent this by mapping inputs (e.g., obser-

vations) to outputs (e.g., analyses or reactions) based

on gradually changing functions and a set of rules

rather than ﬁxed thresholds. A membership function

is a function that represents a fuzzy set and decides to

which degree an item belongs to a certain set. Fuzziﬁ-

cation refers to input values that are mapped to mem-

bership functions to derive the degree of membership

in that set (Lin and Lee, 1991). This is a stark con-

trast to a binary approach where the element can ei-

ther be part of a set or not. Fuzzy rules deﬁne how

after fuzziﬁcation the values are matched against if-

else rules. Defuzzyﬁcation is the ﬁnal step, where a

numerical output value is generated.

A sample goal might be to calculate the money

that should to be saved each month based on a ﬂex-

ible salary and the expected expenses. The amount

of money that is to be saved in a long-term savings

account will be returned by the fuzzy system.

• Membership functions – The three variables

salary, expected expenses and the money that is

suggested to be saved are visualized in Figures 1a,

1b and 2. Each variable consists of three member-

ship functions: low, high and medium – represent-

ing, for example, the degree to which a salary of

50 can be considered a low, high or average salary.

• Rules – The rules are set as follows:

IF salary LOW OR expenses HIGH THEN savings LOW

IF salary AVERAGE THEN savings AVERAGE

IF salary HIGH OR expenses LOW THEN savings HIGH

• System Inputs – The savings are calculated based

on a salary of 82 and expected expenses of 51.4.

• Defuzzyﬁcation – After defuzzyﬁcation, we get a

savings recommendation of 15.03.

2.3 Selected Tools and Technologies

The concrete infrastructure and software technologies

used in the implementation of the platform shall be

introduced now. The Raspberry Pi is a single-board

computer based on an ARM-processor. Docker is a

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

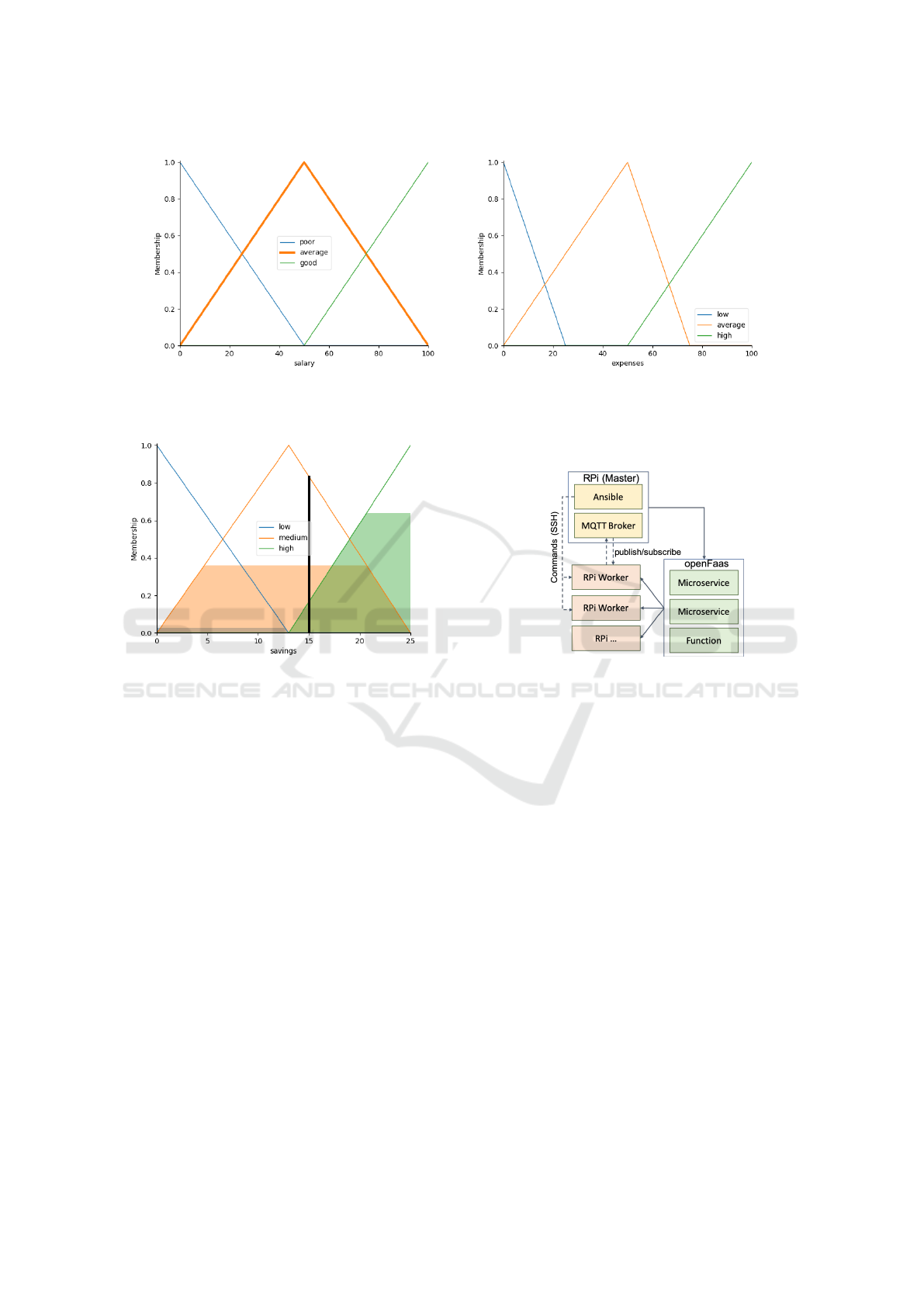

(a) Membership function of the ﬂexible salary. (b) Membership functions of the expected expenses.

Figure 1: Membership functions of the two input values.

Figure 2: Savings membership functions with ﬁnal value.

containerization software. Containerization is a virtu-

alization technology that, instead of virtualizing hard-

ware, separates processes from each other. It has been

successfully used on Raspberry Pis (Scolati et al.,

2019). Docker swarm is the cluster management tool

that is integrated into the Docker Engine. It is based

on services. Instead of running the services and their

corresponding containers on one host, they can be

deployed on a cluster of nodes that is managed like

a single, docker-based system. By setting the de-

sired number of replicas of a service, basic scaling

can also be handled. MQTT is a network protocol

suitable for the Internet of Things. Prometheus is a

monitoring tool that can be used to gather and pro-

cess application metrics. Contrary to other monitor-

ing tools, Prometheus "scrapes" the metrics from a

predetermined interface in a given interval. Open-

Faas is a Functions-as-a-Service framework that can

be deployed on top of a Docker swarm or a Kuber-

netes cluster. By default openFaas contains simple

autoscaling that leverages the default metrics aggre-

gated by Prometheus and scales based on predeﬁned

thresholds (openFaaS, 2019). Stateless microservices

can be built by using the Dockerﬁle template.

Figure 3: Hardware and networking components.

2.4 Lightweight Edge Platform Design

Combining the above technologies suggests splitting

the application into microservices and containerizing

it, allowing the hardware to be reallocated dynami-

cally. This also enables scaling the different parts

of the application. OpenFaas allows building and

deploying services in the form of functions across

the cluster. Some of its features, such as built-in

Prometheus or the gateway, can be extended upon to

make openFaas the central building block of the appli-

cation (Gand et al., 2020). An overview of the differ-

ent technologies in the context of the given platform is

provided in Figure 3. Even though openFaas scaling

is limited, it can be used as a foundation for our self-

adaption. We implement a more ﬁne-grained scal-

ing algorithm using the built-in monitoring options as

well as fuzzy logic as the reasoning foundation.

A Fuzzy Controller for Self-adaptive Lightweight Edge Container Orchestration

3 RELATED WORK

A system similar to ours in architectural terms as a

Raspberry Pi-based implementation of an application

system has been introduced in (Steffenel et al., 2019).

The authors introduce a containerized cluster based

on single-board devices that is tailored towards ap-

plications that process and compute large amounts of

data. They deploy this application, a weather fore-

cast model, to the Raspberry Pi cluster and evaluate

its performance. They note that the performance of

the RPI cluster is within limits acceptable and could

be a suitable option for comparable use cases, al-

though networking performance of the Raspberry Pis

has been identiﬁed as a bottleneck. We will address

performance degradations here through auto-scaling.

There are a range of scalabity approaches.

(Jamshidi et al., 2014) categorize them into reac-

tive, proactive and hybrid approaches. Reactive ap-

proaches react to changes in the environment and take

action accordingly. Proactive approaches predict the

need for resources in advance. Hybrid systems com-

bine both approaches, making use of previously col-

lected data and resource provisioning at run time.

AI approaches in this context can be used to im-

prove the response of the network to certain envi-

ronmental factors such as network trafﬁc or threats

to the system (Li et al., 2017). The authors pro-

pose a general architecture of smart 5G system that

includes an independent AI controller that commu-

nicates with the components of the application. Ex-

amples of implementations of algorithms for auto-

scaling and auto-conﬁguration exist. (Saboori et al.,

2008) propose tuning conﬁguration parameters using

an evolutionary algorithm called Covariance-Matrix-

Adaption. Using this approach, potential candidates

for solving a problem are continuously evolved, eval-

uated and selected, guiding the subsequent genera-

tions towards a desired outcome. Another paper in-

troduces a Smart Hill Climbing Algorithm for ﬁnding

the optimal conﬁguration for a Web application (Xi

et al., 2004). The proposed solution is based on two

phases: In the global search phase, they broadly scan

the search space for a potential starting point of the lo-

cal search phase. Another interesting approach aims

at optimizing the conﬁguration of Hadoop, a frame-

work for distributed programming tasks (Kambatla

et al., 2009), an ofﬂine, proactive tuning algorithm

that does not reallocate resources at run-time, but tries

to ﬁnd the best conﬁguration in advance.

There are some proposals using fuzzy logic for

auto-conﬁguration. (Jamshidi et al., 2014) introduce

an elasticity controller that uses fuzzy logic to auto-

matically reallocate resources in a cloud-based sys-

tem. Time-series forecasting is used to obtain the es-

timated workload at a given time in the future. Based

on this information, the elasticity controller calculates

and returns the number of virtual machines that needs

to be added to or removed from the system. The al-

location of VMs is consequently carried out by the

cloud platform. There, the rule base and membership

functions are based on the experience of experts.

Reinforcement Learning in the form of Fuzzy Q-

learning has been evaluated in this context (Ipek et al.,

2008), (Jamshidi et al., 2015). The aim of these sys-

tems is to ﬁnd the optimal conﬁguration provisioning

by interacting with the system. The controller, mak-

ing use of the Q-learning algorithm, selects the scal-

ing actions that yield the highest long-term reward. It

will also keep updating the mapping of reward val-

ues to state-action pairs (Ipek et al., 2008). Adap-

tive neuro-fuzzy inference systems (ANFIS), combin-

ing neural networks and fuzzy logic, are discussed in

(Jang, 1993). Fuzzy logic and neural networks are

shown to complement each other in a hybrid system.

The work presented in this paper focuses on

applying a practical approach for implementing a

lightweight auto-scaling controller based on fuzzy

logic. So far, fuzzy auto-scaling for lightweight edge

architectures has not been investigated.

4 ARCHITECTURE OVERVIEW

We overview the architecture before covering low-

level implementation details of the platform and

its auto-scaling component. The proposed binding

blocks of the application such as the a serverless and

microservices-based architecture can be reused for

different applications in different contexts. The scal-

ing component is also usable in different applications

by simply updating a few constants.

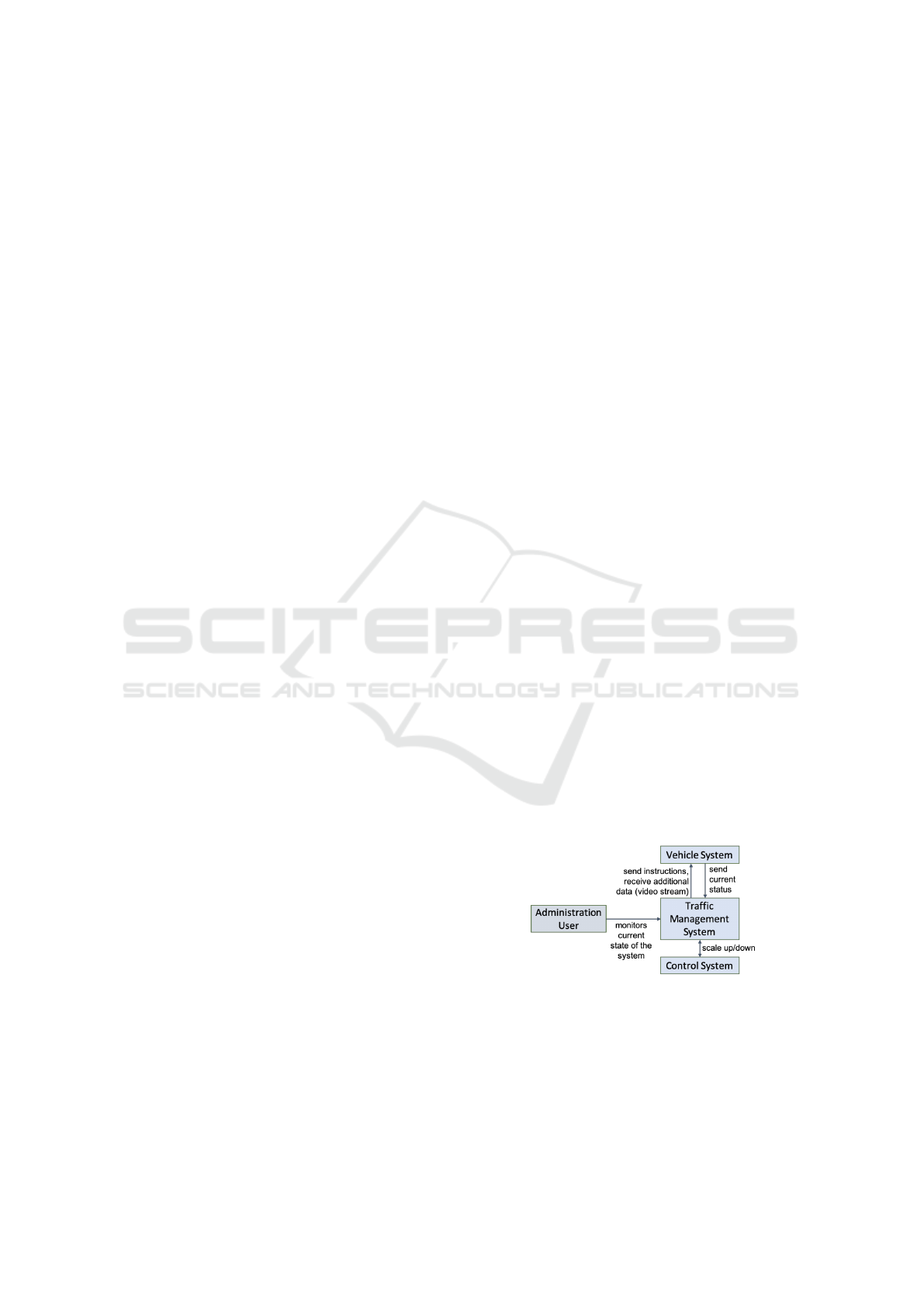

Figure 4: Interaction between different systems.

The architecture consists of three layers. The plat-

form layer represents the hardware architecture of the

cluster. The system layer comprises the central man-

agement components. On top of these, the controller

layer scales the components of the platform. Figure 4

shows the interaction between system layer, controller

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

layer and additional components. We use a Trafﬁc

Management (TM) System as a sample application.

We assume a constant exchange of messages between

the trafﬁc management and vehicle components that

in our prototype implementation contains simulations

of vehicles. The control system is used to scale the

TM System based on the current situation.

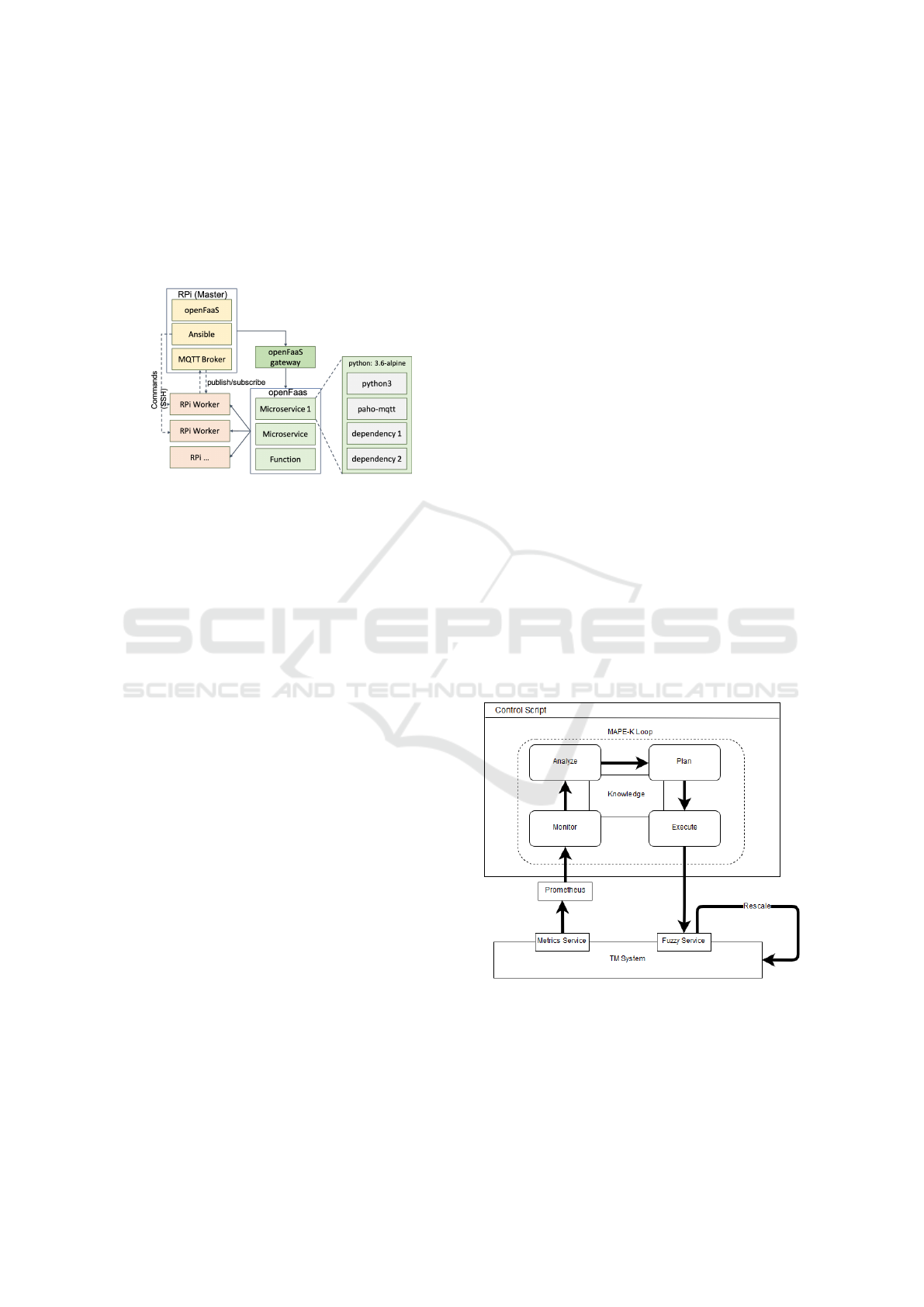

Figure 5: Platform Layer

The high-level platform layer is shown in Figure

5. The application is deployed on a cluster managed

by Docker Swarm. The cluster includes one master

node and an arbitrary number of worker nodes. An-

sible is used to execute commands on all nodes with-

out having to connect to each node individually. All

nodes are able to connect to the MQTT broker that

is running on the master device after startup. Using

Docker swarm and openFaas, the RPIs can be con-

nected so that they can be seen as one system. If a

service is supposed to be deployed, openFaas will dis-

tribute it among the available nodes. There is no need

to specify a speciﬁc node as this abstraction layer is

hidden behind the openFaas framework. The services

and functions are built and deployed using the open-

Faas command line interface. OpenFaas is also uti-

lized to scale the services independently. Communi-

cation between the services is achieved by relying on

the openFaas gateway as well as on the MQTT bro-

ker. The cluster is comprised of eight Raspberry Pi

2 Model B connected to a mobile switch via 10/100

Mbit/s Ethernet that is powering the RPIs via PoE

(Power over Ethernet).

Monitoring is done through the openFaas

Prometheus instance. This instance is used to store

metrics and query them when needed. Before startup,

Prometheus needs to be informed about the endpoints

that metrics should be collected from.

5 AUTOSCALING CONTROLLER

The autoscaling controller is the central component in

the architecture to manage performance. One require-

ment for it was that it had to be lightweight. Using too

many system resources such as storage space or CPU

usage was to be avoided since the algorithm is meant

to be deployed on the RPI cluster itself with most of

the clusters resources being reserved for actual appli-

cation components.

Fuzzy logic allows for a good compromise be-

tween a powerful decision-making process and a lim-

ited resource consumption. However, the initial fuzzy

knowledge base is difﬁcult to obtain. The follow-

ing solution combines reactive and proactive conﬁg-

uration methods by initially anticipating demand in

the calibration and conﬁguration (proactive) and then

continuously re-adjusting them if needed (reactive).

Values of previous runs of the system are used to

set-up an initial fuzzy knowledge base. The reactive

part of the algorithm continuously updates parts of the

knowledge base at runtime.

5.1 Scaling Principles

The functionality of the algorithm can be visualized

by using the MAPE-K (Kephart and Chess, 2003)

controller loop for self-adaptive systems. The steps of

the controller loop are as follows: Monitor the appli-

cation and collect metrics, Analyze the gathered data,

Plan actions accordingly in order to maintain objec-

tives, and Execute the planned actions. The Knowl-

edge component deﬁnes a shared knowledge base that

is continuously updated.

Figure 6: MAPE-K loop for fuzzy auto-scaling controller.

Scaling Conﬁguration and Calibration: The

MAPE-K loop for the given system is presented in

Figure 6. The scaling algorithm, based on the four

main phases of the loop, is implemented in a python

script (control.py). The script is run independently on

a single cluster node. The algorithm starts by build-

A Fuzzy Controller for Self-adaptive Lightweight Edge Container Orchestration

ing the fuzzy membership functions, essentially cali-

brating them based on existing experience. The val-

ues used for constructing the functions are part of the

MAPE-K knowledge base. These values are calcu-

lated by relying on metrics of previous runs of the

system. Therefore, before starting the scaling algo-

rithm effectively, the system needs have been run at

least once to detemine behaviour that can be antic-

ipated. Based on the initial membership functions,

a ﬁrst global scale value is computed according to

which the system is scaled. This forms the proactive

part of the controller, which provides settings for fu-

ture runs based on anticipated load and performance.

Continuous Scaling: Once the system is started,

the reactive part of the algorithm is executed as the

default that adjusts current settings to speciﬁed re-

quirements. The script receives current performance

metrics from the Prometheus API. These metrics are

evaluated against the allowed threshold values stored

in the knowledge component. The knowledge compo-

nent is implemented within the control script. Based

on these computations, a plan is devised that involves

updating the fuzzy membership functions. The goal

is to constantly update the membership function such

that the fuzzy service provides optimal scale values

for all load scenarios. Here, optimal is deﬁned as a

system that is scaled in order to meet the SLO without

wasting unnecessary resources, i.e., the ultimate goal

is to only scale up as much as necessary. The deﬁ-

nitions of the membership functions are also part of

the knowledge component and are continuously up-

dated. The membership functions are passed to the

fuzzy service that calculates a scale value. After scal-

ing, the loop repeats by monitoring and analyzing the

effects of the previous iteration.

Figure 7: Details of services providing scaling functionality.

5.2 The Fuzzy Service

The fuzzy service is used to calculate the scale value.

It receives the membership functions as input. An-

other parameter is the range of the scale values. This

parameter can be deﬁned to set the minimum and

maximum scale values that are perceived as accept-

able. The services returns a global scale value as

output. The rules in the fuzzy service are predeﬁned.

The minimal alpine distribution, which is used for the

other images, could not be used in this case since sk-

fuzzy, the python fuzzy module that was used, relies

on the numpy module that requires a more complex

OS. Therefore, the image of the fuzzy service is based

on ubuntu:18.04. The calc function is used to simu-

late a function that is called continuously. It is always

scaled to the maximum. If there are only a few mes-

sage processes by the system that the calc function is

allowed to scale higher. When the number rises, the

allowed number of replicas will decrease.

Figure 8: Initial membership functions.

Figure 9: Re-adjusted membership functions: the system

can handle less messages than expected.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

5.3 Calibration and Conﬁguration

This preparatory part of the solution relies on met-

rics gathered during previous runs of the system that

are then used as the basis for calibrating the fuzzy

membership functions to manage anticipated demand.

The metric that is used to measure the current load of

the system is the number of exchanged messages in a

given time frame. This metric, called messages_total,

only deﬁnes the total number of messages the system

had to process since the monitoring started. What

is needed, is a way to measure how many messages

were processed in a given timeframe. We base this

on the Prometheus rate() function, which returns the

"per second rate of increase". Executing the following

example query that is used throughout the application

returns the per-second rate of increase measured over

the last 20 seconds:

rate(messages_count_total[20s])

The rate r is calculated as follows:

r =

− x

i−t

(1)

where x

i−t

is the number of messages for t seconds

in the past with x

as the most recent number of mes-

sages. This value is divided by t, the time frame that

is considered, since r is the per-second value. Based

on the rate, the Prometheus query language is used

to obtain three values: the global median, the global

standard deviation and the global maximum. Global

in this context refers to metrics that were calculated

based on previous runs of the system. These values

are used to create the initial membership functions of

the rate of messages. In sk-fuzzy, Gaussian member-

ship functions are created by deﬁning their mean and

their standard deviation. The Gaussian membership

functions are simple to create and re-adjust. All mem-

bership functions set the previously obtained global

standard deviation σ

as their own standard devia-

tion. The mean of the average membership function

is placed at the global median:

median(a)

(2)

with a being a set of data, in this case the rate of mes-

sages. The mean of the low membership function is:

median(a)

− σ

(3)

with σ

again being the global standard deviation.

The mean of the high membership function is thus:

median(a)

+ σ

(4)

The initial membership functions are shown in Fig. 8.

The details of calculating the three global vari-

ables are discussed now. The following sample query

returns the single median value over all rates of mes-

sages (the rates covering a time span of 20 seconds

each) of the last 90 days:

quantile_over_time(

0.5,

rate(messages_count_total[20s])[90d:20s]

)

Prometheus does not offer a median function, but the

built-in quantile function can be used to calculate the

median. A quantile splits a proabablilty distribution

into groups according to a given threshold. The 0.5

quantile equals the median. Generally, the median can

be expressed as follows:

(0.5) = median(a) (5)

The standard deviation over time is calculated by us-

ing the corresponding PromQL function:

stddev_over_time(

rate(messages_count_total[20s])[90d:20s])

)

This call returns the standard deviation of the rate

of messages (covering a time span of 20 seconds

each). The total time span that is considered are the

last 90 days. The standard deviation for the given con-

text is:

∗

∑

i=1

∗(x

− µ) (6)

with N being the rates of messages considered while

is a single rate of messages and µ is the mean of all

rates of messages. Finally, only the global maximum

of the data set remains to be calculated:

max_over_time(

rate(messages_count_total[20s])[90d:20s]

)

5.4 Continuous Scaling

The continuous scaling uses the previously created

initial membership functions and re-adjusts them con-

tinuously. This reactive part is implemented as part of

an inﬁnite loop. After the initial conﬁguration and

calibration part is concluded, the initial membership

functions are passed to the fuzzy service that returns

a scale value. This is used to scale services as follows:

s = round(D ∗ G) (7)

where s is the new scale value a speciﬁc service is

scaled to, D is the default value the service is scaled

to at startup and G is the rounded global scale value

that has been calculated by the fuzzy service and is

used for all dynamically scaled components. These

A Fuzzy Controller for Self-adaptive Lightweight Edge Container Orchestration

scalable components include the gatherer service and

the decision function.

After scaling the components and waiting for a set

period of time, the Message Roundtrip Time MRT is

calculated. This metric for the sample Trafﬁc Man-

agement use case indicates the average time a vehi-

cle needs to wait for a response from the gatherer af-

ter publishing its latest status. In the analysis phase,

the MRT is compared to the maximum threshold that

is deﬁned in the SLA. If the average MRT is above

the SLO, the membership functions need to be re-

adjusted. The initial membership function shown in

Fig. 8 results in a scale value too low for the given

load: the measured MRT after scaling was above the

deﬁned threshold. Therefore, the membership func-

tion need to be shifted to the left. The result of this

shift can be seen in Fig. 9. If we assume the current

load to be 0.5 and compare the degree of membership

in both ﬁgures, we ﬁnd that in the initial ﬁgure a load

value of 0.5 is considered an "average" load. Look-

ing at the re-adjusted functions, a value of 0.5 is now

seen as more of a "high" load. Since the fuzzy ser-

vice classiﬁes a value of 0.5 as a "higher" load now,

it also maps it to a higher scale value. Consequently,

the system now scales up at a load value of 0.5 where

it had previously taken no action. Similarly, we need

to consider a situation in which the MRT is well be-

low the deﬁned threshold. In this case, the functions

need to be shifted to the right. The rate at which the

functions are shifted in each iteration of the loop can

be controlled by (manually) updating the adjustment

factor. Hence, the membership functions for each it-

eration are computed as follows:

• Membership function low: median(a)

− σ

+ A

• Membership function average : median(a)

+ A

• Membership function high: median(a)

+σ

where A here is the adjustment factor for the func-

tions. A is computed at each iteration. A positive

re-adjustment factor results in a shift to the right, a

negative one shifts functions to the left. To avoid con-

stantly moving the functions back and forth, shifting

right is only allowed until a situation is encountered

where the STO threshold is not met anymore. Af-

ter completing the shifting process within the con-

trol script, the reactive part of the algorithm is started

anew by passing the re-adjusted membership func-

tions to the fuzzy service.

The following algorithm provides an overview of

the continuous scaling functionality:

Algorithm 1: Reactive Autoscaling.

1: function SCALE(MEMBERSHIPFCTS)

2: sto ← STO threshold

3: scalevalue ←

4: getScaleValueFromFuzzyService(membershipFcts)

5: rescale(scalevalue)

6: invocationtime ← get current invocation time

7: if invocationtime < slo then

8: shift membership functions right

9: if invocationtime >= slo then

10: shift membership functions left

11: Scale(membershipFcts)

6 EVALUATION

The evaluation focus lies on the performance of the

proposed serverless microservice solution and the

auto-scaling approach. The bottlenecks are identiﬁed

by measuring a number of performance metrics that

will be introduced later on.

6.1 Evaluation Objectives and Metrics

The effectiveness of the autoscaling approach needs

to be evaluated as the core solution component. Being

effective means that the auto-scaling algorithm is able

to maintain the set SLO thresholds by re-adjusting

the fuzzy membership functions. This would result

in a smooth scaling process where the scalable com-

ponents are gradually scaled up or down, avoiding

sudden leaps of the scale value. For the given appli-

cation, we alslo determined the maximum load, i.e.,

here the maximum number of vehicles the architec-

ture (including the network it is operated in) can sup-

port. Note, that the vehicles referred to here could be

replaced by other application components.

These objectives were evaluated for two different

cluster set-ups. In order to obtain a ﬁrst understanding

of the system and the possible range of variables, a

pilot calibration evaluation was conducted on a small

cluster of three RPIs. Then, the evaluation procedure

was repeated for a complete cluster of eight devices.

All evaluation steps report on a number of per-

formance metrics that indicate the effectiveness of

the system or provide insight into an internal pro-

cess. The Message Roundtrip Time (MRT) is the cen-

tral variable of the system since it reports on the ef-

fectiveness of the application execution. Included in

the MRT is the (openFaas) Function Invocation Time

(FIT) that is listed separately in order to individually

report on serverless performance aspects. All MRT

and FIT values are considered average values aggre-

gated over the last 20 seconds after the previous scal-

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

Table 1: Results for cluster of 3 RPIs. Scaling was active

with variables set to values reported in Figure 2.

Vehicles Memory CPU MRT FIT

2 25.55 46.97 1.63 1.51

4 37.94 47.24 1.85 1.48

8 57.1 49.36 1.79 1.61

12 71.77 51.81 4.49 1.79

14 92.78 55.49 10.24 2.13

Table 2: Initial Calibration Scaling run for a cluster of three

RPIs with a (ﬁxed) number of 12 cars. Shift Left/Right re-

ports on the direction the membership functions are shifted

to during a given iteration. The number of scaled compo-

nents is also reported. Manually set variables: Maximum

Scale Value: 5, MRT Threshold: 2.0 seconds – FSV: Fuzzy

Scale Value, IT: Invocation Time after scaling, Ga: Gath-

erer, DF: Decision Function.

Iteration FSV IT Shift # Ga # DF

1 2.74 1.74 Right 10 5

2 2.63 2.5 Left 10 5

3 2.74 2.05 Left 10 5

4 2.95 1.9 Right 12 6

ing operation was completed. Here, the maximum

scale value was unknown. In concrete scenarios, this

value might have been speciﬁed beforehand.

We use different MRT thresholds. In concrete

settings, the maximum response time could be given

in advance and would unlikely to be the subject of

change. For all set-ups and iterations that were eval-

uated, the hardware workload was measured by com-

puting the average CPU and memory usage over all

nodes of the cluster, combining it to a single value.

6.2 Evaluation Setup

In order to evaluate the system, a couple of conﬁgura-

tions had to be made. Prometheus is used to gather

and aggregate the metrics for the evaluation. The

cloud-init conﬁguration was adjusted so that an ad-

ditional python script is executed on each node. The

script uses the psutil python module to record CPU

and memory usage of the node and publish them to

a speciﬁc MQTT topic. Additional functionality was

also added to the metrics service: the service receives

the CPU/memory metrics of all nodes and stores them

internally. When the metrics are collected, the service

calculates average CPU and memory usage across all

nodes and exposes them to Prometheus.

6.3 Experimental Evaluation

Pilot Calibration. An initial evaluation (calibration

pilot) was conducted to obtain an initial idea of the

system’s capabilities and adjust the manually-tuned

Table 3: Scaling experiment for cluster of 8 RPIs. Manually

set variables: Maximum Scale Value: 12, Number of cars:

changing, MRT Threshold: 0.3 seconds – FSV: Fuzzy Scale

Value, AF: Adjustment Factor.

Iteration cars FCV MRT AF

1 25 4.77 Initial 0.0

2 25 6.94 0.03 2.58

3 25 7.79 0.04 0.0

4 25 8.80 0.03 -2.58

5 50 10.11 0.178 -7.74

6 50 10.82 0.44 -10.32

7 50 10.82 0.44 -10.32

8 75 11.06 0.09 -12.9

9 75 11.24 0.033 -18.06

10 75 11.3 3.95 -20.64

11 75 11.34 0.07 -23.22

parameters accordingly. It was also used to evalu-

ate whether the scaling functionality yields promis-

ing results before putting it to use in a bigger set-up.

The evaluation was started with a cluster consisting

of three RPIs: a master and two worker nodes. The

maximum scale value was initially set to 5 in order to

avoid scaling unreasonably high. Table 1 reports on

the initial set of metrics for different numbers of ve-

hicles. The scaling functionality was active when the

metrics were monitored. Table 2 includes data of the

scaling algorithm for an initial calibrating run.

Full Cluster. A cluster of eight RPIs was used.

Here, the decision-making functionality is included

in the gatherer service, which is now scaled indepen-

dently. Hence, there is no longer the need to call the

decision function for each message. Results for the

auto-scaling algorithm can be found in Table 3.

The CPU usage started at 47% and showed a lin-

ear increase up to about 56% at 14 vehicles. The hard-

ware does not seem to be the limiting factor. The ini-

tal setup, however, shows a MRT of about 1.6 sec-

onds for only 2 vehicles. At 12 vehicles, a Roundtrip

Time of 4.5 seconds is reached and at 14 vehicles the

MRT is already above 10 seconds, which is clearly a

value too high for many real-world scenario. How-

ever, based on these ﬁndings, an initial evaluation run

of the auto-scaling algorithm was conducted with the

Roundtrip Time threshold set to 2.0 seconds. Even

though this is not realistic, it allows for testing the

auto-scaling functionality.

The experimental runs yielded promising results

and show that the algorithm is able to adaptively

rescale the system: The MRT is initially below the

predeﬁned threshold at about 1.7 seconds. In the sec-

ond iteration, the MRT value is recorded above the

threshold at 2.5 seconds. The system reacts to this sit-

uation by slowly re-adjusting the membership func-

tion, resulting in a higher fuzzy scale value, which

consequently scales the system up until the measured

A Fuzzy Controller for Self-adaptive Lightweight Edge Container Orchestration

MRT dropps below the threshold again.

6.4 Discussion of Evaluation Results

Using a smaller cluster set-up, it was possible to de-

rive starting values for all variables (calibration pilot).

The evaluation of the architecture indicated that

serverless function calls should be restricted since

they introduce network latency problems. The lim-

iting factor is here the network. The used set-up was

not able to process more than 75 user processes at a

time. The CPU and Memory usage numbers as well

as the steady but slow increase of the MRT imply that

the hardware itself is able process a higher number

of vehicles. Future evaluations should ﬁnd different

network set-ups that allow for a dependable service

beyond identiﬁed limits.

The implemented scaling algorithm works as in-

tended and is able to scale the system in a balanced

manner. After ﬁnding a SLO, that is usually given by

the speciﬁcations of the system, the only values that

need to be set manually are the maximum scale value

and the adjustment factor.

In summary, the full version of the system yields

satisfying results in terms of hardware consumption

and performance (MRT), while the presented scaling

algorithm gradually scales the system as intended.

7 CONCLUSIONS

This work introduced a containerized platform archi-

tecture on a cluster of single-board devices. The ap-

plied approach results in a reconﬁgurable, scalable

and dependable system that provides built-in solu-

tions for common problems such as service discov-

ery and inter-service communication. The implemen-

tation is a proof-of-concept with the constraints of

the environment playing a crucial factor in the imple-

mentation. We aimed at experimentally evaluating a

self-adaptive autoscaler based on the openFaas frame-

work and a microservices-based architecture. The

evaluation of the system was conducted to determine

the performance of the proposed set-up. The imple-

mented auto-scaling algorithm was speciﬁcally eval-

uated in order to assess dependable resource manage-

ment for lightweight edge device infrastructures. By

using openFaas beyond its documented boundaries, it

was possible to use the framework for inter-service

communication as well as for monitoring.

The auto-scaling algorithm, by using fuzzy logic,

is able to gradually scale the system. Unlike pre-

vious examples of fuzzy auto-scalers that were de-

ployed to a large cloud infrastructure, the fuzzy scal-

ing functionality here was constrained in its process-

ing demands since it was deployed alongside the main

system components on the limited hardware clus-

ter. Consequently, the algorithm was focused on us-

ing data and technologies that were already available

within the cluster. There still remain parameters that

need to be tuned manually to achieve the desired out-

comes. This leaves a certain degree of uncertainty

when applying the algorithm on a black-box system.

The evaluation also showed that the given set-up is

only able to process up to 75 vehicles simultaneously

in the used trafﬁc management application, but indi-

cating network aspects as the reason (while our focus

was on compute/storage resources).

Future work shall focus on improving the applica-

tion management components to drive them towards

a more realistic behavior. Additionally, security con-

cerns have not been covered in detail and need more

attention in the future. However, this abstract appli-

cation scenarios, with cars just being simulated data

providers, allowed us to generalise the results beyond

the concrete application case.

This also applies for fuzzy systems based on neu-

ral networks. Related work on Adaptive Neuro-Fuzzy

Inference Systems (ANFIS) was discussed earlier.

Working examples of ANFIS are relatively rare. One

example uses python and the machine-learning frame-

work tensorﬂow to combine fuzzy logic and a neu-

ral network (Cuervo, 2019). Relying on the ubuntu

distribution used for the fuzzy service, it is possible

to create an ANFIS service for our setting. Previ-

ously, compiling and running the tensorﬂow frame-

work on hardware such as the Raspberry Pi was a

challenging task. With release 1.9 of the framework,

tensorﬂow ofﬁcially started supporting the Raspberry

Pi (Warden, 2019). Pre-built packages for the plat-

form can now be directly installed. This adds new

possibilities for creating a lightweight ANFIS ser-

vice for the given system. ANFISs rely on train-

ing data. This introduces the challenge of ﬁnding

sample data that maps the rate of messages and a

scale value to an indicator that classiﬁes the perfor-

mance as acceptable/not acceptable: (rate of mes-

sages, scale value) → acceptable/not acceptable per-

formance This dataset could be aggregated manually

or in an automated manner.

Another direction is to address more complex ar-

chitectures with multiple clusters. We propose Parti-

cle Swarm Optimization (PSO) (Azimi et al., 2020)

here, which is a bio-inspired optimization methods

suitable to coordinate between autonomous entities

such as clusters in our case. PSO distinguishes per-

sonal (here local cluster) best ﬁtness and global (here

cross-cluster) best ﬁtness in the allocation of load to

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

clusters and their nodes. This shall be combined with

the fuzzy scaling at cluster level as proposed here.

In terms of use cases, we looked at trafﬁc man-

agement and coordinated cars, where trafﬁc and car

movement is captured and processed, maybe supple-

mented by infotainment information with image and

video data. Another application domain is mobile

learning that equally includes heavy use of multime-

dia content being delivered to mobile learners and

their devices (Murray et al., 2003; Pahl et al., 2004;

Kenny et al., 2003). These systems also rely on close

interaction with semantic processing of interactions in

order to support cognitive learnign processes. Some

of these can be provided at edge layer to enable satis-

factory user experience.

ACKNOWLEDGEMENTS

This work has received funding from the EU’s Hori-

zon 2020 research and innovation programme under

grant agreement 825012 - Project 5G-CARMEN.

REFERENCES

Ardagna, C. A., Asal, R., Damiani, E., Dimitrakos, T.,

El Ioini, N. and Pahl, C. (2018). Certiﬁcation-based

cloud adaptation. IEEE Transactions on Services

Computing.

Azimi, S., Pahl, C., and Shirvani, M. H. (2020). Parti-

cle swarm optimization for managing performance in

multi-cluster IoT edge architectures. In International

Conference on Cloud Computing and Services Science

CLOSER.

Baldini, I., Castro, P. C., Chang, K. S., Cheng, P., Fink, S. J.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R. M., Slominski, A., and Suter, P. (2017). Serverless

computing: Current trends and open problems. CoRR,

abs/1706.03178.

Cuervo, T. (2019). TensorANFIS. https://github.com/

tiagoCuervo/TensorANFIS. Accessed: 2019-11-04.

Ellis, A. (2018). Introducing stateless microser-

vices for openfaas. https://www.openfaas.com/blog/

stateless-microservices/.

Fang, D., Liu, X., Romdhani, I., Jamshidi, P. and Pahl, C.

(2016). An agility-oriented and fuzziness-embedded

semantic model for collaborative cloud service search,

retrieval and recommendation. In Future Generation

Computer Systems, 56, 11-26.

Fowley, F., Pahl, C., Jamshidi, P., Fang, D. and Liu, X.

(2018). A classiﬁcation and comparison framework

for cloud service brokerage architectures. IEEE Trans-

actions on Cloud Computing 6 (2), 358-371.

Gand, F., Fronza, I., El Ioini, N., Barzegar, H. R., and Pahl,

C. (2020). Serverless container cluster management

for lightweight edge clouds. In 10th Intl Conf on

Cloud Computing and Services Science CLOSER.

Gand, F., Fronza, I., El Ioini, N., Barzegar, H. R. and Pahl,

C. (2020). A Lightweight Virtualisation Platform for

Cooperative, Connected and Automated Mobility. In

6th International Conference on Vehicle Technology

and Intelligent Transport Systems (VEHITS).

Hong, T.-P. and Lee, C.-Y. (1996). Induction of fuzzy

rules and membership functions from training exam-

ples. Fuzzy Sets Syst., 84(1):33–47.

El Ioini, N. and Pahl, C. (2018). A review of distributed

ledger technologies. OTM Confederated International

Conferences.

El Ioini, N. and Pahl, C. (2018). Trustworthy Orchestration

of Container Based Edge Computing Using Permis-

sioned Blockchain. Intl Conf on Internet of Things:

Systems, Management and Security (IoTSMS).

El Ioini, N., Pahl, C. and Helmer, S. (2018). A decision

framework for blockchain platforms for IoT and edge

computing. IoTBDS’18.

Ipek, E., Mutlu, O., Martinez, J. F., and Caruana, R. (2008).

Self-optimizing memory controllers: A reinforcement

learning approach. In 2008 International Symposium

on Computer Architecture, pages 39–50.

Jamshidi, P., Pahl, C., Chinenyeze, S. and Liu, X. (2015).

Cloud Migration Patterns: A Multi-cloud Service Ar-

chitecture Perspective. In Service-Oriented Comput-

ing - ICSOC 2014 Workshops. 6–19.

Jamshidi, P., Shariﬂoo, A., Pahl, C., Arabnejad, H., Met-

zger, A. and Estrada, G. (2016). Fuzzy self-learning

controllers for elasticity management in dynamic

cloud architectures. Intl Conf Quality of Software Ar-

chitectures, 70–79.

Jamshidi, P., Pahl, C. and Mendonca, N. C. (2016). Man-

aging uncertainty in autonomic cloud elasticity con-

trollers. IEEE Cloud Computing, 50-60.

Jamshidi, P., Pahl, C. and Mendonca, N. C. (2017). Pattern-

based multi-cloud architecture migration. Software:

Practice and Experience 47 (9), 1159-1184.

Jamshidi, P., Ahmad, A., and Pahl, C. (2014). Auto-

nomic resource provisioning for cloud-based soft-

ware. In Proceedings of the 9th International Sympo-

sium on Software Engineering for Adaptive and Self-

Managing Systems, SEAMS 2014.

Jamshidi, P., Pahl, C., Mendonca, N. C., Lewis, J., and

Tilkov, S. (2018). Microservices: The journey so far

and challenges ahead. IEEE Software, 35(3):24–35.

Jamshidi, P., Shariﬂoo, A. M., Pahl, C., Metzger, A.,

and Estrada, G. (2015). Self-learning cloud con-

trollers: Fuzzy q-learning for knowledge evolution. In

ICAC’2015, pages 208–211.

Jang, J. S. R. (1993). Anﬁs: adaptive-network-based fuzzy

inference system. IEEE Transactions on Systems,

Man, and Cybernetics, 23(3):665–685.

Javed, M., Abgaz, Y. M. and Pahl, C. (2013). Ontology

change management and identiﬁcation of change pat-

terns. Journal on Data Semantics 2 (2-3), 119-143.

Kambatla, K., Pathak, A., and Pucha, H. (2009). Towards

optimizing hadoop provisioning in the cloud. In Conf

on Hot Topics in Cloud Computing, HotCloud’09.

A Fuzzy Controller for Self-adaptive Lightweight Edge Container Orchestration

Kenny, C. and Pahl, C. (2003). Automated tutoring for a

database skills training environment. In ACM SIGCSE

Symposium 2005, 58-64.

Kephart, J. O. and Chess, D. M. (2003). The vision of auto-

nomic computing. Computer, 36(1):41–50.

Kiss, P., Reale, A., Ferrari, C. J., and Istenes, Z. (2018). De-

ployment of iot applications on 5g edge. In 2018 IEEE

International Conference on Future IoT Technologies.

Kritikos, K. and Skrzypek, P. (2018). A review of serverless

frameworks. In 2018 IEEE/ACM UCC Companion.

Lama, P. and Zhou, X. (2010). Autonomic provisioning

with self-adaptive neural fuzzy control for end-to-end

delay guarantee. In Intl Symp on Modeling, Analysis

and Simulation of Computer and Telecom Systems.

Le, V. T., Pahl, C. and El Ioini, N. (2019). Blockchain Based

Service Continuity in Mobile Edge Computing. In 6th

International Conference on Internet of Things: Sys-

tems, Management and Security.

Lei, X., Pahl, C. and Donnellan, D. (2003). An evaluation

technique for content interaction in web-based teach-

ing and learning environments. In 3rd IEEE Intl Conf

on Advanced Technologies, 294-295.

Li, R., Zhao, Z., Zhou, X., Ding, G., Chen, Y., Wang, Z.,

and Zhang, H. (2017). Intelligent 5g: When cellular

networks meet artiﬁcial intelligence. IEEE Wireless

Communications, 24(5):175–183.

Lin, C.-T. and Lee, C. S. G. (1991). Neural-network-based

fuzzy logic control and decision system. IEEE Trans-

actions on Computers, 40(12):1320–1336.

Melia, M. and Pahl, C. (2009). Constraint-based validation

of adaptive e-learning courseware. In IEEE Transac-

tions on Learning Technologies 2(1), 37-49.

Mendonca, N. C., Jamshidi, P., Garlan, D., and Pahl, C.

(2019). Developing self-adaptive microservice sys-

tems: Challenges and directions. IEEE Software.

Murray, S., Ryan, J. and Pahl, C. (2003). A tool-mediated

cognitive apprenticeship approach for a computer en-

gineering course. In Proceedings 3rd IEEE Interna-

tional Conference on Advanced Technologies, 2-6.

openFaaS (2019). openfaas: Auto-scaling. https://docs.

openfaas.com/architecture/autoscaling/. Accessed:

2019-11-11.

Pahl, C., Barrett, R. and Kenny, C. (2004). Supporting ac-

tive database learning and training through interactive

multimedia. In ACM SIGCSE Bulletin 36 (3), 27-31.

Pahl, C., El Ioini, N., Helmer, S. and Lee, B. (2018). An ar-

chitecture pattern for trusted orchestration in IoT edge

clouds. Intl Conf Fog and Mobile Edge Computing.

Pahl, C., Jamshidi, P. and Zimmermann, O. (2018). Archi-

tectural principles for cloud software. ACM Transac-

tions on Internet Technology (TOIT) 18 (2), 17.

Pahl, C. (2003). An ontology for software component

matching. International Conference on Fundamental

Approaches to Software Engineering, 6-21.

Pahl, C., Fronza, I., El Ioini, N. and Barzegar, H. R. (2019).

A Review of Architectural Principles and Patterns for

Distributed Mobile Information Systems. In 14th Intl

Conf on Web Information Systems and Technologies.

Pahl, C. (2005). Layered ontological modelling for web

service-oriented model-driven architecture. In Europ

Conf on Model Driven Architecture – Found and Appl.

Pahl, C., Jamshidi, P. and Zimmermann, O. (2020). Mi-

croservices and Containers. Software Engineering

SE’2020.

Saboori, A., Jiang, G., and Chen, H. (2008). Autotuning

conﬁgurations in distributed systems for performance

improvements using evolutionary strategies. In Intl

Conf on Distributed Computing Systems.

Samir, A. and Pahl, C. (2019). Anomaly Detection and

Analysis for Clustered Cloud Computing Reliability.

In Intl Conf on Cloud Computing, GRIDs, and Virtu-

alization, 110–119.

Samir, A. and Pahl, C. (2019). A Controller Architecture for

Anomaly Detection, Root Cause Analysis and Self-

Adaptation for Cluster Architectures. In Intl Conf on

Adaptive and Self-Adaptive Syst and Appl, 75–83.

Samir, A. and Pahl, C. (2020). Detecting and Localizing

Anomalies in Container Clusters Using Markov Mod-

els. Electronics 9 (1), 64.

Scolati, R., Fronza, I., Ioini, N. E., Samir, A., and Pahl,

C. (2019). A containerized big data streaming archi-

tecture for edge cloud computing on clustered single-

board devices. In Intl Conf on Cloud Computing and

Services Science CLOSER.

Steffenel, L., Schwertner Char, A., and da Silva Alves, B.

(2019). A containerized tool to deploy scientiﬁc ap-

plications over soc-based systems: The case of mete-

orological forecasting with wrf. In CLOSER 2019.

Taibi, D., Lenarduzzi, V. and Pahl, C. (2019). Microservices

Anti-Patterns: A Taxonomy. Microservices - Science

and Engineering, Springer.

Taibi, D., Lenarduzzi, V., Pahl, C. and Janes, A. (2017).

Microservices in agile software development: a

workshop-based study into issues, advantages, and

disadvantages. In XP2017 Scientiﬁc Workshops.

von Leon, D., Miori, L., Sanin, J., El Ioini, N., Helmer,

S. and Pahl, C. (2018). A Performance Exploration

of Architectural Options for a Middleware for Decen-

tralised Lightweight Edge Cloud Architectures. Intl

Conf Internet of Things, Big Data & Security.

von Leon, D., Miori, L., Sanin, J., El Ioini, N., Helmer, S.

and Pahl, C. (2019). A Lightweight Container Mid-

dleware for Edge Cloud Architectures. Fog and Edge

Computing: Principles and Paradigms, 145-170.

Warden, P. (2019). Tensorﬂow 1.9 ofﬁcially sup-

ports the raspberry pi. https://medium.com/

tensorﬂow/tensorﬂow-1-9-ofﬁcially-supports-the\

-raspberry-pi-b91669b0aa0.

Xi, B., Xia, C. H., Liu, Z., Zhang, L., and Raghavachari, M.

(2004). A smart hill-climbing algorithm for applica-

tion server conﬁguration. In 13th Int. Conf. on WWW.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science
