A Lightweight Virtualisation Platform for Cooperative, Connected and

Automated Mobility

Fabian Gand, Ilenia Fronza, Nabil El Ioini, Hamid R. Barzegar, Van Thanh Le and Claus Pahl

Free University of Bozen-Bolzano, Bolzano, Italy

Keywords:

Digital Mobility, CCAM, Road Mobility, Edge Cloud, Container, Orchestration, Performance Engineering.

Abstract:

Digital mobility systems such as autonomous cars or trafﬁc management build on connectivity and automated

cooperation. In order to facilitate various use cases such as vehicle manoeuvres, infotainment support or state

share functions, a distributed layered computation and communication infrastructure is needed that connects

vehicles and other devices through mobile networks, linking them to edge and cloud services. Of particular

relevance are lightweight clustered infrastructures close to the edge of the network that provide nonetheless

sufﬁcient compute, storage and networking capabilities. Clusters consisting of single-board devices are used

in a variety of these use cases. In most cases, data that is accumulated on the devices has to be sent to

remote cloud hubs for processing. However, with the hardware capabilities of these controllers continuously

increasing, it is now possible to directly process data on these edge cluster. This concept is known as Edge

Computing. We propose an edge computing architecture for cooperative, connected and automated mobility

that relies on industry-standard technologies such as the MQTT protocol for communication, Prometheus for

monitoring and Docker swarm in conjunction with openFaas for deploying containerized services.

1 INTRODUCTION

Digital mobility systems such as autonomous cars or

trafﬁc management build on connectivity and auto-

mated cooperation. In order to facilitate use cases

such as vehicle manoeuvres, infotainment support and

state share applications, a distributed layered com-

putation and communication platform is needed that

connects vehicles and other devices through mobile

networks, linking them to edge and cloud services.

We propose an architecture for cooperative, con-

nected and automated mobility (CCAM) that relies

on widely used technologies such as the MQTT pro-

tocol for communication, Prometheus for monitor-

ing and Docker swarm in conjunction with open-

Faas for deploying services across the cluster. We

demonstrate the proposed architecture by referring to

the functionality of the European Union-supported

5G-CARMEN project that aims at building a 5G-

enabled motorway corridor across 3 countries to

conduct cross-border trials of 5G technologies (5G-

CARMEN, 2019). Three areas that the project is fo-

cused on are vehicle manoeuvre negotiation, infotain-

ment and state sharing, which will also be addressed

here in the proposed architecture.

The 5G mobile standard aims at enabling com-

munication between devices almost in real time (5G-

CARMEN, 2019). In addition to higher transfer rates,

new technologies such as Network Function Virtual-

ization are supported allowing the execution of code

functions on generic hardware nodes without having

to install speciﬁc hardware. Software Deﬁned Net-

working allows third parties to directly use hardware

resources by deﬁning the desired set-up at software

level.

Clusters at the edge of the communication net-

work often consist of smaller (e.g., single-board) de-

vices and are used in a variety of these use cases. In

many conﬁgrations, data that is accumulated on the

devices has to be sent to remote cloud hubs for pro-

cessing. However, with the hardware capabilities of

these controllers continuously increasing, it is now

possible to directly process data on the cluster. This

concept is known as Edge Computing. Edge Com-

puting is deﬁned as a concept where most process-

ing tasks are computed directly on hardware nodes

at the edge of a network or cluster and are not send

to remote processing hubs. The edge technologies

we deploy shall be based on the serverless concept.

Serverless aims at shifting the responsibility of de-

ploying, scaling and maintaining software to the re-

source provider. Instead of deploying and running the

Gand, F., Fronza, I., El Ioini, N., Barzegar, H., Le, V. and Pahl, C.

A Lightweight Virtualisation Platform for Cooperative, Connected and Automated Mobility.

DOI: 10.5220/0009379802110220

In Proceedings of the 6th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2020), pages 211-220

ISBN: 978-989-758-419-0

211

application on designated hardware themselves, de-

velopers simply need to hand it over to the serverless

platform (Baldini et al., 2017).

In order to demonstrate the suitability of our pro-

posed lightweight CCAM edge architecture built on

principles of microservices, containers, serverless and

auto-scaling, we implemented a proof-of-concept ver-

sion for experimental evaluation.

The paper is structured as follows. In Section 2, a

use case and architecture requirements are introduced.

In Section 3, related work is discussed. Section 4 ﬁrst

reports on the high-level architecture of the proposed

platform before describing each component in detail.

Section 5 evaluates the architecture.

2 CCAM USE CASES

We target here a trafﬁc management (TM) system for

autonomous cars as a use case for illustration that

needs to be deployed on hardware nodes in relatively

close proximity to the road sections it is supposed to

cover. The users of the system are: (a) Passive User:

Passengers of self-driving vehicles that make use of

the autonomous driving functionality, using the parts

involved in providing autonomous driving and addi-

tional functionality for vehicles such as video stream-

ing. (b) Active User: Administrators observing the

system status, using a dashboard function to gain an

overview over the system status. The system shall be

deployable on microcontrollers in the form of single-

board devices. The aim is to judge the computational

capabilities of constrained devices at the real edge

of the network. In our case the application will be

deployed and evaluated on Raspberry Pis, but other,

comparable devices, could also be supported. The

goal of this work is to identify components that are

suitable for the demands of a 5G mobility system. The

focus needs to be on the architectural and software re-

lated issues of such an implementation. Topics related

to the technical details of the 5G standard will not be

addressed. Please note that we focus on the outer edge

in terms of performance evaluation. More central and

larger so-called mobile or multi-access edge clouds

(MECs) are also needed, but will not be the focus here

in the experimental work.

A platform solution must provide a way to scale

and conﬁgure parts of the application in such a way

that changing external factors, such as the numbers of

active cars, are taken into consideration and the appli-

cation is conﬁgured and scaled accordingly. There-

fore, there needs to be a mechanism to rescale at run-

time. Another important aspect was to keep the used

storage space on the devices to a minimum.

We will consider a Cooperative, Connected and

Automated Mobility (CCAM) scenario, speciﬁcally

manoeuvering (e.g., lane changing) and in-car video

streaming of a mobile entertain service, as our mo-

tivating scenarios. Cars (and other vehicles) are be-

coming more and more connected. Even today, many

cars communicate status information to manufactur-

ers or other parties, or receive data for the navigation

system. Towards autonomous cars, even more com-

munication and coordination can be expected with

more data to be processed at higher speed. We illus-

trate this with the following two use cases:

• Our ﬁrst use case deals with manoeuvering, for

which supported lane changing is a concrete ex-

ample. Cooperation between vehicles is needed

to ensure safe and efﬁcient navigation through in

lane changing or overtaking. Vehicle automation

can help here. However, recognizing and com-

municating the intentions of trafﬁc participants

with minimal delay is key to an optimized be-

haviour. To this end, wireless communication

systems can be used to exchange speeds, posi-

tions and intended trajectories/manoeuvres. The

on-board systems can use this information to de-

rive an optimized driving strategy (in case of

automated operation) or derive a recommended

course of action to actively optimize trafﬁc ﬂow

and avoid dangerous situations. Cooperative lane

changing can be realized either in localized or

centralized way. The former involves direct ex-

changes between vehicles, while the latter builds

upon a MEC/back-end server and a cellular net-

work, which support the vehicles in determining

optimal behaviour. Latency requirements require

the use of edge cloud technology to be used.

• Our second use case considers the on-demand

streaming of movies or live broadcasts into cars,

ideally in quality HD format. This application al-

ready dominates internet trafﬁc today. More de-

mand can be anticipated with autonomous driv-

ing where drivers can then consume for instance

videos instead of being occupied with driving.

However, in a mobile context, the speed and la-

tency needed for high-quality HD video stream-

ing, irrespective of the location and network con-

ditions, is a challenge.

The overall architecture is shown in Fig. 1, showing

key management functions from core cluster manage-

ment and monitoring at MEC level (e.g., Kubernetes

for container clusters) to service orchestration includ-

ing placement, lifecycle and quality management.

To get a better understanding of the requirements,

we use the video streaming use case for a deeper anal-

ysis. We review the technical platform and technol-

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

212

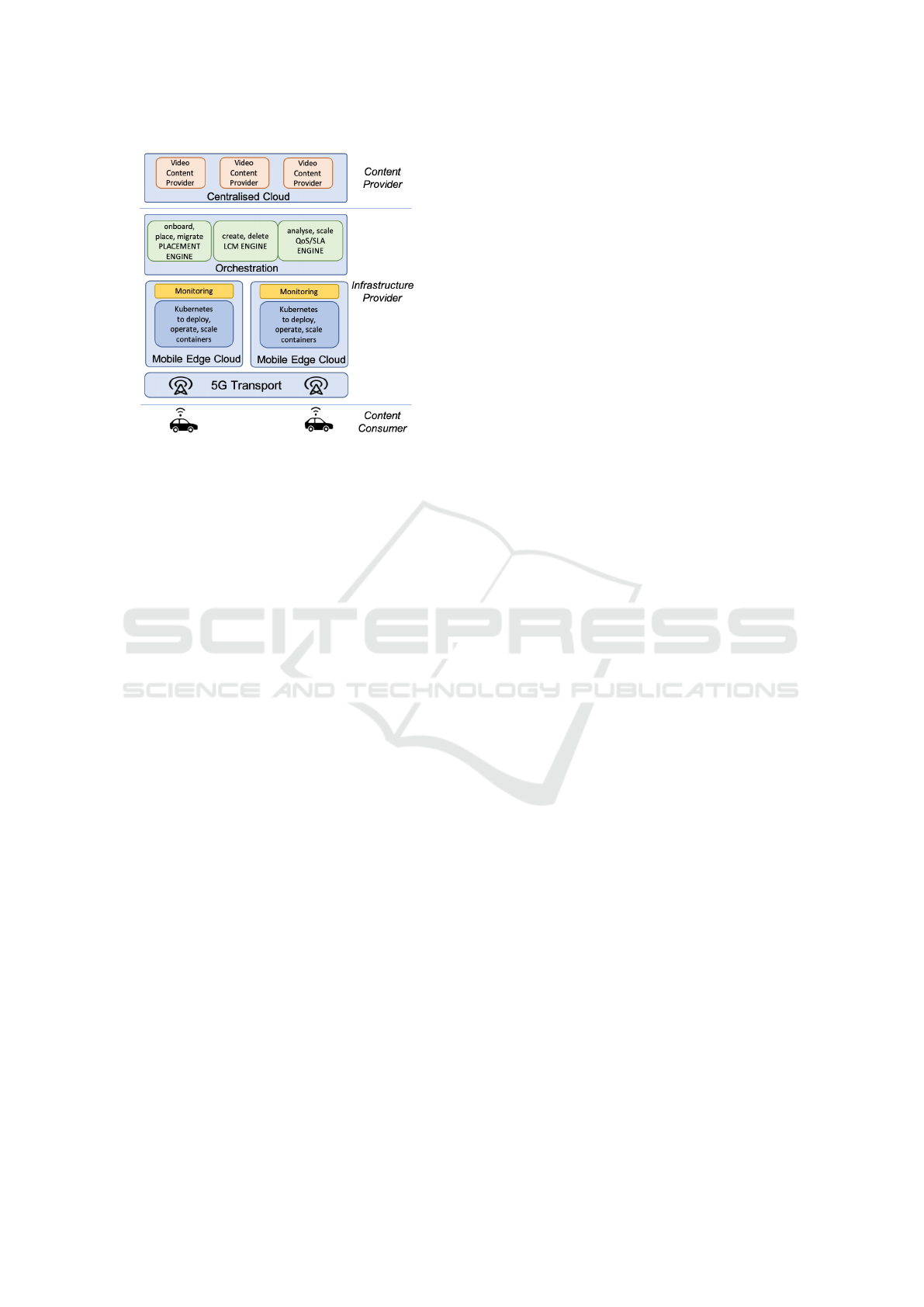

Figure 1: 5G-enabled Edge Architecture – for a Video

Streaming Service.

ogy requirements now, as in Figure 1. This applica-

tion context is characterised by different parties:

• Content consumer – consuming video in a vehicle,

• Content provider – delivers content, using video

servers in a cloud back-end,

• Infrastructure/QoS management entity – provides

the infrastructure and maintains QoE.

This needs to work in cross-operator and also in cross-

border environments. The video streaming applica-

tion has many sources of input, apart from the actual

video content. Many parameters need to be moni-

tored: the trafﬁc on a road with the location/trajectory

of cars, but also the resource utilisation on edge and

core cloud resources (storage, compute, network), to

allow the right sections of video to be provided at

the right time into a moving vehicle that connects to

different network points. These resources are con-

sumed by the application function (streaming), but

are managed by an orchestrator (local mobile edge

cloud orchestrators and also central cloud orchestra-

tors) and a platform manager. Telecommunications

companies talk about Mobile (or Multi-access) Edge

Clouds (MECs) that bring cloud technology closer to

the edge of the network and the user.

The use cases of the EU H2020 project 5G-

CARMEN show the need to consider layered, 5G-

enabled edge architectures. For instance, in order

to provide video content into a moving car, informa-

tion is needed in order to predict the car trajectory

and buffer sufﬁcient video content close-by in these

MECs to maintain quality. To solve this, we need to

employ prediction techniques and pro-active scaling

of platform and application services.

Prediction is a critical component in the dy-

namic processing, both for manoeuvering and video

use cases. The prediction of the car movement

or the future allocation of storage (video caching

needs) to bridge connectivity losses around borders

are challenges. Prediction needs to work with a

controller, which manages conﬁguration settings for

video streaming functions in order to maintain non-

functional requirements (NFR) such as quality and

performance. An intelligent controller can deal with

orchestration and dynamic adaptation needs, for ex-

ample for the video streaming case to:

• Buffer more (if necessary allocate more storage

at suitable MEC). The size of the allocated re-

source is the control parameter: provide more

storage for buffering, if needed due to expected

outages/disconnections. The location of allo-

cated resources, i.e., storage at the most suitable

MEC/device in cross-border settings depending

on predicted trajectory, is another factor.

• Reduce video quality, e.g., reduce video frames

per second to deal with latency problems arising

from high data volumes being transferred.

Adaptation has an optimization goal. The resource

utilisation needs to be as low as possible, while still

maintaining NFRs (e.g., required latency or reliability

limits to maintain user Quality-of-Experience, with a

ﬁxed message size).

The focus of our investigation is on the lower lay-

ers – from the edge to 5G infrastructure to roadside

devices (assuming small-board devices – SBD) and

cars (on-board units – OBU), see Fig. 2.

3 RELATED WORK

This chapter provides an overview over work that has

been conducted in the past regarding the elicitation of

requirements and the modeling of distributed IoT sys-

tems in the context of Edge Computing for CCAM.

(Kiss et al., 2018) gather requirements for applica-

tions making use of edge computing. Speciﬁcally in

the context of combining them with the capabilities

of the 5G standard. They mention that recently re-

leased single-board devices open up the possibility of

processing some of the data at the edge of the cluster.

There exist a variety of different examples of com-

parable IoT Systems that have been documented. We

consider here systems comprised of different hard-

ware nodes that communicate with each other as well

as with a central node. (Tata et al., 2017) outline the

state of the art as well as the challenges in model-

ing the application architecture of IoT Edge Applica-

tions. One of the scenarios they introduce is a system

A Lightweight Virtualisation Platform for Cooperative, Connected and Automated Mobility

213

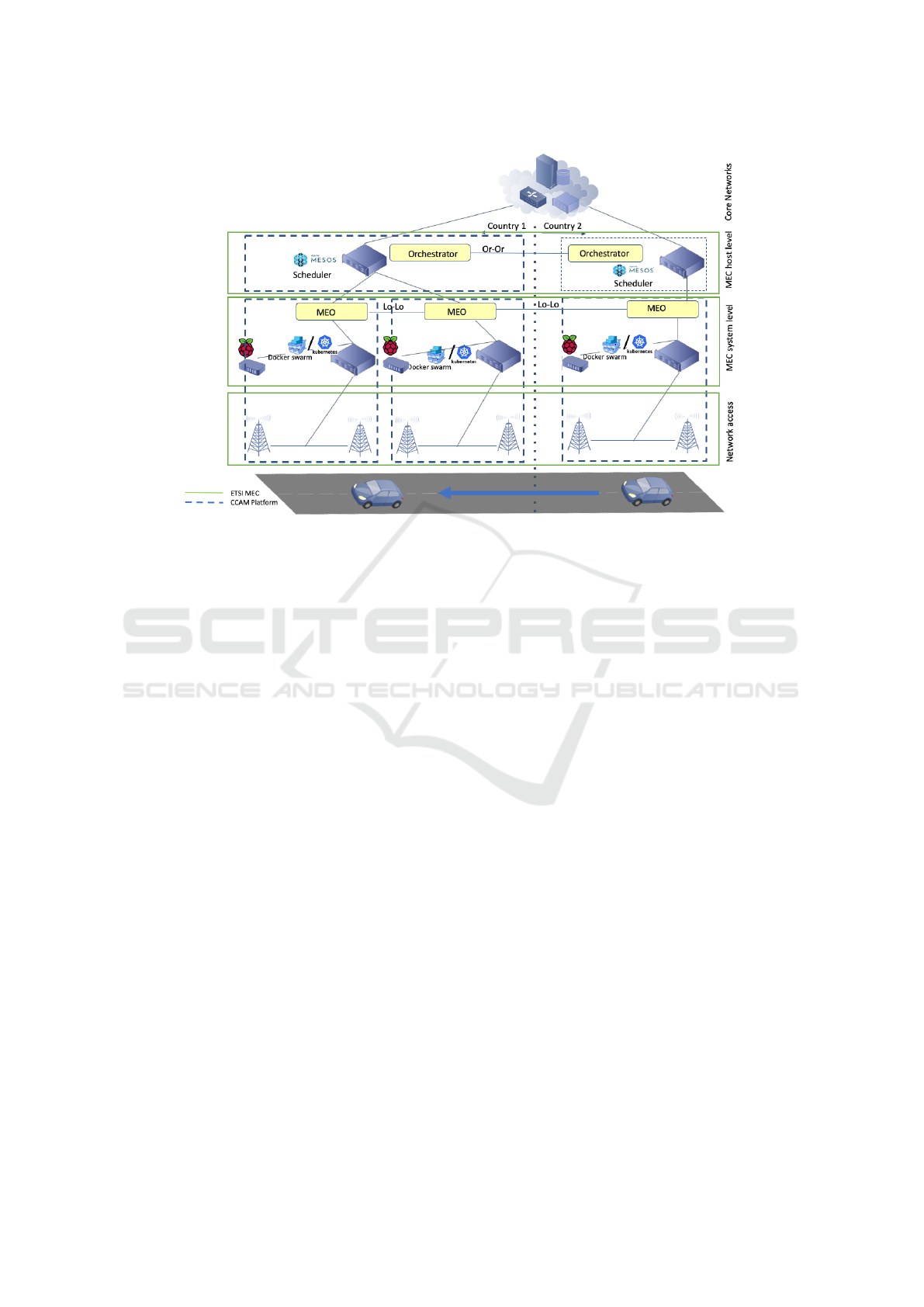

Figure 2: 5G-CARMEN architecture.

for smart trains based on the principles of edge com-

puting. The system is comprised of a set of different

sensors attached to crucial components of a car. Data

is gathered by a central unit for each car that sends its

data to the central processing unit. The task of gath-

ering and processing data is delegated to edge nodes

of the network before passing it on to the cloud.

There exist already 5G-oriented platforms for

edge processing. An example is the lightMANO plat-

form (Riggio et al., 2018). This presents a MANO

standards-compliant implementation for lightweight

processing that allows NFV and SDN capabilities to

be supported. We build on similar idea, providing

here an experimental evaluation speciﬁcally consid-

ering lightweight device clusters.

4 CCAM ARCHITECTURE

In this section, we introduce important architecture

concepts as well as speciﬁc tools and technologies for

our platform. The ﬁnal subsection describes how the

tools and technologies can be combined to create a

complete lightweight CCAM edge platform.

4.1 Architecture Concepts

Cloud Computing is based on data centers that are

able to process large amounts of data in the Cloud

(Kiss et al., 2018). Data from the local system is

usually sent to and processed by the cloud. This ap-

proach, however, leaves the potential local processing

power of the network unused and comes with signif-

icantly increased latency. Edge Computing leverages

the processing power of nodes at the edge of the lo-

cal network. These nodes are an intermediate layer

between the devices by processing parts of the data

within the local network that would otherwise by han-

dled by an external cloud.

Microservices have become increasingly popu-

lar in recent years. Traditional architectures usually

package and deploy software as a monolith: The en-

tire application was bundled into one executable that

was deployed on speciﬁc hardware. When switching

to a microservice architecture, the monolith is split

into different parts. These parts, the microservices,

run in an independent process and have their own de-

ployment artifacts (Jamshidi et al., 2018).

Serverless Computing is a new concept for the de-

ployment of cloud applications (Baldini et al., 2017).

The term serverless represents the idea that devel-

opers can focus on the application code without be-

ing concerned about the servers it is deployed on.

The tasks of managing and scaling the application are

handled by the resource provider. Usually, server-

less computing is accompanied by a concept called

Functions-as-a-Service (FaaS). Here, small chunks of

functionality are deployed and scaled dynamically by

the provider (Kritikos and Skrzypek, 2018). These

functions are usually even smaller than microservices.

They are short lived and have clear input and out-

put parameters, similarly to functions used in most

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

214

programming languages. If the component to be de-

ployed is more complex than a simple function and

is supposed to stay active for a longer period of time,

a stateless microservice should be considered (Ellis,

2018). Managing and deploying these microservices

is similar to serverless functions.

4.2 Tools and Technologies

The concrete hardware, software and standards used

in the platform are introduced here.

The Raspberry Pi is a single-board computer

based on an ARM-processor. The version 2 B models

used here include a 900MHz quad-core ARM Cortex-

A7 CPU and 1GB of RAM.

Docker is a containerization software. Container-

ization is a virtualization technology that, instead

of virtualizing hardware, separates processes from

each other by utilizing features of the Linux kernel

. Docker containers bundle an application with all of

its dependencies. Docker allows to create, build and

ship containers. Docker swarm is the cluster manage-

ment tool integrated into the Docker Engine. Instead

of running services and their corresponding contain-

ers on one host, they can be deployed on a cluster

of nodes that is managed like a single, Docker-based

system. By setting the desired number of replicas of

a service, scaling can also be handled by the swarm.

Hypriot OS is an operating system based on De-

bian that is tailored towards using Docker technol-

ogy on ARM devices such as the Raspberry Pi. The

OS comes prepackaged with Docker. MQTT is a net-

work protocol designed for the Internet of Things. It

is primarily used for unreliable networks with lim-

ited bandwidth. MQTT uses a publisher-subscriber

approach.

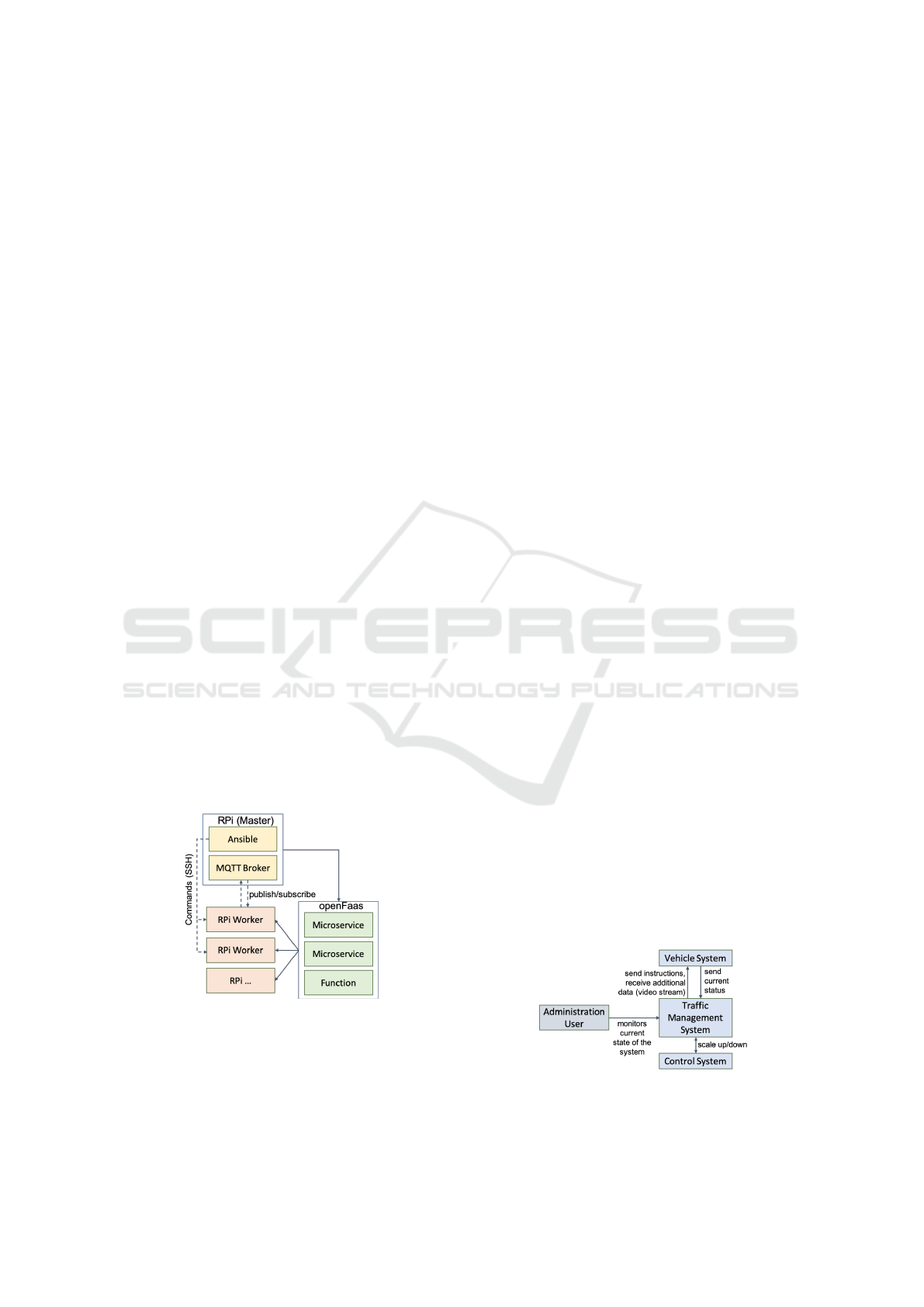

Figure 3: CCAM Architecture.

Prometheus is a monitoring tool that can be used

to gather and process application metrics. Contrary to

other monitoring tools it does not rely on the appli-

cation delivering the metrics to the monitoring tool.

Prometheus scrapes the metrics from a predetermined

interface in a given interval. This means that the met-

rics are expected to be exposed by the application.

OpenFaas is a Function-as-a-Service framework.

It can be deployed on top of Docker swarm or Kuber-

netes. When starting the openFaas framework a few

standard Docker containers are deployed. openFaas

contains a simple autoscaling rule that leverages the

default metrics aggregated by Prometheus and scales

based on predeﬁned thresholds (openFaaS, 2019).

4.3 Combining Tools and Technologies

To meet the set requirements, tools and technologies

used to realize the platform need to provide a high

level of ﬂexibility while managing the limited hard-

ware resources of the cluster. Combining the con-

cepts and technologies presented above are one way

of achieving this: by splitting the application into mi-

croservices and containerizing it, the hardware can

be reallocated dynamically. This also enables scal-

ing the different parts of the application in a simple

manner. The Docker images leave a minimal footprint

on the devices, making efﬁcient use of the hardware.

MQTT, as a lightweight protocol, has a similar advan-

tage while its underlying publisher/subscriber pattern

simpliﬁes communication in an environment where

services are added and removed constantly. Estab-

lishing peer-to-peer communication would be signif-

icantly more complex. OpenFaas is a simple way of

building and deploying services/functions across the

cluster. An overview of the different technologies in

the platform is provided in Figure 3.

5 ARCHITECTURE USE CASE

This section introduces a concrete use case for the

proposed architecture based on the 5G-CARMEN

project, i.e., an application, deployed on a cluster of

single-board devices, that is based on the concepts of

serverless computing and the microservices architec-

ture. Additionally, the system will support adaptive

auto-scaling of its components.

Figure 4: Interaction between systems.

The application is composed of three main layers.

A Lightweight Virtualisation Platform for Cooperative, Connected and Automated Mobility

215

The platform layer realizes the core architecture of the

cluster and the application. The system layer includes

the components of the system. On top of these two

layers, the controller layer scales the components of

the platform. Figure 4 shows the interaction between

system layer, controller layer and additional compo-

nents. The Trafﬁc Management System (TMS) con-

tains all core components of the system. Adminis-

trators can access an interface to monitor its current

state. There is a constant exchange of messages be-

tween the TMS and the Vehicle System (VS) that con-

tains simulations of vehicles. The Control System

(CS) is used to scale parts of the TMS based on the

current situation and a number of predeﬁned factors.

5.1 Platform

The platform is deployed on a cluster managed by

Docker Swarm. The cluster includes one master node

and an arbitrary number of worker nodes. Ansible is

used to execute commands on all nodes without hav-

ing to connect to each node individually. All nodes

are able to connect to the MQTT broker that is run-

ning on the master device after startup. Avahi allows

all nodes to establish a connection to the master by

addressing it by its hostname. Using Docker swarm

and openFaas, the RPIs are connected in such a way

that they can be seen as one system. If a service is

supposed to be deployed, openFaas will distribute it

among the available nodes. There is no need to spec-

ify the speciﬁc node as this abstraction layer is hidden

behind openFaas. OpenFaas is also utilized to scale

the services independently. Communication between

the services is achieved by relying on the openFaas

gateway as well as on the MQTT broker.

The cluster is comprised of eight Raspberry Pi 2

Model B connected to a mobile switch via 10/100

Mbit/s Ethernet that is powering the RPIs via PoE

(Power over Ethernet) (Scolati et al., 2019). All nodes

of the cluster run Hypriot OS.

5.2 Trafﬁc Management System

The platform in its current state serves as a functional,

concrete proof-of-concept of a Trafﬁc Management

System. Figure 5 visualizes the interaction between

the most important services of the system. The Vehi-

cle System VS is used to simulate vehicles. The vehi-

cles continuously publish their current position and

status to the MQTT Broker. The gatherer receives

these messages and passes them on to the decision-

function, which is an openFaas function that calcu-

lates a corresponding command (slow down, acceler-

ate, keep current speed) for each message. The gath-

erer relays these commands back to the vehicle via the

MQTT Broker. In addition, a video service provides a

video stream to be consumed by the vehicles and the

dashboard service enables administrators to access a

web-interface that provides an overview of the sys-

tem. All of the aforementioned services are deployed

and managed via the openFaas gateway.

Figure 5: Trafﬁc Management System.

5.3 Communication

The system uses the mosquito MQTT broker to estab-

lish a communication bus between systems and ser-

vices. The messages are based on the JSON data ex-

change format. The ﬁrst advantage of using MQTT is

the minimized network latency (Light, 2018), which

is crucial for CCAM use cases. Additionally, not all

services may be accessible from all other services

within the cluster. Therefore, having only a single

central master node, running the mosquito broker, that

needs to be accessible from any other part of the sys-

tem, saves a signiﬁcant amount of additional conﬁg-

uration work. Making use of the publisher/subscriber

pattern is another advantage since messages may need

to be addressed to more than one service at a time.

Hence, MQTT greatly reduces conﬁguration efforts

and network latency.

5.4 Vehicle System

The vehicle system VS provides a service simulat-

ing here in the experimental set-up a vehicle on the

road section that is to be monitored. The VS may

contain an arbitrary number of vehicle services. The

service randomly creates a vehicle and continuously

publishes MQTT messages to the broker. The mes-

sages contain JSON objects that include the follow-

ing ﬁelds: the current speed of the vehicle, the lane

of the vehicle, the license plate number, the vehi-

cle type (manually driven vehicle, an autopiloted car,

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

216

a convoy truck), the UUID of the vehicle, the alti-

tude and whether the vehicle supports video stream-

ing. The vehicle service subscribes to a speciﬁc com-

mands topic that is deﬁned as "commands/" followed

by the UUID of the vehicle. Once it receives a com-

mand on this topic, the vehicle updates its speed ac-

cording to the command.

5.5 Trafﬁc Management Components

The gathering service receives information about the

current location of the vehicles. The gatherer holds a

four-dimensional array of length 1000 that represents

the part of the road that is to be monitored. Arrays

0 and 1 are two lanes leading south, while array 2

and 3 are the lanes leading north. It will update the

road array with the current location of each vehicle,

thus creating an actual representation of the road at

a given point in time. Once a vehicle has left the

area that is covered, the gatherer will delete the last

location of that vehicle. The gatherer also passes spe-

ciﬁc messages to each vehicle. However, it does not

include the logic for choosing a command for a spe-

ciﬁc car in a speciﬁc situation. Instead, it relays this

information along with the current road-array to the

decision-function that will decide what command is

to be executed. The returned command will then be

published by the gatherer. The decision-making logic

is a built-in component of the gathering service.

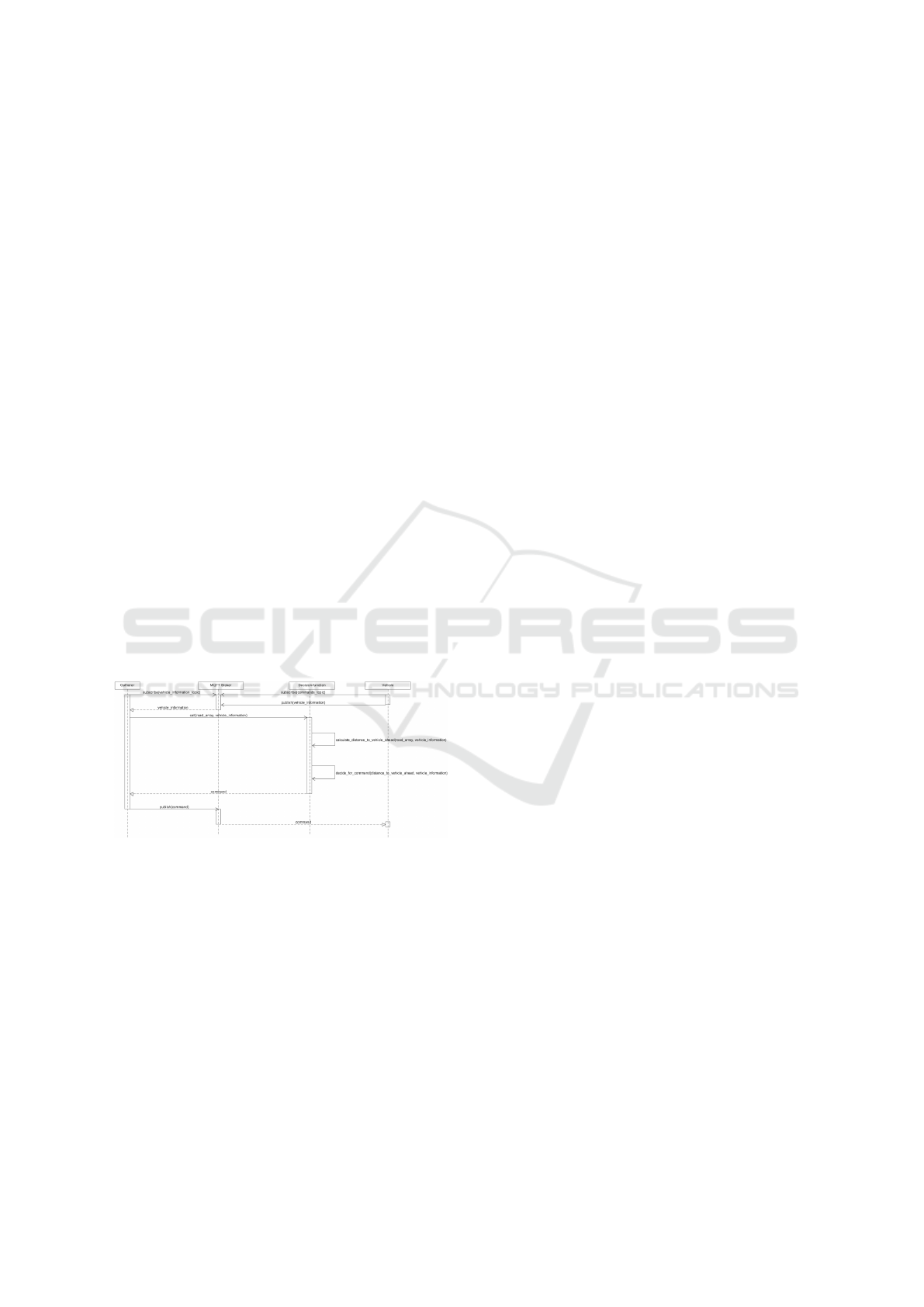

Figure 6: Sequence diagram showing the interaction be-

tween the gatherer and the vehicle instances.

The video service provides video streaming func-

tionality. The implementation implements a stream-

ing application using ﬂask. Using this approach, in-

dependent jpeg images can be streamed continuously

on a speciﬁc route. The video service was imple-

mented as an openFaas stateless microservice. This

way, video streaming data can be served from dif-

ferent instances of the video service by accessing the

stream via the gateway.

The decision function receives the current road-

array and information about the current location of a

vehicle and uses this information to pick a suitable ac-

tion that is to be taken by that vehicle. In its current

conﬁguration, it aims at maintaining a minimum dis-

tance of four blocks (elements of the array) between

vehicles. Should the vehicle at the back get to close to

the vehicle in front, the command slows it down until

the desired distance is reached. If the distance is suf-

ﬁcient and the car has not reached the advised speed

for this section of the road, the command will instruct

the vehicle to accelerate.

The dashboard function provides an overview

over the MQTT messages that are passing through the

broker. It shows the conﬁguration messages, issued

commands as well as information for every active ve-

hicle. The dashboard is based on an open-source,

MIT licensed project that contains sample code for

a simple MQTT web-dashboard.

The conﬁg function is used to automatically set

the conﬁguration of certain system-wide parameters.

The function takes a JSON object as a parameter that

contains values such as the hostname of the MQTT

broker or topic deﬁnitions. The conﬁg function pub-

lishes this object to a certain topic and ﬂag it as a mes-

sage to be retained. On startup, all concerned services

will subscribe to this conﬁguration topic and immedi-

ately receive the last retained message. The received

global values are used to update the internal variables

of the respective services.

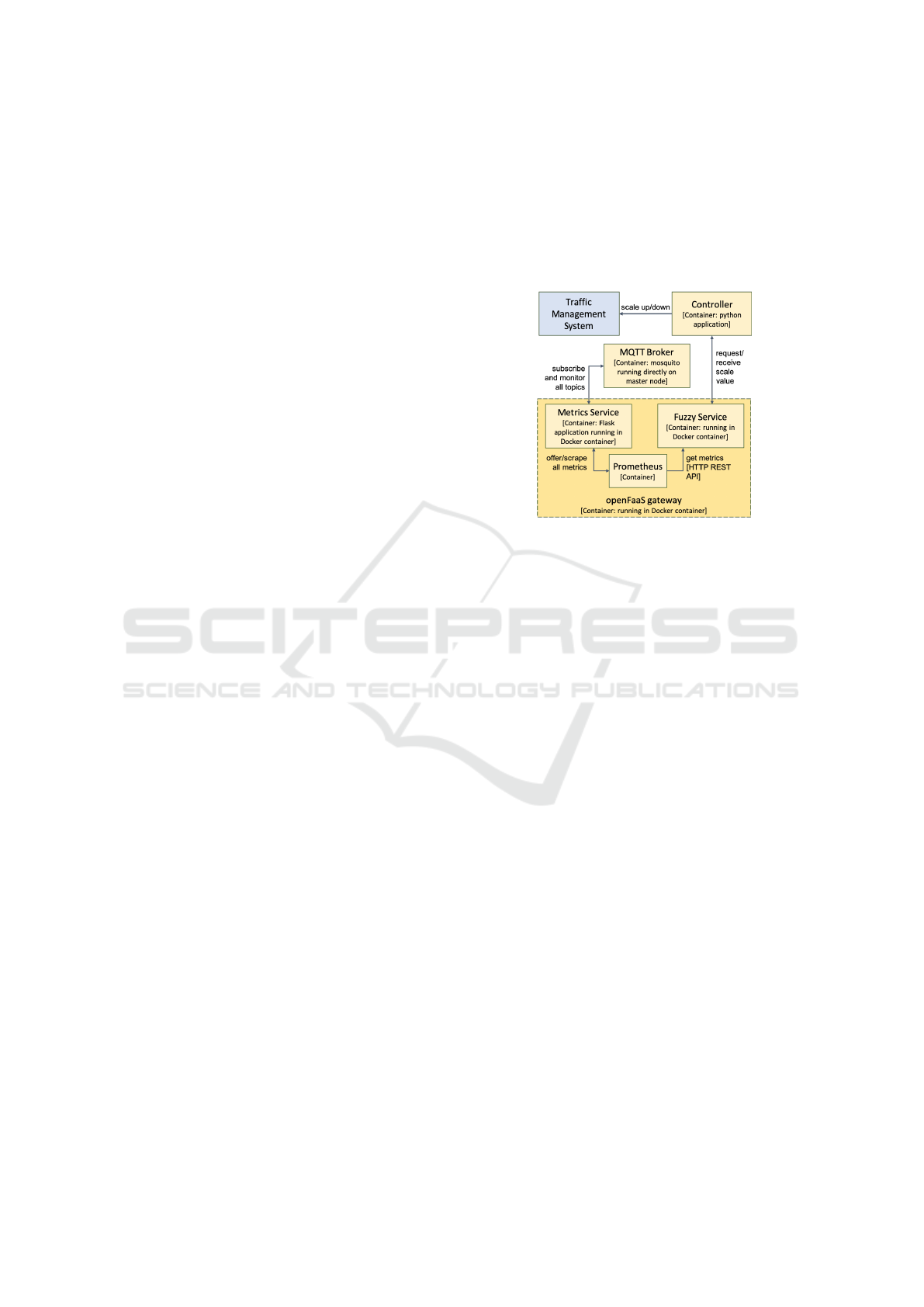

5.6 Monitoring

Monitoring uses the openFaas Prometheus instance.

The metrics service is used to acquire metrics

about the system by serving as a central hub that ac-

cumulates all cluster-wide metrics and by publishing

those metrics via a ﬂask HTTP endpoint. This end-

point is the central interface for Prometheus to scrape

from. The prometheus python API is used to im-

plement the metrics. The metrics service currently

exposes the number of messages, the number of ac-

tive cars as well as the cumulative memory and CPU

usage. The number of messages is implemented as

a counter that continuously increases. CPU/memory

usage, on the other hand, is realized by using a gauge,

which can be a set to an arbitrary number.

The Prometheus instance is used to store metrics

and query them when needed. Prometheus provides

a rest API along with a language called PromQL to

aggregate and query metrics. The aggregated data is

returned in the JSON format.

Before startup, Prometheus needs to be informed

about the endpoints that metrics should be scraped

from. The Prometheus instance that is shipped with

openFaas only scrapes metrics from the openFaas

gateway since only metrics related to function exe-

cution are being monitored by default.

A Lightweight Virtualisation Platform for Cooperative, Connected and Automated Mobility

217

6 EVALUATION

Now, the proposed architecture shall be evaluated.

The focus lies on evaluating the performance of the

proposed serverless microservice solution and the

auto-scaling approach in the context of the CCAM

non-functional requirements. To give this a concrete

perspective, we also evaluated the maximum number

of vehicles the cluster architecture (including the net-

work it was operated in) could support for the use

cases in a given road section.

6.1 Requirements, Metrics, Setup

We start discussing at a high level the non-functional

CCAM requirements and how we addressed them.

Safety: Downtime during reconﬁguration and slow-

downs caused by high load are avoided by using

fuzzy-adaptive scaling. Performance: The scaling

algorithm is based on Service-Level-Objectives that

maintain performance needs. Reconﬁgurability: The

application is split into different containerised ser-

vices that can be easily deployed across the cluster

from a central node. Physical access to individual

nodes is not necessary. Scalability: The system is re-

conﬁgured on the ﬂy by using the auto-scaling func-

tionality based on adaptive fuzzy scaling for server-

less containers. Dependability: Several gatherer ser-

vices are usually deployed at the same time. If a gath-

erer is added or removed the vehicles are automati-

cally distributed among the available gatherers, pro-

viding better reliability and availability. The scaling

functionality ensures that the performance remains

above a certain SLO. Interoperability: The applica-

tion may be deployed on different hardware nodes.

Docker containers decouple the application from the

actual hardware layer and the host OS. The only tech-

nical requirement is the availability of Docker. In the

following, dependability, scalability and and perfor-

mance will be addressed in detail.

These objectives were evaluated for two different

cluster set-ups. In order to obtain a ﬁrst understanding

of the system and the possible range of variables, a

ﬁrst calibration pilot was conducted on a small cluster

of only three devices. Then, the evaluation procedure

was repeated for a complete cluster of eight devices.

All evaluation steps report on a number of perfor-

mance metrics that indicate the effectiveness of the

system or provide insight into an internal process.

The Message Roundtrip Time (MRT) is the central

variable of the system that reports on the effectiveness

of the autonomous driving functionality. Included in

the MRT is the openFaas-supported Function Invoca-

tion Time (FIT) that is listed separately in order to in-

Table 1: Results for a cluster of eight RPIs using the full

version of the system. The FIT was not measured since the

decision-function was removed here.

Vehicles Mem Usage CPU Usage MRT FIT

2 2.92 36.53 0.02 -

4 3.29 37.02 0.025 -

6 3.89 37.90 0.029 -

8 5.48 38.41 0.028 -

10 5.81 39.37 0.17 -

12 5.17 39.78 0.028 -

14 6.98 40.07 0.028 -

16 4.2 40.33 0.025 -

18 4.5 40.67 0.025 -

20 4.94 41.1 0.027 -

22 5.19 41.43 0.028 -

24 5.74 41.7 0.027 -

26 5.99 42.14 0.028 -

Table 2: Setup as in Table 1 with higher vehicle numbers.

Vehicles Mem Usage CPU Usage MRT FIT

50 8.63 46.75 0.03 -

75 11.79 51.7 0.032 -

100 14.48 56.57 0.04 -

dividually report on the serverless performance. In

this evaluation, all MRT and FIT values are consid-

ered average values aggregated over the last 20 sec-

onds after the previous scaling operation was com-

pleted. For our use case, the maximum scale value

was unknow, but could generally be speciﬁed before-

hand. Over the course of this evaluation, different

MRT thresholds are applied. For all set-ups and itera-

tions that were evaluated, the hardware workload was

measured by computing the average CPU and mem-

ory usage over all nodes of the cluster, combining it

into a single value. This is feasible since the entire

cluster can be seen as one system by combining the

individual nodes using Docker swarm and openFaas.

An initial calibration pilot was conducted to ob-

tain an initial idea of the system’s capabilities and

adjust the manually-tuned parameters accordingly. It

was also used to evaluate whether the scaling func-

tionality yields promising results before putting it to

use in a bigger set-up. The evaluation was started with

a cluster consisting of three RPIs: a master and two

worker nodes. The maximum scale value was initially

set to 5 in order to avoid scaling the system to inade-

quate (overly resource-demanding) conﬁgurations.

6.2 Evaluation of the Complete System

A cluster of eight RPIs was used. The decision-

making functionality is included in the gatherer ser-

vice, which can be scaled independently. This avoids

the need to call the decision function for each mes-

sage. The results can be found in Tables 1 and 2. Val-

ues of a sample run can be found in Table 3.

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

218

Table 3: Sample scaling for a cluster of eight RPIs. Man-

ually set variables: Maximum Scale Value: 12, Number of

cars: changing, MRT Threshold: 0.3 seconds.

Iteration # cars Fuzzy

Scale

Value

MRT after

scaling

Adjustment

Factor

1 25 4.77 Initial 0.0

2 25 6.94 0.03 2.58

3 25 7.79 0.04 0.0

4 25 8.80 0.03 -2.58

5 50 10.11 0.178 -7.74

6 50 10.82 0.44 -10.32

7 50 10.82 0.44 -10.32

8 75 11.06 0.09 -12.9

9 75 11.24 0.033 -18.06

10 75 11.3 3.95 -20.64

11 75 11.34 0.07 -23.22

Considering the results in Tables 1 and 2, adequate

MRT values can be noted. We recorded values for

different numbers of vehicles. The MRT values ap-

pear to be growing exponentially. Between 16 and

24 vehicles, the MRT only increases by about 8%. If

we look at the CPU usage, we can again see suitable

values, here it consumes about 8-10% more of CPU

with a bundled and separately scaled gatherer. The ad-

ditional computing power and time that is needed to

make a decision internally is neglectable when com-

pared to the signiﬁcant overall MRT advantage.

The system accommodates around 75 vehicles.

The bottleneck appears to be the network: when try-

ing to increase the number of vehicles beyond this

point, the network was unable to handle the amount

of messages that were exchanged, which resulted in

connections and packets being dropped continuously.

6.3 Evaluation Summary

Containerization comes with a small performance

loss compared to traditional set-ups. However, the

advantages are generally more signiﬁcant than the

downsides. The evaluation indicates that serverless

function calls should be restricted since they intro-

duce network latency problems. Refactoring the pro-

posed solution to reduce the number of necessary

calls to openFaas functions resulted in a signiﬁcant

increase in performance. The implemented scaling

algorithm works as intended. Based on give service-

level objectives, the only values that need to be set

manually are the maximum scale value and the ad-

justment factor. The limiting factor appears to be the

network. Our conﬁguration was not able to process

more than 75 vehicles at a time. CPU and memory

usage numbers as well as the steady, but slow increase

of the MRT imply that the hardware itself should be

able process a higher number of vehicles. The archi-

tecture thus yields satisfying results in terms of hard-

ware consumption and performance (MRT).

7 CONCLUSIONS

We introduced a containerized trafﬁc management ar-

chitecture for the CCAM context deployable on a

cluster of edge devices. The applied approach results

in a reconﬁgurable, scalable and dependable system

that provides built-in solutions for common problems

such as service discovery and inter-service communi-

cation. An implementation of a proof-of-concept has

experimentally demonstrated the suitability.

The evaluation also showed that the given

lightweight and constrained set-up is only able to pro-

cess up to 75 vehicles simultaneously in common data

streaming and coordination activities. The bottleneck

that prevents the system from scaling even higher ap-

pears to be the network infrastructure as well as the

limited internal networking capabilities of the RPI.

This shall be addressed in a future extension.

Implemeting full security and a trust environment

is part of future work (El Ioini et al., 2018; El Ioini et

al., 2018a). For instance, the communication between

the services using the openFaas gateway could be en-

crypted using TLS. The MQTT connections can be

secured. Most MQTT brokers, including mosquitto,

also support TLS for securing the communication

channels.

ACKNOWLEDGEMENTS

This work has received funding from the EU’s Hori-

zon 2020 research and innovation programme under

grant agreement 825012 - Project 5G-CARMEN.

REFERENCES

5G-CARMEN (2019). 5G-CARMEN - 5G for Con-

nected and Automated Road Mobility in the European

UnioN. https://www.5gcarmen.eu/. Accessed: 2019-

11-10.

Baldini, I., Castro, P. C., Chang, K. S., Cheng, P., Fink, S. J.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R. M., Slominski, A., and Suter, P. (2017). Serverless

computing: Current trends and open problems. CoRR,

abs/1706.03178.

Ellis, A. (2018). Introducing stateless microser-

vices for openfaas. https://www.openfaas.com/blog/

stateless-microservices/.

Fang, D., Liu, X., Romdhani, I., Jamshidi, P. and Pahl, C.

(2016). An agility-oriented and fuzziness-embedded

A Lightweight Virtualisation Platform for Cooperative, Connected and Automated Mobility

219

semantic model for collaborative cloud service search,

retrieval and recommendation. In Future Generation

Computer Systems, 56, 11-26.

Fowley, F., Pahl, C., Jamshidi, P., Fang, D. and Liu, X.

(2018). A classiﬁcation and comparison framework

for cloud service brokerage architectures. IEEE Trans-

actions on Cloud Computing 6 (2), 358-371.

Gand, F., Fronza, I., El Ioini, N., Barzegar, H. R., Azimi,

S. and Pahl, C. (2020). A Fuzzy Controller for Self-

Adaptive Lightweight Edge Container Orchestration.

In International Conference on Cloud Computing and

Services Science CLOSER.

Gand, F., Fronza, I., El Ioini, N., Barzegar, H. R. and Pahl,

C. (2020). Serverless Container Cluster Management

for Lightweight Edge Clouds. In International Con-

ference on Cloud Computing and Services Science

CLOSER.

El Ioini, N. and Pahl, C. (2018). A review of distributed

ledger technologies. OTM Confederated International

Conferences.

El Ioini, N. and Pahl, C. (2018). Trustworthy Orchestration

of Container Based Edge Computing Using Permis-

sioned Blockchain. Intl Conf on Internet of Things:

Systems, Management and Security (IoTSMS).

El Ioini, N., Pahl, C. and Helmer, S. (2018). A decision

framework for blockchain platforms for IoT and edge

computing. IoTBDS’18.

Jamshidi, P., Pahl, C., Mendonca, N. C., Lewis, J., and

Tilkov, S. (2018). Microservices: The journey so far

and challenges ahead. IEEE Software, 35(3):24–35.

Jamshidi, P., Pahl, C., Chinenyeze, S. and Liu, X. (2015).

Cloud Migration Patterns: A Multi-cloud Service Ar-

chitecture Perspective. In Service-Oriented Comput-

ing - ICSOC 2014 Workshops. 6–19.

Jamshidi, P., Shariﬂoo, A., Pahl, C., Arabnejad, H., Met-

zger, A. and Estrada, G. (2016). Fuzzy self-learning

controllers for elasticity management in dynamic

cloud architectures. Intl Conf Quality of Software Ar-

chitectures, 70–79.

Jamshidi, P., Pahl, C. and Mendonca, N. C. (2016). Man-

aging uncertainty in autonomic cloud elasticity con-

trollers. IEEE Cloud Computing, 50-60.

Jamshidi, P., Pahl, C. and Mendonca, N. C. (2017). Pattern-

based multi-cloud architecture migration. Software:

Practice and Experience 47 (9), 1159-1184.

Kiss, P., Reale, A., Ferrari, C. J., and Istenes, Z. (2018).

Deployment of iot applications on 5g edge. In 2018

Intl Conf on Future IoT Technologies, pp. 1–9.

Kritikos, K. and Skrzypek, P. (2018). A review of serverless

frameworks. In 2018 Intl Conf on Utility and Cloud

Computing (Companion), pp. 161–168.

Lama, P. and Zhou, X. (2010). Autonomic provisioning

with self-adaptive neural fuzzy control for end-to-end

delay guarantee. In 2010 Intl Symp on Mod, Anal and

Sim of Comp and Teleco Syst, pp. 151–160.

Le, V. T., Pahl, C. and El Ioini, N. (2019). Blockchain Based

Service Continuity in Mobile Edge Computing. In 6th

International Conference on Internet of Things: Sys-

tems, Management and Security.

Light, R. (2018). Mqtt man page. https://mosquitto.org/

man/mqtt-7.html. Accessed: 2019-11-12.

Mendonca, N. C., Jamshidi, P., Garlan, D. and Pahl, C.

(2020). Developing Self-Adaptive Microservice Sys-

tems: Challenges and Directions. In IEEE Software.

openFaaS (2019). openfaas: Auto-scaling. https://docs.

openfaas.com/architecture/autoscaling/. Accessed:

2019-11-11.

Pahl, C., El Ioini, N., Helmer, S. and Lee, B. (2018). An ar-

chitecture pattern for trusted orchestration in IoT edge

clouds. Intl Conf Fog and Mobile Edge Computing.

Pahl, C., Jamshidi, P. and Zimmermann, O. (2018). Archi-

tectural principles for cloud software. ACM Transac-

tions on Internet Technology (TOIT) 18 (2), 17.

Pahl, C. (2003). An ontology for software component

matching. International Conference on Fundamental

Approaches to Software Engineering, 6-21.

Pahl, C. (2005). Layered ontological modelling for web

service-oriented model-driven architecture. In Europ

Conf on Model Driven Architecture – Foundations and

Applications.

Riggio, R., Khan, S. N., Subramanya, T., Yahia, I. G. B.,

and Lopez, D. (2018). Lightmano: Converging nfv

and sdn at the edges of the network. In 2018 Network

Operations and Management Symp, pp. 1–9.

Pahl, C., Jamshidi, P. and Zimmermann, O. (2020). Mi-

croservices and Containers. Software Engineering

(2020).

Pahl, C., Fronza, I., El Ioini, N. and Barzegar, H. R. (2019).

A Review of Architectural Principles and Patterns for

Distributed Mobile Information Systems. In 14th Intl

Conf on Web Information Systems and Technologies.

Scolati, R., Fronza, I., Ioini, N. E., Samir, A., and Pahl,

C. (2019). A containerized big data streaming archi-

tecture for edge cloud computing on clustered single-

board devices. In 9th International Conference on

Cloud Computing and Services Science CLOSER.

Tata, S., Jain, R., Ludwig, H., and Gopisetty, S. (2017).

Living in the cloud or on the edge: Opportunities and

challenges of iot application architecture. In 2017 Intl

Conf on Services Computing, pp. 220–224.

von Leon, D., Miori, L., Sanin, J., El Ioini, N., Helmer, S.

and Pahl, C. (2019). A Lightweight Container Mid-

dleware for Edge Cloud Architectures. Fog and Edge

Computing: Principles and Paradigms, 145-170.

Xi, B., Xia, C. H., Liu, Z., Zhang, L., and Raghavachari, M.

(2004). A smart hill-climbing algorithm for applica-

tion server conﬁguration. In 13th Int. Conf. on WWW.

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

220
