Analysis of Security Attacks in Wireless Sensor Networks:

From UPPAAL to Castalia

Cinzia Bernardeschi

1 a

, Gianluca Dini

1 b

, Maurizio Palmieri

1 c

and Francesco Racciatti

2 d

Department of Information Engineering, Pisa University, Pisa, Italy

Department of Information Engineering, Florence University, Florence, Italy

Keywords:

Security, Sensor Networks, Simulation, Model-checking.

Abstract:

Wireless Sensor Networks (WSNs) are particularly prone to security attacks. However, it is well-known that

perfect security is not achievable. Therefore, it is important to identify threats and evaluate their severity, for

prioritizing the security countermeasures to be adopted, even since design time. In this work, we propose an

approach that binds formal methods and network simulation for assessing the effects of security attacks on

WSN applications from design time, starting from the abstract model of the system. Formal methods make

it possible to build abstract system models and state properties of general validity, but cannot provide any

concrete measurement regarding the network and the application. On the other hand, network simulators can

provide precise and realistic information about simulated scenarios only. As a proof of concept, we design

and prototype an application-level communication protocol, which is simulated both on attack free and attack

scenarios. First, the protocol’s formal properties are speciﬁed and proved via UPPAAL. Then, the resulting

UPPAAL model is used to automatically generate a network model for the WSN simulator Castalia. Finally,

the network model is simulated against attack free and attack scenarios, for gathering realistic information

about the protocol behavior and performance.

1 INTRODUCTION

Wireless Sensor Networks (WSNs) are particularly

exposed to security threats. Typically, sensor nodes

are resource-scarce devices, and cannot address secu-

rity attacks to their maximum extent (Cardenas et al.,

2009).

A comprehensive design approach for WSN appli-

cations and protocols may help designers to mitigate

security threats while preserving nodes’ resources

and, at the same time, may help to reduce the design

effort. However, there are no standard methods. Gen-

erally, the process of designing and prototyping WSN

protocols and applications exploits tools like network

simulators (Lazarescu and Lavagno, 2017). Exam-

ple of simulators are OMNeT++ (Varga, 2014), NS3

(Tom Henderson and Sumit Roy, 2019) and Ptolemy

(J. Buck and Messerschmitt, 1994).

Such simulators provide concrete and realistic

https://orcid.org/0000-0003-1604-4465

https://orcid.org/0000-0002-6029-5467

https://orcid.org/0000-0002-6177-0928

https://orcid.org/0000-0002-0452-5010

measurements of network nodes parameters like com-

munication latency, energy consumption, and compu-

tational effort. However, the scope of network simula-

tors is limited on simulated scenarios only, and cannot

be used to prove general properties of the system.

Conversely, the abstract models of WSN protocols

and applications, designed via formal methods, allow

to state properties of general validity and prove them

through automated tools. On the other hand, abstract

models do not take into account physical properties at

all.

Formal methods have been applied in the literature

for modeling and analyzing sensor networks. For ex-

ample, in (Bolton and Lowe, 2004) key properties of

a popular routing protocol are analyzed, in (Nair and

Cardell-Oliver, 2004) performance of protocols are

evaluated, in (K. Bhargavan and Viswanathan, 2002)

formal methods are used for validating simulation

results. A combined approach for both simulation

and formal veriﬁcation of WSN protocols has been

proposed in (Bernardeschi et al., 2008; Bernardeschi

et al., 2009). Such an approach explores logic as for-

mal speciﬁcation languages, executable theories for

simulation and theorem proving for formal proofs.

Bernardeschi, C., Dini, G., Palmieri, M. and Racciatti, F.

Analysis of Security Attacks in Wireless Sensor Networks: From UPPAAL to Castalia.

DOI: 10.5220/0009380508150824

In Proceedings of the 6th International Conference on Information Systems Security and Privacy (ICISSP 2020), pages 815-824

ISBN: 978-989-758-399-5; ISSN: 2184-4356

815

However, the approach only considers an abstract de-

scription of the communication protocol at network

layer.

Instead, the exploitation of network simulators

downstream of formal methods can provide design-

ers with valuable insights on the physical aspects of

the system, such as energy consumption or computa-

tional effort of nodes. Then, data coming from the

network simulator can be analyzed and possibly used

for reﬁning the initial abstract model.

The main contribution of this work is the deﬁni-

tion and the implementation of a framework that en-

ables designers to easily obtain a network model of

WSN protocols and applications via abstract mod-

eling. In detail, starting from abstract models de-

scribed in UPPAAL (Behrmann et al., 2006) using

the Timed Automata (TA) formalism (Alur and Dill,

1994), such a framework turn them into more con-

crete network models to be simulated via the WSN

simulator Castalia (A. Boulis, 2013). UPPAAL has

already been used by some of the authors for building

formal models and proving safety properties of sys-

tems (Palmieri et al., 2019; Bernardeschi et al., 2018).

As proof of concept, the diffusion protocol

(W. Heinzelman and Balakrishnan, 1999) is designed

and prototyped using the framework we propose.

Then, the abstract model of such a protocol is ex-

tended to simulate the behavior of the system when

a compromised node: i) drops packets and ii) tampers

packet before sending them to its neighbors.

The paper is organized as follows: Section 2 pro-

vides background on Castalia network simulator and

UPPAAL formal modeling framework; Section 3 de-

scribes the proposed approach and Section 4 con-

cludes with a discussion on future work.

2 BACKGROUND

This section brieﬂy introduces the basic concepts of

UPPAAL and Castalia tools.

2.1 UPPAAL

UPPAAL is a framework for modeling and analyzing

systems described by Timed Automata (Alur and Dill,

1994). A Timed Automaton is a graph characterized

• a set of nodes (named locations);

• one initial location;

• a set of invariant conditions, labeling locations;

• a set of edges between locations;

• a set of actions, labeling edges;

• a set of clocks;

• a set of constraints, labeling edges.

The values of the clocks and the current location

represent the current state of a Timed Automaton. Lo-

cation changes occur as a consequence of execution

of edges. Instead, when the system remains in a cer-

tain location, the time progression is represented by

the increasing of the clocks values, which happens at

the same rate for all of them.

Such timed automata can be connected and syn-

chronized to each other for modeling complex net-

works of timed automata. Connections between timed

automata can be realized using communication chan-

nels, through which synchronization actions can be

executed. Synchronization between automata can be

realized through edges, one for each automaton to

be synchronized. Such edges have to be labeled

with complementary actions, namely input and out-

put, which are represented through question marks

(?) for input synchronizations, and exclamation

marks (!) for output synchronizations, respectively.

A timed automaton executing an output action, syn-

chronizes with one or more timed automata executing

input actions, and vice versa. Synchronizations can

be blocking or not blocking, depending on the type of

channel connecting the automata. For additional de-

tails regarding Timed Automata, the reader can refer

to (Alur and Dill, 1994).

2.2 Castalia

Figure 1: Generic Castalia network.

Castalia is an event-driven WSN simulator, built on

top of the popular OMNeT++ platform, which offers

wide support for building custom protocols and ap-

plications. OMNeT++ is based on two core concepts:

modules and messages (Varga, 2014). Simple mod-

ules represent the basic execution units, that execute

certain pieces of code when the related events occur.

Events are represented by messages, which are sent

(or scheduled) from one simple module to another,

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

816

Figure 2: Generic Castalia node.

or itself. Simple modules, in turn, can be composed

together for building composite modules, to achieve

more complex functionalities.

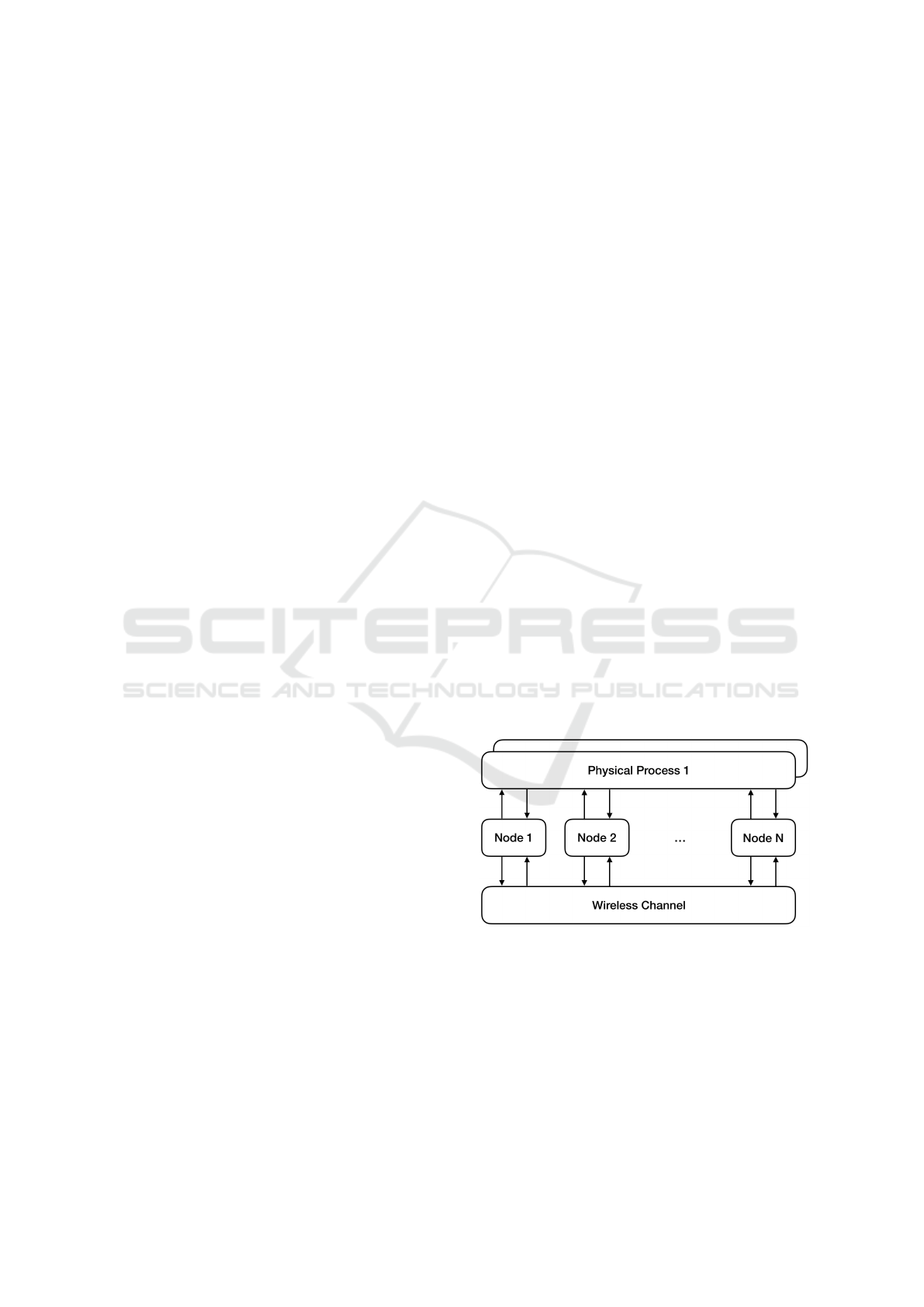

Figure 1 shows the model of a generic Castalia

network, which is made by a set of composite mod-

ules, i.e. the nodes, the wireless channel and the phys-

ical processes monitored by nodes. Modules commu-

nicate with each other through message sending. The

arrows represent the ﬂow of messages among mod-

ules. It is worth noting that nodes do not connect di-

rectly but through the wireless channel module.

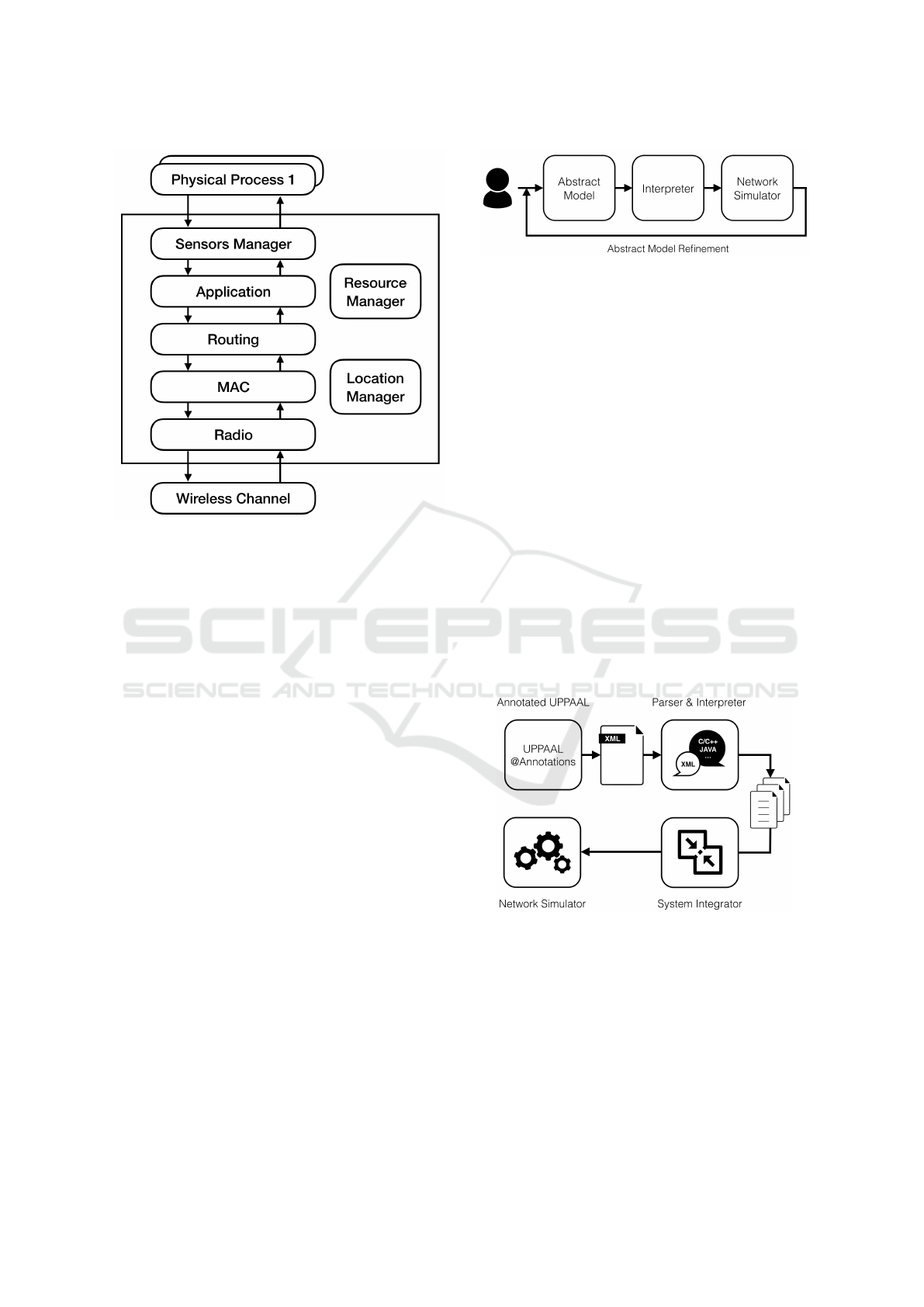

Figure 2 shows the internal structure of the net-

work nodes. Each node is a composite module and

is built by the composition of a set of interconnected

simple modules. The entire communication stack is

modeled through simple modules. It is made up by

a Radio module linked with the Wireless Channel,

a MAC module, a Routing module and an Applica-

tion Module. Moreover, nodes are equipped with: i)

a Sensors Manager which is, in turn, linked with the

Physical Processes under monitoring; ii) a Mobility

Manager, that manages the position of the node over

time; and iii) a Resource Manager, for monitoring the

node’s resource consumption.

3 PROPOSED APPROACH

The approach we propose binds formal methods and

network simulators, as shown in Figure 3. First, WSN

designers can use formal methods to easily build an

Figure 3: WSN design and prototype approach.

abstract model of the protocol or application and

prove its general properties. Then, a more concrete

network model is generated starting from the abstract

model, via a dedicated Interpreter. Finally, such a

network model can be simulated through a network

simulator to gather realistic data that, in turn, can be

used for reﬁning the initial abstract model. Such a

workﬂow can be repeated more times until both the

abstract and network models behave as expected.

In the following, we show the implementation of

such an approach, in which UPPAAL and Castalia

simulator are used as instances of the abstract model

checker and network simulator, respectively. Then,

we propose the design and prototype of a simple ap-

plication layer communication protocol through our

approach. Finally, we run simulations on the proto-

col model, both in attack free and attack scenarios, to

analyze its behavior and performance.

3.1 UPPAAL/Network Simulator

Integration Workﬂow

Figure 4: Workﬂow from UPPAAL to a generic network

simulator.

Figure 4 shows the workﬂow we propose for integrat-

ing UPPAAL with a generic network simulator.

As a ﬁrst step, the UPPAAL model has to be en-

riched with information regarding the physical fea-

tures of the simulation environment, e.g. i) the size

of the simulation ﬁeld; ii) the position of nodes in the

simulation ﬁeld; iii) the latency of the channels; and

others. UPPAAL does not take into account the physi-

cal features at all, but network simulators require such

Analysis of Security Attacks in Wireless Sensor Networks: From UPPAAL to Castalia

817

information.

The enrichment of the UPPAAL model takes place

in the related XML ﬁle, precisely in the system tag,

using annotations, i.e. comments having the format:

//@<Annotation>. UPPAAL does not take into ac-

count such annotations at all since they are written as

comments in the UPPAAL code describing the sys-

tem. As an example, the following code shows the

annotation of the position of Node 1.

//@Position(20, 50, 10) node1 := relay(1);

In detail, the position of Node 1 is (x = 20, y = 50, z =

10) from the origin in a Cartesian coordinate system.

Then, as a second step, the XML ﬁle produced by

UPPAAL is parsed by the Parser for building a stan-

dard object-oriented model of the UPPAAL Timed

Automata.

Then, such an object-oriented model is inter-

preted, accordingly to the underlying network simu-

lator. As a result, the Interpreter produces a set of

ﬁles.

Furthermore, as a third step, the System Integrator

bundles the ﬁles produced by the Interpreter with the

vanilla Network Simulator.

Finally, as a fourth step, the Network Simulator

can simulate the UPPAAL model.

3.2 Application Model in UPPAAL

The applications running on network nodes are mod-

eled via parametric Automata, by exploiting the UP-

PAAL template system. Such Automata are paramet-

ric with respect to the node id. In general, leav-

ing out initialization and ﬁnal states, network nodes

have only one main state from which a set of outgo-

ing transitions starts. Such transitions account for the

reception/transmission of packets from/to other net-

work nodes.

Moreover, network nodes are connected through

a non-blocking broadcast channel. It is worth not-

ing that the transmission of messages results in the

broadcast of them. Such a broadcast channel is

modeled through the global array chnl indexed by

the type node t, which deﬁnes the size of the ar-

ray itself. Similarly, we model the messages ex-

changed between network nodes through the global

array bmessages indexed by node t. Moreover, we

assume that each message is uniquely identiﬁed by its

timestamp. Therefore, we use the global declarations

that follow, where the variable NODES represents the

number of network nodes:

const int NODES = ...;

typedef int[0,NODES-1] node_t;

typedef int timestamp;

chan chnl[node_t]:

timestamp bmessages[node_t];

In the following, we refer to a WSN made up

of ﬁve nodes: i) one source node; and ii) four relay

nodes. The detailed model of such nodes is described

in Section 3.2.1.

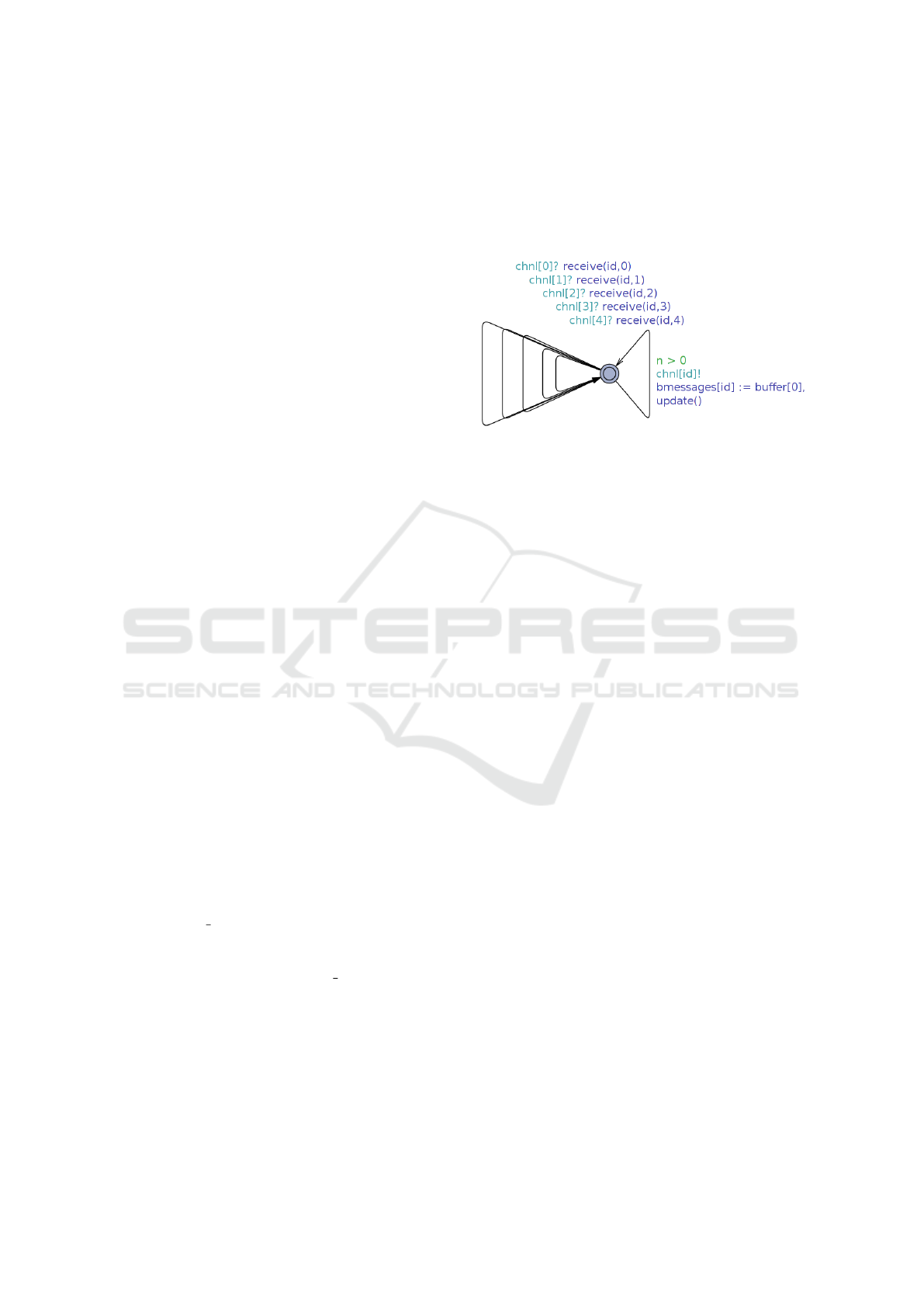

Figure 5: Abstract model of a generic relay node.

Figure 5 shows the template of the generic relay

node id. In detail, the model of relay nodes is made

by one location and six edges:

• ﬁve edges execute the input actions chnl[0]?

··· chnl[4];

• one edge executes the output action chnl[id]!.

The input action chnl[i]? is the action executed

by a node for receiving a message from the node i.

Similarly, the output action chnl[i]!bmessages[i]

represents the action executed by node i to broadcast

the message bmessages[i].

As depicted by Figure 5, the output action

chnl[id]! is enabled only if the global variable

bmessages[id] contains at least one message to

send, i.e. if n > 0. We point out that n represents

the number of messages to be forwarded, whereas

buffer[0] represents the messages stored in the head

of the local buffer of the node id, which is the FIFO

buffer that contains all the messages to be forwarded.

When a message is sent, it is stored into the global ar-

ray bmessages, i.e. bmessages[id] = buffer[0],

then the function update() is executed for updat-

ing node’s local data structures, as described in Sec-

tion 3.2.1.

Conversely, the input action chnl[i]? is always

enabled. However, messages broadcasted by node

i are received by node id only if nodes i and id

are neighbors. The function receive(id, i) imple-

ments the receiving of messages from neighbors, as

described in Section 3.2.1.

3.2.1 Flooding Protocol

Flooding (W. Heinzelman and Balakrishnan, 1999) is

a one-to-many routing protocol, in which a dedicated

node (the base station) needs to communicate general

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

818

information to all the nodes of the network. As an

example, ﬂooding can be applied for dynamic route

discovery. A simple version of ﬂooding behaves as

follows: whenever a network node receives a mes-

sage, it is forwarded to all its neighbors only if it has

not already been forwarded; otherwise, it is dropped.

Moreover, nodes drop old messages also, when re-

ceived. In the following, it is stated an interesting

property of the ﬂooding protocol.

Property P: every node receives all the messages

sent by the base station, and every message that was

received is then forwarded only once.

Relay Nodes. Referring to the abstract model of a

generic relay node depicted in Figure 5, nodes are

provided with the local data structures that follow, in

order to support the ﬂooding protocol.

const int MSGS = ...;

typedef int [0,MSGS-1] checker_t;

const int DIM = ...;

typedef in [0,DIM-1] size_t;

timestamp TS;

timestamp buffer[DIM];

int n;

timestamp logger[DIM];

int m;

MSGS represents the number of messages sent by the

base station; TS stores the most recent timestamp

of received messages; buffer is a FIFO buffer that

stores messages waiting to be forwarded; and, ﬁnally,

the buffer logger stores the already broadcasted mes-

sages. The latter buffer will be used to check the

Property P.

Moreover, for implementing the ﬂooding algo-

rithm on relay nodes, the functions receive and

update of the timed automaton depicted in Figure 5

can be specialized as follows.

void receive(int j) {

if ( neighbor(id,j)

&& bmessages[j] > TS

&& n < DIM-1) ) {

buffer[n] = bmessages[j];

TS = bmessages[j];

n++;

}

void update() {

n--;

for( i : size_t ) {

buffer[i-1]=buffer[i];

}

if ( m < DIM-1 ) {

logger[m] = bmessages[id];

m++;

}

Where n and m represent the current number of el-

ements stored in buffer and logger, respectively.

In detail, the test bmessages[j] > TS in the func-

tion receive evaluates false when the node id re-

ceives either an old or an already received message.

In such cases, the received message is not stored into

buffer and is dropped. Moreover, after broadcasting

a message, the function update() executes a back-

ward one-position shift of buffer.

Figure 6 shows the network topology we con-

sider. Moreover, we assume the communication range

between nodes is one hop. As a consequence, the

function receive(id, i) of relay nodes is tailored

on such network parameters, and returns true if the

nodes id and i are one-hop neighbors, false other-

wise. As an example, receive(4, 2) returns true,

since Node 2 is a one-hop neighbor of Node 4. Con-

versely, receive(4, 3) returns false, since Node 3

is two-hops far away from Node 4.

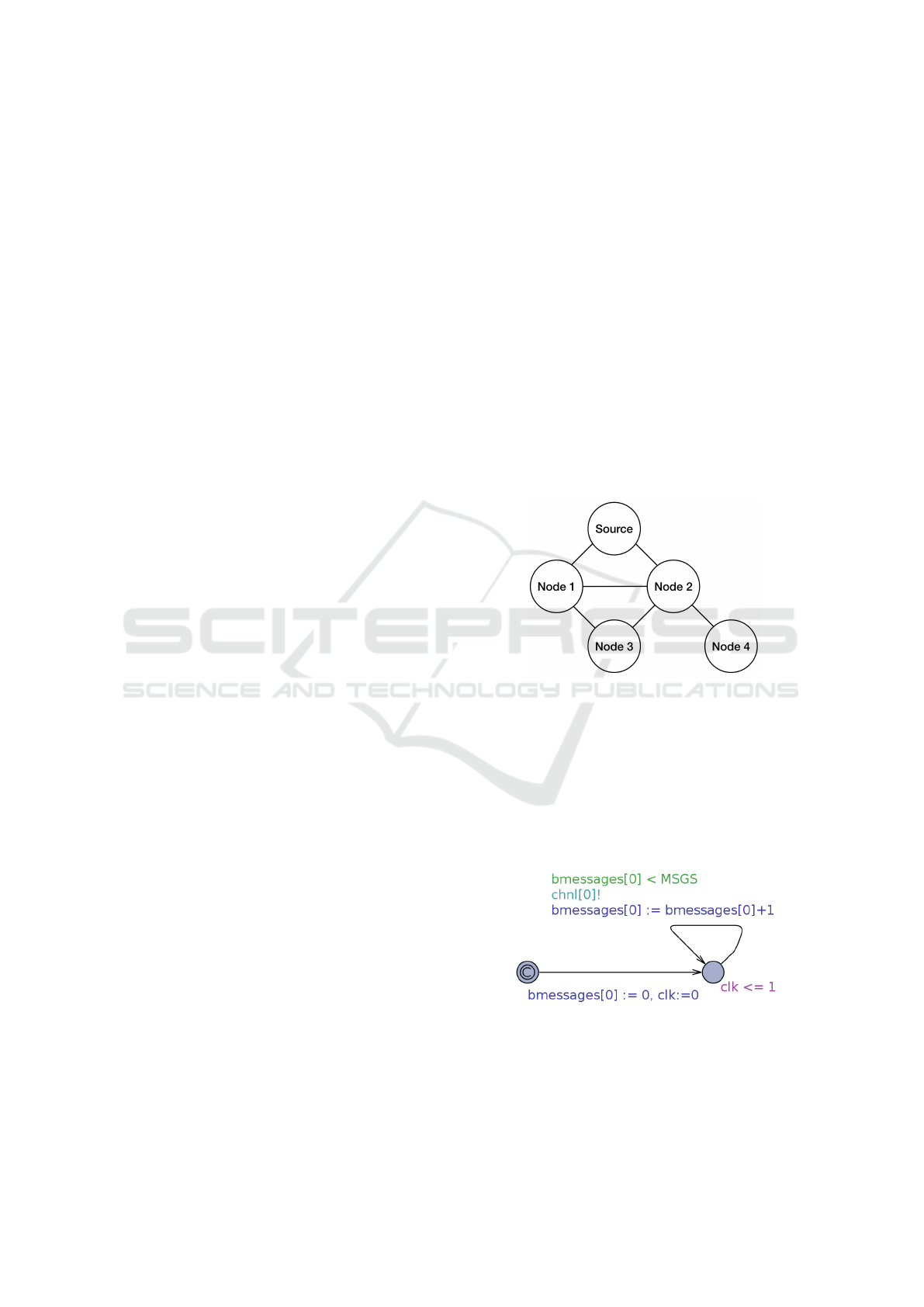

Figure 6: Network topology.

Source Node. Figure 7 shows the UPPAAL tem-

plate that models the base station, named Source

node, of the ﬂooding algorithm. The Source node

broadcasts a brand new message every clk units.

Messages sent by Source node are incrementally

timestamped, from 1 to MSGS, which is the last mes-

sage sent. After sending MSGS messages, the Source

node stops transmitting.

Figure 7: Abstract model of the Source node.

Network. According to the network topology (Fig-

ure 6), the UPPAAL network is speciﬁed as follows.

sourcenode := source();

node1 := relay(1);

Analysis of Security Attacks in Wireless Sensor Networks: From UPPAAL to Castalia

819

node2 := relay(2);

node3 := relay(3);

node4 := relay(4);

system sourcenode, node1, node2, node3, node4;

Where source and relay(id) represent the tem-

plates for the Source node and the Relay nodes, re-

spectively.

Then, the Property P of the ﬂooding protocol,

which was previously described, can be checked via

UPPAAL by exploiting the formulas that follow.

A<>( forall ( i:checker_t )

node1.logger[i] == i + 1 )

A<>( forall ( i:checker_t )

node2.logger[i] == i + 1 )

A<>( forall ( i:checker_t )

node3.logger[i] == i + 1 )

A<>( forall ( i:checker_t )

node4.logger[i] == i + 1 )

In detail, we test the Property P against the content of

the buffer logger of all relay nodes. For each node,

the buffer logger stores all the messages forwarded

by it. Referring to the formulas above, logger[i]

represents the (i+1)-th message that was forwarded

by a certain node.

The Property P is proved to be true if, for each

relay node, for each i such as i ∈ [0, MSGS),

logger[i] stores the timestamp i+1. In this case,

all nodes forwarded only once all the messages they

received.

It is worth noting that UPPAAL tests the formu-

las above against all the possible execution paths of

the protocol. In particular, such formulas have been

proved to be true in our attack free simulation sce-

nario.

3.2.2 Modeling Attacks

Referring to the network topology shown in Figure 6,

we consider two attacks in both of which a node is

compromised by an adversary.

Drop Attack. In the ﬁrst attack, at a random time,

the compromised node drops exactly one packet that,

instead, should have been sent to its neighbors. Fig-

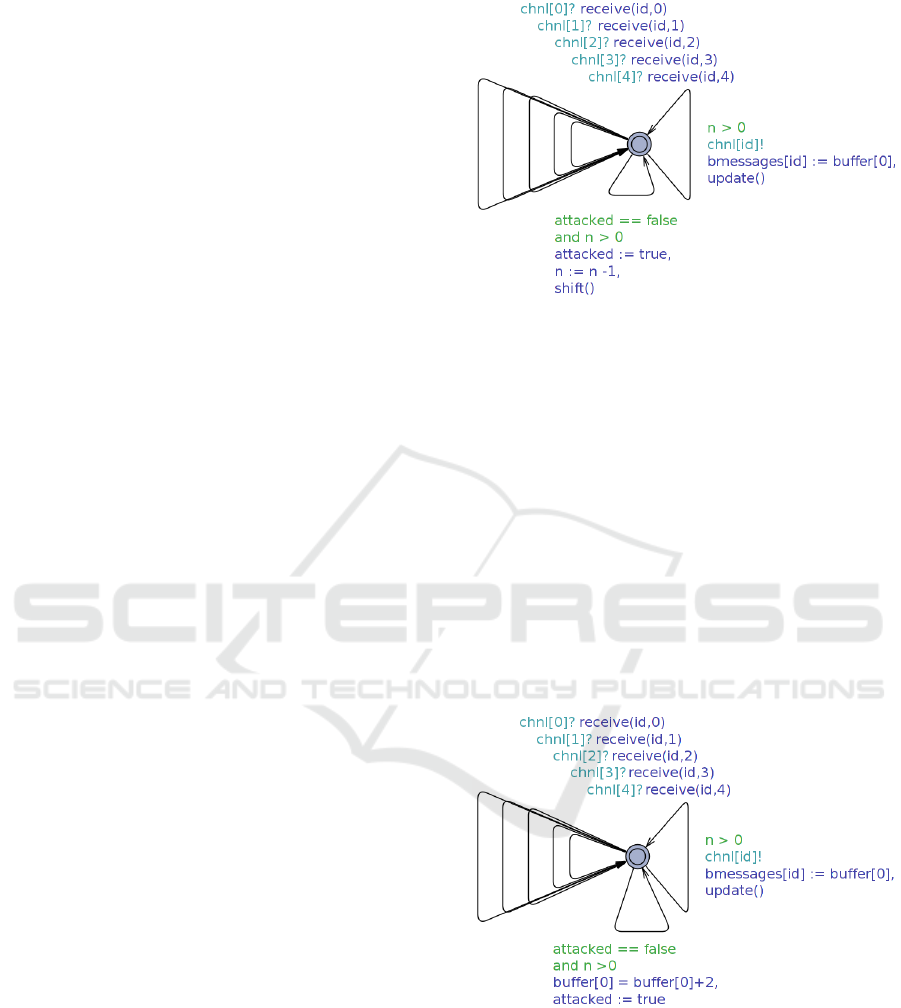

ure 8 shows the model of the compromised node that

drops the packet.

Simulations done via UPPAAL show the results

that follow.

• when the adversary compromises Node 1, the

Property P described in 3.2.1 is still satisﬁed,

since Node 3 receives a copy of the dropped

packet from Node 2, thanks to link redundancy;

Figure 8: Template modeling the drop attack.

• when the adversary compromises Node 2, the

Property P is not satisﬁed anymore because Node

4 does not receive a copy of the dropped packet

since there is no redundancy on links connecting

Node 4 with other network nodes.

Tamper Attack. In the second attack, the compro-

mised node sends exactly one fake packet to its neigh-

bors. Such a packet contains a fake timestamp, which

is ahead in time compared to the current time. The

reception of the fake packet causes, on the recipient,

the discarding of all the genuine packets that carry a

timestamp older than the fake one. Figure 9 shows

the model of the compromised node that tampers the

packet.

Figure 9: Template modeling the tamper attack.

Simulations done via UPPAAL show the follow-

ing results.

• When the adversary compromises Node 1, the

Property P is not satisﬁed if Node 3 receives the

fake packet from Node 1 before the genuine pack-

ets carrying timestamps older than the fake one

from Node 2. Conversely, the Property P is satis-

ﬁed if Node 3 receives from Node 2 all the gen-

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

820

uine packets carrying timestamps older than the

fake one before the fake packet from Node 1.

• When the adversary compromises Node 2, the

Property P is not satisﬁed anymore because Node

4, after receiving the fake packet, discards all the

subsequent genuine packets received from Node 4

that carry timestamps older than the fake one.

As shown in Figure 8 and Figure 9, both the at-

tacks are modeled by adding exactly one transition to

the model of the relay node shown in Figure 5. Both

attacks occur at random time and execute only once.

3.3 Implementation of the Integration

Framework

We have built an implementation of the framework

we propose. Such a prototype is built in Python and

integrates UPPAAL with Castalia, a C/C++ simula-

tor for WSNs. Castalia comes with a set of ready-

to-use components that cover the entire communica-

tion stack. Such components are fully tunable and

customizable and can be combined to each other to

implement nodes performing the desired behavior on

each layer of the communication stack. The prototype

we propose exploits such ready-to-use components.

In fact, it interprets the UPPAAL model for generat-

ing the application layer module from scratch. Then,

it combines the application layer module with other

ready-to-use modules implementing bottom layers.

The section that follows describes key design el-

ements of our prototype, which implements the inte-

gration framework from UPPAAL to Castalia.

3.3.1 UPPAAL Model Annotations

The prototype we present requires the user to annotate

the position of nodes only, since:

• it is the only parameter that cannot be automati-

cally inferred;

• the UPPAAL model involves the application layer

only, bottom layers are omitted;

• Castalia provides a set of ready-to-use Castalia

modules for implementing the whole communi-

cation stack;

• modules’ physical parameters of bottom layers

can be tuned after integration, also.

In the following, it is shown the tag system of the

enriched XML ﬁle related to the system topology de-

picted in Figure 6. Nodes are positioned accordingly

to Castalia’s coordinate reference system.

// @Position(10, 0, 0)

sourcenode := source();

// @Position(0, 10, 0)

node1 := relay(1);

// @Position(20, 10, 0)

node2 := relay(2);

// @Position(10, 20, 0)

node3 := relay(3);

// @Position(30, 20, 0)

node4 := relay(4);

system sourcenode, node1, node2, node3, node4;

3.3.2 Parser & Interpreter

The Parser parses the annotated XML ﬁle produced

by UPPAAL and builds an object-oriented model of

the Time Automata. Such an object-oriented model

is independent of the underlying Network Simulator.

Conversely, the Interpreter is strictly coupled with the

Network Simulator, since it produces the ﬁles that

will be bundled with it. In the following, we focus

on the ﬁles produced by Interpreter.

Network Conﬁguration. The overall network con-

ﬁguration is contained in the ﬁle omnetpp.ini,

which is extracted from the XML tag system. Such

a ﬁle deﬁnes the number of nodes, the positioning

of them, and the applications running on each layer

of their communication stacks. Moreover, it contains

all the network’s physical parameters, like the latency

of the channel, the transmission power of nodes’ an-

tennas, the nodes’ internal clock, and many others.

By tuning such parameters, it is possible to generate

several different conﬁgurations of the same network,

without re-building the Network Simulator.

Global Data Structures and Type Aliasing.

Global C/C++ headers containing global data struc-

tures and type aliasing are extracted from the global

XML tag declaration. Such data and types are

stored in the ﬁle UppaalGlobal.h, which will be im-

ported by all the classes using global data or types.

Application Layer Packet. The structure of the ap-

plication layer packet, used by all the network nodes,

is obtained from the deﬁnition of the UPPAAL com-

munication channel, which is contained in the text

of the global XML tag declaration. In detail, the

Interpreter stores the NED description of the packet

structure in the ﬁle UppaalPacket.msg. Such a

Analysis of Security Attacks in Wireless Sensor Networks: From UPPAAL to Castalia

821

ﬁle will be used during the build of the simula-

tor, for producing the ﬁles UppaalPacket m.h and

UppaalPacket m.cc, which contains the C++ model

of the packet itself. The header UppaalPacket m.h

will be imported by all the classes sending and re-

ceiving application layer packets.

Nodes’ Applications. The Interpreter produces one

application for each XML tag template. Each node

of the network runs a certain application, namely tem-

plate, in its application layer simple module. From an

overall point of view, an application is made by:

• one NED description of the simple module exe-

cuting the application;

• a set of C/C++ ﬁles implementing the application

itself.

In detail, each application is provided with a Fi-

nite State Machine (FSM), that implements the be-

havior described by the XML template. Referring to

the content of the XML tag template:

• each location accounts for one FSM’ state;

• each transition accounts for one FSM’s transi-

tion.

Moreover, the application is provided with the

FSM’s transition map, used to let the FSM evolve.

All of FMS’s transitions implements the following ab-

stract functions:

bool

AbstractTransition::checkGuard();

bool

AbstractTransition::doSynchronization();

std::string

AbstractTransition::doAssignments();

The functions checkGuard, doSynchronization,

and doAssignments implement the UPPAAL tran-

sition’s guard, synchronization and assignments, re-

spectively.

The FSM evolves according to the node’s clock,

through the execution of transitions, namely perform-

ing the UPPAAL transition’s assignments. At each

clock tick, the application retrieves all the outgoing

transitions for the current node from the FSM transi-

tion map. Then, it executes the transition that satisﬁes

both the guard and the synchronization conditions. If

no transition is possible, the FSM does not evolve in

the current clock frame. Conversely, if more transi-

tions can be performed, the application executes one

of them randomly.

Nodes Synchronization. In Castalia, nodes asyn-

chronously communicate with each other. Moreover,

when transmitting, nodes broadcast packets. UP-

PAAL transmission and reception synchronizations

are supported in Castalia in two different ways.

Transitions containing a transmission synchro-

nization can be always executed if the related guard

is satisﬁed. A UPPAAL transmission synchroniza-

tion, for example on channel 0, i.e. message[0]!, re-

sults in the broadcast of a UppaalApplication packet,

as shown in the following code:

UppaalPacket* uppaalPacket;

uppaalPacekt = new UppaalPacket(nodeid);

toNewtorkLayer(uppaalPacket, BROADCAST);

After the packet is broadcasted, it is received by

all nodes positioned inside the sender’s transmission

range.

To support the UPPAAL reception synchroniza-

tion, each node is provided with a reception buffer on

the application layer. Such a buffer follows the FIFO

policy. Nodes store UppaalPackets into the reception

buffer as soon as they are received.

Then, when a reception transition is executed, for

example on channel 0, i.e. message[0]?, it results in

the scanning of the reception buffer, looking for the

ﬁrst UppaalPacket received from Node 0. If the target

UppaalPacket is found, then the transition is executed.

Otherwise, the FSM does not evolve in the current

clock frame.

3.3.3 Integration and Run

The System Integrator bundles the ﬁles produced by

the Interpreter with Castalia, then builds the simula-

tor. When the build ends, the UPPAAL model can be

simulated on Castalia. It is worth noting that Castalia

makes it possible to have several different conﬁgura-

tions for the same WSN, without re-build the simula-

tor.

Then, a certain WSN model may have several dif-

ferent conﬁgurations that differ from each other due

to: i) the positioning of the nodes; ii) the latency of the

channel; iii) the bottom layers protocols; iv) or other

tuning parameters. Batch processing can be used for

simulating a large number of different conﬁgurations

for a certain WSN model, with the aim of validating

a large number of different scenarios through simula-

tion.

In the following, it is shown a sample of a simula-

tion report provided by Castalia, when simulating the

attack free scenario. In detail, it lists the packets re-

ceived by Node 4 during a simulation run. The clock

period of all nodes is 100 ms.

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

822

...

Node4> at time 1.59 sec received value 1

from node 2

Node4> at time 1.69 sec received value 2

from node 2

Node4> at time 1.79 sec received value 3

from node 2

...

In the attack free scenario, Node 4 receives all the

packets sent by the Source node, through Node 2,

without repeated messages coming from the same

node.

Conversely, when compromising Node 2 for exe-

cuting the drop attack, we obtain the result that fol-

lows.

...

Node4> at time 2.05 sec received value 6

from node 2

Node4> at time 2.25 sec received value 8

from node 2

Node4> at time 2.35 sec received value 9

from node 2

...

In this case, when the attack occurs, Node 4 does not

receive packet 7 from Node 2, according to the results

provided by UPPAAL.

Similarly, when compromising Node 2 for execut-

ing the tamper attack, we obtain the result that fol-

lows.

...

Node4> at time 2.83 sec received value 14

from node 2

Node4> at time 3.13 sec received value 17

from node 2

Node4> at time 3.23 sec received value 18

from node 2

...

In this case, when the attack occurs, Node 4 does not

receive packets 15 and 16 from Node 2.

Moreover, it is possible to obtain several physi-

cal measurements from Castalia. As an example, Fig-

ure 10 shows the energy consumption of Node 2 and

Node 4 in all the three scenarios, namely attack free

scenario, drop attack scenario and tamper attack sce-

nario. For each scenario, the energy consumption is

obtained as a weighted average of ten simulation runs.

As expected, power consumption among the three

scenarios is nearly unchanged (about 8 mJ), since at-

tacks execute only once and result, at most, in avoid-

ing only one packet transmission on Node 2 (drop

attack). However, power consumption can signiﬁ-

cantly vary in other scenarios such as attacks in which

malicious nodes speciﬁcally act for draining network

nodes’ batteries (Eugene Y. Vasserman, 2013).

7.5

8.5

Node2 Node4

Energy consumed (mJ)

Nodes

No Attack

Drop Attack

Tamper Attack

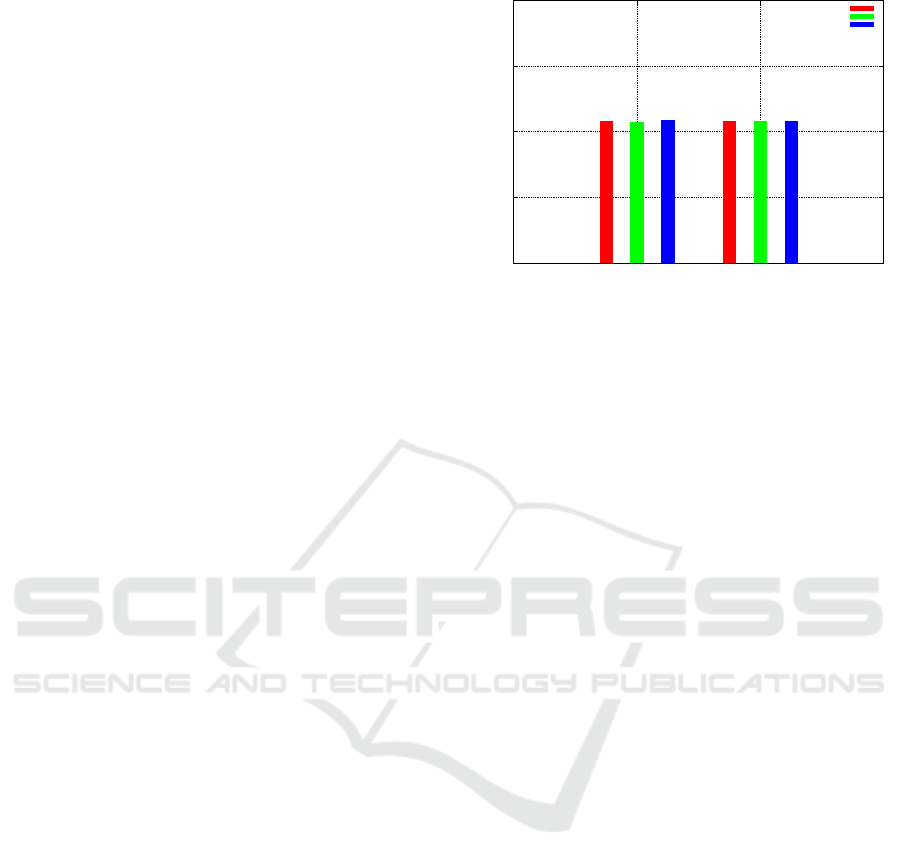

Figure 10: Measurement of energy consumed by Node 2

and Node 4.

4 CONCLUSIONS

This paper presents ongoing work on a security-aware

design approach for WSN applications and protocols.

Such an approach exploits the integration between

formal methods and network simulators, for provid-

ing WSN designers with a toolchain that makes it

possible to easily model and rapidly prototype WSN

protocols and applications, and then simulate them

on several different scenarios, including security at-

tack scenarios. This enables WSN designers to gather

valuable insights on the realistic behavior of the ab-

stract model since from design time, such as energy

consumption and computational speed, thus helping

them to recognize design ﬂaws and security-related

issues, and then select appropriate solutions.

To support our points, we have built a tool that in-

tegrates the model checker UPPAAL with the WSNs

simulator Castalia. Such a tool makes it possible

to automatically generate a Castalia network model

starting from a UPPAAL abstract model. Then, we

have designed an application-level ﬂooding protocol

through UPPAAL and we have produced the related

network model using our tool. After that, we have

executed simulations of such a ﬂooding protocol both

on attack free and attack scenarios. Finally, simula-

tion results have been used both to validate the ini-

tial model and to analyze the battery consumption of

nodes running the ﬂooding protocol both in attack

free and attack scenarios.

In our future work, we will analyze several at-

tack scenarios and, for each of them, we will show

how the insights provided by the network simulator

can be effectively used for selecting effective coun-

termeasures and, consequently, for reﬁning the initial

abstract model.

Analysis of Security Attacks in Wireless Sensor Networks: From UPPAAL to Castalia

823

ACKNOWLEDGEMENTS

This research was partially supported by the Italian

Ministry of Education and Research (MIUR) in the

framework of the CrossLab project (Departments of

Excellence), and by the PRA 2018 81 project entitled

“Wearable sensor systems: personalized analysis and

data security in healthcare” funded by the University

of Pisa.

REFERENCES

A. Boulis, D. P. (2013). Castalia - A simula-

tor for Wireless Sensor Networks and Body

Area Networks, version 3.3, User’s Manual.

https://github.com/boulis/Castalia/blob/master/

Castalia.

Alur, R. and Dill, D. L. (1994). A theory of timed automata.

Theoretical Computer Science, 126(2):183–235.

Behrmann, G., David, A., and Larsen, K. G.

(2006). A Tutorial on UPPAAL 4.0.

http://www.it.uu.se/research/group/darts/papers/texts/

new-tutorial.pdf.

Bernardeschi, C., Domenici, A., and Masci, P. (2018). A

pvs-simulink integrated environment for model-based

analysis of cyber-physical systems. IEEE Trans. Soft-

ware Eng., 44(6):512–533.

Bernardeschi, C., Masci, P., and Pfeifer, H. (2008). Early

prototyping of wireless sensor network algorithms in

PVS. In Computer Safety, Reliability, and Security,

27th International Conference, SAFECOMP 2008,

Newcastle upon Tyne, UK, September 22-25, 2008,

Proceedings, pages 346–359.

Bernardeschi, C., Masci, P., and Pfeifer, H. (2009). Anal-

ysis of wireless sensor network protocols in dynamic

scenarios. In Stabilization, Safety, and Security of Dis-

tributed Systems, 11th International Symposium, SSS

2009, Lyon, France, November 3-6, 2009. Proceed-

ings, pages 105–119.

Bolton, C. and Lowe, G. (2004). Analyses of the re-

verse path forwarding routing algorithm. In Intl. Conf.

on Dependable Systems and Networks Proceedings,

pages 485–494. IEEE Computer Society.

Cardenas, A. A., Roosta, T., and Sastry, S. (2009). Re-

thinking security properties, threat models, and the de-

sign space in sensor networks: A case study in scada

systems. Ad Hoc Networks, 7(8):1434 – 1447. Pri-

vacy and Security in Wireless Sensor and Ad Hoc Net-

works.

Eugene Y. Vasserman, N. H. (2013). Vampire attacks:

Draining life from wireless ad hoc sensor networks.

IEEE Transactions on Mobile Computing, 12(2):318

– 332.

J. Buck, S. Ha, E. A. L. and Messerschmitt, D. G. (1994).

Ptolemy: a framework for simulating and prototyp-

ing heterogeneous systems. Int. Journal of Computer

Simulation, 4:155–182.

K. Bhargavan, C. Gunter, I. L. O. S. M. K. D. O. and

Viswanathan, M. (2002). Verisim: Formal analysis

of network simulations. IEEE Trans. Software Engi-

neering, 28(2):129–145.

Lazarescu, M. T. and Lavagno, L. (2017). Wireless Sen-

sor Networks, pages 1–42. Springer Netherlands, Dor-

drecht.

Nair, S. and Cardell-Oliver, R. (2004). Formal speciﬁca-

tion and analysis of performance variation in sensor

network diffusion protocols. In Symp. on Modeling,

Analysis and Simulation of Wireless and Mobile Sys-

tems Proceedings, pages 170–173. ACM.

Palmieri, M., Bernardeschi, C., and Masci, P. (2019).

A framework for fmi-based co-simulation of hu-

man–machine interfaces. Softw Syst Model.

Tom Henderson, George Riley, S. F. and Sumit Roy, e. a.

(2019). The NS Manual.

Varga, A. (2014). OMNeT++. https://doc.omnetpp.org/

omnetpp4/manual.

W. Heinzelman, J. K. and Balakrishnan, H. (1999). Adap-

tive protocols for information dissemination in wire-

less sensor networks. In Proc. Intl. Conf. on Mobile

Computing and Networking, pages 174–185. ACM.

ForSE 2020 - 4th International Workshop on FORmal methods for Security Engineering

824
